Mitsubishi Heavy Industries SRK19CSS-S3 User manual

Thank you for purchasing a MITSUBISHI HEAVY INDUSTRIES THERMAL SYSTEMS, LTD. Air-Conditioner.
To get the best long-lasting performance, read and follow this User’s Manual carefully before using your air-conditioner.
After reading, please store the Manual in a safe place and refer to it for operational questions or in the event of any irregularities.
This air-conditioner is intended for domestic use.
* Characteristics of the Air-conditioner may vary on some models.
This Air-conditioner for use R410A only
SRK19CSS-S3
SRK25CSS-S3
AIR-CONDITIONER
USER’S MANUAL
&
INSTALLATION MANUAL
ORIGINAL INSTRUCTIONS
USER’S MANUAL
INSTALLATION MANUAL
MITSUBISHI HEAVY INDUSTRIES THERMAL SYSTEMS, LTD.
2-3, Marunouchi 3-chome, Chiyoda-ku, Tokyo, 100-8332, Japan
http://www.mhi-mth.co.jp/en/
MITSUBISHI HEAVY INDUSTRIES - MAHAJAK AIR CONDITIONERS CO., LTD.
220 Lad Krabang Industrial Estate Free Zone 3, Soi Chalongkrung 31, Kwang Lamplatiew,
Khet Lad Krabang, Bangkok 10520, Thailand
Tel : [phone]
Fax: [phone]
http://www.maco.co.th/
RMA012A105G D
202004
RMA012A105G_D_Cover.indd 1RMA012A105G_D_Cover.indd 1 03/04/2020 09:10:2203/04/2020 09:10:22

– 1 –
USER’S MANUAL
USER’S MANUAL
contents
Safety precautions.........................................................................................................................2
Choice of operations and features.................................................................................................4
Name of each part and its function ...............................................................................................5
Operation and indication section for remote control ....................................................................8
AUTO mode operation procedure.................................................................................................9
Temperature adjustment during AUTO.........................................................................................9
About FAN SPEED.......................................................................................................................9
COOL/DRY/FAN mode operation procedure.............................................................................10
Air-conditioner operating conditions..........................................................................................10
Air flow direction adjustment procedure ....................................................................................11
3D AUTO operation procedure...................................................................................................11
SLEEP operation procedure........................................................................................................12
OFF-TIMER operation procedure ..............................................................................................12
ON-TIMER operation procedure................................................................................................13
SLEEP operation + ON-TIMER operation procedure................................................................13
PROGRAM TIMER operation procedure .................................................................................14
Present time setting procedure....................................................................................................14
HIGH POWER/ECONOMY operation procedure .....................................................................15
Concerning CLEAN operation ...................................................................................................16
Emergency run operation ............................................................................................................16
Power blackout auto restart function ..........................................................................................16
Installation location setting.........................................................................................................17
Remote control handling procedure............................................................................................18
When the operation fails with the remote control.......................................................................18
Operating hints............................................................................................................................19
Maintenance................................................................................................................................19
Has the unit been installed correctly? .........................................................................................21
Troubleshooting ..........................................................................................................................21
Please remember!........................................................................................................................22
When to contact your distributor without delay..........................................................................23
Self diagnosis function................................................................................................................23
RMA012A105G_J-L_RevC_EN.indb 1RMA012A105G_J-L_RevC_EN.indb 1 12/6/2018 11:48:20 AM12/6/2018 11:48:20 AM

– 2 –
Safety precautions
Before starting to use the system, please read these “Safety precautions” carefully.
When you have read this instruction manual, please keep it without missing.
Symbols which appear frequently in the text have the following meaning:
Strictly prohibited Observe instructions with
great care Provide positive earthing
WARNING Improper handling could lead to drastic result
like death, serious injury, etc. CAUTION Might pose a serious problem, depending on the circumstances.
Please observe these precautions with great care, since they are essential to your safety.
❚INSTALLATION PRECAUTIONS
WARNING
The system is for domestic, residential etc. use.
If used in severer environments, such as an engineering workplace, the equipment may function poorly.
The system must be installed by your dealer or a qualified professional.
It is not advisable to install the system by yourself, as faulty handling may cause leakage of water, electric shock or fire.
CAUTION
Do not install it where flammable gas may leak.
Gas leaks may cause fire.
Depending on the place of installation, an earth leakage breaker may be necessary.
If you do not install an earth leakage breaker, you may get an electric shock.
Make sure to install the drain hose properly so that all the water is drained out.
Improper installation may lead to water drop in the room resulting in wet furniture.
Make sure that the system has been properly earthed.
Earth cables should never be connected to a gas pipe, water pipe, lightning conductor or telephone earth cable. Incorrect installation of the
earth cable may produce an electric shock.
❚PRECAUTIONS FOR RELOCATION OR REPAIRS
WARNING
Do not perform any repairs or modifications by yourself. Consult the dealer if the unit requires
repair.
If you repair or modify the unit, it can cause water leaks, electric shocks or fire.
Consult your dealer for repairs.
Wrong repairs could cause an electric shock, fire, etc.
In case the air-conditioner is relocated elsewhere, contact your dealer or a professional fitter.
Faulty installation may cause water leakage, electric shock, fire, etc.
If you notice anything abnormal (smell of burning, etc.), stop the system, turn off the power source
and consult your dealer.
Continued use of the system in abnormal circumstances may result in malfunctioning, electric shock, fire, etc.
If the air-conditioner fails to cool or warm the room, it may have a refrigerant leakage. Contact
your dealer.
If refrigerant needs to be added, check with your dealer for proper instructions.
If the refrigerant comes in contact with the bare skin, it may cause cold injury.
If the refrigerant gas is inhaled excessively, it may cause deterioration of nerve function like dizziness and headache, or deterioration of heart
function like irregular heartbeat and heart palpitation temporarily. If refrigerant unexpectedly leaks from the unit onto a fan heater, stove,
hotplate or other heat source, harmful gases could be generated.
RMA012A105G_J-L_RevC_EN.indb 2RMA012A105G_J-L_RevC_EN.indb 2 12/6/2018 11:48:20 AM12/6/2018 11:48:20 AM

– 3 –
❚OPERATION PRECAUTIONS
WARNING
Do not expose yourself to the cooling air for a long period.
This could affect your physical condition and cause health problems.
Do not insert anything into the air inlet.
This may cause injury, as the internal fan rotates at high speed.
The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure that they do not play with the appliance.
Store the remote control out of reach of infants.
Failure to observe this may result in the batteries being swallowed or other accidents.
CAUTION
Only use approved fuses.
Use of steel or copper wire instead of an approved fuse is strictly prohibited, as it may cause a breakdown or fire.
Do not handle the switches with wet hands.
This may cause an electric shock.
Do not swing from the indoor unit.
If the indoor unit falls down,you may get injured.
Do not place a flammable insecticide or paint spray near the blower, nor spray it directly on the
system.
This may result in a fire.
You should not expose any combustion appliance directly to the air stream of the air-conditioner.
The appliance may then work inadequately.
Do not wash the air-conditioner with water.
This could cause an electric shock.
The system should only be used for its original purpose and not for anything else like, for
instance, preservation of food, plants or animals, precision devices or works of art.
The system is only intended for use in ordinary domestic rooms. Any other use of the system may damage the quality of food, etc.
Do not place anything containing water, like vases, on top of the unit.
Water entering the unit could damage the insulation and therefore cause an electric shock.
Do not install the system where the airflow direction is aimed directly at plants or animals.
This will damage their health.
Do not sit on the outdoor unit nor put anything on it.
If the unit falls down or things drop off it, people could get hurt.
After a long period of use, check the unit’s support structure from time to time.
If you do not repair any damage right away, the unit may fall down and cause personal injury.
Do not touch the aluminum fins on the air heat exchanger.
It may result in injury.
Do not place household electrical appliances or household items under neath the indoor or
outdoor units.
Condensation falling from the unit may stain objects and cause accidents or electrical shock.
Do not operate the system without the air filter.
It can cause malfunction of the system due to clogging of the heat exchanger.
Do not shut off the power source immediately after stopping the operation.
Wait at least 5 minutes, otherwise there is a risk of water leakage or breakdown.
Do not control the system with main power switch.
It can cause fire or water leakage. In addition, the fan can start unexpectedly, which can cause personal injury.
If you operate the system together with a combustion appliance, you must regularly ventilate the indoor air.
Insufficient ventilation may cause accidents due to oxygen deficiency.
Stand firmly on a stepladder or other stable object when removing the inlet panel and filters.
Failure to observe this may result in injury through insecure objects toppling over.
When you clean the system, stop the unit and turn off the power source.
Never open the panel while the internal fan is rotating.
Do not place objects near the outdoor unit or allow leaves to gather around the unit.
If there are objects or leaves around the outdoor unit, small animals may enter unit and contact electrical parts and may cause a break-down,
smoke or fire.
Contact your dealer to clean inside the indoor unit, do not attempt to do by yourself.
The use of a non-approved detergent or improper washing method may damage the unit’s plastic components and cause leaks. Damage,
smoke, or fire may also happen if the detergent comes in contact with electrical parts or the unit’s motor.
Stop the unit and turn off the power if you hear thunder or there is a danger of lightning.
It may damage the unit.
RMA012A105G_J-L_RevC_EN.indb 3RMA012A105G_J-L_RevC_EN.indb 3 12/6/2018 11:48:20 AM12/6/2018 11:48:20 AM

– 4 –
Choice of operations
Features
Page 10
Drying by extracting damp from the room.
Page 10
Cooling by extracting heat from the room.
COOL DRY
Functioning of microcomputer depends on setting and room tem-
peratures. It dehumidifies while keeping room temperature almost
constant.
Page 9
Automatic selection of operating mode.
Page 10
Fanning by circulating room air.
The Auto mode automatically
selects the operation mode
(COOL or DRY), depending
on the room temperature when
switched on.
AUTOFAN
Page 11
Page 12, 13
There are three timers, for SLEEP, ON and
OFF. They can be set as desired.
Page 14
When using the timer to switch on, the
system should become operational shortly
before the set time, depending on the room
temperature so that the desired temperature
should be reached at the set time.
Amenity facility TIMER procedure
•MULTI-DIRECTIONAL AIR FLOW
This function sets the unit at the most suitable angle
for blowing, imitating a natural breeze.
•SWING FLAP
Flap moves up and down continuously.
•SWING LOUVER
Louver moves left and right continuously.
•MEMORY FLAP (FLAP OR LOUVER STOPPED)
Once the flap or louver position has been set, the unit
will memorise it and continue in the same position the
next time.
Adjustment of
airflow
Page 15
Turning up the power operates the air-condi-
tioner in the power cooling mode.
HIGH POWER mode
Page 15
This is an economic level of operation.
ECONOMY mode
Choice of operations and features
RMA012A105G_J-L_RevC_EN.indb 4RMA012A105G_J-L_RevC_EN.indb 4 12/6/2018 11:48:20 AM12/6/2018 11:48:20 AM

– 5 –
Removes dust or dirt from the inlet air.
Page 19
Drains water from the dehumidified air.
Page 11
Page 11
Air blows out of here.
Accessories
Wireless remote control
Battery (R03×2)
Wood screw (Quantity:2)
(for remote control holder mounting)
Wireless remote
control holder
OUTDOOR UNIT
Air inlet panel
Unit indication section and remote control signal receiver
Air-cleaning filter
Air filter
Wireless remote control
Drain hose
Left/right air flow adjustment louver
Up/down air flow direction adjustment flap
Air outlet
Unit operation switch
Room temperature detector
Refrigerant piping connection electric flex
Air outlet
Air inlet
(On side & rear surface)
Photocatalytic washable
deodorizing filter (Orange)
Natural enzyme filter
(Green)

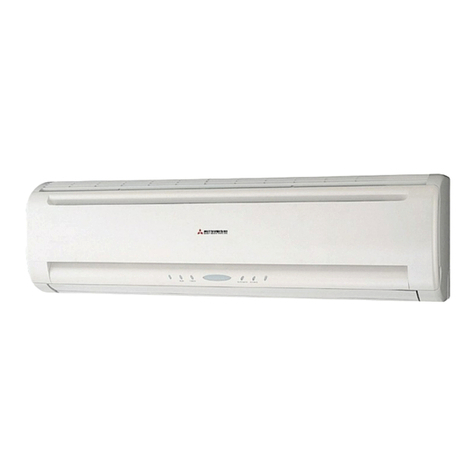

INDOOR UNIT
Name of each part and its function
RMA012A105G_J-L_RevC_EN.indb 5RMA012A105G_J-L_RevC_EN.indb 5 12/6/2018 11:48:20 AM12/6/2018 11:48:20 AM

– 6 –
Unit indication section
3D AUTO light (green)
Illuminates during 3D AUTO operation.
HI POWER light (green)
Illuminates during HIGH POWER operation.
TIMER light (yellow)
Illuminates during TIMER operation.
In emergencies, this button can be used for turning on/off the unit
when remote control is not available. Page 7
Remote control signal receiver
Unit ON/OFF button
RUN light (green)
•Illuminates during operation.
•
Blinks at the ‘CLEAN operation’.
Page 16
ON
OFF
1 sec.
CLEAN operation
3 sec.
RMA012A105G_J-L_RevC_EN.indb 6RMA012A105G_J-L_RevC_EN.indb 6 12/6/2018 11:48:20 AM12/6/2018 11:48:20 AM

– 7 –
How to open the air inlet panel
Push both sides evenly and press further lightly at the center.
Place fingers at the recesses on both sides of the panel and pull up the panel
to this side so that it will be opened by about 60 degrees.
Unit ON/OFF button
Secure either the upper or lower edge of the air inlet panel by lightly pushing it
in, and then close the panel.
When removing the air inlet panel for internal cleaning or others, open the
panel by 80 degrees and then pull it to this side.
In emergencies, this button can be used for turning on/off the unit when
remote control is not available. Page 16
Removal, installation of air inlet panel
Unit ON/OFF button
How to close the air inlet panel
RMA012A105G_J-L_RevC_EN.indb 7RMA012A105G_J-L_RevC_EN.indb 7 12/6/2018 11:48:20 AM12/6/2018 11:48:20 AM

– 8 –
Operation section
FAN SPEED button
Each time the button is pushed, the
indicator is switched over in turn.
•The above illustration shows all controls, but in practice
only the relevant parts are shown.
OPERATION MODE select button
Each time the button pushed, the
indicator is switched over in turn.
ON/OFF (luminous) button
Press for starting operation, press again
for stopping.
HI POWER/ECONO button
This button changes the HIGH POWER/
ECONOMY mode.
Page 15 AIR FLOW (UP/DOWN) button
This button changes the air flow (up/down) mode.
This button changes the air flow (left/right) mode.
Page 11
SLEEP button
This button changes to SLEEP operation.
Page 12
CLEAN switch
This switch changes the CLEAN mode.
Page 16
ON TIMER button
This button selects ON TIMER operation.
Page 13
AIR FLOW (LEFT/RIGHT) button
Page 11
3D AUTO button
This button sets 3D AUTO operation.
This button cancels the ON timer, OFF
timer, and SLEEP operation.
CANCEL button
RESET switch
Switch for resetting microcomputer and
setting time. Page 14, 18
Indication section
SLEEP indicator
Indicates during SLEEP operation.
TEMPERATURE indicator
Indicates set temperature.
(Does not indicate temperature when operation
mode is on AUTO)
FAN SPEED indicator
Indicates set air flow rate with lamp.
CLEAN indicator
Indicates during CLEAN operation.
ON/OFF TIMER indicator
Indicates during ON/OFF TIMER operation.
AIR FLOW indicator
Shows selected flap and louver mode.
3D AUTO indicator
Indicates during 3D AUTO operation.
HI POWER/ECONO MODE indicator
Indicates during HIGH POWER/ECONOMY
mode operation.
Transmission procedure
When each button on the remote control is pressed with the remote control pointing towards the air-conditioner unit a signal is transmitted.
When the air-conditioner receives the signal correctly, it will beep.
[
OPERATION MODE indicator
Indicates selected operation with lamp.
(Auto) • (Cool) • (Fan) • (Dry)]
OFF TIMER button
This button selects OFF TIMER operation.
Page 12
TEMPERATURE button
This button sets the room temperature.
(This button changes the present time and
TIMER time.)
TIME indicator
Indicates present time or timer setting time.
Page 11
Operation and indication section for remote control
RMA012A105G_J-L_RevC_EN.indb 8RMA012A105G_J-L_RevC_EN.indb 8 12/6/2018 11:48:20 AM12/6/2018 11:48:20 AM

– 9 –
■Each time the button is pressed, the switch over occurs in the following order
–6 →–5 →............ –1 →±0 →+1 ............ +6.
When +6 is indicated, even if the button is pressed, the indicator does not change.
■Each time the button is pressed, the switch over occurs in the following order
+6 →+5 →............ +1 →±0 →–1 ............ –6.
When –6 is indicated, even if the button is pressed, the indicator does not change.
About FAN SPEED
■You can choose the capacity of your air-conditioner when cooling or fan.
Temperature adjustment during AUTO
■ Air temperature adjustment is possible even during automatic operation. There are 6 levels of adjustment possible with the button or the button.
AUTO mode operation procedure
■Automatically selects the operation mode (COOL, DRY) depending on the room temperature when switched on.
Air flow direction adjustment
procedure. Page 11
1
When a change in temperature is desired.
Press the or button.
•Air is not blown out during the opera-
tion.
Page 22
•If you don’t want the AUTO mode program, change to
COOL, DRY or FAN instead of AUTO.
Page 10
AUTO mode can be operated
by simply pressing the ON/
OFF button.
To stop: Press the ON/OFF button.
When the unit is not in AUTO mode:
Press MODE button.
Move the [ mark] to the (Auto) position.
Aim the remote control at the air-conditioner.
Press the ON/OFF button.
1
2
When it is a little cold
Press the button.
When it is a little hot
Press the button.
Press the FAN SPEED button.
Move the [ mark] to the desirable fan speed position.
AUTO HI MED LO
NOTE
Operation capacity by your choice FAN SPEED
Set automatically by microcomputer AUTO
Powerful operation with high capacity HI
Standard operation MED
Energy-saving operation LO
RMA012A105G_J-L_RevC_EN.indb 9RMA012A105G_J-L_RevC_EN.indb 9 12/6/2018 11:48:20 AM12/6/2018 11:48:20 AM

– 10 –
COOL/DRY/FAN mode operation procedure
Air flow direction adjustment procedure. Page 11
Program changing procedure
Set the new program.
•The operation program can also be set or changed when
the air-conditioner is not in operation.
Aim the remote control at the air-conditioner.
Press the MODE select button.
Move the [ mark] to the desirable operation position.
(Cool), (Fan), (Dry)
Press the ON/OFF button.
Press the TEMP button.
Press or button for the desired temperature.
Standard
4
3
To stop: Press the ON/OFF button.
•Air is not blown out during the operation.
Page 22
NOTE
2
1
Air-conditioner operating conditions
■Use within the following operational range. Operating outside of this range may result in the protection devices being activated, preventing the
unit from working.
Cooling operation
Outside temperature Approximately 21 to 43 °C
Inside temperature Approximately 21 to 32 °C
Below approximately 80%
The long-term use of the unit with a humidity level exceeding 80% may result in condensation forming on the
surface of the indoor unit, leading to water drips.
Press the FAN SPEED button
Set the fan speed as desired.
Inside humidity
COOL
FAN
DRY
26°C~28°C——21°C~24°C
RMA012A105G_J-L_RevC_EN.indb 10RMA012A105G_J-L_RevC_EN.indb 10 12/6/2018 11:48:21 AM12/6/2018 11:48:21 AM

– 11 –
2Press the 3D AUTO button.
Each time the 3D AUTO button is pressed, the indicator is switched
in the order of:
No indication
Fan speed and air flow direction are automatically controlled, allowing the entire room to be efficiently conditioned.
(3D AUTO) (Normal operation)
•3D AUTO operation is cancelled when you switch the operation program.
•The 3D AUTO light illuminates during 3D AUTO operation.
NOTE
Press the ON/OFF button.
1
Releasing procedure
Press the 3D AUTO button to turn off the 3D AUTO indicator.
Air flow direction adjustment procedure
Adjusting air flow direction
■Up/down direction can be adjusted with the AIRFLOW (UP/DOWN) button on the remote control. Each time when you press this button
the mode changes as follows:
Change to AIRFLOW(UP/DOWN) mode.
(Swing)
(Flap stopped)
■Left/right direction can be adjusted with the AIRFLOW (LEFT/RIGHT) button on the remote control. Each time when you press this
button the mode changes as follows:
Change to AIRFLOW(LEFT/RIGHT) mode.
(Louver stopped)
(Swing)
MEMORY FLAP (FLAP OR LOUVER STOPPED)
When you press the AIRFLOW (UP/DOWN or LEFT/RIGHT) button once while the flap or louver is
operating, it stops swinging at an angle.Since this angle is memorized in the microcomputer, the flap
or louver will automatically be set at this angle when the next operation is started.
WARNING
•Avoid constant airflow to the body for hours on end.
CAUTION
•When in COOL or DRY operation, do not operate for hours on end with the air
flow blowing straight down. Otherwise, condensation may appear on the outlet
grill and drip down.
•Do not try to adjust the flaps and louvers by hand, as the control angle may
change or the flap or louver may not close properly.
(Horizontal
blowing)
COOL, DRY
•Recommended angle of the flap when stopping
3D AUTO operation procedure
RMA012A105G_J-L_RevC_EN.indb 11RMA012A105G_J-L_RevC_EN.indb 11 12/6/2018 11:48:21 AM12/6/2018 11:48:21 AM

– 12 –
No indication
(cancelled)
... (Units of one hour)
■If this is pressed while the unit is off
SLEEP operation starts with the previous operation settings, and the air conditioning is
turned off after the time that has been set passes.
■If this is pressed while the unit is running
Each time the button is pressed, the indication changes as follows:
Example: You wish it to stop after 7 hours.
Set to
The timer light (yellow) is on.
Ø
•The unit stops at the end of the set period of time.
OFF-TIMER operation procedure
2
Example: You wish it to stop 22:30.
Press the ON/OFF button.
Press the OFF TIMER button.
OFF TIMER indicator is blinking.
Press the “ or ” button.
Each time the button is pressed, the indicator is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Each time the button is pressed, the indicator is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 22:30.
3
■ The unit stops automatically at the end of the set period of time. If it is stopped, perform the operations starting with STEP 1 and if running start with STEP 2.
Changing of set time
Set to a new time by using SLEEP button.
SLEEP operation procedure
■The unit stops automatically at the end of the set period of time.
The room temperature is automatically controlled when the set time lapses, so that the room does not become too cold during cooling.
Page 14
Press the SLEEP button.
Releasing procedure
Press the CANCEL button to turn off the SLEEP indicator.
1
1
1
4
Changing of set time
Set a new time by using the OFF TIMER button. Press the OFF TIMER button.
The indication changes from blinking to steady lighting and the setting is com-
plete.
The timer light (yellow) is on.
Ø
•The unit stops at the end of the set period of time.
Releasing procedure
Press the CANCEL button to turn off the timer indi-
cator.
Press within
60 sec.!
RMA012A105G_J-L_RevC_EN.indb 12RMA012A105G_J-L_RevC_EN.indb 12 12/6/2018 11:48:21 AM12/6/2018 11:48:21 AM

– 13 –
ON-TIMER operation procedure
1
2
Changing of set time
Set a new time by using the ON-TIMER button.
Example: In the case you wish to bring the temperature to nearly set temperature in at 8:00.
Press the ON-TIMER button.
ON TIMER indicator is blinking.
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
3
■ Operation starts 5 to 60 minutes before the time that is set so that the room temperature reaches the optimum temperature at that time. Page 14
ON-TIMER operation can be set regardless of whether the air-conditioner is running or not.
SLEEP operation + ON-TIMER operation procedure
■Combined timer operation of SLEEP operation and ON TIMER. 1-time event setting.
Example: When it is desired to stop after 3 hours and then start operation at 8:00, near
the set temperature.
■SLEEP operation setting
Set by the procedures on page 12.
Set to
■ON TIMER operation setting
Set by the above mentioned ON TIMER operation procedure.
Set to
The setting of the lighting of the timer light (yellow) of this unit is complete.
Ø
•After the SLEEP operation set time has elapsed, the operation stops, and it
starts from 5 to 60 minutes before the ON TIMER’s time.
•The timer light is not lit at the ON TIMER’s time.
Changing of set time
Set a new time by using the SLEEP or ON TIMER
button.
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
Press the “ or ” button.
Each time the button is pressed, the indicator is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Each time the button is pressed, the indicator is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 8:00.
Press the ON TIMER button.
The indication changes from blinking to steady lighting and the setting is complete.
The timer light (yellow) is on.
Ø
•Operation starts 5 to 60 minutes before the set time.
•The TIMER light goes out at the set time.
Press within
60 sec.!
RMA012A105G_J-L_RevC_EN.indb 13RMA012A105G_J-L_RevC_EN.indb 13 12/6/2018 11:48:21 AM12/6/2018 11:48:21 AM

– 14 –
PROGRAM TIMER operation procedure
■The timer operations that consist of the combination of the timer being set at both on and off. Once this has been set and operations started, operations
will commence and end at the same time every day as long as the ON/OFF button is not pressed.
Example: When it is desired to stop at 22:30, and then start operation at 8:00, near the set
temperature.
■OFF TIMER operation setting
Set by the procedures on page 12. Set to
■ON TIMER operation setting
Set by the procedures on page 13. Set to
The setting of the lighting of the timer light (yellow) of this unit is complete.
The time will be displayed on the remote control unit. The display will change
depending on the operational status.
(Stopped) (Operating)
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
2
Present time setting procedure
■When inserting the batteries, the present time is automatically set to time setting mode.
Example: Set to 10:30.
Press the ACL switch.
Press with the tip of a ballpoint pen, etc.
The time indicator blinks and can be set to the current time.
Press the “ or ” button.
(Set to 10:30)
Press the ON/OFF button.
The indication changes from blinking to steady lighting and the setting is complete.
1
3
Changing of set time
Set a new time by using the OFF TIMER or ON TIMER button.
About Amenity facilities
Amenity facilities enable to start the operation a little earlier, so that the room
should approach optimum temperature at ON time when the operation is started
by ON-TIMER.
•Mechanism
The room temperature is checked
60 minutes before the timer is
at ON. Depending on the tem-
perature at that time, the operation
starts 5 to 60 minutes before the
timer is at ON.
•The Amenity facility only func-
tions for COOL operation mode
(including AUTO). It does not
work for DRY mode.
About SLEEP operation
When SLEEP operation is selected, the room temperature is automatically
controlled after a while, ensuring that the room is not too cold during cooling
or too warm during heating.
•During COOL : the preset temperature is lowered by 1°C at the start of
SLEEP operation (when the timer is set). After that, the temperature goes up
by 1°C every an hour to become 2°C higher.
•The timer operation is set on the basis of the present time, so please set it correctly.
•The remote control data is reset when the present time is set.
NOTE
Press within
60 sec.!
In COOL operation
(Stop) Operation starts
Set time
(Operation)
▼
Set temperature
Check the room
temp. 60 mins.
in advance.
▼
RMA012A105G_J-L_RevC_EN.indb 14RMA012A105G_J-L_RevC_EN.indb 14 12/6/2018 11:48:22 AM12/6/2018 11:48:22 AM

– 15 –
HIGH POWER/ECONOMY operation procedure
2
If the air-conditioner is not operating, aim the remote control at the air-conditioner.
Press the ON/OFF button.
Press the HI POWER/ECONO button.
•When the operating mode is AUTO or COOL
Each time the HI POWER/ECONO button is pressed, the indicator is switched
in the order of:
•When the operating mode is DRY or PROGRAM TIMER
Each time the HI POWER/ECONO button is pressed, the indicator is switched
in the order of:
1
( HIGH POWER )( ECONOMY ) (Normal operation)
(
ECONOMY ) (Normal operation)
Concerning HIGH POWER operation
Pressing the HI POWER/ECONO button intensifies the operating power and initiates powerful cooling operation for 15 minutes continuously.
The remote control indicates but the FAN SPEED indication is erased.
•During the HIGH POWER operation, the room temperature is
not controlled. When it causes an excessive cooling, press the HI
POWER/ECONO button once more to cancel the HIGH POWER
operation.
•HIGH POWER operation is not available during the DRY, the
program timer operations and 3D AUTO operation.
•During ON timer operation, HIGH POWER operation will start
when the ON time is reached.
•When the following operations are conducted HIGH POWER opera-
tion will be canceled.
1When the HI POWER/ECONO button is pressed again.
2When the operation mode is changed.
3When it has been 15 min. since HIGH POWER operation
has started.
4When the 3D AUTO button is pressed.
Concerning ECONOMY operation
Pressing the HI POWER/ECONO button initiates a soft operation with the power suppressed in order to avoid an excessive cooling. The unit
operates 1.5°C higher than the setting temperature for weak wind capacity during cooling. The remote control indicates but the FAN SPEED
indication is eraseed.
NOTE
•It will go into ECONOMY operation the next time the air-condi-
tioner runs in the following instances.
1
When the air-conditioner is stopped using the ON/OFF
button.
2 When the air-conditioner is stopped in SLEEP or OFF
TIMER operation.
3When CLEAN operation ends.
•When the following operations are conducted ECONOMY operation
will be canceled.
1When the HI POWER/ECONO button is pressed again.
NOTE
RMA012A105G_J-L_RevC_EN.indb 15RMA012A105G_J-L_RevC_EN.indb 15 12/6/2018 11:48:22 AM12/6/2018 11:48:22 AM

– 16 –
Concerning CLEAN operation
1Press the CLEAN switch with the tip of a ballpoint pen.
Each time the CLEAN switch is pressed, the indicator is
switched in the order of:
No indication
■CLEAN operation should be run after AUTO, COOL and DRY operation to remove the moisture from inside the indoor unit and control the growth
of mold and bacteria.
(CLEAN on) (CLEAN off)
To stop: Press the ON/OFF button.
•CLEAN operation is impossible after Fan, OFF-TIMER and SLEEP have
stopped.
•The indoor unit fan runs for about two hours in CLEAN operation.
•The RUN light illuminates during CLEAN operation.
Emergency run operation
•The unit ON/OFF button on the unit operates ON/OFF temporarily when the remote control is not used.
Operation program
•OPERATION MODE : AUTO
•FAN SPEED : AUTO
•AIR FLOW : AUTO
•Operation starts by pressing the unit ON/OFF button; it stops if you press the button again.
Power blackout auto restart function
■What is power blackout auto restart function?
•Power blackout auto restart function is a function that records the operational status of the air-conditioner immediately prior to it being switched off
by a power cut, and then automatically resumes operations at that point after the power has been restored.
•The following settings will be cancelled:
1Timer settings
2HIGH POWER operations
•The power blackout auto restart function is set at on when the air-conditioner is shipped from the factory. Consult with your dealer if this func-
tion needs to be switched off.
•When power failure ocurrs, the timer setting is cancelled. Once power is resumed, reset the timer.
NOTE
NOTE
Unit ON/OFF button
RMA012A105G_J-L_RevC_EN.indb 16RMA012A105G_J-L_RevC_EN.indb 16 12/6/2018 11:48:22 AM12/6/2018 11:48:22 AM

– 17 –
3Setting the air-conditioning installation location.
Each time the AIR FLOW (LEFT/RIGHT) button is pressed, the
indicator is switched in the order of:
Press the AIR FLOW (LEFT/RIGHT) button and adjust to the
desired location.
Take the air conditioning unit’s location into account and adjust the left/right airflow range to maximize air-conditioning.
(Center Installation) (Right End Installation) (Left End Installation)
2Press the AIR FLOW (UP/DOWN) button and the
AIRFLOW (LEFT/RIGHT) button together for 5 seconds
or more.
The installation location display illuminates.
1If the air conditioning unit is running, press the ON/OFF
button to stop.
The installation location setting cannot be made while the unit is running.
4Press the ON/OFF button.
The air-conditioner's installation location is set.
Press within 60 seconds of setting the installation location (while the
installation location setting display illuminates).
Press within
60 sec.!
Air conditioner installation location and airflow range
The diagram below indicates the airflow ranges corresponding to the air-conditioner's installation location. Consider your room's layout and
set the airflow range to maximize conditioning effectiveness.
Airflow range Airflow range Airflow range
(Left End Installation) (Center Installation) (Right End Installation)
General Information
• mark will be displayed on the display panel while the air conditioner is in operation, regardless of the installation location of the unit.
• When installation location of the air conditioner had been set once, installation location will be memorized into the unit even if
unplugging the power cord. Please set it with a remote control again in case of changing the installation location of the unit.
• The installation location setting can not be performed while the unit is in operation.
Installation location setting
RMA012A105G_J-L_RevC_EN.indb 17RMA012A105G_J-L_RevC_EN.indb 17 12/6/2018 11:48:22 AM12/6/2018 11:48:22 AM

– 18 –
Remote control handling procedure
Replacing the batteries
The following cases signify exhausted batteries. Replace old batteries with new ones.
•Receiving beep is not emitted when a signal is transmitted.
•Indicator fades away.
•On the battery is printed its expected life. This may be shorter
than that of the air-conditioner, depending on the date of manu-
facture.
•However, the battery may still be in working order after expiry
of its nominal life.
NOTE
•Don't use old and new batteries together.
•Remove the batteries when the remote control is not used for a
long period.
•The life of a battery conforming to JIS or IEC should be 6 to 12
months with normal use. If used longer, or when an unspecified
battery is used, liquid may leak from the battery, causing the
remote control to malfunction.
Remove back lid and take out
old batteries.
Insert new batteries.
R03(AAA, Micro)x2
Close back lid.
When the indicator shows any abnormal condition, Press the reset
switch with the tip of a ballpoint pen.
1
2
3
Attention to
the ,and .
marks
Press the reset switch with the
tip of a ballpoint pen.
The time setting mode is indicated.
Page 14
4
•Don’t drop the remote control.
Handle with care.
•Don’t go near high temperature
places, such as an electric carpet
or stove.
•Do not place heavy objects on the
remote control, or step on it.
Warning note for remote control handling
•Don’t put any obstructing obsta-
cles between the remote control
and the unit.
•Don’t spill water etc on the remote
control.
•Don’t leave the remote control
exposed to direct sunlight or other
strong lighting.
When the operation fails with the remote control
Using the remote control holder
The remote control can be attached to a
wall or pillar by using a remote control
holder. Before installing the remote
control, check that the air-conditioner
receives the signals properly.
For installing or removing the remote
control, move it up or down in the
holder.
•Are the batteries running down?
“Replacing the batteries” above.
Replace the batteries with new ones and repeat the operation.
•If the operation still fails, handle as per emergency
run operation.
Contact your dealer.
Page 16
RMA012A105G_J-L_RevC_EN.indb 18RMA012A105G_J-L_RevC_EN.indb 18 12/6/2018 11:48:22 AM12/6/2018 11:48:22 AM

– 19 –
Reinstall the air filter
•Holding firmly the filter at both sides as shown at
right and insert securely.
•Operating without putting back the air filters will
make the unit dusty, and may cause damage.
Operating hints
■Please observe the following for the most economic and comfortable use of your unit.
Set a suitable room temperature.
Excessively low temperatures are not good
for your health and waste electricity.
Avoid direct sunlight and draught.
Cut out direct sunlight by drawing the cur-
tains or blinds when cooling. Keep windows
and doors shut, except when ventilating.
Operate the unit only when needed.
Use the timer properly to operate the unit
only when needed.
Clean the filters frequently.
Clogged filters may block the air flow and
cause less efficient operation.
Adjust the airflow direction properly.
Adjust the up/down and left/right airflow to
ensure a steady room temperature.
Generate little heat when cooling.
Keep heat sources out of the room as much
as possible.
suitable
temperature
Turn off the power switch.
Remove the air filter
1Pull up to this side the air inlet
panel.
2
Lightly hold the knobs at both sides
and lift a little to remove the panel to
this side.
Maintenance
Cleaning the air filter Standard interval is once every two week
Don’t use the following articles:
•Hot water (40°C or more)
It may deform or discolour the unit.
•Petrol, paint thinner, benzine or polishing agents,
etc.
They may deform or scratch the unit.
Don’t spill water.
•Do not touch the aluminum fins on the heat
exchanger.
•
Stand firmly on a stepladder or other stable
object when removing the inlet panel and filter.
Cleaning
If the filter is very dirty, clean it with warm wa-
ter (approx. 30°C), and dry it thoroughly.
CAUTION
•Don’t clean the filters with boiling water.
•Don’t dry them over an open flame.
•Pull them out gently.
Cleaning the unit
•Wipe the unit with a soft, dry cloth, or use a vacuum cleaner.
•If the unit is very dirty, wipe it with a cloth soaked in warm water.
1
2
Before maintenance During the operational season
Cleaning the air inlet panel
•Removal, installation of air inlet panel . Page 7
•The panel can be washed with water. After washing with
water, wipe any moisture off the panel and dry out of
direct sunlight.
Wipe the unit with a soft,
dry cloth.
There’s a danger
of electric shock.
3
RMA012A105G_J-L_RevC_EN.indb 19RMA012A105G_J-L_RevC_EN.indb 19 12/6/2018 11:48:22 AM12/6/2018 11:48:22 AM
