Mitsubishi Heavy Industries SRK10CRS-S3 User manual

SRK10CRS-S3
SRK13CRS-S3
USER’S MANUAL
&
INSTALLATION MANUAL
AIR-CONDITIONER
Thank you for purchasing a MITSUBISHI HEAVY INDUSTRIESTHERMAL SYSTEMS, LTD.Air Conditioner.
To get the best long-lasting performance, read and follow this User’s Manual carefully before using your air-conditioner.
After reading, please store the Manual in a safe place and refer to it for operational questions or in the event
of any irregularities.
This air-conditioner is intended for domestic use.
This Air conditioner for use R410A only
Terima kasih Anda telah membeli MITSUBISHI HEAVY INDUSTRIES THERMAL SYSTEMS, LTD.
Air Conditioner.
Untuk mendapatkan kinerja unit yang terbaik dan tahan lama, silakan Anda membaca dan mengikuti Buku
Pedoman Pengguna ini secara seksama sebelum menggunakan air-conditioner ini.
Selesai membaca, simpan kembali Buku Pedoman ini di tempat yang aman dan jadikan buku ini sebagai
bahan acuan jika ada yang belum jelas mengenai pengoperasian unit atau jika ada kelainan pada unit.
Air-conditioner ini hanya diperuntukkan di dalam ruangan.
Penyaman udara ini menggunakan R410A sahaja
RMA012A088A
I.15.GBT2.03502.0815
I.15.GBT2.05305.1115
BUKU PEDOMAN
PANDUAN PEMASANGAN
USER’S MANUAL
INSTALLATION MANUAL
ORIGINAL INSTRUCTIONS
ORIGINAL INSTRUCTIONS
B
MITSUBISHI HEAVY INDUSTRIESTHERMAL SYSTEMS, LTD.
16-5 Konan 2-chome, Minato-ku, Tokyo, 108-8215, Japan
http://www.mhi-mth.co.jp/en/
MITSUBISHI HEAVY INDUSTRIES - MAHAJAK AIR CONDITIONERS CO., LTD.
220 Lad Krabang Industrial Estate Free Zone 3, Soi Chalongkrung 31, Kwang Lamplatiew,
Khet Lad Krabang, Bangkok 10520, Thailand
Tel : [phone]
Fax: [phone]
http://www.maco.co.th/
RMA012A088A_B_Cover.indd 1RMA012A088A_B_Cover.indd 1 12/7/2018 1:59:04 PM12/7/2018 1:59:04 PM

–1–
USER’S MANUAL
contents
Safety precautions.........................................................................................................................2
Choice of operations and features.................................................................................................6
Name of each part and its function...............................................................................................7
Operation and indication section for remote control....................................................................9
AUTO mode operation procedure...............................................................................................10
Temperature adjustment during AUTO.......................................................................................10
About FAN SPEED.....................................................................................................................10
COOL/DRY/FAN mode operation procedure.............................................................................11
Air-conditioner operating conditions..........................................................................................11
Air flow direction adjustment procedure....................................................................................12
3DAUTO operation procedure...................................................................................................12
SLEEP operation procedure........................................................................................................13
OFF-TIMER operation procedure..............................................................................................13
ON-TIMER operation procedure................................................................................................14
SLEEP operation + ON-TIMER operation procedure................................................................14
PROGRAM TIMER operation procedure .................................................................................15
Present time setting procedure....................................................................................................15
HIGH POWER/ECONOMY operation procedure.....................................................................16
Concerning CLEAN operation ...................................................................................................17
Emergency run operation............................................................................................................17
Power blackout auto restart function ..........................................................................................17
Installation location setting.........................................................................................................18

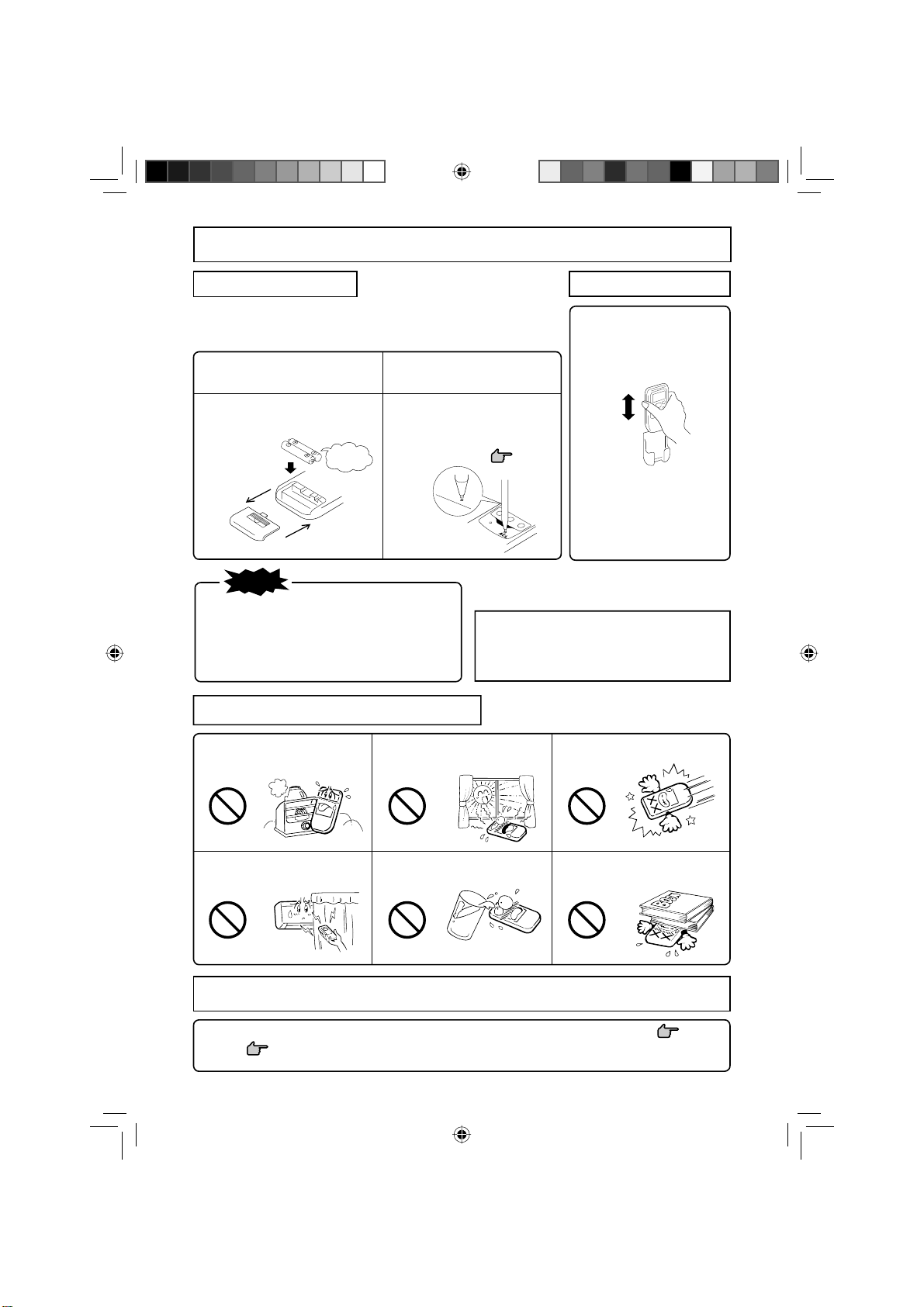

Remote control handling procedure............................................................................................19
When the operation fails with the remote control.......................................................................19
Operating hints............................................................................................................................20
Maintenance................................................................................................................................20
Has the unit been installed correctly?.........................................................................................22
Troubleshooting..........................................................................................................................22
Please remember!........................................................................................................................23
When to contact your distributor without delay..........................................................................24
Self diagnosis function................................................................................................................24
USER’S MANUAL
RMA012A088A_089A_RevB_EN.indb 1RMA012A088A_089A_RevB_EN.indb 1 11/19/2018 4:04:59 PM11/19/2018 4:04:59 PM

–2–
Safety precautions
Before starting to use the system, please read these “Safety precautions” carefully to ensure •
proper operation of the system.
When you have read this instruction manual, please keep it without missing. If someone else
•
takes over as operator, make sure that the manual is also passed on to the new operator.
WARNING
Improper handling could lead to drastic result like death, serious
injury, etc.
CAUTION
Might pose a serious problem, depending on the circumstances.
Please observe these precautions with great care, since they are essential to your safety.
Symbols which appear frequently in the text have the following meaning:
•
Strictly prohibited Observe instructions
with great care Provide proper earthing
INSTALLATION PRECAUTIONS❚
WARNING
The system is for domestic, residential etc. use. •
If used in severe environments, such as an engineering workplace, the equipment may
function poorly.
The system must be installed by your dealer or a qualified professional. •
It is not advisable to install the system by yourself, as faulty handling may cause
leakage of water, electric shock or fire.
CAUTION
Do not install it where flammable gas may leak. •
Gas leaks may cause fire.
Depending on the place of installation, •
an earth leakage breaker may be
necessary.
If you do not install an earth leakage
breaker, you may get an electric shock.
Make sure to install the drain hose
•
properly so that all the water is drained
out.
Improper installation may lead to water
drop in the room resulting in wet furniture.
Make sure that the system has been properly earthed. •
Earth cables should never be connected to a gas pipe, water pipe, lightning conductor
or telephone earth cable.Incorrect installation of the earth cable may produce an
electric shock.
RMA012A088A_089A_RevB_EN.indb 2RMA012A088A_089A_RevB_EN.indb 2 11/19/2018 4:05:00 PM11/19/2018 4:05:00 PM

–3–
OPERATION PRECAUTIONS❚
WARNING
Children shall not play with the •
appliance.
Do not expose yourself to the cooling
•
air for a long period.
This could affect your physical condition
and cause health problems.
Cleaning and user maintenance shall
•
not be made by children without
supervision.
Do not insert anything into the air inlet.
•
This may cause injury, as the internal fan
rotates at high speed.
This appliance can be used by children aged from 8 years and above and •
people with reduced physical, sensory or mental capabilities or lack of
experience and knowledge, if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
Store the remote control out of reach of infants.
•
Failure to observe this may result in the batteries being swallowed or other accidents.
CAUTION
Only use approved fuses. •
Use of steel or copper wire instead of an
approved fuse is strictly prohibited, as it
may cause a breakdown or fire.
Do not handle the switches with wet •
hands.
This may cause an electric shock.
Do not swing from the indoor unit.
•
If the indoor unit falls down, you may get
injured.
Do not place a flammable insecticide •
or paint spray near the blower, nor
spray it directly on the system.
This may result in a fire.
You should not expose any
•
combustion appliance directly to the
air stream of the air-conditioner.
The appliance may then work
inadequately.
Do not wash the air-conditioner with
•
water.
This could cause an electric shock.
Using a high pressure washer may cause
damage to the aluminum fins, resulting in
performance decrement.
The system should only be used for its
•
original purpose and not for anything
else like, for instance, preservation
of food, plants or animals, precision
devices or works of art.
The system is only intended for use in
ordinary domestic rooms. Any other use
of the system may damage the quality of
food, etc.
Do not place anything containing
•
water, like vases, on top of the unit.
Water entering the unit could damage the
insulation and therefore cause an electric
shock.
Do not install the system where the
•
airflow direction is aimed directly at
plants or animals.
This will damage their health.
Do not sit on the outdoor unit nor put
•
anything on it.
If the unit falls down or things drop off it,
people could get hurt.
After a long period of use, check the
•
unit’s support structure from time to
time.
If you do not repair any damage right
away, the unit may fall down and cause
personal injury.
Safety precautions❚Safety precautions❚
RMA012A088A_089A_RevB_EN.indb 3RMA012A088A_089A_RevB_EN.indb 3 11/19/2018 4:05:00 PM11/19/2018 4:05:00 PM

–4–
CAUTION
Do not touch the aluminum fins on the •
air heat exchanger.
It may result in injury.
Do not place household electrical
•
appliances or household items
underneath the indoor or outdoor
units.
Condensation falling from the unit may
stain objects and cause accidents or
electrical shock.
Do not operate the system without the
•
air filter.
It can cause malfunction of the system
due to clogging of the heat exchanger.
Do not shut off the power supply
•
immediately after stopping the
operation.
Wait at least 5 minutes, otherwise there is
a risk of water leakage or breakdown.
Do not control the system with main
•
power switch.
It can cause fire or water leakage. In
addition, the fan can start unexpectedly,
which can cause personal injury.
Do not pour liquid into this unit and do
•
not put water container on this unit.
Water entering the unit could damage the
insulation and therefore cause an electric
shock.
If you operate the system together •
with a combustion appliance, you
must regularly ventilate the indoor air.
Insufficient ventilation may cause
accidents due to oxygen deficiency.
Stand firmly on a stepladder or other
•
stable object when removing the inlet
panel and filters.
Failure to observe this may result in
injury through insecure objects toppling
over.
When you clean the system, stop the
•
unit and turn off the power supply.
Never open the panel while the internal
fan is rotating.
Do not place objects near the outdoor
•
unit or allow leaves to gather around
the unit.
If there are objects or leaves around the
outdoor unit, small animals may enter
unit and contact electrical parts and may
cause a break-down, smoke or fire.
Contact your dealer to clean inside the
•
indoor unit, do not attempt to do by
yourself.
The use of a non-approved detergent or
improper washing method may damage
the unit’s plastic components and cause
leaks.Damage, smoke, or fire may also
happen if the detergent comes in contact
with electrical parts or the unit’s motor.
Stop the unit and turn off the power if
•
you hear thunder or there is a danger
of lightning.
It may damage the unit.
Do not let the foreign matters enter the
•
indoor unit through the air outlets.
This may cause the dumper inoperable.
If the power cord becomes damaged,
•
contact your dealer or a qualified
engineer.
If it is not replaced, it may cause a
breakdown or fire.
Safety precautions❚
RMA012A088A_089A_RevB_EN.indb 4RMA012A088A_089A_RevB_EN.indb 4 11/19/2018 4:05:00 PM11/19/2018 4:05:00 PM

–5–
PRECAUTIONS FOR RELOCATION OR REPAIRS❚
WARNING
Do not perform any repairs or modifications by yourself. Consult the dealer if the •
unit requires repair.
If you repair or modify the unit, it can cause water leaks, electric shocks or fire.
Consult your dealer for repairs. •
Wrong repairs could cause an electric
shock, fire, etc.
In case the air-conditioner is
•
relocated elsewhere, contact your
dealer or a professional fitter.
Faulty installation may cause water
leakage, electric shock, fire, etc.
If you notice anything abnormal
•
(smell of burning, etc.), stop the
system, turn off the power supply and
consult your dealer.
Continued use of the system in
abnormal circumstances may result in
malfunctioning, electric shock, fire, etc.
If the air-conditioner fails to cool
•
or warm the room, it may have a
refrigerant leakage. Contact your
dealer.
If refrigerant needs to be added,
check with your dealer for proper
instructions.
If the refrigerant comes in contact with the
bare skin, it may cause cold injury.
If the refrigerant gas is inhaled
excessively, it may cause deterioration
of nerve function like dizziness and
headache, or deterioration of heart
function like irregular heartbeat and
heart palpitation temporarily. If refrigerant
unexpectedly leaks from the unit onto
a fan heater, stove, hotplate or other
heat source, harmful gases could be
generated.
Safety precautions❚
RMA012A088A_089A_RevB_EN.indb 5RMA012A088A_089A_RevB_EN.indb 5 11/19/2018 4:05:01 PM11/19/2018 4:05:01 PM

–6–
Choice of operations
Features
Page 11
Drying by extracting damp from the room.
Page 11
Cooling by extracting heat from the room.
COOL DRY
Functioning of microcomputer depends on setting and room tem-
peratures. It dehumidifies while keeping room temperature almost
constant.
Page 10
Automatic selection of operating mode.
Page 11
Fanning by circulating room air.
The Auto mode automatically
selects the operation mode
(COOL or DRY), depending
on the room temperature when
switched on.
AUTOFAN
Page 12
Page 13, 14
There are three timers, for SLEEP, ON and
OFF.They can be set as desired.
Page 15
When using the timer to switch on, the
system should become operational shortly
before the set time, depending on the room
temperature so that the desired temperature
should be reached at the set time.
Amenity facility TIMER procedure
•MULTI-DIRECTIONALAIR FLOW
This function sets the unit at the most suitable angle
for blowing, imitating a natural breeze.
•SWING FLAP
Flap moves up and down continuously.
•SWING LOUVER
Louver moves left and right continuously.
•MEMORY FLAP (FLAP OR LOUVER STOPPED)
Once the flap or louver position has been set, the unit
willmemorise itand continue inthesame positionthe
next time.
Adjustment of
airflow
Page 16
Turning up the power operates the air-condi-
tioner in the power cooling mode.
HIGH POWER mode
Page 16
This is an economic level of operation.
ECONOMY mode
Choice of operations and features
RMA012A088A_089A_RevB_EN.indb 6RMA012A088A_089A_RevB_EN.indb 6 11/19/2018 4:05:01 PM11/19/2018 4:05:01 PM

–7–
INDOOR UNIT Air inlet panel
Drain hose
Drains water from the dehumidified air.
Refrigerant piping connection electric flex
Left/right air flow adjustment louver
Up/down air flow direction adjustment flap
Room temperature detector
Removes dust or dirt from the inlet air.
Air-cleaning filter
Air filter
Unit operation switch
Air outlet
Air blows out of here.
Page 12
Name of each part and its function
Wireless remote control
Unit indication section and remote control signal receiver
Page 20
Page 12
OUTDOOR UNIT Accessories
Air inlet
(on side & rear surface)
Air outlet
Wireless remote control
Wireless remote
control holder
Battery × 2
(R03 (AAA, Micro))
Wood screw × 2
(for remote control holder mounting)
Natural enzyme filter
(Green) Photocatalytic washable
deodorizin
g
filter
(
Oran
g
e
)
RMA012A088A_089A_RevB_EN.indb 7RMA012A088A_089A_RevB_EN.indb 7 11/19/2018 4:05:01 PM11/19/2018 4:05:01 PM

–8–
3D AUTO light (green)
Illuminates during 3D AUTO operation.
HI POWER light (green)
Illuminates during HIGH POWER operation.
RUN light (green)
Illuminates during operation
and CLEAN operation.
TIMER light (yellow)
Illuminates during TIMER operation.
Page 17
RMA012A088A_089A_RevB_EN.indb 8RMA012A088A_089A_RevB_EN.indb 8 11/19/2018 4:05:02 PM11/19/2018 4:05:02 PM

–9–
Operation section
FAN SPEED button
Each time the button is pushed, the
indicator is switched over in turn.
•The above illustration shows all controls, but in practice
only the relevant parts are shown.
OPERATION MODE select button
Each time the button is pressed, the
indicator is switched over in turn.
ON/OFF (luminous) button
Press for starting operation, press again
for stopping.
HI POWER/ECONO button
This button changes the HIGH POWER/
ECONOMY mode.
Page 16 AIR FLOW (UP/DOWN) button
This button changes the air flow (up/down) mode.
This button changes the air flow (left/right) mode.
Page 12
SLEEP button
This button changes to SLEEP operation.
Page 13
CLEAN switch
This switch changes the CLEAN mode.
Page 17
ON TIMER button
This button selects ON TIMER operation.
Page 14
AIR FLOW (LEFT/RIGHT) button
Page 12
3D AUTO button
This button sets 3D AUTO operation.
This button cancels the ON timer, OFF
timer, and SLEEP operation.
CANCEL button
RESET switch
Switch for resetting microcomputer and
setting time. Page 15, 19
Indication section
SLEEP indicator
Indicates during SLEEP operation.
TEMPERATURE indicator
Indicates set temperature.
(Does not indicate temperature when operation
mode is on AUTO)
FAN SPEED indicator
Indicates set air flow rate with lamp.
CLEAN indicator
Indicates during CLEAN operation.
ON/OFF TIMER indicator
Indicates during ON/OFF TIMER operation.
AIR FLOW indicator
Shows selected flap and louver mode.
3D AUTO indicator
Indicates during 3D AUTO operation.
HI POWER/ECONO MODE indicator
Indicates during HIGH POWER/ECONOMY
mode operation.
Transmission procedure
When each button on the remote control is pressed with the remote control pointing towards the air-conditioner unit a signal is transmitted.
When the air-conditioner receives the signal correctly, it will beep.
[
OPERATION MODE indicator
Indicates selected operation with lamp.
(Auto) • (Cool) • (Fan) • (Dry)]
OFF TIMER button
This button selects OFF TIMER operation.
Page 13
TEMPERATURE button
This button sets the room temperature.
(This button changes the present time and
TIMER time.)
TIME indicator
Indicates present time or timer setting time.
Page 12
Operation and indication section for remote control
RMA012A088A_089A_RevB_EN.indb 9RMA012A088A_089A_RevB_EN.indb 9 11/19/2018 4:05:02 PM11/19/2018 4:05:02 PM

–10–
■Each time the button is pressed, the switch over occurs in the following order
–6 →–5 →............ –1 →±0 →+1 ............ +6.
When +6 is indicated, even if the button is pressed, the indicator does not change.
■Each time the button is pressed, the switch over occurs in the following order
+6 →+5 →............ +1 →±0 →–1 ............ –6.
When –6 is indicated, even if the button is pressed, the indicator does not change.
About FAN SPEED
■You can choose the capacity of your air-conditioner when cooling or fan.
Temperature adjustment during AUTO
■ Air temperature adjustment is possible even during automatic operation.There are 6 levels of adjustment possible with the button or the button.
AUTO mode operation procedure
■Automatically selects the operation mode (COOL, DRY) depending on the room temperature when switched on.
Air flow direction adjustment
procedure. Page 12
1
When a change in temperature is desired.
Press the or button.
•Air is not blown out during the opera-
tion. Page 23
•Ifyoudon’t want theAUTOmode program, change to
COOL, DRY or FAN instead of AUTO.
Page 11
AUTO mode can be operated
by simply pressing the ON/
OFF button.
To stop: Press the ON/OFF button.
When the unit is not inAUTO mode:
Press MODE button.
Move the [ mark] to the (Auto) position.
Aim the remote control at the air-conditioner.
Press the ON/OFF button.
1
2
When it is a little cold
Press the button.
When it is a little hot
Press the button.
Press the FAN SPEED button.
Move the [ mark] to the desirable fan speed position.
AUTO HI MED LO
NOTE
Operation capacity by your choice FAN SPEED
Set automatically by microcomputer AUTO
Powerful operation with high capacity HI
Standard operation MED
Energy-saving operation LO
RMA012A088A_089A_RevB_EN.indb 10RMA012A088A_089A_RevB_EN.indb 10 11/19/2018 4:05:02 PM11/19/2018 4:05:02 PM

–11–
COOL/DRY/FAN mode operation procedure
Air flow direction adjustment procedure. Page 12
Program changing procedure
Set the new program.
•The operation program can also be set or changed when
the air-conditioner is not in operation.
Aim the remote control at the air-conditioner.
Press the MODE select button.
Move the [ mark] to the desirable operation position.
(Cool), (Fan), (Dry)
Press the ON/OFF button.
Press theTEMP button.
Press or button for the desired temperature.
Recommendation
4
3
To stop: Press the ON/OFF button.
•Air is not blown out during the operation.
Page 23
NOTE
2
1
Air-conditioner operating conditions
■Use within the following operational range. Operating outside of this range may result in the protection devices being activated, preventing the
unit from working.
Cooling operation
Outside temperature Approximately 21 to 43 °C
Inside temperature Approximately 21 to 32 °C
Below approximately 80%
The long-term use of the unit with a humidity level exceeding 80% may result in condensation forming on the
surface of the indoor unit, leading to water drops.
Press the FAN SPEED button
Set the fan speed as desired.
Inside humidity
COOL
FAN
DRY
26°C~28°C——21°C~24°C
RMA012A088A_089A_RevB_EN.indb 11RMA012A088A_089A_RevB_EN.indb 11 11/19/2018 4:05:03 PM11/19/2018 4:05:03 PM

–12–
2
Press the 3D AUTO button.
Each time the 3D AUTO button is pressed, the indicator is switched
in the order of:
No indication
Fan speed and air flow direction are automatically controlled, allowing the entire room to be efficiently conditioned.
(3D AUTO) (Normal operation)
3D AUTO operation is canceled when you switch the operation program.
The 3D AUTO light illuminates during 3D AUTO operation.
NOTE
Press the ON/OFF button.
1
Releasing procedure
Press the 3D AUTO button to turn off the 3D AUTO indicator.

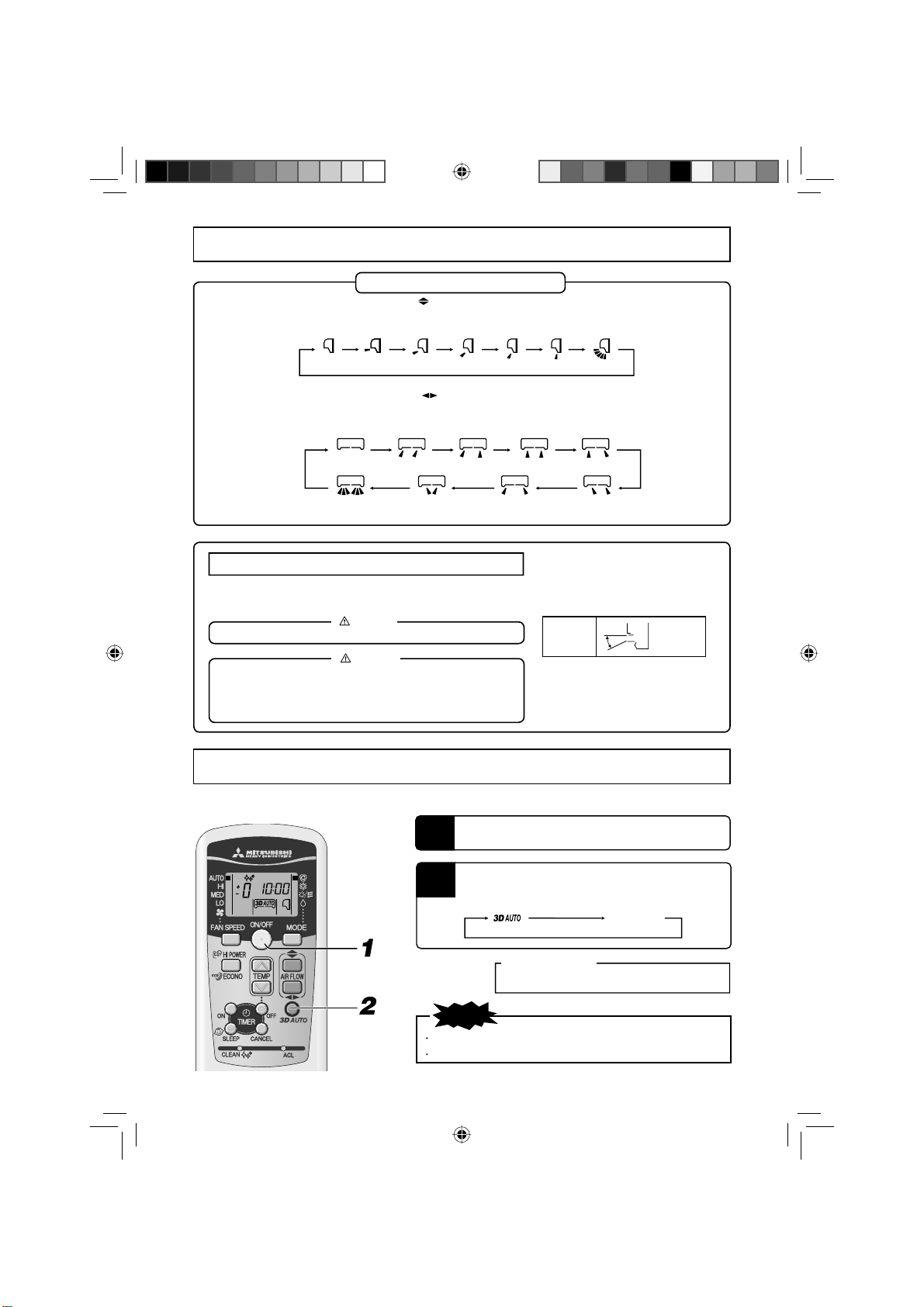

Air flow direction adjustment procedure
Adjusting air flow direction
■Up/down direction can be adjusted with theAIRFLOW (UP/DOWN) button on the remote control. Each time when you press this button
the mode changes as follows:
Change toAIRFLOW(UP/DOWN) mode.
(Swing)
(Flap stopped)
■Left/right direction can be adjusted with the AIRFLOW (LEFT/RIGHT) button on the remote control. Each time when you press this
button the mode changes as follows:
Change toAIRFLOW(LEFT/RIGHT) mode.
(Louver stopped)
(Swing)
MEMORY FLAP (FLAP OR LOUVER STOPPED)
WhenyoupresstheAIRFLOW(UP/DOWNorLEFT/RIGHT)buttononcewhiletheflaporlouveris
operating, it stops swinging at an angle.Since this angle is memorized in the microcomputer, the flap
or louver will automatically be set at this angle when the next operation is started.
WARNING
•Avoid constant airflow to the body for hours on end.
CAUTION
•When in COOL or DRY operation, do not operate for hours on end with the air
flow blowing straight down. Otherwise, condensation may appear on the outlet
grill and drip down.
•Do not try to adjust the flaps and louvers by hand, as the control angle may
change or the flap or louver may not close properly.
(Horizontal
blowing)
COOL, DRY
•Recommended angle of the flap when stopping
3D AUTO operation procedure
RMA012A088A_089A_RevB_EN.indb 12RMA012A088A_089A_RevB_EN.indb 12 11/19/2018 4:05:03 PM11/19/2018 4:05:03 PM

–13–
■If this is pressed while the unit is off
SLEEP operation starts with the previous operation settings, and the air conditioning is
turned off after the time that has been set passes.
■If this is pressed while the unit is running
Each time the button is pressed, the indication changes as follows:
Example:You wish it to stop after 7 hours.
Set to
The timer light (yellow) is on.
Ø
•The unit stops at the end of the set period of time.
OFF-TIMER operation procedure
2
Example:You wish it to stop 22:30.
Press the ON/OFF button.
Press the OFFTIMER button.
OFF TIMER indicator is blinking.
Press the“ or ” button.
Each time the button is pressed, the indicator is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Each time the button is pressed, the indicator is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 22:30.
3
■ The unit stops automatically at the end of the set period of time. If it is stopped, perform the operations starting with STEP 1 and if running start with STEP 2.
Changing of set time
Set to a new time by using SLEEP button.
SLEEP operation procedure
■The unit stops automatically at the end of the set period of time.
The room temperature is automatically controlled when the set time lapses, so that the room does not become too cold during cooling.
Page 15
Press the SLEEP button.
Releasing procedure
Press the CANCEL button to turn off the SLEEP indicator.
1
1
1
4
Changing of set time
Set a new time by using the OFF TIMER button. Press the OFFTIMER button.
The indication changes from blinking to steady lighting and the setting is com-
plete.
The timer light (yellow) is on.
Ø
•The unit stops at the end of the set period of time.
Releasing procedure
Press the CANCEL button to turn off the timer indi-
cator.
Press within
60 sec.!
No indication
(canceled)
... (Units of one hour)
RMA012A088A_089A_RevB_EN.indb 13RMA012A088A_089A_RevB_EN.indb 13 11/19/2018 4:05:04 PM11/19/2018 4:05:04 PM

–14–
ON-TIMER operation procedure
1
2
Changing of set time
Set a new time by using the ON-TIMER button.
Example: In the case you wish to bring the temperature to nearly set temperature in at 8:00.
Press the ON-TIMER button.
ON TIMER indicator is blinking.
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
3
■ Operation starts 5 to 60 minutes before the time that is set so that the room temperature reaches the optimum temperature at that time. Page 15
ON-TIMER operation can be set regardless of whether the air-conditioner is running or not.
SLEEP operation + ON-TIMER operation procedure
■Combined timer operation of SLEEP operation and ON TIMER. 1-time event setting.
Example: When it is desired to stop after 3 hours and then start operation at 8:00, near
the set temperature.
■SLEEP operation setting
Set by the procedures on page 13.
Set to
■ONTIMER operation setting
Set by the above mentioned ON TIMER operation procedure.
Set to
The setting of the lighting of the timer light (yellow) of this unit is complete.
Ø
•After the SLEEP operation set time has elapsed, the operation stops, and it
starts from 5 to 60 minutes before the ON TIMER’s time.
•The timer light is not lit at the ON TIMER’s time.
Changing of set time
Set a new time by using the SLEEP or ON TIMER
button.
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
Press the“ or ”button.
Each time the button is pressed, the indicator is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Each time the button is pressed, the indicator is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 8:00.
Press the ONTIMER button.
The indication changes from blinking to steady lighting and the setting is complete.
The timer light (yellow) is on.
Ø
•Operation starts 5 to 60 minutes before the set time.
•The TIMER light goes out at the set time.
Press within
60 sec.!
RMA012A088A_089A_RevB_EN.indb 14RMA012A088A_089A_RevB_EN.indb 14 11/19/2018 4:05:04 PM11/19/2018 4:05:04 PM

–15–

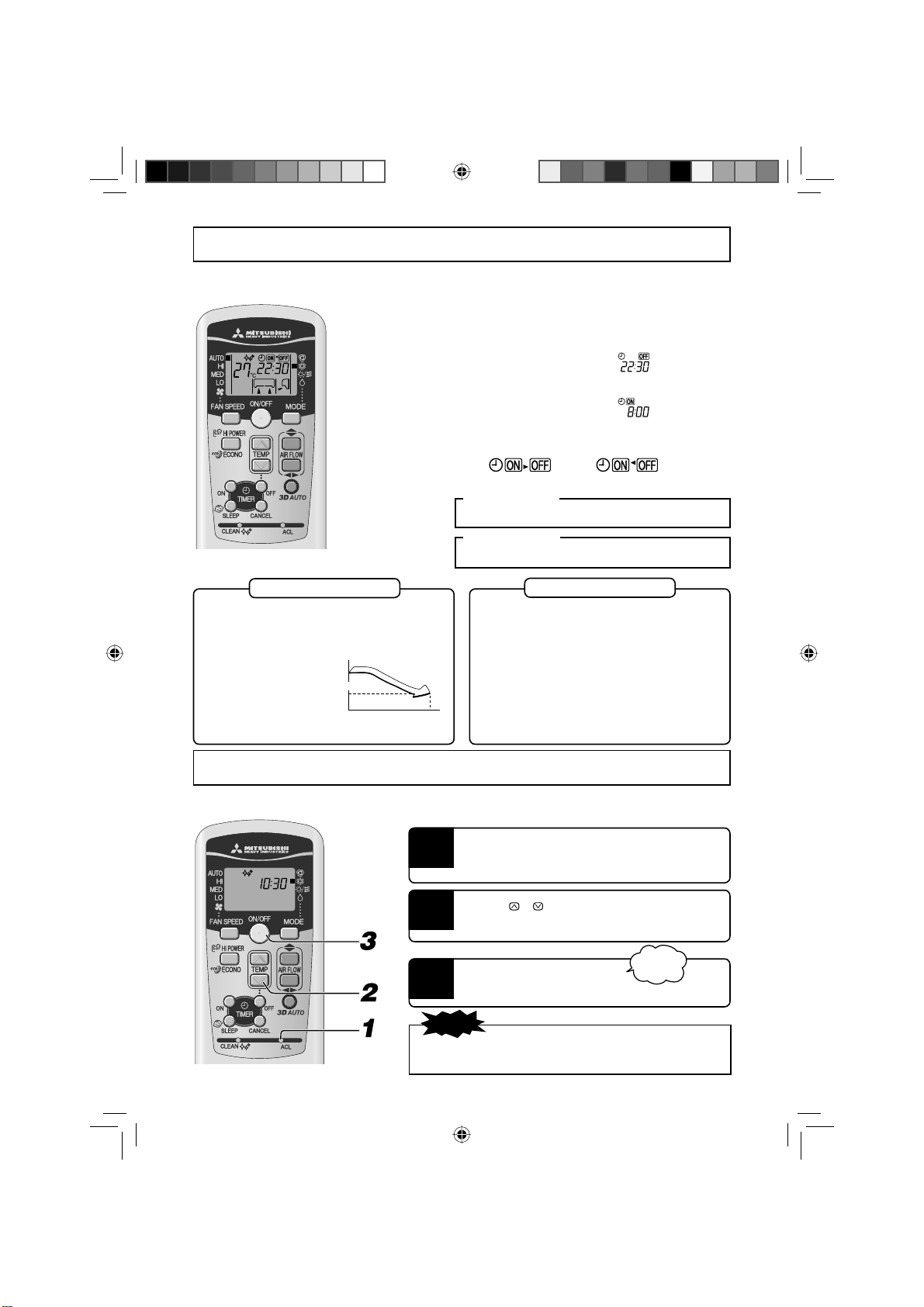

PROGRAMTIMER operation procedure
■The timer operations that consist of the combination of the timer being set at both on and off. Once this has been set and operations started, operations
will commence and end at the same time every day as long as the ON/OFF button is not pressed.
Example: When it is desired to stop at 22:30, and then start operation at 8:00, near the set
temperature.
■OFFTIMER operation setting
Set by the procedures on page 13. Set to
■ONTIMER operation setting
Set by the procedures on page 14. Set to
The setting of the lighting of the timer light (yellow) of this unit is complete.
The time will be displayed on the remote control unit. The display will change
depending on the operational status.
(Stopped) (Operating)
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
2
Present time setting procedure
■When inserting the batteries, the present time is automatically set to time setting mode.
Example: Set to 10:30.
Press the ACL switch.
Press with the tip of a ballpoint pen, etc.
The time indicator blinks and can be set to the current time.
Press the“ or ” button.
(Set to 10:30)
Press the ON/OFF button.
The indication changes from blinking to steady lighting and the setting is complete.
1
3
Changing of set time
Set a new time by using the OFF TIMER or ONTIMER button.
About Amenity facilities
Amenity facilities enable to start the operation a little earlier, so that the room
should approach optimum temperature at ON time when the operation is started
by ON-TIMER.
•Mechanism
The room temperature is checked
60 minutes before the timer is
at ON. Depending on the tem-
perature at that time, the operation
starts 5 to 60 minutes before the
timer is at ON.
•The Amenity facility only func-
tions for COOL operation mode
(including AUTO). It does not
work for DRY mode.
About SLEEP operation
When SLEEP operation is selected, the room temperature is automatically
controlled after a while, ensuring that the room is not too cold during cooling
or too warm during heating.
•During COOL : The preset temperature is lowered by 1°C at the start of
SLEEP operation (when the timer is set).After that, the temperature goes up
by 1°C every an hour to become 2°C higher.
•The timer operation is set on the basis of the present time, so please set it cor-
rectly.
•The remote control data is reset when the present time is set.
NOTE
Press within
60 sec.!
In COOL operation
(Stop) Operation starts
Set time
(Operation)
▼
Set temperature
Check the room
temp. 60 mins.
in advance.
▼
RMA012A088A_089A_RevB_EN.indb 15RMA012A088A_089A_RevB_EN.indb 15 11/19/2018 4:05:04 PM11/19/2018 4:05:04 PM

–16–

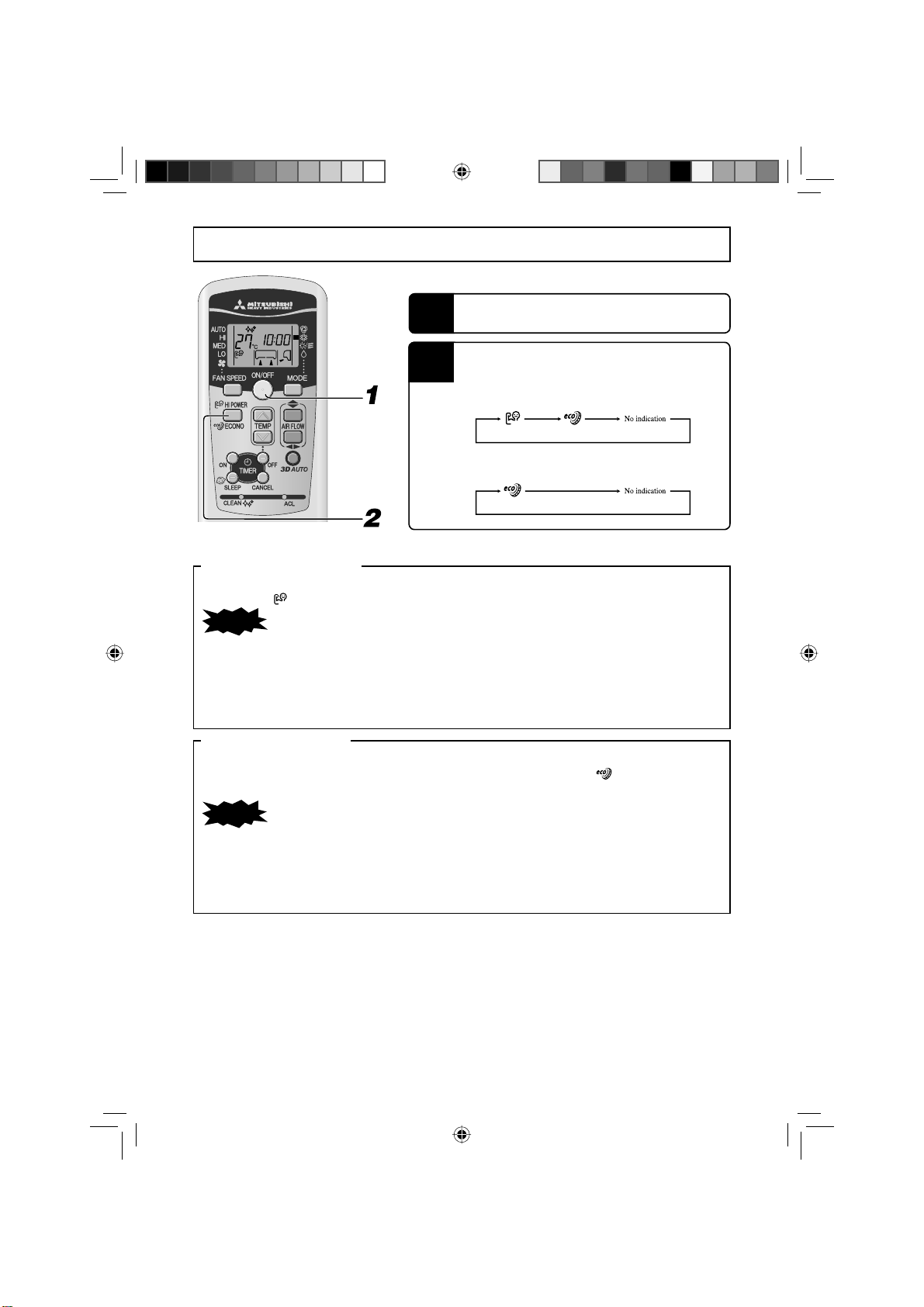

HIGH POWER/ECONOMY operation procedure
2
If the air-conditioner is not operating, aim the remote control at the air-conditioner.
Press the ON/OFF button.
Press the HI POWER/ECONO button.
•When the operating mode isAUTO or COOL
Each time the HI POWER/ECONO button is pressed, the indicator is switched
in the order of:
•When the operating mode is DRY or PROGRAMTIMER
Each time the HI POWER/ECONO button is pressed, the indicator is switched
in the order of:
1
( HIGH POWER )( ECONOMY ) (Normal operation)
(
ECONOMY ) (Normal operation)
Concerning HIGH POWER operation
Pressingthe HI POWER/ECONObuttonintensifies theoperating powerand initiates powerfulcooling operationfor 15 minutescontinuously.
The remote control indicates but the FAN SPEED indication is erased.
•During the HIGH POWER operation, the room temperature is
not controlled. When it causes an excessive cooling, press the HI
POWER/ECONO button once more to cancel the HIGH POWER
operation.
•HIGH POWER operation is not available during the DRY, the
program timer operations and 3DAUTO operation.
•During ON timer operation, HIGH POWER operation will start
when the ON time is reached.
•When the following operations are conducted HIGH POWER opera-
tion will be canceled.
1When the HI POWER/ECONO button is pressed again.
2When the operation mode is changed.
3When it has been 15 min. since HIGH POWER operation
has started.
4When the 3DAUTO button is pressed.
Concerning ECONOMY operation
Pressing the HI POWER/ECONO button initiates a soft operation with the power suppressed in order to avoid an excessive cooling. The unit
operates 1.5°C higher than the setting temperature for weak wind capacity during cooling. The remote control indicates but the FAN SPEED
indication is eraseed.
NOTE
•It will go into ECONOMY operation the next time the air-condi-
tioner runs in the following instances.
1
When the air-conditioner is stopped using the ON/OFF
button.
2 When the air-conditioner is stopped in SLEEP or OFF
TIMER operation.
3When CLEAN operation ends.
•When the following operations are conducted ECONOMY operation
will be canceled.
1When the HI POWER/ECONO button is pressed again.
NOTE
RMA012A088A_089A_RevB_EN.indb 16RMA012A088A_089A_RevB_EN.indb 16 11/19/2018 4:05:05 PM11/19/2018 4:05:05 PM

–17–

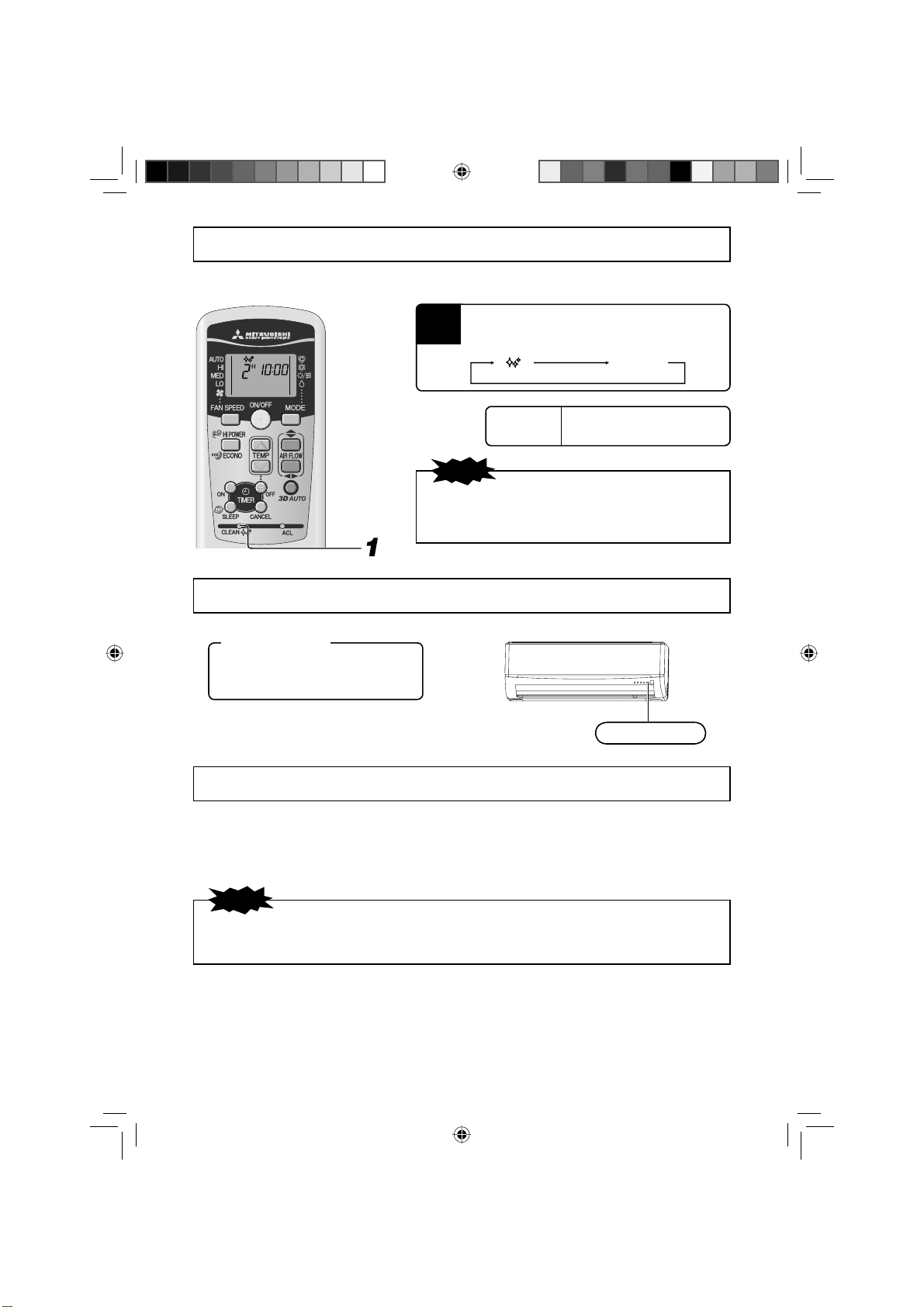

Concerning CLEAN operation
1Press the CLEAN switch with the tip of a ballpoint pen.
Each time the CLEAN switch is pressed, the indicator is
switched in the order of:
No indication
■CLEAN operation should be run afterAUTO, COOL and DRY operation to remove the moisture from inside the indoor unit and control the growth
of mold and bacteria.
(CLEAN on) (CLEAN off)
To stop: Press the ON/OFF button.
•CLEAN operation is impossible after Fan, OFF-TIMER and SLEEP have
stopped.
•The indoor unit fan runs for about two hours in CLEAN operation.
•The RUN light illuminates during CLEAN operation.
Emergency run operation
•The unit ON/OFF button on the unit operates ON/OFF temporarily when the remote control is not used.
Operation program
•OPERATION MODE : AUTO
•FAN SPEED : AUTO
•AIR FLOW : AUTO
•Operation starts by pressing the unit ON/OFF button;
it stops if you press the button again.
Power blackout auto restart function
■What is power blackout auto restart function?
•Power blackout auto restart function is a function that records the operational status of the air-conditioner immediately prior to it being switched off
by a power cut, and then automatically resumes operations at that point after the power has been restored.
•The following settings will be canceled:
1Timer settings
2HIGH POWER operations
•The power blackout auto restart function is set at on when the air-conditioner is shipped from the factory. Consult with your dealer if this func-
tion needs to be switched off.
•When power failure ocurrs, the timer setting is canceled. Once power is resumed, reset the timer.
NOTE
NOTE
Unit ON/OFF button
RMA012A088A_089A_RevB_EN.indb 17RMA012A088A_089A_RevB_EN.indb 17 11/19/2018 4:05:05 PM11/19/2018 4:05:05 PM

–18–
3Setting the air-conditioning installation location.
Each time the AIR FLOW (LEFT/RIGHT) button is pressed, the
indicator is switched in the order of:
Press the AIR FLOW (LEFT/RIGHT) button and adjust to the
desired location.
Take the air conditioning unit’s location into account and adjust the left/right airflow range to maximize air-conditioning.
(Center Installation) (Right End Installation) (Left End Installation)
2Press the AIR FLOW (UP/DOWN) button and the
AIRFLOW (LEFT/RIGHT) button together for 5 seconds
or more.
The installation location display illuminates.
1If the air conditioning unit is running, press the ON/OFF
button to stop.
The installation location setting cannot be made while the unit is running.
4Press the ON/OFF button.
The air-conditioner's installation location is set.
Press within 60 seconds of setting the installation location (while the
installation location setting display illuminates).
Press within
60 sec.!
Air conditioner installation location and airflow range
The diagram below indicates the airflow ranges corresponding to the air-conditioner's installation location. Consider your room's layout and
set the airflow range to maximize conditioning effectiveness.
Airflow range Airflow range Airflow range
(Left End Installation) (Center Installation) (Right End Installation)
General Information
• mark will be displayed on the display panel while the air conditioner is in operation, regardless of the installation location of the unit.
• When installation location of the air conditioner had been set once, installation location will be memorized into the unit even if
unplugging the power cord. Please set it with a remote control again in case of changing the installation location of the unit.
• The installation location setting can not be performed while the unit is in operation.
Installation location setting
RMA012A088A_089A_RevB_EN.indb 18RMA012A088A_089A_RevB_EN.indb 18 11/19/2018 4:05:05 PM11/19/2018 4:05:05 PM

–19–
Remote control handling procedure
Replacing the batteries
The following cases signify exhausted batteries. Replace old batteries with new ones.
•Receiving beep is not emitted when a signal is transmitted.
•Indicator fades away.
•On the battery is printed its expected life. This may be shorter
thanthat of the air-conditioner,dependingonthedate of manu-
facture.
•However, the battery may still be in working order after expiry
of its nominal life.
NOTE
•Don't use old and new batteries together.
•Remove the batteries when the remote control is not used for a
long period.
•The life of a battery conforming to JIS or IEC should be 6 to 12
months with normal use. If used longer, or when an unspecified
battery is used, liquid may leak from the battery, causing the
remote control to malfunction.
Remove back lid and take out
old batteries.
Insert new batteries.
R03(AAA, Micro)x2
Close back lid.
When the indicator shows any abnormal condition, Press the reset
switch with the tip of a ballpoint pen.
1
2
3
Attention to
the ,and .
marks
Press the reset switch with the
tip of a ballpoint pen.
The time setting mode is indicated.
Page 15
4
•Don’t drop the remote control.
Handle with care.
•Don’t go near high temperature
places, such as an electric carpet
or a stove.
•Do not place heavy objects on the
remote control, or step on it.
Warning note for remote control handling
•Don’t put any obstructing obsta-
cles between the remote control
and the unit.
•Don’t spill water etc on the remote
control.
•Don’t leave the remote control
exposed to direct sunlight or other
strong lighting.
When the operation fails with the remote control
Using the remote control holder
The remote control can be attached to a
wall or pillar by using a remote control
holder. Before installing the remote
control, check that the air-conditioner
receives the signals properly.
For installing or removing the remote
control, move it up or down in the
holder.
•Are the batteries running down?
“Replacing the batteries” above.
Replace the batteries with new ones and repeat the operation.
•If the operation still fails, handle as per emergency
run operation.
Contact your dealer.
Page 17
RMA012A088A_089A_RevB_EN.indb 19RMA012A088A_089A_RevB_EN.indb 19 11/19/2018 4:05:06 PM11/19/2018 4:05:06 PM
