Mitsubishi MOTORS CV-0MW7G21-9 User manual
SERVICE MANUAL
MITSUBISHI ELECTRIC CORP. SANDA WORKS
Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
SE029910093E Ver.ppt11E CV-0MW7G21-9,-91
● FEATURES and SPECIFICATIONS....................................2
● CONNECTORS ..................................................................3
● SYSTEM CONFIGURATION ..............................................4
● BLOCK DIAGRAM ..............................................................5
● DISASSEMBLING PROCEDURES ....................................6
● PARTS LIST........................................................................7
● ELECTRICAL PARTS LIST.......................................... 8~12

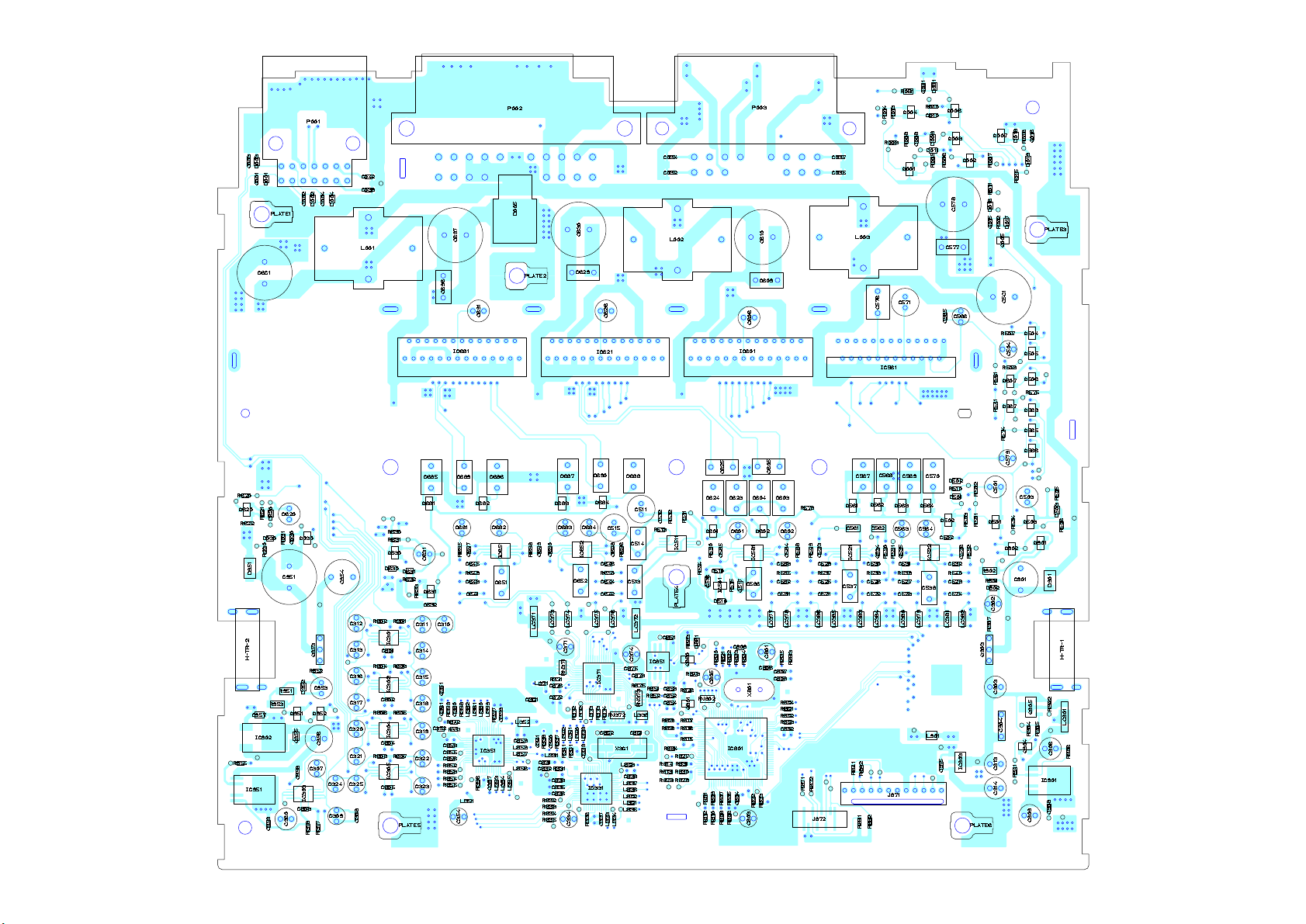

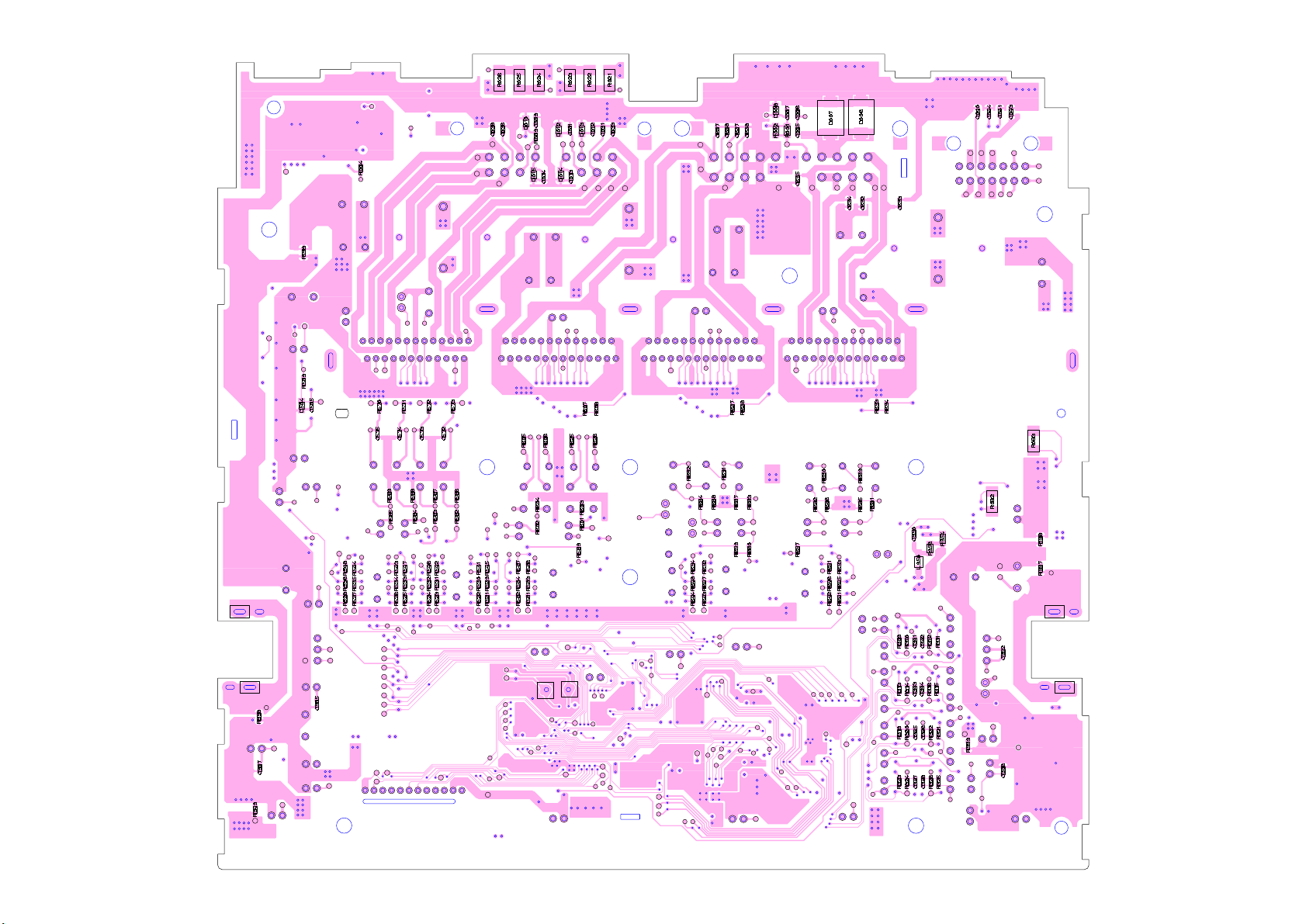

● PARTS LAYOUT ON PRINTED CIRCUIT BOARD ......13,14
● SCHEMATIC DIAGRAM
PCB-AMP.....................................................................15
● VOLTAGE ....................................................................16,17

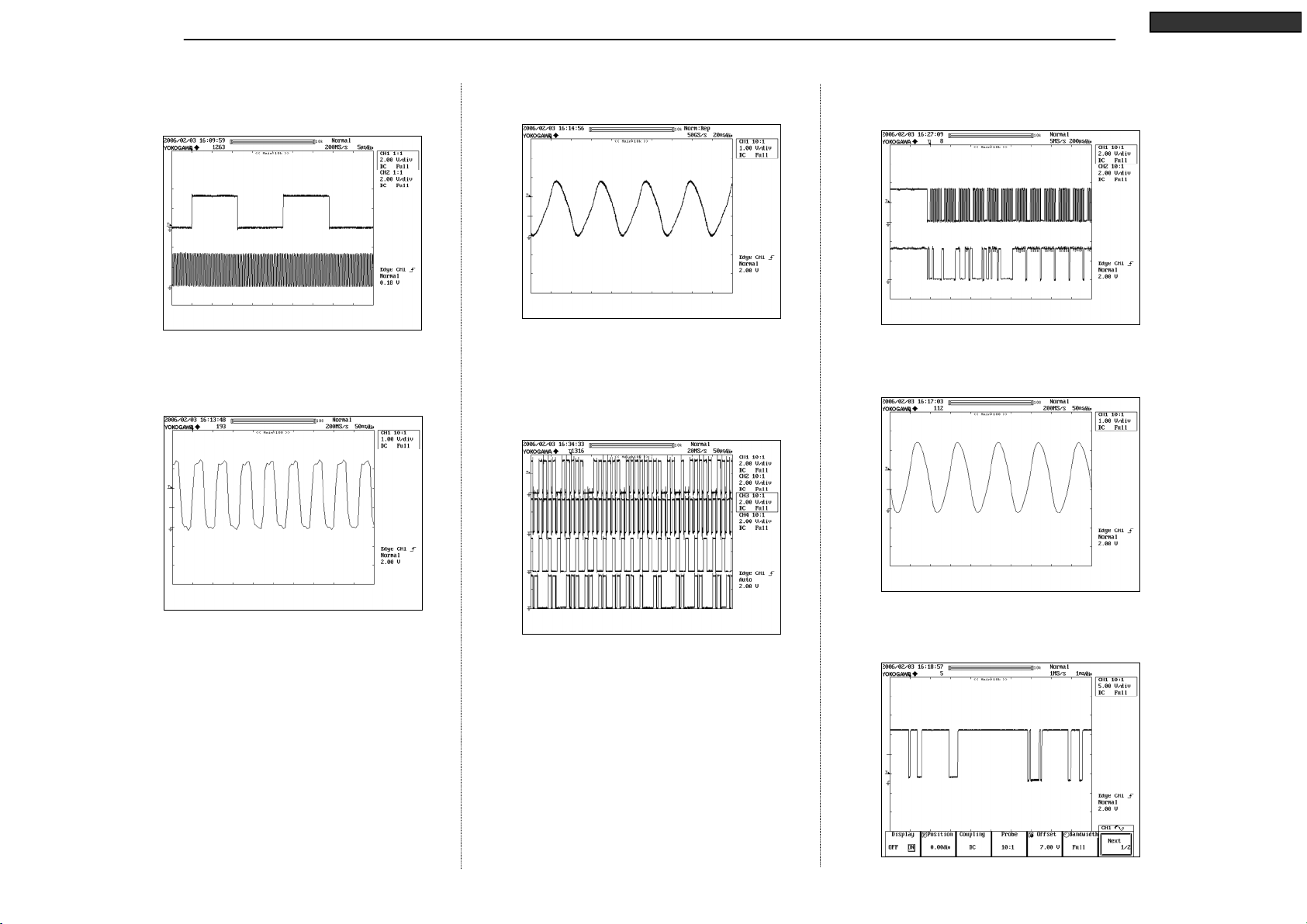

● WAVEFORM .....................................................................18
MITSUBISHI MOTORS
POWER AMPLIFIER
CONTENTS
2010 Oct.
Model : CV-0MW7G21-9 / CV-0MW7G21-91
MELCO Code : 34R038 / 34R039
PART No. : 8701A369 / 8701A382
2Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-9,-91
FEATURES and SPECIFICATIONS
FEATURES
< Power amplifier Part >
●High power 650W output power amplifier.
Woofer mono 150W x 2ch (1Ω) ....... Double voice coil Woofer drive
Front-Lo stereo 75W x 2ch (2Ω) ....... Front-Door Speaker drive
Front-M/H stereo 50W x 2ch (4Ω) ....... Front-Door Mirror Speaker drive
Rear stereo 50W x 2ch (2Ω) ....... Rear-Door Speaker drive
●Differential signal input circuit. (input Front 2ch of H/U)
●DSP circuit.
Auto-Loudness, Bass/Treble/Middle, Volume/Fader/Balance
Surround
Fix-EQ
Test tone
Input/Output limiter
Beep sound
Guide voice control
< Others >
●Diagnostic facility. (DC offset detector, High temperature detector, Out of
supply voltage short, Out of GND short)
SPECIFICATIONS
●Distortion : 0.5% max at 0.5W
●S/N : 55dB min at 0.5W
●Channel Separation : 50dB min at 0.5W
●Residual Output : 0.5mVrms max at Vol. min.
●Offset Voltage : 100mV max
●Backup Current : 1mA max
●Dimensions (W x D x H) : 264mm x 220mm x 60mm
●Weight : 2.0kg
3Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-9,-91
Power supply, Speaker
and H/U Communication
18P Connector
Speaker and Voice Input
14P Connector

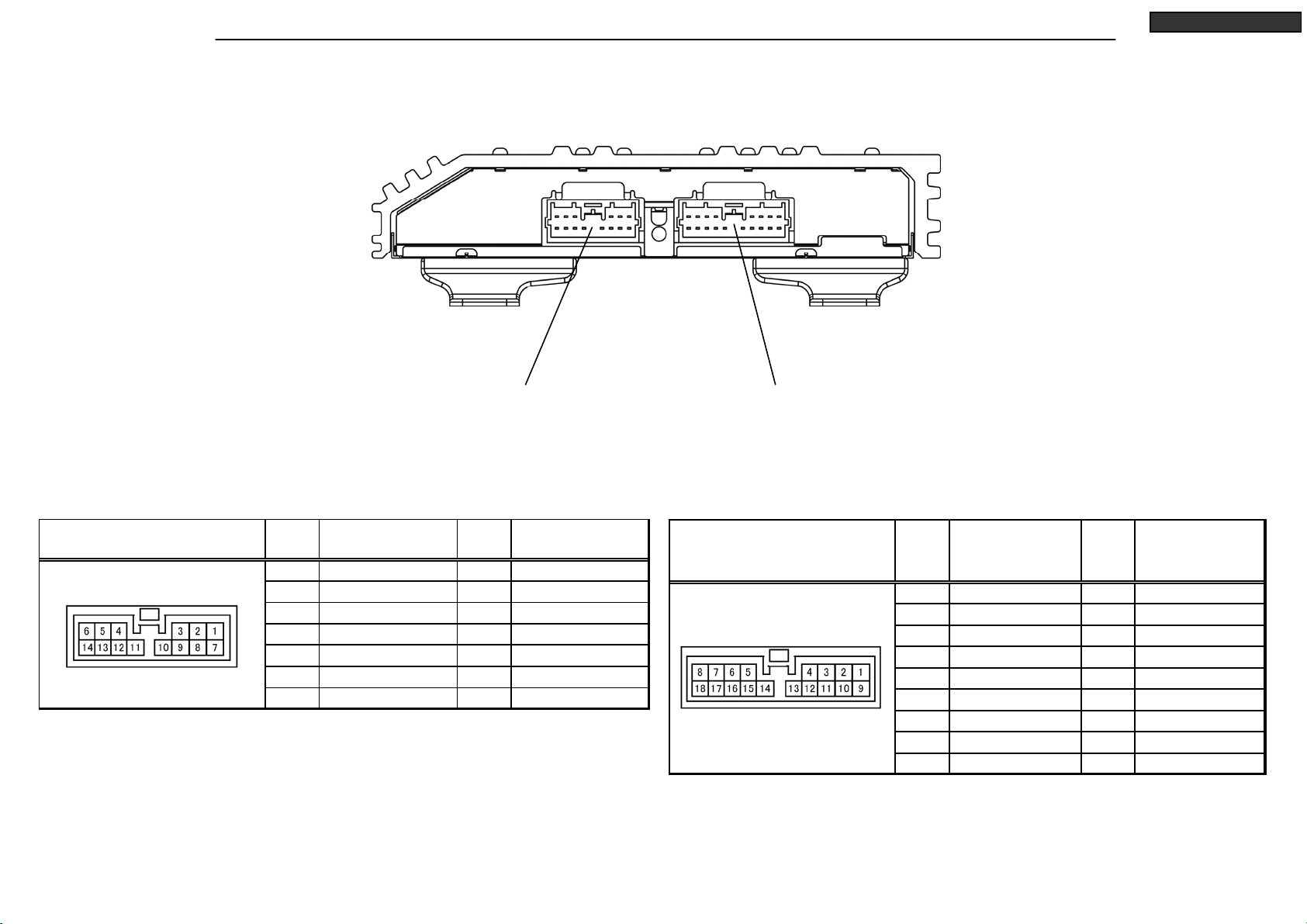

CONNECTORS
Power supply, Speaker
and H/U Communication
18P Connector
PinNo. Signal Name PinNo. Signal Name
1 FL Lo (+) 10 FR Lo (-)
2 FR Lo (+) 11 BATTERY (+)
3 - 12 BATTERY (+)
4 BATTERY (+) 13 DATA
5 GND 14DATAS-GND
6 - 15GND
7 Woofer 1 (+) 16 GND
8 Woofer 2 (+) 17 Woofer 1 (-)
9 FL Lo (-) 18 Woofer 2 (-)
Speaker and Voice Input
14P Connector PinNo. Signal Name PinNo. Signal Name
1 FL M/H (+) 8 FR M/H (-)
2 FR M/H (+) 9 FL IN (-)
3 FL IN (+) 10 FR IN (-)
4 P-ON 11 FR IN (+)
5 RR (+) 12 FRONT-IN S-GND
6 RL (+) 13 RR (-)
7 FL M/H (-) 14 RL (-)
4Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-9,-91
SYSTEM CONFIGURATION
CV-0MW7G21-9,-91
5Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-9,-91
BLOCK DIAGRAM
6Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-9,-91

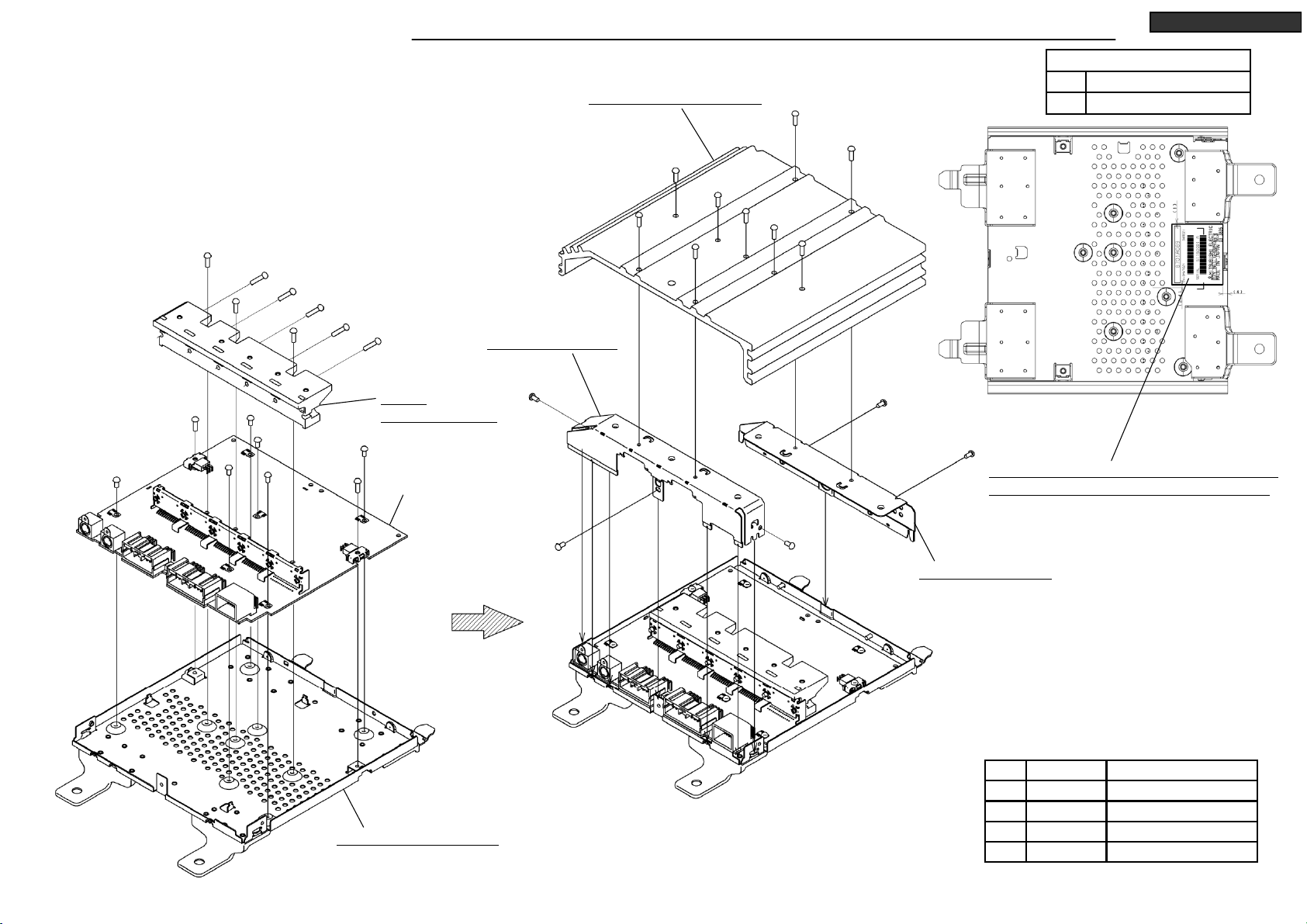

DISASSEMBLING PROCEDURES
*Confirm the hooks of M002 are latched, insert M002.
(Be careful not to deform.)
(1) CV-0MW7G21-9
(2) CV-0MW7G21-91
Model
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. PCB-AMP is installed in M005.
2. M004 is installed in the set united according to the procedure of 1.
The screw tightening does from Ⓒ, and tightens Ⓑafterwards.
3. M001 and M002 are installed in the set united according to the procedure of 2.
4. M003 is installed.
0.8 +0.2/-0.13X16Ⓒ
0.8 +0.2/-0.13X10Ⓑ
0.8 +0.2/-0.13X6Ⓐ
Ⓓ
No.
0.8 +0.2/-0.13X6
Tighten torque(N・m)Screw
Ⓒx 5
Ⓑx 3
Ⓑ
Ⓑ
Ⓓx 6
Ⓑx 9
Ⓐx 2
Ⓐ
ⒶⒶ
M005 : ASSY-CHASSIS
M004 :
HEAT-SINK-SUB
M003 : HEAT-SINK-MAIN
M002 : CHASSIS-F
M001 : CHASSIS-R
M006(2) : NAME-CARD(CV-0MW7G21-91)
M007(1) : NAME-CARD(CV-0MW7G21-9)
PCB-AMP
*Don't stick on the bend hole and
the hollow of the chassis.
7Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-9,-91
PARTS LIST
Ref. No. Parts Name Parts No. Page
M001 560J32612 CHASSIS-R P.6
M002 560J33313 CHASSIS-F P.6
M003 635J08911 HEAT-SINK-MAIN P.6
M004 635K06610 HEAT-SINK-SUB P.6
M005 891J06810 ASSY-CHASSIS P.6
M006 943M328O6 NAME-CARD(CV-0MW7G21-91) P.6
M007 943M328O7 NAME-CARD(CV-0MW7G21-9) P.6
A 653P11046 SCREW-S-PAN 3X6 -
B 653P11048 SCREW-S-PAN 3X10 -
C 653P11052 SCREW-S-PAN 3X16 -
D 669L077O2 SCREW-TAP 3X6 -
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
C005 141L185O1 C-CERAMIC-CHIP GRM1882C1H471JA01D CH 50V 471J1608 N931L29810 C502 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810
C006 141L185O1 C-CERAMIC-CHIP GRM1882C1H471JA01D CH 50V 471J1608 N931L29810 C504 181P376O2 C-ELECTROLYTIC-TAPE USR1H2R2MDD1TP 50V 2R2M N931L29810
C007 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N931L29810 C505 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N931L29810
C008 141L183O5 C-CERAMIC-CHIP MCH185A101JK CH 50V 101J1608 N931L29810 C511 181P74826 C-ELECTROLYTIC R3A-16V470MFOP2#-T36 16V470M 6.3X5 N931L29810
C009 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N931L29810 C512 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L29810
C010 141L183O5 C-CERAMIC-CHIP MCH185A101JK CH 50V 101J1608 N931L29810 C513 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N931L29810
C011 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N931L29810 C514 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N931L29810
C012 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N931L29810 C515 181P74826 C-ELECTROLYTIC R3A-16V470MFOP2#-T36 16V470M 6.3X5 N931L29810
C013 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N931L29810 C521 141L161O3 C-CERAMIC-CHIP GRM188B11H222KA01D B 50V 222K 1608 N931L29810
C014 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N931L29810 C522 141L161O3 C-CERAMIC-CHIP GRM188B11H222KA01D B 50V 222K 1608 N931L29810
C015 141L183O5 C-CERAMIC-CHIP MCH185A101JK CH 50V 101J1608 N931L29810 C523 141L161O3 C-CERAMIC-CHIP GRM188B11H222KA01D B 50V 222K 1608 N931L29810
C016 141L183O5 C-CERAMIC-CHIP MCH185A101JK CH 50V 101J1608 N931L29810 C524 141L161O3 C-CERAMIC-CHIP GRM188B11H222KA01D B 50V 222K 1608 N931L29810
C030 141L183O5 C-CERAMIC-CHIP MCH185A101JK CH 50V 101J1608 N931L29810 C525 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N931L29810
C301 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L29810 C526 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N931L29810
C302 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L29810 C527 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N931L29810
C303 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L29810 C528 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N931L29810
C306 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L29810 C529 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810
C307 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N931L29810 C530 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810
C308 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L29810 C531 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810
C309 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N931L29810 C532 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810
C310 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810 C533 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810
C311 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810 C534 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810
C312 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810 C535 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810
C313 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810 C536 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810
C314 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810 C537 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N931L29810
C315 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810 C538 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N931L29810
C316 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810 C561 172P171O4 C-STACKED-METAL-CHIP ECHU1C223JB5 16V 223J 3216 N931L29810
C317 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810 C562 172P171O4 C-STACKED-METAL-CHIP ECHU1C223JB5 16V 223J 3216 N931L29810
C331 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N931L29810 C563 181P74849 C-ELECTROLYTIC R3A-35V4R7MDOP2#-T36 35V4R7M 4X5 N931L29810
C332 141L161O9 C-CERAMIC-CHIP GRM188B11H682KA01D B50V682K1608 N931L29810 C564 181P74849 C-ELECTROLYTIC R3A-35V4R7MDOP2#-T36 35V4R7M 4X5 N931L29810
C333 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C566 181P376O1 C-ELECTROLYTIC-TAPE USR1H010MDD1TP 50V 010M N931L29810
C334 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N931L29810 C567 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N931L29810
C335 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C568 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N931L29810
C336 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C569 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N931L29810
C337 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C570 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N931L29810
C338 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C571 181P74826 C-ELECTROLYTIC R3A-16V470MFOP2#-T36 16V470M 6.3X5 N931L29810
C339 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C572 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N931L29810
C340 141L164O8 C-CERAMIC-CHIP GRM188B11A224KA01D B 10V 224K 1608 N931L29810 C573 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N931L29810
C341 141L164O8 C-CERAMIC-CHIP GRM188B11A224KA01D B 10V 224K 1608 N931L29810 C574 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N931L29810
C351 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N931L29810 C575 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N931L29810
C352 141L161O9 C-CERAMIC-CHIP GRM188B11H682KA01D B50V682K1608 N931L29810 C576 172P211O0 C-STACKED-METAL-TAPE ECQV1H474B46 50V 474J N931L29810
C353 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C577 172P233O0 C-POLYESTER-TAPE ECQB1H153KF4 50V 153K N931L29810
C354 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N931L29810 C578 181P75090 C-ELECTROLYTIC RW2-16V332MI6P2#-T4 16V332M 12.5X25 N931L29710
C355 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C579 181P376O1 C-ELECTROLYTIC-TAPE USR1H010MDD1TP 50V 010M N931L29810
C356 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C582 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N931L29810
C357 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C583 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810
C358 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C584 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810
C359 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C585 141L181O9 C-CERAMIC-CHIP GRM1882C1H220JZ01D CH50V220J 1608 N931L29810
C360 141L164O8 C-CERAMIC-CHIP GRM188B11A224KA01D B 10V 224K 1608 N931L29810 C586 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N931L29810
C361 141L164O8 C-CERAMIC-CHIP GRM188B11A224KA01D B 10V 224K 1608 N931L29810 C601 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810
C371 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N931L29810 C602 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810
C372 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C603 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N931L29810
C373 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C604 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N931L29810
C374 181P74823 C-ELECTROLYTIC R3A-16V100MDOP2#-T36 16V100M 4X5 N931L29810 C605 172P233O0 C-POLYESTER-TAPE ECQB1H153KF4 50V 153K N931L29810
C375 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C606 181P372O6 C-ELECTROLYTIC-TAPE USR1C470MDD1TP 16V 470M N931L29810
C376 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 C609 172P233O0 C-POLYESTER-TAPE ECQB1H153KF4 50V 153K N931L29810
C3A1 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810 C610 181P75090 C-ELECTROLYTIC RW2-16V332MI6P2#-T4 16V332M 12.5X25 N931L29710
C3A2 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810 C623 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N931L29810
C3A3 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810 C624 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N931L29810
C3A4 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810 C625 172P233O0 C-POLYESTER-TAPE ECQB1H153KF4 50V 153K N931L29810
C3C1 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L29810 C626 181P372O6 C-ELECTROLYTIC-TAPE USR1C470MDD1TP 16V 470M N931L29810
C3G1 141L181O9 C-CERAMIC-CHIP GRM1882C1H220JZ01D CH50V220J 1608 N931L29810 C629 172P233O0 C-POLYESTER-TAPE ECQB1H153KF4 50V 153K N931L29810
C3G2 141L181O9 C-CERAMIC-CHIP GRM1882C1H220JZ01D CH50V220J 1608 N931L29810 C630 181P75090 C-ELECTROLYTIC RW2-16V332MI6P2#-T4 16V332M 12.5X25 N931L29710
C501 181P372O5 C-ELECTROLYTIC-TAPE USR1C330MDD1TP 16V 330M N931L29810 C631 181P372O5 C-ELECTROLYTIC-TAPE USR1C330MDD1TP 16V 330M N931L29810
8
CV-0MW7G21-9....(1)
CV-0MW7G21-91....(2)
ELECTRICAL PARTS LIST
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
C632 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 D013 264P588O6 DIODE-ZENER-CHIP MA8270-M-TX N931L29810
C641 141L161O3 C-CERAMIC-CHIP GRM188B11H222KA01D B 50V 222K 1608 N931L29810 D014 264P588O6 DIODE-ZENER-CHIP MA8270-M-TX N931L29810
C642 141L161O3 C-CERAMIC-CHIP GRM188B11H222KA01D B 50V 222K 1608 N931L29810 D015 264P588O6 DIODE-ZENER-CHIP MA8270-M-TX N931L29810
C643 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N931L29810 D016 264L067O2 DIODE-ZENER-CHIP MA8056-H(TX) N931L29810
C644 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N931L29810 D019 264P584O1 DIODE-ZENER-CHIP MA8068-M-TX N931L29810
C645 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810 D030 264P583O9 DIODE-ZENER MA8062-H-TX N931L29810
C646 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810 D504 264P582O7 DIODE-ZENER-CHIP MA8043-H-TX N931L29810
C647 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810 D881 264L067O4 DIODE-ZENER-CHIP MA8056-M(TX) 5.6V N931L29810
C648 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N931L29810 D901 264P63410 DIODE-CHIP RB160L-60TTE25 N931L29810
C649 141L181O9 C-CERAMIC-CHIP GRM1882C1H220JZ01D CH50V220J 1608 N931L29810 D902 264L067O4 DIODE-ZENER-CHIP MA8056-M(TX) 5.6V N931L29810
C650 141L181O9 C-CERAMIC-CHIP GRM1882C1H220JZ01D CH50V220J 1608 N931L29810 D951 264P63410 DIODE-CHIP RB160L-60TTE25 N931L29810
C651 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N931L29810 D952 264P584O2 DIODE-ZENER-CHIP MA8068-H-TX N931L29810
C652 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N931L29810 H-IC-1 591K55210 HOLDER-IC ECOTRIO T0.8 N931L29710
C681 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810 H-TR-1 593L34010 HOLDER-TR N931L29710
C682 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810 H-TR-2 593L34010 HOLDER-TR N931L29710
C683 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810 IC301 266L065O5 IC-TAPE NJM2115V-TE1 N931L29810
C684 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N931L29810 IC302 266L065O5 IC-TAPE NJM2115V-TE1 N931L29810
C685 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N931L29810 IC303 266L065O5 IC-TAPE NJM2115V-TE1 N931L29810
C686 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N931L29810 IC331 262P52111 IC-TRAY AK7730AVT DSP N931L29810
C687 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N931L29810 IC351 262P52111 IC-TRAY AK7730AVT DSP N931L29810
C688 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N931L29810 IC371 262P52710 IC AK4358 N931L29810
C691 181P372O6 C-ELECTROLYTIC-TAPE USR1C470MDD1TP 16V 470M N931L29810 IC511 266L065O6 IC-TAPE NJM4580V N931L29810
C696 172P233O0 C-POLYESTER-TAPE ECQB1H153KF4 50V 153K N931L29810 IC521 266L065O6 IC-TAPE NJM4580V N931L29810
C697 181P75090 C-ELECTROLYTIC RW2-16V332MI6P2#-T4 16V332M 12.5X25 N931L29710 IC522 266L065O6 IC-TAPE NJM4580V N931L29810
C801 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N931L29810 IC561 266P62811 IC-MAG TDA7560 D 4CH*45W MOSFET N931L29710
C802 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 IC581 266L065O6 IC-TAPE NJM4580V N931L29810
C803 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N931L29810 IC601 266P65211 IC-MAG TDA7575B 1CH*150W-1OHM N931L29710
C804 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 IC621 266P65211 IC-MAG TDA7575B 1CH*150W-1OHM N931L29710
C805 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N931L29810 IC651 266L065O6 IC-TAPE NJM4580V N931L29810
C806 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 IC652 266L065O6 IC-TAPE NJM4580V N931L29810
C807 141L182O1 C-CERAMIC-CHIP GRM1882C1H270JZ01D CH 50V 270J1608 N931L29810 IC681 266P65211 IC-MAG TDA7575B 1CH*150W-1OHM N931L29710
C808 141L182O1 C-CERAMIC-CHIP GRM1882C1H270JZ01D CH 50V 270J1608 N931L29810 IC801(2) 262P53785 IC-TRAY M30620MCP-586GP U-COM(MASK) N931L29811
C809 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 IC801(1) 931L01419 ASSY-ROM N931L29810
C851 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 IC851 263P02510 IC-TAPE MM1185BFFE SYSTEM RESET N931L29810
C853 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 IC901 266P61410 IC-TAPE LF33ABPT 3.3V REG N931L29810
C854 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 IC902 266P68411 IC-TAPE NJM2845DL1-05(TE1) 5.0V 0.8A N931L29810
C901 181P133O0 C-ELECTROLYTIC-TAPE UVR1C471MPDAMFTA 16V 471M N931L29810 IC903 263P23533 IC-TAPE S-812C33AUA-C2NT2G REGULATOR 3.3V N931L29810
C902 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N931L29810 IC951 266P61410 IC-TAPE LF33ABPT 3.3V REG N931L29810
C903 181P370O4 C-ELECTROLYTIC-TAPE USR0J101MDD1TP 6.3V 101M N931L29810 J871(1) 452L219O2 CONNECTOR 9117S-12D 12P BOTTOM N931L29710
C904 189L007O3 C-DOUBLE-LAYER-TAPE FM0H473ZFTP 0.047F 5.5V N931L29810 L001 351P11310 COIL-CHOKE ALD-20-8 N931L29710
C905 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 L002 351P11310 COIL-CHOKE ALD-20-8 N931L29710
C906 181P370O4 C-ELECTROLYTIC-TAPE USR0J101MDD1TP 6.3V 101M N931L29810 L003 351P11310 COIL-CHOKE ALD-20-8 N931L29710
C907 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 L331 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
C908 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 L333 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N931L29810
C909 181P372O5 C-ELECTROLYTIC-TAPE USR1C330MDD1TP 16V 330M N931L29810 L334 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N931L29810
C913 181P372O5 C-ELECTROLYTIC-TAPE USR1C330MDD1TP 16V 330M N931L29810 L335 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N931L29810
C914 181P372O5 C-ELECTROLYTIC-TAPE USR1C330MDD1TP 16V 330M N931L29810 L336 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
C915 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 L337 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
C951 181P133O2 C-ELECTROLYTIC-TAPE UVR1C222MHDAMFTY 16V 222M N931L29710 L338 351P031O6 COIL-CHIP FSLM2520-2R2J=P2 2R2M 2520 N931L29810
C953 181P74824 C-ELECTROLYTIC R3A-16V220MEOP2#-T36 16V220M 5X5 N931L29810 L339 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
C954 181P133O0 C-ELECTROLYTIC-TAPE UVR1C471MPDAMFTA 16V 471M N931L29810 L340 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
C955 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L29810 L341 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
C956 181P74810 C-ELECTROLYTIC R3A-10V101MFOP2#-T36 10V101M 6.3X5 N931L29810 L342 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
C957 141L066O9 C-CERAMIC-CHIP GRM21BB11E334KA01L B 25V 334K 2125 N931L29810 L351 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
C958 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 L352 351P031O6 COIL-CHIP FSLM2520-2R2J=P2 2R2M 2520 N931L29810
C959 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L29810 L353 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N931L29810
C960 181P74898 C-ELECTROLYTIC-TAPE R3A-10V330MEOP2#-T36 10V330M 5X5 N931L29810 L354 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N931L29810
D006 264P516O1 DIODE-CHIP S3D6600 N931L29810 L355 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N931L29810
D007 264P516O1 DIODE-CHIP S3D6600 N931L29810 L356 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N931L29810
D008 264P588O6 DIODE-ZENER-CHIP MA8270-M-TX N931L29810 L357 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
D009 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L29810 L358 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
D010 264P588O6 DIODE-ZENER-CHIP MA8270-M-TX N931L29810 L359 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
D011 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L29810 L360 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
D012 264P588O6 DIODE-ZENER-CHIP MA8270-M-TX N931L29810 L361 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810
9
CV-0MW7G21-9....(1)
CV-0MW7G21-91....(2)
ELECTRICAL PARTS LIST
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
L362 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810 Q880 260L042O7 TRANSISTOR-CHIP DTC114TKAT146 N931L29810
L371 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810 Q901 260M061O1 TRANSISTOR-CHIP DTA124EKAT146 N931L29810
L372 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810 Q902 260M061O8 TRANSISTOR-CHIP DTC144EKAT146 N931L29810
L373 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810 Q903 260P68210 TRANSISTOR 2SD2375OP 2W 60V 3A N931L29710
L3G1 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N931L29810 Q904 260M061O8 TRANSISTOR-CHIP DTC144EKAT146 N931L29810
L3G2 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N931L29810 Q905 260L047O1 TRANSISTOR-CHIP 2SA1369-T113-1G PB-FREE(SN-2BI) N931L29810
L3G3 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N931L29810 Q951 260M061O1 TRANSISTOR-CHIP DTA124EKAT146 N931L29810
L901 351P031O6 COIL-CHIP FSLM2520-2R2J=P2 2R2M 2520 N931L29810 Q952 260M061O8 TRANSISTOR-CHIP DTC144EKAT146 N931L29810
LC371 409P030O1 LC-MULTIPLE-CHIP NFE61HT102F2A9L N931L29810 Q953 260P68210 TRANSISTOR 2SD2375OP 2W 60V 3A N931L29710
LC372 409P030O1 LC-MULTIPLE-CHIP NFE61HT102F2A9L N931L29810 R001 103L192O1 R-CHIP RMC1/10471JATP 1/8W 471J 2125 N931L29810
LC373 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R002 103L192O1 R-CHIP RMC1/10471JATP 1/8W 471J 2125 N931L29810
LC374 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R003 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
LC375 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R004 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L29810
LC376 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R005 103L292O3 R-CHIP RMC1/16681JTP 1/10W 681J 1608 N931L29810
LC377 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R006 103L293O0 R-CHIP RMC1/16272JTP 1/10W 272J 1608 N931L29810
LC378 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R007 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L29810
LC379 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R008 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810
LC380 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R009 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L29810
LC381 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R010 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L29810
LC382 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R011 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L29810
LC383 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R012 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L29810
LC384 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R013 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
LC385 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R014 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
LC386 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N931L29810 R015 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L29810
LC901 409P030O1 LC-MULTIPLE-CHIP NFE61HT102F2A9L N931L29810 R016 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L29810
P002 452L173O3 CONNECTOR 7322-8380-30 18P SIDE N931L29710 R021 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N931L29810
P003 452L34211 CONNECTOR 9442B-14J-T 14P SIDE N931L29710 R022 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N931L29810
PLATE1 443P01012 TERMINAL SD01123-21 N931L29810 R023 103L301O0 R-CHIP RPC50T560J 1/2W 560J 5025 N931L29810
PLATE2 443P01012 TERMINAL SD01123-21 N931L29810 R024 103L301O0 R-CHIP RPC50T560J 1/2W 560J 5025 N931L29810
PLATE3 443P01012 TERMINAL SD01123-21 N931L29810 R025 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N931L29810
PLATE4 443P01012 TERMINAL SD01123-21 N931L29810 R026 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N931L29810
PLATE5 443P01012 TERMINAL SD01123-21 N931L29810 R030 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L29810
PLATE6 443P01012 TERMINAL SD01123-21 N931L29810 R031 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L29810
Q001 260M061O6 TRANSISTOR-CHIP 2SA1037AKT146R N931L29810 R198 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
Q002 260M061O5 TRANSISTOR-CHIP 2SC2412K T146 S N931L29810 R199 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
Q003 260M061O5 TRANSISTOR-CHIP 2SC2412K T146 S N931L29810 R301 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
Q004 260M061O6 TRANSISTOR-CHIP 2SA1037AKT146R N931L29810 R302 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
Q005 260M061O5 TRANSISTOR-CHIP 2SC2412K T146 S N931L29810 R303 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
Q006 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N931L29810 R304 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
Q007 260M061O5 TRANSISTOR-CHIP 2SC2412K T146 S N931L29810 R309 103P504O4 R-CHIP RMC1/16393FTP 1/10W 393F 1608 N931L29810
Q030 260M061O5 TRANSISTOR-CHIP 2SC2412K T146 S N931L29810 R310 103P503O3 R-CHIP RMC1/16472FTP 1/10W 472F 1608 N931L29810
Q501 260L014O2 TRANSISTOR-CHIP DTC143EKAT146 N931L29810 R311 103P504O4 R-CHIP RMC1/16393FTP 1/10W 393F 1608 N931L29810
Q502 260L042O2 TRANSISTOR-CHIP DTA144TKAT146 N931L29810 R312 103P503O3 R-CHIP RMC1/16472FTP 1/10W 472F 1608 N931L29810
Q504 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N931L29810 R313 103P504O4 R-CHIP RMC1/16393FTP 1/10W 393F 1608 N931L29810
Q505 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N931L29810 R314 103P503O3 R-CHIP RMC1/16472FTP 1/10W 472F 1608 N931L29810
Q506 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N931L29810 R315 103P504O4 R-CHIP RMC1/16393FTP 1/10W 393F 1608 N931L29810
Q561 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N931L29810 R316 103P503O3 R-CHIP RMC1/16472FTP 1/10W 472F 1608 N931L29810
Q562 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N931L29810 R317 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
Q563 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N931L29810 R318 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
Q564 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N931L29810 R331 103L293O4 R-CHIP RMC1/16562JTP 1/10W 562J 1608 N931L29810
Q565 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N931L29810 R332 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N931L29810
Q566 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N931L29810 R333 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N931L29810
Q567 260M061O1 TRANSISTOR-CHIP DTA124EKAT146 N931L29810 R334 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N931L29810
Q568 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N931L29810 R335 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N931L29810
Q601 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N931L29810 R336 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
Q602 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N931L29810 R337 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
Q607 260M061O1 TRANSISTOR-CHIP DTA124EKAT146 N931L29810 R338 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
Q630 260L014O2 TRANSISTOR-CHIP DTC143EKAT146 N931L29810 R351 103L293O4 R-CHIP RMC1/16562JTP 1/10W 562J 1608 N931L29810
Q631 260L042O2 TRANSISTOR-CHIP DTA144TKAT146 N931L29810 R357 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L29810
Q681 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N931L29810 R358 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
Q682 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N931L29810 R359 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
Q683 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N931L29810 R371 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
Q684 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N931L29810 R372 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
Q801 260M061O1 TRANSISTOR-CHIP DTA124EKAT146 N931L29810 R373 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
10
CV-0MW7G21-9....(1)
CV-0MW7G21-91....(2)
ELECTRICAL PARTS LIST
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
R374 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810 R585 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810
R375 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810 R586 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810
R3G1 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810 R587 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810
R501 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810 R588 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810
R502 103L292O2 R-CHIP RMC1/16561JTP 1/10W 561J 1608 N931L29810 R589 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L29810
R503 103L295O6 R-CHIP RMC1/16394JTP 1/10W 394J 1608 N931L29810 R590 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L29810
R507 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N931L29810 R5A1 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810
R508 103L293O2 R-CHIP RMC1/16392JTP 1/10W 392J 1608 N931L29810 R601 103L292O7 R-CHIP RMC1/16152JTP 1/10W 152J 1608 N931L29810
R509 103L292O9 R-CHIP RMC1/16222JTP 1/10W 222J 1608 N931L29810 R602 103L292O7 R-CHIP RMC1/16152JTP 1/10W 152J 1608 N931L29810
R510 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810 R603 103L293O9 R-CHIP RMC1/16153JTP 1/10W 153J 1608 N931L29810
R511 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810 R604 103L293O9 R-CHIP RMC1/16153JTP 1/10W 153J 1608 N931L29810
R512 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810 R605 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L29810
R513 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810 R606 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L29810
R521 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R608 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
R522 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R625 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L29810
R523 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R626 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L29810
R524 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R628 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
R525 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R630 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810
R526 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R631 103L292O2 R-CHIP RMC1/16561JTP 1/10W 561J 1608 N931L29810
R527 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R632 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
R528 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R633 103L295O6 R-CHIP RMC1/16394JTP 1/10W 394J 1608 N931L29810
R529 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R641 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810
R530 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R642 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810
R531 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R643 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810
R532 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R644 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810
R533 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R645 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810
R534 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R646 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810
R535 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R647 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810
R536 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R648 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810
R537 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810 R649 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810
R538 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810 R650 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810
R539 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810 R651 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810
R540 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810 R652 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810
R541 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810 R653 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810
R542 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810 R654 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810
R543 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810 R655 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810
R544 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810 R656 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810
R545 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810 R657 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L29810
R546 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810 R658 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L29810
R547 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810 R659 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L29810
R548 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N931L29810 R660 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N931L29810
R549 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810 R681 103L293O5 R-CHIP RMC1/16682JTP 1/10W 682J 1608 N931L29810
R550 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810 R682 103L293O5 R-CHIP RMC1/16682JTP 1/10W 682J 1608 N931L29810
R551 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810 R683 103L293O5 R-CHIP RMC1/16682JTP 1/10W 682J 1608 N931L29810
R552 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N931L29810 R684 103L293O5 R-CHIP RMC1/16682JTP 1/10W 682J 1608 N931L29810
R561 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810 R685 103L293O4 R-CHIP RMC1/16562JTP 1/10W 562J 1608 N931L29810
R562 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810 R686 103L293O4 R-CHIP RMC1/16562JTP 1/10W 562J 1608 N931L29810
R563 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810 R687 103L293O4 R-CHIP RMC1/16562JTP 1/10W 562J 1608 N931L29810
R564 103L292O7 R-CHIP RMC1/16152JTP 1/10W 152J 1608 N931L29810 R688 103L293O4 R-CHIP RMC1/16562JTP 1/10W 562J 1608 N931L29810
R565 103L292O7 R-CHIP RMC1/16152JTP 1/10W 152J 1608 N931L29810 R689 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L29810
R566 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810 R690 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L29810
R567 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810 R691 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L29810
R568 103L293O9 R-CHIP RMC1/16153JTP 1/10W 153J 1608 N931L29810 R692 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L29810
R569 103L293O9 R-CHIP RMC1/16153JTP 1/10W 153J 1608 N931L29810 R694 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
R570 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810 R805 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L29810
R571 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810 R807 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L29810
R572 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810 R809 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L29810
R573 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810 R811 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N931L29810
R574 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810 R815 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
R575 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N931L29810 R816 103L291O7 R-CHIP RMC1/16221JTP 1/10W 221J 1608 N931L29810
R581 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810 R817 103L291O7 R-CHIP RMC1/16221JTP 1/10W 221J 1608 N931L29810
R582 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810 R818 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
R583 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R819 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
R584 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N931L29810 R820 103L291O7 R-CHIP RMC1/16221JTP 1/10W 221J 1608 N931L29810
11
CV-0MW7G21-9....(1)
CV-0MW7G21-91....(2)
ELECTRICAL PARTS LIST
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
R821 103L295O3 R-CHIP RMC1/16224JTP 1/10W 224J 1608 N931L29810
R822 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L29810
R823 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
R824 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
R825 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L29810
R826 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810
R827 103L291O7 R-CHIP RMC1/16221JTP 1/10W 221J 1608 N931L29810
R829 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L29810
R830 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L29810
R831 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L29810
R832 103L295O3 R-CHIP RMC1/16224JTP 1/10W 224J 1608 N931L29810
R833 103L295O3 R-CHIP RMC1/16224JTP 1/10W 224J 1608 N931L29810
R851 103L295O7 R-CHIP RMC1/16474JTP 1/10W 474J 1608 N931L29810
R871 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810
R872 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810
R883 103L292O9 R-CHIP RMC1/16222JTP 1/10W 222J 1608 N931L29810
R884 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L29810
R8A1 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
R8A2 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
R8A3 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
R8B1 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L29810
R8B2 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N931L29810
R8G1 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
R8G2 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
R8G3 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
R8G4 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
R901 103L294O2 R-CHIP RMC1/16273JTP 1/10W 273J 1608 N931L29810
R902 103L242O4 R-CHIP RMC1/8821JATP 1/4W 821J 3216 N931L29810
R904 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N931L29810
R905 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810
R906 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810
R907 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L29810
R949 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
R951 103L242O5 R-CHIP RMC1/8102JATP 1/4W 102J 3216 N931L29810
R952 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N931L29810
R953 103L242O5 R-CHIP RMC1/8102JATP 1/4W 102J 3216 N931L29810
R954 103L199O9 R-CHIP RMC1/10JPATP 1/8W 0 2125 N931L29810
R955 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N931L29810
R997 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
R998 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
R999 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L29810
RN371 109P01213 R-NETWORK-CHIP RAC164D103JCTP 1/16W 103J 3216 N931L29810
RN372 109P01213 R-NETWORK-CHIP RAC164D103JCTP 1/16W 103J 3216 N931L29810
RN373 109P01213 R-NETWORK-CHIP RAC164D103JCTP 1/16W 103J 3216 N931L29810
RN802 109P01211 R-NETWORK-CHIP RAC164D221JCTP 1/16W 221J 3216 N931L29810
X3G1 285P11422 CRYSTAL-TAPE SMD-49 22.5792MHZ N931L29810
X801 285L012O7 CRYSTAL-TAPE AT-49 PB-FREE 10MHZ 16PF N931L29810
931L29710 S5-PCB-AMP N903L50719
931L29810 S6-PCB-AMP N931L29710
931L29811 S6-PCB-AMP N931L29711
12
CV-0MW7G21-9....(1)
CV-0MW7G21-91....(2)
ELECTRICAL PARTS LIST
IC351
D951
R3A1
D952
R3A2
R030
R031
R805
R5A1
R806
R807
R808
R809
C001
L3G1
C002
L3G2
C003
L3G3
C004
R810
IC561
R811R812
R813
R620
C008
R814
R621
Q681
IC371
R815
R622
Q682
R816
Q683
R817
Q684
R818
IC951
R819
C010
R9A1
R9A2
Q880
R820
C015
R821
C016
R822
R823
R630
R824
R631
R825
R632
R826
R633
R827
R828 R829
R830
IC581
C601
R831
R832
C602
R833
C603C604
C605
LC901
C606
C609
C030
R649
C801
C032
C802
C803
C034
C610
C804
C035
C805
C806
C037
C807
R650
C808
C039
C809
RN802
R655
R656
R658
X801
C042
C620
R851
R852
C623C624
C625
C3C1
C626
C629
R3G1
C630
C631
C5C1
C632
D001
D002
D003
D004
C641
D005
R871
C642
R872
C643 C644
C645
D009
C646
C647
C648
C649
D011
C650
LC371
C651
LC372
C652
D016
LC373
D017
R883
D018
LC374
R884
D019
LC375
LC376
LC377
LC378
LC379
Q501
Q502 Q503
Q504
Q505
C851
Q506
C852
C853
LC380
C854
LC381
LC382
LC383
LC384
LC385
C3G1
LC386
C3G2
D030 Q901
Q902
Q903
Q904
Q905
X3G1
D620
C681
IC601
C682 C683 C684
C685
L901
C686 C687 C688
C689
IC801
PLATE1
PLATE2
PLATE3
D630
C690
PLATE4
D631
C691
L331
PLATE5 PLATE6
L333
L334
L335
C696
L336
C697
L337
L338
L339
L340
IC621
L341
L342
R301R302
R303R304
R305
L351
R306
L352
R307
L353
R308
L354
L355
L356
L357
L358
Q561
R501
L359
Q562
R502
Q563
R503
Q564
R504
Q565
R505
Q566
R506
Q567
R507
Q568
R508
L360
R0B1
Q951
L361
Q952
L362
R317
Q953
R318
R510
R511
R512
R513
R514
R515
IC651
R901
L371
IC652
R902
L372
L373
R904
R905
P001
R906
P002
R907
P003
IC851
R331
R332
R333
R334
R335
R8A1
R336
R8A2
R337
R8A3
R338
C301
C302
C303
C304
C305
D881
R537
C307
R538
C308
R8B1
R539
C309
R8B2
R8B3
C501
C502
C503
R540
C310
C504
C311
C312
C313 C314
C0B1
C315
R351
C316
R352
C317
R353
C318
R354
R549
C319
IC681
R355
R356
R357
C510
R358
C511
R359
C512
C513
R550
C320
C514
R551
C321
C515
C516
R552
C322
C517
C323
C324 C325
C901
C902
C903
C904
C906
C908
C521
C909
C522 C523 C524
R561
C525
C331
C526
C332
C527
C333
C528
C334
C529
C335
R371
R372
C336
C913
R373
C337
C914
C338
R374
R951
C915
C339
R375
R952
R953
C530
R955
C531 C532
C533
C534
C340
C535
J871
C341
C536
J872
C537
R574
C538
R575
R578
C6C1
Q001
Q002
Q003
Q004
Q005
C351
C352
Q006
Q007
C353
C354
R585
C355
C356
C357
R588
C358
C359
R8G1
R8G2
R8G3
R8G4
R590
C360
L001
C361
L002 L003
C561
D501
C562
D502
C563
D503
C564
C565
Q601
H-TR-1
C371
C566
Q602
H-TR-2
C372
C567
C373
C568
C374
D0B1
C569
C951
C375
C376
C953
Q607
C954
C955
RN371
C956
RN372
C957
RN373
D510
Q030
C570
C958
C571
C959
Q801
IC301
C576
IC302
C577
IC303
C578
C960
IC304
C579
IC305
D901
D902
IC501
C581
C582
C583
Q620
C584
C585
C586
IC511
Q630
Q631
IC901
IC902
IC903
IC521
IC522
R003
R005
IC331
R006
R007
R008
R010
R011
R012
R013
R014
R015
R016
PARTS LAYOUT ON PRINTED CIRCUIT BOARD MODEL : CV-0MW7G21-9,-91 (PARTS SIDE)
PCB-AMP
13
R021
R022
R023
R024
R601
R025
R602
R026
R603
R604
R605
R606
R607
R608
C005 C006
C007
C009
R625
R626
R627
R628
C011
C012
C013
C014
R641
C3A1
R642
C3A2
R643
C607
C3A3
R644
C608
C3A4
R645
C3A5
R646
C3A6
R647
C3A7
R648
C3A8
C031
C033
C036
C038
R651
R652
R653
R654
R657
C040
R659
C041
C043
C044
R660
C627
C628
D006
D007
D008
R681
R682
R683
R684
R685
R686
R687
R688
D010
R689
D012
D013
D014
D015
R690
R691
R692
R693
R694
C692
C693
C694
C695
R309
R310
R311
R312
R313
R314
R315
R509
R0B2
R316
R0B3
R319
R320
R321
R322
R323
R324
R325
R326
L950
R521
R522
R523
R524
R525
R526
R527
R528
R529
R530
R531
R532
R533
R534
R535
R536
C306
R541
C505
R542
R543
R544
R545
R546
R547
R548
C905
C907
R949
R562
R563
R564
R565
R566
R567
R568
R569
R954
R956
R570
R571
R572
R573
R198
R199
R581
R582
R583
R584
R586
R587
R589
D504
C950
C952
C572
R997
C573
R998
C574
C575
R999
R001
R002
R004
R009
PARTS LAYOUT ON PRINTED CIRCUIT BOARD MODEL : CV-0MW7G21-9,-91 (PATTERN SIDE)
PCB-AMP
14
DSDL4
VCOM
P-GND
FR-M/H-
Destination setup
R806
R805
R809
Ref.No.
VREFH
DSP0
CKS1
*Connection of IC681 is reverse the polarity
of I/O because of PCB pattern.
IN2-
IN2+
I2CEN
1OHM
CD_OUT
I2C ADD:1101010
fc=700Hz
TW protective HPF
SDOUT4:FRONT Lo
SDOUT3:WOOFER(Lch)
SDOUT1:FRONT M/H
*DSP1 SDOUT assignment
VREFH
AVDD
AVDD
AVSS
LFLT
(AUTOMODE)
:M30620MCP-586GP
:M30624FGPGP
CV-0MW7G21-91
CV-0MW7G21-9
*Minimum Operation Voltage:2.7V
VCC2
DSP0A-SRESET
DSP0A-IRESET
DSP0A-DRDY
DSP0A-RQ
W/D-RCT
NC
NC
NC
NC
DSP1-RQ
AVSS
:2.92V(R851=470k)
*Power supply reducing detection voltage
GND
DSP1-SRESET
RESET
P001¡¡(040II 14P MALE)
TERMINAL ARRAY
P002¡¡(SDL 18P MALE)
TERMINAL ARRAY
P003¡¡(SDL 14P MALE)
TERMINAL ARRAY
15
5
14
RR-
IN2-
CLKO2
I2C ADD:0010000
D/A CONVERTER
SDTI2
(ACC-IN)
RL +
P-GND
CSN/CAD1
LRCK
12
11
10
9
FR_IN+
NC
R/G_L+
4
10
9
CENTER+
AVSS
FL-M/H+
R/G_R+
FR-LO-
FL-LO-
FL-IN
DVDD
GND
+B
+B
FR-LO
SUBWOOFER
Vcc
12
AINL+
DSP1
A6.2V
RR+
P-ON
FL_IN+
FR-M/H+
FL-M/H+
DATA
TAB
OUT1+
VCC1
PIN_B
OUT1+
NC
ANA-V-ON
DSP1-DRDY
BATT-ON
NC
NC
W/D-CK
NC
NC
NC
CD-IN1
DAC-PDN
NC
NC
NC
VREF
DSP1-SI
GND
Vcc
TAB
NC
RR-IN
x4
GND
NC
NC
FR-M/H
Vcc
AUDIO-SIO-IN
IN1+
MUTE
DATA DATA
PWGND
DATA
STBY
GND
RL -
STBY
Vcc1
RR -
P-GND
OUT
AVCC
GND
TO PC
DSP_DGND
Vcc2
Vcc
RDY
MCK=384fs
X8
FL-M/H
NC
NC
NC
NC
DSP0-RDY
DSP1-RDY
DSP1-SO
OUT1-
VCC1
IN1+
IN1-
SDTI4
TAB
PWGND
I2C ADD:1101000
1OHM
CD_OUT
PWGND
CLK
SGND
STBY
CLK
FL-M/H+
_MUTE
IN2+
PIN APIN A
NC
CLK
S-GND
FL-IN
TAB
PWGND
GND
A5V
A3.3V
VS
RCT
GNDVDD
BATT-OFF
17
3
1314 12 10
11
65
18
8
7
6
16
4
14 13 12
3
9
7
8
2
3
11
2
1
7
13
654 2
8
1
R.F
RR +
AC-GND
FR-M/H+
P-GND
FR-IN
1OHM
CD_OUT
VCC1
SVR
NC
OUT2-
VCC2
OUT2+
PIN A
LRCLK_I
BVSS
VDD
RXD
R812
RCT
CNVSS
RXD
GND
RESET
EPM
TXD
CE
SCLK
RTS
VDD
NC
NC
NC
NC
NC
VSS
NC
NC
NC
NC
NC
NC
DSP_AGND
ACC5V
BYTE
POWER-IN
VCC1
NMI
P-MUTE1
P-STB1
XIN
ALL-MUTE
NC
B3.3V
GND
IN
DSDR3
DSDL3
DSDR4
DSDL1
X2
DCLK
I2C
SDTI3
BICK
MCLK
DVDD
DVSS
ACKSN
PDN
RST
CK
TC
N.C
RL+
FR-LO-
FR-LO+
Vcc
SDOUT2
SDOUT4
SDOUT3
EESEL
SDIN4
X3
BITCLK_I
SDOUT1
BVSS
DVSS
DVDD
_CS
DRDY
LRCLK_O
BITCLK_O
MCK=512fs
DVDD
DVSS
CLKO1
XTI
DVSS
XTO
SDIN3
SDIN2
SDIN1
AINR+
VREFL
AINR-
AVSS
LFLT
CKS0
fc=102kHz
X4
SDOUT4
X4
SDOUT1
CKS1
DVDD
EESEL
SDIN4
SDIN3
SDIN1
SDIN2
AINR+
GND
Vcc
X2
DRDY
_CS
LRCLK_O
BITCLK_O
DVDD
DVSS
XTI
DVSS
SO
SI
XTO
_RQ
SCLK
CKS0
Vcc
RR-IN
GND
Vcc
GND
Vcc
GND
RL-IN
NC
SVR
I2CEN
IN2-
VCC2
IN2+
RL+
W/F_2-
GND
W/F_1-
GND
I2C ADD:1101001
PIN_B
NC
OUT1-
SVR
VCC2
NC
OUT2-
+B
+B
GND
W/F_1+
NC
FR-LO+
S-GND
RR_IN-
R/G_L-
R/G_R-
CENTER-
R807
R808
R811
R810
FL-LO+
SI
D3.3V
A3.3V
X4
FR-IN
CLKO1
AINL+
TO FLASH WRITER
PIN_B
TABTAB
FL-M/H-
XOUT
MUTE
I2CEN
HSD
PWGND
CCLK/SCL
GND
RTS
CTS
TXD
OUT1-
Vcc
OUT2-
OUT2+
PWGND
TAB
S-GND
FL-M/H-
FL_IN-
FR_IN-
RR-
RL-
X4
BITCLK_I
SDOUT3
NC
ACC3.3V
B5V
NC
INIT1
INIT0
OUT1+
IN1-
GND
ACC-ON
NC
P-MUTE0
PC-CTS
PC-RTS
NC
DSP0-SI
SDOUT2
FL-LO+
FL-LO-
RR+
VREFH
CD-IN0
AVDD
SMODE
SO
AVSS
AVDD
_INT-RESET
_S-RESET
_RQ
SCLK
DVSS
DVDD
SDTI1
WF+
DZF1
FL-M/H-
RL-
CAD0
OUT3R+
RL
OUT2+
SGND
DIF0
RDY
LRCLK_I
RL-IN
GND
Vcc
AINL-
AINR-
AVSS
VREFL
VCOM
DZF2
MCK=384fs
FR-M/H-
FR-M/H+
AVDD
DSDR2
DSDL2
CDTI/SDA
DZF3
OUT3R-
FL-LO
_S-RESET
_INT-RESET
CLKO2
SDOUT2:REAR
WF-
1
DSDR1
RR
SMODE
AINL-
W/F_2+
ATT=-18.4dB(0.12)
S-GND
RL_IN+
NC
RL_IN-
NC
NC
INIT3
INIT2
CD-IN2
(FLASH-CE)
OFFSET-OUT
OFFSET-IN0
(FLASH-EPM)
AUDIO-SI
AUDIO-SO
5.1ch-SSX
5.1ch-SCLK
5.1ch-SI/PC
5.1ch-SO/PC
I2C-SDA
I2C-SCL
NC
IN1+
IN1-
MUTE
STBY
SGND
DSP0-SCLK
DSP0-SO
DSP1-SCLK
CNVSS
DSP1-IRESET
FR-M/H-
RR_IN+
C374
C339
L353
AUDIO_I/F_DSP1OUT<3..0>
R584
TP565
17
21
22
C606
2SC2412KS
101
3
R694
I691
R574
/16
C571
FOR AUDIO
47u
1
I569
OPEN
2
C351
682
M16C/62P(FLASH)
M30624FGPGP
IC801
1
10
100
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
2627
28
29
3
30
31
3233343536373839
4
40
41
42
43
4445
4647
48
49
5
50
51
52
53
54
55
56
57
58
59
6
60
61
62
63
64
65
66
67
68
69
7
70
71
72
73
74
75
76
77
78 79
8
80
81
82
83
84 85
86 87 88
89
9
90
91
92 93
94
95 96
97
98 99
R823
1
0.1u
DAC_I/F<2..0>
DSP0/1_I/F<12..0>
2
1
1
X801
C808
10u
C805
I821
I823
3
4
220x4
RN802
MA8270M
0.1u
MM1185BF
0.1u
222
-F
(2125)
NJM2845DL1
10k
OPEN(2125)
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
MA8056M
OPEN
0.1u
NFW31SP106
560
33u
OPEN
1k
2.2k
3
332
2.2k
NFW31SP106
NFW31SP106
NFW31SP106
/35
22k
(2125)
1SS355
1k
2
DTC323TK
OPEN
0.1u
DTC323TK
DTC323TK
6.8k
6.8k
6.8k
6.8k
1.5k
OPEN
100
4.7u
4.7u
4.7u
/50
15k
3.9k
NFW31SP106
10k
NJM2115V
100k
2SC2412KS
0.1u
2.2u
-F
(2125)
OPEN
10u
DTC114TKA
0.1u
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
5
OPEN
/16
103
/16
-F
10k
334
/16
FOR AUDIO
/16
MA8068H
DTA124EKA
OPEN
OPEN
220k
2200u
(1/4W)
OPEN
1k
1k
225
101
MA8062H
0
DTA144TKA
OPEN
1k
560
OPEN
OPEN
100
153
1k
223
3.9k
3.9k
331
-F
331
-F
2.2k
2.2k
-F
2.2k
2.2k
220k
DTC144EKA
/16
390k
DTC124EKA
10k
ALD-20-8
4
OPEN
10k
OPEN
2SC2412KS
101
MA8068M
2SC2412KS
OPEN
RD160L-60
470u
820
4.7k
0
(2125)
2SD2375P
DTA124EKA
2.2k
-F
10k
-F
22p
222
2.2k
103
332
100k
15
100k
10
OPEN
0.22u
3.9k
-F
102
AMP_CONT<21..0>
4.7u
0
10k
4.7u
/35
/35
OPEN
-F
2.2k
/16
10k
10k
0
DSP0_I/F<7..0>
1k
FOR AUDIO
/16
22p
4.7k
6
0.1u
222
100
OPEN
100
100
1u
F
-F
331
NFW31SP106
-F
-F
/16
47u
3.9k
1k
OPEN
2SA1369
NFE61HT102
LF33AB
0
153
0.1u
100k
16
0
7
0
/16
8
0
HS470
0
4
0.22u
332
DSP1_I/F<7..0>
10k
331
-F
4.7k
TDA7575B
1k
3.9k
2.2k
3300u
103
MA8270M
DTC124EKA
4.7u
222
F
5.6k
NJM4580V
10kX4
NFW31SP106
NFE61HT102
19
100
0.22u
0.22u
0.22u
OPEN
-F
2.2k
10
9
11
12
17
DTC124EKA
9
1
10
10
OPEN
F
/35
473Z
F
/35
5
/16
1
10u
0.1u
0.1u
14
3
2
4
19
13
OPEN
OPEN
101
15k
153
4
S3D6600
SDL18PIN
OPEN
PLATE3
OPEN
4
6
5
OPEN
OPEN
OPEN
471471
7
ANALOG_IN<7..0>
OPEN
0
F
F
F
0.22u
0.22u
5.6k
F
F
5.6k
/35
221
4.7k
OPEN
221
68
221
221
1/2W
56
1/2W
68
1/2W
1/2W
18
14
/16
56
0
68
3
2
MA8270M
MA8270M
OPEN
153
OPEN
OPEN
OPEN
0
/16
47u
F
DTC323TKDTC323TK
F
0.22u
F
F
0.47u
1k
0.22u
F
F
F
F
10k10k
F
F
F
22p
2
/35
4.7u
0.1u
33u
/10
-F
39k
-F
4.7k
1k
-F
1k
1k
-F
-F
2.2k
-F
-F
2.2k
103
3
4.7u
/35
10k
4.7u
4.7u
/35
/35
/35
4.7u
-F
4.7k
-F
39k
331
331
-F
4.7k
0
4.7u
10k
1
4.7u
/35
103
39k
4.7k
4.7k
10u
4.7k
103
10u
103
NJM2115V
6
1
0
0
1
2
102
1
0
3
2
10k
10k
LM252LM252LM252
0.22u
5.6k
/16
0.1u
0.1u
10u
0.1u
5
47k
0
AK7730
LM252LM252
0.1u
CLK<2..0>
6
7
7
LM252
102
1
2
3
10k
0.1u
HS470HS470HS470HS470
1
2
0
1
2
3
4
5
1
2
0
LM252
22p
LM252LM252LM252
10k
OPEN
/16
10u
0.22u
5.6k
0.1u
0.1u
330
3
1
0
330
330
330
HS470
0.1u
HS470
LM252
HS470HS470
LM252LM252
6
7
2
1
0
0.1u
10k
1
2
-F
10k
-F
331
-F
1k
-F
3.9k
-F
4.7k
-F
-F
3.9k
-F
2.2k
10kX4
10u
5
8
331
-F
1k
-F
1k
-F
-F
1k
-F
1k
-F
331
-F
1k
331
-F
2.2k
-F
-F
-F
-F
-F
2.2k
1k
-F
-F
2.2k
0.1u
10u
0
10k
LM252LM252
1
2
10k
10kX4
18
2
1
3
2
1
0
1
0
0
0
3
2
1
12
11
4
3
2
14
12
9
0.1u
9
10
2
OPEN
4.7k
4.7k
4.7k
27p
220
220
10MHz
47k
4.7k
3
6
5
4
2
0
/6.3
OPEN
1k
OPEN
/6.3
1k
0.1u
33u
/16
7
6
5
4
3
7
5
1
0
2
6
5
8
17
100k100k100k100k100k100k100k
1
0
47k
220
47k
47k
4
5
4.7k
4.7k
11
12
11
1
10
9
7
0
2
3
47k
0
0
47k
7
0
2.2u
0.22u
1k
3
F
100
F
/16
47u
0
OPEN
153
/16
13
3300u
OPEN
9
21
6
7
4
5
3
0
1
11
470k
OPEN
0
PLATE6
/35
4.7u
39k
LF33AB
2.2k
5.6k
OPEN
DTA124EKA
DTC124EKA
22k
3
PLATE5
27p
47k
220k
220
/16
331
-F
-F
21
-F
331
/16
100
103
0.1u
10k
332
3.9k
3.9k
-F
-F
-F
0.1u
331
331
332
2.2k
NJM4580V
0.1u
103
0
47k
LM252
-F
F
0
0
10u
2.2k
2.2k
/16
1k
-F
/35
NFW31SP106
NFW31SP106
NFW31SP106
3.9k
-F
2.2
1
0.1u
FRONT_IN<3..0>
0
OPEN
(1/4W)
/16
NJM4580V
1u
OPEN
DTC124EKA
1k
2
0.22u
MA8056M
100u
DTC144EKA
100u
/16
11
12
16
/16
FOR AUDIO
222
332
OPEN
TDA7575B
/16
/16
47u
0.22u
102
3300u
9
10
11
12
6
0
33u
33u
MA8043-H
10k
1.5k
/35
103
NJM4580V
2.2k
1k
-F
/16
0
100u
DTC144EKA
2SD2375P
DTA124EKA
100
DTC143EKA
0
/50
DTA124EKA
102
100k
100k
OPEN
MA8056H
NFW31SP106
NFW31SP106
-F
103
47u
FOR AUDIO
10k
0
OPEN
OPEN
OPEN
390k
0
33u
1k
-F
103
/35
4.7u
4.7u
FOR AUDIO
F
331
-F
(1/4W)
RD160L-60
100
22u
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
4
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
LM252
AK4358
8
DEC/PC/FLASH/RESET_I/F<12..0>
OPEN
OPEN
OPEN
470
470
DTC124EKA
OPEN
0.1u
/16
-F
2.2k
2.2k
332 3.9k
-F
AUDIO_I/F_DSP0OUT<3..0>
2.2u
15
4.7k
/10
FOR AUDIO
100k
OPEN
OPEN
OPEN
OPEN
103
LM252
682
NFW31SP106
103
153
SDL14PIN
OPEN
(2125)
OPEN
101
1/2W
68
22k
MA8270M
221
4.7k
22k
2SA1037AKR
4.7k
1/2W
10k
15k
3.9K
NFW31SP106
331
470u
DTC323TK
-F
OPEN
PLATE4
OPEN
OPEN
2.2k
331
-F
3.9k
OPEN
0.1u
(2125)
OPEN
F
NJM4580V
22p
10k
NJM4580V
-F
DTC323TK
FOR AUDIO
15k
102
OPEN
OPEN
OPEN
/50
OPEN
MA8270M
221
2.2k
222
AK7730
S812C33AUA
DTC323TK
0.22u
1.5k
DTA144TKA
ALD-20-8
FOR AUDIO
331
NJM2115V
-F
S3D6600
OPEN
PLATE1
680
2.7k
2
OPEN
OPEN
/16
3300u
PLATE2
0.22u
OPEN
TDA7560D
OPEN
3.9k
2.2k
OPEN
IC561
1
10
11
12
13
14
15
16
18
19
2
20
23
24
25
3
4
5
6
7
8
9
C578
1
2
C565
1
2
R561
1
2
C577
1
2
H-TR-2
1
2
Q502
B
C
E
C575
1
2
R565
1
2
Q564
B
C
E
R569
1
2
C503
1
2
R505
1
2
Q503
B
C
E
R506
1
2
R501
1
2
C501
1
2
R503
1
2
D005
A
K
D006
A
K
C608
1
2
C607
1
2
R607
1
2
R606
1
2
C502
1
2
Q607
B
C
E
1
2
D504
A
K
C504
1
2
L003
1
2
R508
1
Q505
B
C
E
R552
1
2
R536
1
2
C536
1
2
C528
1
2
R544
1
2
R540
1
2
C524
1
2
R535
1
2
R590
1
2
C585
1
2
LC373
1
2
3
IC371
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
27
28
29
3
30
31
32
33
34
35
36
37
38
39
4
40
42
43
44
45
46
47
48
5
6
7
8
9
RN373
1
2
3
4
8
7
6
5
RN372
1
2
3
4
8
7
6
5
R357
1
2
R351
1
2
IC331
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
27
28
29
3
30
31
32
33
34
35
36
37
38
39
4
40
42
43
44
45
46
47
48
5
6
7
8
9
C332
1
2
C340
1
2
X3G1
1
2
1
2
R511
1
2
C512
1
2
P002
1
10
11
12
13
14
15
16
17
18
2
3
4
5
6
7
8
9
P003
1
10
11
12
13
14
2
3
4
5
6
7
8
9
IC601
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
3
4
5
6
7
8
9
27
C627
1
2
C628
1
2
R627
1
2
R316
1
2
R315
1
2
R301
1
2
C001
1
2
P001
1
10
11
12
13
14
2
3
4
5
6
7
8
9
IC522
1
2
3
45
6
7
8
IC305
1
2
3
45
6
7
8
C951
1
2
C952
1
2
R951
1
2
Q953
B
C
E
R952
1
2
C954
1
2
Q952
B
C
E
Q951
B
CE
D952
A
K
C956
1
2
R955
1
2
LC371
1
2
3
H-TR-1
1
2
C904
1
2
C903
1
Q903
B
C
E
R901
2
1
2
D902
A
K
Q901
B
C
E
Q902
B
C
E
C901
1
2
D901
A
K
IC901
1
2
3
4
5
Q905
B
C
E
R904
1
2
Q904
B
C
E
IC903
1
2
3
2
J872
1
2
3
4
5
6
J871
1
10
11
12
2
3
4
5
6
7
8
9
R811
1
2
R949
1
2
R001
1
2
R002
1
2
R006
1
2
R008
1
2
R007
1
2
C005
1
2
Q801
B
C
E
R815
1
2
R821
1
2
R317
1
2
R817
1
2
D951
A
K
D016
A
K
C015
1
2
R012
1
2
D017
A
K
Q005
B
C
E
IC851
1
2
3
45
6
7
8
C852
1
2
R507
1
2
R851
1
2
R660
1
2
C693
1
2
C692
1
2
R693
1
2
IC621
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
3
4
5
6
7
8
9
27
IC681
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
4
5
6
7
8
9
27
IC521
1
2
3
45
6
7
8
IC581
1
2
3
45
6
7
8
IC511
1
2
3
45
6
7
8
IC652
1
2
3
45
6
7
8
IC651
1
2
3
45
6
7
8
IC351
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
25
26
27
28
29
3
30
31
32
33
34
35
36
37
38
39
4
40
41
42
43
44
45
46
47
48
5
6
7
8
9
IC304
1
2
3
45
6
7
8
IC303
1
2
3
45
6
7
8
IC302
1
2
3
45
6
7
8
IC301
1
2
3
45
6
7
8
IC951
1
2
3
45
Q504
B
C
E
Q506
B
C
E
Q567
B
C
E
Q568
B
C
E
B
C
E
Q565
B
C
E
Q563
B
C
C
E
Q561
C
E
Q501
B
C
E
Q602
B
C
E
Q601
B
C
E
Q684
B
C
E
Q683
B
C
E
Q682
B
C
E
Q681
B
C
E
Q003
B
C
E
D012
A
K
D013
A
K
D014
A
K
D015
A
K
D010
A
K
D008
A
K
A
K
D002
A
K
D003
A
K
D004
A
K
D009
A
K
D007
A
K
D503
A
K
D502
A
K
D501
A
K
L002
1
2
L001
1
2
C610
1
2
C630
1
2
C697
1
2
C629
1
2
C609
1
2
C696
1
2
C576
1
2
C002
1
2
C003
1
2
C004
1
2
C006
1
2
C007
1
2
C009
1
2
C011
1
2
C012
1
2
C013
1
2
C014
1
2
C010
1
2
C008
1
2
1
2
C573
1
2
C572
1
2
C685
1
2
C686
1
2
C687
1
2
C688
1
2
C623
1
2
C624
1
2
C603
1
2
C604
1
2
C567
1
2
C568
1
2
C569
2
C570
1
2
2
C566
1
2
C564
1
2
C563
1
2
C602
1
2
C601
1
2
C684
1
2
C683
1
2
C682
1
2
C681
1
2
C579
1
2
C505
1
2
C605
1
2
C625
1
2
C690
1
2
C689
1
2
C538
1
2
C537
1
2
C586
1
2
C513
1
2
C652
1
2
C651
1
2
C511
1
2
C301
1
2
C302
1
2
C303
1
2
C304
1
2
C305
1
2
C311
1
2
C313
1
2
C315
1
2
C317
1
2
C319
1
2
C321
1
2
C323
1
2
C325
1
2
C953
1
2
C959
1
2
C958
1
2
C514
1
2
C515
1
2
C960
1
2
C354
1
2
C334
1
2
C356
1
2
C355
1
2
C353
1
2
1
2
C335
2
C336
1
2
C358
1
2
C338
1
2
C359
1
2
C357
1
2
1
2
C337
1
2
1
2
1
2
C331
1
2
C373
1
2
C372
1
2
C375
1
2
C371
1
2
1
2
C806
1
2
C809
2
C854
1
2
C853
1
2
C851
1
2
C915
1
2
C802
1
2
C801
1
2
C807
1
2
1
2
C907
1
2
C908
1
2
C905
1
2
C906
1
2
C902
1
2
C909
1
2
C914
1
2
C913
1
2
C341
1
2
C352
1
2
C307
1
2
C309
1
2
C360
1
2
C361
1
2
C803
1
2
C804
1
2
R999
1
2
LC372
1
2
3
LC374
1
2
3
LC375
1
2
3
LC376
1
2
3
LC377
2
3
LC378
1
2
3
LC379
1
2
3
LC380
1
2
3
LC381
1
2
3
LC382
1
2
3
LC383
1
2
3
LC384
1
2
3
LC385
1
2
3
LC386
1
2
3
L338
1
2
1
2
L358
1
2
L357
1
2
L336
1
2
L337
1
2
1
2
L341
1
2
1
2
L339
1
2
L359
1
2
L360
1
2
L361
1
2
L362
1
2
L331
1
2
L351
1
2
LC901
1
2
3
L333
1
2
L334
1
2
L335
1
2
L3G1
1
2
L3G2
1
2
L355
1
2
L354
1
2
1
2
L356
1
2
L371
1
2
L372
1
2
L373
1
2
L901
1
2
C535
1
2
C527
1
2
C523
1
2
C531
1
2
C532
1
2
C650
1
2
C649
1
2
R005
1
2
R003
1
2
R575
1
2
1
2
R504
1
2
R573
1
2
R572
1
2
R571
1
2
R570
1
2
R568
1
2
1
2
R566
1
2
1
1
2
R502
1
2
R548
1
2
R527
1
2
R528
1
2
R526
1
2
R534
1
2
R525
1
2
R533
1
2
R539
1
2
R551
1
2
R547
1
2
R543
1
2
C534
1
2
R542
1
2
C530
1
2
R538
1
2
R550
1
2
R546
1
2
C526
1
2
R531
1
2
R523
1
2
R532
1
2
C522
1
2
R524
1
2
R655
1
2
C647
1
2
R653
1
2
C643
1
2
R645
1
2
R646
1
2
C641
1
2
R641
1
2
R642
1
2
R651
1
2
C645
1
2
R649
1
2
R549
1
2
R529
1
2
R521
1
2
C533
1
2
R545
1
2
R541
1
2
C525
1
2
R537
1
2
C529
1
2
R530
1
2
C521
1
2
R522
1
2
C584
1
2
R586
1
2
C583
1
2
R585
1
2
R588
1
2
R587
1
2
C582
1
2
R583
1
2
R581
1
2
1
2
C581
1
2
R582
1
2
C648
1
2
R652
1
2
C646
1
2
R650
1
2
1
2
R654
1
2
C644
1
2
R647
1
2
1
2
R648
1
2
C642
1
2
R644
1
2
R604
1
2
R603
1
2
R688
1
2
R687
1
2
R686
1
2
R685
1
2
R602
1
2
R601
1
2
R684
1
2
R683
1
2
R682
1
2
R681
1
2
R605
1
2
R626
1
2
R625
1
2
R692
1
2
R691
1
2
R690
1
2
R689
1
2
R318
1
2
R313
1
2
R311
1
2
R309
1
2
R314
1
2
R312
1
2
R310
1
2
R319
1
2
R321
1
2
R323
1
2
R325
1
2
R320
1
2
R322
1
2
R324
1
2
R326
1
2
R658
1
2
R657
1
2
R659
1
2
C310
1
2
C312
1
2
C314
1
2
C316
1
2
C318
1
2
C320
1
2
C322
1
2
C324
1
2
R302
1
2
R304
1
2
R303
1
2
R305
1
2
R306
1
2
R308
1
2
R307
1
2
R338
1
2
R337
1
2
R359
1
2
R358
1
2
R356
1
2
R372
1
2
R373
1
2
R374
1
2
R375
1
2
R371
1
2
R8G2
1
2
R8G1
1
2
R8G4
1
2
R8G3
1
2
R872
1
2
R871
1
2
R812
1
2
R810
1
2
R808
1
2
R806
1
2
R805
1
2
R807
1
2
R809
1
2
R818
1
2
R819
1
2
1
2
R824
1
2
R822
1
2
R825
1
2
R906
1
2
R905
1
2
R852
1
2
R011
1
2
R335
1
2
R334
1
2
R332
1
2
R333
1
2
R355
1
2
R354
1
2
R353
1
2
R352
1
2
R331
1
2
R3G1
1
R826
1
1
2
R628
1
2
R608
1
2
RN371
1
2
3
4
8
7
6
5
R816
1
2
R820
1
2
1
2
8
7
6
5
R814
1
2
R813
1
2
R589
1
2
R512
1
2
C306
1
2
C308
1
2
L3G3
1
2
R884
1
2
D881
A
K
R883
1
2
Q880
B
C
E
R828
1
2
R827
1
2
R829
1
2
R830
1
2
R831
1
2
R199
1
R198
1
2
R998
1
2
R997
1
2
C694
1
2
C695
1
2
C033
1
2
C034
1
2
C035
1
2
C036
1
2
C037
1
2
C038
1
2
C031
1
2
C032
1
2
C376
1
2
1
2
C626
1
2
C691
1
2
C042
1
2
C043
1
2
C044
1
2
C039
1
2
C040
1
2
C041
1
2
R021
1
2
R023
1
2
R022
1
2
R026
1
2
R025
1
2
R024
1
2
B
C
E
R004
1
2
Q001
B
C
E
Q006
B
C
E
R010
1
2
Q004
B
C
E
R014
1
2
R013
1
2
R009
1
H-IC-1
1
2
TP037
1
TP036
1
TP035
1
TP034
1
TP033
1
TP032
1
TP031
1
TP030
1
TP029
1
TP027
1
TP026
1
TP025
1
TP024
1
TP023
1
TP022
1
TP018
1
TP017
1
TP016
1
TP015
1
TP019
1
TP014
1
TP013
1
TP012
1
TP011
1
1
TP009
1
TP008
1
TP007
1
TP006
1
TP005
1
TP004
1
TP003
1
TP002
1
TP001
1
TP386
1
TP385
1
TP384
1
TP383
1
TP382
1
TP381
1
TP380
1
1
TP378
1
TP377
1
TP376
1
TP375
1
TP374
1
1
TP372
1
TP371
1
TP956
1
1
1
1
TP954
1
TP955
1
TP301
1
TP906
1
TP905
1
TP904
1
TP903
1
TP901
1
TP907
1
TP806
1
TP511
1
TP681
1
TP682
1
TP683
1
TP684
1
TP601
1
TP602
1
TP561
TP563
1
TP564
1
TP501
1
1
TP566
1
TP567
1
TP568
1
1
1
TP622
1
TP621
1
TP688
1
TP687
1
TP686
1
TP685
1
TP302
1
TP303
1
TP304
1
TP305
1
TP309
1
TP308
1
TP307
1
TP306
1
TP331
1
TP352
1
TP334
1
TP351
1
1
TP333
1
TP332
1
TP805
1
TP801
1
TP336
1
TP902
1
TP502
1
TP028
1
TP021
1
TP020
1
TP040
1
TP039
1
TP041
1
TP807
1
TP503
1
TP505
1
TP504
1
1
TP804
1
TP803
1
TP802
1
TP038
1
I801
1
I802
1
I803
1
I804
1
I805
1
I811
1
I812
1
I813
1
I814
1
I815
1
I816
1
I817
1
I818
1
1
I822
1
1
I824
1
I831
1
I830
1
I829
1
I828
1
I827
1
I826
1
I825
1
I507
1
I505
1
I504
1
I506
1
I570
1
I561
1
I562
1
I563
1
I564
1
I565
1
I566
1
I567
1
I568
1
I501
1
I904
1
I852
1
I851
1
I853
1
I833
1
I836
1
I331
1
I332
1
I333
1
I354
1
I353
1
I352
1
I351
1
I624
1
I625
1
I601
1
I602
1
1
I623
1
1
1
I689
1
1
I690
1
1
I574
1
I009
1
I010
1
I004
1
I001
1
I005
1
I002
1
I003
1
I011
1
I012
1
I008
1
I006
1
I007
1
I523
1
I522
1
I521
1
I582
1
I581
1
I511
1
I644
1
1
I642
1
I641
1
I371
1
I372
1
I373
1
I374
I375
1
I376
1
I377
1
I378
I379
1
I380
1
I381
1
I382
1
I383
1
I384
1
I881
1
I908
1
I905
1
I902
1
I502
1
I503
1
I603
1
I604
1
I622
1
I621
1
I681
1
I682
1
I683
1
I684
1
I688
1
I687
1
I686
1
I685
1
1
I304
1
I303
1
I302
1
I301
1
I305
1
I306
1
I307
1
I308
1
I972
1
I971
1
I572
1
I013
1
I903
1
I907
1
I901
1
1
1
1
1
I958
1
I317
1
I8G4
1
I8G3
1
I8G2
1
I8G1
1
I334
1
I810
1
I854
1
I573
1
I571
1
R5A1
1
2
R8A2
1
2
R8A1
1
2
R8A3
1
2
R9A1
1
2
I906
1
R9A2
1
2
C3A7
1
2
C3A8
1
2
C3A6
1
2
C3A5
1
2
C3A3
1
2
C3A1
1
2
C3A2
1
2
C3A4
1
2
C561
2
1
I524
1
I309
1
I310
1
I311
1
I312
1
I313
1
I314
1
I315
1
I316
1
I832
1
R3A1
1
2
I015
1
I014
1
I016
1
I899
1
R3A2
1
R8B2
1
2
R8B1
1
2
D0B1
A
K
C0B1
1
2
R0B1
1
2
R0B2
1
2
R0B3
1
2
TP879
1
TP878
1
TP877
1
TP876
1
TP875
1
TP874
1
TP873
1
TP872
1
TP871
1
I837
1
I39E
1
I361
1
I360
1
I363
1
I365
1
I345
1
I344
1
I348
1
I349
1
I341
1
I340
1
I531
1
I532
1
I540
1
I539
1
I547
1
I548
1
I545
1
I546
1
I529
1
I527
1
I525
1
I584
1
I647
1
I645
1
I646
1
I648
1
I585
1
I526
1
I528
1
I530
1
I538
1
I537
1
I536
1
I535
1
I534
1
I533
1
I587
1
I586
1
I652
1
I651
1
I650
1
I649
1
I543
1
I544
1
I541
1
I542
1
I589
1
I588
1
I657
1
I658
1
I656
1
I655
1
I583
1
I653
1
I654
1
I512
1
I325
1
I323
1
I322
1
I324
1
I321
1
I320
1
I319
1
I318
1
I326
1
I36A
1
I34A
1
I34B
1
I34C
1
I34J
1
I336
1
I337
1
I338
1
I339
1
I36D
1
I36E
1
I36F
1
I398
1
I392
1
I391
1
I390
1
I367
1
I368
1
I369
1
I838
1
I839
1
I840
1
I842
1
I844
1
I846
1
I849
1
I848
1
I847
1
R8B3
1
2
TP0B1
1
C3C1
1
2
IA901
1
IA902
1
IA903
1
IA904
1
IA905
1
IA906
1
IA907
1
IA910
IA908
1
IA909
1
IA515
1
IA501
1
IA505
1
IA504
1
IA503
1
IA502
1
IA507
1
IA506
1
IA508
1
IA511
1
IA509
1
IA513
1
1
IA512
1
IA514
1
IA302
1
IA303
1
IA304
1
IA305
1
IA301
1
IA306
1
IA951
1
1
1
IA001
1
IA002
1
IA003
1
IA004
1
IA005
1
IA006
1
IA007
1
IA008
1
IA516
1
IA307
1
C5C1
1
2
C6C1
1
2
Q007
B
C
E
D018
A
K
R016
1
2
C016
1
2
D019
A
K
R015
1
2
R833
1
2
R907
1
2
IC902
1
2
3
C955
1
2
C957
1
2
R953
1
2
R954
1
2
R956
1
2
R510
1
2
R622
1
2
IA620
1
C620
1
2
D620
A
K
I627
1
R621
1
2
I620
1
I626
1
Q620
B
C
E
R620
1
2
D630
A
K
Q631
B
C
E
R632
1
2
I632
1
D631
A
K
I631
1
IA630
1
R630
1
2
R631
1
2
I630
1
IA631
1
B
C
E
R633
1
2
C631
1
2
R578
1
2
D030
A
K
Q030
B
C
E
C632
1
2
I628
1
I633
1
TP042
1
I017
1
I018
1
I030
1
I031
1
I032
1
R513
1
2
R514
1
2
IC501
1
2
3
45
R515
1
2
D510
A
K
C510
1
2
C516
1
2
C517
1
2
R030
1
2
R031
1
2
C030
1
2
R832
1
2
I806
1
L950
1
2
C950
1
2
TP507
1
K
I019
1
1
L342
L340
2
C3G2
C3G1
22.5792MHz
TP335
L352
41
1
TP379
1
1
TP373 I643
2
AUDIO GND
2
2
R656
R643
NFE61HT102
TDA7575B
D001
TP010
ALD-20-8
OPEN
2SA1037AKR
A
1SS355
D011
Q002
2SC2412KS
22k
IA510
2.2K
1
R509
I508
DTC124EKA
2
Q566
TP569
R902
27k
1
1
2
102
C574
1
R567
Q562
2
1
R562
1k
B
11
R563
1k
R564
1.5k
E
2
B
TP562
2
223
C562
DTC323TK
DTC323TK
1
-F
Q630
DTC143EKA
1
R336
2
41
C333
0.1u
6
25
26
27
28
29
30
2423
22
212019
7
8
9
10
11
12
13 14 15 16
17
18
5
4
3
2
1
48
47 46 45 44
43
42
31
32
33
34
35
36
373839
40
41
25
24
232221201918
17
1615141312
11
10
98
7
654
3
2
1
26
25 27201918
17
1615141312
11
10
98
3
2
1
7
654
24
232221
26
25 27201918
17
1615141312
11
10
98
3
2
1
7
654
24
232221
6
25
26
27
28
29
30
24
23
2221
20
19
7
8
9
10
11
12
13 14 15 16 17 18
5
4
3
2
1
48 47
46 45
44 43
42
31
32
33
34
35
36
3738
394041
+
+
+
+
2
54
3
1
P
1
2
+
+
+
+
4
1
3
2
586
7
4
1
3
2
586
7
10
3
2
1
18
17
1615141312
11
9
8
7
654
10
3
2
1
141312
119
8
7
654
30
1
91
90
898887868583
82
818079787776
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
51
40 39
38 37
36
35 34
33
32
31
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
3
2
4
5
6
7
8
9
25
2627
28
2941
42
43
4445
46474849
50
52
92
93
94
95 96
97
98
99
1
00
84
10
3
2
1
141312
11
9
8
7
654
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
+
+
+
1
2
+
+
+
2
54
3
1
3
1
2
3
2
1
654
456
7
89
10
11
12
1
2
3
5
7
4
3
2
1
8
6
26
25 27201918
17
1615141312
11
10
98
3
2
1
7
654
24
232221
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
6
25
26
27
28
29
30
24
23
2221
20
19
7
8
9
10
11
12
13 14 15 16
17
18
5
4
3
2
1
48 47
46 45 44
43
42
31
32
33
34
35
36
3738
394041
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
2
54
3
1
+ + +
PP P
P
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
4
1
3
2
586
7
4
1
3
2
586
7
+ + +
1
2
SCHEMATIC DIAGRAM PCB-AMP MODEL : CV-0MW7G21-9,-91
15
16 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-9,-91
VOLTAGE
BATT : 13.2V ACC : ON VOL : 0 (Pin numbers are as measurement points.)
IC801(ASSY-ROM(M30624FGPGP),M30620MCP-586GP) IC331(AK7730AVT)
Pin NO. Pin Name Function Voltage [V] Pin NO. Pin Name Function Voltage [V] Pin NO. Pin Name Voltage(DC)[V]
1 DSP0-RDY RDY input from DSP-IC(AK7730/AK7740) 3.3 51 INIT0 Default input 0.0 1 EESEL 0.0
2 DSP1-RDY RDY input of DSP1(AK7730) 3.3 52 INIT1 Default input 0.0 2 SDIN4 0.0
3 DSP1-SO Serial data output to DSP1-IC(AK7730) 0.0 53 INIT2 Default input 0.0 3 SDIN3 0.0
4 DSP1-SI Serial data input to DSP1-IC(AK7730) 0.0 54 INIT3 Default input 0.0 4 SDIN2 0.0
5 DSP1-SCLK Serial clock output to DSP1-IC(AK7730) 3.3 55 - Not Used 0.0 5 SDIN1 0.0
6 BYTE BYTE input(pull-up) 3.3 56 - Not Used 0.0 6 CKS1 3.3
7 CNVSS VSS 0.0 57 - Not Used 0.0 7 BVSS 0.0
8 DSP1-IRESET IRESET output to DSP1-IC(AK7730) 3.3 58 - Not Used 0.0 8 DVSS 0.0
9 DSP1-SRESET SRESET output to DSP1-IC(AK7730) 3.3 59 - Not Used 0.0 9 DVDD 3.3
10 RESET RESET input 3.3 60 VCC2 VCC 3.3 10 SDOUT4 0.0
11 XOUT Crystal connection OUT 1.7 61 - Not Used 0.0 11 SDOUT3 0.0
12 GND GND 0.0 62 VSS VSS 0.0 12 SDOUT2 1.2
13 XIN Crystal connection IN 1.4 63 - Not Used 0.0 13 SDOUT1 1.2
14 VCC1 VCC 3.3 64 - Not Used 0.0 14 BITCLK_I 0.0
15 NMI nonmaskable interrupt input (pull-up) 3.3 65 - Not Used 0.0 15 LRCLK_I 0.0
16 AUDIO-SIO-IN Serial access signal from Audio(WakeUp) 3.3 66 - Not Used 0.0 16 BITCLK_O 1.6
17 POWER-IN POWER-ON signal Audio(WakeUp) 0.0 67 W/D-RCT external W/D control signal 0.6 17 LRCLK_O 1.6
18 BATT-IN BATT voltage detection 0.0 68 W/D-CK external W/D clear pulse output 1.7 18 RDY 3.3
19 ACC-ON Power supply ACC ON output 3.3 69 - Not Used 0.0 19 DRDY 3.3
20 - Not Used 0.0 70 - Not Used 0.0 20 CS 0.0
21 POWER-MUTE0 POWER-IC-MUTE output(TDA7575) 0.0 71 - Not Used 0.0 21 DVDD 3.3
22 POWER-STB1 POWER-IC-STB Power supply output(TDA7560) 3.3 72 - Not Used 0.0 22 DVSS 0.0
23 POWER-MUTE1 POWER-IC-MUTE output(TDA7560) 0.0 73 - Not Used 0.0 23 CLKO1 1.6
24 ALL-MUTE MUTE output 3.3 74 - Not Used 0.0 24 CLKO2 0.0
25 - Not Used 0.0 75 DSP1-DRDY DRDY input of DSP1(AK7730) 0.0 25 XTO 1.3
26 - Not Used 0.0 76 DAC-PDN DAC-IC ON/OFF output 3.3 26 XTI 1.3
27 I2C-SCL(POWER-IC/DAC) POWER-IC/DAC-IC communication(I2C) 3.3 77 - Not Used 0.0 27 DVSS 0.0
28 I2C-SDA(POWER-IC/DAC) POWER-IC/DAC-IC communication(I2C) 3.3 78 - Not Used 0.0 28 DVDD 3.3
29 TXD PC communication/for FLASH writing 3.3 79 - Not Used 0.0 29 SMODE 3.3
30 RXD PC communication/for FLASH writing 3.3 80 - Not Used 0.0 30 SO 0.0
31 SCLK for FLASH writing 3.3 81 - Not Used 3.3 31 SI 0.0
32 (FLASH-RTS) for FLASH writing 0.0 82 - Not Used 0.0 32 SCLK 3.3
33 AUDIO-SO Serial communication to Audio 3.3 83 - Not Used 0.0 33 RQ 3.3
34 AUDIO-SI Serial signal to Audio 3.3 84 - Not Used 0.0 34 S-RESET 3.3
35 PC-CTS PC communication hand-shake 3.3 85 - Not Used 0.0 35 INT-RESET 3.3
36 PC-RTS PC communication hand-shake 3.3 86 - Not Used 0.0 36 CKS0 0.0
37 - Not Used 0.0 87 - Not Used 0.0 37 LFLT 1.5
38 - Not Used 0.0 88 - Not Used 0.0 38 AVSS 0.0
39 (FLASH-EPM) for FLASH writing 0.0 89 - Not Used 0.0 39 AVDD 3.3
40 - Not Used 0.0 90 DSP0A-SRESET SRESET output to DSP-IC(AK7730) 3.3 40 AVDD 3.3
41 - Not Used 0.0 91 DSP0A-IRESET IRESET output to DSP-IC(AK7730) 3.3 41 VREFH 3.3
42 OFFSET-IN0(HSD) OFFSET detection input 0.0 92 DSP0A-DRDY DRDY input from DSP-IC(AK7730) 3.3 42 VCOM 1.4
43 OFFSET-OUT OFFSET detective mode IN output 0.0 93 DSP0A-RQ RQ output to DSP-IC(AK7730) 3.3 43 VREFL 0.0
44 (FLASH-CE) for FLASH writing 0.0 94 AVSS AVSS 0.0 44 AVSS 0.0
45 CD-IN2(TAD7575) CD input from TAD7575 3.3 95 DSP1-RQ RQ output to DSP1-IC(AK7730) 3.3 45 AINR- 1.7
46 CD-IN1(TAD7575) CD input from TAD7575 3.3 96 VREF A/D,D/A reference voltage 3.3 46 AINR+ 1.7
47 CD-IN0(TAD7575) CD input from TAD7575 3.3 97 AVCC AVCC 3.3 47 AINL- 1.7
48 - Not Used 0.0 98 DSP0-SI Serial data input of DSP-IC(AK7730) 0.0 48 AINL+ 1.7
49 - Not Used 0.0 99 DSP0-SO Serial data output of DSP-IC(AK7730) 0.0
50 - Not Used 0.0 100 DSP0-SCLK Serial clock output of DSP-IC(AK7730) 3.3
17 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-9,-91
VOLTAGE
IC351(AK7730AVT) IC371(AK4358) IC561(TDA7560) IC601(TDA7575B) IC621(TDA7575B)
Pin NO. Pin Name Voltage(DC)[V] Pin NO. Pin Name Voltage(DC)[V] Pin NO. Pin Name Voltage(DC)[V] Pin NO. Pin Name Voltage(DC)[V] Pin NO. Pin Name Voltage(DC)[V]
1 EESEL 0.0 1 FL-LO- 2.6 1 TAB 0.0 1 TAB 0.0 1 TAB 0.0
2 SDIN4 0.0 2 FL-LO+ 2.6 2 P-GND 0.0 2 PWGND 0.0 2 PWGND 0.0
3 SDIN3 0.0 3 DZF3 0.0 3 RL - 6.3 3 PIN_B 0.0 3 PIN_B 0.0
4 SDIN2 1.2 4 DZF2 0.0 4 STBY 4.3 4 OUT1+ 6.7 4 OUT1+ 6.7
5 SDIN1 1.2 5 DZF1 0.0 5 RL + 6.3 5 - 0.0 5 - 0.0
6 CKS1 0.0 6 CAD0 0.0 6 Vcc1 13.2 6 OUT1- 6.7 6 OUT1- 6.7
7 BVSS 0.0 7 ACKSN 0.0 7 RR - 6.3 7 VCC1 13.2 7 VCC1 13.2
8 DVSS 0.0 8 PDN 3.3 8 P-GND 0.0 8 IN1+ 6.6 8 IN1+ 6.6
9 DVDD 3.3 9 BICK 1.6 9 RR + 6.3 9 IN1- 6.6 9 IN1- 6.6
10 SDOUT4 1.2 10 MCLK 1.6 10 R.F 6.2 10 MUTE 11.9 10 MUTE 11.9
11 SDOUT3 0.6 11 DVDD 5.0 11 RR-IN 6.2 11 STBY 4.3 11 STBY 4.3
12 SDOUT2 1.2 12 DVSS 0.0 12 RL-IN 6.2 12 SGND 0.0 12 SGND 0.0
13 SDOUT1 1.2 13 SDTI4 1.2 13 S-GND 0.0 13 DATA 3.3 13 DATA 3.3
14 BITCLK_I 1.6 14 SDTI1 1.2 14 FL-IN 6.2 14 CLK 3.3 14 CLK 3.3
15 LRCLK_I 1.6 15 SDTI2 0.6 15 FR-IN 6.2 15 SVR 6.7 15 SVR 6.7
16 BITCLK_O 1.6 16 SDTI3 1.2 16 AC-GND 6.2 16 CD_OUT 3.3 16 CD_OUT 3.3
17 LRCLK_O 1.6 17 LRCK 1.7 17 FR-M/H+ 6.3 17 1OHM 13.2 17 1OHM 13.2
18 RDY 3.3 18 I2C 5.0 18 P-GND 0.0 18 I2CEN 13.2 18 I2CEN 13.2
19 DRDY 0.0 19 CCLK/SCL 3.3 19 FR-M/H- 6.3 19 IN2- 6.6 19 IN2- 6.6
20 CS 0.0 20 CDTI/SDA 3.3 20 Vcc2 13.2 20 IN2+ 6.6 20 IN2+ 6.6
21 DVDD 3.3 21 CSN/CAD1 0.0 21 FL-M/H+ 6.3 21 VCC2 13.2 21 VCC2 13.2
22 DVSS 0.0 22 DCLK 0.0 22 MUTE 4.3 22 OUT2- 6.7 22 OUT2- 6.7
23 CLKO1 0.0 23 DSDL4 0.0 23 FL-M/H- 6.3 23 - 0.0 23 - 0.0
24 CLKO2 0.0 24 DSDR4 0.0 24 P-GND 0.0 24 OUT2+ 6.7 24 OUT2+ 6.7
25 XTO 1.3 25 DSDL1 0.0 25 HSD 13.2 25 PIN A 0.0 25 PIN A 13.2
26 XTI 1.6 26 DSDR1 0.0 26 PWGND 0.0 26 PWGND 0.0
27 DVSS 0.0 27 DSDL2 0.0 27 TAB 0.0 27 TAB 0.0
28 DVDD 3.3 28 DSDR2 0.0
29 SMODE 0.0 29 DSDL3 0.0 IC681(TDA7575B)
30 SO 0.0 30 DSDR3 0.0 Pin NO. Pin Name Voltage(DC)[V]
31 SI 0.0 31 DIF0 0.0 1 TAB 0.0 Power Supply
32 SCLK 3.3 32 FR-M/H- 2.6 2 PWGND 0.0 BATT ON
33 RQ 3.3 33 FR-M/H+ 2.6 3 PIN_B 13.2
34 S-RESET 3.3 34 VREFH 5.0 4 OUT1- 6.7
35 INT-RESET 3.3 35 AVDD 5.0 5 - 0.0 B5V Q903(E) 5.2
36 CKS0 0.0 36 AVSS 0.0 6 OUT1+ 6.7 B3.3V IC903(3) 3.3
37 LFLT 1.5 37 FL-M/H- 2.6 7 VCC1 13.2
38 AVSS 0.0 38 FL-M/H+ 2.6 8 IN1- 6.6 ACC ON
39 AVDD 3.3 39 RR- 2.6 9 IN1+ 6.6
40 AVDD 3.3 40 RR+ 2.6 10 MUTE 11.9
41 VREFH 3.3 41 RL- 2.6 11 STBY 4.3 ACC3.3V IC901(5) 3.3
42 VCOM 1.4 42 RL+ 2.6 12 SGND 0.0 A8V Q953(E) 8.7
43 VREFL 0.0 43 OUT3R- 2.6 13 DATA 3.3 A5V Q954(E) 5.0
44 AVSS 0.0 44 OUT3R+ 2.6 14 CLK 3.3 A3.3V IC951(5) 3.3
45 AINR- 0.0 45 WF- 2.6 15 SVR 6.7
46 AINR+ 0.0 46 WF+ 2.6 16 CD_OUT 3.3
47 AINL- 0.0 47 FR-LO- 2.6 17 1OHM 0.0
48 AINL+ 0.0 48 FR-LO+ 2.6 18 I2CEN 13.2
19 IN2+ 6.6
20 IN2- 6.6
21 VCC2 13.2
22 OUT2+ 6.7
23 - 0.0
24 OUT2- 6.7
25 PIN A 0.0
26 PWGND 0.0
27 TAB 0.0
Power
Name
Measurement
Point Voltage(DC)[V]
Power
Name
Measurement
Point Voltage(DC)[V]
18 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-9,-91
WAVEFORM
BATT : 13.2V VOL : 0 (Pin numbers are as measurement points.)
IC331 PCB-AMP IC331 PCB-AMP IC371 PCB-AMP
CH1=17pin (LRCLK_O) CH1=25pin (XTO) CH1=19pin (CCLK/SCL)
CH2=16pin (BITCLK_O) CH2=20pin (CDTI/SDA)
CH1
CH1 CH1
CH2 CH2
IC371 PCB-AMP IC801 PCB-AMP
IC331 PCB-AMP
CH1=13pin (SDTI4) CH1=11pin (XOUT)
CH1=23pin (CLKO1) CH2=14pin (SDTI1)
CH3=15pin (SDTI2)
CH4=16pin (SDTI3)
CH1 CH1
CH1
CH2
CH3
CH4
P002 PCB-AMP
CH1=13pin (DATA)
CH1
This manual suits for next models
1
Table of contents
Other Mitsubishi MOTORS Amplifier manuals
