Mitsubishi MOTORS CV-0MW7G21-7 User manual
SERVICE MANUAL
MITSUBISHI ELECTRIC CORP. SANDA WORKS
Your company internal use only.
Copyright (C) Mitsubishi Electric Corporation.
SE027709123E Ver.ppt11E CV-0MW7G21-7,8
MITSUBISHI MOTORS

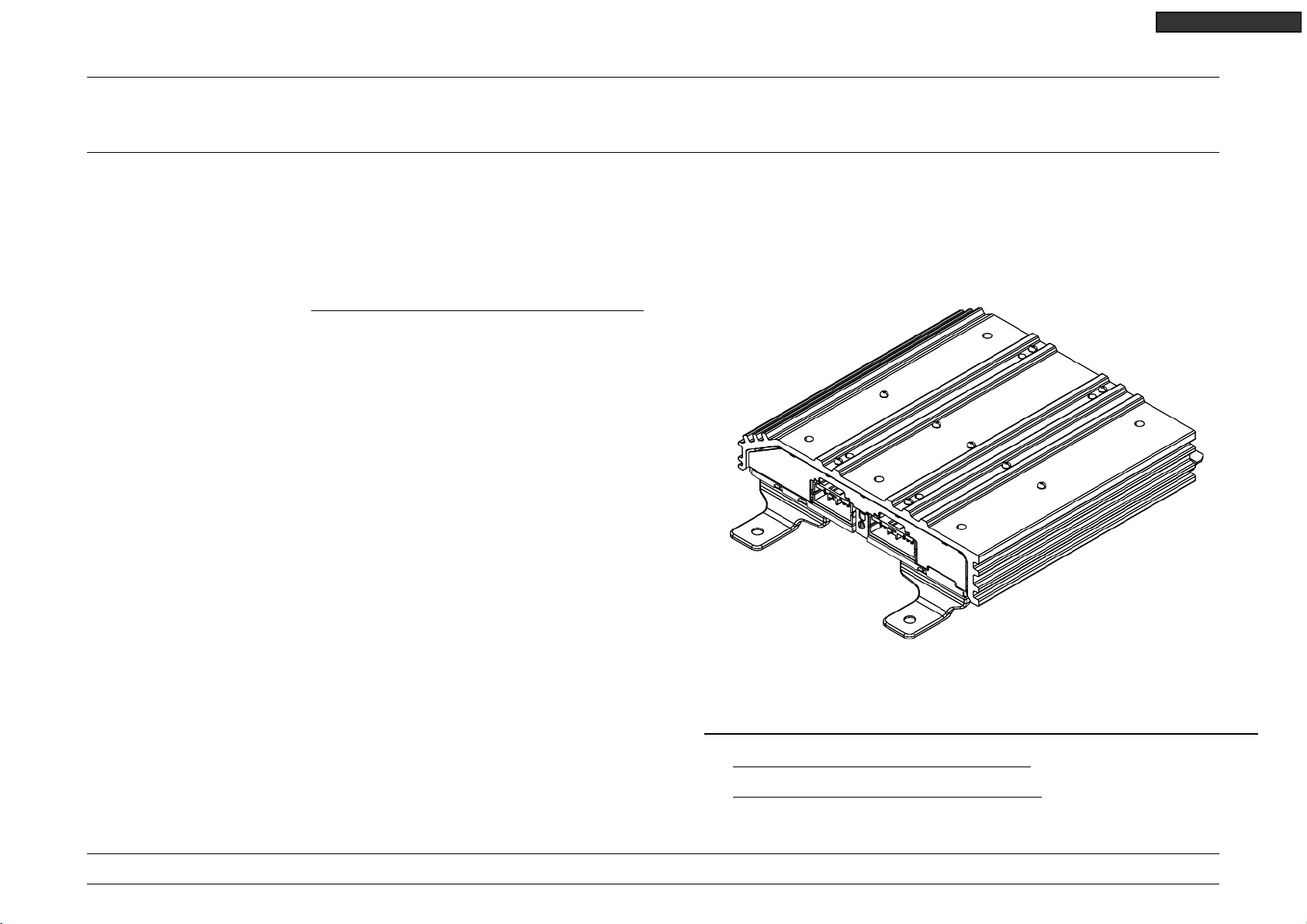

POWER AMPLIFIER
◆CONTENTS
● FEATURES and SPECIFICATIONS..................................................2
● CONNECTORS .......................................................................................3
● SYSTEM CONFIGURATION ..............................................................4
● BLOCK DIAGRAM .................................................................................5
● DISASSEMBLING PROCEDURES ...................................................6
● PARTS LIST..............................................................................................7
● ELECTRICAL PARTS LIST .......................................................8～12

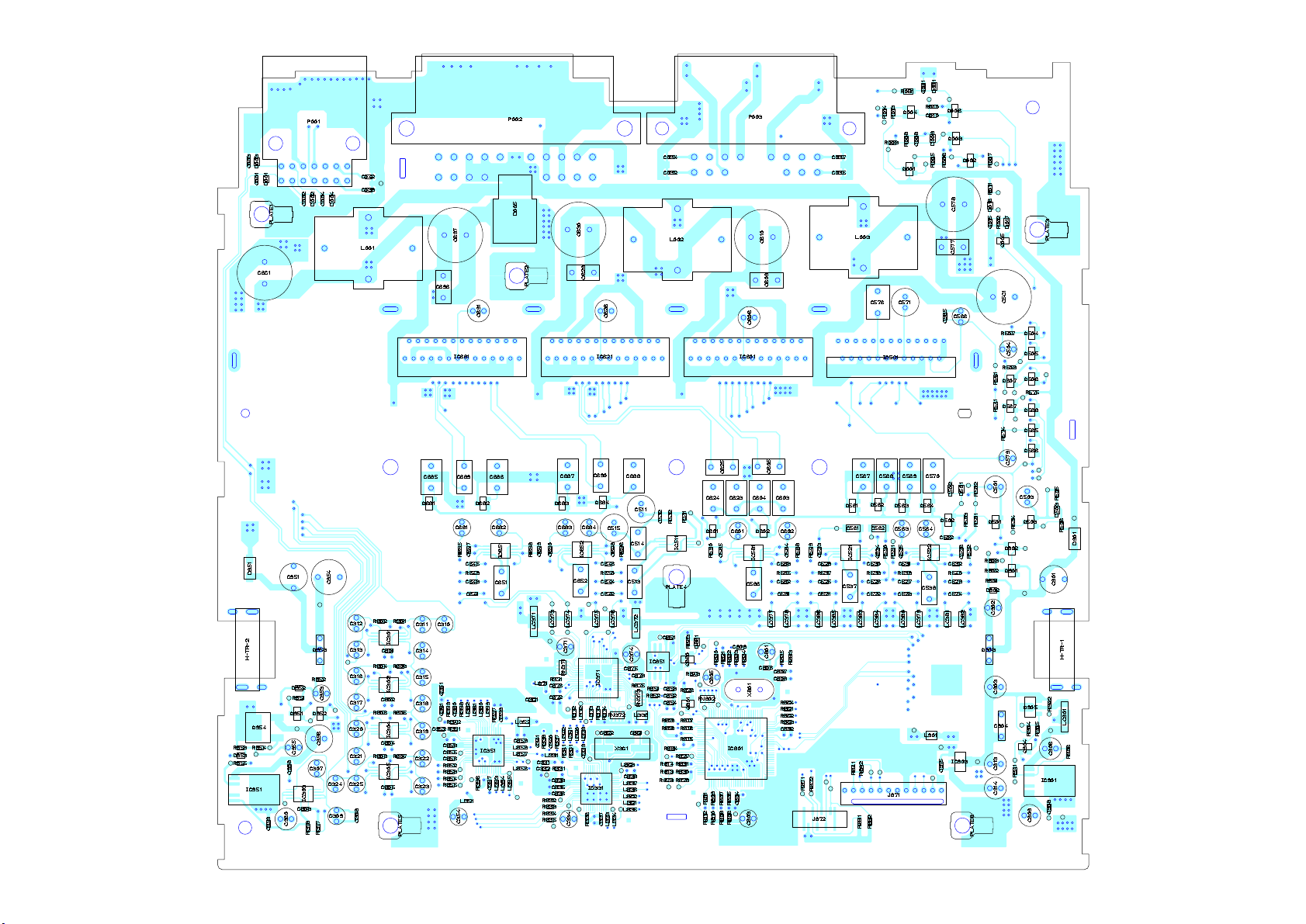

● PARTS LAYOUT ON PRINTED CIRCUIT BOARD ............13,14

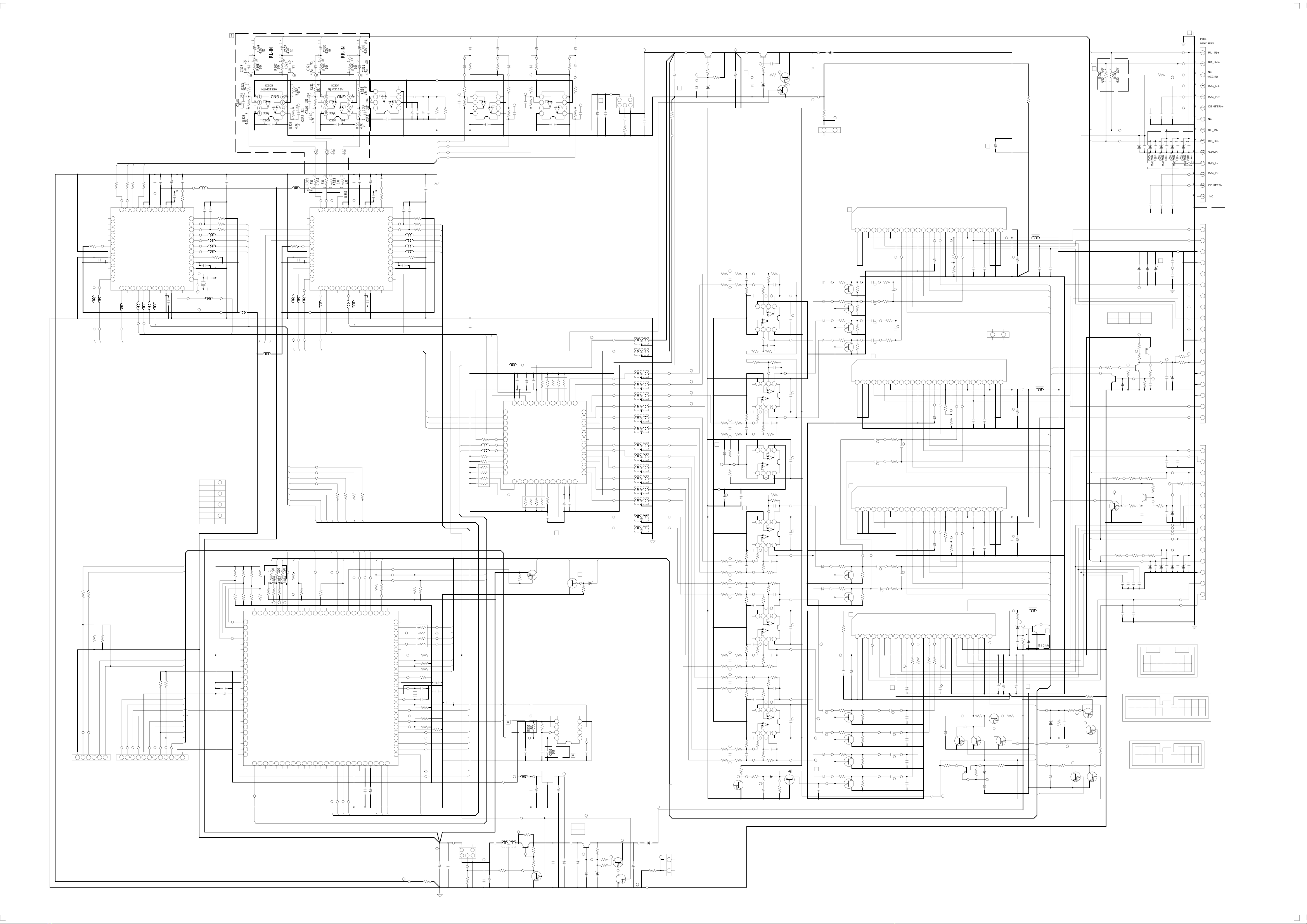

● SCHEMATIC DIAGRAM .....................................................................15
● VOLTAGE ..........................................................................................16,17

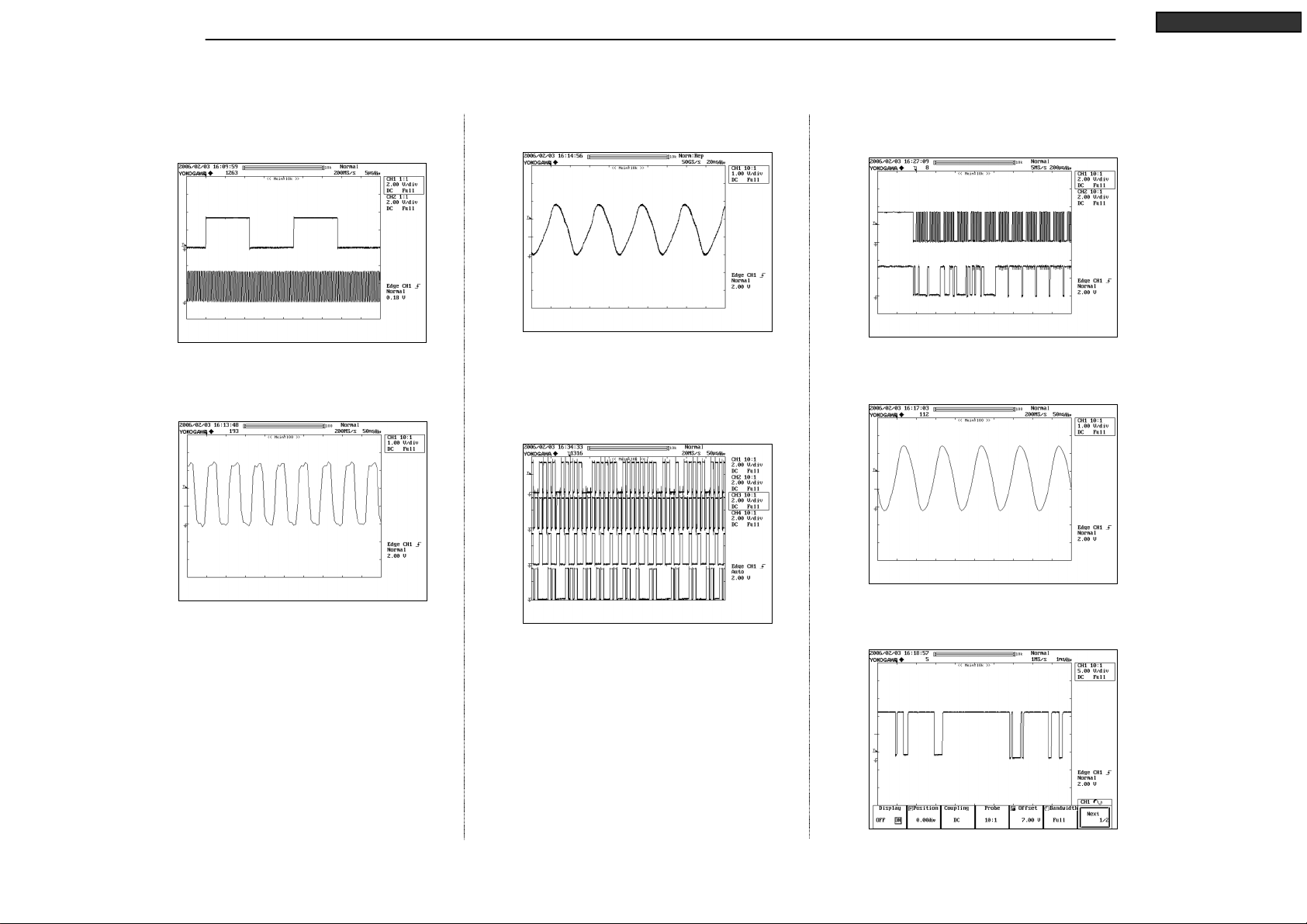

● WAVEFORM ............................................................................................18
2010 Mar.
Model : CV-0MW7G21-7 / CV-0MW7G21-8
MELCO Code : 34R036 / 34R037
PART No. : 8701A309 / 8701A350
2Your company internal use only.
Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-7,8
◆FEATURES and SPECIFICATIONS
FEATURES
< Power amplifier Part >
●High power 650W output power amplifier.
Woofer mono 150W x 2ch (1Ω) ....... Double voice coil Woofer drive
Front-Lo stereo 75W x 2ch (2Ω) ....... Front-Door Speaker drive
Front-M/H stereo 50W x 2ch (4Ω) ....... Front-Door Mirror Speaker drive
Rear stereo 50W x 2ch (2Ω) ....... Rear-Door Speaker drive
●Differential signal input circuit. (input Front 2ch of H/U)
●DSP circuit.
Auto-Loudness, Bass/Treble/Middle, Volume/Fader/Balance
Surround
Fix-EQ
Test tone
Input/Output limiter
Beep sound
Guide voice control
< Others >
●Diagnostic facility. (DC offset detector, High temperature detector, Out of
supply voltage short, Out of GND short)
SPECIFICATIONS
●Distortion : 0.5% max at 0.5W
●S/N : 55dB min at 0.5W
●Channel Separation : 50dB min at 0.5W
●Residual Output : 0.5mVrms max at Vol. min.
●Offset Voltage : 100mV max
●Backup Current : 1mA max
●Dimensions (W x D x H) : 264mm x 220mm x 60mm
●Weight : 2.0kg
3Your company internal use only.
Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-7,8

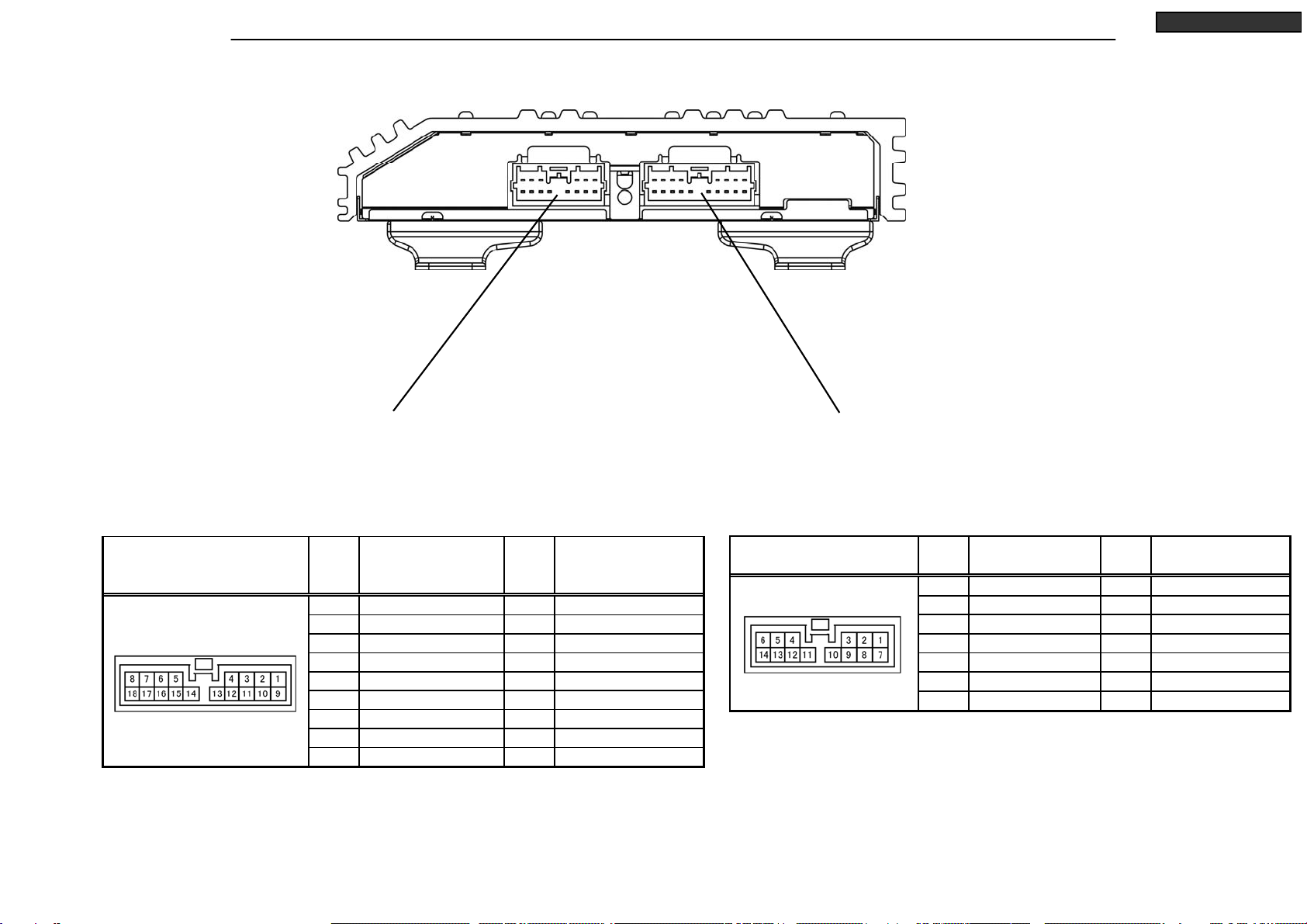

◆CONNECTORS
Power supply, Speaker and
H/U Communication 18P
Connector PinNo. Signal Name PinNo. Signal Name
1 FL Lo (+) 10 FR Lo (-)
2 FR Lo (+) 11 BATTERY(+)
3 - 12 BATTERY(+)
4 BATTERY(+) 13 DATA
5 GND 14 DATAS-GND
6 - 15GND
7 Woofer 1 (+) 16 GND
8 Woofer 2 (+) 17 Woofer 1 (-)
9 FL Lo (-) 18 Woofer 2 (-)
Power supply, Speaker and H/U Communication 18P Connector Speaker and Voice Input 14P Connector
Speaker and Voice Input
14P Connector PinNo. Signal Name PinNo. Signal Name
1 FL M/H (+) 8 FR M/H (-)
2 FR M/H (+) 9 FL IN (-)
3 FL IN (+) 10 FR IN (-)
4 P-ON 11 FR IN (+)
5 RR (+) 12 FRONT-IN S-GND
6 RL (+) 13 RR (-)
7 FL M/H (-) 14 RL (-)
4Your company internal use only.
Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-7,8
◆SYSTEM CONFIGURATION
5Your company internal use only.
Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-7,8

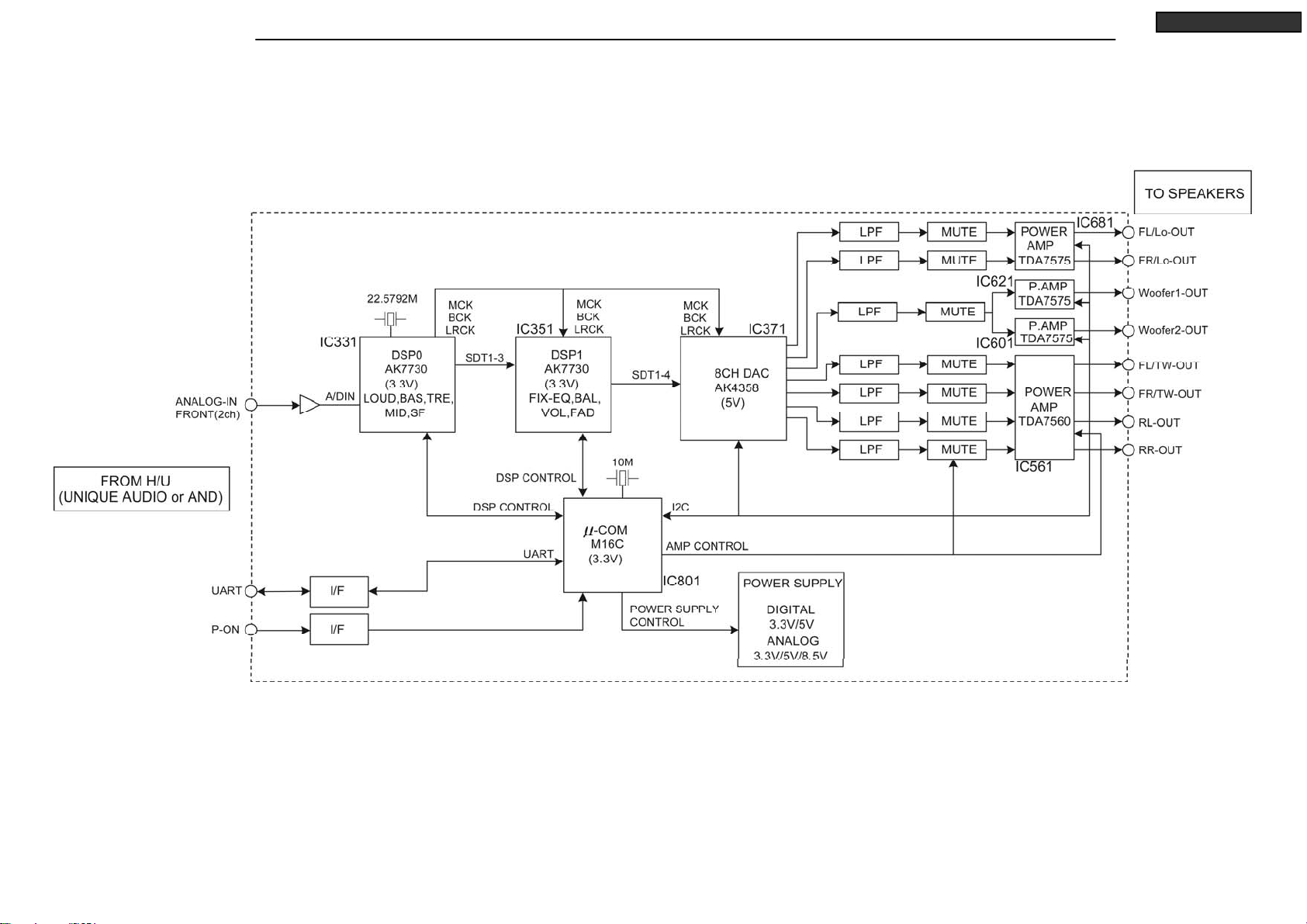

◆BLOCK DIAGRAM
6Your company internal use only.
Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-7,8

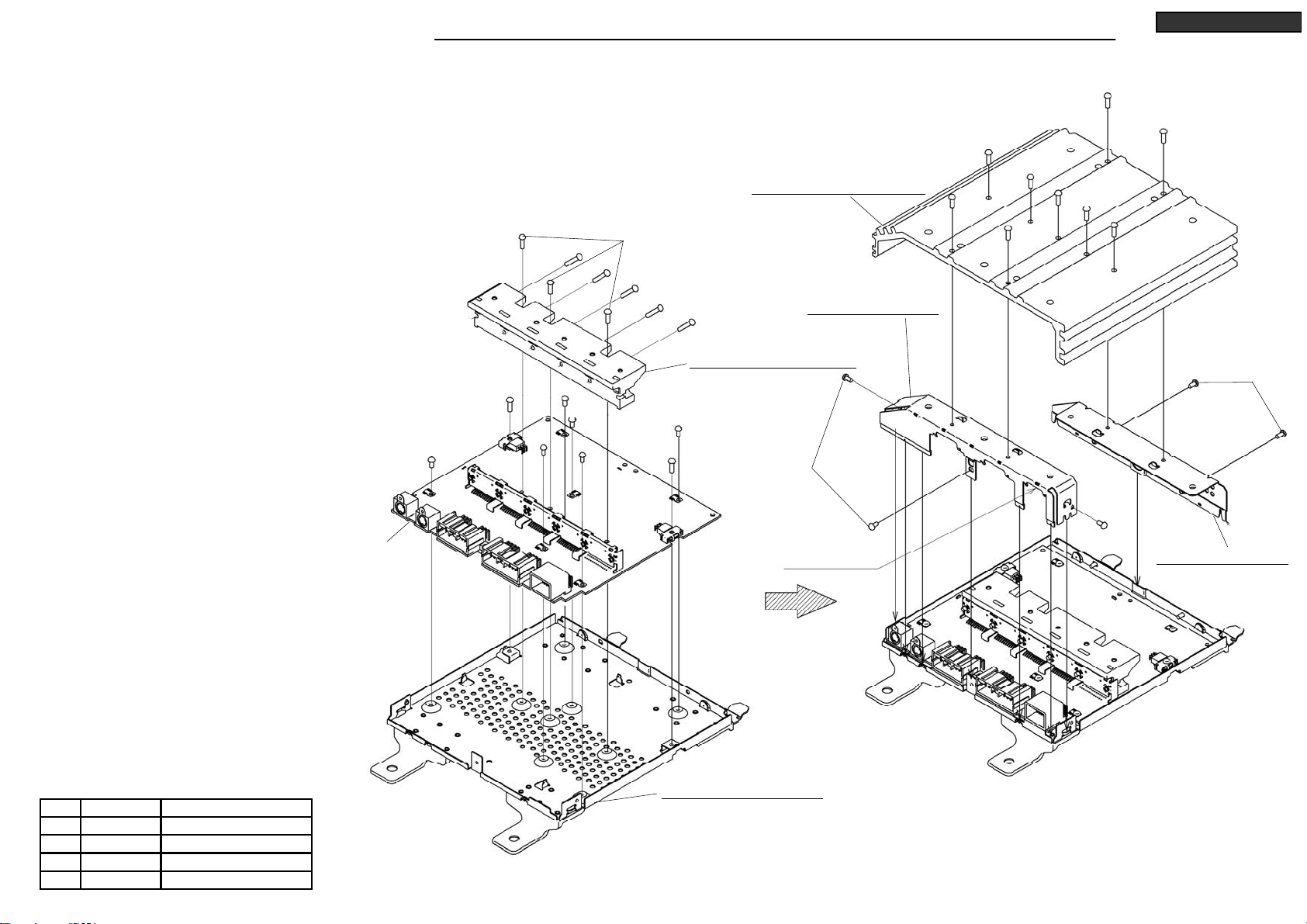

●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. PCB-AMP is installed in M005.
2. M004 is installed in the set united according to
the procedure of 1.
The screw tightening does from Ⓒ,
and tightens Ⓑ afterwards.
3. M001 and M002 are installed in the set united
according to the procedure of 2.
4. M003 is installed.
◆DISASSEMBLING PROCEDURES
This part is not cut.
Ⓒx 5
Ⓑx 3
Ⓑ
M004 : HEAT-SINK-SUB
M005 : ASSY-CHASSIS
Ⓑx 9
Ⓐ
Ⓐx 2
M002 : CHASSIS-F
M001 : CHASSIS-R
Ⓐx 2
M003 : HEAT-SINK-MAIN
Ⓓx 6 Ⓑ
*At the installation of M002,
Insert it after confirming there is
surely the hook.
(Be careful not to transform.)
PCB-AMP
0.8 +0.2/-0.13X6Ⓓ
0.8 +0.2/-0.13X10Ⓑ
0.8 +0.2/-0.13X6Ⓐ
Ⓒ
No.
0.8 +0.2/-0.13X16
Tighten torque(N・ｍ）Screw
7Your company internal use only.
Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-7,8
◆PARTS LIST
-SCREW-TAP 3X6669L077O2D
-SCREW-S-PAN 3X16653P11052C
-SCREW-S-PAN 3X10653P11048B
-SCREW-S-PAN 3X6653P11046A
P.6ASSY-CHASSIS891J06810M005
P.6HEAT-SINK-SUB635K06610M004
P.6HEAT-SINK-MAIN635J08910M003
P.6CHASSIS-F560J33311M002
P.6CHASSIS-R560J32611M001
PageParts NameParts No.Ref No.
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
C005 141L185O1 C-CERAMIC-CHIP GRM1882C1H471JA01D CH 50V 471J1608 N930L72217 C504 181P376O2 C-ELECTROLYTIC-TAPE USR1H2R2MDD1TP 50V 2R2M N930L72217
C006 141L185O1 C-CERAMIC-CHIP GRM1882C1H471JA01D CH 50V 471J1608 N930L72217 C505 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N930L72217
C007 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N930L72217 C511 181P74826 C-ELECTROLYTIC R3A-16V470MFOP2#-T36 16V470M 6.3X5 N930L72217
C008 141L183O5 C-CERAMIC-CHIP MCH185A101JK CH 50V 101J1608 N930L72217 C512 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N930L72217
C009 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N930L72217 C513 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N930L72217
C010 141L183O5 C-CERAMIC-CHIP MCH185A101JK CH 50V 101J1608 N930L72217 C514 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N930L72217
C011 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N930L72217 C515 181P74826 C-ELECTROLYTIC R3A-16V470MFOP2#-T36 16V470M 6.3X5 N930L72217
C012 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N930L72217 C521 141L161O3 C-CERAMIC-CHIP GRM188B11H222KA01D B 50V 222K 1608 N930L72217
C013 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N930L72217 C522 141L161O3 C-CERAMIC-CHIP GRM188B11H222KA01D B 50V 222K 1608 N930L72217
C014 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N930L72217 C523 141L161O3 C-CERAMIC-CHIP GRM188B11H222KA01D B 50V 222K 1608 N930L72217
C015 141L183O5 C-CERAMIC-CHIP MCH185A101JK CH 50V 101J1608 N930L72217 C524 141L161O3 C-CERAMIC-CHIP GRM188B11H222KA01D B 50V 222K 1608 N930L72217
C301 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N930L72217 C525 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N930L72217
C302 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N930L72217 C526 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N930L72217
C303 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N930L72217 C527 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N930L72217
C306 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N930L72217 C528 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N930L72217
C307 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N930L72217 C529 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217
C308 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N930L72217 C530 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217
C309 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N930L72217 C531 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217
C310 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217 C532 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217
C311 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217 C533 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217
C312 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217 C534 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217
C313 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217 C535 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217
C314 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217 C536 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217
C315 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217 C537 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N930L72217
C316 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217 C538 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N930L72217
C317 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217 C561 172P171O4 C-STACKED-METAL-CHIP ECHU1C223JB5 16V 223J 3216 N930L72217
C331 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N930L72217 C562 172P171O4 C-STACKED-METAL-CHIP ECHU1C223JB5 16V 223J 3216 N930L72217
C332 141L161O9 C-CERAMIC-CHIP GRM188B11H682KA01D B50V682K1608 N930L72217 C563 181P74849 C-ELECTROLYTIC R3A-35V4R7MDOP2#-T36 35V4R7M 4X5 N930L72217
C333 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C564 181P74849 C-ELECTROLYTIC R3A-35V4R7MDOP2#-T36 35V4R7M 4X5 N930L72217
C334 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N930L72217 C566 181P376O1 C-ELECTROLYTIC-TAPE USR1H010MDD1TP 50V 010M N930L72217
C335 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C567 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N930L72217
C336 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C568 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N930L72217
C337 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C569 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N930L72217
C338 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C570 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N930L72217
C339 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C571 181P74826 C-ELECTROLYTIC R3A-16V470MFOP2#-T36 16V470M 6.3X5 N930L72217
C340 141L164O8 C-CERAMIC-CHIP GRM188B11A224KA01D B 10V 224K 1608 N930L72217 C572 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N930L72217
C341 141L164O8 C-CERAMIC-CHIP GRM188B11A224KA01D B 10V 224K 1608 N930L72217 C573 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N930L72217
C351 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N930L72217 C574 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N930L72217
C352 141L161O9 C-CERAMIC-CHIP GRM188B11H682KA01D B50V682K1608 N930L72217 C575 141L185O9 C-CERAMIC-CHIP GRM1882C1E102JA01D CH 25V 102J1608 N930L72217
C353 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C576 172P211O0 C-STACKED-METAL-TAPE ECQV1H474B46 50V 474J N930L72217
C354 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N930L72217 C577 172P233O0 C-POLYESTER-TAPE ECQB1H153KF4 50V 153K N930L72217
C355 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C578 181P75090 C-ELECTROLYTIC RW2-16V332MI6P2#-T4 16V332M 12.5X25 N930L72117
C356 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C579 181P376O1 C-ELECTROLYTIC-TAPE USR1H010MDD1TP 50V 010M N930L72217
C357 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C582 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N930L72217
C358 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C583 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217
C359 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C584 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217
C360 141L164O8 C-CERAMIC-CHIP GRM188B11A224KA01D B 10V 224K 1608 N930L72217 C585 141L181O9 C-CERAMIC-CHIP GRM1882C1H220JZ01D CH50V220J 1608 N930L72217
C361 141L164O8 C-CERAMIC-CHIP GRM188B11A224KA01D B 10V 224K 1608 N930L72217 C586 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N930L72217
C371 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N930L72217 C601 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217
C372 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C602 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217
C373 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C603 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N930L72217
C374 181P74823 C-ELECTROLYTIC R3A-16V100MDOP2#-T36 16V100M 4X5 N930L72217 C604 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N930L72217
C375 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C605 172P233O0 C-POLYESTER-TAPE ECQB1H153KF4 50V 153K N930L72217
C376 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C606 181P372O6 C-ELECTROLYTIC-TAPE USR1C470MDD1TP 16V 470M N930L72217
C3A1 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217 C609 172P233O0 C-POLYESTER-TAPE ECQB1H153KF4 50V 153K N930L72217
C3A2 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217 C610 181P75090 C-ELECTROLYTIC RW2-16V332MI6P2#-T4 16V332M 12.5X25 N930L72117
C3A3 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217 C623 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N930L72217
C3A4 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217 C624 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N930L72217
C3C1 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N930L72217 C625 172P233O0 C-POLYESTER-TAPE ECQB1H153KF4 50V 153K N930L72217
C3G1 141L181O9 C-CERAMIC-CHIP GRM1882C1H220JZ01D CH50V220J 1608 N930L72217 C626 181P372O6 C-ELECTROLYTIC-TAPE USR1C470MDD1TP 16V 470M N930L72217
C3G2 141L181O9 C-CERAMIC-CHIP GRM1882C1H220JZ01D CH50V220J 1608 N930L72217 C629 172P233O0 C-POLYESTER-TAPE ECQB1H153KF4 50V 153K N930L72217
C501 181P372O5 C-ELECTROLYTIC-TAPE USR1C330MDD1TP 16V 330M N930L72217 C630 181P75090 C-ELECTROLYTIC RW2-16V332MI6P2#-T4 16V332M 12.5X25 N930L72117
C502 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 C641 141L161O3 C-CERAMIC-CHIP GRM188B11H222KA01D B 50V 222K 1608 N930L72217
C503 181P372O4 C-ELECTROLYTIC-TAPE USR1C220MDD1TP 16V 220M N930L72217 C642 141L161O3 C-CERAMIC-CHIP GRM188B11H222KA01D B 50V 222K 1608 N930L72217
8
CV-0MW7G21-7....(1)
CV-0MW7G21-8.....(2)
◆ELECTRICAL PARTS LIST
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
C643 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N930L72217 D502 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N930L72217
C644 141L161O5 C-CERAMIC-CHIP GRM188B11H332KA01D B 50V 332K 1608 N930L72217 D503 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N930L72217
C645 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217 D504 264P582O7 DIODE-ZENER-CHIP MA8043-H-TX N930L72217
C646 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217 D881 264L067O4 DIODE-ZENER-CHIP MA8056-M(TX) 5.6V N930L72217
C647 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217 D901 264P607O2 DIODE-CHIP 1SR154-400TE25 N930L72217
C648 141L184O7 C-CERAMIC-CHIP GRM1882C1H331JA01D CH 50V 331J1608 N930L72217 D902 264L067O4 DIODE-ZENER-CHIP MA8056-M(TX) 5.6V N930L72217
C649 141L181O9 C-CERAMIC-CHIP GRM1882C1H220JZ01D CH50V220J 1608 N930L72217 D951 264P607O2 DIODE-CHIP 1SR154-400TE25 N930L72217
C650 141L181O9 C-CERAMIC-CHIP GRM1882C1H220JZ01D CH50V220J 1608 N930L72217 D952 264P585O0 DIODE-ZENER-CHIP MA8091-M-TX N930L72217
C651 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N930L72217 D953 264L067O4 DIODE-ZENER-CHIP MA8056-M(TX) 5.6V N930L72217
C652 172P232O9 C-POLYESTER-TAPE ECQB1H103KF4 50V 103K N930L72217 H-IC-1 591K55210 HOLDER-IC ｸﾛﾑﾌﾘｰ ECOTRIO T0.8 N930L72117
C681 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217 H-TR-1 593L34010 HOLDER-TR ｴｺﾄﾘｵ T0.8 N930L72117
C682 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217 H-TR-2 593L34010 HOLDER-TR ｴｺﾄﾘｵ T0.8 N930L72117
C683 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217 IC301 266L065O5 IC-TAPE NJM2115V-TE1 ｵﾍﾟｱﾝﾌﾟ N930L72217
C684 181P374O9 C-ELECTROLYTIC-TAPE USR1V4R7MDD1TP 35V 4R7M N930L72217 IC302 266L065O5 IC-TAPE NJM2115V-TE1 ｵﾍﾟｱﾝﾌﾟ N930L72217
C685 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N930L72217 IC303 266L065O5 IC-TAPE NJM2115V-TE1 ｵﾍﾟｱﾝﾌﾟ N930L72217
C686 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N930L72217 IC331 262P52111 IC-TRAY AK7730AVT DSP N930L72217
C687 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N930L72217 IC351 262P52111 IC-TRAY AK7730AVT DSP N930L72217
C688 172P210O8 C-STACKED-METAL-TAPE ECQV1H224B46 50V 224J N930L72217 IC371 262P52710 IC AK4358 N930L72217
C691 181P372O6 C-ELECTROLYTIC-TAPE USR1C470MDD1TP 16V 470M N930L72217 IC511 266L065O6 IC-TAPE NJM4580V ｵﾍﾟｱﾝﾌﾟ N930L72217
C696 172P233O0 C-POLYESTER-TAPE ECQB1H153KF4 50V 153K N930L72217 IC521 266L065O6 IC-TAPE NJM4580V ｵﾍﾟｱﾝﾌﾟ N930L72217
C697 181P75090 C-ELECTROLYTIC RW2-16V332MI6P2#-T4 16V332M 12.5X25 N930L72117 IC522 266L065O6 IC-TAPE NJM4580V ｵﾍﾟｱﾝﾌﾟ N930L72217
C801 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N930L72217 IC561 266P62811 IC-MAG TDA7560 Dﾊﾞｰｼﾞｮﾝ 4CH*45W MOSFET N930L72117
C802 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 IC581 266L065O6 IC-TAPE NJM4580V ｵﾍﾟｱﾝﾌﾟ N930L72217
C803 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N930L72217 IC601 266P65211 IC-MAG TDA7575B 1CH*150W-1OHM N930L72117
C804 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 IC621 266P65211 IC-MAG TDA7575B 1CH*150W-1OHM N930L72117
C805 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N930L72217 IC651 266L065O6 IC-TAPE NJM4580V ｵﾍﾟｱﾝﾌﾟ N930L72217
C806 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 IC652 266L065O6 IC-TAPE NJM4580V ｵﾍﾟｱﾝﾌﾟ N930L72217
C807 141L182O1 C-CERAMIC-CHIP GRM1882C1H270JZ01D CH 50V 270J1608 N930L72217 IC681 266P65211 IC-MAG TDA7575B 1CH*150W-1OHM N930L72117
C808 141L182O1 C-CERAMIC-CHIP GRM1882C1H270JZ01D CH 50V 270J1608 N930L72217 IC801(1) 262P53782 IC M30620MCP-539GP U-COM(MASK) N930L72217
C809 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 IC801(2) 262P53784 IC-TRAY M30620MCP-572GP U-COM(MASK) N930L72218
C851 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 IC851 263P02510 IC-TAPE MM1185BFFE SYSTEM RESET N930L72217
C853 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 IC901 266P61410 IC-TAPE LF33ABPT 3.3V REG N930L72217
C854 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 IC903 263P23533 IC-TAPE S-812C33AUA-C2NT2G REGULATOR 3.3V N930L72217
C901 181P135O4 C-ELECTROLYTIC-TAPE UVR1V101MED1TA 35V 101M N930L72217 IC951 266P61410 IC-TAPE LF33ABPT 3.3V REG N930L72217
C902 181P372O3 C-ELECTROLYTIC-TAPE USR1C100MDD1TP 16V 100M N930L72217 L001 351P11310 COIL-CHOKE ALD-20-8 N930L72117
C903 181P370O4 C-ELECTROLYTIC-TAPE USR0J101MDD1TP 6.3V 101M N930L72217 L002 351P11310 COIL-CHOKE ALD-20-8 N930L72117
C904 189L007O3 C-DOUBLE-LAYER-TAPE FM0H473ZFTP 0.047F 5.5V N930L72217 L003 351P11310 COIL-CHOKE ALD-20-8 N930L72117
C905 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 L331 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
C906 181P370O4 C-ELECTROLYTIC-TAPE USR0J101MDD1TP 6.3V 101M N930L72217 L333 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N930L72217
C907 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 L334 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N930L72217
C908 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 L335 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N930L72217
C909 181P372O5 C-ELECTROLYTIC-TAPE USR1C330MDD1TP 16V 330M N930L72217 L336 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
C913 181P372O5 C-ELECTROLYTIC-TAPE USR1C330MDD1TP 16V 330M N930L72217 L337 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
C914 181P372O5 C-ELECTROLYTIC-TAPE USR1C330MDD1TP 16V 330M N930L72217 L338 351P031O6 COIL-CHIP FSLM2520-2R2J=P2 2R2M 2520 N930L72217
C915 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 L339 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
C951 181P135O4 C-ELECTROLYTIC-TAPE UVR1V101MED1TA 35V 101M N930L72217 L340 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
C953 181P74823 C-ELECTROLYTIC R3A-16V100MDOP2#-T36 16V100M 4X5 N930L72217 L341 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
C954 181P133O0 C-ELECTROLYTIC-TAPE UVR1C471MPDAMFTA 16V 471M N930L72217 L342 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
C955 181P74823 C-ELECTROLYTIC R3A-16V100MDOP2#-T36 16V100M 4X5 N930L72217 L351 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
C956 181P74810 C-ELECTROLYTIC R3A-10V101MFOP2#-T36 10V101M 6.3X5 N930L72217 L352 351P031O6 COIL-CHIP FSLM2520-2R2J=P2 2R2M 2520 N930L72217
C958 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 L353 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N930L72217
C959 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N930L72217 L354 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N930L72217
C960 181P74898 C-ELECTROLYTIC-TAPE R3A-10V330MEOP2#-T36 10V330M 5X5 N930L72217 L355 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N930L72217
D006 264P516O1 DIODE-CHIP S3D6600 N930L72217 L356 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N930L72217
D007 264P516O1 DIODE-CHIP S3D6600 N930L72217 L357 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
D008 264P588O6 DIODE-ZENER-CHIP MA8270-M-TX N930L72217 L358 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
D009 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N930L72217 L359 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
D010 264P588O6 DIODE-ZENER-CHIP MA8270-M-TX N930L72217 L360 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
D012 264P588O6 DIODE-ZENER-CHIP MA8270-M-TX N930L72217 L361 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
D013 264P588O6 DIODE-ZENER-CHIP MA8270-M-TX N930L72217 L362 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
D014 264P588O6 DIODE-ZENER-CHIP MA8270-M-TX N930L72217 L371 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
D015 264P588O6 DIODE-ZENER-CHIP MA8270-M-TX N930L72217 L372 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
D016 264P584O1 DIODE-ZENER-CHIP MA8068-M-TX N930L72217 L373 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217
D501 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N930L72217 L3G1 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N930L72217
9
CV-0MW7G21-7....(1)
CV-0MW7G21-8.....(2)
◆ELECTRICAL PARTS LIST
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
L3G2 351P095O4 COIL-CHOKE-CHIP BK1608LM252-T N930L72217 Q953 260P68210 TRANSISTOR 2SD2375OP 2W 60V 3A N930L72117
L3G3 351P091O3 COIL-CHIP BK1608HS470-T HS470 1608 N930L72217 Q954 260L100O1 TRANSISTOR-CHIP 2SD1760-Q N930L72217
L901 351P031O6 COIL-CHIP FSLM2520-2R2J=P2 2R2M 2520 N930L72217 R001 103L192O1 R-CHIP RMC1/10471JATP 1/8W 471J 2125 N930L72217
LC371 409P030O1 LC-MULTIPLE-CHIP NFE61HT102F2A9L EMIﾌｨﾙ N930L72217 R002 103L192O1 R-CHIP RMC1/10471JATP 1/8W 471J 2125 N930L72217
LC372 409P030O1 LC-MULTIPLE-CHIP NFE61HT102F2A9L EMIﾌｨﾙ N930L72217 R003 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
LC373 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R004 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N930L72217
LC374 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R005 103L292O1 R-CHIP RMC1/16471JTP 1/10W 471J 1608 N930L72217
LC375 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R006 103L293O1 R-CHIP RMC1/16332JTP 1/10W 332J 1608 N930L72217
LC376 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R007 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N930L72217
LC377 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R008 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217
LC378 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R009 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N930L72217
LC379 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R010 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N930L72217
LC380 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R011 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N930L72217
LC381 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R012 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N930L72217
LC382 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R013 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
LC383 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R014 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
LC384 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R021 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N930L72217
LC385 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R022 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N930L72217
LC386 409P023O2 LC-MULTIPLE-CHIP NFW31SP106X1E4L N930L72217 R023 103L301O0 R-CHIP RPC50T560J 1/2W 560J 5025 N930L72217
LC901 409P030O1 LC-MULTIPLE-CHIP NFE61HT102F2A9L EMIﾌｨﾙ N930L72217 R024 103L301O0 R-CHIP RPC50T560J 1/2W 560J 5025 N930L72217
P002 452L173O3 CONNECTOR 7322-8380-30 18P SIDE N930L72117 R025 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N930L72217
P003 452L34211 CONNECTOR 9442B-14J-T 14P SIDE N930L72117 R026 103L301O1 R-CHIP RPC50T680J 1/2W 680J 5025 N930L72217
PLATE1 443P01012 TERMINAL SD01123-21 N930L72217 R198 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
PLATE2 443P01012 TERMINAL SD01123-21 N930L72217 R199 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
PLATE3 443P01012 TERMINAL SD01123-21 N930L72217 R301 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
PLATE4 443P01012 TERMINAL SD01123-21 N930L72217 R302 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
PLATE5 443P01012 TERMINAL SD01123-21 N930L72217 R303 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
PLATE6 443P01012 TERMINAL SD01123-21 N930L72217 R304 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
Q001 260M061O6 TRANSISTOR-CHIP 2SA1037AKT146R N930L72217 R309 103P504O4 R-CHIP RMC1/16393FTP 1/10W 393F 1608 N930L72217
Q002 260M061O5 TRANSISTOR-CHIP 2SC2412K T146 S N930L72217 R310 103P503O3 R-CHIP RMC1/16472FTP 1/10W 472F 1608 N930L72217
Q003 260M061O5 TRANSISTOR-CHIP 2SC2412K T146 S N930L72217 R311 103P504O4 R-CHIP RMC1/16393FTP 1/10W 393F 1608 N930L72217
Q004 260M061O6 TRANSISTOR-CHIP 2SA1037AKT146R N930L72217 R312 103P503O3 R-CHIP RMC1/16472FTP 1/10W 472F 1608 N930L72217
Q005 260M061O5 TRANSISTOR-CHIP 2SC2412K T146 S N930L72217 R313 103P504O4 R-CHIP RMC1/16393FTP 1/10W 393F 1608 N930L72217
Q006 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N930L72217 R314 103P503O3 R-CHIP RMC1/16472FTP 1/10W 472F 1608 N930L72217
Q501 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N930L72217 R315 103P504O4 R-CHIP RMC1/16393FTP 1/10W 393F 1608 N930L72217
Q502 260L042O2 TRANSISTOR-CHIP DTA144TKAT146 N930L72217 R316 103P503O3 R-CHIP RMC1/16472FTP 1/10W 472F 1608 N930L72217
Q503 260M061O6 TRANSISTOR-CHIP 2SA1037AKT146R N930L72217 R317 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
Q504 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N930L72217 R318 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
Q505 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N930L72217 R331 103L293O4 R-CHIP RMC1/16562JTP 1/10W 562J 1608 N930L72217
Q506 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N930L72217 R332 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N930L72217
Q561 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N930L72217 R333 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N930L72217
Q562 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N930L72217 R334 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N930L72217
Q563 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N930L72217 R335 103L291O9 R-CHIP RMC1/16331JTP 1/10W 331J 1608 N930L72217
Q564 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N930L72217 R336 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
Q565 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N930L72217 R337 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
Q566 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N930L72217 R338 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
Q567 260M061O1 TRANSISTOR-CHIP DTA124EKAT146 N930L72217 R351 103L293O4 R-CHIP RMC1/16562JTP 1/10W 562J 1608 N930L72217
Q568 260M061O2 TRANSISTOR-CHIP DTC124EKAT146 N930L72217 R357 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N930L72217
Q601 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N930L72217 R358 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
Q602 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N930L72217 R359 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
Q607 260M061O1 TRANSISTOR-CHIP DTA124EKAT146 N930L72217 R371 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
Q681 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N930L72217 R372 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
Q682 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N930L72217 R373 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
Q683 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N930L72217 R374 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
Q684 260L033O1 TRANSISTOR-CHIP DTC323TK T146 N930L72217 R375 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
Q801 260M061O1 TRANSISTOR-CHIP DTA124EKAT146 N930L72217 R3G1 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
Q880 260L042O7 TRANSISTOR-CHIP DTC114TKAT146 N930L72217 R501 103L292O9 R-CHIP RMC1/16222JTP 1/10W 222J 1608 N930L72217
Q901 260M061O1 TRANSISTOR-CHIP DTA124EKAT146 N930L72217 R502 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217
Q902 260M061O8 TRANSISTOR-CHIP DTC144EKAT146 N930L72217 R503 103L295O6 R-CHIP RMC1/16394JTP 1/10W 394J 1608 N930L72217
Q903 260P68210 TRANSISTOR 2SD2375OP 2W 60V 3A N930L72117 R504 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217
Q904 260M061O8 TRANSISTOR-CHIP DTC144EKAT146 N930L72217 R505 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217
Q905 260L047O1 TRANSISTOR-CHIP 2SA1369-T113-1G PB-FREE(SN-2BI) N930L72217 R506 103L293O0 R-CHIP RMC1/16272JTP 1/10W 272J 1608 N930L72217
Q951 260M061O1 TRANSISTOR-CHIP DTA124EKAT146 N930L72217 R507 103L294O1 R-CHIP RMC1/16223JTP 1/10W 223J 1608 N930L72217
Q952 260M061O8 TRANSISTOR-CHIP DTC144EKAT146 N930L72217 R508 103L293O2 R-CHIP RMC1/16392JTP 1/10W 392J 1608 N930L72217
10
CV-0MW7G21-7....(1)
CV-0MW7G21-8.....(2)
◆ELECTRICAL PARTS LIST
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
R509 103L292O9 R-CHIP RMC1/16222JTP 1/10W 222J 1608 N930L72217 R604 103L293O9 R-CHIP RMC1/16153JTP 1/10W 153J 1608 N930L72217
R511 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217 R605 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N930L72217
R512 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217 R606 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N930L72217
R521 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R608 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
R522 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R625 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N930L72217
R523 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R626 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N930L72217
R524 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R628 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
R525 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R641 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217
R526 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R642 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217
R527 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R643 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217
R528 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R644 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217
R529 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R645 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217
R530 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R646 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217
R531 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R647 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217
R532 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R648 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217
R533 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R649 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217
R534 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R650 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217
R535 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R651 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217
R536 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R652 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217
R537 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217 R653 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217
R538 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217 R654 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217
R539 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217 R655 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217
R540 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217 R656 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217
R541 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217 R657 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N930L72217
R542 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217 R658 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N930L72217
R543 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217 R659 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N930L72217
R544 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217 R660 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N930L72217
R545 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217 R681 103L293O5 R-CHIP RMC1/16682JTP 1/10W 682J 1608 N930L72217
R546 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217 R682 103L293O5 R-CHIP RMC1/16682JTP 1/10W 682J 1608 N930L72217
R547 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217 R683 103L293O5 R-CHIP RMC1/16682JTP 1/10W 682J 1608 N930L72217
R548 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217 R684 103L293O5 R-CHIP RMC1/16682JTP 1/10W 682J 1608 N930L72217
R549 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217 R685 103L293O4 R-CHIP RMC1/16562JTP 1/10W 562J 1608 N930L72217
R550 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217 R686 103L293O4 R-CHIP RMC1/16562JTP 1/10W 562J 1608 N930L72217
R551 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217 R687 103L293O4 R-CHIP RMC1/16562JTP 1/10W 562J 1608 N930L72217
R552 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217 R688 103L293O4 R-CHIP RMC1/16562JTP 1/10W 562J 1608 N930L72217
R561 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217 R689 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N930L72217
R562 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217 R690 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N930L72217
R563 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217 R691 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N930L72217
R564 103L292O7 R-CHIP RMC1/16152JTP 1/10W 152J 1608 N930L72217 R692 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N930L72217
R565 103L292O7 R-CHIP RMC1/16152JTP 1/10W 152J 1608 N930L72217 R694 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
R566 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217 R805 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N930L72217
R567 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217 R807 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N930L72217
R568 103L293O9 R-CHIP RMC1/16153JTP 1/10W 153J 1608 N930L72217 R809 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N930L72217
R569 103L293O9 R-CHIP RMC1/16153JTP 1/10W 153J 1608 N930L72217 R811 103L294O9 R-CHIP RMC1/16104JTP 1/10W 104J 1608 N930L72217
R570 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217 R815 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
R571 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217 R816 103L291O7 R-CHIP RMC1/16221JTP 1/10W 221J 1608 N930L72217
R572 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217 R817 103L291O7 R-CHIP RMC1/16221JTP 1/10W 221J 1608 N930L72217
R573 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217 R818 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
R574 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217 R819 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
R575 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217 R820 103L291O7 R-CHIP RMC1/16221JTP 1/10W 221J 1608 N930L72217
R581 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217 R821 103L295O3 R-CHIP RMC1/16224JTP 1/10W 224J 1608 N930L72217
R582 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217 R822 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N930L72217
R583 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R823 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
R584 103P502O9 R-CHIP RMC1/16222FTP 1/10W 222F 1608 N930L72217 R824 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
R585 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217 R825 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N930L72217
R586 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217 R826 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217
R587 103P502O5 R-CHIP RMC1/16102FTP 1/10W 102F 1608 N930L72217 R827 103L291O7 R-CHIP RMC1/16221JTP 1/10W 221J 1608 N930L72217
R588 103P503O2 R-CHIP RMC1/16392FTP 1/10W 392F 1608 N930L72217 R829 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N930L72217
R589 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N930L72217 R830 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N930L72217
R590 103P503O7 R-CHIP RMC1/16103FTP 1/10W 103F 1608 N930L72217 R831 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N930L72217
R5A1 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217 R851 103L295O7 R-CHIP RMC1/16474JTP 1/10W 474J 1608 N930L72217
R601 103L292O7 R-CHIP RMC1/16152JTP 1/10W 152J 1608 N930L72217 R871 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217
R602 103L292O7 R-CHIP RMC1/16152JTP 1/10W 152J 1608 N930L72217 R872 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217
R603 103L293O9 R-CHIP RMC1/16153JTP 1/10W 153J 1608 N930L72217 R883 103L292O9 R-CHIP RMC1/16222JTP 1/10W 222J 1608 N930L72217
11
CV-0MW7G21-7....(1)
CV-0MW7G21-8.....(2)
◆ELECTRICAL PARTS LIST
Ref. No. Parts No. Parts Name Note Spec. Base Parts No. Ref. No. Parts No. Parts Name Note Spec. Base Parts No.
R884 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N930L72217
R8A1 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
R8A2 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
R8A3 103L293O3 R-CHIP RMC1/16472JTP 1/10W 472J 1608 N930L72217
R8B1 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N930L72217
R8B2 103L294O5 R-CHIP RMC1/16473JTP 1/10W 473J 1608 N930L72217
R8G1 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
R8G2 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
R8G3 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
R8G4 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
R901 103L294O2 R-CHIP RMC1/16273JTP 1/10W 273J 1608 N930L72217
R902 103L292O9 R-CHIP RMC1/16222JTP 1/10W 222J 1608 N930L72217
R903 103L292O9 R-CHIP RMC1/16222JTP 1/10W 222J 1608 N930L72217
R904 103L293O7 R-CHIP RMC1/16103JTP 1/10W 103J 1608 N930L72217
R905 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217
R906 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217
R949 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
R951 103L292O6 R-CHIP RMC1/16122JTP 1/10W 122J 1608 N930L72217
R952 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
R953 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217
R954 103L291O3 R-CHIP RMC1/16101JTP 1/10W 101J 1608 N930L72217
R955 103L292O5 R-CHIP RMC1/16102JTP 1/10W 102J 1608 N930L72217
R997 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
R998 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
R999 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N930L72217
RN371 109P01213 R-NETWORK-CHIP RAC164D103JCTP 1/16W 103J 3216 N930L72217
RN372 109P01213 R-NETWORK-CHIP RAC164D103JCTP 1/16W 103J 3216 N930L72217
RN373 109P01213 R-NETWORK-CHIP RAC164D103JCTP 1/16W 103J 3216 N930L72217
RN802 109P01211 R-NETWORK-CHIP RAC164D221JCTP 1/16W 221J 3216 N930L72217
X3G1 285P11422 CRYSTAL-TAPE SMD-49 22.5792MHZ N930L72217
X801 285L012O7 CRYSTAL-TAPE AT-49 PB-FREE 10MHZ 16PF N930L72217
930L72117 S5-PCB-AMP N903L50717
930L72217 S6-PCB-AMP N930L72117
930L72218 S6-PCB-AMP N930L72118
12
CV-0MW7G21-7....(1)
CV-0MW7G21-8.....(2)
◆ELECTRICAL PARTS LIST
IC351
D951
R3A1
D952
R3A2
D953
R805
R5A1
R806
R807
R808
R809
C001
L3G1
C002
L3G2
C003
L3G3
C004
R810
IC561
R811R812
R813
C008
R814
Q681
IC371
R815
Q682
R816
Q683
R817
Q684
R818
IC951
R819
C010
R9A1
R9A2
Q880
R820
C015
R821
R822
R823
R824
R825
R826
R827
R828 R829
R830
IC581
C601
R831
C602
C603C604
C605
LC901
C606
C609
R649
C801
C032
C802
C803
C034
C610
C804
C035
C805
C806
C037
C807
R650
C808
C039
C809
RN802
R655
R656
R658
C042
R851
R852
C623C624
C625
C3C1
C626
C629
R3G1
C630
C5C1
D001
D002
D003
D004
C641
D005
R871
C642
R872
C643 C644
C645
D009
C646
C647
C648
C649
C650
LC371
C651
LC372
C652
D016
LC373
D017
R883
LC374
R884
LC375
LC376
LC377
LC378
LC379
Q501
Q502 Q503
Q504
Q505
Q506
C852
C853
LC380
C854
LC381
LC382
LC383
LC384
LC385
C3G1
LC386
C3G2
Q901
Q902
Q903
Q904
Q905
X3G1
C681
IC601
C682 C683 C684
C685
L901
C686 C687 C688
C689
IC801
PLATE1
PLATE2
PLATE3
C690
PLATE4
C691
L331
PLATE5
PLATE6
L333
L334
L335
C696
L336
C697
L337
L338
L339
L340
IC621
L341
L342
R301R302
R303R304
R305
L351
R306
L352
R307
L353
R308
L354
L355
L356
L357
L358
Q561
R501
L359
Q562
R502
Q563
R503
Q564
R504
Q565
R505
Q566
R506
Q567
R507
Q568
R508
L360
R0B1
Q951
L361
Q952
L362
R317
Q953
Q954
R318
R511
R512
IC651
R901
L371
IC652
R902
L372
R903
L373
R904
R905
P001
R906
P002 P003
IC851
R331
R332
R333
R334
R335
R8A1
R336
R8A2
R337
R8A3
R338
C301
C302
C303
C304
C305
D881
R537
C307
R538
C308
R8B1
R539
C309
R8B2
R8B3
C501
C502
C503
R540
C310
C504
C311
C312
C313 C314
C0B1
C315
R351
C316
R352
C317
R353
C318
R354
R549
C319
IC681
R355
R356
R357
R358
C511
R359
C512
C513
R550
C320
C514
R551
C321
C515
R552
C322
C323
C324 C325
C901
C902
C903
C904
C906
C908
C521
C909
C522 C523 C524
R561
C525
C331
C526
C332
C527
C333
C528
C334
C529
C335
R371
R372
C336
C913
R373
C337
C914
C338
R374
R951
C915
C339
R375
R952
R953 R954
C530
R955
C531 C532
C533
C534
C340
C535
J871
C341
C536
J872
C537
R574
C538
R575
C6C1
Q001
Q002
Q003
Q004
Q005
C351
C352
Q006
C353
C354
R585
C355
C356
C357
R588
C358
C359
R8G1
R8G2
R8G3
R8G4
R590
C360
L001
C361
L002 L003
C561
D501
C562
D502
C563
D503
C564
C565
Q601
H-TR-1
C371
C566
Q602
H-TR-2
C372
C567
C373
C568
C374
D0B1
C569
C951
C375
C376
C953
Q607
C954
C955
RN371
C956
RN372
RN373
C570
C958
C571
C959
Q801
IC301
C576
IC302
C577
IC303
C578
C960
IC304
C579
IC305
D901
D902
C581
C582
C583
C584
C585
C586
IC511
IC901
IC903
IC521
IC522
R003
R005
IC331
R006
R007
R008
R010
R011
R012
R013
R014
C851
X801
MODEL : CV-0MW7G21-7,8 (PARTS SIDE)
PCB-AMP
PARTS LAYOUT ON PRINTED CIRCUIT BOARD
13
R021
R022
R023
R024
R601
R025
R602
R026
R603
R604
R605
R606
R607
R608
C005 C006
C007
C009
R625
R626
R627
R628
C011
C012
C013
C014
R641
C3A1
R642
C3A2
R643
C607
C3A3
R644
C608
C3A4
R645
C3A5
R646
C3A6
R647
C3A7
R648
C3A8
C031
C033
C036
C038
R651
R652
R653
R654
R657
C040
R659
C041
C043
C044
R660
C627
C628
D006
D007
D008
R681
R682
R683
R684
R685
R686
R687
R688
D010
R689
D012
D013
D014
D015
R690
R691
R692
R693
R694
C692
C693
C694
C695
R309
R310
R311
R312
R313
R314
R315
R509
R0B2
R316
R0B3
R319
R320
R321
R322
R323
R324
R325
R326
R521
R522
R523
R524
R525
R526
R527
R528
R529
R530
R531
R532
R533
R534
R535
R536
C306
R541
C505
R542
R543
R544
R545
R546
R547
R548
C905
C907
R949
R562
R563
R564
R565
R566
R567
R568
R569
R570
R571
R572
R573
R198
R199
R581
R582
R583
R584
R586
R587
R589
D504
C952
C572
R997
C573
R998
C574
C575
R999
R001
R002
R004
R009
PCB-AMP
PARTS LAYOUT ON PRINTED CIRCUIT BOARD
MODEL : CV-0MW7G21-7,8 (PATTERN SIDE)
14
ALL-MUTE
W/D-CK
NC
VSS
INIT3
INIT2
INIT1
INIT0
NC
NC
NC
(040II 14P MALE)
P002 TERMINAL ARRAY
(SDL 18P MALE)
3
10
9
A3.3V
GND GND
SDOUT3
SDOUT2
SDOUT1
BITCLK_I
LRCLK_I
BITCLK_O
LRCLK_O
RDY
DRDY
_CS
DVSS
CLKO2
P-STB1
FL-M/H
3
10
9
10
6
14
470
R002
SDTI4
DVSS
DVDD
MCLK
BICK
PDN
SDTI3
SDTI2
CDTI/SDA
FR-M/H-
I2C ADD:0010000
D/A CONVERTER
DZF1
OUT3R-
RL-
RR+
RR-
FR-M/H+
VREFH
5.1ch-SI/PC
5.1ch-SO/PC
I2C-SDA
I2C-SCL
P-MUTE1
P-MUTE0
NMI
NC
DSP0-SCLK
*MINIMUM OPERATION VOLTAGE:2.7V
NC
W/D-RCT
DSP0A-DRDY
DSP0A-RQ
DSP1-RQ
NC
D3.3V
R806
DESTINATION SETTING
R805
R808
SDOUT1:FRONT M/H
SDOUT2:REAR
SDOUT3:WOOFER(Lch)
SDOUT4:FRONT Lo
DSDL2
DSDR2
DSDL3
DSDR3
DIF0
RL+
CKS1
X8
(FLASH-CE)
CD-IN2
CD-IN1
OFFSET-OUT
CD-IN0
PC-RTS
NC
XTO
DZF2
FL-M/H+
C904
473Z
B5V
10
PIN_B
OUT1+
DATA
CLK
IN2-IN2-
3
AINL-
SDIN3
BVSS
AINR-
_RQ
DSP1
VREFL
VCOM
Vcc
CKS0
R810
R811
R809
DSP0-SO
ACC5V
470
R001
470
R005
3.3k
R006
DATA
RR_IN+
_RQ
_S-RESET
_INT-RESET
Vcc
DSP0
GND
I2C ADD:1101000
18
12
7
8
3
CCLK/SCL
FR-IN
X4
FL-LO-
W/F_2+
S-GND
+B
+B
SMODE
SI
ATT=-18.4dB(0.12)
AVSS
FL-LO+
RL_IN+
NC
1
NC
R/G_L+
(ACC-IN)
R/G_R+
CENTER+
1
RL_IN-
CENTER-
R/G_R-
R/G_L-
RR_IN-
S-GND
FR-LO+
NC
W/F_1+
GND
+B
+B
GND
13
PWGND
PIN A
TAB
OUT2-
I2C ADD:1101010
OUT2+
NC
IN2-
VCC2
IN2+
SVR
SGND
MUTE
IN1+
OUT1-
IN1-
VCC1
NC
PWGND
TAB
I2C ADD:1101001
10
W/F_1-
GND
FR-M/H+
FL-M/H+
W/F_2-
P-ON
FL_IN+
FL-M/H-
RR+
RL+
FR_IN+
S-GND
FL_IN-
FR-M/H-
FR_IN-
RR-
RL-
89
245
11
12
6
13
7
14
1
2
11
2
1
4
12131415
5
4
16
6
17
7
8
5
11
13
4
13
TAB
PIN A
PWGND
OUT2+
OUT2-
NC
IN2+
VCC2
1OHM
I2CEN
CD_OUT
SVR
CLK
DATA
MUTE
STBY
IN1-
PIN A
TAB
PWGND
OUT2+
VCC2
OUT2-
IN2+
NC
1OHM
I2CEN
CD_OUT
SVR
CLK
DATA
SGND
IN1- IN1+
VCC1
OUT1-
OUT1+
NC
PIN_B
VCC1
IN1+
OUT1+
OUT1-
NC
10
PIN_B
PWGND
TAB
HSD
P-GND
FL-M/H-
_MUTE
FL-M/H+
Vcc2
FR-M/H-
P-GND
FR-M/H+
AC-GND
FL-IN
FR-IN
S-GND
RL-IN
RR-IN
RR +
R.F
P-GND
RR -
Vcc1
RL +
TAB
9
12
x4
12
A8V
12
A5V
12
11
Vcc
GND
FL-LO
FL-IN
Vcc
GND
RR-IN
Vcc
AVDD
LFLT
AVDD
AVSS
SCLK
_S-RESET
_INT-RESET
VREFH
AVSS
X4
SI
SMODE
SO
DVSS
DVDD
XTI
CLKO1
DVDD
MCK=384fs
X2
GND
RL-IN
1
Vcc
AINL+
AINR+
SDIN1
SDIN4
EESEL
DVSS
DVDD
X4
SDOUT4
X4
fc=102kHz
CKS0
AVDD
AVDD
LFLT
SCLK
AVSS
AINR-
VREFH
VCOM
VREFL
AINL+
AINR+
XTO
SO
DVDD
DVSS
CLKO2
XTI
CLKO1
DVSS
DVDD
MCK=512fs
BITCLK_O
LRCLK_O
DRDY
_CS
RDY
DVDD
CKS1
BITCLK_I
LRCLK_I
X3
SDIN4
EESEL
SDOUT3
SDOUT4
SDOUT2
Vcc
GND GND
FR-LO
12
Vcc
12
GND
Vcc
SUBWOOFER
FL-LO-
FL-LO+
FR-LO+
DZF3
WF+
WF-
OUT3R+
FR-LO-
AVSS
AVDD
2
Vcc
GND
FR-M/H
Vcc
GND
RL
RR
GND
N.C
TC
CK
RST
RCT
VS
4
ACKSN
CAD0
SDTI1
LRCK
I2C
CSN/CAD1
X2
12
4
GND
OUT
B3.3V
NC
NC
XIN
VCC1
BATT-IN
GND
POWER-IN
ACC-ON
AUDIO-SIO-IN
NC
AUDIO-SO
5.1ch-SCLK
5.1ch-SSX
PC-CTS
AUDIO-SI
DSP1-RDY
DSP1-SO
XOUT
DSP1-SI
CNVSS
BYTE
DSP1-SCLK
DSP1-IRESET
RESET
DSP1-SRESET
AVSS
DSP0A-IRESET
VREF
AVCC
ACC3.3V
DSP_DGND
DSP_AGND
NC
NC
NC
OFFSET-IN0
(FLASH-EPM)
NC
NC
NC
NC
NC
VCC2
DSP0A-SRESET
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
DSP1-DRDY
NC
DAC-PDN
NC
VDD
RTS
SCLK
TO FLASH WRITER
CE
TXD
EPM
RESET
GND
RXD
CNVSS
RCT
RTS
GND
CTS
TO PC
TXD
RXD
VDD
FR-LO-
AINL-
SDIN3
SDIN2
SDIN1
BVSS
DVSS
SDOUT1
DSP0-SI
DSP0-RDY
R812
R807
A3.3V
DSDR4
DSDL1
DSDR1
DSDL4
MCK=384fs
(AUTOMODE)
DCLK
*DSP1 SDOUT ASSIGNMENT
GND
*ALLOWABLE CURRENT:294mA
*ALLOWABLE CURRENT:147mA
*ALLOWABLE CURRENT:294mA
IN
VDD
:2.92V(R851=470k)
*POWER SUPPLY REDUCING DETECTION VOLTAGE
CD_OUT
1OHM
I2CEN
STBY
of I/O because of PCB pattern.
SGND
STBY
RL -
P-GND
1
P001 TERMINAL ARRAY
(SDL 14P MALE)
P003 TERMINAL ARRAY
fc=700Hz
STBY
MUTE
PWGND
TAB
TW PROTECTIVE HPF
FL-M/H-
*ALLOWABLE CURRENT:142mA
*Connection of IC681 is reverse the polarity
SDIN2
5
TP802
TP803
R818
4.7k
RN802
220x4
7
5
9
I811
103
0.1u
I649
2
10k
IA503
R569
2
330
C340
29
47k
C040
1SR154
2SD2375P
NFW31SP106
NFW31SP106
L341
331
OPEN
M30624FGPGP
S812C33AUA
C038
101
D016
1
1SS355
IA502
2
2
I537
R547
1k
C535
C565
1
C566
2
1u
/50
1
TDA7560D
2
0.22u
R605
11
2
100
R681
IC851
MM1185BF
I839
17
R822
16
R8A3
27p
33u
/16
IC903
C853
TP805
54
6
DEC/PC/FLASH/RESET_I/F<12..0>
4.7k
33
32
20
I840
1
220k
1
55
I804
92
93
C802
85
11
1
5
R3A2
0.22u
C360
0
L360
L373
8
23
28
7
2
1
2.2u
1
R852
47k
2
R816
28
31
330
OPEN(2125)
R0B1
R0B2
4
C041
OPEN
K
TP686
TP685
TP306
TP307
TP308
TP309
330
R355
330
R354
330
1
R353
2
FRONT_IN<3..0>
1
I369
1
2
1
DSP0_I/F<7..0>
AUDIO_I/F_DSP0OUT<3..0>
0
2
44
C352
LM252
1
I361
1
2
42
C356
4.7k
C3A3
TP304
35
4
1
36
37
41
R831
47k
0
10
NJM2115V
IA003
2
4
NJM4580V
C651
103
R646
R332
1
C3A6
C304
C
I563
1
I503
K
1SS355
R552
2
DTA144TKA
3.9k
R535
R536
2.2k
1
IA501
C501
33u
C573
IA504
C563
4.7u
1
E
Q563
R568
15k
0.22u
Q502
D501
1k
R544
2
1
C6C1
2
1
C5C1
1
IA307
IA516
1
IA008
IA007
1
IA006
1
IA005
1
IA004
1 1
IA002
1
1
IA953
1
1
IA951
1
IA306
IA301
1
IA305
1
IA304
1
IA303
1
IA302
1
IA514
1
IA512
1
IA510
1
IA513
1
IA511
1
IA508
IA506
1
IA507
1
1
1
1
IA505
1
1
IA515
1
1
1
1
1
IA906
1
IA905
1
1
IA903
1
IA902
1
IA901
2
1
C3C1
1
2
1
R8B3
1
I847
1
I848
1
I849
1
I846
1
I844
1
I842
1
1
1
I838
1
1
I368
1
I367
1
I390
1
I391
1
I392
1
I398
1
I36F
1
I36E
1
I36D
1
I338
1
I337
1
I336
1
I34J
1
I34C
1
I34B
1
I34A
1
I36A
1
I326
1
I318
1
I319
1
I320
1
1
1
I322
1
I323
1
I325
11
I653
1
I583
1
1
1
I658
1
I657
11
1
I542
1
I541
1
I544
1
I543
1
1
I650
1
I651
1
I652
1
I586
1
I587
1
I533
1
I534
1
I535
1
I536
1
1
I538
1
I530
1
I528
1
I526
1
I585
1
I648
1
I646
1
I645
1
I647
1
I584
1
I525
1
I527
1
I529
1
I546
1
I545
1
I548
1
I547
1
I539
1
I540
1
I532
1
I531
1
I341
1
I349
1
I348
1
I344
1
I345
1
I365
1
I363
1
I360
1
1
I837
1
TP871
1
TP872
1
TP873
1
TP874
1
TP875
1
TP876
1
TP877
1
TP878
1
TP879
2
1
R0B3
2
1
2
1
2
1
C0B1
A
D0B1
2
1
R8B1
2
1
2
1
1
I899
1
1
I014
1
I015
2
1
R3A1
1
I832
1
I316
1
I315
1
I314
1
I313
1
I311
1
1
I309
1
2
1
C562
2
1
C561
2
1
C3A4
2
1
C3A2
2
1
C3A1
2
1
2
1
C3A5
2
1
2
1
C3A8
2
1
C3A7
2
1
R9A2
2
1
R9A1
2
1
2
1
R8A1
2
1
R8A2
2
1
R5A1
1
I571
1
I573
1
I854
1
I810
1
I334
1
I8G1
1
I8G2
1
I8G3
1
1
I317
1
I958
1
I956
1
I954
I952
1
I951
1
I953
1
I901
1
1
1
I013
1
I572
1
I971
1
I972
1
I308
1
I307
1
I306
1
I305
1
I301
1
I302
1
I303
1
I304
1
I957
1
I955
1
I685
1
I686
1
I687
1
I688
1
1
I683
1
I682
1
I681
1
1
I622
1
I604
1
I603
1
1
I502
1
I902
1
I908
1
I881
1
I384
1
I383
1
1
I381
1
I380
1
I379
1
I378
1
I377
1
I376
1
I375
1
1
1
I372
1
I371
1
I641
I642
1
I643
1
I644
1
I511
1
I581
1
I582
1
I521
1
I522
1
1
I007
1
1
I008
1
I012
1
I011
1
I003
1
I002
1
I005
1
I001
1
1
I010
1
I009
1
I574
1
I569
1
I691
1
1
I607
1
I606
1
I623
1
I605
1
I602
1
I601
1
I625
1
I624
I351
1
I352
1
I353
1
I354
1
I333
1
I332
1
I331
1
I836
1
I833
1
I853
1
I852
1
I501
1
I568
1
I567
1
I566
1
I565
1
I564
1
1
I562
1
I561
1
I506
1
I504
1
I505
1
I508
1
I507
1
I825
1
I826
1
I827
1
I828
1
I829
1
I830
1
I831
1
I824
1
I823
1
I822
1
I821
1
I818
1
I817
1
I816
1
I815
1
I814
1
I813
1
I812
1
1
I805
1
1
I803
1
I802
1
I801
1
TP038
1
1
1
TP804
1
TP569
1
TP504
TP505
1
TP503
1
TP807
1
TP041
1
TP039
1
TP040
1
TP020
1
TP021
1
TP028
1
TP502
TP902
1
TP336
1
TP801
1
1
TP332
1
TP333
1
TP335
TP351
1
TP334
1
TP352
1
TP331
1
1
1
1
TP305
1
1
TP303
1
TP302
1
1
1
TP687
1
TP621
1
TP622
1
TP604
1
1
TP568
1
TP567
1
TP566
1
TP565
1
TP501
1
TP564
1
TP563
1
TP562
1
TP561
1
TP602
1
TP601
1
1
TP683
1
TP682
1
TP681
1
TP511
1
TP806
1
1
TP901
1
TP903
11
TP905
1
TP906
1
1
TP955
1
TP954
1 1
TP951
1
TP952
1
TP956
1
1
TP372
1
TP373
1
TP374
1
TP375
1
TP376
1
TP377
TP378
1
TP379
1
TP380
1
TP381
1
TP382
1
TP383
1
TP384
1
TP385
1
TP386
1
TP001
1
TP002
1
TP003
1
TP004
1
TP005
1
TP006
1
1
TP008
1
TP009
1
TP010
1
TP011
1
TP012
1
TP013
1
TP014
1
TP019
1
TP015
1
TP016
1
TP017
1
TP018
1
1
1
TP024
1
TP025
1
TP026
1
TP027
1
TP029
1
TP030
1
TP031
1
TP032
1
TP033
1
TP034
1
TP035
1
TP036
2
1
H-IC-1
2
1
R009
2
1
R013
2
1
R014
E
C
B
Q004
2
1
E
C
B
C
B
2
1
R004
E
C
B
Q002
2
1
R024
2
1
R025
1
R026
2
1
R022
2
1
R023
2
1
R021
2
1
2
1
2
1
C039
2
1
2
1
C043
2
1
C042
1
C691
2
1
C626
2
1
C606
2
2
1
C032
2
1
C031
2
1
2
1
2
1
C036
2
1
C035
2
1
C034
C033
2
2
2
1
R997
2
1
R998
2
R198
2
1
R199
2
1
2
1
R830
2
1
R829
2
1
R827
2
1
R828
E
C
B
Q880
2
1
R883
K
A
D881
2
1
R884
2
1
L3G3
2
1
C308
2
1
2
1
R512
2
R589
2
1
2
1
R814
6
7
8
4
3
2
1
2
R820
2
1
6
7
8
4
3
1
2
1
R608
2
1
R628
2
2
1
R826
2
1
R3G1
2
1
R331
2
1
R352
1
2
2
1
2
1
R333
2
1
2
1
R334
2
1
2
1
R011
1
2
1
1
R905
2
1
R906
2
1
R825
2
2
R824
2
1
R823
2
2
1
2
1
R809
2
1
R807
2
1
R805
2
1
R806
2
1
R808
1
2
1
R871
2
1
R872
2
1
R8G3
2
1
R8G4
2
1
R8G1
2
1
R8G2
2
1
R371
2
1
R375
2
1
2
1
2
1
R356
1
2
2
1
R337
2
1
R338
2
1
R307
2
1
R308
2
1
R306
2
1
R305
2
1
1
2
R302
2
1
C324
2
1
C322
2
1
C320
2
1
C318
2
1
C316
2
1
C314
2
1
C312
2
1
2
1
R659
2
1
R657
2
1
R658
2
1
R326
2
R324
2
1
R322
2
1
R320
2
1
R325
2
1
R323
2
1
R321
2
1
R319
2
1
R310
2
1
R312
2
1
R314
2
1
R309
2
1
R311
1
R313
2
1
R318
1
R689
2
1
R690
2
1
R691
1
2
1
R625
2
1
R626
2
1
2
1
2
1
R682
1
2
1
R684
2
1
R601
2
1
R602
2
1
R685
2
1
R686
1
2
1
2
1
R603
2
1
R604
2
1
R644
2
1
C642
2
1
R648
2
1
R643
2
1
R647
2
1
C644
2
1
R654
2
1
2
1
R650
2
1
C646
2
1
R652
2
1
2
1
R582
2
1
C581
2
1
R584
2
1
2
1
2
1
C582
2
1
R587
2
R588
2
1
2
1
C583
2
1
R586
2
1
C584
2
1
R522
2
1
C521
2
1
R530
2
1
C529
2
1
R537
2
1
C525
2
1
R541
2
1
R545
1
C533
2
1
R521
2
1
R529
1
2
1
R649
2
1
C645
2
1
R651
2
1
R642
2
1
R641
2
1
C641
2
1
2
1
R645
2
1
C643
2
1
R653
2
C647
2
R655
2
1
R524
2
1
C522
2
1
R532
2
1
R523
2
1
R531
2
1
C526
2
1
R546
2
1
R550
2
1
R538
2
1
2
1
R542
2
1
C534
2
1
R543
2
1
2
1
R551
2
1
R539
1
R533
2
1
R525
2
1
R534
2
1
R526
2
1
R528
2
1
R527
2
1
R548
2
R502
2
1
R562
2
1
R563
2
R564
2
1
R566
2
1
R567
2
1
2
1
2
1
R571
2
R572
2
R573
2
1
R504
2
1
R574
2
1
R575
2
R003
2
1
R005
2
1
C649
2
1
C650
2
1
C532
2
1
C531
2
1
C523
1
C527
2
1
2
1
2
1
2
1
L372
1
L371
1
L356
1
L353
2
1
L354
2
1
L355
2
1
L3G2
2
1
L3G1
2
1
2
1
L334
2
1
L333
3
2
1
2
1
L351
2
1
L331
1
L362
1
1
1
2
1
2
1
L340
2
2
1
L342
2
1
L337
2
1
L336
2
1
L357
2
1
L358
2
1
L352
2
1
L338
3
2
1
LC386
3
2
1
LC385
3
2
1
LC384
3
2
1
LC383
3
2
1
LC382
3
2
1
LC381
3
2
1
LC380
3
2
1
LC379
3
2
1
LC378
3
2
1
LC377
3
2
1
LC376
3
2
1
LC375
3
2
1
LC374
3
2
1
2
1
R999
2
1
C804
2
1
C803
2
1
C361
22
1
C309
2
1
C307
2
1
2
1
C341
2
1
2
1
C914
2
1
C909
2
1
2
1
C906
2
1
C905
2
1
C908
2
1
C907
2
1
C808
2
1
C807
2
1
C801
2
1
2
1
C915
2
1
C851
2
1
2
1
C854
2
1
C809
2
1
C805
2
1
C806
2
1
C374
2
1
C371
2
1
C375
2
1
C372
2
C373
C331
2
1
C3G1
2
1
C337
2
1
C339
2
1
C357
2
1
2
1
C338
2
C358
2
1
C336
2
1
C335
2
1
2
1
C353
2
1
C355
2
1
2
1
C334
2
1
C354
2
1
C960
2
1
C515
2
1
C514
2
C958
2
1
2
1
2
1
C953
2
1
C325
2
1
C323
2
1
C321
2
1
C319
2
1
2
1
1
2
1
C311
2
1
C305
2
1
2
1
C303
1
C302
2
1
C301
2
1
C511
2
1
2
1
C652
2
1
C513
2
1
C586
2
1
C537C538
2
1
C689
2
C690
2
1
C625
2
1
C605
2
1
C505
2
1
C579
2
1
C681
2
1
C682
2
1
C683
2
1
C684
2
1
C601
2
1
C602
2
1
2
1
C564
1
2
1
C571
2
1
C570
2
1
C569
2
1
C568
2
1
C567
1
C604
2
1
C603
2
1
C624
2
1
C623
2
1
C688
2
1
C687
2
1
C686
2
1
C685
2
1
C572
2
1
2
1
C574
C008
2
1
C010
2
1
C014
2
1
C013
2
1
C012
2
1
2
1
C009
2
1
C007
2
1
C006
2
1
C004
2
1
C003
2
1
C002
2
1
C576
2
1
C696
2
1
C609
1
C629
2
1
C697
2
1
C630
1
C610
2
1
L001
2
1
L002
A
K
A
K
A
D503
K
A
D007
K
A
D009
K
A
D004
K
A
D003
K
A
D002
K
A
D001
K
A
D008
K
A
D010
K
A
D015
K
A
D014
K
A
D013
K
A
D012
E
C
B
Q003
E
C
B
Q681
E
C
B
Q682
C
B
Q683
E
C
B
Q684
E
C
B
Q601
E
C
B
Q602
E
C
B
Q501
E
C
B
Q561
E
C
B
Q562
C
B
E
C
B
Q565
E
C
B
Q566
E
C
B
Q568
E
C
B
Q567
E
C
B
E
C
B
Q504
3
2
1
8
7
6
54
3
2
1
IC301
8
7
6
54
3
2
1
8
7
6
54
3
2
1
IC303
8
7
6
54
3
2
1
IC304
9
8
7
6
5
48
47
46
45
43
41
40
4
39
38
37
36
34
33
32
31
30
3
28
27
24
23
22
21
20
2
19
18
17
16
15
14
13
11
10
1
IC351
8
7
6
54
3
2
1
IC651
7
6
54
3
2
IC652
8
7
6
54
3
2
1
IC511
8
7
54
3
1
IC581
8
7
6
54
3
2
1
IC521
27
9
8
7
6
5
4
26
25
24
23
22
21
2
12
11
10
IC681
27
9
8
7
6
5
4
3
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
1
2
1
1
2
1
2
1
R660
2
1
2
1
R507
2
1
C852
8
7
6
54
3
2
1
E
C
B
Q005
K
A
D017
2
R012
2
1
C015
K
A
K
D951
2
1
R817
2
1
R317
2
1
R821
2
R815
E
C
B
Q801
2
1
C005
2
1
R007
2
1
2
1
R006
2
1
R002
1
2
1
R949
9
8
7
6
5
4
3
2
12
11
10
1
J871
6
5
4
3
2
1
J872
2
1
X801
3
2
1
E
B
2
R904
E
C
B
5
4
3
2
1
IC901
K
A
D901
2
1
C901
E
B
Q902
E
C
B
Q901
K
A
D902
2
1
R901
E
C
B
1
C903
2
1
C904
2
1
H-TR-1
3
2
1
2
1
2
1
K
D953
2
1
R953
E
C
B
2
K
A
D952
E
C
B
Q951
E
C
B
Q952
2
1
C954
2
1
R952
E
B
Q953
2
1
R951
2
1
C952
2
1
C951
8
7
6
54
3
2
1
IC305
8
7
6
54
3
2
1
IC522
9
8
7
6
5
3
2
14
13
12
11
10
1
P001
2
1
C001
2
1
R301
1
2
1
R316
99
98
97
96
95
94
91
90
9
89
88
87
86
84
83
82
81
80
8
79
78
77
76
75
74
73
72
71
70
7
69
68
67
66
63
62
60
6
59
58
57
56
54
53
52
51
47
46
44
43
42
4
39
34
30
3
29
27
26
24
22
21
2
19
18
15
14
13
12
11
100
10
1
IC801
2
1
2
1
C628
2
1
C627
27
9
8
7
6
5
4
3
26
25
24
23
22
21
20
2
18
17
16
15
14
13
12
10
1
IC601
9
8
6
2
14
13
12
11
1
9
8
7
6
5
4
3
2
15
14
12
11
10
1
P002
2
1
C512
2
1
R511
2
1
C3G2
2
1
X3G1
1
2
1
C332
9
8
7
6
5
48
47
46
45
44
43
42
41
40
4
39
38
37
36
35
33
31
30
3
29
28
27
26
25
24
23
22
21
20
2
19
18
17
16
15
14
13
12
11
10
1
IC331
2
1
R336
2
1
R351
2
1
6
3
2
1
RN372
5
6
8
4
3
2
1
RN373
9
8
7
6
5
48
47
46
45
44
43
42
41
40
4
39
38
37
36
35
34
33
32
31
30
3
29
27
26
25
21
20
2
19
18
17
16
15
12
11
10
1
3
2
1
LC373
2
C585
2
R590
2
1
2
1
C524
2
1
R540
2
1
2
1
C528
2
1
C536
2
11
E
C
B
Q505
2
R508
2
1
L003
2
1
C504
K
A
D504
2
1
R509
E
C
B
Q607
2
1
C502
2
1
R606
2
1
R607
2
1
C607
2
1
C608
K
A
D006
K
A
D005
2
R503
2
1
2
1
R501
2
1
R506
E
C
Q503
2
1
R505
2
1
C503
1
E
B
Q564
2
1
R565
2
1
C575
E
C
2
1
H-TR-2
2
1
C577
2
1
R561
2
2
1
C578
9
8
25
24
23
22
21
20
19
18
17
16
15
14
13
IC561
NJM4580V
1k
0.22u
2.2u
4.7u
0
7
47k
0
47k
3
2
0
8
7
9
1
11
12
11
4.7k
4.7k
5
4
10u
/16
0.1u
47k
47k
220
47k
0
1
100k100k100k100k100k100k100k100k
220
16
220
220
6
0
8
8
7
6
2
0
1
7
3
4
0
/16
33u
0.1u
PLATE6
1k
0.1u
100u
/6.3
LF33AB
OPEN
2SA1369
OPEN
10k
10u
MA8056M
*
2SD2375P
2.2k
27k
DTC144EKA
100u
0
DTA124EKA
/35
1SR154
0
1
2
4
5
6
3
0.1u
10u
/16
4.7k
47k
4.7k
10MHz
0.1u
27p
220
220
47k
4.7k
220
OPEN
10u
0.1u
2
6
7
4
3
5
0
10
0.1u
33u
/16
0.1u
0.1u
9
12
470k
14
/16
13
15
19
DSP0/1_I/F<12..0>
DAC_I/F<2..0>
4
2
3
14
3
4
11
12
2
3
0
0
0
0
1
1
2
3
0
1
2
10kX4
1k
18
10kX4
0.1u
10k
LM252LM252
10k
10k
0
10u
/16
10k
0.1u
3
2.2k
-F
2.2k
-F
DTC124EKA
2.2k
-F
1k
/35
390k
1k
-F
332
222
-F
2.2k
-F
3.9k
331
-F
331
-F
331
3.9k
1k
2.2k
2.2k
2.2k
-F
-F
2.2k
-F
2.2k
2.2k
-F
-F
-F
2.2k
222
2.2k
2.2k
-F
-F
-F
-F
332
222
2.2k
-F
332 3.9k
-F
331
-F
-F
331
-F
3.9k
3.9k
-F
1k
-F
1k
-F
331
2.2k
222
2.2k
-F
-F
-F
3.9k 332
1k
-F
1k
-F
331
-F
3.9k
8
MA8056M
5
10u
0.1u
/16
PLATE4
10kX4
NFW31SP106
NFW31SP106
NFW31SP106
NFW31SP106
NFW31SP106
NFW31SP106
NFW31SP106
NFW31SP106
NFW31SP106
NFW31SP106
NFW31SP106
0
0
F
2.2k
OPEN
2.2k
-F
-F
332
-F
1k
-F
3.9k
331
-F
FOR AUDIO
103
47u
/16
22p
4.7k
FOR AUDIO
47u
/16
2.2k
-F
2.2k
-F
4.7k
103
2.2k
222
2.2k
-F
-F
332 3.9k
-F
331
1k
-F
1k
-F
-F
10k
-F
2
1
10k
0.1u
0
1
2
7
6
LM252LM252
HS470HS470
LM252
HS470HS470
AK7730
0.1u
HS470
330
330
0
1
2
3
330
0.1u
0.1u
0.1u
5.6k
10u
/16
LM252
22.5792MHz
22p
OPEN
10k
LM252LM252LM252
22p
LM252
2.2u
2
1
0
0.1u
5
4
3
1
0
2
1
HS470HS470HS470HS470
0.1u
10k
10k
3
2
0
1
LM252
331 39k
-F
4.7k
-F
/35
4.7u
10k
/35
4.7u
5
103
NJM2115V
4.7k
-F
331 39k
-F
4.7k
-F
-F
39k
4.7u
10k
4.7u
/35 /35
4
/35
10k
/35
4.7u
7
7
6
CLK<2..0>
0.1u
LM252LM252
AK7730
0
0.1u
5
0.1u
10u
0.1u
0.1u
/16
682
5.6k
0.22u
LM252LM252LM252
10k
10k
2
3
1
3
2
1
0
103
2
0
1
103
4.7k
-F
331 39k
-F
4.7u
10k
6
/35
4.7u
/35
NJM2115V
103
10u
/16
4.7k
10u
/16
103
4.7k
-F
39k
/35
1
/35
4.7u
0
4.7k
-F
331 331
39k
-F
-F
39k
-F
/35 /35
4.7u
4.7u
10k
/35
4.7u
3
NJM2115V
2.2k
2.2k
-F
-F
10k
-F
10k
22p
-F
2.2k
222
2.2k
-F
-F
3.9k
-F
332
331
1k
-F
1k
-F
331
-F
1k
4.7k
-F
331 39k
/10
33u
FOR AUDIO
10k
4.7u
/35
4.7u
0.1u
0
/16
100
1k
/10
470u
FOR AUDIO
10u
/16
MA8091M
/16
0
OPEN
1.2k
22p
NJM4580V
10k
10k
10k
NJM4580V
AMP_CONT<20..0>
1SS355
FOR AUDIO
FOR AUDIO
0.1u
/35
4.7u
/35
103
F
F
223
F
DTC323TKDTC323TKDTC323TKDTC323TK
223
1k
1k
1.5k
1.5k
15k
0.22u
F
F
10k
0.22u
F
F
0.22u
F
103
10k
/35
4.7u
DTC323TK
1.5k
15k
F
100
FOR AUDIO
102 102
1k
102 102
AUDIO GND
1u
/50
DTC124EKA
1k
2SA1037AKR
22u
1SS355
2.7k
10k
DTC124EKA
47u
/16
1k
1k
0.47u
1k
153
3300u
MA8068M
F
103
/35
4.7u
-F
-F
1.5k
DTC323TK
15k
F
0.22u
100
TDA7575B
NJM4580V
F
103
F
103
-F
DTC323TKDTC323TKDTC323TKDTC323TK
0.22u
F
100
F
100
153 153
F
47u
/16
0
OPEN
OPEN
153
F
47u
/16
0
OPEN
OPEN
OPEN
153
DTC124EKA
ALD-20-8
/16
10k
DTA124EKA
1
19
2.2
/50
9
22k
2
0
5
10
4
MA8043-H
10k
DTC124EKA
2.2K
102
DTC124EKA
3.9K
OPEN
100k 100k
2SC2412KS
15
10
9
0
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
MA8270M
MA8270M
MA8270M
3300u
/16
10
11
12
16
13
9
2
3
1
68
0
56
10
11
12
17
/16
3300u
ALD-20-8
14
18
2SC2412KS
22k
2SC2412KS
1SS355
68
1/2W
56
1/2W
221
221
221
22k
101
68
1/2W
4.7k
68
1/2W
221
4.7k
MA8270M
22k
221
OPEN
22k
4.7k
101
MA8270M
221
*
OPEN
*
F
/35
4.7u
/35
4.7u
/35
4.7u
4.7u
6.8k
6.8k
6.8k
5.6k
0.22u
0.22u
F
F
F
100
5.6k
0.22u
0.22u
F
100
F
OPEN
F
/16
153
OPEN
DTC144EKA
DTA124EKA
0
100u
/35
ANALOG_IN<7..0>
10
9
3300u
/16
11
ALD-20-8
7
*
*
S3D6600
471
OPEN
471
OPEN
OPEN
OPEN
MA8270M
MA8270M
221
221
221
MA8270M
221
MA8270M
0
5
680
680
6
1/2W
1/2W
OPEN
OPEN
PLATE3 040II14PIN
OPEN
SDL18PIN
S3D6600
682
4
TP007
IA001
TP0B1
OPEN
6
1
I903
C333
I851
IA904
C913
TP907
C902
1
1
R902
2
0.1u
1
1
Q905
LC901
1
I906
Q904
DTC144EKA
/16
2
I905
I907
TP904
NFE61HT102
C
2
1k
IA910
/6.3
100u
C044
OPEN
PLATE1
Q001
E
2SA1037AKR
I004
1
2
11
R008
1k
1/2W
I006
2SA1037AKR
R010
I016
Q006
DTC124EKA
1/2W
2
2
1
C037
DTA124EKA
/16
IA509
1
B
I570
1
OPEN
TP603
19
R627
1
1
0
R694
1
2
TP688
20
19
18
17
16
15
TDA7575B
3
1
1
1
3.9k
1
I654
I656
1
8
C648
331
R656
3.9k
1
I512
1
1
1
2
I589
-F
1k
1
R549
2
2
NJM4580V
I523
2
1
I524
D502
B
1
IA907
C
2.2k
R903
I904
Q903
IA908
DTA124EKA
DTC114TKA
1
FOR AUDIO
I382
2
I310
1
2
/35
C313
4.7u
C315
10k
R303
10k
R304
2
I312
1
TP301
103
C306
OPEN
R359
R358
2
L361
2
2
2
L359
R357
C359
26
25
DSP1_I/F<7..0>
AUDIO_I/F_DSP1OUT<3..0>
0
0
2
5
35
38
48
1
50
49
40
45
R813
17
2
R812
2
R810
2
R811
1
AK4358
IC371
0.1u
C376
1
1
2
1
2
102
C351
PLATE5
1
M16C/62P(FLASH)
65
64
2
1
1
NFE61HT102
TP371
I655
1
TP684
5.6k
1
2
100
R692
OPEN
I690
I689
14
13
12
R001
(2125)
2
13
(2125)
16
17
TP022
18
TP023
P003
SDL14PIN
3
4
5
7
10
C011
MA8270M
1
TP037
PLATE2
1
Q506
DTC124EKA
1
1
12
11
10
7
3
2
1
C530
25
23
R581
R583
R585
3.9k
331
6
I588
1
NFW31SP106
I374
RN371
5
12
L339
11
32
I339
I340
34
1
2
0.22u
1
102
2
I324
331
4.7k
331
I321
2
2
4
5
-F
4.7u
C317
R335
L335
R8B2
61
IA909
L901
103
R851
1
5
I8G4
7
24
22
2
10k
1
R374
R819
1
4.7k
R373
R372
14
13
0.1u
I39E
LM252
2
103
NJM2115V
IC302
-F
R315
C956
100u
FOR AUDIO
IA954
R954
1
MA8056M
A
10u
C955
FOR AUDIO
IC951
LF33AB
/35
C310
2
2.2k
I373
NFE61HT102
LC372
LC371
R955
C959
2SD1760
Q954
IA952
1
TP953
C
A
1
OPEN
C695
OPEN
1
C694
OPEN
C693
OPEN
C692
OPEN
R693
47u
2
4
5
6
R570
1
1
I621
0.22u
2
TDA7575B
IC621
R688
I684
5.6k
R687
2
E
2
6.8k
R683
/35
1
4
1
3
2
586
7
30
1
919089
88
87
86
85
83
82818079787776
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
51
40
39
38
37 36
35
34 33
32
31
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
3
2
4
5
6
7
8
9
25
262728294142
43
44
45
4647
48
4950
52
92 93
94
95
96
97 98
99
1
00
84
2
54
3
1
26
25 27201918
17
1615141312
11
10
98
3
2
1
7
654
24
23
2221
26
25 27201918
17
1615141312
11
10
98
3
2
1
7
654
24
23
2221
1
4
3
2
7
6
5
8
+
1
2
+++
4
1
3
2
586
7
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
P
PP P +++
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
6
25
26
27
28
29
30
24
2322212019
7
8
9
10
11
12
13 14 15 16
17
18
5
4
3
2
1
48
47 46 45
44
43 42
31
32
33
34
35
36
3738
394041
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
1
4
3
2
7
6
5
8
26
25 27201918
17
1615141312
11
10
98
3
2
1
7
654
24
23
2221
5
7
4
3
2
1
8
6
456
7
89
10
11
12
1
2
3
3
2
1
654
3
1
2
2
54
3
1
+
+
+
1
2
+
+
+
1
4
3
2
7
6
5
8
10
3
2
1
141312
119
8
7
654
10
3
2
1
141312
119
8
7
654
10
3
2
1
18
17
1615141312
11
9
8
7
654
6
25
26
27
28
29
30
24
2322212019
7
8
9
10
11
12
13 14 15 16
17
18
5
4
3
2
1
48
47 46 45
44
43
42
31
32
33
34
35
36
3738
394041
4
1
3
2
586
7
4
1
3
2
586
7
6
25
26
27
28
29
30
24
23
2221
20
19
7
8
9
10
11
12
13 14 15 16
17
18
5
4
3
2
1
48 47
46 45
44 43
42
31
32
33
34
35
36
373839
40
41
+
+
+
+
1
2
2524
23
2221201918
17
1615141312
11
10
98
7
654
3
2
1
P
+
+
SCHEMATIC DIAGRAM PCB-AMP MODEL : CV-0MW7G21-7,8
15
16 Your company internal use only.
Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-7,8
◆VOLTAGE
MODEL : CV-0MW7G21-7,8
BATT : 13.2V ACC : ON VOL : 0 (Pin numbers are as measurement points.)
IC801(M30620MCP-539GP,572GP) IC331(AK7730AVT)
Pin NO. Pin Name Function Voltage [V] Pin NO. Pin Name Function Voltage [V] Pin NO. Pin Name Voltage(DC)[V]
1 DSP0-RDY RDY in
p
ut from DSP-IC
(
AK7730/AK7740
)
3.3 51 INIT0 Default in
p
ut 0.0 1 EESEL 0.0
2 DSP1-RDY RDY in
p
ut of DSP1
(
AK7730
)
3.3 52 INIT1 Default in
p
ut 0.0 2 SDIN4 0.0
3 DSP1-SO Serial data out
p
ut to DSP1-IC
(
AK7730
)
0.0 53 INIT2 Default in
p
ut 0.0 3 SDIN3 0.0
4 DSP1-SI Serial data in
p
ut to DSP1-IC
(
AK7730
)
0.0 54 INIT3 Default in
p
ut 0.0 4 SDIN2 0.0
5 DSP1-SCLK Serial clock out
p
ut to DSP1-IC
(
AK7730
)
3.3 55 - Not Used 0.0 5 SDIN1 0.0
6 BYTE BYTE in
p
ut
(p
ull-u
p)
3.3 56 - Not Used 0.0 6 CKS1 3.3
7 CNVSS VSS 0.0 57 - Not Used 0.0 7 BVSS 0.0
8 DSP1-IRESET IRESET out
p
ut to DSP1-IC
(
AK7730
)
3.3 58 - Not Used 0.0 8 DVSS 0.0
9 DSP1-SRESET SRESET out
p
ut to DSP1-IC
(
AK7730
)
3.3 59 - Not Used 0.0 9 DVDD 3.3
10 RESET RESET in
p
ut 3.3 60 VCC2 VCC 3.3 10 SDOUT4 0.0
11 XOUT Cr
y
stal connection OUT 1.7 61 - Not Used 0.0 11 SDOUT3 0.0
12 GND GND 0.0 62 VSS VSS 0.0 12 SDOUT2 1.2
13 XIN Cr
y
stal connection IN 1.4 63 - Not Used 0.0 13 SDOUT1 1.2
14 VCC1 VCC 3.3 64 - Not Used 0.0 14 BITCLK_I 0.0
15 NMI nonmaskable interru
p
t in
p
ut
(p
ull-u
p)
3.3 65 - Not Used 0.0 15 LRCLK_I 0.0
16 AUDIO-SIO-IN Serial access si
g
nal from Audio
(
WakeU
p)
3.3 66 - Not Used 0.0 16 BITCLK_O 1.6
17 POWER-IN POWER-ON si
g
nal Audio
(
WakeU
p)
0.0 67 W/D-RCT external W/D control si
g
nal 0.6 17 LRCLK_O 1.6
18 BATT-IN BATT volta
g
e detection 0.0 68 W/D-CK external W/D clear
p
ulse out
p
ut 1.7 18 RD
Y
3.3
19 ACC-ON Power su
pp
l
y
ACC ON out
p
ut 3.3 69 - Not Used 0.0 19 DRDY 3.3
20 - Not Used 0.0 70 - Not Used 0.0 20 CS 0.0
21 POWER-MUTE0 POWER-IC-MUTE out
p
ut
(
TDA7575
)
0.0 71 - Not Used 0.0 21 DVDD 3.3
22 POWER-STB1 POWER-IC-STB Power su
pp
l
y
out
p
ut
(
TDA7560
)
3.3 72 - Not Used 0.0 22 DVSS 0.0
23 POWER-MUTE1 POWER-IC-MUTE out
p
ut
(
TDA7560
)
0.0 73 - Not Used 0.0 23 CLKO1 1.6
24 ALL-MUTE MUTE out
p
ut 3.3 74 - Not Used 0.0 24 CLKO2 0.0
25 - Not Used 0.0 75 DSP1-DRD
Y
DRDY in
p
ut of DSP1
(
AK7730
)
0.0 25 XTO 1.3
26 - Not Used 0.0 76 DAC-PDN DAC-IC ON/OFF out
p
ut 3.3 26 XTI 1.3
27 I2C-SCL
(
POWER-IC/DAC
)
POWER-IC/DAC-IC communication
(
I2C
)
3.3 77 - Not Used 0.0 27 DVSS 0.0
28 I2C-SDA
(
POWER-IC/DAC
)
POWER-IC/DAC-IC communication
(
I2C
)
3.3 78 - Not Used 0.0 28 DVDD 3.3
29 TXD PC communication/for FLASH writin
g
3.3 79 - Not Used 0.0 29 SMODE 3.3
30 RXD PC communication/for FLASH writin
g
3.3 80 - Not Used 0.0 30 SO 0.0
31 SCLK for FLASH writin
g
3.3 81 - Not Used 3.3 31 SI 0.0
32
(
FLASH-RTS
)
for FLASH writin
g
0.0 82 - Not Used 0.0 32 SCLK 3.3
33 AUDIO-SO Serial communication to Audio 3.3 83 - Not Used 0.0 33 RQ 3.3
34 AUDIO-SI Serial si
g
nal to Audio 3.3 84 - Not Used 0.0 34 S-RESET 3.3
35 PC-CTS PC communication hand-shake 3.3 85 - Not Used 0.0 35 INT-RESET 3.3
36 PC-RTS PC communication hand-shake 3.3 86 - Not Used 0.0 36 CKS0 0.0
37 - Not Used 0.0 87 - Not Used 0.0 37 LFLT 1.5
38 - Not Used 0.0 88 - Not Used 0.0 38 AVSS 0.0
39
(
FLASH-EPM
)
for FLASH writin
g
0.0 89 - Not Used 0.0 39 AVDD 3.3
40 - Not Used 0.0 90 DSP0A-SRESET SRESET out
p
ut to DSP-IC
(
AK7730
)
3.3 40 AVDD 3.3
41 - Not Used 0.0 91 DSP0A-IRESET IRESET out
p
ut to DSP-IC
(
AK7730
)
3.3 41 VREFH 3.3
42 OFFSET-IN0
(
HSD
)
OFFSET detection in
p
ut 0.0 92 DSP0A-DRD
Y
DRDY in
p
ut from DSP-IC
(
AK7730
)
3.3 42 VCOM 1.4
43 OFFSET-OUT OFFSET detective mode IN out
p
ut 0.0 93 DSP0A-RQ RQ out
p
ut to DSP-IC
(
AK7730
)
3.3 43 VREFL 0.0
44
(
FLASH-CE
)
for FLASH writin
g
0.0 94 AVSS AVSS 0.0 44 AVSS 0.0
45 CD-IN2
(
TAD7575
)
CD in
p
ut from TAD7575 3.3 95 DSP1-RQ RQ out
p
ut to DSP1-IC
(
AK7730
)
3.3 45 AINR- 1.7
46 CD-IN1
(
TAD7575
)
CD in
p
ut from TAD7575 3.3 96 VREF A/D,D/A reference volta
g
e3.3 46 AINR+ 1.7
47 CD-IN0
(
TAD7575
)
CD in
p
ut from TAD7575 3.3 97 AVCC AVCC 3.3 47 AINL- 1.7
48 - Not Used 0.0 98 DSP0-SI Serial data input of DSP-IC(AK7730) 0.0 48 AINL+ 1.7
49 - Not Used 0.0 99 DSP0-SO Serial data out
p
ut of DSP-IC
(
AK7730
)
0.0
50 - Not Used 0.0 100 DSP0-SCLK Serial clock output of DSP-IC(AK7730) 3.3
17 Your company internal use only.
Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-7,8
◆VOLTAGE
IC351(AK7730AVT) IC371(AK4358) IC561(TDA7560) IC601(TDA7575B) IC621(TDA7575B)
Pin NO. Pin Name Voltage(DC)[V] Pin NO. Pin Name Voltage(DC)[V] Pin NO. Pin Name Voltage(DC)[V] Pin NO. Pin Name Voltage(DC)[V] Pin NO. Pin Name Voltage(DC)[V]
1 EESEL 0.0 1 FL-LO- 2.6 1 TAB 0.0 1 TAB 0.0 1 TAB 0.0
2 SDIN4 0.0 2 FL-LO+ 2.6 2 P-GND 0.0 2 PWGND 0.0 2 PWGND 0.0
3 SDIN3 0.0 3 DZF3 0.0 3 RL - 6.3 3 PIN_B 0.0 3 PIN_B 0.0
4 SDIN2 1.2 4 DZF2 0.0 4 STB
Y
4.3 4 OUT1+ 6.7 4 OUT1+ 6.7
5 SDIN1 1.2 5 DZF1 0.0 5 RL + 6.3 5 - 0.0 5 - 0.0
6 CKS1 0.0 6 CAD0 0.0 6 Vcc1 13.2 6 OUT1- 6.7 6 OUT1- 6.7
7 BVSS 0.0 7 ACKSN 0.0 7 RR - 6.3 7 VCC1 13.2 7 VCC1 13.2
8 DVSS 0.0 8 PDN 3.3 8 P-GND 0.0 8 IN1+ 6.6 8 IN1+ 6.6
9 DVDD 3.3 9 BICK 1.6 9 RR + 6.3 9 IN1- 6.6 9 IN1- 6.6
10 SDOUT4 1.2 10 MCLK 1.6 10 R.F 6.2 10 MUTE 11.9 10 MUTE 11.9
11 SDOUT3 0.6 11 DVDD 5.0 11 RR-IN 6.2 11 STBY 4.3 11 STB
Y
4.3
12 SDOUT2 1.2 12 DVSS 0.0 12 RL-IN 6.2 12 SGND 0.0 12 SGND 0.0
13 SDOUT1 1.2 13 SDTI4 1.2 13 S-GND 0.0 13 DATA 3.3 13 DATA 3.3
14 BITCLK_I 1.6 14 SDTI1 1.2 14 FL-IN 6.2 14 CLK 3.3 14 CLK 3.3
15 LRCLK_I 1.6 15 SDTI2 0.6 15 FR-IN 6.2 15 SVR 6.7 15 SVR 6.7
16 BITCLK_O 1.6 16 SDTI3 1.2 16 AC-GND 6.2 16 CD_OUT 3.3 16 CD_OUT 3.3
17 LRCLK_O 1.6 17 LRCK 1.7 17 FR-M/H+ 6.3 17 1OHM 13.2 17 1OHM 13.2
18 RDY 3.3 18 I2C 5.0 18 P-GND 0.0 18 I2CEN 13.2 18 I2CEN 13.2
19 DRDY 0.0 19 CCLK/SCL 3.3 19 FR-M/H- 6.3 19 IN2- 6.6 19 IN2- 6.6
20 CS 0.0 20 CDTI/SD
A
3.3 20 Vcc2 13.2 20 IN2+ 6.6 20 IN2+ 6.6
21 DVDD 3.3 21 CSN/CAD1 0.0 21 FL-M/H+ 6.3 21 VCC2 13.2 21 VCC2 13.2
22 DVSS 0.0 22 DCLK 0.0 22 MUTE 4.3 22 OUT2- 6.7 22 OUT2- 6.7
23 CLKO1 0.0 23 DSDL4 0.0 23 FL-M/H- 6.3 23 - 0.0 23 - 0.0
24 CLKO2 0.0 24 DSDR4 0.0 24 P-GND 0.0 24 OUT2+ 6.7 24 OUT2+ 6.7
25 XTO 1.3 25 DSDL1 0.0 25 HSD 13.2 25 PIN
A
0.0 25 PIN
A
13.2
26 XTI 1.6 26 DSDR1 0.0 26 PWGND 0.0 26 PWGND 0.0
27 DVSS 0.0 27 DSDL2 0.0 27 TAB 0.0 27 TAB 0.0
28 DVDD 3.3 28 DSDR2 0.0
29 SMODE 0.0 29 DSDL3 0.0
30 SO 0.0 30 DSDR3 0.0
31 SI 0.0 31 DIF0 0.0 IC681(TDA7575B) Power Suppl
y
32 SCLK 3.3 32 FR-M/H- 2.6 Pin NO. Pin Name Voltage(DC)[V] BATT ON
33 RQ 3.3 33 FR-M/H+ 2.6 1 TAB 0.0
34 S-RESET 3.3 34 VREFH 5.0 2 PWGND 0.0
35 INT-RESET 3.3 35 AVDD 5.0 3 PIN_B 13.2 B5V Q903(E) 5.2
36 CKS0 0.0 36 AVSS 0.0 4 OUT1- 6.7 B3.3V IC903(3) 3.3
37 LFLT 1.5 37 FL-M/H- 2.6 5 - 0.0
38 AVSS 0.0 38 FL-M/H+ 2.6 6 OUT1+ 6.7 ACC ON
39 AVDD 3.3 39 RR- 2.6 7 VCC1 13.2
40 AVDD 3.3 40 RR+ 2.6 8 IN1- 6.6
41 VREFH 3.3 41 RL- 2.6 9 IN1+ 6.6 ACC3.3V IC901(5) 3.3
42 VCOM 1.4 42 RL+ 2.6 10 MUTE 11.9 A8V Q953(E) 8.7
43 VREFL 0.0 43 OUT3R- 2.6 11 STB
Y
4.3 A5V Q954(E) 5.0
44 AVSS 0.0 44 OUT3R+ 2.6 12 SGND 0.0 A3.3V IC951(5) 3.3
45 AINR- 0.0 45 WF- 2.6 13 DAT
A
3.3
46 AINR+ 0.0 46 WF+ 2.6 14 CLK 3.3
47 AINL- 0.0 47 FR-LO- 2.6 15 SVR 6.7
48 AINL+ 0.0 48 FR-LO+ 2.6 16 CD_OUT 3.3
17 1OHM 0.0
18 I2CEN 13.2
19 IN2+ 6.6
20 IN2- 6.6
21 VCC2 13.2
22 OUT2+ 6.7
23 - 0.0
24 OUT2- 6.7
25 PIN
A
0.0
26 PWGND 0.0
27 TAB 0.0
Power
Name
Measurement
Point Voltage(DC)[V]
Power
Name
Measurement
Point Voltage(DC)[V]
18 Your company internal use only.
Copyright (C) Mitsubishi Electric Corporation.
CV-0MW7G21-7,8
◆WAVEFORM
MODEL : CV-0MW7G21-7,8
BATT : 13.2V VOL : 0 (Pin numbers are as measurement points.)
IC331 PCB-AMP IC331 PCB-AMP IC371 PCB-AMP
CH1=17pin (LRCLK_O) CH1=25pin (XTO) CH1=19pin (CCLK/SCL)
CH2=16pin (BITCLK_O) CH2=20pin (CDTI/SDA)
CH1
CH1 CH1
CH2 CH2
IC371 PCB-AMP IC801 PCB-AMP
IC331 PCB-AMP
CH1=13pin (SDTI4) CH1=11pin (XOUT)
CH1=23pin (CLKO1) CH2=14pin (SDTI1)
CH3=15pin (SDTI2)
CH4
=
16
p
i
n
(SDTI3)
CH1 CH1
CH1
CH2
CH3
CH4
P002 PCB-AMP
CH1=13pin (DATA)
CH1
This manual suits for next models
1
Table of contents
Other Mitsubishi MOTORS Amplifier manuals
