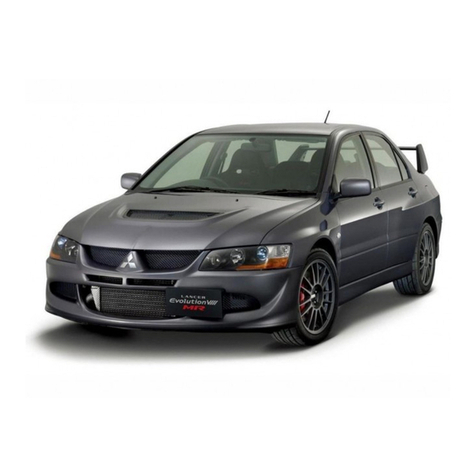

Mitsubishi LANCER EVOLUTION 2003 Operating instructions

GROUP INDEX
1
BODY CONSTRUCTION . . . . . . . . .
2
BODY DIMENSIONS . . . . . . . . . . . . .
3
WELDED PANEL REPLACEMENT. .
4
CORROSION PROTECTION . . . . . .
5
SYNTHETIC-RESIN PARTS . . . . . . .
6
BODY COLOR . . . . . . . . . . . . . . . . . .
7
WIRING AND PIPING DIAGRAM . . .
8
REFERENCE MATERIAL . . . . . . . . .
9
BASE OF BODY REPAIR . . . . . . . . .
2003
MITSUBISHI
LANCER
EVOLUTION VIII
BODY
REPAIR MANUAL
FOREWORD
This manual has been prepared for the use of all
service mechanics engaged in the body repair service.
Body dimensions, welded panel replacement
procedures, body sealing application instructions, and
all the other information required to provide quick and
accurate body repair service are contained herein.
One especially important point is the welding method.
All of the vehicle’s original strength and durability can
be maintained by following the welding procedures
contained in this manual.
Now that, in order to maximize the efficiency of the
repair work, first, both the extent of the damage and
the replacement parts that are needed must be
calculated accurately, and then the actual work must
be performed accurately and efficiently.
The publications shown on the following page are also
available, and should be used in conjunction with this
manual.
Mitsubishi Motors Corporation reserves the right to make changes in
design or to make additions to or improvements in its products without
imposing any obligations upon itself to install them on its products
previously manufactured.
ã2003 Mitsubishi MotorsCorporationPrinted inUSA MSSP-260B-2003
Technical Information
Return to Main Menu

1-1
GROUP 1
BODY
CONSTRUCTION
CONTENTS
BODY COMPONENTS. . . . . . . . . . . . 1-2
BODY MAIN CROSS-SECTIONAL
VIEWS . . . . . . . . . . . . . . . . . . . . . . . . 1-4
MAINTENANCE, SERVICEABILITY . 1-6
BODY CONSTRUCTION
CHARACTERISTICS . . . . . . . . . . . . . 1-8
FRONT BODY. . . . . . . . . . . . . . . . . . . . . . . 1-8
ROOF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
SIDE BODY. . . . . . . . . . . . . . . . . . . . . . . . . 1-14
REAR BODY. . . . . . . . . . . . . . . . . . . . . . . . 1-16
UNDER BODY. . . . . . . . . . . . . . . . . . . . . . . 1-17
DOOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
SILENCER APPLICATION
LOCATIONS . . . . . . . . . . . . . . . . . . . . 1-21
LOCATIONS USING URETHANE FOAM
AND FOAM MATERIAL . . . . . . . . . . . 1-22
STIFFENER AND DAMP SHEET
APPLICATION LOCATIONS . . . . . . . 1-24
THEFT PROTECTION . . . . . . . . . . . . 1-25

BODY COMPONENTS
BODY CONSTRUCTION
1-2
BODY COMPONENTS
M4010001000102
AB202151AB
: Anti-corrosion steel panels
: High-tensile steel panels
1
62
64
69
70
19
2
3
16
17
28
47
29
48
49
81
41
14
15
25 55
38
37
21
18
4
5
6
78
9
10
71
2324
22
72 7374
75
76 77
26
27
31 32 33
30
46
35
36
34
11 12
20
13
65
78 79
66
39
40
42
44
43
56
57
83 82
61
67
68
58
59
60
63
45
5051
52 53 54

BODY COMPONENTS
BODY CONSTRUCTION 1-3
1. HEADLAMP SUPPORT PANEL
2. HOOD LOCK STAY
3. FRONT END CROSSMEMBER
4. FRONT END UPPER BAR
5. HEADLAMP SUPPORT PANEL SIDE
6. FRONT FENDER SHIELD
7. FRONT UPPER FRAME INNER
8. UPPER FRAME BULKHEAD FRONT
9. UPPER FRAME BULKHEAD
10. UPPER FRAME BULKHEAD REAR
11. FRONT SIDEMEMBER INNER
12. ENGINE MOUNT BRACKET
13. FRONT SIDEMEMBER REAR
14. FRONT SIDEMEMBER OUTER
15. SPRING HOUSE PANEL
16. DASH PANEL
17. DASH PANEL SILENCER
18. DASH PANEL REINFORCEMENT
19. UPPER FRAME TO FRONT PILLAR BRACE
20. UPPER FRAME EXTENSION OUTER
21. UPPER FRAME EXTENSION INNER
22. COWL TOP LOWER PANEL
23. COWL TOP INNER PANEL
24. COWL TOP UPPER PANEL
25. FRONT DECK CROSSMENBER
26. HOOD INNER PANEL
27. HOOD OUTER PANEL
28. FRONT ROOF RAIL
29. FRONT ROOF BOW
30. ROOF PANEL
31. ROOF BOW FRONT REINFORCEMENT
32. REAR ROOF BOW
33. REAR ROOF RAIL
34. SEAT BACK PLATE
35. REAR SEAT BACK PANEL
36. REAR SHELF PANEL
37. REAR SEAT BACK BRACE
38. TRUNK LID OUTER PANEL
39. TRUNK LID INNER PANEL
40. TRUNK LID HINGE
41. QUARTER INNER EXTENSION REAR
42. QUARTER CORNER PANEL
43. REAR COMBINATION LAMP HOUSING
44. SIDE ROOF RAIL INNER
45. ROOF SIDE RAIL REINFORCEMENT CENTER
46. FRONT PILLAR INNER UPPER
47. FRONT PILLAR INNER LOWER
48. CENTER PILLAR INNER
49. SIDE OUTER PANEL
50. REAR WHEEL HOUSE INNER PANEL
51. QUARTER INNER PANEL
52. REAR FLOOR SIDE BRACE
53. QUARTER OUTER EXTENSION LOWER
54. FUEL FILLER DOOR
55. REAR END PANEL OUTER
56. REAR END PANEL INNER
57. REAR DOOR OUTER PANEL
58. REAR DOOR SIDE DOOR BEAM LOWER
59. REAR DOOR SIDE DOOR BEAM UPPER
60. REAR DOOR INNER PANEL
61. FRONT DOOR OUTER PANEL
62. FRONT DOOR SIDE DOOR BEAM
63. FRONT DOOR INNER PANEL
64. FENDER PANEL
65. FRONT FLOOR CROSSMEMBER REAR
66. FRONT FLOOR CROSSMEMBER FRONT
67. FRONT FLOOR SIDE SILL INNER
68. FRONT FLOOR SIDEMEMBER
69. BACKBONE REINFORCEMENT
70. INSTRUMENT PANEL CENTER BRACKET
REINFORCEMENT
71. FRONT FLOOR PAN
72. FRONT FLOOR EXTENSION PANEL REAR
73. REAR FLOOR EXTENSION
74. REAR FLOOR PAN
75. SEAT BACK PLATE EXTENSION
76. JACK BRACKET
77. SPARE TIRE BRACKET
78. TOWING HOOK REINFORCEMENT
79. REAR FLOOR SIDEMEMBER EXTENSION
80. CROSSMEMBER CENTER SUPPORT
81. REAR FLOOR CROSSMEMBER
82. REAR FLOOR SIDEMEMBER
83. REAR SEAT BACK REINFORCEMENT

BODY MAIN CROSS-SECTIONAL VIEWS
BODY CONSTRUCTION
1-4
BODY MAIN CROSS-SECTIONAL VIEWS
M4010002000105
AB201974
AB
C
D
EF
AC
AB201984
A
ROOF PANEL
MAP LAMP
BRACKET
FRONT ROOF RAIL
AC
AB201886AB
SIDE ROOF
RAIL INNER
SIDE OUTER
PANEL
FRONT PILLAR INNER
REINFORCEMENT
FRONT PILLAR
REINFORCEMENT UPPER
FRONT
PILLAR
REINFORCE-
MENT
UPPER (B)
ROOF
PANEL
B
AB200255AC
C
COWL TOP
LOWER PANEL
COWL TOP
UPPER
PANEL
COWL TOP
INNER PANEL
AB200256AC
D
FRONT END CROSSMEMBER
REIFORCEMENT
FRONT
END
CROSS-
MENBER
INNER
FRONT END
CROSSMENBER
OUTER
AB201985AB
E
FRONT PILLAR REINFORCEMENT
LOWER FRONT PILLAR
INNER LOWER
SIDE OUTER PANEL
AB200258AC
F
FRONT
FLOOR
SIDE SILL
INNER
SIDE SILL
REINFORCEMENT
SUPPORT
SIDE SILL OUTER
REINFORCEMENT
CENTER
SIDE OUTER PANEL

BODY MAIN CROSS-SECTIONAL VIEWS
BODY CONSTRUCTION 1-5
AB201911AB
G
J
I
H
K
AB201887AB
G(STANDARD ROOF)
SIDE OUTER
PANEL
FRONT
PILLAR
INNER
UPPER
FRONT PILLAR
INNER REINFORCEMENT
UPPER
FRONT PILLAR INNER UPPER
REINFORCEMENT
FRONT
PILLAR
REINFORCE-
MENT UPPER
(B)
FRONT PILLAR
REINFORCEMENT
UPPER
AB202122AB
G(SUNROOF)
SIDE OUTER PANEL
FRONT PILLAR
INNER UPPER
FRONT PILLAR
REINFORCEMENT
UPPER
AB201986
H
CENTER PILLAR
REINFORCEMENT
CENTER PILLAR
SEATBELT
REINFORCEMENT
CENTER PILLAR
INNER
SIDE
OUTER
PANEL
AB
AB201988AB
SIDE OUTER
PANEL
REAR PILLAR
INNER
I
AB200264AC
SIDE OUTER
PANEL
QUARTER
INNER PANEL
REAR WHEEL
HOUSE INNER
PANEL
J
AB201989AB
REAR END
PANEL
OUTER
REAR END
PANEL
INNER
K

MAINTENANCE, SERVICEABILITY
BODY CONSTRUCTION
1-6
MAINTENANCE, SERVICEABILITY
M4010003000120
FENDER SHIELD
A positioning hole, marking and cut-out has been
added on the front fender shield, front upper frame
inner, front side member gusset rear and dash panel
to improve assembling workability when replacing
the panel.
AB202152AB

MAINTENANCE, SERVICEABILITY
BODY CONSTRUCTION 1-7
SIDE STRUCTURE
A panel positioning cut-out has been added on the
door opening to improve assembling workability
when replacing the panel.
SIDE OUTER PANEL
The extra parts are supplied in 4 different cut forms
as a result of employing the integrated side-frame
side outer panel.
AB200202AB
PANEL POSITIONING NOTCH
AB202025AB
AB202024
CENTER PILLAR OUTER
FRONT PILLAR OUTER
SIDE SILL OUTER
QUARTER OUTER
AB

BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION
1-8
BODY CONSTRUCTION CHARACTERISTICS
FRONT BODY M4010010000092
HEADLAMP SUPPORT
By adopting a steel sheet with variable thickness* for
the front end crossmember outer, the steel sheet
thickness on the right side of the vehicle has been
increased to improve safety in collision and body
rigidity.
NOTE: *: Steel sheets with different thickness
welded to form one steel sheet.
AB201017AB
10
1
4
2
5 3
6
7
8
9
11
1. FRONT END UPPER BAR
2. SENSOR BRACKET
3. HEADLAMP SUPPORT PANEL
4. HOOD LOCK STAY
5. FRONT END CROSSMEMBER INNER
REINFORCEMENT
6. A/C CONDENSER BRACKET
7. RADIATOR BRACKET
8. FRONT END CROSSMEMBER INNER
9. FRONT END CROSSMEMBER OUTER
10. SHIPPING HOOK
10. FRONT END CROSSMEMBER REINFORCEMENT

BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION 1-9
FENDER SHIELD
The cross section of the front sidemember has been
increased and a steel sheet with variable thickness*
has been adopted for the front sidemember inner to
increase the thickness of the cabinet side in the aim
to improve safety in collision, body rigidity, and real-
ize lightweight.
NOTE: *: Steel sheets with different thickness
welded to form one steel sheet.
The spring house panel has been designed to be
directly installed with the cowl top lower panel, and
the body rigidity of the suspension attachment holder
has been increased to improve operational stability
and quietness.
AB202153AB
9
10
8
7
6
4
3
5
2
RIGHT SIDE
LEFT SIDE9
1
11
8
10
5
764
2
12
11
1
A
1. HEADLAMP SUPPORT PANEL SIDE
2. FRONT FENDER SHIELD
3. ENGINE MOUNT REINFORCEMENT
4. UPPER FRAME BULKHEAD FRONT
5. FRONT UPPER FRAME INNER
6. UPPER FRAME BULKHEAD
7. UPPER FRAME BULKHEAD REAR
8. SPRING HOUSE BRACKET REINFORCEMENT
9. SPRING HOUSE BRACKET
10. SPRING HOUSE PANEL
11. FRONT SIDEMEMBER
12. TRANSMISSION MOUNT REINFORCEMENT
OUTER
AB200275AC
A
COWL TOP
LOWER PANEL
SPRING
HOUSE
BRACKET SPRING HOUSE
PANEL

BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION
1-10
FRONT SIDEMEMBER REINFORCEMENT
RIGHT SIDE
AB201018AB
11
2
3
4
5
67
9
8
10
12
13
14
15
116
17
18
19
AB202015AC
1
15
2
57
12
A B
1. FRONT SIDEMEMBER INNER
2. FRONT SIDEMEMBER BULKHEAD A
3. FRONT SIDEMEMBER OUTER
4. ENGINE MOUNT BRACKET
5. FRONT SIDEMEMBER INNER REINFORCEMENT
LOWER
6. FRONT SIDEMEMBER GUSSET REAR
7. FRONT SIDEMEMBER INNER REINFORCEMENT
REAR
8. TIE DOWN REINFORCEMENT
9. DASH PANEL EXTENSION
10. PIPE SUPPORT REAR
11. PIPE NUT
12. FRONT SIDEMEMBER REAR
13. DASH CROSSMEMBER EXTENSION
14. SUSPENSION CROSSMEMBER SUPPORT
BRACKET
15. SUSPENSION CROSSMEMBER BRACKET INNER
16. PIPE
17. SQUARE HEAD BOLT
18. RETAINER
19. PIPE SUPPORT FRONT
AB202019AB
A
1
2
3
AB200280AC
B
7
5
3

BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION 1-11
LEFT SIDE
AB201019AB
2
3
5
11
13
15
16
14
12
21
6
7
10
8
9
4
17
18
19
20
22
23
1
24
AB202017AC
3
16
12
21 15
14
12
9
7
A
B
1. SUSPENSION CROSSMEMBER SUPPORT
BRACKET
2. DASH CROSSMEMBER EXTENSION
3. FRONT SIDEMEMBER REAR
4. PIPE NUT
5. PIPE SUPPORT REAR
6. DASH PANEL EXTENSION REINFORCEMENT
7. FRONT SIDEMEMBER REINFORCEMENT INNER
UPPER
8. TIE DOWN REINFORCEMENT
9. FRONT SIDEMEMBER REINFORCEMENT INNER
10. FRONT SIDEMEMBER GUSSET REAR
11. FRONT SIDEMEMBER OUTER
12. FRONT SIDEMEMBER BULKHEAD REAR
13. FRONT SIDEMEMBER INNER REINFORCEMENT
14. FRONT SIDEMEMBER REINFORCEMENT OUTER
15. FRONT SIDEMEMBER BULKHEAD (A)
16. FRONT SIDEMEMBER INNER
17. PIPE SUPPORT FRONT
18. RETAINER
19. SQUARE HEAD BOLT
20. PIPE
21. SUSPENSION CROSSMEMBER BRACKET INNER
22. TRANSMISSION MOUNT REINFORCEMENT
23. TRANSMISSION MOUNT BRACKET
24. TRANSMISSION MOUNT REINFORCEMENT
REAR
AB200283AC
16
15
11
A
AB202018AB
16
13 14
11
B

BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION
1-12
FRONT DECK
Strut house gusset and upper frame to front pillar
brace have been added to improve body rigidity.
DASH PANEL
•A dash panel crossmember has been added and
the thickness of the dash panel lower has been
increased to improve collision stability.
•A silencer (steel sheet biding type vibration
damping material) has been added between the
dash panel and dash panel silencer to control the
penetrating sound and vibration from the engine.
AB201020AB
6
8
10
9
11
1
12
23
13
14
4
5
7
1. STRUT TOWER BAR BRACKET
2. COWL TOP LOWER PANEL
3. COWL TOP LOWER REINFORCEMENT
4. COWL TOP UPPER REINFORCEMENT CENTER
5. COWL TOP INNER PANEL
6. COWL TOP UPPER PANEL
7. PEDAL SUPPORT BRACKET
8. CLUTCH PEDAL SUPPORT BRACKET
9. UPPER FRAME EXTENSION INNER
10. UPPER FRAME EXTENSION OUTER
11. UPPER FRAME TO FRONT PILLAR BRACE
12. STRUT HOUSE GUSSET
13. COWL TOP LOWER BRACKET
14. COWL TOP UPPER REINFORCEMENT
AB201021AB
1
2
3
7
5
6
8
9
4
1. DASH PANEL CROSSMEMBER
2. DASH PANEL
3. DASH SILENCER CENTER
4. DASH PANEL SILENCER
5. ACCELERATOR PEDAL REINFORCEMENT
6. DASH PANEL REINFORCEMENT
7. ACCELERATOR STOPPER BRACKET
8. DASH LOWER REINFORCEMENT
9. DASH PANEL LOWER

BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION 1-13
ROOF M4010013000091
The cross section of the roof bow has been made
large to improve safety in collision.
AB202150AB
1
2
3
4
5
6
7
STANDARD ROOF
AB201928AB
2
3
8
6
7
1
SUN ROOF
1. ROOF PANEL
2. REAR ROOF RAIL
3. REAR ROOF BOW
4. ROOF BOW FRONT REINFORCEMENT
5. FRONT ROOF BOW
6. MAP LAMP BRACKET
7. FRONT ROOF RAIL
8. ROOF PANEL REINFORCEMENT

BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION
1-14
SIDE BODY M4010011000095
SIDE STRUCTURE
AB201022AB
29
12
5
910
11
48
57
13
50
14
21
23 24
15
27
28
30
32
56
49
46
33
4
8
16 17 18
19
22
25
26
31
47
51
53
52
54
39
40
20
134
35
41
42
45 44
43
36
55
37 38
2
6
7
3
1. FRONT PILLAR REINFORCEMENT LOWER
EXTENSION
2. FRONT PILLAR INNER LOWER EXTENSION
3. FRONT PILLAR REINFORCEMENT LOWER
4. FRONT DOOR HINGE REINFORCEMENT LOWER
5. FRONT DOOR CHECK REINFORCEMENT
6. SIDE SILL TO FLOOR PLATE
7. FRONT PILLAR INNER LOWER
8. FRONT DOOR HINGE REINFORCEMENT UPPER
9. DECK CROSSMEMBER BRACKET FRONT
10. DECK CROSSMEMBER BRACKET
11. FRONT PILLAR INNER UPPER
12. FRONT PILLAR INNER UPPER REINFORCEMENT
(VEHICLES WITH STANDARD ROOF)
13. SIDE ROOF RAIL INNER
14. REAR SEAT BACK BRACE
15. REAR SHELF UPPER BRACE
16. REAR SHELF LOWER BRACE
17. REAR PILLAR INNER
18. QUARTER INNER PANEL
19. OIL TANK BRACKET
20. REAR PILLAR REINFORCEMENT
21. REAR FLOOR SIDE BRACE
22. REAR FLOOR BRACE REINFORCEMENT
23. FUEL FILLER NECK BRACKET (LH only)
24. QUARTER INNER EXTENSION REAR
25. QUARTER CORNER PANEL
26. REAR COMBINATION LAMP HOUSING
27. REAR BUMPER BRACKET
28. QUARTER OUTER EXTENSION LOWER
29. STRIKER REINFORCEMENT
30. SIDE OUTER PANEL
31. SIDE SILL OUTER REINFORCEMENT REAR
32. SIDE SILL OUTER REINFORCEMENT CENTER
33. SIDE SILL OUTER REINFORCEMENT FRONT
34. SIDE SILL BULKHEAD FRONT
35. SIDE SILL REINFORCEMENT SUPPORT
36. SIDE SILL (B) BULKHEAD
37. SIDE SILL (C) BULKHEAD
38. SIDE SILL (D) BULKHEAD
39. SIDE SILL (E) BULKHEAD
40. CENTER PILLAR REINFORCEMENT
41. CENTER PILLAR INNER LOWER
42. REAR DOOR HINGE REINFORCEMENT LOWER

BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION 1-15
SIDE STRUCTURE REINFORCEMENT
1. The thickness of the reinforcements of the front
pillar and center pillar has been increased to
improve collision safety.
2. The front pillar reinforcement upper, side outer
panel, and front roof rail have been joined to
improve twisting rigidity.
3. The side sill has been made thin by employing a
variable thickness steel sheet* for the center pil-
lar reinforcement to improve safety in collision
and realize lightweight.
4. The cross section of the side sill outer reinforce-
ment has been made large to improve safety in
collision and body rigidity.
5. A rear pillar reinforcement has been added, and
the rear shelf and rear wheel house have been
joined to improve the twisting rigidity of the sus-
pension attaching portion.
NOTE: *: Steel sheets with different thickness
welded to form one steel sheet.
43. REAR DOOR HINGE REINFORCEMENT UPPER
44. CENTER PILLAR SEATBELT REINFORCEMENT
45. CENTER PILLAR INNER
46. FRONT PILLAR REINFORCEMENT UPPER (B)
(VEHICLES WITH STANDARD ROOF)
47. FRONT PILLAR INNER REINFORCEMENT
(VEHICLES WITH STANDARD ROOF)
48. FRONT PILLAR REINFORCEMENT UPPER
49. ROOF SIDE RAIL REINFORCEMENT CENTER
50. REAR SPRING HOUSE BRACE
51. REAR WHEEL HOUSE INNER REINFORCEMENT
52. REAR WHEEL HOUSE INNER PANEL
53. SPRING HOUSE PANEL
54. SPRING HOUSE BRACKET
55. SIDE SILL END PLATE
56. REAR SEATBELT WHEEL HOUSE
REINFORCEMENT
57. SPRING HOUSE BRACE
AB202030
2
5
AB
4
1, 3
1

BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION
1-16
REAR BODY M4010012000087
REAR END CROSSMEMBER
A rear shelf extension has been added to form closed structure. Then, the rear shelf and the rear floor have
been joined to improve the torsion rigidity of the seat back plate.
REAR END PANEL
AB201022AB
6
5
7
8
12
3
4
1. SEAT BACK PLATE
2. REAR SEAT BACK PANEL
3. REAR SHELF EXTENSION
4. REAR SHELF PANEL
5. REAR SHELF CHILD SEAT BELT
REINFORCEMENT
6. REAR SHELF REINFORCEMENT
7. TRUNK LID HINGE REINFORCEMENT
8. SEAT BELT REINFORCEMENT
AB201024AB
2
3
1
4
1. REAR END PANEL INNER
2. REAR END PANEL OUTER
3. TRUNK LID LOCK BRACKET SUPPORT
4. TRUNK LID LOCK BRACKET

BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION 1-17
UNDER BODY M4010014000094
FRONT FLOOR
The cross section of the front floor sidemember has
been made large to improve safety in collision.
AB202031AB
1
6
9
10
12
13
23
4
5
7
11
8
1. INSTRUMENT PANEL CENTER BRACKET
REINFORCEMENT
2. FRONT FLOOR CROSSMEMBER FRONT
3. FRONT FLOOR CROSSMEMBER REAR
4. FRONT FLOOR EXTENSION PANEL REAR
5. FRONT FLOOR PAN
6. FRONT FLOOR SIDE SILL INNER
7. FRONT FLOOR SIDEMEMBER REINFORCEMENT
REAR
8. FRONT FLOOR SIDEMEMBER
9. FRONT FLOOR SIDEMEMBER REINFORCEMENT
FRONT
10. FRONT FLOOR SIDEMEMBER REINFORCEMENT
11. BACKBONE CROSSMEMBER REAR
12. BACKBONE CROSSMEMBER FRONT
13. BACKBONE REINFORCEMENT

BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION
1-18
REAR FLOOR
AB201025AB
1
2
5
6
7
8
10
12
13
16
17
14
15
911
3
4
1. REAR FLOOR PAN
2. SEAT BACK PLATE EXTENSION
3. JACK BRACKET
4. SPARE TIRE BRACKET
5. REAR SEAT BACK REINFORCEMENT
6. TOWING HOOK REINFORCEMENT
7. CROSSMEMBER CENTER SUPPORT
8. REAR FLOOR CROSSMEMBER
9. REAR FLOOR SEAT BELT REINFORCEMENT
10. DIFFERENTIAL / FUEL SUPPORT BRACKET
REAR
11. REAR FLOOR SIDEMEMBER
12. DIFFERENTIAL / FUEL SUPPORT BRACKET
FRONT
13. REAR SEAT CROSSMEMBER
14. SEAT CROSSMEMBER REINFORCEMENT
15. FUEL TANK FRONT REINFORCEMENT
16. REAR FLOOR EXTENSION
17. FRONT FLOOR SIDEMEMBER EXTENSION

BODY CONSTRUCTION CHARACTERISTICS
BODY CONSTRUCTION 1-19
REAR FLOOR SIDEMEMBER REINFORCEMENT
AB202032AB
1
21
2
4
5
3
6
17
18
19
20
22
8
9
10
11 12
13
14
15
16
7
AB202033AB
16
AB
13
22 411
20
2
15
17
21
1
1. TRAILING ARM OUTER BRACKET
2. REAR FLOOR SIDEMEMBER SUPPORT
3. TRAILING ARM INNER BRACKET
4. REAR FLOOR SIDEMEMBER
5. REAR FLOOR CROSSMEMBER EXTENSION
6. DIFFERENTIAL MOUNT BULKHEAD
7. DIFFERENTIAL MOUNT REINFORCEMENT
8. PIPE
9. SQUARE HEAD BOLT
10. RETAINER
11. REAR SUSPENSION BRACKET
12. MUFFLER HANGER CENTER
13. REAR FLOOR SIDEMEMBER REINFORCEMENT
FRONT
14. MUFFLER HANGER REAR
15. REAR FLOOR SIDEMEMBER REINFORCEMENT
REAR
16. BUMPER STAY REINFORCEMENT
17. REAR FLOOR SIDEMEMBER EXTENSION
18. REAR FLOOR SIDEMEMBER REINFORCEMENT
19. UPPER LINK BRACKET
20. TOE-CONTROL LINK SIDE REINFORCEMENT
21. TOE-CONTROL LINK BRACKET
22. REAR FLOOR SIDE SILL
AB202034AB
A
4
11
13
AB202035
B
AB
13 15 17
