Miura BP-201STA User manual

OPERATION
MANUAL
Boiler
System
Operation Panel
BP-201STA
Document Control # EN-MN-003-00
This document was formulated in Japan.
Comply with the regulations and standards of
the country of use regarding installation and
usage.
The specifications of products and components
may vary with country of use and the site
situation.
Contact your dealer or MIURA sales office for
further inquiry regarding this document.
INFORMATION IN THIS MANUAL MAY BE
CHANGED WITHOUT NOTICE.
Ensure that this operation manual is fully
read and observed by all persons working
with the product.
Store this operation manual in a location
where it may be easily accessed by said
persons.

Release date: July 7, 2016

Document Control #: EN-MN-003-00
i
Important Safety Information
Before using the boiler system operation panel BP-201STA, ensure that this operation manual is read
and fully understood; furthermore, the instructions given herein should be strictly observed during
operation.
Within the boiler system operation panel BP-201STA, there are high-voltage sections that could lead
to electric shock. Failure to use this operation panel in the appropriate manner can, therefore, result in
death, injury, the outbreak of fire, and other serious accidents.
In order to ensure that tasks undertaken during operation and maintenance of the boiler system
operation panel BP-201STA can be completed safely, it is critical that all dangerous and hazardous
parts of this equipment be confirmed in advance. Here at MIURA, it is practically impossible to
anticipate all potentially dangerous situations, and therefore, this Operation Manual deals only with
known hazards. A higher level of safety can be achieved by carefully observing of the warnings and
instructions set forth herein.
Safety-related warnings are classified into the following three levels, and notification of these warnings
is provided within this Operation Manual and using warning labels
(*)
on the boiler system operation
panel BP-201STA itself.
Indicates an imminently dangerous situation which leads to serious
injury or death to the user, if the product is mishandled.
Indicates a situation which might cause serious injury or death to the
user, if the product is mishandled.
Indicates a situation which might cause minor injury to the user or
the occurrence of physical damage only, if the product is
mishandled.
If any part used in the product fails, contact your dealer or MIURA sales office to replace it with its
genuine part. Using parts of different models might reduce safety.
It should be noted that unauthorized modification of the boiler system operation panel BP-201STA or
repair procedures other than those described herein can pose a serious safety risk. Never make any
modifications or repairs without MIURA’s permission.

Document Control #: EN-MN-003-00
ii
Introduction
This document describes the methods of handling the boiler system operation panel BP-201STA
(hereinafter called “BP”) to ensure its proper use.
Not only those who use the BP for the first time but also those who know the handling methods should
read this document carefully and understand the proper handling methods before use of the BP.
Furthermore, we also recommend that this Operation Manual be stored in a specially designated
location so that it can be referred to at any time to confirm the correct usage.
[Explanation of Notation]
The meanings of the symbols used in this manual are as shown below.
Indicates a prohibited action (what you must not do).
Indicates a possibility of electric shock when the product is handled
with wet hands.
Indicates an action to be taken according to an instruction (what to be
executed).
Indicates an action connecting a grounding wire.
NOTE
Describes the precautions to prevent failures of the BP, points to
perform effective operation, and useful information to know.
Indicates the page of related information.

Document Control #: EN-MN-003-00
iii
Definition of Terms
Special terms used in this document are summarized below.
The terms are indicated with an asterisk (*) in the text.
Term Description
Alarm A serious or minor equipment error such as “Alarm”, “Caution”, or
“Notice”.
Safety monitoring alarm Alarm evaluated based on a safety monitoring signal from the
customer’s equipment.
Systemwide manual
operation
Function that sequentially sets the boilers in automatic operation mode
to manual operation.
Systemwide standby Function that sequentially sets the boilers in automatic operation mode
to standby status.
Online maintenance Contract for maintenance by a MIURA office using communications
over a telephone line.
Warning label Label indicating information regarding operational precautions.
System Generic term for a group of boilers under MI control.
High fire Condition where the boiler is operating at maximum combustion
performance.
3-position step burner control Operation of the boiler in 3 combustion positions: Standby (stopped),
Low fire, and High fire.
Automatic operation Condition where boiler operates according to commands from the MI
controller.
Weekly program Timer control using preset start and stop times for MI control.
Manual operation Condition where boiler operates independently irrespective of
commands from the MI controller.

Document Control #: EN-MN-003-00
iv
Term Description
Low steam pressure backup This function switches all boilers to manual operation when the header
pressure drops below the low pressure backup setting.
Control pattern Generic term for settings related to MI control.
Standby Condition where boiler “OPERATION” switch is ON but combustion is
stopped.
Standby control Application of pressure holding control to boilers for which combustion
is determined to be unnecessary during MI control in order to improve
response (Continuous pilot control not approved under UL/ASME).
MI control Automatic operation of the appropriate number of multiple boilers to
deliver the required steam output.
Low fire Condition where the boiler is operating at approximately one quarter to
half the high-fire operation performance.
Low air purge Condition where the fan runs at low speed (low air) when the boiler is
on standby. This control function is available only for oil-fired boilers
compatible with the low air purge control. This function is not approved
under UL/ASME.
Header pressure Steam header internal pressure.
Priority Order of boilers starting combustion under MI control. High-priority
boilers start combustion ahead of other boilers to uniform boiler
combustion loads and prevent corrosion of the pressure vessel.
Continuous pilot Condition where only the pilot burner is lit when the boiler is on
standby. This control function is available only for gas-fired boilers
compatible with the continuous pilot. This function is not approved
under UL/ASME
Rotation Changing the combustion sequence of boilers under MI control to
achieve uniform combustion loads.

Document Control #: EN-MN-003-00
v
Table of Contents
Important Safety Information ....................................................................i
Introduction.............................................................................................. ii
Definition of Terms.................................................................................. iii
SECTION 1: SAFETY .....................................................................1
1. Safety Regulations .............................................................................1
2. Safety-Related Knowledge and Expertise ..........................................1
3. Protective Equipment .........................................................................1
4. Prohibition of Unapproved Modification..............................................1
5. Warning Labels on BP........................................................................2
6. Safety Precautions .............................................................................3
6.1 Safety during Installation ..............................................................................3
6.2 Safety during Operation................................................................................3
6.3 Safety during Troubleshooting (Excerpt from Page 42 Onward)...................4
6.4 Safety Related to Transfer or Resale (Excerpt from Page 51 Onward) ........4
SECTION 2: OVERVIEW ................................................................5
1. Purpose and Principle of Operation....................................................5
1.1 Basic Functions ............................................................................................5
1.2 Network Configuration ..................................................................................6
1.3 Specifications ...............................................................................................7
2. Component Names & Functions.........................................................8
2.1 BP-201ST .....................................................................................................8
SECTION 3: OPERATION ..............................................................9
1. Using Boiler Room Monitoring Functions ...........................................9
1.1 Reading and Using the Screens ...................................................................9
1.1.1 How to Read and Use the Screens ....................................................9
1.1.2 How to Read and Use the Screen Elements.................................... 11
2. Using Other Monitoring Functions ....................................................13
2.1 MI Monitor...................................................................................................13
2.2 Feed Water Tank Monitor............................................................................15
2.3 Safety Monitor ............................................................................................15

Document Control #: EN-MN-003-00
vi
3. Using MI Control Functions.............................................................. 16
3.1 MI Setting Screen ...................................................................................... 17
3.2 Setting Systemwide Standby ..................................................................... 19
3.3 Setting the MI Control Function ................................................................. 21
3.3.1 MI Control Menu Screen ..................................................................21
3.3.2 Changing Control Pattern Settings ...................................................21
3.3.3 Rotation Setting................................................................................30
3.3.4 Setting Automatic or Manual Operation............................................32
3.4 Selecting the Control Patterns ................................................................... 33
3.5 Changing Weekly Program Settings .......................................................... 35
3.5.1 Changing Program Details ...............................................................36
3.5.2 Holiday Setting .................................................................................40
3.6 Setting the Date and Time ......................................................................... 41
SECTION 4: TROUBLESHOOTING .............................................42
1. If an Alarm, Caution, or Notice Occurs............................................. 42
1.1 Alarm Screen ............................................................................................. 42
1.1.1 Hierarchical Display..........................................................................43
1.1.2 Alarm Details and Guidance.............................................................44
1.2 Rechecking Alarms .................................................................................... 47
1.3 Resetting Alarms........................................................................................ 48
1.4 Resetting Alarms that Switch to Manual Operation
(*)
................................. 50
SECTION 5: STORAGE ................................................................51
1. Transfer or Resale ........................................................................... 51
2. Export .............................................................................................. 51
SECTION 6: DISPOSAL................................................................52
1. Disposal Method.............................................................................. 52
SECTION 7: WARRANTY .............................................................53
1. Note regarding Warranty.................................................................. 53
2. Questions regarding the Product and Operation Manual ................. 53
3. If the Operation Manual is Lost ........................................................ 53

Document Control #: EN-MN-003-00
1
SECTION 1: SAFETY
1. Safety Regulations
Handling of the BP is comprised of operations associated with running of the equipment and
operations regarding maintenance.
Only those who have received a handling explanation with this document should operate the BP.
2. Safety-Related Knowledge and Expertise
Handling of the BP is comprised of operations associated with the running of the equipment and
operations regarding maintenance. Carefully read and understand this document before using the BP.
3. Protective Equipment
Wear all necessary Personal Protective Equipment (PPE) required for the work environment.
4. Prohibition of Unapproved Modification
It should be noted that unauthorized modification of the BP or repair procedures other than those
described herein can pose a serious safety risk. Never make any modifications or repairs without
MIURA’s permission.

Document Control #: EN-MN-003-00
2
5. Warning Labels on BP
The BP features a number of warning labels
(*)
intended to draw attention to operation precautions.
If any warning label
(*)
is peeled off or torn, replace it with a new one.
Contact your dealer or MIURA sales office regarding warning-label
(*)
inquiries.

Document Control #: EN-MN-003-00
3
6. Safety Precautions
6.1 Safety during Installation
During installation, observe the following safety information.
WARNING
Ensure that a dedicated ground fault circuit breaker with overcurrent protection is
installed in the main power supply line.
Connect wires of the specified diameter to the main power supply and ensure
that a ground is established.
6.2 Safety during Operation
During operation, observe the following safety precautions.
WARNING
Do not operate the BP with wet hands.
Failure to observe this precaution can lead to a high-voltage electric shock,
potentially resulting in injury or even death.
Do not put combustible materials inside the BP.
Failure to observe this precaution can lead to outbreak of fire due to materials
catching fire, potentially resulting in death.
Ground fault
circuit breaker
(with overcurrent
protection)
Ground fault circuit
breaker (with overcurrent
protection)
Breaker
capacity
Wiring
Ground
terminal

Document Control #: EN-MN-003-00
4
6.3 Safety during Troubleshooting (Excerpt from Page 42 Onward)
WARNING
When remedying a problem with monitored equipment, refer to the Operation
Manual for the equipment.
Incorrect operations can lead to serious accidents.
6.4 Safety Related to Transfer or Resale (Excerpt from Page 51 Onward)
WARNING
Do not perform installation works or accessory connecting works that are not
specified.
Failure to observe this precaution can result in personal injury.

Document Control #: EN-MN-003-00
5
SECTION 2: OVERVIEW
1. Purpose and Principle of Operation
1.1 Basic Functions
a) Central monitoring panel that performs overall monitoring of all MIURA boilers and accessories
and provides specific displays and instructions at a single location for the tasks performed by
the customer
The touch panel display is color-coded by the status of all equipment in the boiler room: green
= normal, yellow = “Caution” or “Notice”, red = “Alarm”. It gives specific instructions for tasks
performed by the customer, such as daily management and adjustment of operating
conditions.
b) Boiler MI control
(*)
function
The BP automatically determines the optimal number of boilers for the load and controls
operation of the required number of boilers in the highest order of priority
(*)
. The advanced
settings can be set to match the customer’s system.
c) Relay function for boiler room communication information
A problem occurring with any equipment in the boiler room is automatically reported to MIURA
sales office (if an online maintenance
(*)
contract has been entered into) for quicker response
by maintenance personnel.
d) Feed water control functions (optional)
Installing the optional water treatment control unit for boiler (WP2) offers the following
functions:
Feed water control
MI chemical-feed control
Condensate-related control
Central monitoring of water treatment equipment
Information relay for water treatment equipment

Document Control #: EN-MN-003-00
6
1.2 Network Configuration
The example below shows connection to a standard communication network.
The connected equipment and the method of connection will differ according to the customer’s
system.
Boiler system operation
panel
Monitors the operating status of the
equipment in the boiler room and
communicates it to a MIURA office.
It also performs MI control
(*)
.
High pressure steam boiler
Water delivered to the tubes is heated by hot combustion gases. Boiler water
successively evaporates and the steam is supplied to the load-side equipment.
Steam header
Feed water
tank
Chemical feeder
Supplies chemicals to the
feed water that prevent
boiler corrosion.
Automatic
monitoring system
for water hardness
leakage
Monitors the soft water for
hardness leaks
.
Water softener
Raw water is normally hard.
Water softener changes hard
water to soft water.

Document Control #: EN-MN-003-00
7
1.3 Specifications
Item Unit BP-201STA Remarks
Main unit
Product name — Boiler system operation panel
Power supply — 120 VAC, 60 Hz
Required wire
diameter for power
supply
AWG
(mm
2
)
14
(2.0)
Power circuit breaker
capacity A 15 Note 1
Maximum power
consumption VA 850
Maximum product
weight
LB
(kg)
132
(60)
Overall dimensions
(W × D × H)
in
(mm)
11.8 × 14.6 × 79.1
(300 × 370 × 2,010) Note 2
Casing paint color — Clear white
Note 1: The power circuit breaker should be a ground fault circuit breaker with overcurrent
protection.
Note 2: Dimensions exclude the eye bolts on top of the main unit and anchor plate at the bottom
of the main unit.
Voltage fluctuations ±10% with respect to the power supply voltage
Operating
environment
Temperature: 32°F - 122°F (0–50°C)
Humidity: 30–90% RH (no condensation or freezing)
Controllable boiler
units 36 (2 systems with 18 units per system)
Communications
relay hub unit Equipped with an 8-port hub unit as standard
M-NET 3
communication line
Shielded LAN cable (Cable length per cable: 330 ft (100 m) or less)
Category 5 or better, single-wire STP straight cable
DS-NET
communication line
Twisted-pair cable (Total cable length: 980 yd (900 m) or less)
AWG-18, 1P, braided copper wire shielded cable
Dry contact input Dry contact input. Input voltage: 24 VDC; Input current: 10 mA
Normally-open contact (a-contact) input or normally-closed contact
(b-contact) input can be selected.
Standard number of inputs: 12
Setting must be made by MIURA maintenance personnel.
Dry contact output Dry contact (c-contact) output. Contact rating: 30 VDC, 0.5 A
(inductive load)
Standard number of outputs: 4
Setting must be made by MIURA maintenance personnel.
Communication
specifications
Telephone modem specification

Document Control #: EN-MN-003-00
8

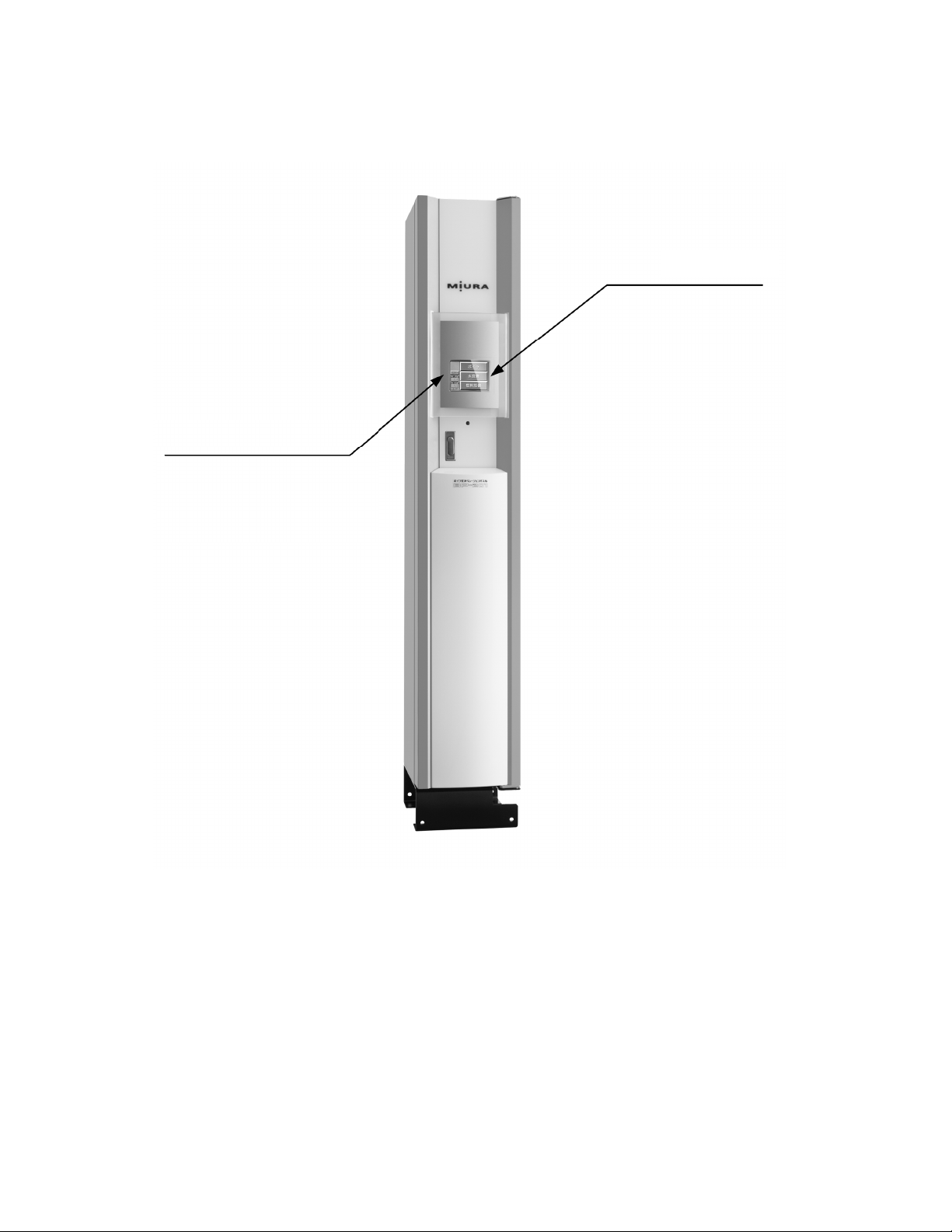

2. Component Names & Functions
2.1 BP-201STA
Touch panel
Status display panel
Shows the status of each piece of
equipment. The status display panel
lights green if all equipment is normal,
red if an Alarm has occurred, or yellow
if a Caution or Notice has occurred.

Document Control #: EN-MN-003-00
9
SECTION 3: OPERATION
1. Using Boiler Room Monitoring Functions
a) The touch panel displays the operating status of the equipment in the boiler room.
Information display is color-coded by type: green = normal, yellow = “Caution” or “Notice”, red =
“Alarm
(*)
”.
b) The status display panel lights green if all equipment is normal, red if an “Alarm” has occurred, or
yellow if a “Caution” or “Notice” occurred.
c) The BP incorporates a motion detection sensor. The touch panel turns OFF if no motion is detected
for 10 minutes. It turns back ON when a person moves within 1.5 to 5 m in front of the panel. (The
detection distance differs according to the direction of motion detected.)
1.1 Reading and Using the Screens
1.1.1 How to Read and Use the Screens
Sample screens are shown below. The actual screens differ according to the customer’s
system.

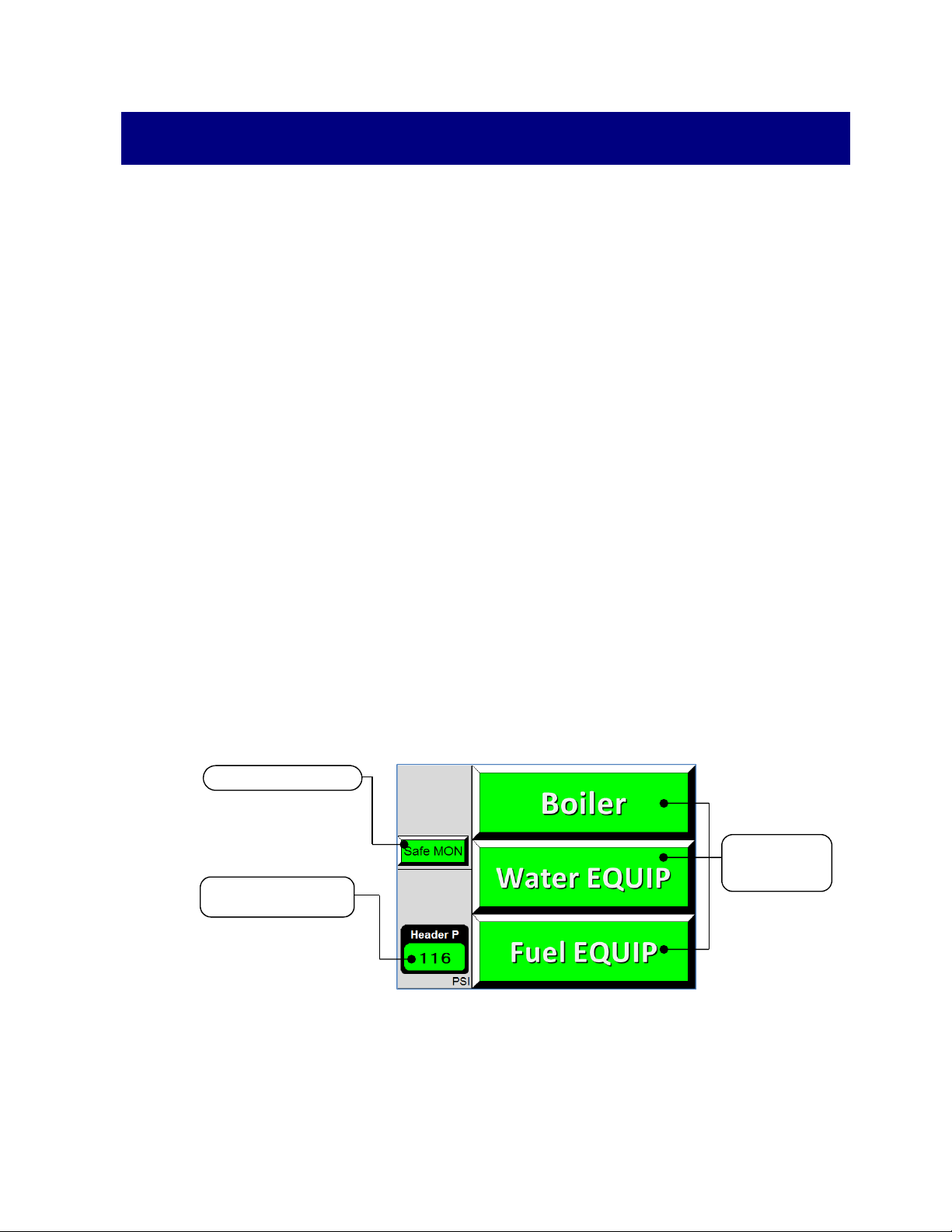

Main screen
Used to switch to the safety
monitor screen.
Displays the current header
pressure
(*)
value. This icon
functions as a button when
an Alarm
(*)
related to MI
control
(*)
occurs or during MI
control restrictions.
Displays monitored
equipment as groups.
Pressing this button
switches to the
corresponding sub-
screen in the screen
hierarchy.
Monitored
equipment
buttons
Current header
pressure
(*)
value
“
Safe MON
”
button

Document Control #: EN-MN-003-00
10
Sub-screen
<If “Boiler” button is pressed>
<If “Water EQUIP” button is pressed>
Alarm
(*)
screen
(For details about this screen, refer to “1. If an Alarm, Caution, or Notice Occurs” in SECTION 4.)
Used to switch to the “Feed water
tank monitor” screen. MIURA feed
water control equipment is required
to display the monitor screen.
Displays the current feed water
tank level. This icon functions as a
button when feed water-related
alarm occurs.
“
FW tank
”
button
Feed water t
ank level
Used to switch to the main screen.
This button is displayed on screens
apart from the main screen.
Used to return to the previous
screen up in the screen hierarchy.
This button only appears on sub-
screens.
Used to switch to the “MI menu”
screen. This button only appears on
the boiler sub-screen in the screen
hierarchy.
Displays monitored equipment
groups or names of equipment.
Pressing this button switches to
the next screen down in the
screen hierarchy.
Displays the equipment group
names displayed on the previous
screen up in the screen
hierarchy. Pressing these
buttons switches to the
correspond
ing
equipment
.
“
Back
”
button
“
Main
”
button
“
MI menu
”
button
U
pper hierarchy
buttons
Monitored
equipment buttons
Displays the monitored equipment
where the alarm occurred as a
hierarchy.
Displays icons to indicate the
communication status or alarm
(*)
status. Only available on the main
screen and alarm
(*)
screen.
Displays the alarm code for the
generated alarm, caution, or
notice.
Displays the details of alarm,
caution or notice that occurred.
Displays guidance for work to be
performed by the customer.
Used to switch to the screen
displayed before the alarm
screen appeared. If multiple
alarms
(*)
occurred, the screen for
the next alarm
(*)
appears.
Hierarchical display
Icon display
A
larm
details
Alarm
(*)
code
“
OK
”
button
Guidance

Document Control #: EN-MN-003-00
11
1.1.2 How to Read and Use the Screen Elements
a) Current header pressure
(*)
value
If the MI control
(*)
line comprises two systems
(*)
, the header pressure
(*)
is displayed separately
for each system
(*)
.
1) When the icon is in green
Indicates that no alarm
(*)
related to MI control
(*)
has occurred and automatic operation
(*)
is
normal. (Excluding systemwide standby
(*)
or standby
(*)
status due to the weekly program
(*)
.)
2) When the icon is in red or yellow
Indicates that an alarm
(*)
related to MI control
(*)
has occurred.
Touch the icon to switch to the alarm
(*)
screen. The alarm
(*)
codes X530-
18/19 and X530-51/52 (where “X” represents “A”, “C”, or “F”) indicate
that a system
(*)
has switched to manual operation
(*)
. For details, refer to
“SECTION 4: TROUBLESHOOTING”.
3) When the icon is in gray
Indicates that boilers are in systemwide manual operation
(*)
, on systemwide standby
(*)
, or
on standby
(*)
due to the weekly program
(*)
under MI control
(*)
. Touch the icon to switch to
the “MI monitor” screen to check the status.
b) Feed water tank level
If two monitored feed water tanks are registered, they are displayed separately.
(This display requires a MIURA feed water control equipment and registration in the BP.)
1) When the icon is in green
Displays “Normal” to indicate that the tank water level lies within the preset normal water
level range.
2) When the icon is in red or yellow
Indicates a low water level, high water level, or that an alarm
(*)
occurred in a feed water
equipment.
Touch the icon to switch to the alarm
(*)
screen.

Document Control #: EN-MN-003-00
12
c) Icon display
Icon Description
Indicates that alarm
(*)
information is being transmitted to
a MIURA office. It may also appear when operation is
normal and non-alarm
(*)
information is being
transmitted.
Indicates that an internal error was detected in the BP.
Touch the element to switch to the alarm
(*)
screen.
Indicates that an error was detected in the BP memory
data or backup battery. Touch the element to switch to
the alarm
(*)
screen.
The alarm
(*)
code C500-04 on the alarm
(*)
screen
indicates that all systems
(*)
have switched to manual
operation
(*)
.
Indicates no communication to a MIURA office when a
failure occurred or no communication between the BP
and monitored equipment.
Touch the element to switch to the alarm
(*)
screen.
