MIXER MIX'AIR 150 TH-V User manual

MIX’AIR 150 TH-V
Réf. 3B02803000
MIXER TECHNOLOGY SRL - Via dei Carabinieri, 44/45, 36040 Torri di Quartesolo, (VI) ITALIA
Tel. [phone] - Fax [phone] - P.I. 03725830248
User manual
Edition of 16/02/2023
More information on www.mixersrl.com

User manual - MIX’AIR 150TH-V 202111-549B-ENGP2
SUMMARY
1. USER MANUAL............................................................. p. 3
1.1. Importance of the manual .........................................p. 3
1.2. Receivers of the manual............................................p. 3
2. WARNING .................................................................... p. 4
2.1. Safety .....................................................................p. 4
2.2. Fuel recommendations..............................................p. 6
2.3. End-of-life of the product ..........................................p. 6
3. YOUR MACHINE ........................................................... p. 7
3.1. Description..............................................................p. 7
3.2. Technical characteristics ...........................................p. 7
3.3. Identication of the components ................................p. 8
3.4. Compressor handling, docking and lifting ....................p.10
4. USE OF THE MACHINE ................................................. p.11
4.1. Prerequisites............................................................p.11
4.2. Starting up ..............................................................p.11
4.3. Stopping of the compressor .......................................p.11
5. DEFECTS AND REMEDIES............................................. p.12
6. AIR CIRCUIT MAINTENANCE......................................... p.13
6.1. Every 500 working hours ..........................................p.13
6.2. Every 2000 working hours ........................................p.13
7. MOTOR MAINTENANCE ................................................ p.13
8. DECLARATION OF CONFORMITY ................................... p.15
9. WARRANTY CONDITIONS.............................................. p.16
You just acquired one
of our machines and all
the team of Mixer thanks
you for the condence
you have granted us.
Manufacturer of professional
equipments for paint and
llers, we have put our
know-how for 25 years
at the service of the
users of our machines.
Our technical & commercial
team is at your disposal
for any further information
you may need about the
machine you just acquired.
MIXER TECHNOLOGY SRL
Via dei Carabinieri, 44/45
36040 Torri di Quartesolo, (VI)
ITALIA
Tel. [phone]
Fax [phone]
[email protected]

202111-549B-ENG User manual - MIX’AIR 150TH-V P3
1. USER MANUAL
1.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up, cleaning
and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your machine.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the machine, within reach of the user and held in good condition until the
nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on page
4 for a copy at any moment.
1.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the machine :
- people in charge of the transport of the machine
- people in charge of the use of the machine
- people in charge of the cleaning and maintenance of the machine
- people in charge of the nal destruction of the machine

User manual - MIX’AIR 150TH-V 202111-549B-ENGP4
2. WARNING
2.1. SAFETY
Using the machine in an incorrect way or in non-compliance of the safety instructions indicated in
this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this manual
before starting your machine.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Transport the machine using the handles or the appropriate grips.
• During the breaks, remember to turn off the machine.
• Let at least 50 cm of free space between the equipment and any obstacle so that the air ow
is not blocked.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Do not direct a water jet or ammable liquid on the machine.
• Never direct an air jet or product jet on a person or an animal.
• Do not touch warm surfaces of the equipment.
• Never touch moving parts.
• Do not insert any object or the hands inside the protection grids to avoid any accident or
damage to the machine.
• For any outside job, only use appropriate extension cords.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay attention
to long hair.
• Maintain the equipment carefully and clean it properly after every use.
• Avoid absolutely to unscrew any connection while the machine is under pressure.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of needed After-Sale Service, always specify the machine model and its serial number.
• For any replacement of parts, only use genuine parts.
• Do not modify the machine.
• Do not cut or dismantle the protection grids.

202111-549B-ENG User manual - MIX’AIR 150TH-V P5
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.
2. WARNING (continued)
2.1. SAFETY (continued)
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not place any potentially inammable objects in close proximity to the machine.
• Take away every not qualied person from the working area of the machine, as well as children and
animals.
• In case of installation of the machine on scaffolding or a plan above ground level, attach the machine
to avoid any fall while operating.
• Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.
• Do not use in a conned space.
HOSES
• Always use hoses and connections adapted to the used product (genuine parts), do not try to x it.
• Do not walk on the hoses, do not bend them.
• Do not use the hoses to pull the machine.
• Do not use the hoses for other materials, especially at higher pressures.
STORAGE
• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.
• After each use of the compressor, drain the tank to empty the water inside.
THERMAL ENGINE
BATTERY
In case of contact with eyes, rinse
immediately.
Consult an ophthalmologist.
Contains sulphuric acid.
Risk of chemical skin burns and corrosion.
Starting the engine produces sparks. The sparks can ignite nearby ammable gases. This
could cause an explosion or re.
Gasoline and its vapors are extremely ammable and explosive. A re or explosion can cause
serious injury or death.
TOXIC GAS RISK. The engine exhaust contains carbon monoxide, a poisonous gas that could
kill you in a matter of minutes. It is INVISIBLE and ODOURLESS. Even if you do not inhale
exhaust, you are still at risk of breathing in carbon monoxide. If you begin to feel ill, dizzy
or faint when using this machine, turn the engine off and get fresh air IMMEDIATELY. Seek
medical attention. You may be suffering from carbon monoxide poisoning.

User manual - MIX’AIR 150TH-V 202111-549B-ENGP6
2. WARNING (continued)
2.2. FUEL RECOMMENDATIONS
The fuel must comply the following criteria:
- Unleaded, clean and fresh petrol.
- Minimum octane rating of 87/87 AKI (91 RON). For use at high altitudes, see below.
- Gasoline containing up to 10% ethanol (carburol) is acceptable.
NOTICE Do not use unapproved gasoline such as E15 or E85. Do not mix oil with petrol or modify the
engine to run on alternative fuels. This will damage the engine and is not covered by the warranty.
To prevent the fuel intake system from gumming up, mix a stabiliser with the fuel. All fuels are not the
same. If you experience starting difculties or operating problems, change the supplier or change the brand
of fuel. This engine is certied to run on gasoline. The emission control system for this engine is EM (Engine
Modications).
High altitude
At altitudes above 5,000 feet (1,524 meters), gasoline of at least 85 octane/85 AKI (89 RON) is acceptable.
To maintain emission characteristics, a special high altitude setting is required. Operating the engine without
this adjustment will result in reduced performance, increased fuel consumption and higher emissions.
Contact an Authorized Briggs & Stratton Service Dealer for more information on the high altitude setting.
Operating the engine below 2500 feet (762 meters) with the high altitude kit is not recommended.
For Electronic Fuel Injection (EFI) engines, the high altitude setting is not required.
When refuelling
- Stop the engine and allow it to cool for at least 2 minutes before removing the fuel cap.
- Fill the fuel tank outside or in an extremely well ventilated area.
- Do not overll the fuel tank. To allow the fuel to expand, do not ll beyond the bottom of the ller neck.
- Keep fuel away from sparks, open ames, pilot lights, heat and other sources of ignition.
- Regularly check hoses, tank, cap and tank ttings for cracks and leaks. Replace if necessary.
- If fuel has been spilled, wait for it to evaporate completely before starting the engine.
1. Clean the area around the fuel cap of dust and debris. Remove the fuel cap.
2. Fill the fuel tank with fuel. To allow for fuel expansion, do not ll beyond the bottom of the ller neck.
3. Replace the fuel cap.
2.3. END OF LIFE OF THE PRODUCT
At its end-of-life, the machine must not be eliminated with the other household waste. The
uncontrolled elimination of waste can harm the environment or human health. Individuals are
invited to contact the distributor which sold them the product or to inquire with their city hall
to know where and how to get rid of the product so it can be recycled while respecting the
environment.
For any further information, please contact our hotline to [phone] or info@mixersrl.
com.

202111-549B-ENG User manual - MIX’AIR 150TH-V P7
3. YOUR MACHINE
3.1. DESCRIPTION
MIX’AIR 150TH-V is a powerful screw compressor designed for intensive use on all types of jobs. Equipped
with a petrol engine, it operates with unleaded fuel.
Its ergonomic design, its 4 folding arms and its 4 slinging points make it a practical compressor to use and
transport, without removing anything of its power.
The two air outlets with quick-connect half-coupling allow two devices to be connected at the same time.
TO USE WITH
Spraying machine, sandblaster, slurry & paint spray-gun, pneumatic tools…
3.2. TECHNICAL CHARACTERISTICS
Screw rotation speed 6800 tr/min
Restituted air ow-rate at 6 bar 1500 L/min (90 m3/h)
Quantity of compressor oil 4 L
Motor power 11,9 kW
Transmission by belt
Engine Vanguard twin-cylinder
Fuel used unleaded 98
Fuel consumption 4,2 L/h
Fuel tank capacity 24 L
Safety valve yes
Air reservoir 3,5 L
Maximum pressure 8 bar
Air coupling quick-connect half-coupling
Dimensions (L x w x h) 110 x 74 x 91 cm
Weight 220 kg
Noise level 101 Lwa
Do not use the compressor for food or medical applications.
In some applications, the addition of an air dryer and/or oil separator may be necessary.

I
I
I
I
E
H
F1
F2
G
CDA B
User manual - MIX’AIR 150TH-V 202111-549B-ENGP8
3. YOUR MACHINE (continued)

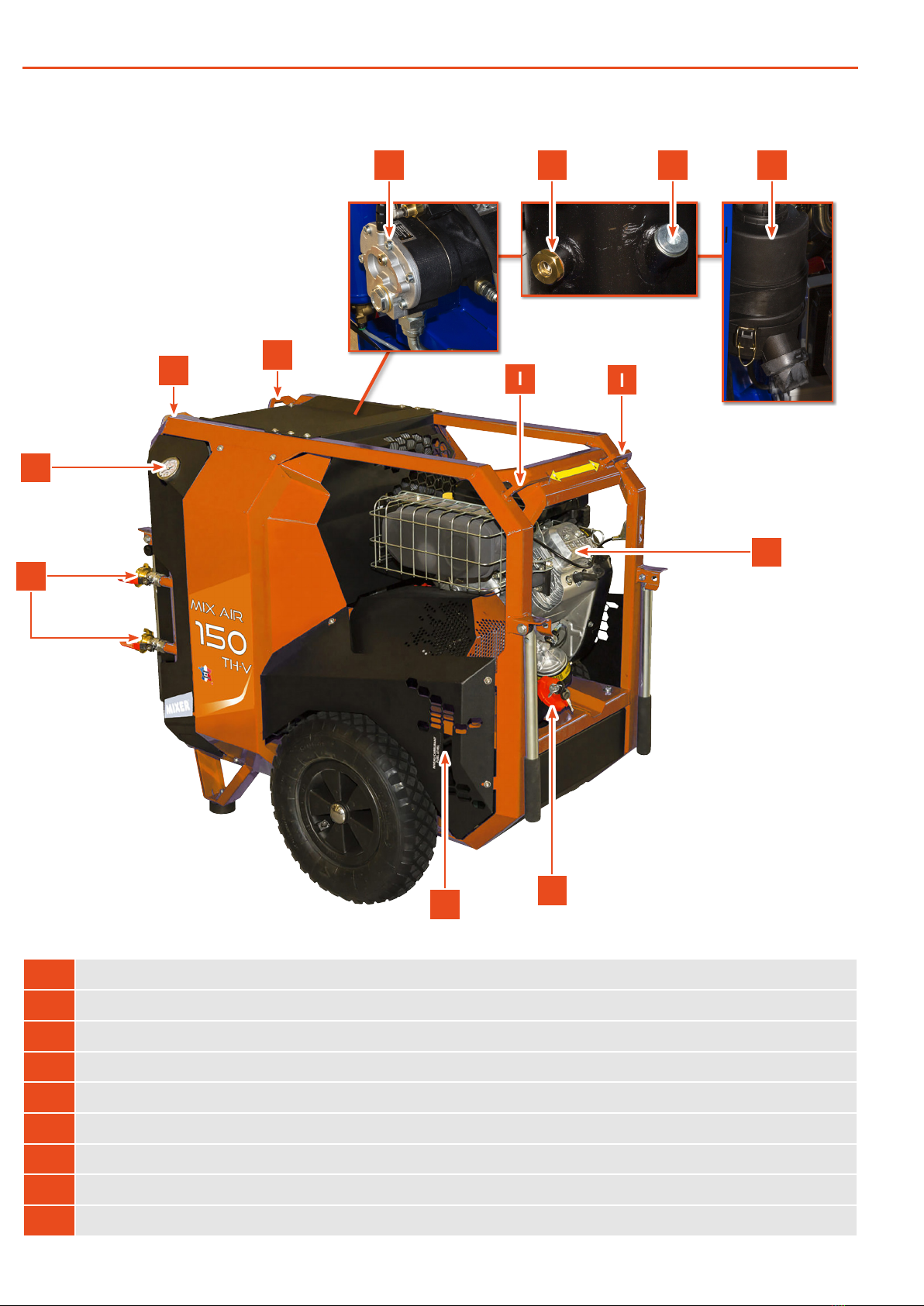

3.3. IDENTIFICATION OF THE COMPONENTS
ACompression head
BAir lter
COil tank cap for compression head
DOil level eye for compression head
ETank pressure manometer
FFuel tank
GAir outlet connections
HEngine
ISlinging points

J O N
M
L
K
202111-549B-ENG User manual - MIX’AIR 150TH-V P9
3. YOUR MACHINE (continued)
3.3. IDENTIFICATION OF THE COMPONENTS (continued)
JStarter
KLauncher
LEngine start key
MEngine oil level gauge
NEngine oil lling cap
OEngine accelerator

TABLE DE REVISIONS A REMPLIR AU DOS
222
1 1 1 11 1
User manual - MIX’AIR 150TH-V 202111-549B-ENGP10
3. YOUR MACHINE (continued)

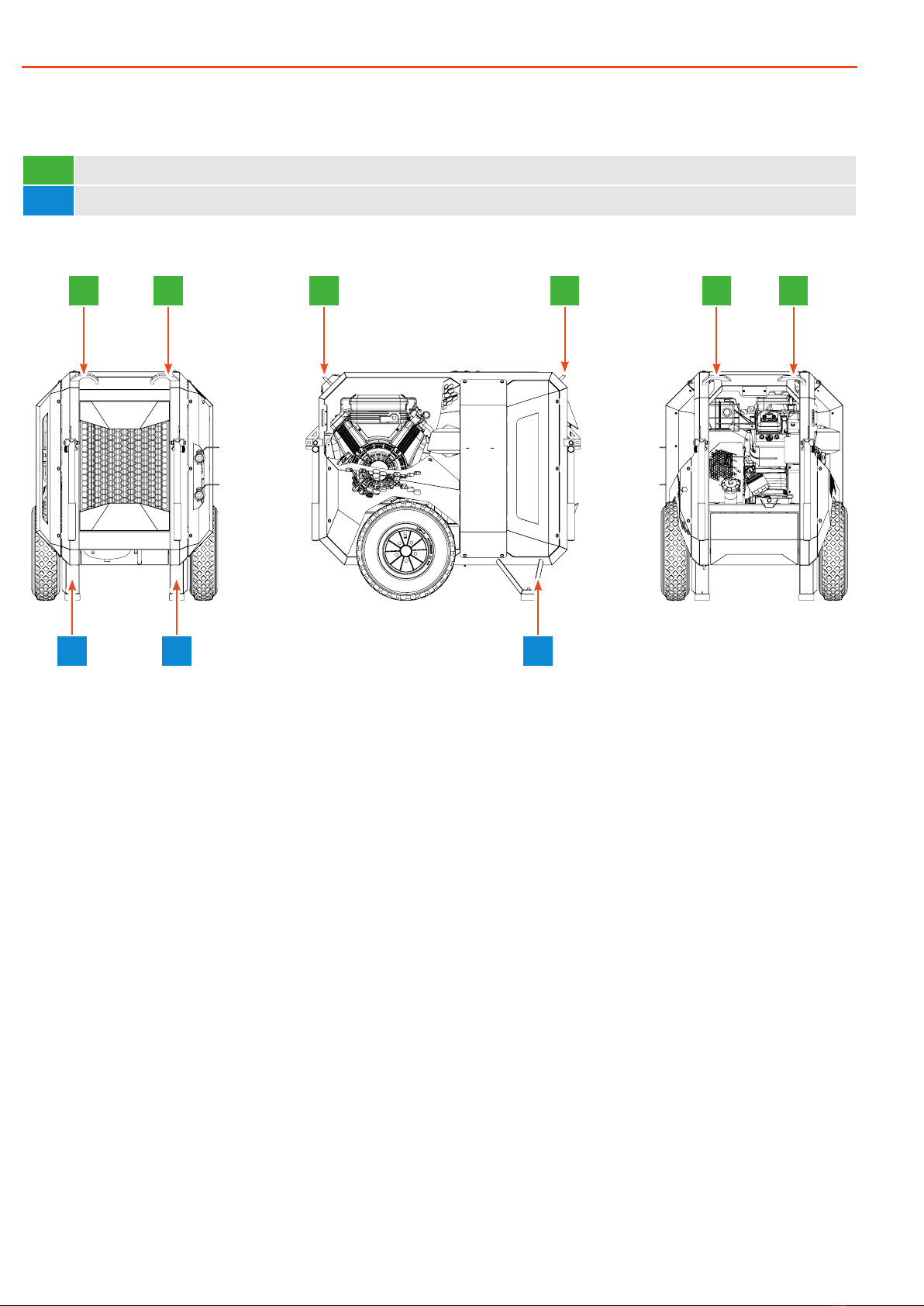

3.4. COMPRESSOR HANDLING, DOCKING AND LIFTING
1Lifting points
2Docking points
