MKM L015188 User manual
Installation Instructions
Recessed Cabinet
Installation Instructions
Important - Please Read
Please read these instructions carefully before starting installation and keep for future reference. Remove
all packaging and check the product for missing parts or damage before starting installation; we cannot
accept any liability for det / ret costs where a damged or faulty product has been tted. In addition we
do not accept responsibility for any problems that arise through incorrect installation or modication of the
product.
Due to our commitment to continuous product development we reserve the right to alter specications
without notice. Products are guaranteed against manufacturing defects for the rst purchaser only and
the guarantee is non-transferable. Our liability under any guarantee expressed or implied is strictly limited
to replacement of defective goods or a refund at our discretion and no consequential losses will be
entertained. Proof of purchase will be required.
General Installation
This product should only be installed by a suitably qualied installer.
When drilling or xing into walls or oor it is essential that you check for pipes or wires before
commencing. These instructions are based on installation to a blockwork wall; if you are installing on to
plasterboard / stud walling please use the appropriate xings and ensure that the wall is able to fully support
the weight of the product.
Product Care
Our products are nished to the highest standard and due care needs to be taken to ensure their looks are
retained. We recommend cleaning all products with a soft damp cloth ONLY and advise strongly against
the use of ALL cleaning products i.e. powders and liquids. If the above instructions are not followed this will
invalidate your guarantee in the event of a problem occurring.
Parts Supplied
x2
x2
x2
x2
x1
Trio Recessed Cabinet
Tools Required (Not Supplied)
Drill, 5mm Suitable Drill Bit, Phillips Screwdriver, Pencil, Level & Tape Measure.
x2
Before You Start
The Cabinet is supplied tted with hinges to the right as
standard, however it can be adapted to left hand hinge as
follows:
1. Remove the mirrored door by quick releasingthe hinges:
At the rear of each hinge is a catch; by gently pulling the
catch towards you should release the hinge unit (See Fig. 1).
NOTE: You do not need to unscrew the hinges from the door
or cabinet.
2. Loosen the nylon screw xings on the underside of each
of the glass shelf clamps, then temporarily remove the glass.
Spin the clamps around by 180 degress, ret the glass then
retighten the nylon screw xings, i.e., the nylon screw xings
should be on the underside of the glass shelf so that they are
hidden.
3. The mirrored door can then be ret by locating then gently
pushing the hinges back into place.
4. Adjust the mirror door so that you acheive an even gap
around the perimiter of the mirrored door. The hinge can
be adjusted using a phillips screwdriver; loosen the screws
as shown in Fig. 2 based on adjustment requirements,
then hand tighten when the desired ajutsment has been
achieved. NOTE: Do NOT overtighten.

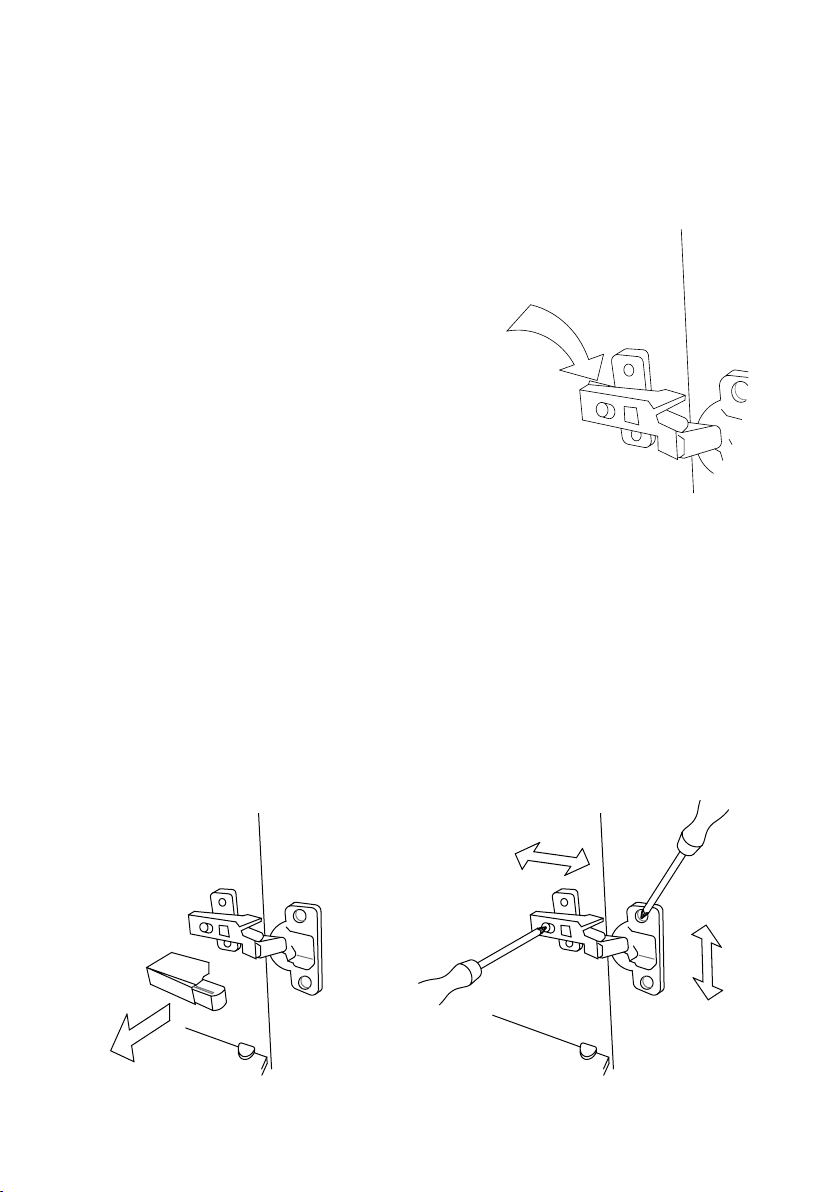

Fig. 1 - Hinge release point for door removal
Remove the soft close mechanism by temporarily
unclipping the unit. The will leave access to the
adjustment screw.
Forwards / backwards adjustment
Up / down adjustment
Fig. 2 - Hinge adjustment
Installation
This furniture has been designed to be recessed
within a void wall. It is very important that the
correct opening size is acheived so that the
cabinet ts correctly.
A metal frame is available that can be installed
during the building of your void wall to help create
an exact size opening for the cabinet - please
contact your merchant for more information.
Alternatively, please ensure that you have an
opening size of 749 x 486mm plus a minimum
depth of 200mm fron the tile face to the rear of the
void wall.
486mm
749mm
Min. depth 200mm
from tile face to rear
of void
We recommend that the Cabinet should be
securely xed into place between stud centres or
a positive xing point either side of the unit where
possible. Mark the drill point either side of the
inside of the cabinet with a pencil (see Fig. 3 for
further assistance), then carefully drill two holes
using a drill and 5mm drill bit (not supplied).
Using the screw xing, washer and screw cup x
the Cabinet into place.
Screw the chrome cover caps on to the two screw
cups to hide the xings.
Fig. 3
Screw xing should secure cabinet
to vertical studs or positive xing point at either side of the unit.
Hand tighten the door knob using the bolt xing
and a phillips screwdriver.
WARNING: DO NOT OVERTIGHTEN AS THIS MAY
RESULT IN DAMAGE TO THE MIRROR.
