BRD21 Quick Start Guide
OpenThread Border Router/OpenThread Mesh Extender
DRAFT
Jul 19, 2022
MMB Networks
25 Adelaide St. E, Suite 400
Toronto, Ontario, Canada
M5C 3A1
[phone]

Getting Started Guide | MMBNetworks.com/BRD21
FCC
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does not cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following measures: (1) reorient or relocate the receiving antenna. (2) Increase the
separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help.
Federal Communications Commission (FCC-US): This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
To comply with FCC RF Exposure requirements, users of this device must ensure that the device be installed and/or configured to
operate with a separation distance of 20cm or more from all persons. Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
ISED
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
The radiated output power of this device meets the limits of FCC/ISED Canada radio frequency exposure limits. This device should be
operated with a minimum separation distance of 20 cm (8 inches) between the equipment and a person’s body.
La puissance de sortie rayonné de cet appareil est conforme aux limites de la FCC/ISDE Canada limites d'exposition aux fréquences radio.
Cet appareil doit être utilisé avec une distance minimale de séparation de 20 cm entre l’appareil et le corps d’une personne.
European Health and Safety Compliance (CE)
The BRD21 device has been tested against the relevant harmonized/designated standards and are in conformity with the essential
requirements and other relevant requirements of the EMC-Directive (2014/30/EU) and the Radio Equipment Directive (RED) (2014/53/EU).
The products are entitled to carry the CE Mark and a formal Declaration of Conformity (DoC) is available at the product web page which
is reachable starting from https://www.mmbnetworks.com/BRD21.
UK Conformity Assessment (UKCA)
The BRD21 device has been tested against the relevant harmonized/designated standards and are in conformity with the essential
requirements and other relevant requirements of SI 2016 No. 1091 (“The Electromagnetic Compatibility Regulations 2016”) and SI 2017 No.
1206 (“The Radio Equipment Regulations 2017”).
The products are entitled to carry the UKCA Mark and a formal Declaration of Conformity (DoC) is available at the product web page
which is reachable starting from https://www.mmbnetworks.com/BRD21.
Rev 0.1 MMB Networks 2022 • BRD21 QSG

Getting Started Guide | MMBNetworks.com/BRD21
Box Contents
1. BRD21 Device
2. USB-C Power Adapter
Getting Started

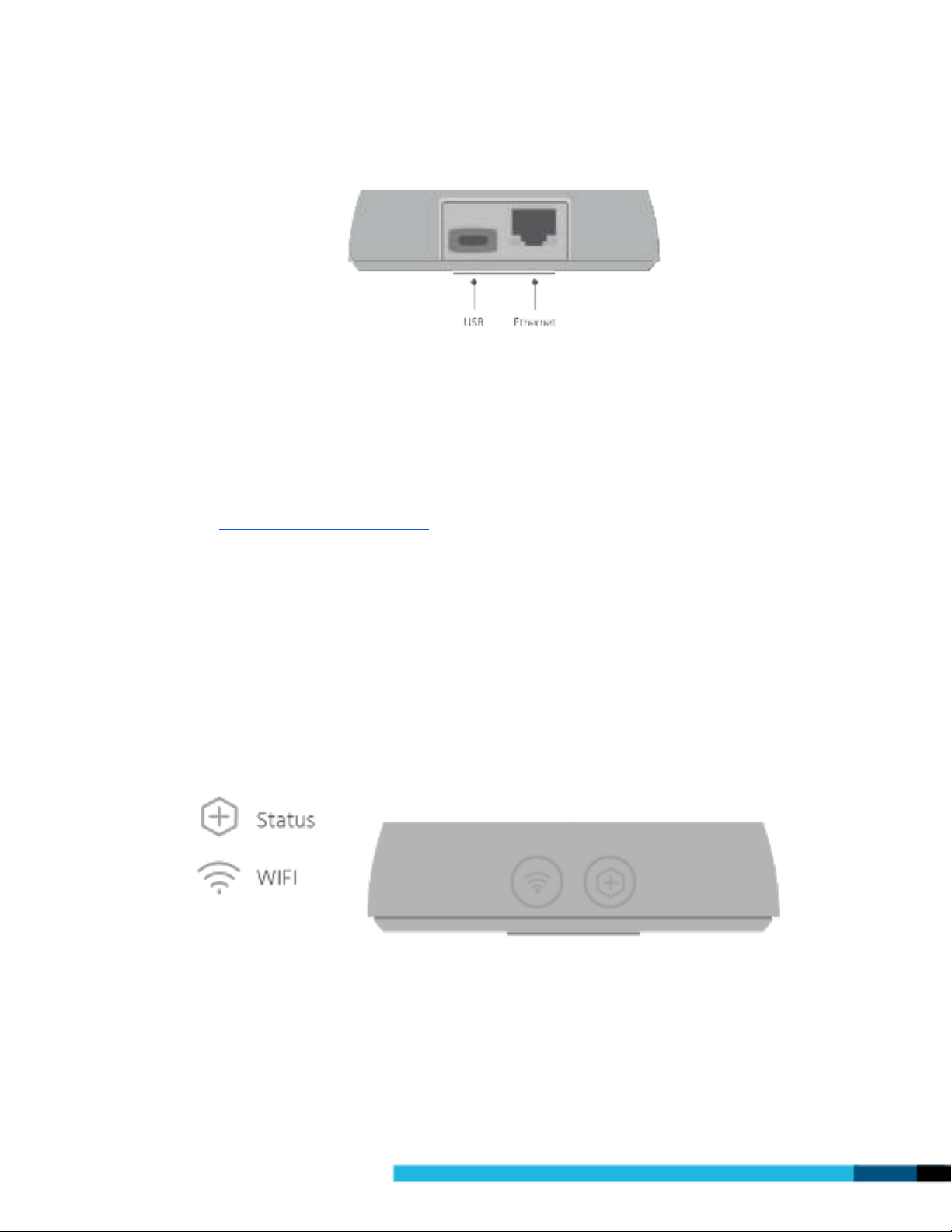

BR21 Device Overview
Rev 0.1 MMB Networks 2022 • BRD21 QSG

Getting Started Guide | MMBNetworks.com/BRD21
LED Patterns
Status LED
WIFI LED
Thread Network LED
Startup
(Fast Flashing Green)
Switched ON
(Solid Green)
Not Commissioned
(Solid Yellow)
Normal Operation
(Solid Green)
Switched OFF
(Solid Yellow )
Joining
(Flashing)
Trac
(Fast Flashing Green)
Commissioning Mode
(Fast Flashing Green)
Network Lost
(Solid Red)
Button Patterns
WIFI ON/OFF Button
Thread ON/OFF Button
Factory Reset
(Press > 20 seconds)
Start Thread Join
(Toggle: Press < 2 seconds)
WIFI ON/OFF
(Press 5-20 seconds)
Full LED and Button pattern specifications can be found at MMBNetworks.com/BRD21
Rev 0.1 MMB Networks 2022 • BRD21 QSG

Getting Started Guide | MMBNetworks.com/BRD21
Setup BRD21 OpenThread Border Router
1. Download and set up a Mobile Commissioning App on your device.
2. Using the mobile commissioning App, scan the WIFI QR Code on the underside of the
BRD21
3. On the rear of the BRD21, connect the Ethernet Cable from your LAN Router and then
connect the USB-C- Power Adapter. Wait for the Status LED to turn Solid Green..
Rev 0.1 MMB Networks 2022 • BRD21 QSG

Getting Started Guide | MMBNetworks.com/BRD21
4. Press and Hold the ‘WIFI ON/OFF’ button for 5-20 seconds to start the BRD21 access
point. The WIFI Status LED will turn solid green once the access point is available.
5. Using your mobile device WIFI, search for the BRD21 SSID and connect.
6. Use the passphrase scanned earlier to connect and access the BRD21 using your
mobile device browser by going to 192.168.4.1
7. Go to MMBNetworks.com/BRD21 to learn more about the BRD21 and how to connect
to your Thread network.
Setup BRD21 OpenThread Mesh Extender
1. Download and set up a QR-Code Reader on your mobile device.
2. Using the reader, scan the QR Code on the front of BRD21.
3. Upload the TME’s device’s Thread joiner credentials to the BRD21 Thread Border
Router’s WebUI. If not using a BRD21 Thread Border Router enter the BRD21 TME’s
Rev 0.1 MMB Networks 2022 • BRD21 QSG

Getting Started Guide | MMBNetworks.com/BRD21
Thread joiner credentials into the target Thread network’s on or o mesh
commissioner.
4. On the rear of the BRD21, connect the USB-C- Power Adapter. Wait for the Status
LED to turn Solid Green.
5. Press the ‘Thread ON/OFF’ button. The ‘Thread Network’ LED will flash.
6. The TME’s ‘Thread Network’ LED will light solid when joining is complete.
7. Verify TME device has been commissioned onto the network via the Edge device.
8. Go to https://mmbnetworks.com/ to learn more about the BRD21 and how to
connect to the Siemens Edge Device.
Rev 0.1 MMB Networks 2022 • BRD21 QSG

Getting Started Guide | MMBNetworks.com/BRD21
Mounting Instructions
Note: The BRD21 should be commissioned onto the Thread network before mounting
if access to the BRD21 buttons will be restricted once installed.
What you’ll need
1. Drill or Screwdriver
2. #4 Flat Head Screws
3. Wall Plugs (optional, depending on material mount is axed to)
4. Safety and Protective Equipment
Installation
The BRD21 can be mounted easily and securely.
As a wireless networking device, some considerations for placement should be taken to give
the best possible range and performance of your Thread networking devices.
Placement and orientation
The BRD21 can be mounted on walls or ceilings. The ideal orientation is vertically on a flat
wall, with Power and Ethernet cables facing down. A clearance of 2cm on all sides should be
maintained.
Rev 0.1 MMB Networks 2022 • BRD21 QSG

Getting Started Guide | MMBNetworks.com/BRD21
The BRD21 should:
1. Not be installed in a cabinet or metal container.
2. Not be installed behind walls or other obstructions which would interfere with line of
sight to other Thread devices on your network.
3. Not be installed low to the ground
4. Be installed in a central location which oers best coverage for devices in the
premise.
a. BRD21 Repeater devices can be added to your Thread network to improve
network coverage.
5. Not be installed on rough or uneven surfaces.

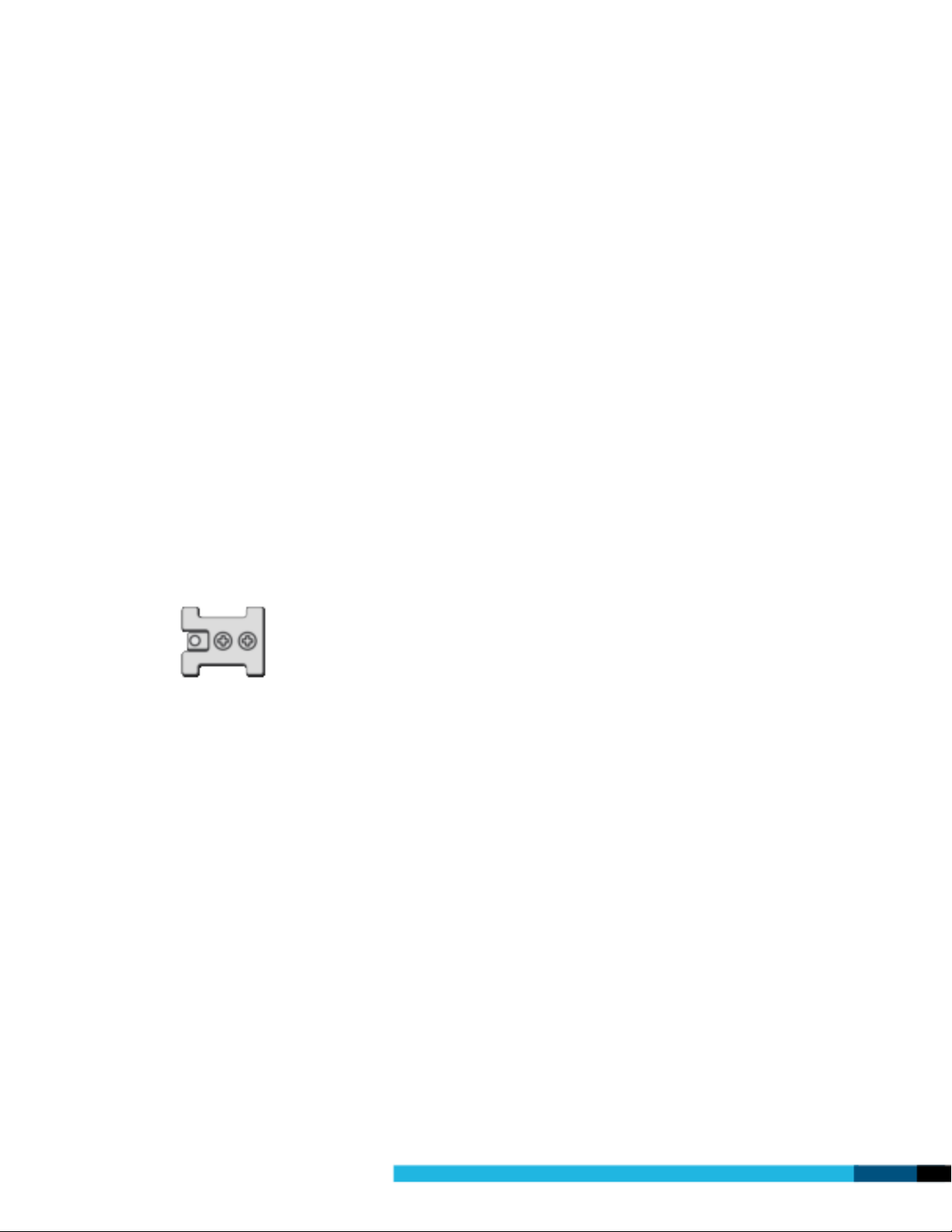

Installing The Mounting Bracket
The Mounting Bracket is installed using 2 x #4 Flat Head Screws.
All safety precautions should be taken by you before installing the mounting bracket.
When choosing a location for the mounting bracket, ensure final placement of the device is
not obstructed.
Please ensure the mounting bracket is installed with enough clearance for the BRD21 to slide
onto the mounting bracket. Final placement of the BRD21 in respect to the Mounting
bracket can be seen below.
Rev 0.1 MMB Networks 2022 • BRD21 QSG

Getting Started Guide | MMBNetworks.com/BRD21
Caution: Do not overtighten screws. Screws must be flush with the mounting bracket.
# 4 Flat Head screws only. The mounting bracket should be level and installed flush to
the wall or ceiling surface material.
Rev 0.1 MMB Networks 2022 • BRD21 QSG

Getting Started Guide | MMBNetworks.com/BRD21

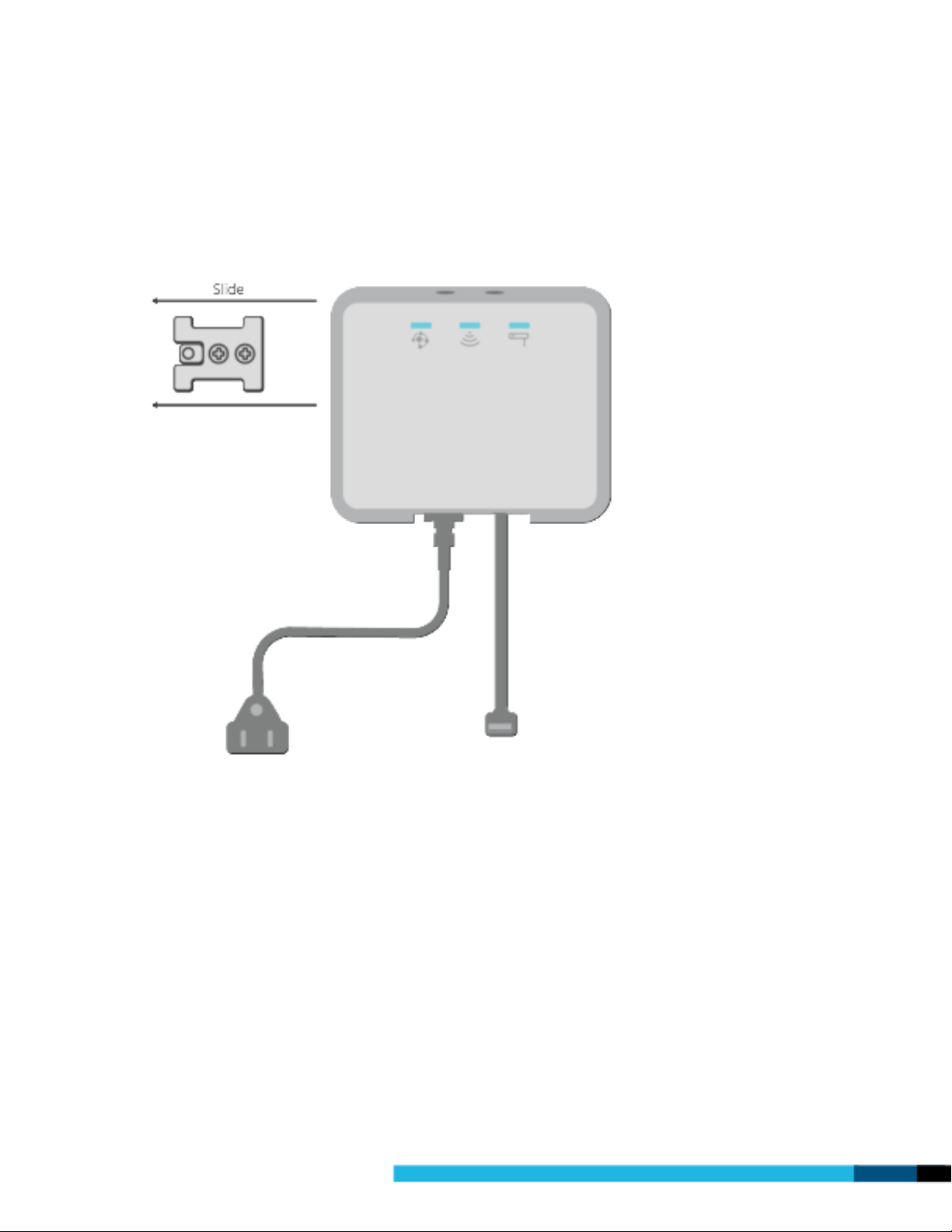

Attaching BRD21
Once the mounting bracket is correctly installed, and with Ethernet and Power cables
connected to the BRD21, slide the BRD21 onto the bracket from left to right to mount..
