INSTRUCTION MANUAL
Time / Temperature display DT Series

© MOBATIME 2 / 40 800845.01
Certification of the Producer
STANDARDS
The digital clock DT has been developed and produced in accordance with the EU Standards 2004 / 108 /
EG and 2006 / 95 / EG:
Applied Standards:
mod IEC 60950-1:2005 + IEC-1:2005/Cor.1:2006-08
EN 55022:1998,+A1:2000,+A2:2003,+Cor.2:2003, class B
EN 61000-3-2:2000
EN 61000-3-3:1995, Cor. 1:1997, A1:2001
EN 61000-6-2:2001
EN 50121-4:2000
References to the Instruction Manual
1. The information in this Instruction Manual can be changed at any time without notice.
The current version is available for download on www.mobatime.com.
2. This Instruction Manual has been composed with the utmost care, in order to explain all details in
respect of the operation of the product. Should you, nevertheless, have questions or discover errors
on this manual, please contact us.
3. We do not answer for direct or indirect damages, which could occur, when using this Manual.
4. Please read the instructions carefully and only start setting-up the product, after you have correctly
understood all the information for the installation and operation.
5. The installation must only be carried out by skilled staff.
6. It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way
or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH,
D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.

© MOBATIME 3 / 40 800845.01
Table of contents
1 Description .....................................................................................................................................................5
1.1 Basic properties........................................................................................................................................5
2 Installation......................................................................................................................................................6
2.1 Single-sided display with digit sizes of up to 100mm...............................................................................6
2.2 Single-sided display with digit sizes of 180mm........................................................................................6
2.3 Double-sided display................................................................................................................................7
2.4 Mechanical drawings................................................................................................................................8
2.5 Connectors and control elements ............................................................................................................9
2.6 Function of the plug connectors.............................................................................................................10
2.7 Setting elements.....................................................................................................................................10
2.8 TP3, TP30 temperature sensors connection .........................................................................................11
2.9 TP RS485 temperature sensors connection..........................................................................................11
2.10 TP LAN temperature sensors connection..............................................................................................11
3 Setting of time synchronization type.........................................................................................................13
3.1 Autonomous clock synchronized by DCF 77 receiver ...........................................................................13
3.2 Autonomous clock synchronized by GPS4500 receiver........................................................................13
3.3 Autonomous clock synchronized by internal GPS receiver ...................................................................13
3.4 Slave clock controlled by synchronizing impulses.................................................................................14
3.5 Slave clock controlled by MOBATIME serial code, MOBALine, or IRIG-B............................................14
3.6 Cascaded connection of the DCF/GPS synchronised clock..................................................................14
3.7 Synchronization by NTP protocol...........................................................................................................15
3.7.1 Synchronization by NTP multicast..................................................................................................15
3.7.2 Synchronization by NTP unicast ....................................................................................................15
4 Setting the way of displayed time and date calculation..........................................................................16
4.1 Basic setting – control according to source of synchronization .............................................................16
4.2 Calculation using MOBALine time zones...............................................................................................16
4.3 Calculation using Timezone-server MOBATIME ...................................................................................16
4.4 Calculation according to internal time zone table ..................................................................................17
5 Setting the network parameters for NTP versions...................................................................................18
5.1 Manually setting the network parameters using clock Menu.................................................................18
5.2 Manually setting the network parameters using telnet...........................................................................18
5.3 Setting of the network parameters by DHCP.........................................................................................19
6 Control of the display using IR remote control ........................................................................................20
6.1 Setting of time and date .........................................................................................................................20
6.2 Menu for the setting of the clock parameters.........................................................................................21
6.3 Setting of NTP multicast synchronisation ..............................................................................................21
6.4 Setting of the NTP unicast synchronization ...........................................................................................21
6.5 Submenu for setting of the user-specific time zone...............................................................................22
6.6 Setting of the predefined temperature value..........................................................................................24
6.7 Settings for the TP3 / TP30 temperature sensors..................................................................................24
6.8 Settings for the TP RS485 temperature sensors...................................................................................24
6.9 Settings for the TP LAN temperature sensors .......................................................................................25
6.10 Manual setting of the IP address of the clock ........................................................................................25
6.11 Manual setting of the subnet mask ........................................................................................................25
6.12 Manual setting of default gateway IP address.......................................................................................26
7 MENU table...................................................................................................................................................27
8 Testing mode, parameter reset...................................................................................................................29

© MOBATIME 4 / 40 800845.01
8.1 Synchronisation test...............................................................................................................................29
8.2 Parameter reset......................................................................................................................................29
9 Update firmware...........................................................................................................................................30
9.1 Update firmware using RS232...............................................................................................................30
9.2 Update firmware over Ethernet at NTP version .....................................................................................30
10 Time zone table............................................................................................................................................31
11 Table of the addresses for the TP RS485 sensor.....................................................................................33
12 Engineering data..........................................................................................................................................34
12.1 Standard design of the display...............................................................................................................34
12.2 Voltage range and electric current consumption of the lines.................................................................34
13 Accessories..................................................................................................................................................35
13.1 Single sided display ...............................................................................................................................35
13.2 Double side display................................................................................................................................35
13.3 Optional accessories..............................................................................................................................35
14 Cleaning........................................................................................................................................................35
15 Disposal of used batteries..........................................................................................................................35
16 Guarantee and maintenance.......................................................................................................................36

© MOBATIME 5 / 40 800845.01
1 Description
General-purpose digital display may show up time (alternating the date) and up to three
temperatures (depending on model). It is intended for outdoor and indoor use. Display will find
use in out- and indoor swimming pools, ski resorts, industrial areas, spas, hospitals, public
buildings etc.
1.1 Basic properties
digit height of 100/57, 100 and 180 mm, which corresponds to readability
distance of 40/25, 40 and 70 m;
digits in red, pure green, blue, white or amber color;
different colors for each colon possible;
manual or automatic adjustment of the luminosity of LED displays;
antiglare front side glass with dark filter for improved readability;
single or double sided design, for wall mounting (for single-sided clock
design only), or to be suspended or fixed to wall bracket;
mounting on tiltable console, or construction with openable front glass for
easy installation procedure;
clock frame made of powder coated aluminum profiles, RAL7040 color
(light grey) as standard, any other RAL color on request;
IR remote for easy access to all functions and display configuration;
autonomous TCXO time base, with the possibility of synchronization using
the following: DCF 77 radio signal, one-minute 24 V pulses, the MOBATIME
serial code, MOBALine, RS 232, RS 485, IRIG-B or GPS;
NTP multicast or unicast synchronization in Ethernet network;
mains powered 100-240VAC; DC powering on request;
protection degree IP 65;
The display
display of time values (either 12 or 24 hours time cycle), four-digit (HH:MM)
format;
possibility of leading zero suppression when displaying the time and date;
display of temperature in °C or °F – up to three sensors connectable;
different types of temperature sensors can be combined
Accessories
DCF 77 signal receiver
GPS receiver
temperature sensors with various interface types
remote IR controller for clock set up

© MOBATIME 6 / 40 800845.01
2 Installation
The connection to the 110/230 V AC power network can only be done by authorized personnel
with appropriate qualification and training.
Connect the cables always in unpowered state – otherwise the risk of electric shock exist.
Producer is not responsible for breakdowns caused by unsuitable clock mounting on the
bearing surface.
2.1 Single-sided display with digit sizes of up to 100mm
assemble the wall mounting console if delivered disassembled;
drill appropriate number of anchoring holes in the wall for 6 mm dia wood
screws, use the mounting console as a template;
mount the console on the wall and put it into a fully tilted out position;
shift the clock body into the flipped out console arms and fix it by tightening
the screws;
dismantle the back cover of connectors on the clock body; the cover
incorporates gap with sealings for passage of cables in the inside of
the clock;
arrange all cables to appropriate length and connect them to the appropriate
terminals on the PCB; see the description of the connectors and observe the
correct polarity where necessary;
fix the cables with the holder in correct positions in order to maintain regular
spacing between the cables in the area of passing through sealing; use
apropriate force to not to damage the cables insulation;
configure the Line type jumper according to used synchronization signal
(applies only for DCF, MOBALine, Serial MOBATIME code, polarized
impulse line or IRIG-B);
mount back the connector cover;
tilt the clock into vertical position and fix the position of the console;
2.2 Single-sided display with digit sizes of 180mm
drill appropriate number of anchoring holes into the wall, of a diameter
adequate to accommodate supplied screws. As a template for marking the
position of the holes use the mounting bar.
mount the hanging bar to the wall using appropriate screws.
prepare the cables and fix them on the wall in order to be placed behind the
small rectangular cover equipped with sealed gap for the cables.
hang the display onto the bar in order to fit the two (three) hanging screws
into the pear-shaped holes.
loosen the hexagonal screws in two bottom corners and open the front
window, the gas struts help to keep the front window opened.
tighten the two (three) hanging screws using the allen key, the display is then
fixed on the hanging bar.
dismount the rectangular cover, drag the cables in and pull them inside.
arrange all cables to appropriate length and connect them to the appropriate
terminals on the PCB; see the description of the connectors and observe the
correct polarity where necessary;

© MOBATIME 7 / 40 800845.01
fix the cables with the holder in correct positions in order to maintain regular
spacing between the cables in the area of passing through sealing; use
apropriate force to not to damage the cables insulation;
configure the Line type jumper according to used synchronization signal
(applies only for DCF, MOBALine, Serial MOBATIME code, polarized
impulse line or IRIG-B);
mount back the connector cover;
close the front window and mount back the hexagonal screws into both
bottom corners – use the adequate force for fastening the screws.
click-on delivered corner covers, they can be dismounted using narrow
screwdriver.
2.3 Double-sided display
the double-side display consists of the displaying and the control part, and
the central mounting console;
assemble the mounting console if delivered disassembled;
drill appropriate number of anchoring holes in the wall for 10 mm dia wood
screws, use the mounting console as a template;
mount the console on the wall;
hang the displaying part on one side of the console, this display part does
not incorporate a cover of connectors, and is linked with the control part via
cable;
the remaining installation steps are the same as with the single-sided
display, additionally it is necessary to connect the linking cable from the
displaying part to mating connector in the control part

© MOBATIME 8 / 40 800845.01
2.4 Mechanical drawings
DT.100/57.1C.2T
Luft T°
Wasser T°
°C °C
°C
°C
DT.100.1C.1T
DT.100.1C.2T
DT.100.1C.3T
°C
°C
°C
DT.180.1C.2T
DT.180.1C.1T
DT.180.1C.3T
°C
°C
1
2
°C
°C
°C

© MOBATIME 9 / 40 800845.01
2.5 Connectors and control elements
LINES, DC/DCF OUT – JP1
TEMP – JP2
CTRL – JP3
RS232 – JP4 (version SI)
RS485 – JP5 (version SI)
100 – 240VAC – JP6
LAN - JP7 (version NTP)
PROG – JP8
RELAY – JP27 (optional)
Line type jumper – JP11
PB1, PB2 buttons
RESET button
TRE jumper – JP10 (version SI)
BATT jumper – JP12
jumper ISPE – JP9
LED indication of DCF signal
state LED
LED indication of powering
jumper DC Out / DCF Out – JP17

© MOBATIME 10 / 40 800845.01
2.6 Function of the plug connectors
LINES, DC/DCF OUT – JP1 time signal inputs: The DCF/GPS receiver,
polarized impulse line, MOBALine, MOBATIME
serial code, IRIG-B,
power supply output: DC OUT 12–40 VDC
or passive DCF current loop output
TEMP – JP2 connection of the temperature sensor(s)
CTRL – JP3 connection of the keyboard
RS232 – JP4 (optional) connection of the RS232 serial line
RS485 – JP5 (optional) connection of the RS485 serial line
100 – 240VAC – JP6 powering 100 - 240 VAC voltage
LAN - JP7 (optional) RJ45 10BaseT/100TX (IEEE 802.3)
auto negotiation
PROG – JP8 clock firmware programming
RELAY – JP27(optional) switching contact connection
2.7 Setting elements

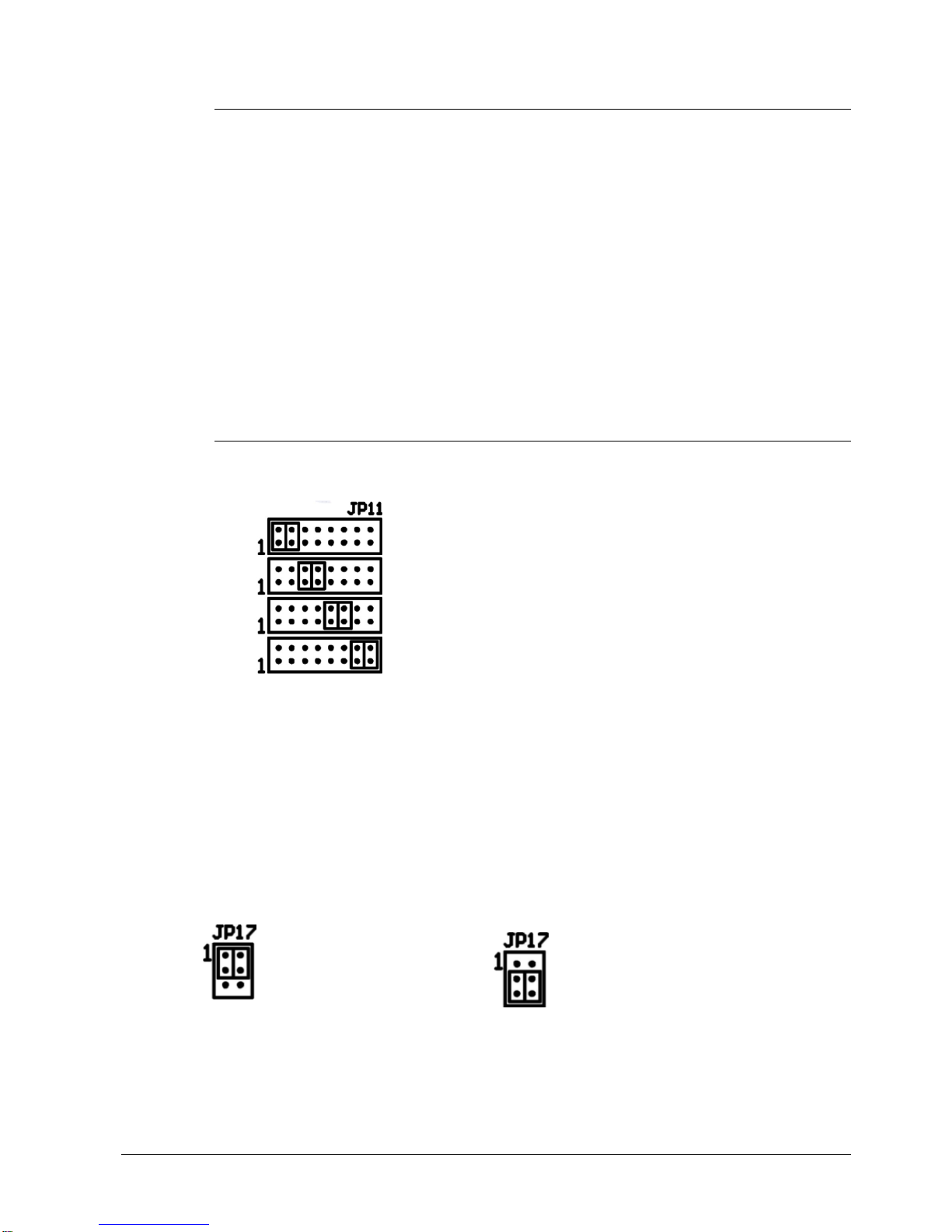

Line type jumper – JP11 for the setting of the slave line type
IRIG / AFNOR
DCF
MOBALine
(Un)polarized impulse line
MOBATIME serial code
PB1, PB2 control pushbuttons
RESET the RESET button
TRE jumper – JP10 (optional) RS485 terminating resistor enable
BATT jumper – JP12 backup battery connection
ISPE jumper – JP9 invoking the firmware programming mode
DCF LED indication of receiving the DCF signal
STATE LED state indication
POWER LED power indication
jumper DC Out / DCF Out – JP17 Output signal setting on pins 3, 4
of the JP1 connector
pin3 = DC Out + (12-40V)
DC Out pin4 = DC Out - pin3 = (+)
passive DCF Out pin4 = (-)

© MOBATIME 11 / 40 800845.01
2.8 TP3, TP30 temperature sensors connection
both temperature sensor types are connected to the JP2 connector terminals
using three wires (see the illustration)
it is possible to connect up to two temperature sensors to single display
device, other displays can’t be connected to the sensor(s)
2.9 TP RS485 temperature sensors connection
the RS485 bus is used for connection of this type of temperature sensors,
there can be up to three temperature sensors connected to the bus
moreover more display units can be connected to the bus, the only limitation
is the maximum of 32 devices connected to single bus and total length of the
bus of max. 1200m
the connection is done using six-core twisted pair cable (UTP or STP)
one of the twisted pairs is used for data transmission, the others are for
temperature sensor powering (see the illustration)
using one twisted pair interconnect the pin 1 (+) of the JP24 in the display
and the + terminal on the sensor, use second twisted pair and interconnect
the pin 2 (-) of the JP24 connector in the clock and the – terminal on the
sensor
interconnect the pins A and B of the JP5 connector in the clock, and
terminals Tx+ and Tx- on the thermometer using one twisted pair. The A
signal corresponds to Tx+ and the B corresponds to Tx-.
in case you need to connect other display device, only the A, B and – signals
must be connected in parallel. The + signal must not be connected.
2.10 TP LAN temperature sensors connection
the Ethernet network is used for connection of this type of temperature
sensors, there can be any number of temperature sensors connected in the
network
moreover more display units can communicate to single temperature sensor,
single display can communicate to up to three sensors

© MOBATIME 12 / 40 800845.01
the connection is done using standard UTP or STP cable and network
infrastructure
the sensor is powered from small AC/DC wall adapter

© MOBATIME 13 / 40 800845.01
3 Setting of time synchronization type
Configure the jumper JP11 according to table (chapter 2.7.) if the source of synchronization is
DCF signal, Mobatime serial code, polarized impulse line, MOBALine or IRIG-B. Choose the
item P4 in main MENU (chapter 7) and set the type of synchronization. The auto detection
mode (P4:A), when the type of synchronization signal is set automatically, is applicable for
DCF signal, Mobatime serial code, MOBALine, IRIG-B and WTD.
The permanently lit colon during the time display signalizes the clock is synchronized by the
synchronization source.
3.1 Autonomous clock synchronized by DCF 77 receiver
Set value Ain items P3,P4 and P6 in the main MENU (chapter 7).
Connect the DCF 77 receiver to the LINES connector (IN+, IN- terminals)
using a twin-wire cable.
The maximum wire length depends on its diameter (app.100 - 300 m).
In case the connection is correct and the input signal is at high level, the LED
on the receiver is flashing periodically once a second, with 1 pulse left out at
the 59th second.
In case the polarity is incorrect, the LED does not flash. In such a case,
interchange the two wires.
Install the receiver at a place with high-level radio signal. Don’t install the
receiver near sources of interfering signals, such as the personal computers,
TV sets or other types of power consumers (the digital clock itself generates
interfering signals too).
Position the receiver with its transparent cover (DCF 450) or the arrow on the
cover (DCF 4500) facing the transmitter (located in Frankfurt, Germany).
Presuming the good quality DCF 77 signal the synchronization takes place in
approx. 3 to 4 minutes. In case of poor quality of the signal (mainly during the
day time) the first time setting is to be done manually. The red LED of the
receiver displays a working connection by flashing once a second without
flickering.
3.2 Autonomous clock synchronized by GPS4500 receiver
Set value Ain items P3,P4 and the desired time-zone in the P6 item in the
main MENU (chapter 7).
Using jumper JP17 set the power supply output (DC OUT) on pins 3, 4 of the
JP1 connector.
Connect GPS receiver to the LINES connector (IN+, IN- terminals for the
signal and P3+, P4- terminals for antenna powering) using a four-wire cable.
Please note the correct polarity of the wires – see the GPS user manual.
For the correct placing of the receiver please follow the GPS user manual.
Presuming the good position of the GPS receiver the synchronization takes
place in approx.10 to 20 minutes.
3.3 Autonomous clock synchronized by internal GPS receiver
Set value Ain item P3, value 13 in item P4 and the desired time-zone in the
P6 item in the main MENU (chapter 7).
Connect the GPS antenna cable to dedicated SMA connector.

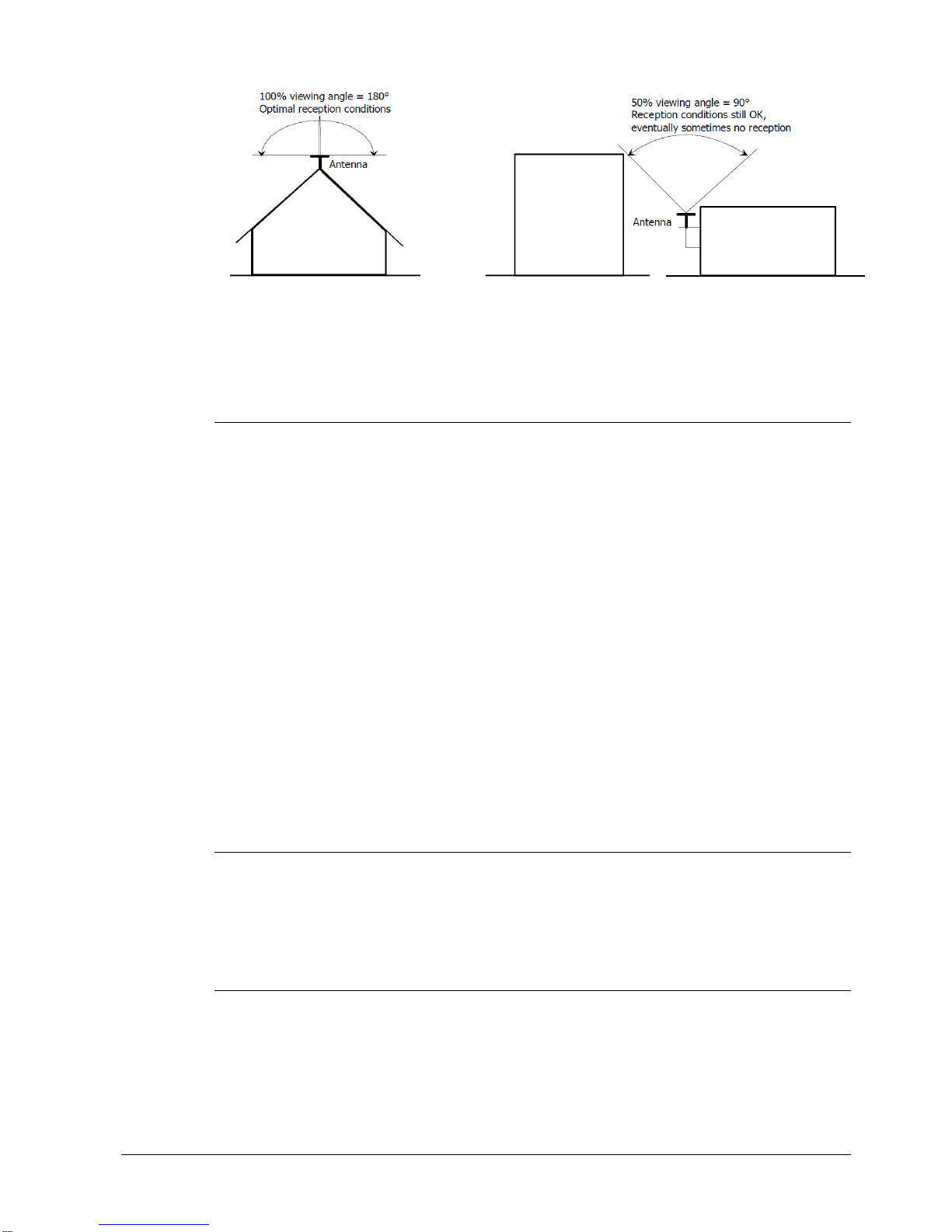

Place the GPS antenna according to following recommendation

© MOBATIME 14 / 40 800845.01
Presuming the good position of the GPS antenna the synchronization takes
place in approx. 6 to 8 minutes.
Reception of the GPS data is indicated by blinking GPS LED on the PCB.
3.4 Slave clock controlled by synchronizing impulses
On digital clock connected in time distribution system controlled by synchronizing
impulses choose the item P4 in the main menu and set it according type impulse
lines (one minute, half minute, second pulses). Set the value Ain items P3 and
P6. Clocks are set according to the slave line time on the Master clock.
Stop the slave line on Master clock.
Set all slave clocks on the same time. Set the current date on the digital
clock. The clocks stand still and the colon flashes in 2 second interval.
Set the time of the slave line to the same time as on slave clocks.
Run the slave line on Master clock.
After receiving each impulse is displayed time increased by one minute
(or by 30 seconds or 1 second respectively)
After the expiration of run-out time the slave clocks are synchronized by the
time information generated by the master clock, the colon flashes constantly.
In case of the line fault the clock displays the right time information based on
its own quartz time base. When the normal operation of the line resumes, the
slave clock adjusts itself to the time equal to the master clock.
3.5 Slave clock controlled by MOBATIME serial code, MOBALine, or
IRIG-B
After the connection of the digital clock to the signal source, time and date
are adjusted automatically, following the receipt of valid time information.
The time setting with using the serial coded line takes place within at least 3
to 4 minutes, for MOBALine and IRIG-B within 6 to 15 seconds.
3.6 Cascaded connection of the DCF/GPS synchronised clock
Connect the DCF 77 receiver to the LINES connector (IN+, IN- terminals)
using a twin-wire cable.
Set the passive DCF OUT output 3, 4 of the JP1 connector using the jumper
JP17.
When using the GPS receiver, the external power supply is needed -
parameters 12-24 VDC – min. 5VA.

© MOBATIME 15 / 40 800845.01
Interconnect the cascaded clock using a twin-wire cable from the LINES
connector (P3+, P4- terminals) to the LINES connector (IN+, IN- terminals) of
the next clock.
In case the connection is correct and the input signal is at a high level, the
LED on the receiver and the green LED in the clock is flashing periodically
once a second, with 1 pulse left out at the 59th second.
3.7 Synchronization by NTP protocol
The NTP time synchronization can be used when the clock is connected to
Ethernet or WiFi network and the NTP server is accessible.
NTP protocol transfers data always UTC time coded, so it isn’t necessary to set
item P3 manually. Time zone of synchronization source is internally set to value 0
in this case.
3.7.1 Synchronization by NTP multicast
The clock receives NTP multicast packets transmitted by NTP server in specified
time cycle. This type of synchronization can work even when clock has not been
assigned its own IP address and so it is suitable for controlling the large system
of the slave NTP clocks. Not applicable for WiFi clock.
Set item P4 to value 9
According to chapter 6.3 set IP multicast address
For correct displaying of time and date, choose the desired time zone in the
item P6.
3.7.2 Synchronization by NTP unicast
The clock requests the exact time from the NTP server periodically in a
predefined interval. The clock must have been assigned its own IP address and
subnet mask (see chapter 5) in this case.
Set item P4 to value 10.
According to chapter 6.4 set IP address of NTP server and polling interval
For correct displaying time and date choose desired time zone in item P6.

© MOBATIME 16 / 40 800845.01
4 Setting the way of displayed time and date calculation
4.1 Basic setting – control according to source of synchronization
P3 A Time zone is taken over according to the source
of synchronization
P4 2 – 12,
ASynchronization signal type
P5 0 Neither MOBALine time zone nor Timezone-
server are used
P6 A Display time and date according to source of
synchronization incl. daylight saving time
This setting is suitable for digital clocks synchronized by a DCF receiver or
controlled by a master clock as slave clock in a time distribution system. The
internal time zone table isn’t used.
4.2 Calculation using MOBALine time zones
This setting is suitable for digital clocks controlled by a master clock as a
MOBALine slave clock in a time distribution system with possibility to display
different MOBALine time zones
4.3 Calculation using Timezone-server MOBATIME
This setting is suitable for NTP digital clocks controlled by MOBATIME NTP
servers which support the Timezone-server functionality.
P3 A Time zone is taken over according to the source of
synchronization. The UTC time calculation is based
on the MOBALine information.
P4 4 MOBALine
P5 1 - 20 Selection of the MOBALine time zone
P6 A Display time and date according to chosen
MOBALine time zone, incl. daylight saving time
P3 A NTP protocol uses UTC time zone
P4 11, 12 NTP multicast or unicast
P5 1 - 15 Selection of the Timezone-server time zone
P6 A Display time and date according to chosen
Timezone-server time zone, incl. daylight saving
time

© MOBATIME 17 / 40 800845.01
4.4 Calculation according to internal time zone table
This setting is suitable for autonomous digital clocks or in cases when the
displayed time in another time zone than the one provided by the synchronization
source is needed. Displayed time and date calculation is based on the internal
time zone table or on the user–specific time zone parameters.
P3 0 – 64 According to the time zone in which source of
synchronization works (e.g. value 2 for DCF in
west Europe)
P4 1 – 13,
AAutonomous operation or any type of the synchronizing signal
P5 0 Neither MOBALine time zone nor Timezone-
server are used
P6 0 – 64,
UDisplay time and date by calculation from the UTC time according to chosen time zone, incl.
daylight saving time

© MOBATIME 18 / 40 800845.01
5 Setting the network parameters for NTP versions
In the item P17 choose if the network parameters (IP address, subnet mask, gateway NTP
servers) will be set automatically (DHCP), or manually (telnet, the clock menu), or they will not
be assigned at all (e.g. for NTP multicast).
5.1 Manually setting the network parameters using clock Menu
According to chapter 6.10 set clock’s IP address in item P18 submenu
According to chap 6.11 set subnet mask in item P19 submenu
According to chap 6.12 set gateway in item P20 submenu
5.2 Manually setting the network parameters using telnet
Prior to the first connection using telnet, it is necessary to make the following
procedure because initial IP address is 0.0.0.0.:
by windows command arp -s <IP address> <MAC address> match new IP
address to clock’s MAC address (it is marked on the label next to RJ-45
connector)
example: arp -s 192.168.0.190 00-16-91-FE-90-00
reset the clock or just turn it off/on and do the following within 2 minutes:
by windows command ping <IP address> is this IP address temporary
assigned to the clock (it is valid only in case if current IP address is 0.0.0.0),
clock should answer two last ECHO requests at least
example: ping 192.168.0.190
do the following within 30 seconds:
by windows command telnet <IP address> connect to clock and make
needed setting (see lower) – set the new IP address at first and correct other
parameters if necessary
example: telnet 192.168.0.190
Setting parameters over telnet:
request for the password appears after connection (default password is
718084)
the software and hardware version and MAC address displays if password
entering was successful
inserted commands can be send off using Enter key, the Backspace key
serves for correction of the typing errors
command help or ?displays help with command’s list
command reset makes clock reset (setting modifications are written to data
flash)
command conf -p displays current setting of the menu parameters
command conf –n displays current network parameters
command conf -? displays help for command conf parameters
example: conf -i 192.168.0.190 set clock IP address to 192.168.0.190
it is necessary to end telnet by command exit

© MOBATIME 19 / 40 800845.01
5.3 Setting of the network parameters by DHCP
The network parameters are automatically assigned by the DHCP server.
Assigned parameters can be checked in the submenu items P18 to 20. Besides
the network parameters, IP addresses up to four NTP servers can be set using
the DHCP option. Following options are supported:
Option code 42 – NTP servers
Note: For NTP address assignation, NTP unicast synchronization must be
selected.

© MOBATIME 20 / 40 800845.01
6 Control of the display using IR remote control
A 2-digit address is assigned to the clock. With the IR remote control the clock can be locked.
The setting of time, date and the clock parameters can only take place at clocks in an
unlocked state.
Function of the controller buttons in normal display mode
pushing F1 + entry of 2-digit address, unlock the clock with the
using numerical pushbuttons corresponding address
holding down F1 button unlock all clocks within the reach of the IR
beam of the remote control unit
holding down F2 button lock all clocks within the reach of the IR
beam of the remote control unit
holding down F3 button display the address of all locked clocks within
the reach of the IR beam of the remote control
CLOCK display of time on the first line (model with clock)
DATE display of date on the first line (model with clock)
MENU entry into the display configuration menu
SET entry into the time setting (model with clock)
Function of the buttons in the time setting and menu operation mode
>> move to next parameter
<< move to previous parameter
the +pushbutton increase of the value adjusted, in steps of 1
the -pushbutton decrease of the value adjusted, in steps of 1
holding the +pushbutton continuous increase of the value set up
holding the –pushbutton continuous decrease of the value set up
ESC return into normal display mode, without storage of the data
OK storage of values set up and return into normal working mode
SET entry into a submenu (where possible)
pushbuttons 0–9 entry of the corresponding numerical value
6.1 Setting of time and date
Press the SET button on the IR remote controller.
Enter the data in following order: year - day - month - hour - minutes
The display shows the year:
The actual parameter blinks, to change its value use the +,-or 0to 9buttons, to
move to another parameter use the << or >> buttons. To set the time press the
OK button. To exit the time setting without applying the changes press the ESC
button.
