MOBIDATA MBD-R100H User manual

Broadband 3G Wireless Router
User Manual

Model: -MBD-R100H
Contents
1. Broadband 3G Wireless router ....................................................................3
1.1 Introduction .....................................................................................3
1.2 Main Functions ...............................................................................4
1.3 Default settings ..............................................................................4
1.4 Package and requirements .........................................................5
2. Framework of 3G router................................................................................6
2.1 Description.......................................................................................6
2.2 Leds indication ...............................................................................6
2.3 Dimension and fixing way............................................................7
2.4 Connection way..............................................................................7
3. Introduction of web server............................................................................7
3.1 Access web server.........................................................................7
3.2 Application of web server ............................................................8
3.2.1 Check the router status ..........................................................8
3.2.2 3G and LAN ...............................................................................9
3.2.3 WiFi and WDS .........................................................................12
3.2.4 System security ......................................................................18
3.2.5 System Management ............................................................22
3.3 Web server compatibility............................................................26
4. Appendix Q&A ...............................................................................................27

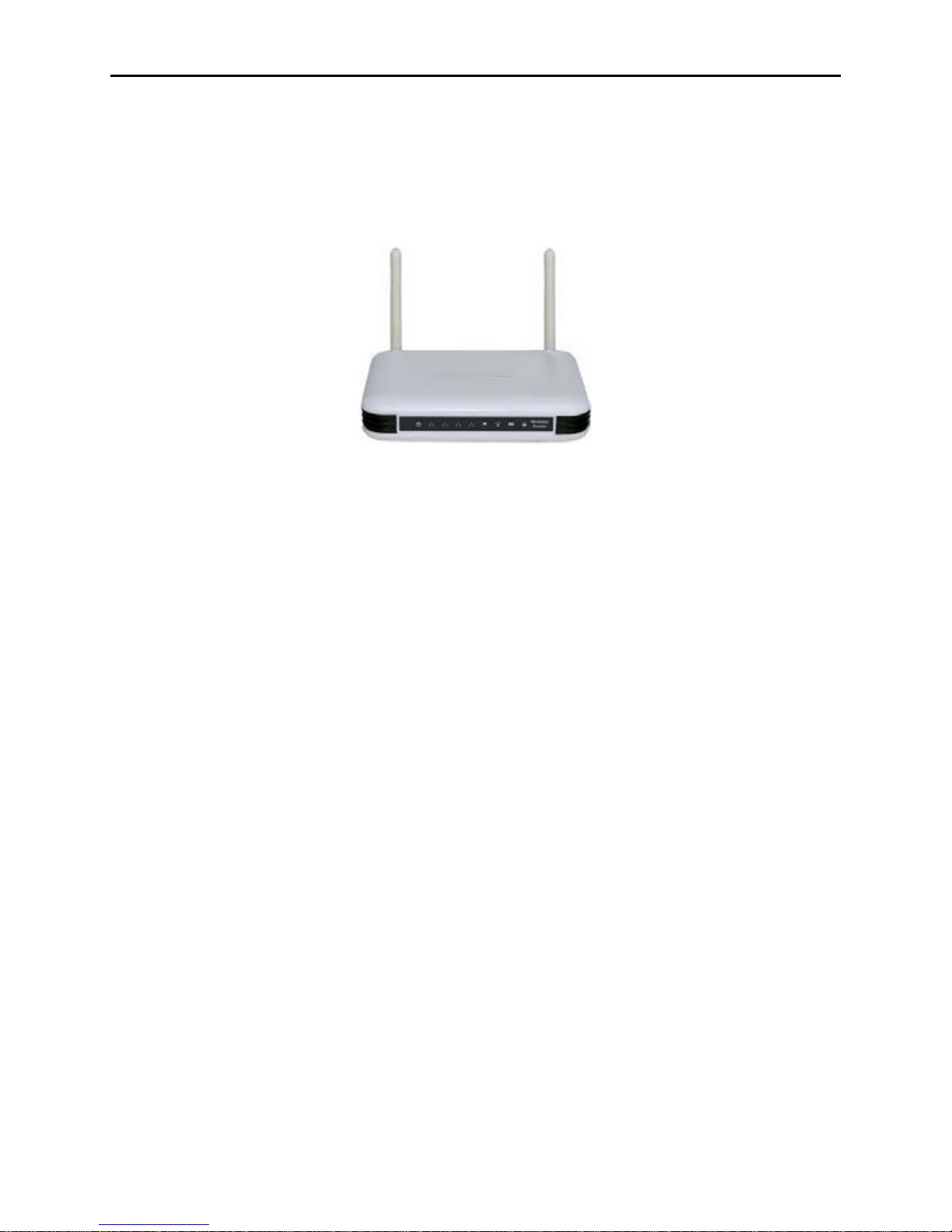

1. Broadband 3G Wireless router
1.1 Introduction
HSUPA-EASY is a SOHO WIFI 150Mbps wireless router with HSUPA
modem built-in, through which you can create a WIFI hotspot or Ethernet
conveniently when ADSL or fiber line is unavailable.
Integrating 3G, WIFI and router functions, HSUPA-EASY will convert 3G
network to WIFI wireless network and LAN Ethernet, through which the
terminals could access internet safe and conveniently. Comparing with the
solution of wireless router inserting an external USB modem, HS UPA-EASY
will be easier to operate, more stable.
Basing on wireless router function, WIFI terminals and RJ45 terminals can
be grouped to implement data share and inter-communication. As long as
SIM card and power are available, you could get a 100% web experience.

4
Model: -MBD-R100H
1.2 Main Functions
High speed Wireless WAN connection up to 7.2Mbps downlink and
5.76Mbps uplink rate
Multi network operation compatible HSUPA,HSDPA,UMTS,
EDGE,GPRS,GSM
Integrated (U)SIM /(R)UIM Card slot, 6PIN
Broadband Wireless WIFI up to 150Mbps
Downward compatibility 802.11 b/g/n
10/100Mbps auto-Negotiation LAN Ethernet Port (4)
WDS working operation
Quick setting (WPS) for WIFI
64/128-bit WEP encryption and WPA-PSK, WPA2-PSK encryption
Supports Virtual Server and DMZ
Supports DDNS (DynDNS, TZO), and QoS
Supports DHCP server/Client and Anti-Dos firewall
Supprots Anti-DoS Firewall, MAC/IP filter, URL blocking
Separated Omni antennas for 3G and WIFI
1.3 Default settings
WAN connection 3G Default
WLAN accessing Radio on and Unencrypted Default
LAN connection Output

5
Model: -MBD-R100H
PPPOE Support
SSID Easy-net, support hidden operation
WPS and WiFi Encryption Support
DHCP status Enable Default
DHCP Pool Range 192.168.0.100-192.168.0.200
User name/Password admin/admin
IP Address 192.168.0.1
Virtual Server, DNS,DDNS Support
Remote Web management Support
Port forwarding Support
Reconnection Support
3G log & Trouble shot Support
Firmware update Ethernet update suggested
Network profile auto matching, and apply manually
USB sharing Could support in the future
Qos, MAC/IP filter, URL blocking Support
1.4 Package and requirements
Accessories:: CD version User Manual/Quick Guide，Quality card, Power
adapter, Ethernet cable
Browser: Internet Explorer 6.0 or Firefox 1.0 higher
Language: English，Simple Chinese，Traditional Chinese

Model: -MBD-R100H
2. Framework of 3G router
2.1 Description
3G antenna WIFI antenna
SIM tray button
Power
(U)SIM card slot WPS LAN port x4 Reset
2.2 Leds indication
on Powered WAN Unavailable
Power
off No Power on Connected
on Connected Twinkle Connecting network
twinkle Transmitting data Twinkle slowly Idle status
LAN
off Disconnected
3G
(built-in
HSUPA)
off or in red No SIM Card
on WIFI wireless open on Quick set open
twinkle Transmitting data twinkle Wait Connection
WIFI
off WIFI wireless closed
WPS
off Quick set closed
6

Model: -MBD-R100H
2.3 Dimension and fixing way
103mm
155mm
1
0
8
m
m
1
3
0
m
m
Press SIM tra
y
button and
p
ut
SIM card in
SIM tray.
Φ4mm
2.4 Connection way
Through Ethernet LAN port or WIFI wireless you can connect the terminals
to router.
3. Introduction of web server
3.1 Access web server

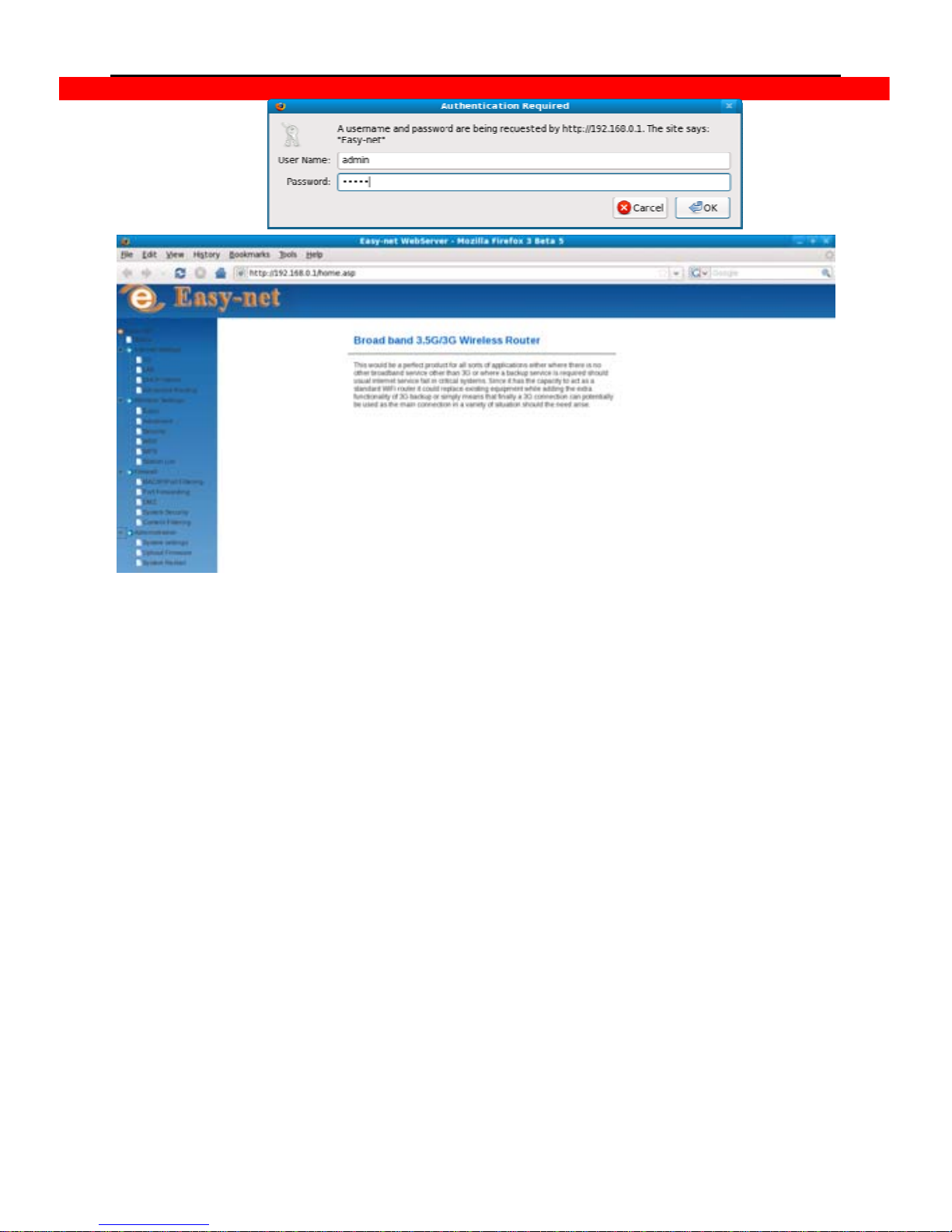

After connected to router through Ethernet or WIFI wireless, please open
browser such as IE or Firefox and access web server via IP address
http://192.168.0.1. And before customized setting, both password and
username are factory settings admin.
7

Model: -MBD-R100H
Remarks:
¾Username and password could be changed in system setting of web
server.
3.2 Application of web server
3.2.1 Check the router status
In this page you can find the connection status, factory settings and the
version of router.
8

Model: -MBD-R100H
3.2.2 3G and LAN

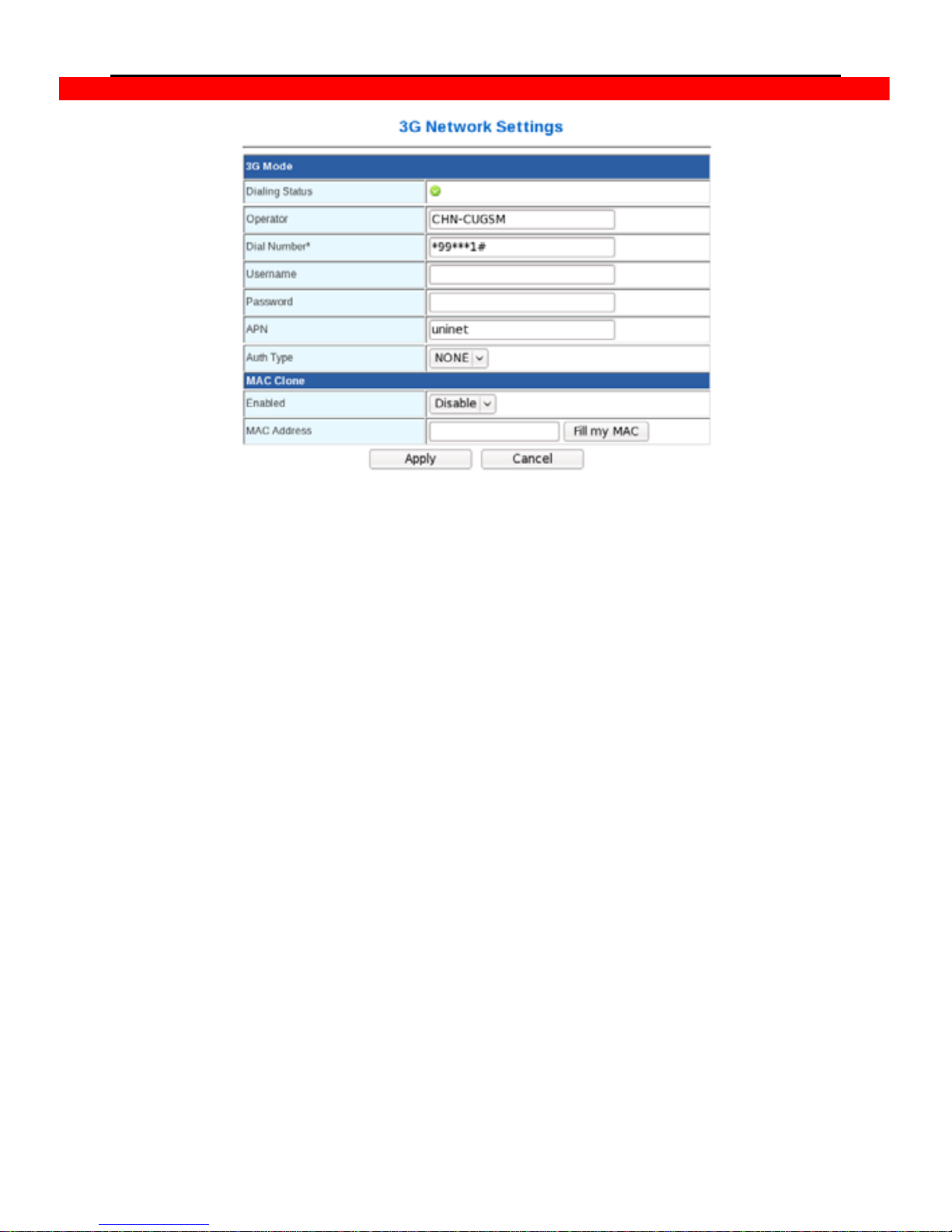

(1) 3G Connection
Most of the network profiles have been built in this manager, so
usually the manager will connect internet automatically. If fail to connect
internet, please check the network profile firstly. If the APN is incorrect or
unavailable, please modify or create a new profile. After apply the new
profile, the router will restart automatically.
9

Model: -MBD-R100H
Remarks:
¾If you don’t know the network profile, please contact the local ISP.
¾If the local ISP require MAC address bound, please enable “MAC
clone”.
¾if 3G led indicates successful connection but no volume stream,
please check the balance of SIM card
¾Before reset, the router will save all the setting you made.
¾3G connection is the default WWAN connection, which could not be
disconnected manually unless (U)SIM card was taken out.

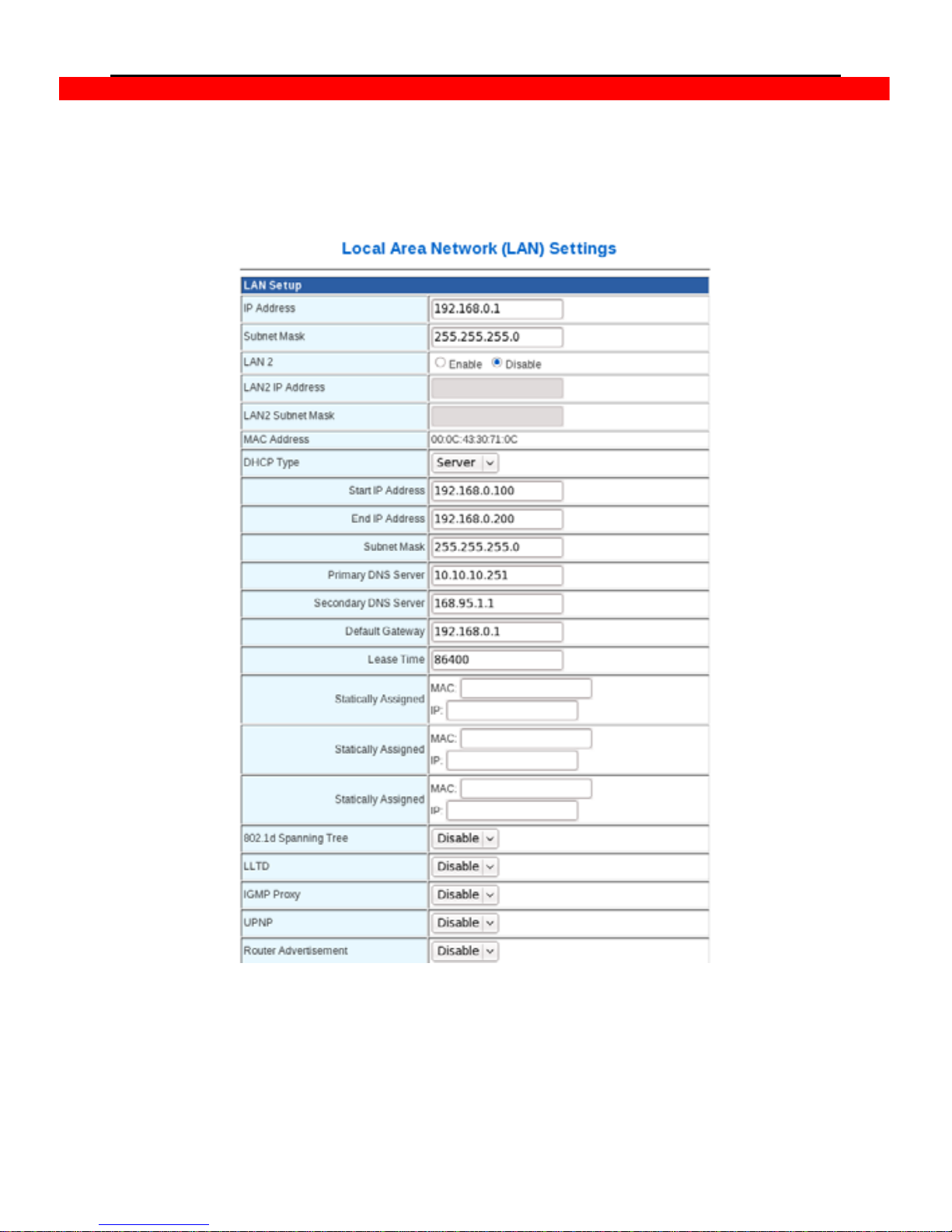

(2) LAN Connection
If you want to use LAN2 , please enable this function. Usually the
DHCP mode is open, so that the router will dispatch the client ip address
10

Model: -MBD-R100H
automatically, if you want to get the IP address manually, please close
DHCP. What’s more this router could also support LLTD, IGMP pro xy,UPNP
and advertisement.
If you want to check all terminals connected to this router, please go to
panel of DHCP clients.
11

Model: -MBD-R100H
(3) Advanced routing
This router could support both static routing and dynamic routing. Usually
the router will use static routing. If you want to use dynamic routing, please
enable this RIP setting.
3.2.3 WiFi and WDS
(1) Basic and advanced settings of WIFI
Usually the wifi function is open. If you want to close wifi function please
12

Model: -MBD-R100H
set the radio status at RADIO OFF. This router could support mixed wifi
mode and single wifi mode. For example, if you just want 802.11 g mode,
please select the only 802.11g mode. Please do not change the frequency
channel unless it is required in special wireless environment.
Remarks:
¾There’re wifi wireless modes for different transmission. 11b，11g，
11b/g，11n，11b/g/n. When setting the wifi wireless mode, please
make sure the wireless terminals and router are in same wifi wireless
mode, otherwise the terminals could not receive the WIFI signal.
13

Model: -MBD-R100H
¾SSID is used for identify the known users, which could be set in
different name, visible or hidden type. However the maximum SSIDs
you can set is 7, and the seventh will be retained for other usage
¾Isolation function is used for improving the security. If this function
enabled, the users cannot visit each other.
¾If more than one wifi networks in same channel used at the same
time together will inter-interfere, Then you can use another channel.
¾If you are not good at wifi frequency and wifi network, please do not
modify the advanced settings.
¾If you want to connect this router to a 802.11N network via wifi
connection, please set the router wifi as “11g only” or “11b/g mixed
mode”, which will be used in WDS function.

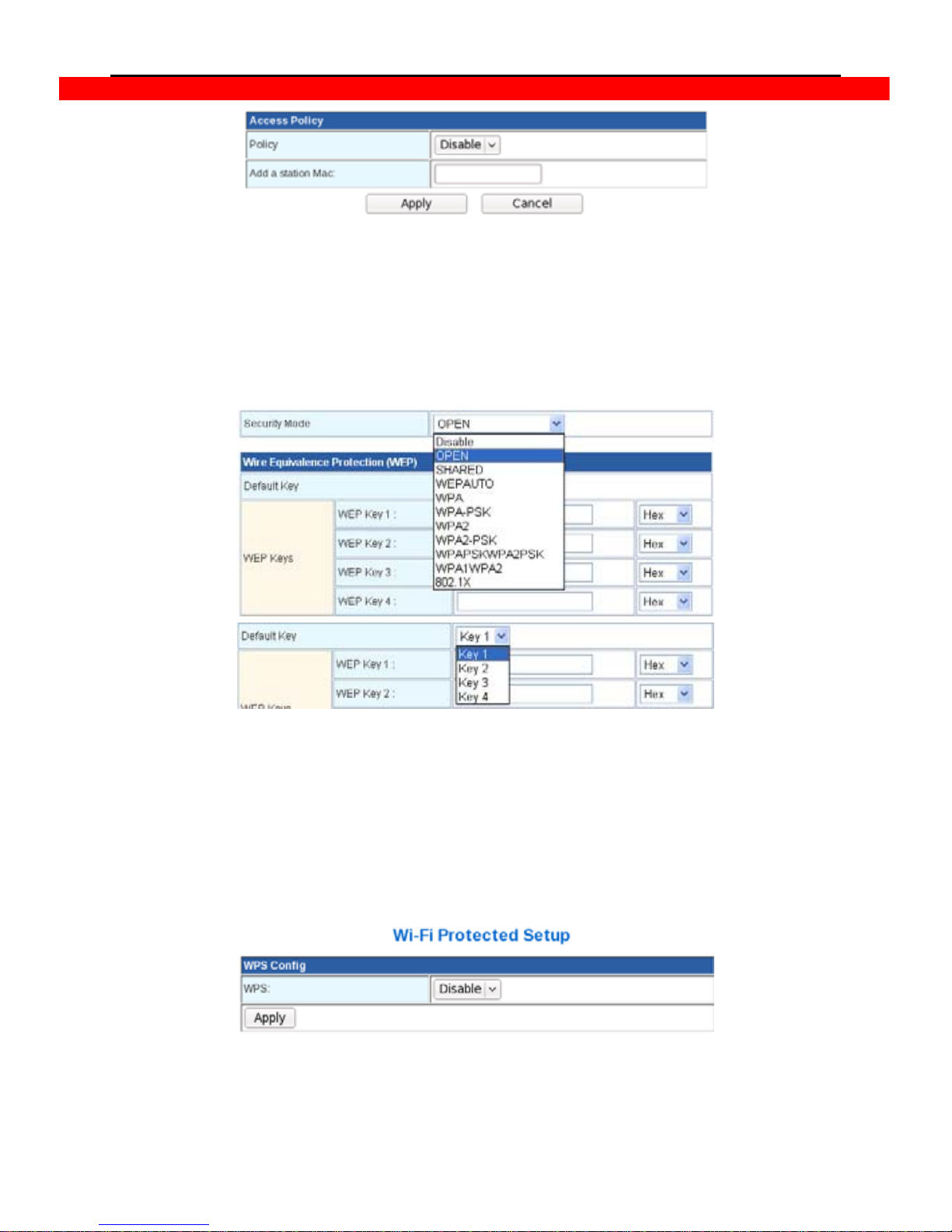

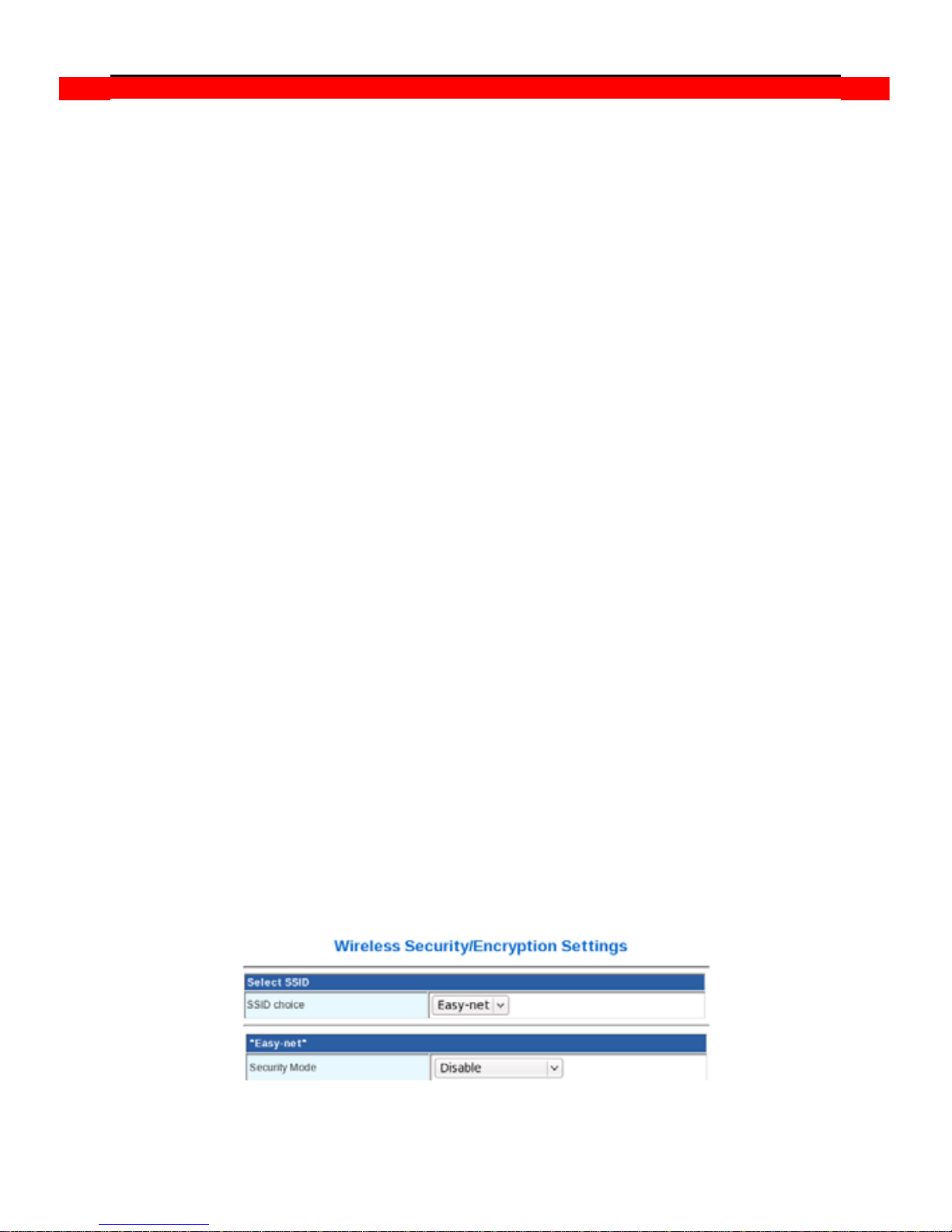

(2) Wireless Security Settings
In order to prohibit an unauthorized access or monitor to this router, it is
suggested than you should enable the wireless encryption function and
select a security mode to encrypt the wifi network. Before enabling the
encryption, please select the SSID you set.
14

Model: -MBD-R100H
This router manager could support many different security way. Some of
them can be set as group passwords, but you can not use the group
passwords at the same time. Herein it is suggested that you might modify
the passwords or security way in aperiodicity.
(3) WPS and WDS
1) WPS is a quick setting for wireless network. Usually there’re two working
mode, PIN and PBC.
15

Model: -MBD-R100H
a. PIN Mode
This mode used in creating connection by input generated PIN code of the
router

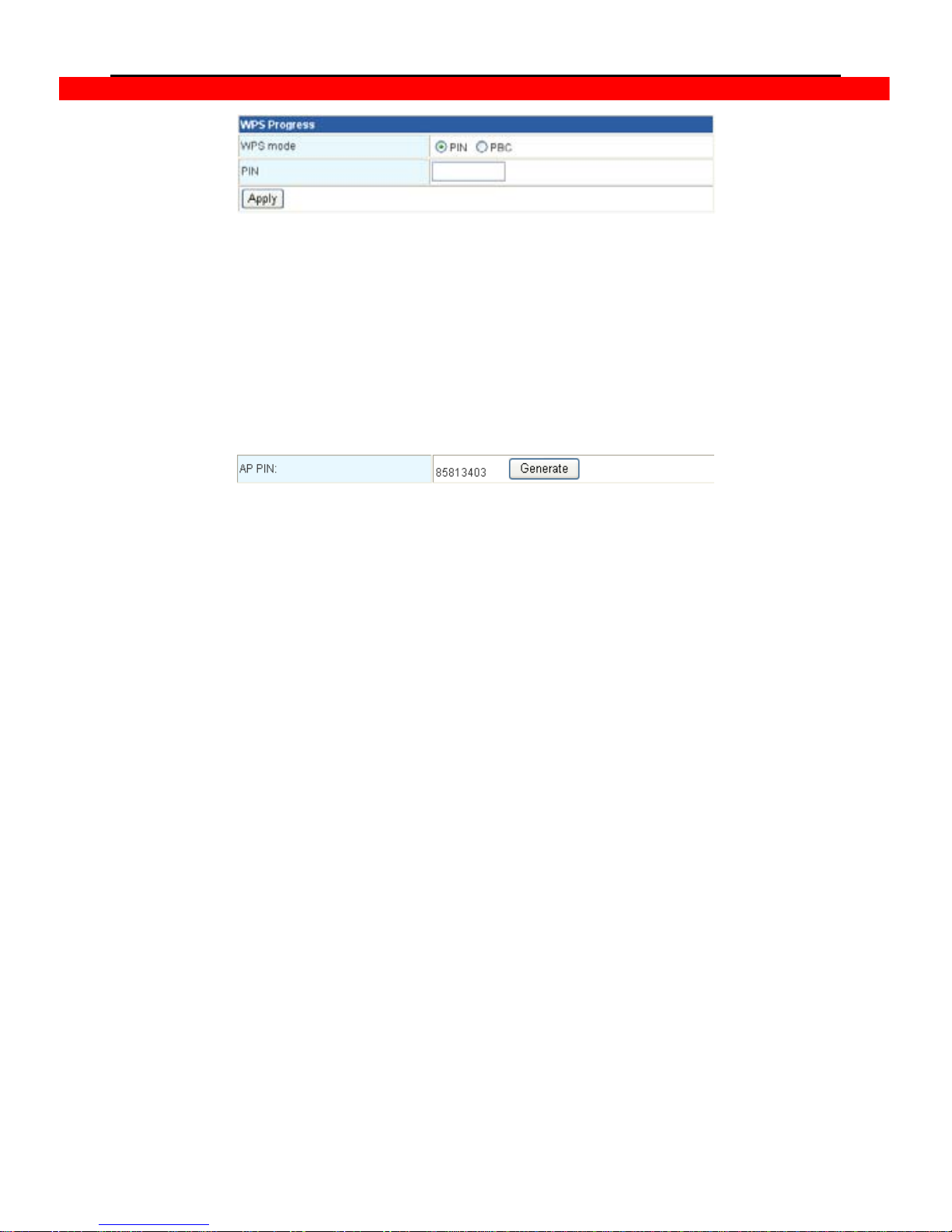

First step: choose PIN mode, set down PIN code of the router, also can
click <Generate> and generate new PIN code. As shown follow:
Second step: Open the network card software, choose PIN code to
connect, and waiting for connecting after enter into the PIN code.
b. PBC Mode
This mode used in creating connection between router and network card by
press the button.
First step: choose PBC mode, press the WPS button on network card,
searching Wi-Fi signal.
Second step: press WPS button on router, and waiting for connection.
2) WDS means Wireless Distribution System, which can enlarge the
coverage area of Wi-Fi signal. The function setting of WDS has main router
and sub-router. Main router connects internet and Sub-router Bridge the
main router so that enlarge the main router Wi-Fi signal. When the function
of WDS set successful, either the main router or LAN/WAM on the
sub-router or several ways of Wi-Fi can connect internet.
16

Model: -MBD-R100H
For example:
Note: maintain the parameter such as Wi-Fi channel, SSID, password be
the same, when you set up the main router and sub-router.
a. Main router IP address: 192.168.0.1, enable DHCP, (shown as follows)
select “repeat mode” on WDS mode, and fill sub-router MAC. (Shown as
follows)
b. Sub-router IP address: 192.168.0.2, shut down DHCP (shown as
follows), select “Repeat mode” on WDS mode, and fill main router MAC.
(Shown as follows)
c. Other sub router, such as: Set up sub-n IP address: 192.168.0.n…

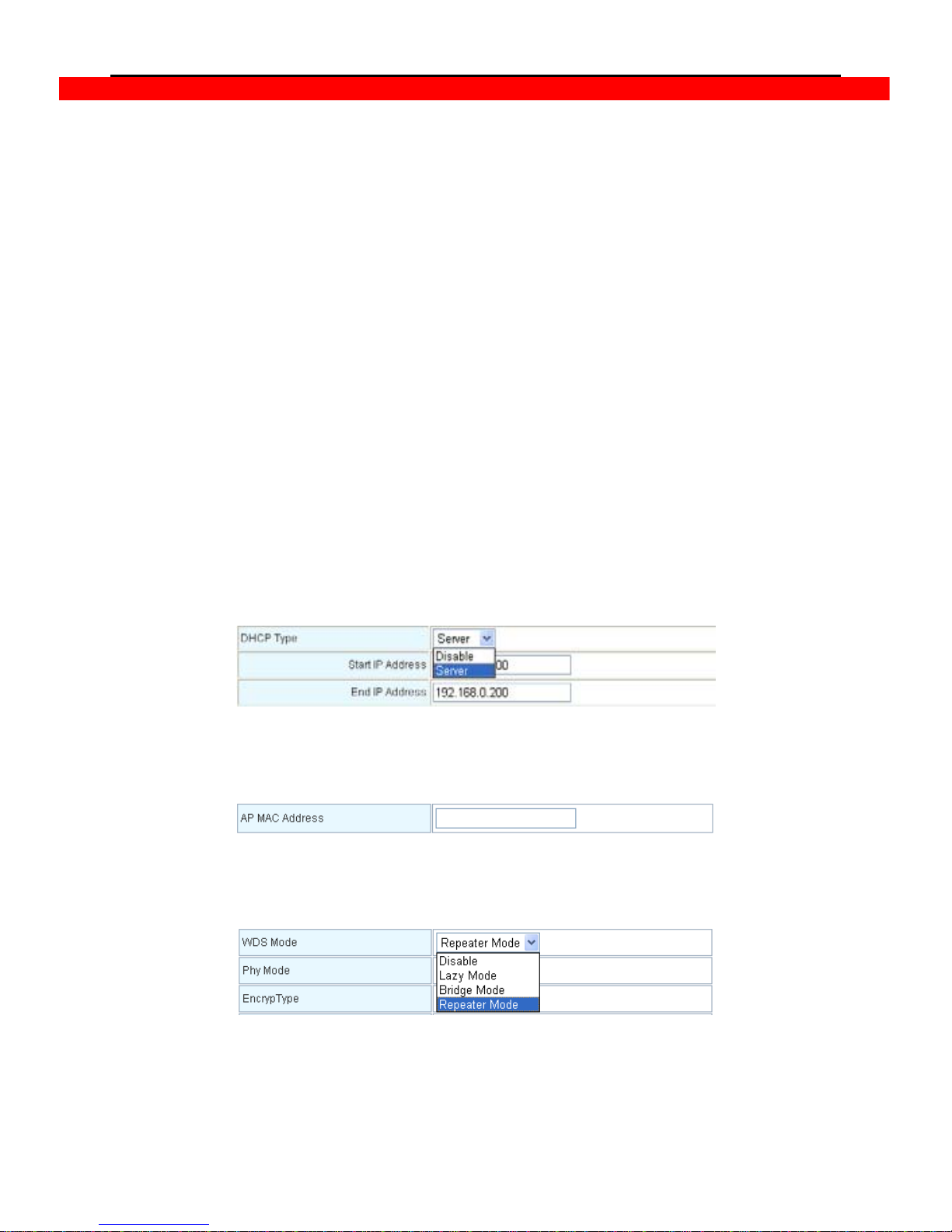

d. DHCP Open and Close: Access “Internet Settings”->”LAN”, open
“Server”, and shut down “Disable”.
e. Set up main and sub-router MAC：Access “Wireless Setting”->“WDS”,
shown as follows:
f. Router WDS mode selection, shown as follows:
g. Disable: shut down the function of router WDS
h. Lazy Mode: the main router need not set up sub-router MAC, sub-router
17

Model: -MBD-R100H
set up the main router MAC only
i. Bridge Mode: this mode can be adopted by sub-router only, and enter
into main router MAC
l. Repeater Mode: main router connects Internet, and enters sub-router
MAC; sub-router enters into the main router MAC.
Remarks:
¾When the connection succeed, you can connect by LAN/WAN or
Wi-Fi three modes is belong to the same LAN network, and IP
address will be distributed by main router
3.2.4 System security

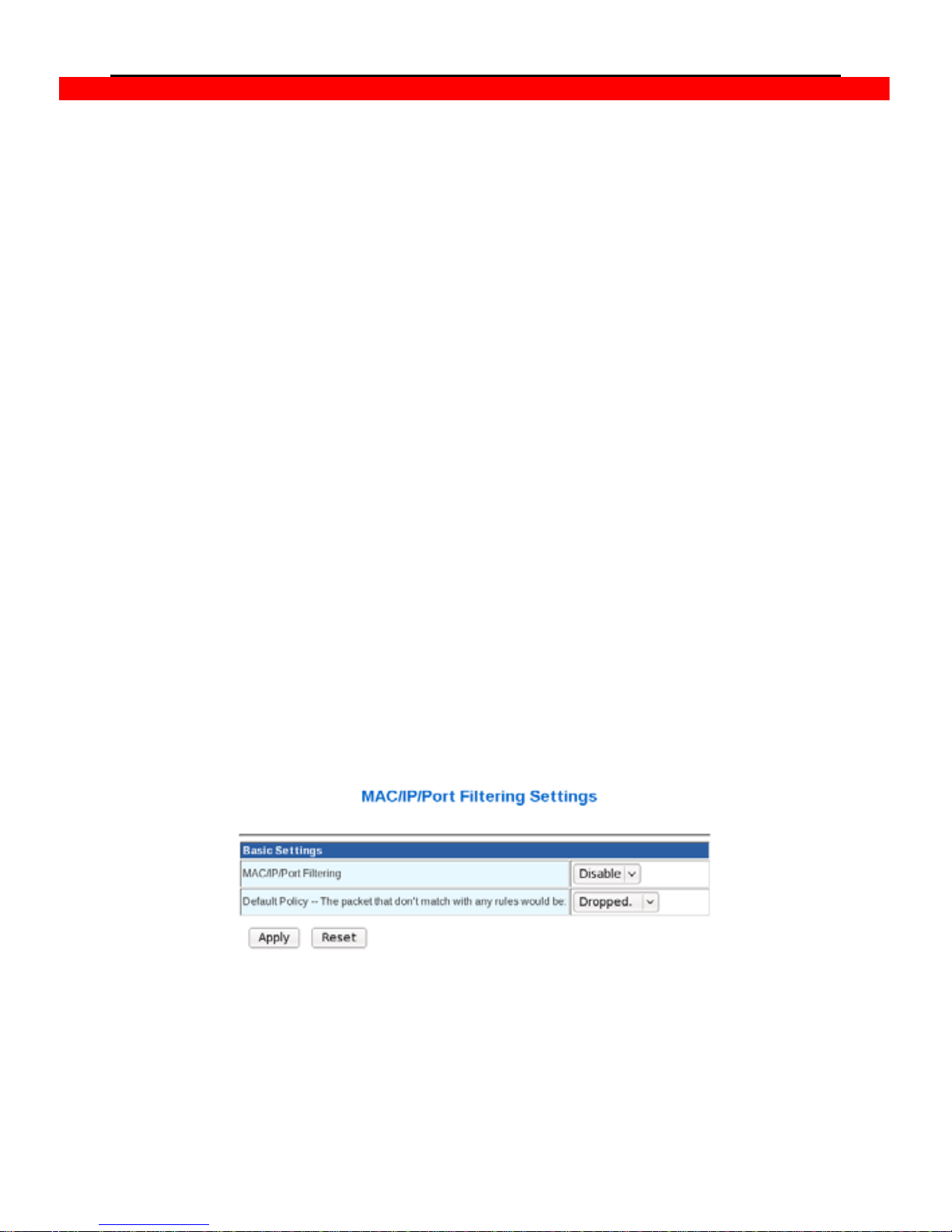

(1) MAC/IP/Port Filtering
Before setting you need to enable MAC/IP/Port Filtering function and
select a filtering policy.
18

Model: -MBD-R100H
Remarks:
¾Only choose one of the ways from IP address bar and MAC address
bar, can not fill it at the same time.
¾Source IP address: the computer IP address is controlled in LAN
network, if none it means all computer of LAN.
¾Destination IP address: IP address of WAN, stand for the whole WAN
network if the text is empty
¾Destination port: WAN control computer IP address for
corresponding port server and input ports or port range
For example:

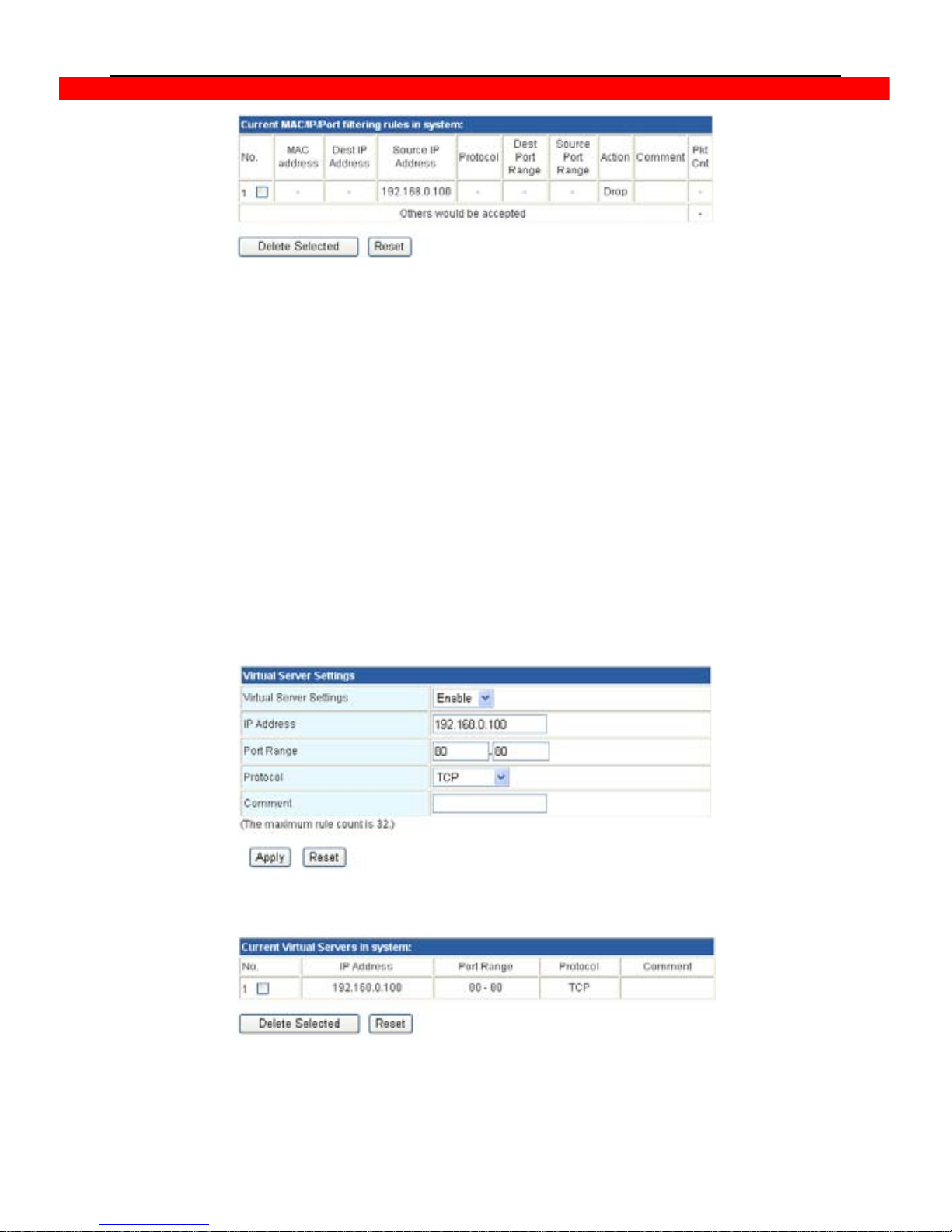

Forbidding IP 192.168.0.100 on the internet in computer
Enter 192.168.0.100 into IP address text box, after click <Apply>,
the forbidding IP address will be shown on the table, shown as follows:
19

Model: -MBD-R100H
The conditions of above demonstration: firewall choose “Enable”, filtering
rule choose “Dropped”, and the way of setting on MAC address and IP
address must be the same, the form is: “00:00:00:00:00:00”
(2) Port Forwarding
Enable the port service from one computer within the LAN, such as mail,
FTP and so on; public network can visit the service directly, the setting
shown as follows
Shown as follows when add up:
20
