Mobileeco ME-C70G User manual

3G/4G Industrial Modem
ME-C70G Manual
2013.09.14 ver 0.2

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™2/29
Contents
1 Introduction................................................................................................................................................ 4
1.1 Before you use............................................................................................................................. 4
1.2 Disclaimer.................................................................................................................................... 4
1.3 Checking Accessories ................................................................................................................. 5
1.4 Operating environment................................................................................................................ 5
2. Handing Precautions ................................................................................................................................ 6
2.1 About common............................................................................................................................. 6
2.2 About product............................................................................................................................... 6
2.3 About the SIM card ...................................................................................................................... 6
3. Before use of the product ......................................................................................................................... 7
3.1 Part names and functions............................................................................................................ 7
3.2 LED Status display ...................................................................................................................... 8
3.3 Mounting / Removing the SIM card............................................................................................. 9
3.3.1 Mounting.............................................................................................................................. 9
3.3.2 Removing ............................................................................................................................ 9
4.Settings................................................................................................................................................... 10
4.1 ME-C70G configuration Tool ..................................................................................................... 10
4.1.1Starting and logging configuration tool............................................................................... 10
4.1.2 About configuration tool..................................................................................................... 10
4.2 Easy Setup .................................................................................................................................11
4.3 Basic Information....................................................................................................................... 13
4.3.1 WAN Status....................................................................................................................... 13
4.3.3 Version Information ........................................................................................................... 13
4.4 Communication settings ............................................................................................................ 14
4.4.1 WAN.................................................................................................................................. 14
4.4.1.1 SIM Card Setting............................................................................................................ 14
4.4.1.2 Network Setup................................................................................................................ 17
4.4.1.3 Connection Setting......................................................................................................... 18
4.4.1.4 Profile Setting................................................................................................................. 18
4.4.2 Wireless LAN..................................................................................................................... 20
4.4.2.1 DHCP Settings ............................................................................................................... 20
4.4.2.2 VPN................................................................................................................................ 21
4.4.3 Firewall.............................................................................................................................. 21
4.4.4 NAT.................................................................................................................................... 22
4.4.4.1 Port Forwarding.............................................................................................................. 22
4.4.4.2 DMZ Setting ................................................................................................................... 22
4.5 System Configuration ................................................................................................................ 23
4.5.1 Password Change............................................................................................................. 23
4.5.2 Factory Default.................................................................................................................. 23
4.5.2.1 Factory Setting............................................................................................................... 23
4.5.2.2 Backup and Restore....................................................................................................... 24
4.5.3 Software Upgrade ............................................................................................................. 24
4.5.4 Re-booting the product...................................................................................................... 25
5. Trouble Guide ......................................................................................................................................... 26

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™3/29
5.1 Check point........................................................................................................................... 26
5.1.1 When it is connected via the LAN ..................................................................................... 26
5.1.2 When it is connected via the WLAN.................................................................................. 26
5.1.3 In case you can't connect to the internet........................................................................... 26
5.1.4 In case the data connection is not available. .................................................................... 26
6. Appendix................................................................................................................................................. 27
6.1 Main Feature......................................................................................................................... 27
7. Safety Precautions........................................................................................................................................ 29

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™4/29
1 Introduction
Thank you for purchasing 3G/4G Industrial Modem, please read this manual carefully and use
properly
1.1 Before you use
Because the product is using wireless, you cannot use it in some places that radio waves cannot reach
such as in tunnels, underground, the building, where the signal is weak or out of the service area.
Additionally, you may not be able to use it in even vantage point on the upper floors of high-rise
apartment buildings, etc.
If the radio wave condition is constantly worse, it may cause sudden communication interruption.
Communication may be interrupted even in the good radio wave condition. Please be forewarned.
Although the product has a high confidentiality, because it uses radio waves, we cannot sure that a third
party will not be able to intercept the communication. Please understand about it.
When the SIM card is not installed, you cannot use it
1.2 Disclaimer
We don’t take any responsibility for natural disaster such as earthquake, lightning, or any action by the
third. For damage caused intentionally, negligence, misuse, or by the use of under extraordinary
conditions, please understand in advance that there are not responsible.
Please note that we are not responsible for subsidiary disadvantages (changes in the information content
and loss, loss of business profits, business interruption, etc.) from using or unable to use
For damages or losses caused by not reading the manual, please understand that we are not responsible.
For damages by malfunction because of combination with specified device or software, please note that
we are not responsible
There may be lost or modification of primarily downloaded data as a result of repair or handling others,
but we are not responsible for that kind of data recovery or lost profits, damages.
The contents that are registered on your own is unable to guarantee regardless of the cause of failure or
fault. Please keep it in order to minimize the damage and loss due to changes in the information content,
if the content is important, such as taking a separate note

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™5/29
1.3 Checking Accessories
The package you have purchased contains the following items. Please check before you use
1.4 Operating environment
Explorer 10 is only compatible with Windows 8.
Safari 6 is only compatible with Mac OS 10.8.
Any other OS environments other than the above OS may not work.
We cannot guarantee whether or not operation for the upgrade of OS.
Support OS
Windows 8® 32bit/64bit
English
Windows 7® 32bit/64bit
English (Service Pack 1)
Windows Vista® 32bit/64bit
English (Service Pack 2)
Windows XP® 32bit
English (Service Pack 3)
Mac OS X 10.6～10.8
English
iOS
4.3 ～6.0
Android
2.2 ～4.1
Enabled browser
Internet Explorer
7 ～10
Safari
5 ～6
Firefox
14 ～15
Google Chrome
21

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™6/29
2. Handing Precautions
2.1 About common
Please wipe with a soft, dry cloth (such as wiping glasses).
- If you wipe with an alcohol, thinner, benzene, or detergents, printing might disappear or fade.
Please clean terminal sometimes with a dry cotton or swab.
- Poor terminal contact will cause the power off, please wipe with a dry cotton or swab. Also, be
careful not to damage the pin when cleaning
Please do not put close to the air conditioner vent.
- Condensation due to rapid temperature changes will cause damage to internal corrosion.
Please be sure not to put excessive force to the product.
Do not put in a bag packed with many things. If you sit on the product, it may damage the internal -
infrastructure, and the cause of the failure.
2.2 About product
Please avoid extreme hot or cold environment, humid, direct sunlight, and dusty places.
Don’t use the product near your phone, radio, or television. It can cause an adverse effect, should be
used in remote locations as possible.
Do not drop the product, please do not give it a shock. It may cause malfunction or damage
During use, if the product becomes warm, but it is not a trouble. Keep use it.
Day of rain and snow, if you intend to use in a location exposed to moisture, do not expose to water. The
product is not waterproof specification.
2.3 About the SIM card
While the removal / installation of the SIM card, please do not put unnecessary force.
Metal surface (IC part) should always be clean.
Please wipe with a soft, dry cloth (such as wiping glasses).
Do not damage the IC, or do not touch it carelessly, and please do not cause a short-circuit。
- It may cause data loss or malfunction
Do not drop the SIM card, and please do not give a impact.
- It will cause loss of data or damage.
Do not bend the SIM card, please do not place heavy objects on it.
- It may cause data loss or malfunction
Please do not install a SIM card to the product with the labels or stickers attached on it,.
-It will cause loss of data or damage
.

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™7/29
1
3. Before use of the product
3.1 Part names and functions
Name
Function
①The LED status lamp
It displays the status of the product. Please refer to behind page [Display of
the LED status lamp] for more details.
②Power Connector
Connects Power Adaptor
③LAN Cable Connector
Connects the LAN cable.
④SIM Card Slot
The SIM card is inserted.

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™8/29
3.2 LED Status display
The display of the LED status lamp
Represents the reception level of the 3G, LTE network: Network status
LED Status Display
State of the product
Flashing Blue
(3G. LTE)
Out of the range
SIM card not inserted
Connect failure
PIN lock, PIN Block
Waiting for PIN input
Network Connecting
3G LED Blue
Use 3G Network
LTE LED Blue
Use LTE Network
Represents the connection status of LAN equipment: LAN status。
LED Status Display
State of the product
Flashing Blue
Preparing a wireless LAN
Blue
LAN device is connected to one or more
Represents the Power Status
LED Status Display
State of the product
Blue
Power On
Off
Power Off

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™9/29
3.3 Mounting / Removing the SIM card
SIM cards are IC card information, such as your phone number, has been recorded. Please install the SIM
card into the product in order to use the product. If you do not install to the product, you are unable to use
data communications
3.3.1 Mounting
①Open the SIM card cover, make sure that IC part should be upside, insert it in the direction of
the arrow. Please insert the SIM card until it makes the click.
②Close the SIM card cover
3.3.2 Removing
①Open the SIM card cover, press and release the SIM card until you hear a click, SIM card comes out a
little.
②Pull in the direction of the arrow and remove SIM card.
③Close the SIM card cover.
④Please do not touch IC part of SIM card and do not scratch.
⑤Do not install or remove SIM card by force. It may cause damage.
⑥It will cause damage if you insert a SIM card in the opposite direction.
⑦Do not install or remove the SIM card when the product is power ON. It may cause damage.

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™10/29
4. Settings

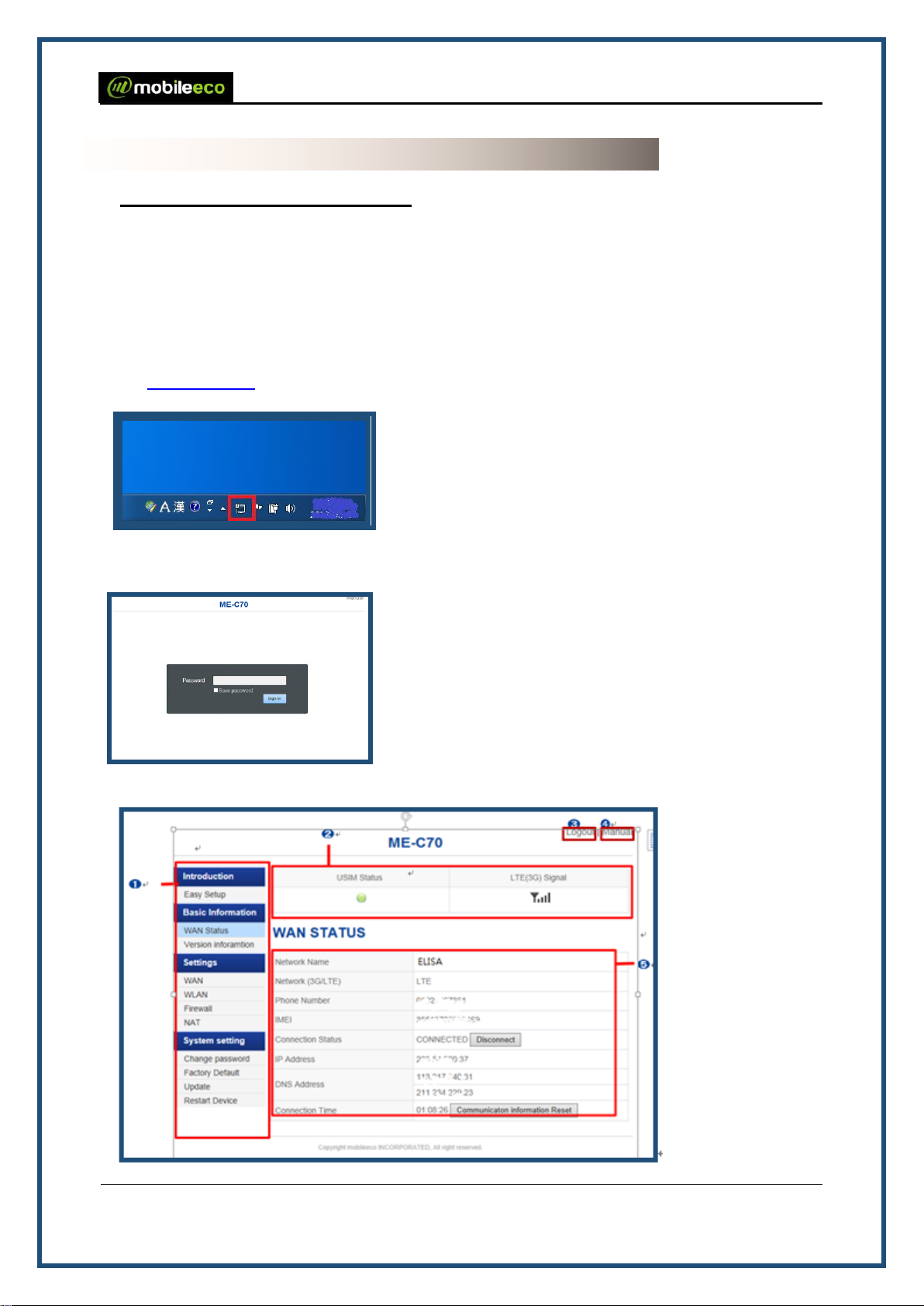

4.1 ME-C70G configuration Tool
It is possible to access to set a setting value for the product using the Web browser of the connected device.
4.1.1Starting and logging configuration tool
①Connect the PC to the ME-C70G using the LAN cable and power on the ME-C70G.
②When the connection is well done, you can see the icon on your computer like below.
③Enter http://192.255.1 in the address field in the browser.
④When the login screen appears like below, input the password, which the default value is “1234”.
4.1.2 About configuration tool

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™11/29
①Setup Menu ：When it is clicked each of item, it will display to setup the product
②State of the product ：Displays the status of the product.
③Logout ：Click to logout icon and will be closed the configuration tool.
④Manual ：Click a manual icon you can download the manual from the configuration tool.
⑤Setting ：Display the current Network name, Network type, IMEI, IP/ DNS address and total
connection time
4.2 Easy Setup
After purchasing the product, settings will be displayed after logging in the Configuration Tool. You can do
the necessary settings through Easy setting. Setting information can be modified through Easy setting.
①In step 1, set the profile information of the product. After entering the connection information of the SIM
card, click the "Next" button. Please refer to the user manual of the SIM card information on your SIM
card connection
Item
Description
State of SIM
Valid SIM card is inserted。
SIM card need not be inserted, SIM card is inserted invalid, the input of the PIN
code is required to enter the PIN lock or unlock code.
Signal Level
「Low」「High」
Items
Description
setting
Initial
value
Profile name
Enter the name of profile name
Up to 50 alphanumeric characters
(, " : ; \\ < > & except)
No
Username
Enter the username that was provided from
network provider
Up to 64 single-byte characters
(, " : ; \\ < > & except)
No

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™12/29
②In step 2, change the login password with the configuration tool of the product. Click "skip" button if
there is no need to change or if you want to change the settings, enter the configuration settings, then
click "Next" button.
③In step 3, check the overall setting information. After that, save the settings by clicking on the "Setting is
completed" button
Password
Enter the password that was provided from
network provider
Up to 64 single-byte characters
(, " : ; \\ < > & except)
No
APN
Enter the APN that was provided from network
provider.
Up to 100 single-byte characters
(, " : ; \\ < > & except)
No
Authentication
method
Select an authentication method that was
provided from network provider.。
PAP
CHAP
PAP

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™13/29
4.3 Basic Information
You can check the state of the ME-C70G such as the network name, the IP address, the product version, etc
4.3.1 WAN Status
It indicates about the state of the Internet.
Items
Description
Network Name
Connected operator name will be displayed
Network (3G/4G)
Connected network architecture will be displayed
Phone number
Phone number registered in the SIM card will be displayed
IMEI
IMEI of the product will be displayed
IP address
IP address assigned by the network will be displayed
DNS server
Primary and secondary DNS address assigned by network will be displayed
Connection time
Network connection cumulative time from power ON will be displayed
4.3.3 Version Information
It displays a Software version of the product and model name

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™14/29
4.4 Communication settings
This chapter explains how to make setting for internet connection.
4.4.1 WAN
You have to do the settings for Internet connection following by service provider.
4.4.1.1 SIM Card Setting
Setting for the SIM Card you are using. If you enter the wrong PIN three times, you need PIN unlock code.
For PIN unlock code, please contact the operator or agent.
In case you want to use PIN Code, while the PIN Code is being Disable
Items
Description
Software version
Display the software version of the product..
Model name
ME-C51Gis the model name of the product.
Setting Items
Description
Setting Value
Initial Value
PIN Code Status
The status of the PIN Code of the SIM Card in use
will be displayed
-
Disable
PIN Code Operation
Enable/Disable/Change the PIN Code of the SIM
Card in use
Enable
Enable
Current PIN Code
Input the PIN Code of the SIM Card in use.
4～8 Digits
No
Remaining numbers to
input PIN Code
The remaining trial numbers of PIN Code will be
displayed.
-
3

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™15/29
In case you want to unlock the PIN Code, while the PIN Code is being enabled
In case of changing the PIN Code, while the PIN Code is being enabled
Setting Items
Description
Setting Value
Initial Value
PIN Code Status
The status of the PIN Code of the SIM Card in use
will be displayed
-
Enable
PIN Code Operation
Enable/Disable/Change the PIN Code of the SIM
Card in use
Certify
Certify
Current PIN Code
Input the PIN Code of the SIM Card in use.
4～8 Digits
No
Remaining numbers to
input PIN Code
The remaining trial numbers of PIN Code will be
displayed.
-
3

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™16/29
In case of unlocking PIN Code, while the PIN Code is being Blocked.
Setting Items
Description
Setting Value
Initial Value
PIN Unlock code
(PUK Code)
Input PUK Code to unlock the locked PIN
Code of the SIM Card in use
8 Digits
No
New PIN Code
Input the new PIN Code
4～8 Digits
No
New PIN Code
Confirmation
Re-input the new PIN Code for
confirmation
4～8 Digits
No
Remaining numbers to input
PIN Code
The remaining trial numbers of unlocking
the PIN Code will be displayed.
-
10
Setting Items
Description
Setting Value
Initial
Value
PIN Code Status
The status of the PIN Code of the SIM Card in use will be
displayed
-
Enable
PIN Code Operation
Enable/Disable/Change the PIN Code of the SIM Card
in use
Change
Disable
Current PIN Code
Input the PIN Code of the SIM Card in use.
4～8 Digits
No
New PIN Code
Input the new PIN Code of the SIM Card in use
4～8 Digits
No
New PIN Code
Confirmation
Re-input the new PIN Code of the SIM Card in use for
confirmation
4～8 Digits
No
Remaining numbers
to input PIN Code
The remaining trial numbers of PIN Code will be
displayed.
-
3

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™17/29
For PIN Code/PIN Unlock Code, please enter the proper numbers specified from the operator
Make sure to keep PIN Code/PIN Unlock Code in secret
Make sure not to use easy numbers such as your phone number or date of birth
If you input the wrong PIN Code 3 times, the PIN Code will be locked. In this case, contact your agency for more
information on PIN Unlock Code.
If you input the PIN Unlock Code (PUK Code) 10 times, the SIM Card will be completely locked. Inthiscase,
contactyouroperatorformoreinformation
4.4.1.2 Network Setup
Make settings for the network you are using
Setting Items
Description
Setting Value
Initial Value
Communication
Method
Set the communication method of the
network you want to use
Automatic /LTE Only
3G Only
Automatic

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™18/29
4.4.1.3 Connection Setting
Choose the profile to connect in profile list
If you change the settings of the profile list, the product will automatically restart.
After re-booting, check the connection between the pc and the product
4.4.1.4 Profile Setting
Configure the settings on the details of the connection information to use when to connect to the network. To
create the new profile, click new button. To edit the current profile, choose the profile you want to edit from the
profile list and click Edit button.
Setting Items
Description
Setting Value
Initial Value
Profile List
Choose the profile to connect to the
network
Maximum 10 units
(Simultaneously)
No

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™19/29
In case of creating the new profile
Fill in the blank below and click SAVE button to apply the settings
(The network provider might provide the setting values.)
In case of editing the current profile
Add/Modify each item of the current profile and click SAVE button to apply the settings
Items displayed
Description
Setting Value
Initial Value
Profile List
Choose the profile to use when connects to the
network
Maximum 10 profiles
No
Profile Name
The profile name of the currently selected profile is
displayed
-
No
Username
The username of the currently selected profile is
displayed
-
No
Password
The password of the currently selected profile is
displayed
-
No
APN
The APN of the currently selected profile appears
-
No
Authentication Method
The authentication method of the currently selected
profile is displayed
-
No
Setting Items
Description
Setting Value
Initial Value
Profile Name
Input the profile name
Up to 50 alphanumeric
Characters
(Except " : ; // < > &)
No
Username
Enter the username designated by the
operator
Up to 63 Characters
(Except " : ; // < > &)
No
Password
Enter the password designated by the
operator
Up to 63 Characters
(Except " : ; // < > &)
No

ME-C70G Industrial Modem Manual
Mobileeco. LTD,™20/29
4.4.2 Wireless LAN
Make settings for the wireless LAN function.
4.4.2.1 DHCP Settings
Make settings for DHCP
APN
Enter the APN designated by the operator
Up to 100 Characters
(Except " : ; // < > &)
No
Authentication
Method
Set the authentication method specified
from the operator
PAP
CHAP
PAP
Items
Description
Setting Value
Initial Value
IP Address
Configure the private IP Address of the
product
0.0.0.0 ～
255.255.255.255
192.168.255.1
Subnet Mask
Set the subnet mask of the product
0.0.0.0 ～
255.255.255.255
255.255.255.0
DHCP Server
Set DHCP Server
Enable / Disable
Enable
Start IP Address
Set the minimum value of the private IP
Address to the wireless LAN device
connected to the product
0.0.0.0 ～
255.255.255.255
192.168.255.20
End IP Address
Set the maximum value of the private IP
Address to the wireless LAN device
connected to the product
0.0.0.0 ～
255.255.255.255
192.168.255.40
DHCP Lease Time
(In seconds)
Set the lease time of IP Address assigned
to the wireless LAN device
120 ～2147483647
43200
DNS Setting
Set DNS Server Address
Auto / Manual
Auto
Primary DNS
Set IP Address of the primary DNS Server
0.0.0.0 ～
255.255.255.255
No
Secondary DNS
Set IP Address of the secondary DNS
Server
0.0.0.0 ～
255.255.255.255
No
