LevelOne WBR-6603 User manual

LevelOne
User Manual
Ver. 1.0
WBR-6603
150Mbps Wireless ADSL2+ Modem Router

2
Safety
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in the
instruction manual. The user could lose the authority to operate this equipment if an unauthorized
change or modification is made.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4) Consult the dealer or an experienced radio/TV technician for help.
CE Declaration of conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022
class B for ITE, the essential protection requirement of Council Directive 89/336/EEC on the
approximation of the laws of the Member States relating to electromagnetic compatibility.
CE Marking Warning
Hereby, Digital Data Communications, declares that this product (Model-no. WBR-6603) is in
compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
The CE-Declaration of Conformity can be downloaded at:
http://www.levelone.eu/support.php
The specification is subject to change without notice.

3
General Public License
This product incorporates open source code into the software and therefore falls under the guidelines
governed by the General Public License (GPL) agreement.
Adhering to the GPL requirements, the open source code and open source license for the source
code are available for free download at http://global.level1.com.
If you would like a copy of the GPL or other open source code in this software on a physical CD
medium, LevelOne (Digital Data Communications) offers to mail this CD to you upon request, for a
price of US$9.99 plus the cost of shipping.

4
Table of Content
TABLE OF CONTENT...............................................................................................................................................................4
1. INTRODUCTION................................................................................................................................................................5
USER MANUAL OVERVIEW .........................................................................................................................................................5
2. UNPACKING AND SETUP................................................................................................................................................6
FEATURES ...................................................................................................................................................................................6
PACKAGE CONTENTS ..................................................................................................................................................................6
3. HARDWARE INSTALLATION........................................................................................................................................7
FRONT VIEW ...............................................................................................................................................................................7
REAR VIEW.................................................................................................................................................................................8
HARDWARE INSTALLATION STEPS...............................................................................................................................................9
4. CHECK YOUR NETWORK SETTINGS .......................................................................................................................10

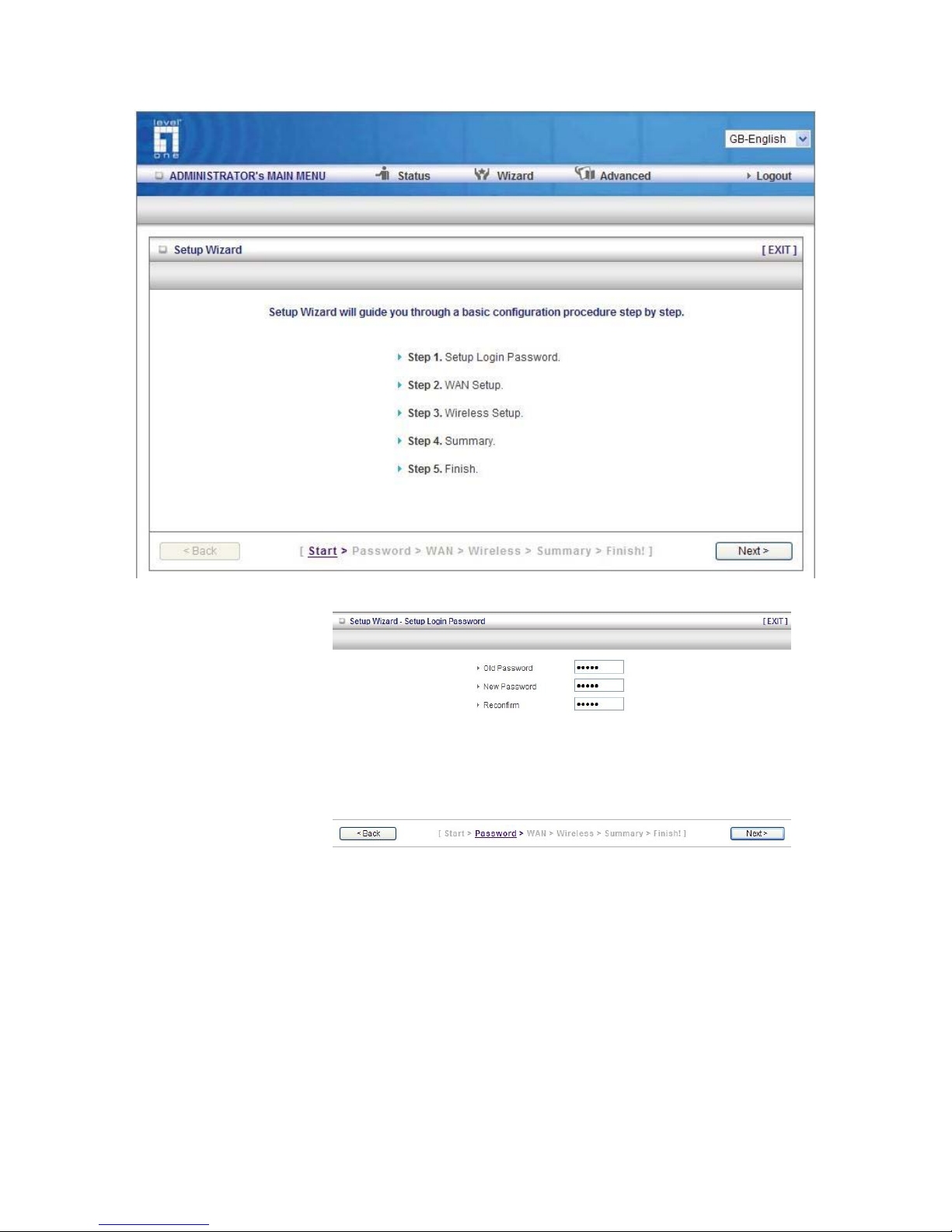

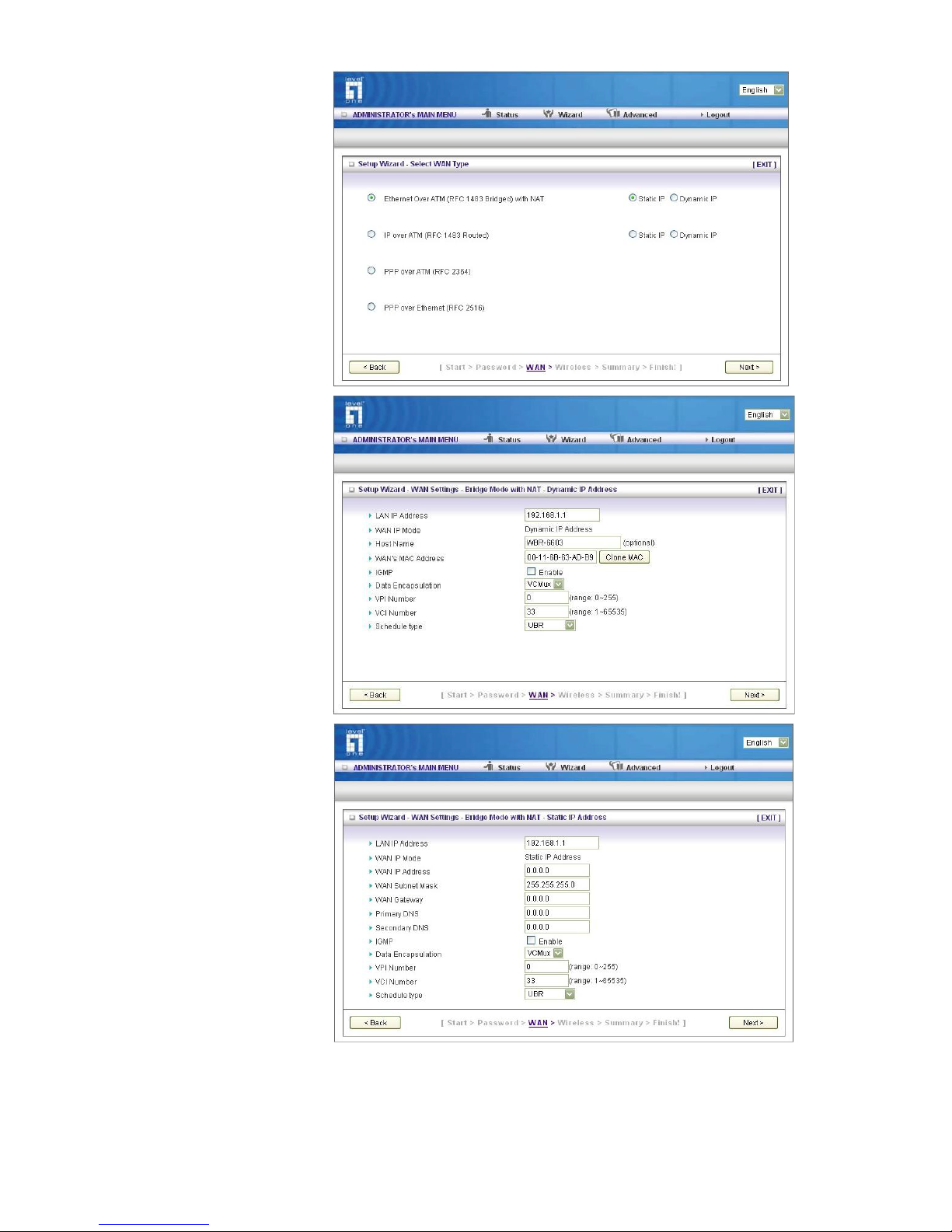

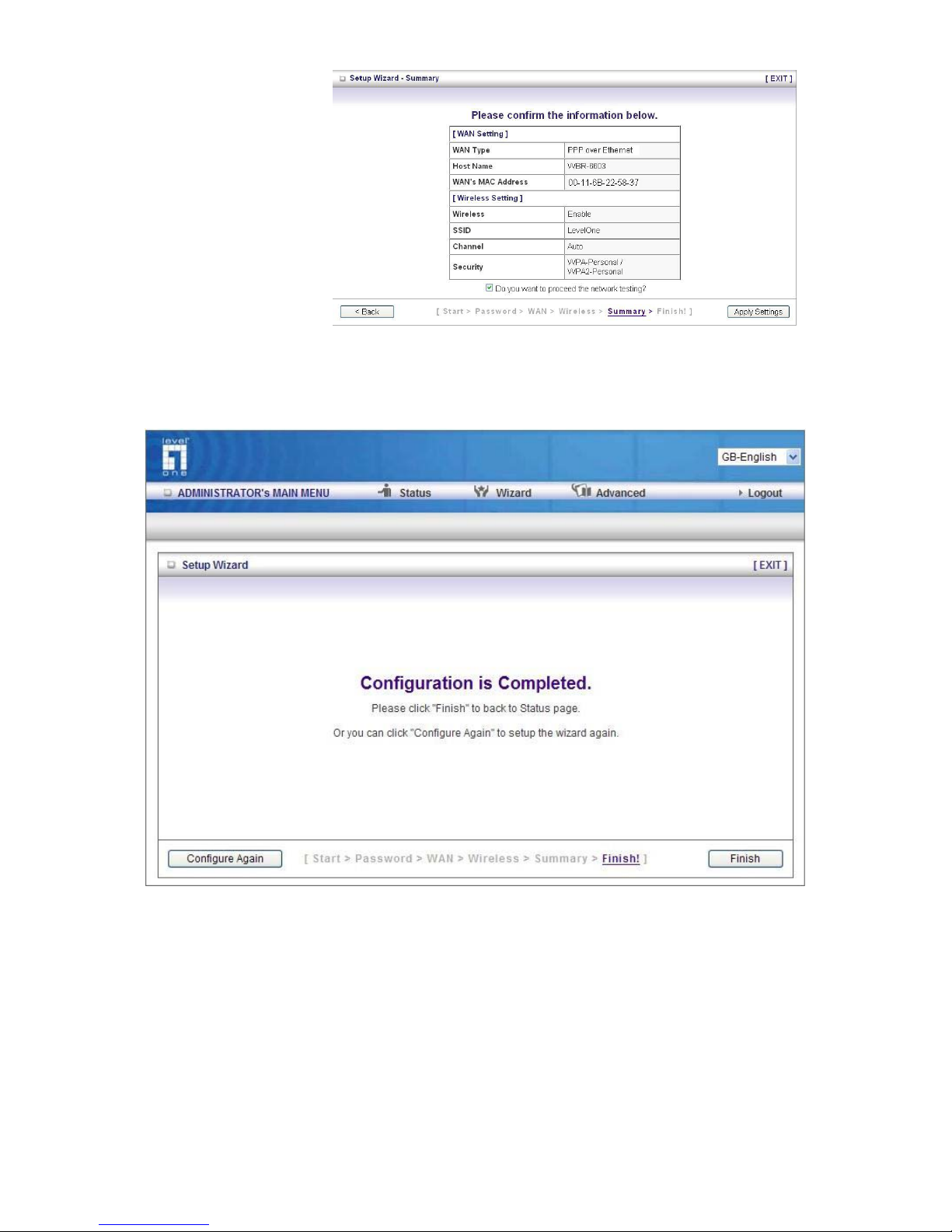

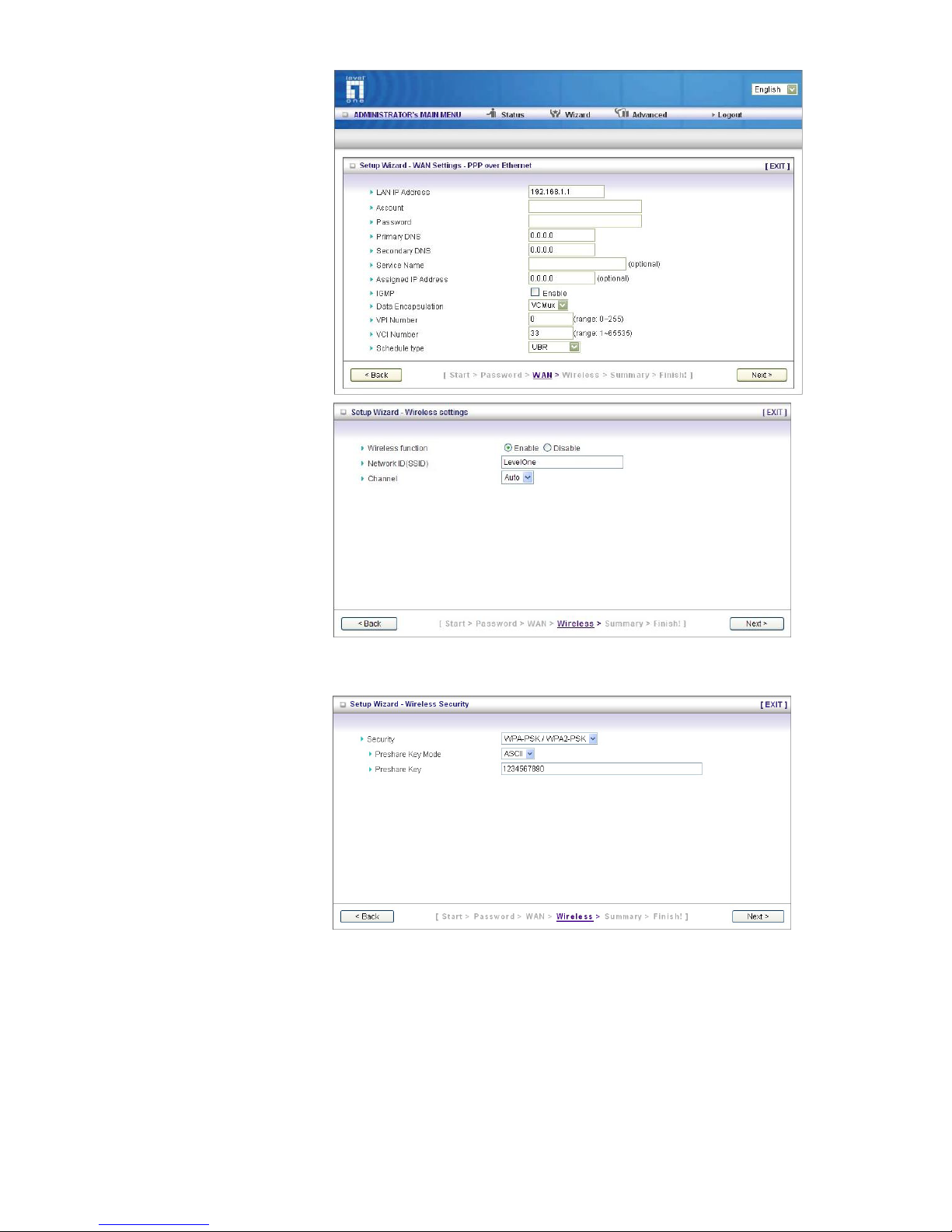

5. GETTING START.............................................................................................................................................................11

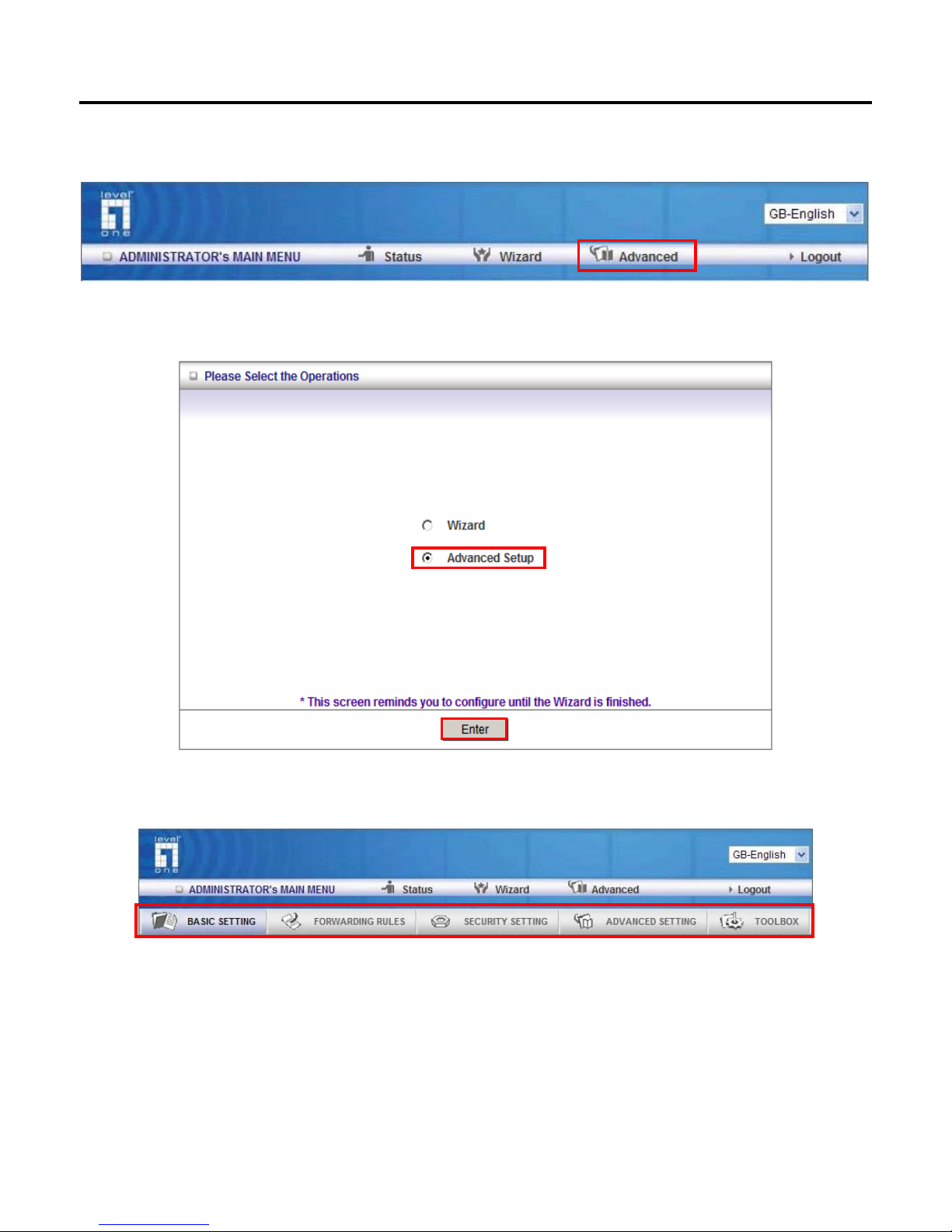

6. ADVANCED SETUP.........................................................................................................................................................17

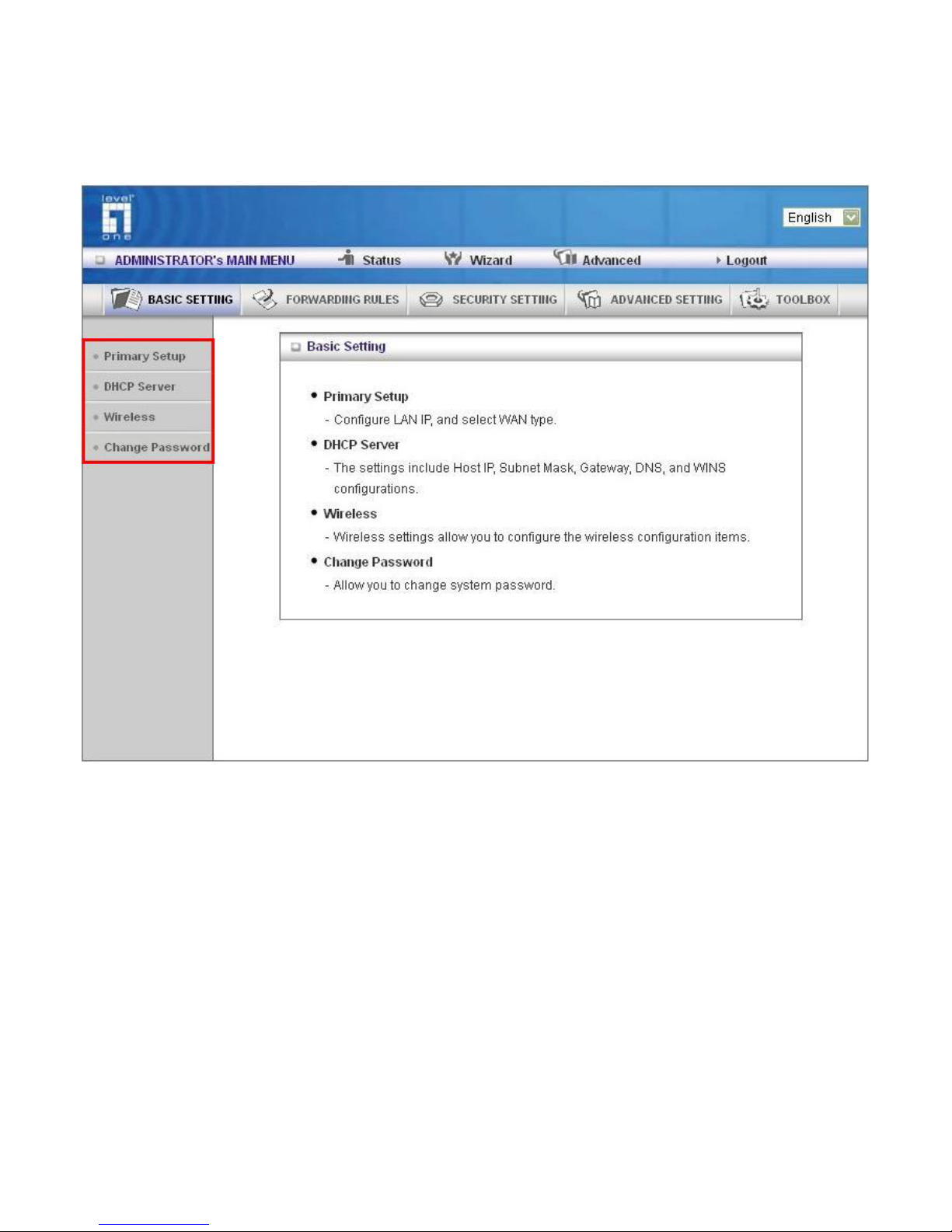

BASIC SETTING .........................................................................................................................................................................18

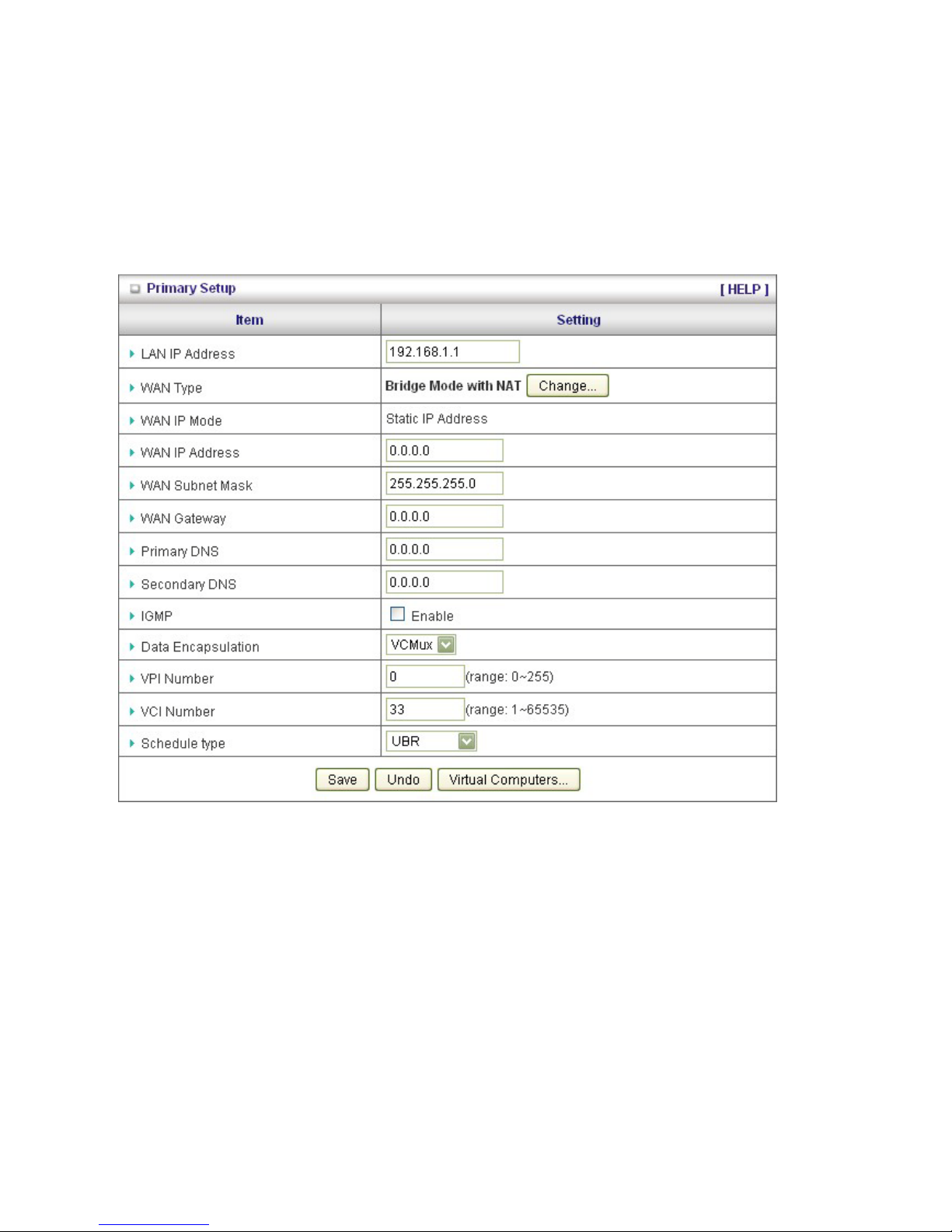

Primary Setup.......................................................................................................................................................................19
DHCP Server........................................................................................................................................................................27
Wireless Settings ..................................................................................................................................................................28
Change Password.................................................................................................................................................................38
FORWARDING RULES ................................................................................................................................................................39
Virtual Server.......................................................................................................................................................................40
Special AP............................................................................................................................................................................41
Miscellaneous.......................................................................................................................................................................42
Packet Filter.........................................................................................................................................................................44
Packet Filter.........................................................................................................................................................................44
Domain Filter.......................................................................................................................................................................49
URL Blocking.......................................................................................................................................................................50
MAC Control........................................................................................................................................................................51
Miscellaneous.......................................................................................................................................................................53
System Time..........................................................................................................................................................................55
System Log ...........................................................................................................................................................................56
Dynamic DNS.......................................................................................................................................................................57
SNMP Setting .......................................................................................................................................................................58
Routing.................................................................................................................................................................................59
Schedule Rule.......................................................................................................................................................................61
Toolbox.................................................................................................................................................................................63
View Log...............................................................................................................................................................................64
Firmware Upgrade...............................................................................................................................................................65
Backup Setting......................................................................................................................................................................65
Reset to Default....................................................................................................................................................................65
Reboot ..................................................................................................................................................................................65
Miscellaneous.......................................................................................................................................................................66
TECHNICAL SPECIFICATIONS...........................................................................................................................................76
Default Settings
IP Address
192.168.1.1
Password
admin
Wireless Mode
Enable
Wireless SSID
LevelOne
Wireless Security
None

5
1. Introduction
Congratulations on your purchase of LevelOne WBR-6603 150Mbps Wireless ADSL2+ Modem
Router. This product is specifically designed for Small Office and Home Office needs. It provides a
complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-
technical users.
Instructions for installing and configuring this product can be found in this manual. Before you install
and use this product, please read the manual carefully for fully exploiting the functions of this product.
User Manual Overview
Introduction Describes the 150Mbps Wireless ADSL2+ Modem Router.
Unpacking and Setup
Helps user to get started with the basic installation of the 150Mbps
Wireless ADSL2+ Modem Router.
Hardware Installation
Describes the LED indicators of the 150Mbps Wireless ADSL2+
Modem Router.
Configuration Describes the functionalities and its settings.
Technical Specifications Lists the technical (general, physical and environmental)
specifications of the 150Mbps Wireless ADSL2+ Modem Router.

6
2. Unpacking and Setup
This chapter provides the package contents and setup information for the 150Mbps Wireless ADSL2+
Modem Router.
Features
Integrates 4-Port 10/100Mbps Fast Ethernet Switch with Auto-MDI/MDIX
Compatible with IEEE 802.11n standard and up to 150Mbps data rates
Allows several users to access Internet through Network Address Translation (NAT, IP sharing)
simultaneously
Supports wireless signal On / Off button
Simple Wireless Security with one-push WPS button
Supports Internet access control (URL Blocking, MAC Filtering)
Supports multiple sessions IPSec, L2TP and PPTP VPN pass-through
Package Contents
Open the box of the 150Mbps Wireless ADSL2+ Modem Router and carefully unpack it. The box
should contain the following items:
-WBR-6603
-Power Adapter
-RJ-11 ADSL/ Telephone Cable
-RJ-45 LAN Ethernet Cable
-CD Manual/QIG
-Quick Installation Guide
If any item is found missing or damaged, please contact your local reseller for replacement.

7
3. Hardware Installation
Front View
1) Status
•A steady blinking light indicates the device is ready
2) ADSL
•A solid light indicates the ADSL port is connected.
3) WLAN
•A solid light indicates the Wireless LAN is turned on and ready for use.
•Off indicates Wireless LAN is turned off.
•LED blinks during wireless data transmission.
•Steady blinking indicates WPS function is activated and the router is pairing with wireless client.
4) LAN Lights
•A solid light indicates to an Ethernet enable computer on ports 1 ~ 4.
•LED blinks during data transmission.
5) Wireless On/Off Button
•Press and hold for 3 seconds to turn the Wireless LAN on or off.
•Please confirm WLAN status as indicated by WLAN Light
5) WPS Button
•It is Wi-Fi Protected Setup push button. Press and hold for 5 seconds to activate WPS pairing with
wireless client when WLAN is on.
Note: You can reset the device by pressing “Wireless on/off” and “WPS” button for 5 seconds
simultaneously.

8
Rear View
1) Antenna
2dBi fix antenna.
2) LAN Ports (1~4)
Connect Ethernet devices such as computers, switches or hubs.
3) DSL Port
The DSL port is the connection for the RJ-11 telephone cable to the ADSL terminator connection.
4) Power Jack
Receptor for the supplied power adapter

9
Hardware installation steps
Decide where to place your Wireless ADSL Router
You can place your Wireless ADSL Router on a desk or other flat surface. For optimal performance,
place your Wireless ADSL Router in the center of your office (or your home) in a location that is away
from any potential source of interference, such as a metal wall or microwave oven. This location must
be close to power and network connection.
Setup LAN connection
Wired LAN connection: Connect an Ethernet cable from your computer’s Ethernet port to one of
the LAN ports of the Wireless Router.
Wireless LAN connection: Locate the WBR-6603 at a proper position to gain the best transmit
performance.
3. Setup ADSL connection
Connect the supplied ADSL cable from to the ADSL port on the Wireless ADSL Router (the DSL
RJ11 connector) to the ADSL terminator provided by your phone company.
4. Power on
Connecting the power cord to power inlet and turning the power switch on, this product will
automatically enter the self-test phase. When it is in the self-test phase, the Status indicator will
be lighted ON, and the Status indicator will be continuously flashing once per second to indicate
that this product is in normal operation.

10
4. Check Your Network Settings
1. Please make sure your PC can get IP address automatically so the WBR-6603 can communicate
with your PC during configuration.
•Select “Control Panel” > “Network Connections”.
•Right click the “Local Area Connection” and choose “Properties”.
•Select the TCP/IP protocol for your network card.
•Click on the Properties button. You should then see the following screen and make sure you
have selected “Obtain IP address automatically”
2. Reboot computer to make sure you have received the IP address correctly.
