Mocka The Jimmy Organiser User manual

A B C D E F

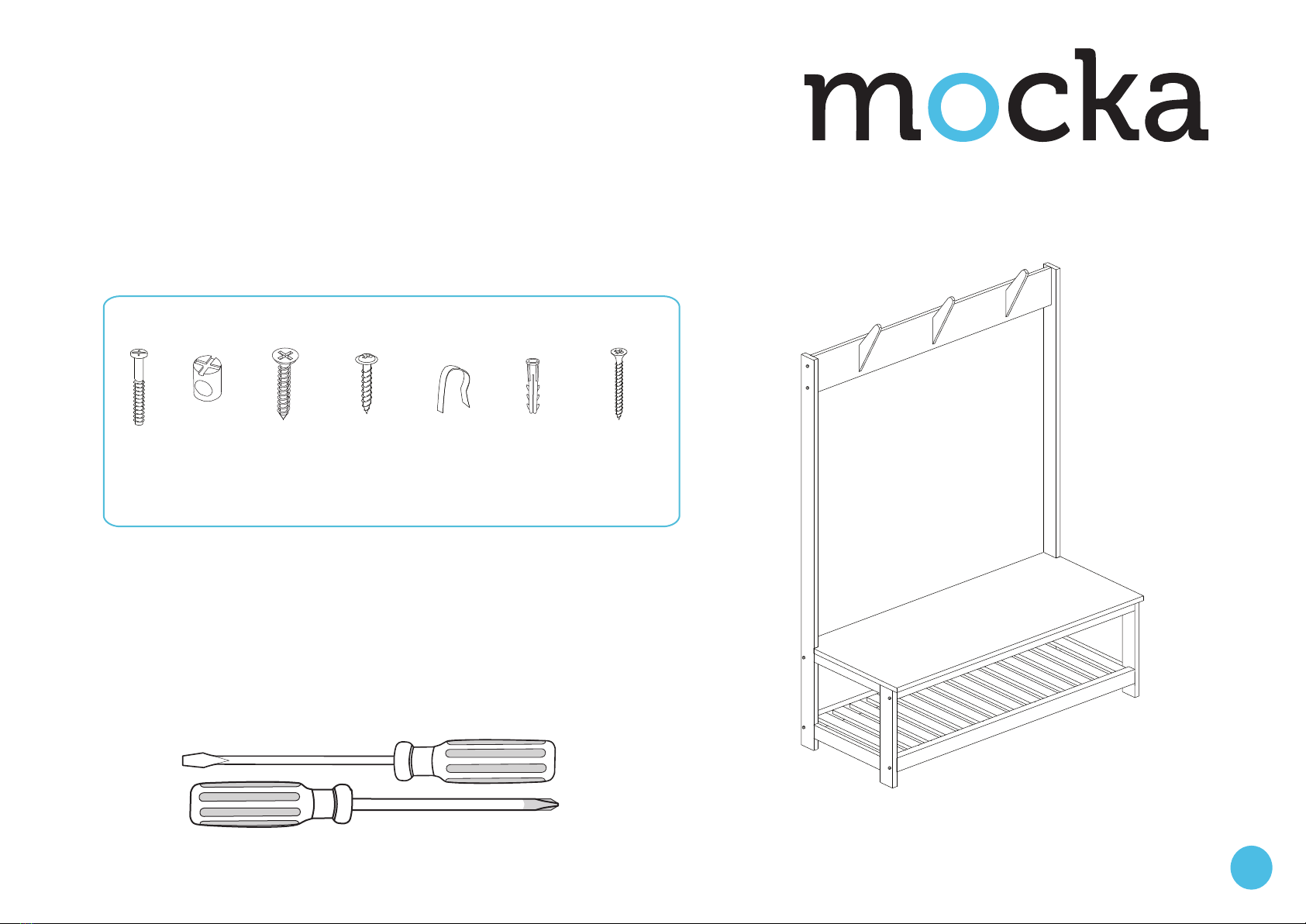

Hardware Supplied
screw
x6
bolt
nut x12
*We recommend using a Flathead screwdriver to tighten all bolt nuts 100% before first use.
Please clear any loose wood from the bolt nut holes before inserting the nut.
bolt
x12
safety
strap x1
r/washer
screw x1
screw
x1
wall
anchor x1
G
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a
free safety wall anchor with all furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those supplied.
Phillips & Flathead screwdrivers required
The Jimmy Organiser
1
mocka.co.nz | mocka.com.au
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.

12
Attach middle panels [1], [2] and [3] to side panels [4] and [5] with 12x
bolts (A). Secure with 12x bolt nuts (B) and tighten with a screwdriver.
Attach the three hook panels [6] to panel [3] with 6x screws (C). Tighten
with a screwdriver.
3
4
5
1
2
A
A
A
A
A
A
A
A
A
B
B
B
B
B
A
A
BC
C
C
6
6
6
3
A
The Jimmy Organiser
2
mocka.co.nz | mocka.com.au
Assembly Instructions

12
Attach middle panels [1], [2] and [3] to side panels [4] and [5] with 12x
bolts (A). Secure with 12x bolt nuts (B) and tighten with a screwdriver.
Attach the three hook panels [6] to panel [3] with 6x screws (C). Tighten
with a screwdriver.
3
4
5
1
2
A
A
A
A
A
A
A
A
A
B
B
B
B
B
A
A
BC
C
C
6
6
6
3
A
34
Attach 1x safety strap (E) to the back of panel [3] and secure with 1x
r/washer screw (D).
Move your Jimmy Organiser to the desired location against a wall.
Attach the other end of the safety strap (E) to the wall using 1x wall
anchor (F) and 1x screw (G). You’re done, enjoy!
E
D
E
D
G
3E
E
G
F
F
The Jimmy Organiser
3
mocka.co.nz | mocka.com.au
Assembly Instructions
