ModemSupply MS51p1 User manual

SINGLE-PORT ADSL2+ MODEM ROUTER w/Broadcom 6332 chipset
NOTICE
This document contains proprietary information protected by copyright. This manual and all
the accompanying hardware, software and documentation are copyrighted. All rights are
reserved.
Global411 Ventures LLC does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty or representation, either expressed
or implied, with respect to the quality, performance, merchantability, or fitness for a particular
purpose of the software or documentation. Global411 Ventures LLC reserves the right to
make changes to the hardware, software and documentation without notification of any
individual or organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2014
Global411 Ventures LLC
All rights reserved.
MS51p1 ADSL Router
User Manual

1
Introduction
The MS51P1 is a single port ADSL2+ access device that supports multiple line modes. The device provides high-speed
ADSL2+ broadband connection to the Internet or Intranet for high-end users. downlink up to 24 Mbps and uplink up to 1 Mbps.
Packing List
1 x MS51p1
1 x external splitter
1 x power adapter
1 x telephone cables (RJ11)
1 x Ethernet cable (RJ45)
Safety Precautions
Follow the following instructions to prevent the device from risks and damage caused by fire or electric power:
Use the power adapter packed within the device package.
Pay attention to the power load of the outlet or prolonged lines.An overburden power outlet or damaged lines and plugs
may cause electric shock or fire accident. Check the power cords regularly. If you find any damage, replace it at once.
Proper space left for heat dissipation is necessary to avoid damage caused by overheating to the device. The long and
thin holes on the device are designed for heat dissipation to ensure that the device works normally. Do not cover these
heat dissipation holes.
Do not put this device close to a place where a heat source exists or high temperature occurs. Avoid the device from
direct sunshine.
Do not put this device close to a place where it is over damp or watery. Do not spill any fluid on this device.
Do not connect this device to any external power source because any wrong connection may cause power or fire risk.
Do not place this device on an unstable surface or support.
System Requirements
Recommended system requirements are as follows:
A 10/100 base-T Ethernet card is installed on your PC
A hub or Switch. (connected to several PCs through one of Ethernet interfaces on the device)
Operating system: Windows 98SE, Windows 2000, Windows ME, Windows XP
Internet Explorer V8.0 or higher or Netscape / Firefox equivalent
Subscription forADSL service. Your ADSL service provider should provide you with at least one valid IP address (static
assignment or dynamic).
One or more computers, each containing an Ethernet 10/100M Base-T network interface card (NIC).
A hub or switch, if you are connecting the device to more than one (1) computer.

2
Features
Broadcom 6332
The device supports the following features:
ANSI T1.413 issue 2
VLAN tagging
Downstream: Up to 24Mbps
Max upstream speed: 1Mbps.
1483Briged/1483Routed/MER/IPoA access
Multiple PVCs (up to eight) and these PVCs can be isolated from each other
A single PVC with multiple sessions
Multiple PVCs with multiple sessions
802.1Q and 802.1P protocol
DHCP server
Rate Adaptive at 32 Kbps steps
Interoperable with all major DSLAM equipment
TR-069 compliant with ACS
ITU G.994.1 G.992.1(G.DMT) G.992.2(G.LITE)
ITU G.992.3(G.DMT.BIS)
ITU G.992.5
T1.413
PPPoE
PPPoA
IPoA
MER
BRIDGE mode
Operating Systems
All versions of Windows, Mac and Linux
ATM Capabilities
All ATM Connection
VPI Range: 0-255
VCI Range: 32-65535
AESA (E.164, DCC, ICD)
PVC Support, UNI 3.0 & 3.1 Signaling
Support AAL 5
Management Support
Web Based GUI 192.168.1.1
Upgrade or update via FTP/HTTP
Command Line Interface via Telnet
Diagnostic Test
Firmware upgradeable
Factory Defaults
IPAddress: 192.168.1.1
Subnet Mask: 255.255.255.0
Encapsulation: RFC 1483 LLC
VPI/VCI: 0/35 MER Bridge mode
Environmental
Operating humidity: 10%-90% non-condensing
Non-operating storage humidity: 5%-95% non-condensing

3
Hardware Installation
Front Panel
Step 1
Connect the DSL interface of the device and the Modem interface of the splitter through a telephone cable.
Connect the phone to the Phone interface of the splitter through a cable. Connect the incoming line to the Line
interface of the splitter
The splitter has three interfaces:
Line: Connect to a wall phone jack (RJ-11 jack).
Modem: Connect to the ADSL jack of the device.
Phone: Connect to a telephone set.
LED
Color
Function
PWR
Green
On: Power
Off: No power or system boot failed
DSL
Green
On: ADSL link established and active
Blinking: ADSL is trying to establish a connection
Off: No ADSL link
ACT
Green
Blinking: ADSL data activity occurs.
Off: No ADSL data is being sent or received.
LAN
Green
On: LAN link established and active
Blinking: ADSL data activity occurs.
Off: No LAN link.

4
Step 2 Connect the LAN interface of the device to the network card of the PC through an Ethernet cable (MDI/MDIX).
Note:
Use twisted-pair cables to connect with the hub or switch.
Step 3 Plug one end of the power adapter to the wall outlet and connect the other end to the Power interface of the device.
Installing a telephone directly before the splitter may lead to failure of connection between the device and the central office, or
failure of Internet access, or slow connection speed. If you really need to add a telephone set before the splitter, you must add
a microfilter before a telephone set. Do not connect several telephones before the splitter or connect several telephones with
the microfilter.
Port
Function
DSL
Connects the device to an ADSL telephone jack or splitter using a RJ-11
telephone cable
LAN
Connects the device to your PC's Ethernet port, or to the uplink port
on your hub/switch, using a RJ-45 cable
Reset
System reset or reset to factory defaults.
POWER
Connects to the supplied power adapter
Switches the unit on and off

5
Note: Without the splitter, transient noise from the telephone can interfere with the
operation of the ADSL router. As a result, the ADSL router may introduce noise to the
telephone line. To prevent this from happening, a small external splitter must be
connected to each telephone.
PC Configuration
Windows
1. In the Windows task bar, click the “Start” button, point to “Settings”, and then
click “Control Panel”.
2. Double-click the “Network” icon.
3. On the “Configuration” tab, select the TCP/IP network associated with your
network card and then click “Properties”.
4. In the “TCP/IP Properties” dialog box, click the “IP Address” tab. Set the IP
address as 192.168.1.2 and the subnet mask as 255.255.255.0.
5. On the “Gateway” tab, set a new gateway as 192.168.1.1, and then click “Add”.
6. Configure the “DNS” tab if necessary to 192.168.1.1, usually NOT needed.
7. Click “OK” twice to confirm and save your changes.
8. You will be prompted to restart Windows. Click “Yes”.
Access the Unit
After configuring the IP Address of you computer, power on the ADSL Router, and launch a
web browser and navigate to http://192.168.1.1 to log on to the setting pages.
Attention: the username admin and password adslroot are both lowercase.

6
Quick Setup
If there are no pre-configured PVCs in the router, you can find the Quick Setup option on the
left of router configuration page. The user can also delete the PVCs pre-configured to find the
option.
1. From home page, choose Quick Setup.
2. Deselect the check box to disable the DSL Auto-connect process. Set the VPI/VCI
value provided by your ISP.

7
a. PPP over Ethernet (PPPoE)
1. Select PPP over Ethernet (PPPoE) as connection type, and select
LLC/SNAP-BRIDGING as encapsulation mode.

8
3. Input the PPP Username & PPP Password and then click Next. The user interface
allows a maximum of 256 characters in the user name and a maximum of 32
characters in the password. Just remember to enable NAT and Firewall as shown
below.
4.
PPPoE service name can be blank unless your Internet Service Provider gives you a value
to enter.
Authentication method is default to Automatic. It is recommended that you leave the
Authentication method in Automatic, however, you may select PAP or CHAP if necessary.
The default value for MTU (Maximum Transmission Unit) is 1500 for PPPoA and 1492 for
PPPoE. Do not change these values unless your ISP asks you to.
The gateway can be configured to disconnect if there is no activity for a specific period of time
by selecting the Dial on demand check box and entering the Inactivity timeout. The entered
value must be between 1 minute and 4320 minutes.
The PPP IP Extension is a special feature deployed by some service providers. Unless your
service provider specifically requires this setup, do not select it. If you need to select it, the
PPP IP Extension supports the following conditions:
It allows only one computer on the LAN.
The public IP address assigned by the remote using the PPP/IPCP protocol is
actually not used on the WAN PPP interface. Instead, it is forwarded to the
computer's LAN interface through DHCP. Only one system on the LAN can be

9
connected to the remote, since the DHCP server within the ADSL gateway only
has a single IP address to assign to a LAN device.
NAPT and firewall are disabled when this option is selected.
The gateway becomes the default gateway and DNS server to the computer
through DHCP using the LAN interface IP address.
The gateway extends the IP subnet at the remote service provider to the LAN
computer. That is, the PC becomes a host belonging to the same IP subnet.
The ADSL gateway bridges the IP packets between WAN and LAN ports, unless
the packet is addressed to the gateway's LAN IP address.

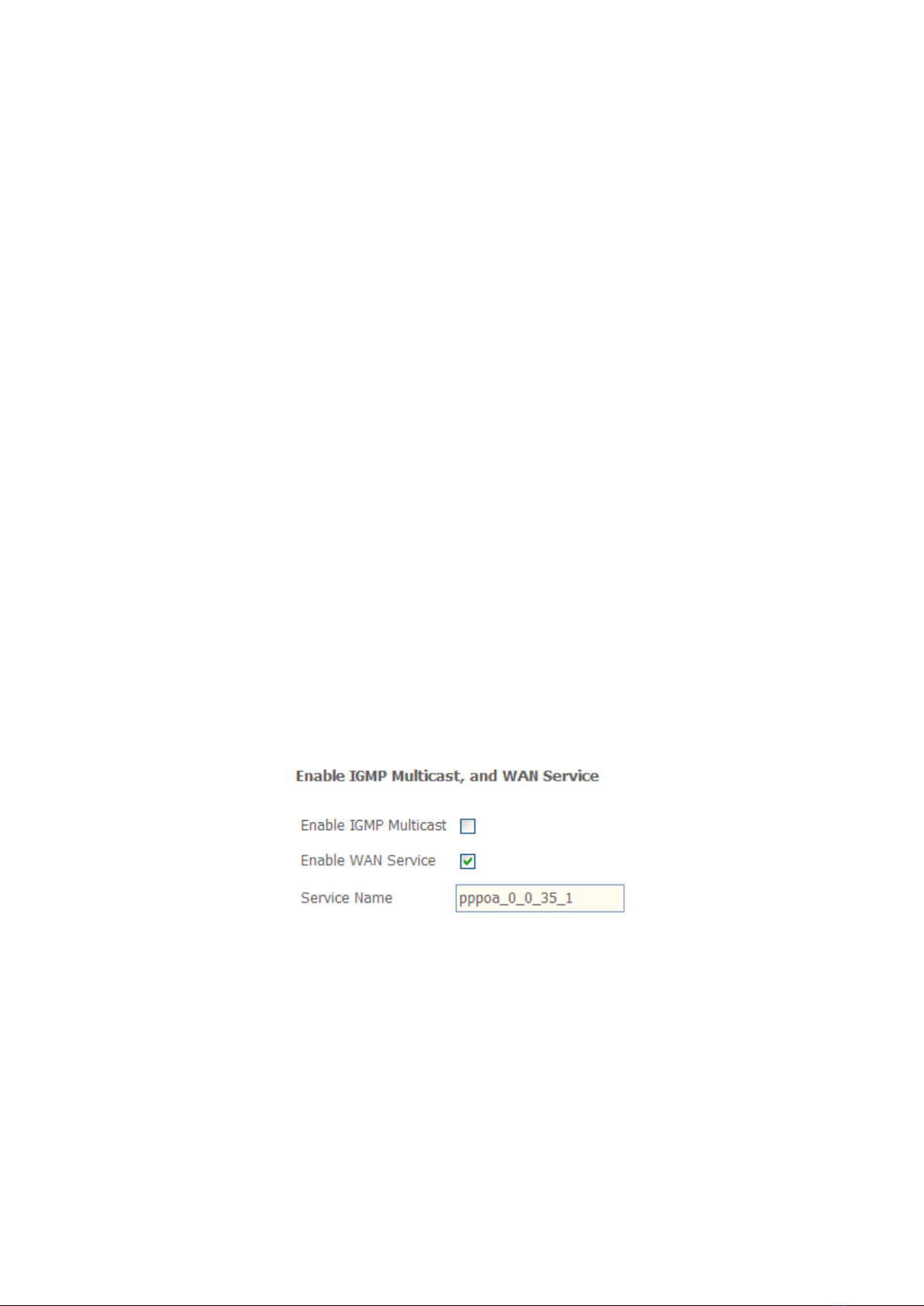

3. Deselect Enable IGMP Multicast, and select Enable WAN Service and then click
Next.

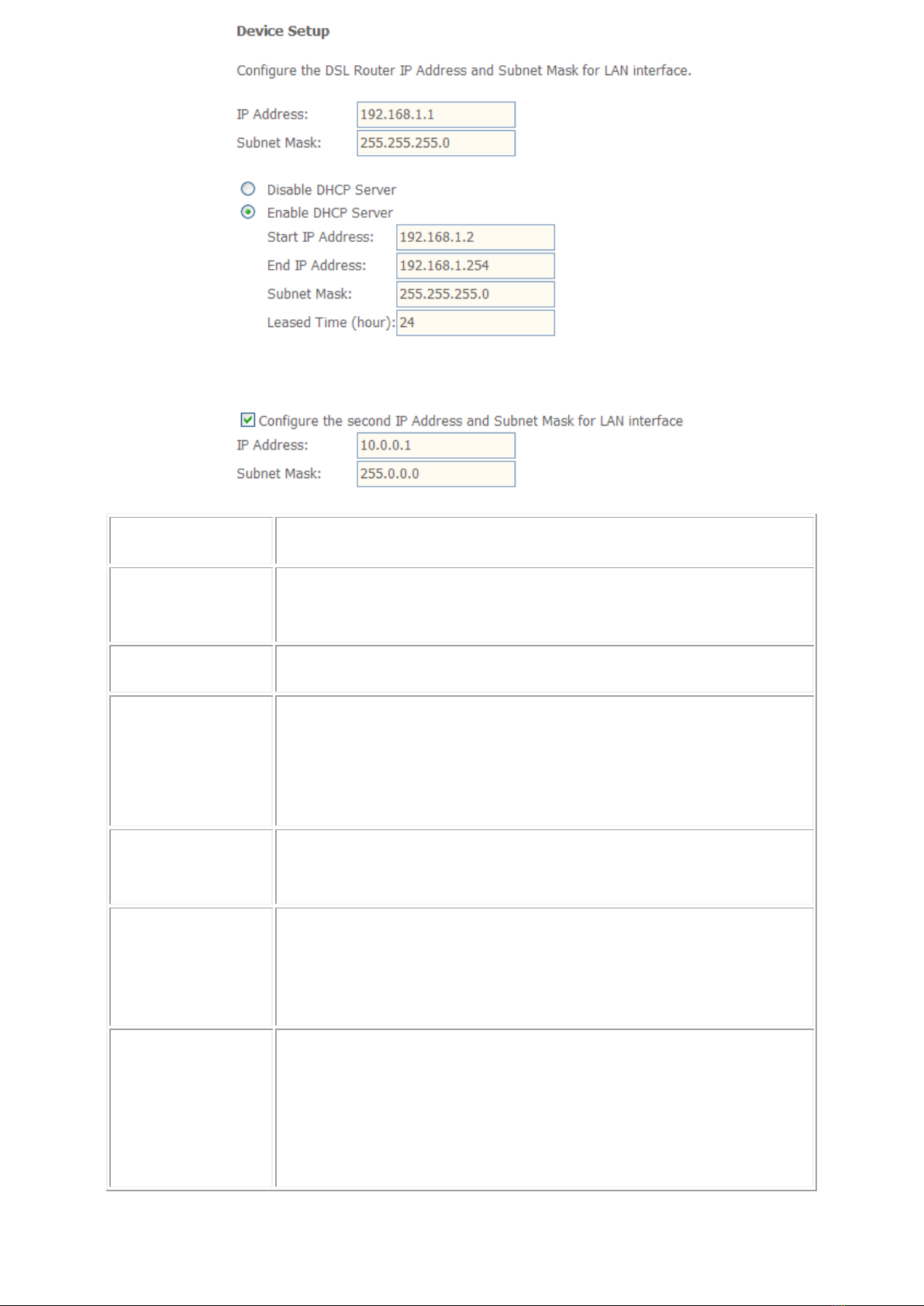

5. Configure the DSL Router’s IP Address and Subnet Mask for LAN interface. In this
page, you can use DHCP (Dynamic Host Configuration Protocol) to control the
assignment of IP addresses on your local network (LAN only).
6.

10
5. Make sure that the settings below match the settings provided by your ISP.
Item
Description
IP address
This is the IP address that other devices on your local network will use
to connect to the modem.
Subnet mask
This defines the size of your network. The default is 255.255.255.0.
Disable / Enable
DHCP server
The DHCP server assigns an IP addresses from a pre-set pool of
addresses upon request from DHCP client (e.g. your computer). Do not
disable the DHCP server unless you wish to let another device handle
IP address issuance on the local network.
Start / end IP
address
This is the beginning and ending range for the DHCP server
addresses.
Lease time
The amount of time before the IP address is refreshed by the DHCP
server.
Configure the
second IP address
and...
Use this feature to create a public network on your local LAN, which is
accessible from the Internet. By assigning an address to this interface
and setting LAN clients to the same network, LAN clients are
accessible from the public network (e.g. FTP or HTTP servers).

11
6. Click on the Save/Reboot button to save your configurations.
b. PPP over ATM (PPPoA)
1. Select PPP over ATM (PPPoA) as connection type, and select VC/MUX as
encapsulation mode.
2. Input PPP Username & PPP Password and then click Next. The user interface
allows a maximum of 256 characters in the user name and a maximum of 32 characters
in the password. Just remember to enable NAT and Firewall as below.
PPPoA service name can be blank unless your Internet Service Provider gives you a value
to enter.
The Authentication method is default to the Automatic setting. It is recommended that you
leave the Authentication method in Automatic, however, you may select PAP or CHAP if
necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for PPPoA and
1492 for PPPoE. Do not change these values unless your ISP requests you to.

12
The gateway can be configured to disconnect if there is no activity for a specific period of time
by selecting the Dial on demand check box and entering the Inactivity timeout. The entered
value must be between 1 minute and 4320 minutes.
The PPP IP Extension is a special feature deployed by some service providers. Unless your
service provider specifically requires this setup, do not select it. If you need to select it, the
PPP IP Extension supports the following conditions:
It allows only one computer on the LAN.
The public IP address assigned by the remote using the PPP/IPCP protocol is
actually not used on the WAN PPP interface. Instead, it is forwarded to the
computer's LAN interface through DHCP. Only one system on the LAN can be
connected to the remote, since the DHCP server within the ADSL gateway has
only a single IP address to assign to a LAN device.
NAPT and firewall are disabled when this option is selected.
The gateway becomes the default gateway and DNS server to the computer
through DHCP using the LAN interface IP address.
The gateway extends the IP subnet at the remote service provider to the LAN
computer. That is, the PC becomes a host belonging to the same IP subnet.
The ADSL gateway bridges the IP packets between WAN and LAN ports, unless
the packet is addressed to the gateway's LAN IP address.
3. Unselect Enable IGMP Multicast, and select Enable WAN Service and then click
Next
4. Configure the DSL Router’s IP Address and Subnet Mask for LAN interface. On this
page, you can use DHCP (Dynamic Host Configuration Protocol) to control the
assignment of IP addresses on your local network (LAN only).

13
Item
Description
IP address
This is the IP address that other devices on your local network will use
to connect to the modem.
Subnet mask
This defines the size of your network. The default is 255.255.255.0.
Disable / Enable
DHCP server
The DHCP server assigns an IP addresses from a pre-set pool of
addresses upon request from DHCP client (e.g. your computer). Do not
disable the DHCP server unless you wish to let another device handle
IP address issuance on the local network.
Start / end IP
address
This is the beginning and ending range for the DHCP server
addresses.
Lease time
The amount of time before the IP address is refreshed by the DHCP
server.
Configure the
second IP address
and...
Use this feature to create a public network on your local LAN,
accessible from the Internet. By assigning an address to this interface
and then statically setting your LAN clients to the same network, the
LAN clients are accessible from the public network (e.g. FTP or HTTP
servers).

14
5. Make sure that the settings below match the settings provided by your ISP.
6. Click on the Save/Reboot button to save your configurations.
c. Bridging (RFC 2684)
Select the bridge operation mode at the suggestion of your ADSL service provider. To
configure the bridging option, instructions are as follows:
1. Select Bridging (RFC 2684) as the connection type.
2. Select the appropriate Encapsulation mode and click Next. The following screen
appears:
3. Enable or disable bridge service and enter a bridge service name. Click Next and
configure your LAN.

15
4. The summary page presents the entire configuration summary. Click Save if the
settings are correct or Back to change any of the settings.
Note: If you would like to cancel all modification that you make on the router, please
select “ManagementSettingRestore Default Settings” to restore the router to its
factory default settings.
Table of contents
Popular Network Router manuals by other brands

ZyXEL Communications
ZyXEL Communications P-660RU-T V2 Series quick start guide

Dynalink
Dynalink DL-WME38 FAQ & Troubleshooting

Technicolor
Technicolor TG588 Self-install guide

D-Link
D-Link Verizon DSL-2750B Connection instructions

Cisco
Cisco ASR 5000 Series Product overview

Hirschmann
Hirschmann OCTOPUS 5TX-EEC Description and operating instructions

Pacific Star
Pacific Star SSABR-B Quick installation guide

Mercusys
Mercusys Halo H80X user guide

D-Link
D-Link DIR-820L Specifications

TRENDnet
TRENDnet TEW-452BRP - 108Mbps Wireless Super G Broadband... Quick installation guide

TRENDnet
TRENDnet TE100-S5Pplus Guía del usuario

ZyXEL Communications
ZyXEL Communications IES-5000 Series Support notes
