Modus GRACE PNRAL4BH User manual

BOX 3 - SIDE RAILS
(SKU PNRAL4RL/PNRBL4RL/PNRCL4RL )/PNKXL4RL/PNKGL4RL
BOX 1 - HEADBOARD
(SKU PNRAL4BH/PNRBL4BH/PNRCL4BH )/PNKXL4BH/PNKGL4BH
BOX 2 - FOOTBOARD-SLATS
(SKU PNRAL4FS/PNRBL4FS/PNRCL4FS/PNKXL4FS/PNKGL4FS)
USE HEADBOARD HARDWARE PACKED IN BOX 1
FOR STEP 1.
USE HARDWARE PACKED IN BOX 2 FOR STEP 2
AND ALL REMAINING STEPS.
GRACE LOW PROFILE BED FULLY ASSEMBLED

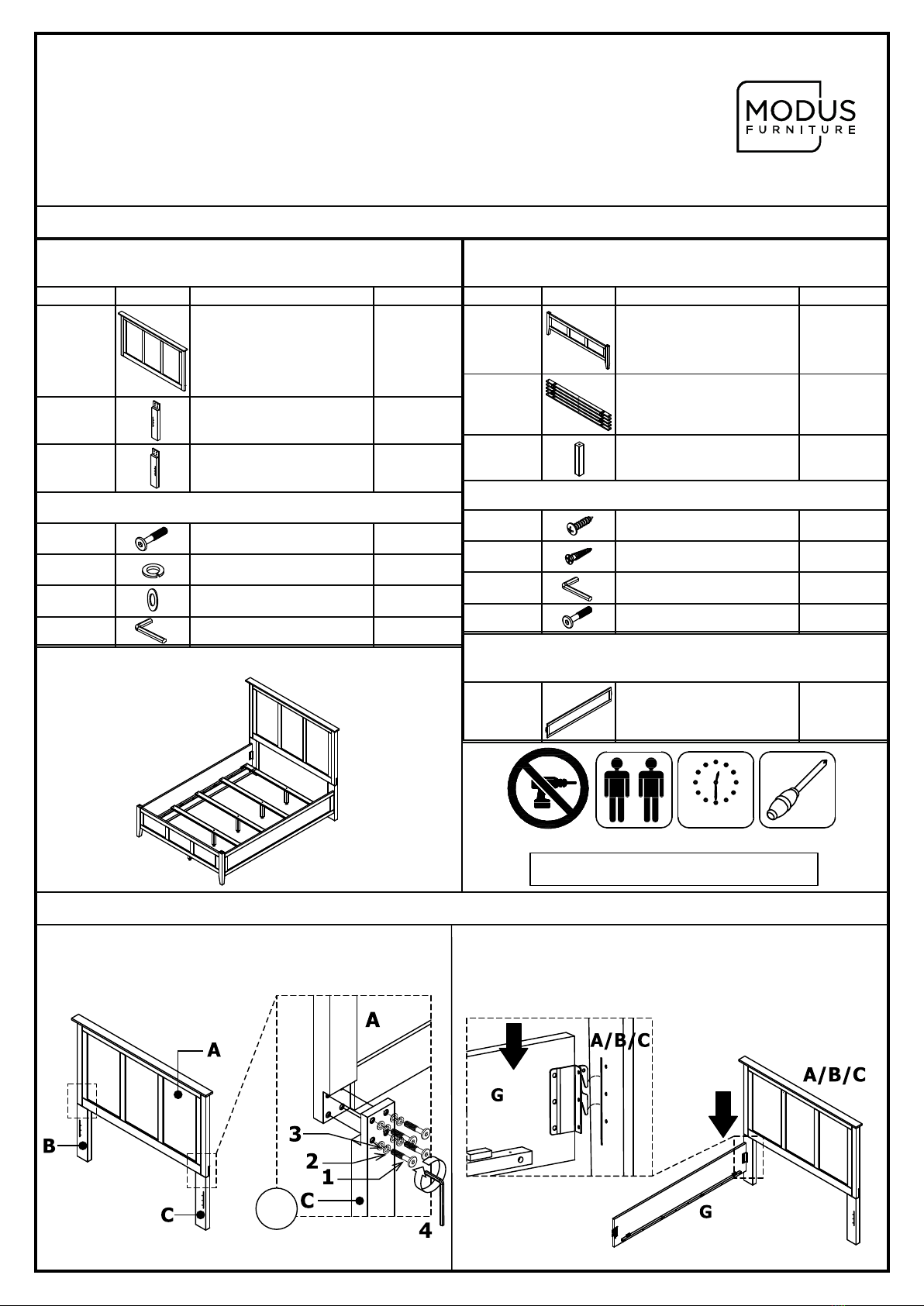

ASSEMBLY PARTS LIST

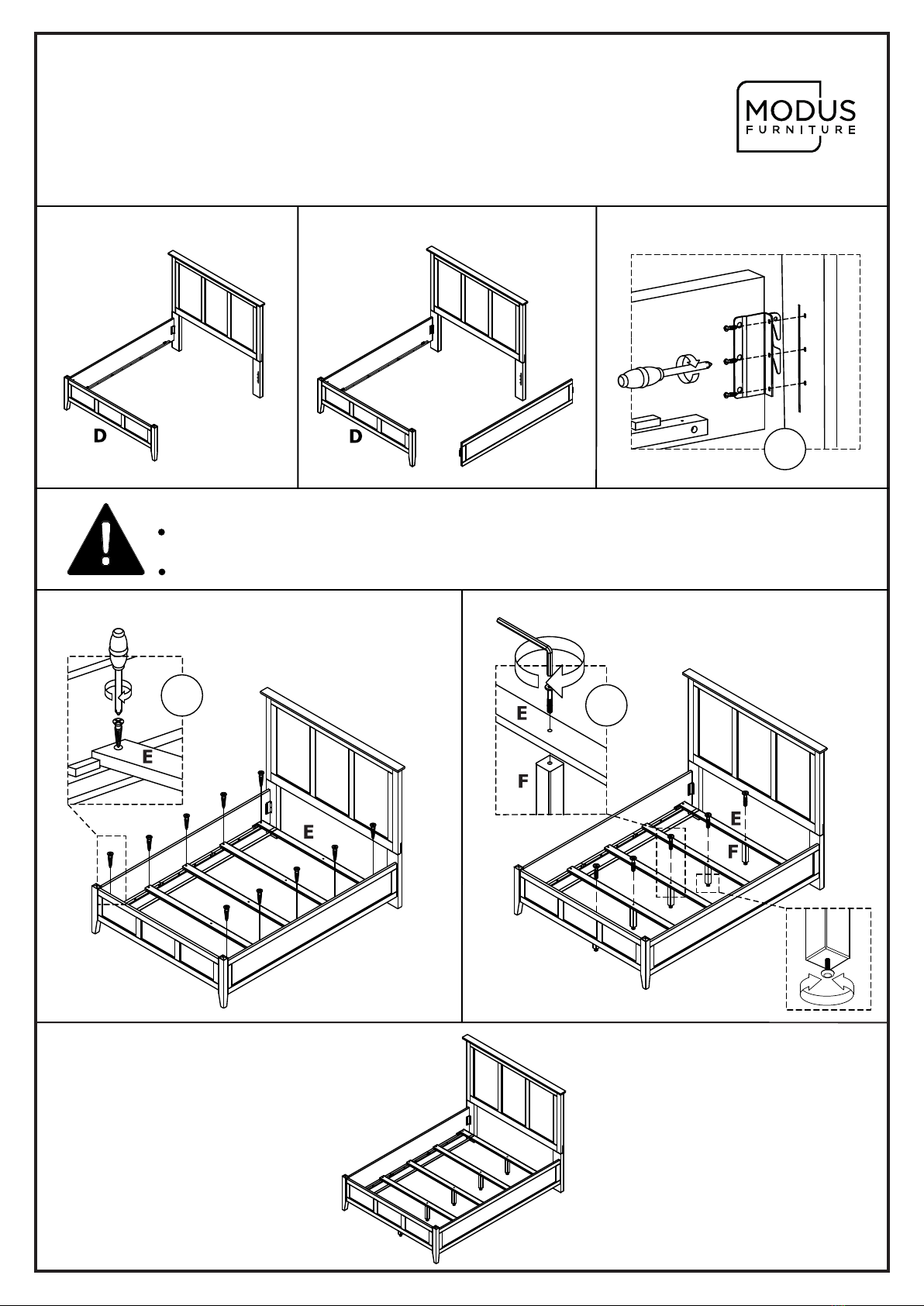

ASSEMBLY INSTRUCTIONS
PART NO. PART NO.
IMAGE IMAGE
QUANTITY QUANTITY
DESCRIPTION DESCRIPTION
HEADBOARD PANEL
FOOTBOARD
SIDE RAIL
ALLEN BOLT (6X35mm)
PAN HEAD SCREW (6X15mm)
SPRING WASHER (M6) WOOD SCREW (8x30mm)
FLAT WASHER (M6) ALLEN KEY
ALLEN KEY ALLEN BOLT (6X40mm)
LEFT HEADBOARD LEG
BED SLAT
RIGHT HEADBOARD LEG SUPPORT LEG
1
1
2
813
811
81
16
1
5
15
A
D
G
1 5
2 6
3 7
4 8
B
E
C F
HEADBOARD HARDWARE KIT PACKED IN BOX 1 BED HARDWARE KIT PACKED IN BOX 2
1
STEP 1 : STEP 2 :
X8
GRACE LOW PROFILE BEDFULL
OWNER’S MANUAL
VENDOR ITEM NO. :
PNRAL4BH / PNRAL4FS / PNRAL4RL - SNOWFALL
PNRBL4BH / PNRBL4FS / PNRBL4RL - RAVEN
PNRCL4BH / PNRCL4FS / PNRCL4RL - DARK MOCHA
PNKXL4BH / PNKXL4FS / PNKXL4RL - BLUEBERRY
PNKGL4BH / PNKGL4FS / PNKGL4RL - ELEPHANT GREY
ASSEMBLE ON A SOFT SURFACE
NOT PROVIDED
0:30
UPDATED : MAY 3RD, 2023

7
8
6
G
STEP 3 :
STEP 6 :
STEP 4 :
STEP 7 :
STEP 8 :
ASSEMBLY COMPLETE
STEP 5 :
G
G5
5
5
IF USING BED FRAME WITH ADJUSTABLE MATTRESS BASE, SKIP TO APPENDIX A: ADJUSTABLE
MATTRESS BASE ASSEMBLY SUPPLEMENT.
IF USING BED FRAME WITH STANDARD BOX SPRING OR FOUNDATION CONTINUE TO STEP 6.
STOP
2
X12
X5
X10
GRACE LOW PROFILE BEDFULL
OWNER’S MANUAL
VENDOR ITEM NO. :
PNRAL4BH / PNRAL4FS / PNRAL4RL - SNOWFALL
PNRBL4BH / PNRBL4FS / PNRBL4RL - RAVEN
PNRCL4BH / PNRCL4FS / PNRCL4RL - DARK MOCHA
PNKXL4BH / PNKXL4FS / PNKXL4RL - BLUEBERRY
PNKGL4BH / PNKGL4FS / PNKGL4RL - ELEPHANT GREY
UPDATED : MAY 3RD, 2023

SKU
SKU
SKU
DESCRIPTION
DESCRIPTION
DESCRIPTION
BOX 1 HARDWARE KIT
BOX 2 HARDWARE KIT
SIDE RAIL BRACKET SET/2
FOOT CAP
FOOT CAP
SIDE RAIL CLEAT
HEADBOARD LEFT LEG
INDIVIDUAL SLAT
SIDE RAIL CLEAT BOLT
HEADBOARD RIGHT LEG
SUPPORT LEG
PNZZBPHWHB
PNZZBPHWLPFQ
RPZZBPLBG
PNZZCPFC
PNZZCPFC
PNRABPSRCF (Snowfall), PNRBBPSRCF (Raven), PNRCBPSRCF (Dark Mocha)
PNRABPHBLL (Snowfall), PNRBBPHBLL (Raven), PNRCBPHBLL (Dark Mocha)
PNZZBPSL4
RPZZBPSRCB
PNRABPHBLR (Snowfall), PNRBBPHBLR (Raven), PNRCBPHBLR (Dark Mocha)
PNRABPLSLP (Snowfall), PNRBBPLSLP (Raven), PNRCBPLSLP (Dark Mocha)
HEADBOARD - SNOWFALL, RAVEN, DARK MOCHA, BLUEBERRY, ELEPHANT GREY
FOOTBOARD/SLATS - SNOWFALL, RAVEN, DARK MOCHA, BLUEBERRY, ELEPHANT GREY
SIDE RAILS - SNOWFALL, RAVEN, DARK MOCHA, BLUEBERRY, ELEPHANT GREY

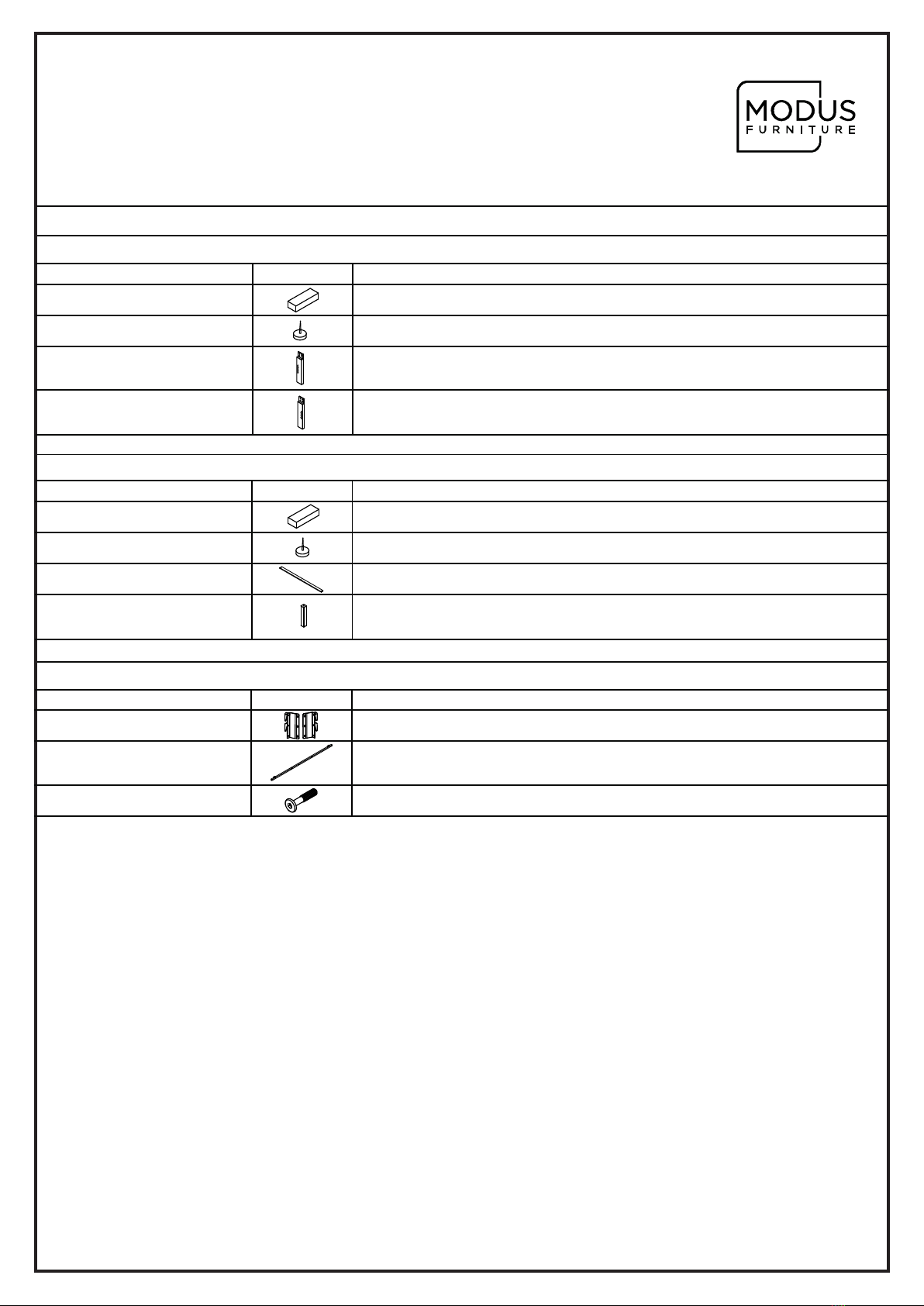

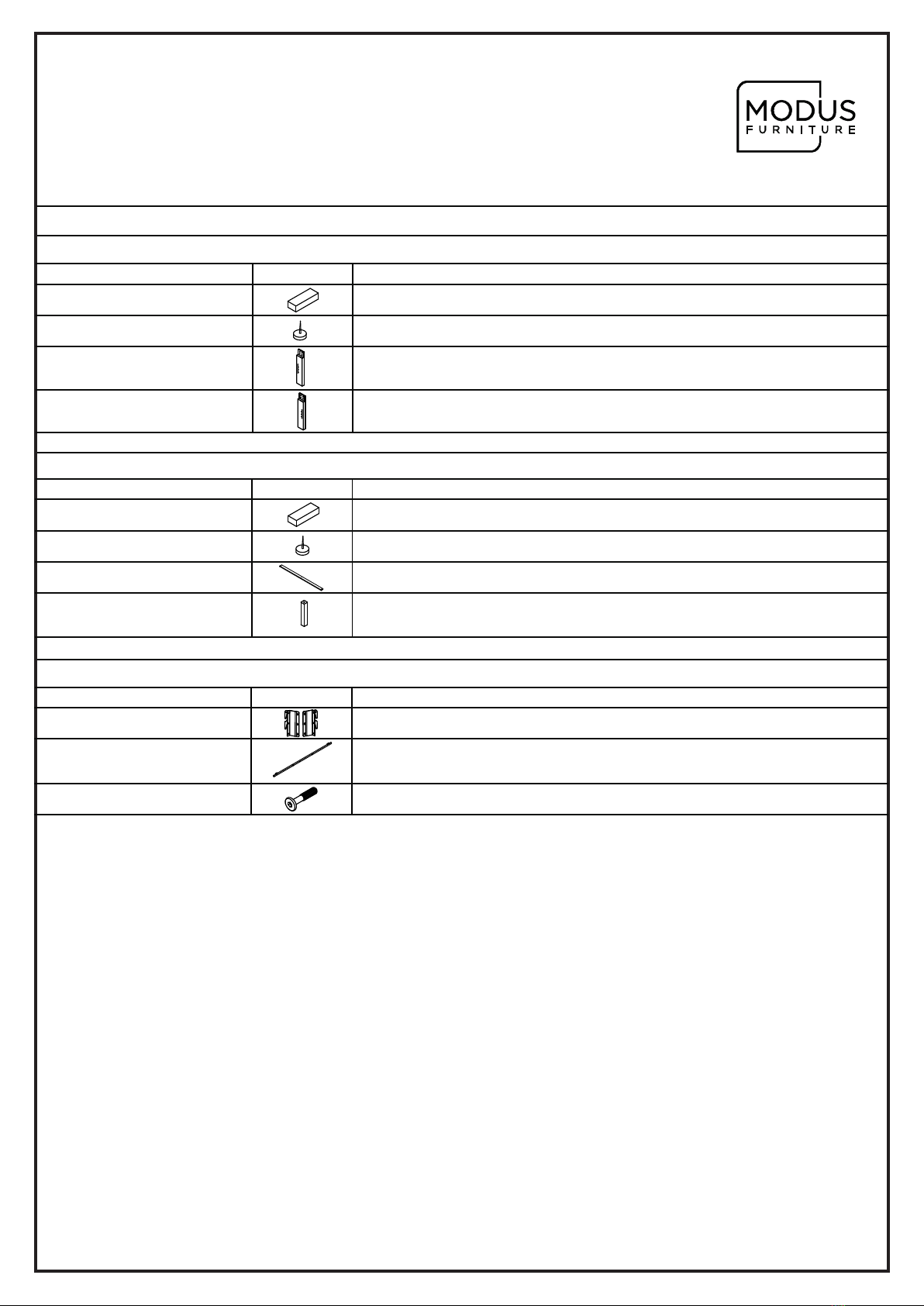

REPLACEABLE PARTS LIST
3
GRACE LOW PROFILE BEDFULL
OWNER’S MANUAL
VENDOR ITEM NO. :
PNRAL4BH / PNRAL4FS / PNRAL4RL - SNOWFALL
PNRBL4BH / PNRBL4FS / PNRBL4RL - RAVEN
PNRCL4BH / PNRCL4FS / PNRCL4RL - DARK MOCHA
PNKXL4BH / PNKXL4FS / PNKXL4RL - BLUEBERRY
PNKGL4BH / PNKGL4FS / PNKGL4RL - ELEPHANT GREY
PNKXBPSRCF (Blueberry), PNKGBPSRCF (Elephant Grey)
PNKXBPHBLL (Blueberry), PNKGBPHBLL (Elephant Grey)
PNKXBPHBLR (Blueberry), PNKGBPHBLR (Elephant Grey)
PNKXBPLSLP (Blueberry), PNKGBPLSLP (Elephant Grey)
UPDATED : MAY 3RD, 2023

CARE AND CLEANING:
WOOD FURNITURE: Dust frequently with a clean, damp, lint-free cloth. Frequent
dusting will remove abrasive build-up which can damage a finish over time. Avoid
using oily polishes or waxes. Avoid exposing your furniture to strong sunlight.
Prolonged exposure to direct sunlight can fade the finish of your furniture. Do not
expose your furniture to any liquids. Never allow water to sit on your furniture. Do
not place hot items on top of surface, always use a mat or other protector. Alcohol,
nail polish and perfume are also dangerous, as they can dissolve the furniture finish
on contact and may require professional repairs.
ROUTINE MAINTENANCE:
Periodically check that support legs are in place and are applying equal upward
pressure on the bed frame. To adjust support legs, turn levelers counterclockwise to
extend, clockwise to retract.
Periodically check all fittings and tighten if necessary, as they can loosen over time.
Always remove box spring and mattress before moving the bed. Lift the bed when
moving it. Dragging the bed can damage the center support. Readjust levelers after
moving the bed.
WARNING:
- Maximum distributed load capacity: 700 lbs.
- Standing or jumping on this product may result in damage or injury.
4
GRACE LOW PROFILE BEDFULL
OWNER’S MANUAL
VENDOR ITEM NO. :
PNRAL4BH / PNRAL4FS / PNRAL4RL - SNOWFALL
PNRBL4BH / PNRBL4FS / PNRBL4RL - RAVEN
PNRCL4BH / PNRCL4FS / PNRCL4RL - DARK MOCHA
PNKXL4BH / PNKXL4FS / PNKXL4RL - BLUEBERRY
PNKGL4BH / PNKGL4FS / PNKGL4RL - ELEPHANT GREY
UPDATED : MAY 3RD, 2023

NOTE: YOU MAY WISH TO RETAIN UNUSED PARTS IF IN THE FUTURE YOU INTEND TO USE THE BED FRAME WITH
A STANDARD BOX SPRING OR FOUNDATION.

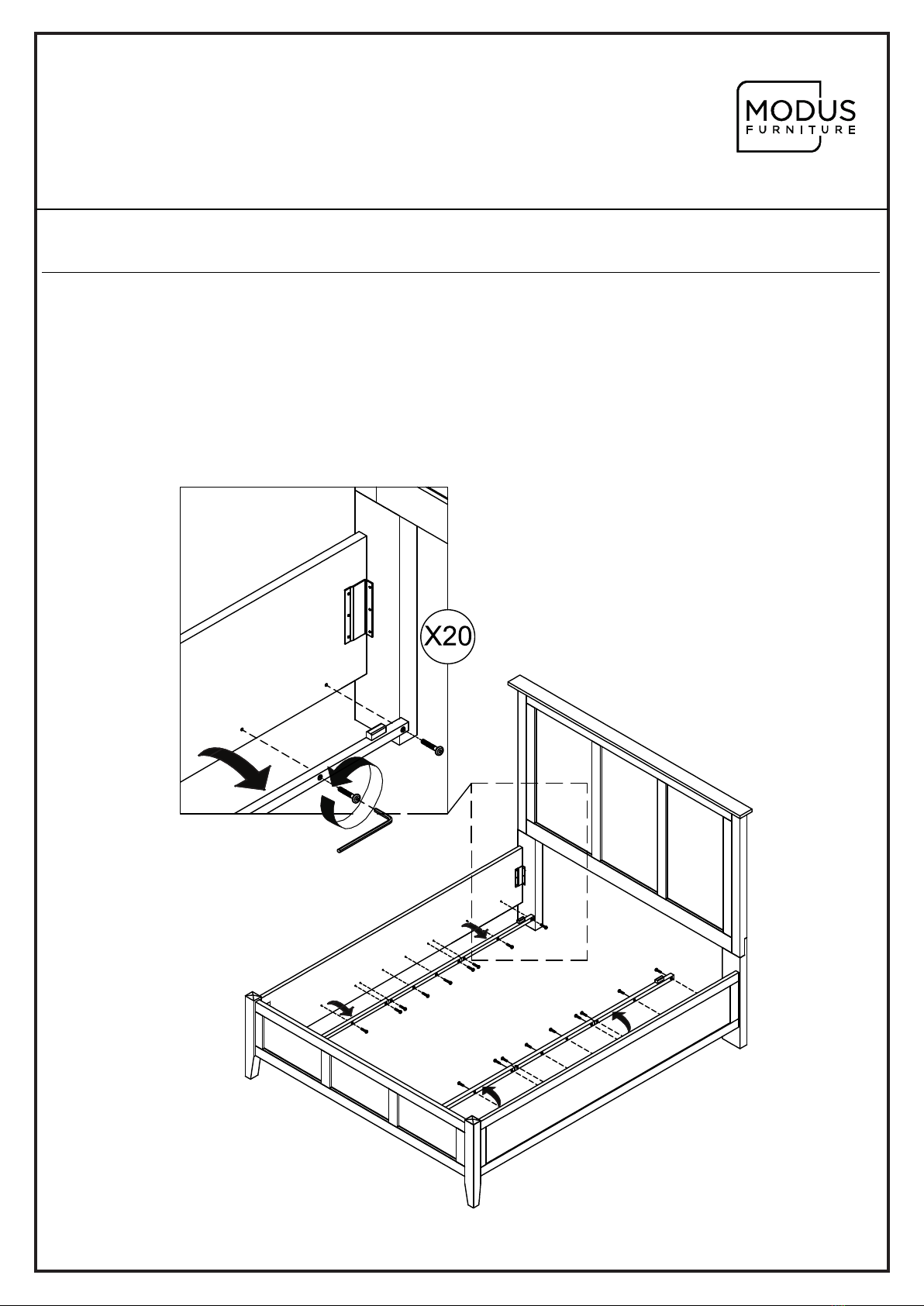

USE ALLEN KEY (7) TO UNSCREW ALLEN BOLTS
AND REMOVE PRE-ASSEMBLED SIDE RAIL CLEATS.
STEP 1 :
THE FOLLOWING PARTS ARE NOT REQUIRED FOR ADJUSTABLE MATTRESS BASE INSTALLATION:
IF USING THIS BED FRAME WITH A STANDARD BOX SPRING OR FOUNDATION THESE INSTRUCTIONS DO NOT APPLY.
AN ADJUSTABLE MATTRESS BASE IS A FREESTANDING MATTRESS SUPPORT THAT SITS WITHIN
THE PERIMETER OF THE BED FRAME.
PRE-ASSEMBLED SIDE RAIL CLEATS OBSTRUCT ADJUSTABLE BASE INSTALLATION AND OPERATION.
FOLLOW THESE INSTRUCTIONS TO REMOVE THEM.
APPENDIX A:ADJUSTABLE MATTRESS BASE ASSEMBLY SUPPLEMENT
E. BED SLAT 5 PCS
F. SUPPORT LEG 5 PCS
6. WOOD SCREW (8x30mm) 11 PCS
8. ALLEN BOLT (6x40mm) 6 PCS
7
5
GRACE LOW PROFILE BEDFULL
VENDOR ITEM NO. :
PNRAL4BH / PNRAL4FS / PNRAL4RL - SNOWFALL
PNRBL4BH / PNRBL4FS / PNRBL4RL - RAVEN
PNRCL4BH / PNRCL4FS / PNRCL4RL - DARK MOCHA
PNKXL4BH / PNKXL4FS / PNKXL4RL - BLUEBERRY
PNKGL4BH / PNKGL4FS / PNKGL4RL - ELEPHANT GREY
UPDATED : MAY 3RD, 2023

GRACE QUEEN LOW PROFILE BED
OWNER’S MANUAL
ASSEMBLE ON A SOFT SURFACE
BOX 3 - SIDE RAILS
(SKU PNRAL5RL/PNRBL5RL/PNRCL5RL/PNKXL5RL/PNKGL5RL)
BOX 1 - HEADBOARD
(SKU PNRAL5BH/PNRBL5BH/PNRCL5BH/PNKXL5BH/PNKGL5BH)
BOX 2 - FOOTBOARD-SLATS
(SKU PNRAL5FS/PNRBL5FS/PNRCL5FS/PNKXL5FS/PNKGL5FS)
USE HEADBOARD HARDWARE PACKED IN BOX 1
FOR STEP 1.
USE HARDWARE PACKED IN BOX 2 FOR STEP 2
AND ALL REMAINING STEPS.
GRACE LOW PROFILE BED FULLY ASSEMBLED
ASSEMBLY PARTS LIST
ASSEMBLY INSTRUCTIONS
PART NO. PART NO.
IMAGE IMAGE
QUANTITY QUANTITY
DESCRIPTION DESCRIPTION
HEADBOARD PANEL
FOOTBOARD
SIDE RAIL
ALLEN BOLT (6X35mm)
PAN HEAD SCREW (6X15mm)
SPRING WASHER (M6) WOOD SCREW (8x30mm)
FLAT WASHER (M6) ALLEN KEY
ALLEN KEY ALLEN BOLT (6X40mm)
LEFT HEADBOARD LEG
BED SLAT
RIGHT HEADBOARD LEG SUPPORT LEG
1
1
2
813
811
81
16
1
5
15
A
D
G
1 5
2 6
3 7
4 8
B
E
C F
HEADBOARD HARDWARE KIT PACKED IN BOX 1 BED HARDWARE KIT PACKED IN BOX 2
UPDATED : APRIL 18TH, 2023
1
VENDOR ITEM NO. :
PNRAL5BH / PNRAL5FS / PNRAL5RL - SNOWFALL
PNRBL5BH / PNRBL5FS / PNRBL5RL - RAVEN
PNRCL5BH / PNRCL5FS / PNRCL5RL - DARK MOCHA
PNKXL5BH / PNKXL5FS / PNKXL5RL - BLUEBERRY
PNKGL5BH / PNKGL5FS / PNKGL5RL - ELEPHANT GREY
NOT PROVIDED
0:30
STEP 1 : STEP 2 :
X8

7
8
6
G
STEP 3 :
STEP 6 :
STEP 4 :
STEP 7 :
STEP 8 :
ASSEMBLY COMPLETE
STEP 5 :
G
G5
5
5
IF USING BED FRAME WITH ADJUSTABLE MATTRESS BASE, SKIP TO APPENDIX A: ADJUSTABLE
MATTRESS BASE ASSEMBLY SUPPLEMENT.
IF USING BED FRAME WITH STANDARD BOX SPRING OR FOUNDATION CONTINUE TO STEP 6.
STOP
2
X12
X5
X10
GRACE QUEEN LOW PROFILE BED
OWNER’S MANUAL
VENDOR ITEM NO. :
PNRAL5BH / PNRAL5FS / PNRAL5RL - SNOWFALL
PNRBL5BH / PNRBL5FS / PNRBL5RL - RAVEN
PNRCL5BH / PNRCL5FS / PNRCL5RL - DARK MOCHA
PNKXL5BH / PNKXL5FS / PNKXL5RL - BLUEBERRY
PNKGL5BH / PNKGL5FS / PNKGL5RL - ELEPHANT GREY
UPDATED : APRIL 18TH, 2023

SKU
SKU
SKU
DESCRIPTION
DESCRIPTION
DESCRIPTION
BOX 1 HARDWARE KIT
BOX 2 HARDWARE KIT
SIDE RAIL BRACKET SET/2
FOOT CAP
FOOT CAP
SIDE RAIL CLEAT
HEADBOARD LEFT LEG
INDIVIDUAL SLAT
SIDE RAIL CLEAT BOLT
HEADBOARD RIGHT LEG
SUPPORT LEG
PNZZBPHWHB
PNZZBPHWLPFQ
RPZZBPLBG
PNZZCPFC
PNZZCPFC
PNRABPSRCQK (Snowfall), PNRBBPSRCQK (Raven), PNRCBPSRCQK (Dark Mocha)
PNKXBPSRCQK (Blueberry), PNKGBPSRCQK (Elephant Grey)
PNRABPHBLL (Snowfall), PNRBBPHBLL (Raven), PNRCBPHBLL (Dark Mocha)
PNKXBPHBLL (Blueberry), PNKGBPHBLL (Elephant Grey)
PNZZBPSL5
RPZZBPSRCB
PNRABPHBLR (Snowfall), PNRBBPHBLR (Raven), PNRCBPHBLR (Dark Mocha)
PNKXBPHBLR (Blueberry), PNKGBPHBLR (Elephant Grey)
PNRABPLSLP (Snowfall), PNRBBPLSLP (Raven), PNRCBPLSLP (Dark Mocha)
PNKXBPLSLP (Blueberry), PNKGBPLSLP (Elephant Grey)
HEADBOARD - SNOWFALL, RAVEN, DARK MOCHA, BLUEBERRY, ELEPHANT GREY
FOOTBOARD/SLATS - SNOWFALL, RAVEN, DARK MOCHA, BLUEBERRY, ELEPHANT GREY
SIDE RAILS - SNOWFALL, RAVEN, DARK MOCHA, BLUEBERRY, ELEPHANT GREY
REPLACEABLE PARTS LIST
3
GRACE QUEEN LOW PROFILE BED
OWNER’S MANUAL
VENDOR ITEM NO. :
PNRAL5BH / PNRAL5FS / PNRAL5RL - SNOWFALL
PNRBL5BH / PNRBL5FS / PNRBL5RL - RAVEN
PNRCL5BH / PNRCL5FS / PNRCL5RL - DARK MOCHA
PNKXL5BH / PNKXL5FS / PNKXL5RL - BLUEBERRY
PNKGL5BH / PNKGL5FS / PNKGL5RL - ELEPHANT GREY
UPDATED : APRIL 18TH, 2023

CARE AND CLEANING:
WOOD FURNITURE: Dust frequently with a clean, damp, lint-free cloth. Frequent
dusting will remove abrasive build-up which can damage a finish over time. Avoid
using oily polishes or waxes. Avoid exposing your furniture to strong sunlight.
Prolonged exposure to direct sunlight can fade the finish of your furniture. Do not
expose your furniture to any liquids. Never allow water to sit on your furniture. Do
not place hot items on top of surface, always use a mat or other protector. Alcohol,
nail polish and perfume are also dangerous, as they can dissolve the furniture finish
on contact and may require professional repairs.
ROUTINE MAINTENANCE:
Periodically check that support legs are in place and are applying equal upward
pressure on the bed frame. To adjust support legs, turn levelers counterclockwise to
extend, clockwise to retract.
Periodically check all fittings and tighten if necessary, as they can loosen over time.
Always remove box spring and mattress before moving the bed. Lift the bed when
moving it. Dragging the bed can damage the center support. Readjust levelers after
moving the bed.
WARNING:
- Maximum distributed load capacity: 800 lbs.
- Standing or jumping on this product may result in damage or injury.
4
GRACE QUEEN LOW PROFILE BED
OWNER’S MANUAL
VENDOR ITEM NO. :
PNRAL5BH / PNRAL5FS / PNRAL5RL - SNOWFALL
PNRBL5BH / PNRBL5FS / PNRBL5RL - RAVEN
PNRCL5BH / PNRCL5FS / PNRCL5RL - DARK MOCHA
PNKXL5BH / PNKXL5FS / PNKXL5RL - BLUEBERRY
PNKGL5BH / PNKGL5FS / PNKGL5RL - ELEPHANT GREY
UPDATED : APRIL 18TH, 2023

NOTE: YOU MAY WISH TO RETAIN UNUSED PARTS IF IN THE FUTURE YOU INTEND TO USE THE BED FRAME WITH
A STANDARD BOX SPRING OR FOUNDATION.
USE ALLEN KEY (7) TO UNSCREW ALLEN BOLTS
AND REMOVE PRE-ASSEMBLED SIDE RAIL CLEATS.
STEP 1 :
THE FOLLOWING PARTS ARE NOT REQUIRED FOR ADJUSTABLE MATTRESS BASE INSTALLATION:
IF USING THIS BED FRAME WITH A STANDARD BOX SPRING OR FOUNDATION THESE INSTRUCTIONS DO NOT APPLY.
AN ADJUSTABLE MATTRESS BASE IS A FREESTANDING MATTRESS SUPPORT THAT SITS WITHIN
THE PERIMETER OF THE BED FRAME.
PRE-ASSEMBLED SIDE RAIL CLEATS OBSTRUCT ADJUSTABLE BASE INSTALLATION AND OPERATION.
FOLLOW THESE INSTRUCTIONS TO REMOVE THEM.
E. BED SLAT 5 PCS
F. SUPPORT LEG 5 PCS
6. WOOD SCREW (8x30mm) 11 PCS
8. ALLEN BOLT (6x40mm) 6 PCS
7
5
VENDOR ITEM NO. :
PNRAL5BH / PNRAL5FS / PNRAL5RL - SNOWFALL
PNRBL5BH / PNRBL5FS / PNRBL5RL - RAVEN
PNRCL5BH / PNRCL5FS / PNRCL5RL - DARK MOCHA
PNKXL5BH / PNKXL5FS / PNKXL5RL - BLUEBERRY
PNKGL5BH / PNKGL5FS / PNKGL5RL - ELEPHANT GREY
UPDATED : APRIL 18TH, 2023
APPENDIX A:ADJUSTABLE MATTRESS BASE ASSEMBLY SUPPLEMENT
GRACE QUEEN LOW PROFILE BED
