Mondo Nomon Series User manual

12 3
4
Mount the movement box inside
the clock container.

.
With your index nger, wind the mi-
nute (long) hand clockwise until both
hands are at 12 O’Clock. If required,
adjust the vertical alignment of both
hands.Then, to set the time, continue
to wind the minute hand clockwise
until the desired time is reached.

.
Mount the hour hand,
carefully pressing it onto the axel
of the clock mechanism until it is
secured in place.
Mount the minute hand on clock by
carefully pressing it onto the shaft
until it is secured in place.
Assembly Instructions

Installation Instructions

123
4 5 6

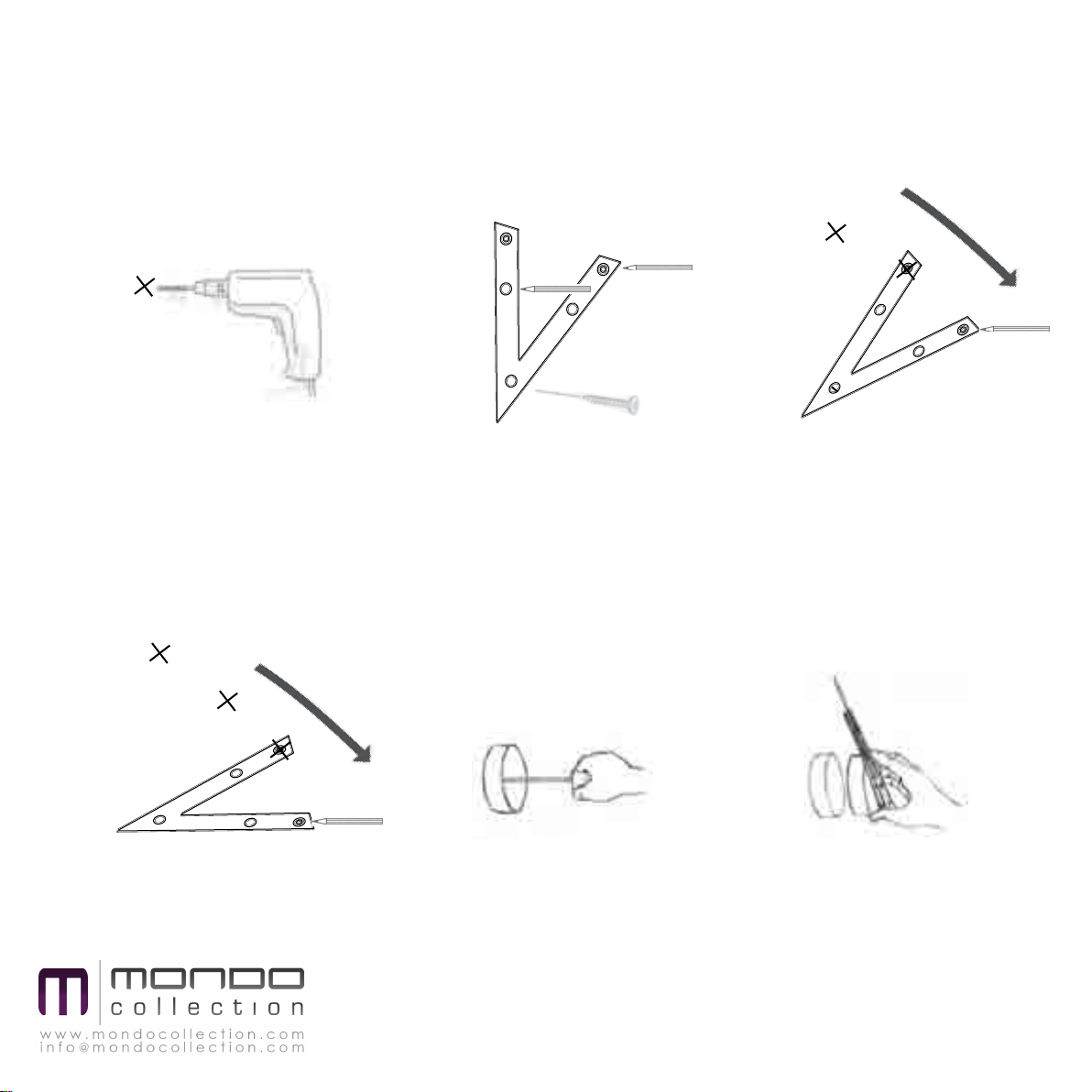

Mark the center where the clock
will be installed and drill a hole
to x the template.
Position the template so that it indi-
cates the position of the hours 12
o’clock and 1 o’clock and mark
these positions with a pencil.
Rotate the template clockwise by 30º
aligning the hole that was previously
used to mark the 12 o’clock position
over the 1 o’clock position and now
mark the location of 2 o’clock.
Continue to repeat the procedure
described in step number 3 until
you have marked the locations on
the wall of all 12 hours of the clock.
NOTE: Skip steps 2, 3, 4 if the clock does not include hour markings.
Mount the movement box inside
the clock container.

.
Installation Instructions
