Monessen Hearth 6000DV User manual

MODEL: 6000DV
DIRECT VENT GAS FIREPLACE
INSTALLATION AND OPERATING INSTRUCTIONS
WARNINGS
IF THE INFORMATION IN THESE INSTRUCTIONS ARE
NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
– Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
– Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
WARNING: Improper installation, adjustment,
alteration, services or maintenance can cause injury or
property damage. Refer to this manual. For assistance
or additional information consult a qualified installer,
service agency or the gas supplier.
This appliance may be installed in an aftermarket*,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
* Aftermarket: Completion of sale, not for purpose of resale,
from the manufacturer.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
CHILDREN AND ADULTS SHOULD
BE ALERTED TO THE HAZARDS OF
HIGH SURFACE TEMPERATURE AND
SHOULD STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE
SUPERVISED WHEN THEY ARE IN THE
SAME ROOM AS THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED ON
OR NEAR THE APPLIANCE.
KEEP THE ROOM AREA CLEAR AND
FREE FROM COMBUSTIBLE MATERIALS,
GASOLINE, AND OTHER FLAMMABLE
VAPORS AND LIQUIDS.
READ BEFORE INSTALLING. SAVE THESE INSTRUCTIONS

2 42D0200
CONTENTS
Important Safety Information .......................... 3
Code Approval .................................................. 4

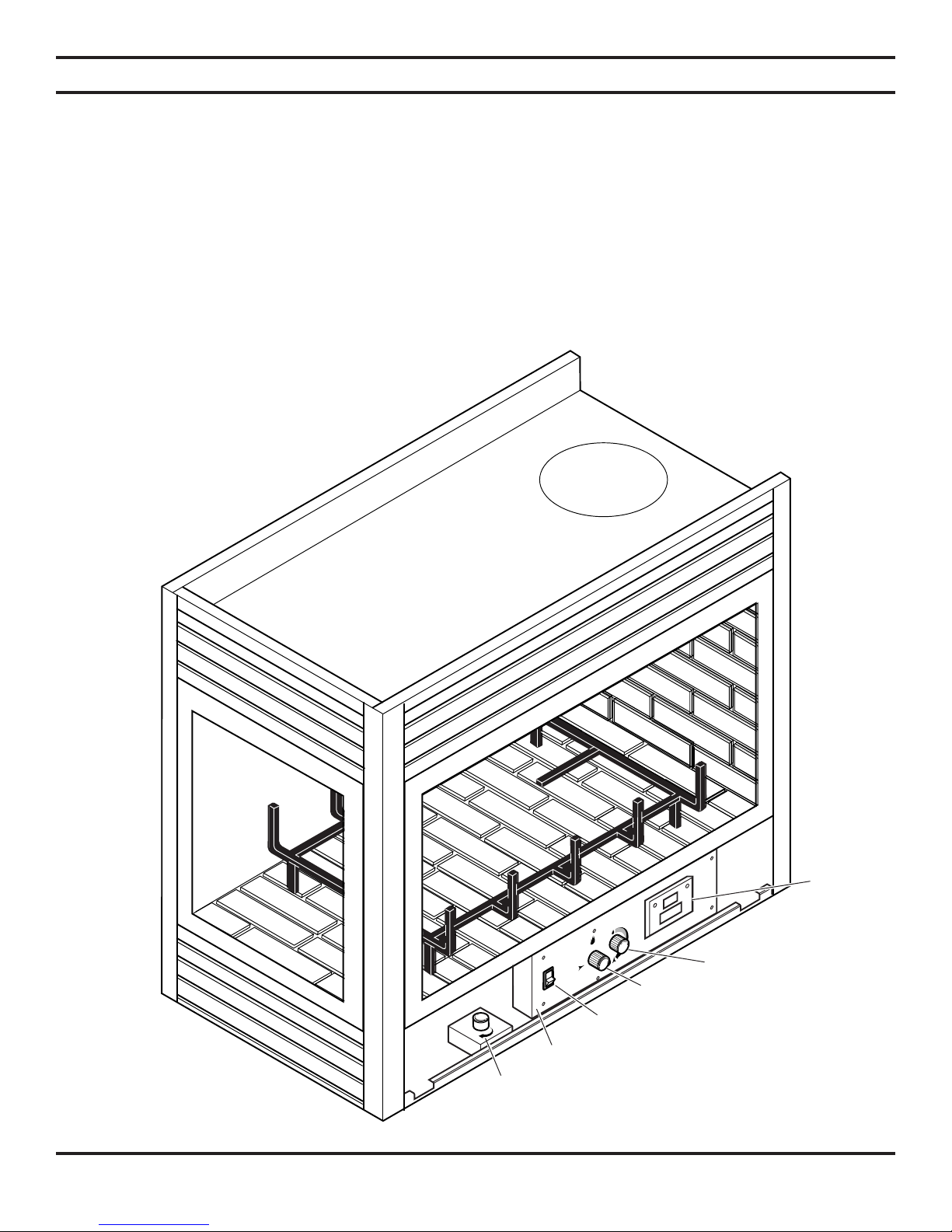

Product Features .............................................. 5
Pre-Installation Information

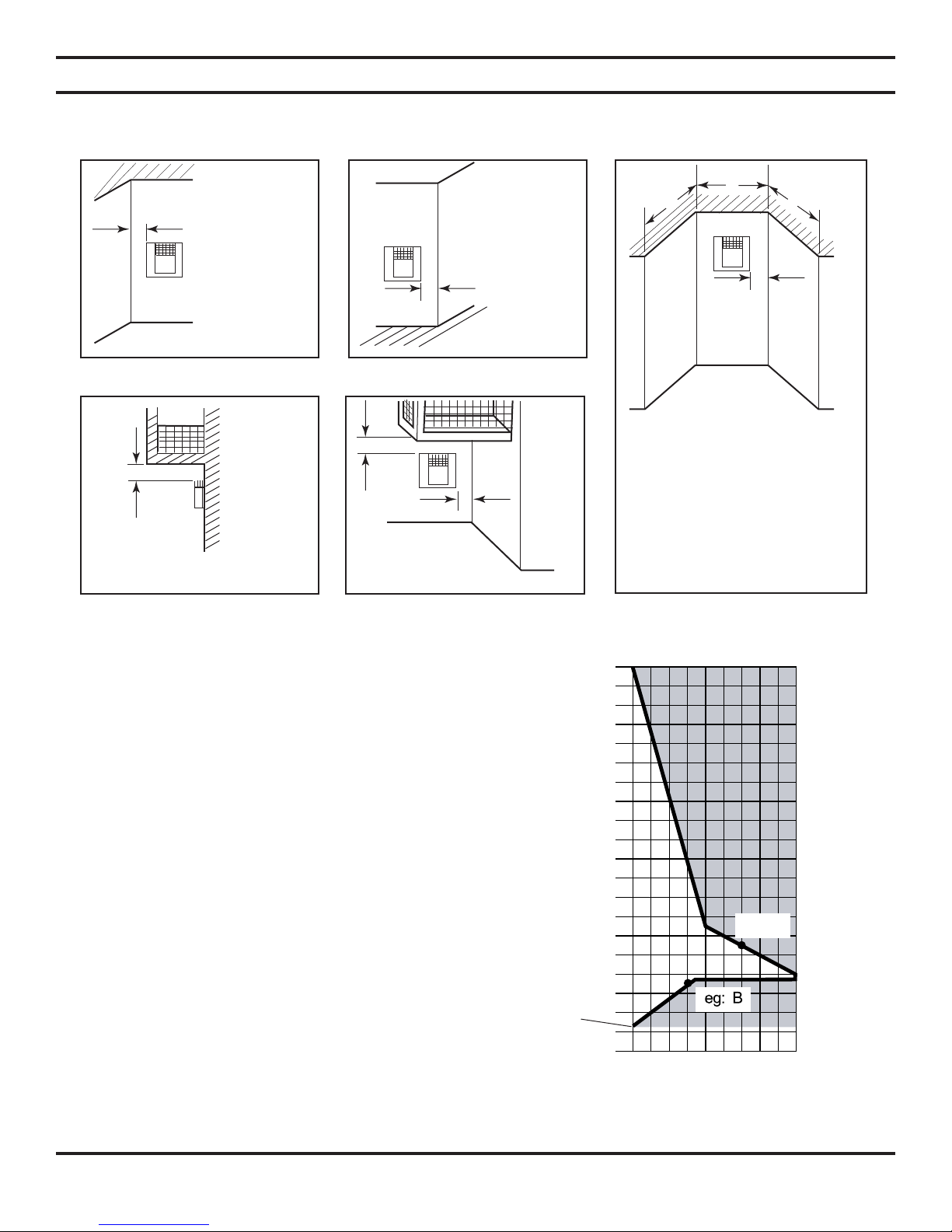

Installing Above 2000 Feet ............................ 6
Orifice Sizes, Pressures and BTUs ............... 6
Before You Install .......................................... 6

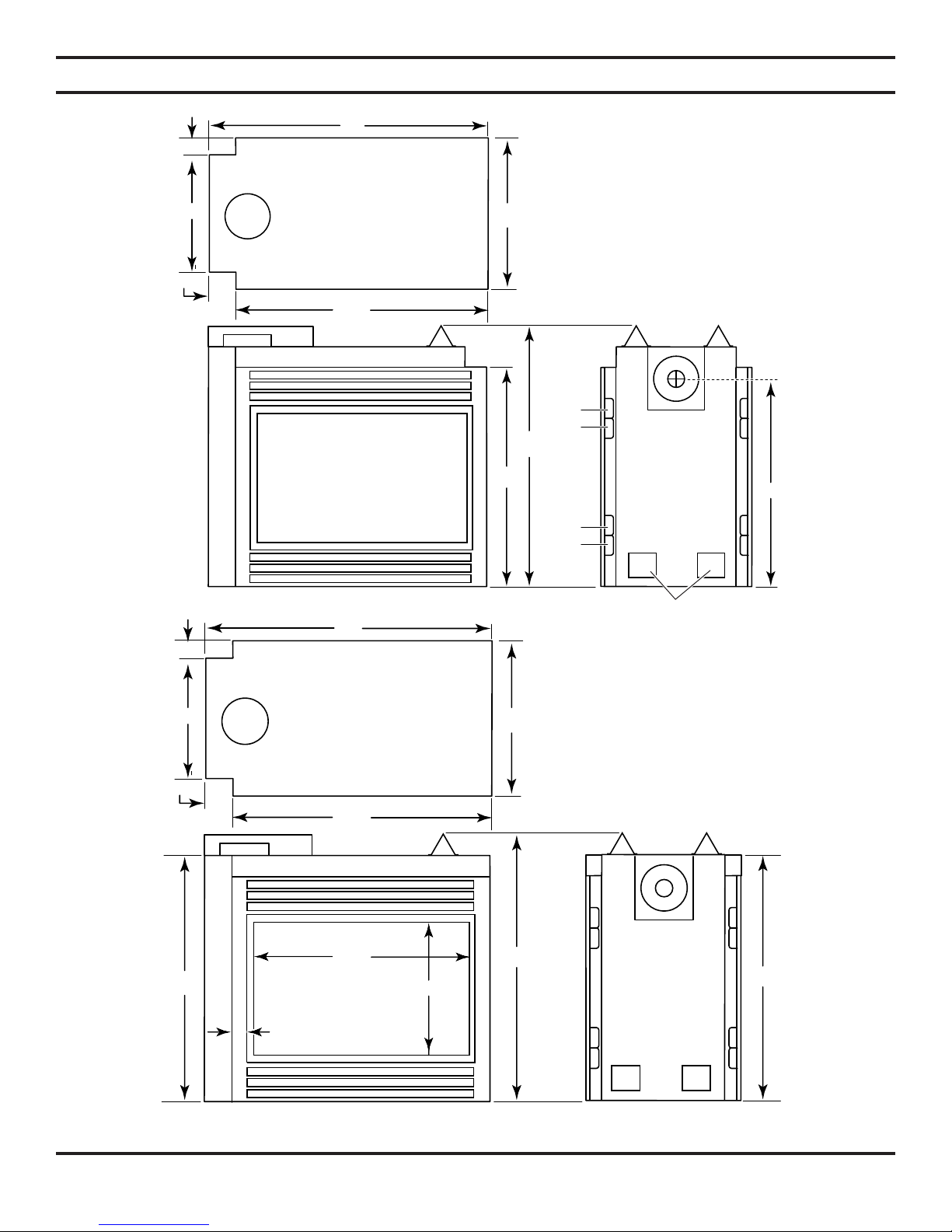

Fireplace Dimensions ................................... 7
Fireplace Location ......................................... 8

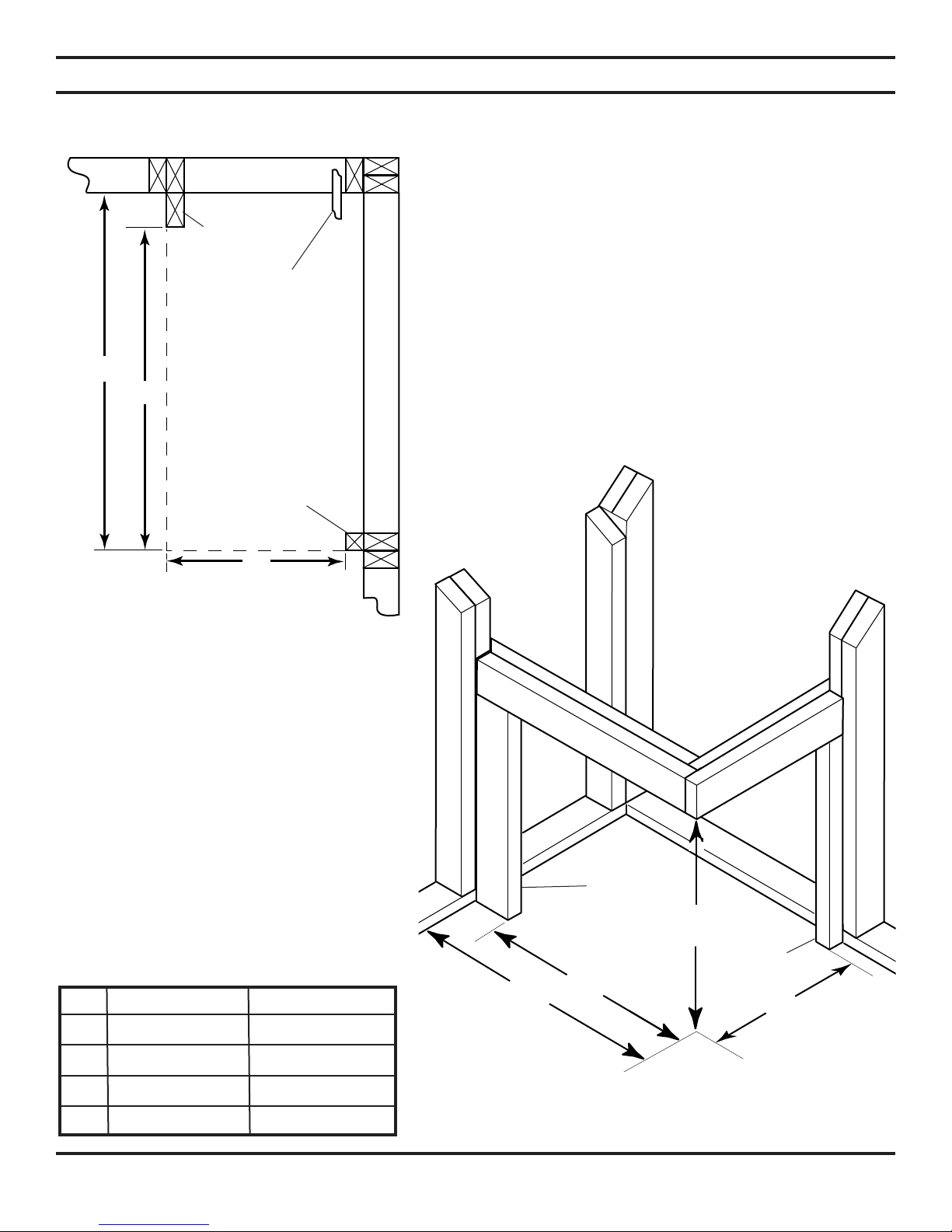

Fireplace Framing ......................................... 10
Framing Peninsula Fireplace ...................... 10
Framing Corner Fireplace ............................11
Framing See Through Fireplace ................. 12

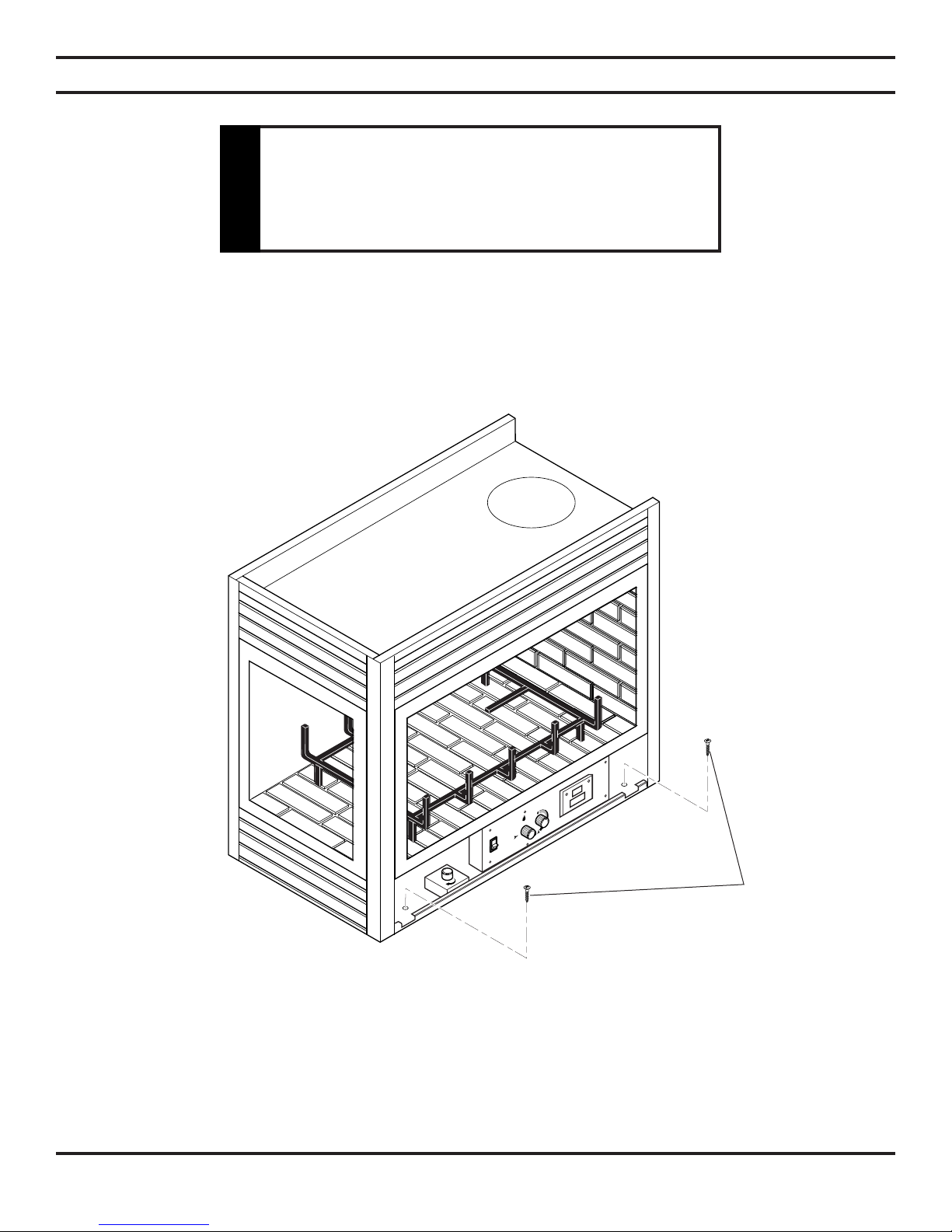

Securing Fireplace to Floor or Framing ....... 13
Clearances ...................................................... 14
Installation Information .................................. 15
Vent Installation .............................................. 16
Installation Precautions ............................... 16

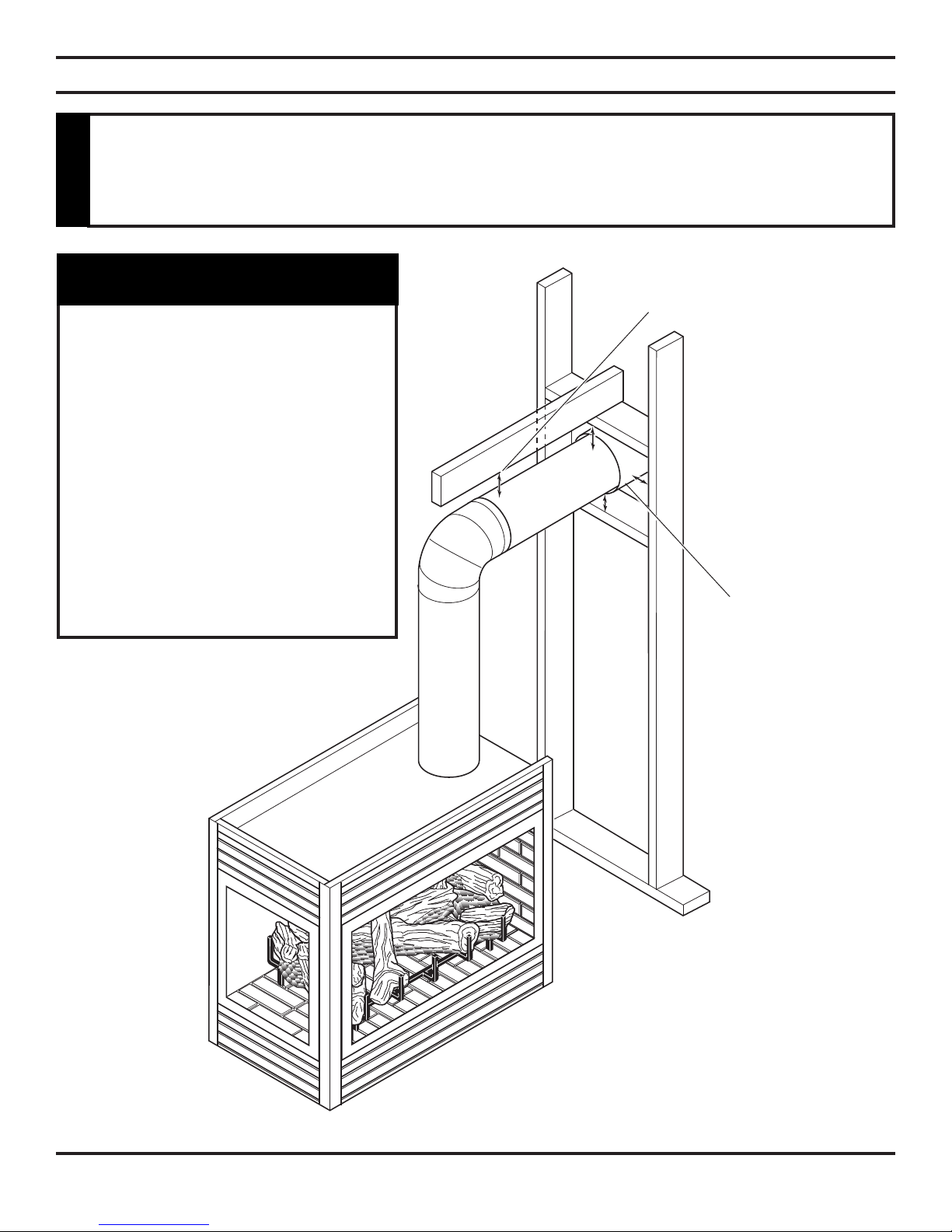

Optional Top Vent Application ..................... 17
Installation Planning .................................... 18
Installation for Vertical Termination ............. 18
Rear Wall Vent Installation .......................... 21
Horizontal Termination Configuration .......... 23
Below Grade Installation ............................. 25
Vertical Through-the-Roof Installation ......... 26
Installation for Vertical Termination ............. 27
Flat Ceiling Installation ................................ 27
Fireplace Installation ...................................... 29
Check Gas Type .......................................... 29
Installing Gas Piping to Fireplace/Burner
System Location ......................................... 29
Checking Gas Pressure ................................. 31
Electrical Installation ..................................... 32
Electrical Wiring .......................................... 32
Remote Wall Switch .................................... 32
Glass Removal ................................................ 34
Log Placement ................................................ 35
Air Restrictor Adjustment .............................. 38
Operating Instructions ................................... 39
What To Do If You Smell Gas ...................... 39
Lighting Pilot for the First Time ................... 39
Lighting Pilot ............................................... 40
Lighting Burner ............................................ 40
To Turn Off Gas ........................................... 40
Maintenance .................................................... 42
Venting System ........................................... 42
Cleaning Glass ............................................ 42
Pilot and Burner Flames ............................. 42
Firebox Cleaning ......................................... 42
Troubleshooting ............................................. 43
Blower.............................................................. 44
Replacement Parts ......................................... 45
Warranty ...........................................Back Cover

42D0200 3
4. Never install the fireplace
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable
objects are less than 42" from the front, top, or sides
of the fireplace
• in high traffic areas
• in windy or drafty areas
5. This fireplace reaches high temperatures. Keep children
and adults away from hot surfaces to avoid burns or cloth-
ing ignition. Fireplace will remain hot for a time after
shutdown. Allow surfaces to cool before touching.
6. Carefully supervise young children when they are in the
room with fireplace.
7. Do not modify fireplace under any circumstances. Any
parts removed for servicing must be replaced prior to
operating fireplace.
8. Turn fireplace off and let cool before servicing, install-
ing, or repairing. Only a qualified service person should
install, service, or repair the fireplace. Have burner system
inspected annually by a qualified service person.
9. You must keep control compartments, burners, and cir-
culating air passages clean. More frequent cleaning may
be needed due to excessive lint and dust from carpeting,
bedding material, pet hair, etc. Turn off the gas valve and
pilot light before cleaning fireplace.
10. Have venting system inspected annually by a qualified
service person. If needed, have venting system cleaned
or repaired. See Cleaning and Maintenance, page 42.
11. Keep the area around your fireplace clear of combustible
materials, gasoline, and other flammable vapor and liq-
uids. Do not run fireplace where these are used or stored.
Do not place items such as clothing or decorations on or
around fireplace.
INSTALLER
Please leave these instructions with the owner.
OWNER
Please retain these instructions for future reference .
IMPORTANT SAFETY INFORMATION
This fireplace is a vented product. This fireplace must be prop-
erly installed by a qualified service person. The glass door
must be properly seated and sealed. If this unit is not properly
installed by a qualified service person with glass door properly
seated and sealed, combustion leakage can occur.
CARBON MONOXIDE POISONING: Early signs of
carbon monoxide poisoning are similar to the flu with head-
aches, dizziness and/or nausea. If you have these signs, the
fireplace may not have been installed properly. Get fresh air
at once! Have the fireplace inspected and serviced by a quali-
fied service person. Some people are more affected by carbon
monoxide than others. These include pregnant women, people
with heart or lung disease or anemia, those under the influence
of alcohol, and those at high altitudes.
Propane/LP gas and natural gas are both odorless. An odor-
making agent is added to each of these gases. The odor helps
you detect a gas leak. However, the odor added to these gases
can fade. Gas may be present even though no odor exists.
Make certain you read and understand all warnings. Keep
this manual for reference. It is your guide to safe and proper
operation of this fireplace.
1. This appliance is only for use with the type of gas indi-
cated on the rating plate. This appliance is not convertible
for use with other gases unless a certified kit is used.
2. For propane/LP fireplace, do not place propane/LP supply
tank(s) inside any structure. Locate propane/LP supply
tank(s) outdoors. To prevent performance problems, do not
use propane/LP fuel tank of less than 100 gal. capacity.
3. If you smell gas
• shut off gas supply.
• do not try to light any appliance.
• do not touch any electrical switch; do not use any
phone in your building .
• immediately call your gas supplier from a neighborʼs
phone. Follow the gas supplierʼs instructions.
Continued on page 4
• Read this owner’s manual carefully and completely before trying to assemble, operate,
or service this fireplace.
• Any change to this fireplace or its controls can be dangerous.
• Improper installation or use of this fireplace can cause serious injury or death from
fire, burns, explosions, electrical shock and carbon monoxide poisoning.
WARNING

4 42D0200
IMPORTANT SAFETY INFORMATION AND CODE APPROVAL
Continued from page 3
12. Do not use this fireplace to cook food or burn paper or
other objects.
13. Never place anything on top of fireplace.
14. Do not use any solid fuels (wood, coal, paper, cardboard,
etc.) in this fireplace. Use only the gas type indicated on
rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical Code,
CSA C22.1.
16. Do not obstruct the flow of combustion and ventilation
air in any way. Provide adequate clearances around
air openings into the combustion chamber along with
adequate accessibility clearance for servicing and proper
operation.
17. When the appliance is installed directly on carpeting,
tile or other combustible material other than wood floor-
ing, you must set appliance on a metal or wood panel
or hearth pad extending the full width and depth of the
appliance.
18. Do not use fireplace if any part has been exposed to or
under water. Immediately call a qualified service person
to arrange for replacement of the unit.
19. Do not operate fireplace if any log is broken.
20. Do not use a blower insert, heat exchanger insert, or
any other accessory not approved for use with this fire-
place.
21. Do not operate the fireplace with glass door removed,
cracked, or broken.
22. This unit is approved for bedrooms and bathrooms.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is normal for fireplaces fabricated of steel to
give off some expansion and/or contraction noises
during the start up or cool down cycle. Similar
noises are found with your furnace heat exchanger
or car engine.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is not unusual for gas fireplace to give off some
odor the first time it is burned. This is due to the
manufacturing process.
Please ensure that your room is well ventilated
during burn off — open all windows.
It is recommended that you burn your fireplace for
at least ten (10) hours the first time you use it. Place
the fan switch in the “OFF” position during this time.
Never connect unit to private
(non-utility) gas wells. This
gas is commonly known as
wellhead gas.
WARNING
www.nficertified.org
We suggest that our gas hearth
products be installed and
serviced by professionals who
are certified in the U.S. by the
National Fireplace Institute®
(NFI) as Gas Specialists.
CODE APPROVAL
Direct Vent type appliances draw all combustion air from outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to comply with the established standards for DIRECT VENT GAS
FIREPLACE HEATERS in the USA and Canada as follows:
LISTED VENTED GAS FIREPLACE HEATER
TESTED TO: ANSI Z21.88-2002/CSA 2.33-2002 STANDARDS
A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured Home Con-
struction and Safety Standard, Title 24 CFR, Part 3280, or when such a standard is not applicable, the Standard for
Manufactured Home Installations, ANSI/NCSBCS A225.1, or Standard for Gas Equipped Recreational Vehicles and
Mobile Housing, CSA Z240.4.

42D0200 5
PRODUCT FEATURES AND CODE APPROVAL
Off/Pilot/On Knob
Optional
Remote
Receiver
Figure 1 - 6000DV Fireplace
Hi/Lo Knob
PRODUCT SPECIFICATIONS
• This appliance has been certified for use with either
natural or propane gas. See appropriate data plates.
• This appliance is not for use with solid fuels.
• The appliance is approved for bedroom or bedsitting room
installations.
• The appliance must be installed in accordance with local
codes if any. If none exist use the current installation
code. ANSI Z223.1/NFPA 54 in the USA, CAN/CGA
B149 in Canada.
• This appliance is mobile home approved.
• This appliance is approved for bathroom installation.
Blower Control
On/Off/RS Switch
• The appliance must be properly connected to a vent-
ing system.
• The appliance is not approved for closet or
recessed installations.
The efficiency rating of this appliance is a product thermal
efficiency rating determined under continuous operating con-
ditions and was determined independently of any installed
system.
Thermal Efficiency = up to 80%
Control Panel

6 42D0200
PRE-INSTALLATION INFORMATION
INSTALLING ABOVE 2000 FEET
• In the USA, the appliance must be derated 4% for every 1,000 ft above 2,000 ft elevations.
• In Canada, these appliances are certified for altitudes of 0 – 2000 ft, and must be de-rated by 10 percent for installations
between 2000 and 4,500 ft. (derate an additional 4% for every 1,000 ft. above 4,500 ft. elevations).
• Contact gas supplier.
ORIFICE SIZES, PRESSURES AND BTUs
NATURAL GAS PROPANE GAS
Manifold Press: (W.C.) 3.5" Manifold Press: (W.C.) 10"
Maximum Supply Pressure 10.5" Maximum Supply Pressure 13"
Minimum Supply Pressure 4.5" Minimum Supply Pressure 11"
Model Number 6000DV
NATURAL PROPANE
Max. Btu/hr Input 36000 36000
Min. Btu/hr Input 25000 26000
Orifice size (as shipped) #43 #54
BEFORE YOU INSTALL
Read this homeowner manual thoroughly and follow all instructions carefully. Inspect all contents for shipping damage and
immediately inform your dealer if any damage is found. Do not install any unit with damaged, incomplete, or substitute parts.
Check your packing list to verify that all listed parts have been received. You should have the following:
• Fireplace (Firebox and Burner System) • Log Set
• Lava Rock • Rock Wool
• Deflector Shield (to be used with Simpson DuaVent Horizontal Termination – P/N 985)
ITEMS REQUIRED FOR INSTALLATION
Tools: Building Supplies:
• Phillips Screwdriver • Framing Materials
• Hammer • Wall Finishing Materials
• Saw and/or saber saw • Caulking Material (Noncombustible)
• Level • Fireplace Surround Material (Noncombustible)
• Measuring Tape • Piping Complying with Local Codes
• Electric Drill and Bits • Tee Joint
• Pliers • Pipe Sealant Approved for use with Propane/LPG
• Square (Resistant to Sulfur Compounds)
• Pipe Wrench

42D0200 7
233/4"
187/8"
27/16"
47/16"
44"
395/8"
341/2"
323/4"
4015/16"
5/8"
1/2"
1/2"
5/8"
241/2"
373/4"
13/4"
187/8"
191/2"
31/4"
47/16"
44"
395/8"
321/4"4015/16"
373/4"
PRE-INSTALLATION INFORMATION
Figure 2 - Fireplace Dimensions
SEE THROUGH AND
PENINSULA UNITS
CORNER UNITS
(RIGHT-HAND UNIT SHOWN)
Gas/Electric

8 42D0200
PRE-INSTALLATION INFORMATION
This gas fireplace should be installed by a qualified installer in accordance with local building codes and with current CAN
/CGA-B149 (.1 or .2) Installation codes for Gas Burning Fireplaces and Equipment. If the unit is being installed in a mobile
home the installation should comply with the current CAN/CSA Z 240 .4 code.
FOR U.S.A Installations follow local codes and/or the current National Fuel Gas Code. ANSI Z223.1.
FIREPLACE LOCATION
FOR SAFE INSTALLATION AND OPERATION PLEASE NOTE THE FOLLOWING:
INSTALLATION AND OPERATING INSTRUCTIONS
THIS APPLIANCE HAS BEEN APPROVED FOR AFTER-MARKET MOBILE HOME INSTALLATIONS.
1. This fireplace gives off high temperatures and should be
located out of high traffic areas and away from furniture
and draperies.
2. Children and adults should be alerted to the hazards of
the high surface temperatures of this fireplace and should
stay away to avoid burns or ignition of clothing.
3. Caution, due to high glass surface temperature children
should be carefully supervised when they are in the same
room as the fireplace.
4. Under no circumstances should this fireplace be modified.
Parts removed for servicing should be replaced prior to
operating the fireplace again.
5. Installation and any repairs to this fireplace should be
carried out by a qualified service person. A professional
service person should be contacted to inspect this fire-
place annually. Make it a practice to have all of your gas
fireplaces checked annually. More frequent cleaning may
be required due to excess lint and dust from carpeting,
bedding material, etc.
6. Control compartments, burners and air passages in this
fireplace should be kept clean and free of dust and lint.
Make sure that the gas valve and pilot light are turned
off before you attempt to clean this fireplace.
7. The venting system (chimney) of this fireplace should be
checked at least once a year and if needed your venting
system should be cleaned.
8. Keep the area around your fireplace clear of combustible
materials, gasoline and other flammable vapor and liquids.
This fireplace should not be used as a drying rack for
clothing, nor should Christmas stockings or decorations
be hung on or around the fireplace.
9. Under no circumstances should any solid fuels (wood, coal,
paper or cardboard etc.) be used in this fireplace.
10. The flow of combustion and ventilation air must not be
obstructed in any way.
11. When the fireplace is installed directly on carpeting,
vinyl tile or any combustible material other than wood,
the fireplace must be installed on a metal or wood panel
extending the full width and depth of the fireplace.
12. This fireplace requires adequate ventilation and combus-
tion air to operate properly.
13. This fireplace must not be connected to a chimney flue
serving a separate solid fuel burning fireplace.
14. When the fireplace is not in use it is recommended that
the gas control valve be left in the “OFF” position.

42D0200 9
X
X
X
Y
Y
Y
Z
A
A
B
Figure 3 - Locating Gas
Fireplace
A. WALL LOCATION (See Figure 3)
Y Minimum distance between a glass panel and a parallel wall = 31/2'
Z Minimum distance between the edge of a glass panel and an adjacent wall = 3"
B. Island Location (See Figure 3)
X (Maximum length of horizontal venting = 20'. Refer to the venting section of this manual for specific dimensions.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
Remove any plastic from trim parts before turning the fireplace ON.
It is normal for fireplaces fabricated of steel to give off some expansion and/or contraction noises during the start up or
cool down cycle. Similar noises are found with your furnace heat exchanger or car engine.
It is not unusual for your Monessen gas fireplace to give off some odor the first time it is burned. This is due to the curing
of the paint and any undetected oil from themanufacturing process.
Please ensure that your room is well ventilated — open all windows.
It is recommended that you burn your Monessen fireplace for a least ten (10) hours the first time you use it. If the optional
fan kit has been installed, place the fan switch in the “OFF” position during this time.
PRE-INSTALLATION INFORMATION

10 42D0200
C
A2
A1
C
A2
B
A1
It is best to build firebox framing AFTER the appliance is set in place. Refer to the dimensions for your fireplace on pages
10 through 12. The framing headers may rest on the top of the firebox standoffs.
The firebox may be installed directly on a combustible floor or raised on a platform of an appropriate height. Do not place
firebox on carpeting, vinyl, or other soft floor coverings. It may, however, be placed on a flat wood, plywood, particle board,
or other hard surfaces. Be sure firebox rests on a solid continuous floor or platform with appropriate framing for support. No
cold air should enter room from under the firebox.
Figure 4 - Top View of Framing for
Installing as a Peninsula
Figure 5 - Framing for Peninsula Units
2"x4"
2"x4"
(Minimum)
2"x4"
(Minimum)
Gas
Connection
FRAMING FIREPLACE
FRAMING PENINSULA FIREPLACE
1/2" DRYWALL 5/8" DRYWALL
A1 431/2" 433/8"
A2 397/8" 393/4"
B 411/8" 411/8"
C 223/4" 221/2"
PENINSULA FRAMING
SPECIFICATIONS

42D0200 11
C
A2
A1
C
A2
B
A1
C
Figure 6 - Top View of Framing
Inside Corner (Right-Hand Configuration)
Figure 7 - Framing for Corner Units
Gas
Connection
FRAMING CORNER FIREPLACE
1/2" DRYWALL 5/8" DRYWALL
A1 431/2" 433/8"
A2 397/8" 393/4"
B 411/8" 411/8"
C 24" 237/8"
INSIDE CORNER FRAMING
SPECIFICATIONS
2"x4"
2"x2"
(Minimum)
2"x4"
(Minimum)
2"x2"
(Minimum)
FRAMING FIREPLACE

12 42D0200
C
A2
A1
C
A2
B
A1
FRAMING FIREPLACE
Figure 8 - Top View of Framing for
See-Through Unit
Figure 9 - Framing
Installing for See-Through Unit
Gas
Connection
2"x4"
(Minimum)
Install 2"x4" (Minimum)
after fireplace is set
into framed A1 Opening
1/2" DRYWALL 5/8" DRYWALL
A1 441/4" 441/4"
A2 405/8" 405/8"
B 411/8" 411/8"
C 223/4" 221/2"
*SEE THROUGH FRAMING
SPECIFICATIONS
FRAMING SEE THROUGH FIREPLACE
* Note: For ease of installation, frame around the firebox after it has been set. See chart below for
specifications.
When installing into existing framed (A1) openings, loosen the junction box. Remove the rear-mounted flue pipe adaptor.
See page 17, figures 13 and 14. Reattach both assemblies.

42D0200 13
Figure 10 - Securing Fireplace to Floor and Framing Studs
Screws
SECURING FIREPLACE TO FLOOR
The fireplace must be secured to the floor and/or to framing studs as shown in Figure 10. Use two (2) wood screws or
masonry/ concrete screws to secure fireplace to the floor. Use four (4) screws to attach fireplace to framing. The side brackets
are adjustable from 1/2" to 5/8" to accommodate different thickness of noncombustible material.
The fireplace must be installed giving full
consideration to the clearance and height
requirements identified in this manual.
WARNING
SECURING FIREPLACE TO FLOOR

14 42D0200
V
W
X
Y
Z
A B C D E
Follow these instructions carefully to ensure safe installation. Failure to follow
instructions exactly can create a fire hazard.
The appliance cannot be installed on a carpet, tile or other combustible material other
than wood flooring. If installed on carpet or vinyl flooring, the appliance shall be installed
on a metal, wood or noncombustible material panel extending full width and depth of
the appliance.
WARNING
CLEARANCES
CLEARANCES TO COMBUSTIBLES
MANTEL CLEARANCES
NOTE: The combustible area above the facing must not protrude more than 3/4" from the facing. If it does,
it is considered a mantel and must meet the mantel requirements listed in this manual.
Figure 11 - Clearances
Mantel Shelf Chart (Minimum Height)
Ref. Mantel Depth Ref. Height Above Louvres
V 10" (254mm) A 12" (305mm)
W 8" (203mm) B 10" (254mm)
X 6" (152mm) C 8" (203mm)
Y 4" (101mm) D 6" (152mm)
Z 2" (50mm) E 4" (101mm)

42D0200 15
Read all instructions completely and thoroughly before attempting installation. Failure
to do so could result in serious injury, property damage or loss of life. Operation of
improperly installed and maintained venting system could result in serious injury,
property damage or loss of life.
WARNING
Failure to follow these instructions will
void the warranty.
NOTICE
INSTALLATION PRECAUTIONS
NOTE: This appliance must be installed with a Monessen approved venting system only.
Consult local building codes before beginning the installation. The installer must make sure to select the proper vent system
for installation. Before installing vent kit, the installer must read this fireplace manual and vent kit instructions.
Only a qualified installer/service person should install venting system. The installer must follow these safety rules:
• Wear gloves and safety glasses for protection.
• Use extreme caution when using ladders or when on rooftops.
• Be aware of electrical wiring locations in walls and ceilings.
The following actions will void the warranty on your venting system:
• Installation of any damaged venting component.
• Unauthorized modification of the venting system.
• Installation of any component part not manufactured or approved by Monessen.
• Installation other than permitted by these instructions.
FINISHING MATERIAL
NOTE: Any remote wiring (i.e. remote control, wall switch, and optional fan) must be done prior to final
finishing to avoid costly reconstruction.
INSTALLATION INFORMATION
Only noncombustible materials (i.e. brick, tile, slate, steel, or other materials with a UL fire rating of Zero) may be used to
cover the black-painted face of the appliance. A 300°F minimum adhesive may be used to attach facing materials to the black
surface. If joints between the finished wall and the fireplace surround are sealed, a 300°F minimum sealant material (General
Electric RTV103 or equivalent) must be used. Combustibles may come to the top and side edges but not overlay the face.
Never obstruct or modify the air inlet or outlet grills (louvers). This may create a
fire hazard.
WARNING
VENT INSTALLATION

16 42D0200




VENT INSTALLATION
This fireplace must be vented to the outside. The venting system must NEVER be
attached to a chimney serving a separate solid fuel burning appliance. Each gas
appliance must use a separate vent system. Do not use common vent systems.
WARNING
Figure 12 - Combustible Clearances for Vent Pipe
A Minimum of 3" Clearance
to the Top Is Required Along
Horizontal Length until Flue
Pipe Penetrates Outside Wall.
A Minimum 1"
Clearance to
Combustibles
Permitted All Around
Flue at Outside Wall
Horizontal sections of this vent
system require a minimum of 3"
clearances to combustibles at the
top of the flue and 1" clearance
at the sides and bottom until the
flue penetrates the outside wall. A
minimum 1" clearance all around
the flue is acceptable at this point
of penetration.
Vertical sections of this vent
system require a minimum of 1"
clearance to combustibles on all
sides of the pipe.
WARNING

42D0200 17
VENT INSTALLATION
OPTIONAL TOP VENT APPLICATION
The appliance is shipped as a rear vent unit. If the installation
layout requires the unit to be a top vent configuration the appli-
ance can be converted by following the steps below.
When removing and refitting the plates and adapter be sure the
associated gaskets are undamaged and refitted as required.
1. Remove the eight (8) screws securing the flue pipe adapter
to the fireplace body. See Figure 13.
2. Set the flue pipe adapter aside, complete with the gasket.
Do not damage the gaskets as the adapter and gasket must
be refitted.
3. Remove the eight (8) screws securing the flue pipe cover to
the top of the intake box and remove the cover and gasket.
See Figure 13.
4. Remove eight (8) screws securing the flue pipe to the
back of the intake box and remove the pipe and gasket.
See Figure 14.
5. Replace flue pipe to top of firebox. Ensure the gasket is in
place and undamaged. Secure with eight (8) screws. See
Figure 15.
6. Place the flue pipe cover and gasket removed in step 3 over
the flue opening in bottom of the intake box.
7. Refit the flue pipe adapter and gasket to the top of fire-
place. Secure the adapter with eight (8) screws removed
in step 1.
After conversion to top vent
configuration the 4" (100mm) flue pipe
should be concentric within the 65/8"
(175mm) outer collar (within 1/4").
WARNING
Figure 13 - Removing sixteen (16) Screws from
Flue Pipe Adapter and Flue Pipe Cover
Figure 14 - Removing Flue Pipe Figure 15 - Attaching Flue Pipe to Top
Vent Configurations
Screws
Flue Pipe
Cover
Flue Pipe
Adapter
Flue
Cover
Flue Pipe
Screws
Flue Pipe
Screws

18 42D0200
VENT INSTALLATION
INSTALLATION PLANNING
There are two basic types of direct-vent installation:
• Horizontal Termination
• Vertical Termination
It is important to select the proper length of vent pipe for the type of termination you choose. It is also important to note the
wall thickness.
FOR HORIZONTAL TERMINATION
Select the amount of vertical rise desired. All horizontal run
of venting must have 1/4" rise for every 12" of run towards the
termination.
You may use up to three 90° elbows in this vent configuration. See
Horizontal Termination Configurations on pages 23 and 24.
FOR VERTICAL TERMINATION
Measure the distance from the fireplace floor to the ceiling. Add the ceiling thickness, the vertical rise in an attic or second
story, and allow for sufficient vent height above the roof line.
NOTE: You may use two 45° elbows in place of a 90° elbow. You must follow rise to run ratios when using
45° elbows. The appliance is approved for use with three 90° elbows maximum or a combination of 90°
and 45° elbows up to a maximum of 270°.
For two-story applications, firestops are required at each floor level. If an offset is needed in the attic, additional pipe and
elbows will be required.
You may use a chase with a vent termination with exposed pipe on the exterior of the house. See Installing Vent System in
a Chase below. If pipe is enclosed in chase, it is not exposed.
It is very important that the venting system maintain its balance between the combustion air intake and the flue gas exhaust.
Certain limitations apply to vent configurations and must be strictly followed.
INSTALLING A VENT SYSTEM IN AN OUTSIDE CHASE
A chase is a vertical boxlike structure built to enclose venting that runs along the outside of a building. A chase is required
for such venting.
Never run the vent pipe level or
downward. This may cause excessive
temperatures which could cause
a fire.
WARNING
Treatment of firestops and construction of the chase may vary from building type to
building type. These instructions are not substitutes for the requirements of local
building codes. You must follow all local building codes.
NOTICE
When installing in a chase, you should insulate the chase as you would the outside walls of
your home. This is especially important in cold climates. Insulation should be considered
a combustible material. Maintain proper clearances to all combustible materials.
NOTICE

42D0200 19
V
V
V
V
V
V
V
V
D
L
E
B
C
F
B
B
B B
B
M
I
A
A
J
H
G
A
Operable
Fixed
Closed Fixed
Closed
Opera-
ble
K
A
A
A
G
VENT INSTALLATION
Always maintain minimum clearances around vent systems. The minimum clearances
to combustibles for horizontal vent pipe are 3" at the top and 1" at the sides and bottom
of the vent system until the pipe penetrates the nearest vertical wall. A 1" minimum
clearance all around the pipe must be maintained. Do not pack the open air spaces with
insulation or other materials. This could cause high temperatures and may present a
fire hazard.
WARNING
Figure 16 - Horizontal Vent Termination Location
Vent Terminal Air Supply Inlet Area Where Terminals Not Permitted
Inside Corner Detail FOR HORIZONTAL TERMINATION
MINIMUM DISTANCES
A = Clearance above the grade, a veranda, porch, deck, or balcony [*12" (305mm) minimum].
B = Clearance to window or door that may be opened [*12" (305mm) minimum].
C = Clearance to permanently closed window [*minimum 12" (305mm) recommended to prevent condensation on
window]
D = Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of two (2) feet (610mm)
from the centerline of the terminal [18" (457mm) minimum].
E = Clearance to unventilated soffits [12" (305mm) minimum]. Clearance to vinyl soffit [30" (762mm)].
F = Clearance to an outside corner. See page 14.
G = Clearance to an inside corner. See page 14.
H = *Not to be installed above a gas meter/regulator assembly within three (3) feet (914mm) horizontally from the centerline
of the regulator.
I = Clearance to service regulator vent outlet [*3' (914mm) minimum].
J = Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance [*12"
(305mm)minimum].
K = Clearance to a mechanical air supply inlet [*6' (1829mm) minimum].
L = Clearance above a paved sidewalk or paved driveway located on public property [**7' (2133mm) minimum].
M = Clearance under veranda, porch, deck, or balcony [*12" (305mm) minimum***].
N = Clearance above a roof shall extend a minimum of 24" (610mm) above the highest point when it passes through the roof
surface and any other obstruction within a horizontal distance of 18" (457mm).
* As specified in CAN/CGA B149 Installation Codes. Note: Local codes or regulations may require different
clearances.
** A vent must not terminate directly above a sidewalk or paved driveway, which is located between two single-family
dwellings and serves both dwellings.
*** Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.

20 42D0200
V
GG=6" (152mm)
FF=6" (152mm)
V
V
G
G = Combustible 24"(610mm)
Noncombustible 18"(457mm)
Combustible &
Noncombustible
H = 24" (610mm)
J = 20" (508mm)
V
H
J
C = Maximum depth of 48" (1219mm)
for alcove location
D = Minimum width for back wall of
alcove location
Combustible - 38" (965mm)
Noncombustible - 24" (610mm)
E = Clearance from corner in alcove
location
Combustible - 6" (152mm)
Noncombustible - 2" (51mm)
E
V
D
C
C
Inside Corner
Alcove Location
Outside Corner
Balcony with No Side Wall Balcony with Perpendicular
Side Wall
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
2 4 6 8 10 1214 16 1820
eg: A
VENT INSTALLATION
TERMINATION CLEARANCES FOR BUILDINGS WITH COMBUSTIBLE
AND NONCOMBUSTIBLE EXTERIORS
Figure 17 - Allowable Venting Chart
HOW TO USE THE VENT GRAPH
The Vent Graph should be read in conjunction with the following
vent installation instructions to determine the relationship between
the vertical and horizontal dimensions of the vent system.
1. Determine the height of the center of the horizontal vent pipe
exiting through the outer wall. Using this dimension on the
Sidewall Vent Graph below, locate the point intersecting with
the slanted graph line.
2. From the point of this intersection, draw a vertical line to the
bottom of the graph.
3. Select the indicated dimension, and position the fireplace in
accordance with same.
Example: If the vertical dimension from the floor of the
fireplace is 11' (3.4m) the horizontal run to the face of the
outer wall must not exceed 14' (4.3m).
Example: If the vertical dimension from the floor of the unit
is 7’ (2.14m), the horizontal run to the face of the outer
wall must not exceed 81/2' (2.6m).
Sidewall Vent Graph showing the relationship between vertical and
horizontal dimensions for a Direct Vent flue system. Figure 18 - Rear Wall Venting Graph
Horizontal Dimension From the Outside Face of the Wall
to the Center of the Fireplace Vent Flange
Vertical Dimension From the Floor of Unit to the Center of the
Horizontal Vent Pipe
Dimensions in
Feet
20"
