Monessen Hearth ILDV20NV User manual

Models: ILDV20NV & ILDV20PV
ILDV30NV & ILDV30PV
ILDV Series
Direct Vent
Gas Fireplace Insert
READ BEFORE INSTALLING. SAVE THESE INSTRUCTIONS
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED OUT OF
TRAFFIC AND AWAY FROM FURNITURE AND
DRAPERIES.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURE AND SHOULD
STAY AWAY TO AVOID BURNS OR CLOTHING
IGNITION.
YOUNG CHILDREN SHOULD BE SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS THE
APPLIANCE.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED ON
OR NEAR THE APPLIANCE.
KEEP THE ROOM AREA CLEAR AND
FREE FROM COMBUSTIBLE MATERIALS,
GASOLINE, AND OTHER FLAMMABLE
VAPORS AND LIQUIDS.
IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
– Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
– Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
WARNING: Improper installation, adjustment, alteration,
services or maintenance can cause injury or property
damage. Refer to this manual. For assistance or additional
information consult a qualified installer, service agency
or the gas supplier.
This appliance may be installed in an aftermarket*,
permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for
use with other gases, unless a certified kit is used.
* Aftermarket: Completion of sale, not for purpose of resale, from the
manufacturer.
WARNING
83D0511 12/08 Rev. 2
Installation and Operating Instructions

2 83D0511
ILDV30/ILDV20 Fireplace Insert CONTENTS
Important Safety Information .......................... 3
Product Features.............................................. 5
Code Approval .................................................. 5
Pre-Installation Information
Installing Above 2000 Feet............................ 6
Orifice Sizes, Pressures and BTUs............... 6
Before You Start ............................................ 6

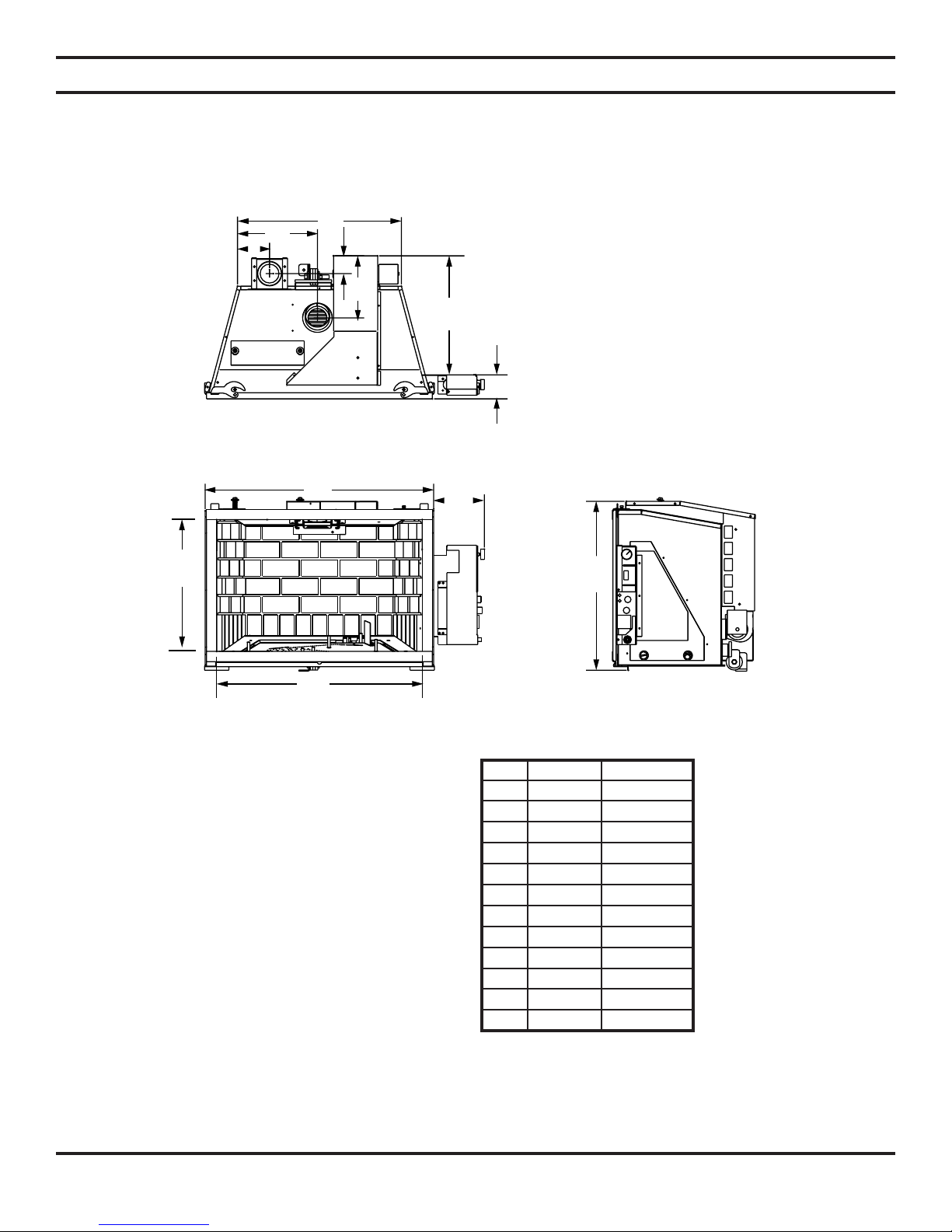

Insert Dimensions ......................................... 7
General Installation Information ..................... 8
Insert Applications......................................... 8
Clearances ........................................................ 8
Insert Clearances.......................................... 9

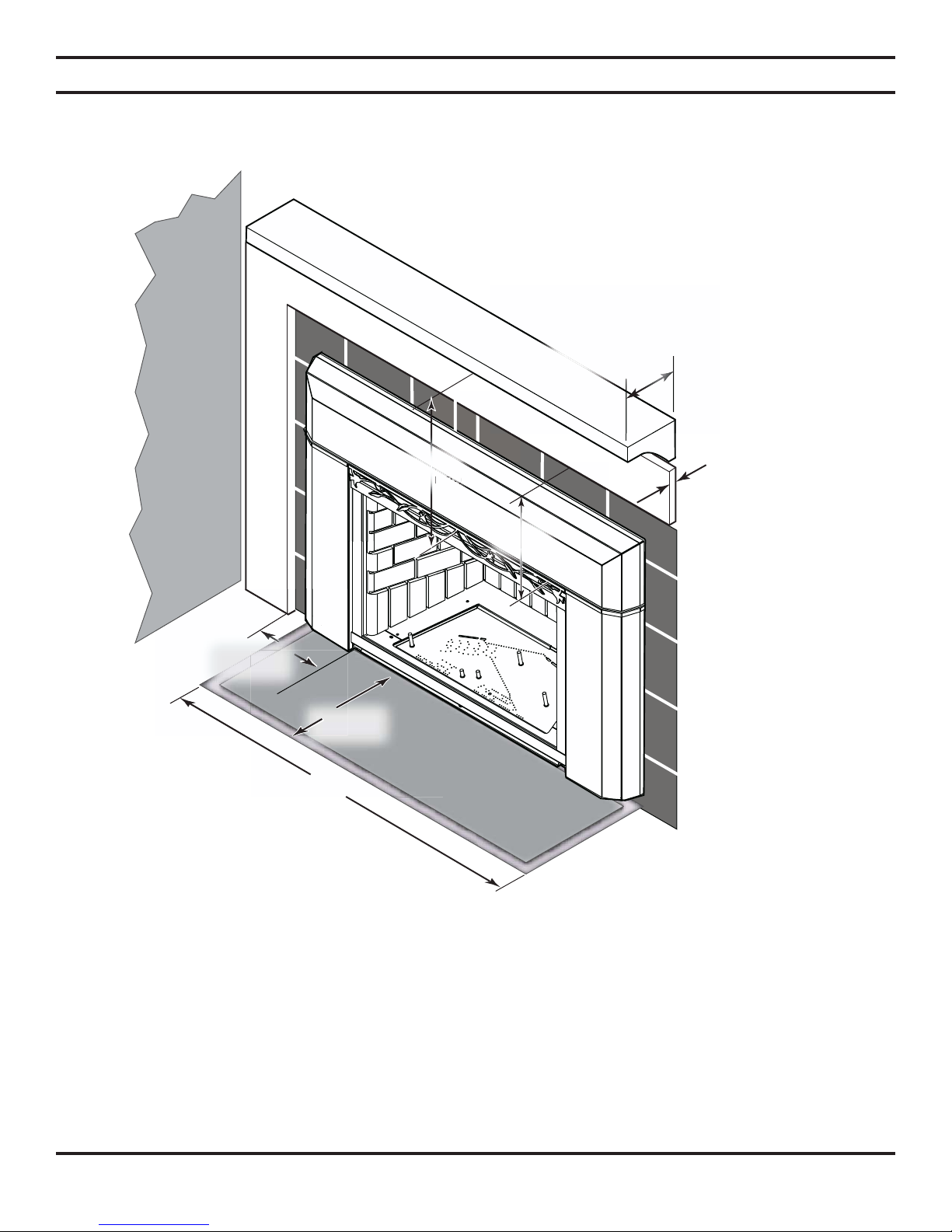

Mantel Clearances ........................................ 9
Hearth Requirements.................................... 9
Installation....................................................... 10
Insert Placement ......................................... 10
Zero-Clearance Fireplace Requirements.....11
Vent Installation .............................................. 12
Installation Precautions............................... 12
Vent Requirements...................................... 13
Altitude Considerations ............................... 14

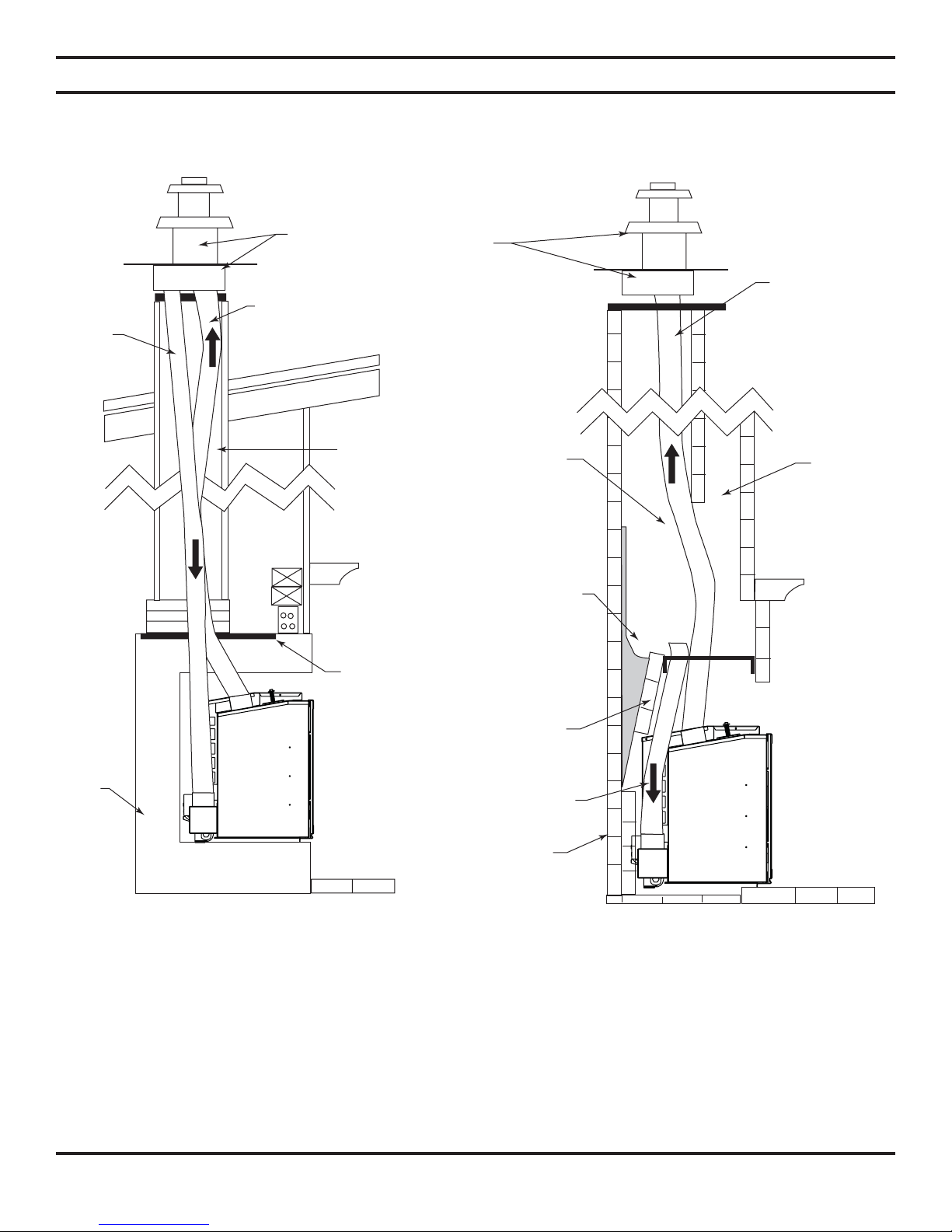

Vent Configurations..................................... 15
Manifold Removal and Installation .............. 16
Insert Installation............................................ 17
Check Gas Type.......................................... 17
Installing Gas to Insert Location.................. 17
Installation Items Needed............................ 17
Checking Gas Pressure ................................. 19
Electrical Installation...................................... 20
Electrical Wiring .......................................... 20
Log Placement................................................ 21
Surround Installation ..................................... 24
Operating Instructions................................... 25
Lighting Pilot for the First Time.................... 25
Lighting Pilot................................................ 26
Lighting Burner............................................ 27
To Turn Off Gas........................................... 27
Adjusting Blower Speed.............................. 27
Air Shutter Adjustment .................................. 28
Glass Replacement ........................................ 29
Blower Removal and Assembly .................... 30
Blower Parts................................................ 31
Cleaning and Maintenance ............................ 32
Venting System ........................................... 32
Pilot and Burner Flames.............................. 32
Firebox Cleaning......................................... 33
Maintaining Your Heater's Appearance ....... 33
Yearly Service Procedure............................ 34
Replacement Parts Lists................................ 35
Troubleshooting ............................................. 37
Warranty .......................................................... 39

83D0511 3
ILDV30/ILDV20 Fireplace Insert
• do not touch any electrical switch; do not use
any phone in your building .
• immediately call your gas supplier from a neigh-
bor’s phone. Follow the gas supplier’s instruc-
tions.
4. Never install the fireplace
• in a recreational vehicle
• where curtains, furniture, clothing, or other flam-
mable objects are less than 36" from the front,
top, or sides of the fireplace
• in high traffic areas
• in windy or drafty areas
5. This fireplace reaches high temperatures. Keep
children and adults away from hot surfaces to avoid
burns or clothing ignition. Fireplace will remain hot
for a time after shutdown. Allow surfaces to cool
before touching.
6. Carefully supervise young children when they are
in the room with fireplace.
7. Do not modify fireplace under any circumstances.
Any parts removed for servicing must be replaced
prior to operating fireplace.
8. Turn fireplace off and let cool before servicing, install-
ing, or repairing. Only a qualified service person
should install, service, or repair the fireplace. Have
burner system inspected annually by a qualified
service person.
9. You must keep control compartments, burners, and
circulating air passages clean. More frequent clean-
ing may be needed due to excessive lint and dust.
Turn off the gas valve and pilot light before cleaning
fireplace.
INSTALLER
Please leave these instructions with the appliance.
OWNER
Please retain these instructions for future reference .
IMPORTANT SAFETY INFORMATION
This fireplace is a vented product. This fireplace must
be properly installed by a qualified service person. The
glass door must be properly seated and sealed. If this
unit is not properly installed by a qualified service person
with glass door properly seated and sealed, combustion
leakage can occur.
CARBON MONOXIDE POISONING: Early signs of
carbon monoxide poisoning are similar to the flu with
headaches, dizziness and/or nausea. If you have these
signs, the fireplace may not have been installed properly.
Get fresh air at once! Have the fireplace inspected and
serviced by a qualified service person. Some people
are more affected by carbon monoxide than others.
These include pregnant women, people with heart or
lung disease or anemia, those under the influence of
alcohol, and those at high altitudes.
Propane/LP gas and natural gas are both odorless. An
odor-making agent is added to each of these gases. The
odor helps you detect a gas leak. However, the odor
added to these gases can fade. Gas may be present
even though no odor exists.
Make certain you read and understand all warnings.
Keep this manual for reference. It is your guide to safe
and proper operation of this fireplace.
1. This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases unless a certi-
fied kit is used.

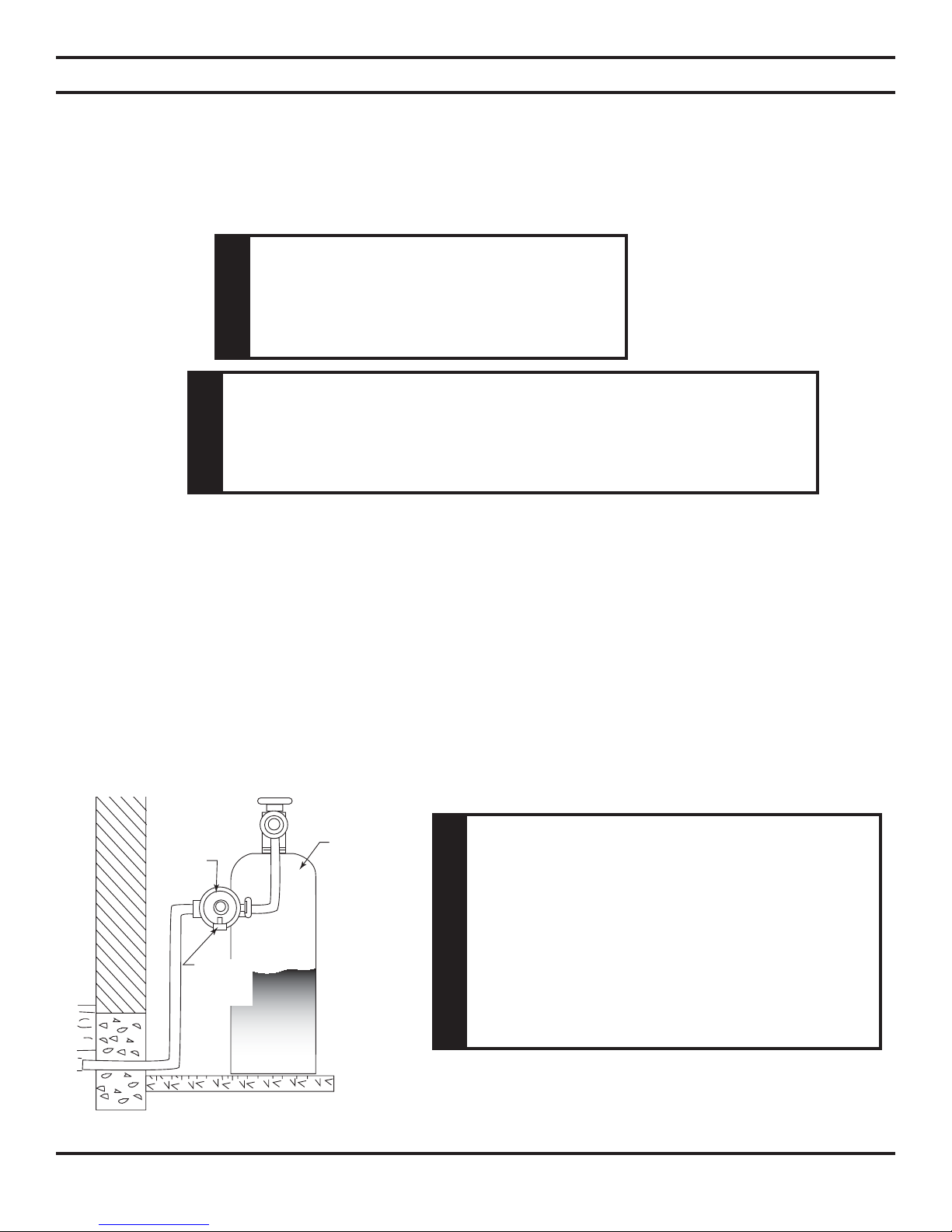

2. For propane/LP fireplace, do not place propane/LP
supply tank(s) inside any structure. Locate propane/
LP supply tank(s) outdoors. To prevent performance
problems, do not use propane/LP fuel tank of less
than 100 lbs. capacity.
3. If you smell gas
• shut off gas supply.
• do not try to light any appliance. Continued on page 4
• Read this owner’s manual carefully and completely before trying to assemble, operate,
or service this fireplace.
• Any change to this fireplace or its controls can be dangerous.
• Improper installation or use of this fireplace can cause serious injury or death from
fire, burns, explosions, electrical shock and carbon monoxide poisoning.
WARNING

4 83D0511
ILDV30/ILDV20 Fireplace Insert IMPORTANT SAFETY INFORMATION
Continued from page 3
10. Have venting system inspected annually by a quali-
fied service person. If needed, have venting system
cleaned or repaired. Refer to Cleaning and Mainte-
nance, Page 31.
11. Keep the area around your fireplace clear of combus-
tible materials, gasoline, and other flammable vapor
and liquids. Do not run fireplace where these are
used or stored. Do not place items such as clothing
or decorations on or around fireplace.
12. Do not use this fireplace to cook food or burn paper
or other objects.
13. Never place anything on top of fireplace.
14. Do not use any solid fuels (wood, coal, paper, card-
board, etc.) in this fireplace. Use only the gas type
indicated on rating plate.
15. This appliance, when installed, must be electrically
grounded in accordance with local codes or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
16. Do not obstruct the flow of combustion and ventila-
tion air in any way. Provide adequate clearances
around air openings into the combustion chamber
along with adequate accessibility clearance for ser-
vicing and proper operation.
17. When the appliance is installed directly on carpeting,
tile or other combustible material other than wood
flooring, you must set appliance on a metal or wood
panel or hearth pad extending the full width and
depth of the appliance.
18. Do not use fireplace if any part has been exposed to
or has been under water. Immediately call a quali-
fied service technician to inspect the appliance and
replace any part of the control system and any gas
control which as been submerged in water.
19. Do not operate fireplace if any log is broken.
20. Do not use a blower insert, heat exchanger insert,
or any other accessory not approved for use with
this fireplace.
21. Do not operate the fireplace with glass door removed,
cracked, or broken.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is normal for fireplaces fabricated of steel to
give off some expansion and/or contraction noises
during the start up or cool down cycle. Similar
noises are found with your furnace heat exchanger
or car engine.
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
It is not unusual for gas fireplaces to give off some
odor the first time it is burned. This is due to the
manufacturing process.
Please ensure that your room is well ventilated
during burn off — open all windows.
It is recommended that you burn your fireplace
for at least ten (10) hours the first time you use it.
Place the fan switch in the “OFF” position during
this time.
Never connect unit to private
(non-utility) gas wells. This
gas is commonly known as
wellhead gas.
WARNING

83D0511 5
ILDV30/ILDV20 Fireplace Insert
PRODUCT FEATURES AND CODE APPROVAL
• This appliance has been certified
for use with either natural or pro-
pane gas. Refer to the appropriate
data plates.
• This appliance is not for use with
solid fuels.
• The appliance is approved for
bedroom or bedsitting room instal-
lations.
• The appliance must be installed in
accordance with local codes if any.
If none exist use the current instal-
lation code. ANSI Z223.1/NFPA 54
in the USA, CSA B149 in Canada.
• This appliance is mobile home appr-
oved.
• The appliance must be properly connected to a
venting system.
• The appliance is not approved for closet or recessed
installations.
PRODUCT SPECIFICATIONS
CODE APPROVAL
Direct Vent type appliances draw all combustion air from outside of the dwelling through the vent pipe.
These appliances have been tested by CSA and found to comply with the established standards for DIRECT
VENT GAS FIREPLACE HEATERS in the USA and Canada as follows:
LISTED VENTED GAS FIREPLACE HEATER
TESTED TO: ANSI Z21.88b-2008/CSA 2.33b-2008 STANDARDS
A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280, or when such a standard is not applicable, the
Standard for Manufactured Home Installations, ANSI/NCSBCS A225.1, or Standard for Gas Equipped
Recreational Vehicles and Mobile Housing, CSA Z240.4.
Figure 1 - ILDV Series Fireplace Insert
Blower
Blower Knob
ON/OFF
Switch
OFF/Pilot/
ON Knob
HI/LO Knob
Piezo
Gas Shut-
Off Valve

6 83D0511
ILDV30/ILDV20 Fireplace Insert PRE-INSTALLATION INFORMATION
HIGH ELEVATIONS
Input ratings are shown in BTU per hour and are certified without deration for eleva-
tions up to 4,500 feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA, installation must be in accordance
with the current ANSI Z223.1/NFPA 54 and/or local codes having jurisdiction.
In Canada, please consult provincial and/or local authorities having jurisdiction for
installations at elevations above 4,500 feet (1,370 m).
ORIFICE SIZES, PRESSURES AND BTUs
NATURAL GAS PROPANE GAS
Manifold Press: (W.C.) 3.5" Manifold Press: (W.C.) 10"
Maximum Supply Pressure 10.5" Maximum Supply Pressure 13"
Minimum Supply Pressure 4.5" Minimum Supply Pressure 11"
BEFORE YOU START
Read this homeowner manual thoroughly and follow all instructions carefully. Inspect
all contents for shipping damage and immediately inform your dealer if any damage
is found. Do not install any unit with damaged, incomplete, or substitute parts. Check
your packing list to verify that all listed parts have been received.
NOTE: The ILDV Series fireplace inserts work without any electrical
supply. The blower must be attached to 110/120V AC.
Model Number ILDV20NV ILDV20PV ILDV30NV ILDV30PV
Gas Type Natural Propane Natural Propane
Max. BTU/hr Input 20,000 20,000 30,000 30,000
Min. BTU/hr Input 13,000 16,000 20,500 23,000
Orifice Size (as shipped) #44 1.35 mm #37 #51

83D0511 7
ILDV30/ILDV20 Fireplace Insert
INSERT DIMENSIONS
IHG
J
K
L
C
DF
E
A
B
Figure 2
ILDV Fireplace Insert Dimensions
ILDV20 ILDV30
A 211/4" 251/4"
B 133/16" 163/16"
C 137/8" 145/8"
D 24" 281/8"
E 177/8" 203/4"
F 61/4" 61/4"
G 165/8" 203/16"
H 83/8" 97/8"
I 31/8" 4"
J 21/8" 23/16"
K 63/8" 75/8"
L 23/4" 3"

8 83D0511
ILDV30/ILDV20 Fireplace Insert GENERAL INSTALLATION INFORMATION
WARNING
The dimensions shown on Pages 9 and 10, Figures 3 and 4, are minimum
clearances to maintain when installing this heater. Follow these instructions
carefully to ensure safe installation. Failure to follow instructions exactly can
create a fire hazard.
The following factors should be taken into consideration:
•This insert should have sufficient access for its safe operation and maintenance.
•The flow of combustion and ventilation air must not be obstructed.
•Minimum clearances to combustibles, such as mantels, must be maintained.
Refer to Pages 9 and 10, Figures 3 and 4.
•Never obstruct the front opening of the insert.
•Do not install in the vicinity where gasoline or other flammable liquids may be
stored.
•These units can be installed in a bedroom. Refer to National Fuel Gas Code
ANSI Z233.1/NFPA 54 (current edition), the Uniform Mechanical Code (current
edition), and Local Building Codes for specific installation requirements.
IMPORTANT: Your direct vent insert was designed to be installed in an exist-
ing wood burning fireplace. The location and clearances are subject to local
building codes.
INSERT APPLICATIONS
Before installing the gas fireplace insert, consider the functioning needs of the
fireplace. Confirm the size of the fireplace cavity, the design of the chimney, and the
availability of the gas supply and electricity for the insert fan.
IMPORTANT: Your direct vent insert is designed to be only vented vertically
with a minimum height of 10 feet.
When the unit is installed into a wood burning fireplace, the minimum distance the
mantel can be placed above the fireplace is governed by local building codes appli-
cable to wood burning fireplaces. Consult local authorities having jurisdiction for
these clearances. The underside of the mantel will become warm. Use only finishes
which are heat resistant and do not discolor.
CLEARANCES
MINIMUM FIREPLACE SIZE/CLEARANCES TO COMBUSTIBLES

83D0511 9
ILDV30/ILDV20 Fireplace Insert
CLEARANCES
INSERT CLEARANCES
No combustibles (ie: drapes, doors) may be within, or swing within 36" of the front of the insert.
MANTEL CLEARANCES
NOTE: The combustible area above the facing must not protrude more than 3/4" from
the facing. If it does, it is considered a mantel and must meet the mantel requirements
listed in this manual.
HEARTH REQUIREMENTS
The insert must be installed on a noncombustible hearth extending a minimum of 12" from
the fireplace opening (local codes may require a larger hearth). The hearth must also extend
to both sides of the face (Refer to the table on Page 7).
12” (305 mm)
Maximum Depth
12”
(305 mm)
Side Wall
Combustible Mantel
Top Facing
Side Facing
3/4” (19 mm)
Maximum Depth
Combustible Facing
42” (1067 mm)
Minimum
10” (254 mm)
Minimum
12” (305 mm)
Minimum
2
mm)
m)
mm)
9”
(228 mm)
FP1947
Figure 3
Mantel Clearances
NOTE: Side clearance to com-
bustibles is 10" (254 mm) from
opening whether it is side wall
or mantel legs.

10 83D0511
ILDV30/ILDV20 Fireplace Insert INSTALLATION
INSERT PLACEMENT
• The insert must be placed within a code-conforming masonry fireplace or a
tested and listed zero-clearance (UL-127, solid fuel) fireplace. Repair any fire-
place damage prior to installation.
• Because the insert uses a circulation blower, clean the fireplace, smoke shelf
and chimney before installing.
• This heater may be placed in a bedroom. Please be aware of the large amount
of heat this appliance produces when determining a location.
Figure 4
Minimum Openings
ILDV30
ILDV20
18"
28"
16"
21"
151/8"
18"
14"
221/2"

83D0511 11
ILDV30/ILDV20 Fireplace Insert
INSTALLATION
ZERO-CLEARANCE (METAL) FIREPLACE REQUIREMENTS
• The damper and grate must be removed.
• The smoke shelf, internal baffles, screen, refractory and metal or glass doors may be
removed (if applicable) .
WARNING
• Installer must attach red warning plate to the inside of the firebox of fireplace with screws sup-
plied.
• Do not cut any sheet metal parts of the fireplace in which this gas fireplace insert is installed.
THIS IS STRICTLY PROHIBITED!
• If factory-built fireplace has no gas access hole(s) provided, drill a 1.5" (37.5 mm) or less through
lower sides or bottom of firebox. You must plug the access hole with noncombustible insulation
after gas supply line has been installed.
• If your factory-built fireplace has air passages on the face for zero capabilities, DO NOT BLOCK
THESE PASSAGES!
• Do not remove or alter the insulation or any structured rigid frame members (metal
sides, floor, door frames, face of the fireplace, etc.).
Insulation
Damper
Smoke
Shelf
Masonry Lining or Refractory
Screen
Metal or Glass Doors
Internal
Baffles
Masonry Lining or Refractory
Grate
Figure 5
Metal Fireplace Zero-Clearance Requirements
IMPORTANT: Please review the following carefully.
It is normal for inserts fabricated of steel to give off some expansion and/or contraction
noises during the start up or cool down cycle. Similar noises are found with your furnace
heat exchanger or car engine.
It is not unusual for your insert to give off some odor the first time it is burned. This is due
to the curing of the paint and any undetected oil from the manufacturing process.
Please ensure that your room is well ventilated. OPEN ALL WINDOWS DURING INI-
TIAL BURN OFF/CURING PHASE.
Burn your insert for at least six (6) hours on "HIGH" the first time you use it. Place the fan
in the "OFF" position during this time.

12 83D0511
ILDV30/ILDV20 Fireplace Insert VENT INSTALLATION
Read all instructions completely and thoroughly before
attempting installation. Failure to do so could result in serious
injury, property damage or loss of life. Operation of improperly
installed and maintained venting system could result in serious
injury, property damage or loss of life.
WARNING
Failure to follow these instructions will
void the warranty.
NOTICE
INSTALLATION PRECAUTIONS
Consult local building codes before beginning the installation. The installer must
make sure to select the proper vent system for installation. Before installing vent
kit, the installer must read this insert manual and vent kit instructions.
Only a qualified installer/service person should install venting system. The installer
must follow these safety rules:
• Wear gloves and safety glasses for protection.
• Use extreme caution when using ladders or when on rooftops.
• Be aware of electrical wiring locations in walls and ceiling.
The following actions will void the warranty on your venting system:
• Installation of any damaged venting component.
• Unauthorized modification of the venting system.
• Installation of any component part not manufactured or approved by MHSC.
• Installation other than permitted by these instructions.
WARNING
This insert must be vented to the outside. The venting system must
NEVER be attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance must use a separate vent
system. Do not use common vent systems.

83D0511 13
ILDV30/ILDV20 Fireplace Insert
VENT INSTALLATION
WARNING
• Make sure the exhaust pipe on heater connects to exhaust
portion of cap. Attach flex liners. Figure 6
• Do not crimp or rupture liner when bending it into chimney
offsets.
VENT REQUIREMENTS
• The exhaust vent must reline the entire length of chimney and terminate above chimney
top.
• Vent must meet all vent manufacturer's requirements when installed.
• Make sure you have the following before installing unit:
• 3" and 3" UL 1777 Listed gas liner for air inlet and exhaust.
• Vertical termination kit (AI31TK33A, HEDV32T812, HEDV32T1212, HEDVRT)
Maximum Height
40' (12.9 m)
Minimum Height
10' (3 m)
Exhaust
Inlet
Figure 6
Venting Unit
FP1922

14 83D0511
ILDV30/ILDV20 Fireplace Insert VENT INSTALLATION
ALTITUDE CONSIDERATIONS
This heater has been tested at altitudes ranging from sea level to 4,500 feet (1,370 m).
In this testing, heater with standard orifice burns correctly with just an air shutter adjust-
ment. If you need to resize orifice for use at high altitude, contact your dealer.
WARNING
Failure to adjust air shutter properly may lead to improper
combustion which can create a safety hazard. Consult your
dealer or installer if you suspect an improperly adjusted
air shutter.
High Temp
Silicone
3" and 3" UL 1777
Gas Liner
Apply high-temperature sili-
cone to lines on both ends and
secure with two (2) screws
Termination Kit
AI31TK33A
HEDV32T812
HEDV32T1212
HEDVRT
Figure 7
Connecting Vent Pipe to Heater
FP1923

83D0511 15
ILDV30/ILDV20 Fireplace Insert
VENT INSTALLATION
VENT CONFIGURATIONS
Exhaust
Exhaust
Inlet
Recommended block-off
plate (noncombustible
metal). Prevents odors
from chimney entering
room.
UL 127 Solid
Fuel Z.C
Firebox
Inlet
Any cracks or
damage inside
chimney must
be repaired
The block-off plate
(AI31AK33) must seal
intake to the chimney
space so that air is
drawn down chimney
for combustion air.
Block-off Plate
(AI31AK331)
Noncombustible
Materials
Masonry
Fireplace
Figure 8
Inlet and Exhaust Reline
Figure 9
Exhaust Only Reline
NOTE: You may use either reline configuration with a
masonry or zero-clearance fireplace.
FP1924
3" (75 mm) Exhaust
UL 1777 Gas Liner 3" (75 mm) Inlet
Termination Kits:AI31TK33A,
HEDV32T812, HEDV32T1212,
HEDVRT
FP1925

16 83D0511
ILDV30/ILDV20 Fireplace Insert VENT INSTALLATION
MANIFOLD REMOVAL AND INSTALLATION
The manifold is shipped attached to insert. It may be removed to allow tight installation.
1. Remove glass door assembly following instructions on Page 29, Figure 34.
2. Lightly tap on flange of exhaust baffle assembly towards you until disengaged. Remove baffle,
manifold and gasket from unit. Figure 10
3. ILDV20: Attach the solid closed baffle plate. ILDV30: Attach the slotted baffle plate. Figure 11
4. Feed exhaust flex through hole on top of insert and attach to manifold with hose clamp (not
provided) or other approved methods (check local codes). Insure the gasket is in place before
securing the flex to the manifold.
5. Re-attach exhaust baffle and manifold assembly in reverse order of Step 2.
6. Re-attach glass door in reverse order.
NOTE: Insert has an adjustable baffle and may be adjusted as needed by loosening four (4)
screws. Figure 11
Figure 10
Remove Manifold and Attach to Flex Vent
Gasket
Manifold
Baffle Assembly
FP1960
Front View Side View
Flex Vent
Figure 11
Baffle Assembly and Adjustment
Loosen Four (4)
Screws to Adjust
Bottom View
Closed Position
Bottom View
Open Position
FP1961
ILDV30
Baffle Plate
Baffle Assembly
Baffle
Assembly
Baffle Plate
(For ILDV20)
FP2156 Closed Baffle Plate
Must use on ILDV20
ILDV20
Baffle Plate
NOTE: Make sure the correct
baffle plate is used.

83D0511 17
ILDV30/ILDV20 Fireplace Insert
INSERT INSTALLATION
CHECK GAS TYPE
Use proper gas type for the insert you are installing. If you have conflicting gas type,
do not install insert. See dealer where you purchased the insert for proper insert ac-
cording to your gas type.
INSTALL GAS PIPING TO INSERT LOCATION
WARNING
A qualified installer or service person
must connect appliance to gas supply.
Follow all local codes.
CAUTION
For propane/LP units, never connect insert directly to the propane/
LP supply. This burner system requires an external regulator (not
supplied). Install the external regulator between the burner system
and propane/LP supply.
INSTALLATION ITEMS NEEDED
Make sure you have the items listed below before installing appliance.
• External regulator (supplied by installer) • Piping (check local codes) • Test gauge connection*
• Sealant (resistant to propane/LP gas) • Sediment trap (optional but recommended)
• Tee joint • Pipe wrench
• approved flexible gas line with gas connector (if allowed by local codes — not provided)
* A CSA design-certified equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge
connection. Purchase the CSA design-certified equipment shutoff valve from your dealer.
For propane/LP connections only, the installer must supply an external regulator. The external regulator will reduce
incoming gas pressure. You must reduce incoming gas pressure to between 11 and 13 inches of water. If you do
not reduce incoming gas pressure, burner system regulator damage could occur. Install external regulator with
the vent pointing down as shown in Figure 12. Pointing the vent down protects it from freezing rain or sleet.
External
Regual-
tor
Vent
Pointing
Down
100 gal. (min.
Propane/LP
Supply Tank
FP1930
Figure 12 - External Regulator with Vent
Pointing Down (Propane/LP Only)
CAUTION
Use only new black iron or steel pipe. Inter-
nally tinned copper or copper tubing can be
used per National Fuel Gas Code, Section
2.6.3, providing gas meets hydrogen sulfide
limits, and where permitted by local codes.
Gas piping system must be sized to provide
minimum inlet pressure (listed on data plate)
at the maximum flow rate (BTU/hr). Undue
pressure loss will occur if the pipe is too
small.

18 83D0511
ILDV30/ILDV20 Fireplace Insert INSERT INSTALLATION
WARNING
Only persons licensed to work with gas
piping may make the necessary gas con-
nections to this appliance.
CAUTION
A manual shut-off valve is factory installed
upstream of the appliance. Union tee and
plugged 1/8" NPT pressure tapping point
should be installed upstream of the appli-
ance. Figure 13
A listed manual shutoff is factory installed upstream of appliance. Union tee and
plugged 1/8" NPT pressure tapping point should be installed upstream of the appli-
ance. Figure 13.
IMPORTANT: The main gas valve is for turning on or
shutting off the gas to the insert.
Check your building codes for any special requirements
for locating equipment shutoff valve to inserts.
Apply pipe joint sealant lightly to threads. This will
prevent excess sealant from going into pipe. Excess
sealant in pipe could result in clogged burner system valves.
We recommend that you install a sediment trap/drip leg in supply line as shown in
Figure 13. Locate sediment trap/drip leg where it is within reach for cleaning. Install
in piping system between fuel supply and burner system. Locate sediment trap/drip
leg where trapped matter is not likely to freeze. A sediment trap traps moisture and
contaminants. This keeps them from going into the burner system gas controls. If
sediment trap/drip leg is not installed or is installed wrong, burner system may not
run properly.
NOTE : The gas line connection may be made using 1/2" rigid tubing or an
approved flex connector. Since some municipalities have additional local codes
it is always best to consult your local authorities and the current edition of the
National Fuel Gas Code ANSI.Z223.1, NFPA54. In Canada CAN/CGA-B149 (1 or
2) Installation Code.
CAUTION
Use pipe joint sealant that is resistant to
liquid petroleum (LP) gas.
3" Minimum
Approved Flexible
Gas Line Supplied
with Appliance
Tee Joint
Pipe Nipple
Cap
Natural Gas
From Gas Meter
(4.5" w.c. to 10.5" w.c. Pressure)
Propane/LP
From External Regulator
(11" w.c. to 13" w.c. Pressure)
Figure 13
Gas Connection

83D0511 19
ILDV30/ILDV20 Fireplace Insert
CHECKING GAS PRESSURE
1. Check gas type. The gas supply must be the same as stated on the appliance’s rating
decal. If the gas supply is different from the fireplace, STOP! Do not install the appliance.
Contact your dealer immediately.
2. Install and attach flex line provided with on this appliance to 1/2" gas line.
3. After completing gas line connection, purge air from gas line and test all gas joints from
the gas meter to the fireplace for leaks. Use a
soap and water solution or a gas sniffer.
4. To adjust flame height, turn HI/LO knob to HI to
get maximum pressure to burner. Turn HI/LO
knob to LO to get minimum pressure.
5. To check gas pressures at valve, turn captured
screw counter clockwise 2 or 3 turns and then
place tubing to pressure gauge over test point.
Turn unit to high. Figure 14. After taking pres-
sure reading, be sure and turn captured screw
clockwise firmly to reseal. Do not over torque.
Check test points for gas leaks with a soap and
water solution or an electronic gas leak detec-
tor.
Pressure
Test "IN"
Pressure
Test "OUT"
HI/LO Knob Pilot Adjustment Screw
FP1932
Figure 14
Gas Pressure Check at Gas Valve
WARNING
Do not use open flame to
check for gas leaks.

20 83D0511
ILDV30/ILDV20 Fireplace Insert ELECTRICAL INSTALLATION
REMOTE WALL MOUNTED SWITCH
A remote wall switch and up to fifteen (15) feet of 18 Ga. wire may be used with this appliance. Attach
the wall switch in a junction box at the desired location on the wall. Figure 15.
NOTE: Extended lengths of wire may cause the fireplace not to function properly. Longer length
of wire is permitted if the wire is made out of larger gauge (diameter) wire. Always check with
local code.
ELECTRICAL WIRING
This insert will work without any electrical supply. Electricity is only needed to operate blower.
Verify proper operation after servicing.
WARNING
Electrical connections should only be performed by a qualified, licensed electrician.
Main power must be off when connecting to main electrical power supply or performing
service. All wiring shall be in compliance with all local, city and state codes. The appli-
ance, when installed, must be electrically grounded in accordance with local codes, or
in the absence of local codes, with the National Electrical Code ANSI/NFPA 70 (latest
edition) and Canadian Electrical Code, CSA C22.1.
Label all wires before disconnecting when servicing controls. Wiring errors can cause
improper and dangerous operation.
CAUTION
PILOT HI
LO
ON
OFF
Figure 15
Wiring Diagram for Wall Switch
Sparker
Thermocouple
Piezo Igniter
Thermopile
Pilot Assembly
Switch
Millivolt
Valve
TH
TP
TH/TP
ON OFF
Optional 15'
Wall Switch
Optional
Remote Control
ON
OFF
ON
OFF
HAND HELD REMOTE CONTROL
The remote control receiver may be installed in the control panel by
removing the ON/OFF switch and the knock-out plate. Slide the receiver
into the space where the knock-out plate was removed. Refer to remote
instructions for wiring and operation.
Figure 15a
Remote Receiver
FP2177
Remote
Receiver
