Monitech TS SERIES User manual

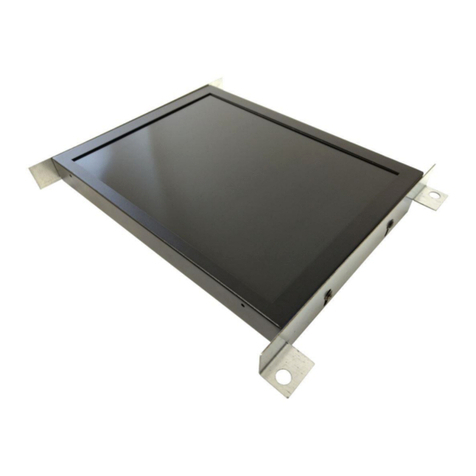

Set up your 10-inch LCD
USER GUIDE FOR TS SERIES

IMPORTANT
WARRANTY
Before using any MONITECH product please carefully
review this Manual as well as any additional
documentation provided with your shipment.
Attempting any of the following will void product warranty:
unauthorized repairs or parts replacement
inappropriate use or placement: exposing product to
liquids, harmful gases, electrical shock, physical shock,
temperatures beyond the range of -4°F to 140°F
(-20°C to 60°C)
use of electrical voltage other than 12V 4.16A
(power supply and AC cable provided)
removal or modification of serial, product, or
warranty labels.
1. Secure a video signal.
After mounting your new Monitech LCD into the control
panel and attaching the video and power cables, the
monitor will power up automatically. It should also start
receiving the video signal from your machine. If you are
getting no video signal, your screen will be blue. Make
sure the video cable is secured. To be sure, unplug and
reinsert.
WARNING
ELECTRICAL HAZARD
DO NOT OPEN
TO AVOID ELECTRICAL SHOCK DO NOT
OPEN PRODUCT CASING. UNAUTHORIZED
REPAIRS OR PARTS REPLACEMENT ARE
PROHIBITED AND WILL VOID PRODUCT
WARRANTY. PLEASE RETURN TO
MONITECH FOR REPAIRS.

2. Start with the 3-button menu.
Now that you have your video signal, use the 3 buttons on
the back of the LCD to optimize the video for your specific
machine. IMPORTANT: ignore the top 5 buttons for now.
Press MENU to open the menu. Press MENU again to
select an item. When the item is selected, it will turn red.
Press  or  to adjust values. Press MENU again to go
back to the list, then use the arrows to move up and down
in the list. As long as you are getting a video signal, your
settings will be automatically saved.
The picture above shows the default values for each
item. The bottom line (Info) shows specific values for
your machine’s video signals. NOTE: If the Info values
show 00.00, there is no video signal. Again, verify that
the video cable is secured before you do anything else.

3. Size your video image.
Focus on the first five settings. Don’t worry
about brightness or contrast yet.
H POSITION (HORIZONTAL)
The default value is 00. The range is -99 to +99.
WIDTH
This is a very useful setting: use it to adjust the width
of the video on your screen. Use it as well to eliminate
vertical lines. The range is -99 to +99.
V POSITION (VERTICAL)
Defaults to 00. The range is 00 to +99.
HEIGHT
The height defaults to 00 and the range is 00 to +99.
PHASE
After you use the WIDTH setting, some vertical lines may
still be present. Use this setting to eliminate them entirely.
STYLE
RGB (A) is the default. If you are using this LCD as a
monochrome and want a black and white screen instead of
green, change the style to YUV. RGB (D) is also available.
SYNC
This setting automatically detects what you are using. You
can adjust to Separate (UV), Composite (S) or SOG (sync on
green).
RESISTANCE
750 Ω is the default. If your video is saturated or text is
“blooming” like the image on the left, change it to 75 Ω.
BEFORE
AFTER

SCANNING
Defaults to Progressive and rarely needs adjustment.
RESOLUTION
Defaults to 800x600. If the video still won’t fit on the
screen after adjusting the WIDTH setting, change the
resolution to 640x480.
EXIT + SAVE
The menu will exit and save automatically after 20 seconds.
If you are in a hurry, you can select this item manually.
4. Adjust brightness and contrast.
To adjust brightness and contrast, use the 5-button menu.
Press MENU and the PICTURE menu will appear:

To adjust brightness and contrast press the up  or
down  buttons.
Press MENU three times for other options.
You probably will never need these adjustments.
To exit, press MENU until it goes away.
Video connector
This picture shows the value for six pins on the video
connector at the back of the monitor. (The other pins
are not used.)

Tips to optimize your image
My screen is blue.
This means the LCD is getting no video signal from the
machine. Reseat the video connector and secure it.
I cannot see a right or left edge of the image.
In the 3-button menu, select WIDTH and adjust down until
you can see the right edge of your video. Now you can
adjust the whole screen.
The text is dim or the screen is blank.
In the 3-button menu, set RESISTANCE to 750 Ω.
To fine-tune it, use the 5-button menu and adjust
BRIGHTNESS in the COLOR setting.
The text is too bright.
In the 3-button menu, set RESISTANCE to 75 Ω.
To fine-tune it, use the 5-button menu and adjust
BRIGHTNESS in the COLOR setting.
Vertical lines are interrupting the image.
In the 3-button menu, select WIDTH and adjust values until
the lines disappear. When you have done all you can do
with this setting, select PHASE to fine-tune it.
How do I deal with intermittent video issues?
Ensure the video cable does not run close to high-power
devices or cables. Ensure all cables are securely seated
and free of damage.
Need more help?
Call us! 519-725-2222
