Monogram ZICS360NHRH Quick start guide

Design Guide with
Installation
Instructions
36”Built-In Bottom-Freezer
Refrigerators
monogram.com
31-49079-1
224D3095P003
04-15 GE

Safety Information
2
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT– Save these instructions for
local inspector’s use. Observe all governing codes
and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions with
your Owner’s Manual for future reference.
If you received a damaged refrigerator, you should
immediately contact your dealer or builder.
Skill Level – Installation of this refrigerator requires
basic mechanical, carpentry and plumbing skills.
Proper installation is the responsibility of the installer.
Product failure due to improper installation is not
covered under the GE Appliance Warranty.
See the Owner’s Manual for warranty information.
WARNING Electrical Shock Hazard.
Plug into a grounded 3-prong outlet.
Do not remove the ground prong.
Do not use an adapter.
Immediately replace electric cords that become frayed
or damaged.
Do not use an extension cord with this appliance.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Follow the instructions in the section Grounding the
Refrigerator.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These
words are defined as:
DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
For Monogram local service in your area, call 1.800.444.1845.
For Monogram service in Canada, call 1.800.561.3344
For Monogram Parts and Accessories, call 1.800.626.2002.
www.monogram.com
WARNING Tip Over Hazard.
These refrigerators are top heavy, especially with any doors open, and must be secured to prevent tipping
forward which could result in death or serious injury. Read and follow the entire installation instructions for
securing the refrigerator with the anti-tip system.
WARNING Explosion Hazard.
Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can result in
fire, explosion, or death.
WARNING To reduce the risk associated with choking, do not allow children under 3 years of age to have
access to small parts during the installation of this product.
CAUTION Lifting Hazard
This refrigerator is very heavy. To reduce the risk of person injury during maneuvering and installing this
refrigerator, 3 people are required for proper installation.

3
AVERTISSEMENT Risque de basculement
Ces réfrigérateurs présentent une partie supérieure lourde, en particulier avec une porte ouverte; ils doivent donc
être fixés pour prévenir le basculement vers l’avant et le risque concomitant de blessure grave ou fatale. Lisez et
suivez les instructions d’installation complètes pour l’installation du système anti-basculement.
AVERTISSEMENT Risque d’explosion.
Conservez les matériaux et vapeurs inflammables tels que l’essence à l’écart de votre réfrigérateur. Le non-
respect de cette instruction peut entraîner un risque d’incendie, d’explosion ou de décès.
AVERTISSEMENT Pour réduire le risque d’étouffement pendant l’installation de ce produit, ne pas laisser les
petites pièces à la portée des enfants âgés de moins de 3 ans.
ATTENTION Risque associé à la manutention d’une charge lourde
Ce réfrigérateur est très lourd. Pour réduire le risque de blessure lors de la manutention de ce réfrigérateur, trois
(3) personnes sont nécessaires pour procéder à l’installation appropriée du modèle 36 pouces, quatre (4) pour
l’installation des modèles 42 ou 48 pouces.
Consignes de Sécurité
AVERTISSEMENT Risque de choc électrique.
Branchez l’appareil dans une prise triple avec terre.
Ne retirez pas la broche de terre.
N’utilisez pas d’adaptateur.
Le non-respect de ces instructions peut entraîner des
risques d’incendies, des chocs électriques ou la mort.
Remplacer immédiatement tout cordon électrique
effiloché ou endommagé.
N’utilisez pas de rallonge avec cet appareil.
Le non-respect de ces instructions peut entraîner des
risques d’incendies, des chocs électriques ou la mort.
Suivez les instructions de la section Mise à la terre du
réfrigérateur.
Ce symbole représente une alerte de sécurité. Ce symbole vous avise de dangers possibles pouvant causer la mort, des
blessures ou autres. Tous les messages de sécurité seront précédés du symbole d’alerte de sécurité ainsi que des mots «
DANGER », « AVERTISSEMENT » ou « MISE EN GARDE ». Ces messages sont les suivants :
Signale une situation qui présente un danger imminent et qui, si elle n’est pas évitée, entraînera des bles
sures graves, voire la mort.
Signale une situation qui présente un danger imminent et qui, si elle n’est pas évitée, peut entraîner des
blessures graves, voire la mort. .
Signale une situation qui présente un danger imminent et qui, si elle n’est pas évitée, peut entraîner des
blessures mineures ou graves.
AVERTISSEMENT
DANGER
ATTENTION

Contents
4
Safety 2, 3
Instructions for Standard Installation 5-19
Planning Guide
The Installation Space 6
Dimensions and Clearances 6
Customization Basics 7
Refrigerator Location 7
Optional Accessory Kits 7
1/4” Framed Panel Dimensions 8
3/4” Overlay Panel Dimensions 8
Side Panels 9
ZUG2 Grille Panel Dimensions 9
130° Door Swing 10
Installation Instructions
Tools, Hardware, Materials 11
Grounding the Unit 11
Step 1. Remove Packaging 12
Step 2. Install Water Line 12
Step 2A. Water Line with Reverse Osmosis System 13
Step 3. Install Side Panels 13
Step 4. Anti-Tip Procedures 13-15
Step 5. Level Unit 15
Step 6, Secure Unit to Wall 15
Step 7. Alternate Anti-Tip Procedure 16
Step 8. Adjust Door Swing 16
Step 9, Install Grille Panel 17
Step 10, Install 1/4” Framed Panels 17
Step 10A, Install Overlay Panels 18
Step 11. Connect Water Supply 19
Step 12. Connect Power 19
Step 13. Start Icemaker 19
Step 14. Install Toekick 19
Instructions for Flush Installation 21-36
Planning Guide
The Installation Space 21
Dimensions and Clearances 21
Custom Handle Design Guide 21
1/2” Overlay Panel Dimensions 22
3/4” Decorative Panel Dimensions 23
Customization Basics 23
Refrigerator Location 23
3/4” Raised Fresh Food Door Panel Routing 24
3/4” Raised Freezer Door Panel Routing 25
3/4” Raised Grille Panel Routing 26
Optional Accessory Kits 26
Installation 27
ZUGF2 Grille Panel Dimensions 27
Side Panels 27
Side Cleats 27
Installation Instructions
Tools, Hardware, Materials 28
Grounding the Unit 28
Step 1. Remove Packaging 29
Step 2. Install Water Line 29
Step 2A. Water Line with Reverse Osmosis System 30
Step 3. Install Side Panels 30
Step 4. Install Case Trim 30
Step 5. Anti-Tip Procedure 30-32
Step 6. Alternate Anti-Tip Procedure 32
Step 7. Adjust Door Swing 33
Step 8. Install Grille Panel 33
Step 9. Install Door Panels 34
Step 10. Connect Water Supply 35
Step 11. Connect Power 35
Step 12. Start Icemaker 35
Step 13. Install Toekick 35
Instructions for Stainless Steel Installation 36-46
Planning Guide
The Installation Space 37
Dimensions and Clearances 37
Customization Basics 38
Side Panels 38
Optional Accessory Kits 38
Refrigerator Location 38
130° Door Swing 39
Installation Instructions
Tools, Hardware, Materials 40
Grounding the Refrigerator 40
Step 1. Remove Packaging 41
Step 2. Install Water Line 41
Step 2A. Water Line with Reverse Osmosis System 42
Step 3. Install Side Panels 42
Step 4. Anti-Tip Procedure 42-44
Step 5. Level Refrigerator 45
Step 6, Secure Unit to Wall 45
Step 7. Alternate Anti-Tip Procedure 45
Step 8. Adjust Door Swing 45
Step 9. Connect Water Supply 46
Step 10. Connect Power 46
Step 11. Start Icemaker 46
Step 12. Install Toekick 46

Instructions for Standard Installation
5

36" Frame to
Frame Width
*84" From
Floor to
Top Frame
35"
Case Width
*83-1/2"
at
Rear
25-3/8"
Case Depth
Depth Including Handles 26-7/8"
THE INSTALLATION SPACE
Water And Electrical Locations
Electrical and water supply must be located as shown.
The Cutout Depth Must Be 24”
The refrigerator will project forward, slightly beyond
adjacent cabinetry, depending on your installation.
Allow minimum 1/8” air gap between case back & wall.
Cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot exceed
the 24”installation depth shown. The top case trim
overlaps the bottom of the soffit.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded
3-prong electrical receptacle recessed into the back wall.
Electrical must be located on rear wall as shown.
NOTE: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or
back wall. Route GE SmartConnect™kit or 1/4”O.D.
copper tubing between the cold water line and the water
connection location. The tubing should be long enough
to extend to the front of the refrigerator. Installation of
an easily accessible shut-off valve in the water line is
required.
DIMENSIONS AND CLEARANCES
* Shipping height. The
refrigerator can be
adjusted to fit into a
cutout that is 84-1/2”
max. height. Note that
the top case trim at
the front is 1/2”higher
and will overlap upper
cabinetry or soffit. Use
leveling legs and wheels
for a maximum 1”height
adjustment.
Product Clearances
These refrigerators are equipped with a 3-position door
stop. The factory set 115° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
6
6"
Wall View
Electrical
Area
84-1/2" max
Finished
Opening
75" From
Floor to
Bottom
of Electrical Area
10"
24" Cutout Depth
35-1/2"
Finished Width
2-5/16"
5"
10"
10"
3-1/2" 3-1/2"
5"
3-1/2"
Water Supply
For Dual Installation
• If you are installing two refrigerators, side by side,
the installation space must be 71-1/2”wide.
NOTE: Additional cutout width may be required when side panels
are used. Add side panel thickness to the finished cutout to
calculate rough-in width.
• The water and electrical locations for each product must
be located as shown.
• A separate 115V, 60Hz., 15 or 20 amp power supply is
recommended for each product.
Allow 25”minimum clearance for
a full 130° door swing. Allow 15”
for pan removal.
For a 90° door swing, allow 4”
min. clearance to a wall. If the
90° door stop position is used, pan
access is maintained, but pan
removal is restricted.

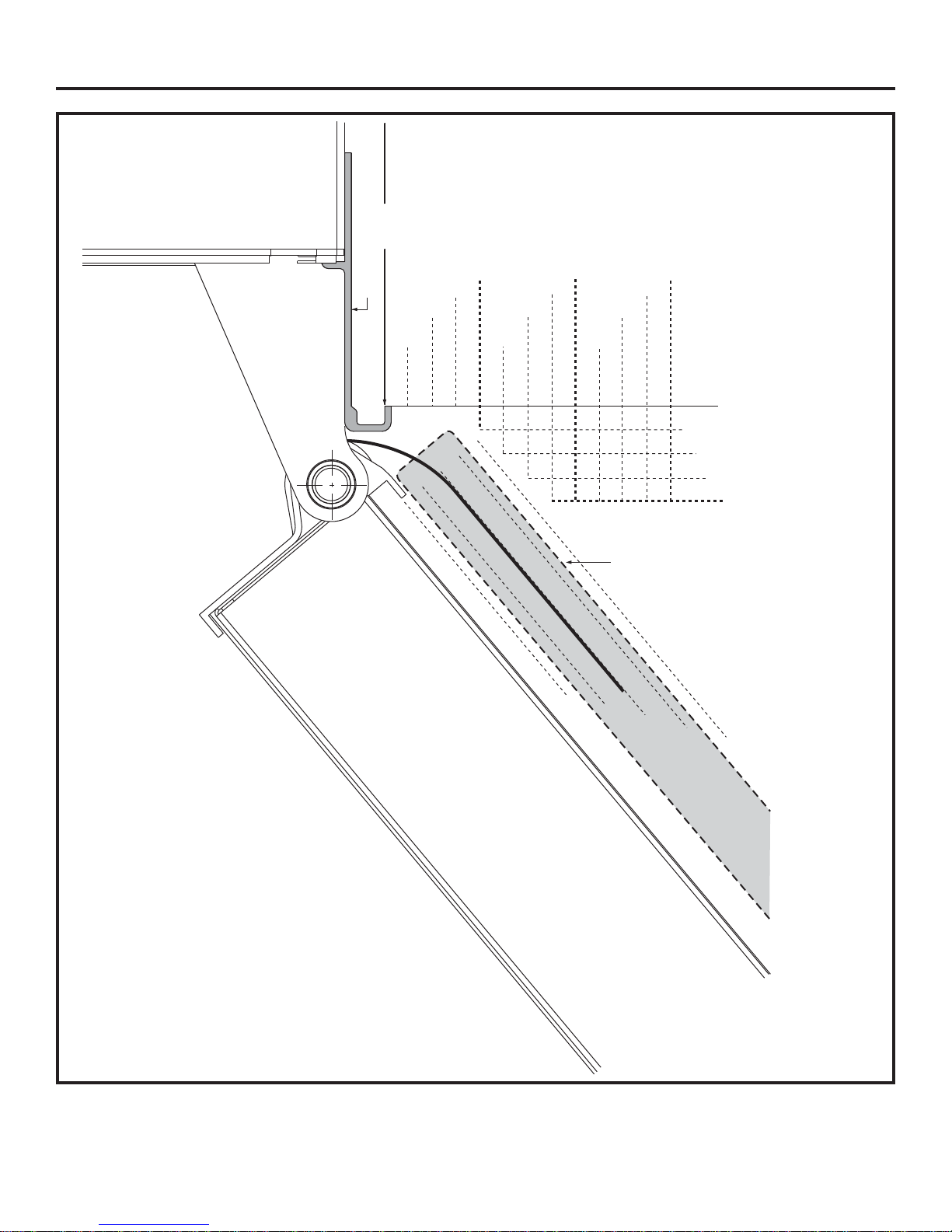

See illustration on page 10 to
determine door swing interaction
with adjacent cabinets or
countertops.
Design Guide - Standard Installation
115° Door Swing
4”

CUSTOMIZATION BASICS:
Framed Or Overlay Panels, Custom
Handles and Accessory Kits
These refrigerators are designed to be customized with
decorative panels. Field installed custom door and grille
panels are required.
Side Panels
Side panels must be used whenever the sides of the
refrigerator will be exposed.
7
Optional Accessory Kits
• ZKHCSS2: Monogram Tubular Stainless Steel handles
designed to fit 3/4”overlay panels. This kit also includes a
handle side trim for custom handles.
• ZKHPSS1: Professional Tubular Stainless Steel Handle
designed to fit 3/4” overlay panels. Kit includes one
handle. Order 2 kits for bottom-freezer refrigerators from
your Monogram supplier.
• ZUG2/ZUGSS2: For side-by-side installation of two
trimmed bottom-freezer refrigerators. This kit provides for
the installation of a unified custom grille panel to span the
width of two units using a framed or overlay panel.
• ZKHCT: Handle side trim for left-hand and right-hand
doors. For use on 3/4”custom panels when using a
custom handle.
Design Guide - Standard Installation
REFRIGERATOR LOCATION
• Do not install the refrigerator where the temperature
will go below 55°F (13°C). It will not run often enough
to maintain proper temperatures.
• Do not install the refrigerator where temperatures will
go above 100°F (37°C). It will not perform properly.
• Do not install the refrigerator in a location exposed to
water (rain, etc.) or direct sunlight.
• Install it on a floor strong enough to support it fully
loaded.

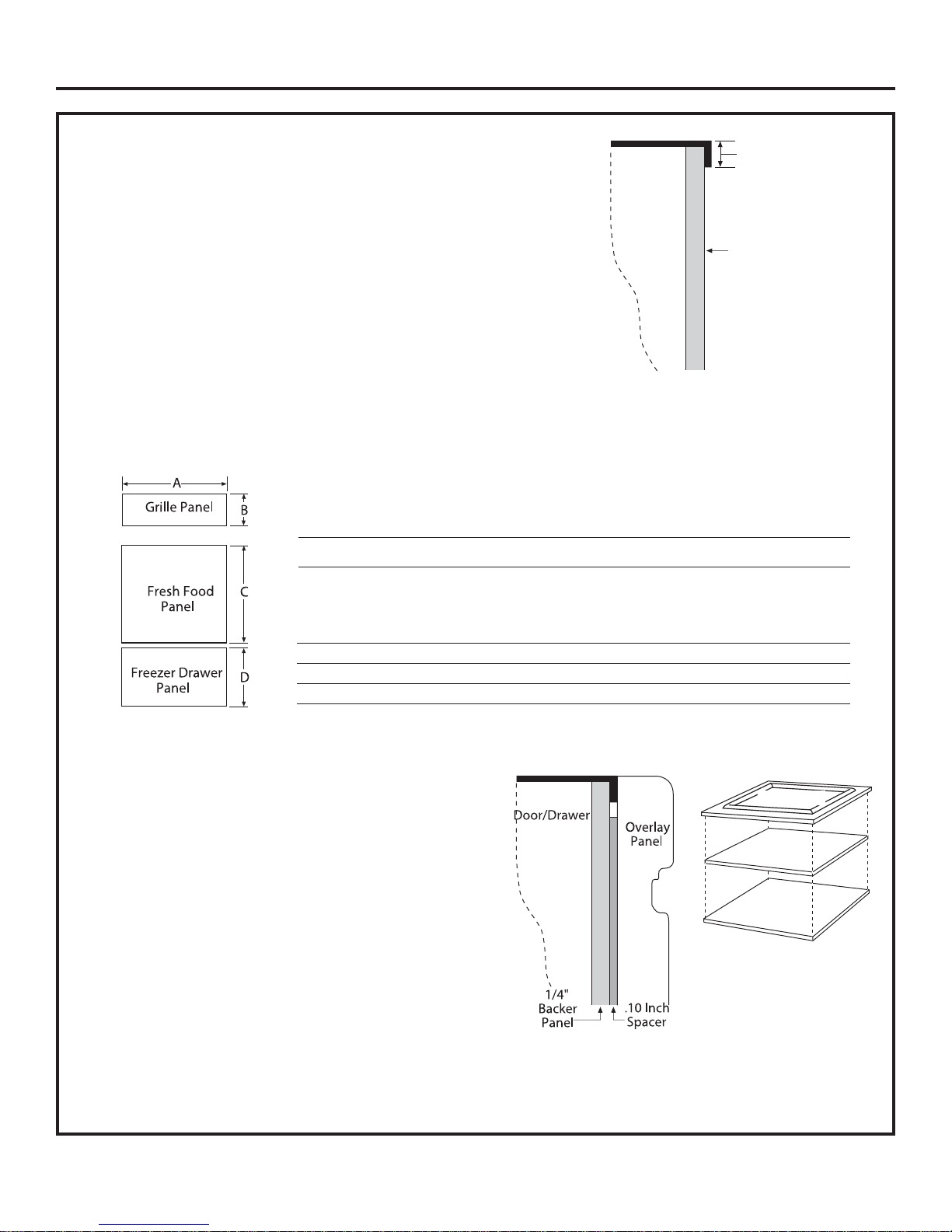

1/4”FRAMED PANEL DIMENSIONS
8
If you choose to install framed panels, they must be cut
to the dimensions shown. The panels will slide into the
frame on the door, drawer and grille.
If the custom panel is less than 1/4”thick and if it fits
loosely in the door frame, it can be backed up with a
piece of filler material or foam tape to improve the fit.
3/4”OVERLAY PANEL DIMENSIONS
For a more custom appearance, overlay panels may be installed
on trimmed models. The overlay panel must be secured to a
1/4”thick backer panel which slides into the trim. A spacer
panel 0.10”thick must be placed between the overlay and
backer panel.
Assemble the panels with glue and screws.
• Center the spacer panel on the backer panel, left to right and
top to bottom. Secure the panels with glue.
• Center the spacer and backer panel on the overlay panel and
secure with glue and screws. Screws must
be countersunk into the backer panel.
Spacer Panel
Backer Panel
Overlay Panel
Framed Panel Dimensions
A (Width) B (Grille Height) C (FF Height) D (FZ Height)
1/4”Framed Panel 33-7/8”8-7/8”46-1/16”21-7/8”
Overlay Panel Dimensions
A (Width) B (Grille Height) C (FF Height) D (FZ Height)
1/4”Backer Panel 33-7/8”8-7/8”46-1/16”21-7/8”
0.10”Spacer Panel 32-1/2”7-5/8”44-11/16”20-1/2”
3/4”Overlay Panel 34-1/8”9”46-5/16”22”
NOTE: Left-to-right offset is not always equal to
top-to-bottom offset.
1/4"
Panel
Door
5/16"
Trim
Reveal
IMPORTANT NOTE: Maximum total
panel weight:
• Fresh food door panel – 58 lbs.
• Freezer drawer panel – 28 lbs.
• Grille Panel – 11 lbs.
IMPORTANT NOTE: Maximum
total weight for the assembled
panels:
• Fresh food door panel – 58 lbs.
• Freezer drawer panel – 28 lbs.
• Grille Panel – 11 lbs.
Design Guide - Standard Installation

Design Guide - Standard Installation
9
ZUG2 GRILLE PANEL DIMENSIONS
The ZUG2 unified grille panel kit provides for the
installation of a framed or overlay grille panel.
Assemble the overlay panels in the same manner as
the door and drawer panels.
Framed Panel Dimensions
A (Width) B (Height)
1/4”Framed Panel 69-7/8”8-7/8”
Overlay Panel Dimensions
A (Width) B (Height)
1/4”Backer Panel 69-7/8”8-7/8”
0.10”Spacer Panel 68-1/2”7-5/8”
3/4”Overlay Panel 70-1/8”9”
*84"
2-9/16"
24"
*3" to 4"
3/16"
1-7/8"
SIDE PANELS
Side panels must be used whenever the sides of the
refrigerator will be exposed. The 1/4”side panels will
slip into the side case trim. Secure the panels to the
refrigerator with stick-on hook and loop fastener strips.
Order the side panels from the cabinet manufacturer.
• Cut a notch in the top front corner as shown to allow
clearance for corner keys in the front side trim.
* Depending on
installation height.

1/4" 1/2" 3/4" 1" 1-1/4"
1"
3/4" Overlay
Panel
(Nominal Size)
Stainless Steel
1/4"
1/2"
3/4"
2"
1-1/4"
1-1/2"
1-3/4"
3"
2-1/4"
2-1/2"
2-3/4"
1/4"
1/2"
3/4"
Door
23-7/8" From
Rear of
Refrigerator
1"
Refrigerator
Case
Trim
Top View
130° DOOR SWING
Scale 1:1
10
Frameless Cabinets: The case trim
overlaps cabinets at the top and sides.
Therefore, frameless cabinets
may require filler strips to prevent
interference with cabinet door swing.
The opening must allow for filler strips.
Design Guide - Standard Installation

11
MATERIALS REQUIRED
• 35”long 2x4 for Anti-Tip support
• 1/4”copper water line tubing or GE SmartConnect™
Refrigerator Tubing kits
• Water shut-off valve
• Custom panels for fresh food door, freezer drawer
and grille panel
• Screws to secure refrigerator to cabinetry.
• Stick-on hook and loop fastener strips for
1/4”side panels
FLOORING
For proper installation, this refrigerator must be placed
on a level surface of hard material that is at the same
height as the rest of the flooring. This surface should
be strong enough to support a fully loaded refrigerator,
or approximately 1,200 lbs.
NOTE: Protect the finish of the flooring. Cut a large
section of the cardboard carton and place under the
refrigerator where you are working.
TOOLS REQUIRED
• Tinsnips to cut banding
• Stepladder
• Bucket
• Level
• Appliance Hand Truck
• Tubing cutter
• 7/16”open-end wrench
• #2 Phillips screwdriver
• Drill and appropriate bits
• 5/16”, 7/16”socket
• Safety glasses
• 1-1/4”open end wrench
• Pliers
• 1/4”ratchet
HARDWARE SUPPLIED
• Water filter bypass plug
• Anti-Tip brackets
• 1/4”nut and ferrule
Installation Instructions - Standard Installation
GROUNDING THE REFRIGERATOR
WARNING Electrical Shock Hazard.
Failure to follow these instructions can result in death,
fire, or electrical shock.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall receptacle
to minimize the possibility of electric shock hazard from
this appliance.
Have the wall outlet and circuit checked by
a qualified electrician to make sure the outlet
is properly grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation
to have it replaced with a properly grounded
3-prong wall outlet.
DO NOT, UNDER
ANY CIRCUMSTANCES,
CUT OR REMOVE
THE THIRD (GROUND) PRONG
FROM THE POWER CORD.
DO NOT USE AN ADAPTER PLUG TO CONNECT
THE REFRIGERATOR TO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE.
MISE À LA TERRE DU RÉFRIGÉRATEUR
AVERTISSEMENT
Risque de choc électrique.
Le non-respect de ces instructions peut entraîner des
risques d’incendies, des chocs électriques ou la mort.
Le cordon d’alimentation de cet appareil est équipé
d’une fiche à trois broches (pour une mise à la terre)
qui s’adapte à la prise de courant standard à 3
broches (pour une mise à la terre) pour minimiser les
risques de chocs électriques par cet appareil.
Faites vérifier la prise murale et le circuit électrique par
un électricien qualifié pour s’assurer que le système est
correctement mis à la terre.
Dans le cas d’une prise biphasée, l’installateur a la
responsabilité et l’obligation de la remplacer par une
prise triphasée correctement mise à la terre.
NE COUPEZ PAS OU N’ENLEVEZ
PAS, SOUS AUCUN PRÉTEXTE,
LA TROISIÈME BROCHE DE
MISE À LA TERRE DU CORDON
D’ALIMENTATION.
N’UTILISEZ PAS D’ADAPTATEUR
POUR BRANCHER LE
RÉFRIGÉRATEUR À UNE PRISE BIPHASÉE.
N’UTILISEZ PAS DE RALLONGE AVEC CET APPAREIL.

STEP 2 INSTALL WATER LINE
• A cold water supply is required for automatic
icemaker operation. The water pressure must be
between 40 and 120 p.s.i.
• Route 1/4”OD copper or GE SmartConnect™plastic
tubing between house cold water line and the water
connection location.
• Tubing should be long enough to extend to the front of
the refrigerator. Allow enough tubing to accommodate
bend leading into the water line connection.
NOTE: The only GE-approved plastic tubing is supplied
in the GE SmartConnect™Refrigerator Tubing kits. Do not
use any other plastic water supply line because the line
is under pressure at all times. Other types of plastic may
crack or rupture with age and cause water damage to
your home.
GE SmartConnect™Refrigerator Tubing Kits are available
in the following lengths:
2’(.6 m) WX08X10002
8’(2.4 m) WX08X10006
15’(4.6 m) WX08X1 0015
25’(7.6 m) WX08X10025
Shut off the main water supply.
Turn on the nearest faucet long enough to clear the line
of water.
• Install a shut-off valve between the icemaker water
valve and cold water pipe in a basement or cabinet.
The shut-off valve should be located where it will be
easily accessible.
12
Floor
Waterline Tubing
Installation Instructions - Standard Installation
• Turn on the main water supply and flush debris.
Run about a quart of water through the tubing into
a bucket. Shut off water supply at the shut-off valve.
NOTE: Saddle type shut-off valves are included in
many water supply kits, but are not recommended
for this application.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
STEP 1 REMOVE PACKAGING
WARNING Tip Over Hazard.
The refrigerator is much heavier at the top than at the
ERWWRP³EHFDUHIXOZKHQPRYLQJ:KHQXVLQJDKDQG
truck, handle from the side only.
AVERTISSEMENT
Risque de basculement
Le réfrigérateur est beaucoup plus lourd en haut qu’en
bas. Il faut être prudent lors des déplacements. Si un
diable est utilisé, il faut soulever le réfrigérateur sur le côté
seulement.
• Carefully cut banding at the top and bottom, remove the
outer carton.
• Slide out the back corner posts (2).
• Slide the carton off the top of the cabinet.
NOTE: IT IS NOT NECESSARY TO LAY THE CABINET DOWN
IN ORDER TO REMOVE THE SKID!
• The unit is secured to the
skid with 4 slotted tie-down
straps. Remove the six 7/16”
bolts from the base channels
in the tie-downs.
• Remove the six 7/16” bolts
securing the straps to the
skid.
NOTE: DO NOT ATTEMPT TO
ROLL UNIT OFF SKID.
• The support blocks on the
bottom of the refrigeration
case must be removed
before the refrigerator is
taken off the skid or damage will occur. Carefully tilt the
refrigerator and slide the blocks out from beneath.
• Remove the toekick and set aside for final installation.
• Lift the refrigerator off the skid with an appliance dolly.
Handle from the sides.
Remove 2 strap
bolts on each side
Remove 5
base channel
bolts on each
side

13
STEP 2A WATER LINE INSTALLATION WITH
A REVERSE OSMOSIS SYSTEM
Skip this step when not using an RO System
If the water supply to the refrigerator is from a Reverse
Osmosis Water System, use the refrigerator’s filter bypass
plug. Using the refrigerator’s water filtration cartridge with
the RO filter can result in hollow ice cubes.
STEP 3 INSTALL SIDE PANELS
Skip this step when not using side panels.
If you are using 1/4”side panels, they should be
inserted into the case trim. Fasten the panels to the
refrigerator with stick-on hook and loop fastener strips
before setting refrigerator in place.
Filter Bypass Plug
Installation Instructions - Standard Installation
STEP 4 ANIT-TIP PROCEDURE
WARNING Tip Over Hazard.
These refrigerators are top heavy, especially
with any doors open, and must be secured to
prevent tipping forward which could result in
death or serious injury. Read and follow the
entire installation instructions for securing the
refrigerator with the anti-tip system.
AVERTISSEMENT Risque de
basculement
Ces réfrigérateurs présentent une partie
supérieure lourde, en particulier avec une porte
ouverte; ils doivent donc être fixés pour prévenir
le basculement vers l’avant et le risque
concomitant de blessure grave ou fatale. Lisez
et suivez les instructions d’installation complètes
pour l’installation du système anti-basculement.

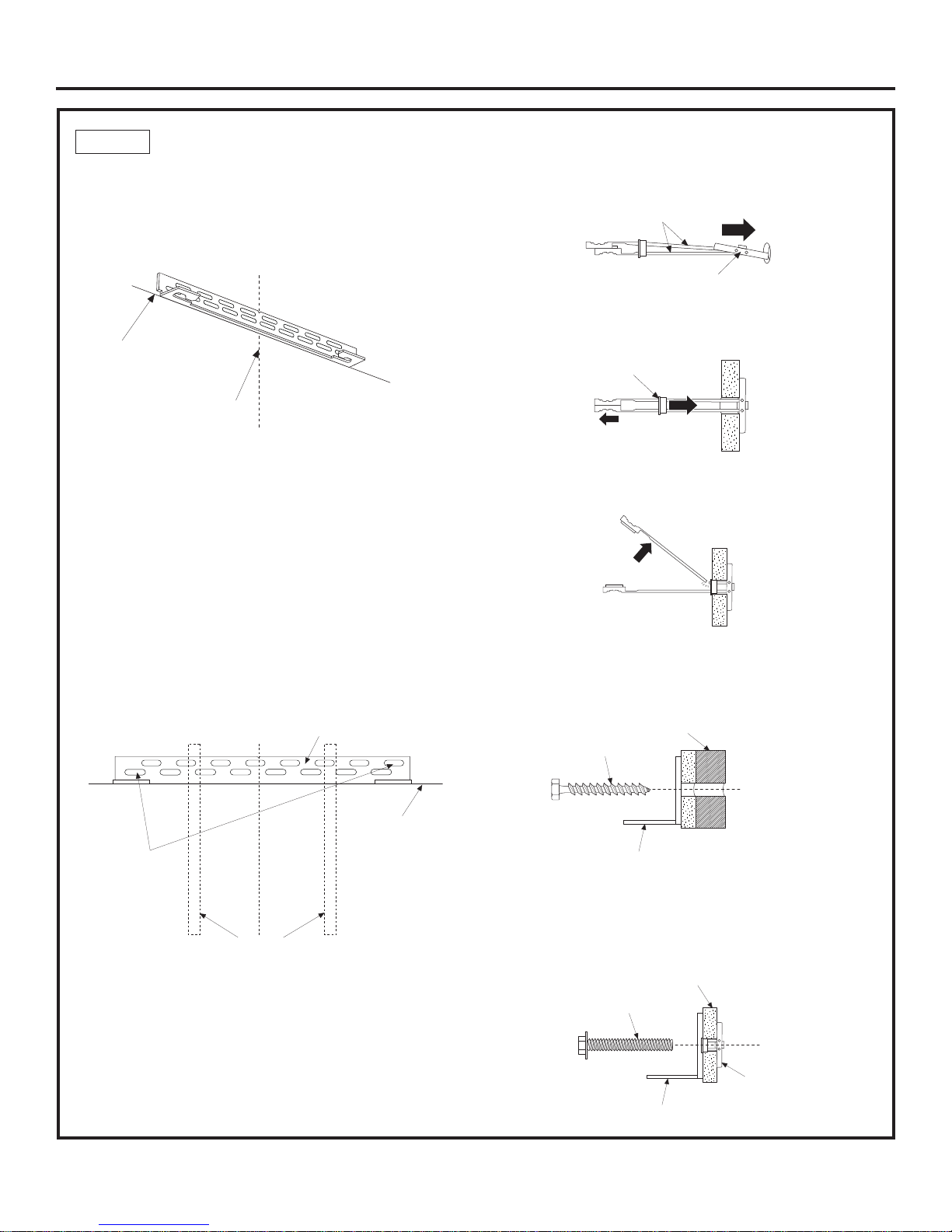

• The kit supplied with the unit contains 2 lag bolts and 4
toggles with bolts. The wall bracket will be attached to
the wall in 4 places.
• Measure the opening where the unit is to be installed.
Mark the center with a vertical line.
• Measure up 81 1/2” from the floor. Mark this point on
the wall.
• Using a level, draw a horizontal line on the wall at this
height.

14
Installation Instructions - Standard Installation
STEP 4 ANIT-TIP PROCEDURE (CONT)
• Locate at least 2 studs on the back wall. Mark these
points on the horizontal line.
• Place the bottom of the wall bracket with tabs on the
horizontal line. Align the center notch on the bracket
with the center line on the wall.
• The anti-tip wall bracket has a series of holes. Select 2
holes that match with the located studs. Make sure the
holes selected are on the center of the studs. Mark the
wall at these points.
• Mark an additional hole at each end of the bracket. If
one of the studs is closer to the end of the bracket, mark
an additional hole towards the center of the bracket.
• Drill 1/2” holes into the wall board at the locations
marked for the toggles to be mounted (not the stud
markings).
• Drill 3/16” holes into wooden studs where marked. If
steel stud construction, drill 1/2” holes into the studs
where marked. You will use 2 toggles with the metal
studs.
Install Wall Toggles:
The wall toggles and bolts can be ordered as Service Kit
#WR49X10193. Wall toggles are installed in the drywall
and metal studs for stability. Install the wall toggles as
follows:
• Drill 1/2” holes at the wall markings made in the holes at
the ends of the wall bracket.
• Hold the metal channel flat against the plastic straps
and slide the channel through the hole.
• Gently pull back at the ends of the plastic straps to make
the channel rest flush behind the wall.
• Hold the ends of the straps in one hand and slide the
plastic cap along the straps until the flange of the cap is
flush with the wall.
• Place your thumb between the plastic straps and bend
up and down to snap the straps off at the wall.
Install Screws and Bolts:
• Have someone hold the wall bracket centered in place
with each of the holes aligned with the correct opening
in the bracket and level with the horizontal line.
• Insert the lag screws through the bracket and into the
stud. Tighten with a wrench.
• Insert the bolts into the toggle by hand until snug.
Tighten with a wrench.
Line on Wall
Center
Two Additional
Hole Locations at
Ends of Brackets
Center Wall Bracket
Line On Wall
Wall Studs
Plastic Straps
Metal Channel
Cap
Wood Stud
Lag Screw
Anti-Tip Wall Bracket
Anti-Tip Wall Bracket
Bolt
Wall Toggle
Drywall or
Steel Stud

STEP 5 LEVEL REFRIGERATOR
All models have 4-point leveling. The front is supported
by leveling legs, the rear is supported by adjustable
wheels. Both are accessible from the front of the
refrigerator.
• To level the back of the refrigerator, turn the 7/16”hex
nut located above the front wheels. Turn clockwise to
raise or counterclockwise to lower the refrigerator.
• For front leveling, use a 1-1/4”open-end wrench.
• Adjust height of refrigerator to match installation
cutout opening 83-1/2 to 84-1/2”. The refrigerator
should be level and plumb with cabinetry.
STEP 5 LEVEL REFRIGERATOR (Cont)
ATTENTION
Les roues de nivellement arrière et les pattes de
nivellement avant permettent un réglage maximal de
25 mm (1 po). Si l’ouverture pour le réfrigérateur a une
hauteur supérieure à 2,15 m (84-1/2 po), l’installateur doit
élever le réfrigérateur sur une feuille de contre-plaqué
ou des glissières. Il est également possible d’ajouter
des baguettes de finition des placards sur le haut de
l’ouverture afin de la réduire. Lever le réfrigérateur
de plus de 25 mm (1 po) endommage les pattes de
nivellement avant et les roues de nivellement arrière.
CAUTION
The rear leveling wheels and front leveling legs are
limited to a maximum height adjustment of 1”. If the
installation requires more than 84-1/2”height, the
installer should elevate the refrigerator on a sheet
of plywood or runners. Cabinetry trim could also be
added across the top of the opening to shorten the
opening. If you attempt to raise the refrigerator more
than 1”, you will damage the front leveling legs and the
rear leveling wheels.
Installation Instructions - Standard Installation
STEP 4 ANIT-TIP PROCEDURE (Cont)
CONNECT POWER CORD:
• Before pushing the refrigerator into the opening,
plug the power cord into the receptacle. Open the
grille panel and reach into the opening at the back
to grasp the power cord. Pull the power cord into the
opening as you push the refrigerator back.
• Gently push refrigerator into the opening with hands
against front corners.
IMPORTANT: When the refrigerator is installed under
a soffit or if there is not enough height for this method
of security, brackets cannot be used. Proceed to step
6 to level the refrigerator and then to step 8 to secure
refrigerator to cabinets. See step 9 if you have metal
wall studs. The refrigerator must be secured to prevent
tipping.
15
STEP 6 SECURE UNIT TO WALL
• The “L” rod can be found in the upper left corner of
the unit in the access compartment. Look through the
access compartment to make sure the rod lines up
with the anti-tip bracket.
• There are 2 washers and a hair pin cotter with the rod.
Remove the washers and hair pin cotter from the end
of the rod.
• Rotate and move the
“L” rod into the slot in
the anti-tip bracket
tab. Once it is in the
slot, rotate the “L” rod
so the hook portion
is pointing down. The
holes at the front end
of the rod should be in
a vertical position.
• Pull out on the end of
the rod to make sure it
is secure in the bracket.
• Locate the hole on the rod that is closest to the unit. A
hair pin cotter will be put through this hole to secure
the rod. If this hole appears to be too far away for a
snug fit against the unit, add the washers one at a time
until the pin will fit tightly into the hole.
• Align the straight section of the pin with the hole
from the underside of the rod. Push the pin up until
it snaps into position. Pliers may be used. NOTE: The
hair pin cotter must
be vertical when this
step is completed to
ensure the “L”
rod is engaged in
the bracket.
• Check the rod for
tightness by pulling
forward. If the rod
moves, remove the
hair pin cotter and
place another washer
on the rod. Reinsert
the pin.

16
Installation Instructions - Standard Installation

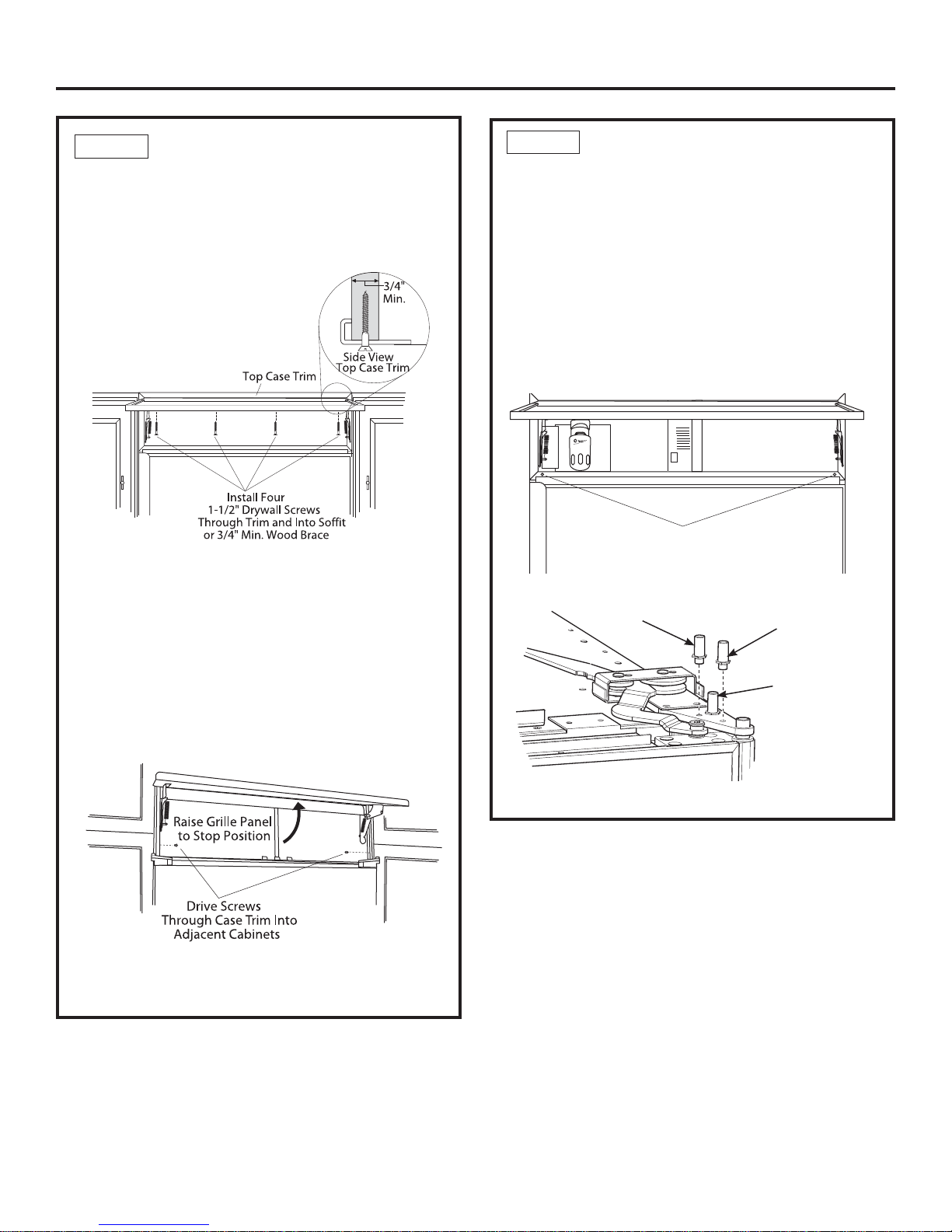

STEP 7 ALTERNATE ANTI-TIP
PROCEDURE
The refrigerator must be secured to prevent tipping.
If the anti-tip bracket cannot be used, this alternate
procedure may be used to secure the refrigerator
against tip-over
• Raise the grille panel to access case trim.
• Use a 3/16” bit to drill four evenly spaced clearance
holes through the metal top case trim.
• Use a 1/16” bit to drill to pilot holes through the metal
clearance holes and into the wood soffit. The holes
should be centered in the soffit or a 3/4” min. wood
brace. The brace spanning the enclosure must be
securely fastened to cabinets on both sides.
• Install four, 1-1/2” drywall screws into the pilot holes.
• If no soffit above the unit, drill screws into adjacent
cabinets through the side case trim.
STEP 8 ADJUST DOOR SWING
NOTE: This refrigerator has a 3-position door stop.
When space does not allow the door to swing open
fully to 115°, you may change the door swing to a 90°
opening. A 130° door swing is available for standard
installation only. If used for flush installation, damage
will occur to wood panels. Skip this step if door
opening is satisfactory for your installation situation.
• Lift the grille panel to access the wire cover trim.
• Remove screws on both sides of the wire cover trim
and rotate off.
• Use pliers to unscrew door stop and reinstall into the
90° or 130° position.
• Reinstall the wire cover trim.
Remove
Wire Cover
Trim Screws
Pin Location
for 90°
Door Swing Pin Location for
130° Door Swing
Pin Location
as Shipped
for 115°
Door Swing

17
Installation Instructions - Standard Installation

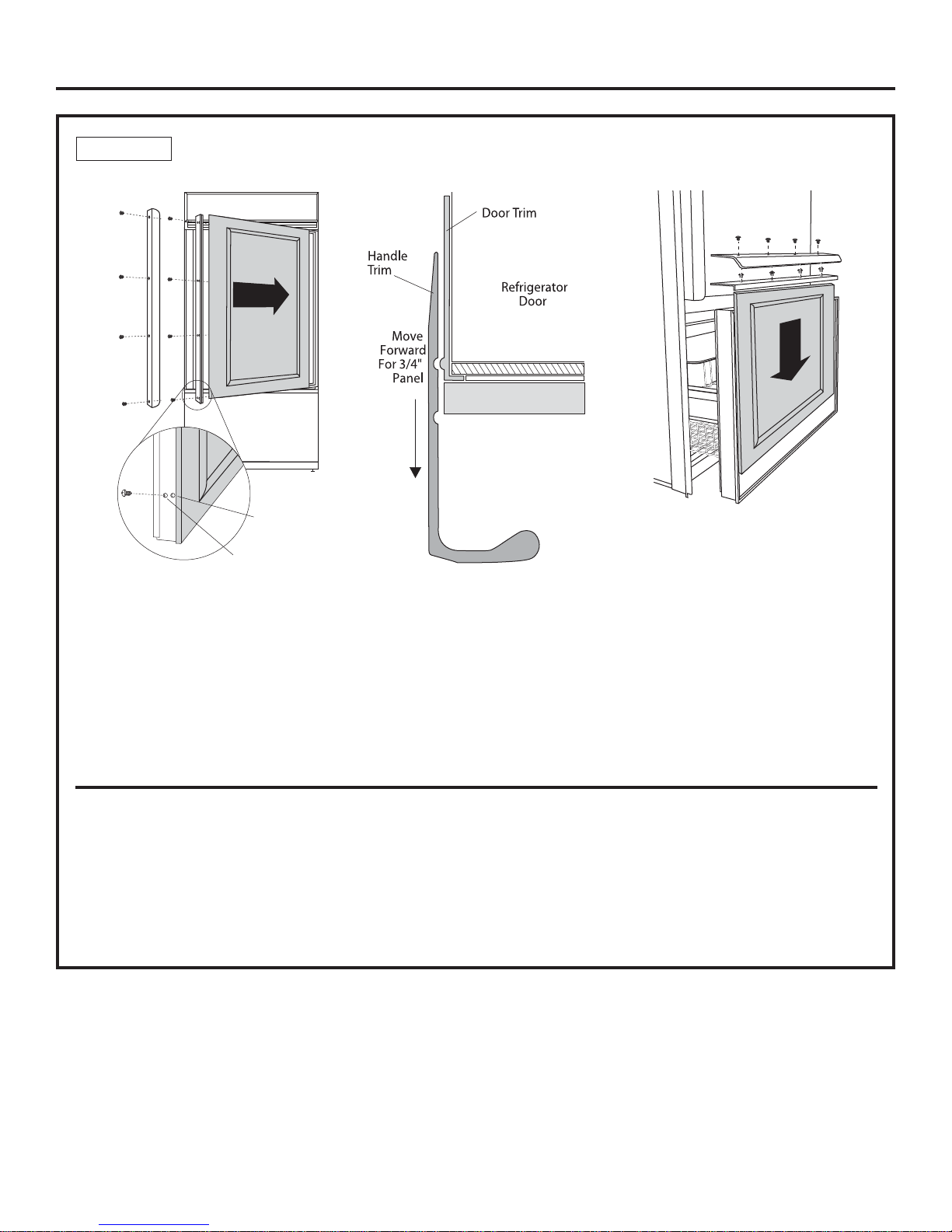

STEP 10 INSTALL 1/4”FRAMED PANELS
• There are two sets of holes in the handle side trim.
Replace handle side trim by installing the original screws
in the FRONT screw holes.
• Secure the handle to the door using the REAR
screw holes.
• Follow the same procedures to install the drawer panel.
Right hand models shown. Use the same instructions
for left hand models.
IF YOU ARE INSTALLING OVERLAY PANELS,
GO TO STEP 10A.
Install door and drawer panels:
• Open door to 90°. Remove the 4 Phillips head screws
from the door handle.
• Remove handle. Retain all screws.
• Remove 4 screws holding trim, lift off trim.
Retain screws.
• Slide framed panel into the door trim.
Standard supplied handle shown
in 1/4”panel position.
STEP 9 INSTALL GRILLE PANEL
• Raise the access panel to the stop position.
• Loosen the screws on the side trim behind the frame.
Remove the bottom trim.
• Slide the panel over the metal baker panel and into the
trim.
• If necessary, tap with a wood block until the panel slips
under the top trim piece.
• Reassemble the bottom trim. Tighten the screws.
• Adjust the hinge spring to accommodate the panel
weight, if necessary.

Installation Instructions - Standard Installation
14
STEP 10A INSTALL OVERLAY PANELS
• There are two sets of holes in the handle side trim.
Replace handle side trim by installing the original screws
in the REAR screw holes.
• Secure the handle to the door using the FRONT
screw holes.
• Follow the same procedures to install the drawer panel.
Custom handles
If you are using custom handles, the handle must be
properly secured to the panel before sliding the panel
into the trim.
• The cabinet manufacturer will supply the custom
handle and hardware.
• Secure the door/drawer trim using both the FRONT
and REAR screw holes. Discard supplied handle.
Right hand models shown. Use the same instructions
for left hand models.
Install door and drawer panels:
• Open door to 90°. Remove the 4 Phillips head screws
from the door handle.
• Remove handle. Retain all screws.
• Remove 4 screws holding trim, lift off trim.
Retain screws.
• Slide overlay panel into the door trim.
Supplied handle shown in the
overlay panel position.
Use Rear Holes
to Secure Trim
Use Front Hol
to Secure Han
d

19
STEP 12 CONNECT POWER
• Check to be sure the power cord is plugged into the
receptacle.
• Check to make sure power to refrigerator is on by
opening refrigerator door to see if interior lights are
on.
• The temperature controls are preset at 37°F for the
fresh food section and 0°F for the freezer.
• Allow 24 hours to stabilize before making
adjustments.
STEP 13 START ICEMAKER
• Flip the switch to I (ON). The icemaker will begin
operation automatically.
• Be sure nothing interferes with the sweep of the feeler
arm.
• Discard the first full bucket of ice cubes.
• To turn the icemaker off, set the switch to O (OFF).
ON OFF
Installation Instructions - Standard Installation
STEP 14 INSTALL TOEKICK
• Locate the supplied toekicks (shipped taped to the
side of the refrigerator.
• The narrower set of toe kicks will be used with
standard installation. You can discard the other set of
toe kicks.
• Install the toekick assembly with the 2 screws
provided, adjust to the desired height and tighten the
screws.
IMPORTANT: A custom toekick can be installed to
match or complement the surrounding cabinetry but
can NOT cover the horizontal vent slots of the factory
toekick.
STEP 11 CONNECT WATER SUPPLY
• Locate and bring tubing to the front of the cabinet.
• Turn the water on to flush debris from line. Run about
a quart of water through tubing into a bucket, then
shut off water.
Copper Tubing:
• Slip a 1/4”nut and ferrule (provided) over both ends
of the copper tubing. Insert tube into the union fitting
on the unit and tighten nut to union.
• Turn on the water to check for leaks.
GE SmartConnect™Tubing:
NOTE: The only GE-approved plastic tubing is supplied
in the GE SmartConnect™Refrigerator Tubing kits. Do
not use any other plastic water supply line because
the line is under pressure at all times. Other types of
plastic may crack or rupture with age and cause water
damage to your home.
• Insert the molded end of the tubing into the
refrigerator connection. Tighten the compression nut
until it is just hand tight.
• Tighten one additional turn with a wrench.
Overtightening can cause leaks!
• Turn on the water to check for leaks.
NOTE: Make sure excess tubing length does not
interfere with drawer closing or toekick installation.
Refrigerator
Water Supply
House
Water Supply

Instructions for Flush Installation
20
