Monogram ZKST300N Guide

monogram.com
Design Guide with
Installation
Instructions
30" Built-In
Bottom-Freezer, 2-Drawer
Refrigerator

Safety Information

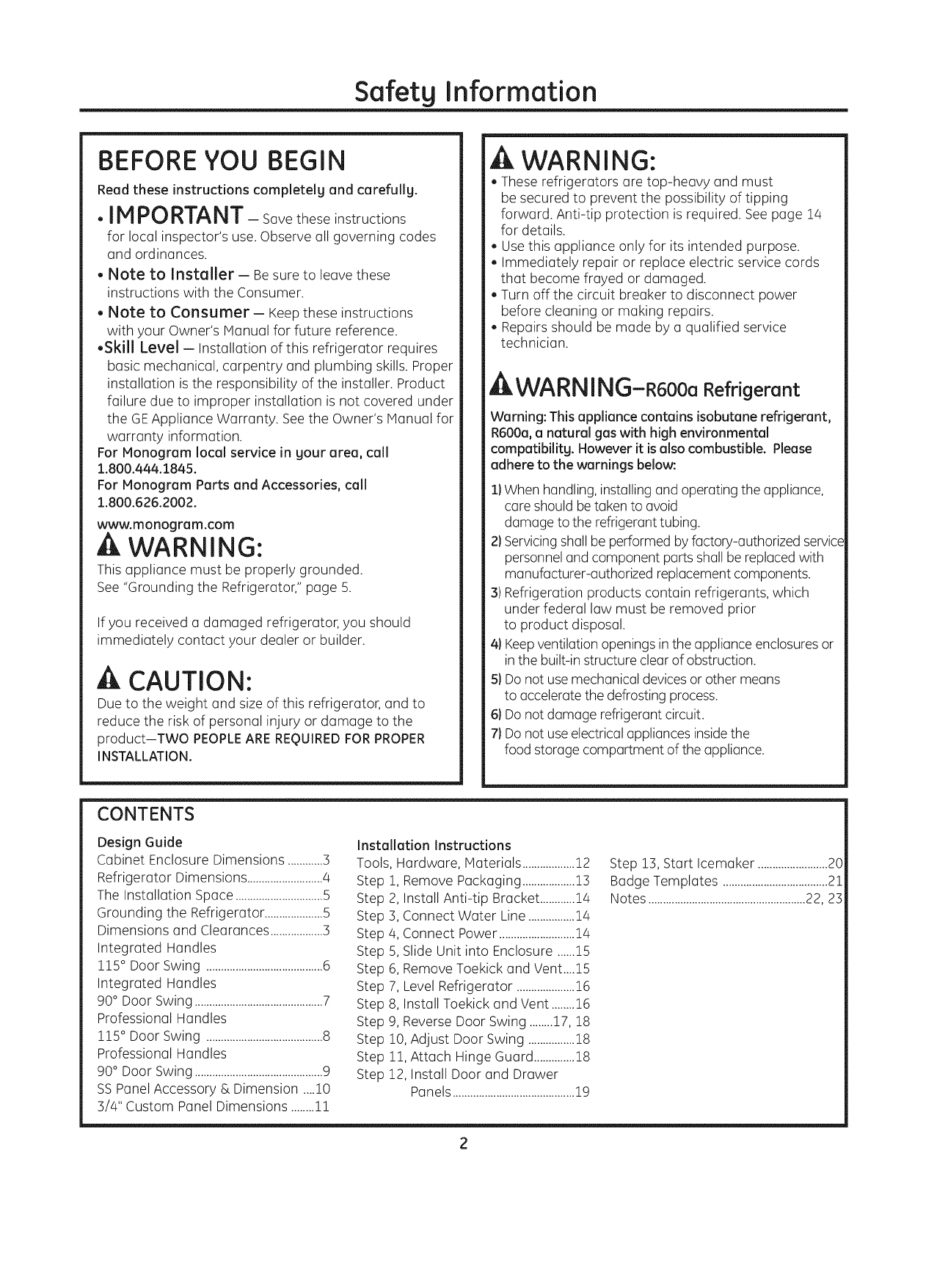

BEFORE YOU BEGIN
Read these instructions completely and carefully.
e | M PO RTANT — Save these instructions
for local inspector’s use. Observe all governing codes
and ordinances.
« Note to Installer — Be sure to leave these
instructions with the Consumer.
¢ Note to Consumer — Keep these instructions
with your Owner’s Manual for future reference.
Skill Level — Installation of this refrigerator requires
basic mechanical, carpentry and plumbing skills. Proper
installation is the responsibility of the installer. Product
failure due to improper installation is not covered under
the GE Appliance Warranty. See the Owner’s Manual for
warranty information.
For Monogram local service in your area, call
1.800.444.1845.
For Monogram Parts and Accessories, call
1.800.626.2002.
www.monogram.com
A WARNING:
This appliance must be properly grounded.
See “Grounding the Refrigerator,” page 5.
If you received a damaged refrigerator, you should
immediately contact your cealer or builder.
A CAUTION:
Due to the weight and size of this refrigerator, and to
reduce the risk of personal injury or damage to the
product—TWO PEOPLE ARE REQUIRED FOR PROPER
INSTALLATION.
A WARNING:
* These refrigerators are top-heavy and must
be secured to prevent the possibility of tipping
forward. Anti-tip protection is required. See page 14
for details.
« Use this appliance only for its intended purpose.
* Immediately repair or replace electric service cords
that become frayed or damaged.
* Turn off the circuit breaker to disconnect power
before cleaning or making repairs.
e Repairs should be made by a qualified service
technician.
A.WARNING-r600a Refrigerant
Warning: This appliance contains isobutane refrigerant,
R600qa, a natural gas with high environmental
compatibility. However it is also combustible. Please
adhere to the warnings below:
1) When handling, installing and operating the appliance,
care should be taken to avoid
damage to the refrigerant tubing.
2) Servicing shall be performed by factory-authorized service
personnel and component parts shall be replaced with
rnanufacturer-authorized replacement components.
3) Refrigeration products contain refrigerants, which
under federal law must be removed prior
to product disposal.
4) Keep ventilation openings in the appliance enclosures or
in the built-in structure clear of obstruction.
5) Do not use mechanical devices or other means
to accelerate the defrosting process.
6) Do not darnage refrigerant circuit.
7) Do not use electrical appliances inside the
food storage compartment of the appliance.
CONTENTS
Design Guide Installation Instructions
Cabinet Enclosure
Dimensions
............
3

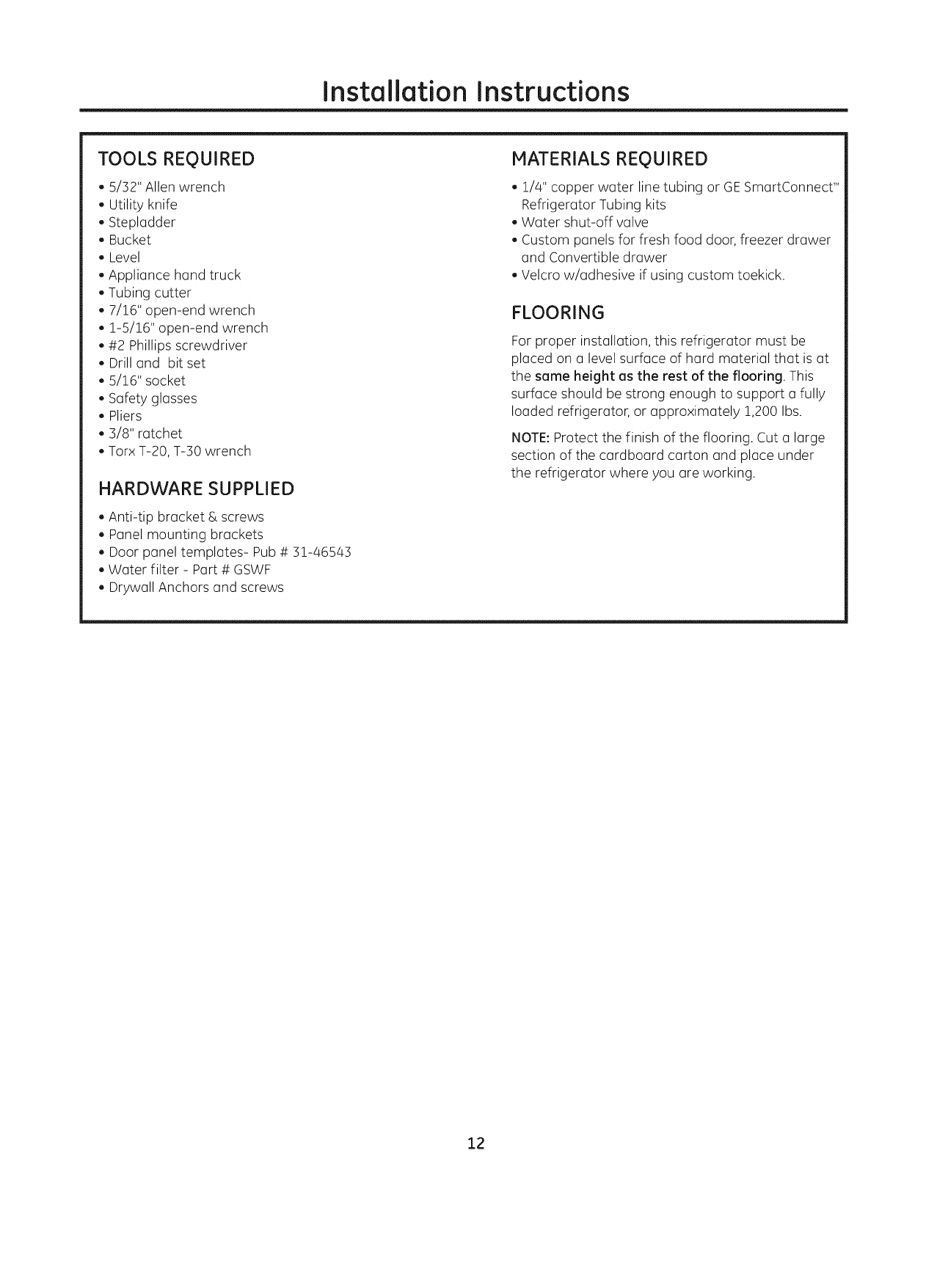

Tools,
Hardware,
Materials...

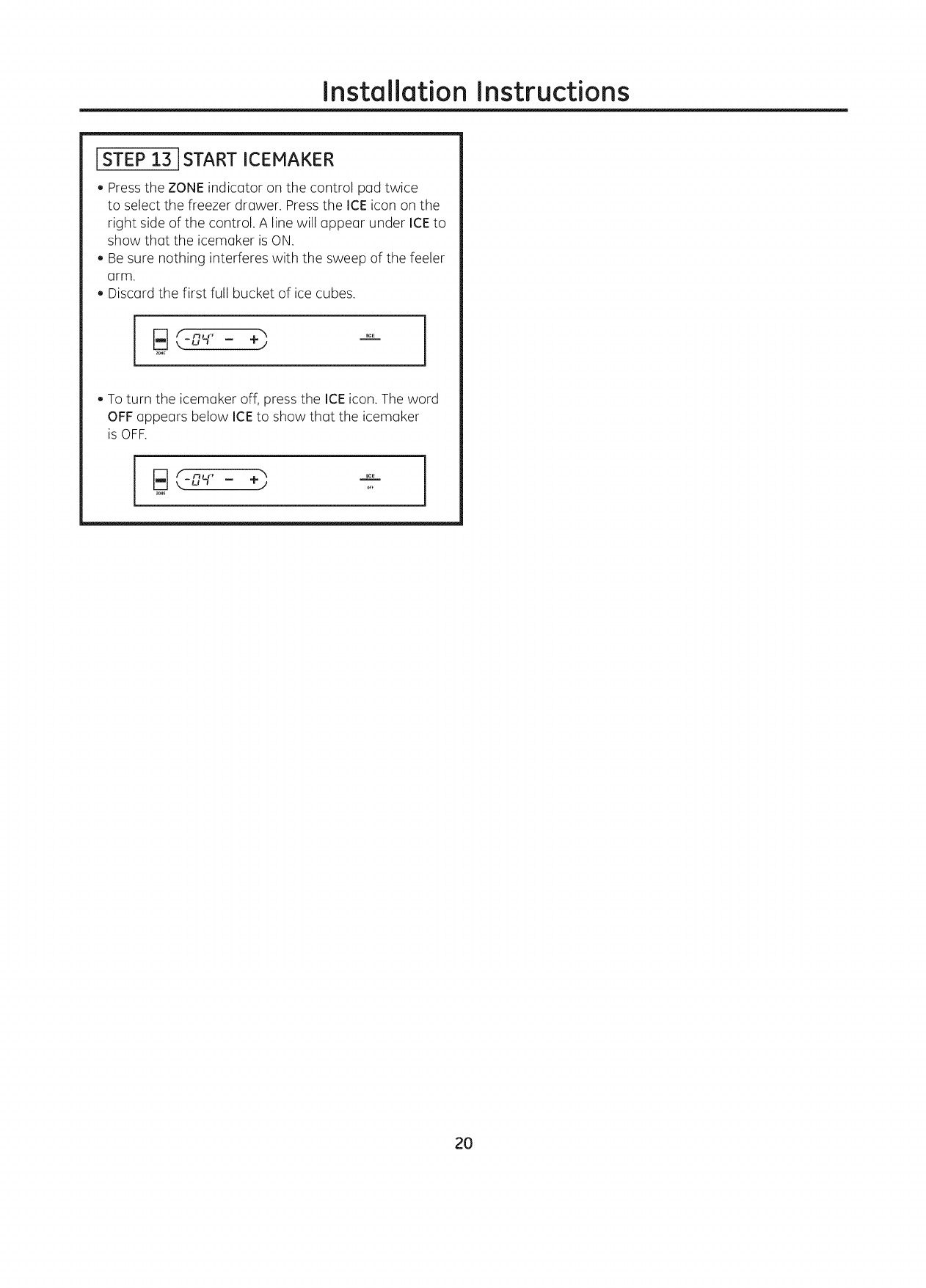

Step
13,
Start
Icemaker
oc
20
Refrigerator
DIMENSIONS...
4

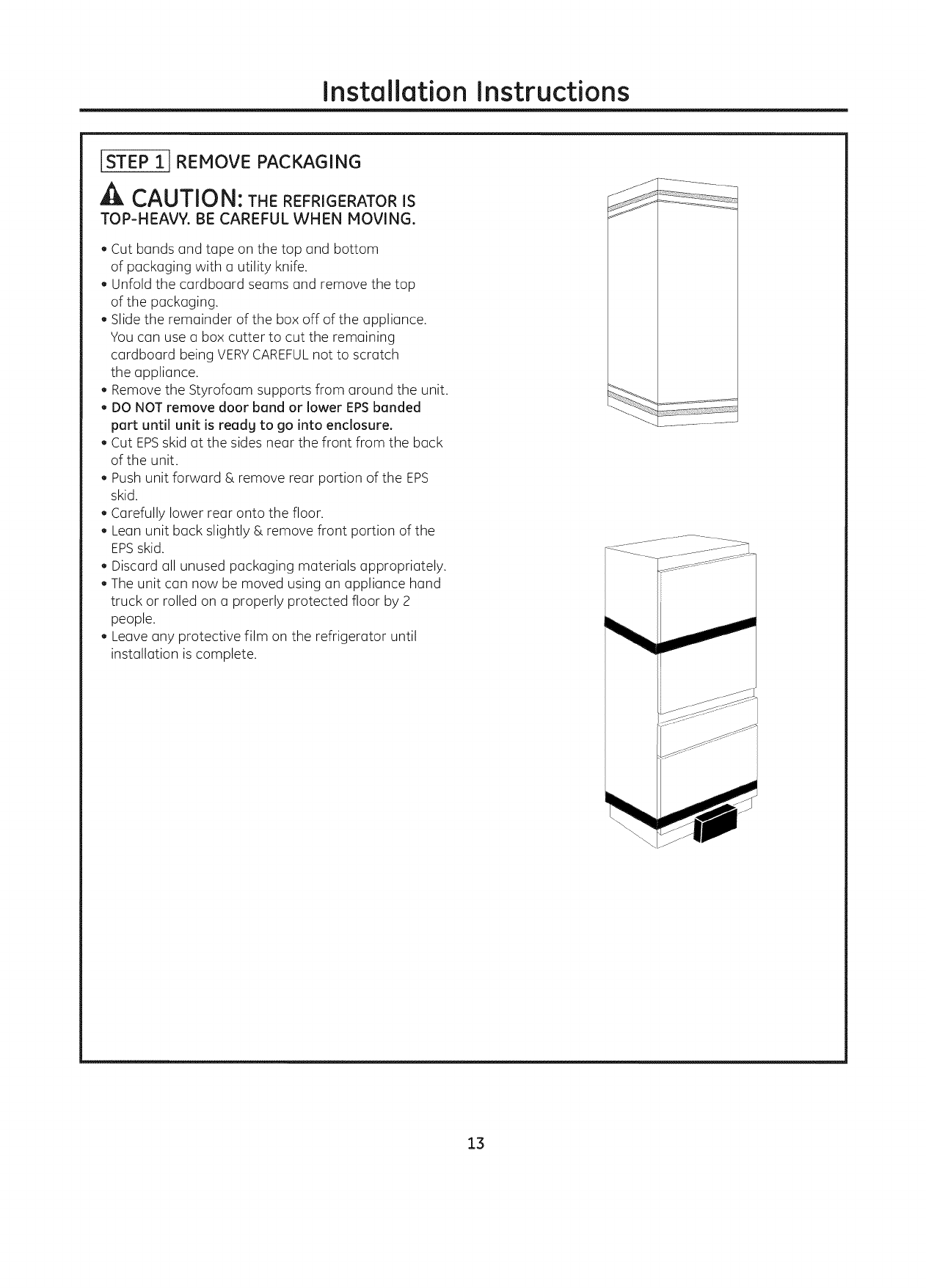

Step
1,
Remove
Packaging...
Badge
Templates
ween
21
The
Installation
Space
«uu...
eee
5

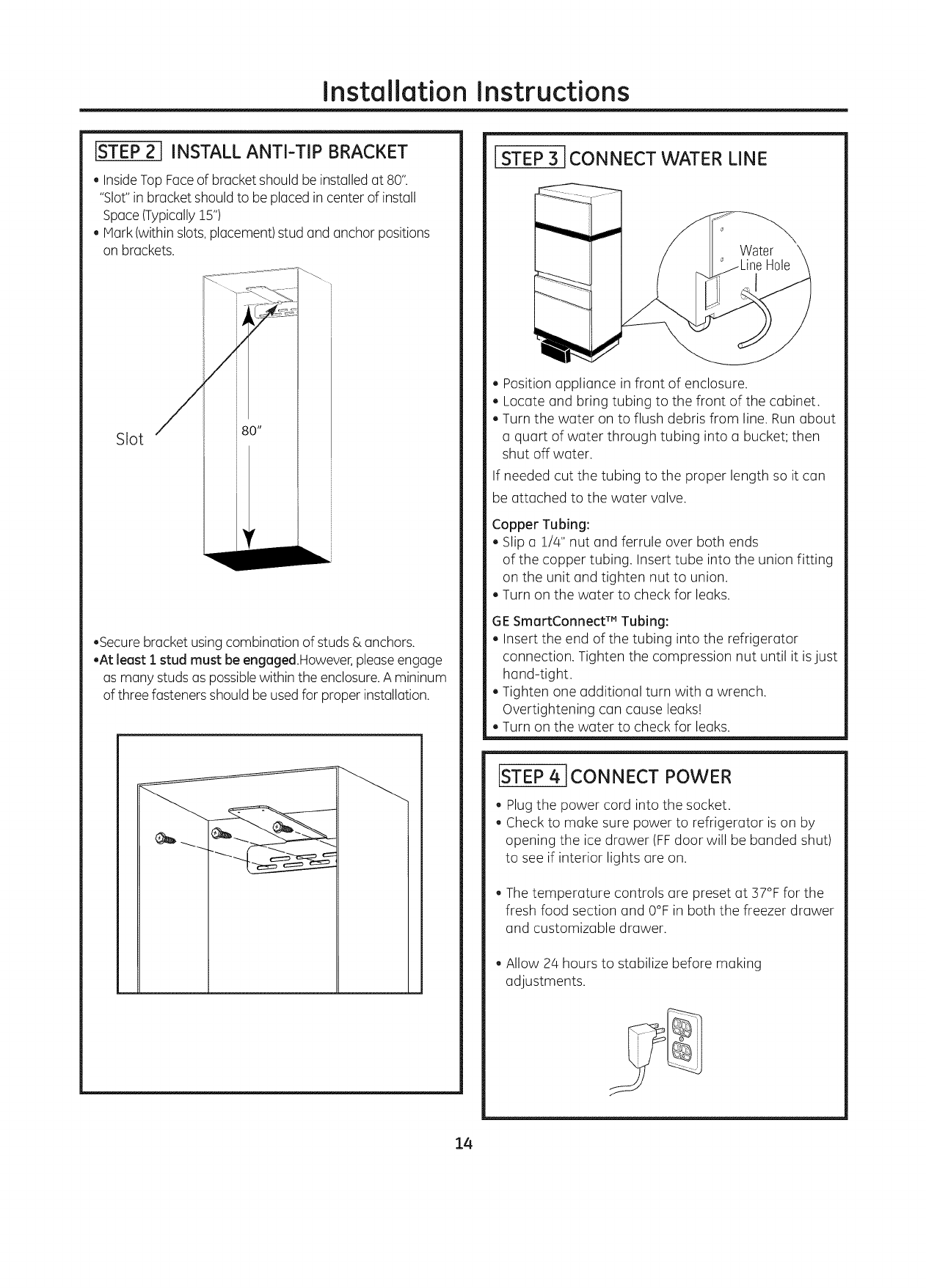

Step
2,
Install
Anti-tip
Bracket.
NORES
voesccsscsssessessesessenstnstttntnnnnssensensanse
22,
23
Grounding
the
Refrigerator...
2
Step
3,
Connect
Water
Line
vase
Dimensions and Clearances... 3 Step 4, Connect POWEP veces

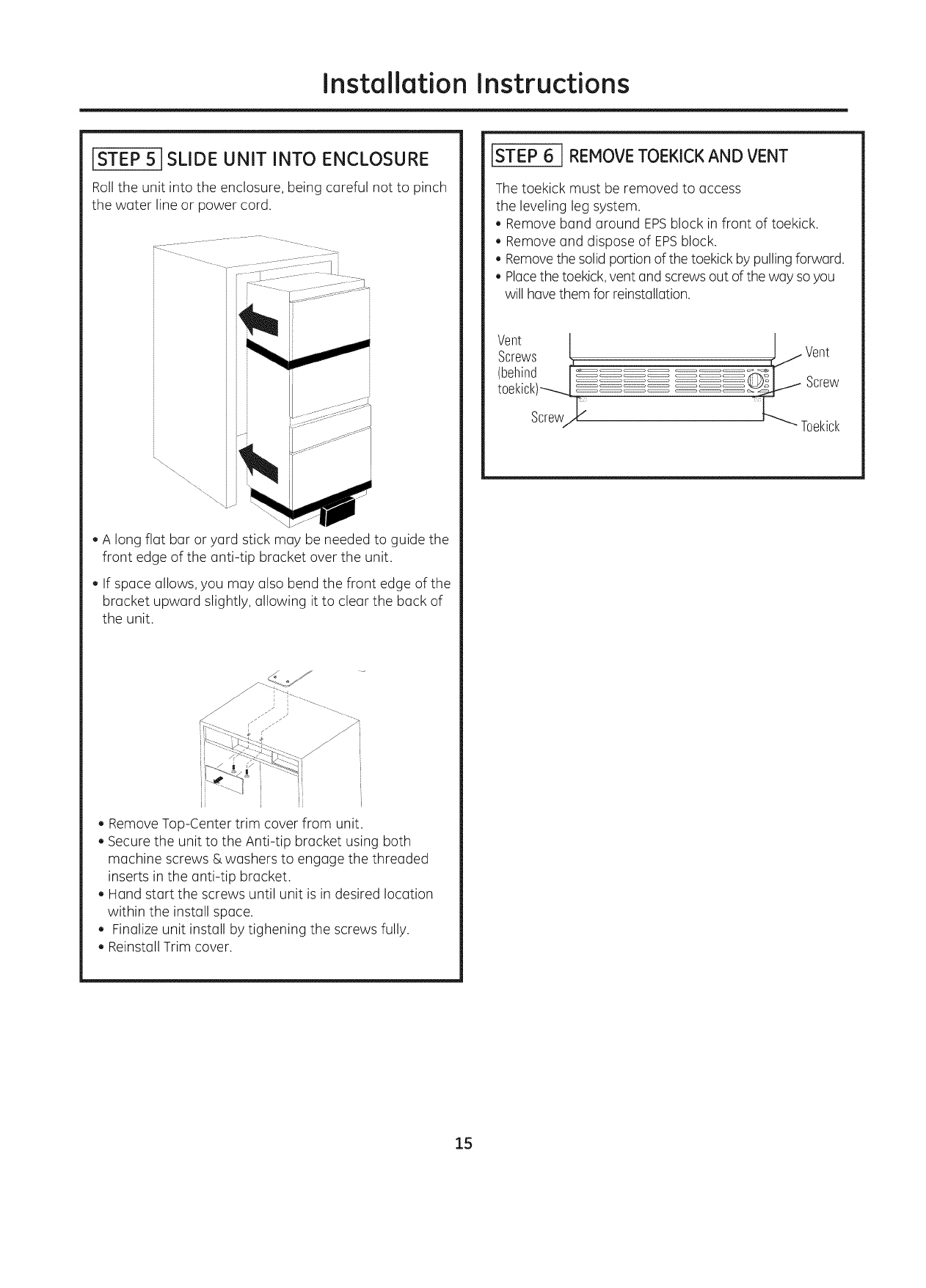

Integrated Handles Step 5, Slide Unit into Enclosure ......15
115° DOOF SWING ceeececseeecceseeettseeceeeeeteseeee 6 Step 6, Remove Toekick and Vent....15
Integrated Handles Step 7, Level Refrigerator on. .scen 16
90° DOOP SWING. esesssesseeseectectstecttee 7 Step 8, Install Toekick and Vent........16
Professional Handles Step 9, Reverse Door Swing........17, 18
115°
DOOF
SWING
ecceseesscessseessseseenstee
8
Step
10,
Adjust
Door
SWING
wc.
18
Professional
Handles
Step
11,
Attach
Hinge
Guard..............
18
90°
DOOF
SWING
oc
ecssseeseessssccssesssentstsccseesssens
9
Step
12,
Install
Door
and
Drawer
SS
Panel
Accessory
&
Dimension
....10
POMENS
coocccccccccccssseccccssssseeeseeseseeee
19

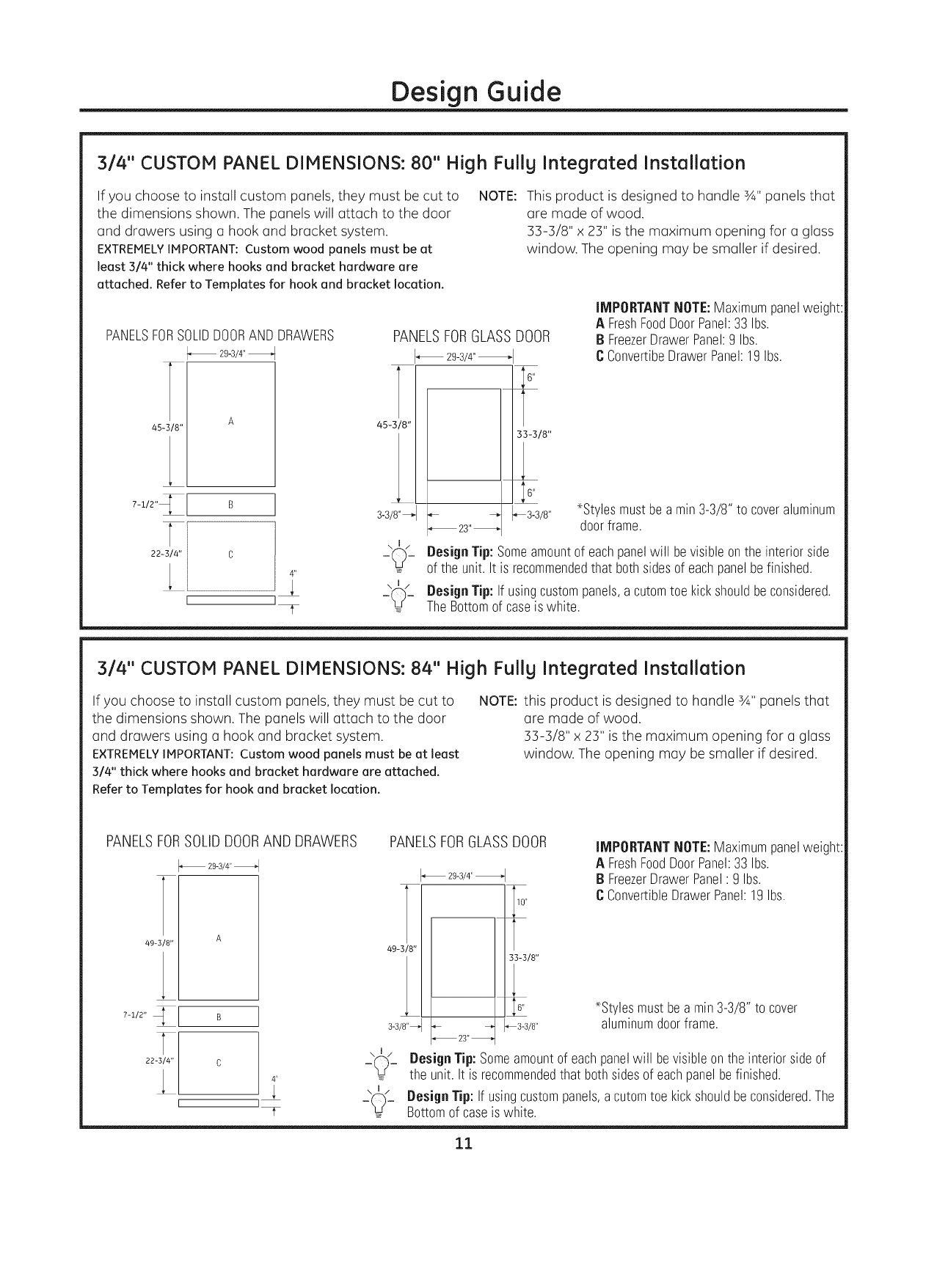

3/4" Custom Panel Dimensions........ 11

Design Guide
Cabinet Enclosure Dimensions For Fully Integrated Instructions
25" min. depth
30” Finished Width
Height options
80” or * 84"
The cutout depth must be 25"for
flush installations.
The front face of the refrigerator fits
flush with 25"cepth adjacent
cabinets.
The refrigerator can fit into a 79-1/2"
minimum,
84-1/2" maximum high enclosure.
Although the refrigerator itself can
only be raised to 80 3/8",
* The fresh food door panel can be
constructed to fill additional height;
see page 10.
N\ | 4
“Oe Design Tip: We recornmend finishing the inside surface of the enclosure a min. of 4” from the front face.
XN | eo
—o Design Tip: If using 84” enclosure, consider adding a finished valence above the refrigerator case.
34 3/8"
4
y=
O Design Tip: It is possible to align your refrigerator drawer with adjacent cabinetry for a cornpletely integrated
= look.

Design Guide

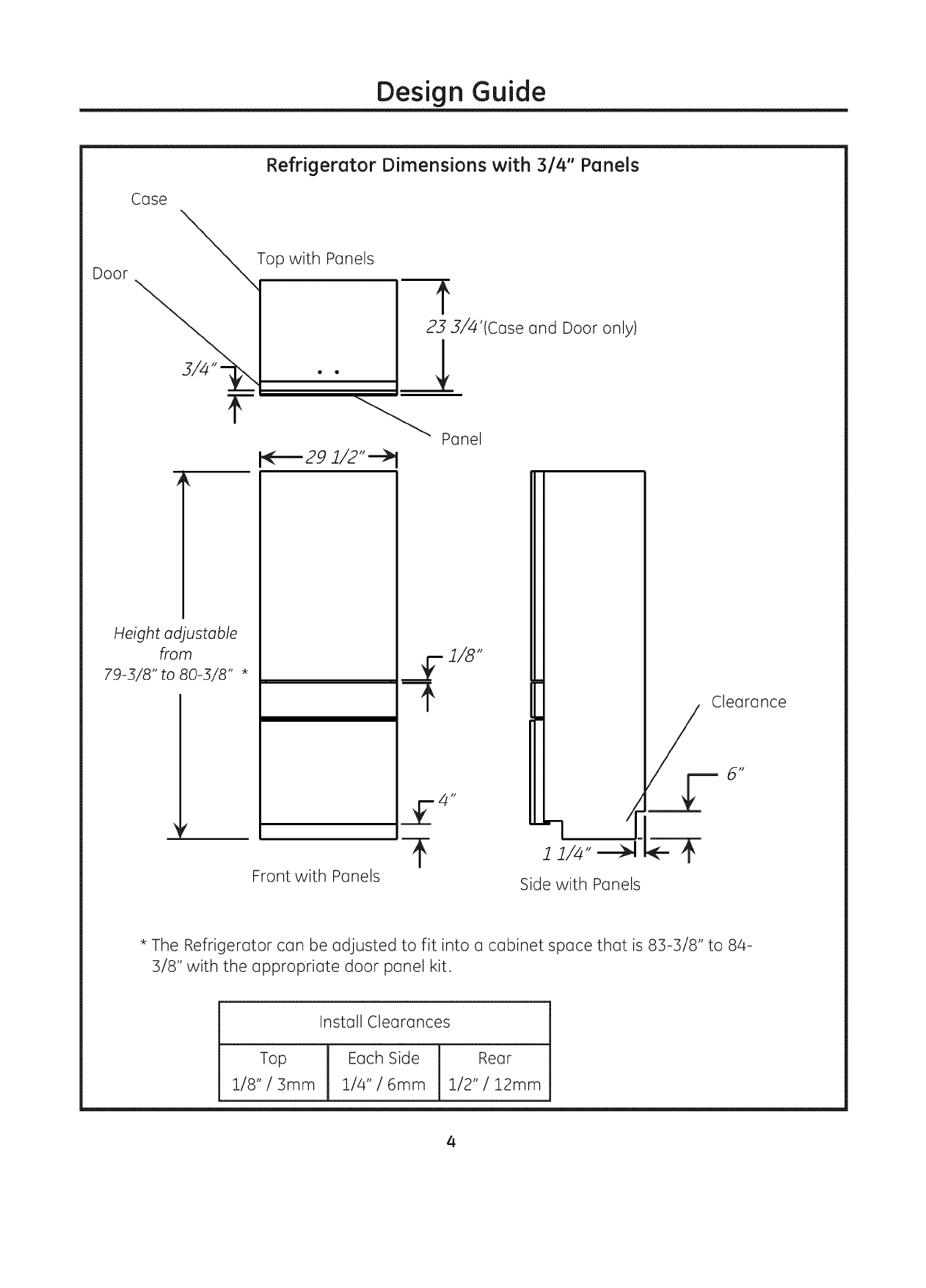

Refrigerator Dimensions with 3/4" Panels
Case
Top with Panels
Door
3/4
K<— 29 1/2" >|
Height adjustable
from
7 9-3/8" to 80-3/8"
*
ok.
Front with Panels
|
_t
Panel
4’
r
1/8"
3/4'(Case and Door only]
Clearance
6”
11/4’ Nhe A
Side with Panels
* The Refrigerator can be adjusted to fit into a cabinet space that is 83-3/8” to 84-
3/8” with the appropriate door panel kit.
Install Clearances
Top
1/8” / 3mm
Each Side
1/4” /6mm
Rear
1/2” / 12mm

Design Guide

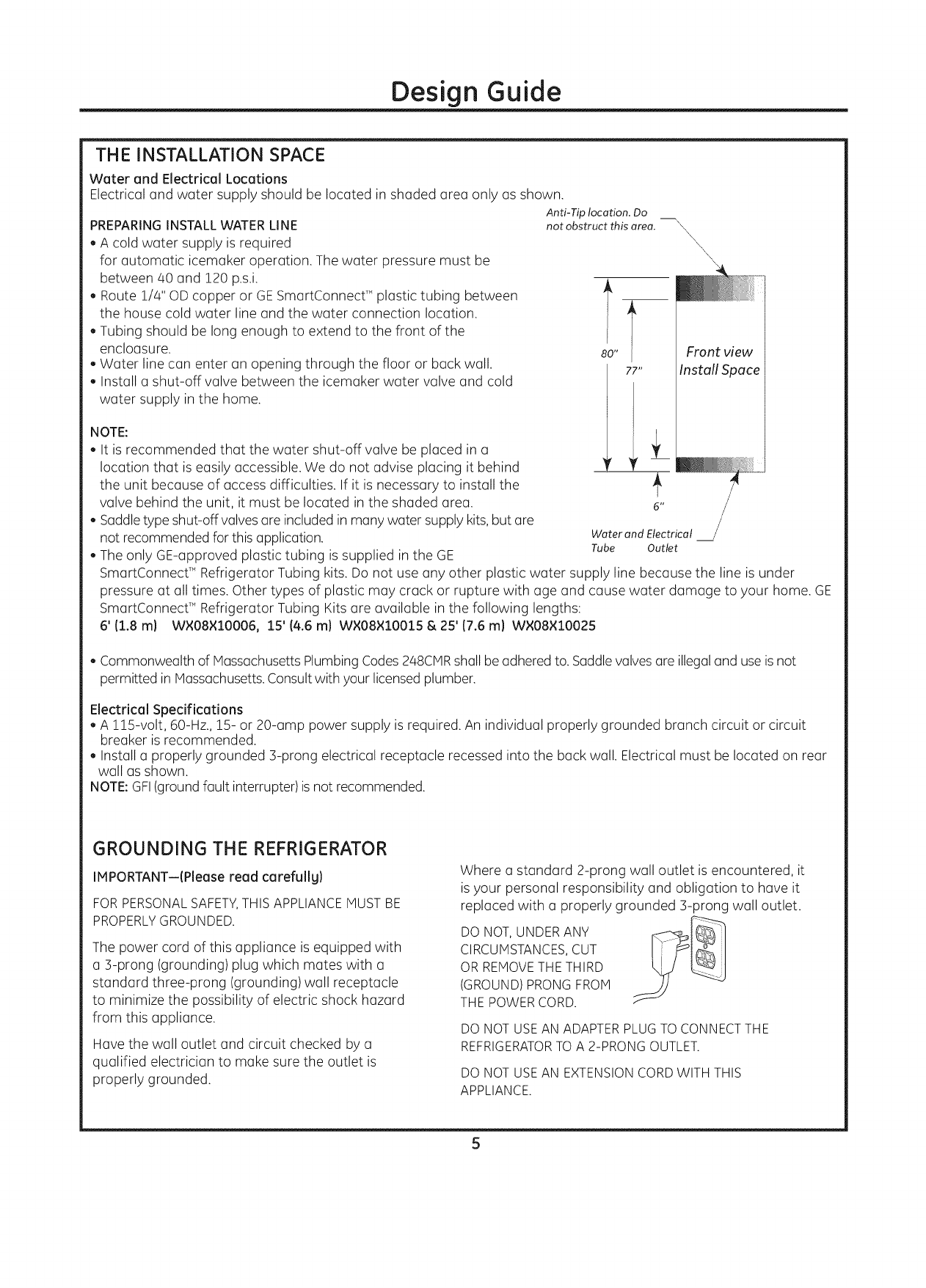

THE INSTALLATION SPACE
Water and Electrical Locations
Electrical and water supply should be located in shaded area only as shown.
PREPARING INSTALL WATER LINE
e A cold water supply is required
for autornatic icemaker operation. The water pressure must be
between 40 and 120 psi.
« Route 1/4" OD copper or GE SmartConnect™ plastic tubing between
the house cold water line and the water connection location.
¢ Tubing should be long enough to extend to the front of the
encloasure.
« Water line can enter an opening through the floor or back wall.
¢ Install a shut-off valve between the icernaker water valve and cold
water supply in the home.
NOTE:
* |t is recommended that the water shut-off valve be placed ina
location that is easily accessible. We do not advise placing it behind
the unit because of access difficulties. If it is necessary to install the
valve behind the unit, it must be located in the shaded area. 6"
* Saddle type shut-off valves are included in many water supply kits, but are
not recommended for this application.
¢ The only GE-approved plastic tubing is supplied in the GE
Anti-Tip location. Do
not obstruct this area.
Front view
Install Space
Waterand Electrical
Tube Outlet
SmartConnect™ Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under
pressure at all times. Other types of plastic may crack or rupture with age and cause water damage to your home. GE
SmartConnect™ Refrigerator Tubing Kits are available in the following lengths:
6' (1.8 m)
WX08X10006, 15' (4.6 m) WX08X10015 & 25' (7.6 m) WxX08X10025
* Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not
permitted in Massachusetts. Consult with your licensed plumber.
Electrical Specifications
@ A 115-volt, 60-Hz., 15- or 20-amp power supply is required. An individual properly grounded branch circuit or circuit
breaker is recommended.
« Install a properly grounded 3-prong electrical receptacle recessed into the back wall. Electrical must be located on rear
wall as shown.
NOTE: GFI (ground fault interrupter) is not recommended.
GROUNDING THE REFRIGERATOR
IMPORTANT—(Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
The power cord of this appliance is equipped with
a 3-prong (grounding) plug which mates with a
standard three-prong (grounding) wall receptacle
to minimize the possibility of electric shock hazard
from this appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG FROM
THE POWER CORD.
DO NOT USE AN ADAPTER PLUG TO CONNECT THE
REFRIGERATOR TO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE.

Design Guide
Product Clearances
These refrigerators are equipped with a 2-position door
stop. The factory-set 115° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
For 90° Door swing see page 7.
Allow 15° minimum clearance
for a full 115° door swing.
Refrigerator
at
1-1/4"
1-1/2"
3/4"
H
1
1-1/4"
Q
SS European or Custom Panels
Top View
115° DOOR SWING Not to scale
(factory setting)

Design Guide
Refrigerator
/ |
— Fora 90° door
swing allow 5” min.
clearance to a wall,
for stainless steel
models.
«— 1/8"
SS European or Custom Panels
Top View
90° DOOR SWING
(optional setting)
13/18"
cat
2-1/4"
1-1/2" 1-1/4"
eg— 3/4”
-e— 1-1/4"
—ag— 1-1/2"
Not to scale

Design Guide
Product Clearances
These refrigerators are equipped with a 2-position door
stop. The factory-set 115° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
For 90° Door swing see page 9.
Refrigerator
DS
je Allow 15" minimum clearance
) for a full 115° door swing.
i \
1-1/8"
2-1/2"
Not to scale
SS Professional Panels
Top View
115° DOOR SWING
(factory setting)

Design Guide
Refrigerator
For a 90° door
swing allow 5” min.
clearance to a wall,
for stainless steel
models.
SS Professional Panels
Top View
90° DOOR SWING
(optional setting)
LO
1-1/4"
2-9/16"
Not to scale

Design Guide
SS PANEL ACCESSORY & DIMENSIONS
3/4"-Thick Solid Door Panel Options
For 80" High Installation
« Integrated - Panel Model ZKST300N LH & RH capable
¢ Professional - Panel Model ZKSP300N LH & RH capable
For 84" High Installation (The door panel is not
reversible for the 84” Installations. A left or right-hand
door panel accessory must be purchased.)
@ LH Integrated - Model ZKST304NLH
# RH Integrated - Model ZKST304NRH
e LH Professional - Model ZKSP304NLH
e RH Professional - Model ZKSP304NRH
NOTE: Each kit also contains matching freezer and
customizable drawer panels, handles and toekick.
| — 29-374" +
Fresh .
Food 45-3/8" for 80” Installation
49-3/8" for 84” Installation
Cabinets
1 |
| en ”
Ice Drawer re
== 1
Freezer/
Convertible ,
Drawer 22-3/4
|
4 | |
t
—) «#——-_ 1/8" Min.*
*There must be a minimum 1/8" gap between panels and
surrounding cabinetry.
Optional Accessory Kits #:
¢ Side-by-Side Installation Kit - ZUG30
* European handle kit - (3 handles) - WR12X10988
(can be purchased through GE Parts)
3/4"-Thick Frame for Glass Door Options
For 80" High Installation
* Integrated - Model ZKGT300N = LH & RH capable
e Professional - Model ZKGP300N_ LH & RH capable
For 84" High Installation (The door panel is not
reversible for the 84” Installations. A left or right-hand
door panel accessory must be purchased}
* LH Integrated - Model ZKGT304NLH
* RH Integrated - Model ZKGT304NRH
e LH Professional - Model Z2KGP304NLH
e RH Professional - Model ZKGP304NRH
NOTE: Each option also contains matching freezer and
Convertible drawer panels, handles and toekick.
*
«—— 23° ——+ 0 8
6 10
80" 84"
Glass Panel Install. | Install.
for Fresh Food
45-3/8"
49-3/8"
+
Bt
sae] |
*Pro style window is slightly smaller.
10

Design Guide
3/4" CUSTOM PANEL DIMENSIONS: 80" High Fully Integrated Installation
If you choose to install custom panels, they must be cut to NOTE: This product is designed to handle 34" panels that
the dirnensions shown. The panels will attach to the door are made of wood.
and drawers using a hook and bracket system. 33-3/8" x 23" is the maximum opening for a glass
EXTREMELY IMPORTANT: Custom wood panels must be at window. The opening may be smaller if desired.
least 3/4" thick where hooks and bracket hardware are
attached. Refer to Templates for hook and bracket location.
IMPORTANT NOTE: Maximum panel weight:
A Fresh Food Door Panel: 33 Ibs.
PANELS FOR SOLID DOOR AND DRAWERS PANELS FOR GLASS DOOR B Freezer Drawer Panel: 9 Ibs.
283/40" -— 29-3/4" >| € Convertibe Drawer Panel: 19 Ibs.
3/8" 45-3/8"
45-3/8 33-3/8"
a
A
ret [8 *Styles must be a min 3-3/8" t r aluminum + 3-3/8" +] eH | b~ 3.3/8" yles must be a mi 0 cover aluminu
c
Co
|e 93" + door frame.
Design Tip: Some amount of each panel will be visible on the interior side
\ | 4
22-3/4" -C)-
= of the unit. It is recommended that both sides of each panel be finished.
Cy
Design Tip: If using custom panels, a cutom toe kick should be considered.
’
t
+ The Bottom of case is white.
3/4" CUSTOM PANEL DIMENSIONS: 84" High Fully Integrated Installation
If you choose to install custorn panels, they must be cutto | NOTE: this product is designed to handle 34" panels that
the dimensions shown. The panels will attach to the door are made of wood.
and drawers using a hook and bracket system. 33-3/8" x 23" is the maximum opening for a glass
EXTREMELY IMPORTANT: Custom wood panels must be at least window. The opening may be smaller if desired.
3/4" thick where hooks and bracket hardware are attached.
Refer to Templates for hook and bracket location.
PANELS FOR SOLID DOOR AND DRAWERS PANELS FOR GLASS BOOR IMPORTANT NOTE: Maximum panel weight:
|. 29-3/4" +l A Fresh Food Door Panel: 33 Ibs.
7 + 29-314 —| B Freezer Drawer Panel : 9 Ibs.
€ Convertible Drawer Panel: 19 Ibs.
49-378 49-3/8"
33-3/8"
}«—— 73" ——_»}
— : * : "
7/2” 4 le Styles must be a min 3-3/8" to cover
a 33/8] be a kage" aluminum door frame.
N
22-374" c cy. Design Tip: Some amount of each panel will be visible on the interior side of
the unit. It is recommended that both sides of each panel be finished.
Design Tip: If using custom panels, a cutom toe kick should be considered. The
Bottom of case is white.
i
|
4
‘N
he
i
11

Installation Instructions
TOOLS REQUIRED
@ 5/32" Allen wrench
e Utility knife
e Stepladder
* Bucket
* Level
¢ Appliance hand truck
* Tubing cutter
« 7/16" open-end wrench
« 1-5/16" open-end wrench
® #2 Phillips screwdriver
¢ Drill and bit set
« 5/16" socket
e Safety glasses
* Pliers
« 3/8" ratchet
* Torx T-20, T-30 wrench
HARDWARE SUPPLIED
e Anti-tip bracket & screws
¢ Panel mounting brackets
¢ Door panel templates- Pub # 31-46543
« Water filter - Part # GSWF
¢ Drywall Anchors and screws
MATERIALS REQUIRED
« 1/4" copper water line tubing or GE SmartConnect”
Refrigerator Tubing kits
« Water shut-off valve
* Custom panels for fresh food door, freezer drawer
and Convertible drawer
« Velcro w/adhesive if using custom toekick.
FLOORING
For proper installation, this refrigerator must be
placed on a level surface of hard material that is at
the same height as the rest of the flooring. This
surface should be strong enough to support a fully
loaded refrigerator, or approximately 1,200 Ibs.
NOTE: Protect the finish of the flooring. Cut a large
section of the cardboard carton and place under
the refrigerator where you are working.
12

Installation Instructions
STEP 1; REMOVE PACKAGING
Ay CAUTION: THE REFRIGERATOR IS
TOP-HEAVY. BE CAREFUL WHEN MOVING.
e Cut bands and tape on the top and bottom
of packaging with a utility knife.
e Unfold the cardboard seams and rernove the top
of the packaging.
e Slide the remainder of the box off of the appliance.
You can use a box cutter to cut the remaining
cardboard being VERY CAREFUL not to scratch
the appliance.
* Remove the Styrofoam supports from around the unit.
* DO NOT remove door band or lower EPS banded
part until unit is ready to go into enclosure.
* Cut EPS skid at the sides near the front from the back
of the unit.
e Push unit forward & remove rear portion of the EPS
skid.
* Carefully lower rear onto the floor.
¢ Lean unit back slightly & remove front portion of the
EPS skid.
¢ Discard all unused packaging materials appropriately.
* The unit can now be moved using an appliance hand
truck or rolled on a properly protected floor by 2
people.
¢ Leave any protective film on the refrigerator until
installation is complete.
13

Installation Instructions
STEP 2| INSTALL ANTI-TIP BRACKET
* Inside Top Face of bracket should be installed at 80”.
“Slot” in bracket should to be placed in center of install
Space (Typically 15”)
* Mark (within slots, placernent) stud and anchor positions
on brackets.
/ 80”
Slot
~~.
Secure bracket using combination of studs & anchors.
eAt least 1 stud must be engaged.However, please engage
as many studs as possible within the enclosure. A mininum
of three fasteners should be used for proper installation.
14
STEP 3 | CONNECT WATER LINE
=
¢ Position appliance in front of enclosure.
* Locate and bring tubing to the front of the cabinet.
* Turn the water on to flush debris from line. Run about
a quart of water through tubing into a bucket; then
shut off water.
Water
Line Hale
If needed cut the tubing to the proper length so it can
be attached to the water valve.
Copper Tubing:
Slip a 1/4" nut and ferrule over both ends
of the copper tubing. Insert tube into the union fitting
on the unit and tighten nut to union.
* Turn on the water to check for leaks.
GE SmartConnect™ Tubing:
¢ Insert the end of the tubing into the refrigerator
connection. Tighten the compression nut until it is just
hand-tight.
¢ Tighten one additional turn with a wrench.
Overtightening can cause leaks!
* Turn on the water to check for leaks.
STEP 4| CONNECT POWER
* Plug the power cord into the socket.
# Check to make sure power to refrigerator is on by
opening the ice drawer (FF door will be banded shut)
to see if interior lights are on.
* The temperature controls are preset at 37°F for the
fresh food section and 0°F in both the freezer drawer
and customizable drawer.
¢ Allow 24 hours to stabilize before making
adjustments.
2,|
ay
go

Installation Instructions
STEP 5| SLIDE UNIT INTO ENCLOSURE
Roll the unit into the enclosure, being careful not to pinch
the water line or power cord.
NN ; me
She SQ
— a
a
¢ A long flat bar or yard stick may be needed to guide the
front edge of the anti-tip bracket over the unit.
If space allows, you may also bend the front edge of the
bracket upward slightly, allowing it to clear the back of
the unit.
u a i :
i i a I
* Remove Top-Center trim cover from unit.
e Secure the unit to the Anti-tip bracket using both
machine screws & washers to engage the threaded
inserts in the anti-tip bracket.
« Hand start the screws until unit is in desired location
within the install space.
e Finalize unit install by tighening the screws fully.
* Reinstall Trim cover.
15
STEP 6 | REMOVE TOEKICK AND VENT
The toekick must be removed to access
the leveling leg system.
e Remove band around EPS block in front of toekick.
* Remove and dispose of EPS block.
# Remove the solid portion of the toekick by pulling forward.
* Place the toekick, vent and screws out of the way so you
will have them for reinstallation.
Vent |
Screws
Vent
(behind i
: 3 525 Sa a= (le
toekick} ——— === OF] — Screw
Screw
—~ Toekick

Installation Instructions

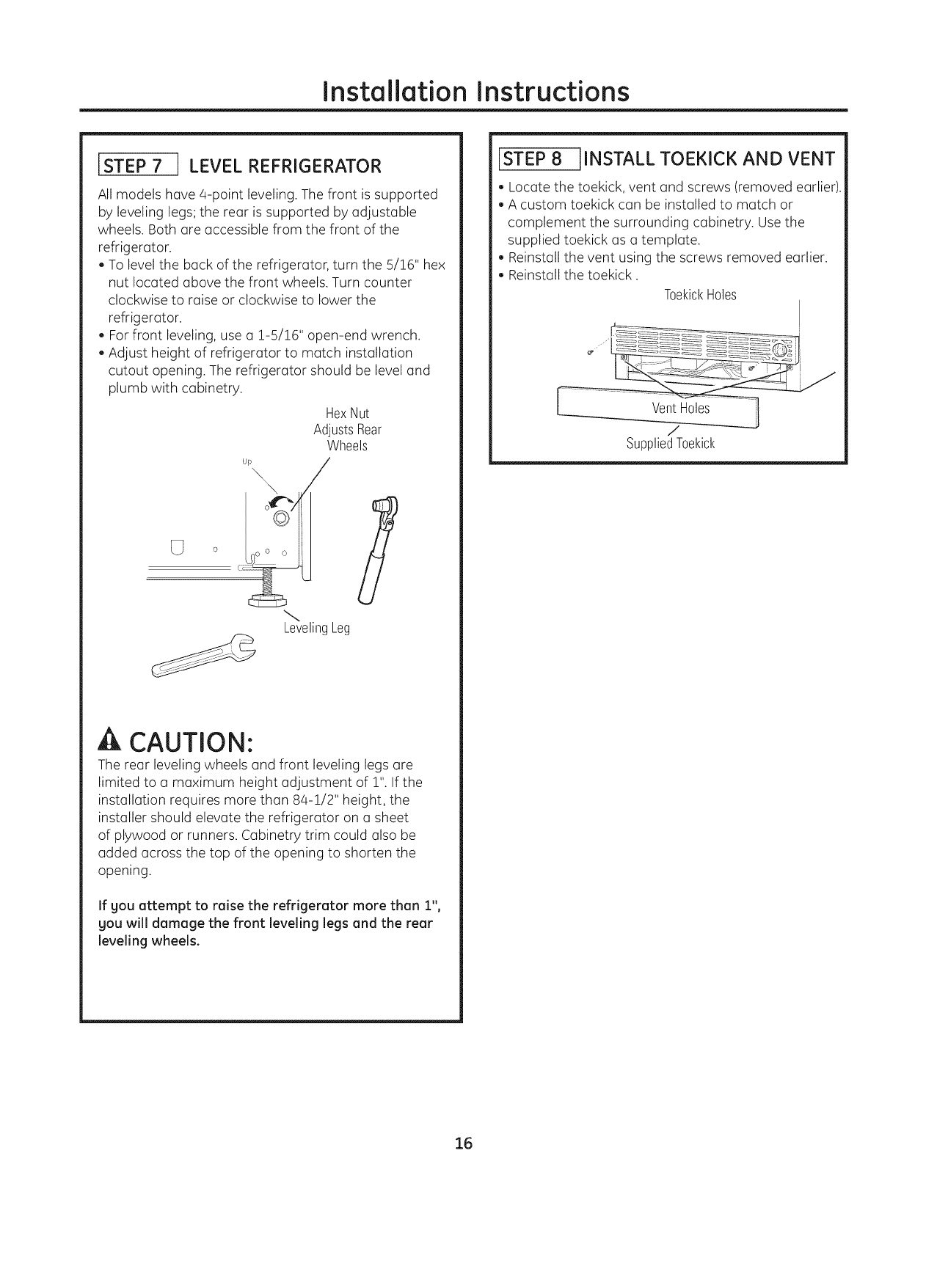

STEP 7_ | LEVEL REFRIGERATOR
All rnodels have 4-point leveling. The front is supported
by leveling legs; the rear is supported by adjustable
wheels. Both are accessible from the front of the
refrigerator.
@ To level the back of the refrigerator, turn the 5/16" hex
nut located above the front wheels. Turn counter
clockwise to raise or clockwise to lower the
refrigerator.
« For front leveling, use a 1-5/16" open-end wrench.
* Adjust height of refrigerator to match installation
cutout opening. The refrigerator should be level and
plumb with cabinetry.
Hex Nut
Adjusts Rear
Wheels
A CAUTION:
The rear leveling wheels and front leveling legs are
limited to a maximum height adjustment of 1”. If the
installation requires more than 84-1/2" height, the
installer should elevate the refrigerator on a sheet
of plywood or runners. Cabinetry trim could also be
added across the top of the opening to shorten the
opening.
If you attempt to raise the refrigerator more than 1",
you will damage the front leveling legs and the rear
leveling wheels.
16
STEP 8 |INSTALL TOEKICK AND VENT
¢ Locate the toekick, vent and screws (removed earlier).
e A custom toekick can be installed to match or
complement the surrounding cabinetry. Use the
supplied toekick as a template.
¢ Reinstall the vent using the screws removed earlier.
¢ Reinstall the toekick .
Toekick Holes
SSeS Sa
_————
SS GSS eae SES ¢
SSS Ss =
Vent Hales
fo
Supplied Toekick

Installation Instructions
STEP 9_ | REVERSE DOOR SWING (if needed)
Skip this step if door swing is satisfactory.
1. Open the fresh food coor.
A. WARNING: tunis next ster is
IMPORTANT FOR SAFE HANDLING OF AN
UNLOADED HINGE. DO NOT SKIP STEP 2.
2. Release the hinge springs by using a Torx T-20 wrench
to loosen the Torx screw from | to 0 on both hinges.
Close the door.
3. Using a 5/32" Allen wrench, remove the 2 screws per
hinge that secure the door to the refrigerator. Have
someone hold the coor while removing these screws
to keep the door from falling.
Screws
4. Open the hinges. Using a 5/32" Allen wrench, remove
the 2 screws per hinge that secure the hinge to the
refrigerator cabinet.
5. Remove the trim and hinge pocket from the top
of the refrigerator and install on the opposite sides.
6. Remove the trim and hinge pocket from the bottom
of the fresh food compartment. Remove the control panel
and gently place in the FZ drawer.
Control Panel
7. Reinstall the control panel.
STEP 9 | REVERSE DOOR SWING (cont).
8. The hinges will be reinstalled in opposite corners.
The hinge from the top will be turned over
and installed at the bottom of the fresh food
compartment. The hinge fram the bottom will be
turned over and installed at the top of the fresh food
compartment.
Top Hinge Bottom Hinge
9. Install the screws on the fresh food cormpartment
cabinet in all 4 places. Screw them in about halfway.
Slots for
Tabs
Screws —
To install the top hinge, turn the hinge in the proper
direction—the section of the bracket that will be
attached to the door should be at the bottom of the
hinge. Slide the hinge over the screws and seat the
tabs into the hinge pocket. Tighten the screws.
10.
11. To install the bottom hinge, turn the hinge in the
proper direction—the section of the bracket that will
attach to the door should be at the top of the hinge.
Slide the hinge over the screws and seat the tabs
into the hinge pocket. Tighten the screws. Close
the hinge.
12. Remove the hinge brackets from the door and reinstall
them on the opposite end, top and bottom.
17

Installation Instructions
STEP 9 | REVERSE DOOR SWING (cont).
13. With another person holding the door in place,
align the holes in the door hinge bracket with the
holes in the hinge. Install the screws to the top
hinge first.
Door
Screws
14. install screws on the bottom hinge next.
15. Using a Torx T-20 wrench, tighten the tension on
the hinge springs by turning the screws from 0 to |.
Use Torx
7-20 Wrench
STEP 10 | ADJUST DOOR SWING (if needed)
NOTE: This refrigerator has a 2-position door stop. When
space does not allow the door to swing to 115°, you may
limit the door swing to a 90°
Skip this step if door opening is satisfactory for your
installation situation.
e Open the fresh food door to access the top and bottom
hinges.
e Loosen the bottom hinge screws that attached to the
unit
¢ Pull hinge forward slightly & insert hinge pin into the
hole nearest the unit.
e You may need to use a small hammer to fully seat
therm in place.
* Retighten hinge screws.
* Repeat for top hinge.
— |nstall 1 pin,
per hinge for
~ 90° door stop.
Hinge screws
18
STEP 11] ATTACH HINGE GUARD
A WARNING:
This appliance must be installed & operated with the
hinge guard in place !
1. Attach hinge guard by sliding flat part between case
and adjacent cabinetry.
2. Fasten guard to door front using 4 screws.

Installation Instructions
STEP 12 [INSTALL DOOR AND DRAWER
PANELS
1. Remove all door and drawer hooks from the unit and
screw thern to the custorn panels, aligning them with the
lowest set of predrilled holes for Monogram Panel Kits on
the FF door panel.
2. Attach top L-Bracket to FF panel.
3. If you had custorn handles rnade and they are not
currently attached to your panels, do so now.
4, Open the fresh food door to attach the fresh food panel.
5. Slide the hooks on the fresh food panel into the slots of the
door, anc lower the hooks into place. Make sure the
bracket on the top of the panel slides over the screw posts
on top of the coor. The brackets will rest on top of the nuts.
Bracket... ==
Screw Post
Hooks Ay moe op Slots
LL Hooks on the Freezer
ao drawer panel face up.
6. Adjust the screw posts up or down under the bracket
on top of the door to level the panel.
7. Lock the panel to the door by installing the nuts
provided onto the screw posts on top of the coor.
Next, screw the L-bracket provided into the bottom of
the door and the panel.
Screw Post
Top of arack&
Fresh Food
Panel Door
Hooks
STEP 12) INSTALL DOOR AND DRAWER
PANELS (cont).
7. Install the Freezer drawer panel by sliding the brackets
up into place (the opposite direction of the hooks on the
fresh food panel and Convertible drawer). .
8. Once the drawer panel is placed fasten the panel to the
drawer by screwing the bottorn bracket into the panel
with the screws provided.
9. Repeat for the second drawer by sliding the hooks down]
instead of up.
10. If using custom toekick attach the toekick panel by
placing Velcro on the back of the panel, anc on the fron}
of the toekick. If using SS toekick it is magnetic.
11. Adjust drawer alignment using lower brackets as
needed to create uniform gaps.
Freezer
Drawer
Bracket
Back View of Panel Hooks and Bracket
Freezer
Drawer
Fresh
Food
Door Convertible
drawer
The lower brackets on the Fresh Food & Convertible Drawer
should not be installed until after the panel is in place.
19

Installation Instructions
STEP 13 |START ICEMAKER
* Press the ZONE indicator on the contro! pad twice
to select the freezer drawer. Press the ICE icon on the
right side of the control. A line will appear under ICE to
show that the icemaker is ON.
¢ Be sure nothing interferes with the sweep of the feeler
arm.
¢ Discard the first full bucket of ice cubes.
a ICE
Gar =
* To turn the icemaker off, press the ICE icon. The word
OFF appears below ICE to show that the icemaker
is OFF.
“F
sar
:
20
