Monoprice MHD Sport 2.0 Wi-Fi 12570 User manual

CONTENTS
SAFETY WARNINGS AND OPERATING GUIDELINES................6
INTRODUCTION...........................................................................9
FEATURES.................................................................................10
MINIMUM SYSTEM REQUIREMENTS .......................................11
CUSTOMER SERVICE ...............................................................11
PACKAGE CONTENTS...............................................................12

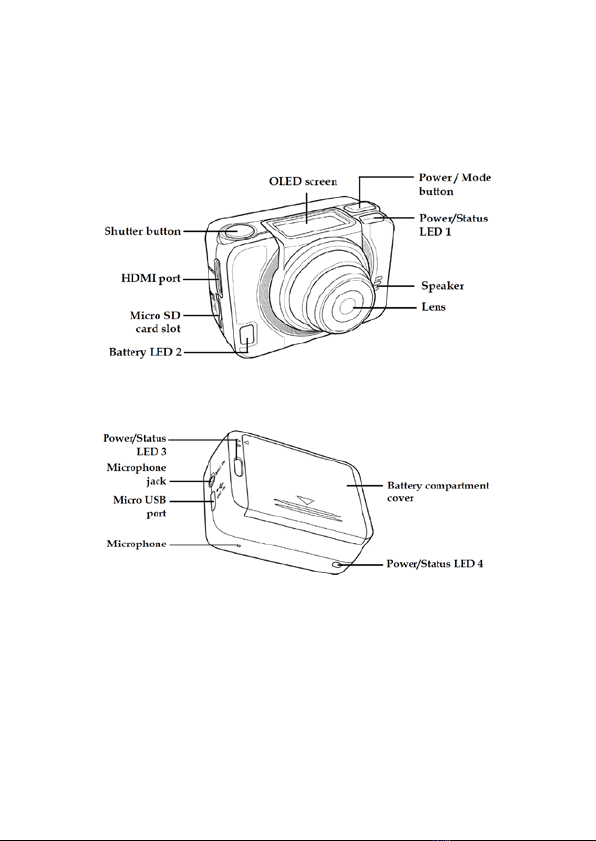

PRODUCT OVERVIEW...............................................................13
CAMERA BUTTON FUNCTIONALITY.........................................15
CAMERA LED INDICATORS ......................................................16
THE OLED SCREEN...................................................................17
CHANGING MODES...................................................................22
GETTING STARTED...................................................................23
Installing the MicroSD Card....................................................23
Removing the MicroSD Card..................................................24
Installing the Battery...............................................................24
Removing the Battery.............................................................25
Charging the Battery Using a Computer................................. 26
Charging the Battery Using the USB Wall Charger.................27
Powering the Camera ON and OFF........................................28
Connecting to an HDTV Using an HDMI Cable.......................29
2

Connecting to a Computer......................................................30
Connecting An External Microphone ......................................31
CAMERA SETTINGS ..................................................................32
Changing the Video Settings..................................................36
Changing the Photo Settings..................................................38
Changing the Time Lapse Settings.........................................40
Changing the Self-Timer Delay...............................................42
Changing the Camera's Orientation (Up/Down)......................43
Loop Mode.............................................................................44
Deleting Files and Formatting the MicroSD Card.................... 46
Changing the OLED Display Orientation................................. 48
Changing LED Indications......................................................49
Changing the OLED Brightness Level ....................................51
Changing the Audible Beep Volume Level..............................52
Changing the Auto-Off Time...................................................53
Changing the Date and Time..................................................54
Restoring the Factory Default Settings ...................................56
OPERATION...............................................................................57
Recording Videos...................................................................57
Capturing Photos....................................................................57
Capturing Burst Photos ..........................................................58
3

Capturing Time Lapse Videos and Photos..............................59
Capturing Photos Using the Self-Timer...................................60
Loop Recording......................................................................60
WIRELESS OPERATION............................................................62
THE RF WRIST REMOTE...........................................................63
Charging the Wrist Remote Battery........................................63
Pairing the Camera with the RF Wrist Remote .......................64
Setting the Date and Time......................................................66
Using the Stopwatch Function................................................67
Using the Countdown Timer Function.....................................68
Using the Alarm Clock Function .............................................69
Setting the Auto Off Time.......................................................70
Enabling or Disabling Sound ..................................................71
Adjusting the Screen Brightness Level ...................................72
Live View/Preview Mode ........................................................73
USING THE ACCESSORIES ......................................................75
Using the Waterproof Case ....................................................75
Using the T Tip Adapter..........................................................78
Changing the Rear Door.........................................................79
Using the Hook & Loop Strap.................................................79
Assembling the T Tip Accessories..........................................80
4

Using the Mounting Sockets...................................................81
TROUBLESHOOTING.................................................................82
Camera Troubleshooting........................................................82
RF Wrist Remote Troubleshooting..........................................83
TECHNICAL SUPPORT..............................................................83
SPECIFICATIONS.......................................................................84
REGULATORY COMPLIANCE....................................................87
Radio Notice for FCC .............................................................87
Radio Notice for Industry Canada...........................................87
Trademarks............................................................................88
5

SAFETY WARNINGS AND OPERATING
GUIDELINES
•To prevent damage to internal components, do not store
this device in excessively dusty, dirty, or sandy areas.
•Do not store this device in conditions of excessively high
temperatures. Excessively high temperatures can shorten
the life of electronic components, damage batteries, and
warp or melt plastic parts. Do not store in direct sunlight.
•Do not store this device in conditions of excessively low
temperatures. When the device warms up, moisture could
form inside, which can short-circuit electronic components.
•Do not expose this device to excessive vibration.
•Test this device for proper operation before use.
•Do not open the battery cover or otherwise remove power
when taking pictures or recording video. Doing so could
cause a failure to save the image/video and/or corrupt other
data on the microSD™storage card.
•Remove the battery from the camera if it will go unused for
a long period of time.
•To keep the battery fresh and capable of holding a full
charge, it should be charged at least once every three (3)
months.
•This device uses the commonly available SLB-10A Lithium-
ion battery. Use only the battery that came with this device
or an exact equivalent (PID 11414) or a suitable
replacement. An extended battery pack and replacement
waterproof case cover is also available (PID 11421), as is
an AA battery pack with replacement case cover (PID
11422). PID numbers are subject to change.
6

•Do not short the battery terminals. Doing so could damage
the battery and cause a potential fire hazard.
•Ensure that power is turned off and disconnected before
making any electrical connections.
•This device has no user serviceable parts. Do not attempt
to open, service, repair, or modify this device.
•Do not clean using harsh chemicals, detergents, or
solvents. Clean only using a soft, lint-free cloth moistened
with warm water.
•Do not drop this device or otherwise expose it to harsh or
rough treatment, as doing so could cause damage to
internal components and/or the waterproof case.
•The camera and other components are only waterproof
when properly enclosed in the waterproof case. Do not
otherwise subject this device to water or moisture of any
kind. If the camera is exposed to moisture outside of the
waterproof case or if water gets into the waterproof case,
immediately remove the battery and allow the camera to
thoroughly dry.
•The waterproof case is not dust-proof.
•The waterproof case is rated IP8X for depths up to 196 feet
(60 meters) for up to 60 minutes. Do not take this device to
depths greater than 196 feet (60 meters) or keep it
underwater for more than 60 minutes.
•The waterproof case's waterproof properties apply only to
fresh or salt water. Any other liquids should be flushed off
with running tap water and then wiped off with a soft, dry,
lint-free cloth.
7

•When using the camera in cold or humid environments, use
the included anti-fog inserts to help prevent the build-up of
moisture inside the waterproof case. Note that the anti-fog
inserts can provide only a limited amount of moisture
protection and must be replaced after each use.
•Physically inspect the waterproof case for cracks,
scratches, or other damage prior to use. Do not use it if it
shows signs of damage.
•Do not subject the waterproof case to water temperatures
greater than +104°F (+40°C) or less than +32°F (0°C).
•Do not open the waterproof case in dusty, dirty, or sandy
environments. Do not open the waterproof case near water.
Do not open or close the waterproof case with wet hands.
•Prior to closing the waterproof case, carefully inspect the
seal area for the presence of dust, dirt, sand, hair, or other
foreign objects. Ensure the seal is free of all foreign objects
prior to closing the case and using the product in or near
water.
•Prior to opening the case after use, thoroughly rinse the
case and external accessories in running tap water to
remove any salt, sand, or other contaminants, then wipe the
case dry and allow it to air dry for at least 10 minutes.
Ensure the case is completely dry before opening it.
•After removing the camera from the waterproof case, soak
the case in a bucket of clean tap water for about 10
minutes, remove it, wipe it dry with a soft, lint-free cloth, and
then place it in a cool, dry place to allow it to dry naturally.
Do not place it in direct sunlight.
8

INTRODUCTION
Thank you for purchasing this MHD Sport 2.0 Wi-Fi®Action
Camera from Monoprice!
This camera allows you to capture full HD 1080p video at 60 fps,
720p video at 120 fps, and WVGA video at 240 fps. It can also be
used to take still images up to 16 megapixels in size. When
properly enclosed in the included waterproof case, it is waterproof
to depths up to 196 feet (60 meter) for up to 60 minutes duration. It
features a Wi-Fi connection, which allows you to view and record
videos and photos on your Android™or iOS®smartphone.
This camera is available in two models. PID 12570 includes the
optional RF Wrist Remote, which allows you remotely operate up to
six cameras and to view their live video feeds. PID 12571 does not
include the optional RF Wrist Remote. Note that the portions of this
manual that deal with the RF Wrist Remote are not applicable to
PID 12571.
9

FEATURES
•Uses a 3.4mm ƒ/2.8 lens
•Captures full HD 1080p video images at 60 fps, 720p at 120
fps, and WVGA at 240 fps
•Takes still photos at 5, 8, 12, or 16 megapixels resolution
•Uses the H.264 video codec and mp4 file format
•140° wide angle lens with selectable fields of view
•Wi-Fi connectivity (IEEE 802.11b/g/n)
•Includes waterproof case, protecting the camera to depths
up to 196 feet (60m) for up to 60 minutes duration
•Uses the commonly available SLB-10A Lithium-ion
rechargeable battery
•Free apps for accessing the camera using your Android or
iOS smartphone
•Includes RF Wrist Remote for control and live view (PID
12570 only)
•MicroSD card slot (up to 32GB, Class 6 minimum)
•HDMI®Mini Connector for direct connection to an HDTV
•Supports time lapse recording and interval shooting
•Burst mode captures 7 images in 1 second
10

MINIMUM SYSTEM REQUIREMENTS
The camera needs to connect to a PC with the following minimum
system requirements for playback of full HD 1080p video at 30 fps
and 720p video at 60 fps.
•Microsoft Windows®XP (SP2), Vista®, Windows 7, or
Windows 8, or Apple Mac®OS X®10.5.x or later
•Intel or AMD dual-core CPU or better
•Minimum 1GB RAM
•Video card running DirectX®9 (DirectX 10 or 11
recommended)
•Available USB 1.1/2.0 port
•At least 2GB free hard drive space
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to
ensuring that your ordering, purchasing, and delivery experience is
second to none. If you have any problem with your order, please
give us an opportunity to make it right. You can contact a
Monoprice Customer Service representative through the Live Chat
link on our website (www.monoprice.com) during normal business
hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-6pm PT) or via email
at [e-mail]
11

PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you
have all the items listed below. If anything is missing or damaged,
please contact Monoprice Customer Service for a replacement.
1x MHD Sport 2.0 Wi-Fi Action Camera
1x Waterproof Case
1x RF Wrist Remote (PID 12570 only)
1x Vented Rear Door
1x Waterproof Case Rear Door (installed on back of Waterproof
Case)
1x Flat Adhesive Mounting Socket
1x Curved Adhesive Mounting Socket
1x Swivel T Tip (installed on T Tip Adapter)
1x T Tip Adapter (installed on bottom of Waterproof Case)
1x Standard Tripod Adapter
1x Adhesive Anchor
1x SLB-10A Lithium-ion Battery
1x USB Wall Charger
1x Micro USB Charging Cable
1x RF Wrist Remote Charging Cable (PID 12570 only)
6x Anti-Fog Inserts (Fiber Desiccant)
1x Hook & Loop Strap
1x Security Tether
1x Safety Lock (installed on Swivel T Tip)
1x User's Manual
12

PRODUCT OVERVIEW
The following illustrations highlight the various camera features,
indicators, controls, and connections:
13

The following illustration shows the locations of the buttons and
charging port on the RF Wrist Remote. Note that the RF Wrist
Remote is only included with PID 12570.
14

CAMERA BUTTON FUNCTIONALITY
Button
Functions
Power / Mode
•Press and hold for 3 seconds to turn
the camera ON or OFF.
•Press to cycle through the camera's
modes: Video, Photo, WiFi, Burst,
Time Lapse, Self-Timer, and Set.
•In Set mode, press to scrolls through
the available menu items.
Shutter
•In Video mode, press to start or stop
video recording.
•In Photo mode, press to take a photo.
•In Set mode, press to select a menu
item.
15

CAMERA LED INDICATORS
The camera has four LED indicators. There are three Power/Status
LEDs on the top, bottom, and rear of the camera, allowing you to
see the status from any angle.
LED
Color
Description
Power /
Status
Solid Green
On for 3 seconds during
startup and initialization
Blinking Green
Taking photos
Wi-Fi initial setup complete
with connection in progress
Blinking Red
Video recording in progress
Rapidly
Blinking Red
Self-Timer
Battery
Blinking Red
Battery is charging
Off
Battery is fully charged or
camera not plugged into
charging source
16

THE OLED SCREEN
Whenever the camera is powered ON, the OLED screen displays
information in the five areas shown in the illustration below.
Area 1 - Current Mode
Icon
Name
Description
Video Mode
Use this mode to record
videos. The values on the icon
indicate the current video
recording settings (resolution
and frame rate).
Photo Mode
Use this mode to capture still
photos. The value on the icon
indicates the current photo
capture setting (megapixels).
17

Wi-Fi Mode
Select this mode to connect the
camera to a smartphone using
a Wi-Fi connection. With Wi-Fi
mode enabled, videos and
photos on the microSD card
can be viewed on your
smartphone.
Burst Mode
Use this mode to capture 7
photos over a period of 1
second with only a single press
of the Shutter button.
Time Lapse
Mode
Use this mode to capture a
series of still photos at specific
time intervals. To start
capturing photos, press the
Shutter button once. Press the
Shutter button again to cease
capturing images. The time
interval can be set to 1, 3, 5,
10, 30, or 60 seconds.
Self-Timer
Mode
Use this mode to capture a
photo a set period of time after
pressing the Shutter button.
You can set the timer for either
a 2or 10 second delay.
Set Mode Use this mode to adjust the
various camera settings.
18

Area 2 - Battery Status
Icon
Name
Description
Battery
Capacity
Indicates the approximate
charge level of the installed
battery. The number of level
bars inside the icon represent
25%, 50%, 75%, or 100%
charge level.
Area 3 - Storage Capacity
Icon
Name
Description
Storage
Capacity
The number indicates the
approximate percentage of
available storage capacity
remaining on the microSD
card.
Area 4 - File Count
Icon
Name
Description
File Count
The three digit number
indicates the total number of
photo and video files stored on
the microSD card.
19

Area 5 - Button Functions
Icon
Name
Description
Record
When in Video mode, press the
Shutter button to begin
recording a video.
When in Time Lapse mode,
press the Shutter button to
begin capturing photos.
While recording videos or
capturing photos in Time Lapse
mode, the label changes to
STOP. Press the Shutter
button again to stop
recording/capturing photos.
20
