Monoprice PID 10629 User manual

User’s Manual
MHD Sport WiFi
Action Camera
PID 10629

i
Table of Contents
About this manual............................................................iv
Copyright..........................................................................iv
Precautions........................................................................v
Operating conditions .............................................. vi
Notes on the Waterproof Case.........................................vii
Before You Start ................................................................x
1Introducing the Camcorder.......................1
1.1 System Requirements..............................................1
1.2 Features..................................................................1

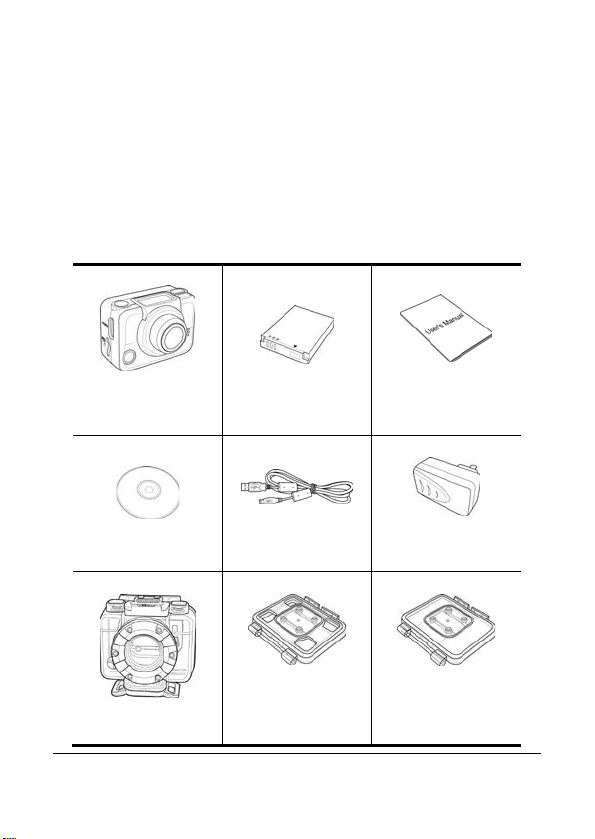

1.3 Unpacking the Camcorder.....................................2
1.4 About the Camcorder .............................................4
1.4.1 Camcorder Views ......................................4
1.4.2 Button Functions........................................5
1.4.3 LED Indicators ...........................................6
2Getting Started ........................................... 7
2.1 Installing the MicroSD Card..................................7
2.1.1 Removing the MicroSD card ....................8
2.2 Installing the Battery..............................................8
2.2.1 Removing the battery................................9
2.3 Charging the Battery............................................10
2.4 Turning ON/ OFF the Camcorder.......................11
2.5 OLED Screen........................................................12
2.6 Changing Modes ..................................................15
2.7 Connecting to a TV (HDMI Cable)......................16

ii
2.8 Connecting to a PC (Micro USB Cable)..............16
3Capturing Videos and Photos..................17
3.1 Recording Videos..................................................17
3.2 Taking Photos.......................................................17
3.2.1 WiFi ...........................................................18
3.2.2 Burst Shooting..........................................18
3.2.3 Time Lapse Shooting ...............................19
3.2.4 Self-Timer..................................................19
4Adjusting the Settings.............................. 20
4.1 Video Resolution...................................................22
4.2 Field of View (FOV).............................................23
4.3 Shooting Interval..................................................24
4.4 Up/Down...............................................................25
4.5 Delete....................................................................26
4.6 OSD Up/Down......................................................29
4.7 LED.......................................................................30
4.8 Brightness.............................................................31
4.9 Beep......................................................................32
4.10 Auto-Off................................................................33
4.11 Date and Time.......................................................34
4.12 RF.........................................................................36
4.13 Factory Default ....................................................37
5Using the Accessories ............................... 39
5.1 Waterproof Case...................................................39
5.1.1 Using the Waterproof Case.....................39

iii
5.1.2 Changing the T Tip Adapter ..................40
5.1.3 Changing the Housing Back Door.........41
5.2 Velcro Strap...........................................................41
5.3 Assembling the Camcorder Accessories...............42
5.4 RF Wrist Strap Remote Control............................43
Appendix............................................................ 45
Specifications..................................................................45
Troubleshooting..............................................................47
FCC Statement................................................................48
Radiation Exposure Statement........................................48

iv
Preface
Congratulations on your purchase of this advanced camcorder.
Ensure that you read this manual carefully and keep it in a safe
place for future reference.
About this manual
Every effort has been made to ensure that the contents of this
manual are correct and up to date. However, no guarantee is made
regarding the accuracy of the contents. The manufacturer reserves
the right to change the contents, technology, and specifications
without notice.
Copyright
© 2013 Monoprice, Inc.
All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated
into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, manual or
otherwise, without the prior written permission of the
manufacturer.

v
Precautions
General precautions
•Do not store the product in dusty, dirty, or sandy areas, as its
components may be damaged.
•Do not store the product in excessively hot environments.
High temperatures can shorten the life of electronic devices,
damage batteries, and warp or melt certain plastics.
•Do not store the product in cold areas. When the product
warms up to its normal temperature, moisture can form inside,
which may damage the electronic circuits.
•Do not attempt to open the casing or attempt your own repairs.
High-voltage internal components create the risk of electric
shock when exposed.
•Do not drop or knock the product. Rough handling may
damage the internal components.
•Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the product. Clean the product by wiping it
with a slightly damp soft cloth.
•Do not open the battery cover while an image is being
recorded. Doing so will not only make storage of the current
image impossible, it can also corrupt other image data already
stored on file.
•If the product or any of its accessories are not working
properly, contact Monoprice Technical Support for assistance.
The personnel there will assist you and, if necessary, arrange
for the product to be replaced under warranty.
•Test for proper operation before using the camcorder.

vi
Operating conditions
•This camcorder is designed for use in temperatures ranging
from 32°F to 104°F (0°C to 40°C).
•Do not store the camcorder in the following areas:
- In areas subject to direct sunlight
- In areas subject to high humidity or dust
- Near air conditioners, heaters, or other areas subject to
temperature extremes
- Inside of a closed vehicle, especially one parked in the sun
- In areas subject to excessively strong vibrations
Power supply
•Use only the type of battery that came with your camera
(SLB-10A). Using any other type of battery may damage the
equipment and invalidate the warranty.
•Do not short the battery terminals. The battery could overheat.
•Do not attempt to split or peel the battery's outer casing.
•Remove the battery if the camera is not going to be used for a
long time. If the battery is left unused for more than 3 months,
you need to charge the battery before use.

vii
Notes on the Waterproof Case
Waterproof Case performance
•The waterproof case performance is equivalent to IPX8
(60m/1hr).
•Underwater time limit: Do not use the waterproof case
underwater for more than 60 minutes
•Depth limit: Do not use the waterproof case at depths greater
than 196 feet/60 meters to ensure water resistance.
•The waterproof case is not dust-proof.
•The camera and other accessories are not waterproof unless
properly enclosed in the waterproof case.
•When using the camcorder in cold or humid environments or
when going underwater, use an anti-fog insert (silica gel) to
prevent fogging. The anti-fog insert only provides a certain
degree of prevention; results vary depending on the actual
environment. The anti-fog insert is not for long-term use, it
must be replaced regularly.
Notes before going underwater:
(Perform the following actions indoors. Do not perform these
actions in a sandy or dusty environment or near the water’s edge.)
•Check if the area surrounding the waterproof case lock is
clean, do not allow dirt, sand, or foreign objects around it.
•Check the waterproof seal to ensure no sand, dirt, or hair
strands are present.
•Ensure that the waterproof case is closed.
•Ensure that the waterproof case has no cracks or scratches.

viii
Notes for general use:
•Avoid opening or closing the waterproof case near the water’s
edge (sea, lake, beach, etc.). Do not open or close the
waterproof case lock with wet hands, or hands with sand or
dust.
•The accessories (batteries, etc.) used with the camcorder are
not water resistant, be careful when using them near water.
•Do not drop the waterproof case.
•Do not use the waterproof case in temperatures above
104°F/40°C or below 32°F/0°C.
•Do not attempt to make alterations on the waterproof case or
seal the vents yourself, doing so may damage its ability to
remain waterproof.
When using the camcorder
•The waterproof properties of the waterproof case apply to
fresh water and saltwater only. They do not apply to cleaning
fluids, chemicals, or water from spas, etc. Any such liquids
should be wiped off immediately.
•Do not immerse the waterproof case in water at a depth
greater than 196 feet/60 meters.
•Do not subject the waterproof case to highly pressurized
water.
•Do not immerse in water for longer than 60 minutes. After 60
minutes of use in water, allow the waterproof case to dry for at
least 10 minutes.
•Do not immerse in water warmer than 104°F/40°C.
•Do not open or close the waterproof case lock with wet hands.
•Do not open the waterproof case lock next to water or a pool.
•The waterproof case is not dust-proof.
•Do not bump or knock the waterproof case underwater,
otherwise the lock may open.

ix
Notes on waterproof case maintenance
•The waterproof seal should be replaced at least once per year.
Replacement seals and case backs are available from
Monoprice.
After using the waterproof case
•Be sure to come ashore within 60 minutes after going
underwater. This will maintain the appearance, quality, and
water resistance of the waterproof case.
•After taking pictures underwater, clean the waterproof case
with running tap water. Do not use any soapy water, mild
detergents, alcohol, or similar liquids to clean the case.
•Wipe off water drops on the waterproof case with a soft
lint-free cloth (avoid fiber). Be sure to wait until the waterproof
case is completely dry before opening the waterproof case
lock.
•After removing the camcorder from the waterproof case, soak
the waterproof case in a bucket of clean water for about 10
minutes. After 10 minutes, wipe the waterproof case dry with
a lint-free cloth. Place the waterproof case in a well ventilated
cool place to dry naturally (do not place under direct sunlight).
Other notes
•If water accidentally enters the camcorder or any problem
occurs when it is in water, please get it out of the water
immediately and take proper actions. Dry the camcorder and
send it for repair, if required.
•Information is subject to change without notice. Refer to the
important notes in the manual supplied with the camcorder.

x
Before You Start
Take some test shots before you use your camcorder
Before taking pictures with this camcorder, test the camcorder
beforehand to ensure that it functions properly. Any additional loss
caused by the malfunction of this product (such as costs of
photography or any loss of benefit generated by the photography)
is not the responsibility of the manufacturer and no compensation
will be given for it.
Copyright information
Take care to observe "No Photography" notices in certain locations.
In these cases, you cannot record any live performance,
improvisation, facility, or exhibits, even for personal purposes. Any
transfer of pictures or memory card data must be conducted under
the constraints of copyright law.

1
1Introducing the Camcorder
Read this section to learn about the features and functions of the
camcorder. This chapter also covers system requirements, package
contents, and descriptions of the hardware components.
1.1 System Requirements
The camcorder requires a computer with the following
specifications for full HD 1080p 30fps and 720p 60fps playback:
•Windows®8 /Windows®7 /Vista / XP (SP2) / MAC OS X
10.5 or later
•Intel®/ AMD Dual-Core CPU or higher
•At least 1 GB of RAM or higher
•At least DirectX 9 video card, DirectX 10 is recommended
•Standard USB 1.1 port or higher
•At least 2GB or greater available hard disk space
1.2 Features
The camcorder offers a variety of features and functions including:
•Full HD 1080p (30fps.)
•H.264 Video Codec
•170° Wide Angle Lens
•WLAN 802.11 b/g/n
•Up to 5 Megapixel Photos
•Sports Camera functionality
•Li-ion Rechargeable Battery (SLB-10A)

Note:
A USB 1.1 port will enable you to transfer files to and from
your host PC, but transfer speeds will be significantly faster
with a USB 2.0 port.

2
•External Waterproof Case/Standard Mounts/Wrist Remote
•Smartphone App Supported
1.3 Unpacking the Camcorder
Please inventory the contents to ensure you have all the proper
parts, as listed below. If anything is missing or damaged, please
contact Monoprice Customer Service for a replacement.
Camcorder
Li-ion Battery
(SLB-10A)
User's Manual
CD-ROM
Micro USB Cable
AC Adapter
Waterproof Case
Vented Housing
Backdoor
Waterproof
Housing Backdoor

3
T Tip Adapter
Flat Adhesive
Socket
Curved Adhesive
Socket
Lens Cap
Secure Tether
Velcro Strap
Swivel T Tip
Anti-fog Inserts
(Silica Gel)
Adhesive Anchor
RF Wrist Strap
Remote Control
Standard Tripod
Adapter

4
1.4 About the Camcorder
Refer to the following illustrations to familiarize yourself with the
buttons and controls of this camcorder.
1.4.1 Camcorder Views
Power/Status
LED 1
Lens
Speaker
HDMI port
Shutter button
Power/Status/
Battery LED 2
Power / Mode
button
OLED screen
Micro SD
card slot
Battery compartment
cover
Power/Status LED 4
Microphone
jack
Micro USB
port
Microphone
Power/Status
LED 3

5
1.4.2 Button Functions
Power / Mode
Button
•Press and hold for 3 seconds to turn the
camcorder on or off.
•Press to switch to different modes: Video,
Photo, WiFi, Burst, Time Lapse,
Self-timer, and Set mode.
•In Set mode, press to scroll through menu
items.
Shutter Button
•In Video mode, press to start/stop video
recording.
•In Photo mode, press to take a photo.
•
In Set mode, press to select an item.

6
1.4.3 LED Indicators
The camcorder has four LED indicators.
The Power/Status LEDs are located on top, bottom, front, and on
the back of the camcorder. These LEDs are placed so that you can
see the status of the camcorder from any direction.
LED
Color
Description
Power / Status
LED
Green
Power is on
Green Blinking
Taking photos
Red Blinking
Video recording in progress /
RF remote control in progress
Red Blinking
Rapidly
Self-timer
Battery LED
Red Blinking
Battery is charging
Off
Full charge

7
2Getting Started
Read this section to learn how to start using the camcorder. This
section covers basic functions, such as switching on, installing the
battery and microSD card, and configuring preliminary settings.
See later chapters for advanced functions.
2.1 Installing the MicroSD Card
A microSD card is required to capture photos and videos. The
camcorder supports microSDHC cards up to 32GB.
1. Insert the microSD card into the card slot with the gold
contacts facing the front of the device.
2. Push the microSD card until it clicks into place.
Warning: Do not remove the microSD card while data is being
recorded. Doing so may corrupt the saved data and damage the
card.

8
2.1.1 Removing the MicroSD card
1. Turn off the camcorder.
2. With a fingertip, push the microSD card to eject it from
the slot.
3. Remove the microSD card.
2.2 Installing the Battery
Warning: Use only the battery supplied with the camera or
another SLB-10A battery.
1. Push down the battery compartment cover to open it.
2. Align the battery contacts and then insert the battery into
the compartment with the ribbon underneath the battery.

9
3. Close the battery compartment cover.
2.2.1 Removing the battery
1. Open the battery compartment cover.
2. Pull the ribbon to remove the battery.
