MONOPRICE 10594 Windows User's Manual

MONOPRICE 10594 Windows User's Manual
CONTENTS
I. General Information.........................................................................................1
1. Safety Warnings and Guidelines ..........................................................................1
2. Package Contents................................................................................................2
3. System Requirements ..........................................................................................2
4. Technical Support.................................................................................................2
5. Controls................................................................................................................3
6. Connections..........................................................................................................3
7. Adjustable Stand ..................................................................................................3
8. Software Installation .............................................................................................4
9. Hardware Installation............................................................................................6
10. Pen Operation ....................................................................................................8
11. Usage Tips .........................................................................................................9
II. Configuration..................................................................................................10
1. The Info Tab.......................................................................................................10
2. The Monitor Setting Tab.....................................................................................11
3. The Button Tab...................................................................................................12
4. The Pressure Tab...............................................................................................13
5. The Calibration Tab............................................................................................14
III. Pen Storage and Maintenance.................................................................15
1. Storing the Digital Pen........................................................................................15
2. Replacing the Battery in the Digital Pen .............................................................15
3. Replacing the Pen Tip ........................................................................................16

MONOPRICE 10707 Windows User's Manual
I. General Information
1. Safety Warnings and Guidelines
For your safety and the continued operation of your equipment, please read and heed
the following safety warnings and guidelines:
1. Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet.
2. This device ventilates excessive heat through the slots and openings in the case.
Do not block or cover these openings. Ensure that the device is in an open area
where it can get sufficient airflow to keep from overheating.
3. Use only the AC adapter included with this device. If the AC adapter is lost or
damaged, use only an exact replacement (12 VDC, 4A).
4. Do not modify the power cord or otherwise attempt to bypass the grounding by
using a "cheater" plug. If your power outlet does not accommodate a three-prong
NEMA 5-15 type plug, contact a professional electrician to replace the obsolete
power outlet.
5. Remove power from the monitor when it will not be in use for some time. If it will
not be used for a very long time, unplug all connections as well.
6. Take care not to allow any objects, particularly metallic or conductive objects, to
fall into the monitor. If there is anything loose or rattling around inside the case, have
the monitor serviced by qualified personnel to remove the foreign object(s).
7. This device has no user serviceable parts. Do not attempt to disassemble or
modify this device in any way. Servicing should be conducted by qualified service
personnel only.
8. Do not use water, solvents, or chemical cleaners on this device. Clean using a
soft, dry cloth only.
1

MONOPRICE 10707 Windows User's Manual
2. Package Contents
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service
for a replacement.
1x Monitor
1x AC power adapter
1x AC power cord (NEMA 5-15 to IEC 60320 C13)
1x VGA cable
1x USB cable (A male to A male)
1x CD-ROM with drivers
1x Pen stylus
1x Pen charging cable
1x Pen holder
1x Pen tip removal tool
4x Spare pen tips
3. System Requirements
To properly use this pen monitor you will need the following:
Windows XP or later (32- & 64-bit)
Available VGA, DVI-A, or DVI-D video output
Available USB port
CD-ROM or internet connection for driver installation
4. Technical Support
Monoprice is pleased to provide free, live, online technical support to assist you with
any questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come
online to talk to one of our friendly and knowledgeable Tech Support Associates.
Technical support is available through the online chat button on our website
(www.monoprice.com) during regular business hours, 7 days a week. You can also get
assistance through email by sending a message to [e-mail].
2

MONOPRICE 10707 Windows User's Manual
5. Controls
MENU: Press this button to access the monitor's internal On Screen Display (OSD)
menu system. When the menu is displayed, the MENU button functions as a Select
or OK button.
Minus (-): The Minus (-) button moves the menu cursor/highlight down one entry. If
an entry has been selected for editing, the Minus (-) button decreases the selected
value.
Plus (+): The Plus (+) button moves the menu cursor/highlight up one entry. If an
entry has been selected for editing, the Plus (+) button increases the selected value.
AUTO: When the OSD menu is displayed, the AUTO button functions as an ESC or
BACK button. When the OSD menu is not displayed, the AUTO button adjusts the
screen automatically.
POWER: The power button is used to turn the monitor on/off. When it is powered
on, the LED to the right of the button glows green. When in standby, the LED glows
red. When power is turned off, the LED is also off.
6. Connections
DVI: This DVI input can accept both DVI-A and Single Link DVI-D signals. A DVI
cable is NOT included.
VGA: The standard VGA input. Plug one end of the included VGA cable into your
video card output and the other end into this monitor input.
DC IN: Plug the DC barrel connector on the AC adapter into this jack.
USB: This USB A male port is used to connect the monitor to your PC's USB port. A
USB A male to A male cable is included.
7. Adjustable Stand
The monitor stand is designed to provide a wide range of adjustments, so you can find
the optimum angle to suit your style and needs. To adjust the stand, pull up on the
release latch, then adjust the stand as desired. The stand can be adjusted to present
the screen at a 10 ~ 80° angle.
3

MONOPRICE 10707 Windows User's Manual
8. Software Installation
Important! Do not plug the monitor into your PC until after you
have installed the driver software.
Unless your computer is running Windows 8, which has built-in touch-screen/tablet
support, you will need to install the device driver and utility. To install the driver, perform
the installation steps below:

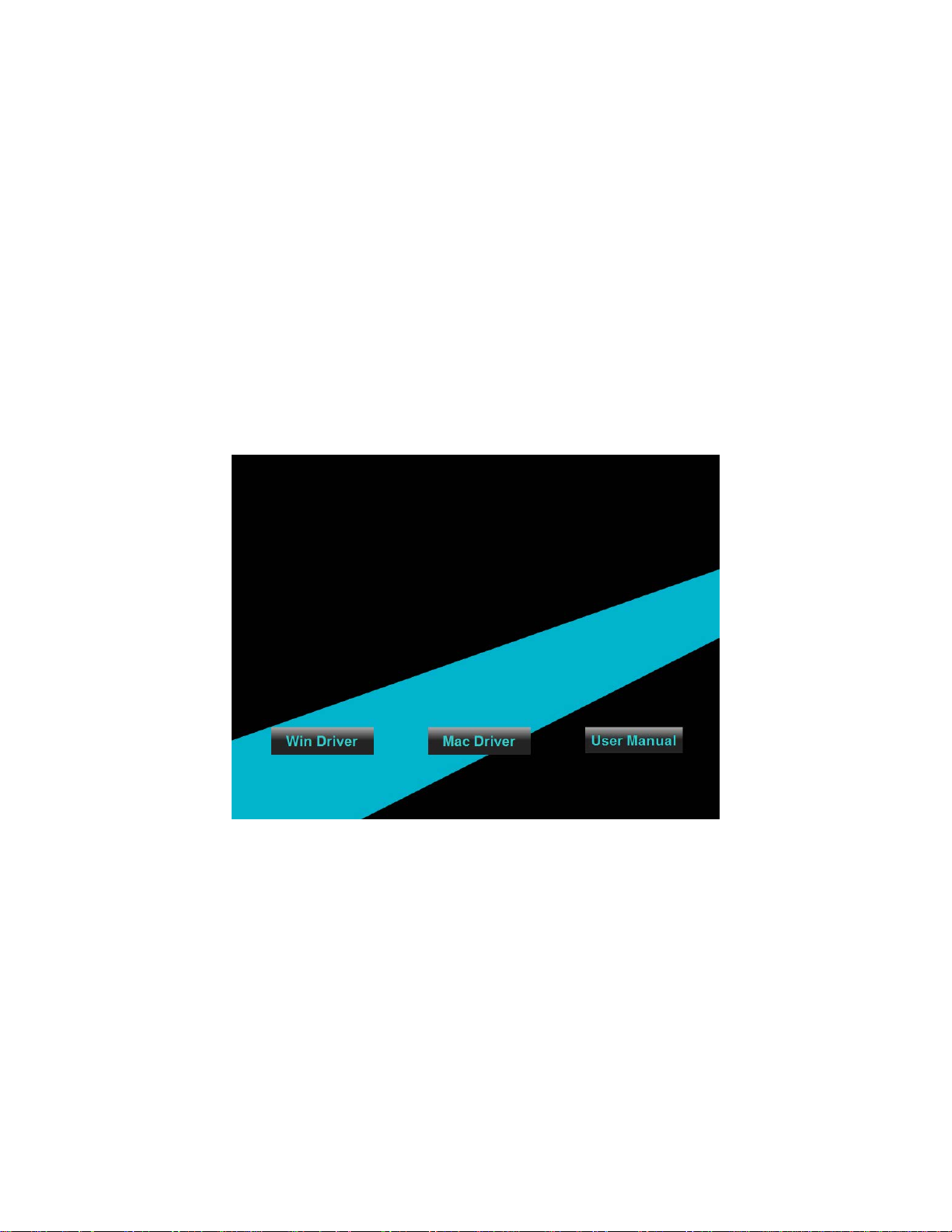

1. Insert the Driver CD into the CD-ROM drive and wait for the main installation
screen to appear. If you have autorun disabled or for some other reason the
installation program does not start, open the disc in Windows Explorer and double-
click the SETUP.EXE program to begin the setup.
2. Click the Win Driver button to launch the installer.
4

MONOPRICE 10707 Windows User's Manual
3. The default install directory is C:\Program Files (x86)\Monoprice 10707. Click
the OK button to begin the installation process.
4. If prompted by Windows Security to verify the driver source, click the Install
button to continue the installation. Repeat this process as needed until the
installation is complete.
5. When the installation is complete, you will be prompted to reboot your computer.
However, since we need to install the hardware, we will want to power the computer
down instead. Click the Cancel button then save any open files and power off your
PC.
5

MONOPRICE 10707 Windows User's Manual
9. Hardware Installation
Note: This Pen Monitor does not function properly in a Windows multi-monitor
configuration. For proper operation in Windows, it must be the only monitor connected
to the system.
After you have installed the software driver and utility to your system and after you have
powered it off, perform the following steps to connect the monitor to your system.
1. Ensure that your computer is powered OFF.
2. Unplug all other monitor connections from your PC.
3. Position the monitor so that you can easily access the connections on the rear.
4. Plug one end of the included VGA cable into the VGA input port on the monitor
and plug the other end into the VGA output port on your computer. Tighten the
thumbscrews on each connector to ensure that they do not come loose.
Note: Alternatively, you can use a DVI cable (not included). Your video card
should be capable of producing DVI-A or Single Link DVI-D signals.
5. Plug the DC barrel connector on the AC adapter into the DC IN port on the back
of the monitor.
6. Plug the C13 connector on the AC power cord into the AC adapter. Plug the other
end into an AC power outlet.
7. Press the Power button on the monitor, then power on your computer.
Important: Do not plug in the USB cable yet. This will be done after the PC has been
restarted.
6

MONOPRICE 10707 Windows User's Manual
8. Once your computer has completed its startup procedure, right-click the desktop
to access the Context menu. If you are using Windows XP, select the Properties
option. If you are using Windows Vista or Windows 7, select the Screen Resolution
option.
9. If using Windows XP, click the Settings tab to get to the resolution screen. For
Windows Vista and Windows 7 you are already on the resolution screen. Ensure that
the video resolution is set to 1440 x 900. Click OK to continue.
7

MONOPRICE 10707 Windows User's Manual
10. Plug one end of the included USB cable into the USB port on the monitor and
the other into an available USB port on your computer. Windows will then finalize the
installation of the monitor and its driver.
10. Pen Operation
Prior to using the pen stylus, ensure it is fully charged by plugging it into a USB
charging source using the included proprietary USB charging cable. The pen will take
about 1 hour to fully charge.
LED Indicator
The LED on the pen indicates the charge status with the following patterns:
LED glows red: Charging is in progress.
LED off: Charging is complete.
When the pen performance and response starts to deteriorate, it is time to recharge the
pen's internal battery.
Note: The pen's LED is located behind the buttons and can be seen through the
opening in the case.
8

MONOPRICE 10707 Windows User's Manual
11. Usage Tips
The following guidelines will help obtain the best results in using this Graphic Tablet:
Double Tapping: A quick double tap of the pen tip is the equivalent of a double-
click on a mouse.
Scrolling: The pen can be used to perform the same scrolling function available
with an ordinary wheel mouse.
Using With a Mouse: In addition to the tablet and pen, you can also have a mouse
connected and installed. However, only one device will function at a time. Do not
connect more than two input devices at the same time as it could cause the cursor to
jitter or freeze.
Storing:Do not store the pen in such a way that pressure could be applied to the
tip. When not in use, store the pen in a pen holder or place it horizontally on a flat
surface. When storing for a long period of time, remove the pen tip using the
instructions found in in this manual.
9

MONOPRICE 10707 Windows User's Manual
II. Configuration
The configuration utility allows you to modify pressure sensitivity, monitor selection,
customize the buttons, etc.
Locate the tablet icon in the system tray and click it to open the Pen Tablet Settings
application. Alternatively, you can run the application directly from the installation
directory. Assuming you installed to the default directory, the utility is located at:
C:\Program Files (x86)\Monoprice 10707\PLaunch.exe

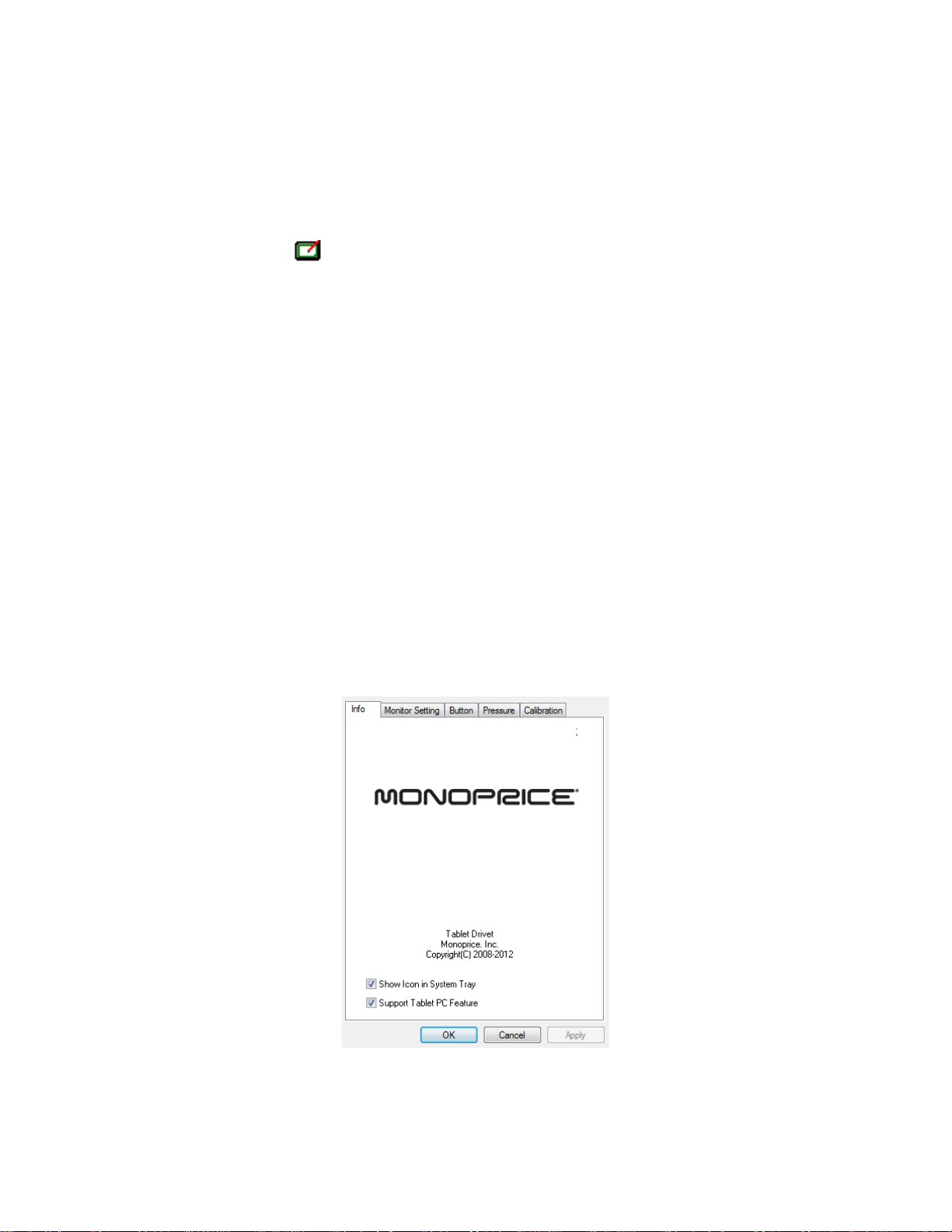

1. The Info Tab
The Info tab displays the driver version number. Additionally it has two options, which
are selected by default:
Show Icon in System Tray:This option determines whether the tablet icon will be
displayed in the system tray. It is recommended to leave this enabled to allow easy
access to the tablet and pen settings dialog.
Support Tablet PC Feature: When selected the pen's pressure sensitivity feature
will function properly in Microsoft Journal, OneNote (2003-2007), etc. This does not
affect the pressure sensitivity function of common art software packages, such as
Photoshop, Illustrator, Corel Painter, etc.
10

MONOPRICE 10707 Windows User's Manual
2. The Monitor Setting Tab
Monitor Mapping: This displays which parts of the monitor(s) are active for
pen/tablet operations.
Drop-Down List Box: The drop-down list box at the bottom of the dialog allows you
to select the how much of the monitor is to be covered by pen/tablet operations. The
only selectable option is Monitor 1.
Offset X/Y: This option is not used.
Width X/Y: This option is not used.
11

MONOPRICE 10707 Windows User's Manual
3. The Button Tab
The Button tab allows you to modify the functions of the pen tip and two barrel buttons
to any of the functions available on a 3-button mouse.
1. To change the functionality of the pen tip or one of the two barrel buttons, first use
the Button Name drop-down list box to select the tip or button to be modified.
2. Use the Mouse Command drop-down list box to select the desired function. You
can select:
No Action
Left Click
Left Double Click
Right Click
Right Double Click
Middle Click
Middle Double Click
3. Use the Double Click Time slider to determine how quickly you must double-tap
or double-click to get the pen to register a double-click.
4. Click the Default button to restore the original default settings.
12

MONOPRICE 10707 Windows User's Manual

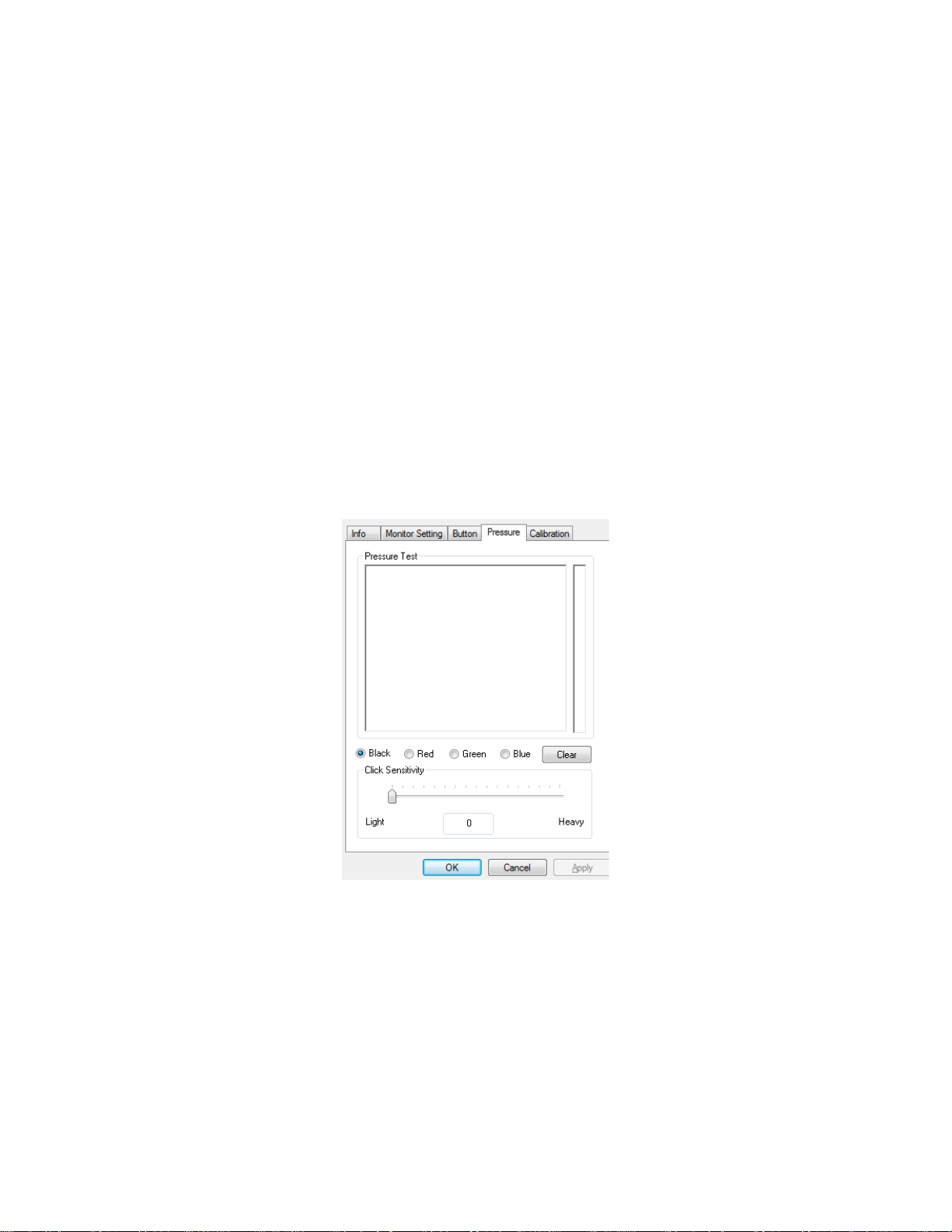

4. The Pressure Tab
This dialog allows you to test the pressure sensitivity of the pen and to adjust the
sensitivity of the pen's "click" function.
Pressure Test: Use your pen within this area to test the pressure sensitivity.
Pushing hard will draw a thick, bold line, while light pressure will result in a thin, light
line. The vertical bar to the right of the test area will increase in amplitude to indicate
the amount of pressure being applied.
Black, Red, Green, Blue: Use these radio buttons to select the pen color to use
during the test. This allows you to see the effects with the four primary colors.
Clear: Click this button to clear everything from the Pressure Test area.
Click Sensitivity: Use this slider to set the sensitivity at which a "click" is detected
with the tip. If you have a heavy drawing hand or are drawing thicker, heavier lines,
you will want to use a heavier click sensitivity.
13

MONOPRICE 10707 Windows User's Manual
5. The Calibration Tab
This dialog allows you to calibrate the pen and monitor, to ensure that it points
accurately to the various locations on the screen.
Calibration Check Box: To enable calibration, first click here to put a check mark
in the box, then click one of the three calibration buttons:
4-Point Calibration: Calibrates using a single point in each of the four corners of
the screen. This minimal calibration is usually good enough for good pen accuracy.
9-Point Calibration: Calibrates using three points across the top of the monitor,
three across the middle, and three across the bottom. This will give a better level of
calibration for improved accuracy.
25-Point Calibration: Calibrates using 25 points on screen, arranged in a 5x5 grid.
This produces the highest level of pointing accuracy.
Rotation: This pull-down list box allows you to adjust the pen's response in relation
to the screen's orientation. The screen and pen combination can be set to work
properly with the screen positioned upside down, right side up, or on either side.
14

MONOPRICE 10707 Windows User's Manual
III. Pen Storage and Maintenance
1. Storing the Digital Pen
The digital pen should be stored in such a way that nothing touches the tip. Prolonged
pressure on the tip, even a slight pressure, can damage the ability of the pen to use the
full range of pressure sensitivity.
If the pen will simply be unused overnight or for any other short period of time, placing it
in the included pen holder or horizontally on the desk is sufficient. For long-term storage
or shipping, the tip and battery should be removed.
2. Charging the Battery in the Digital Pen
Prior to using the pen stylus, ensure it is fully charged by plugging it into a USB
charging source using the included proprietary USB charging cable. The pen will take
about 1 hour to fully charge.
LED Indicator
The LED on the pen indicates the charge status with the following patterns:
LED glows red: Charging is in progress.
LED off: Charging is complete.
When the pen performance and response starts to deteriorate, it is time to recharge the
pen's internal battery.
Note: The pen's LED is located behind the buttons and can be seen through the
opening in the case.
15

MONOPRICE 10707 Windows User's Manual
3. Replacing the Pen Tip
If the pen tip needs replacing or removal due to long-term storage, perform the following
steps as applicable:
1. Open the pen holder and remove the metal Pen Clip.
2. Position the Pen Clip over the exposed portion of the pen tip. Squeeze the clip
with your fingers to provide a firm grip on the tip.
3. Pull gently until the tip is completely removed.
4. Take a replacement tip out of the pen holder and gently insert it into the pen until
it is fully seated into place.
5. Use the Pressure Test dialog in the driver utility to test the operation of the newly
replaced tip.
16
