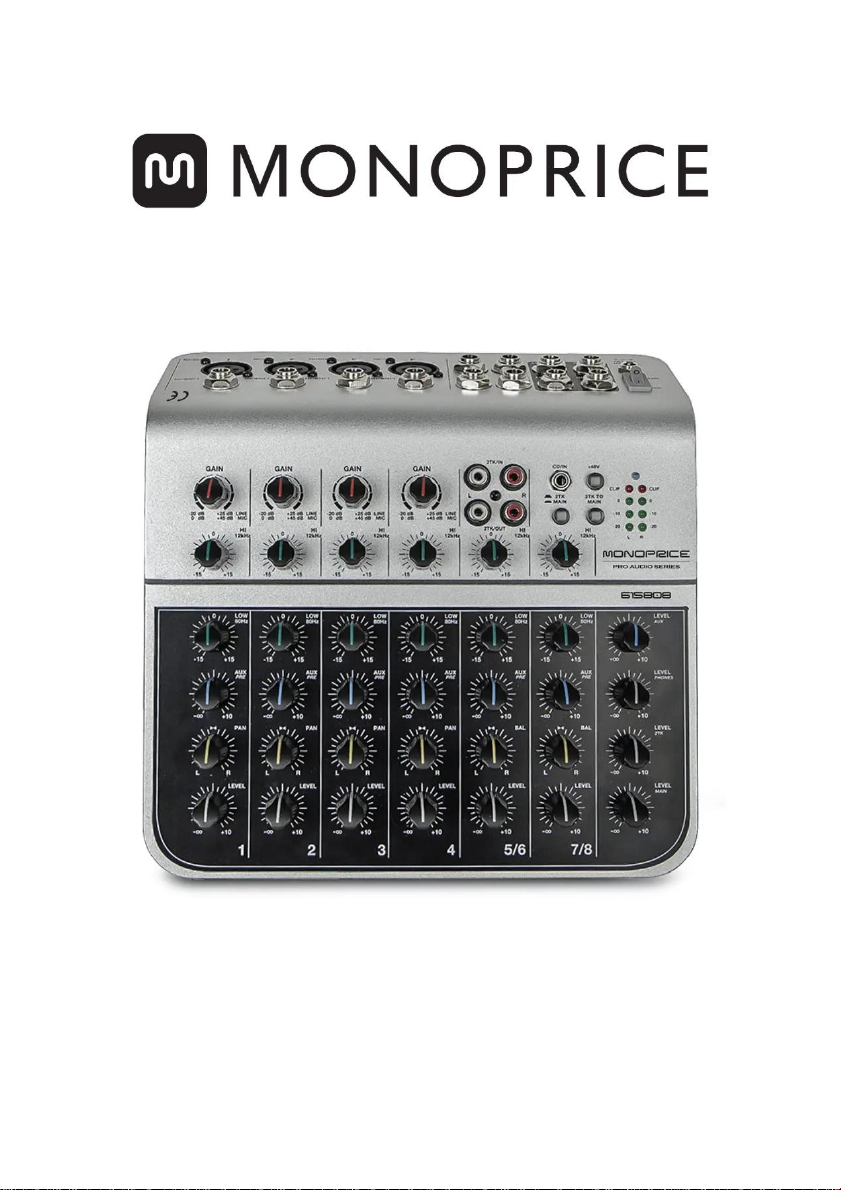

Monoprice Pro Audio Series User manual

8-Channel Audio Mixer with USB
P/N 615808
User's Manual

2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra
attention to these safety warnings and guidelines. Please keep this
manual in a safe place for future reference.
•This device is intended for indoor use only.
•Do not expose this device to water or moisture of any kind. Do
not place drinks or other containers with moisture on or near
the device. If moisture does get in or on the device, immediately
remove it from its power source and allow it to fully dry before
reapplying power.
•Do not touch the device, the power cord, or any other
connected cables with wet hands.
•Do not expose this device to excessive vibration.
•Do not subject the product to extreme force, shock, or
fluctuations in temperature or humidity.
•Do not expose this device to excessively high temperatures. Do
not place it in, on, or near a heat source, such as a fireplace,
stove, radiator, etc. Do not leave it in direct sunlight.
•Do not place or install this device in an area where it can be
exposed to excessive amounts of dust, humidity, oil, smoke, or
combustible vapors.
•Prior to operation, check the unit and power cord for physical
damage. Do not use if physical damage has occurred.
•Before plugging the unit into a power outlet, ensure that the
outlet provides the same type and level of power required by
the device.

3
•Unplug this device from the power source when not in use.
•Take care to prevent damage to the power cord. Do not allow it
to become crimped, pinched, walked on, or become tangled
with other cords. Ensure that the power cord does not present a
tripping hazard.
•Never unplug the unit by pulling on the power cord. Always
grasp the connector head or adapter body.
•Clean using a soft, dry cloth only. Do not use chemical cleaners,
solvents, or detergents. For stubborn deposits, moisten the
cloth with warm water.
•This device has no user serviceable parts. Do not attempt to
open, service, or modify this device.
INTRODUCTION
This 8-Channel Audio Mix features a full suite of input options, including
four balanced XLR microphone inputs, four unbalanced mono 1/4" TS line
inputs, two pairs of unbalanced mono 1/4" TS inputs grouped together
for stereo control, a single USB input/output for connecting a Windows®
or Mac® PC, a 3.5mm stereo TRS input, and a pair of RCA inputs. The
mixer can provide +48V Phantom Power to all four XLR mic inputs.
In addition to the USB input/output, this mixer has five additional
outputs. The Phones output is an unbalanced stereo 1/4" TRS connection,
while the Aux Send and the R and L outputs are all unbalanced mono
1/4" TS connections. Additionally, there is a pair of RCA outputs. The R
and L outputs are grouped together for stereo control on the mixer.

4
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring
that your ordering, purchasing, and delivery experience is second to
none. If you have any problem with your order, please give us an
opportunity to make it right. You can contact a Monoprice Customer
Service representative through the Live Chat link on our website
www.monoprice.com or via email at [email protected]. Check
the website for support times and links.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all
the items listed below. If anything is missing or damaged, please contact
Monoprice Customer Service for a replacement.
1x 8-Channel Audio Mixer
1x AC Power Adapter
1x User's Manual

5
PRODUCT OVERVIEW
Top View
The GAIN analog control knobs adjust the input level of
the corresponding channel's microphone (0 ~ +45dB) or
line (-20 ~ +25dB) input.
The HI frequency equalizer control knobs adjust the level
of the corresponding channel ±15dB at the 12kHz
frequency.

6
Left/Right RCA jacks for 2TK (2-track, 2-channel) input and
output.
3.5mm stereo TRS jack accepts input from a CD player,
MP3 player, or other audio source.
Press the button to apply +48V phantom power. Release
the button for non-condenser mics or line-level inputs.
The button illuminates red when depressed.
Press the button to activate the Main input. Release the
button when using the 2TK (2-track/2-channel RCA)
inputs. To hear the USB audio input, press both the
2TK/MAIN and the 2TK TO MAIN buttons. The button
illuminates blue when depressed.
Press the button to send the 2TK (2-track, 2-channel RCA)
input signal to the Main output. To hear the USB audio
input, press both the 2TK/MAIN and the 2TK TO MAIN
buttons. The button illuminates blue when depressed.
The POWER LED illuminates blue when power is applied.
The LEDs illuminate green to indicate the level of the
main mix. If the red CLIP indicators are lit, reduce the
output using the LEVEL MAIN control knob.

7

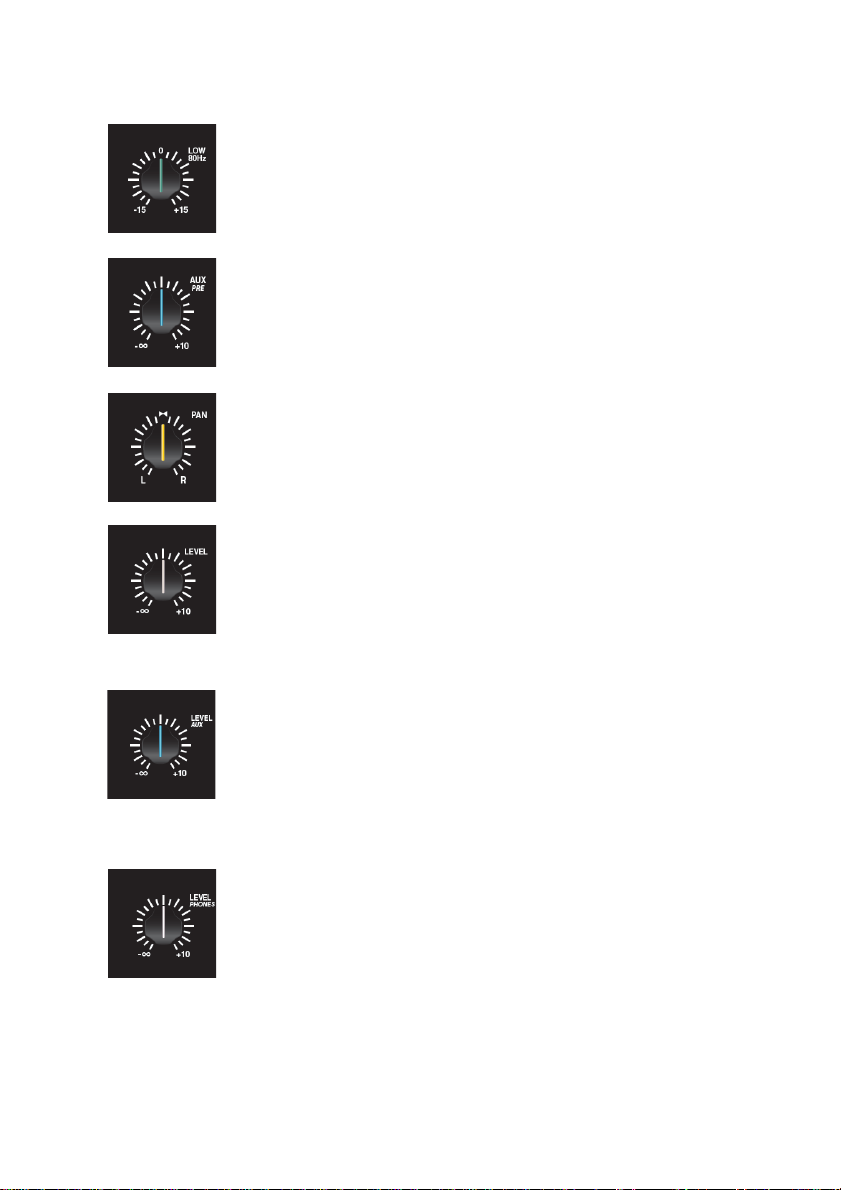

The LOW frequency equalizer knobs adjust the level of
the corresponding channel ±15dB at the 80Hz frequency.
The AUX PRE analog control knobs adjust the
corresponding channel's volume level on the AUX SEND
output.
The PAN/BAL analog control knobs adjust the
corresponding channel's Left/Right signal balance.
The LEVEL analog control knobs adjust the corresponding
channel's output volume level, from -∞~ +10dB.
The LEVEL AUX analog control knob adjusts the volume
level on the AUX SEND output. There is no dedicated
Return input - use any of the 8 standard channels for
return. Ensure that AUX PRE for return channels is off
(counterclockwise) to avoid feedback loops that could
damage your equipment.
The LEVEL PHONES analog control knob adjusts the
volume level for the ¼" headphones output.

8
The LEVEL 2TK analog control knob adjusts the level of
the RCA stereo (2TK, 2-track, 2-channel) inputs.
The LEVEL MAIN analog control knob adjusts the master
volume control.
Side View
Use the power switch to turn the unit on or off.
DC barrel connector for connecting the included AC
power adapter.

9

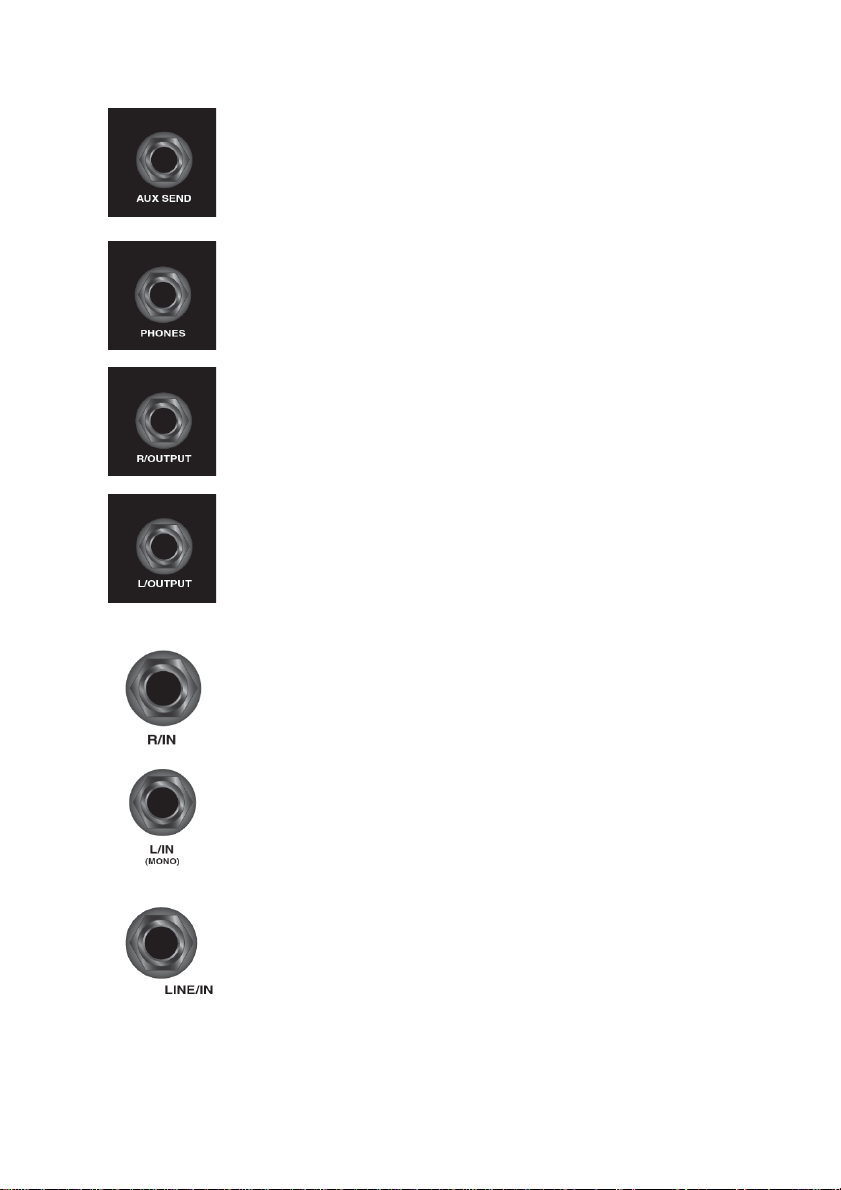

1/4" TS unbalanced mono auxiliary output.
1/4" TRS unbalanced stereo audio output for headphones.
1/4" TS unbalanced mono output for the Main audio
signal.
1/4" TS unbalanced mono output for the Main audio
signal.
1/4" TS unbalanced mono audio input.
1/4" TS unbalanced mono audio input.
1/4" TS unbalanced mono audio input.

10

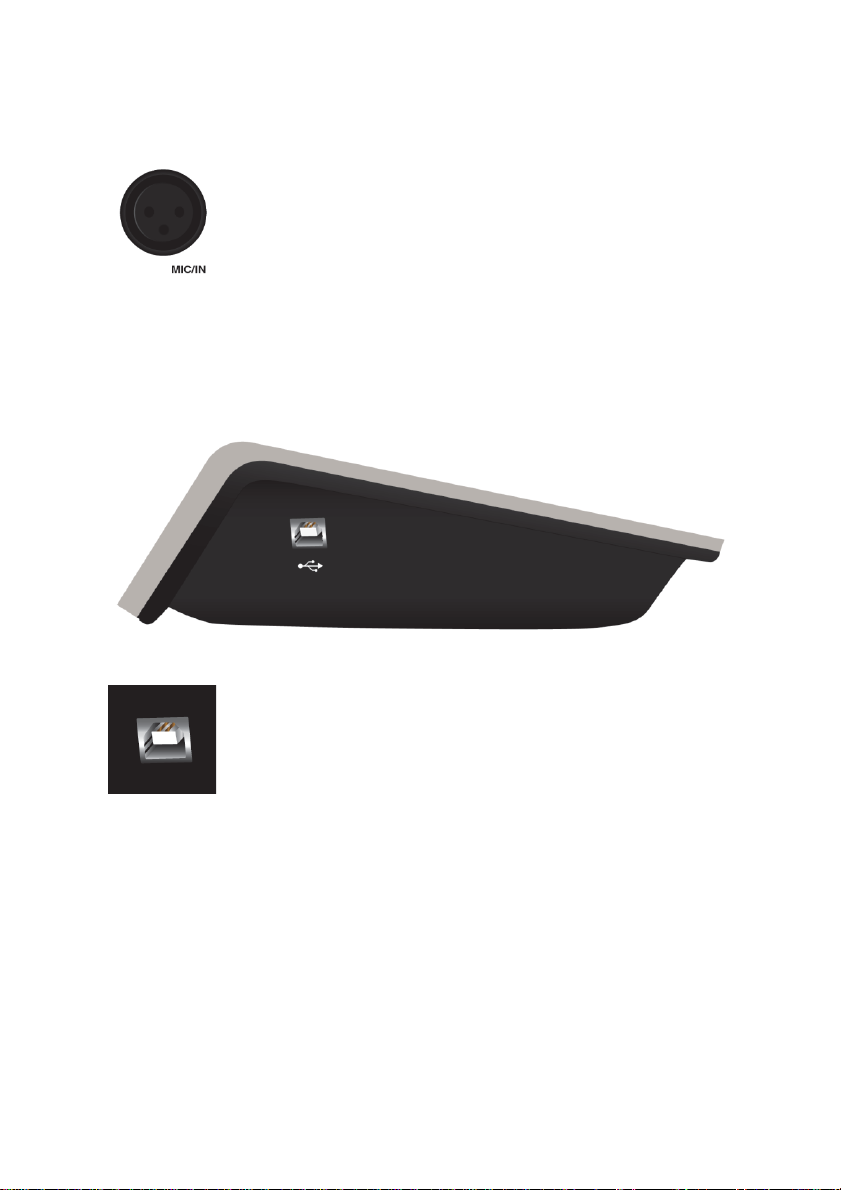

XLR inputs for connecting microphones. The outputs
provide +48V phantom power for condenser
microphones when the +48V button on the top panel is
depressed. Whenever connecting or disconnecting XLR
microphones, ensure that the +48V button on the top
panel is not depressed to prevent damage to the
microphone.
Side View
USB Type-B port for connecting the mixer to your
Windows® or Mac® PC. The USB interface supports a
48kHz sample rate and 16-bit resolution.

11
INSTALLATION
This mixer is a Class Compliant USB device, which means that it uses the
USB drivers built-in to the Windows® and Mac® OS X® operating systems
and requires no other drivers. To connect it to your computer, plug one
end of a USB Type-A to Type-B cable (not included) into the USB port on
the side panel, then plug the other end into an available USB port on
your computer.
Your computer should automatically install the necessary drivers and
configure itself for use with the new USB audio connection. Open your
Control Panel or System Preferences and verify that the USB Audio
Codec is selected for the audio input and output channels.
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to
assist you with any questions you may have about installation, setup,
troubleshooting, or product recommendations. If you ever need
assistance with your new product, please come online to talk to one of
our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website
www.monoprice.com or through email by sending a message to
[email protected]. Check the website for support times and links.

12
SPECIFICATIONS
Model
615808
Frequency Response
20Hz ~ 20kHz, ±1dB
THD+N (0dBu)
< 0.008%
Signal-to-Noise Ratio
Main Output: -103dB
USB, RCA, Phones Outputs: -90dB
Aux Send: -85dB
USB Audio Resolution
16-bit, up to 48kHz sample rate
2-band EQ
±15dB at 80Hz and 12kHz
Variable Gain
Mic Inputs: -20 ~ +45 dB
Line Inputs: -20 ~ +25 dB
Input Impedance
Mic: 2.3kΩ
Line: 20kΩ
CD/RCA: 2.4kΩ
Input Power
12 VDC
AC Adapter Input Power
100 ~ 240 VAC, 50/60 Hz
Maximum Power Consumption
11 watts
Dimensions
8.7" x 8.3" x 2.7"
(220 x 210 x 68 mm)
Weight
2.2 lbs. (1.0 kg)

13
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Modifying the equipment without Monoprice's authorization may result
in the equipment no longer complying with FCC requirements for Class B
digital devices. In that event, your right to use the equipment may be
limited by FCC regulations, and you may be required to correct any
interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.

14
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for
help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
Monoprice™, Stage Right™, the Stage Right logo, and all Monoprice
logos are trademarks of Monoprice Inc.
Microsoft® and Windows® are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other
countries.
Apple®, Mac®, and OS X® are trademarks of Apple Inc., registered in the
U.S. and other countries.
