User’s Manual

1
F
Fo or re ew wo or rd d
Thank you for purchasing this WiFi video camera. It has an elegant appearance, many functions and can be used
for wide-angle shooting. Prior to use, please read this user’s manual carefully so as to show its performance and
extend its service life to maximum. We hope that this product can meet your needs and accompany you at your
side all the time.
O
Ov ve er rv vi ie ew w o of f t th he e p pr ro od du uc ct t
It is compact in size and convenient for installation;
A high performance chip is used to ensure that you can obtain high definition videos and highly
continuous dynamic pictures, and record videos at low luminance, and H.264 video format is
supported;
Support FHD(1920x1080 30FPS) video recording;
Support high-speed USB2.0;
Support Min SD card of max. 32G;
Support video output, live replay and output to HDTV to play HD pictures.

2
SystemRequirements
System Requirements
Operating
System
PCCAM Microsoft Window XP(SP3), Vista, 7，8
Mac OS X ver: 10.8.0 or above version
MSDC Microsoft Window 2000，XP, Vista, 7，8
Mac OS X ver: 10.0.0 or above version
CPU Intel Pentium of more than 1GB Hz or other CPU with equivalent
performance
Internal Memory Larger than 1GB
Sound Card and Display Card The sound card and video card shall support DirectX8 or higher version.
CD Driver Speed of 4 times or faster
Hard Disk Free space of more than 2GB
Others One standard USB1.1 or USB2.0 port

3
I
In nt tr ro od du uc ct ti io on n t to o a ap pp pe ea ar ra an nc ce e a an nd d k ke ey ys s
Display/Menu key
2.0’’ HD LCD
Lens
Infrared remote
control lamp Charging /Busy indicator
Busy indicator
Microphone

4
Wifi/Down key
HDMI port
Power/Mode key
Battery door
Micro SD Card
Shutter/OK key
Micro USB port
Speaker

5
S
St ta ar rt t u us si in ng g _ __ __ __ __ __ __ _
1. Charge the built-in lithium battery
Connect the camera to the computer for charging, at this time, the charging indicator will be in red, and it will be
off after charging. Generally, it takes 2-4 hours to charge the battery.
USB cable

6
2. Use the storage card
1. Push the TF card into the slot till it is in place as per the instruction in concavely engraved words by the
storage card slot.
2. To take out the TF card, press the tail of the storage card inwardly softly and it will be popped out.
Note: There’s no built-in memory unit in the camera, so make sure to insert a storage card into it prior to
use ( it is recommended at least Class 6 high speed TF card ).

7

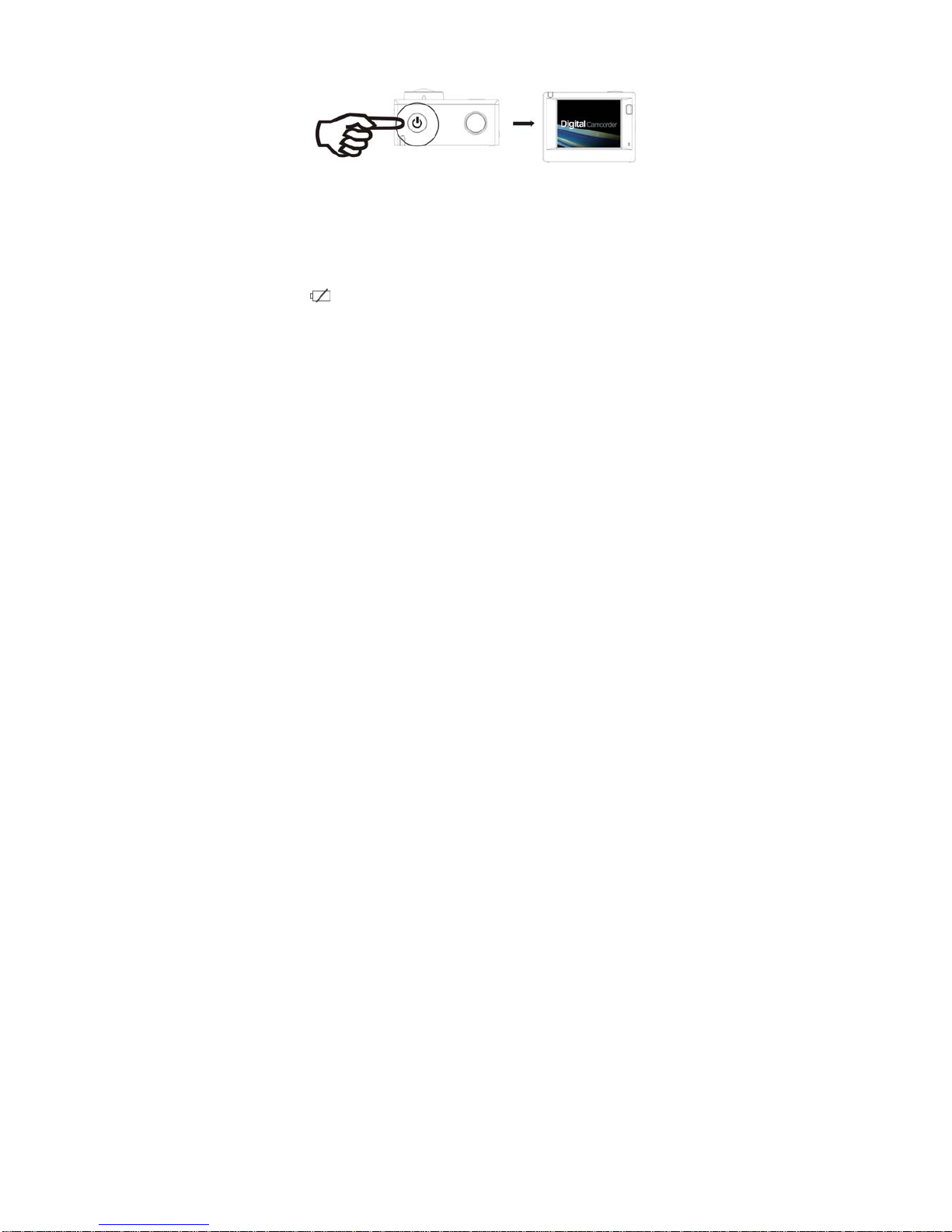

3. Power on/off
3.1 Power on: Press Power key for 3 seconds, the screen will be on and the camera will be started.
3.2. Power off: Hold on Power key for 3 seconds when the camera is in the idle state to turn it off.
3.3. Auto screen off: The screen will be turned off automatically when the time that the camera is in the idle
state for automatic screen off to save power.After that, the lamp for screen off will be on.
3.4. Power off when the camera is lack of electricity. When electrical quantity of the battery is very low, an
icon of will be displayed on the LCD screen, prompting you to charge it in time. When the icon turns
red and flickers, the camera will be turned off automatically.

8
4. Shift among functional modes
The camera has 4 modes, namely video recording mode, car-carrying mode, shooting mode and replay mode.
After power is on, press Power key to shift among them.
Note: after the shutdown of the system will save the current setting pattern, the next open opportunity
automatically entered into the model.
Video recording mode Car-carrying mode Shooting mode
Replay mode

9
5. Indicator
Busy indicator (red): When the camera is busy such as recording videos, shooting photos and turning off screen
automatically, the work indicator will flicker.
Charging indicator (blue): When it is on, the user is prompted that the camera is being charged and it will be off
after charging is completed.
6. Video recording mode
After power is on, the video camera will enter video recording mode directly and in preview mode, press
Shutter key to start video recording; Press it again to stop shooting. If the memory card is full or electrical
quantity is low, it will also stop shooting:
1. Icon of mode, indicating video recording mode;
2. Indicate quality of video;
3. Indicate size of video, and FHD 1080P(30FPS)
/ HD 720P(60FPS) / HD 720P(30FPS)/VGA(120FPS) is optional;
4. Recording time, indicating recordable length of time;
5. Icon of battery, indicating current electrical quantity;

10

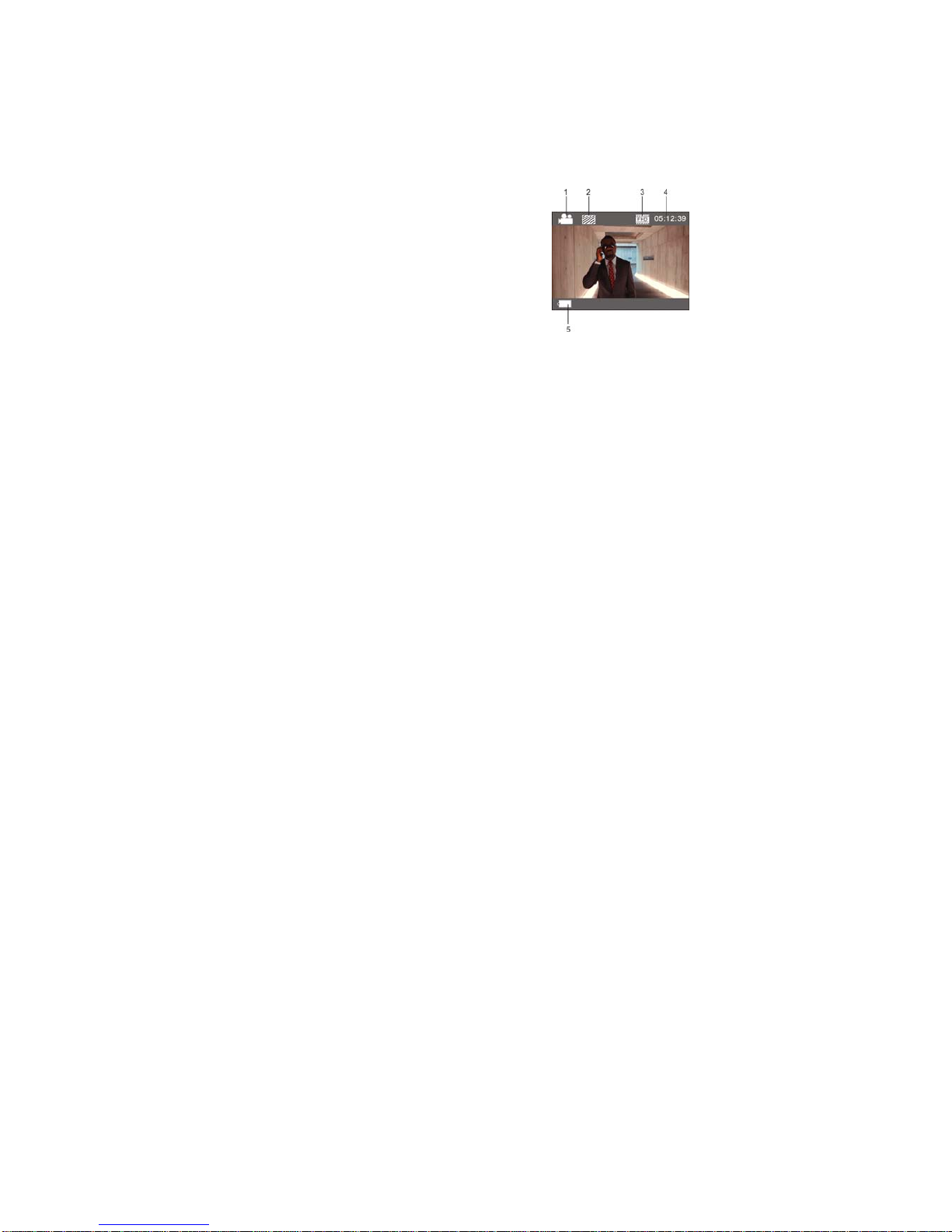

7. Car-carrying mode
After power is on, press Power key to enter car-carrying mode
1. Icon of mode, indicating car-carrying mode;
2. Indicate quality of video;
3. Indicate size of video, and FHD(30FPS)/HD(60FPS)/HD(30FPS)
is optional;
4. Recording time, indicating recordable length of time.
5. Icon of battery, indicating current electrical quantity
Prompt:
1. In car-carrying mode, a passage of video is kept every three minutes in recording. After the storage card
is full, the earliest passage will be deleted, and video will be recorded in a circulating way.
2. Boot after choosing to car-carrying mode, normal shutdown again after boot, connect the car charger
will automatically enter the vehicle model and start the video.

11
8. Shooting mode
After power is on, press Power key twice to enter shooting mode, and in preview state, press Shutter key to take
a photo:
1. Icon of mode, indicating the current is shooting mode;
2. Size of video, and 3M/5M/8M/10M/12M is optional;
3. Icon of quality of pictures;
4. Counter, indicating number of photos to be taken;
5. Icon of electrical quantity of battery.

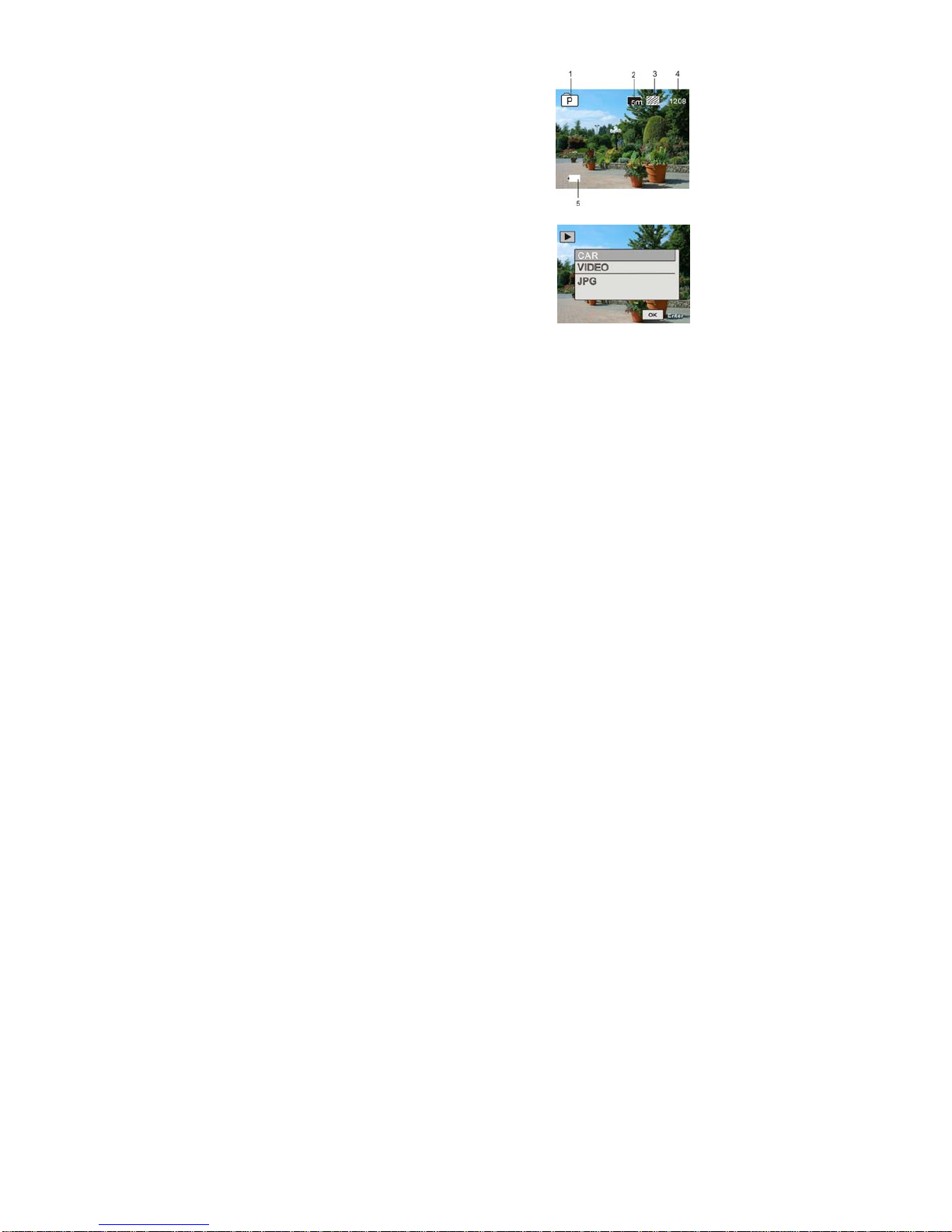

9. Replay mode
9.1 After power is on and entering Preview state, press Power key
continuously to shift to Replay mode. Select the file to be replayed
through the menu as follows:
Select CAR to replay files in car-carrying video mode;
Select VIDEO to replay files in general video mode;
Select JPG to replay files in shooting mode;

12
9.2 Introduction to play screens
9.2.1 Screens of video files
1. Icon of replay mode;
2. Indicate serial number of current file/ total number of files;
3. Indicate parameter of recording time;
4. Indicate recording time point.
5. Playback timer
When a video file is being played, click Ok key to pause play, and click Menu key to stop playing.

13
9.2.2 Screen of photos
1. Icon of replay mode;
2. Indicate serial number of current file/ total number of files;
In replaying, Press WIFI key to select other file type，in a circulating way.
10. Menu operation
There is a different menu in each working mode as shown in the following figures:
Menu for video recording
/car-carrying mode Menu for shooting mode Menu for setting mode Menu for replay mode

14
Operation: Press Menu key, the menu for this mode will be displayed on the LCD.At this time, press Power key
to move the cursor leftward or rightward and select on the menu, and press WIFI key to move the cursor upward
or downward and select on the menu in a circulating way. Press OK key to confirm and press Menu key to return
or exit from menu mode.
Application of remote controller
1. Definition of keys of remote controller
Power key
Video recording key
Shooting key
Signal transmission port

15
2. Use of remote controller:
Using the remote controller, you can achieve functions ofvideo recording, shooting and power off without
operating on the camera. Just point the signal transmission port of the remote controller at IR signal receiving
lamp of the camera, and press corresponding keys to achieve functions of video recording, shooting and power
off.
Infrared remote control lamp

16
Connect device to HDTV:
Connect the video camera to an HDTV with a HD cable as shown in the following figure, display signals in the
camera will be output into the HDTV automatically, and you can browse HD videos and photos that are recorded
or taken in the HDTV.
Diagram of connection
Signal transmission

17
APP(forAndroid and iOS System)
I. How to Obtain the APPInstallation Program
1. For the Android System, you can search “SYMAGIX” in the Play Store to obtain corresponding installation
programs, and then you can install them according to the indicated steps or through scanning the
two-dimensional code .
2. For the IOS System, you can search “SYMAGIX” in the APP Store to obtain corresponding installation
programs, and then you can install them according to the indicated steps or through scanning the
two-dimensional code .

18
II. Camera WIFI and System Applications
Android Applications
1. Please install the SYMAGIX application program (provided by the Supplier or the Internet) for the Android
mobile phone or tablet PC, and then the Display Screen will show the Icon ;
2. Insert a Storage Card into the Camera and then power it on. Press the WIFI key to conduct WIFI connection,
and the Screen of the Camera will show the WIFI signal Icon with the external screen revealing WIFI
Connecting.
3. Enable the WIFI function of the Android mobile phone or tablet PC, and try to find the AP Name
WDV6000SA_WIFI; please conduct connection between them till the system reveals a successful connection;
if you are conducting WIFI connection for the first time, please input the password: 1234567890.
4. Tap and enable the Application Program Icon on the Android mobile phone or tablet PC; you can
directly view the preview picture transmitted by the Camera (see the following picture), and then conduct
relevant operations.

19
IOS Applications
1. Please install the SYMAGIX application program (provided by the Supplier or the Internet) for the IOS
mobile phone or tablet PC, and then the Display Screen will show the Icon ;
2. Insert a Storage Card into the Camera and then power it on. Press the WIFI key to conduct WIFI connection,
and the Screen of the Camera will show the WIFI signal Icon with the external screen revealing WIFI
Connecting.
3. Enable the WIFI function of the IOS mobile phone or tablet PC, and try to find the AP Name
WDV6000SA_WIFI; please conduct connection between them till the system reveals a successful connection;
if you are conducting WIFI connection for the first time, please input the password: 1234567890.
1.Resolution
2.WhiteBalance
3. Settings (Enter Settings Menu)
4. Enter the Playback Mode
5.ShutterButton
6.PhotoMode
7.VideoMode
8.Wi-FiSignalIcon
9. Camera’s Battery Status Icon
