Monster Jam Grave Digger User manual

Monster Jam Grave Digger
12V Ride On
THE PACKAGING MUST BE RETAINED SINCE
IT CONTAINS IMPORTANT INFORMATION.
SUITABLE FOR 3 YEARS+
MAXIMUM USER WEIGHT: 40KG
ADULT ASSEMBLY AND
SUPERVISION REQUIRED
BOX CONTENTS:
TOY QUAD WITH BATTERY
DECAL
CHARGER
SPANNER
OWNER’S MANUAL
BEFORE FIRST TIME USE, CHARGE THE BATTERY FOR AT LEAST 12 HOURS.
PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE AS IT CONTAINS
IMPORTANT INFORMATION.
OWNER’S MANUAL
READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE USING!
GRAVE DIGGER
MANUFACTURED UNDER LICENSE BY HUNTER PRODUCTS PTY LTD.
062816

DIRECTORY
Please read this manual carefully for important safety information and operating
instructions before using your vehicle.
(B) SPECIFICATION
Product size
User’s proper age
Loading limitation
Speed
Battery Spec
Power Mode
Charging Spec
Charging Time
Fuse Spec
AA Battery
suitable for children
around 3-8 years old
88 lbs / 40 kgs
2-3.75 mph / 3-6 km/hr
12V, 7AH
Rechargeable
15V 0.8mA
8-12 hours
Self-resetting fuse
Not included
(A) BEFORE USE
1
110 x 75 x 80cm
(43.3 x 29.53 x 31.50inch)
BEFORE USE
SPECIFICATION
PRECAUTIONS
EXPLODED DIAGRAM
PARTS
ASSEMBLY DIAGRAM
FUSE
CHARGING AND BATTERY SAFETY
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
OPERATION AND FUNCTION

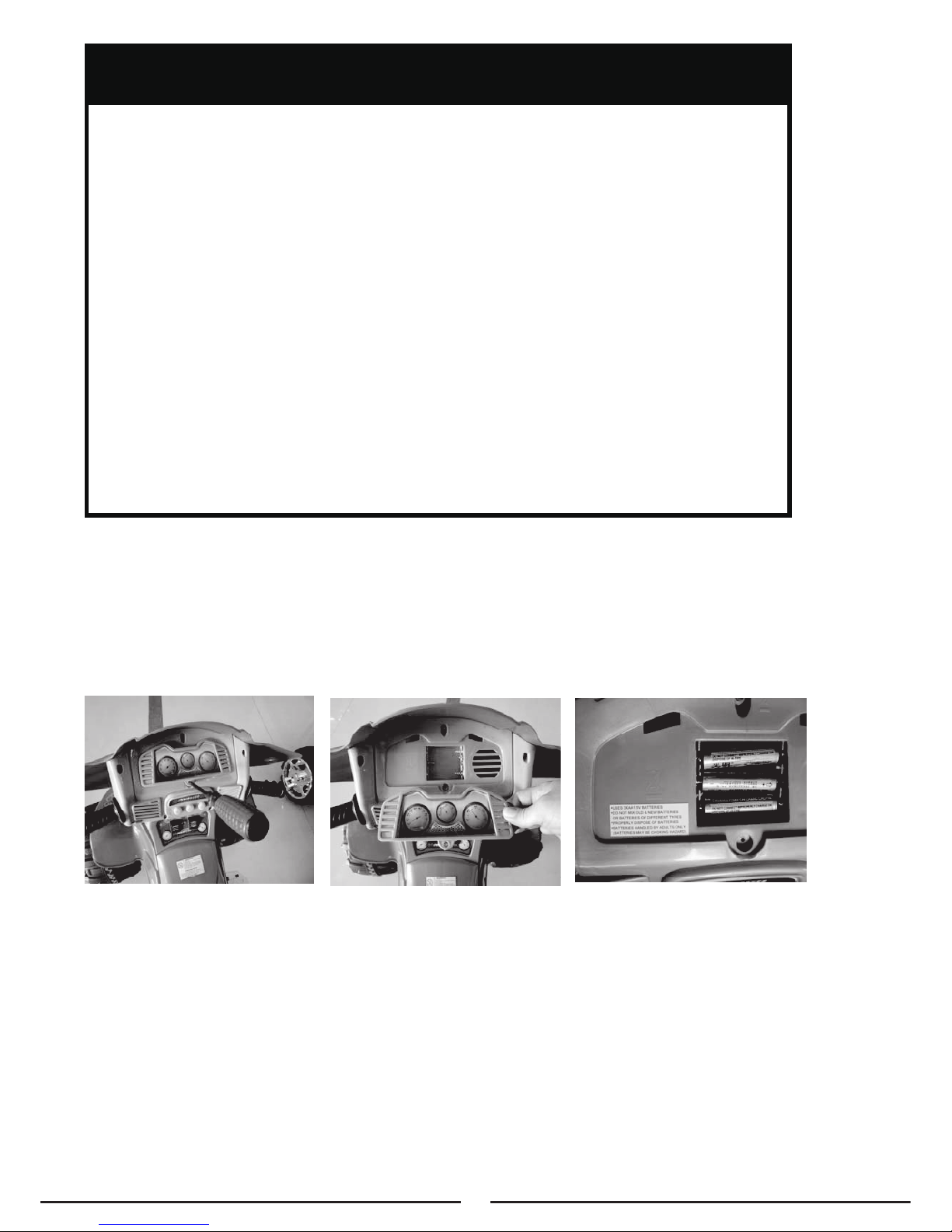

HOW TO INSTALL THE AA BATTERY
SERVICE & WARRANTY
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(H)
(I)
(J)
(K)
(L)
(M)
P1
P1
P2
P3
P4
P5-P6
P7
P7-8
P9
P9
P10
P11
P12

(C) PRECAUTIONS
WARNING: ASSEMBLY
YOUR NEW VEHICLE REQUIRES ADULT ASSEMBLY.
Read entire instructions carefully before assembling this product. Children can be harmed
by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by
electrical items. Care should be taken in the unpacking and assembly of the vehicle.
Children should not handle parts, including the battery, or help in assembly of the vehicle.
WARNING: RIDING HAZARD
Not to be used in traffic.
Never ride at night.
Keep children within safe riding areas.
These areas must be:
- Away from swimming pools and other bodies of water to prevent drowning.
- Generally level to prevent tipovers.
- To reduce the risk of injury, adult supervision is required. Never use in roadways, near
motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of
water. Do not use on gravel surfaces. Only use on smooth surfaces.
- Always wear protective clothing and shoes. Never allow more than 1 rider at a time..
Riding Rules:
Make sure children know and follow these rules for safe driving and riding.
- Always sit on the seat.
It is recommended that the rider always wears safety equipment such as fitted
helmet when riding the vehicle.
Use this vehicle ONLY outdoors. Most interior flooring can be damaged by
riding this vehicle indoor
WARNING: SAFE DRIVING
Before children use this vehicle, an adult should carefully evaluate the driving area
as well as the child's skill level and ability to drive the vehicle safely.
Teach appropriate safety rules to your child before allowing operation of this vehicle.
These rules should also be reviewed with other playmates who want to drive the
vehicle.
A child who is not sitting on the seat could fall off, cause a tip over or block the
driver's view.
Only operate the vehicle in the daytime in a well-lit area.
Driving near steep inclines can cause:
- The vehicle to gain unsafe speed, even if the pedal is released to stop.
- The vehicle to tilt and tip over.
- The wheels to lose traction, causing the vehicle to slip.
- The vehicle could roll backwards at an unsafe speed.
Never put anything near any moving parts, rotating parts, such as motors, gear
boxes and wheels, as these can snag fingers, hair, etc., and cause serious injury.
Do not allow operation of the vehicle when it is on its side or in an upside-down
position.
Do not operate the vehicle near flammable vapors (gasoline, paint thinner,
acetone, liquid wax, etc.). The vehicle's electrical switches, like most electrical
switches, emit an internal spark when first turned on or turned off, which could
cause an explosion or fire.
To prevent unsupervised use of the vehicle, disconnect the motor harness from
the battery when the vehicle is not in use.
2

3
Tools:
screw-driver
(Not included)
Tools needed for assembly:
spanner

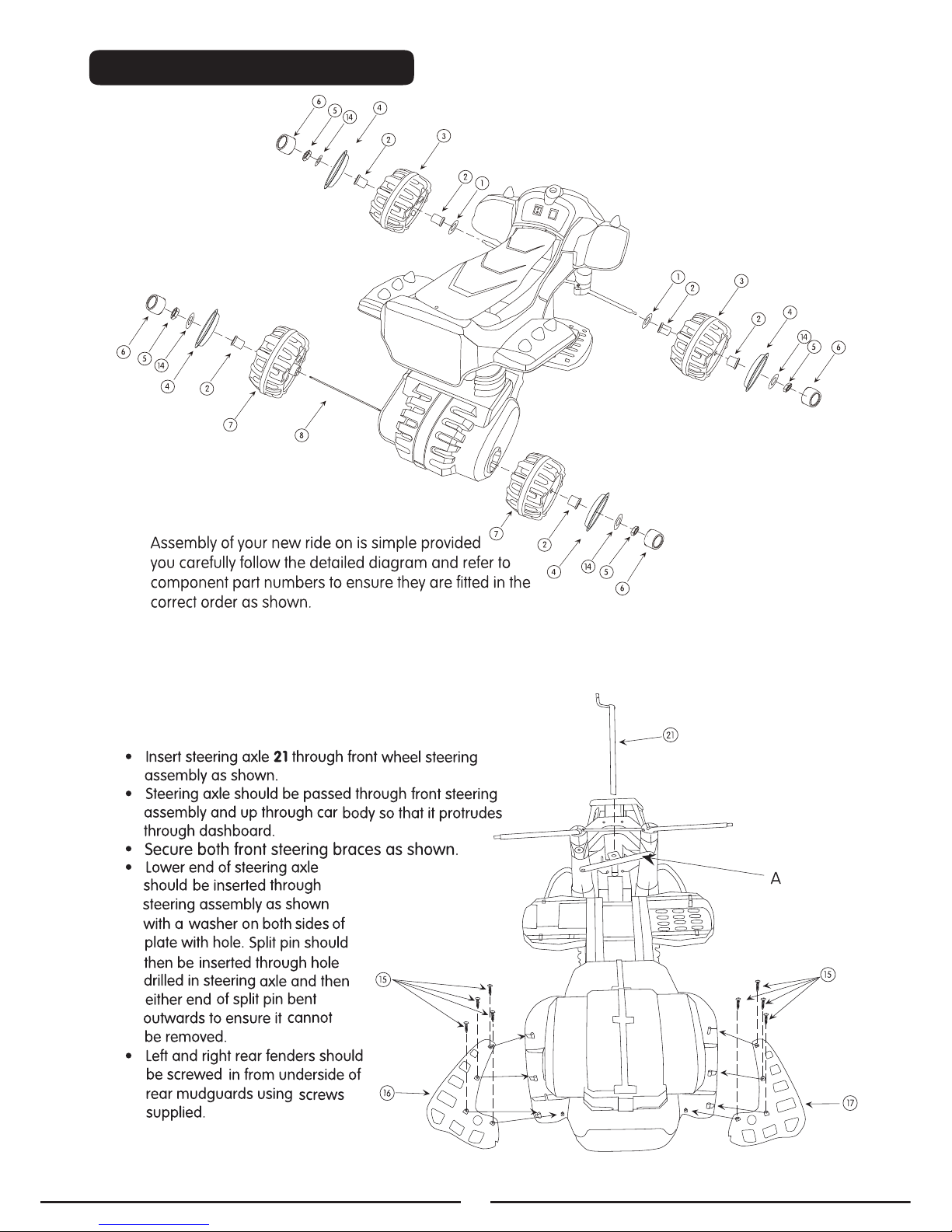

(D) EXPLODED DIAGRAM

(E) PARTS
4
R
L
12mm washers x 2
1
10mm lock nuts x 4
5
Seat x 1
9
Split pin x 1
4mm x 16mm screw x 1
10
13
Chrome wheel caps x 4
6
Wheels bushes x 6
2
Front wheels x 2
3
Chrome wheel
covers x 4
4
Rear wheels x 2
7
Rear axle x 1
8
4mm x 16mm screw x 1
5mm x 25mm steering
fixing bolt x 1
11
Front steering
assembly x 1
12
Left rear fender x 1
17
Steering axle x 1
21
Screw wrench x 2
22
5mm washers x 3/
5mm x 35mm steering
fixing bolt x 1
18
5mm lock nut x 1
19 20
10mm washers x 6
14
4mm x 12mm screws x 8
15
Right rear fender x 1
16
PART
NAME
Q’ty
(pcs)
REMARKS
PART
NAME
Q’ty
(pcs)
REMARKS
Assemblypackage
1
Main body
1
Battery
charger

(F) ASSEMBLY DIAGRAM
5
RL

6
Secure front steering brace A as shown.
Secure steering rod to front steering brace A.
Secure front steering brace B
as shown.
Install seat after battery connection as shown.
Refer to parts list for correct screw to be used.
Place pre-assembled steering assembly over
steering axle and align holes in both steering
assembly and steering axle. Insert steering bolt
11 and fasten until tight. Move steering from
side to side to ensure a proper fit.
12
9
10
11

7
WARNING: ELECTRICAL HAZARD
The battery must be handled by adults only. The battery is heavy and contains
sulfuric acid (electrolyte). Dropping the battery could result in serious injury.
Battery can fall out and injure a child if vehicle tips over. Always use battery
retainer.
Never modify the eletrical system. Alterations could cause a fire resulting in
serious injury and also ruin the electrical system.
Use of the wrong type of battery or charger may cause a fire or explosion
resulting in serious injury.
Never allow children to charge the battery. Battery charging must be done by
adults only.
Examine the battery, charger and their connectors for excessive wear or
damage each time you charge the battery. If damage or excessive wear is
detected, do not use the charger or the battery until you have replaced the
worn or damaged part.
Read the safety instructions on the battery.
(G) FUSE
The vehicle uses a self-tapping fuse.
When overloading or improper use, the fuse will automatically be “triggered” and
shut down operation of the vehicle, wait approximately 10~20 seconds before
trying to operate the vehicle again.
To avoid the shut down, please pay attention to:
(1) The maximum weight limit of the vehicle is 40KG.
(2) Do not tow anything behind the vehicle.
(3) Do not immerse in liquid,it may cause the short circuit.
(4) Do not revise the vehicle’s circuit or the structure.
(5) Do not use a different specification fuse.
(H) CHARGING AND BATTERY SAFETY
As shown in below diagram, put the charger into the vehicle's charging
hole, and the power plug into the matched stable AC power (120V).
WARNING:
DO NOT allow children to
play with the battery and
charger. IT IS NOT A TOY.

CAUTION: BATTERY CHARGING
Use the charger in dry locations only.
Make sure you charge the battery for 12 hours using the enclosed 15 volt
charger before operating your vehicle for the first time. Charge the battery
about 8 hours after each use of the vehicle. Never charge the battery
longer than 16 hours. Failure to follow these instructions may damage your
battery.
Before charging the battery, examine the battery case for cracks and other
damage which may cause sulfuric acid (electrolyte) to leak during the charging
process. If damage is detected, do not charge the battery or use it in your
vehicle. Battery acid is very corrosive and can cause severe damage to
surfaces it contacts, including skin. Always use caution when charging.
Do not place the battery on a surface (such as kitchen counter tops) which
could be damaged by the acid contained inside the battery. Take precautions
to protect the surface on which you place your battery.
Charge the battery in a well ventilated area.
BATTERY SAFETY INFORMATION
In exceptional circumstances, batteries may leak fluids that can cause a
chemical burn or injury, or ruin your product. To avoid battery leakage:
Do not mix old and new batteries or batteries of different types.
Insert batteries as indicated inside the battery compartment.
Remove batteries during long periods of non-use. Always remove exhausted
batteries from the product. Dispose of batteries safely. Do not dispose of this
product in a fire. The batteries inside may explode or leak.
Never short-circuit the battery terminals.
Use only batteries of the same or equivalent type as recommended.
Do not charge non-rechargeable batteries.
If removable, rechargeable batteries are used, they are only to be charged
under adult supervision.
BATTERY CARE
If a battery leak happens, avoid contact with the leaking acid and place the
damaged battery in a plastic bag.
If acid comes in contact with skin or eyes, flush with cool water for at least 15
minutes and call a physician.
Do not allow the battery to run down completely before charging.
Charge the battery before storing the vehicle, and at least once per month,
even if the vehicle has not been used.
Always remove an exhausted battery from the vehicle. Battery leakage and
corrosion can damage the vehicle.
BATTERY DISPOSAL
This battery is a non-spillable sealed lead-acid battery. It must be recycled or
disposed of in an environmentally sound manner.
Do not dispose of a lead-acid battery in a fire. The battery may explode or leak.
Do not dispose of a lead-acid battery in your regular, household trash. The
incineration, landfilling or mixing of sealed lead-acid batteries with household
trash is prohibited by law in most areas.
Return an exhausted battery to a federal or state approved lead-acid battery
recycler, such as a local seller of automotive batteries. Contact your local waste
management officials for other information regarding the environmentally sound
collection, recycling and disposal of lead-acid batteries.
Protect the environment by not disposing of this lead-acid battery with
household waste. Check your local authority for recycling advice and facilities.
8

(J) TROUBLESHOOTING GUIDE
Problem
The vehicle does not move
The vehicle begins to run slow
The vehicle runs erratically
The charger feels warm when in
use
The gears sound very loud and/or
are making a grinding noise.
Possible Solutions
· Charge the battery. (Charge battery after each use.)
NOTE: vehicle will be cut off from electricity when charging.
· Check all electrical connections.
· Check if all switches are in the "on" position.
· Check if foot pedal or manual button is stuck down so
that it cannot be pressed.
· The fuse may have been activated due to excessive
weight or rough driving conditions. Wait approximately
10~20 seconds, and the vehicle will reset itself.
· Check if there is debris blocking the wheels.
· Charge the battery. (Charge battery after each use.)
· Only allow one rider at a time.
DO NOT exceed child weight limit: 40kg total
· Drive on level ground.
· Battery may be old or not accepting a full charge. The
battery will last from 1 to 3 years depending on care,
use and environment.
Replace with 12 Volt 7Ah battery only.
· Check if there is debris blocking the wheels.
· There may be a problem with the fuse, or you may
have a damaged battery.
· This is normal.
· The gears may be broken.
9
Audits should check all screws, cap nuts and their protective coverings regularly
and tighten as required. Check plastic parts on a regular basis for cracks or
broken pieces.
When vehicle is not used on a regular basis, the vehicle should be stored inside
or under a protective cover. With the switch in the "off" position, pull out the battery
to ensure circuit safety. Remember to charge the battery at least once per month
while your vehicle is not in regular use.
Avoid operating the vehicle in wet, rainy or snowy conditions.
Avoid operating the vehicle on sand, loose dirt or gravel. Sand, loose dirt or
gravel in the motors or electrical switches can cause them to jam, and could
cause switch or motor failure.
The vehicle can be wiped down with a soft, dry cloth.
DO NOT wipe vehicle with wax.
DO NOT wash the vehicle with soap and water or spray the vehicle with a hose.
Water or moisture in the motors or electrical switches can cause them to
corrode, and could cause switch or motor failure.
DO NOT make modifications to this vehicle. When conducting maintenance, do
not revise the vehicle's circuit and structure.
ONLY use the battery and charger specified by the manufacturer.
In the unstable supply voltage region, it is recommended to install a voltage stabilizer
to protect the battery.
(I) CARE AND MAINTENANCE

10
(K) OPERATION AND FUNCTION
Horn
Engine sound
Head light
Before first use, please make sure the red wire connected to the battery as shown
in below diagram.
OPERATION
Forward-Reverse Switch:
To move the vehicle forward, make sure the button is in forward position, then press
down the foot pedal.
To move the vehicle reverse, make sure the button is in reverse position,
then press down the foot pedal.
High/Low speed switch:
The switch operates the vehicle to move in low or high speed.
Foot Pedal:
To move the vehicle, press down the pedal.To stop the vehicle, remove your foot
from the pedal.
Function:
The vehicle has light, engine start sound and horn function, Please insert the
3 XAA batteries into the steering wheel, details please refer page 11.
1
2
10

11
WARNING!
DO NOT mix old and new batteries.
DO NOT mix aikaline, standard (carbon-zinc),
or rechargeable (nickel- cadmium) batteries.
Non-rechargeable batteries are not to be recharged
Batteries are to be inserted with the correct polarity.
Exhausted batteries are to be removed from the toy.
The supply terminals are not to be short-circuited.
Rechargeable batteries are only to be charged under
adult supervision.
Rechargeable batteries are to be removed from the
toy before being charged.
Remove the small screw lock the cover of the battery compartment.
Open the cover of the battery compartment.
Insert three AA batteries as shown.
Reinstall the battery compartment cover.
Insert the screw you removed in above step and tighten the screw.

12
Warranty
The manufacturer warrants this product to be free of manufacturing
defects for a period of one (1) year from the date of purchase,
excluding the battery, charger, and wheels.The manufacturer
warrants the battery, charger, and wheels for a period of six (6)
months from the date of purchase.This Limited Warranty does
not cover normal wear and tear, cables, or any damage, failure
or loss caused by improper assembly, maintenance, storage or
use of this electric ride-on.
This Limited Warranty will be void if the product is ever
• used in a manner other than for recreation
• modified in any way
• used as a rental
The manufacturer is not liable for incidental or consequential loss
or damage due directly or indirectly to the use of this product.
For your records, keep your original sales receipt with this manual.
If you have any problems with your electric ride-on, DO NOT return
to the place of purchase. If you need any assistance, or have
questions regarding parts, accessories, or warranty related issues,
please call 1-866-434-6067 and one of our friendly service assistants
will be happy to help.
Limited Warranty
(M) SERVICE & WARRANTY
