montpellier MWBIC90029 User manual

Integrated Combi Microwave
MWBIC90029 - 25Ltr Capacity
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier Integrated Combination Microwave.
Our Microwaves have been designed to provide you with the best combination of style, reliability and
performance to give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your Integrated Microwave to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Integrated Microwave is covered by a comprehensive two year Parts &
Labour Guarantee. In the unlikely event that you experience a problem with
your Microwave, you can rest assured that you are fully protected against the
cost of repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found on the rear of the machine.
There are two ways to register your Guarantee:
•Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
•By Post: Simply detach and ll in the form provided, attach a stamp and send
it in the post. Don’t forget to include your e-mail address so that we can send
conrmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com

3
Description Of The Appliance
1. Door & Viewing Window
2. LED Display Panel
3. Control Panel
4. Rotary Selector Knob
5. Push Button Door Control
(Picture indicative of model supplied)
1. 2.
3.
4.
5.

4
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance

5
S ection 1. Installation
-Remove all packaging, protective film and securing tape
from the appliance.
-Wash the interior of the appliance with warm soapy water.
-Position the appliance in a dry atmosphere.
-Keep the microwave oven away from the TV, Radio or
antenna as picture disturbance or noise may occur.
-Please note that certain parts of this appliance have been
protected with a light film of oil. During initial use you may
see light smoke coming from the oven as the oil is
burnt off. This is quite normal.
-Connect the plug to an adjacent ‘easily accessible’
13amp socket outlet and ensure that the appliance is not
standing on the supply cable.
-Never operate this oven without food or liquids inside
-Remove the turntable and rotating ring from the
packaging, wash in warm soapy water and dry thoroughly.
Fit the rotating ring on the base of the interior and then
carefully place the turntable onto the rotating drive,
ensuring that it ‘locks’ into place.
-The turntable and rotating ring can be removed from the
appliance and washed using warm soapy water
-Replace the rotating ring on the base of the interior and
then carefully place the turntable onto the rotating drive,
ensuring that it ‘locks’ into place
-This appliance is fitted with a safety door interlock. Do
not operate the appliance if either of the two interlock
levers are damaged. Please note that the appliance will
fail to operate if the door has not been closed correctly.
-The turntable rotates whilst the appliance is operating –
this helps the food/liquids to cook/heat more evenly.

6
N.B. This appliance must be installed by a qualified installer.

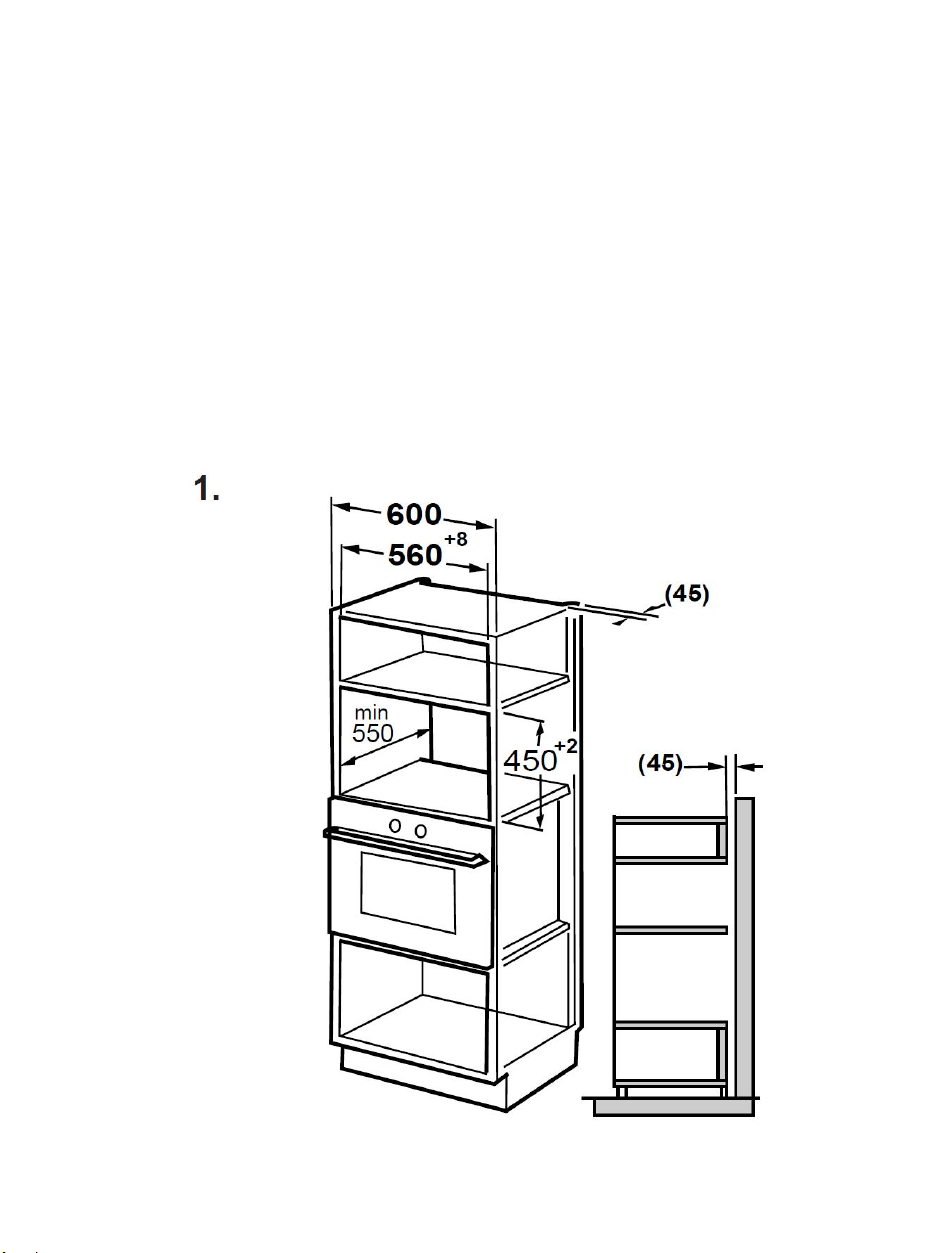

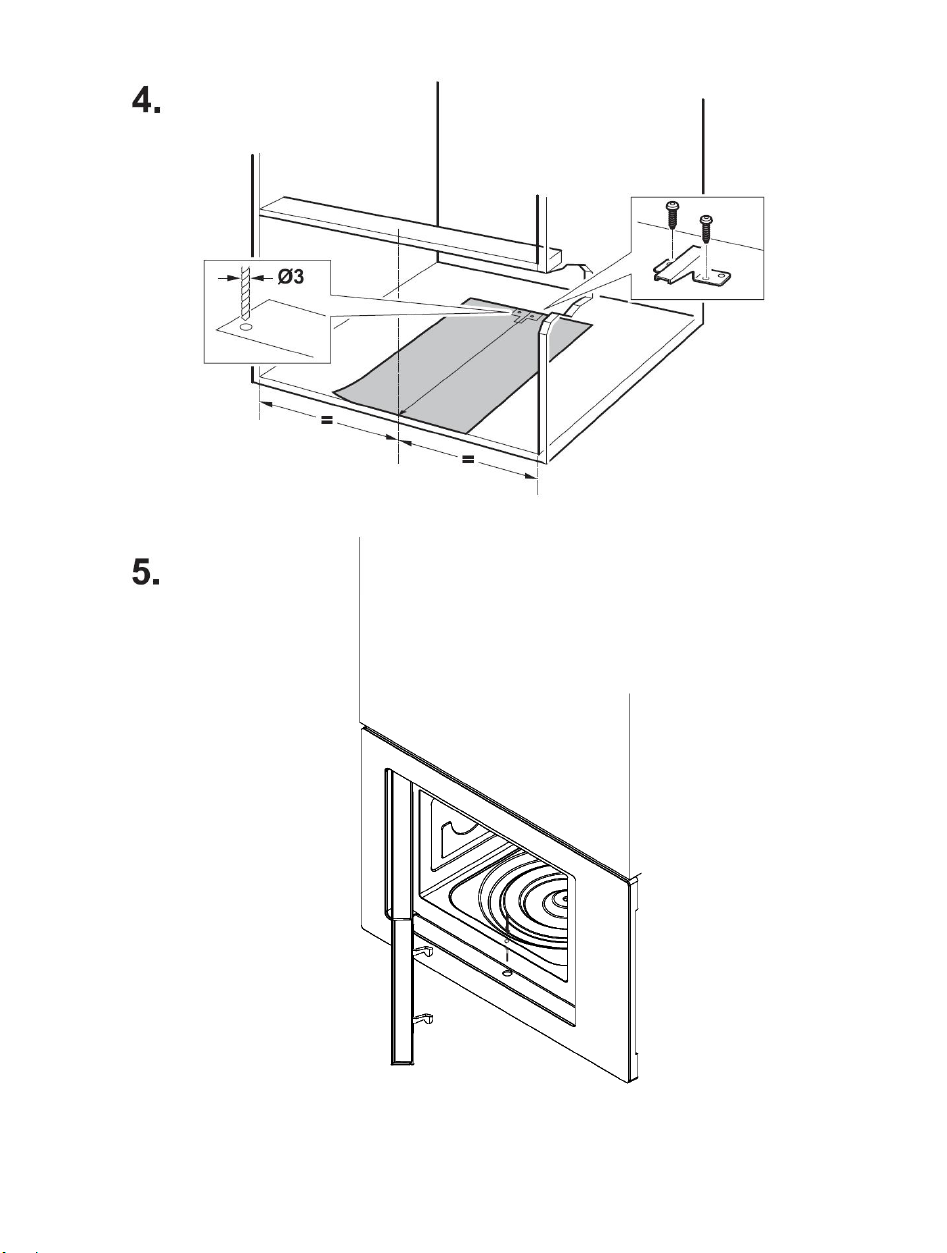

To install this appliance, please proceed as shown in diagrams 1 to 5
below:
-The plug fitted to this appliance must be connected to an
adjacent 13amp plug socket.
-If the socket is located behind the appliance and no longer
accessible to the consumer, you must ensure that the
consumer can turn off the appliance via an accessible
switched spur socket.
-You must ensure that the cable is not trapped beneath the
appliance.
-If the power supply cord is damaged, it must be replaced by
the manufacturer, it’s service agent or similarly qualified
persons in order to avoid a hazard.

7

8

9
Section 2. Safety Advice
-Please read this booklet thoroughly before installing and
switching on the appliance. The manufacturer accepts no
responsibility for incorrect installation and usage.
-This appliance is guaranteed for Domestic Use Only.
-The appliance shall not be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction on how
to use the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
-This appliance must only be used for cooking/heating foods
and liquids. Do not use it for any other purpose.
-If using an adaptor, this must be used in accordance with the
manufacturers instructions and ensure that the electrical
circuit is not overloaded as this could cause overheating.
-Do not twist or bend the cables, and keep them away from hot
surfaces.
-If the power supply cord is damaged, it must be replaced by
the manufacturer, it’s service agent or similarly qualified
persons in order to avoid a hazard.
-Do not plug ın or unplug this appliance with wet hands.
-Following installation make sure that the power cable is not
trapped underneath the appliance.
-Remove all twist-ties from food bags before placing them in
the oven.
-Do not heat oil or fat inside the oven.
-Do not over cook food inside the oven.
-Do not heat sealed containers or try to cook eggs (inside their
shells) in this oven – they may explode.
-Potatoes, sausages and items such as chestnuts must be
peeled or pierced before placing them in the oven.
-After liquids have been heated in the oven wait a few moments
before removing the container – handle with care as the
container may be hot – use protective gloves.

10
-Liquids and foods should be stirred and the temperature
checked prior to consumption.
-If you cover a container with cling film, remove it very carefully
after the cooking process has finished – steam will escape and
may burn your hands.
-Always let the turntable cool down before washing it.
-Never cook foods directly on the turntable.
-Make sure that plates/dishes do not touch the walls when the
turntable rotates.
-Keep the interior surfaces clean. Failure to do this could lead to
the appliance malfunctioning.
Important Utensil Information:
-Do not use metal pans or dishes with metal handles.
-Do not use anything with a metal trim.
-Do not use paper covered wire twist-ties on plastic bags.
-Do not use melamine dishes as they contain a material which
will absorb microwave energy. This may cause the dishes to
crack or burn, and will slow down the cooking speed.
-Use only cookware that is approved to be used in a microwave
oven.
-Do not cook using a container with a restricted opening, such
as bottles, as they may explode.
-Do not heat baby bottles with the teat left on and remove the
teat if replacing the bottle back into the oven.
-Only use thermometers that are approved for microwave
ovens.
-Do not use the microwave oven for heating utensils.

11
Section 3. Operating the Appliance
3.1. Setting The Clock
•Press the Clock/Kitchen Timer button once to select the clock
function. The hours will flash in the LED panel.
•Turn the Rotary Selector knob to select the correct hour
•Press the Clock/Kitchen Timer button, the minutes will flash in
the LED panel
•Turn the Rotary Selector knob to select the correct minutes
•Press the Clock/Kitchen Timer button to confirm the new time
setting.
•N.B. The clock will not work correctly unless set when the
appliance is first connected to the power.
•Press Stop/Clear at any point to return to the previous status.
3.2. Microwave Cooking
Please refer to Section 2. Safety Advice for important utensil information.
•Press Microwave, the LED will display P100
•Press the same button or turn the rotary selector knob to
select either P100, P80, P50, P30 or P10.
•Press the Start button and then use the rotary selector knob to
select the required cooking time
•Press the Start button again to begin cooking.
•Press Stop/Clear at any time to end or cancel the cooking time
Please note the following power levels:
•P100 =
100%
•P80 = 80%
•P50 = 50%
•P30 = 30%
•P10 = 10%

12
3.3. Grill Or ‘Combi’ Cooking
3.4. Convection Cooking (With Pre-heat Function)
6. Now press ‘START’ to commence cooking.
N.B. You cannot input a Cooking Time until after the pre-heat
temperature has been achieved.
Open the door to input the cooking time.

13
3.5. Convection Cooking (Without Pre-heat Function)
3.6. Multi-stage Cooking
3.7. Quick Start

14

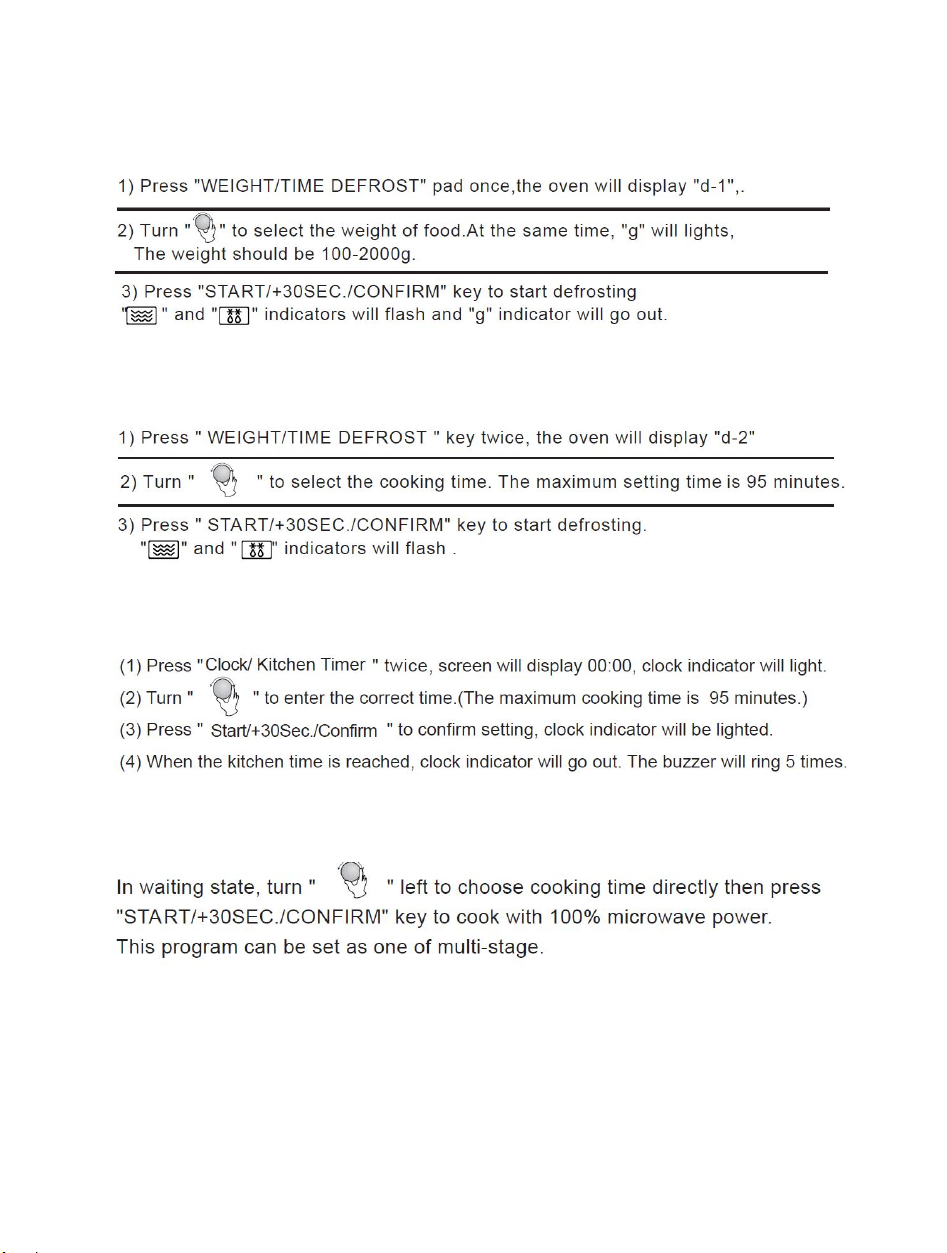

3.8. Defrost by Weight
3.9. Defrost by Time
3.10. Kitchen Timer
3.11. ‘Quick’ Microwave Cooking

15

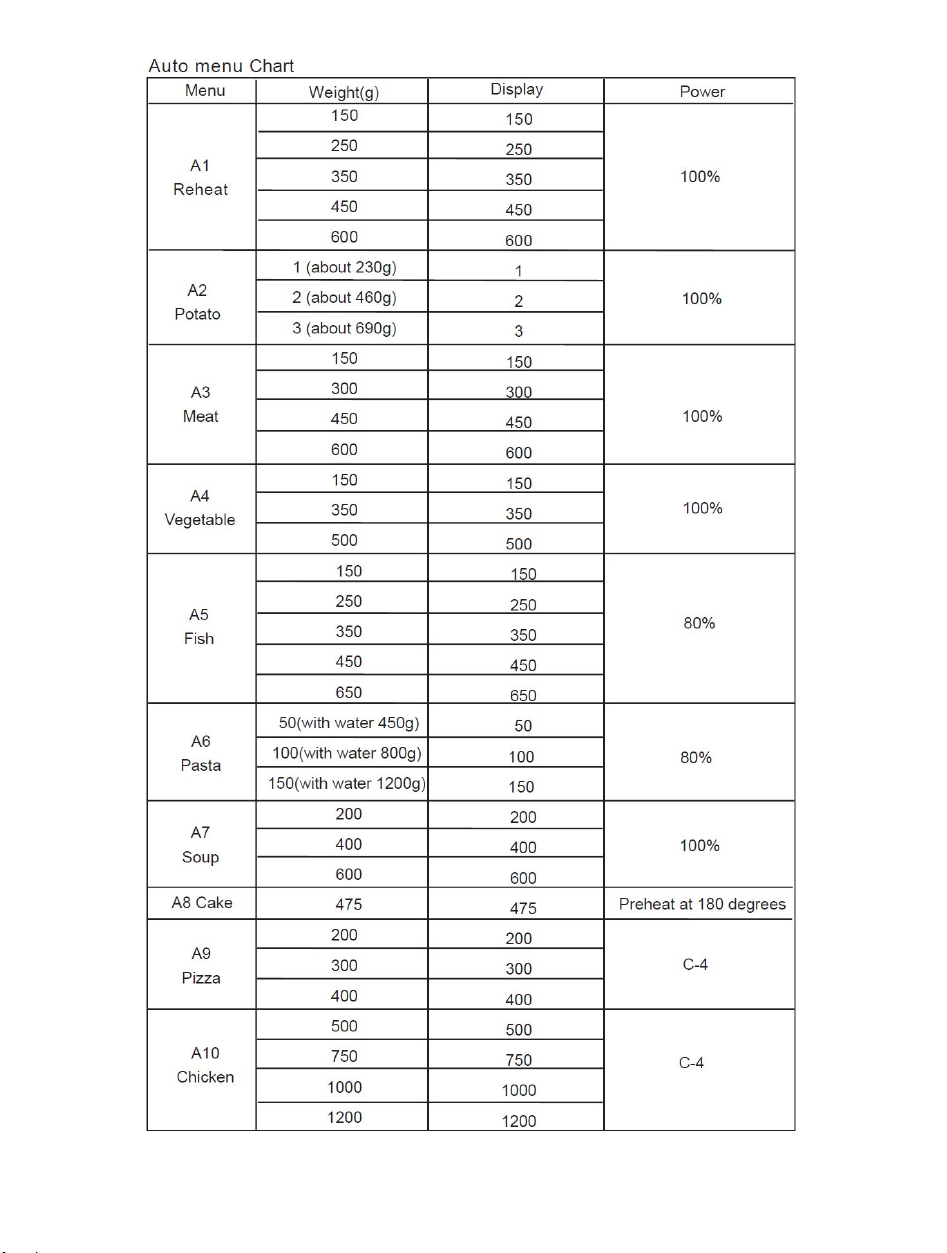

3.12. Auto Menu
N.B. The Auto Menu Chart is shown on Page 19
3.13. Child Lock Function
3.14. Unsuitable Materials/Utensils

16
3.15. Suitable Materials/Utensils
3.16. Cooking Tips
a) Place thicker areas of food towards the outer area of the
turntable and thinner food towards the centre
b) Always follow the cooking instructions on the food packaging
c) Turn or stir food during the cooking to ensure even cooking
d) Allow the cooked food to ‘stand’ for a while before
consuming
e) If you use a ‘browning’ dish, stand it on a plate in the oven
f) Do not let plastic ‘cling film’ to come in contact with the food
during the cooking process

17
3.17. Normal Operating Points to Note
You will hear the sound of the motor during operation – this is quite
normal.
There will be an audible ‘buzzer/beep’ at the end of the cooking
period.
You may hear the turntable rotating inside the oven, this is normal.
You may see water on the inside of the door – this is quite normal
due to condensation forming from some foods and/or liquids
during the cooking process.
The microwave oven light may appear dim at times – this may
happen during the cooking process and is quite normal, particularly
during low power cooking.

18

19
Section 4. Maintenance
Before any maintenance or cleaning work is carried out,
DISCONNECT the appliance from the ELECTRICITY supply and
ensure that the appliance is completely cool.
4.1. Internal Cleaning
Clean the interior and accessories with warm soapy water. Rinse and
dry thoroughly. Do not use detergents, abrasive powders, highly
perfumed cleaning products, wax polishes or cleaning products
containing bleach or alcohol.
4.2. External Cleaning
Wash the fascia and door with warm soapy water. Do NOT use
abrasive products.
4.3. What to do if something goes wrong
There is no power to the appliance:
-Check there is not a power cut
-Check there is power to the electric socket/
appliance
-Check the fuse in the plug (Must be 13 amp)
The oven will not operate:
-Is the Timer control set to the required time?
-Has the door been closed correctly?

Here For You
Here For You
After-sales assistance
If you continue to experience problems with your Integrated MIcrowave,please call the Montpellier customer
service helpline on: 01759 487839.
Please have all your product details available, including the model number, serial number, date of purchase,
and your retailer’s details before registering a fault.
The service call cannot progress without this information.
Your 2 year Manufacturer’s guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the
rst 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such
as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date
of claim.
What is not covered under the Guarantee
•Any appliance not correctly installed and operated in accordance with the manufacturer’s instructions.
•Any appliance that is used for anything other than domestic purposes.
• Any defect caused by accident, misuse, unauthorised modification or inexpert repair.
•Cost of Call-out where a fault cannot be found with the appliance.
• Cost of Call-out for work covering routine maintenance, such as, but not exclusively, cleaning of filters or
defrosting.
•Cost of Call-out for work required to correct the alignment of doors following door reversal procedures
carried out by you.
•Use of the appliance by anyone other than the Householder.
•Use in any commercial environment.
•Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items which require
routine replacement.
•Repair costs incurred that have not been authorised by Montpellier and/or carried out by a non-approved
Montpellier engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK & ROI.
To register your appliance simply complete the card in your appliance pack and return it with a stamp axed or
alternatively you can register online at www.montpellier-appliances.com/support
SERVICE HELP-LINE
Should your appliance develop a fault, please call the Montpellier customer service helpline on: 01759 487839.
Please remember to have all your product details available, including the model number, serial number, date of
purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.
