MOOSE DUAL Series User manual

USER’S MANUAL
MAN205_0
www.moosesound.com
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
Active Full-Range speakers
DUAL SERIES
C10A, C12A & C15A

Dear customer,
Thank for choosing MOOSE branded products!
MOOSE is a brand of professional audio & lighting products, proudly developed and manufactured in
PORTUGAL.
In order to operate this product in a safe and reliable manner, please follow the instructions in this booklet and
before operating the equipment read the instructions carefully and please note the technical information.
Our products undergo very rigorous testing under strict conditions and they are monitored continuosly during the
manufacturing process. In order to guarantee the product function and safety, the original parts of the
manufacturer's design must be used. If any parts other than those of the manufacturer are used, or the product is
modified in any way, the user forfeits all warranty rights to claim.
MAN205_0
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
To prevent electrical shock do not remove
the cover. No user serviceable parts inside.
Refer service to qualified personnel only.
Introduction
www.moosesound.com 2
Caution
The lightning flash with arrowhead symbol within an equilateral triangle is intended
to alert the user to the presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to constitute a risk of
electrical shock.
The exclamation mark within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instructions.
The amplifier is marked with this instruction so please
proceed accordingly in order to avoid any hazard.
1. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match
the values specified on the equipment.
2. If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet
with a protective ground. Never deactivate the protective ground of a power cord.
3. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before
extended periods of disuse.
4. Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an
authorised service company.
5. Do not open or modify this equipment.
6. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping
hazards.
7. Do not turn on the Amplifier ON before checking that all volumes to zero .
IMPORTANT: Never remove the cover, because otherwise there may be a risk of electric shock. There are no user
serviceable parts inside. Have repairs carried out only by qualified service personnel.
Active full-range speakers
C10A, C12A & C15A

MAN _0205
www.moosesound.com 3
Manufacturers Declaration
PROPER DISPOSAL OF THIS PRODUCT
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not
be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled
waste disposal. Please dispose of this product separately from other waste and have it recycled to promote
sustainable economic activity.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal .
ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION
Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical
devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.
EC DECLARATION OF CONFORMITY
The equipment marketed by MOOSE complies (where applicable) with the essential requirements and other
relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional
information can be requested to [e-mail].
PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL
PROFACTOR S.A., all rights reserved. The technical data and the functional product characteristics can be subject
to modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integrlity
of this user's manual is prohibited.
Active full-range speakers
C10A, C12A & C15A

MAN _0205
www.moosesound.com 4

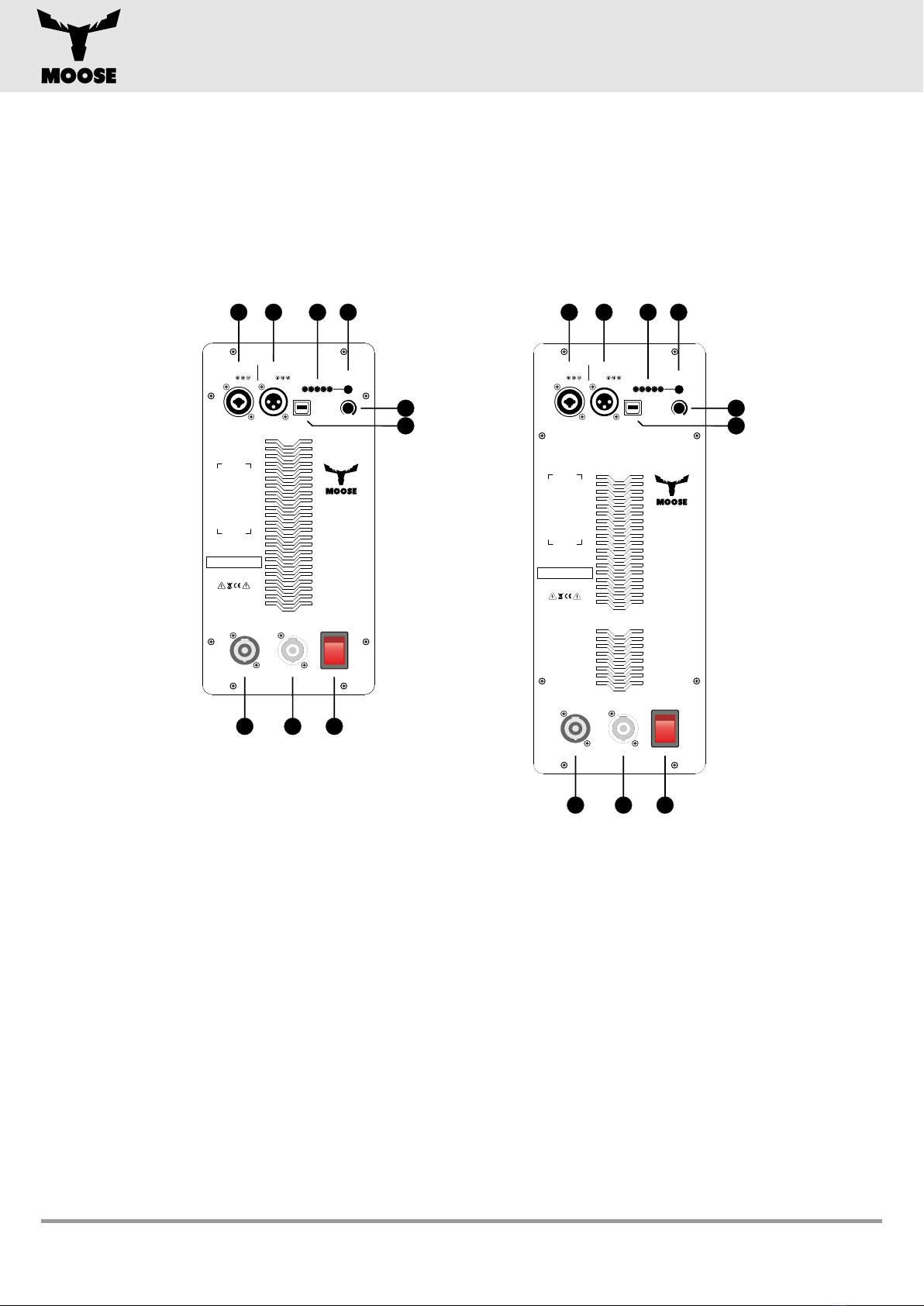

Connections and Controls
Please refer to the following scheme and instructions:
C10A
C12A
C15A
Active full-range speakers
C10A, C12A & C15A
1. INPUT: Balanced signal input (Combi) for connection of an external audio source (e.g., mixer).
2. LINK: Balanced signal output (XLR 3p) for connection of another LOUD active system.
3. USB: USB 2.0 port (type B) to connect the cable to establish communication between DSP and computer.
4. PRESET LED: Preset LED indicator, from A to E, there are 5 storable and selectable presets.
5. PREST: Preset push button to select one of the 5 storable presets on the DSP, from A to E.
6. VOLUME: Master LEVEL system adjustment.
7. MAINS IN: NEUTRIK powerCON socket, 85~264Vac, 50~60Hz Power-in (blue).
8. MAINS OUT: NEUTRIK powerCON socket, 85~264Vac, 50~60Hz Power-out (white).
9. POWER ON: Illuminated on/off switch. Before switching the system on/off, always adjust the volume to zero.
10" two-way speaker
C10A
CLASS D amplifier
INPUT INPUT THROUGH THROUGH
USB USB
AA BB CC DD EE
EQ EQ
PRE-SET PRE-SET
-80dB -80dB
0dB 0dB
AC INPUT
AC INPUT
AC OUTPUT
AC OUTPUT
POWER ON
POWER ON
MAINS
MAINS
85-264Vac
85-264Vac
50HZ
50HZ
CAUTION
RISK OF EL ECTRI C SHOCK. DO NOT OP EN.
To pre vent e lectri cal sh ock do not re move
the co ver. No user s ervice able p arts i nside .
Refe r se rvice to qual ified per sonne l on ly.
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
www.moosesound.com
BALANCED BALANCED
PIN PIN
SIGNAL SIGNAL SIGNAL SIGNAL
UNBALANCED UNBALANCED
PIN PIN
11 22 33 11 22 33
CAUTION
RISK OF EL ECTRI C SHOCK. DO NOT OP EN.
To pre vent e lectri cal sh ock do not re move To pre vent e lectri cal sh ock do not re move
the co ver. No user s ervice able p arts i nside . the co ver. No user s ervice able p arts i nside .
Refe r se rvice to qual ified per sonne l on ly. Refe r se rvice to qual ified per sonne l on ly.
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
www.moosesound.com
15" two-way speaker
C15A
Class D amplifier
1 1
7
7
8
8
9
9
2 24 45 5
6 6
3 3

MAN _0205
www.moosesound.com 5
Dimensions
Horn configuration
C10A
C12A
C15A
Unit: mm (milimeters)
FRONT OF HOUSE
90°x60° 60°x90°
STAGE MONITOR
For Front of House configuration the narrow opening of the HF horn has to point downwards.
For stage monitor configuration the HF horn has to be turned by 90 degrees, narrow opening pointing upwards.
Remove the front grille and loosen the 4 screws of the HF horn. Turn the HF horn by 90 degrees and tighten the 4 screws. Then
remount the front grille.
350
560
340
350
600
340
430
680
415
Active full-range speakers
C10A, C12A & C15A

Technical specifications
MODEL C10A C12A C15A
TYPE 2-way full range speaker 2-way full range speaker 2-way full range speaker
ENCLOSURE DESIGN Bass reflex, ACTIVE Bass reflex, ACTIVE Bass reflex, ACTIVE
POWER OUTPUT (RMS) 300W 400W 500W
FREQUENCY RANGE 75Hz - 18kHz 65Hz - 18kHz 50Hz - 18kHz
TRANSDUCER TYPE*
* European transducers
10" MF + 1" HF 12" MF + 1" HF 15" MF + 1" HF
DISPERSION Rotatable, 90°x60° or 60°x90° (DUAL)
CROSSOVER FREQUENCY
MAX. S.P.L. (PEAK) 122dB @ 1m 126dB @ 1m
Adjustable by fully programmable DSP
128dB @ 1m
CONSTRUCTION 15mm birch plywood 15mm birch plywood 15mm birch plywood
GRILLE Custom perforated metal grille, powder coated finishing
INSTALLATION, RIGGING, FLYING 4 rubber feet, Ø35mm pole socket, 5x M8 flying points
DIMENSIONS (WxHxD) 350x560x340mm 350x600x340mm 440x690x420mm
WEIGHT 14Kg 18Kg 22Kg
MAN _0205
www.moosesound.com 6
Active full-range speakers
C10A, C12A & C15A
AMPLIFIER
POWER (peak)
POWER (continuous)
Class D - SMPS Class D - SMPS Class D - SMPS
1000W
350W
1000W
350W
1500W
750W
INDICATORS
OUTPUT/LINK
INPUT
Power, signal, preset in use
XLR 3p
XLR/Jack Combo connector
CONTROLS Master level, ON/OFF switch
PROTECTIONS
OPERATING VOLTAGE
Over current, short circuit, thermal, DC, HF
SMPS, 85-264Vac
AC MAINS CONNECTOR NEUTRIK powerCON, Power-in / Power-out

www.moosesound.com
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
PROFACTOR S.A
Rua do Padrão 52
4440-617 Valongo
PORTUGAL
Telf.: [phone]
Fax: [phone]
[e-mail]
MOOSE is a brand or PROFACTOR S.A.
