Mopar 2011-UP User manual
Audio System Upgrade Package
2011-UP Jeep Wrangler 2-Door
10” Subwoofer Kit
Installation Instructions
77KCK051 6-3-2011 Page 1 of 6
© 2011, Chrysler, LLC. Mopar is a registered trademark of Chrysler, LLC. All rights reserved.
Fig. 1
CONTENTS
TOOLS REQUIRED:
Ratchet
13mm Socket
10mm Socket
Phillips Screwdriver
Pliers
Panel Removal Tool
Amp Installation
1. Gently pull out on the panel just below the steering column, rotate down and remove. Fig. 1
2. Remove the two 7mm screws securing the plastic panel below the steering column indicated by the
arrow in Fig. 2, and the one 7mm screw near the kick panel. Also, remove the two 10mm bolts
securing the metal plate and remove plate.
1EA. SUBWOOFER ASSEMBLY P/N RUWRANGLER
1EA. 200 WATT AMP/BRACKET ASSEMBLY P/N RM11JKBTL - Bracket
P/N RE08BTL200R - Amp
1EA. POWER HARNESS P/N RHWRANGLERPWR
1EA. OVERLAY HARNESS P/N RHWRANGLER
2EA. T-TAP P/N RFTTAPB
1EA. 10MM BOLT P/N RFM6
1EA. FUSE 30 AMP P/N RFUSE30
6EA. WIRE TIES P/N RFZIP6
1EA. INSTRUCTIONS P/N RBI77KCK051
Fig. 2
Audio System Upgrade Package
2011-UP Jeep Wrangler 2-Door
10” Subwoofer Kit
Installation Instructions
77KCK051 6-3-2011 Page 2 of 6
© 2011, Chrysler, LLC. Mopar is a registered trademark of Chrysler, LLC. All rights reserved.
Fig. 3 Fig. 4
Fig. 5

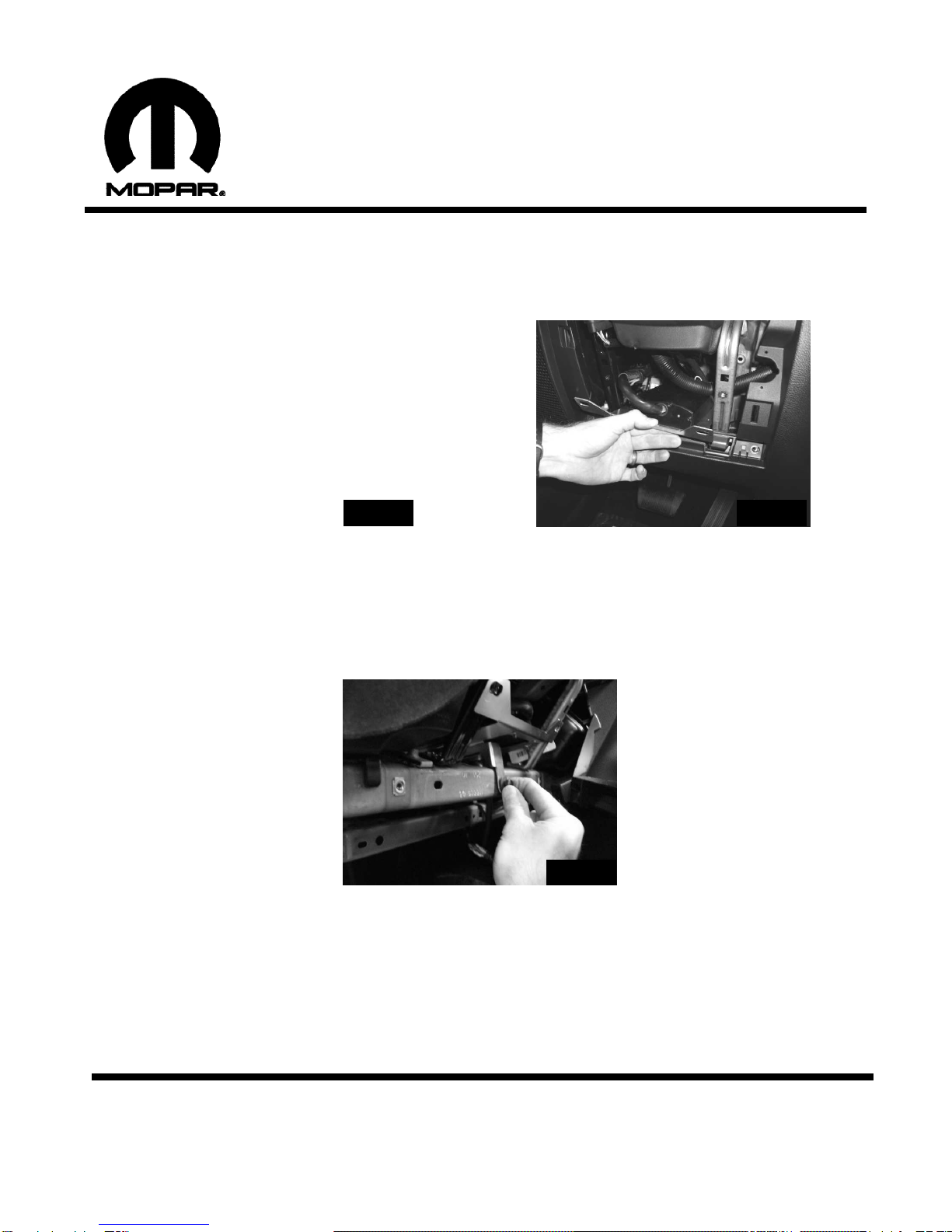

3. Remove the dash end panel by prying loose with a panel removal tool. Fig. 3
4. Install the amp into position by lining up the holes in the amp bracket with the two holes for the
bolts that retained the metal plate. Fig. 4
5. Install the supplied 10mm bolt into the bottom hole and leave loose. Fig. 5
6. Reinstall the metal plate over the top of the amp bracket and replace the factory bolts and tighten.
7. Tighten the bottom bolt.
Audio System Upgrade Package
2011-UP Jeep Wrangler 2-Door
10” Subwoofer Kit
Installation Instructions
77KCK051 6-3-2011 Page 3 of 6
© 2011, Chrysler, LLC. Mopar is a registered trademark of Chrysler, LLC. All rights reserved.
Fig. 6 Fig. 7
Fig. 8 Fig. 9
Wire Harness Installation
8. Find the rubber grommet in the top driver’s side of the fire wall underneath the hood and remove
it. Fig. 6
9. Using a razor knife make a small cut in the center of the grommet. Pass the end of the wire with
the small terminal on the end through the grommet and pull the grommet up to the point where the
plastic sheathing starts. Fig. 7
10. Run the wire through the grommet hole in the fire wall and reinstall the grommet.
11. Run the wire along the top of the fire wall toward the battery and secure with wire ties.
12. Remove the top of the fuse cover and using a 13mm socket and ratchet loosen and remove the nut
on the positive battery accessory lug. Fig. 8
13. Connect the ring terminal of the power harness to the lug and retighten the nut.
14. Using a panel removal tool remove the four plastic retainers (three in front door opening and one in
rear door opening) securing the driver’s side sill plate and B pillar post cover. Fig. 9
15. Gently pull the kick panel/sill plate toward the brake pedal to release the fasteners securing it.
Audio System Upgrade Package
2011-UP Jeep Wrangler 2-Door
10” Subwoofer Kit
Installation Instructions
77KCK051 6-3-2011 Page 4 of 6
© 2011, Chrysler, LLC. Mopar is a registered trademark of Chrysler, LLC. All rights reserved.
Fig. 10
16. Connect the ten pin connector of the harness to the amplifier. Slide the red locking tab over to
prevent the connector from accidentally coming disconnected.
17. Route the harness along the bottom of the front and rear door jam and toward the back seat.
NOTE: It’s important to follow the correct subwoofer input wire connection for your
specific application to ensure proper function and optimum performance of the subwoofer
system.
Subwoofer Input Connection for Base Audio
18. Locate the left front lower dash speaker wires on the back of the plastic speaker housing. The wire
colors are gray with a yellow stripe and gray with a purple stripe. Fig. 9
19. Install one of the self stripping t-tap connectors on to each wire. Lay the wire in the open channel,
fold the connector body over and squeeze with a pair of pliers until connector snaps shut. Fig. 10
Tip: Once these connections have been made you might want to test the wire with an inexpensive
test-tone generator to verify you have the right wires.
20. Connect the subwoofer harness input wires to the t-tap connectors. The green wire (positive) of the
harness connects to the t-tap connector on the gray wire with the yellow stripe in the vehicle. The
brown wire (negative) of the harness connects to the t-tap connector on the gray wire with the
purple stripe in the vehicle.
Subwoofer Input Connection for Base Audio with optional 77KCK053 (4.1 Channel Amp) Installed
21. Connect the green wire of the of the subwoofer harness to the green wire of the 4.1 amplifier
harness. Connect the brown wire of the subwoofer harness to the brown wire of the 4.1 amplifier
harness.
Subwoofer Input Connection for Premium Audio vehicles with optional 77KCK056 (8 Channel Amp)
Installed
22. Locate the 16 pin connector on the amplifier behind the left front speaker housing. Find the
green/brown stripe wire and the gray/brown strip wire in this connector and install one of the self
stripping t-tap connectors on to each wire. Lay the wire in the open channel, fold the connector
body over and squeeze with a pair of pliers until connector snaps shut. Fig. 10
23. Connect the green wire of the subwoofer harness to the gray/brown strip wire. Connect the brown
wire of the subwoofer harness to the green/brown stripe wire.
Audio System Upgrade Package
2011-UP Jeep Wrangler 2-Door
10” Subwoofer Kit
Installation Instructions
77KCK051 6-3-2011 Page 5 of 6
© 2011, Chrysler, LLC. Mopar is a registered trademark of Chrysler, LLC. All rights reserved.
Fig. 11
24. Install the supplied two pin connector by inserting the terminal on the end of the power wire into
the back of the connector until it clicks and locks. Fig. 11
25. Depress the blue terminal retainer down in the center of the connector.
26. Using a 10mm socket and ratchet remove the bolt securing the support brace and connect the
ground wire as shown in Fig. 12.
27. Run the wire harness along the floor under the rear seats to approximately the middle of the
vehicle and pull the end of the harness under the seat to the cargo area. Fig. 13
28. Set the subwoofer in place and connect the wire harness.
29. Align the mounting bracket with the anchor points at the bottom of the seat and press the enclosure
down until it locks into place. Fig. 13
30. To remove the subwoofer press the tabs on each side of the mounting bracket while lifting up.
Disconnect wiring. Fig. 14
Fig. 13 Fig. 14
Fig. 12
Audio System Upgrade Package
2011-UP Jeep Wrangler 2-Door
10” Subwoofer Kit
Installation Instructions
77KCK051 6-3-2011 Page 6 of 6
© 2011, Chrysler, LLC. Mopar is a registered trademark of Chrysler, LLC. All rights reserved.
31. Reinstall all previously removed parts in reverse order.
32. Install supplied fuse in the fuse holder under hood.
