PETROL BRUSHCUTTER
BC 430 & BC 430E
Owner’s Manual
Important
Please read this Owner’s Manual and the Express Warranty before using this product.
The Warranty does not cover damage due to misuse or failure to follow the operating
and installation instructions.
Keep the instructions in a safe place for future use.
Part No: 571722.B.1

2
Do not operate this machine before it has been
assembled correctly and you have read and
understood these instructions.
Keep these instruction in a safe place of future use
CONTENTS
SYMBOLS ON THE MACHINE 2
SYMBOLS IN THIS OWNERS MANUAL 2
PROPER USE 2
SAFETY PRECAUTIONS 3
BC430 PARTS LOCATION 4
NOTES OF TRANSPORTATION 5
ASSEMBLY 5
NOTES OF TRANSPORTATION 6
ASSEMBLY 6
FUEL 7
OPERATING 7
CUTTING WITH A NYLON HEAD 8
CUTTING WITH A BLADE 10
MAINTAINENCE 10
SPECIFICATIONS 13
RECOMMENDED CUTTER APPLICATIONS 14

3
SYMBOLS ON THE MACHINE
Read Owners Manual
Always use safety guard
Choke closed
Choke open
Danger of Ricochet
Keep all bystanders (especially children
and pets) at least 1.5m away from the
work area.
This unit is not intended for use with a
toothed saw type blade
Continued movement of saw blade after
cutting through log
Wear safety gloves
Wear safety boots
Wear eye, ear, head protection
A hazard from fire/flammable materials
xxx dB
Guaranteed sound power level
To reduce the rist of injury or damage,
avoid contact with any hot surface
Do not smoke when mixing fuel or filling
fuel tank
All relevant directives, which require the
CE-marking and which are applicable for
the product, are fulfilled
max RPM Decal
Rotational direction and maximum speed
of the shaft for the cutting attachment
SYMBOLS IN THIS OWNERS MANUAL
Threatened hazard or hazardous situation.
Not observing this instruction can lead to injuries or cause
damage to property.
Important information on proper handling.
Not observing this instruction can lead to faults
in the machine.
User information. This information helps you to use all the
functions correctly.
NOTE:
This owners manual covers multiple models, some of the photos
may not be correct for your model.

4
PROPER USE
For safety reasons, the Brushcutters are not to be used by
children, young people under 16 years of age, or any other
persons who are not acquainted with these directions for use.
Specific safety information Please read this safety
information and the directions for use carefully and be
sure to follow the instructions to the letter.
1. This machine should never be used
for anything other than the purpose for
which it has been designed.
2. Do not use this brush cutter when tired
or drowsy or under the influence of
medication or alcohol, or at any time
when you may not be able to operate it
safely.
3. Avoid running the engine indoors. The
exhaust gases contain harmful carbon
monoxide.
4. Never use the machine in the circumstances described below:
- When the ground is slippery or when other conditions
exist which might make your footing unsteady.
- At night or in times of fog where it would not be possible
to have a clear view of the cutting area.
- During rain or electrical storms, during gale force winds
or at any time when weather conditions might make use
of the product unsafe.
5. Before using this product for the first time, get an experienced
operator to show you how to use the machine.
6. When you are new to the machine, limit your work sessions
to 30-40 minutes with a 10 minute break between, and a total
working time of 2 hours per day. Accidents can be caused by
tiredness and physical exhaustion.
7. Be sure to keep this manual handy so that you may refer to it
later if any questions arise.
8. Always be sure to include this manual when selling, or lending,
this machine.
9. Never allow children or anyone to use this machine if they
cannot fully understand the directions given in this manual.
SAFETY PRECAUTIONS
1. Before beginning work, check the worksite carefully to see
whether there are any obstacles to be removed or avoided and
whether there are any potholes or obstructions which might
cause you to lose your footing.
2. The area within a radius of 15m of the brush cutter should be
considered a hazardous area into which no one should enter
while the brush cutter is in use. If necessary, yellow warning
rope or warning signs should be placed around the work area.
When work is to be performed simultaneously by two or more
persons, constantly be aware of the location of other operators
to maintain a safe separation distance.
3. Make sure that there are no loose screws or bolts, fuel leaks
or any other problems, which might result in unsafe operation.
Be especially careful to check the blades and their fastening
arrangements.
4. Never use blades that are bent, warped, cracked, broken or
damaged in any way.
5. Always keep metal blades sharp
by filing the cutting edges,
particularly at the outer ends.
There should be a radius at the
inside end of the cutting edge.
6. Check the blade fastening bolt and be sure the blade turns
smoothly without abnormal noise.
Proper safety precautions must be observed. Like all power
equipment this unit must be handled carefully. DO NOT EXPOSE
YOURSELF OR OTHERS TO DANGER Follow these general rules.
Do not permit others to use this machine unless they are thoroughly
responsible and have read, and understand the machine manual
and are trained in its operation. This machine is not to be operated
by children.
• Always use proper handles and shoulder strap when cutting
• Do not mix fuel in an enclosed room or near open flames.
Ensure adequate ventilation
• Never remove the fuel tank cap while the engine is running
• Never start or run the engine inside a closed room or building
Fumes from the exhaust contain dangerous carbon monoxide
• Never attempt to make engine adjustments while the unit is
running and strapped to the operator. Always make engine
adjustments with the unit resting on a flat, clear surface
• Do not lift the machine other than by the handle of the shaft
• Do not use the unit if it is damaged or poorly adjusted. Never
remove the machine’s guard. Serious injury to the operator or
bystanders could result as well as damage to the machine
• Keep children away. Onlookers should be kept at a safe
distance from the work area, at least 15 METER( 50 FEET)
• Do not overreach. Keep proper footing and balance at all times.
Do not run the unit while standing on a ladder or on any other
unstable footing location
• Do not use the unit when you are tired, ill or under the influence
of medication, drugs or alcohol
• Use nylon cutting head which is free of damage. If a stone or
any other obstacle is hit, stop the engine and check the nylon
cutting head. A broken or unbalanced nylon cutting head must
never be used.
FOLLOW INSTRUCTION FOR CHANGING ACCESSORIES
• Never touch the nylon cutting head when ever the engine
is running. If it is necessary to adjust the protector or nylon
cutting head, be sure to stop the engine and confirm that the
nylon cutting head has stopped running
• The engine should be turned off when the machine is moved
between work areas
• Be careful not to hit the nylon cutting head against stones, or
the ground. Unreasonable rough operation will shorten the life
of the machine as well as create an unsafe environment for
yourself and those around you
• Pay special attention to operation in the rain or just after the
rain as the ground may be slippery
• When the machine is placed in storage for a long time, drain
fuel from the fuel tank and carburetor, clean the parts, move
the machine to a safe place and confirm that the engine is
cooled down
• It is believed that a condition called Raynaud’s phenomenon,
which affects the fingers of certain individuals may be brought
about by exposure to vibration and cold. Exposure to vibration
and cold may cause tingling and burning sensations followed
by loss of color and numbness in the fingers. The following
precautions are strongly recommended because the minimum
exposure which might trigger the ailment is unknown.
Keep your body warm, especially the head, neck, feet,
ankles, hands and wrists. Maintain good blood circulation by
performing vigorous arm exercises during frequent work breaks
and also by not smoking.
Limit the hours of operation. Try to fill each day with jobs where
operating the brush cutter or other hand-held power equipment
is not required.

5
If you experience discomfort, redness and swelling of the
fingers followed by whitening and loss of feeling, consult your
physician before further exposing yourself to cold and vibration
• Always wear ear protection, as being exposed to loud noise
for long time can result in diminished hearing or even loss
of hearing. Total face and head protection must be worn to
prevent bodily injury from either slipping or falling into
shrubbery, branches,or bushes.
• Wear no-slip heavy duty work gloves to improve your grip on
the brush cutter handle. Gloves also reduce the transmission of
machine vibration to your hands
Before Starting the engine
1. Take a careful look around to make sure that there are no
obstacles within a radius of 15m around the brush cutter.
2. Place the body of the brush cutter onto the ground in a flat
clear area and hold it firmly in place to ensure that the blades
will not contact anything when the engine starts.
3. Place the trigger grip in the START position when starting the
engine. Do not start the engine at full speed. (See STARTING
THE ENGINE, page 8.)
4. After starting the engine, if the blades continue to rotate when
the trigger grip has been released to the idle position, turn off
the engine and check that the trigger grip cable is functioning
correctly.
KICKBACK SAFETY PRECAUTIONS
A dangerous reaction may occur if the spinning blade
contacts a solid object. It is called kick back. As a
result, the operator can lose control of the unit, resulting
in a serious accident.
To avoid kick back, observe the following safety precautions:
1. Before beginning work, check your working area and remove
any obstacles.
2. Grip your brushcutter only by the handles.
3. When using your brushcutter, always look closely at where you
are cutting. If you need to look away, set the engine to idling
speed.
4. When the engine is running, always keep the cutter head well
away from your feet, and never lift it above waist level.
OPERATING SAFETY PRECAUTIONS
1. Grip the brush cutter firmly with both hands, using the correct\
hand positions. When not cutting, set the engine speed to
idling.
2. Always be sure to maintain a safe footing while working.
3. Run the engine no faster than the speed required to cut cleanly.
4. If grass gets caught in the blade during operation, or if you
need to check the unit or refuel the tank, always be sure to turn
off the engine.
5. If the blade touches a hard object like a stone, immediately
stop the engine and check the blade. If necessary, replace the
blade by new one.
6. If someone calls out while you are working, always be
sure to turn off the engine before turning around.
7. Never touch the spark plug or plug cord while the
engine is running. Doing so may result in receiving an
electrical shock.
8. Never touch the muffler, spark plug, or other metallic
parts of the engine while the engine is running or
immediately after shutting down the engine as serious
burns may result.
9. Stop the engine when moving from one work location
to another.
SAFETY MAINTENANCE
1. Perform the regular maintenance procedures described in
this manual. Repair and maintenance procedures other than
those detailed in this manual should be carried out only by an
authorised service dealer.
2. Under no circumstances should you take apart the brushcutter
or alter it in any way. Doing so can result in damage to the
machine, and may negate the manufacturer warranty.
3. Always be sure to turn off the engine before performing any
maintenance or checking procedures.
4. To prevent injury when sharpening, removing, or reattaching the
blade, be sure to wear thick, sturdy gloves and use only proper
tools and equipment.
5. When replacing the blade or any other parts, always be sure to
use only genuine MORRISON spares.
NOTES OF TRANSPORTATION
1. If a metal cutting blade is fitted, wrap it with a cloth to cover the
sharp cutting edges.
2. When transporting by car, fix the unit firmly using a rope. It is
dangerous to transport the brushcutter by cycle or motorcycle.
3. When travelling distances or over rough roads, fuel may spill
from the tank. To avoid this, empty the tank before the journey.
WORKING GEAR AND CLOTHING
1. When using your brush cutter, you
should wear long, close fitting trousers
and protective equipment as follows.
(1) Helmet
(2) Protection goggles or face protector
(3) Thick work gloves
(4) Non-slip-sole work boots
(5) Ear protectors
2. You should carry with you the following
things as appropriate.
A. Reserve fuel
B. A spare blade
C. Something to indicate your working area. (Yellow rope,
warning signs)
D. Hatchet or saw (for removal of obstacles)
3. Never use your brush cutter when barefoot or in sandals or
wearing trousers with loose cuffs.
FUEL HANDLING WARNING
1. The engine of this product is designed to run on a mixture of
highly flammable petrol and oil. Do not store cans of fuel or refill
the fuel tank in any place where there is a boiler, stove, wood
fire, electrical or welding sparks, or any other source of heat or
fire which might ignite the fuel.
2. Smoking while operating the brush cutter or refilling its fuel tank
is extremely dangerous. Always be sure to keep lit cigarettes
away from the brush cutter at all times.
3. When refilling the tank always turn off the engine first, wait for it
to cool, and take a careful look around to make sure that there
is nothing nearby which might ignite spilled fuel.
4. To avoid spilling fuel, always use a funnel when filling the fuel
tank.
5. If any fuel spillage occurs during refuelling, use a dry rag to
wipe up the spillage before starting the engine again.
6. After refuelling, screw the fuel cap back tightly onto the fuel
tank and then carry the brushcutter to a spot 3m or more away
from where it was refuelled before starting the engine.

6
BC430 PARTS LOCATION
Tool List
Tool SPEC.
Socket Spanner 19
Hex Key 4/5
SAFETY MANUAL included with unit.
Read before operating and keep for future reference to learn proper,safe operating techniques.
DESCRIPTION
1. BLADE Circular blade for grass,weed or brush cutting
applications. Harness, plastic shield and U-Handles required
for blade operation
2. DRIVE SHAFT ASSEMBLY Contains a specially designed inner
flexible drive shaft.
3. THROTTLE TRIGGER Spring loaded to return to idle when
released. When accelerating,press trigger gradually for best
operating technique .Do not hold trigger while starting.
4. IGNITION SWITCH Move switch forward to stop, back to start.
5. THROTTLE LOCKOUT Before acceleration, compress it please.
6. U-HANDLE this handle can be adjusted at you convenience for
comfort.
7. HARNESS ASS’Y a attachment which hang the machine on
the operator and adjustable in length.
8. AIR CLEANER COVER Contains replaceable felt element.
9. FUEL TANK LID
10. FUEL TANK Contains fuel and fuel filter
11. Priming Bulb Presing the priming bulb pumps(7 to 10 times
before starting), will remove all air and stale fuel from fuel
system and bring fresh fuel to the carburetor
12. CHOKE the choke control is located on the top of the filter
cover. COLD STARTS Pull lever up to close choke for cold
starts.push lever down for RUN position
13. DEBRIS SHIELD Mounted just above the cutting attachment
.Helps protect operator by deflecting debris produced during
the trimming operation .Do not operate unit without shield.
14. CUT-OFF KNIFE Trims nylon filament to the correct length-7”
,head to end of line-when nylon trimming head is bumped
on the ground during the operation of advancing the line.If
trimmer is operated without a cut-off knife the line becomes
too long(more than 7”) the operating speed will slow down the
engine,this will overheat or damage the engine.
15. NYLON CUTTER HEAD Contains replaceable nylon trimming
line that advances when the trimmer head is tapped against
the ground while the head is turning at normal operating speed.
16. HANDLE ASS’Y “D” grip handle can be adjusted at your
convenience for comfort.
17. STARTER HANDLE pull handle until engine starts,then return
handle slowly.DO NOT let handle snap back ,if not,starter will
be damaged
18. Throttle lock

7
WARNING!
Before using the product, Please Confirm the local laws and
regulations no limit to this kind of product or the product can
meet the requirements of local laws and regulations
ASSEMBLY
INSTALLING THE HANDLE
Install handle and lower cap on the rubber cover, and tighten four
M5x35 screws.
Right handle ass’y
Cap, upper M5x25
screws
Left handle ass’y
Bracket
WARNING!
Do not attempt to disassemble the two special screws. The
two clamps position has been adjusted at a suitable place,do
not attempt to remove or move them. Otherwise,it can result
in serious personal injury.
INSTALLING PLASTIC SHIELD
Install the safety cover on the shaft with the safety cover bracket
and the screws provided.
Tighten the screws after setting the safety cover bracket at the
appropriate position.
Gear Case
Bracket
Shield
Screws
M5 x 16
WARNING!
Do not operate this unit without a saftey guard, if the safety
guard is damaged replace immediately, Do not continue with a
damaged guard.
INSTALLING THE BLADE
Install holder A, the tri-blade, holder B, and teeth washer, in this
order, and then clamp with a left-hand thread net.
Align hole of gear case and holder A, and insert S=4mm bar
wrench. Rotate blade-fastening nut with plug box wrench in counter
clockwise direction until securely tightened.
Install the pin 2x6 and disjoin it.
WARNING!
EXCESSIVE VIBRATION - STOP ENGINE IMMEDIATELY
Excessive vibration of the blade means that it is not properly
installed. Stop engine immediately and check blade. Blade not
properly installed can cause injury.
Use only original cutting equipment parts when servicing the
unit.
HEAD LINE INSTALLATION
• Insert the hex key (2) into the specific hole in the angle
transmission (3) and rotate the cutting line head ( 1) by hand
until the hex key enters the inner hole, blocking rotation.
• Ensure that the grooves in the inner ring-nut (4) mach up
perfectly with the angle transmisson(3).
• Fit the cutting line head (1) screwning it up in an anticlockwise
direction.
• Remove the hex key (2)
WARNING!
INSTALLING NYLON LINE CUTTER HEAD
Align hole in adapter plate with hole in shaft and install locking
tool. Thread cutter head onto shaft (turning it clockwise) until it
is tight. Remove locking tool.
INSTALLING THE NYLON CUTTER HEAD
Align hole in adapter plate with hole in shaft
and install locking tool.
Thread cutter head onto shaft (turning it
clockwise) until it is tight. Remove locking
tool.
FUEL
1. Petrol is very flammable. Avoid smoking or bringing
any flame or sparks near fuel.
2. Wipe up all spills before starting the engine.

8
3. Stop the engine and allow it cool before refuelling the unit.
4. Keep open flames away from the area where fuel is handled or
stored.
E
FUEL
FLAMMABLE
FUEL
5. Use only oil intended for 2 stroke air
cooled engine use. Other oils can
cause spark plug fouling, exhaust
port blocking, or piston ring sticking.
6. Fuel mixtures which have been left unused for
an extended period may clog the carburettor or cause hard
starting. Store unused fuel in an air-tight container in a cool
place.
7. Mix a regular grade petrol (leaded or unleaded) and a good
quality two stroke engine oil for air cooled engines. Shake them
together in a clean container to ensure thorough mixing before
pouring into the fuel tank. Do not use plastic containers not
specifically designed for use with petrol.
FUEL
1L
liOl m04
8. Mixing ratio chart
Unleaded
Gasoline
2 cycle
mineral oil
25:1
2 cycle semi-
synthetic oil
40:1
2 cycle
synthetic oil
50:1
1 L 40mL 25mL 20mL
4 L 160mL 100mL 80mL
5 L 200mL 125mL 100mL
10 L 400mL 250mL 200mL

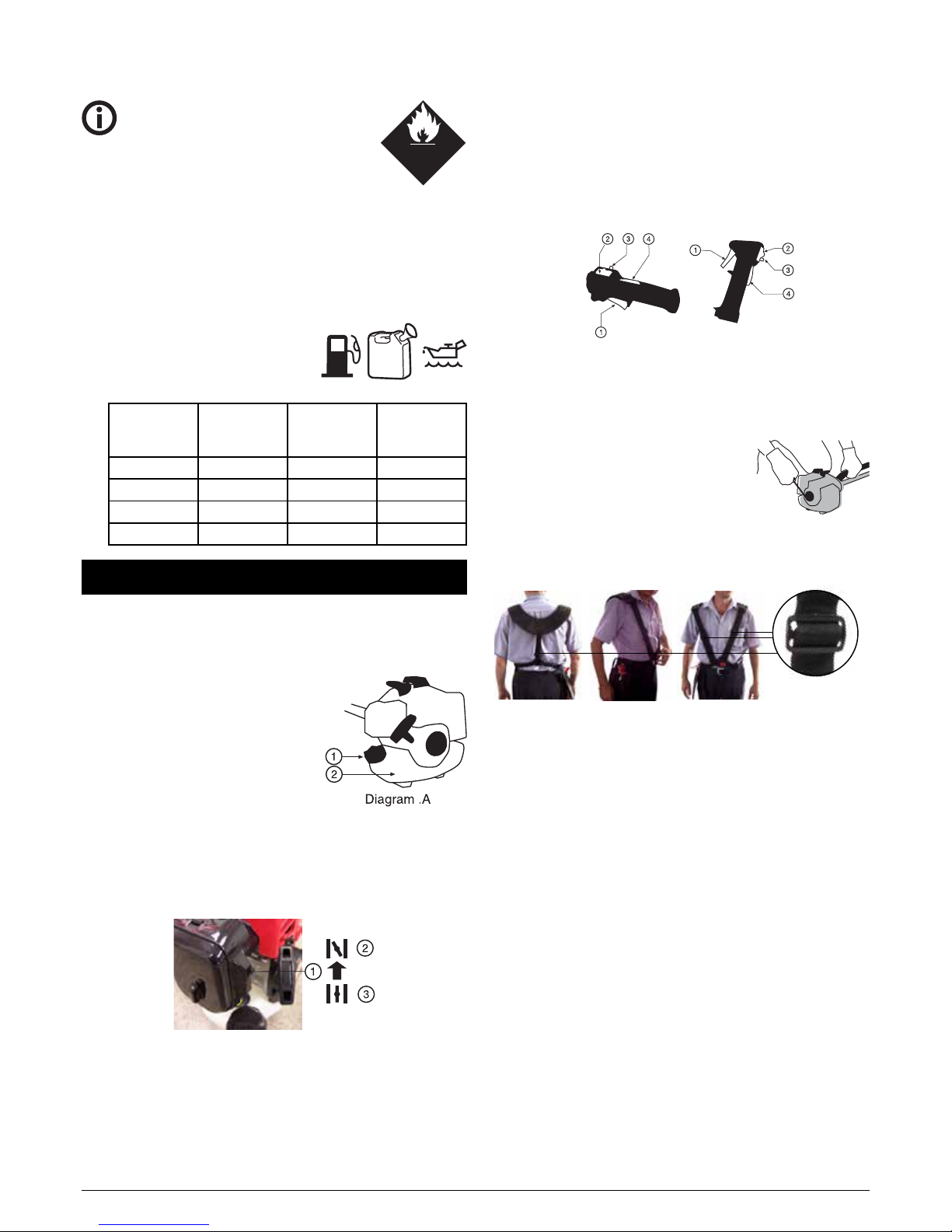

OPERATING
STARTING THE ENGINE
Before starting the engine, inspect the entire unit for loose fittings or
fuel leaks, and verify that the cutting attachment is properly installed
and securely fastened.
Place the unit on a flat, firm place. Keep
the cutting head clear of any obstructions.
1. Check that there is fuel in the tank
and that the fuel cap is screwed on
tightly.
(1) Cap
(2) Fuel tank
2. When starting a cold engine move
the choke lever (behind the air cleaner cover) to the closed
position.
(1) Choke lever
(2) Closed
(3) Open
Diagram .B
3. If the engine has been running and is still warm, move the
choke lever to the open position.
4. Press the priming bulb under the carburettor repeatedly until
excess fuel can be seen returning to the tank through the clear
fuel return pipe.
5. Slide the ignition switch (3) on the trigger grip away from the
STOP position (See Diagram .C on the next column).
6. To set the throttle in the start position.
- Depress the safety lever (4)
- Squeeze the throttle lever (1) fully.Hold down the starting
button (3) while releasing the throttle lever.
- The throttle lever will be held partly open until it is squeezed
again.
(1) Throttle lever
(2) Ignition Switch
(3) Starting button.
(4) Safety Lever Diagram .C
7. While holding the unit firmly, pull out the starter rope quickly.
8. After the engine has started, open the choke gradually.
9. Allow the engine to run for 2 to 3 minutes to warm up before
starting work.
STOPPING THE ENGINE
1. Release the throttle lever.
2. Slide the ignition switch on the trigger grip
to the STOP position.
FITTING THE HARNESS
The harness must always be used as the machine cannot be
operated safely without it.
Adjustable
Belt Clip
1. Fit the horseshoe shaped plastic shoulder pad around your
neck (open end of pad facing forward), and slide your arms
through the side loops. The small rectangular belt cushion will
be at your left side and the larger pad and hook clip will be on
your right.
2. Adjust the various belt clips as necessary and fasten the buckle
across your waist.
3. Before starting the engine for the first time, try hooking the
hook clip into the various holes in the hanger along the top of
the main tube to find out which hole gives the best machine
balance.
4. Adjust the length of the strap holding the hook clip to achieve
the correct angle between the ground and the cutting head.
Note that the entire main tube of the machine can rotate to
help achieve the correct cutting posture.
5. Unhook the clip before starting the engine.

9
QUICK-RELEASE MECHANISM
Above images illustrate how to use quick release mechanism
- In an emergency, release the throttle trigger and shut off the
Above images illustrate how to use quick release mechanism
engine. Support the machine with your left hand and operate
the quick-release mechanism. Be aware that the machine will
fall and a rotating blade or nylon trimmer can cause death or
severe injury.
WARNING!
Be careful not to accidentally operate the quick release
on the harness. Be aware that the machine will fall and
that a rotating blade or nylon trimmer can cause death
or severe injury.
CUTTING USING THE METAL BLADE
(1) For shrubs & thick weeds
(2) For grass and weeds
(3) Direction of cutting
(4) Direction of rotation
1. A metal blade cuts best with a swathe up to one third of the
cutter diameter. Use that area for cutting shrubs, tough and
thick weeds. For cutting young grass, you can use up to two
thirds of the cutter diameter.
2. Adjust the engine speed according to the material being cut.
Cut the young grass at middle speed, and shrubs or tough and
thick weeds at high speed.
If the cutting speed is too low, debris can be caught up
in the blade, and if this causes the clutch to slip it will
wear out quickly.
CUTTING WITH THE NYLON CUTTER
• Cutting with the nylon cord consumes more power so
the engine speed should be 50% greater than when
using the metal blade.
• The nylon cord cuts the grass by meeting it at high speed. If
you take too wide a swathe you may slow down the engine
and not get clean cutting. To correct this, retract the cutter from
the grass until the engine regains full speed and then cut using
a narrower swathe.
• After a time the nylon cord will wear away. To restore the
full cutting diameter, simply bump the cutter head on the
ground while it is running at full speed. The cords will extend
automatically and will be trimmed to the correct length by the
cord trimmer blade mounted on the guard.
• Cut grass by swinging the brushcutter from left to
right. While you can cut in either direction, if you follow these
suggestions the cut grass will be thrown away from you, and
you will avoid getting your clothes dirty.
CUTTING WITH A NYLON HEAD
Cut-off knife on left side
Line head rotates in a counter CLOCKWISE direction.The CUT-OFF
KNIFE will be on the right side of the debris shield.
Debris
Cut on
this side
Counter clock wise rotation
WARNING!
The proper debris shield must be in place on the unit when
nylon cutting line is used. The cutting line can flap around if
too much line is exposed. Always use the plastic debri shield
with cut-off knife when using nylon cutting heads.
For nearly all cutting, it is good to tilt the line head so that contact
is made on the part of the line circle where the line is moving away
from you and the debris shield. (See appropraite picture) This results
in the debris being thrown away from you.
WARNING!
Tilting the head to the wrong side will shoot the debris
TOW ARDS you.If the line head is held flat to the ground so
that cutting occurs on the whole line circle, debris will be
THROWN at you, drag will slow the engine down, and you will
use up a lot of line.
WARNING!
Use only quality nylon monofilament line of the diameter
2.5mm. Never use wire or wire-reinforced line in place of nylon
trimmer line. Load your nylon line cutting head only with nylon
trimmer line of the proper diameter.
WARNING!
Use extreme caution when operating over bare spots and
gravel,because the line can throw small rock particles at high
speeds. Debris shields on the unit cannot stop objects which
bounce or ricochet off hard surfaces.

10
Angle to ground
Trimming
Knife side raised
Debris
Angle to
wall
Scalping
Edging
Avoid Wire
TRIMMING

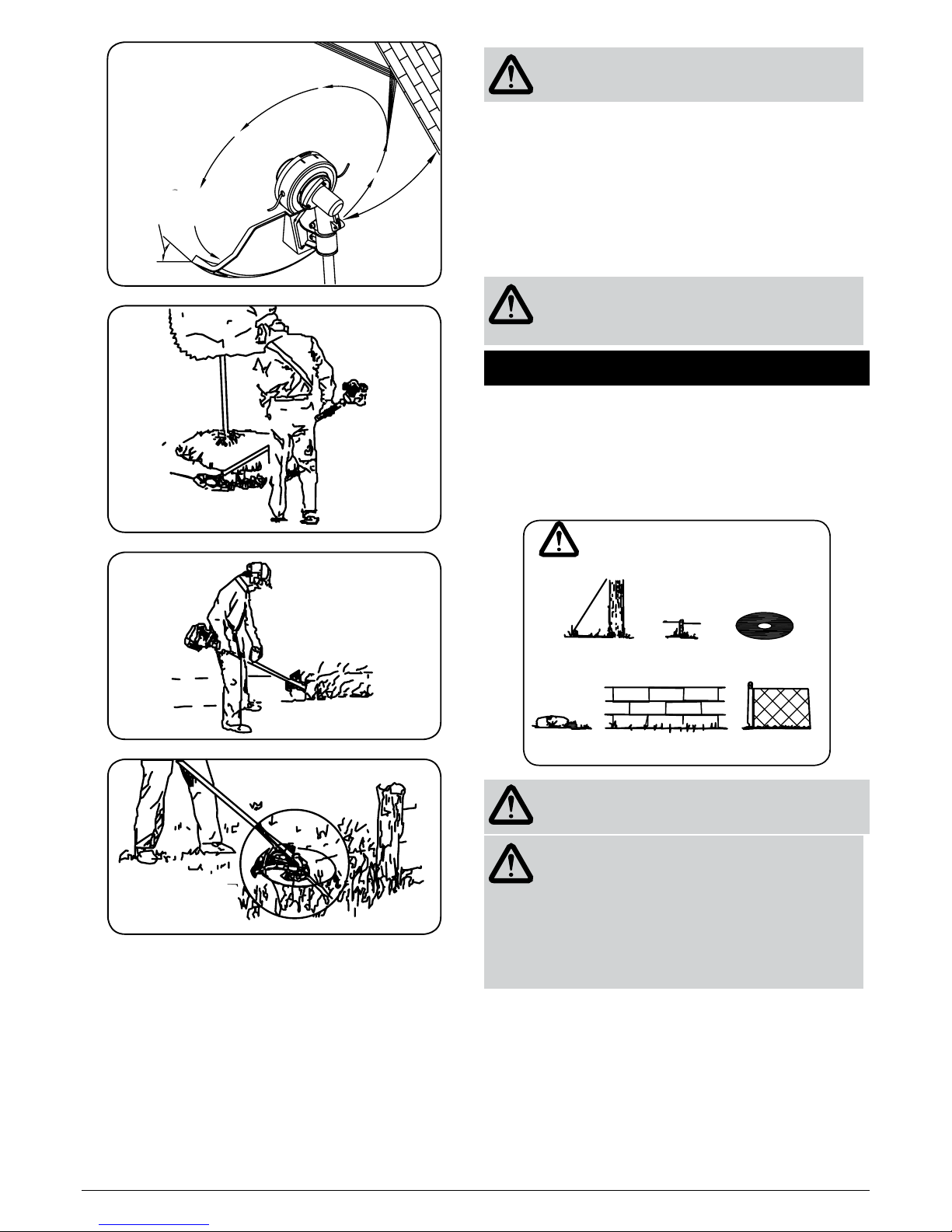

This is feeding the trimmer carefully into the material you wish to
cut.Tilt the head slowly to direct debris away from you. If cutting
up to a barrier such as fence, wallor tree,approach from an angle
where any debris ricocheting off the barrier will fly away from you.
Move the line head slowly until the grass is cut right up the barrier,
but do not jam( overfeed )the line into the barrier. If trimming up to a
wire mesh or chain linked fence be careful to feed only up to wire. If
you go to far the line will snap off around the wire. Trimming can be
done to cut through weed stems one at a time. Place the trimmer
line head near the bottom of the weed-never high up which could
cause the weed to chatter and catch the line. Rather than cut the
weed right through, just use the very end of the line to wear through
the stem slowly.
WARNING!
Do not use a steel blade for edging or scalping.
SCALPING & EDGING
Both of these are done with the line head tilted at a steep angle
Scalping is removing top growth leaving the earth bear. Edging is
trimming the grass back where it has spread over a sidewalk or
drive way. During both edging and scalping, hold the unit a steep
angle and in a position where the debris, and any dislodging dirt
and stones, will not come back towards you even if it ricochets
off the hard surface. Although the picture shows how to edge and
scalp every oprator must find for himself the angles which suits his
body size and cutting situation.
WARNING!
Do not trim in any area where there are strands of fencing
wire. Wear protective safety protecting, Do not cut where you
cannot see what the cutting device is cutting.
CUTTING WITH A BLADE
CUTTING WITH A BLADE
There are many different types of blades, however the two most
commonly used are the following.
BRUSHBLADE is used for cutting brush and weeds up to 3/4” in
diameter. Only CG420-2 255mm 3-blade can be used in this type
of brush cutter.
WARNING!
Utility Wires Metal Stakes Rubber
Rocks Masonary Fences
Do not touch these types of objects with blade
WARNING!
Do not use a brushcutter for cutting trees.
WARNING!
Do not cut with dull, cracked or damaged metal blade.
Before cutting growth, inspect for obstructions such as
boulders, metal stakes or strands of wire from broken
fences. If an obstruction cannot be removed, mark its
location so that you can avoid it with the blade. Rocks
and metal will dull or damage a blade. Wires can catch
on the blade head and flap around or be thrown into
the air.
Blade thrust is the reaction which may occur when the spinning
blade contacts anything it cannot cut. This contact may cause the
blade to stop for an instant, and suddenly “thrust” the unit away
from the object that was hit. This reaction can be violent enough
to cause the operator to lose control of the unit. Blade thrust may
occur without warning if the blade snags, stalls or binds. This is
more likely to occur in areas where it is difficult to see the material
being cut. For cutting ease and safely, approach the weeds being
cut from the right to the left,in the event that an unexpected object
or woody stock is encountered, this could minimise the blade thrust
reaction.

11
SCYTHING WEEDS. This is cutting by swinging the blade in a level
arc. It can quickly clear areas of field grass and weeds. Scything
should not be used to cut large, tough weeds or woody growths.
NOTE
Do not use a brush blade to cut trees which exceed a diameter of
1/2 to 3/4 inches.
Scything can be done in both directions, or just in one way which
results in the debris being thrown away from you.
That is using the side of the blade that it is rotating away from you.
Tilt down the blade slightly on this same side .You will be hit by
some debris if you scythe in both directions.
Do not force the blade to cut. Do not change the angle of cut after
into the wood. A void using any pressure or leverage which could
cause the blade to bind or crack.
MAINTAINENCE
BLADE
• Sharpen each cutting edge and make sure the inside corner is
rounded to reduce the risk of cracking.
• Do not quench the blade with water if you are using a grinder
as it may start cracks in the blade.
• The 3 tooth blade may be inverted to
utilise a fresh set of cutting edges.
NYLON CUTTERS
The spools of nylon cord inside these bump-feed cutter heads will
eventually need replacing. While the change can be made with the
cutter head on the machine, it will be more convenient to remove
the cutter head.
CHANGING THE SPOOL
The cutting head consists of the following parts:
• Spool housing
• Spring
• Spool
• “Tap ‘n’ Go” button
• Cover
Push the locking latch located laterally on the spool housing (see
picture, action 1).
Push the locking latch located laterally on the spool housing (see
picture, action 1). Then turn the cover clockwise by about 1.5 cm
(see picture, action 2). This will unlock the cover 5 and it can be
removed. Now remove the Tap’n go button 4 a nd then the used-
up spool 3 from the spool housing. Pass the two line ends of the
new spool th rough the eyelets in the spool housing as shown in
the picture . The line ends still stay clamped in the two transpo rt
clamps pf the spool.
Put the line spool in the spool housing. Please turn the spool such
that the clamped line ends are located directly in front of the eyelets
of the spool housing. Make sure that the spring 2 is properly seated
anunder the spool. Now put the Tap’n go button back on the spool.
Then place the cover onto the 4 guiding pins and lock it in place
by turning it anti-clockwise by about 1.5cm. Now vigorously pull
on both line ends at the same time. This will loosen them from the
transport clamps of the spool. The cutting head is now ready for
operation.
You may also coil up the line yourself. If you do so, use the required
line with a diameter of 2.5 mm only.
Use 2 separate lines with a length of about 2.1m each.To Þx the
line ends the spool has 2 eyelets. Put the end of each thread into
an eyelet. Put the line into the eyelet in the direction of the arrow
as shown on the bottom side of the spool. Put each line end in by
about 2cm. Now grab both lines with one hand and concurrently
coil them up in the direction of the arrow.
Finally, fix the line ends by putting each in one of the transport
clamps as shown in the picture. The spool can now be installed.
Proceed as described above to install the spool.
NOTE:
Both nylon cords need to be wound in the same direction

12
AFTER 25 HOURS USE
AIR CLEANER
Check the filter element and clean it in warm, soapy water as
required. Dry completely before installing. If the element is
broken or shrunk, replace with a new one.
(1) Air Cleaner element.
A clogged air filter will increase fuel consumption and cut
down the engine power.
If you operate the brushcutter without the air filter or
with a deformed filter element it will quickly ruin the
engine.
FUEL FILTER
Take the filter out of the fuel tank using a small wire hook.
Disconnect the filter assembly from the fuel pipe and unhook the
retainer to disassemble it. Clean the components with petrol.
A clogged fuel filter will reduce the power of the engine.

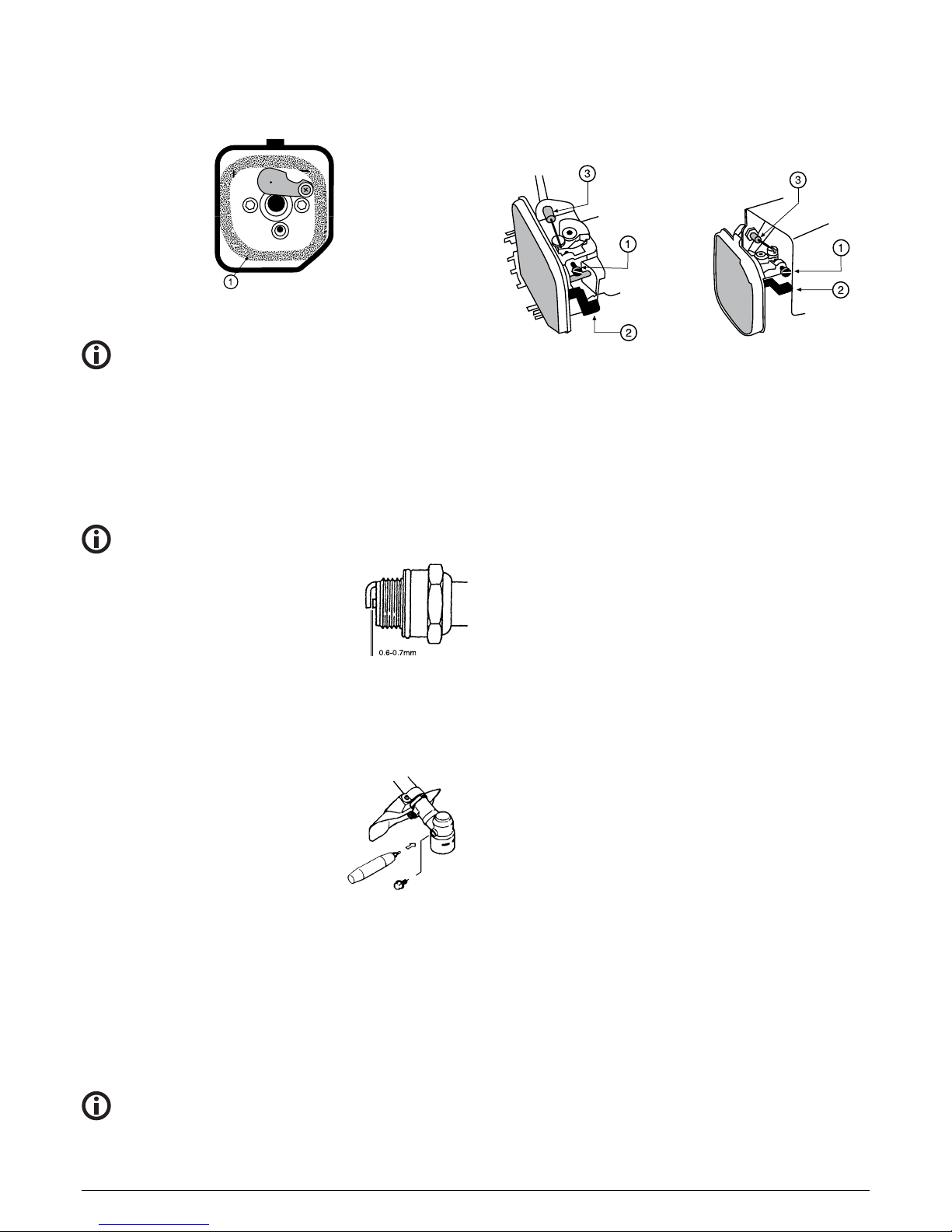

SPARK PLUG
Remove and inspect the spark plug and clean the electrodes
as necessary with wire brush.
The spark gap should be adjusted to 0.6~0.7mm.
If a new spark plug is fitted it must be the same
type as the original one.
COOLING AIR INTAKE VENT
• Check the cooling air intake vent and the
area around the cylinder cooling fins, and remove any waste
which has attached itself to the brushcutter.
• Failing to keep the air path clear could cause the muffler
to become overheated, and this in turn could cause the
brushcutter to catch on fire.
GEAR CASE
• Remove the screw from the side of the gearbox.
• Remove the cutter and the inner flange to
allow old grease to exit.
• Using a grease gun, supply multi-purpose
grease after every 25 hours of use.
AFTER 100 HOURS USE
MUFFLER
1. Remove the muffler, insert a screwdriver into the vent, and
scrape away any carbon buildup. Scrape away any carbon
build-up on the muffler exhaust vent at the same time.
2. Tighten all screws, bolts, and fittings.
3. Undo the four socket screws holding the engine to the housing
at the top of the main tube and check to see if any oil or grease
has worked its way in between the clutch lining and drum If it
has, wipe it away using oil-free, lead-free petrol.
ADJUSTING THE CARBURETTOR
A wrong adjustment may cause damage to your unit. If the
engine does not run well after adjusting the carburettor,
please contact your service agent.
Adjustments & service are not covered by warranty.
IDLE ADJUSTMENT SCREW
The horizontal screw (1) contacting the side of the butterfly lever
arm on top of the carburettor adjusts the idling speed. If you turn
right (clockwise), idle speed increases, and left (counterclockwise) it
decreases. Adjust the speed if the blade continues to rotate when
the engine is idling, or if the engine stops when you release the
throttle lever.
1. Idle adjustment screw
2. Choke lever
3. Throttle cable
MAINTENANCE BEFORE STORAGE
1. Clean the machine down thoroughly and inspect for any wear
or damage. If you find any, have it corrected so the machine will
be ready for use next time.
2. Empty the fuel from the tank. If the engine will start, run it until it
stops from lack of fuel.
3. Remove the spark plug and put in 1~2 drops of 2-cycle oil in
the engine. Pull the starter rope 2~3 times and then replace the
4. spark plug.
5. Apply anti-rust oil to the metal parts such as the throttle wire,
put the cover on the blade, and store it indoors, avoiding
dampness.

13
SPECIFICATIONS
BC430 BC430E (EU V)
Power transmission Automatic centrifugal clutch, spiral bevel gear, flexible drive shaft
Max speed of gear shaft/engine speed (r/min) 7000/9000
Idle Speed (r/min) 2800 +/-150 2800 +/-280
Vibration value at each handle <7.5m/s2<6.9m/s2
Sound pressure level (in accordance with EN ISO11806:1997,
EN27917:1987) <105(db(A)) <90(db(A))
Sound power level (in accordance with ISO 10884) <120(db(A)) <111(db(A))
Reduction ratio 16:19 17:22
Blade rotation direction Counter clockwise (seen from top)
Handle type “U” Type
Weight (dry) 7.4 7.7
Engine model No HB40 1E40F-2E
Certification HB43: : CN FD G1 EU V
Type Air cooled, 2 cycle, vertical, piston valve, petrol engine
Displacement (ml) 42.7 42.7
Maximum output (kW/r/min) 1.25/6500 1.1kW/7500
Carburetter Diaphragm type
Ignition Non contact electronic ignition
Starting method Recoil type
Fuel used Petrol mixed with lubricating oil (25:1)
Fuel tank capacity (l) 1.1
Dry weight 3.8 4.2
Length of main shaft (mm) 1500
Length of inner drive shaft (mm) 1522
Standard Blade (mm) 3 Tooth blade (255x1.4)

14
RECOMMENDED CUTTER APPLICATIONS
CUTTER APPLICATION
DESCRIPTION Lawn Edging Lawn Trimming Long Grass Succulent Growth
less than 25mm dia.
Woody Growth &
Succulent Growth
over than 25mm dia.
Nylon Cutter X X X
3 Tooth Blade X X X
*8 Tooth Blade X X X
*80 Tooth Blade X X
x = Not Suitable
= Suitable
= Most Suitable
* = Included in some models only

15

Copyright©Morrison
Morrison, a division of Masport Limited
1-37 Mt Wellington Highway, Panmure
Auckland 1060
New Zealand
P: 0800 627 767
Masport Australia Pty Limited
27 Commercial Drive
Dandenong South, VIC 3175
Australia
P: 1300 366 225
