Motive AI Omnicam User manual

AI Omnicam
Installation guide

FAILURE TO PROPERLY AFFIX THE DEVICE TO THE VEHICLE CAN
CAUSE THE DEVICE TO DETACH AND RESULT IN SERIOUS INJURY.
SIMILARLY, BOLTS, NUTS, SCREWS, THE MOUNT, AND OTHER
MECHANICAL COMPONENTS USED TO AFFIX THE DEVICE TO THE
VEHICLE CAN LOOSEN, BREAK, AND FAIL OVER TIME WHICH CAN
ALSO CAUSE THE DEVICE TO DETACH AND RESULT IN SERIOUS
INJURY.
READ AND FOLLOW ALL INSTALLATION AND SAFETY
INSTRUCTIONS PROVIDED IN THE GUIDE AND SUPPORT
ARTICLES. REGULARLY INSPECT THE CAMERA, BOLTS, NUTS,
SCREWS, THE MOUNT, AND MECHANICAL COMPONENTS TO
ENSURE THEY ARE IN GOOD WORKING ORDER AND REMAIN
PROPERLY AFFIXED TO THE VEHICLE.
YOU ARE RESPONSIBLE FOR SECURING THE MOUNT AND
CAMERA TO YOUR VEHICLE, CHECKING THE HARDWARE PRIOR
TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR
ADJUSTMENT, WEAR, AND DAMAGE.
IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND
CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND
ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION
PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY
A PROFESSIONAL INSTALLER.
WARNING

English

Introduction Motive AI Omnicam is the first LTE-built side/rearview camera
introduced to capture 360-degree footage of vehicles. It’s an
AI-enabled hardware product that provides visibility in side-swipe
and rear-collision cases.
1

Camera with 5-meter
captured cable
What comes in
the box? Front housing
Rear housing Metal plate (1)
Grommet (1) Locknuts (4)
M screws (10) Allen key (1)
M bolts (4) Reset pin (1)
Washers (8)
2
Installation requirements: AI Omnicam

Power drill
Tools required Drill bits
Screwdriver with
standard bits and
torques bits
Step drill bit or 17mm
hole saw bit
Wire stripper
Amp fuse for each
camera
Circuit fuse tap or an
in-line fuse tap
3

•Pre-installation
•Permanent Installation
Steps: Installing
AI Omnicam
Pre-installation
4
Click Vehicles from the let-hand side menu.
Click Options in the Action column of your vehicle.
A drop-down menu appears, click Edit Vehicle.
2.
3.
4.
Login to the Fleet Dashboard and click the Admin icon at the
botom let corner.
1.

Once assigned, decide the mounting location on your vehicle.
The surface should be as flat as possible to ensure a robust
connection.
8.
Pre-installation
5

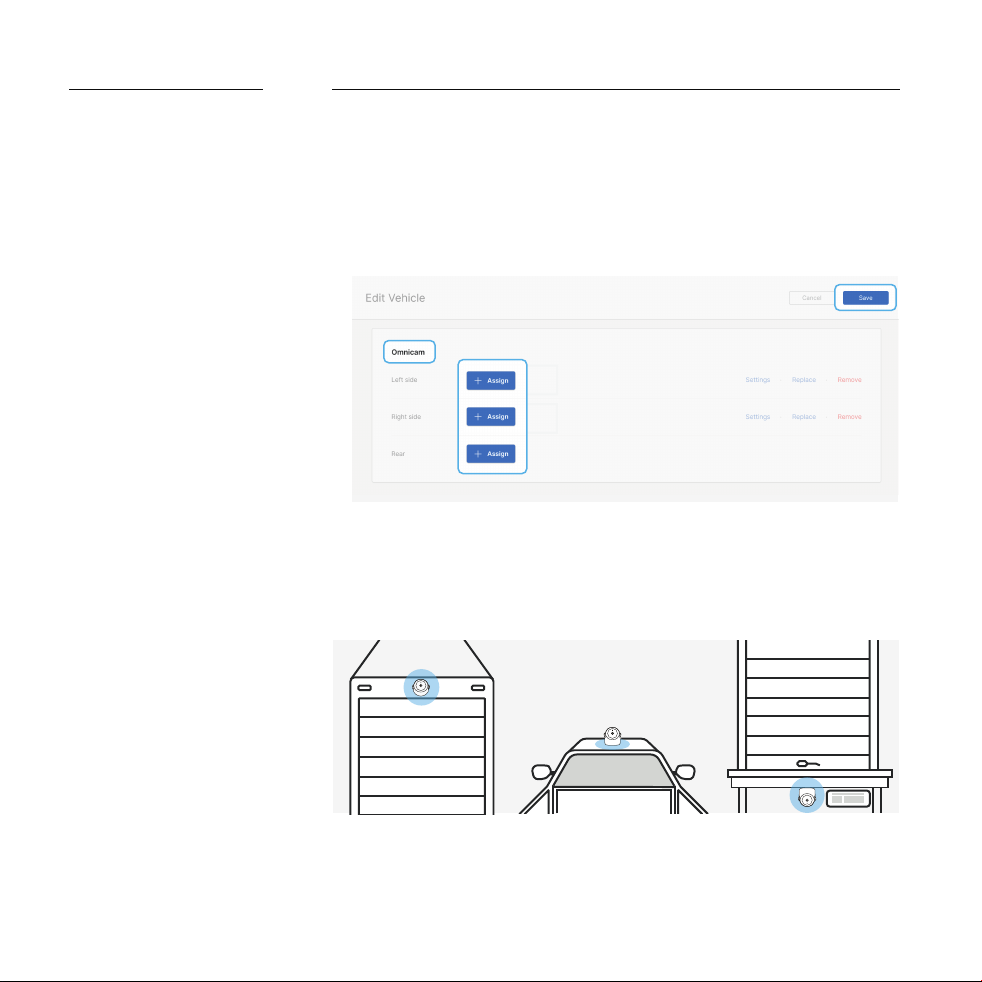

The Edit Vehicle screen displays, scroll down to the Omnicam
section.
Click Assign to enable the AI Omnicam for each mounted
location.
Click Save at the top right corner.
5.
6.
7.

Temporarily power the camera using a V or V red wire and
a Amp fuse to check the mounting location field of view.
9.
Note: If you decide to use your custom bracket to mount
to the AI Omnicam, you choose to do so at your own risk.
Motive is not responsible for any damage that occurs
while using the custom brackets. Please contact the
Motive support team if you have any questions about the
AI Omnicam installation.
Note: Only use the red power wire and black ground wire.
Make sure to not use the blue-wrapped wires for any
direct connection. Read this article before trimming any
wire more than 8 inches.
6
Pre-installation

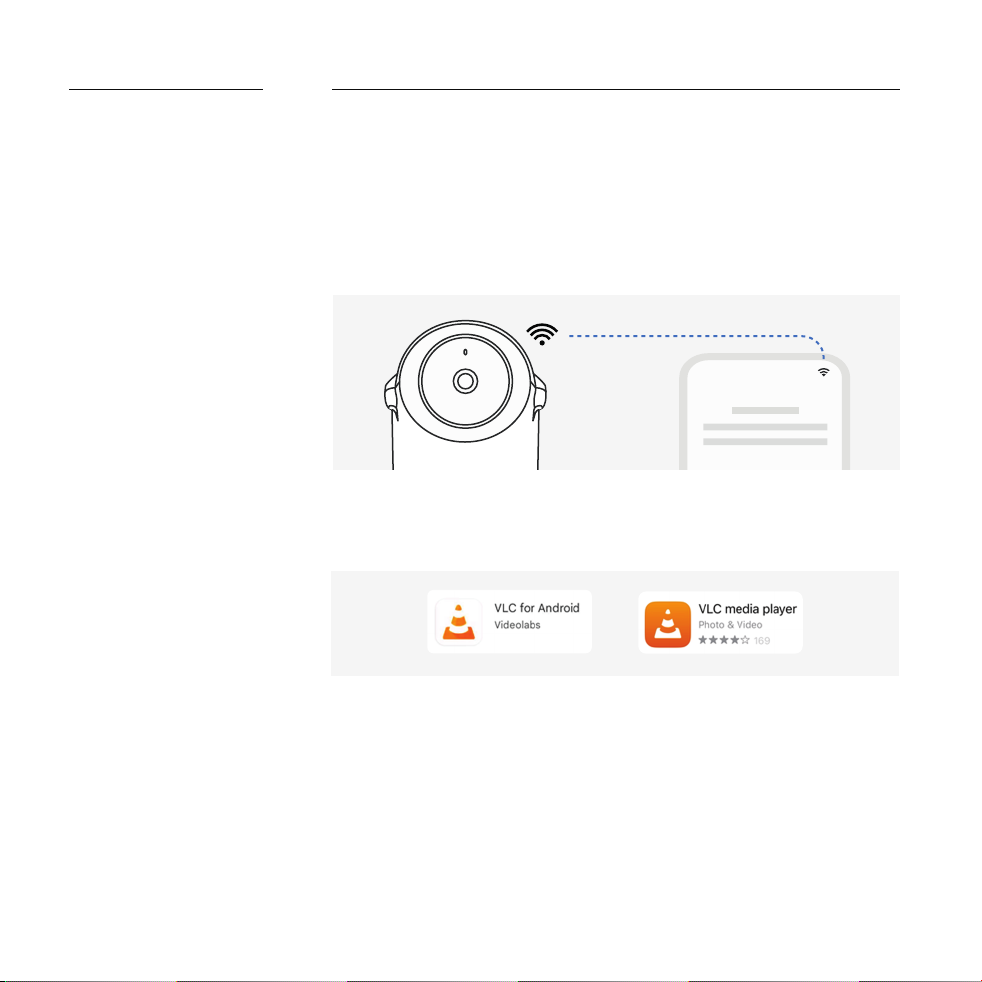

Once you provide power to the AI Omnicam, it displays an
available WiFi connection on your mobile or laptop device.
Use the following credentials to connect each AI Omnicam
with your device using WiFi to check its field of view:
SSID: Motive Omnicam <last 6 digits of S/N>
PW: 1234567890
10.
Now, download the VLC player app on your device using
Android Google Play Store or the Apple App Store.
11.
7
