Moulinex P100N30AP-ZD User manual

1.1 CU Ft. MICROWAVE OVEN
043-1788-8
FOUR À MICRO-ONDES DE 1.1 PI3
www.moulinex.ca
EN FR
USER GUIDE
GUIDE DE L’UTILISATEUR
If you have any questions or concerns please call our Moulinex
toll-free number at 1-888-670-6681.
Si vous avez des questions ou des préoccupations, veuillez
appeler notre numéro sans frais Moulinex au 1-888-670-6681.

precautions
important safeguards
installation guide
grounding instruction
utensils guide
cooking techniques
product diagram
operating your microwave
care and cleaning
04
06
08
09
11
13
15
17
23
contents

précautions
importantes instructions de sécurité
guide d’installation
instructions pour la mise à la terre
guide pour les articles de cuisine
techniques de cuisson
nom des pièces
pour programmer le four
nettoyage et entretien
26
28
31
32
34
36
39
41
47
contenu

4
EN
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
1. Do not attempt to operate this oven with the door-open since
open-door operation can result in harmful exposure to microwave
energy. It is important not to defeat or tamper with the safety
interlocks.
2. Do not place any object between the oven front face and the door
or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there is
no damage to the:
a.Door (bent),
b.Hinges and latches (broken or loosened),
c.Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except
properly qualified service personnel.
Toll free number for Moulinex: 1-888-670-6681

5
EN
Model: P100N30AP-ZD

6
EN
When using electrical appliances, basic safety precautions
should be followed, including the following:
WARNINGTo reduce the risk of burns, electric shock, fire,
injury to persons or exposure to excessive microwave energy:
1. Read all instructions before using the appliance.
2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” on page 4.
3. This appliance must be grounded. Connect only to properly
grounded outlet. See “GROUNDING INSTRUCTIONS “ on page 9.
4. Install or locate this appliance only in accordance with the pro
vided installation instructions.
5. Some products such as whole eggs and sealed containers -may
explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in this
manual. Do not use corrosive chemicals or vapors in this
appliance. This type of oven is specifically designed to heat, cook,
or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used
by children.
8. To reduce the risk of fire in the oven cavity:
a.Do not overcook food. Carefully attend appliance when paper,
plastic, or other combustible materials are placed inside the oven
to facilitate cooking.
b.Remove wire twist-ties from paper or plastic bags before placing
bag in oven.
c.If materials inside the oven should ignite, keep oven door
closed, turn oven off, and disconnect the power cord or shut off
power at the fuse or circuit breaker panel.
IMPORTANT SAFEGUARDS

7
EN
d.Do not use the cavity for storage purposes. Do not leave paper
products, cooking utensils or food in the cavity when not in use.
9. Liquids, such as water, coffee, or tea are able to be overheated
beyond the boiling point without appearing to be boiling due
to surface tension of the liquid. Visible bubbling or boiling when
the container is removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY
BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL
IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to person:
a.Do not overheat the liquid.
b.Stir the liquid both before and halfway through heating it.
c.Do not use straight-sided containers with narrow necks.
d.After heating, allow the container to stand in the microwave
oven for a short time before removing the container.
e.Use extreme care when inserting a spoon or other utensil into
the container.
10. Do not heat oil or fat for deep-frying. It is difficult to control the
temperature of oil in microwave oven.
11. Pierce foods with heavy skins such as potatoes, whole squash,
apples and chestnuts before cooking.
12. The contents of feeding bottles and baby jars should be stirred or
shaken and the temperature should be checked before serving in
order to avoid burns.
13. Cooking utensils may become hot because of heat transferred from
the heated food. Pot holders may be needed to handle the utensil.
14. Do not cover or block any openings on the appliance.
15. Do not store or use this appliance outdoors. Do not use this

8
EN
product near water, for example, near a kitchen sink, in a wet
basement, near a swimming pool, or similar locations.
16. Do not operate this appliance if it has a damaged cord or a plug,
if it is not working properly or if it has been damaged or dropped.
17. Do not immerse cord or plug in water. Keep cord away from heated
surface. Do not let cord hang over edge of table or counter.
18. Use only thermometers, which are specifically designed for use in
microwave ovens.
19. Do not operate any heating or cooking appliance beneath this
appliance.
20. Be certain the glass tray and roller rings are in place when you
operate the oven.
21. This appliance should be serviced only by qualified service
personnel, please contact your nearest authorized service facility
for examination, repair, or adjustment.
22. When cleaning surfaces of door and oven that comes together on
closing the door, use only mild, nonabrasive soaps, or detergents
applied with a sponge or soft cloth.
INSTALLATION GUIDE
1. Make sure that all the packing materials are removed from the
inside of the door.
2. Check the oven for any damage, such as misaligned or bent door,
damaged door seals and sealing surface, broken or loose door
hinges and latches and dents inside the cavity or on the door. If
there is any damage, do not operate the oven but contact
qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to
hold its weight and the heaviest food likely to be cooked in the

9
EN
oven.
4. Do not place the oven where heat, moisture, or high humidity are
generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow
20cm of space above the oven, 10cm at back and 5cm on both
sides. Do not cover or block any openings on the appliance. Do
not remove feet on which oven stands.
6. Do not operate the oven without glass tray, roller support, and
shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not
run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily
unplugged in an emergency.
GROUNDING INSTRUCTION
This appliance must be grounded. In the event of an electrical short
circuit, grounding reduces risk of electric shock by providing an escape
wire for the electric current.
WARNINGImproper use of the grounding plug can result in
a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding
instructions are not completely understood, or if doubt exists as to
whether the appliance is properly grounded, and either:
1. If it is necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounding plug and a 3-slot
receptacle that will accept the plug on the appliance. The marked

10
EN
rating of the extension cord shall be equal to or greater than the
electrical rating of the appliance, or
2. Do not use an extension cord. If the power supply cord is too short,
have a qualified electrician or serviceman install an outlet near the
appliance.
ELECTRICAL REQUIREMENTS
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp.
It is recommended that a separate circuit serving only the oven be
provided. The oven is equipped with a 3-prong grounding plug. It
must be plugged into a wall receptacle that is properly installed and
grounded.
Power Supply Cord
1. A short power supply cord is provided to reduce the risks resulting
from becoming entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used
if care is exercised in their use.
3. If long cord or extension cord is used:
a) The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the appliance.
b) The extension cord must be a grounding-type 3-wire cord, and The
longer cord should be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children or
tripped over unintentionally.
Notes:
If you have any questions about the grounding or electrical
instructions, consult a qualified electrician or service person.
Neither Galanz nor the dealer can accept any liability for damage to
the oven or personal injury resulting from failure to observe the

11
EN
electrical connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven to your
radio or TV, check that the microwave oven is on a different circuit,
relocated the radio or TV as far away from the oven as feasible or check
position and signal of receiving antenna.
This section lists which utensils can be used in the microwave, which
ones have limited use for short periods, and which ones should not be
used in the microwave.
UTENSILS GUIDE
RECOMMENDED
Microwave browning dish — Use to brown the exterior of small items
such as steaks, chops, or pancakes. Follow the directions provided with
your browning dish.
Microwaveable plastic wrap — Use to retain steam. Leave a small
opening for some steam to escape and avoid placing it directly on the
food.
Paper towels and napkins — Use for short-term heating and covering;
these absorb excess moisture and prevent spattering. Do not use
recycled paper towels, which may contain metal and could ignite.
Glass and glass-ceramic bowls and dishes — Use for heating or
cooking.
Paper plates and cups — Use for short-term heating at low
temperatures. Do not use recycled paper, which may contain metal and
could ignite.
Wax paper — Use as a cover to prevent spattering.

12
EN
Thermometers — Use only those labeled “Microwave Safe” and follow
all directions. Check the food in several places. Conventional
thermometers may be used on microwave food once the food has been
removed from the oven.
LIMITED USE
Aluminum foil — Use narrow strips of foil to prevent overcooking of
exposed areas. Using too much foil can damage your oven, so be
careful. You should keep distance of 1 inch (2.54cm) between
aluminum foil and cavity.
Ceramic, porcelain, and stoneware — Use these if they are labeled
“Microwave Safe”. If they are not labeled, test them to make sure they
can be used safely.
Plastic — Use only if labeled “Microwave Safe”. Other plastics can
melt.
Not Recommended
Glass jars and bottles — Regular glass is too thin to be used in a
microwave. It can shatter and cause damage and injury.
Paper bags — These are a fire hazard, except for popcorn bags that
are designed for microwave use.
Styrofoam plates and cups — These can melt and leave an unhealthy
residue on food.
Plastic storage and food containers — Containers such as margarine
tubs can melt in the microwave.
Metal utensils — These can damage your oven. Remove all metal
before cooking.
Note: Should you wish to check if a dish is safe for microwaving, place
the empty dish in the oven and microwave on HIGH for 30 seconds. A
dish which becomes very hot should not be used.

13
EN
COOKING TECHNIQUES
Your microwave makes cooking easier than conventional cooking,
provided you keep these considerations in mind:
STIRRING
Stir foods such as casseroles and vegetables while cooking to
distribute heat evenly. Food at the outside of the dish absorbs more
energy and heats more quickly, so stir from the outside to the center.
The oven will turn off when you open the door to stir your food.
ARRANGEMENT
Arrange unevenly shaped foods, such as chicken pieces or chops, with
the thicker, meatier parts toward the outside of the turntable where
they receive more microwave energy. To prevent overcooking, place
delicate areas, such as asparagus tips, toward the center of the
turntable.
SHIELDING
Shield food with narrow strips of aluminum foil to prevent overcooking.
Areas that need shielding include poultry wing tips, the ends of poultry
legs, and corners of square baking dishes. Use only small amounts of
aluminum foil. Larger amounts can damage your oven.
TURNING
Turn foods over midway through cooking to expose all parts to
microwave energy. This is especially important with large foods such
as roasts.
STANDING
Foods cooked in the microwave build up internal heat and continue
to cook for a few minutes after heating stops. Let foods stand to

14
EN
complete cooking, especially foods such as cakes and whole
vegetables. Roasts need this time to complete cooking in the center
without overcooking the outer areas. All liquids, such as soup or hot
chocolate, should be shaken or stirred when cooking is complete. Let
liquids stand a moment before serving. When heating baby food, stir
well at removal and test the temperature before serving.
ADDING MOISTURE
Microwave energy is attracted to water molecules. Food that is uneven
in moisture content should be covered or allowed to stand so that the
heat disperses evenly. Add a small amount of water to dry food to help
it cook

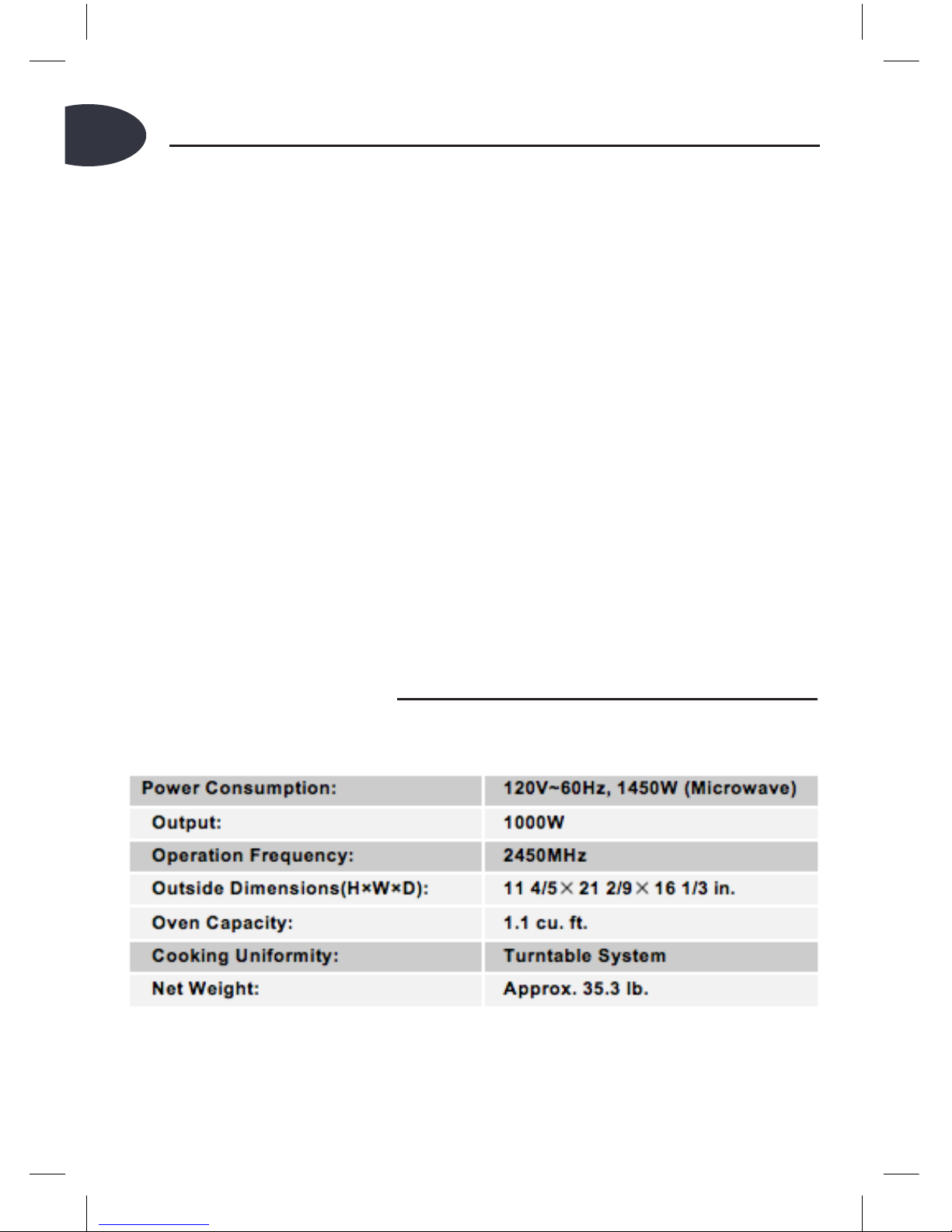

SPECIFICATIONS

15
EN
PRODUCT DIAGRAM
1. Door Safety Lock System
2. Oven Window
3. Shaft
4. Roller ring
5. Door Release Button
6. Control Panel
7. Wave Guide
(Please do not remove the mica
plate covering the wave guide)
8. Glass tray

16
EN

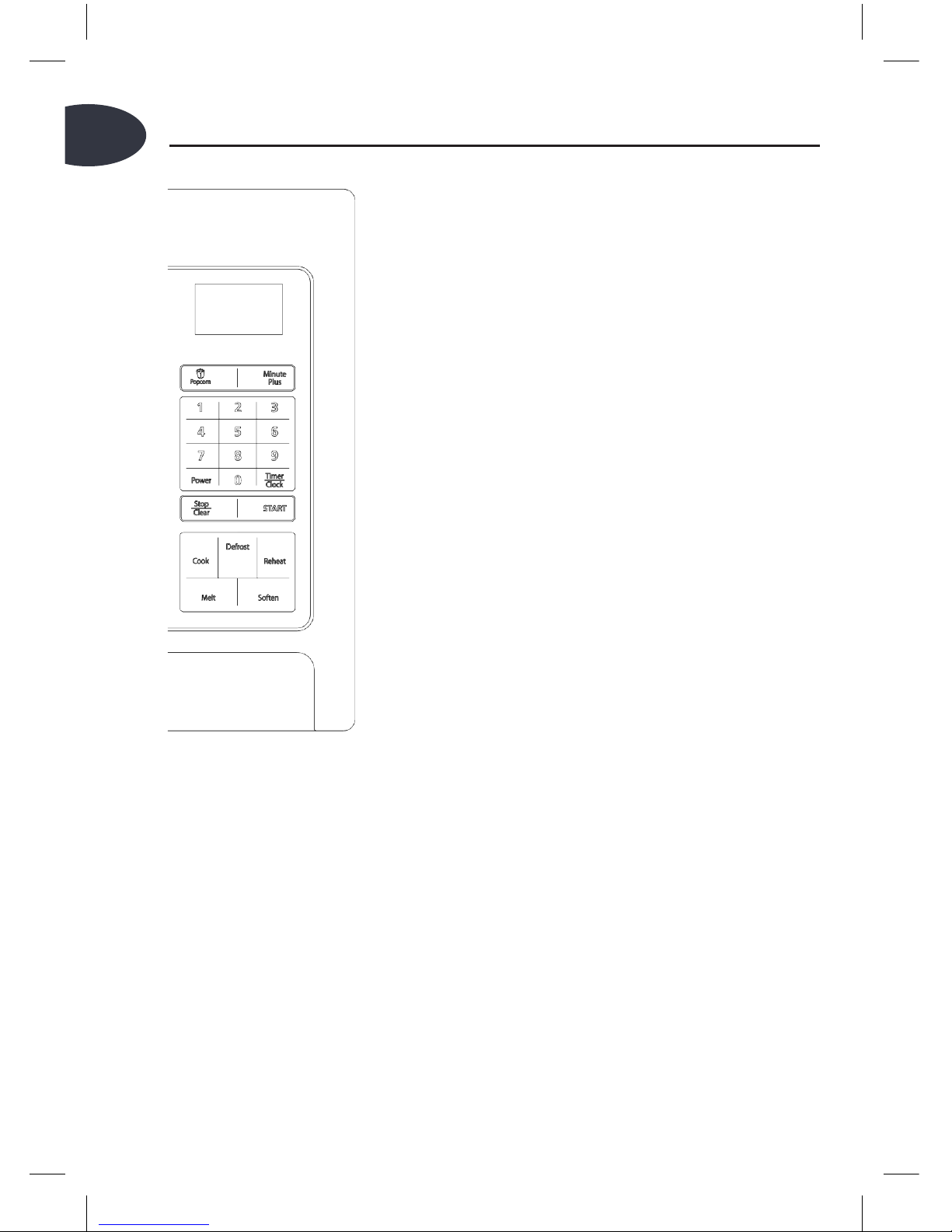

DISPLAY WINDOW
Use to indicate clock, cooking time, etc.
MINUTE PLUS
Press to set the oven to start cooking quickly
and to increase the cooking time.
NUMBER PADS
Press to set clock, cooking time or enter food
weight.
POWER
Press to select microwave power level.
TIMER/CLOCK
Press to set the timer function and to set the
oven clock.
STOP/CLEAR
Press to clear entry before setting a cooking
program
Press once to temporarily stop cooking or twice
to cancel cooking.
Press and hold to set child lock.
START
Press to start cooking program.
QUICK COOK BUTTONS:
Instant settings to cook popular foods.
POPCORN, MELT, SOFTEN, COOK, DEFROST,
REHEAT

17
EN
OPERATING YOUR MICROWAVE
SETTING THE CLOCK
To enter the digital clock time, press the TIMER/CLOCK pad once and
then press the number pads to set the time of day.
For example: to set the time of 6: 35.
1. Press TIMER/CLOCK pad once.
2. Touch number pad to enter clock time.
3. Press TIMER/CLOCK pad again to confirm.
NOTE: This is a 12 hour clock, you can see the time during cooking
by pressing TIMER/CLOCK pad. If you press TIMER/CLOCK twice,
“EE” will be displayed to remind you the wrong operation, press
STOP/CLEAR to cancel it.
MICROWAVE COOKING
To cook with microwave, time and power level should be set.
The longest cooking time is 99 min. 99 sec.
By pressing the POWER pad a number of times, you are selecting one of
the following microwave power levels:

18
EN
Suppose you want to cook for 5 minutes at 60% of microwave power.
1. Press POWER pad to set P-60 (60%).
2. Touch number pad to enter desired cooking time.
3. Press START pad.
NOTE: During cooking, you can press POWER to check the
cooking power.
TIMER
The longest time is 99 min. 99 sec.
Suppose you want to set 30 minutes timer.
1. In standby mode, press the number pads to enter “30:00”.
2. Press TIMER/CLOCK to confirm.
NOTE: You can press STOP/CLEAR once to cancel this function.
DEFROST
The oven allows the defrosting of Ground Meat, Steaks/Chops, Boneless
Poultry and Bone-in Poultry. The time and the defrosting power are
adjusted automatically once the weight of food is programmed.

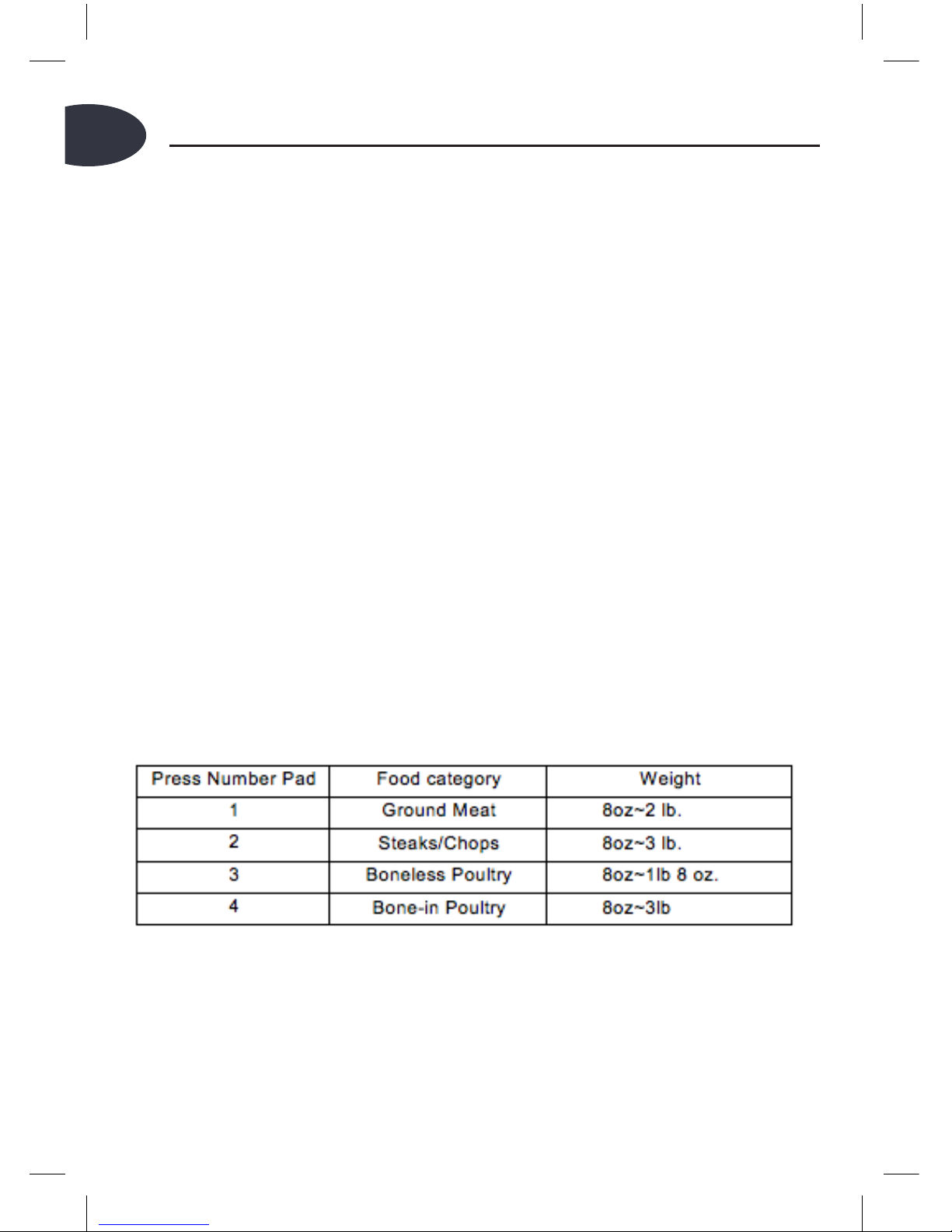

The allowable weight for each category is shown below.
FOR EXAMPLE: Suppose you want to defrost 1 lb of Ground Meat.
1. Place the meat to be defrosted into the oven.
2. Press DEFROST pad once.
3. Press number pad ”1” for Ground Meat.

19
EN
4. Press number pad to enter the weight.
5. Press START pad.
NOTE: During defrosting program, the system will pause and sound
beeps to remind user to turn food over, and then press START to
resume the defrosting.
MULTI- STAGE COOKING
Your oven can be programmed for up to 2 microwave cooking program.
Suppose you want to set the following cooking program.
90% Microwave cooking
50% Microwave cooking
1. Press POWER LEVEL button to set 90% power level.
2. Use the number pads to enter cooking time.
3. Press POWER LEVEL button to set 50% power level.
4. Use the number pads to enter cooking time.
5. Press START button.
MINUTE PLUS
This feature allows you to start the oven quickly at high power level.
Press the MINUTE PLUS pad once or repeatedly to set cooking time, the
oven starts work at full power level immediately.
CHILD LOCK
Use to prevent unsupervised operation of the oven by little children.
The CHILD LOCK indicator will show on display screen, and the oven
cannot be operated while the CHILD LOCK is set.


20
EN
To set the CHILD LOCK: Press and hold the STOP/CLEAR pad for 3
seconds, a beep sounds and LOCK indicator lights.
To cancel the CHILD LOCK: Press and hold the STOP/CLEAR pad for 3
seconds until lock indicator on display turns off.
MENU COOK
For food or the following cooking mode, it is not necessary to program
the time and the cooking power. It is sufficient to indicate the type of
food that you want to cook as well as the weight of this food.
POPCORN
1. Press POPCORN pad once~4 times to select different weight as
shown below.
2. Press START pad to start cooking.
MELT
1. Press MELT pad once or twice to select “Butter” or “Chocolate”.
2. Press number pad “1” once or twice to select weight. (or press
number pad “2” once or twice to select weight)
3. Press START pad to start cooking.
