Movies 2 go MTG10UHD User manual

MTG10UHD/MTG13UHD
10.1” /13.3” Overhead LCD Monitor
With Built-In DVD Player
Owner's Manual

Warnings
Do not use any solvents or cleaning materials when cleaning the video monitor.
Do not use any abrasive cleaners, they may scratch the screen.
Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.
Lock the LCD screen in the fully closed position when not in use.
Before putting on headphones always adjust the volume setting to the lowest position.
Remember to leave the dome light switch in the off or auto positions when the vehicle
is unattended, as the dome lights, if left on, can drain
the vehicle's battery.
Do not put pressure on the screen.
Caution children to avoid touching or scratching the screen, as it may become dirty or
damaged.
Patented: Refer to www.voxxintl.com/patents

Congratulations
Safety Precaution
Congratulations on your purchase of DVD Player with drop-down video / monitor.
The MTG10UHD/MTG13UHD has been designed to provide passengers with unlimited
content options delivering smiles for many miles. Please read the directions that follow
to familiarize yourself with the product to ensure that you obtain the best results from
your equipment.
Note: Installation options vary, see the individual owner’s manuals for each component
in your system to obtain a full understanding of each component’s operation.
For safety reasons, when changing video media, it is recommended that the vehicle
is not in motion, and that you do not allow children to unfasten seat belts to change
video media or make any adjustments to the system. System adjustments can be
accomplished using the remote control, while seat belts remain fastened. Enjoy your
entertainment system but remember the safety of all passengers remains the number
one priority.

5
Table of Contents
Features .............................................................................................................6
Controls and indicators diagram(front view)....................................... 7
Controls and indicators diagram(side view)......................................... 9
Remote Control Operation .......................................................................10
Remote Control functions.........................................................................10
Turning the unit on or off..........................................................................15
Source menu..................................................................................................16
System Menu Setting and Adjustments ..............................................18
Playing DVDs and Audio Discs ................................................................25
Playing USB Devices....................................................................................25
Playing MP3 Discs ........................................................................................26
DVD Basics ......................................................................................................27
HDMI/MHL Devices......................................................................................29
USB Input ....................................................................................................... 30
Troubleshooting ...........................................................................................31
Specifications.................................................................................................32
Warranty ..........................................................................................................33

6
• 10.1”/13.3” Digital Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display
LED Backlit Monitor
• Built-in DVD Player
• Last position memory for DVD Player
• Six Audio / Video Source Inputs
DVD, USB, AV, AUX, HDMI/MHL 1, HDMI/MHL or SmartStream.
• USB 2.0 Port (User Accessible with Media Playback and Charging support)
• HD Input 1 (User Accessible with MHL support)
• HD Input 2 (Hidden Input via 24Pin Connector - Must be connected during
Installation)
Connection of HDMI/USB Remote access Harness
Connection of SmartStream wireless content streaming Module
• On Screen Display (OSD) for control of picture quality and functions
• Full function remote control
• Plays DVD, CD and MP3 discs
• 100 Channel Wireless FM Modulator
• Dual Channel IR Transmitter
• M1/M2 Operation (for when 2 systems are installed in 1 Vehicle so that IR
Headphone Audio and Remote Control operation is independent)
Features

7
Controls and indicators diagram (front view)
1. POWER/SOURCE ( ) Button
This button is used to turn the system on/off and to selcet the source .
2. Play/Pause (u/II ) Button
This button is used to start playback of a disc or pause a disc.
3. DOWN / Previous ( ) Button
Short press to select the source mode and system menu pages.
Long press to select previous chapter or track during play the DVD.
4. MENU Select Button
This button is used to display and select options on the system menu.
5. UP/NEXT( ) Button
Short press to select the source mode and system menu pages.
Long press to select next chapter or track during play the DVD.

8
Controls and indicators diagram (front view)-Continued
6. STOP (n) Button
-Press the STOP button once: Stops playback.
-Pressing the PLAY button again will resume normal playback from where movie was
stopped.
-Press the STOP button twice and then press the PLAY button to start playback from the
beginning of the DVD.
7. EJECT ( )Button
This button is used for ejecting a disc from the disc compartment.
8. Dome Lights
Provide additional interior illumination.
9. Infrared Transmitter/Remote Sensor
IR Transmitter: is used to broadcast audio signal to wireless IR headphones.
IR Sensor: is used to receive signals from the remote control.
10. Screen Release
Push this button to release the screen from the locked position.
11. Ventilation Openings
12. LCD O Switch
Used to turn off the LCD backlight when the LCD is in the closed position.
13. LCD Panel

9
1. DVD Disc Insertion Slot
For loading and removing discs. When a disc is inserted, the unit will automatically turn ON
and switch to DVD source. Insert a disc with label side facing up.
Note: The disc slot indicator is red when a disc is inserted and green when the disc slot is
empty.
2. AUX IN
This jack is used to supply external audio and video inputs to the unit.
3. USB INPUT
For connection of a USB memory device. This input will also charge a USB device that
contains a battery.
Note: The USB input supplies up to 2A of charging current. (Samsung Mobile Devices
up to 500mA). It is recommended to connect the device to a vehicle power outlet for full
charging capabilities.
4. HD INPUT
For connection of devices with HDMI/MHL outputs.
Note: Requires an HDMI/MHL enabled device and the appropriate adapter cable for that
device. Contact your HDMI/MHL device supplier for the adapter.
5. THREE POSITION DOME LIGHT SWITCH
ON - Turns on the dome lights.
OFF - The dome lights will not turn on in this position.
AUTO - Automatically turns on the dome lights in conjunction with the vehicle's interior
illumination.

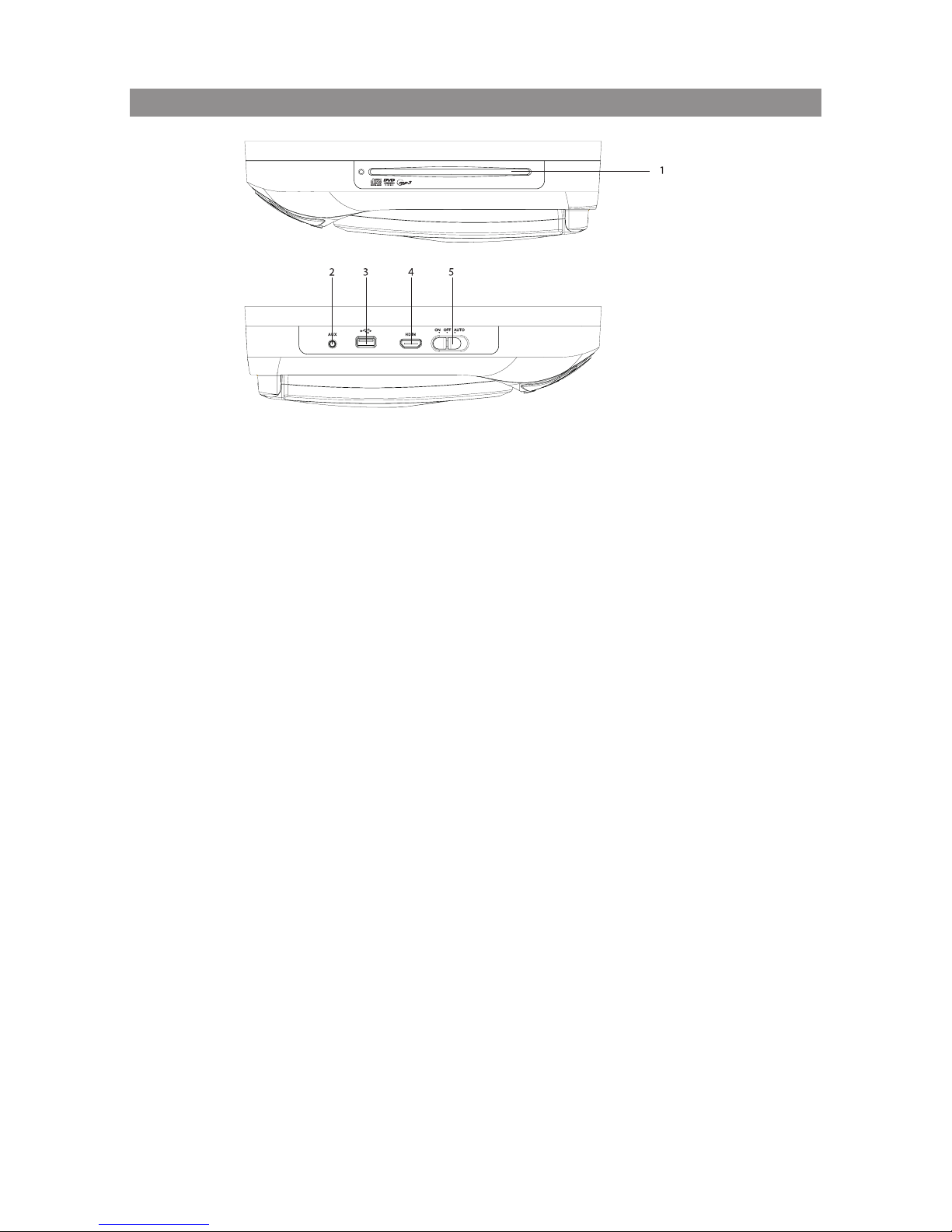

Controls and indicators diagram (side view)

10
Battery Replacement
1. Remove the battery cover.
2. Insert two AAA batteries into the battery holder. Be sure to observe the correct polarity.
3. Reinstall the battery cover into the battery holder until the holder is click .
Remote control operation

11
Remote Control functions

12
* Function control is available on the unit and the Remote Control.
** Function not available in this model.
1. POWER*
Press this button to turn the unit ON and OFF.
2. SOURCE*
Press to display the Source OSD for DVD, USB, AV, AUX,HDMI1 and HDMI2.
3. DVD Source**
No function on this model.
4. DVD Mode Select Button
Switches certain function keys on the remote control for DVD function.
5. NUMBERS
Allows the user to enter the numbers 0-9 for selection of the tracks, titles, chapters or
password setting.
6. SYSTEM MENU
Allows the user to access the system menu. Press the por qcursor buttons to select
PICTURE, AUDIO, SYSTEM, PLAYER, FMM and SMART STREAM Settings.
7. CURSOR (pqt u)
Use the cursor buttons to access menu selections on the screen.
8. OK
Used to execute a selected setting or menu option.
9. DISC MENU
In DVD mode, press once to access the Root Menu and then press again to resume to
previous screen.
10. DISPLAY
Press once to display current disc information of Title, Chapter & Time. Press again to
display Subtitle, Audio & Angle while the disc is playing.
.
11. PLAY (u)*
Press to activate the play mode while a disc is loaded into the disc compartment.
12. PAUSE (II)*
Press to pause playback.
Remote Control functions(Continued)
DVD TT 0/12 CH 0/25 00:00:00
OFF OFF OFF
....

13
13. SCAN BACKWARD ( )
Press to search in a backward direction. Press repeatedly to change the search speed from
2, 4, 8, 20 times and normal speed.
14. SCAN FORWARD ( )
Press to search in a forward direction. Press repeatedly to change the search speed from 2,
4, 8, 20 times and normal speed.
15. PREVIOUS ( )
Press to return to the previous chapter or track.
16. NEXT ( )
Press to skip to the next chapter or track.
17. REPEAT
Allows the user to repeat a selected chapter, title or all track.
18. A-B REPEAT
Allows user to repeat the playback from point A to point B.
Press A-B button On-Screen Display DVD player
Once Repeat A Mark the beginning of the
section to repeat (Set point A)
Twice A-B Mark the end of the section to repeat
(Set point B)
3 times AB Off Cancel the A-B repeat function
19. SUBTITLE
Press to display and select the subtitle language in DVD mode. Each time this button is
pressed, the subtitle language changes.Pressing the button will also turn the subtitles off.
Note: The type and number of subtitle languages vary from disc to disc.
20. ZOOM
Press this button to enlarge or decrease the picture size when playing a DVD disc.
Press ZOOM button DVD Player performs
1 Time Enlarges the picture 2X
2 Times Enlarges the picture 3X
3 Times Enlarges the picture 4X
4 Times Reduces the picture 1/2
5 Times Reduces the picture 1/3
6 Times Reduces the picture 1/4
7 Times Picture is returned to original size
21. IRT ON/OFF
Turns the Infrared Transmitter on/off for IR wireless headphones.
Remote Control functions(Continued)

14
22. FM MODULATOR CHANNEL SELECT (C)**
No function on this model.
User may use the system menu to select the FM Modulator.
23. FMM ON/OFF
Turns the FM Modulator power on/off.
24. AUDIO
Press to display and select audio language in DVD mode. Each time this button is
pressed, the language changes.
25. PIX ( Picture Select )**
No function on this model.
26. VOLUME DOWN (-) or UP (+)**
No function on this model.
27. STOP (n)*
Press to stop playback. (Playback will resume from the point it is stopped).
Press twice to stop playback fully. (Playback will resume from the beginning of the disc).
Note: For MP3 or photo mode, press twice to return to Audio/Photo/Video option menu.
28. SETUP**
No function on this model.
User can use the system to select the function may need.
29. MUTE
Press this button to mute the audio for the wireless FM Modulator, IR headphones and
audio output.
Pressing the button again restores the audio to the previously set level.
30. TV Mode Select
Switches certain function keys on the remote control for monitor functions.
31. MONITOR SELECT
M1 Button – Set the remote control code to allow control of the unit in M1 mode.
M2 Button – Set the remote control code to allow control of the unit in M2 mode.
Note: M1/M2 operation is only for when 2 systems are installed in the same vehicle. This
allows independent Remote Control and independent playback of audio for each system.
32. EJECT ( )*
Press this button to eject the disc.
Remote Control functions(Continued)

15
1. Push in the Screen Release button to unlock the LCD screen. The screen will drop down
slightly.
2. Pivot the screen downward until a comfortable viewing angle is reached. The hinge friction
will hold the screen in position while the system is in use.
3. Press the power button on the unit or the remote control to turn the system on and off.
When in use, the internal backlighting will illuminate the controls.
4. After the unit has been turned on and is displaying a picture, adjust the viewing angle by
pivoting the screen to optimize the picture quality.
5. Remember to turn the unit off and pivot the LCD screen to the locked position when not
in use.
Power ON/OFF
Button
Screen Release
Turning the unit on or o

16

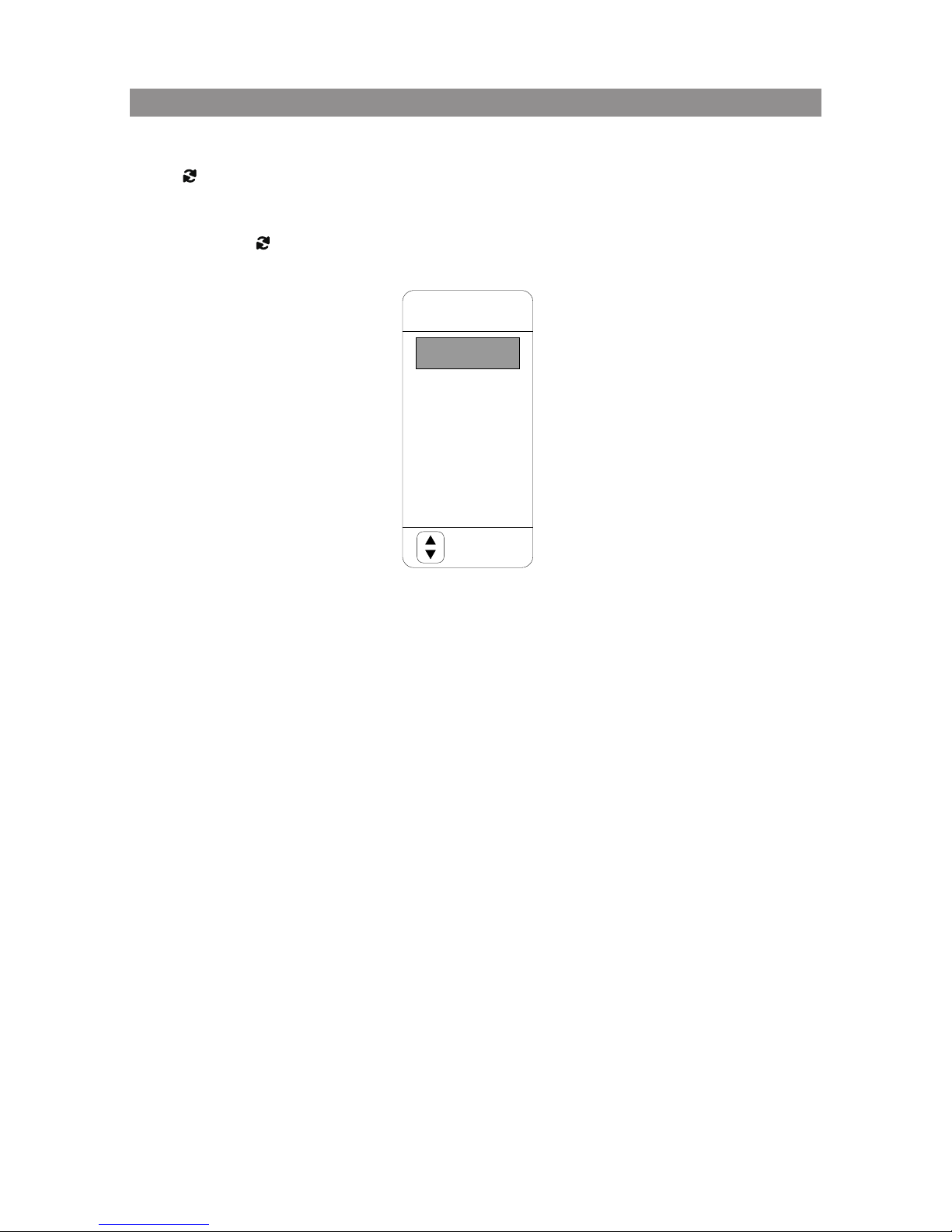

The System is capable of accessing six source inputs. To select or change a source, press the
source button on the front panel or the Source button on the remote control. The source
OSD will appear on the screen as shown in the figure below. Use the ＋ or － cursor buttons
on the front panel or the por qcursor buttons on the remote control to highlight a source.
Press the Source button on the front panel or the OK button on the remote control to select
the desired source.
DVD
The DVD source input is used to play DVDs, Audio CDs and MP3 discs.
USB
The USB source input is used to play MP3 files, JPEG files (Photos) and MPEG I, II files.
AV
An external video source such as a video game system, or other audio/video devices can be
connected to the AV input. This AV input connection is performed when the unit is installed.
Turn the video source component on with its power button or remote control and it is now
ready to play the audio and video signals from the source connected to the AV input.
AUX
An external video source such as a video game system or other audio/video devices may be
connected to the system via the AUX input. Connect your peripheral device to the supplied
Aux Adapter harness and plug the harness into the AUX Input on the side of the system. Turn
the external source component on with its power button or remote control and it is now ready
to play the audio and video signal from the source connected to AUX.
SOURCE
AV
AUX
HDMI 1
HDMI 2
MOVE
DVD
USB
Source menu

17
HDMI 1 & HDMI 2
These Source inputs allow the user to enjoy high-definition digital images and high-quality
sound by connecting a HD device such as a Blu-ray player or smartphone with an HDMI output
to the system. The HDMI inputs also allow the user to connect with a Mobile High-Definition
Link (MHL) mobile phone. Connect your HDMI/MHL device with an optional HDMI cable.
Smartphones and Tablet require the appropriate adapter for your smart device. You can also
use this input to connect a Smart Stick such as a ROKU, Amazon FireTV and Chromecast device
(these devices may require Wi-Fi Hotspot access to stream content which is not included with
this system).
Notes:
• This source requires an HDMI/MHL enabled device and a special HDMI/MHL adapter.
Contact your HDMI/MHL device supplier for the adapter.
• Phone functionality (phone calls, texting, etc.) may be limited while using the adapter.
• HDMI content is copy protected and is not available on the AV output of the System.
Source menu(Continued)

18
The Setup Menu contains features and options that let you customize your DVD player.
For example, you can set a language for the on-screen display or set up PARENTAL
controls to control DVD playback for children.
Using the System Menu
1. Press the System Menu button on the remote. The System Menu appears on the
screen as shown in the figure below. There are 6 icons that will appear individually in
the upper left hand corner of the System Menu as each option is selected.
.
2. To select the desired setup option, move the highlighted (in blue) option using
the up/down ( ) cursor buttons. Press the right ( ) cursor button to access the
options on the right hand side of the screen.
3. After entering the setup area (on the right side of the screen), highlight the desired
option using the up/down ( ) cursor buttons.
4. Press the right ( ) cursor button to toggle the sub menu that contains the different
options available.
5. Repeat steps 3 and 4 to set the options for each option on the same Setup Page.
6. To change to another Setup page, press the system menu cursor button to the icon
side of the setup page. Then, repeat steps 2 through 5.
AUDIO Setup
SYSTEM Setup
PLAYER Setup
FMM Setup
SMART STREAM
AUDIO
AUDIO
AUDIO
SYSTEM
SYSTEM
SYSTEM
PLAYER
PLAYER
PLAYER
FMM
FMM
FMM
SMART STREAM
SMART STREAM
SMART STREAM
ADJUST
ADJUST
ADJUST
EXIT
EXIT
EXIT
BRIGHTNESS
LANGUAGE
TV SYSTEM
CONTRAST
DEFAULT DVD
SCREEN SAVER
COLOR
MONITOR MODE
ASPECT RATIO
PASSWORD SETUP
TINT
RESET
RATING
LAST MEMORY
AUDIO LANGUAGE
MOVE
MOVE
MOVE
16
16
16
0
MENU
MENU
MENU
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXIT
IRT
MOVE MENU
L/R
ON
ENGLISH
NTSC
ADULT
ON
ON
ON
M1
16:9
ENGLISH
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM SELECT EXIT
FM
FMM CHANNEL
MOVE MENU
ON
MIRACAST/AIRPLAY&DLNA
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXITMOVE MENU
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM SELECT EXITMOVE MENU
88.1MHz
88.3MHz
88.5MHz
88.7MHz
88.9MHz
89.1MHz
89.3MHz
89.5MHz
89.7MHz
89.9MHz
90.1MHz
90.3MHz
90.5MHz
90.7MHz
90.9MHz
91.1MHz
91.3MHz
91.5MHz
91.7MHz
91.9MHz
92.1MHz
92.3MHz
92.5MHz
92.7MHz
92.9MHz
93.1MHz
93.3MHz
93.5MHz
93.7MHz
93.9MHz
94.1MHz
94.3MHz
94.5MHz
94.7MHz
94.9MHz
95.1MHz
95.3MHz
95.5MHz
95.7MHz
95.9MHz
96.1MHz
96.3MHz
96.5MHz
96.7MHz
96.9MHz
YES NO
System Menu Setting and Adjustments

19

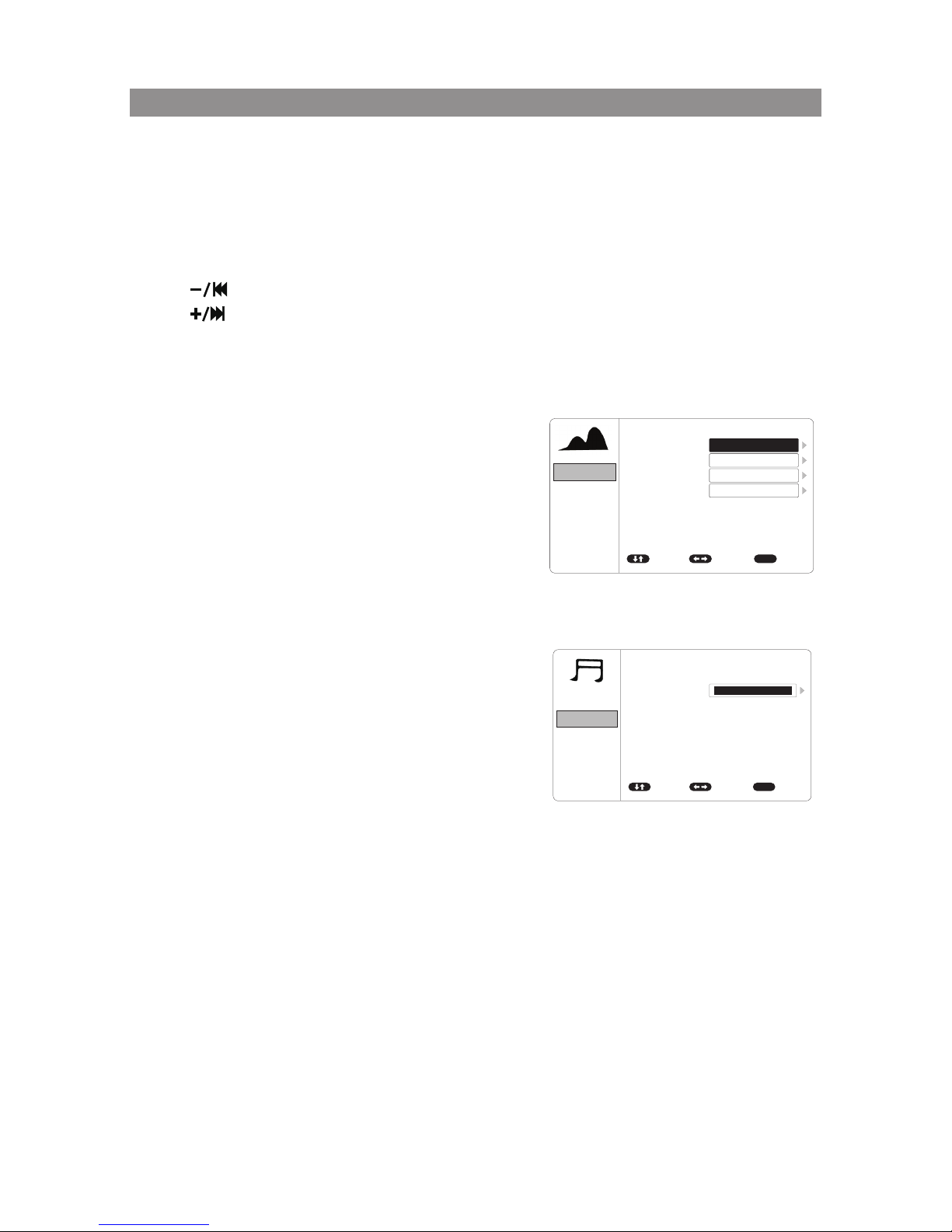

PICTURE CONTROL
The PICTURE setup functions allows the user to
select and set the picture control function.
BRIGHTNESS, CONTRAST, COLOR adjustments range
from 0 to 32.
TINT adjustments range from -16 to 16.
AUDIO MODE
The AUDIO setup functions allows the user to select
and set the IRT Headpone transmitter "ON" or "OFF"
IRT
The IR transmitter can be set to ON or OFF.The IR
Transmitter must be set to "ON" for the wireless
headphone to be operational.
System Menu Setting and Adjustments(Continued)
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXIT
BRIGHTNESS
CONTRAST
COLOR
TINT
MOVE
16
16
0
MENU
16
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXIT
BRIGHTNESS
CONTRAST
COLOR
TINT
MOVE
16
0
MENU
16
16
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXIT
BRIGHTNESS
CONTRAST
COLOR
TINT
MOVE
0
MENU
16
16
16
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXIT
BRIGHTNESS
CONTRAST
COLOR
TINT
MOVE MENU
16
16
16
0
7. If without a Remote control user can use the local key to select the function setting.
a.) Menu = Long press to call up the setup menu screen information or return/exit
the system menu
= Short press function as Down Key
b.)
u/II Play = Enter Key
c.) = Left Key
d.) = Right Key
AUDIO
SYSTEM
PLAYER
FMM
ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM
SMART STREAM
ADJUST EXIT
IRT
MOVE MENU
L/R
ON
ENGLISH
ON
M1

20
SYSTEM MODE
The system setup function allow the user to select
the system function. Functions listed below.
LANGUAGE
The LANGUAGE setup allows the user to select
ENGLISH,SPANISH, FRENCH, GERMAN for the on-
screen language display.
DEFAULT DVD
The DEFAULT DVD allows the user to set the system
default source to DVD ON or OFF.
If souce default is set to ON, every time the unit
is turned off the on, the unit will power up and
automatically switch the source to DVD.
If source default is set to OFF and the system is
turned off then on, the unit will power up in the
source that was last selected.
MONITOR MODE
This allows the user to change the system to M1 or
M2 mode. Once the setting is changed, the remote
control and IR headphones will only work if set to
that same setting.
1.M1 Mode - For the Remote Control to operate the
system when set to M1, press the M1
button on the Remote Control.
Please make sure IR Headphones are set to
Channel A when the system is in M1 mode.
2.M2 Mode - For the Remote Control to operate the
system when set to M2, press the M2
button on the Remote Control.
Please make sure IR Headphones are set to
Channel B when the system is in M2 mode.
AUDIO
AUDIO
AUDIO
SYSTEM
SYSTEM
SYSTEM
PLAYER
PLAYER
PLAYER
FMM
FMM
FMM
SMART STREAM
SMART STREAM
SMART STREAM
ADJUST
ADJUST
ADJUST
EXIT
EXIT
EXIT
BRIGHTNESS
LANGUAGE
TV SYSTEM
CONTRAST
DEFAULT DVD
SCREEN SAVER
COLOR
MONITOR MODE
ASPECT RATIO
PASSWORD SETUP
TINT
RESET
RATING
LAST MEMORY
AUDIO LANGUAGE
MOVE
MOVE
MOVE
16
16
16
0
MENU
MENU
MENU
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXIT
IRT
MOVE MENU
L/R
ON
ENGLISH
NTSC
ADULT
ON
ON
ON
M1
16:9
ENGLISH
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM SELECT EXIT
FM
FMM CHANNEL
MOVE MENU
ON
MIRACAST/AIRPLAY&DLNA
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXITMOVE MENU
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM SELECT EXITMOVE MENU
88.1MHz
88.3MHz
88.5MHz
88.7MHz
88.9MHz
89.1MHz
89.3MHz
89.5MHz
89.7MHz
89.9MHz
90.1MHz
90.3MHz
90.5MHz
90.7MHz
90.9MHz
91.1MHz
91.3MHz
91.5MHz
91.7MHz
91.9MHz
92.1MHz
92.3MHz
92.5MHz
92.7MHz
92.9MHz
93.1MHz
93.3MHz
93.5MHz
93.7MHz
93.9MHz
94.1MHz
94.3MHz
94.5MHz
94.7MHz
94.9MHz
95.1MHz
95.3MHz
95.5MHz
95.7MHz
95.9MHz
96.1MHz
96.3MHz
96.5MHz
96.7MHz
96.9MHz
YES NO
System Menu Setting and Adjustments(Continued)
AUDIO
AUDIO
AUDIO
SYSTEM
SYSTEM
SYSTEM
PLAYER
PLAYER
PLAYER
FMM
FMM
FMM
SMART STREAM
SMART STREAM
SMART STREAM
ADJUST
ADJUST
ADJUST
EXIT
EXIT
EXIT
BRIGHTNESS
LANGUAGE
TV SYSTEM
CONTRAST
DEFAULT DVD
SCREEN SAVER
COLOR
MONITOR MODE
ASPECT RATIO
PASSWORD SETUP
TINT
RESET
RATING
LAST MEMORY
AUDIO LANGUAGE
MOVE
MOVE
MOVE
16
16
16
0
MENU
MENU
MENU
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXIT
IRT
MOVE MENU
L/R
ON
ENGLISH
NTSC
ADULT
ON
ON
ON
M1
16:9
ENGLISH
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM SELECT EXIT
FM
FMM CHANNEL
MOVE MENU
ON
MIRACAST/AIRPLAY&DLNA
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXITMOVE MENU
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM SELECT EXITMOVE MENU
88.1MHz
88.3MHz
88.5MHz
88.7MHz
88.9MHz
89.1MHz
89.3MHz
89.5MHz
89.7MHz
89.9MHz
90.1MHz
90.3MHz
90.5MHz
90.7MHz
90.9MHz
91.1MHz
91.3MHz
91.5MHz
91.7MHz
91.9MHz
92.1MHz
92.3MHz
92.5MHz
92.7MHz
92.9MHz
93.1MHz
93.3MHz
93.5MHz
93.7MHz
93.9MHz
94.1MHz
94.3MHz
94.5MHz
94.7MHz
94.9MHz
95.1MHz
95.3MHz
95.5MHz
95.7MHz
95.9MHz
96.1MHz
96.3MHz
96.5MHz
96.7MHz
96.9MHz
YES NO
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1
AUDIO
SYSTEM
PLAYER
FMM
SMART STREAM ADJUST EXIT
LANGUAGE
DEFAULT DVD
MONITOR MODE
RESET
MOVE MENU
ENGLISH
ON
M1
