Movies 2 go MOVIES 2 GO MM170R User manual

Model Number MM170R
17.1” Color LCD Monitor
Operation Manual
128-8367

Wiring Diagram
2
On Screen Display (OSD) Functions:
Press the MENU button on the Remote Control. Brightness, Saturation, Contrast, Hue
and Reset will appear.
Video input (yellow)
S-VIDEO
++
--
F SE A
U 2
12V
BATTERY
VGA
IR transmitter
FEATURES:
High Resolution 17.1" Active Matrix 16:9 Display
Resolution: 1440 x 900
Source Of Signal: CVBS, SVIDEO VGA
Power Supply:DC0.8V~13.8V
Power Consumption:15W
Video System: NTSC/PAL
Dimensions: 17 x 10 x .79inch (431.8 X 254 X200.6mm)
Return
Brig htness 53
Contrast 50
Saturation 50
Hue 50
Sele ct Move
MENU +
-
USER
Return
Colo r
Red 50
Green 50
Blue 50
Sele ct Move
MENU +
-
USER
1. Press SETUP to enter the main menu ; press "v" or "w" to choose a submenu
2. Press "w" to enter the desired submenu. Press "r" "s" to
access each of the adjustments Such as BRIGHTNESS, CONTRAST etc.

Return
Brig htness 53
Contrast 50
Saturation 50
Hue 50
3. Press "w" to enter the desired submenu. Press "v" or "w" to access each of the
adjustments. Press to adjust, then press "w" again to exit. Then press SETUP to exit
main menu.
Sele ct Move
MENU +
-
USER
Using the remote control press the arrow button on the right to increase the adjustment or
the arrow button on the left to decrease the adjustment. The brightness, contrast, saturation
and hue can be adjusted from -50 to +50. To access each of the adjustments, press the MENU
button. Once the desired adjustment is reached use the right or left arrow buttons. If RESET is
selected, pressing the right arrow button will reset the monitor to factory settings.

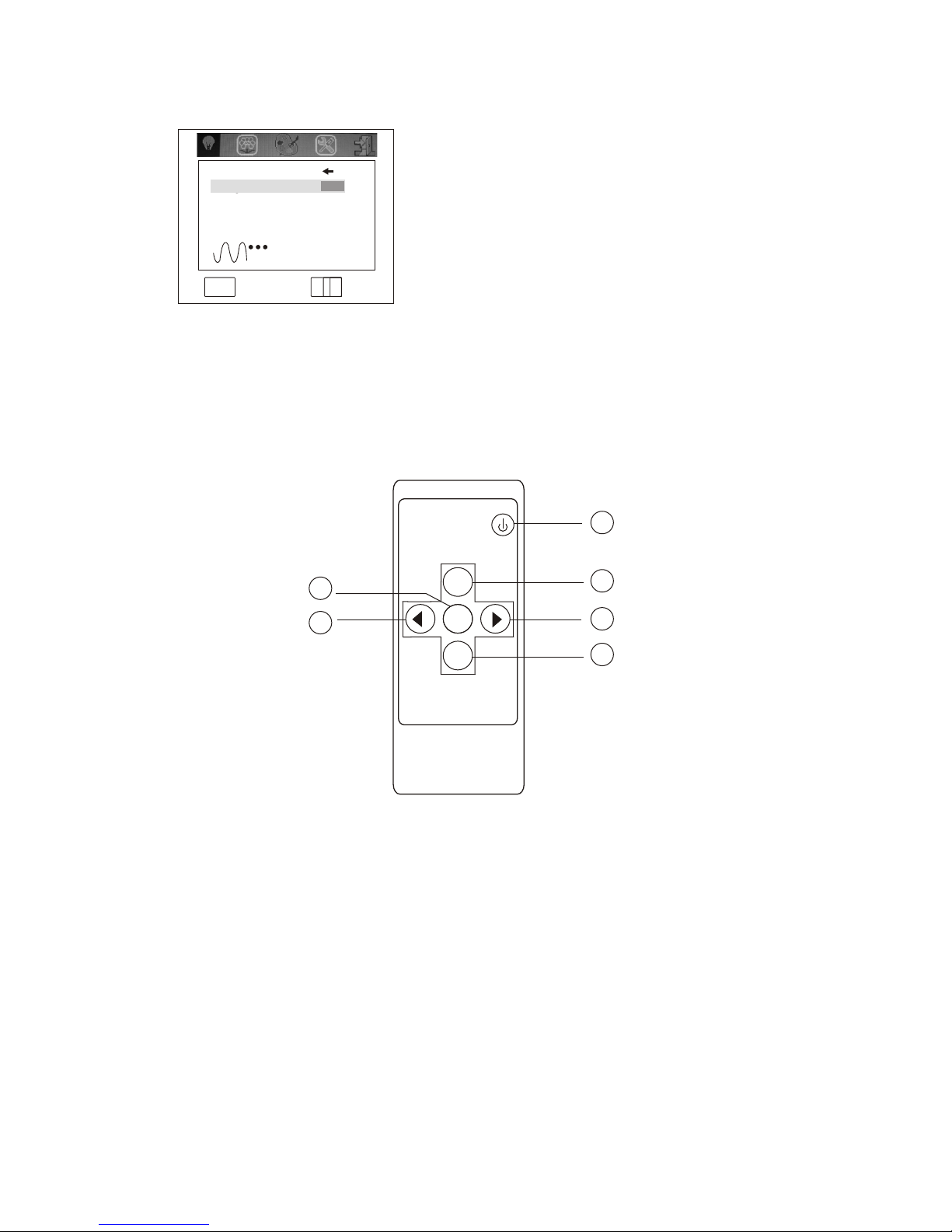

Remote Control MONITOR MOBILE
ESC
MENU
INPUT
LCD REMOTE
1
2
4
6
3
5
1. POWER On/Off Button: Turns the monitor on or off.
NOTE: There is a short delay after pressing the power button until video appears on the
screen.
2. Input Video Switch Button : Selects the video source AV1*.
3. MENU Button: This button is used to display the OSD and access the video adjustments.
4. Right Arrow Button: This button is used to increase the video adjustment parameters.
5. Left Arrow Button: This button is used to decrease the video adjustment parameters.
6.ESC Button: Used to turn off the OSD.
*AV2 is not used on this model

© Copyright 2008 AEC, 150 Marcus Blvd. Hauppauge, NY 11788 128-8367
Troubleshooting
Symptom Cause
1.Check if the power cable is properly connected.
2.Use remote control to turn the unit on. Check if the
battery in the remote control is installed correctly.
3. Make sure the battery is not discharged.
Unit does not
turn on
1. Check if the source video is operational.
2. Check the input source setting.
3. Check that the Vertical Scanning Frequency of the
VGA input is OK.
No picture
1. Check if the source video is operational.
2. Check the video system of the input signal to verify it
is compatible with this unit.
Picture appears
incorrect
1. Check the batteries in the remote control to ensure the
battery is not discharged.
2. Check the batteries are installed correctly.
Remote control
does not work
