movistar 450NDual Band User manual

Wireless 450N Dual Band USB Adapter
User Manual
Version: 1.0
(May, 2012)

COPYRIGHT
Copyright ©2005/2006 by this company. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or
by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of this company
This company makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties, merchantability or fitness for any particular purpose. Any software
described in this manual is sold or licensed "as is". Should the programs prove
defective following their purchase, the buyer (and not this company, its
distributor, or its dealer) assumes the entire cost of all necessary servicing,
repair, and any incidental or consequential damages resulting from any defect
in the software. Further, this company reserves the right to revise this
publication and to make changes from time to time in the contents thereof
without obligation to notify any person of such revision or changes.

C A T A L O G
CHAPTER I: Product Information................................................................. 4
1-1 Introduction and safety information............................................................4
1-2 Safety Information. ........................................................................................5
1-3 System Requirements. ...................................................................................6
CHAPTER II: Driver Installation and Configuration............................... 8
2-1 Network Card Installation.............................................................................8
2-2 Connect to Wireless Access Point. ................................................................14
2-2-1 Using Movistar USB Wireless Adapter......................................................14
2-2-2 Using Windows Zero Configuration (Windows XP Only). .......................18
2-3 Connection Profile Management...................................................................22
2-3-1 Add a new entry..........................................................................................22
2-3-2 Remove an existing profile ........................................................................25
2-3-3 Edit an existing profile...............................................................................26
2-3-4 WPS Profile Setup......................................................................................27
2-3-4-1 PBC mode WPS configuration. ..............................................................29
2-3-4-2 PIN mode WPS configuration. ...............................................................30
2-4 View Link Status............................................................................................32
2-5 Advanced Settings .........................................................................................34
2-5-1 Advanced menu..........................................................................................34
2-6 About .............................................................................................................36
CHAPTER III: Appendix ........................................................................... 37
3-1 Hardware Specification .................................................................................37
3-2 Troubleshooting.............................................................................................38
4-4 FCC and Other Compliance Statements........................................................43

CHAPTER I: Product Information
1-1 Introduction and safety information.
Thank you for purchasing this extreme high-speed 802.11a/b/g/n dual
band wireless network card! Excepting common wireless standards
802.11a/b/g, this wireless network card is also 802.11n compatible - data
transfer rate is 450Mbps, and that’s night times faster than 802.11g
wireless network! 802.11n also provides wider wireless coverage, so you
don’t have to worry if your computer is far from your wireless access
point.
With easy-to-install USB 2.0 interface - a very common expansion port of
computers - plug this wireless network card into any empty USB port of
your computer, just that simple!
Other features of this product including:
Portable dongle type design.
Supports Infrastructure, Ad-Hoc, and Wi-Fi Direct connection
method.
QoS function: provides Wi-Fi Multimedia (WMM) quality of
service to secure audio/video/voice data traffic as higher priority.
802.11a/b/g/n compatible.
Supports major encryption methods like WEP, WPA, and WPA2
encryption.
WPS configuration - You don’t need an experienced computer
technician to help you to get connected. With WPS, you can get
your computer connected by simply pushing a button on USB
network card or entering an 8-digit code.
USB 2.0 interface - you can get it installed on your computer in
just few seconds!
Wireless access control - prevent unauthorized network access to
your network and computer.

1-2 Safety Information.
In order to keep the safety of users and your properties, please follow the
following safety instructions:
1. This USB wireless network card is designed for indoor use only. DO
NOT expose this network card to direct sun light, rain, or snow.
2. DO NOT put this network card at or near hot or humid places, like
kitchen or bathroom. Also, do not left this wireless network card in the
car in summer.
3. This network card is small enough to put in a child’s mouth, and it
could cause serious injury or could be fatal. If they throw the network
card, the card will be damaged. PLEASE KEEP THIS NETWORK
CARD OUT THE REACH OF CHILDREN!
4. This network card will become hot when being used for long time
(This is normal and is not a malfunction). DO NOT put the network
card on a paper, cloth, or other flammable objects after the network card
has been used for a long time.
5. There’s no user-serviceable part inside the network card. If you found
that the network card is not working properly, please contact your dealer
of purchase and ask for help. DO NOT disassemble the network card by
yourself, warranty will be void.
6. If the network card falls into water, DO NOT USE IT AGAIN
BEFORE YOU SEND THE CARD TO THE DEALER OF PURCHASE
FOR INSPECTION.
7. If you smell something strange or even see some smoke coming out
from the network card, switch the computer off immediately, and call
dealer of purchase for help.

1-3 System Requirements.
An empty USB 2.0 port (May not be able work with USB 1.1 port,
and performance will be greatly reduced)
Windows XP, Vista, or Windows 7 operating system
CD-ROM drive
At least 100MB of available disk space
1-4 Package Contents.
Before you starting to use this wireless network card, please check if
there’s anything missing in the package, and contact your dealer of
purchase to claim for missing items:
□ USB wireless network card (1 pcs) ……………………………… 1
□ Cradle (1 pcs) ………………….………………………………….2
□ Quick installation guide (1 pcs) ………………………………….. 3
□ Driver/Utility/User Manual CD-ROM (1 pcs) ……………………4
□ Warranty card (1 pcs) …………………………………………...... 5

1-5 Fami iar with your new wire ess network card.
1. USB Connector
2. External Wireless Antenna
3. Link/Activity LED
4. WPS Button (Press to activate WPS pairing mode)
LED Name Light Status Description
Link/
Activity Blinking Linked to a wireless access point / Transferring data
Off Power off
1
2
3
4

CHAPTER II: Driver Installation and Configuration
2-1 Network Card Insta ation.
Please follow the following instructions to install your new wireless
network card:
1. Insert the USB wireless network card into an empty USB 2.0 port of
your computer when computer is switched on. Never use force to
insert the card, if you feel it’s stuck, flip the card over and try again.
2. Insert device driver CDROM into the CD/DVD ROM drive of your
computer, and execute ‘AutoRun.exe’program in ‘Driver’folder.

3. On Windows Vista / Windows 7 computer, Movistar USB Wireless
Adapter Utility will start, click ‘Install Drivers and Utility’to continue.

4. Please select the Location you want to install the Utility, and then
click ‘Siguiente’.
5. Select ‘Program file’and click ‘Continue’.

6. Utility setup will start. Please be patient while installation is in
progress, this may require few minutes.
7. Click ‘Finish’to finish installation procedure.

8. Please insert your USB wifi network card to any empty USB port now.
A popup message indicating that your computer found ‘802.11n USB
Wireless LAN Card’ will appear. Please be patient while Windows is
installation driver.
This message will only appear when you insert the USB wifi network
card to your computer’s USB port, or you insert the network card to a
different USB port of your computer.
9. You should be able to see this popup message, indicating your new
USB network is ready to use; If not, please either try to re-install
driver, or insert the network card to another USB port of your
computer.
10.A new icon will appear near the clock of system tray:
Left-click the icon will launch wireless network configuration utility,
and you can right-click the icon to show the quick menu of

configuration utility.
This icon uses 3 colors to represent current network status:
Network connection established.
Network connection is not yet established.
Network card not found on your computer.
For detailed instructions of wireless network configuration utility, please
refer to next chapter.

2-2 Connect to Wire ess Access Point.
To use wireless network, you have to connect to a wireless access point
first. You can either use “Movistar USB Wireless Adapter” (comes with
network card driver), or Windows Zero Configuration Utility (comes with
Windows operating system).
2-2-1 Using Movistar USB Wire ess Adapter.
Please follow the following instructions to use Ralink configuration
utility to connect to wireless access point.
1. Left-click the “Movistar USB Wireless Adapter” configuration utility
icon located at lower-right corner of computer desktop, and
configuration menu will appear:
2. Wireless utility will appear.

“Redes Disponibles” section will list the available wireless networks (and
their status). When the Utility is launched it will automatically go to this
section.
There are 7 fields in Site Survey list:
Field Description
Nombre de Red. The Service-Set IDentifier of network device
(The name of network device)
Banda. The Wi-Fi band the network is using (2,4Ghz or
5Ghz).
Canal The channel number of this network device
Wireless mode Available wireless mode.
802.11a wireless capability
802.11b wireless capability
802.11g wireless capability

802.11n wireless capability
Seguridad Security mode. When nothing is displayed here,
means this network device does not require
security and anyone can connect to it.
Señal Shows the wireless signal strength in percentage.
Higher percentage means better signal quality.
Calidad de Señal Shows the wireless signal strength in a graphical
way.
3. To connect to a wireless access point, double click on it:
4. If the wireless access point you wish to connect does not appear here,
you can click ‘Actualizar’ button to scan for wireless access points
again. If the wireless access point you’re looking for still not appear,
try to move the computer closer.

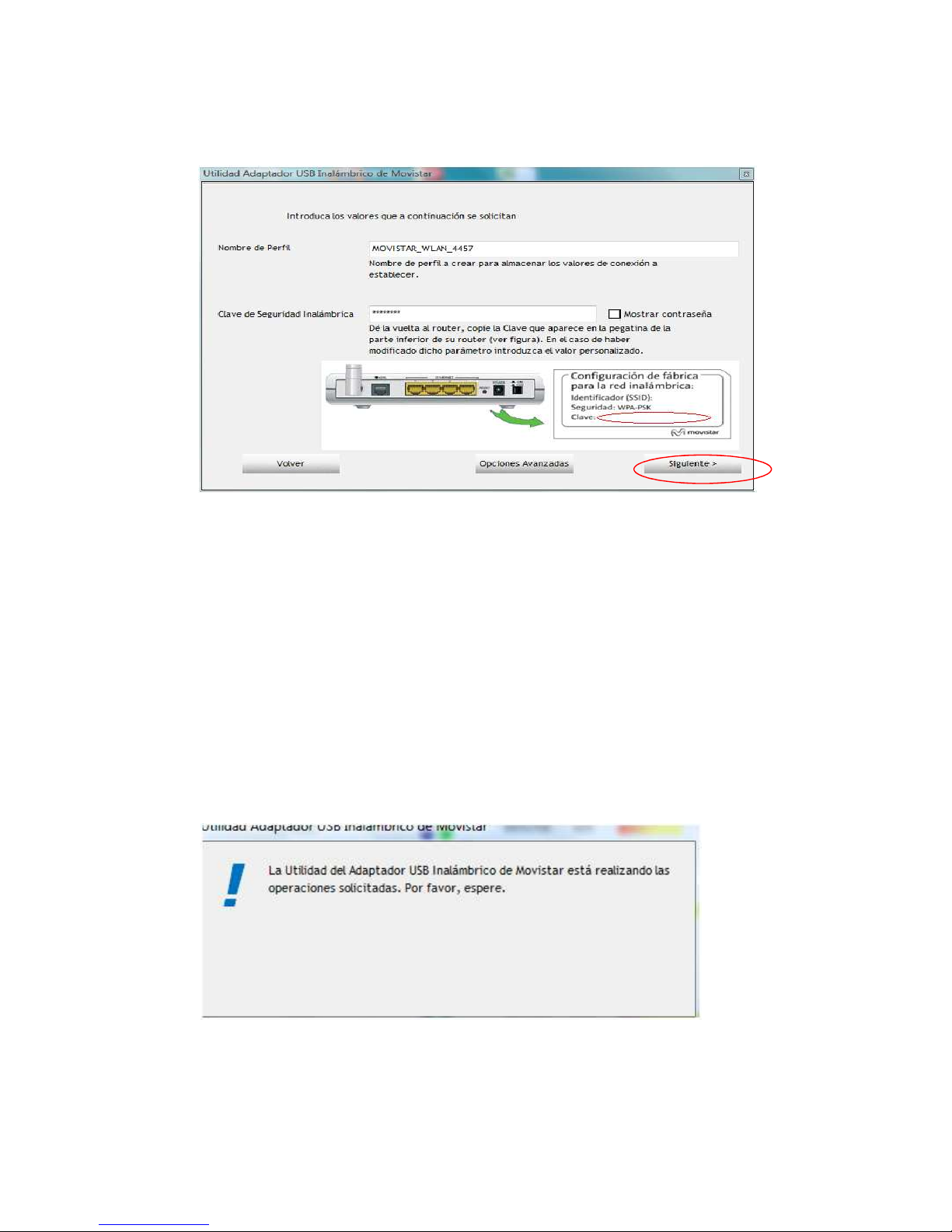

5. You’ll be prompted to introduce Wireless Network Password (if any),

(key or passphrase, depends on encryption method):
Click “Siguiente” to continue. If you introduce a wrong password,
connection will not be able to establish.
6. Network card will attempt to connect to access point now, this may
require few seconds to minutes, please be patient. When you see
there’s a check shown beside the access point you wish to connect,
your computer is connected to access point you selected. The
connection status will be displayed in configuration utility also.
(see example picture below).
Movistar USB Wireless adapter Utility will prompt you a success
window:

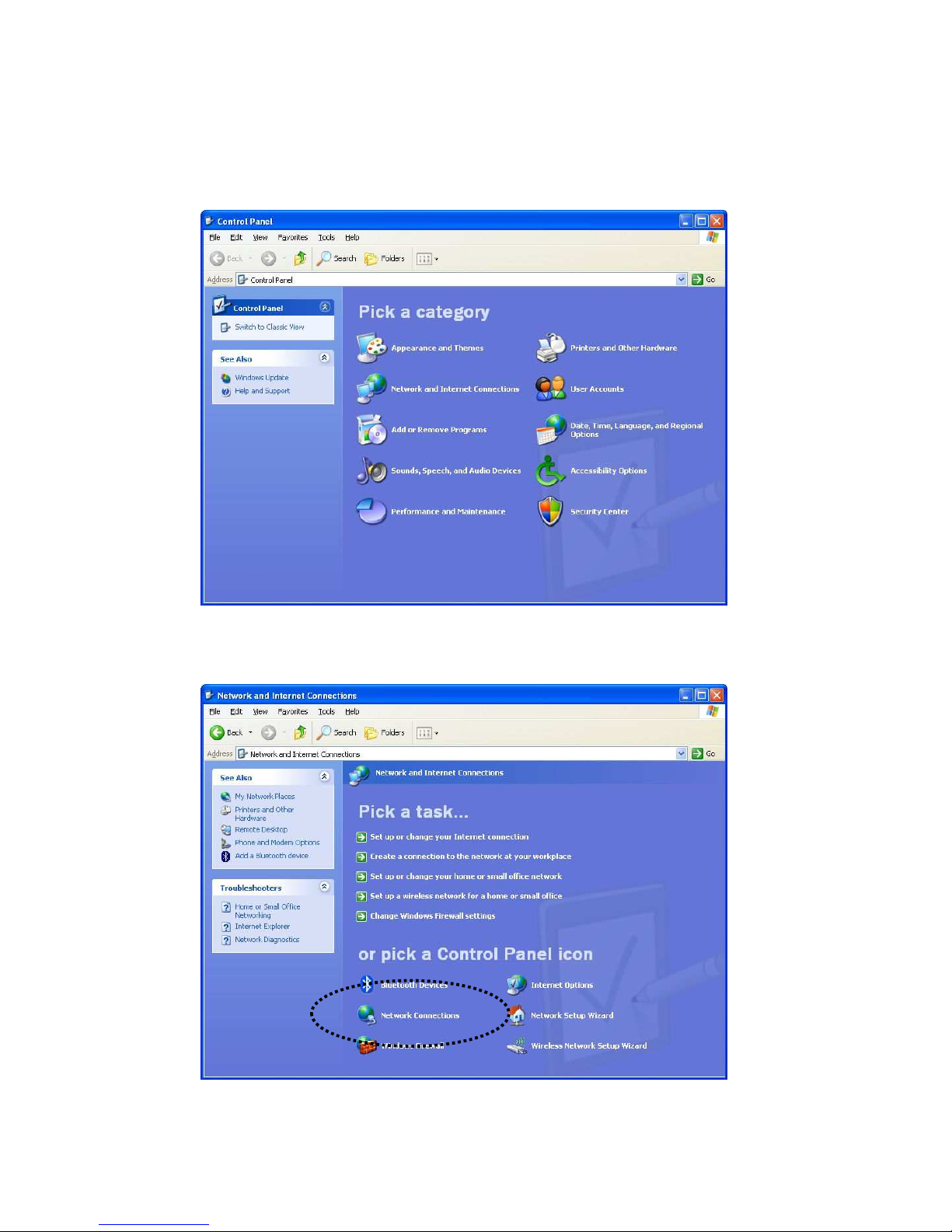

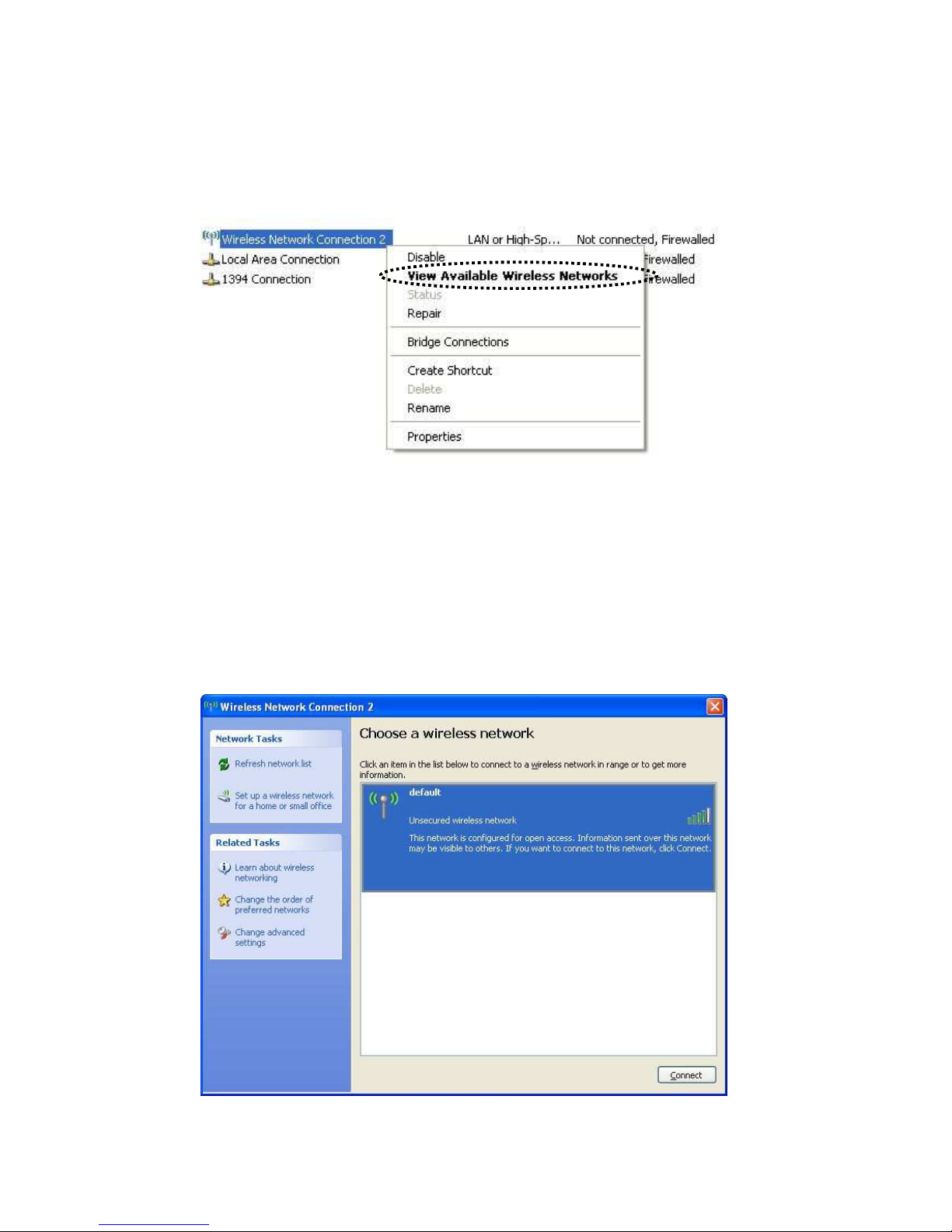

2-2-2 Using Windows Zero Configuration (Windows XP On y).
Windows XP and Vista and has a built-in wireless network configuration
utility, called as ‘Windows Zero Configuration’(WZC). You can also use
WZC to configure your wireless network parameter:
1. Right-click configuration utility’s icon, and select ‘Use Zero
Configuration as Configuration Utility’.
In this mode, you can still use Ralink configuration utility to check the
connection status, but unable to connect to a wireless network, or
change network setting.
Follow the following steps to use WZC to establish network
connection. If you wish to return to use Ralink configuration utility
again, right-click Ralink configuration utility icon again, and select
‘Use RaConfig as Configuration Utility’.

2. Click ‘Start’button (should be located at the bottom-left corner of
windows desktop), click ‘Control Panel’, then click ‘Network and
Internet Connections’in Control Panel.
3. Click ‘Connect to a network’under ‘Network Connections’.

4. Right-click ‘Wireless Network Connection’ (it may have a number as
suffix if you have more than one wireless network card, please make
sure you right-click the ‘802.11n Wireless LAN Card), then select
‘View Available Wireless Networks’.
5. All wireless access points in proximity will be displayed here. If the
access point you want to use is not displayed here, please try to move
your computer closer to the access point, or you can click ‘Refresh
network list’ to rescan access points. Click the access point you want
to use if it’s shown, then click ‘Connect’.
