MTD Pro 31AM63FE529 User manual

Safety • Assembly • Operation • Adjustments • Maintenance • Troubleshooting • Parts Lists • Warranty
PRINTED IN U.S.A. MTD Products Ltd., P. O. Box 1386, KITCHENER, ONTARIO N2G 4J1
OPERATOR’S MANUAL
IMPORTANT:
READ SAFETY RULES AND INSTRUCTIONS
CAREFULLY BEFORE OPERATING EQUIPMENT.
Two-Stage Snow Thrower
769-04119A
7/20/09

2
Finding and Recording Model Number
Table of Contents
BEFORE YOU START ASSEMBLING
YOUR NEW EQUIPMENT,
please locate the model plate on the equipment and copy the
model number and the serial number to the sample model
plate provided to the right. You can locate the model plate by
standing at the operating position and looking down at the
frame.
This Operator’s Manual is an important part of your new snow thrower. It will help you assemble,
prepare and maintain the unit for best performance. Please read and understand what it says.
Safety Labels ...................................................... 3
Safe Operation Practices................................... 4
Setting Up Your Snow Thrower.......................... 6
Operating Your Snow Thrower........................... 8
MakingAdjustments ......................................... 12
Maintaining Your Snow Thrower...................... 14
Off-Season Storage.......................................... 17
Trouble Shooting .............................................. 18
Warranty ............................................................ 19
Illustrated Parts Lists....................................... 21
MTD PRODUCTS LIMITED
KITCHENER, ON N2G 4J1
1-800-668-1238
XXXXXXXXXX XXXXXXXXXXX
Model Number
Numéro de modèle
Serial Number
Numéro de série
www.mtdcanada.com
Please do NOT return the unit to the retailer from which it was purchased,
without first contacting Customer Support.
Customer Support
If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit,
you can seek help from the experts. Choose from the options below:
1. Visit www.mtdcanada.ca for many useful suggestions, click on Customer Support button.
2. Call a Customer Support Representative at 1-800-668-1238.
3. The engine manufacturer is responsible for all engine-related issues in terms of performance, power-rating, specifications,
warranty, and service. Depending on the engine manufacturer, more information is included in this publication or packed
separately with this product.
Please have your unit’s model number and serial number ready when you call. See previous section to locate this information.
You will be asked to enter the serial number in order to process your call.

3
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before
attempting to assemble and operate.
WARNING— ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running.
There are rotating blades inside.
WARNING— ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running.
There are rotating blades inside.
WARNING— ROTATING AUGER
Do not put hands or feet near rotating parts, in the auger/impeller housing
or chute assembly. Contact with the rotating parts can amputate hands and
feet.
WARNING—THROWN OBJECTS
This machine may pick up and throw objects which can cause serious
personal injury.
WARNING—GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.
WARNING— CARBON MONOXIDE
Never run an engine indoors or in a poorly ventilated area. Engine exhaust
contains carbon monoxide, an odorless and deadly gas.
WARNING— ELECTRICAL SHOCK
Do not use the engine’s electric starter in the rain.
WARNING— HOT SURFACE
Engine parts, especially the muffler, become extremely hot during opera-
tion. Allow engine and muffler to cool before touching.
1
Safety
Symbols
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble and operate.
WARNING
This symbol points
out important safety
instructions which,
if not followed, could
endanger the per-
sonal safety and/or
property of yourself
and others. Read and
follow all instructions
in this manual before
attempting to operate
this machine. Failure
to comply with these
instructions may
result in personal
injury. When you see
this symbol, HEED
ITS WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.

4
2
Safe
Operation
Practices Training
1. Read, understand, and follow all instructions on the machine
and in the manual(s) before attempting to assemble and
operate. Keep this manual in a safe place for future and
regular reference and for ordering replacement parts.
2. Be familiar with all controls and their proper operation. Know
how to stop the machine and disengage them quickly.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the instructions and safe operation practices in this
manual and on the machine and be trained and supervised by
an adult.
4. Never allow adults to operate this machine without proper
instruction.
5. Thrown objects can cause serious personal injury. Plan your
snow-throwing pattern to avoid discharge of material toward
roads, bystanders and the like.
6. Keep bystanders, helpers, pets and children at least 75 feet
from the machine while it is in operation. Stop machine if
anyone enters the area.
7. Exercise caution to avoid slipping or falling, especially when
operating in reverse.
Preparation
Thoroughly inspect the area where the equipment is to be used.
Remove all doormats, newspapers, sleds, boards, wires and
other foreign objects, which could be tripped over or thrown by
the auger/impeller.
1. Always wear safety glasses or eye shields during operation
and while performing an adjustment or repair to protect your
eyes. Thrown objects which ricochet can cause serious injury
to the eyes.
2. Do not operate without wearing adequate winter outer
garments. Do not wear jewelry, long scarves or other loose
clothing, which could become entangled in moving parts.
Wear footwear which will improve footing on slippery
surfaces.
3. Use a grounded three-wire extension cord and receptacle for
all units with electric start engines.
4. Adjust collector housing height to clear gravel or crushed rock
surfaces.
5. Disengage all control levers before starting the engine.
6. Never attempt to make any adjustments while engine is
running, except where specifically recommended in the
operator’s manual.
7. Let engine and machine adjust to outdoor temperature before
starting to clear snow.
Safe Handling of Gasoline
To avoid personal injury or property damage use extreme care in
handling gasoline. Gasoline is extremely flammable and the vapors
are explosive. Serious personal injury can occur when gasoline
is spilled on yourself or your clothes, which can ignite. Wash your
skin and change clothes immediately.
a. Use only an approved gasoline container.
b. Extinguish all cigarettes, cigars, pipes and other sources of
ignition.
c. Never fuel machine indoors.
d. Never remove gas cap or add fuel while the engine is hot or
running.
e. Allow engine to cool at least two minutes before refueling.
f. Never over fill fuel tank. Fill tank to no more than ½ inch
below bottom of filler neck to provide space for fuel expan-
sion.
g. Replace gasoline cap and tighten securely.
h. If gasoline is spilled, wipe it off the engine and equipment.
Move machine to another area. Wait 5 minutes before
starting the engine.
i. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light (e.g. furnace,
water heater, space heater, clothes dryer etc.).
j. Allow machine to cool at least 5 minutes before storing
k. Never fill containers inside a vehicle or on a truck or trailer
bed with a plastic liner. Always place containers on the
ground away from your vehicle before filling.
l. If possible, remove gas-powered equipment from the truck
or trailer and refuel it on the ground. If this is not possible,
then refuel such equipment on a trailer with a portable
container, rather than from a gasoline dispenser nozzle.
m. Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
Operation
1. Do not put hands or feet near rotating parts, in the auger/impel-
ler housing or chute assembly. Contact with the rotating parts
can amputate hands and feet.
2. The auger/impeller control lever is a safety device. Never
bypass its operation. Doing so makes the machine unsafe and
may cause personal injury.
3. The control levers must operate easily in both directions and
automatically return to the disengaged position when released.
4. Never operate with a missing or damaged chute assembly.
Keep all safety devices in place and working.
5. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless and
deadly gas.
6. Do not operate machine while under the influence of alcohol or
drugs.
7. Muffler and engine become hot and can cause a burn. Do not
touch.
WARNING: Engine Exhaust, some of its constituents, and certain vehicle compo-
nents contain or emit chemicals known to State of California to cause cancer and
birth defects or other reproductive harm.
WARNING
This symbol points
out important safety
instructions which,
if not followed, could
endanger the per-
sonal safety and/or
property of yourself
and others. Read and
follow all instructions
in this manual before
attempting to operate
this machine. Failure
to comply with these
instructions may
result in personal
injury. When you see
this symbol, HEED
ITS WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
DANGER: This machine was built to be operated according to the safe operation practices in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating hands and feet and throwing objects.
Failure to observe the following safety instructions could result in serious injury or death.

5
8. Exercise extreme caution when operating on or crossing gravel
surfaces. Stay alert for hidden hazards or traffic.
9. Exercise caution when changing direction and while operating
on slopes.
10. Plan your snow-throwing pattern to avoid discharge towards
windows, walls, cars etc. Thus, avoiding possible property
damage or personal injury caused by a ricochet.
11. Never direct discharge at children, bystanders and pets or allow
anyone in front of the machine.
12. Do not overload machine capacity by attempting to clear snow
at too fast of a rate.
13. Never operate this machine without good visibility or light.
Always be sure of your footing and keep a firm hold on the
handles. Walk, never run.
14. Disengage power to the auger/impeller when transporting or
not in use.
15. Never operate machine at high transport speeds on slippery
surfaces. Look down and behind and use care when backing
up.
16. If the machine should start to vibrate abnormally, stop the
engine, disconnect the spark plug wire and ground it against
the engine. Inspect thoroughly for damage. Repair any damage
before starting and operating.
17. Disengage all control levers and stop engine before you leave
the operating position (behind the handles). Wait until the
auger/impeller comes to a complete stop before unclogging the
chute assembly, making any adjustments, or inspections.
18. Never put your hand in the discharge or collector openings.
Always use the clean-out tool provided to unclog the discharge
opening. Do not unclog chute assembly while engine is
running. Shut off engine and remain behind handles until all
moving parts have stopped before unclogging.
19. Use only attachments and accessories approved by the
manufacturer (e.g. wheel weights, tire chains, cabs etc.).
20. When starting engine, pull cord slowly until resistance is felt,
then pull rapidly. Rapid retraction of starter cord (kickback) will
pull hand and arm toward engine faster than you can let go.
Broken bones, fractures, bruises or sprains could result.
21. If situations occur which are not covered in this manual, use
care and good judgment. Call customer assistance for the
name of your nearest servicing dealer.
Clearing a Clogged
Discharge Chute
Hand contact with the rotating impeller inside the discharge chute
is the most common cause of injury associated with snowthrowers.
Never use your hand to clean out the discharge chute.
To clear the chute:
1. SHUT THE ENGINE OFF!
2. Wait 10 seconds to be sure the impeller blades have stopped
rotating.
3. Always use a clean-out tool, not your hands.
Maintenance & Storage
1. Never tamper with safety devices. Check their proper operation
regularly. Refer to the maintenance and adjustment sections of
this manual.
2. Before cleaning, repairing, or inspecting machine disengage all
control levers and stop the engine. Wait until the auger/impeller
come to a complete stop. Disconnect the spark plug wire and
ground against the engine to prevent unintended starting.
3. Check bolts and screws for proper tightness at frequent
intervals to keep the machine in safe working condition. Also,
visually inspect machine for any damage.
4. Do not change the engine governor setting or over-speed the
engine. The governor controls the maximum safe operating
speed of the engine.
5. Snowthrower shave plates and skid shoes are subject to wear
and damage. For your safety protection, frequently check all
components and replace with original equipment manufac-
turer’s (OEM) parts only. “Use of parts which do not meet
the original equipment specifications may lead to improper
performance and compromise safety!”
6. Check controls periodically to verify they engage and
disengage properly and adjust, if necessary. Refer to the
adjustment section in this operator’s manual for instructions.
7. Maintain or replace safety and instruction labels, as neces-
sary.
8. Observe proper disposal laws and regulations for gas, oil,
etc. to protect the environment.
9. Prior to storing, run machine a few minutes to clear snow from
machine and prevent freeze up of auger/impeller.
10. Never store the machine or fuel container inside where there
is an open flame, spark or pilot light such as a water heater,
furnace, clothes dryer etc.
11. Always refer to the operator’s manual for proper instructions
on off-season storage.
12. Check fuel line, tank, cap, and fittings frequently for cracks or
leaks. Replace if necessary.
13. Do not crank engine with spark plug removed.
14. According to the Consumer Products Safety Commission
(CPSC) and the U.S. Environmental Protection Agency (EPA),
this product has an Average Useful Life of seven (7) years,
or 60 hours of operation. At the end of the Average Useful
Life, have the machine inspected annually by an authorized
service dealer to ensure that all mechanical and safety
systems are working properly and not worn excessively. Failure
to do so can result in accidents, injuries or death.
Do not modify engine
To avoid serious injury or death, do not modify engine in any way.
Tampering with the governor setting can lead to a runaway engine
and cause it to operate at unsafe speeds. Never tamper with fac-
tory setting of engine governor.
Notice regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and may
include the following emission control systems: Engine Modifica-
tion (EM) Oxidizing Catalyst (OC), Secondary Air Injection (SAI)
and Three Way Catalyst (TWC) if so equipped.
Spark Arrestor
WARNING: This machine is equipped with an
internal combustion engine and should not
be used on or near any unimproved forest-
covered, brushcovered or grass-covered
land unless the engine’s exhaust system
is equipped with a spark arrester meeting
applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective
working order by the operator.
A spark arrester for the muffler is available through your nearest
engine authorized service dealer.
2
Safe
Operation
Practices
WARNING
This symbol points
out important safety
instructions, which
if not followed, could
endanger the per-
sonal safety and/or
property of yourself
and others. Read and
follow all instructions
in this manual before
attempting to operate
this machine. Failure
to comply with these
instructions may
result in personal
injury. When you see
this symbol, HEED
IT’S WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
06.01.09

6
3
Setting Up
Your Snow
Thrower
NOTE: References to
right or left side of the
snow thrower are deter-
mined from behind the
unit in the operating
position.

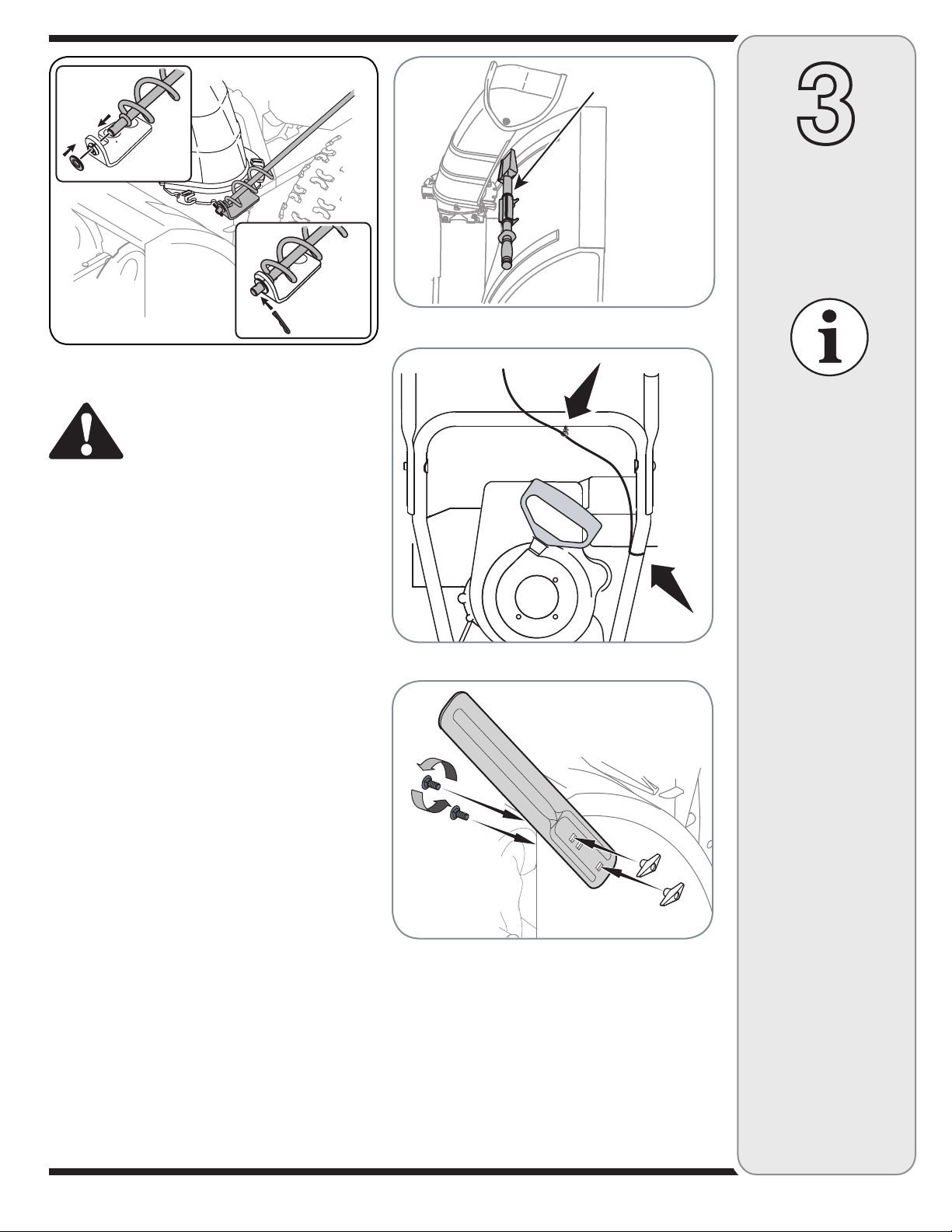

1. Observe the lower rear area of the snow thrower to
be sure both cables are aligned with roller guides.
Pull up and back on the upper handle, align the
upper handle with the lower handle. See Figure 3-1.
2. Secure the handle by tightening the plastic wing
knob located on both the left and right sides of the
handle. Remove and discard any rubber bands, if
present. They are for packaging purposes only. See
Figure 3-2.
3. Position the chute assembly over the base, seated
securely on adapter. See Figure 3-3.
4. Close the flange keepers to secure the chute
assembly to the chute base. The flange keepers will
click into place when properly secure. See Figure
3-4.
NOTE: If the flange keepers will not easily click into
place, use the palm of your hand to apply swift, firm
pressure to the back of each.
5. Remove the flat washer and hairpin clip from the end
of the chute directional control. See Figure 3-5.
Insert the end of the chute directional control into
the lower bracket and secure with the flat washer
and hairpin clip just removed. If necessary, the lower
bracket can be adjusted. Refer to Chute Bracket Ad-
justment, in the Adjustment Section of this manual.
IMPORTANT: Prior to operating your snow thrower,
refer to Auger Control Test on page 11. Read and follow
all instructions carefully and perform all adjustments
to verify your snow thrower is operating safely and
properly.
NOTE: Two replace-
ment auger shear pins
are included with this
manual (or stowed
in the plastic handle
panel). Refer to Augers
in the Maintainance
Section for more
information regarding
shear pin replacement.
NOTE: This Operator’s
Manual covers several
models, handle panels,
lights and chute cranks
are some features that
may vary by model.
Not all features refer-
enced in this manual
are applicable to all
snow thrower models.
Figure 3-2
Figure 3-3
Figure 3-4
Figure 3-1

7
3
Setting Up
Your Snow
Thrower
Clean-Out Tool
WARNING: Never use your hands to
clear a clogged chute assembly. Shut
off engine and remain behind handles
until all moving parts have stopped
before unclogging.
The clean-out tool is mounted to the rear of the auger
housing and is designed to clear a clogged chute. See
Figure 3-7. Refer to page 9 for instructions on how to
properly use it.
NOTE: This item is fastened with a cable tie to the rear
of the auger housing at the factory. Cut the cable tie
before operating the snow thrower.
Tire Pressure (Pneumatic Tires)
The tires are over-inflated for shipping purposes. Check
the tire pressure before operating the snow thrower. Refer
to the tire side wall for tire manufacturer’s recommended
psi and deflate (or inflate) the tires as necessary.
NOTE: If the tire pressure is not equal in both tires, the
unit may not travel in a straight path and the shave plate
may wear unevenly.
Lamp Wiring Harness (If equipped)
The post on the cable tie attaching the lamp wiring har-
ness to the lower handle should be plugged into the hole
in the lower handle. Pull the slack portion of the wiring
harness through the cable tie to prevent interference with
the recoil starter handle. See Figure 3-7.
Drift Cutters (If Equipped)
Drift cutters should be used when operating the snow
thrower in heavy drift conditions.
• Onmodelssoequipped,driftcuttersandhardware
are assembled to the auger housing inverted.
• Removethecarriageboltsandwingnutssecuringthe
drift cutters to the housing.
• Repositiondriftcutterssotheyfaceforwardasshown
in Figure 3-8. Secure with hardware previously
removed, wingnuts should be fastened on the outside
of the housing as shown.
Clean-Out
Tool
IMPORTANT
Prior to operating your
snow thrower, refer
to Auger Control Test
on page 11. Read and
follow all instructions
carefully and perform
all adjustments to verify
your snow thrower is
operating safely and
properly.
Never use your hands
to clean snow and
ice from the chute
assembly or auger
housing.
IMPORTANT
Under any circum-
stance do not exceed
manufacturer’s recom-
mended psi. Equal tire
pressure should be
maintained at all times.
Excessive pressure
when seating beads
may cause tire/rim
assembly to burst
with force sufficient to
cause serious injury.
Refer to sidewall of
tire for recommended
pressure.
Figure 3-5
Figure 3-6
Figure 3-7
Figure 3-8
If your unit is not equipped with drift cutters, you may
contact Customer Support as instructed on page 2 for
information regarding price and availability.
Snowthrower Model Drift Cutter Kit:
All models OEM-390-679

8
4
Operating
Your Snow
Thrower
Now that you have set up your snow thrower for opera-
tion, get acquainted with its controls and features. These
are described below and illustrated in Figure 4-1. This
knowledge will allow you to use your new equipment to
its fullest potential.
NOTE: For detailed starting instructions and more
information on all engine controls, refer to the engine
manual packed with your unit.
Shift Lever
The shift lever is located between the handles . Place
the shift lever into any of eight positions to control the
direction of travel and ground speed.
Forward
Your snow thrower has six forward (F) speeds, with
position number one (1) being the slowest speed.
Reverse
Your snow thrower has two reverse (R) speeds, with
position number one (1) being the slower speed.
Know Your Snow Thrower
Choke Control
Activating the choke control closes the choke plate on the
carburetor and aids in starting the engine.
Primer
Depressing the primer forces fuel directly into the engine’s
carburetor to aid in cold-weather starting.
Oil Fill
Engine oil level can be checked and oil added through the
oil fill.
Ignition Key
The ignition key is a safety device. Insert key and snap in
place; do not turn ignition key. Pull the key out halfway to
stop the engine. Remove key when the unit is not in use.
WARNING
Figure 4-1 Engine may not be exactly as illustrated.
Engine Controls
Headlight
(optional)
Skid Shoe
Drive Control
Auger Control
Shift Lever
Chute
Assembly
Clean-Out
Tool
Augers
Chute Directional
Control
* Optional
Starter Handle
Oil Drain
Muffler Oil Filler Cap/Dipstick
Electric start button*
Electric Switch Box*
Fuel Fill Cap
Primer
Ignition Key
Throttle
Choke
Shift Lever
(optional)
Read, understand,
and follow all instruc-
tions and warnings
on the machine and
in this manual before
operating.
NOTE: The units
illustrated may vary
slightly from your
unit.
Use extreme care
when handling
gasoline. Gasoline is
extremely flammable
and the vapors are
explosive. Never fuel
the machine indoors
or while the engine
is hot or running.
Extinguish cigarettes,
cigars, pipes and
other sources of
ignition.

9
4
Operating
Your Snow
Thrower
WARNING
The operation of
any snow thrower
can result in foreign
objects being thrown
into the eyes, which
can damage your
eyes severely. Always
wear safety glasses
while operating the
snow thrower, or while
performing any adjust-
ments or repairs on it.
Be sure no one other
than the operator is
standing near the snow
thrower while starting
engine or operating
snow thrower. Never
run engine indoors or
in enclosed, poorly
ventilated areas. En-
gine exhaust contains
carbon monoxide, an
odorless and deadly
gas. Keep hands, feet,
hair and loose clothing
away from any moving
parts on engine and
snow thrower.
Auger Control
The auger control is located on the left handle. Squeeze
the control grip against the handle to engage the augers
and start snow throwing action. Release to stop.
Drive Control/ Auger Control Lock *
(if equipped)
The drive control is located on the right handle. Squeeze
the control grip against the handle to engage the wheel
drive. Release to stop.
IMPORTANT: Always release the drive control before
changing speeds. Failure to do so will result in increased
wear on your machine’s drive system.
* On select models, the drive control also locks the auger
control so you can operate the chute directional control
without interrupting the snow throwing process. If the
auger control is engaged simultaneously with the drive
control, the operator can release the auger control (on
the left handle) and the augers will remain engaged.
Release both controls to stop the augers and wheel
drive.
Chute Directional Control
The chute directional control is located on left side of the
snow thrower.
To change the direction in which snow is thrown, turn
chute directional control as follows:
• Crankclockwisetodischargetotheleft.
• Crankcounterclockwisetodischargetotheright.
Chute Assembly
The distance snow is thrown can be adjusted by
changing the angle of the chute assembly. See “Making
Adjustment” Section.
Chute Clean-Out Tool
The clean-out tool is conveniently fastened to the rear of
the auger housing with a mounting clip.
1. Release both the auger control and the drive/auger
control lock.
2. Stop the engine by removing the ignition key.
3. Remove the clean-out tool from the mounting clip.
4. Use the shovel-shaped end of the clean-out tool to
remove any snow and ice in the chute assembly.
5. Re-fasten the clean-out tool to the mounting clip on
the rear of the auger housing and restart engine.
6. While standing in the operator’s position (behind the
snow thrower), engage the auger control for a few
seconds to clear any remaining snow or ice from the
chute assembly before continuing to clear snow.
WARNING: Never use your hands to
clean snow and ice from the chute
assembly or auger housing.
Skid Shoes
Position the skid shoes based on surface conditions.
Adjust upward for hard-packed snow. Adjust downward
when operating on gravel or crushed rock surfaces. See
“Making Adjustment” Section.
Augers
When engaged, the augers rotate and draw snow into the
auger housing.
Headlight (optional)
The headlight is on whenever the engine is running.
AUGER
CONTROL
GO
DRIVE
CONTROL
GO

10
Gas & Oil Fill-Up
Service the engine with gasoline and oil as instructed in
the separate engine manual packed with your unit. Read
instructions carefully.
Starting the Engine
WARNING: Always keep hands and
feet clear of moving parts. Do not use
a pressurized starting fluid. Vapors are
flammable.
NOTE: Allow the engine to warm up for a few minutes
after starting. The engine will not develop full power until
it reaches operating temperatures.
Engines with Starter Handle (non-electric
start)
IMPORTANT: Do not pull the starter handle with engine
running.
Insert ignition key fully into slot. Make sure it snaps1.
into place. DO NOT turn ignition key. The engine
cannot start unless the key is inserted into ignition
switch.
Move throttle control to FAST (rabbit) position.2.
Move choke to the CHOKE position (cold engine3.
start). If engine is warm, place choke in RUN
position.
Push primer three times, making sure to cover vent4.
hole when pushing. If engine is warm, push primer
only once. Always cover vent hole when pushing.
Cool weather may require priming to be repeated.
Pull gently on the starter handle until it begins to5.
resist, then pull quickly and forcefully to overcome
the compression. Do not release the handle and
allow it to snap back. Return rope SLOWLY to
original position. If required, repeat this step.
As the engine warms, slowly rotate the choke6.
control to RUN position. If the engine falters, restart
engine and run with choke at half-choke position
for a short period of time, and then slowly rotate the
choke into RUN position.
Engines with Electric Starters
WARNING: The electric starter is
equipped with a grounded three-wire
power cord and plug, and is designed
to operate on 120 volt AC household
current. It must be used with a prop-
erly grounded three-prong receptacle
at all times to avoid the possibility of
electric shock. Follow all instructions
carefully prior to operating the electric
starter.
WARNING: DO NOT use electric starter
in rain.
Determine that your home’s wiring is a three-wire1.
grounded system. Ask a licensed electrician if you
are unsure. If you have a grounded three-prong
receptacle, proceed as follows. If you do not have the
proper house wiring, DO NOT use the electric starter
under any conditions.
Insert ignition key fully into slot. Make sure it snaps2.
into place. DO NOT turn ignition key. The engine
cannot start unless the key is inserted into
ignition switch.
Plug the extension cord into the electric switch3.
box located on the engine. Plug the other end of
extension cord into a three-prong 120-volt, grounded,
AC outlet in a well-ventilated area.
Move throttle control to FAST (rabbit) position.4.
Move choke to the CHOKE position (cold engine5.
start). If engine is warm, place choke in RUN
position.
Push primer three times, making sure to cover vent6.
hole when pushing. If engine is warm, push primer
only once. Always cover vent hole when pushing.
Cool weather may require priming to be repeated.
Push starter button to start engine.7. Once the engine
starts, immediately release starter button. Electric
starter is equipped with thermal overload protection;
system will temporarily shut-down to allow starter to
cool if electric starter becomes overloaded.
As the engine warms, slowly rotate the choke control8.
to RUN position. If the engine falters, restart engine
and run with choke at half-choke position for a short
period of time, and then slowly rotate the choke into
RUN position.
After engine is running, disconnect power cord from9.
electric starter. When disconnecting, always unplug
the end at the wall outlet before unplugging the
opposite end from the engine.
Stopping the Engine
WARNING: To avoid unsupervised
engine operation, never leave the engine
unattended while running. Turn the
engine off after use and remove ignition
key
Run engine for a few minutes before stopping to help dry
off any moisture on the engine.
Move throttle control to STOP position.1.
Remove the ignition key. Removing the key will2.
reduce the possibility of unauthorized starting of the
engine while equipment is not in use. Keep the key
in a safe place. The engine cannot start without
the ignition key.
Wipe all snow and moisture from the area around the3.
engine as well as the area in and around the drive
control and auger control. Also, engage and release
both controls several times.
WARNING
Read, understand,
and follow all instruc-
tions and warnings
on the machine and
in this manual before
operating.
Use extreme care
when handling
gasoline. Gasoline is
extremely flammable
and the vapors are
explosive. Never fuel
the machine indoors
or while the engine
is hot or running.
Extinguish cigarettes,
cigars, pipes and
other sources of
ignition.
If your home’s wir-
ing system is not a
three-wire grounded
system, do not use
this electric starter
under any conditions.
If your home
electrical system
is grounded, but a
three-hole receptacle
is not available, do
not use your snow
thrower’s electric
starter.

11
To Engage Drive
1. With the engine running near top speed, move
shift lever to one of six FORWARD positions or two
REVERSE positions. Select a speed appropriate for
the snow conditions that exist. Do not shift speeds
while the drive is engaged.
2. Squeeze drive control against the right handle and
the snow thrower will move. Release it and the drive
motion will stop.
To Engage Augers
1. To engage augers and start snow throwing, squeeze
the left hand auger control against the left handle.
Release to stop augers.
For models equipped with Drive Control/
Auger Control Lock
1. While the auger control is engaged, squeeze the drive
control to move, release to stop. Do not shift speeds
while the drive is engaged.
NOTE: This drive lever also locks auger control so you
can turn the chute control without interrupting the snow
throwing process.
2. Release the auger control; the interlock mechanism
should keep the auger control engaged until the drive
control is released.
3. Release the drive control to stop both the augers and
the wheel drive. To stop the auger, both levers must
be released.
When selecting a
Drive Speed, use the
slower speeds until
you are comfortable
and familiar with the
operation of the snow
thrower.
NEVER reposition the
shift lever (change
speeds or direction
of travel) without first
releasing the drive
control and bringing
the snow thrower
to a complete stop.
Doing so will result in
premature wear to the
snow thrower’s drive
system.
WARNING
The muffler, engine
and surrounding
areas become hot
and can cause a burn
150°F (65°C). Do not
touch.
Figure 4-2
Auger Control Test
Perform the following test before operating your snow
thrower for the first time and at the start of each winter.
Check the adjustment of the auger control as follows:
1. When the auger control is released and in the
disengaged “up” position, the cable should have very
little slack. It should NOT be tight.
2. In a well-ventilated area, start the snow thrower
engine as instructed on the previous page. Make sure
the throttle is set in the FAST position.
3. While standing in the operator’s position (behind the
snow thrower), engage the auger.
4. Allow the auger to remain engaged for approximately
ten (10) seconds before releasing the auger control.
Repeat this several times.
5. With the auger control in the disengaged “up” posi-
tion, walk to the front of the machine.
6. Confirm that the auger has completely stopped
rotating and shows NO signs of motion. If the auger
shows ANY signs of rotating, immediately return to
the operator’s position and shut off the engine. Wait
for ALL moving parts to stop before re-adjusting the
auger control.
7. To readjust the control cable, loosen the upper hex
nut on the auger cable bracket. See Figure 4-2.
8. Position the bracket upward to provide more slack (or
downward to increase cable tension).
9. Retighten the upper hex nut.
10.Repeat Auger Control Test to verify proper adjustment
has been achieved.

12
5
Making
Adjustments
Auger Control
Refer to Auger Control Test on Page 11 to adjust the
auger control.
Shift Cable
If the full range of speeds (forward and reverse) cannot
be achieved, refer to the figures to the right and adjust
the shift cable as follows:
1. Place the shift lever in the fastest forward speed
position.
2. Loosen the hex nut on the shift cable index bracket.
See Figure 5-3.
3. Pivot the bracket downward to take up slack in the
cable.
4. Retighten the hex nut.
Drive Control
When the drive control is released and in the disen-
gaged “up” position, the cable should have very little
slack. It should NOT be tight.
Check the adjustment of the drive control as follows:
1. With the drive control released, push the snow
thrower gently forward. The unit should roll freely.
2. Engage the drive control and gently attempt to push
the snow thrower forward. The wheels should not
turn. The unit should not roll freely.
3. With the drive control released, move the shift lever
back and forth between the R2 position and the F6
position several times. There should be no resistance
in the shift lever.
4. If any of the above tests failed, the drive cable is in
need of adjustment. Proceed as follows:
5. Loosen the lower hex nut on the drive cable bracket.
See Figure 5-4.
6. Position the bracket upward to provide more slack (or
downward to increase cable tension).
7. Retighten the lower hex nut.
8. Repeat steps 1, 2 and 3 to re-check the adjustment
of the drive control.
Chute Assembly (optional)
The distance snow is thrown can be adjusted by chang-
ing the angle of the chute assembly. To do so:
1. Stop the engine and loosen the plastic wing knob
found on the left side of the chute assembly.
2. Pivot the chute upward or downward before retight-
ening the wing knob. See Figure 5-5.
WARNING
Read, understand,
and follow all instruc-
tions and warnings
on the machine and
in this manual before
operating.
Never attempt to
make any adjust-
ments while the
engine is running,
except where speci-
fied in operator’s
manual.

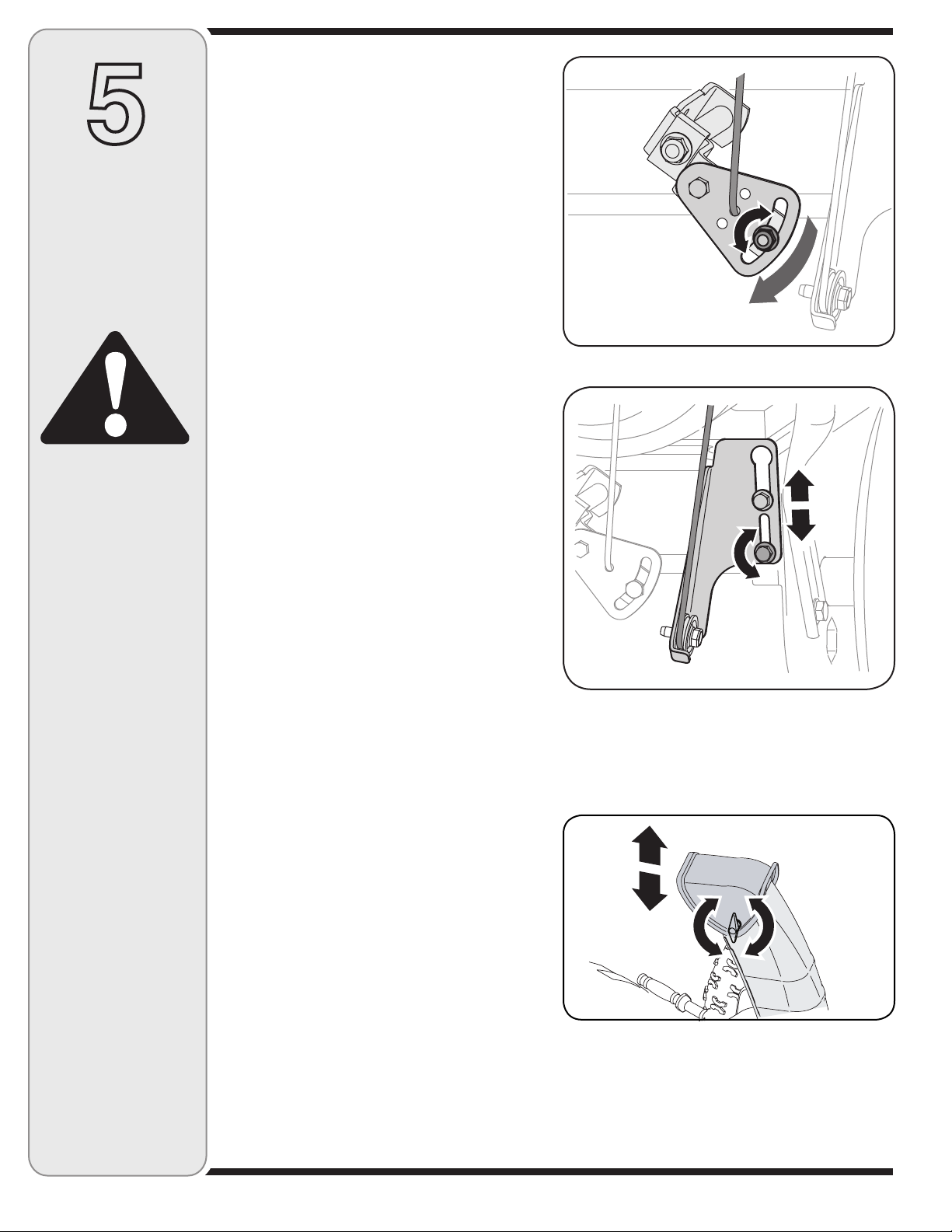

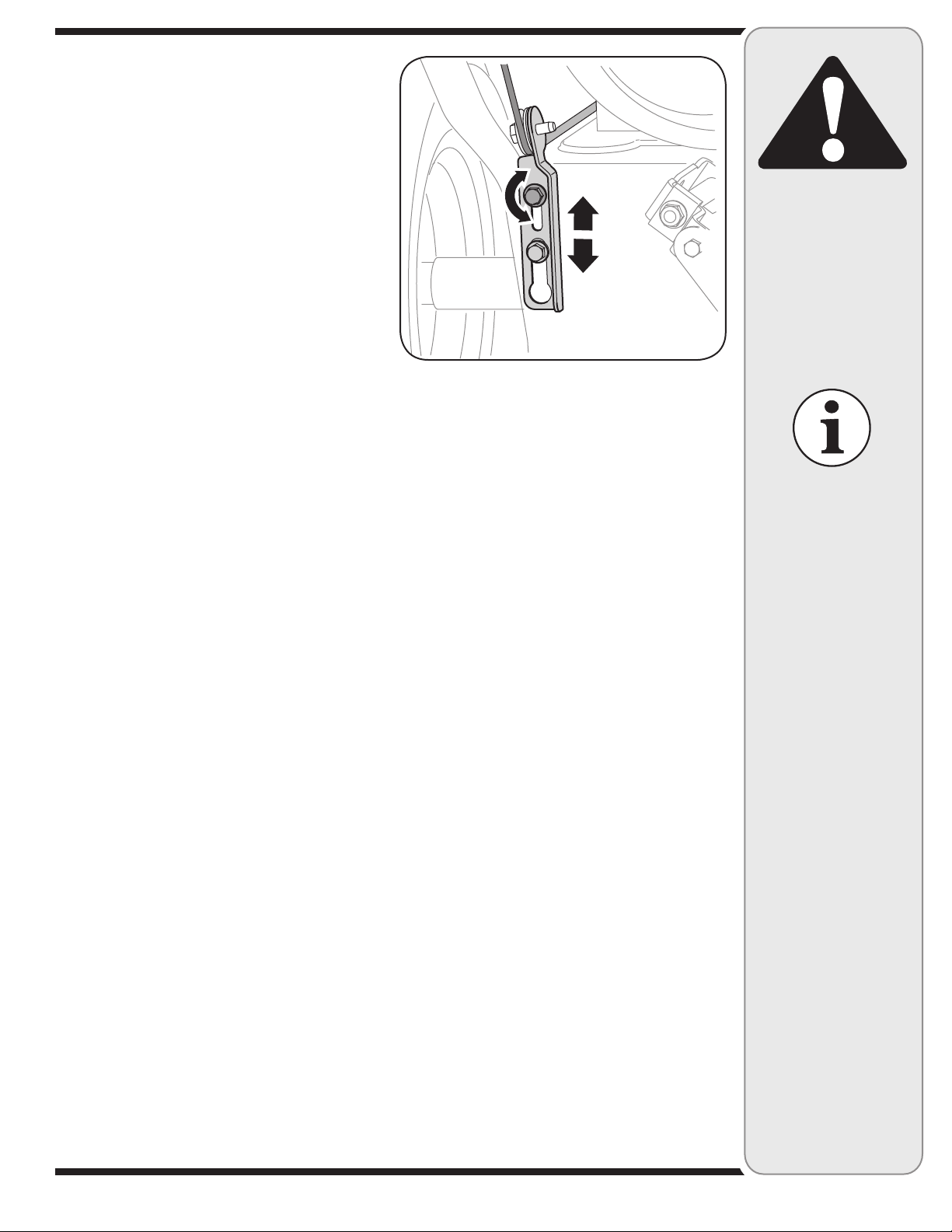

Figure 5-3
Figure 5-4
Figure 5-5

13
5
Making
Adjustments
WARNING
Loose gravel can be picked
up and thrown by the
auger, causing injury to the
operator and bystanders
and/or damage to the snow
thrower and surrounding
property.
Skid Shoes
The space between the skid shoes and the ground can
be adjusted.
• Forclosesnowremovalonasmoothsurface,raise
skid shoes higher on the auger housing.
• Useamiddleorlowerpositionwhentheareatobe
cleared is uneven, such as a gravel driveway.
To adjust the skid shoes:
1. Loosen the four hex nuts (two on each side) and
carriage bolts. Move skid shoes to desired position.
2. Make certain the entire bottom surface of skid shoe is
against the ground to avoid uneven wear on the skid
shoes.
3. Retighten nuts and bolts securely.
NOTE: Some models are equipped with reversible skid
shoes and may be turned over to increase their lifespan.
See Figure 5-7 and 5-8.
Chute Bracket Adjustment
If the spiral at the bottom of the chute directional control
is not fully engaging with the chute assembly, the chute
bracket can be adjusted. To do so:
1. Loosen the two nuts which secure the chute bracket
and reposition it slightly. See Figure 5-9.
2. Retightening the nuts.
NOTE: Careful not to over tighten the nut making chute
rotation difficult.

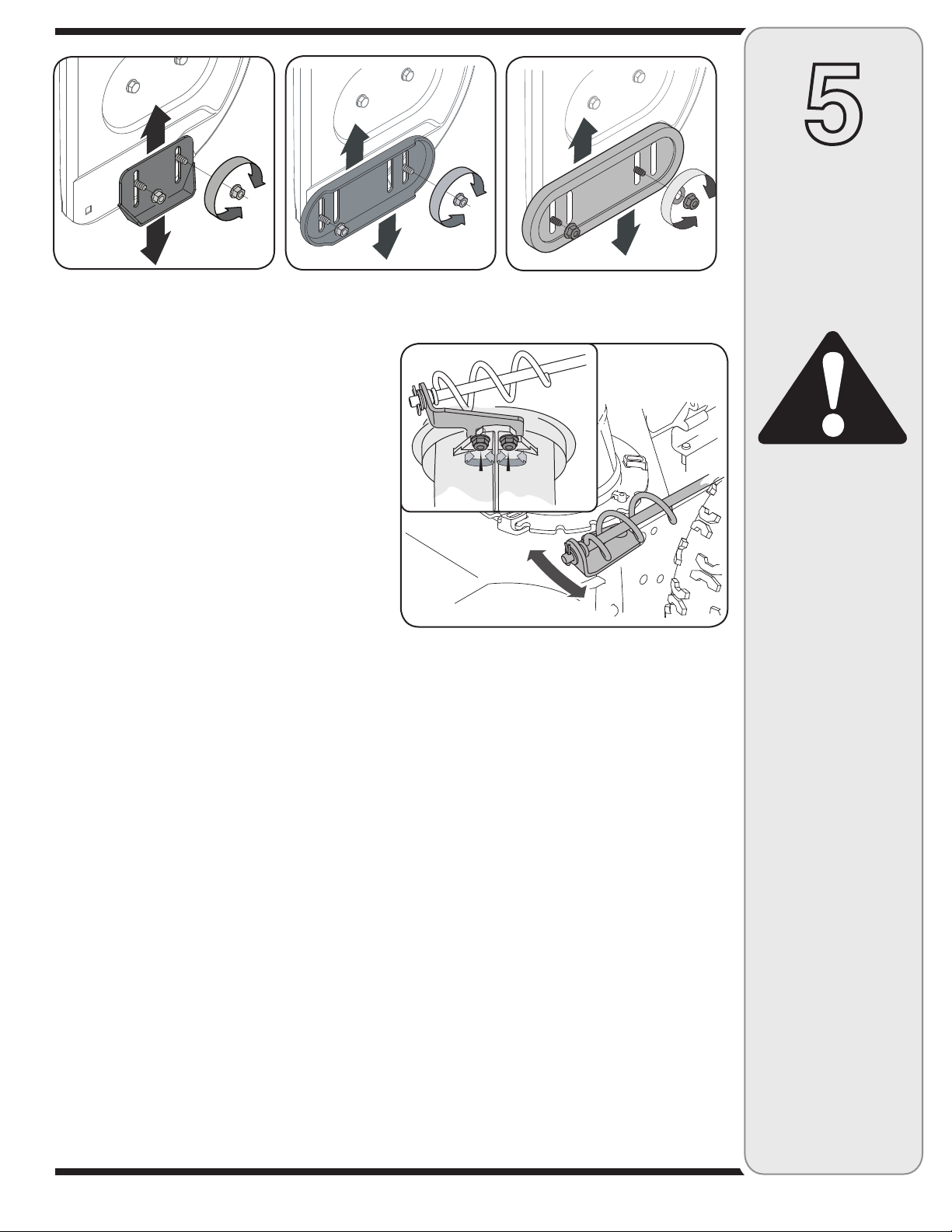

Figure 5-6 - Standard Skid Shoe
Figure 5-9 - Models with standard chute.
Figure 5-7 - Steel Reversible Figure 5-8 - Plastic Reversible

14
6
Maintaining
Your Snow
Thrower
WARNING
Before lubricating,
repairing, or inspect-
ing, disengage all
controls and stop
engine. Wait until all
moving parts have
come to a complete
stop.
Run the engine
completely dry of
gasoline before
tipping snowthrower.
Engine
Refer to the separate engine manual packed with your
unit for all engine maintenance.
Lubrication
Engine
Refer to the separate engine manual packed with your
unit for all engine lubrication instructions.
Gear Shaft
The gear (hex) shaft should be lubricated at least once
a season or after every 25 hours of operation.
WARNING: Run the engine com-
pletely dry of gasoline before tipping
snowthrower.
1. Carefully pivot the snow thrower up and forward so
that it rests on the auger housing.
2. Remove the lower frame cover by removing the
screws which secure it.
3. Apply a light coating of an all-weather multi-purpose
oil to the hex shaft. See Figure 6-1.
NOTE: Avoid getting oil on rubber friction wheel and
aluminum drive plate.
Wheels
At least once a season, remove both wheels. Clean and
coat the axles with a multipurpose automotive grease
before reinstalling wheels.
Auger Shaft
At least once a season, remove the shear pins on auger
shaft. Spray lubricant inside shaft, around the spacers.
Also lubricate the flange bearings found at either end of
the shaft. See Figure 6-2.
Shave Plate and Skid Shoes
The shave plate and skid shoes on the bottom of the
snow thrower are subject to wear. They should be
checked periodically and replaced when necessary.
To remove skid shoes:
1. Remove the four carriage bolts and hex flange nuts
which secure them to the snow thrower.
2. Reassemble new skid shoes with the four carriage
bolts (two on each side) and hex flange nuts. Refer
to Figure 6-3.
To remove shave plate:
1. Remove the carriage bolts and hex nuts which attach
it and the skid shoes to the snow thrower housing.
2. Reassemble new shave plate, making sure heads of
carriage bolts are to the inside of housing. Tighten
securely.
Figure 6-1
Figure 6-2
Shear Pin Bearing
Spacers
Figure 6-3
Keep all grease and oil
off of the rubber friction
wheel and aluminum
drive plate.
Augers
• The augers are secured to the spiral shaft with two
shear pins and cotter pins. If the auger should strike a
foreign object or ice jam, the snow thrower is designed
so that the pins may shear. Refer to Figure 6-2.
• Iftheaugerswillnotturn,checktoseeifthepinshave
sheared. One set of replacement shear pins has been
provided with the snow thrower. When replacing pins,
spray an oil lubricant into shaft before inserting new pins.

15
6
Maintaining
Your Snow
Thrower
2. Carefully pivot the snow thrower up and forward so
that it rests on the auger housing. Remove the frame
cover from the underside of the snow thrower by
removing self-tapping screws which secure it. See
Figure 6-5.
3. Roll the auger belt off the engine pulley. See Figure 6-6.
4. a. Loosen and remove the shoulder screw which
acts as a belt keeper. See Figure 6-7.
b. Unhook the support bracket spring from the
frame.
5. Remove the belt from around the auger pulley, and
slip the belt between the support bracket and the
auger pulley. Reassemble auger belt by following
instructions in reverse order. See Figure 6-8.
NOTE: Repeat the auger control test on page 11 before
operating the snowthrower.
NOTE: Do NOT forget to reinstall the shoulder screw
and reconnect the spring to the frame after installing a
replacement auger belt.
NOTE: Although
multi-viscosity oils
(5W30, 10W30 etc.)
improve starting in cold
weather, these multi-
viscosity oils also result
in higher oil consump-
tion when used above
32ºF (0ºC). Check your
snow thrower’s engine
oil level more frequently
to avoid possible
engine damage from
running low on oil.

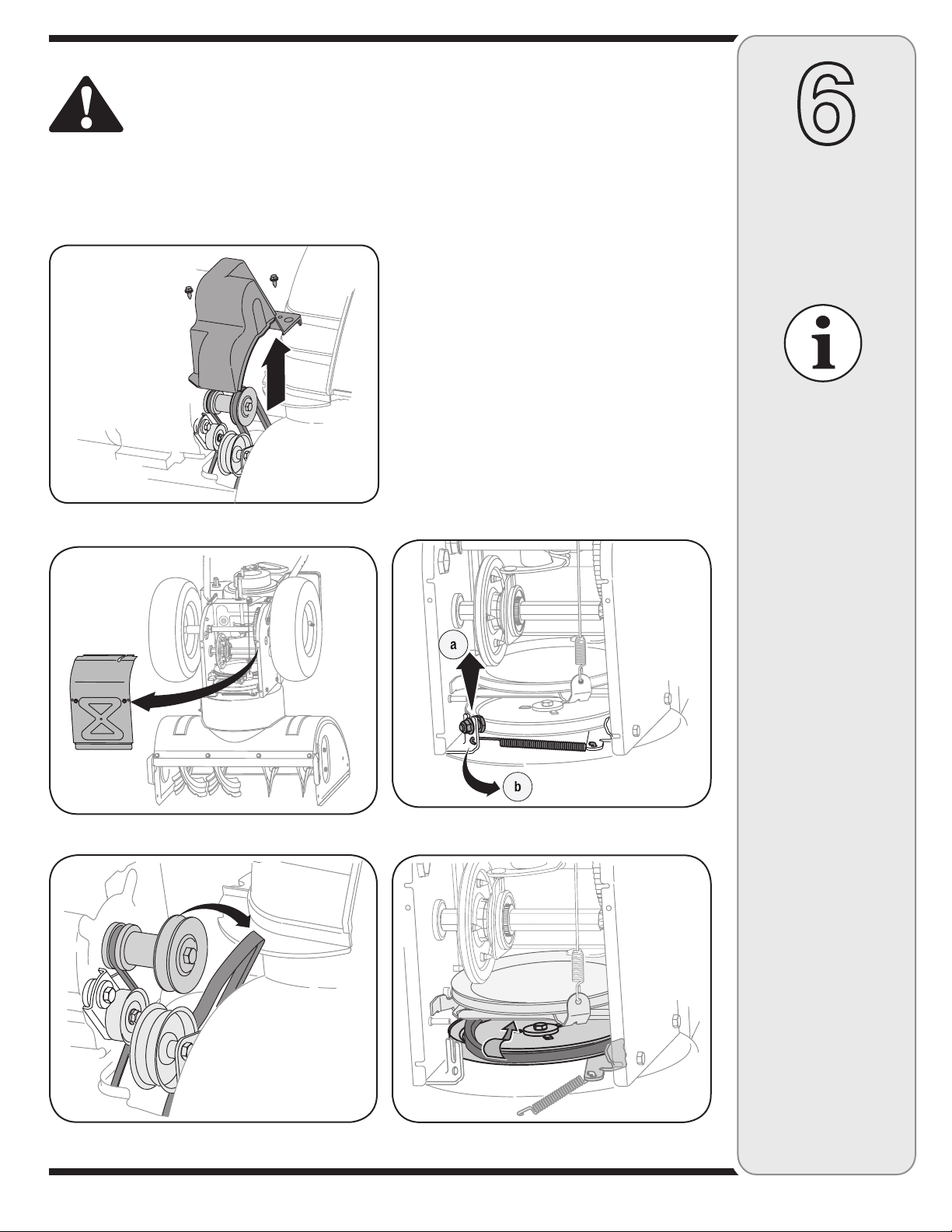

Figure 6-4
Figure 6-7
Figure 6-6
Figure 6-5
IMPORTANT
NEVER replace the
auger shear pins with
standard pins. Any
damage to the auger
gearbox or other com-
ponents, as a result of
doing so, will NOT be
covered by your snow
thrower’s warranty.
Figure 6-8
Auger Belt Replacement
WARNING: Run the engine com-
pletely dry of gasoline before tipping
snowthrower.
To remove and replace your snow thrower’s auger belt,
proceed as follows:
1. Remove the plastic belt cover on the front of the
engine by removing the two self-tapping screws. See
Figure 6-4.

16
Drive Belt Replacement
WARNING: Run the engine com-
pletely dry of gasoline before tipping
snowthrower.
To remove and replace your snow thrower’s auger belt,
proceed as follows:
1. Remove the plastic belt cover on the front of the
engine by removing the two self-tapping screws. See
Figure 6-4.
2 Carefully pivot the snow thrower up and forward so
that it rests on the auger housing. See Figure 6-5.
3. Remove the frame cover from the underside of the
snow thrower by removing four self-tapping screws
which secure it.
4. a. Roll the auger belt off the engine pulley.
b. Use a wrench to pivot the idler pulley toward the
right. See Figure 6-9.
c. Lift the drive belt off engine pulley.
5. Back out the stop bolt until the support bracket rests
on the auger pulley. See Figure 6-10.
6. Slip the drive belt off the pulley and between friction
wheel and drive plate. See Figure 6-10.
7. Remove and replace belt in the reverse order.
NOTE: Repeat the drive control adjustment on page 12
before operating the snowthrower.
Friction Wheel Removal
If the snow thrower fails to drive with the drive control
engaged, and performing the drive control cable adjust-
ment on page 12 fails to correct the problem, the friction
wheel may need to be replaced. Follow the instructions
below. Examine the friction wheel for signs of wear or
cracking and replace if necessary.
WARNING: Run the engine com-
pletely dry of gasoline before tipping
snowthrower.
1 Place the shift lever in third Forward (F3) position.
2 Carefully pivot the snow thrower up and forward so
that it rests on the auger housing.
3. a. Remove the frame cover from the underside of the
snow thrower by removing four self-tapping screws
which secure it. See Figure 6-5.
b. Remove the right-hand wheel by removing the
screw and cupped washer which secure it to the
axle.
4. Carefully remove the hex nut and washer which
secures the hex shaft to the snow thrower frame and
lightly tap the shaft’s end to dislodge the ball bearing
from the right side of the frame. See Figure 6-11.
5. Carefully position the hex shaft downward and to the
left before carefully sliding the friction wheel assembly
off the shaft. See Figure 6-12.
6
Maintaining
Your Snow
Thrower
NEVER replace the
auger shear pins with
standard hex pins.
Any damage to the
auger gearbox or
other components
as a result of failing
to do so will NOT be
covered by your snow
thrower’s warranty.
Figure 6-9
Figure 6-10
Figure 6-11
WARNING
Run the engine
completely dry of
gasoline before
tipping snowthrower.
ca
b
Frame
Auger Belt
Auger Pulley
Support
Bracket
Idler Spring
Stop
Bolt
Drive Plate
Friction Wheel
Drive Belt

17
NOTE: If you’re replacing the friction wheel assembly
as a whole, discard the worn part and slide the new part
onto the hex shaft. Follow the steps above in reverse
order to reassemble components. If you’re disassem-
bling the friction wheel and replacing only the rubber
ring, proceed as follows:
6. Remove the four screws which secure the friction
wheel’s side plates together. See Figure 6-13.
7. Remove the rubber ring from between the plates.
8. Reassemble the side plates with a new rubber ring.
9. Slide the friction wheel assembly back onto the hex
shaft and follow the steps above in reverse order to
reassemble components.
Off-Season Storage
If unit is to be stored over 30 days, prepare for storage
as instructed in the separate engine manual packed with
your snow thrower.
Clean snow thrower thoroughly.•
Lubricate as instructed in the Maintenance section•
of this manual.
Refer to engine manual for correct engine storage•
instructions.
Store the snow thrower in a clean, dry area.•
When storing any type of power equipment in•
a poorly ventilated or metal storage shed, care
should be taken to rustproof the equipment,
especially springs, cables and all moving parts.
When reassembling
the friction wheel as-
sembly, tighten each
screw only one rota-
tion before turning the
wheel clockwise and
proceeding with the
next screw. Repeat
this process several
times to ensure the
plates are secured
with equal force.
6
Maintaining
Your Snow
Thrower
Figure 6-12
Figure 6-13
WARNING
Run the engine
completely dry of
gasoline before
tipping snowthrower.

18
NOTE: This section
addresses minor
service issues. For
further details,
contact customer
assistance.
7
Trouble-
Shooting
CauseProblem Remedy
Engine fails to start 1. Choke not in ON position.
2. Spark plug wire disconnected.
3. Fuel tank empty or stale fuel.
4. Engine not primed.
5. Faulty spark plug.
6. Blocked fuel line.
7. Safety key not in ignition on engine.
8. Fuel shut-ff valve closed. (If Equipped)
1. Move choke to ON position.
2. Connect wire to spark plug.
3. Fill tank with clean, fresh gasoline.
4. Prime engine as instructed in
“Operating Your Snow Thrower”.
5. Clean, adjust gap, or replace.
6. Clean fuel line.
7. Insert key fully into the switch.
8. Open fuel shut-off valve.
Engine runs erratic 1. Move choke lever to OFF position.
2. Clean fuel line; fill tank with clean,
fresh gasoline.
3. Drain fuel tank. Refill with
fresh fuel.
4. Contact Service Center.
1. Unit running on CHOKE.
2. Blocked fuel line or stale fuel.
3. Water or dirt in fuel system.
4. Carburetor out of adjustment.
Engine overheats 1. Contact Service Center.1. Carburetor not adjusted properly.
Loss of power 1. Connect and tighten spark plug
wire.
2. Remove ice and snow from gas
cap. Be certain vent is clear.
3. Contact Service Center.
1. Spark plug wire loose.
2. Gas cap vent plugged.
3. Exhaust port plugged.
Unit fails
to propel itself
1. Adjust drive control cable. Refer to
“Adjustments”.
2. Replace drive belt.
3. Replace friciton wheel.
1. Drive control cable in need of adjust-
ment.
2. Drive belt loose or damaged.
3. Friction wheel worn.
Excessive
Vibration
1. Loose parts or damaged auger. 1. Stop engine immediately and
disconnect spark plug wire. Tighten
all bolts and nuts. If vibration
continues, have unit serviced by a
Service Center.
Unit fails
to discharge snow
1. Stop engine immediately and
disconnect spark plug wire. Clean
chute assembly and inside of
auger housing with clean-out tool
or a stick.
2. Stop engine immediately and
disconnect spark plug wire.
Remove object from auger with
clean-out tool or a stick.
3. Refer to “Auger Control Test” .
4. Refer to Maintenance section.
5. Replace with new shear pin(s).
1. Chute assembly clogged.
2. Foreign object lodged in auger.
3. Auger control cable in need of adjust-
ment.
4. Auger belt loose or damaged.
5. Shear pin(s) sheared.

19
7
Warranty
Failure to comply
with suggested
maintenance
and lubrication
specifications will
void warranty.
4 YEAR LIMITED WARRANTY
For FOUR YEARS from the date of retail purchase within Canada, MTD PRODUCTS LIMITED will, at its option, repair
or replace, for the original purchaser, free of charge, any part or parts found to be defective in material or workmanship.
This warranty does not cover:
1. Any part which has become inoperative due to misuse, commercial use, abuse, neglect, accident, improper mainte-
nance or alteration; or
2. The unit if it has not been operated and/or maintained in accordance with the owner’s instructions furnished with the
unit; or
3. The engine or motor or component parts thereof which carry separate warranties from their manufacturers. Please
refer to the applicable manufacturer’s warranty on these items; and read engine warranty statement below, or
4. Batteries and normal wear parts except as noted below. Log splitter pumps, valves and cylinders or component parts
thereof are covered by a one year warranty; or
5. Routine maintenance items such as lubricants, filters, blade sharpening and tune-ups, or adjustments such as brake,
clutch or deck; or
6. Normal deterioration of the exterior finish due to use or exposure.
Full Ninety Day Warranty on Battery (if equipped): For ninety (90) days from the date of retail purchase, if any
battery included with this unit proves defective in material or workmanship and our testing determines the battery will
not hold a charge, MTD PRODUCTS LIMITED will replace the battery at no charge to the original purchaser.
Additional Limited Thirty Day Warranty on Battery (if equipped): After ninety (90) days but within one hundred
twenty (120) days from the date of purchase, MTD PRODUCTS LIMITED will replace the defective battery, for the
original purchaser, for a cost of one-half (½) of the current retail price of the battery in effect at the date of return.
Full Ninety Days Warranty on Normal Wear Parts: Normal wear parts are defined as belts, blade adaptors, blades,
grass bags, seats, tires, rider deck wheels and clutch parts (friction wheels). These parts are warranted to the original
purchaser to be free from defects in material and workmanship for a period of ninety (90) days from the date of retail
purchase.
How to Obtain Service: Warranty service is available, with proof of purchase, through your local authorized service
dealer or distributor. If you do not know the dealer or distributor in your area, please call, toll free 1-800-668-1238. The
return of a complete unit will not be accepted by the factory unless prior written permission has been extended by MTD
PRODUCTS LIMITED.
Transportation Charges: Transportation charges for the movement of any power equipment unit or attachment are
the responsibility of the purchaser. Transportation charges for any part submitted for replacement under this warranty
must be paid by the purchaser unless such return is requested in writing by MTD PRODUCTS LIMITED.
Other Warranties: All other warranties, express or implied, including any implied warranty of merchantability is limited
in its duration to that set forth in this express limited warranty. The provisions as set forth in this warranty provide the
sole and exclusive remedy of MTD PRODUCTS LIMITED obligations arising from the sale of its products.
MTD PRODUCTS LIMITED will not be liable for incidental or consequential loss or damage.
4 YEAR LIMITED WARRANTY ENGINES
This limited warranty doubles the time periods of the engine manufacturer’s limited warranty which is enclosed in the
owner’s information package.
12.08.06

20
NOTES:
For parts and/or
accessories refer to
customer support on
page 2.
Adressez-vous au
«Service après-vente»
à la page 2 pour
ce qui concerne
les pièces et/ou
accessoires.
