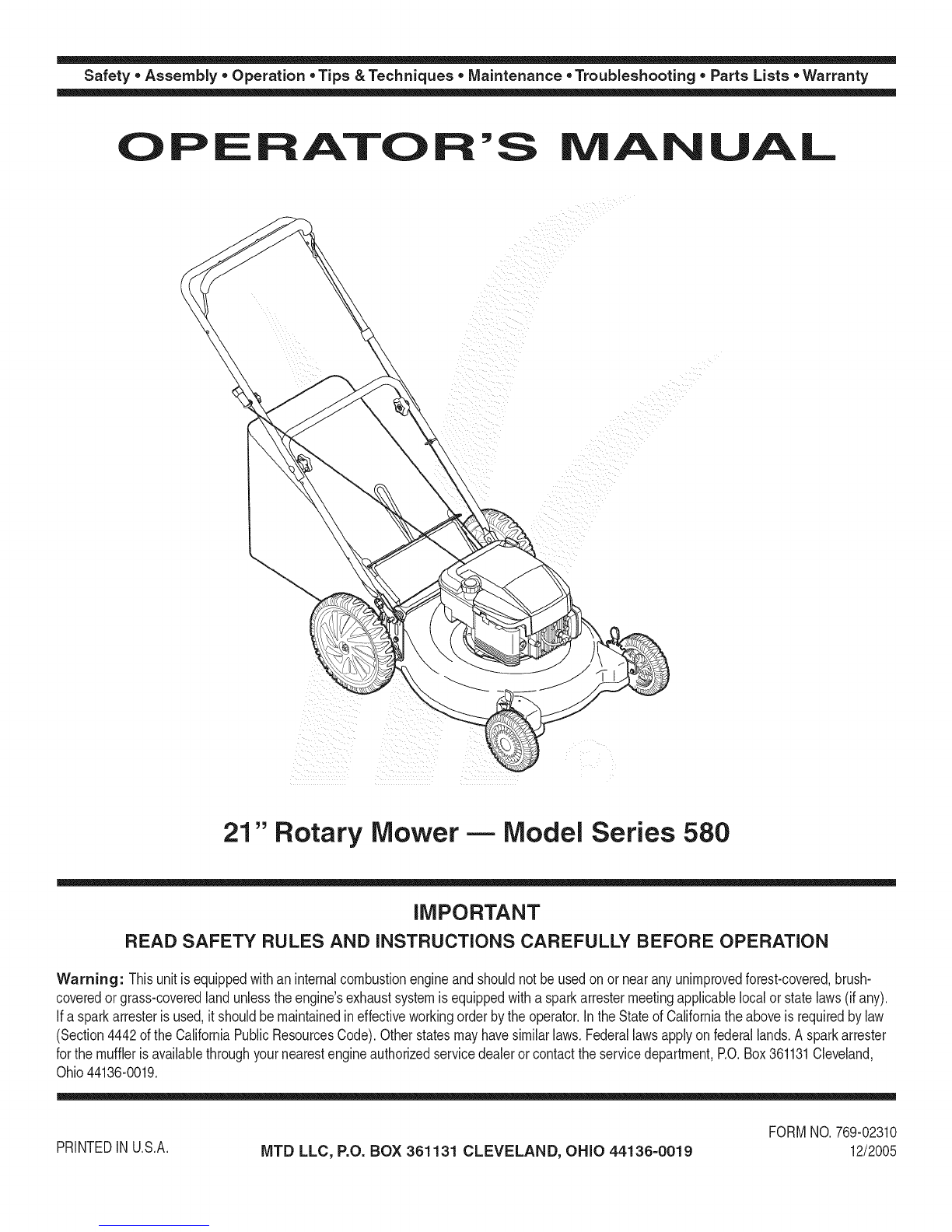

MTD 11A-589B795 User manual

Safety • Assembly • Operation • Tips &Techniques • Maintenance • Troubleshooting • Parts Lists • Warranty
OF AOAL
21" Rotary Mower- Model Series 580
iMPORTANT
READ SAFETY RULES AND iNSTRUCTiONS CAREFULLY BEFORE OPERATION
Warning: Thisunitisequippedwithan internalcombustionengineandshouldnotbeusedon or nearanyunimprovedforest-covered,brush-
coveredor grass-coveredlandunlesstheengine'sexhaustsystemisequippedwitha sparkarrestermeetingapplicablelocalor statelaws(if any).
If a sparkarresterisused,it shouldbemaintainedineffectiveworkingorderbytheoperator.IntheStateofCaliforniatheaboveisrequiredbylaw
(Section4442oftheCaliforniaPublicResourcesCode).Otherstatesmayhavesimilarlaws.Federallawsapplyonfederallands.A sparkarrester
forthemufflerisavailablethroughyournearestengineauthorizedservicedealeror contacttheservicedepartment,RO.Box361131Cleveland,
Ohio44136-0019.
PRINTEDIN U.S.A. MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 FORMNO.769-02310
12/2005

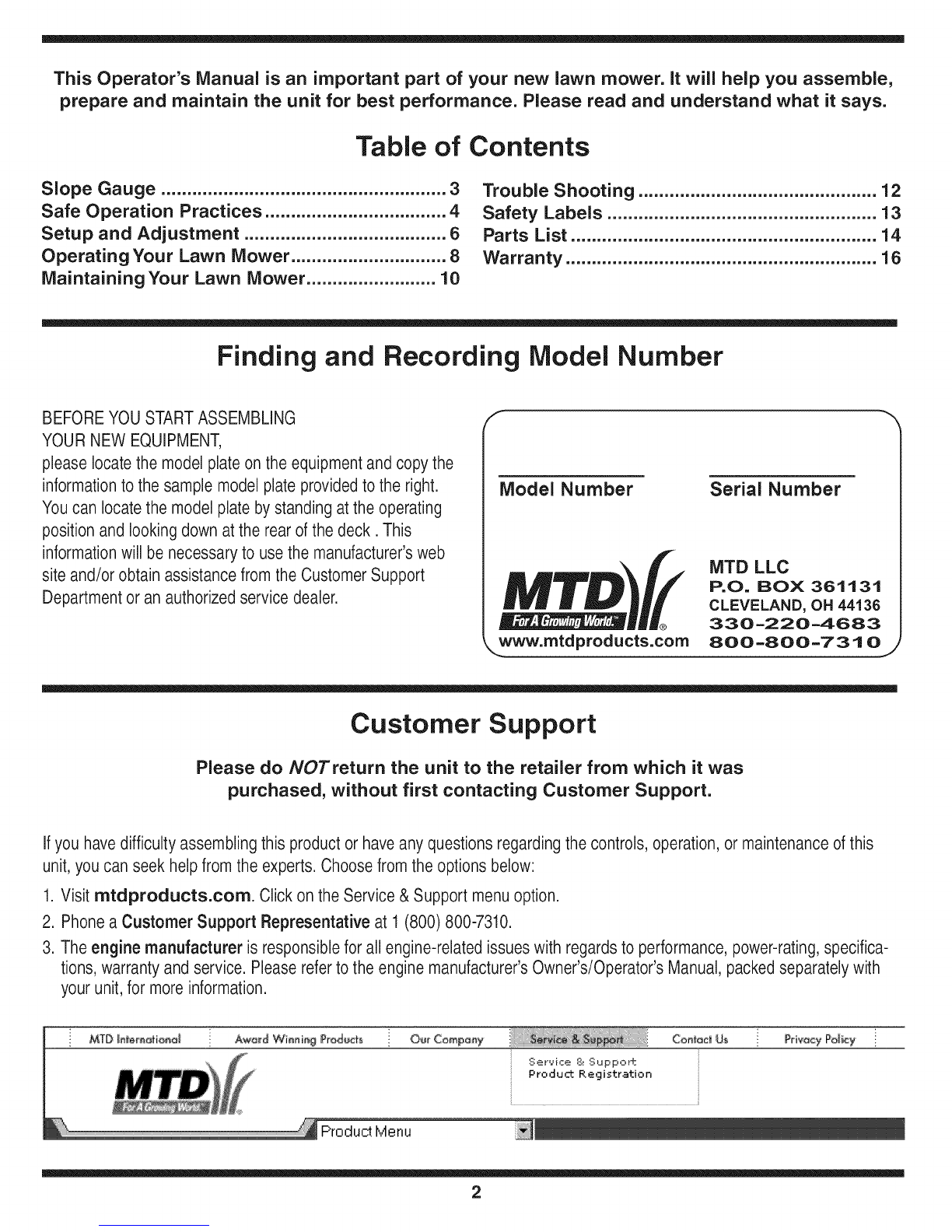

This Operator's Manual is an important part of your new lawn mower, it will help you assemble,
prepare and maintain the unit for best performance. Please read and understand what it says.
Table of Contents
Slope Gauge ....................................................... 3
Safe Operation Practices ................................... 4
Setup and Adjustment ....................................... 6

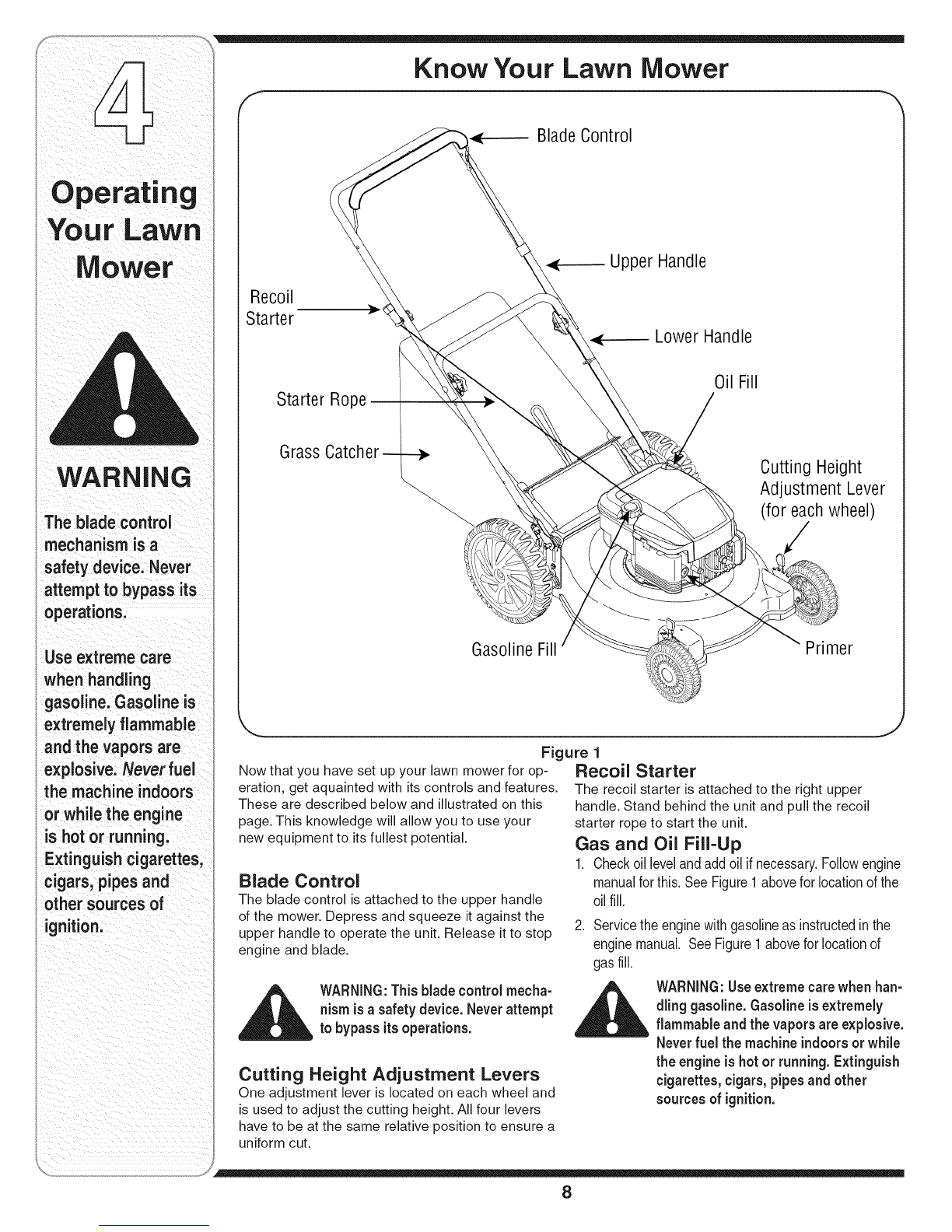

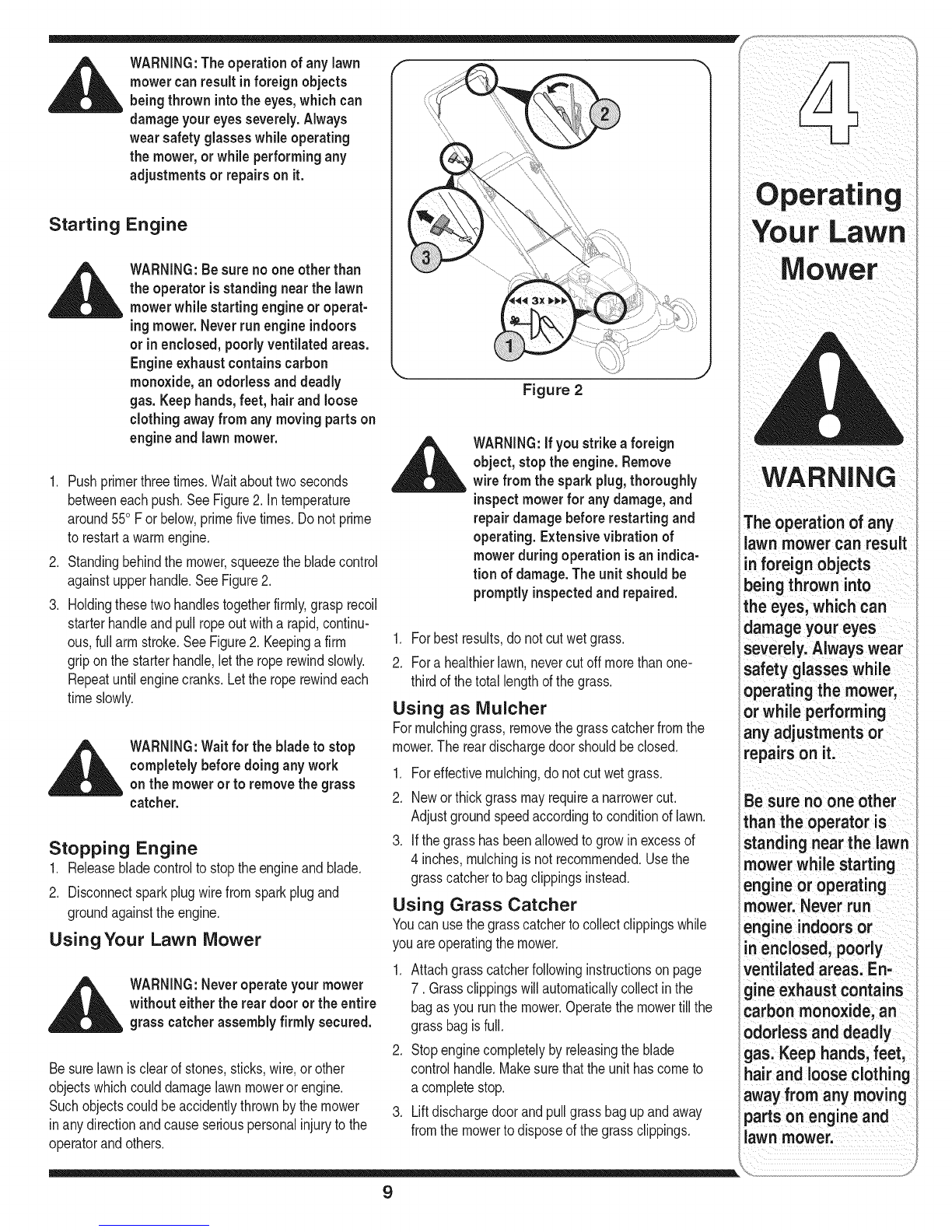

Operating Your Lawn Mower .............................. 8

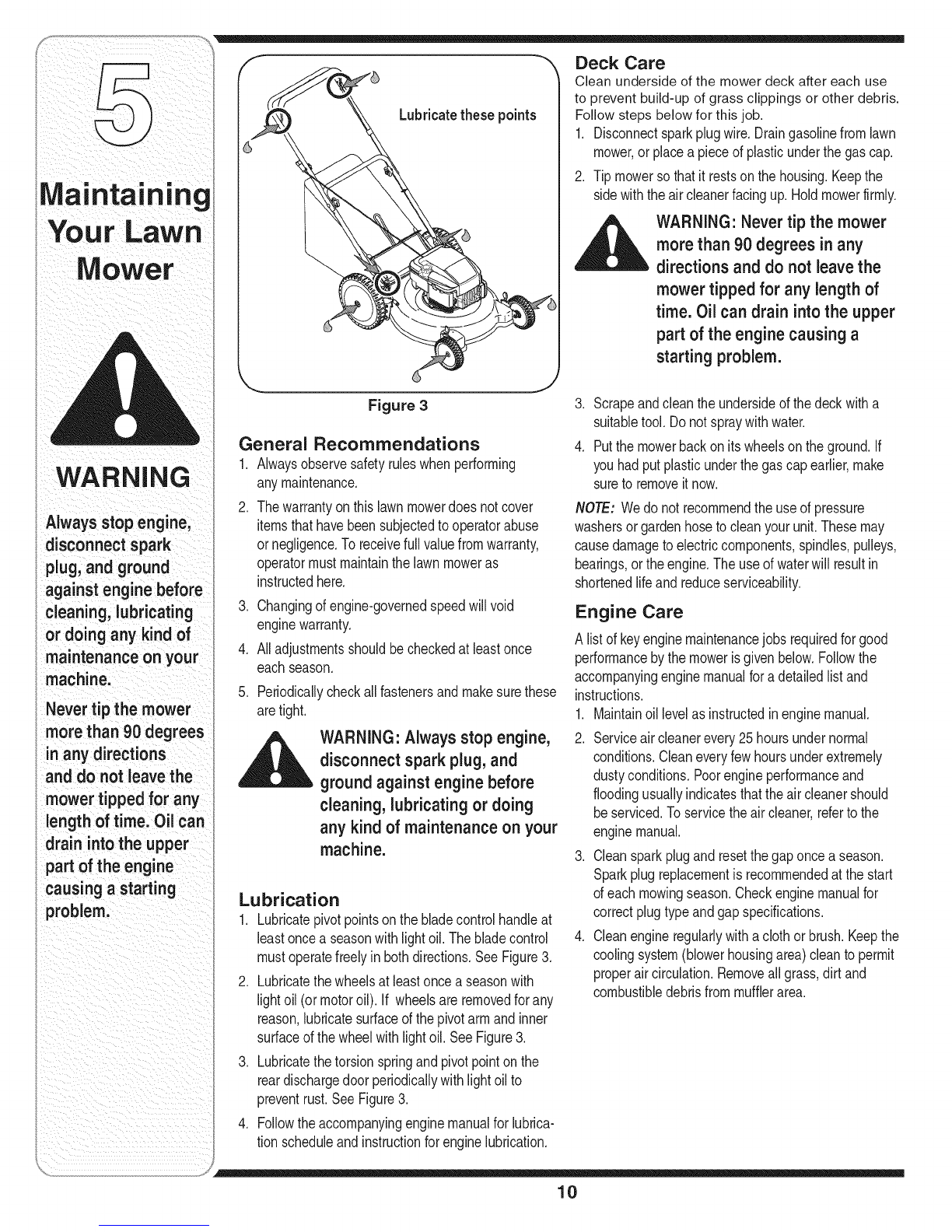

Maintaining Your Lawn Mower ......................... 10
Trouble Shooting .............................................. 12

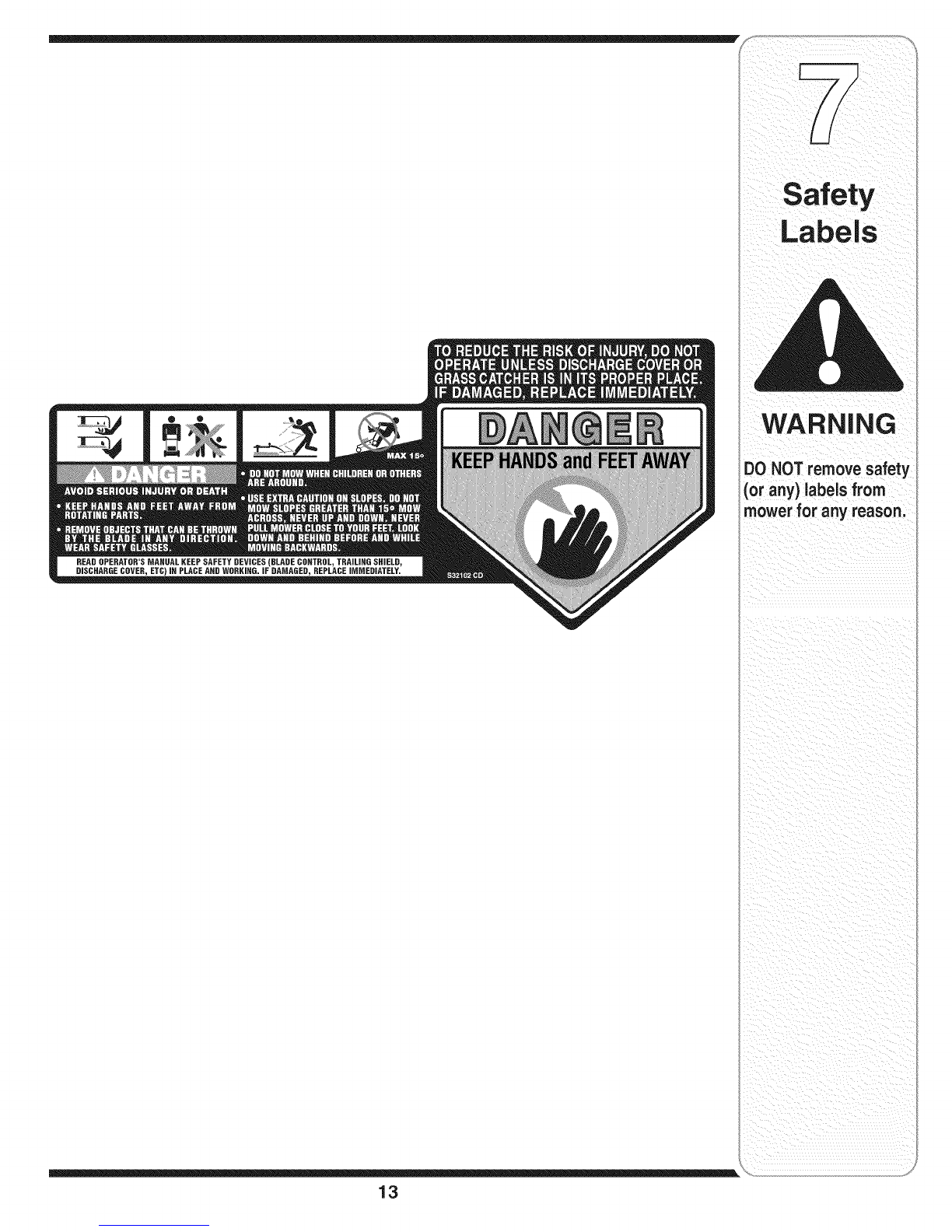

Safety Labels .................................................... 13

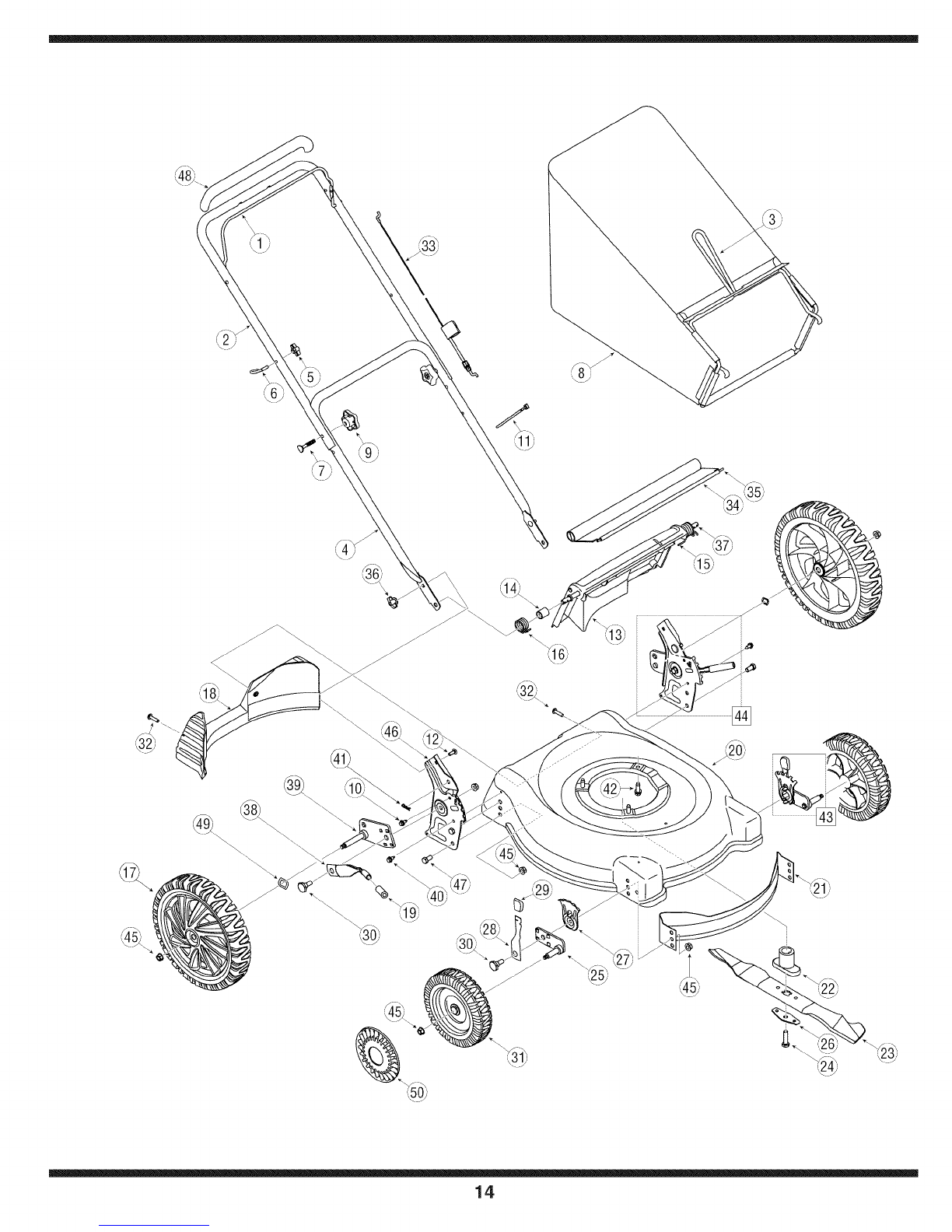

Parts List ........................................................... 14
Warranty ............................................................ 16
Finding and Recording Model Number
BEFOREYOU STARTASSEMBLING
YOURNEW EQUIPMENT,
please locatethe modelplate onthe equipmentand copythe
informationtothe sample modelplate providedtothe right.
Youcan locatethe modelplate by standing at the operating
position and lookingdown atthe rear ofthe deck. This
informationwill be necessaryto use the manufacturer'sweb
site and/or obtain assistancefrom theCustomerSupport
Departmentor an authorizedservice dealer.
Model Number
www.mtdproducts.com
Serial Number
MTD LLC
P.O= BOX 361131
CLEVELAND, OH 44136
330-220-4683
800-800-7310
Customer Support
Please do NOTreturn the unit to the retailer from which it was
purchased, without first contacting Customer Support.
Ifyou havedifficultyassembling this productor haveany questionsregardingthe controls, operation,or maintenanceof this
unit,youcan seek helpfrom the experts. Choosefromthe optionsbelow:
1. Visit mtdproducts.com. Click onthe Service& Support menuoption.
2. Phone a Customer Support Representative at 1 (800) 800-7310.
3. Theengine manufacturer isresponsiblefor all engine-relatedissueswith regards to performance,power-rating,specifica-
tions, warrantyand service. Pleaserefer tothe enginemanufacturer'sOwner's/Operator'sManual, packedseparatelywith
your unit,for more information.
MTD _n_r_tic_ Aw_4 Winning ?red_ts @r Company i _rivacy P'd_y'
C,@n_ac_U_
Ser,,,ice 8: Suppo_±
Product Registration
2

O
o
o
>:.
(13
O3
(13
(13
O-
O
O
(--
O5
E
O
(13
(13
o3
(13
O-
O
o3
(13
E
(]3
(13
o
(13
C5
('5
O3
O5
(13
t"b
(13
O9
o5
(13
O-
O
O3
-5
O3
O
O
E
Sightandhold this levelwith a verticaltree...
also
I
15°

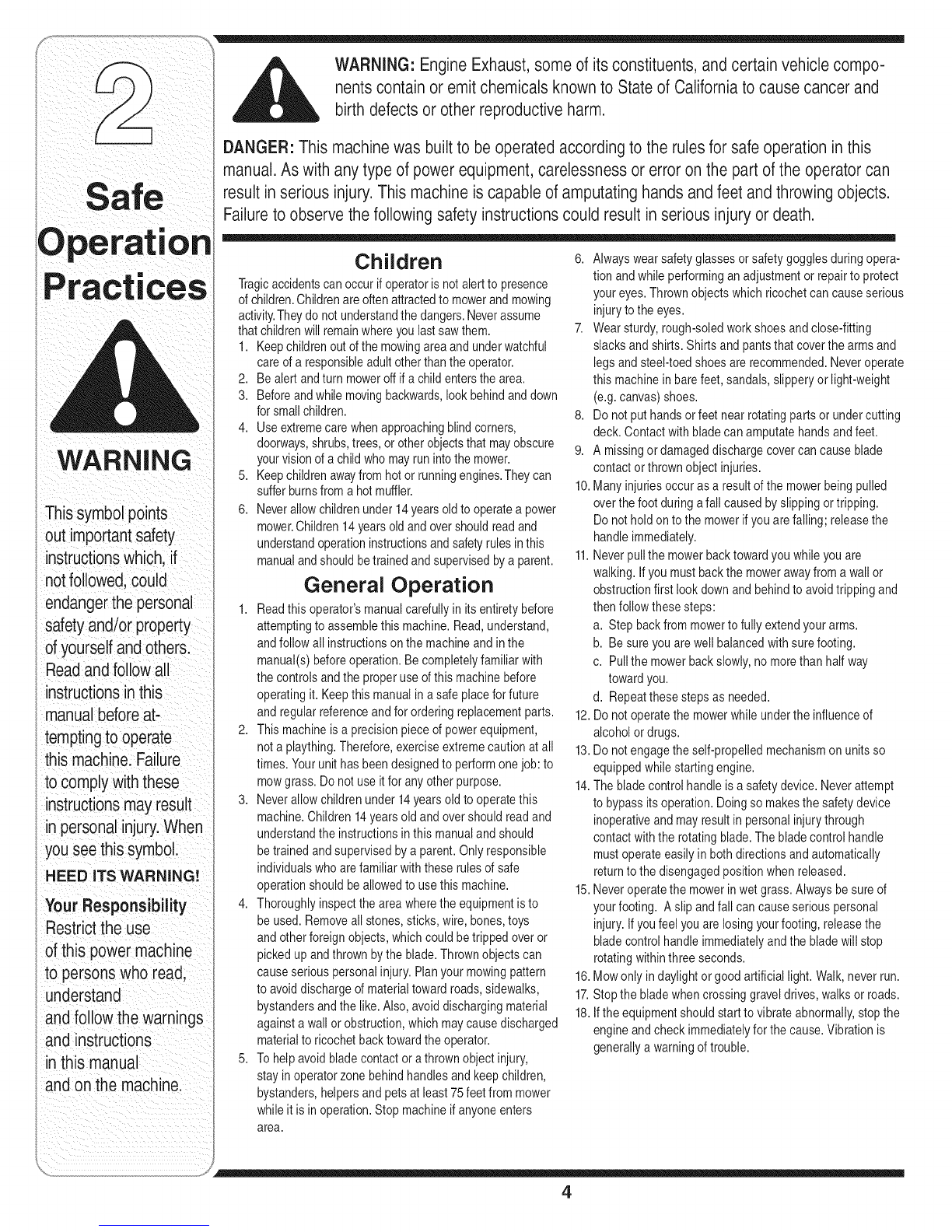

WARNING
Thissymbolpoints
out importantsafety
instructionswhich,if
notfollowed,could
endangerthe personal
i safetyand/or property
I ofyourselfand others.
Readandfollowall
instructionsinthis
manualbeforeat-
temptingto operate
i this machine.Failure
I to complywiththese
instructionsmay result
i in personalinjury.When
youseethis symbol.
i HEED ITS WARNING!
Your Responsibility
Restrictthe use
ofthis powermachine
to personswho read,
_understand
ano followthe warnings
and instructions
inthis manual
and on the machine.
WARNING: EngineExhaust,some of its constituents,andcertain vehiclecompo-
nentscontain or emit chemicals knownto Stateof Californiato cause cancerand
birth defectsor other reproductiveharm.
DANGER: This machinewas builtto be operatedaccordingto the rulesfor safe operation in this
manual.As with anytypeof powerequipment,carelessnessor erroronthe part ofthe operatorcan
result in seriousinjury.This machine iscapable of amputatinghands andfeet andthrowing objects.
Failureto observethe followingsafety instructionscould resultin serious injury or death.
Children
Tragicaccidentscanoccurifoperatorisnotalertto presence
ofchildren.Childrenareoftenattractedtomowerand mowing
activity.Theydonot understandthe dangers.Neverassume
thatchildrenwill remainwhereyoulastsawthem.
1. Keepchildrenoutofthe mowingareaand underwatchful
careofa responsibleadultotherthanthe operator.
2. Bealertandturnmoweroffif achildentersthearea.
3. Beforeand whilemovingbackwards,lookbehindanddown
forsmallchildren.
4. Useextremecarewhenapproachingblindcorners,
doorways,shrubs,trees,or otherobjectsthatmayobscure
yourvisionofachildwhomayrunintothe mower.
5. Keepchildrenawayfromhotor runningengines.Theycan
sufferburnsfroma hotmuffler.
6. Neverallowchildrenunder14yearsoldto operateapower
mower.Children14yearsoldandovershouldreadand
understandoperationinstructionsandsafetyrulesinthis
manualandshouldbetrainedandsupervisedbyaparent.
General Operation
1. Readthis operator'smanualcarefullyin its entiretybefore
attemptingtoassemblethismachine.Read,understand,
andfollowall instructionsonthe machineandin the
manual(s)beforeoperation.Becompletelyfamiliarwith
thecontrolsandthe properuseofthis machinebefore
operatingit. Keepthis manualin a safeplaceforfuture
andregularreferenceandfor orderingreplacementparts.
2. Thismachineisaprecisionpieceof powerequipment,
nota plaything.Therefore,exerciseextremecautionat all
times.Yourunithas beendesignedto performonejob: to
mowgrass.Do notuseit for anyotherpurpose.
3. Neverallow childrenunder 14yearsoldto operatethis
machine.Children14yearsoldand overshouldreadand
understandthe instructionsinthis manualandshould
betrainedand supervisedbya parent.Onlyresponsible
individualswhoarefamiliarwiththeserulesofsafe
operationshouldbeallowedto usethismachine.
4. Thoroughlyinspectthe areawherethe equipmentisto
beused.Removeall stones,sticks,wire,bones,toys
andotherforeignobjects,whichcouldbetrippedoveror
pickedupandthrownbythe blade.Thrownobjects can
causeseriouspersonalinjury.Planyourmowingpattern
toavoiddischargeofmaterialtowardroads,sidewalks,
bystandersandthe like.Also,avoiddischargingmaterial
againsta wallor obstruction,whichmaycausedischarged
materialto ricochetbacktowardthe operator.
5. Tohelpavoidbladecontactorathrownobjectinjury,
stayinoperatorzonebehindhandlesandkeepchildren,
bystanders,helpersandpetsatleast75feetfrom mower
whileit is inoperation.Stopmachineifanyoneenters
area.
6. Alwayswearsafetyglassesor safetygogglesduringopera-
tionandwhile performinganadjustmentor repairtoprotect
youreyes.Thrownobjectswhich ricochetcancauseserious
injurytothe eyes.
7. Wearsturdy,rough-soledworkshoesand close-fitting
slacksandshirts. Shirtsandpantsthatcoverthe armsand
legsandsteel-toedshoesarerecommended.Neveroperate
this machinein barefeet,sandals,slipperyor light-weight
(e.g.canvas)shoes.
8. Do notputhandsorfeet nearrotatingpartsor undercutting
deck.Contactwithbladecanamputatehandsandfeet.
9. Amissingor damageddischargecovercancauseblade
contactor thrownobject injuries.
10.Manyinjuriesoccurasa resultofthe mowerbeingpulled
overthefoot duringa fall causedby slippingor tripping.
Do notholdontothe mowerifyouare falling;releasethe
handleimmediately.
11.Neverpullthe mowerbacktowardyouwhileyouare
walking.If youmust backthe mowerawayfroma wallor
obstructionfirstlookdownand behindtoavoidtrippingand
thenfollowthesesteps:
a. Stepbackfrommowertofully extendyourarms.
b. Besureyouarewellbalancedwithsurefooting.
c. Pullthe mowerbackslowly,no morethanhalfway
towardyou.
d. Repeatthesestepsas needed.
12.Do notoperatethe mowerwhileunderthe influenceof
alcoholordrugs.
13.Do notengagetheself-propelledmechanismon unitsso
equippedwhilestartingengine.
14.Thebladecontrolhandleisasafetydevice.Neverattempt
tobypassitsoperation.Doingso makesthe safetydevice
inoperativeandmayresult in personalinjurythrough
contactwiththe rotatingblade.Thebladecontrolhandle
mustoperateeasily in bothdirectionsandautomatically
returntothe disengagedpositionwhenreleased.
15.Neveroperatethe mowerinwetgrass.Alwaysbesureof
yourfooting. A slipand fall cancauseseriouspersonal
injury.If youfeelyouarelosingyourfooting,releasethe
bladecontrolhandleimmediatelyand the bladewillstop
rotatingwithinthreeseconds.
16.Mowonlyin daylightor goodartificiallight.Walk,neverrun.
17.Stopthe bladewhencrossinggraveldrives,walksor roads.
18.If theequipmentshouldstartto vibrateabnormally,stopthe
engineand checkimmediatelyfor the cause.Vibrationis
generallya warningoftrouble.
4

19.Shuttheengineoff andwait untilthe bladecomesto a
completestopbeforeremovingthe grasscatcheror unclog-
ging thechute.
The cuttingbladecontinuesto rotatefor a fewsecondsafter
the engineisshutoff. Neverplaceany partofthe bodyin
the bladearea untilyouaresurethe bladehasstopped
rotating.
20. Neveroperatemowerwithoutpropertrail shield,discharge
cover,grass catcher,bladecontrolhandleor othersafety
protectivedevicesin placeand working.Neveroperate
mowerwithdamagedsafetydevices.Failuretodo socan
resultin personalinjury.
21. Mufflerandenginebecomehotandcan causea burn.Do
nottouch.
22.Only usepartsandaccessoriesmadeforthismachineby
manufacturer.Failuretodo socanresultinpersonalinjury.
23. If situationsoccurwhich arenotcoveredin thismanual,
usecareand goodjudgment.Contactyourdealerfor
assistance.Telephone1-800-800-7310for the nameofyour
nearestdealer.
Slope Operation
Slopesareamajorfactorrelatedto slipandfallaccidents,which
can resultinsevereinjury.Operationonslopesrequiresextra
caution.Ifyoufeeluneasyon a slope,do notmowit.Foryour
safety,usetheslopegaugeincludedaspartofthis manualto
measureslopesbeforeoperatingthisunitonaslopedor hilly
area.Iftheslopeisgreaterthan15degrees,donot mowit.
Do:
1. Mowacrossthefaceofslopes;neverupanddown.Exercise
extremecautionwhenchangingdirectiononslopes.
2. Watchfor holes,ruts,rocks, hiddenobjects,or bumpswhich
can causeyouto slipor trip. Tallgrasscanhideobstacles.
3. Alwaysbesure ofyourfooting.A slip andfall cancause
seriouspersonalinjury.Ifyoufeelyouarelosingyour
balance,releasethe bladecontrolhandleimmediately,and
the bladewill stoprotatingwithin3seconds.
Do Not:
1. Donot mowneardrop-offs,ditchesorembankments,you
could loseyourfootingorbalance.
2. Donot mowslopesgreaterthan 15degreesasshownon
the slopegauge.
3. Donot mowon wetgrass.Unstablefootingcouldcause
slipping. Service
Safe HandlingOf Gasoline:
1. To avoidpersonalinjury orpropertydamageuseextreme
care inhandlinggasoline.Gasolineisextremelyflammable
andthevaporsareexplosive.Seriouspersonalinjurycan
occurwhengasolineisspilledonyourselforyourclothes,
whichcanignite.
2. Washyourskin andchangeclothesimmediately.
3. Useonlyanapprovedgasolinecontainer.
4. Neverfill containersinsideavehicleoron a truckor trailer
bedwitha plasticliner.Alwaysplacecontainerson the
groundawayfromyourvehiclebeforefilling.
5. Removegas-poweredequipmentfromthe truck ortrailer
and refuelit onthe ground.Ifthis is notpossible,thenrefuel
suchequipmentonatrailerwitha portablecontainer,rather
thanfroma gasolinedispensernozzle.
6. Keepthe nozzlein contactwiththe rimofthefueltank or
containeropeningat alltimesuntilfuelingis complete.Do
notuseanozzlelock-opendevice.
7. Extinguishallcigarettes,cigars,pipesandothersources
ofignition.
8. Neverfuel machineindoorbecauseflammablevaporswill
accumulatein thearea.
9. Neverremovegascap oradd fuelwhileengineishot or
running. Allowengineto coolatleasttwo minutesbefore
refueling.
10.Neveroverfillfueltank. Filltankto nomorethanY2inch
belowbottomoffiller neckto provideforfuelexpansion.
11.Replacegasolinecapandtightensecurely.
12.If gasolineis spilled,wipe itoff theengineand equipment.
Moveunittoanotherarea.Wait5minutesbeforestarting
engine.
13.Neverstorethe machineorfuel containernearanopen
flame,sparkor pilotlightasonawaterheater,space
heater,furnace,clothesdryeror othergasappliances.
14.Toreducefire hazard,keepmowerfreeofgrass,leaves,
orother debrisbuild-up.Cleanupoil orfuelspillageand
removeanyfuel soakeddebris.
15.Allowamowertocoolat least5 minutesbeforestoring.
GeneralService:
1. Neverrun anengineindoorsorin a poorlyventilatedarea.
Engineexhaustcontainscarbonmonoxide,anodorlessand
deadlygas.
2. Beforecleaning,repairing,or inspecting,makecertainthe
bladeandall movingpartshavestopped.Disconnectthe
sparkplugwireandgroundagainstthe engineto prevent
unintendedstarting.
3. Checkthe bladeandenginemountingboltsatfrequent
intervalsfor propertightness.Also,visuallyinspectbladefor
damage(e.g.,bent,cracked,worn)Replacebladewiththe
originalequipmentmanufacture's(O.E.M.)bladeonly,listed
inthismanual."Useof partswhichdo notmeetthe original
equipmentspecificationsmayleadto improperperformance
andcompromisesafety!"
4. Mowerbladesaresharpandcancut.Wrapthebladeor wear
gloves,anduseextracautionwhenservicingthem.
5. Keepallnuts,bolts,andscrewstightto besurethe equip-
mentis insafeworkingcondition.
6. Nevertamperwithsafetydevices.Checktheirproperopera-
tionregularly.
7. Afterstrikinga foreignobject,stopthe engine,discon-
nectthesparkplugwireandgroundagainsttheengine.
Thoroughlyinspectthe mowerfor anydamage.Repairthe
damagebeforestartingandoperatingthe mower.
8. Neverattemptto makeawheelor cuttingheightadjustment
whiletheengineis running.
9. Grasscatchercomponents,dischargecover,andtrail
shieldaresubjecttowearanddamagewhichcould expose
movingpartsor allowobjectsto bethrown.Forsafety
protection,frequentlycheckcomponentsandreplaceim-
mediatelywithoriginalequipmentmanufacturer's(O.E.M.)
partsonly,listedinthis manual."Useofpartswhich do
notmeetthe originalequipmentspecificationsmayleadto
improperperformanceandcompromisesafety!"
10.Do notchangetheenginegovernorsettingor over-revthe
engine.Thegovernorcontrolsthe maximumsafeoperating
speedoftheengine.
11.Maintainor replacesafetylabels,asnecessary.
12.Observeproperdisposallawsandregulations.Improper
disposaloffluidsand materialscanharmtheenvironment.
5
Operation
WARNING
This symbol points
out importantsafety
instructions,which if
notfollowed,could
endangerthe personal
safety and/or property
of yourselfand others.
Readand followall
instructions inthis man-
ual beforeattemptingto
operatethis machine.
Failureto comply with
these instructionsmay
result in personalinjury.
Whenyou seethis
symbol.
HEED IT'S WARNING!
YourResponsibility
Restrictthe use
of this powermachine
to personswho read.
understand
and followthe warnings
and instructions
in this manua
and onthe machine.

Adjustment
NOTE:Stand behind
the mower as il you
were goingto operate
it. Yourrighthand cor-
respondsto the right
i sideof the mower;your
left handcorresponds
to the left sideof the
mower.
iMPORTANT
i This unitis shipped
without gasolineor
oil inthe engine.Fill
up gasolineand oil
as instructedinthe
i accompanyingengine
manual BEFORE
operatingyour mower.
Step 1
HardwarePack
Wing Nuts (2)
Step 2
1. Removeanypackingmaterialwhichmaybebetween
upperandlowerhandles.
a. Pullupand backon upperhandleasshownin
Step1.Makecertainthe lowerhandleis seated
securelyintothehandlemountingbrackets.
b. Tightenhandknobssecuringupperhandleto
lowerhandle.Makesurethateachcarriageboltis
seatedproperlyin thehandle.
2. Locatehairpinclipinone holeon theweldpinon each
sideof lowerhandle.
.
.
5.
a. Removehairpinclipfromthis hole.Usinga pairof
pliers,inserthairpinclipintotheotherholeon the
weldpin.Repeaton otherside.
b. Inserta carriageboltfromthehardwarepackinto
theupperholeonthehandlemountingbracket.
Securewithone plasticwingnut,alsoincluded
inthehardwarepack.Repeatonothersidewith
remainingitemsfromhardwarepack.
Theropeguideisattachedtotherightsideofthe
upperhandle.Loosenthewingnutwhichsecuresthe
ropeguide.
a. Holdbladecontrolhandleagainstupperhandle.
b. Pullstarterropeoutoftheengine.Releaseblade
controlhandle.
c. Slipstarterropeintoropeguide.
d. Tightenwingnut.
Insertpostoncabletiesintoholesprovidedon the
lowerhandle.Pullcabletietightandtrimexcess.
Installrearwheelsasfollowsin Step5: (maybe
alreadyinstalled)
a. Placerearof themowerdeckon raisedblocks.
b. Removelocknutfrompivotarmassembly(on
selectmodels,thesemaybeincludedseparately
ina plasticbag).
c. Slidewheel,withhollowsidein,ontopivotarmand
securewithlocknut.
d. Assembletheothersideinthe samemanner.
Step 3Step 4
6

.m_ J
Step 5
6. An adjustingplateandthumbleverateachwheel
positionprovidescuttingheightadjustment.
a. Depresslevertowardswheel.
b. Moveittoanyof theninepositionsfordesired
cuttingheight.SeeStep6.
c. Releaselevertowardsmowerdeck.
7. Followstepsbelowtoassemblethegrasscatcher:
a. Placebagoverframesothat itsblackplasticside
is atthebottom.
b. Slip plasticchannelofgrassbagoverhooksonthe
frame.SeeStep7.All theplasticchannelsexcept
centertopof bagattachfromoutsideofbag.
c. Attachcentertopofbagfrominsideofbag.
8. Followstepsbelowtoattachgrasscatcher:
a. Liftreardischargedoor.
b. Placegrasscatcheron thepivotrod.Letgo
ofdischargedoorsothat itrestson thegrass
catcher.SeeStep8.
Step 6
J
Step 7
Toremovegrasscatcherorconverttoa mulcher,lift rear ......................................
dischargedooron themowerasshowninStep8. Lift
grasscatcherupandoutofthepivotrod.Releaserear
dischargedoortoallowittocloserearopeningof mower.
_ARNING: Never operate mower
unless the hooks on the grass
catcher are firmly seated on the
pivot rod, and the rear discharge
door rests firmly against top of
the grass catcher.
Step 8
CUTTING
Step8
All Wheelsmust be
placed in the same
relative pos!tionl
Step 7
Makecertainbagis
turned rightside out
before assembling
(waming labe!will be
on theoutside):
Never operate mower
unless the hooks on
the grasscatcher are
firmly seated on the
p votrod;andthe
rear discharge door
rests firmly against
topofthegrass
7

Know Your Lawn Mower
WARNING
The blade control
mechanism is a
safety device. Never
attempt to bypass its
operations.
Use extreme care
iwhen handhng
gasoline.Gasoline is
extremely flammable
and the vapors are
explosive. Never fuel
the machine indoors
or while the engine
is hotor running.
Extinguish cigarettes,
cigars, pipesand
other sources of
ignition.
--, Blade Control
Recoil
Starter
Upper Handle
LowerHandle
Starter Ro Oil Fill
Grass Catcher Cutting Height
Adjustment Lever
(for each wheel)
Gasoline Fill Primer
Figure 1
Now that you have set up your lawn mower for op-
eration, get aquainted with its controls and features.
These are described below and illustrated on this
page. This knowledge will allow you to use your
new equipment to its fullest potential.
Blade Control
The blade control is attached to the upper handle
of the mower. Depress and squeeze it against the
upper handle to operate the unit. Release it to stop
engine and blade.
Recoil Starter
The recoil starter is attached to the right upper
handle. Stand behind the unit and pull the recoil
starter rope to start the unit.
Gas and Oil Fill-Up
1. Check oil level and add oil if necessary. Follow engine
manual for this. See Figure 1above for location of the
oil fill.
2. Servicetheenginewithgasolineasinstructedinthe
enginemanual. SeeFigure1aboveforlocationof
gasfill.
__ WARNING:This blade control mecha-
nism isasafetydevice. Neverattempt
to bypass itsoperations.
Cutting Height Adjustment Levers
One adjustment lever is located on each wheel and
is used to adjust the cutting height. All four levers
have to be at the same relative position to ensure a
uniform cut.
_ARNING:Useextreme carewhenhan-
dling gasoline.Gasolineis extremely
flammableand the vapors areexplosive.
Neverfuel the machine indoorsor while
the engine ishot or running. Extinguish
cigarettes, cigars, pipesand other
sources of ignition.
8

WARNING:Theoperationof any lawn
mowercan result inforeign objects
being thrownintotheeyes,whichcan
damageyoureyesseverely. Always
wearsafetyglasseswhileoperating
the mower,or while performingany
adjustments or repairson it.
Starting Engine
WARNING:Be sureno one otherthan
the operatorisstanding near the lawn
mower while starting engine or operat-
ingmower.Neverrun engine indoors
or inenclosed, poorly ventilated areas.
Engineexhaustcontains carbon
monoxide, an odorless anddeadly
gas. Keep hands, feet, hair and loose
clothing awayfrom anymoving partson
engine and lawn mower.
1. Pushprimerthreetimes.Waitabouttwoseconds
betweeneachpush.SeeFigure2. Intemperature
around550For below,primefive times.Donotprime
to restarta warmengine.
2. Standingbehindthe mower,squeezethebladecontrol
againstupperhandle.SeeFigure2.
3. Holdingthesetwo handlestogetherfirmly,grasprecoil
starterhandleand pullropeoutwitha rapid,continu-
ous,fullarmstroke.SeeFigure2.Keepinga firm
grip onthestarterhandle,lettheroperewindslowly.
Repeatuntilenginecranks.Letthe roperewindeach
timeslowly.
,_ WARNING:Wait for the blade to stop
completely beforedoing any work
__ on themower or to removethe grass
catcher.
Stopping Engine
1. Releasebladecontroltostoptheengineand blade.
2. Disconnectsparkplugwirefromsparkplugand
groundagainsttheengine.
UsingYour Lawn Mower
,__k WARNING:Neveroperateyour mower
without either the rear door or the entire
grass catcherassembly firmly secured.
Besurelawnisclearof stones,sticks,wire,or other
objectswhichcoulddamagelawnmowerorengine.
Suchobjectscouldbe accidentlythrownbythemower
in anydirectionandcauseseriouspersonalinjurytothe
operatorandothers.
Figure 2
_klL ARNING:ifyou strike a foreign
object,stop theengine.Remove
wire from the sparkplug,thoroughly
inspect mower for any damage,and
repair damagebefore restarting and
operating. Extensivevibration of
mowerduring operation isan indica-
tion of damage.Theunit should be
promptlyinspectedand repaired.
1. Forbest results,do notcut wetgrass.
2. Fora healthierlawn,nevercut offmorethanone-
thirdofthetotallengthofthegrass.
Using as Mulcher
Formulchinggrass,removethegrasscatcherfromthe
mower.Thereardischargedoorshouldbeclosed.
1. Foreffectivemulching,do notcut wetgrass.
2. Newor thickgrassmayrequirea narrowercut.
Adjustgroundspeedaccordingtoconditionoflawn.
3. If thegrasshasbeenallowedto growinexcessof
4 inches,mulchingisnotrecommended.Usethe
grasscatchertobagclippingsinstead.
Using Grass Catcher
Youcanusethegrasscatchertocollectclippingswhile
youareoperatingthemower.
1. Attachgrasscatcherfollowinginstructionson page
7. Grassclippingswillautomaticallycollectinthe
bagasyourunthe mower.Operatethemowertillthe
grassbagisfull.
2. Stopenginecompletelybyreleasingtheblade
controlhandle.Makesurethattheunithascometo
a completestop.
3. Liftdischargedoorandpullgrassbagup andaway
fromthe mowertodisposeofthegrassclippings.
Mower
WARNING
The operation of any
lawn mower can result
inforeign objects
being thrown into
the eyes, whichcan
damage your eyes
severely. Always wear
safety glasseswhile
operating the mower,
or while performing
any adjustments or
repairs on it.
Be sureno one other
than the operator is
standing near the lawn
mower while starting
engine or operating
mower. Never run
engine indoorsor
n enclosed, poorly
ventilated areas. En-
gineexhaust contains
carbon monoxide, an
odorless and deadly
gas. Keep hands,feet,
hair and loose clothing
away from any moving
partson engine and
lawn mower.
9

Maintaining
WARNING
Alwaysstopengine,
disconnectspark
plug, and ground
against engine before
cleaning,lubricating
or doing any kind of
maintenance on your
_machine.
i Never tip the mower
more than 90 degrees
in any directions
and do not leave the
mower tipped for any
length of time. Oil can
drain intothe upper
partof the engine
causing a starting
problem.
General Recommendations
1. Alwaysobservesafetyruleswhenperforming
anymaintenance.
2. Thewarrantyon thislawnmowerdoesnotcover
itemsthathavebeensubjectedtooperatorabuse
ornegligence.Toreceivefullvaluefromwarranty,
operatormustmaintainthelawnmoweras
instructedhere.
3. Changingofengine-governedspeedwillvoid
enginewarranty.
4. Alladjustmentsshouldbecheckedat leastonce
eachseason.
5. Periodicallycheckallfastenersand makesurethese
aretight.
__ ARNING: Alwaysstop engine,
disconnect spark plug, and
groundagainst engine before
cleaning, lubricating or doing
any kind of maintenanceon your
machine.
Lubrication
1. Lubricatepivotpointson thebladecontrolhandleat
leastoncea seasonwith lightoil.Thebladecontrol
mustoperatefreelyinbothdirections.SeeFigure3.
2. Lubricatethewheelsatleastoncea seasonwith
lightoil (ormotoroil). If wheelsareremovedforany
reason,lubricatesurfaceofthepivotarmandinner
surfaceof thewheelwithlightoil.SeeFigure3.
3. Lubricatethetorsionspringandpivotpointonthe
reardischargedoorperiodicallywithlightoil to
preventrust.SeeFigure3.
4. Followtheaccompanyingenginemanualforlubrica-
tionscheduleandinstructionforenginelubrication.
Deck Care
Clean underside of the mower deck after each use
to prevent build-up of grass clippings or other debris.
Follow steps belowfor this job.
1. Disconnectsparkplugwire.Draingasolinefromlawn
mower,or placea pieceof plasticunderthegascap.
2. Tipmowersothat itrestsonthe housing.Keepthe
sidewiththeair cleanerfacingup.Holdmowerfirmly.
,_ WARNING" Never tip the mower
more than 90 degrees inany
-- directions and do not leave the
mower tipped for any length of
time. Oil can drain intothe upper
part ofthe engine causing a
starting problem.
3. Scrapeandcleantheundersideofthedeckwitha
suitabletool.Donotspraywithwater.
4. Putthemowerbackonitswheelsontheground.If
youhad putplasticunderthegascapearlier,make
sureto removeitnow.
NOTE: Wedo notrecommendtheuseofpressure
washersorgardenhosetocleanyourunit.Thesemay
causedamagetoelectriccomponents,spindles,pulleys,
bearings,or theengine.Theuseofwaterwillresultin
shortenedlifeandreduceserviceability.
Engine Care
A listofkeyenginemaintenancejobs requiredforgood
performancebythemowerisgivenbelow.Followthe
accompanyingenginemanualforadetailedlistand
instructions.
1. Maintainoil levelasinstructedinenginemanual.
2. Serviceaircleanerevery25 hoursundernormal
conditions.Cleaneveryfewhoursunderextremely
dustyconditions.Poorengineperformanceand
floodingusuallyindicatesthattheaircleanershould
beserviced.Toservicetheaircleaner,refertothe
enginemanual.
3. Cleansparkplugand resetthegaponcea season.
Sparkplugreplacementisrecommendedatthestart
ofeachmowingseason.Checkenginemanualfor
correctplugtypeand gapspecifications.
4. Cleanengineregularlywitha clothorbrush.Keepthe
coolingsystem(blowerhousingarea)cleantopermit
properaircirculation.Removeall grass,dirtand
combustibledebrisfrommufflerarea.
10

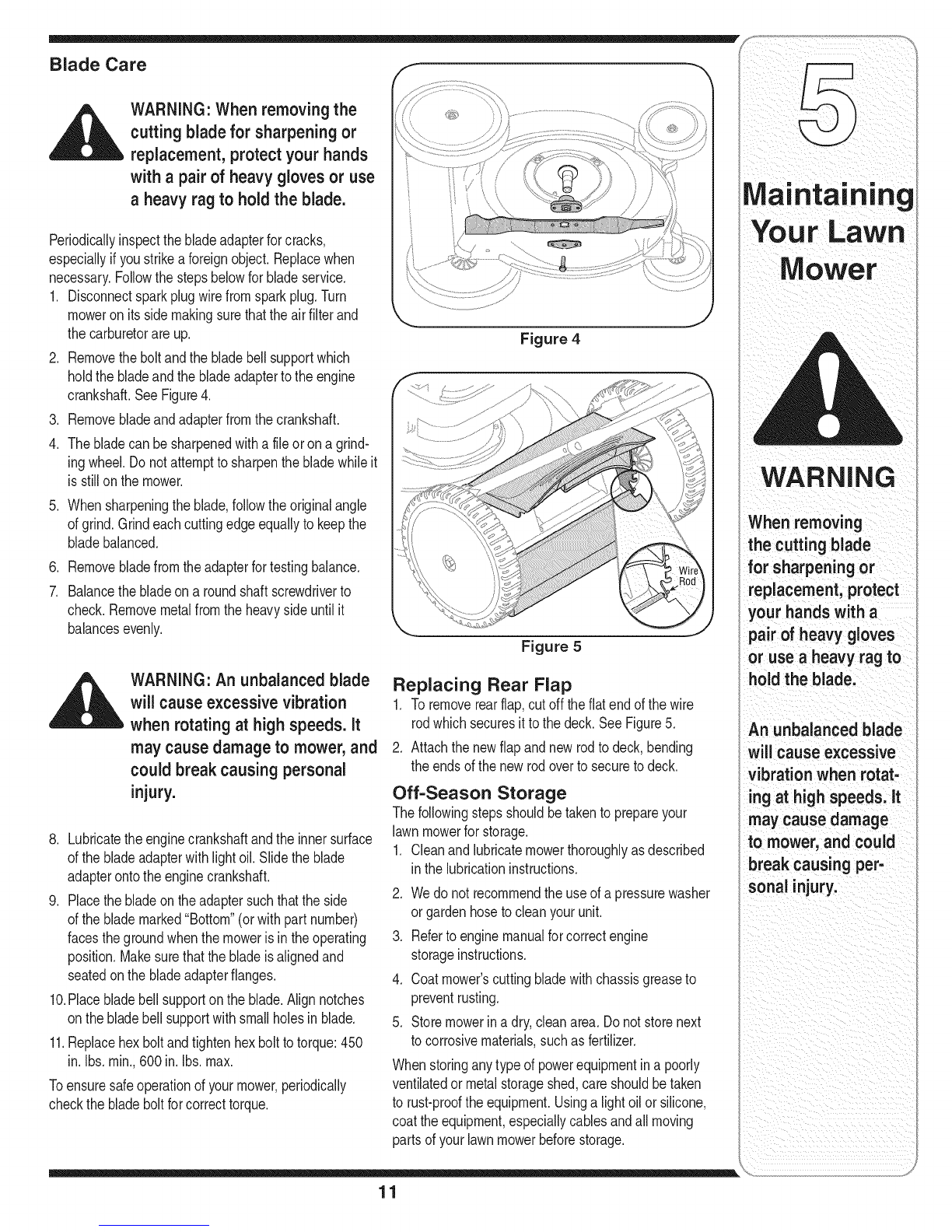

Blade Care
_ARNING: When removing the
cutting blade for sharpening or
replacement, protect your hands
with a pair of heavy gloves or use
a heavy rag to hold the blade.
Periodicallyinspectthebladeadapterforcracks,
especiallyif youstrikea foreignobject.Replacewhen
necessary.Followthe stepsbelowforbladeservice.
1. Disconnectsparkplugwirefromsparkplug.Turn
moweron itssidemakingsurethattheairfilterand
thecarburetorareup.
2. Removetheboltandthe bladebellsupportwhich
holdthebladeand thebladeadaptertotheengine
crankshaft.See Figure4.
3. Removebladeandadapterfromthecrankshaft.
4. Thebladecanbe sharpenedwitha fileor on a grind-
ingwheel.Donotattempttosharpenthebladewhileit
isstillonthemower.
5. Whensharpeningtheblade,followtheoriginalangle
ofgrind.Grindeachcuttingedgeequallyto keepthe
bladebalanced.
.
7. Removebladefromtheadapterfortestingbalance.
Balancethebladeona roundshaftscrewdriverto
check.Removemetalfromtheheavysideuntilit
balancesevenly.
,__ WARNING: An unbalanced blade
will cause excessive vibration
when rotating at high speeds, it
may cause damage to mower, and
could break causing personal
injury.
8. Lubricatetheenginecrankshaftandtheinnersurface
ofthebladeadapterwithlightoil.Slidetheblade
adapterontotheenginecrankshaft.
9. Placethebladeon theadaptersuchthattheside
oftheblademarked"Bottom"(orwithpartnumber)
facesthegroundwhenthemowerisintheoperating
position.Makesurethatthebladeisalignedand
seatedon thebladeadapterflanges.
10.Placebladebellsupportonthe blade.Alignnotches
on thebladebell supportwith smallholesinblade.
11.Replacehexboltandtightenhexboltto torque:450
in.Ibs.rain.,600 in.Ibs.max.
Toensuresafeoperationofyourmower,periodically
checkthebladeboltforcorrecttorque.
Figure 4
Figure 5
Replacing Rear Flap
1. Toremoverearflap,cutoff theflatendofthewire
rodwhichsecuresittothedeck.See Figure5.
2. Attachthenewflapand newrodtodeck,bending
theendsofthenewrodoverto securetodeck.
Off-Season Storage
Thefollowingstepsshouldbetakento prepareyour
lawnmowerforstorage.
1. Cleanandlubricatemowerthoroughlyasdescribed
inthe lubricationinstructions.
2. Wedo notrecommendtheuseofa pressurewasher
orgardenhosetocleanyourunit.
3. Refertoenginemanualforcorrectengine
storageinstructions.
4. Coatmower'scuttingbladewithchassisgreaseto
preventrusting.
5. Storemowerina dry,cleanarea.Donotstorenext
tocorrosivematerials,suchas fertilizer.
Whenstoringanytypeof powerequipmentin a poorly
ventilatedor metalstorageshed,careshouldbetaken
torust-prooftheequipment.Usinga lightoil or silicone,
coattheequipment,especiallycablesandall moving
partsofyourlawnmowerbeforestorage.
Maintaining
Yo ur LaWn
ower
WARNING
When removing
the cutting blade
for sharpening or
replacement, protect
your handswith a
pair of heavy gloves
or use a heavy ragto
holdthe blade.
An unbalanced blade
will causeexcessive
vibration when rotat-
ing at high speeds, it
may cause damage
to mower, and could
break causing per-
sonal injury.
11

repairsbeyond
theminoradjustments
listed here, contact
an authorizedservice
_iiii _ ii _ _ i _ _i _ i
i i i ¸ ! !
i_ i_ _i!: _ i ii _ii__ii_I iiiii_
Problem Cause Remedy
Engine fails to Start i. Blade controldisengaged. Engagebiadecontrol
sparkp!ugwiredisconnected: I conBect WiretoSparkp!ug_
3. Fueltankemptyorstalefuel. 3. FiItankwith clean,freshgasoline.
4. Enginenotchoked. 4. Chokeengineas instructedinthe
OPe[atingYOU[LawnMower section•
5: Faultysparkpug 5, Clean,adjustgap,or replace.
6. BlOCkedfuel linel 6, cieanfueliinel
7: Engineflooded. 7: Wait afew minutesto iestart,but do
I notprime:
Enginerunserratic 1. Sparkplugwireloose.
2. Blockedfuel lineor stalefuel.
3. Ventingascap plugged.
4. Wateror dirt infuel system.
5. Dirtyair cleaner.
6. Carburetorout ofadjustment.
1. Connectandtightensparkplugwire.
2. Cleanfuelline;filltank withclean,
freshgasoline.
3. Clearvent.
4. Drainfueltank. Refillwithfreshfuel.
5. Referto enginemanual.
6. Referto enginemanual.
Engine overheats 1 Engineoil levellow. 1. Fillcrankcasewith properoil.
2....A rfow restrcted I 2 Removebower housngand cean
3. Carburetornotadjustedpropery. 3• Referto engne manua.
Occasional skips 1. Sparkpluggap tooclose. 1. Adjust gapto .030-inch.
(hesitates) at high speed 2. Carburetoridlemixtureadjustment 2. Referto enginemanual.
improperlyset.
Idles poorly 1. Sparkplugfouled,faultyor gaptoo wide. 1. Resetgapto .030-inchor replace
sparkpug.
2 Carburetorimproperlyadjusted 2. Referto enginemanual.
. 3. Dirtyair cleaner. 3. Referto enginemanual.
Excessive Vibration 1. Cuttingbladelooseor unbalanced. 1. Tightenbladeandadapter.Balance
blade.
2. Bentcuttingblade. 2. See anauthorizedservicedealer.
Mower will not mulch grass 1 Wetgrass• 1. Donot mowwhengrass iswet wait
untillatertocut.
2. Excessivelyhighgrass. 2. Mowonce atahighcuttingheight,
then mowagainatdesiredheightor
I makeanarrowercuttingpath.
, 3. Du bade. , 3. Sharpenor replaceblade.
Uneven cut 1. Wheelsnotpositionedcorrectly. 1. Placeallfour wheelsin same
heightposition.
2. Dullblade. 2. Sharpenor replaceblade.
12

iii i_ _ iiii
ii i _iI_ii
13

\
14

747-1161A BladeControlHandle 720-0426 AdjustmentLeverKnob
2 749-1092A UpperHandle 29 732-0404 SpringLever
3 747-04080 GrassCatcherFrame 30 738-0507B ShoulderScrew
4 749-0928A LowerHandle 31 734-2005A FrontWheel,8"x2.125"
5 720-0279 WingNut 32 710-04371 Screw,1/4-15x 1.250
6 710-1205 RopeGuide 33 746-1130 ControlCable- 40.00"
7 710-1174 CarriageBolt,5/16-18x 2 34 731-04998 Trailshield
8 664-04007A GrassBagAssembly 35 732-0700 TrailshieldWire
9 720-04072 StarKnob 36 712-0397 WingNut,1/4-20
10 710-0599 Screw,1/4-20x .500 37 747-0996 RearDoorPivotRod
11 726-0240 CableTie 38 732-0866 SpringLever
12 _710-0703 Carriage Bolt,1/4-20 39 _ 687-02074A_PivotArmAssembly- RH
13 731-04134A RearDischargeDoor
14 750-04162 Spacer 40
15 •732-04089A
16 732-04090A TorsionSpring- RH 42 710-0654A
17 734-04093 RearWheel,12"x2.125" 43 687-02099A
18 731-04150C RearBaffle 687-02100A
19 720-0312 SpringLeverGrip 44 687-02057
20 787-01276 Deck- 21" 687-02056
21 782-5002B FrontBaffle 45 712-04065
22 748-0377C BladeAdapter 46 687-02192
23 742-0741 MulchingBlade 687-02191
24 710-1257 HexScrew, 3/8-24x2.5 47 710-0216
25 687-02077A PivotArmAssembly-RH 48 731-2626
687-02076A PivotArmAssembly- LH 49 736-0182
26 736-0524B BladeBellSupport 50 731-0981A
27 787-01290 FrontAdjustmentPlate
687-02075A PivotArmAssembly- LH
710-1652 AB Screw
TT SeresScrew,3/8-16x 1.0
Ht.Adj.Assy.Front- LH
Ht.Adj.Assy.Front- RH
RearHandleBracketAssy.- LH
RearHandleBracketAssy.- RH
FlangeLockNut,3/8-16
HandleBracketAssembly-RH
HandleBracketAssembly-LH
HexScrew,3/8-16x0.75
DeluxeBailCover
SpringWasher
RadialSpokeHubcap
15
i¸¸I i
£NUIN£
_FACTORY PARTS
Toorder replacement
contact
1'800,800-7310
orviait
www:mtdproducts:com
ii i _iI_ ii

MANUFACTURER'S LiMiTED WARRANTY FOR
ThelimitedwarrantysetforthbelowisgivenbyMTDLLCwithrespect
tonewmerchandisepurchasedandusedin theUnitedStates,its
possessionsandterritories.
"MTD"warrantsthisproductagainstdefectsinmaterialandworkman-
shipfora periodoftwo (2)yearscommencingonthedateoforiginal
purchaseandwill,at itsoption,repairor replace,freeofcharge,any
partfoundto bedefectiveinmaterialsorworkmanship.Thislimitedwar-
rantyshallonlyapplyifthisproducthasbeenoperatedand maintained
inaccordancewiththeOperator'sManualfurnishedwiththeproduct,
andhasnotbeensubjectto misuse,abuse,commercialuse,neglect,
accident,impropermaintenance,alteration,vandalism,theft,fire,water,
ordamagebecauseofotherperilor naturaldisaster.Damageresulting
fromthe installationor useofanypart,accessoryor attachmentnot
approvedby MTDforusewiththeproduct(s)coveredbythis manual
willvoidyourwarrantyastoanyresultingdamage.
Normalwearpartsarewarrantedto befreefromdefectsinmaterialand
workmanshipfora periodofthirty(30)daysfromthedateof purchase.
Normalwearpartsinclude,butare notlimitedto itemssuchas: batter-
ies,belts,blades,bladeadapters,grassbags,riderdeckwheels,seats,
snowthrowerskidshoes,shaveplates,augerspiralrubberandtires.
NOW TO OBTAINSERVICE: Warrantyservice isavailable,WITH
PROOFOF PURCHASE,throughyour localauthorized service
dealer.Tolocate the dealer in yourarea, check yourYellowPages,
or contact MTDLLCat RO. Box361131,Cleveland,Ohio 44136-
0019,or call 1-800-800-7310or 1-330-220-4683 or log on to our
Website at www.mtdproducts.com.
Thislimitedwarrantydoesnot providecoverageinthefollowingcases:
a. Theengineor componentpartsthereof.Theseitemsmaycarrya
separatemanufacturer'swarranty.Refertoapplicablemanufacturer's
warrantyfortermsandconditions.
b. Logsplitterpumps,valves,andcylindershavea separateoneyear
warranty.
c. Routinemaintenanceitemssuchaslubricants,filters,blade
sharpening,tune-ups,brakeadjustments,clutchadjustments,deck
adjustments,andnormaldeteriorationoftheexteriorfinishdueto
useor exposure.
d. Servicecompletedbysomeoneotherthananauthorizedservice
dealer.
e. MTDdoesnotextendanywarrantyforproductssoldor exported
outsideoftheUnitedStates,its possessionsandterritories,except
thosesoldthroughMTD'sauthorizedchannelsofexportdistribution.
f. ReplacementpartsthatarenotgenuineMTDparts.
g. Transportationchargesandservicecalls.
Noimpliedwarranty,includingany impliedwarranty of mer-
chantabilityof fitness for a particular purpose,appliesafter the
applicable periodof expresswritten warranty aboveasto the
partsasidentified.Nootherexpresswarranty, whetherwritten or
oral, exceptas mentioned above,givenby anypersonor entity,
includingadealeror retailer, withrespect to any product,shall
bindMTD.Duringthe periodof the warranty,the exclusiveremedy
isrepairor replacementof the productas setforth above.
Theprovisionsasset forth inthis warrantyprovidethesoleand
exclusiveremedy arising from the sale.MTDshallnot be liable
for incidentalor consequentiallossor damageincluding,without
limitation, expensesincurredfor substituteor replacementlawn
careservicesor for rentalexpensesto temporarily replacea
warranted product.
Somestatesdo notallowtheexclusionor limitationofincidentalor
consequentialdamages,or limitationsonhowlongan impliedwarranty
lasts,sotheaboveexclusionsorlimitationsmaynotapplytoyou.
Innoeventshallrecoveryofanykindbegreaterthantheamountofthe
purchasepriceof theproductsold.Alterationof safetyfeaturesof
the product shallvoid this warranty. Youassumetheriskandliability
forloss,damage,or injurytoyouandyourpropertyand/ortoothersand
theirpropertyarisingoutofthemisuseor inabilitytousethe product.
Thislimitedwarrantyshallnotextendtoanyoneotherthantheoriginal
purchaserorto thepersonforwhomitwas purchasedasa gift.
HOWSTATELAWRELATESTOTHISWARRANTY:This limited
warrantygivesyouspecificlegalrights,and youmayalsohaveother
rightswhichvaryfromstatetostate.
IMPORTANT:OwnermustpresentOriginalProofof Purchasetoobtain
warrantycoverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136=0019; Phone: 1=800=800=7310, 1=330=220=4683
This manual suits for next models
1
Table of contents
Other MTD Lawn Mower manuals
Popular Lawn Mower manuals by other brands

Husqvarna
Husqvarna AUTOMOWER 520 quick guide

Exmark
Exmark TURF TRACER S-SERIES Operators Operator's manual

Jonsered
Jonsered Frontrider FR2315 MA Operator's manual

Toro
Toro 74912 Operator's manual

Briggs & Stratton
Briggs & Stratton BRUTE BTPV21675E Operator's manual

Jonsered
Jonsered FR2111 Operator's manual

EINHELL
EINHELL BG-PT 3041 Original operating instructions

Cub Cadet
Cub Cadet 15HP Z-Force 44 53AA5D2L100 Operator's and service manual

Husqvarna
Husqvarna R152SVB instruction manual

Alamo
Alamo A84B Operator's manual

Swisher
Swisher T1360T owner's manual

Textron
Textron JACOBSEN R-311 Safety & operation manual
