MTD 1332G User manual

1332G (55AD210Q195) ,1336G (55AE210R195)
Walk-BehindCommercial
RotaryMowers
ProfessionalTurfEquipment
ILLUSTRATEDPARTS LIST
®

2
This Page Left Blank Intentionally

3
TABLE OF CONTENTS
1332G / 32"FabricatedCutter Deckand Parts List.. . . . .. . . . 4 and 5
1332G / 32"FabricatedDeck Cover.. . . . . . . . . . . . . . . . . . . . . . . . . . 6
1332G, 1336G / 32"& 36" ChuteAssembly. . . . . . . . . . . . . . . . . . . . . 7
1332G / 32"Spindle Assembly.. . .. . . . . . .. . . . . . .. . . . . . .. . . . . .8
1336G / 36"FabricatedDeck Cover.. . . . . .. . . . . . .. . . . . . .. . . . . .9
1336G / 36"DeckAssembly &Parts List.. . . .. . . . . . .. . . . . .10&11
1336G / 36" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
1332G, 1336G / Caster Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1332G, 1336G / Tank Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
1332G, 1336G / Handle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . .15
1336G / Deck Assembly Standard Track. . . . . . . . . . . . . . . . . . . . . . . 16
1332G / Deck Assembly Narrow Track. . . . . . . . . . . . . . . . . . . . . . . . .17
1336G / Brake Assembly Standard Track. . . . . . . . . . . . . . . . . . . . . . .18
1332G / Brake Assembly Narrow Track. . . . . . . . . . . . . . . . . . . . . . . . 19
1332G, 1336G / Vari-Touch Drive Assembly. . . . . . . . . . . . . . . . . . . . 20
1332G, 1336G / 13HP Kohler Engine Assembly. . . . . . . . . . . . . . . . . 21

4

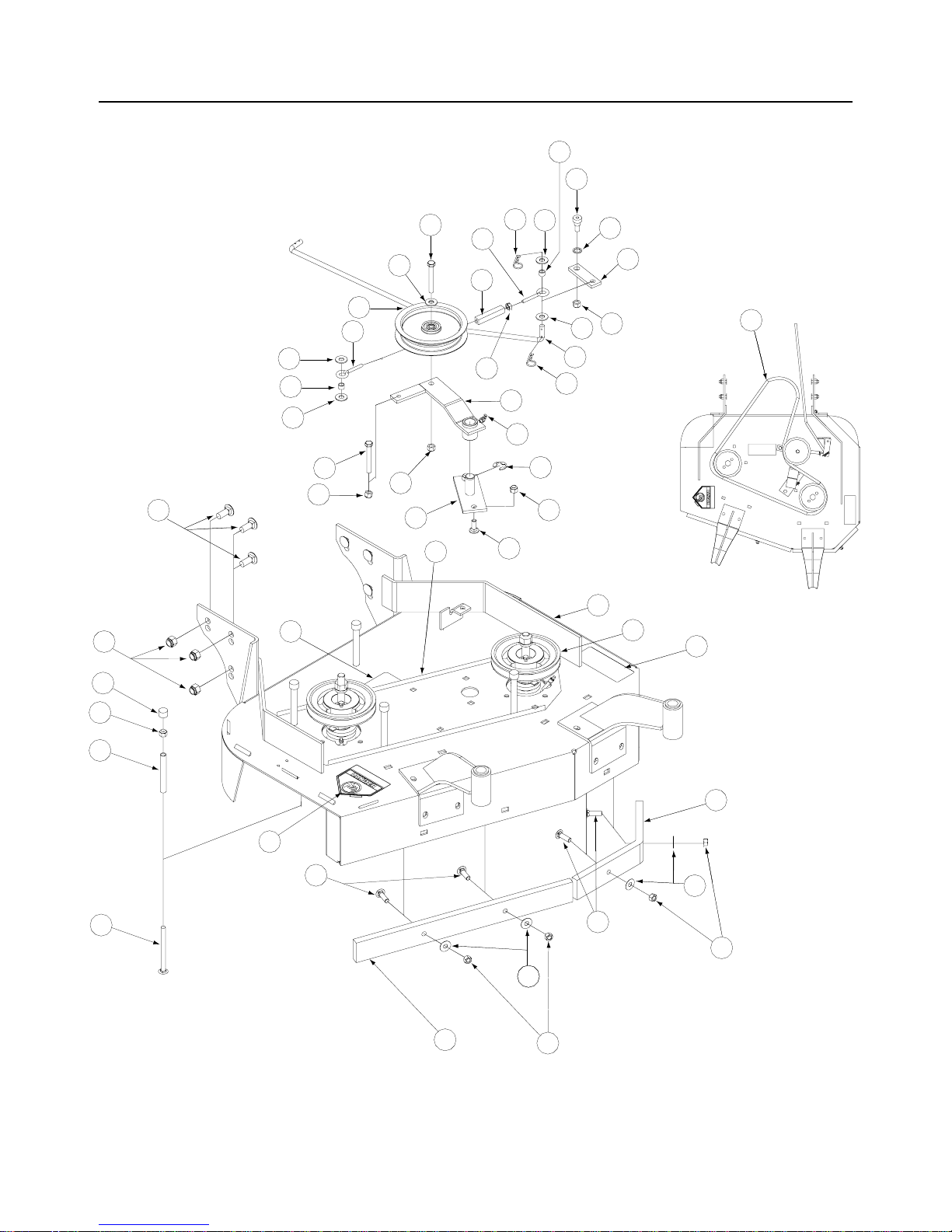

1332G / 32" Fabricated Cutter Deck-Figure 1
26
3
13
16
5
12
17
15
32
18 22
35
29
14
5
2
16
10
2
8
9
25
6
37
2
28
7
11
20
38
5
27
23
30
33
31
4
31
24
36
24
4
19
25
5
2
2
5
3
34

5
1332G / 32" Fabricated Cutter Deck -Parts List for Figure 1
Ref.
No. Part No. Description Qty.
1-- -- --
2 00006168 Flat Washer, 3/8 Zinc 5
3 01001371 Hex Cap Screw, 3/8-16, 2.75 2
4 00012158 Flat Washer, 3/8 Zinc 4
5 00012173 Lock Nut, Nylon Insert, 3/8-16 10
6 00012402 Shim Washer 1
7 00012428 Lock Nut, Nylon Insert, 1/2-13 6
8 00013433 Hex Nut, 5/16-18 2
9 00014439 Shoulder Bolt 1
10 00014459 Eye Bolt, Right Hand 1
11 00018468 Cap, Black Vinyl 5
12 00021958 Grease Fitting, 1/4-28; 45° 1
13 00019271 Eye Bolt, Left Hand 1
14 00021884 Blade Clutch, Rod 1
15 00021895 Idler Arm 1
16 00021956 Hair Pin, 3/8"-1/2" 2
17 00021961
E-Ring, Retainer 1
18 00021970 Pulley Deck 2
19 00021977 Idler Deck Take-up 1
20 00030633 Decal Rotating Blade 1
21 -- -- --
22 00030635 Decal, Warning Shield Missing 1
23 00030779 Belt Drive 1
24 00034224 Lock Nut, 3/8-16 4
25 00062715 Turnbuckle, Sleeve 2
26 00092370 Turnbuckle 1
27 01000160 Spacer, Belt Guide 5
28 01000517 Carriage Bolt, 1/2-13 x 1-1/4 6
29 01000643 Carriage Bolt, 3/8-16 x 2 2
30 01000644 Carriage Bolt, 3/8-16 x 4.5 5
31 01002010 Carriage Screw, 3/8-16 x 1.25 4
32 01002150 Deck 32" 1
33 01002166 Decal, Danger, Hands and Feet 1
34 00063043 Idler Base 1
35 01003050 Bumper, Deck 32" 1
36 01003052 Bumper, Deck 32" 1
37 01003154 Pivot Arm 1
38 01005048 Deck Stiffener 1

6
1332G / 32" Fabricated Deck Cover- Figure2 &Parts List
Ref.
No. Part No. Description Qty.
1 01002144 Deck Cover, 32" 1
2 01001073 Decal, 32" 1
3 00021951 Rubber Hood Latch 2
4 00008745 Machine Screw, 10-24 x 1/2 8
5 00006194 Lock Nut, Nylon Insert, 10-24 8
2
1
5
5
4
4
4
3

7
1332G, 1336G / 32" & 36"Chute Assembly - Figure 3 &Parts List
Ref.
No. Part No. Description Qty.
1 00003107 Cotter Pin, 5/32 x 1 1/2 Zinc 1
2 00012158 Flat Washer, 3/8, Zinc 1
3 00013597 Decal, Cut Line 1
4 00030644 Pin, Deflector Assembly, Weldment1 1
5 01002037 Torsion Spring 1
601004047ChuteAssembly Discharge1
1
2
3
4
6
5

8
1332G / 32" Spindle Assembly - Figure 4 &Parts List
Ref.
No. Part No. Description Qty.
1 00002766 Flat Washer, 1-1/2 x 5/8 x .05 1
2 00011444 Hex Cap Screw, 3/8-16 x 1-1/4 4
3 00011807 Hex Nut, 5/8-11 1
4 00013091 Hex Cap Screw, 5/8-11 x 9-1/2 1
5 00013131 Hex Cap Screw, 1/4-20, .75 2
6 00013432 Flat Washer, 5/8 Zinc 1
7 00021517 Key Stick, 1/4 x 1/4 x 2 1
8 00021871 Rotary Blade, 16-1/2 1
9 00021924 Blade Spacer, 5/8 ID, 1/4 Thick 5
10 00021973 Bushing 1
11 00034224 Lock Nut, 3/8-16 4
12 00057412 Spindle Assembly 1
13 01005048 Deck Stiffener 1
6
8
9
12
113
10
9
5
11
11
2
2
4
5
7
3

9
1336G / 36" Fabricated Deck Cover - Figure 5 & Parts List
Ref.
No. Part No. Description Qty.
1 00006194 Lock Nut, Nylon Insert 8
2 00008745 Machine Screw, 10-24 x 1/2 8
3 00021951 Rubber Hood Latch 2
4 01001067 Deck Cover, 36 1
5 01001071 Decal 36 MTD 1
4
5
1
3
2
2
1

10

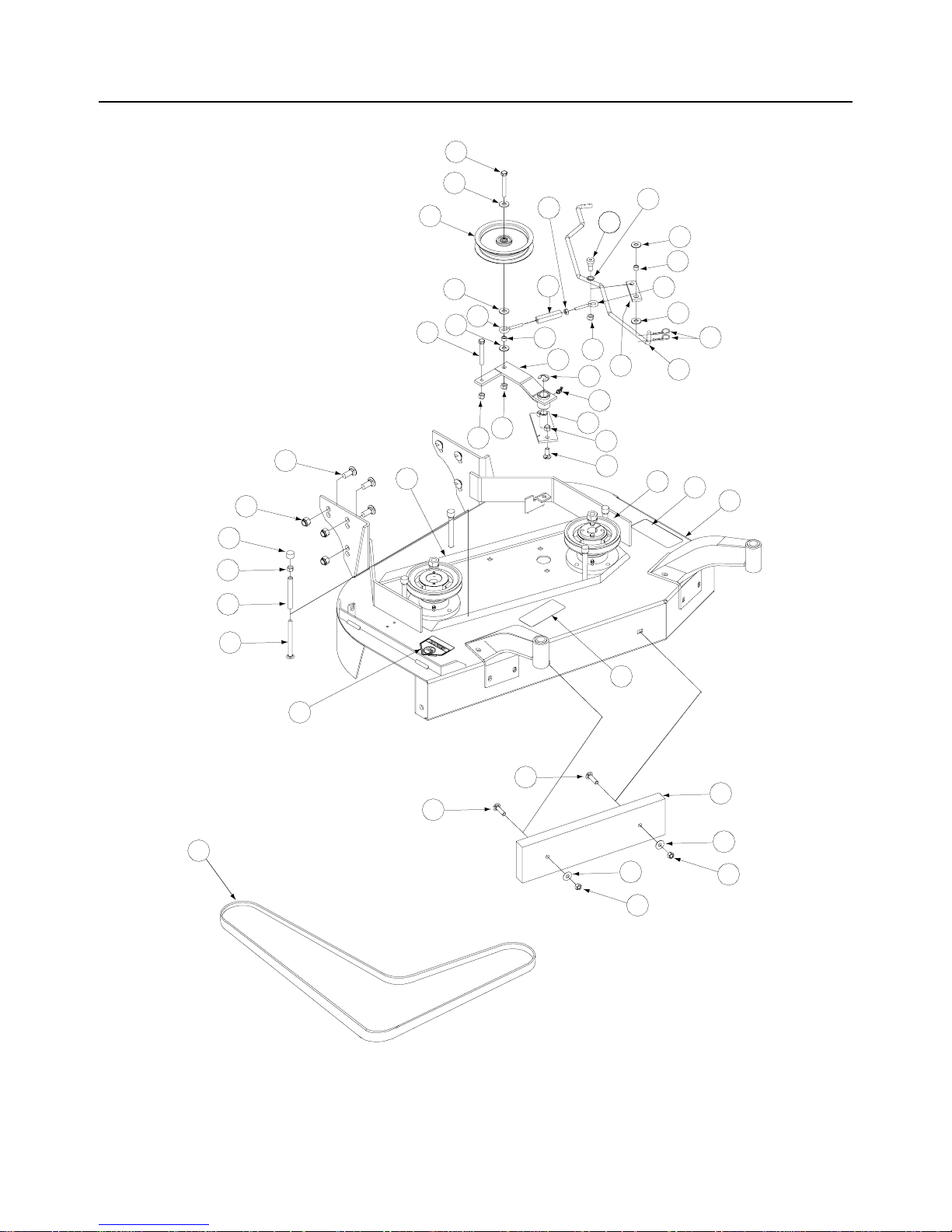

1336G / 36" Deck Assembly - Figure 6
23
4
31
18
28
5
36
12
25
15 34
17
533
2
10
2
99
14
8
25
6
16
35
30
4
32
29
26
5
11
7
27 21 20
32
2
19
2
3
13
55
22
32
23
24

11
1336G / 36" Deck Assembly - Parts List for Figure6
Ref.
No. Part No. Description Qty.
1-- -- --
2 00006168 Flat Washer, 3/8 Zinc 5
3 01001371 Hex Cap Screw, 3/8-16, 2.75 2
4 00012158 Flat Washer, 3/8 Zinc 2
5 00012173 Lock Nut, Nylon Insert, 3/8-16 10
6 00012402 Shim Washer 1
7 00012428 Lock Nut, Nylon Insert, 1/2-13 6
8 00013433 Hex Nut, 5/16-18 1
9 00014439 Shoulder Bolt 1
10 00014459 Eye Bolt, Right Hand 1
11 00018468 Cap, Black Vinyl 5
12 00021958 Grease Fitting, 1/4-28 45° 1
13 00019271 Eye Bolt, Left Hand 1
14 00019554 Turnbuckle 1
15 00021895 Idler Arm 1
16 00021956 Hair Pin, 3/8"-1/2" 2
17 00021961
E-Ring, Retainer 1
18 00021970 Pulley Deck 2
19 00021977 Idler Deck Take-up 1
20 00030633 Decal Rotating Blade 1
21 01005045 Deck Stiffener 1
22 00030635 Decal, Warning Shield Missing 1
23 00034224 Lock Nut, 3/8-16 2
24 00050441 Belt Drive 1
25 00062715 Turnbuckle, Sleeve 2
26 01000160 Spacer, Belt Guide 5
27 01000517 Carriage Bolt, 1/2-13 x 1-1/4 6
28 01000643 Carriage Bolt, 3/8-16 x 2 2
29 01000644 Carriage Bolt, 3/8-16 x 4.5 5
30 01001069 Deck 36" 1
31 01002152 Bar Weight 1
32 01002011 Carriage Bolt, 3/8-16 x 1-1/2 2
33 01003154 Clutch Link 1
34 01002103 Blade Deck Clutch Rod 1
35 01002166 Decal, Danger Hands and Feet 1
36 00063043 Idler Base 1
37 -- -- --

12
1336G / 36" Spindle Assembly- Figure 8 &Parts List
Ref.
No. Part No. Description Qty.
1 00002766 Flat Washer, 1-1/2 x 5/8 x .05 1
2 00011444 Hex Cap Screw, 3/8-16 x 1-1/4 4
3 00011807 Hex Nut, 5/8-11 1
4 00013091 Hex Cap Screw, 5/8-11 x 9-1/2 1
5 00013131 Hex Cap Screw, 1/4-20, .75 2
6 00013432 Flat Washer, 5/8 Zinc 1
7 00021517 Key Stick, 1/4 x 1/4 x 2 1
8 00021924 Blade Spacer, 5/8 ID, 1/4 Thick 5
9 00021973 Bushing 1
10 00034224 Lock Nut, 3/8-16 4
11 00050125 Blade 18" 1
12 00057412 Spindle Assembly 1
13 01003231 Plate, Spindle Backing 1
13
12
22
11 8
6
4
1
10
9
58
3
7
5
10

13
1332G, 1336G / Caster Assembly - Figure 9&Parts List
Ref.
No. Part No. Description Qty.
1 00011444 Hex Cap Screw, 3/8-16 x 1-1/4 2
2 00012158 Flat Washer, 3/8 Zinc 6
3 00012173 Lock Nut, Nylon Insert, 3/8-16 4
4 00012428 Lock Nut, Nylon Insert, 1/2-13 1
5 00012675 Hex Cap Screw, 1/2-20, 5.50 1
6 00014528 Spacer Wheel 1
7 00021863 Klik Pin, 1.75 1
801001059CasterBracketWeldment1
9 00021925 Spacer, Caster 4
10 00024155 Wheel Assembly, 9.0 x 3.50-4 1
11 00060078 Grease Fitting, 1/4-28 x 3/16 1
12 01000643 Carriage Bolt, 3/8-16 x 2 2
13 01001052 Caster Yoke Assembly, Weldment 1
Note: Lubricant Grease by Ounce
2
1
12
610
4
13
9
11
2
3
9
7
9
3
5
2
3
2
2
3
8

14
1332G, 1336G / Tank Assembly - Figure10&Parts List
Ref.
No. Part No. Description Qty.
1 00012152 Lock Nut, Nylon Insert, 1/4-20 2
2 00012235 Uni-Clamp 2
3 00021941 Spacer 2
4-- -- --
5 00021407 Rubber Stop Pad 2
6 01000068 Fuel Tank 1
7 01000069 Fuel Cap, 3.5 1
8 01001023 Fuel Tank Strap 2
9 01000281 Grommet Fuel Tank 1
10 00030784 Shut Off Fuel Tank 1
11 01001036 Label, Mower Warning Turn Off Engine 1
12 01001038 Label, Mower Instruction, Fuel Valve 1
13 -- Hose Fuel, 18" 1
14 01002509 Carriage Bolt, 1/4-20 x 3.00 2
11
2
9
10
13
2
14
12
7
6
1
3
8
5

15

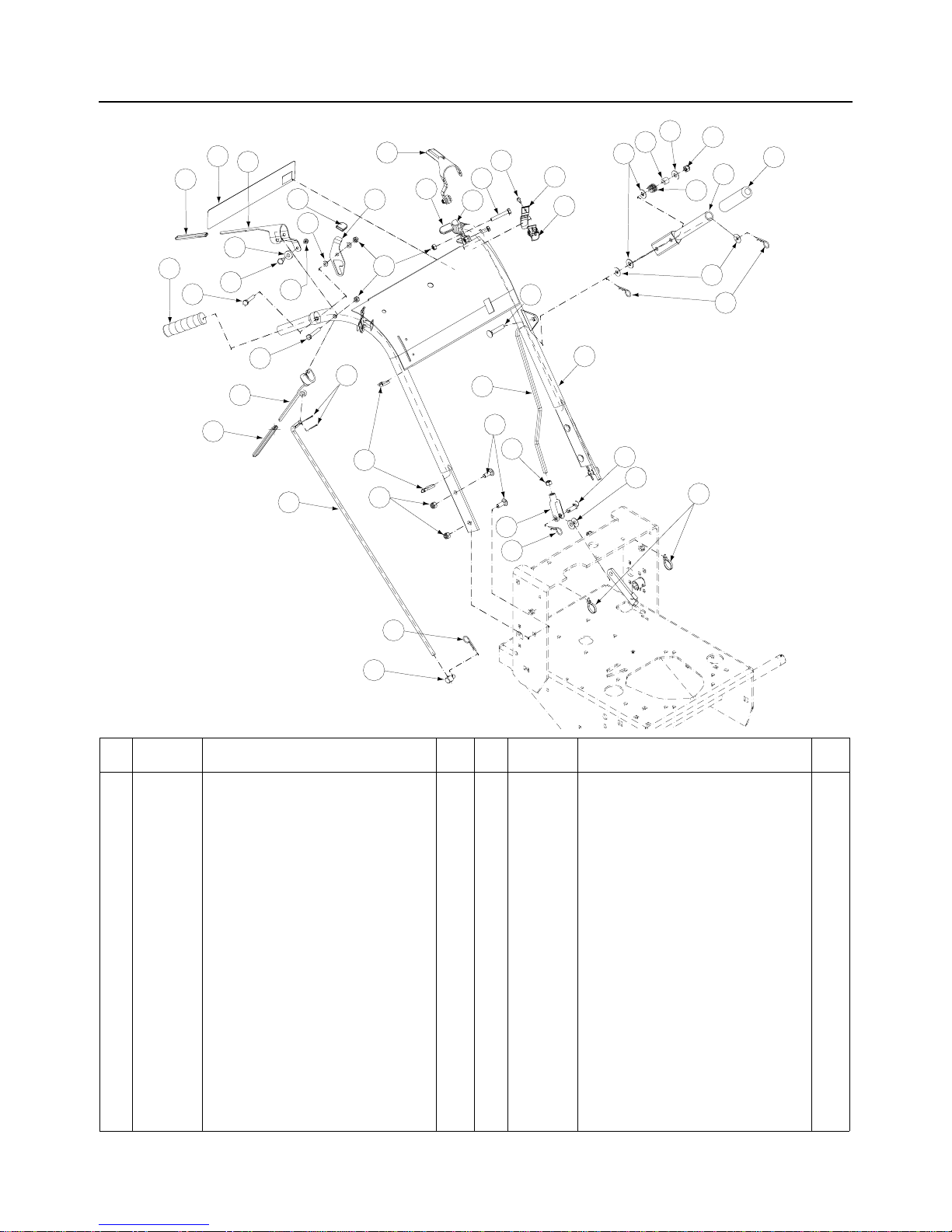

1332G, 1336G / Handle Assembly - Figure 11 &Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 00006131 Hex Nut, 3/8-16 1 22 00030378 Plastic Handle Grip, Black, 4-5/8 2
2 00006168 Flat Washer, 3/8 Zinc 3 23 00071691 Control Rod, Hydro Spacer 2
3 00009678 Clevis Pin, 3/8 x 1-1/8 Zinc 1 24 00071879 Hydro Blade Clutch Rod Base 1
4 00011211 Grip, Neutral Latch, 1.25" 2 25 00076730 Spring Sleeve 1
5 00012158 Flat Washer, 3/8 Zinc 4 26 01000643 Carriage Bolt, 3/8-16 x 2 4
600012165NylockNut,5/16-1842701001558Handle Assembly1
7 00012169 Flat Washer, 5/16 Zinc 4 28 01001699 Operator Presence Control RH 1
8 00012173 Lock Nut, Nylon Insert, 3/8-16 5 29 01001700 Operator Presence Control LH 1
9 00012204 Cotter Pin, 3/32 x 3/4, Zinc 4 30 01001714 Control Sleeve, Black 2
10 00012470 Cable Tie, 3/16 x .05 x 7.4 4 31 01001715 Operator Control Sleeve, Yellow 2
11 00013198 Hex Cap Screw, 5/16-18 x 2 2 32 01001716
Harness Assembly Adapter (not show) 1
12 00014081 Lock Nut, Nylon Insert 2 33 01001717 Switch Mounting Snap 2
13 00014270 Carriage Bolt, 3/8-16 x 2 1 34 01001863 Operator Presence Return Spring 2
14 00021797 Spring, .850 OD x 1 1 35 01001864 Hex Index Washer Screw, 0.500 2
15 00021858
Neutral Latch, Left Hand 1 36 01001919 Shoulder Screw, .38 x .412, 1/4-28 2
16 00021910 Neutral Latch, Right Hand 1 37 01001972 Hex Cap Screw, 5/16-18, 2.00 2
17 00021927 Steering Control Rod 2 38 01003210 Blade Clutch Lever 1
18 00021943 Joint Swivel 2 39 01001561 Lever Assembly Control 2
1900021955Yoke,3/8-16Female1------
20 00021956 Hair Pin 3/8-1/2 5 41 01001724 Label Commercial Mower Instruction 1
21 00022223 Handle Grip, Black, 1" 1
41
31
28
4
12
36
23
37
11
39
8
30
17
24
26
10
5
3
20
18
20
19
1
7
16
9
10
4
35
29 25
2
2
11
15
6
27
34
33
8
14 38 21
20
5
13
22

16

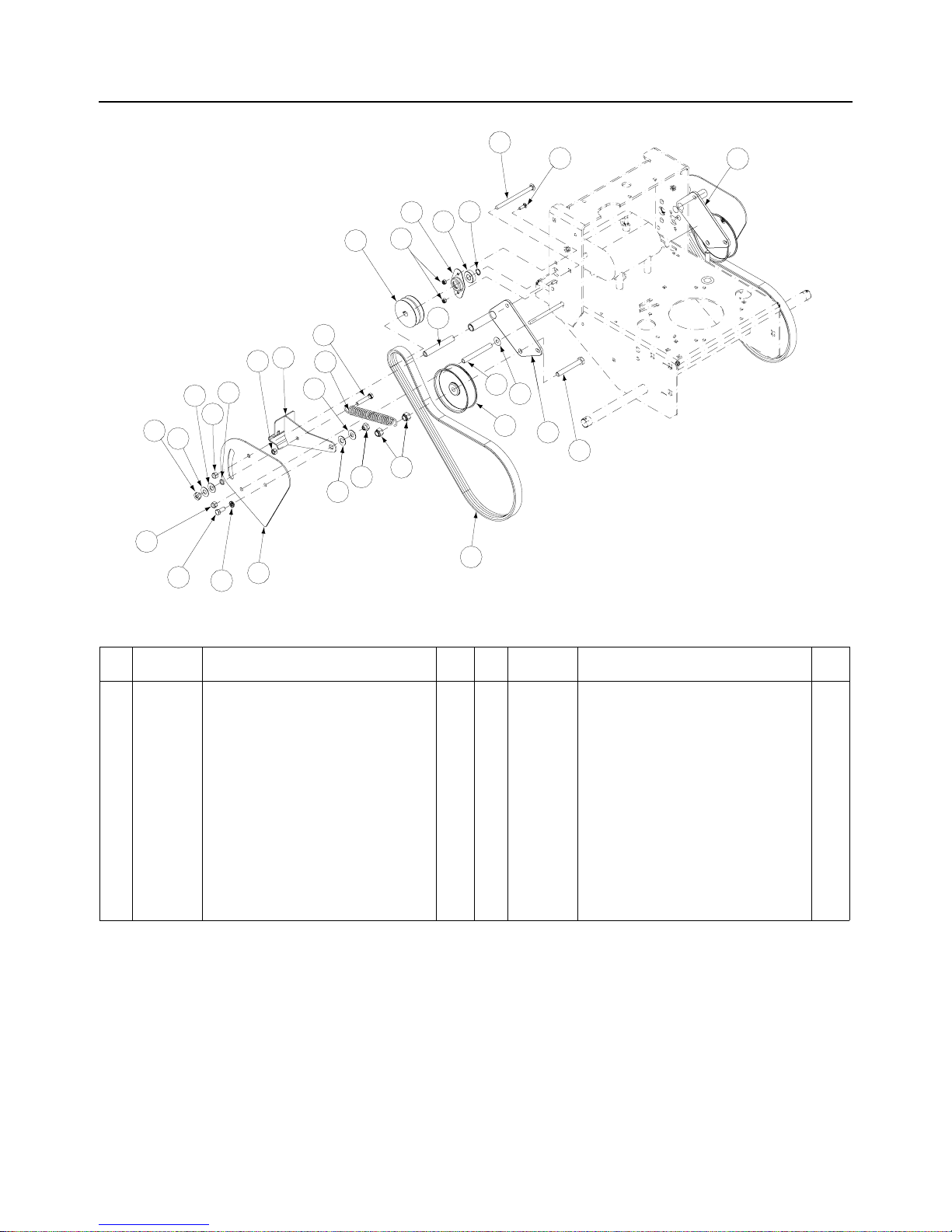

1336G / Deck Assembly StandardTrack - Figure 12&Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 00006168 Flat Washer, 3/8 Zinc 2 21 00031602 Carriage Bolt, 1/4-20 x 1.00 2
2 00008792 Woodruff Key, 3/16 x 3/4 3 22 00060078 Grease Fitting, 1/4-28 x 3/16 3
3 00011454 Jam Nut, Insert Lock, 3/8-24 1 23 00083192 Idler Washer 1
4 00012152 Lock Nut, Nylon Insert, 1/4-20 4 24 00090006 Decal "Made In America 1
5 00012154 Flat Washer, 1/4 Zinc 2 25 01000073 Transmission Pulley 1
6 00012165 Nut, 5/16-18 Nylock 4 26 01001022 Shift Plate 1
7 00012168 Lock Washer, 5/16 Zinc 4 27 01001014 Shift Arm 1
8 00012173 Lock Nut, Nylon Insert, 3/8-16 1 28 01001020 Engine Deck Assembly 1
900013406HexCap Screw,5/16-18x3/442901000152Transmission,5Speed PE 700-083 1
10 00014270 Carriage Bolt, 3/8-16 x2 1 30 01000643 Carriage Bolt, 3/8 -16 x 1 4
11 00017584 Carriage Bolt, 1/4-20 x .750 2 31 01001035 Label, Warning, Open Belt Drive 1
12 00018329 Switch, WB Transmission 1 32 01001037 Label, Mower Instruction 1
13 00021931 Drive Belt Guide 1 33 -- -- --
14 00021962 E-Ring, 5/8 1 34 00021902 Clutch, Bellecrank Weldment 1
15 00021964
External Retainer Ring 1 35 00021906 Bellecrank Pivot, Weldment 1
16 00030352 Jackshaft w/ Heavy Spline 2 36 00076402 Engine Belt Guide 1
17 00030353 Coupling w/Heavy Spline 2 37 01004055 Shift Handle 1
18 00030355 Bell Washer, .39 ID x 1.13 OD x .062 1 38 01004394 Engine Spacer, RH 1
19 00030782 Flat Idler Pulley w/Adapter 1 39 01004397 Engine Spacer, LH 1
2000030884Grip,.250 x1 x 3-1/2,Yellow1
20
32 30
5
4
22 17
6
4
29
12
5
15
24
28
13
23
3939
10
38
1
11
34
22
35
21
14
30
4
31
7
9
9
7
25
16
37
26 3
2
68
30
19 36
6
18 27

17
1332G / Deck Assembly Narrow Track- Figure 13 &Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 00006168 Flat Washer, 3/8 Zinc 2 21 00031602 Carriage Bolt, 1/4-20 x 1.00 2
2 00008792 Woodruff Key, 3/16 x 3/4 3 22 00060078 Grease Fitting, 1/4-28 x 3/16 3
3 00011454 Jam Nut, Insert Lock, 3/8-24 1 23 00083192 Idler Washer 1
4 00012152 Lock Nut, Nylon Insert, 1/4-20 4 24 00090006 Decal "Made In America 1
5 00012154 Flat Washer, 1/4 Zinc 2 25 01000073 Transmission Pulley 1
6 00012165 Nut, 5/16-18 Nylock 4 26 01001022 Shift Plate 1
7 00012168 Lock Washer, 5/16 Zinc 4 27 01001014 Shift Arm 1
800012173LockNut,Nylon Insert, 3/8-1612801000152Transmission, 5 Speed PE 700-083 1
9 00013406 Hex Cap Screw, 5/16-18 x 3/4 4 29 01000643 Carriage Bolt, 3/8-16 x 1 4
10 00014270 Carriage Bolt, 3/8-16 x2 1 30 01001026 Engine Deck Assembly 1
11 00017584 Carriage Bolt, 1/4-20 x .750 2 31 01001035 Label, Warning, Open Belt Drive 1
12 00018329 Switch, WB Transmission 1 32 01001037 Label, Mower Instruction 1
13 00021931 Drive Belt Guide 1 33 -- -- --
14 00021962 E-Ring, 5/8 1 34 00021902 Clutch, Bellecrank Weldment 1
15 00021964
External Retainer Ring 1 35 00021906 Bellecrank Pivot, Weldment 1
16 00030352 Jackshaft w/ Heavy Spline 2 36 00076402 Engine Belt Guide 1
17 00030353 Coupling w/Heavy Spline 2 37 01004055 Shift Handle 1
18 00030355 Bell Washer, .39 ID x 1.13 OD x .062 1 38 01004394 Engine Spacer, RH 1
19 00030782 Flat Idler Pulley w/Adapter 1 39 01004397 Engine Spacer, LH 1
2000030884Grip,.250 x1 x 3-1/2,Yellow1
37
4
32
428
12
7
35
4
29
38
10
22
34
14
11
21
31
5
26
6
20
17
5
29
3
18 16
22
25
9
15
2
29
7
27
24
9
13
30
23
68
19 36
6
1
39

18

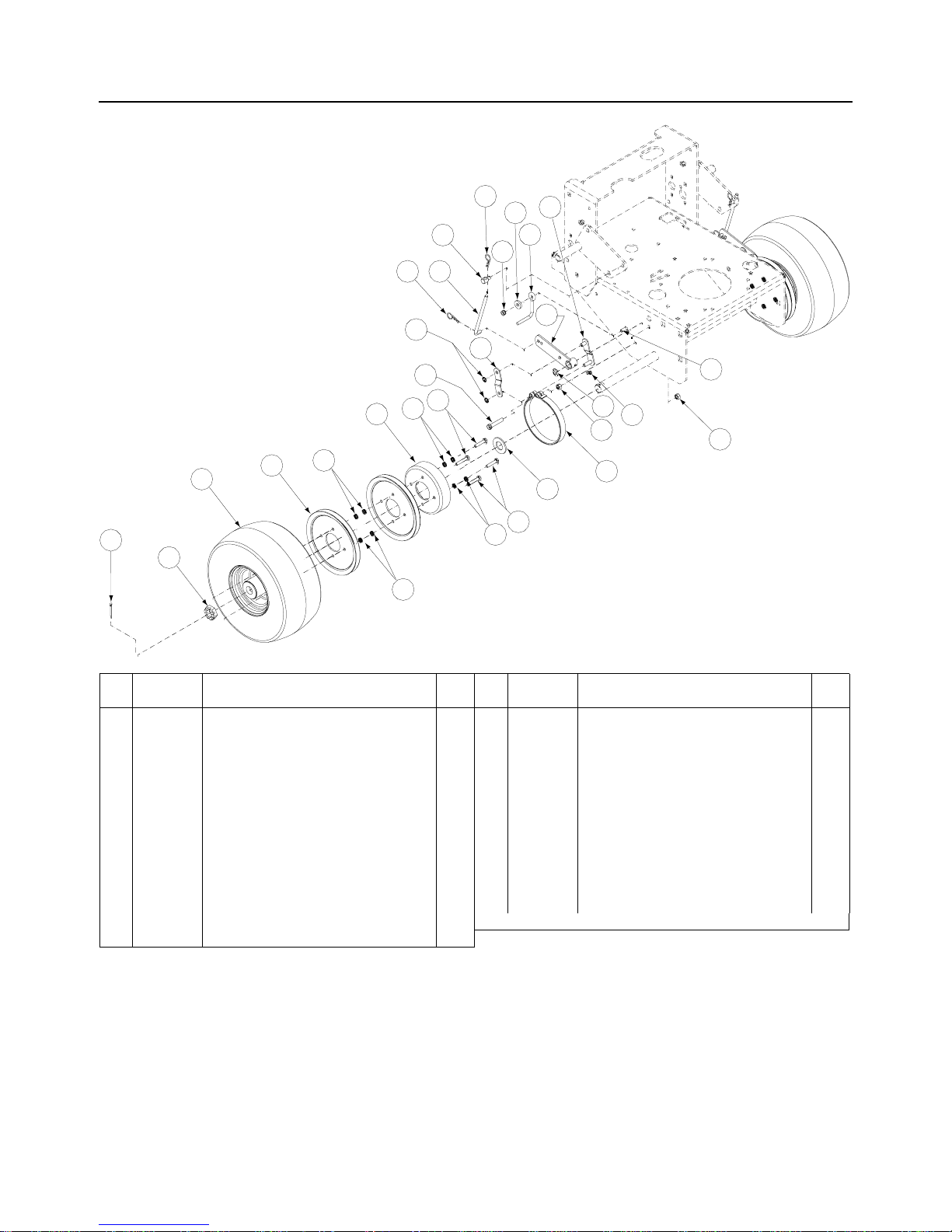

1336G / Brake Assembly Standard Track - Figure 14 &Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 00002528 Hex Cap Screw, 3/8-16, 2.00 2 15 00021960
Retainer, Push ON, 3/8 4
2 00006131 Hex Nut, 3/8-16 4 16 00021962 E-Ring, 5/8 2
3 00010869 Flat Washer, 2.000 x 1.005 x .120 2 17 00021979 Drive Pulley, V 4
4 00012165 Nut, Nylock, 5/16-18 2 18 00021980 Drum Brake 2
5 00012168 Lock Washer, 5/16 Zinc 8 19 00021981 Band Brake 2
6 00012226 Grease Fitting, 1/4-28, 90° 2 20 00021983 Wheel Assembly, 13 x 6.50-6 2
7 00012380 Cotter Pin, 5/32 x 1-1/2 Zinc 2 21 00021984 Hex Jam Nut, 1-14 2
8 00012382 Hex Cap Screw, 5/16-18 x 1-1/2 8 22 00021933 Brake Link 2
9 00021930 Brake Rod 2 23 00083192 Idler Washer 2
10 01005114 Drive Belt Guide 2 24 01000641 Carriage Bolt, 5/16-18 x 1 2
11 00067444 Brake, Bracket Link 2 25 -- -- --
12 00021941 Drive Wheel Pulley Spacer 8 26 00021900 Brake Lever Weldment 2
1300021943Swivel Joint2
14 00021956 Hair Pin, 3/8-1/2 4
10
26
22
23
14
4
13
914
8
20
21
7
1
11
15
2
2
19
3
8
16 6
24
5
12
18
17
5
12

19
1332G / Brake Assembly Narrow Track - Figure 15 &Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 00002528 Hex Cap Screw, 3/8-16, 2.00 2 15 00021960
Retainer, Push ON, 3/8 4
2 00006131 Hex Nut, 3/8-16 4 16 00021962 E-Ring, 5/8 2
3 00010869 Flat Washer, 2.000 x 1.005 x .120 2 17 00021979 Drive Pulley, V 4
4 00012165 Nut, Nylock, 5/16-18 2 18 00021980 Drum Brake 2
5 00012168 Lock Washer, 5/16 Zinc 8 19 00021981 Band Brake 2
600012226Grease Fitting, 1/4-28, 90°22000021984WheelAssembly,13x 5.00-62
700012380CotterPin,5/32 x 1-1/2Zinc22100021983Hex JamNut, 1-142
8 00012382 Hex Cap Screw, 5/16-18 x 1-1/2 8 22 00021933 Brake Link 2
9 00021930 Brake Rod 2 23 00083192 Idler Washer 2
10 00021931 Drive Belt Guide 2 24 01000641 Carriage Bolt, 5/16-18 x 1 2
11 00067444 Brake, Bracket Link 2 25 -- -- --
12 00021941 Drive Wheel Pulley Spacer 8 26 00021900 Brake Lever Weldment 2
1300021943SwivelJoint2
14 00021956 Hair Pin, 3/8-1/2 4
7
20
17
17 18 5
81
15
11
16
14 9
13
14 410
23
12
12
5
8
319
22
24
6
22
26
21

20
1332G, 1336G / Vari-TouchDrive Assembly - Figure 16 &Parts List
Ref.
No. Part No. Description Qty. Ref. No. Part No. Description Qty.
1 01002554 Hex Cap Screw, 3/8-16, .875 1 15 00021976
Flat Idler Drive 1
2 01001012 Left Idler Bracket 1 16 00021969 Jackshaft Pulley 1
3 01001010 Right Idler Bracket 1 17 00021964 External Retain Ring 1
4 01000642 Carriage Bolt, 3/8-16 x 5.50 1 18 00021870 Bearing 1
5 01000226 Hex Cap Screw, 1/2-13, 3.50 1 19 00021869 Bearing Housing 1
6 01000199 Extension Spring 1 20 00017584 Carriage Bolt, 1/4-20 x .750 1
7 01000151 Belt, V 1 21 00012577 Washer, 1/2 x 1 1
8 01000130 Spacer Tube 1 22 00012428 Lock Nut, Nylon Insert, 1/2-13 1
9 01000117 Roller Tube 1 23 00012173 Lock Nut, Nylon Insert, 3/8-16 1
10 01001018 Spring Adjust 1 24 00012158 Flat Washer, 3/8 Zinc 1
11 01001016 Belt Guard 1 25 00012157 Lock Washer, 3/8 Zinc 1
12 01000101 Slide Washer 1 26 00012152 Lock Nut, Nylon Insert, 1/4-20 1
13 01000100 Shoulder Nut 1 27 00006131 Hex Nut, 3/8-16 1
14 00036665 Idler Sleeve 1 28 00002528 Hex Cap Screw, 3/8-16, 2.00 1
13
23
28
16
19
26
14
125
21
12
23
9
6
18
21
12 13
7
22
3
5
15
824
27 10
10
20 2
4
11
