MTD 182 User manual

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 4/30/2007
FORM NO. 769-03095
Safety • Assembly • Operation • Tips & Techniques • Maintenance • Troubleshooting • Parts Lists • Warranty
PRINTED IN U.S.A
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
IMPORTANT
OPERATOR’S MANUAL
This symbol on the product’s nameplate
means it is listed by
UNDERWRITERS LABORATORIES INC.
LISTED
19-Inch 3-n-1 Electric Lawn Mower — Model 182

2
Finding and Recording Model Number
Table of Contents
BEFORE YOU BEGIN TO ASSEMBLE YOUR NEW
EQUIPMENT, please locate the model plate on the
equipment and copy the information to the sample
model plate provided to the right. You can locate the
model plate by standing at the operating position and
looking down at the rear of the deck. This information
will be necessary to use the manufacturer’s web
site, to obtain assistance from the Customer Sup-
port Department, or when contacting an authorized
service dealer.
This Operator’s Manual is an important part of your new lawn mower. It will help you assemble,
prepare and maintain the unit for best performance. Please read and understand what it says.
Model Number Serial Number
• Visit www.mtdproducts.com
• Call a Customer Support Representative at 1-800-800-7310.
MTD LLC reserves the right to change product specifications, designs, and equipment without notice and without incurring obligation.
Please do NOT return the unit to the retailer from which it was
purchased, without first contacting Customer Support.
Customer Support
Slope Gauge........................................................ 3
Safe Operation Practices................................... 4

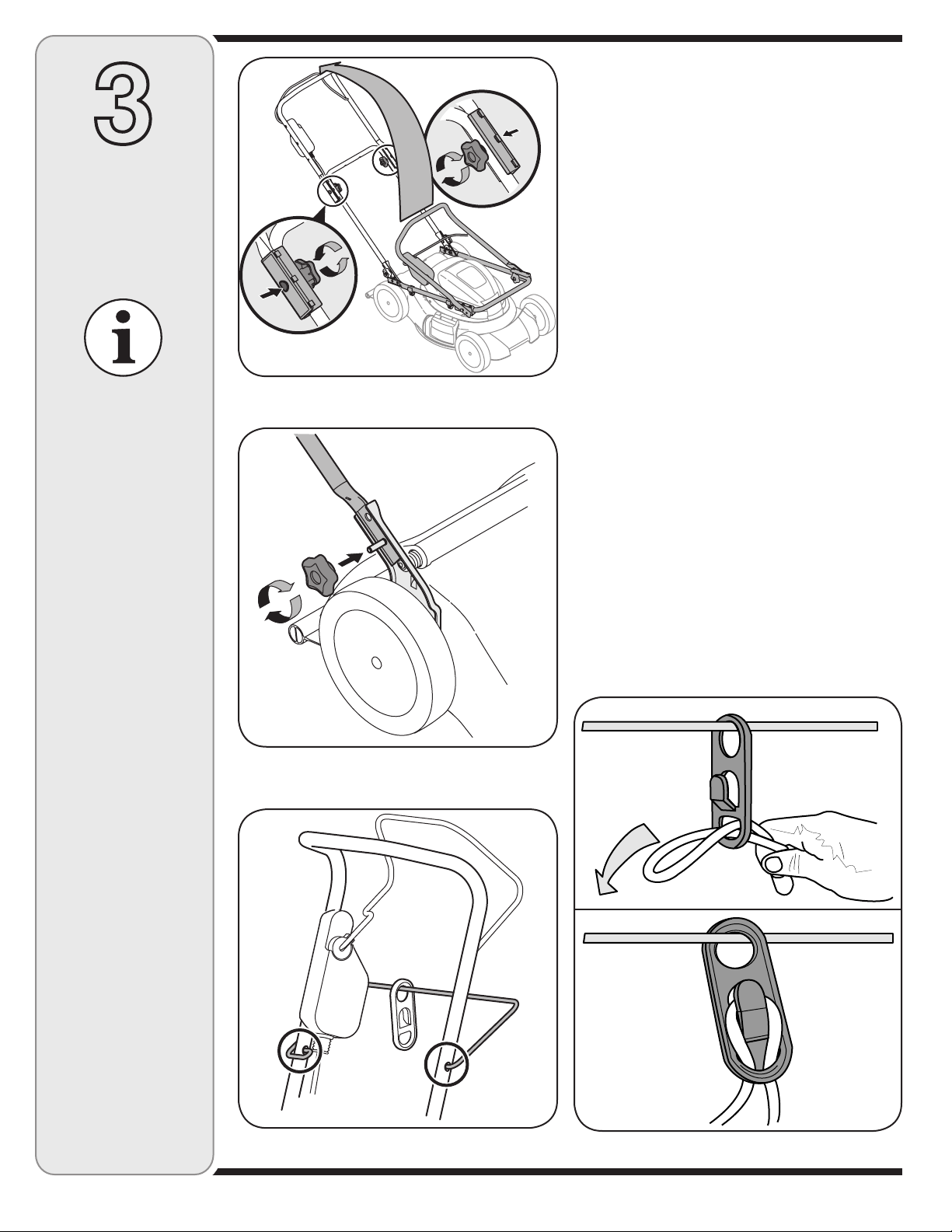

Setup and Adjustment ....................................... 8

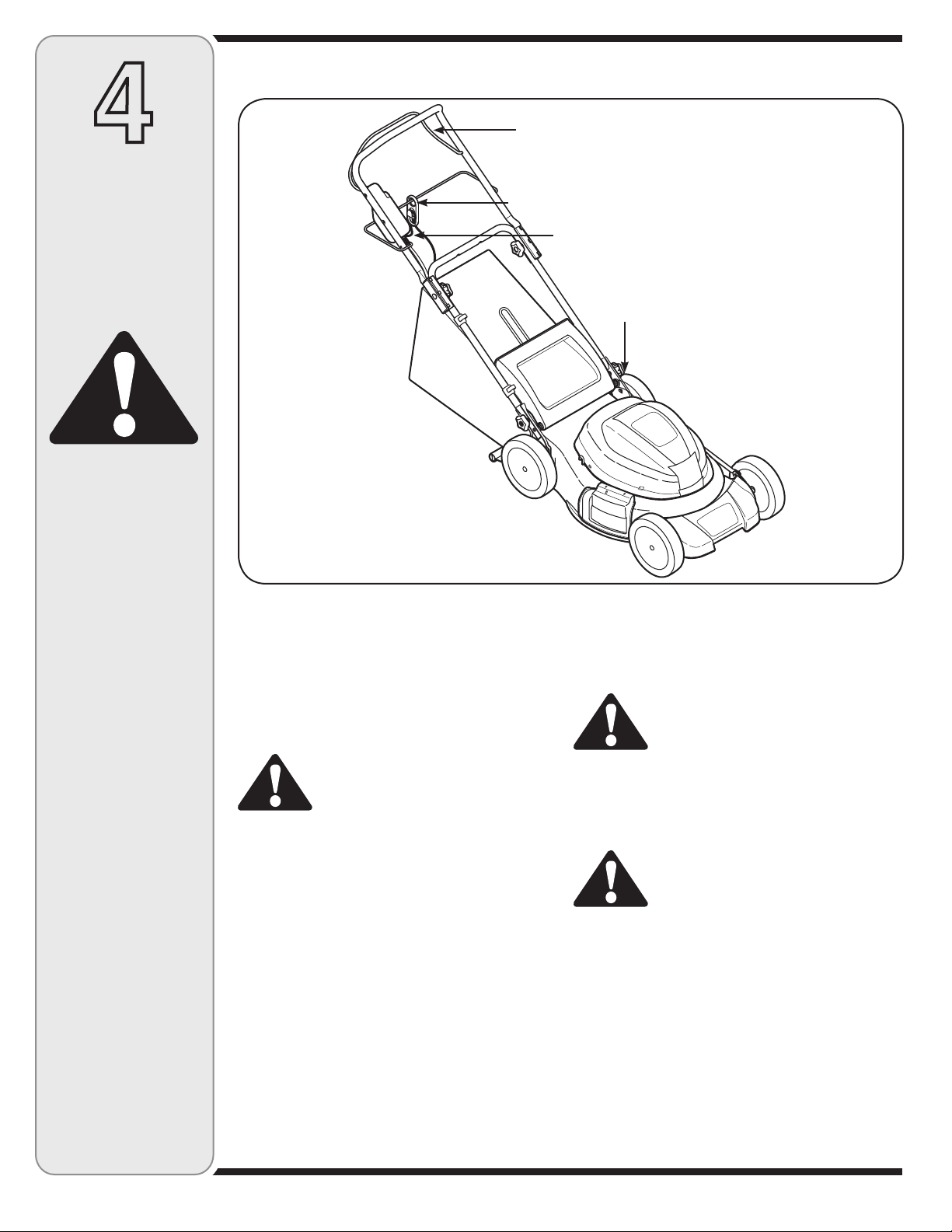

Operating Your Lawn Mower............................ 10
Maintaining Your Lawn Mower......................... 12
Troubleshooting................................................ 14
Parts List ........................................................... 16
Warranty .............................................Back Cover
If you have difficulty assembling this product or have any questions regarding the controls, operation, or
maintenance of this unit, you can seek help from the experts. Choose from the options below:

3
1
Slope
Gauge
WARNING
Do not mow on inclines
with a slope in excess
of 15 degrees (a rise
of approximately 2-1/2
feet every 10 feet).
Operate WALK-BEHIND
mowers across the
face of slopes, never
up and down slopes.
3IGHTANDHOLDTHISLEVELWITHAVERTICALTREE
ORACORNEROFABUILDING
ORAFENCEPOST
&OLDALONGDOTTEDLINEREPRESENTSASLOPE

Use this page as a guide to determine slopes where you may not operate safely.
Do not operate your lawn mower on such slopes.

4
2
Safe
Operation
Practices Children
Tragic accidents can occur if operator is not alert to presence
of children. Children are often attracted to mower and mowing
activity. They do not understand the dangers. Never assume
that children will remain where you last saw them.
1. Keep children out of the mowing area and under watchful
care of a responsible adult other than the operator.
2. Be alert and turn mower off if a child enters the area.
3. Before and while moving backwards, look behind and down
for small children.
4. Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may obscure
your vision of a child who may run into the mower.
5. Keep children away from hot or running engines. They can
suffer burns from a hot muffler.
6. Never allow children under 14 years old to operate a power
mower. Children 14 years old and over should read and
understand operation instructions and safety rules in this
manual and should be trained and supervised by a parent.
Operation
General Operation:
1. Read this operator’s manual carefully in its entirety before
attempting to assemble this machine. Read, understand,
and follow all instructions on the machine and in the
manual(s) before operation. Be completely familiar with
the controls and the proper use of this machine before
operating it. Keep this manual in a safe place for future
and regular reference and for ordering replacement parts.
2. This machine is a precision piece of power equipment,
not a plaything. Therefore, exercise extreme caution at all
times. Your unit has been designed to perform one job: to
mow grass. Do not use it for any other purpose.
3. Don’t force lawn mower - it will do the job better and safer
at the rate for which it was designed.
4. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the instructions in this manual and should
be trained and supervised by a parent. Only responsible
individuals who are familiar with these rules of safe
operation should be allowed to use this machine.
5. Thoroughly inspect the area where the equipment is to
be used. Remove all stones, sticks, wire, bones, toys and
other foreign objects which could be tripped over or picked
up and thrown by the blade. Thrown objects can cause
serious personal injury. Plan your mowing pattern to avoid
discharge of material toward roads, sidewalks, bystanders
and the like. Also, avoid discharging material against a wall
or obstruction which may cause discharged material to
ricochet back toward the operator.
6. To help avoid blade contact or a thrown object injury, stay in
operator zone behind handles and keep children, bystand-
ers, helpers and pets at least 75 feet from mower while it is
in operation. Stop machine if anyone enters area.
7. Always wear safety glasses or safety goggles during opera-
tion and while performing an adjustment or repair to protect
your eyes. Thrown objects which ricochet can cause serious
injury to the eyes.
8. Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Shirts and pants that cover the arms and
legs and steel-toed shoes are recommended. Never operate
this machine in bare feet, sandals, slippery or light weight
(e.g. canvas) shoes.
9. Do not put hands or feet near rotating parts or under cutting
deck. Contact with blade can amputate hands and feet.
10. A missing or damaged discharge cover can cause blade
contact or thrown object injuries.
11. Many injuries occur as a result of the mower being pulled
over the foot during a fall caused by slipping or tripping.
Do not hold on to the mower if you are falling; release the
handle immediately.
12. Never pull the mower back toward you while you are
walking. If you must back the mower away from a wall or
obstruction first look down and behind to avoid tripping and
then follow these steps:
a. Step back from mower to fully extend your arms.
b. Be sure you are well balanced with sure footing.
c. Pull the mower back slowly, no more than half way
toward you.
d. Repeat these steps as needed.
13. Do not operate the mower while under the influence of
alcohol or drugs.
14. Stay alert - Watch what you are doing. Use common sense.
Do not operate lawn mower when you are tired.
WARNING: When using electric lawnmowers, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and personal injury.
These basic precautions include the following:
WARNING
This symbol points
out important safety
instructions which, if
not followed, could
endanger the personal
safety and/or property
of yourself and others.
Read and follow all
instructions in this man-
ual before attempting to
operate this machine.
Failure to comply with
these instructions may
result in personal injury.
When you see this
symbol.
HEED ITS WARNING
Your
Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
DANGER: This machine was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating hands and feet and throwing objects.
Failure to observe the following safety instructions could result in serious injury or death.

5
15. The motor/blade control handle is a safety device. Never
attempt to bypass its operation. Doing so makes the safety
device inoperative and may result in personal injury through
contact with the rotating blade. The motor/blade control
handle must operate easily in both directions and automati-
cally return to the disengaged position when released.
16. Never operate the mower in wet grass. Always be sure of
your footing. A slip and fall can cause serious personal
injury. If you feel you are losing your footing, release the
motor/blade control handle immediately and the blade will
stop rotating within three seconds.
17. Mow only in daylight or good artificial light. Walk, never run.
18. Stop the blade when crossing gravel drives, walks or roads.
19. If the equipment should start to vibrate abnormally, stop the
engine and check immediately for the cause. Vibration is
generally a warning of trouble.
20. Shut the motor off and wait until the blade comes to a
complete stop before removing the grass catcher or unclog-
ging the chute. The cutting blade continues to rotate for a
few seconds after the motor is shut off. Never place any part
of the body in the blade area until you are sure the blade
has stopped rotating.
21. Never operate mower without proper trail shield, discharge
cover, grass catcher, motor/blade control handle or other
safety protective devices in place and working. Never
operate mower with damaged safety devices. Failure to do
so, can result in personal injury.
22. Ground Fault Circuit Interrupter (GFCI) protection should
be provided on the circuit(s) or outlet(s) to be used for the
lawn mower. Receptacles are available having built-in GFCI
protection and may be used for this measure of safety.
23. To prevent electric shock use only with a UL listed extension
cord set suitable for outdoor use, such as Type SW-A,
SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A, or
SJTOW-A.
24. Extension Cord—Make sure your extension cord set is in
good condition, is heavy enough to carry the current your
lawn mower will draw.
If in doubt, use the next heavier gauge cord. The smaller
the gauge number, the heavier the cord. An undersized cord
will cause a drop in line voltage resulting in loss of power
and overheating. To reduce the likelihood of disconnection
of the extension cord set from the mower, be sure to use the
cord restraint provided as well as a modern, tightly fitting
extension cord.
25. To reduce the risk of electric shock, this lawn mower has a
polarized plug (one blade is wider than the other) and will
require the use of a polarized extension cord. The mower
plug will only fit into the polarized extension cord one way.
If the plug does not fit fully into the extension cord, reverse
the plug. If the plug still does not fit, obtain a correct
polarized extension cord. A polarized extension cord will
require the use of a polarized wall outlet. This plug will
fit into the polarized outlet only one way. If the plug does
not fit fully into the wall outlet, reverse the plug. If the plug
still does not fit, contact a qualified electrician to install
the proper wall outlet. Do not change the equipment plug,
extension cord receptacle, or extension cord plug in any
way.
26. If extension cord is damaged in any manner while plugged
in, disconnect extension cord from house receptacle.
27. Fuses—The mower should be operated on a 15 or 20
AMP circuit. If difficulty in starting is experienced with a
standard 15 AMP fuse or circuit breaker or the mower’s
built-in overload protection switch frequently trips, contact
your nearest authorized service location. Do not use a
higher rated fuse without consulting your power company.
28. Do not abuse the cord by pulling the mower by the cord or
yanking it to disconnect it from the receptacle. Keep cord
from heat, oil, and sharp edges.
29. Only use parts and accessories made for this machine
by manufacturer. Failure to do so can result in personal
injury.
30. If situations occur which are not covered in this manual,
use care and good judgment. Telephone Customer
Support for the name of your nearest dealer.
2
Safe
Operation
Practices
WARNING
Double Insulated
Lawn Mower
Double insulation is a concept
in the safety of electric lawn
mowers, which eliminates the
need for the usual three-wire
grounded power cord and
grounded power supply
system. Wherever there is
electric current in the mower,
there are two complete sets
of insulation to protect the
user. All exposed metal parts
are isolated from the internal
metal motor components with
protecting insulation.
IMPORTANT: Servicing of a
lawn mower with double insula-
tion requires extreme care and
knowledge of the system and
should be performed only by a
qualified service technician. For
repair service we suggest you
take the lawn mower to your
nearest authorized service
dealer. Always use original
factory replacement parts
when servicing.
MINIMUM WIRE SIZE FOR EXTENSION CORDS
FOR 120 VOLT APPLIANCES USING 10 - 12 AMPS
Cord Length (ft.) 25 50 100 150
Wire Size (AWG) 16 16 14 12

6
2
Safe
Operation
Practices
WARNING
This symbol points
out important safety
instructions which, if
not followed, could
endanger the personal
safety and/or property
of yourself and others.
Read and follow all
instructions in this man-
ual before attempting to
operate this machine.
Failure to comply with
these instructions may
result in personal injury.
When you see this
symbol.
HEED ITS WARNING
Your
Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
Slope Operation:
Slopes are a major factor related to slip and fall accidents
which can result in severe injury. Operation on slopes requires
extra caution. If you feel uneasy on a slope, do not mow it.
For your safety, use the slope gauge included as part of this
manual to measure slopes before operating this unit on a
sloped or hilly area. If the slope is greater than 15 degrees, do
not mow it.
Do:
1. Mow across the face of slopes; never up and down.
Exercise extreme caution when changing direction on
slopes.
2. Watch for holes, ruts, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles.
3. Always be sure of your footing. A slip and fall can cause
serious personal injury. If you feel you are losing your bal-
ance, release the motor/blade control handle immediately,
and the blade will stop rotating within three (3) seconds.
Do Not:
1. Do not mow near drop-offs, ditches or embankments, you
could lose your footing or balance.
2. Do not mow slopes greater than 15 degrees as shown on
the slope gauge.
3. Do not mow on wet grass. Unstable footing could cause
slipping.
Service
1. When servicing use only identical replacement parts listed
in this manual. “Use of parts which do not meet the original
equipment specifications may lead to improper performance
and compromise safety!”
2. Before cleaning, repairing, or inspecting, make certain the
blade and all moving parts have stopped. Disconnect the
power cord when not in use and to prevent unintended
starting.
3. Follow instructions for lubricating and changing acces-
sories.
4. Inspect lawn mower cord and extension cords periodically
and replace immediately, if damaged. Lawn mower cord
should be repaired by an authorized service facility only.
5. Keep handles dry, clean and free from oil and grease.
6. To reduce a fire hazard, keep the motor free of grass, leaves
and debris build-up.
7. Check the blade and motor mounting bolts at frequent
intervals for proper tightness. Also, visually inspect blade for
damage (e.g., bent, cracked, and worn) Replace blade with
the original equipment manufacturer’s (OEM) blade only,
listed in this manual.
8. Maintain your mower with care — Keep mower blade sharp
and clean for best and safest performance. Mower blades
are sharp and can cut, wrap the blade or wear gloves and
use extra caution when servicing them.
9. Keep all nuts, bolts, and screws tight to be sure the equip-
ment is in safe working condition.
10. Never tamper with safety devices. Check their proper
operation regularly.
11. After striking a foreign object, stop the motor and discon-
nect the power cord. Thoroughly inspect the mower for any
damage. Repair the damage before operating the mower.
12. Grass catcher components, discharge cover, and trail
shield are subject to wear and damage which could expose
moving parts or allow objects to be thrown. For safety
protection, frequently check components and replace
immediately with original equipment manufacturer’s (OEM)
parts only, listed in this manual.
13. When not in use, store lawn mower indoors in a dry area,
locked-up and/or out of the reach of children.
SAVE THESE INSTRUCTIONS!

7
2
WARNING
Safety
Labels
Safety Labels Found On Your Electric Lawn Mower
DO NOT remove safety
(or any) labels from
mower for any reason.
TO REDUCE THE RISK OF INJURY, DO NOT
OPERATE UNLESS DISCHARGE COVER OR
GRASS CATCHER IS IN ITS PROPER PLACE.
IF DAMAGED, REPLACE IMMEDIATELY.
AC ONLY
E251550
DOUBLE INSULATED
26EE
LAWNMOWER
LISTED
WARNING
WHEN REPAIRING THIS UNIT USE ONLY IDENTICAL
REPLACEMENT PARTS. PARTS MUST BE RE -
ASSEMBLED IN PROPER ORDER TO MAINTAIN
DOUBLE INSULATION PROTECTION. REFER TO
REPAIR PARTS SECTION OF YOUR OWNERS
MANUAL OR CONTACT YOUR AUTHORIZED
SERVICE CENTER.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE
UNIT TO WATER OR OPERATE UNIT ON WET GROUND.
REPLACE DAMAGED CORD IMMEDIATELY.
DISCONNECT FROM SUPPLY CIRCUIT BEFORE SERVICING OR
REMOVING BLADE.
KEEP HANDS AND FEET AWAY FROM ROTATING PARTS.
DO NOT MOW WHEN CHILDREN OR OTHERS ARE AROUND.
REMOVE OBJECTS THAT CAN BE THROWN BY THE BLADE IN
ANY DIRECTION. WEAR SAFETY GLASSES.
USE EXTRA CAUTION ON SLOPES. DO NOT MOW SLOPES
GREATER THAT 15˚. MOW ACROSS, NEVER UP AND DOWN.
NEVER PULL MOWER CLOSE TO YOUR FEET. LOOK DOWN
AND BEHIND BEFORE AND WHILE MOVING BACKWARDS.
READ OPERATOR’S MANUAL. KEEP SAFETY DEVICES (BLADE CONTROL, TRAILING SHIELD, DISCHARGE COVER,ETC.) IN PLACE AND
WORKING. IF DAMAGED, REPLACE IMMEDIATELY.
AVOID SERIOUS INJURY OR DEATH
PLACEMODELPLATEHERE
60
12
120 Volts
Amps
Hertz

8
3
Setup and
Adjustment
1. Remove any packing material which may be between
upper and lower handles.
a. Loosen each hand knob found on the inside of the
upper handle.
b. Gently lift and pivot the upper handle into the
operating position as shown in Figure 3-1.
c. Remove star knobs from handle mounting brackets
and secure the lower handle onto the handle
brackets by placing the lower hole of the lower
handle onto the pins of the handle brackets.
d. Secure the upper handle and lower handle by
tightening the hand knobs. Each carriage bolt
must be seated properly into the square hole found
in the plastic connector.
2. Tighten star knobs securing lower handle to handle
brackets. See Figure 3-2. Make certain the lower
handle is seated securely into the handle mounting
brackets.
3. Attach the cord guide bar with extension cord retainer
to the upper handle as shown in Figure 3-3.
NOTE: Do not plug your extension cord into the power
source receptacle (outlet) prior to routing it through the
cord retainer and connecting the extension cord to the
mower's cord outlet receptacle.
To properly route your extension cord through the cord
retainer:
a. Approximately 14- to 16-inches from its end, crease
your extension cord to form a tight loop.
b. Push the loop through the bottom hole in the cord
retainer. See Figure 3-4a.
Figure 3-1: Unfold handle and tighten hardware.
Figure 3-4: a. Push loop through hole. b. Ensure cord fits snugly
into clip.
NOTE: Stand behind
the mower as if you
were going to operate
it. Your right hand cor-
responds to the right
side of the mower; your
left hand corresponds
to the left side of the
mower.
Figure 3-3: Attach cord guide bar with extension cord retainer.
NOTE: Do not plug
your extension cord
into the power source
receptacle (outlet) prior
to routing it through the
cord retainer and con-
necting the extension
cord to the cultivator's
cord outlet receptacle.
NOTE: Use a UL-ap-
proved extension cord.
A 100-foot, 14-gauge
cord is recommended.
A 50-foot, 16-gauge
cord is acceptable.
Refer to the small chart
found in Safe Opera-
tion Practices.
Figure 3-2: Secure lower handle to mounting brackets.
A
B

9
3
Setup and
Adjustment
Never operate mower
unless the hooks on
the grass catcher are
firmly seated on the
pivot rod and the rear
discharge door rests
firmly against top of
the grass catcher.
c. Position the loop over the clip found on the cord
retainer and pull down until the cord fits snugly into the
clip. See Figure 3-4b.
NOTE: Use a UL-approved extension cord. A 100-foot,
14-gauge cord is recommended. A 50-foot, 16-gauge
cord is acceptable. Refer to the small chart found in Safe
Operation Practices.
The cord retainer and the guide bar work together to
secure your extension cord and safely limit its movement.
The cord retainer (with the extension cord) will slide along
the guide bar as the mower is moved to the left or to the
right.
4. Follow steps below to assemble the grass catcher
(if needed). Make certain bag is turned right side
out before assembling (warning label will be on the
outside).
a. Place bag over frame so that its black plastic side
is at the bottom.
b. Slip plastic channel of grass bag over hooks on the
frame. All the plastic channels except center top of
bag attach from outside of bag.
c. Attach center top of bag from inside of bag.
5. Follow steps below to attach the grass catcher:
a. Lift rear discharge door.
b. Remove rear mulching baffle.
c. Place grass catcher on the pivot rod. Let go
of discharge door so that it rests on the grass
catcher. See Figure 3-5.
To remove the grass catcher, lift the rear discharge door
on the mower. Lift the grass catcher up, off of the pivot
rod. Release the rear discharge door.
6. To convert to side discharge, make sure grass catcher
is off of the unit and rear discharge door is closed.
a. On the side of the mower, lift the mulching plug.
b. Slide chute hooks under hinge pin on mulching
plug assembly. Lower mulching plug. See Figure
3-6. Do not remove side mulching plug at any time,
even when you are not mulching.
WARNING: Never operate mower unless
the hooks on the grass catcher are
firmly seated on the pivot rod and the
rear discharge door rests firmly against
top of the grass catcher.
WARNING
Figure 3-6: Converting to side discharge.
Figure 3-5: Attach the grass catcher.
Adjustments
1. The cutting height adjustment lever is located above
the rear left wheel. See Figure 3-7.
a. Pull the lever out and away from the mower.
b. Move the lever forward or back for desired cutting
height.
c. Release lever towards mower deck. Figure 3-7: Use adjustment lever to change height.
A
B
A
C
B

10
4
Operating
Your Lawn
Mower
Motor/Blade Control Handle
The motor/blade control handle is located on the upper
handle of the mower. See Figure 4-1. The motor/blade
control handle engages and disengages the motor and
blade.
WARNING: The motor / blade control
handle is a safety device. Never
attempt to bypass its operations.
Overload Protection Switch
The mower is equipped with a overload protection
switch, located on the motor/blade control. Refer to
Figure 4-3. This overload protection switch may pop out
when too much strain is placed on the motor. Refer to
Maintenance Section to reset this switch.
Cord Restraint
The cord restraint is located on the back of the upper
handle and when used properly, helps to protect the mo-
tor/blade control and extension cord powering the unit.
Height Adjustment Lever
The cutting height adjustment lever is located above the
left rear wheel. To adjust the cutting height, refer to the
Setup & Adjustment Section.
Starting Motor and Blade
WARNING: Avoid accidental starting.
Make sure you are in the operating
position behind the mower when using
it. To avoid serious injury, the operator
and unit should be in a stable position while starting.
Connecting to an Electrical Power Source
WARNING: This mower should be
operated on a 15 or 20 AMP circuit. If
you experience difficulty in starting
with a standard 15 AMP fuse or circuit
breaker, contact you nearest authorized service facil-
ity. Do not use a higher rated fuse or breaker without
consulting your power company.
NOTE: Connect your extension cord to the mower as
instructed in the Set Up section prior to plugging your
extension cord into an electrical outlet. Refer to Figure
4-2.
1. Plug your extension cord into any convenient (indoor
or outdoor) 120-volt, 60-cycle AC outlet or receptacle.
Your mower will operate satisfactorily on a circuit with
a 15 ampere breaker.
WARNING
The motor/ blade
control handle is a
safety device. DO
NOT bypass its
operations.
Know Your Lawn Mower
Figure 4-1: The main components on the mower.
Now that you have setup your lawn mower, its important to become acquainted with its controls and features.
This mower should be
operated on a 15 or
20 AMP circuit. If you
experience difficulty in
starting with a stan-
dard 15 AMP fuse or
circuit breaker, contact
you nearest authorized
service facility. Do not
use a higher rated fuse
or breaker without
consulting your power
company.
Height Adjustment Lever
Motor/ Blade Control Handle
Cord Restraint
Overload Protection Switch

11
around the lawn in circles; travel back and forth
across the lawn, starting from the point closest to
the outlet and then moving away from the outlet so
the cord lies in the cut portion of the lawn, out of the
way.
• Do not allow the extension cord to wrap around
trees, shrubs or other obstacles. When picking up
the extension cord, wind the cord in a series of equal
loops on each side of your hand to prevent snarling.
Using as Mulcher
For mulching grass, remove the grass catcher from the
mower. For effective mulching, do not cut wet grass. If
the grass has been allowed to grow in excess of four
inches, mulching is not recommended. Use the grass
catcher to bag clippings instead.
Using Grass Catcher
You can use the grass catcher to collect clippings while
you are operating the mower. Refer to Setup section for
instructions on attaching the grass catcher.
NOTE: To avoid tripping circuit breakers, select an outlet
on a circuit that is not overloaded. Do NOT select an
outlet that is on a circuit hosting appliances such as a
refrigerator.
2. Stand behind the mower, in the operating position.
3. Depress the (red) starter button and hold it in. See
Figure 4-3.
NOTE: Starting the mower's motor also engages the
blade.
4. While holding the starter button in, pivot the motor/
blade control handle upward against the upper handle
to start the motor and engage the blade. See Figure
4-3.
NOTE: The mower's motor will NOT start if you fail to
hold the starter button in while pivoting the motor/blade
control handle upward.
5. Release the (red) starter button.
Stopping the Motor and Blade
WARNING: The blade continues to
rotate for a few seconds after the motor
is shut off. If motor does not come to
a stop when the motor/blade control
handle is released, contact an authorized service
dealer.
To stop the motor and blade from spinning:
1. Release the blade/motor control handle from its
position against the upper handle.
2. The motor will stop.
Using Your Lawn Mower
• Be sure that lawn is clear of stones, sticks, wires, or
other objects which could damage the lawn mower or
motor. Such objects could be accidentally thrown by
the mower in any direction and cause serious personal
injury to the operator and others.
WARNING: If you strike a foreign
object, stop the motor, and unplug from
the power supply circuit. Thoroughly
inspect the mower for any damage, and
repair the damage before restarting and operating
the mower. Excessive vibration of the mower during
operation is an indication of damage. The unit should
be promptly inspected and repaired.
• To prevent electric shock, do not operate the mower in
damp or wet conditions.
• Always start from the point closest to the power
source where the cord is connected. Never mow
4
Operating
Your Lawn
Mower
WARNING
If you strike a foreign
object, stop the motor,
and unplug from the
power supply circuit.
Thoroughly inspect
the mower for any
damage, and repair
the damage before re-
starting and operating
the mower. Excessive
vibration of the mower
during operation is an
indication of damage.
The unit should be
promptly inspected
and repaired.
Figure 4-2: Connecting extension cord to mower.
The blade continues to
rotate for a few sec-
onds after the motor is
shut off. If motor does
not come to a stop
when the motor/blade
control handle is
released, contact an
authorized service
dealer.
Figure 4-3: Starting the motor and blade.
1
2
Overload
Protection
Switch

12
5
Maintaining
Your Lawn
Mower
WARNING
Always stop the
motor and discon-
nect from the
power source before
cleaning, lubricating
or performing any re-
pairs or maintenance
on the lawn mower.
Figure 5-1: Areas to lubricate on the mower.
General Recommendations
• Always observe safety rules when performing
any type of maintenance.
• The warranty on this lawn mower does not cover
items that have been subjected to operator abuse
or negligence. To receive full value from warranty,
operator must maintain the lawn mower as
instructed here.
• All adjustments should be checked at least once
each season.
• Periodically check all fasteners and make sure these
are tight.
WARNING: Always stop the motor and
disconnect from the power source
before cleaning, lubricating or per-
forming any repairs or maintenance on
the lawn mower.
Lubrication
• Lubricate the wheels at least once a season with
light oil (or motor oil). If wheels are removed for any
reason, lubricate surface of the pivot arm and inner
surface of the wheel with light oil. See Figure 5-1.
• Lubricate the torsion spring and pivot point on the
rear discharge door and side mulch plug periodically
with light oil to prevent rust. See Figure 5-1.
Deck Care
WARNING: To reduce the risk of
electric shock, do not expose the
mower to water.
The underside of mower deck should be cleaned after
each use as grass clippings, leaves, dirt and other debris
will accumulate. This accumulation of grass clippings,
etc., is undesirable as it will promote rust and corrosion.
1. Remove any buildup of grass and leaves on or around
the motor cover (do not use water). Wipe the mower
clean with a dry cloth occasionally.
2. If debris is allowed to build up on the underside of the
unit, tilt the mower forward or on its side and scrape it
clean with a suitable tool.
IMPORTANT: Do not use a pressure washer or garden
hose to clean your unit. These may cause damage to
electric components, or the electric motor. The use of
water will result in shortened life and reduce service-
ability.
Resetting Overload Protection
Switch
This mower is equipped with an overload protection
switch to prevent overheating damage to the motor.
If the overload protection switch pops out:
1. Release the motor/blade control handle and do NOT
re-start the mower for at least one minute, allowing for
the electric motor time to cool.
2. Press the overload protection switch inward
to reset. See Figure 4-3 in Operation section.
If the overload protection switch pops out shortly after
resetting:
1. Release the motor/blade control handle and do NOT
re-start the mower for at least 15 minutes to allow the
electric motor extra time to cool.
2. Press the overload protection switch inward to reset.
3. Restart unit.
NOTE: If the overload protection switch pops out
repeatedly during operation or will not remain in when
attempting to reset, contact your Authorized Service
Center to arrange for repair.
Replacing Trail Shield
WARNING: Never operate mower unless
the trail shield is in place and working.
Never operate mower with damaged
safety devices. Failure to do so, can
result in personal injury.
The trail shield is subject to wear and damage which
could expose moving parts or allow objects to be
thrown. For safety protection, frequently check the trail
shield and replace immediately with original equipment
manufacturer’s (OEM) part only, listed in this manual.
Never operate mower
unless the trail shield
is in place and work-
ing. Never operate
mower with damaged
safety devices.
Failure to do so, can
result in personal
injury.
To reduce the risk of
electric shock, do not
expose the mower to
water.

13
Figure 5-2: Remove the trail shield.
5
Maintaining
Your Lawn
Mower
WARNING
When removing
the cutting blade
for sharpening or
replacement, protect
your hands with a
pair of heavy gloves
or use a heavy rag to
hold the blade.
An unbalanced blade
will cause excessive
vibration when rotat-
ing at high speeds. It
may cause damage
to mower, and could
break causing per-
sonal injury.
The blade hardware
is not only used to
attach the blade
assembly, but is also
an insulated safety
device and should
never be altered in
any way. If replace-
ment is necessary,
use original equip-
ment parts as shown
in the parts list.
1. To remove trail shield, lift rear door, and press shield
in on either side to remove from hole. See Figure 5-2.
2. Remove shield from opposite hole and replace with
new shield in the opposite order and manner of
removal.
Blade Care
WARNING: When removing the cutting
blade for sharpening or replacement,
protect your hands with a pair of heavy
gloves or use a heavy rag to hold the
blade. Be certain to disconnect the power supply.
Periodically inspect the blade adapter for cracks,
especially if you strike a foreign object. Replace when
necessary. Follow the steps below for blade service.
1. Stop the motor and disconnect the power supply to
the mower. Turn the mower on its side.
2. Use a block of wood between blade and mower deck
to prevent the blade from turning when the bolt is
removed.
3. Loosen and remove the blade bolt, locking plate, and
blade.
4. The blade can be sharpened with a file or on a grind-
ing wheel. Do not attempt to sharpen the blade while
it is still on the mower. When sharpening the blade,
follow the original angle of grind and grind each cut-
ting edge equally to keep the blade balanced. Balance
the blade on a round shaft screwdriver. Remove metal
from the heavy side until it balances evenly.
WARNING: An unbalanced blade will
cause excessive vibration when rotating
at high speeds. It may cause damage
to mower, and could break causing
personal injury.
5. Place the cutting blade, locking plate, and blade bolt
on the motor shaft and thread the blade bolt in finger
tight. Refer to Figure 5-3.
NOTE: Make certain to replace the parts in the exact
order in which they were removed. When installing the
cutting blade, be sure it is installed with the curved ends
pointing towards the mower deck and not towards the
ground.
6. Torque the blade bolt down using a torque wrench
to assure the bolt is tightened properly. The recom-
mended torque for the blade bolt is 170-220 in. lbs.
WARNING: The blade hardware is not
only used to attach the blade assembly,
but is also an insulated safety device
and should never be altered in any way.
If replacement is necessary, use original equipment
parts as shown in the parts list.
To insure safe operation of your unit, all nuts and bolts
must be checked periodically for correct tightness.
Off-Season Storage
The following steps should be taken to prepare your
lawn mower for storage.
• Clean and lubricate mower thoroughly as described
in the lubrication instructions.
• We do not recommend the use of a pressure washer
or garden hose to clean your unit.
• Make certain the power supply is disconnected.
• Coat mower’s cutting blade with chassis grease to
prevent rusting.
• Store mower in a dry, clean area. Do not store next
to corrosive materials, such as fertilizer.
• Wipe extension cord to remove any foreign sub-
stance such as oil or stains. Replace extension cord
if cut or damaged in any way.
• Wind cord in a series of equal loops on each side of
your hand to prevent snarling.
Figure 5-3: Remove blade and hardware.
2
1
Blade
Bolt
Blade
Locking
Plate

14
NOTE: For repairs beyond
the minor adjustments listed
here, contact an authorized
service dealer.
6
Trouble
Shooting
Cause
Problem Remedy
Mower fails to start 1. Cord disconnected from the motor/blade
control.
2. Motor/blade control switch defective.
3. Extension cord not connected to the plug on
the mower.
4. Extension cord not connected to a source of
power.
5. Circuit breaker on the mower or in the house
receptacle tripped.
1. Reconnect the cord keeping the cord
restraint close to the motor/blade
control.
2. Replace motor/blade control switch.
3. Connect the extension cord to the plug
on the mower.
4. Connect the extension cord to a
110-120 volt 60 hertz A.C. receptacle.
5. Reset the circuit breaker following
instructions in the Operating Your Lawn
Mower section of this manual.
Circuit breaker on the
mower tripping
1. Raise the cutting height, reset the
circuit breaker on the mower, take a
smaller width of cut, and walk slowly.
2. Connect to an outlet that is fused for
15 amperes. Reset the circuit breaker
and start the mower again.
1. Too much workload on the mower.
2. Fuse blown; outlet overloaded.
Mower cutting grass
unevenly
1. Move the wheels to a higher cutting
height position.
2. All wheels must be placed in the same
cutting height for the mower to cut
evenly.
1. Lawn rough or uneven.
2. Cutting height not set properly. (Individual
height adjusted models only)
Mower not mulching
properly
1. Wait till the grass dries before mowing.1. Wet grass clippings stick to the underside of
the deck.
Hard to push 1. Raise cutting height.
2. Raise cutting height.
1. High grass or cutting height too low.
2. Rear of mower housing and blade dragging
in heavy grass.
Cord disconnects fre-
quently
1. Reconnect the extension cord to the
cord restraint on the guide rod.
2. Replace extension cord.
1. Extension cord is not properly attached to
the cord restraint.
2. Old, worn, or loose extension cord.
Handle not in position 1. Adjust the height of the handle and
make sure that the carriage bolts
are seated properly into the handle
insulators. Tighten the hand knobs.
1. Carriage bolts not seated in the handle
insulators.
Mower vibrating at higher
speed
1. Bent motor shaft.
2. Cutting blade is unbalanced.
3. Blade is loose.
1. Stop the motor, disconnect the power
source and inspect for damage. Repair
before restarting. If vibration persists,
take it to a service dealer.
2. Balance the blade by grinding each
cutting edge equally.
3. Tighten blade bolt to 170-220 in. lbs.
NOTE:Specifications are
subject to change without
notification or obligation.
Images my not reflect your
exact model and are for
reference purposes only.

15
NOTES
Use this page to make notes and write down important information.

16
Model 182
62
61
14
17
18
16
19
20
15
6
Wheel Tread
A
A
B
B
5
36
38
37
25
57
49
35
2
4
3
55
22
58
53
13
32
31
47
30
11
24
10
9
1
56
7
26
27
60
33
28
51 58
50
52
21
45 43
41
40
44
39
46
42
48 58
54
46
12
59
29
63
30
8
23
34
32
32
20
56 20

17
8
Parts List
To order replacement
parts, call 1-800-800-7310
or visit us on the web at
www.mtdproducts.com
Ref.
No.
Part No. Description
1 787-01583 19” Deck
2 731-05727 Motor Bracket
3 710-0895 Screw, 1/4-15 x .750
4 624-04010 Electric Motor, 120V
5 749-04312 Lower Handle
6 731-05749 Motor Shroud
7 731-2095A Blade Hub
8 731-05832 Electric Fan
9 742-04152 Mulching Blade
10 782-7051 Blade Locking Plate
11 624-0075 Blade Bolt Assembly
12 731-05639A Trail Shield
13 731-05746 Rear Mulch Plug
14 731-04177 Side Discharge Chute
15 687-02055 Mulch Plug (Incl. 16-18)
16 732-1014 Torsion Spring
17 747-0710 Hinge Pin
18 17032A Chute Deflector Adapter
19 736-0270 Beleville Washer
20 710-0599 Screw
21 731-05686 Rear Door
22 731-05634 Front Cover
23 687-02325 Handle Bracket - RH
687-02324 Handle Bracket - LH
24 664-04077 Grass Bag
25 647-04107 Grass Bag Frame
26 687-02225 Front Bracket Assembly
27 738-0148 Screw, Shoulder, .50 x .66
28 687-02228 Rear Bracket Assembly
29 710-3025 Hhcs, 5/16-18 x .625
30 710-1242 Screw, 5/16-14 x .750
31 712-04063 Nut, Flange Lock, 5/16-18
32 712-04065 Nut, Flange Lock, 3/8-16
Ref.
No.
Part No. Description
33 734-1988 Front Wheel
34 734-1987 Rear Wheel
35 720-0230 Foam Grip
36 712-0324 Nut, Hex Lock, 1/4-20
37 749-04353 Upper Handle
38 625-04035 Motor/Blade Control
39 710-04213 Screw, Flat, 1/4-20 x 1.75
40 747-1035 Guide Rod
41 726-0368 Cord Retainer
42 731-05186 Lower Handle Insulator
43 731-05178 Upper Handle Insulator
44 747-04663 Motor/Blade Control Handle
45 710-1174 Bolt Carriage, 5/16-18 x 2.0
46 720-04072 Star Knob
47 731-05710 Rear Baffle
48 732-04264 Door Torsion Spring - RH
732-04265 Door Torsion Spring - LH
49 732-04377 Spring Lever
50 736-0272 Washer, Flat, .510 x 1.00 x .060
51 736-3069 Washer, Flat, .531 x .875 x .15
52 738-0507B Screw, Shoulder, .500 Dia. X .434
53 741-0492A Bushing, Lock, .505 Dia. X .62
54 747-04589 Rear Door Pivot Rod
55 749-04356 Cross Bracket
56 750-04305A Spacer, 6.60mm ID x 9mm OD
57 731-2422 Cable Guide
58 710-1241 Screw, 1/4-15 x 1.000
59 731-05880 Spacer, .515 x 1.00 x .310 Lg.
60 736-0255 Washer, Bell, .510 x 1.14 x .040
61 736-3012A Washer, Wave, .390 x .825 x .016
62 726-0201 Nut, Speed
63 710-1268 Screw, #10-16 x .375

18
NOTES
Use this page to make notes and write down important information.

19
NOTES
Use this page to make notes and write down important information.

MANUFACTURER’S LIMITED WARRANTY FOR
GDOC-100015 REV. B
The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the United States
and/or its territories and possessions, and by MTD Products Limited
with respect to new merchandise purchased and used in Canada and/
or its territories and possessions (either entity respectively, “MTD”).
“MTD” warrants this product (excluding its Normal Wear Parts and
Attachments as described below) against defects in material and
workmanship for a period of two (2) years commencing on the date
of original purchase and will, at its option, repair or replace, free of
charge, any part found to be defective in materials or workmanship.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator’s Manual
furnished with the product, and has not been subject to misuse,
abuse, commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of other
peril or natural disaster. Damage resulting from the installation or use
of any part, accessory or attachment not approved by MTD for use
with the product(s) covered by this manual will void your warranty as
to any resulting damage.
Normal Wear Parts are warranted to be free from defects in material
and workmanship for a period of thirty (30) days from the date of
purchase. Normal wear parts include, but are not limited to items
such as: batteries, belts, blades, blade adapters, tines, grass bags,
wheels, rider deck wheels, seats, snow thrower skid shoes, friction
wheels, shave plates, auger spiral rubber and tires.
Attachments — MTD warrants attachments for this product against
defects in material and workmanship for a period of one (1) year,
commencing on the date of the attachment’s original purchase or
lease. Attachments include, but are not limited to items such as:
grass collectors and mulch kits.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE, through your local authorized service dealer.
To locate the dealer in your area:
In the U.S.A.
Check your Yellow Pages, or contact MTD LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310, 1-330-220-
4683 or log on to our Web site at www.mtdproducts.com .
In Canada
Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800-
668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following
cases:
a. The engine or component parts thereof. These items may carry a
separate manufacturer’s warranty. Refer to applicable manufactur-
er’s warranty for terms and conditions.
b. Log splitter pumps, valves, and cylinders have a separate one-
year warranty.
c. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior finish
due to use or exposure.
d. Service completed by someone other than an authorized service
dealer.
e. MTD does not extend any warranty for products sold or exported
outside of the United States and/or Canada, and their respective
possessions and territories, except those sold through MTD’s
authorized channels of export distribution.
f. Replacement parts that are not genuine MTD parts.
g. Transportation charges and service calls.
h. MTD does not warrant this product for commercial use.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies after
the applicable period of express written warranty above as to the
parts as identified. No other express warranty, whether written or
oral, except as mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product, shall
bind MTD. During the period of the warranty, the exclusive remedy
is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and
exclusive remedy arising from the sale. MTD shall not be liable
for incidental or consequential loss or damage including, without
limitation, expenses incurred for substitute or replacement lawn
care services or for rental expenses to temporarily replace a
warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply
to you.
In no event shall recovery of any kind be greater than the amount of
the purchase price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk and liability
for loss, damage, or injury to you and your property and/or to others
and their property arising out of the misuse or inability to use the
product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This limited
warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
IMPORTANT: Owner must present Original Proof of Purchase to
obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone]
MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone [phone]
