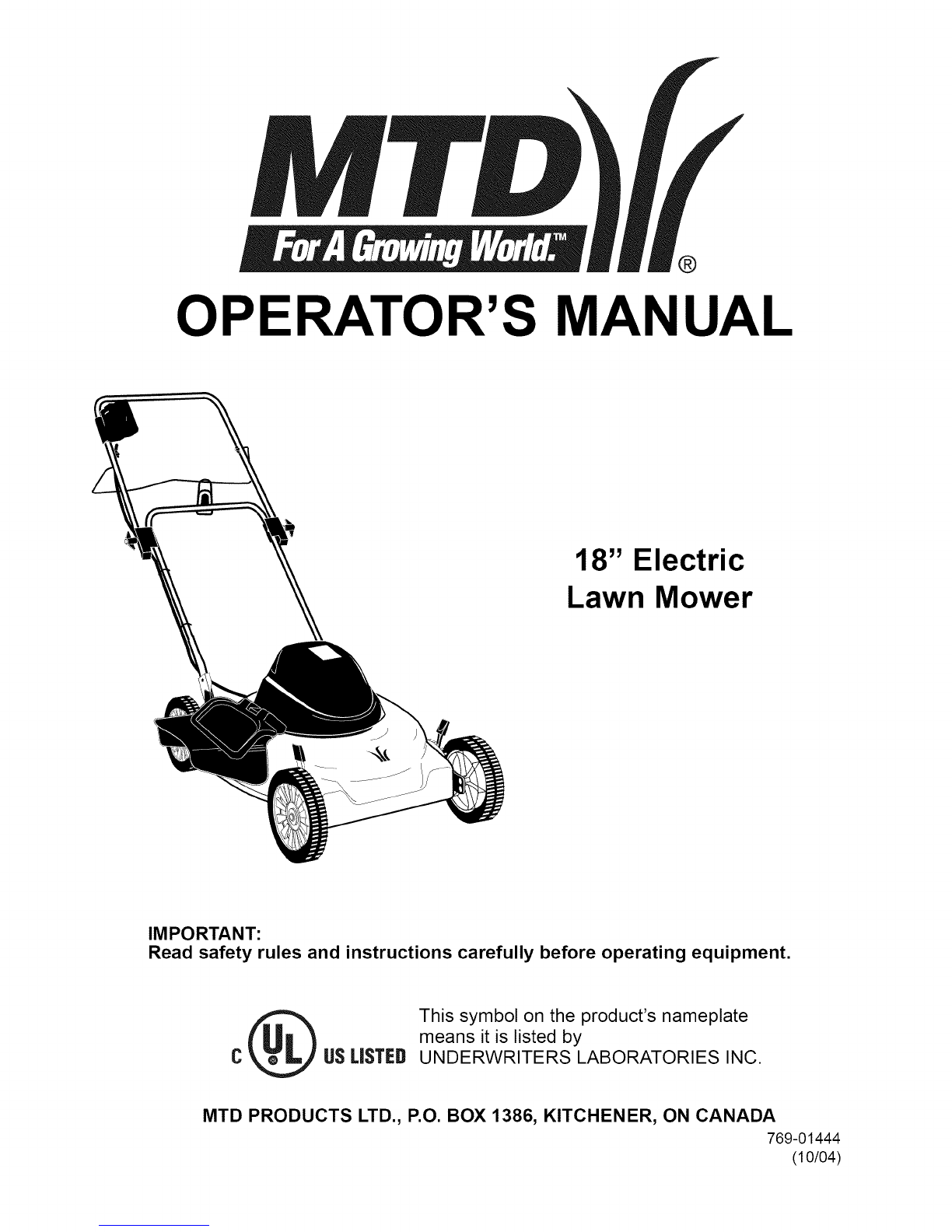

OPERATOR'S MANUAL
18" Electric
Lawn Mower
IMPORTANT:
Read safety rules and instructions carefully before operating equipment.
C
This symbol on the product's nameplate
means it is listed by
US LJSTEB UNDERWRITERS LABORATORIES INC.
MTD PRODUCTS LTD., P.O. BOX 1386, KITCHENER, ON CANADA769-01444
(10/04)
TABLEOFCONTENTS
Content Page
Important Safe Operation Practices ................................................................... 3

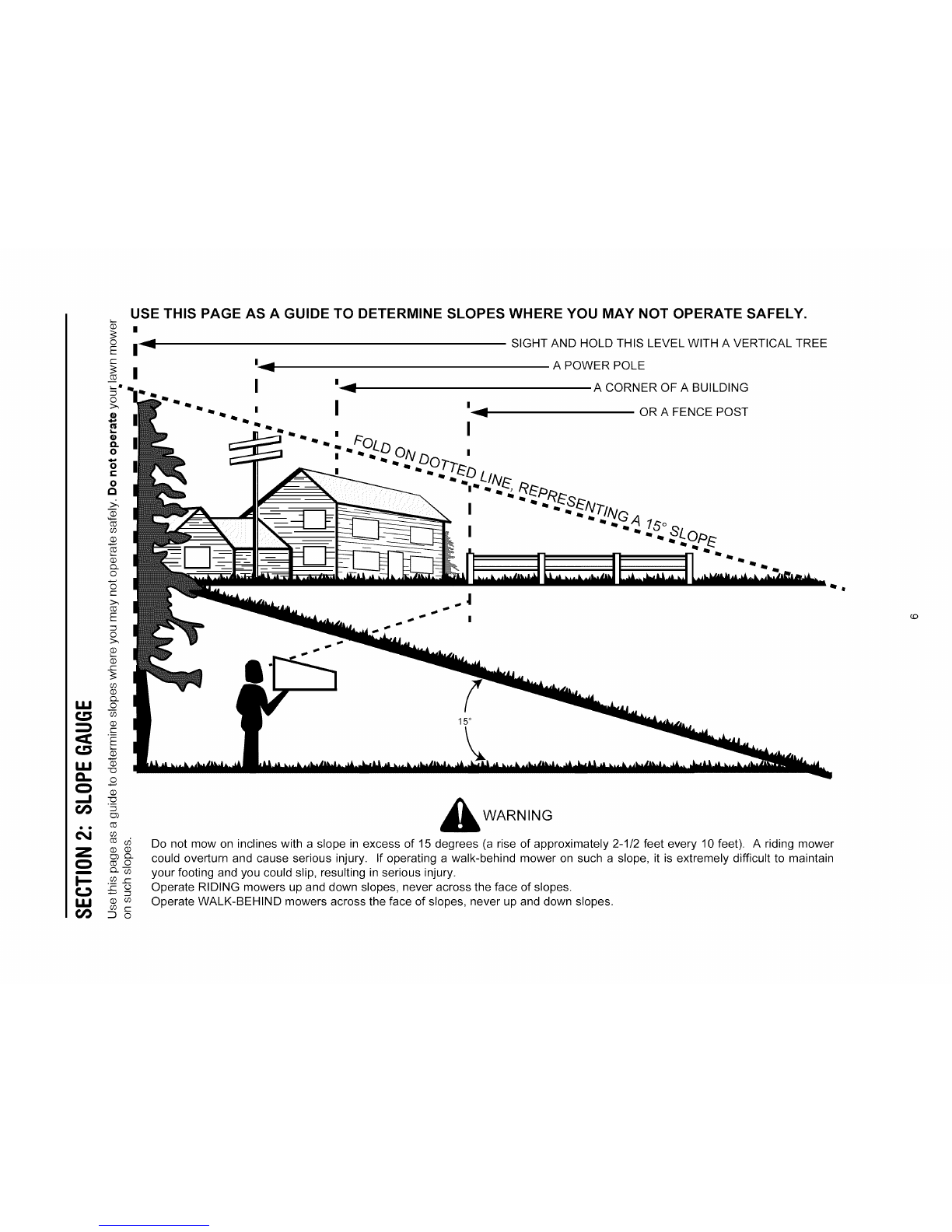

Slope Gauge ................................................................................................... 6
Unpacking Instructions ...................................................................................... 7
Assembling Your Lawn Mower ........................................................................... 7
Know Your Lawn Mower .................................................................................... 8
Operating Your Lawn Mower ............................................................................. 9
Making Adjustments .......................................................................................... 11
Maintainence ..................................................................................................... 12
Off-Season Storage ........................................................................................... 13
Warranty ............................................................................................................ 14
Troubleshooting ................................................................................................. 15

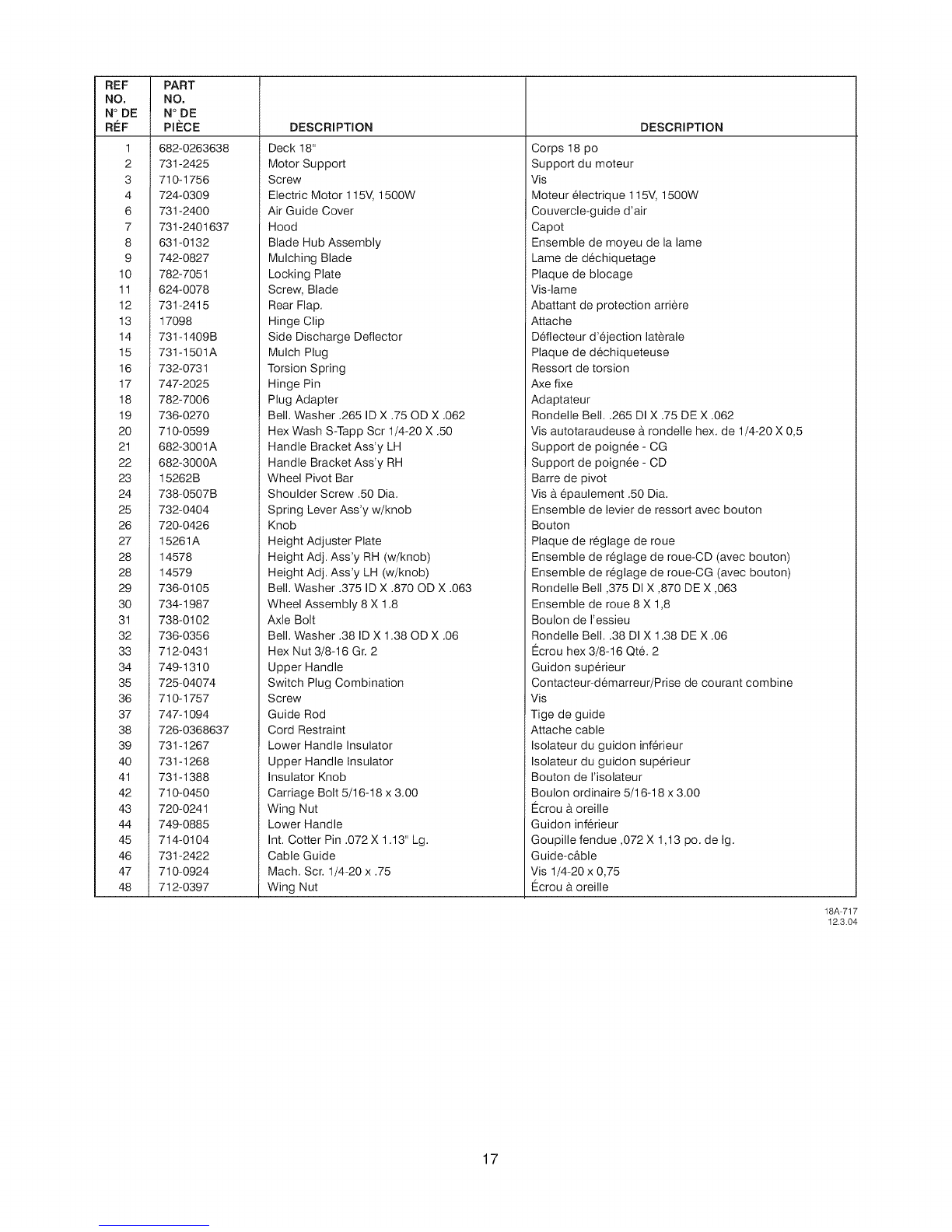

Parts List ............................................................................................................ 16

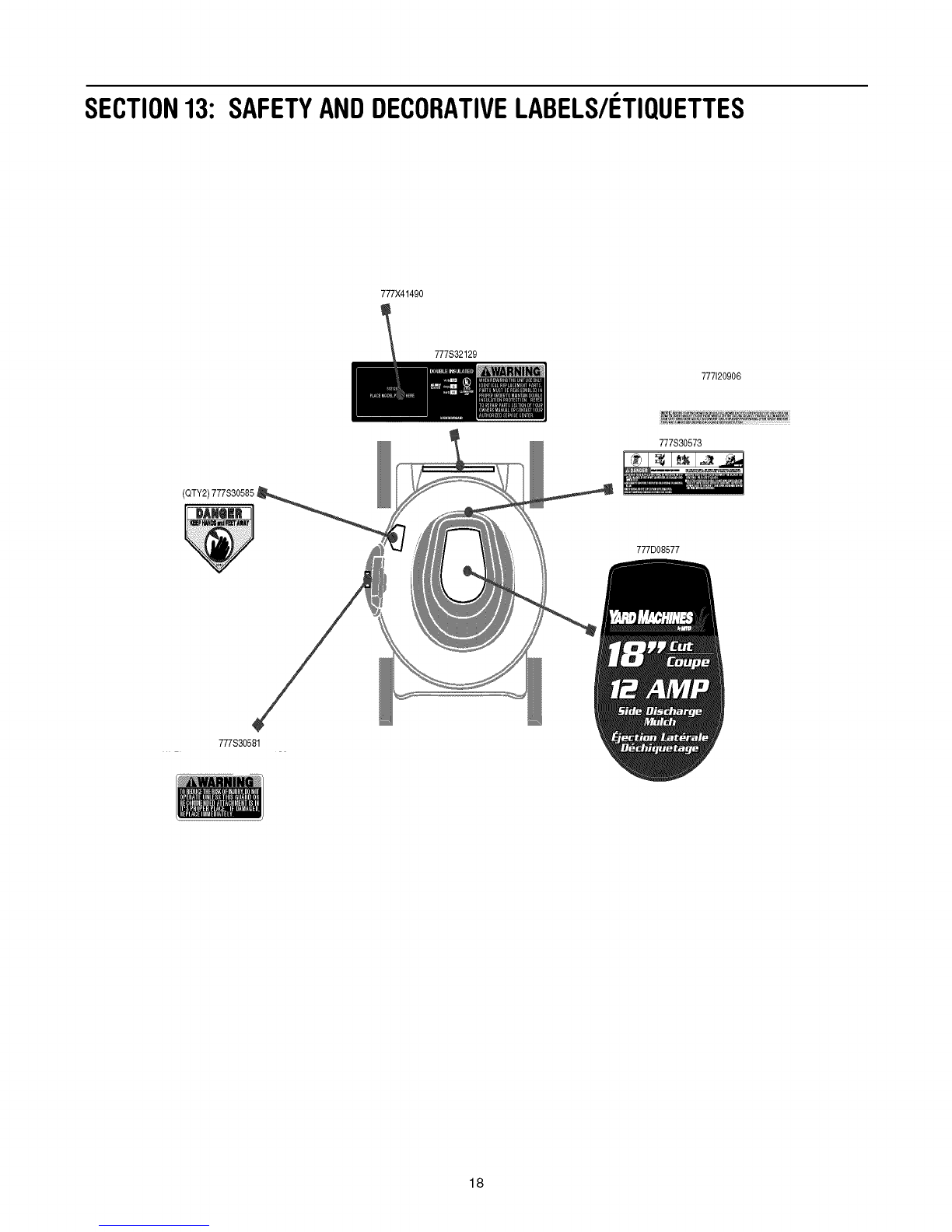

Safety and Decorative Labels ............................................................................ 18
FINDINGMODELNUMBER
This Operator's Manual is an important part of your new Lawn Mower. It will help you assemble, prepare
and maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the
equipment and copy the information from it in the space provided below. The information on
the model plate is very important if you need help from our Customer Support Department or
an authorized dealer.
You can locate the model number by standing behind the unit and looking at the rear of the deck. A
sample model plate is explained below. For future reference, please copy the model number and the
serial number of the equipment in the space below.
Model Number
Numero de modele Serial Number
Numero de serie
XXXXXXXXXX XXXXXXXXXXX
_lll) 1K_I8ToCoH6E6__EIF_3ONN2G 4J1
www.mtdcanada_om
Copy the model number here:
Copy the serial number here:
CALLINGCUSTOMERSUPPORT
If you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, please call the Customer Support Department.
Call 1- 800-668-1238 to reach a Customer Support representative. Please have your unit's
model number and serial number ready when you call. See previous section to locate this
information. You will be asked to enter the serial number in order to process your call.
SECTION1: IMPORTANTSAFEOPERATIONPRACTICES
READ ALL INSTRUCTIONS!
WARNING: This symbol points out important safety instructions, which if not followed, could endanger the personal
safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to oper-
ate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol--
HEED ITS WARNING.
DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with any
type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is
capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could
result in serious injury or death.
When using electric tawnmowers, basic safety precautions should always be followed to reduce the risk of fire, electric
shock, and personal injury. These basic precautions include the following:
GENERALOPERATION
1. Read, understand, and follow all instructions on the
machine and in the manual before attempting to
assemble and operate. Keep this manual in asafe place
for future and regular reference and for ordering
replacement parts.
2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.
4. Never allow adults to operate this machine without
proper instruction.
5. To help avoid blade contact or a thrown object injury, stay
in the operator zone behind the handles and keep
children and bystanders at least 75 feet from the machine
while it is in operation. Stop motor if anyone enters the
area.
6. Thoroughly inspect the area where the equipment is to
be used. Remove all stones, sticks, wire, bones, toys and
other foreign objects, which could be tripped over or
thrown by the blade. Thrown objects can cause serious
personal injury.
7. Plan your mowing pattern to avoid discharge of material
toward roads, sidewalks, bystanders and the like. Also,
avoid discharging material against awalt or obstruction,
which may cause discharged material to ricochet back
toward the operator.
8. Always wear proper eye protection while operating or
performing an adjustment or repair to protect your eyes.
Thrown objects which ricochet can cause serious injury
to the eyes.
9. Always use a face or dust mask if operating in a dusty
environment.
10. Dress Properly - Do not wear loose clothing or jewelry.
They can be caught in moving parts. Use of rubber
gloves and footwear is recommended when working
outdoors.
11. Ground Fault Circuit Interrupter (GFCI) protection should
be provided on the circuit(s) or outlet(s) to be used for the
lawn mower. Receptacles are available having built-in
GFCI protection and may be used for this measure of
safety.
12. To prevent electric shock use only with a CUL listed
extension cord set suitable for outdoor use, such as Type
SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A,
SJTW-A, or SJTOW-A.
13. Extension Cord - Make sure your extension cord set is in
good condition, is heavy enough to carry the current your
mower wilt draw, and is polarized (one blade of plug is
wider than the other). A 100' length of 14 AWG should be
used. A 50' length of 16 AWG or a 150' length of 12 AWG
cord is an acceptable alternative. A longer length or
undersized cord wilt cause a drop in line voltage resulting
in a loss of power and overheating.
14. To reduce the likelihood of disconnection of the lawn
mower from the extension cord set, be sure to use the
cord restraint provided as shown in the illustration below:
15.
Cord Restraint
Extension Cord
To reduce the risk of electric shock, this lawn mower has
a polarized plug (one blade is wider than the other) and
wilt require the use of a polarized extension cord. The
mower plug wilt only fit into the polarized extension cord
one way. If the plug does not fit fully into the extension
cord, reverse the plug. Ifthe plug still does not fit, obtain a
correct polarized extension cord. A polarized extension
cord wilt require the use of a polarized wall outlet. This
plug wilt fit into the polarized outlet only one way. If the
plug does not fit fully into the walt outlet, reverse the plug.
Ifthe plug still does not fit, contact a qualified electrician
to install the proper walt outlet. Do not change the
equipment plug, extension cord receptacle, or extension
cord plug in any way.
16.Homecircuit-Thismowershouldbeoperatedona15
AMPcircuit.Ifyouexperiencedifficultyinstartingwitha
standard15AMPfuseorcircuitbreaker,contactyour
nearestauthorizedservicefacility.Donotuseahigher
ratedfuseorbreakerwithoutconsultingyourpower
company.
17.Donotabusethecordbypullingthemowerbythecord
oryankingittodisconnectitfromthereceptacle.Keep
cordfromheat,oil,andsharpedges.
18.Manyinjuriesoccurasaresultofthemowerbeingpulled
overthefootduringafallcausedbyslippingortripping.
Neveroperatethismachineinbarefeet,sandals,
slipperyorlightweight(e.g.canvas)shoes.Donothold
ontothemowerifyouarefalling;releasethehandle
immediately.
19.Neverpullthemowerbacktowardyouwhileyouare
walking.Ifyoumustbackthemowerawayfromawallor
obstructionfirsttookdownandbehindtoavoidtripping
andthenfollowthesesteps:
• Stepbackfromthemowertofullyextendyourarms.
• Besureyouarewell balanced with sure footing.
• Pull the mower back slowly, no more than half way
toward you.
• Repeat these steps as needed.
20. Do not use lawn mower for any job except that for which it
is intended. Do not force the lawn mower- Cut grass at a
rate, for which the mower is designed, which wilt not
sacrifice the performance or safety of the machine.
21. Do not operate the mower while under the influence of
alcohol or drugs.
22. Stay Alert- Do not operate the mower when you are
tired. Watch what you are doing. Use common sense.
23. Do not put hands or feet near rotating parts or under the
cutting deck. Contact with the blade can amputate hands
and feet.
24. Never attempt to make awheel or cutting height
adjustment while the motor is running.
25. Avoid dangerous environments- Never operate the
mower in the rain or in wet or damp grass.
26. Mow only in daylight or in good artificial light. Walk, never
run.
27. Stop the blade when crossing gravel drives, walks or
roads.
28. If the equipment should start to vibrate abnormally, stop
the motor and check immediately for the cause. Vibration
is generally a warning of trouble.
29. Stop the motor and wait until the blade comes to a
complete stop before removing the grass catcher or
unclogging the chute. The cutting blade continues to
rotate for a few seconds after the motor is shut off. Never
place any part of the body in the blade area until you are
sure the blade has stopped rotating.
30. Never operate mower without proper trail shield,
discharge cover, grass catcher, blade/motor control or
other safety protective devices in place and working.
Never operate mower with damaged safety devices.
Failure to do so can result in personal injury.
31. Only use parts and accessories made for this machine by
the manufacturer. Failure to do so can result in personal
injury.
32. If situations occur which are not covered in this manual,
use care and good judgment. Contact your dealer or
telephone 1-800-668-1238 for assistance and the name
of your nearest servicing dealer.
SlopeOperation
Slopes are a major factor related to slip and fall accidents
which can result in severe injury. Operation on slopes
requires extra caution. If you feel uneasy on a slope, do not
mow it. For your safety, use the slope gauge included as part
of this manual to measure slopes before operating this unit on
a sloped or hilly area. If the slope is greater than 15 degrees,
do not mow it.
Do:
1.
2.
3.
Mow across the face of slopes; never up and down.
Exercise extreme caution when changing direction on
slopes.
Watch for holes, ruts, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles. Remove all objects such as rocks, tree limbs,
etc., which could be tripped over or thrown by the blade.
Always be sure of your footing. A slip and fall can cause
serious personal injury. If you feel you are losing your
balance, release the blade/motor control handle
immediately, and the blade will stop rotating within 3
seconds.
DoNot:
1. Do not mow near drop-offs, ditches or embankments,
you could lose your footing or balance.
2. Do not mow slopes greater than 15 degrees as shown on
the slope gauge.
3. Do not mow on wet grass. Unstable footing could cause
slipping.
Children
1. Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the mower and the mowing activity. They do not
understand the dangers. Never assume that children will
remain where you last saw them.
• Keep children out of the mowing area and under the
watchful care of a responsible adult other than the
operator.
• Be alert and turn mower off if a child enters the area.
• Before and while moving backwards, look behind and
down for small children.
• Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may
obscure your vision of a child who may run into the
mower.
2. Never allow children under 14 years old to operate a
power mower. Children 14 years old and over should
read and understand the operation instructions and
safety rules in this manual and should be trained and
supervised by a parent.
Service
1. When servicing use only identical replacement parts
listed in this manual. "Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!"
2. Before cleaning, repairing, or inspecting, make certain
the blade and all moving parts have stopped. Disconnect
the power cord when not in use to prevent unintended
starting.
3. Follow instructions for lubricating and changing
accessories.
4. Inspect lawn mower cord and extension cords
periodically and replace immediately, if damaged. Lawn
mower cord should be repaired by an authorized service
facility only.
5. Keep handles dry, clean and free from oil and grease.
6. To reduce a fire hazard, keep the motor free of grass,
leaves and debris build-up.
7. Check the blade and motor mounting bolts at frequent
intervals for proper tightness. Also, visually inspect blade
for damage (e.g., bent, cracked, and worn) Replace
blade with the original equipment manufacturer's (OEM)
blade only, listed in this manual.
8. Maintain your mower with care- Keep mower blade
sharp and clean for best and safest performance. Mower
blades are sharp and can cut, wrap the blade or wear
gloves and use extra caution when servicing them.
9. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.
10. Never tamper with safety devices. Check their proper
operation regularly.
11. After striking a foreign object, stop the motor and
disconnect the power cord. Thoroughly inspect the
mower for any damage. Repair the damage before
operating the mower.
12. Grass catcher components, discharge cover, and trail
shield are subject to wear and damage which could
expose moving parts or allow objects to be thrown. For
safety protection, frequently check components and
replace immediately with original equipment
manufacturer's (OEM) parts only, listed in this manual.
13. When not in use, store lawn mower indoors in a dry area,
locked-up and/or out of the reach of children.
DoubleInsulatedLawnMower
Double insulation is a concept in the safety of electric lawn
mowers, which eliminates the need for the usual three-wire
grounded power cord and grounded power supply system.
Wherever there is electric current in the mower, there are two
complete sets of insulation to protect the user. All exposed
metal parts are isolated from the internal metal motor
components with protecting insulation.
IMPORTANT: Servicing of a lawn mower with double
insulation requires extreme care and knowledge of the
system and should be performed only by a qualified
service technician. For repair service we suggest you
return the lawn mower to your nearest authorized
service dealer. Always use original factory replacement
parts when servicing.
SAVE THESE INSTRUCTIONS!
WARNING: YOUR RESPONSIBILITY
•Restrict the use of this power machine to persons who read, understand, and follow the warnings and
instructions in this manual and on the machine.
USE THIS PAGE AS A GUIDE TO DETERMINE SLOPES WHERE YOU MAY NOT OPERATE SAFELY.
g'
E | .11 SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE
I.IIA POWER POLE
i
-z, I "9
_-_ __
o
WARNING
Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower
could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain
your footing and you could slip, resulting in serious injury.
Operate RIDING mowers up and down slopes, never across the face of slopes.
Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.
¢O

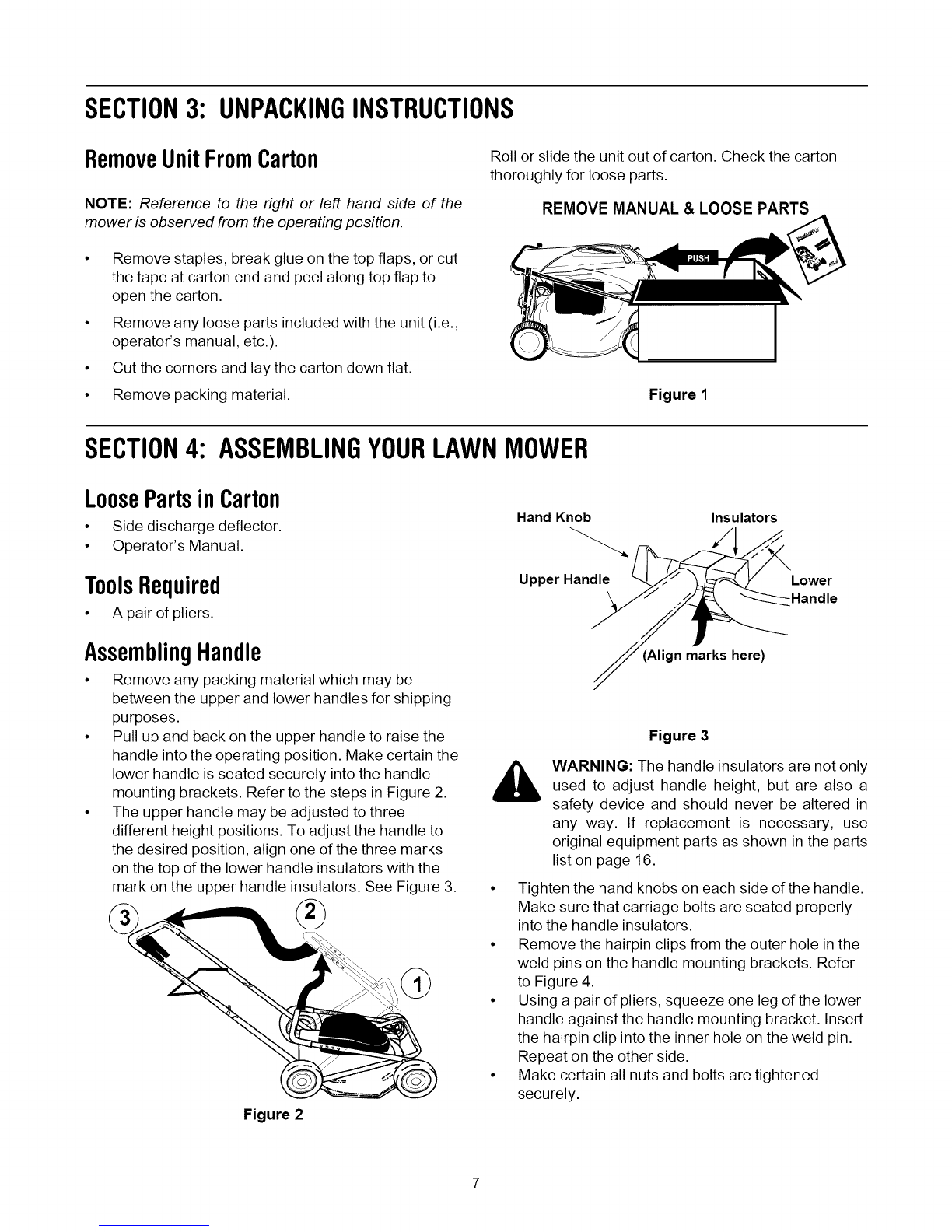

SECTION3: UNPACKINGINSTRUCTIONS
RemoveUnitFromCarton
NOTE: Reference to the right or left hand side of the
mower is observed from the operating position.
Remove staples, break glue on the top flaps, or cut
the tape at carton end and peel along top flap to
open the carton.
Remove any loose parts included with the unit (i.e.,
operator's manual, etc.).
Cut the corners and lay the carton down flat.
Remove packing material.
Roll or slide the unit out of carton. Check the carton
thoroughly for loose parts.
REMOVE MANUAL & LOOSE PARTS
Figure 1
SECTION4: ASSEMBLINGYOURLAWNMOWER
LoosePartsinCarton
•Side discharge deflector.
•Operator's Manual.
ToolsRequired
•A pair of pliers.
AssemblingHandle
•Remove any packing material which may be
between the upper and lower handles for shipping
purposes.
•Pull up and back on the upper handle to raise the
handle into the operating position. Make certain the
lower handle is seated securely into the handle
mounting brackets. Refer to the steps in Figure 2.
•The upper handle may be adjusted to three
different height positions. To adjust the handle to
the desired position, align one of the three marks
on the top of the lower handle insulators with the
mark on the upper handle insulators. See Figure 3.
®
Figure 2
Hand Knob Insulators
Upper Handle
\Lower
(Align marks here)
Figure 3
WARNING: The handle insulators are not only
used to adjust handle height, but are also a
safety device and should never be altered in
any way. If replacement is necessary, use
original equipment parts as shown in the parts
list on page 16.
•Tighten the hand knobs on each side of the handle.
Make sure that carriage bolts are seated properly
into the handle insulators.
•Remove the hairpin clips from the outer hole in the
weld pins on the handle mounting brackets. Refer
to Figure 4.
•Using a pair of pliers, squeeze one leg of the lower
handle against the handle mounting bracket. Insert
the hairpin clip into the inner hole on the weld pin.
Repeat on the other side.
•Make certain all nuts and bolts are tightened
securely.
Inner Hole
Hairpin Clip
%
Outer Hole
Lower Handle
Mounting
Bracket
•Lift the mulching plug.
• Slide the two hooks on the side discharge deflector
under the hinge pin on the mulching plug assembly
as shown in Figure 5.
• Lower the mulching plug. Do not remove the
mulching plug at any time, even when you are not
mulching.
Plug
Figure 4
WARNING: Never operate the mower without the
proper trail shield, mulch plug, side discharge
deflector, motor/blade control or other safety
protective devices in place and working. Never
operate the mower with damaged safety devices.
Failure to do so can result in personal injury.
AttachingTheSideDischargeDeflector
To convert your mower from a mulcher to a side
discharge mower:
Hinge Pin
Hook
(Slide hooks under the
sides of hinge pin)
Figure 5
Side
Discharge
Deflector
SECTION5: KNOWYOURLAWNMOWER
Motor/Blade Control Assembly j Cord Restraint
Handle Insulator
Handle Insulator
Lower Handle
Electric Motor
Side Discharge Deflector
S
Rear Trailing Shield
Mulch Plug
Figure 6
Read this operator's manual and safety rules before
operating your lawn mower. Compare the illustration in
Figure 6 with your lawn mower to familiarize yourself
with the location of various controls and adjustments.
Save this manual for future reference.
Height Adjustment Lever
WARNING: The operation of any lawn mower
can result in foreign objects being thrown into the
eyes, which can damage your eyes severely.
Always wear safety glasses while operating the
mower, or while performing any adjustments or
repairs.

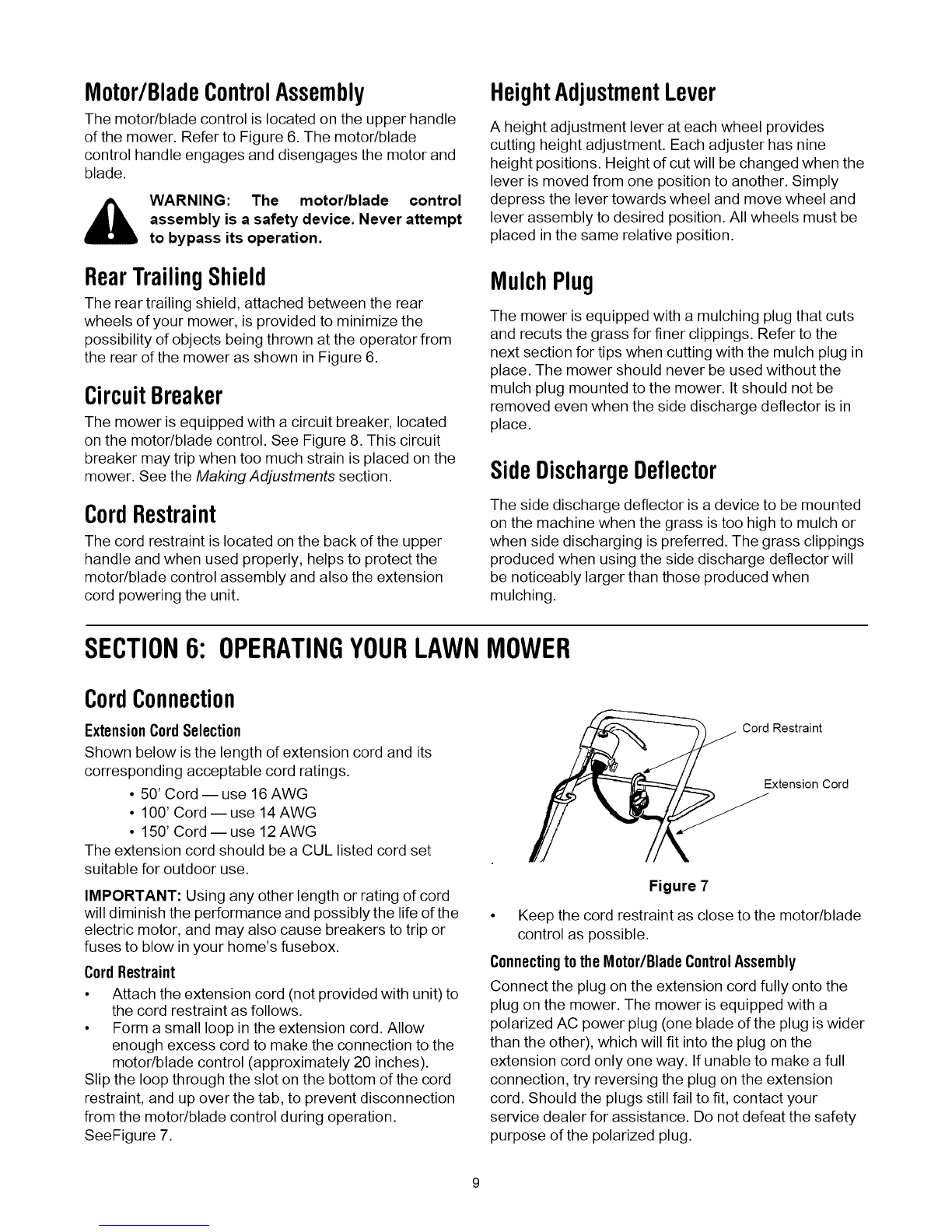

Motor/BladeControlAssembly
The motor/blade control is located on the upper handle
of the mower. Refer to Figure 6. The motor/blade
control handle engages and disengages the motor and
blade.
,_ WARNING: The motor/blade control
assembly is asafety device. Never attempt
to bypass its operation.
RearTrailingShield
The rear trailing shield, attached between the rear
wheels of your mower, is provided to minimize the
possibility of objects being thrown at the operator from
the rear of the mower as shown in Figure 6.
CircuitBreaker
The mower is equipped with a circuit breaker, located
on the motor/blade control. See Figure 8. This circuit
breaker may trip when too much strain is placed on the
mower. See the Making Adjustments section.
CordRestraint
The cord restraint is located on the back of the upper
handle and when used properly, helps to protect the
motor/blade control assembly and also the extension
cord powering the unit.
HeightAdjustmentLever
A height adjustment lever at each wheel provides
cutting height adjustment. Each adjuster has nine
height positions. Height of cut will be changed when the
lever is moved from one position to another. Simply
depress the lever towards wheel and move wheel and
lever assembly to desired position. All wheels must be
placed in the same relative position.
MulchPlug
The mower is equipped with a mulching plug that cuts
and recuts the grass for finer clippings. Refer to the
next section for tips when cutting with the mulch plug in
place. The mower should never be used without the
mulch plug mounted to the mower. It should not be
removed even when the side discharge deflector is in
place.
SideDischargeDeflector
The side discharge deflector is a device to be mounted
on the machine when the grass is too high to mulch or
when side discharging is preferred. The grass clippings
produced when using the side discharge deflector will
be noticeably larger than those produced when
mulching.
SECTION6: OPERATINGYOURLAWNMOWER
CordConnection
ExtensionCordSelection
Shown below isthe length of extension cord and its
corresponding acceptable cord ratings.
• 50' Cord -- use 16 AWG
• 100' Cord -- use 14 AWG
• 150' Cord -- use 12 AWG
The extension cord should be a CUL listed cord set
suitable for outdoor use.
IMPORTANT: Using any other length or rating of cord
will diminish the performance and possibly the life of the
electric motor, and may also cause breakers to trip or
fuses to blow in your home's fusebox.
CordRestraint
• Attach the extension cord (not provided with unit) to
the cord restraint as follows.
• Form a small loop in the extension cord. Allow
enough excess cord to make the connection to the
motor/blade control (approximately 20 inches).
Slip the loop through the slot on the bottom of the cord
restraint, and up over the tab, to prevent disconnection
from the motor/blade control during operation.
SeeFigure 7.
Cord Restraint
Extension Cord
Figure 7
• Keep the cord restraint as close to the motor/blade
control as possible.
Connectingtothe Motor/BladeControlAssembly
Connect the plug on the extension cord fully onto the
plug on the mower. The mower is equipped with a
polarized AC power plug (one blade of the plug is wider
than the other), which will fit into the plug on the
extension cord only one way. If unable to make a full
connection, try reversing the plug on the extension
cord. Should the plugs still fail to fit, contact your
service dealer for assistance. Do not defeat the safety
purpose of the polarized plug.
Connectingtothe ElectricPower Source
WARNING: This mower should be operated on a
15 AMP circuit. If you experience difficulty in
starting with a standard 15 AMP fuse or circuit
breaker, contact you nearest authorized service
facility. Do not use a higher rated fuse or breaker
without consulting your power company.
Plug the extension cord into any convenient 110-120
volt 60 cycle A.C. outlet or receptacle for your source of
power. This outlet may be located either out-of-doors or
indoors. To avoid blowing fuses, pick an outlet that is
not overloaded. Your mower will operate satisfactorily
on a circuit that is fused for 15 amperes. Do not use
oversize fuses without consulting an electrician. If an
inside receptacle is used, the extension cord can be
taken out either through the doorway or a window.
StartingtheMotorandBlade
NOTE: The wheels on your unit are set in a low cutting
height position for shipping purposes. For best results,
raise the cutting position until it is determined which
height is best for your lawn. See cutting height
adjustment in the Making Adjustments section.
Motor/Blade Control Lever Engaged Position
(Blade Turning)
Released Position
(Blade Stopped)
Breaker
Reset Button
AC Plug Upper Handle
Figure 8
To engage the motor and blade, first be certain to follow
the previous steps for connecting a suitable extension
cord, then referring to Figure 8:
• Stand behind the unit and depress the locking
button.
• While holding the locking button down, pull the
blade/motor control lever and hold it against the
upper handle.
• Release the locking button.
T = Obstacles
r
Figure 9
!
Outlet
(Start here)
Stoppingthe MotorandBlade
WARNING: The blade continues to rotate for a
few seconds after the motor is shut off. If motor
does not come to a stop when the motor/blade
control handle is released, contact an authorized
service dealer.
To stop the motor and blade from spinning:
• Release the motor/blade control lever from its
position against the upper handle and the blade
and motor will quickly come to a stop.
NOTE: A high pitched noise may occur as the electric
motor decelerates and some sparking may occur also
at the same time. This is normal behavior when the
motor and blade is disengaged.
MowingYourLawn
NOTE: A sharp blade will greatly increase the
performance of the lawn mower, especially in
conditions of higher grass. Be sure to check the blade
and sharpen it at least once a year as outlined in the
Maintenance section.
• Make sure the lawn is clear of stones, sticks, wires,
or other objects that could damage the lawn mower
or motor. Such objects could be accidentally thrown
by the mower in any direction and cause serious
personal injury to the operator and others.
• To prevent electric shock, do not operate the
mower in damp or wet conditions.
• Always start from the point closest to the power
source where the cord is connected. Never mow
around the lawn in circles; travel back and forth
across the lawn, starting from the point closest to
the outlet and then moving away from the outlet so
the cord lies in the cut portion of the lawn, out of the
way. Refer to Figure 9.
• Do not allow the extension cord to wrap around
trees, shrubs or other obstacles. When picking up
the extension cord, wind the cord in a series of
equal loops on each side of your hand to prevent it
from tangling.
10
