MTD 440 Series User manual

Safety • Assembly • Operation • Tips &Techniques • Maintenance • Troubleshooting • Parts Lists • Warranty
OF AOAL
21" Rotary Mower- Model Series 440 &450
iMPORTANT
READ SAFETY RULES AND iNSTRUCTiONS CAREFULLY BEFORE OPERATION
Warning: Thisunitisequippedwithaninternalcombustionengineandshouldnotbeusedon or nearanyunimprovedforest-covered,brush-
coveredor grass-coveredlandunlesstheengine'sexhaustsystemisequippedwitha sparkarrestermeetingapplicablelocalor statelaws(if any).
If a sparkarresterisused,it shouldbemaintainedineffectiveworkingorderbytheoperator.IntheStateofCaliforniatheaboveisrequiredbylaw
(Section4442oftheCaliforniaPublicResourcesCode).Otherstatesmayhavesimilarlaws.Federallawsapplyonfederallands.A sparkarrester
forthemufflerisavailablethroughyournearestengineauthorizedservicedealeror contacttheservicedepartment,RO.Box361131Cleveland,
Ohio44136-0019.
PRINTEDIN U.S.A. MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 FORMNO.770-10134G
1/17/2005

This Operator's Manual is an important part of your new lawn mower, it will help you assemble,
prepare and maintain the unit for best performance. Please read and understand what it says.
Table of Contents
Slope Gauge ....................................................... 3
Safe Operation Practices ................................... 4
Setup and Adjustment ....................................... 6
Operating Your Lawn Mower .............................. 8
Maintaining Your Lawn Mower ......................... 10
Trouble Shooting .............................................. 12
Off-Season Storage and Safety Labels .......... 13
Parts List ........................................................... 14
Finding and Recording Model Number
BEFOREYOU STARTASSEMBLING
YOURNEW EQUIPMENT,
please locatethe modelplate onthe equipmentand copythe
informationtothe sample modelplate providedtothe right.
Youcan locatethe modelplate by standing at the operating
position and lookingdown atthe rear ofthe deck. This
informationwill be necessaryto use the manufacturer'sweb
site and/or obtain assistancefrom theCustomerSupport
Departmentor an authorizedservice dealer.
Model Number
www.mtdproducts.com
Serial Number
MTD LLC
P.O= BOX 361131
CLEVELAND, OH 44136
330-220-4683
800-800-7310
Customer Support
Please do NOTreturn the unit to the retailer from which it was
purchased, without first contacting Customer Support.
Ifyou have difficultyassemblingthis productor have any
questions regardingthe controls, operationor maintenanceof
this unit,youcanseek help from the experts.Choosefrom the
options below:
1. Visit mtdproducts.com for manyusefulsuggestions.
Click on CustomerSupport buttonand you will get the four
options reproducedin this sampleto the right.Click on the
appropriate buttonand help is immediatelyavailable.
2. Phonea Customer Support Representative
at 1(800)800-7310.
3. The engine manufacturer isresponsiblefor all engine-
relatedissueswith regardsto performance,power-rating,
specifications,warranty and service. Pleasereferto the
engine manufacturer'sOwner's/Operator's Manual,packed
separatelywith your unit, for more information.
Click here to search our knowledge base.
Search by product, keyword, or phrase.
Login to check the status of your questions, modify
your inquiries, or update your personal profile.
Need local assistance? Click here to find authorized
service centers in your area.
Need a manual and/or parts list? Download
literature from recent model years.
2

O
o
1=
o
>:.
(13
O3
(13
(13
O-
O
O
(--
O5
E
O
(13
(13
o3
(13
O-
O
o3
(13
E
(]3
(13
o
(13
C5
('5
O3
O5
(13
t"b
(13
O9
o5
(13
O-
O
O3
-5
O3
O
O
E
Sightandhold this levelwith a verticaltree...
also
I
15°

RNING
This symbol points
i out important safety
instructionswhich, if
notfollowed, could
endangerthe personal
i safetyand/or property
I ofyourself and others.
Readand follow all
instructionsinthis man-
ualbeforeattempting to
operatethis machine.
Failureto complywith
these instructionsmay
i resultin personalinjury.
i When youseethis
_symbol.
HEED ITS WARNING
Your
Responsibility
Restrictthe use
i ofthis powermachine
i to personswho read,
understand
andfollow the warnings
and instructions
inthis manual
andon the machine.
WARNING: EngineExhaust,some of its constituents,andcertain vehiclecompo-
nentscontain or emit chemicals knownto Stateof Californiato cause cancerand
birth defectsor other reproductiveharm.
DANGER: Thismachinewas builtto beoperatedaccordingto the rulesfor safe operationin this
manual.As with anytypeof powerequipment,carelessnessor erroronthe part ofthe operatorcan
result in seriousinjury.This machine iscapable of amputatinghands andfeet andthrowing objects.
Failureto observethe followingsafety instructionscould resultin serious injury or death.
Children
Tragicaccidentscanoccurifoperatorisnotalertto presence
ofchildren.Childrenareoftenattractedtomowerand mowing
activity.Theydonot understandthe dangers.Neverassume
thatchildrenwill remainwhereyoulastsawthem.
1. Keepchildrenoutofthe mowingareaand underwatchful
careofa responsibleadultotherthanthe operator.
2. Bealertandturnmoweroffif achildentersthearea.
3. Beforeand whilemovingbackwards,lookbehindanddown
forsmallchildren.
4. Useextremecarewhenapproachingblindcorners,
doorways,shrubs,trees,or otherobjectsthatmayobscure
yourvisionofachildwhomayrunintothe mower.
5. Keepchildrenawayfromhotor runningengines.Theycan
sufferburnsfroma hotmuffler.
6. Neverallowchildrenunder14yearsoldto operateapower
mower.Children14yearsoldandovershouldreadand
understandoperationinstructionsandsafetyrulesinthis
manualandshouldbetrainedandsupervisedbyaparent.
General Operation
1. Readthis operator'smanual carefullyinits entiretybefore
attemptingtoassemblethismachine.Read,understand,
andfollowall instructionsonthe machineandin the
manual(s) beforeoperation.Becompletelyfamiliarwith
thecontrolsandthe properuseofthis machinebefore
operatingit. Keepthis manualin a safeplaceforfuture
andregularreferenceandfor orderingreplacementparts.
2. Thismachineisaprecisionpieceof powerequipment,
nota plaything.Therefore,exerciseextremecautionat all
times.Yourunithas beendesignedto performonejob: to
mowgrass.Do notuseit for anyotherpurpose.
3. Neverallow childrenunder 14yearsoldto operatethis
machine.Children14yearsoldand overshouldreadand
understandthe instructionsinthis manualandshould
betrainedand supervisedbya parent.Onlyresponsible
individualswhoarefamiliarwiththeserulesofsafe
operationshouldbeallowedto usethismachine.
4. Thoroughlyinspectthe areawherethe equipmentisto
beused.Removeall stones,sticks,wire,bones,toysand
otherforeignobjectswhichcouldbetripped overor picked
upandthrownbythe blade.Thrownobjectscancause
seriouspersonalinjury.Planyourmowingpatternto avoid
dischargeof materialtowardroads,sidewalks,bystanders
andthe like.Also,avoiddischargingmaterialagainsta
wallorobstructionwhichmaycausedischargedmaterial
toricochetbacktowardtheoperator.
5. Tohelpavoidbladecontactorathrownobjectinjury,
stayinoperatorzonebehindhandlesandkeepchildren,
bystanders,helpersandpetsatleast75feetfrom mower
whileit is inoperation.Stopmachineifanyoneenters
area.
6. Alwayswearsafetyglassesor safetygogglesduringopera-
tionandwhile performinganadjustmentor repairtoprotect
youreyes.Thrownobjectswhich ricochetcancauseserious
injurytothe eyes.
7. Wearsturdy,rough-soledworkshoesand close-fitting
slacksandshirts. Shirtsandpantsthatcoverthe armsand
legsandsteel-toedshoesarerecommended.Neveroperate
this machinein barefeet,sandals,slipperyor lightweight
(e.g.canvas)shoes.
8. Do notputhandsorfeet nearrotatingpartsor undercutting
deck.Contactwithbladecanamputatehandsandfeet.
9. Amissingor damageddischargecovercancauseblade
contactor thrownobject injuries.
10.Manyinjuriesoccurasa resultofthe mowerbeingpulled
overthefoot duringa fall causedby slippingor tripping.
Do notholdontothe mowerifyouare falling;releasethe
handleimmediately.
11.Neverpullthe mowerbacktowardyouwhileyouare
walking.If youmust backthe mowerawayfroma wallor
obstructionfirstlookdownand behindtoavoidtrippingand
thenfollowthesesteps:
a. Stepbackfrommowertofully extendyourarms.
b. Besureyouarewellbalancedwithsurefooting.
c. Pullthe mowerbackslowly,no morethanhalfway
towardyou.
d. Repeatthesestepsas needed.
12.Do notoperatethe mowerwhileunderthe influenceof
alcoholordrugs.
13.Do notengage theself-propelledmechanismon unitsso
equippedwhilestartingengine.
14.Thebladecontrolhandleisasafetydevice.Neverattempt
tobypassitsoperation.Doingso makesthe safetydevice
inoperativeandmayresult in personalinjurythrough
contactwiththe rotatingblade.Thebladecontrolhandle
mustoperateeasily in bothdirectionsandautomatically
returntothe disengagedpositionwhenreleased.
15.Neveroperatethe mowerinwetgrass.Alwaysbesureof
yourfooting. A slipand fall cancauseseriouspersonal
injury.If youfeelyouarelosingyourfooting,releasethe
bladecontrolhandleimmediatelyand the bladewillstop
rotatingwithinthreeseconds.
16.Mowonlyin daylightor goodartificiallight.Walk,neverrun.
17.Stopthe bladewhencrossinggraveldrives,walksor roads.
18.If theequipmentshouldstartto vibrateabnormally,stopthe
engineand checkimmediatelyfor the cause.Vibrationis
generallya warningoftrouble.
19.Shutthe engineoff andwait untilthe bladecomesto a
completestop beforeremovingthe grasscatcheror unclog-
gingthechute.
4

The cuttingbladecontinuesto rotatefor a fewsecondsafter
the engineisshutoff. Neverplaceany partofthe bodyin
the bladearea untilyouaresurethe bladehasstopped
rotating.
20. Neveroperatemowerwithoutpropertrail shield,discharge
cover,grass catcher,bladecontrolhandleor othersafety
protectivedevicesin placeand working.Neveroperate
mowerwithdamagedsafetydevices.Failuretodo so,can
resultin personalinjury.
21. Mufflerandenginebecomehotandcan causea burn.Do
nottouch.
22.Only usepartsandaccessoriesmadeforthismachineby
manufacturer.Failuretodo socanresultinpersonalinjury.
23. If situationsoccurwhich arenotcoveredin thismanual,
usecareand goodjudgment.Contactyourdealerfor
assistance.Telephone[phone]for the nameofyour
nearestdealer.

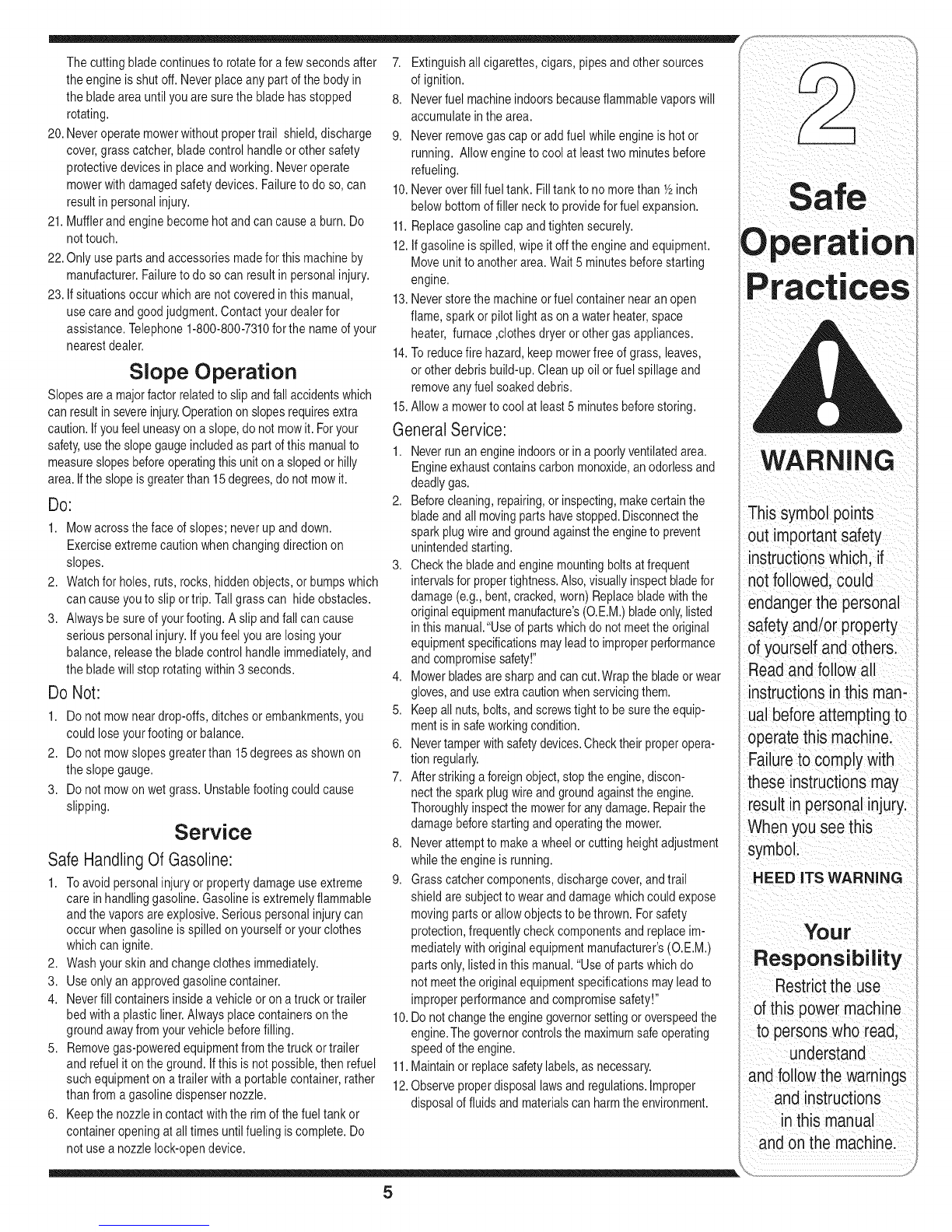

Slope Operation
Slopesareamajorfactorrelatedto slipandfallaccidentswhich
can resultinsevereinjury.Operationonslopesrequiresextra
caution.Ifyoufeeluneasyon a slope,do notmowit.Foryour
safety,usetheslopegaugeincludedaspartofthis manualto
measureslopesbeforeoperatingthisunitonaslopedor hilly
area.Iftheslopeisgreaterthan15degrees,donot mowit.
Do:
1. Mowacrossthe faceofslopes;neverup anddown.
Exerciseextremecautionwhenchangingdirectionon
slopes.
2. Watchfor holes,ruts,rocks, hiddenobjects,or bumpswhich
can causeyouto slipor trip. Tallgrasscan hideobstacles.
3. Alwaysbesure ofyourfooting.A slip andfall cancause
seriouspersonalinjury.Ifyoufeelyouarelosingyour
balance,releasethe bladecontrolhandleimmediately,and
the bladewill stoprotatingwithin3seconds.
Do Not:
1. Donot mowneardrop-offs,ditchesorembankments,you
could loseyourfootingorbalance.
2. Donot mowslopesgreaterthan 15degreesasshownon
the slopegauge.
3. Donot mowon wetgrass.Unstablefootingcouldcause
slipping. Service
Safe HandlingOf Gasoline:
1. To avoidpersonalinjury orpropertydamageuseextreme
care inhandlinggasoline.Gasolineisextremelyflammable
andthevaporsareexplosive.Seriouspersonalinjurycan
occurwhengasolineisspilledonyourselforyourclothes
whichcanignite.
2. Washyourskin andchangeclothesimmediately.
3. Useonlyanapprovedgasolinecontainer.
4. Neverfill containersinsideavehicleoron a truckor trailer
bedwitha plasticliner.Alwaysplacecontainersonthe
groundawayfromyourvehiclebeforefilling.
5. Removegas-poweredequipmentfromthe truck ortrailer
and refuelit onthe ground.Ifthis is notpossible,thenrefuel
suchequipmentonatrailerwitha portablecontainer,rather
thanfroma gasolinedispensernozzle.
6. Keepthe nozzlein contactwiththe rimofthefueltank or
containeropeningat alltimesuntilfuelingis complete.Do
notuseanozzlelock-opendevice.
7. Extinguishallcigarettes,cigars,pipesandothersources
ofignition.
8. Neverfuel machineindoorsbecauseflammablevaporswill
accumulatein thearea.
9. Neverremovegascap oradd fuelwhileengineishot or
running. Allowengineto coolatleasttwo minutesbefore
refueling.
10.Neveroverfillfueltank. Filltankto nomorethanY2inch
belowbottomoffiller neckto provideforfuelexpansion.
11.Replacegasolinecapandtightensecurely.
12.If gasolineis spilled,wipe itoff theengineand equipment.
Moveunittoanotherarea.Wait5minutesbeforestarting
engine.
13.Neverstorethe machineorfuel containernearanopen
flame,sparkor pilotlightasonawaterheater,space
heater,furnace,clothesdryeror othergasappliances.
14.Toreducefire hazard,keepmowerfreeofgrass,leaves,
orother debrisbuild-up.Cleanupoil orfuelspillageand
removeanyfuel soakeddebris.
15.Allowamowertocoolat least5 minutesbeforestoring.
GeneralService:
1. Neverrun anengineindoorsorin a poorlyventilatedarea.
Engineexhaustcontainscarbonmonoxide,anodorlessand
deadlygas.
2. Beforecleaning,repairing,or inspecting,makecertainthe
bladeandall movingpartshavestopped.Disconnectthe
sparkplugwireandgroundagainstthe engineto prevent
unintendedstarting.
3. Checkthe bladeandenginemountingboltsatfrequent
intervalsfor propertightness.Also,visuallyinspectbladefor
damage(e.g.,bent,cracked,worn)Replacebladewiththe
originalequipmentmanufacture's(O.E.M.)bladeonly,listed
inthismanual."Useof partswhichdo notmeetthe original
equipmentspecificationsmayleadto improperperformance
andcompromisesafety!"
4. Mowerbladesaresharpandcancut.Wrapthebladeor wear
gloves,anduseextracautionwhenservicingthem.
5. Keepallnuts,bolts,andscrewstightto besurethe equip-
mentis insafeworkingcondition.
6. Nevertamperwithsafetydevices.Checktheirproperopera-
tionregularly.
7. Afterstrikinga foreignobject,stopthe engine,discon-
nectthesparkplugwireandgroundagainsttheengine.
Thoroughlyinspectthe mowerfor anydamage.Repairthe
damagebeforestartingandoperatingthe mower.
8. Neverattemptto makeawheelor cuttingheightadjustment
whiletheengineis running.
9. Grasscatchercomponents,dischargecover,andtrail
shieldaresubjecttowearanddamagewhichcould expose
movingpartsor allowobjectsto bethrown.Forsafety
protection,frequentlycheckcomponentsandreplaceim-
mediatelywithoriginalequipmentmanufacturer's(O.E.M.)
partsonly,listedinthis manual."Useofpartswhich do
notmeetthe originalequipmentspecificationsmayleadto
improperperformanceandcompromisesafety!"
10.Do notchangetheenginegovernorsettingor overspeedthe
engine.Thegovernorcontrolsthe maximumsafeoperating
speedoftheengine.
11.Maintainor replacesafetylabels,asnecessary.
12.Observeproperdisposallawsandregulations.Improper
disposaloffluidsand materialscanharmtheenvironment.
5
Practices
WARNING
This symbol points
out importantsafety
instructionswhich, if
notfollowed,could
endangerthe personal
safety and/or property
of yourselfand others.
Readand followall
instructions inthis man-
ual beforeattemptingto
operatethis machine.
Failuretocomply with
these instructionsmay
result in personalinjury.
Whenyou see this
symbol.
HEED iTS WARNING
Your
Responsibility
Restrictthe use
ofthis powermachine
to personswho read,
understand
and follow the warnings
and instructions
inthis manual
and onthe machine.

NOTE:Standbehind
themowerasifyou
weregoingtooperate
it.Yourrighthandcor-
respondstotheright
sideofthemower;your
lefthandcorresponds
totheleftsideofthe
mower.
NOTE:Yourmower
i isshippedwiththe
handleinthehigher
I heightposition.
NOTE:Eachendof
thelowerhandlemust
beplacedinthesame
i relativeposition.
IMPORTANT
DO NOTcrimp the
I cables when lifting the
handleup.
I IMPORTANT
Thisunit isshipped
i without gasolineor
::oil inthe engine. Fill
up gasolineand oil
as instructedin the
accompanyingengine
manual BEFORE
operatingyour mower.

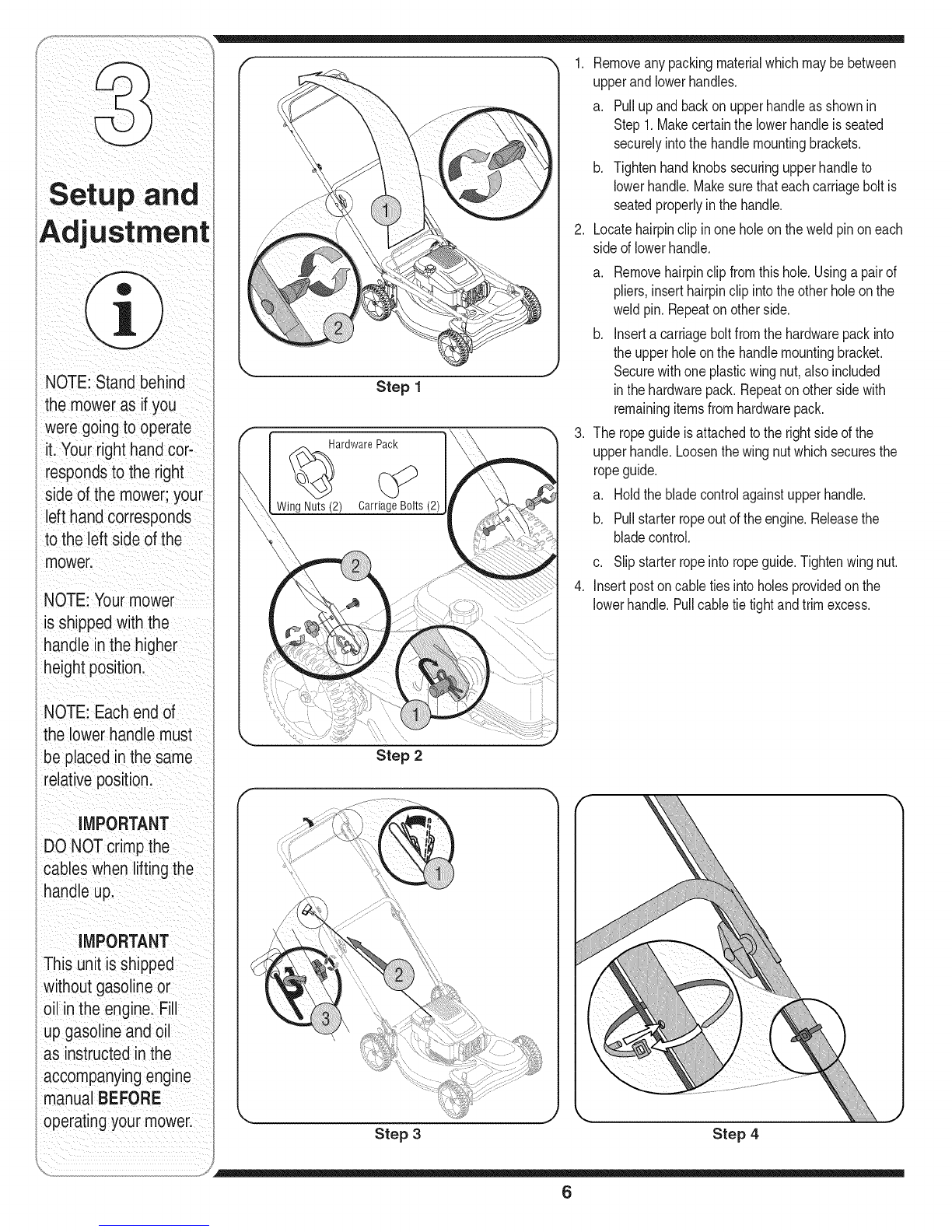

Step 1
HardwarePack
CarriageBolts (2)
1. Removeanypackingmaterialwhichmaybebetween
upperandlowerhandles.
a. Pullupand backon upperhandleasshownin
Step1.Makecertainthe lowerhandleis seated
securelyintothehandlemountingbrackets.
b. Tightenhandknobssecuringupperhandleto
lowerhandle.Makesurethateachcarriageboltis
seatedproperlyin thehandle.
2. Locatehairpinclipinone holeon theweldpinon each
sideof lowerhandle.
.
a. Removehairpinclipfromthis hole.Usinga pairof
pliers,inserthairpinclipintotheotherholeon the
weldpin.Repeaton otherside.
b. Inserta carriageboltfromthehardwarepackinto
theupperholeonthehandlemountingbracket.
Securewithone plasticwingnut,alsoincluded
inthehardwarepack.Repeatonothersidewith
remainingitemsfromhardwarepack.
Theropeguideisattachedtotherightsideofthe
upperhandle.Loosenthewingnutwhichsecuresthe
ropeguide.
a. Holdthebladecontrolagainstupperhandle.
b. Pullstarterropeoutoftheengine.Releasethe
bladecontrol.
c. Slipstarterropeintoropeguide.Tightenwingnut.
4. Insertpostoncabletiesintoholesprovidedon the
lowerhandle.Pullcabletietightandtrimexcess.
Step 2
Step 3Step 4
6

5. An adjustingplateandthumbleverateachwheel
positionprovidescuttingheightadjustment.
a. Depresslevertowardswheel.
b. Moveittoanyof theninepositionsfordesired
cuttingheight.SeeStep5.
c. Releaselevertowardsmowerdeck.
6. Followstepsbelowtoassemblethegrasscatcher:
a. Placebagoverframesothat itsblackplasticside
is atthebottom.
b. Slip plasticchannelofgrassbagoverhooksonthe
frame.SeeStep6.All theplasticchannelsexcept
centertopof bagattachfromoutsideofbag.
c. Attachcentertopofbagfrominsideofbag.
7. Followstepsbelowtoattachgrasscatcher:
a. Liftreardischargedoor.
b. Placegrasscatcheron thepivotrod.Letgo
ofdischargedoorsothat itrestson thegrass
catcher.SeeStep7.
Toremovegrasscatcherorconverttoa mulcher(if
equipped),lift reardischargedooronthe moweras
showninStep8. Liftgrasscatcherupandoutofthepivot
rod.Releasereardischargedoortoallowittocloserear
openingofmower.
,_ WARNING: Never operate mower
unlessthe hooks on the grass
catcherare firmly seated in the
slots on the handle bracket as-
semblies, and the rear discharge
door rests firmly against top of
the grass catcher.
Step 5
Step 6 J
Step 7
7
uStment
CUTTING HEIGHT
Step5
All wheelsmust be
placedin thesame
relative positionl
GRASSCATCHER
Step8
Makecertain bag is
turned right side out
before assembling
(warninglabelWillbe
onthe outside)i
WARNING
Never operate mower
unlessthe hooks on
the grasscatcher are
firmly seated in the
slots on the handle
bracket assemblies,
and the rear dis-
charge door rests
firmly against top of
the grasscatcher.

WARNING
The blade control
mechanism is a
safety device. Never
attempt to bypass its
operations.
IUseextreme care
when handling
gasoline.Gasoline is
extremely flammable
and the vapors are
explosive. Never fuel
the machine indoors
or while the engine
is hot or running.
Extinguish cigarettes,
cigars, pipes and
other sources of
ignition.
Keep hands and feet
away from the chute
area on cutting deck.
Referto warning
label onthe unit.

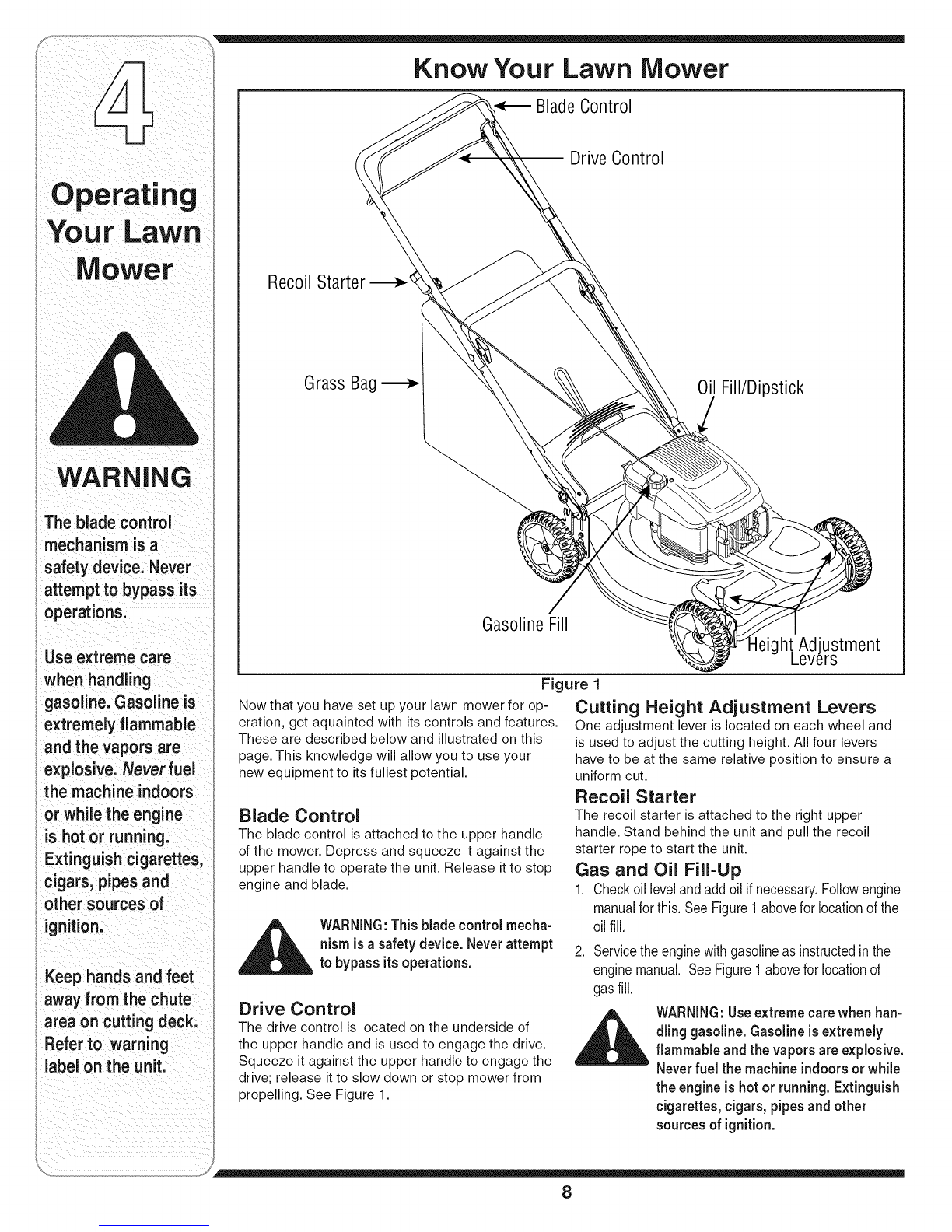

Know Your Lawn Mower
Blade Control
Drive Control
Recoil Starter -_
Grass Bag -_ Oil Fill/Dipstick
Gasoline Fill tLAdjustment
evers
Figure 1
Now that you have set up your lawn mower for op-
eration, get aquainted with its controls and features.
These are described below and illustrated on this
page. This knowledge will allow you to use your
new equipment to its fullest potential.
Blade Control
The blade control is attached to the upper handle
of the mower. Depress and squeeze it against the
upper handle to operate the unit. Release it to stop
engine and blade.
_ WARNING:Thisbladecontrolmecha-
nism isasafetydevice. Neverattempt
to bypass itsoperations.
Drive Control
The drive control is located on the underside of
the upper handle and is used to engage the drive.
Squeeze it against the upper handle to engage the
drive; release it to slow down or stop mower from
propelling. See Figure 1.
Cutting Height Adjustment Levers
One adjustment lever is located on each wheel and
is used to adjust the cutting height. All four levers
have to be at the same relative position to ensure a
uniform cut.
Recoil Starter
The recoil starter is attached to the right upper
handle. Stand behind the unit and pull the recoil
starter rope to start the unit.
Gas and Oil Fill-Up
1. Check oil level and add oil if necessary. Follow engine
manual for this. See Figure 1above for location of the
oil fill.
2. Servicetheenginewithgasolineasinstructedinthe
enginemanual. SeeFigure1aboveforlocationof
gasfill.
_ARNING:Useextremecarewhen han-
dling gasoline.Gasolineisextremely
flammableand the vapors areexplosive.
Neverfuel the machine indoorsor while
the engine ishot or running. Extinguish
cigarettes, cigars, pipesand other
sources of ignition.
8

WARNING:The operationof any lawn
mowercan result inforeignobjects
being thrownintothe eyes,whichcan
damageyoureyesseverely.Always
wearsafetyglasseswhileoperating
the mower,or whileperforming any
adjustmentsor repairson it.
Starting Engine
WARNING:Besureno one otherthan
theoperatorisstandingnearthe lawn
mowerwhilestartingengine or operat-
ingmower.Neverrun engine indoors
or in enclosed, poorly ventilated areas.
Engine exhaustcontains carbon monox-
ide,an odorless and deadly gas. Keep
hands,feet,hairand loose clothing
awayfrom any moving partson engine
and lawnmower.
1. Pushprimerthreetimes.Waitabouttwoseconds
betweeneachpush.SeeFigure2. Intemperature
around550For below,primefive times.Donotprime
to restarta warmengine.
2. Standingbehindthe mower,squeezethebladecontrol
againstupperhandle.SeeFigure2.
3. Holdingthesetwo handlestogetherfirmly,grasprecoil
starterhandleand pullropeoutwitha rapid,continu-
ous,fullarmstroke.SeeFigure2.Keepinga firm
grip onthestarterhandle,lettheroperewindslowly.
Repeatuntilenginecranks.Letthe roperewindeach
timeslowly.
Stopping Engine
1. Releasebladecontroltostoptheengineand blade.
2. Disconnectsparkplugwirefromsparkplugand
groundagainsttheengine.
__lk ARNING:Waitfor the blade to stop
completelybeforedoing anywork
on the mower or to removethegrass
catcher.
UsingYour Lawn Mower
,__lh WARNING:Neveroperateyour mower
without eitherthe rear door or the entire
grass catcher assembly firmly secured.
Besurelawnisclearof stones,sticks,wire,or other
objectswhichcoulddamagelawnmowerorengine.
Suchobjectscouldbe accidentlythrownbythemower
in anydirectionandcauseseriouspersonalinjurytothe
operatorandothers.
Figure 2
_klL ARNING:if you strikeaforeign
object,stopthe engine.Remove
wire from thespark plug,thoroughly
inspectmowerfor anydamage,and
repairdamagebeforerestarting and
operating. Extensive vibration of
mower during operation isan indica-
tion of damage.The unit should be
promptlyinspectedand repaired.
1. Oncetheengineis running,squeezethedrive
controlagainsttheupperhandleto propelmower.
2. Forbest results,do notcut wetgrass.
3. Fora healthierlawn,nevercut offmorethanone-
thirdofthetotallengthofthegrass.
Using as Mulcher (if Equipped)
Formulchinggrass,removethegrasscatcherfromthe
mower.Thereardischargedoorshouldbeclosed.
1. Foreffectivemulching,do notcut wetgrass.
2. Newor thickgrassmayrequirea narrowercut.
Adjustgroundspeedaccordingtoconditionoflawn.
3. ifthegrasshasbeenallowedto growinexcessof
4inches,mulchingisnotrecommended.Usethe
grasscatchertobagclippingsinstead.
Using Grass Catcher
Youcanusethegrasscatchertocollectclippingswhile
youareoperatingthemower.
1. Attachgrasscatcherfollowinginstructionson page
7.Grassclippingswillautomaticallycollectinbagas
yourunmower.Operatemowertillgrassbagisfull.
2. Stopenginecompletelybyreleasingtheblade
controlhandle.Makesurethattheunithascometo
a completestop.
3. Liftdischargedoorandpullgrassbagup andaway
fromthe mowertodisposeofthegrassclippings.
Mower
WARNING
The operation of any
lawn mower can result
inforeign objects
being thrown into
the eyes, whichcan
damage your eyes
severely. Always wear
safety glasseswhile
operating the mower,
or while performing
any adjustments or
repairs on it.
Be sureno one other
than the operator is
standing near the lawn
mower while starting
engine or operating
mower. Never run
engine indoorsor
n enclosed, poorly
ventilated areas. En-
gineexhaust contains
carbon monoxide, an
odorless and deadly
gas. Keep hands,feet,
hair and loose clothing
away from any moving
partson engine and
lawn mower.
9

Maintaining
WARNING
A vaysstope,g ne;
disconnect spark
pluglandground
againstenginebefore
cleaning,lubricating
ordoinganyk ndof
maintenanceonV0ur
machine!
I
We do notrecommend
the used pressure
washers or garden
hoseto cleanyour
uniL These maycause
damage to electric
componentsspindles
pu eys;bear ngs, or
the engine. The use
of waterwill result in
shortened lifeand
i reduceserViceabilityl
\ Lubricate these
\\ points before
.....
J
Figure 3
Figure 4
Lubrication
1. Lubricatepivotpointson thebladecontrolhandleat
leastoncea seasonwith lightoil.Thebladecontrol
mustoperatefreelyinbothdirections.SeeFigure3.
2. Lubricatethewheelsatleastoncea seasonwith
lightoil (ormotoroil). If wheelsareremovedforany
reason,lubricatesurfaceofthepivotarmandinner
surfaceof thewheelwithlightoil.SeeFigure3.
3. Lubricatethetorsionspringandpivotpointontherear
dischargedoorperiodicallywithlightoil toprevent
rust.See Figure3.
4. Thetransmissionispre-lubricatedandsealedatthe
factoryanddoesnotrequirelubrication.
5. Followtheaccompanyingenginemanualforlubrica-
tionscheduleandinstructionforenginelubrication.
Deck Care
1. Disconnectsparkplugwire.Draingasolinefromlawn
mower,or placea pieceof plasticunderthegascap.
2. Tipmowersothat itrestsonthe housing.Keepthe
sidewiththeaircleanerfacingup.Holdmowerfirmly.
_ARNING:Nevertip the mowermore
than 90 degreesin anydirections and
do not leavethe mower tipped for any
length of time. Oil can drain intothe
upper part of the enginecausing a
starting problem.
General Recommendations
1. Alwaysobservesafetyruleswhenperforming
anymaintenance.
2. Thewarrantyon thislawnmowerdoesnotcover
itemsthathavebeensubjectedtooperatorabuse
ornegligence.Toreceivefullvaluefromwarranty,
operatormustmaintainthelawnmoweras
instructedhere.
3. Changingofengine-governedspeedwillvoid
enginewarranty.
4. Alladjustmentsshouldbecheckedat leastonce
eachseason.
.
aretight.
A
Periodicallycheckallfastenersand makesurethese
WARNING:Alwaysstop engine,
disconnect spark plug, and ground
against engine beforecleaning,
lubricatingor doing any kind of
maintenanceon your machine.
3. Scrapeandcleantheundersideofthedeckwitha
suitabletool.Donotspraywithwater.
4. Putthemowerbackonits wheelsontheground.If
youhadputplasticunderthegascapearlier,make
sureto removeitnow.
Engine Care
1. Maintainoil levelasinstructedin enginemanual.
2. Serviceaircleanerevery25 hoursundernormal
conditions.Cleaneveryfewhoursunderextremely
dustyconditions.Refertoenginemanual.
3. Cleansparkplugand resetthegaponcea season.
Checkenginemanualfor correctplugtype andgap
specifications.
4. Cleanengineregularlywitha clothorbrush.Keepthe
coolingsystem(blowerhousingarea)cleantopermit
properaircirculation.Removeall grass,dirtand
combustibledebrisfrommufflerarea.
Replacing Rear Flap
1. Toremoverearflap,cutoff theflatendofthewirerod
whichsecuresittothedeck.SeeFigure4.
2. Attachthenewflapand newrodtodeck,bendingthe
endsofthenewrodovertosecuretodeck.
10

I
r

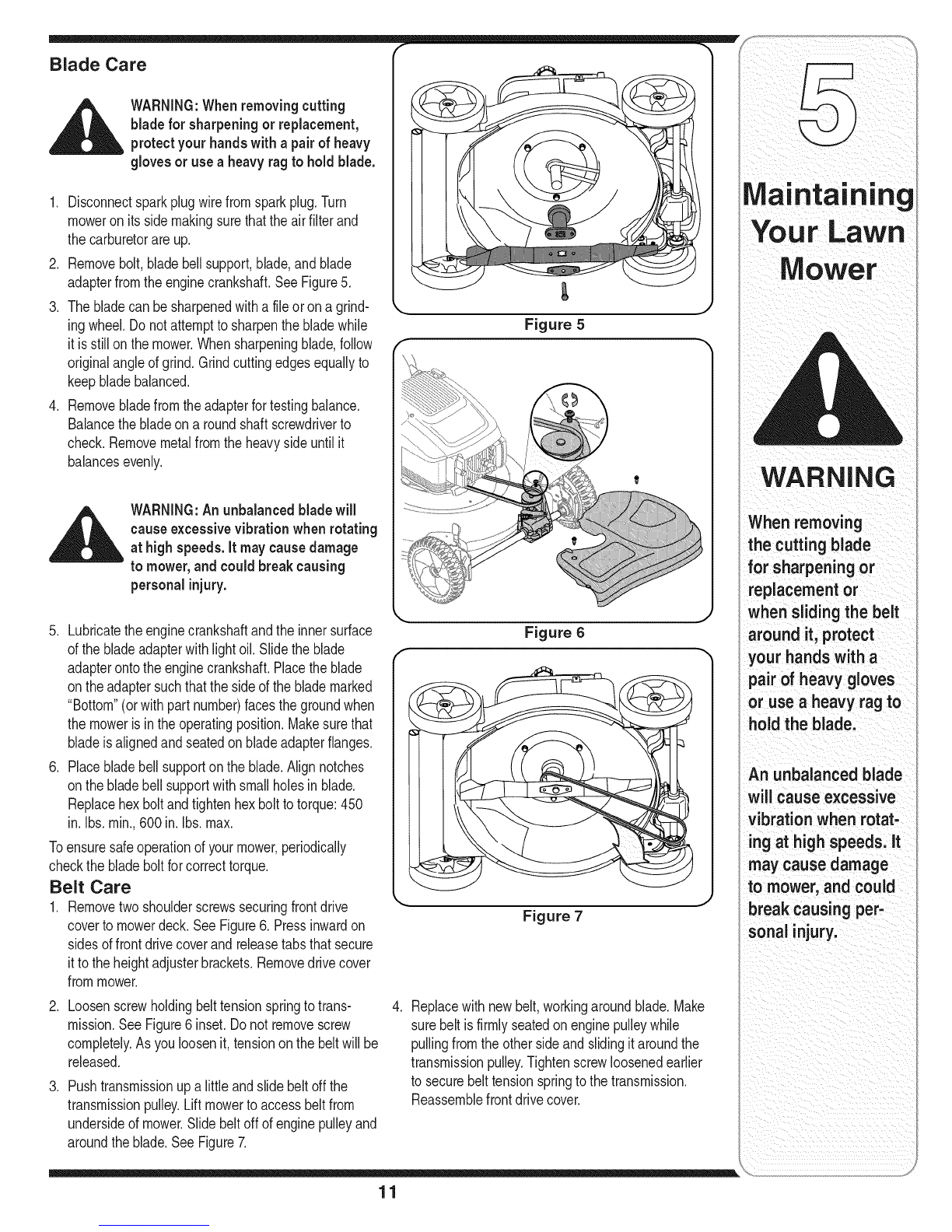

Blade Care
__IL ARNING:Whenremovingcutting
bladefor sharpeningor replacement,
protectyourhandswithapairof heavy
gloves or usea heavy ragto hold blade.
1. Disconnectsparkplugwirefromsparkplug.Turn
moweron itssidemakingsurethattheairfilterand
thecarburetorareup.
2. Removebolt,bladebellsupport,blade,andblade
adapterfromtheenginecrankshaft.SeeFigure5.
3. Thebladecanbe sharpenedwitha fileor on a grind-
ing wheel.Donotattempttosharpenthebladewhile
it isstillon themower.Whensharpeningblade,follow
originalangleofgrind.Grindcuttingedgesequallyto
keepbladebalanced.
4. Removebladefromtheadapterfortestingbalance.
Balancethebladeona roundshaftscrewdriverto
check.Removemetalfromtheheavysideuntilit
balancesevenly.
_ WARNING:Anunbalanced bladewill
causeexcessivevibration whenrotating
athigh speeds, itmay causedamage
to mower,and could breakcausing
personalinjury.
Figure 5
5. Lubricatetheenginecrankshaftandtheinnersurface
ofthebladeadapterwithlightoil.Slidetheblade
adapterontotheenginecrankshaft.Placetheblade
on theadaptersuchthatthesideoftheblademarked
"Bottom"(orwithpartnumber)facesthegroundwhen
themowerisin theoperatingposition.Makesurethat
bladeisalignedandseatedon bladeadapterflanges.
6. Placebladebellsupportonthe blade.Alignnotches
on thebladebell supportwith smallholesin blade.
Replacehexboltandtightenhexboltto torque:450
in.Ibs.rain.,600 in.Ibs.max.
Toensuresafeoperationofyourmower,periodically
checkthebladeboltforcorrecttorque.
Belt Care
1. Removetwoshoulderscrewssecuringfrontdrive
covertomowerdeck.SeeFigure6. Pressinwardon
sidesoffrontdrivecoverand releasetabsthat secure
it totheheightadjusterbrackets.Removedrivecover
frommower.
.Loosenscrewholdingbelttensionspringtotrans-
mission.SeeFigure6 inset.Donotremovescrew
completely.Asyouloosenit, tensiononthebeltwillbe
released.
.Pushtransmissionup a littleandslidebeltoffthe
transmissionpulley.Lift mowertoaccessbeltfrom
undersideofmower.Slidebeltoff ofenginepulleyand
aroundtheblade.SeeFigure7.
Figure 6
Figure 7
4. Replacewith newbelt,workingaroundblade.Make
surebeltisfirmlyseatedonenginepulleywhile
pullingfromtheothersideand slidingitaroundthe
transmissionpulley.Tightenscrewloosenedearlier
tosecurebelttensionspringtothetransmission.
Reassemblefrontdrivecover.
_ _ i i i iii _ _ ii _i ii ii
Maintaining
You r LaWn
MOwer
WARNING
When removing
the cutting blade
for sharpening or
replacement or
when sliding the belt
around it, protect
your hands with a
pair of heavy gloves
or use a heavy rag to
hold the blade.
An unbalanced blade
will cause excessive
vibrationwhen rotat-
ing at high speeds. It
may cause damage
to mower, and could
break causing per-
sonal injury.
11

Shooting
For repairs beyond
thembor
ments listed here,
contact an authorized
service dealer.
i_ii_ii!_iiii_i iii_i_iii!iiii !iii! i_i!
i_i i i ii i i i
_ - _ -]
Problem Cause Remedy
Enginefails to start 1. Bladecontrolhandledisengaged• 1. Engagebladecontrolhandle•
2. Sparkplugwiredisconnected, 2. Connectwireto sparkplug•
3. Fueltankemptyorstalefuel• 3. Fil tankwthclean,freshgasoline•
4. Engne notprimed• 4. Primeengineasinstructedin
"OperatngYourLawnMower"•
5. Faultysparkplug. 5. Cean adjustgap or repace.
6. Bockedfuelline, 6. Cleanfuel ine.
..... 7 Wat afew mnutestorestart but
/ t-ngne Tooaea. 1 do notprime.
Engineruns erratic 1. Sparkplugwireloose. 1. Connectandtightenspark
plugwire.
2. Blockedfuellineor stalefuel. 2. Cleanfuelline;filltankwithclean,
freshgasoline.
3. Ventingascapplugged. 3. Clearvent.
4. Waterordirt infuelsystem. 4. Drainfueltank.Refillwith
freshfuel.
5. Dirtyaircleaner. 5. Refertoenginemanual.
6. Carburetoroutofadjustment. 6. Refertoenginemanual.
Engineoverheats 1. Engineo level low 1. Fillcrankcasewth properoil.
2. Airflow restrcted. 2. Removeblowerhousing
I I andclean.
• 3. Carburetornotadjustedproperly. 3. Referto enginemanual.
Occasionalskips 1. Sparkpluggaptooclose. 1. Adjustgap to.030".
(hesitates)at 2. Carburetoridlemixtureadjustment 2. Refertoenginemanual.
highspeed improperlyset.
des poory 1. Sparkplugfouled faultyorgap 1. Resetgapto .030'or replace
toowide sparkplug.
I 2 Carburetormproperyadjusted I 2 Referto eng ne manua
'3. Dirtyaircleaner. •3. Referto enginemanual.
Excessive 1. Cuttingbladelooseor unbalanced. 1. Tightenbladeandadapter.
Vibration Balanceblade.
2. Bentcuttingblade. 2. Seean authorizedservicedealer.
B
I 1. Wetgrass. I 1. Donotmowwhengrassiswet
Mowerwill not
mulch grass(If wait untillatertocut.
Equpped) 2. Excessivelyhghgrass. 2. thenM°Wmow°nCeagainata hatghdesiredCuttngheightheght,
or makea narrowercuttingpath.
I 3 Dullblade I
•"3. Sharpenor replaceblade.
Unevencut 1. Wheelsnotpositionedcorrectly. 1. Placeall fourwheelsinsame
heightposition.
2. Dullblade. 2. Sharpenor replaceblade.
Mowerwi not 1. Beltnotinstalledpropery. 1. Checkbeltforproperpulleyinstal-
f r aton and movement
se pope I I . . "
2 Stopengine disconnectsparkpluc
2. Debriscloggingdriveoperation. • . .
3, Damagedorwornbelt. I _ ,wireanacleanou,a,eDrl.S.
:_. inspectanareplaceDe I.
12

Off-Season Storage
Thefollowingstepsshouldbetakentoprepareyourlawn
mowerforstorage.
1. Cleanandlubricatemowerthoroughlyasdescribedin
thelubricationinstructions.
2. Wedonotrecommendtheuseofa pressurewasher
or gardenhosetocleanyourunit.
3. Refertoenginemanualforcorrectengine
storageinstructions.
4. Coatmower'scuttingbladewithchassisgreaseto
preventrusting.
5. Storemowerina dry,cleanarea.Donotstorenext
tocorrosivematerials,suchas fertilizer.
Whenstoringanytypeof powerequipmentin a poorly
ventilatedor metalstorageshed,careshouldbetaken
torust-prooftheequipment.Usinga lightoil or silicone,
coattheequipment,especiallycablesandall moving
partsofyourlawnmowerbeforestorage.
Safety Labels Found On Your Lawn Mower
13
_i _i i _iii i__ i iii ii_
DONOT remove safety
(or any) labelsfrom
mower for any reason.

J_
fJ _
14

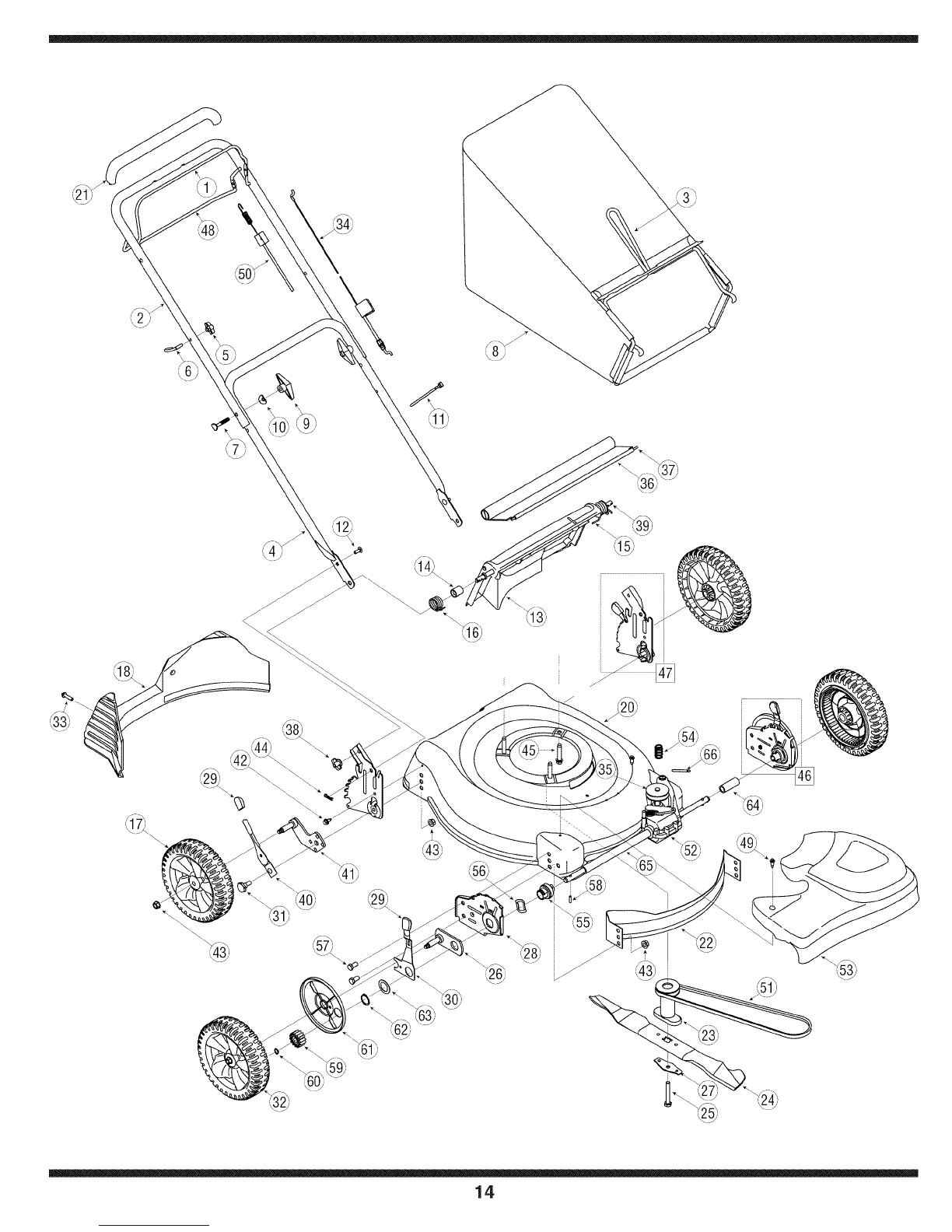

1 747-1161A BladeControl 746-1132 ControlCable- 40.75"
2 749-1092A UpperHandle 746-1114 ControlCable- 50.56"
3 747-04080 GrassCatcherFrame 35 756-04017 inputPulley
4 749-0928A LowerHandle 36 731-04998 Trailshield
5 720-0279 WingNut 37 732-0700 TrailshieldWire
6 710-1205 RopeGuide
7 710-1174 CarriageBolt,5/16-18x 2
8 664-04007 GrassBagAssembly
9 720-0284 HandKnob
10 736-0451 SaddleWasher
11 726-0240 CableTie
12 710-0703 CarriageBolt,I/4-20
13 731-04134A RearDischargeDoor
14 750-04162 Spacer
15 732-04089A TorsionSpring- LH
16 732-04090A TorsionSpring- RH
17:1: RearWheel
18 731-04150 RearBaffle
19 720-0249t Hubcap,ZagTread(NotShown)
731-0981At Hubcap,BarTread(NotShown)
20 787-01277 Deck- 21"
21 731-2626 BailCover
22 782-5002B FrontBaffle
23 748-04015A BladeAdapterw/Pulley
38 712-0397 WingNut,1/4-20
39 747-04035 RearDoorPivotRod
40 732-04175 SpringLever
41 687-02071 PivotArmAssembly-RH
687-02070 PivotArmAssembly-LH
42 710-1652 ABScrew
43 712-0431 FlangeLockNut,3/8-16
44 714-0104 HairpinClip
45 710-0654A TT SemsScrew,3/8-16x 1.00
46 682-0511A Ht.Adj.Assy.Front- LH
682-0512A Ht.Adj.Assy.Front- RH
47 687-02069 RearHandleBracketAssy.-LH
687-02068 RearHandleBracketAssy.-RH
48 747-1214 DriveControl
49 710-1650 ShoulderScrew
50 746-04112A DriveCable
51 754-0637A V-Belt
52 618-0657 TransmissionAssembly
53 731-05132A FrontDriveCover
21"StandardBlade
21"MulchingBlade
HexBolt, 3/8-24x 2.5
PivotPlateAssembly
BladeBellSupport
24 742-0641
742-0741t
25 710-1257
26 687-02044
27 736-0524B
28 782-0512B HeightAdjustmentPlate- RH
782-0511A HeightAdjustmentPlate- LH
29 720-0426 AdjustmentLeverKnob
30 732-0706 FrontLever-RH
732-0707 FrontLever- LH
31 738-04136 ShoulderScrew
32 _ FrontWheel
33 710-04371 Screw,1/4-15x 1.250
FrontDriveCoverw/SirPropLabel
BeltTensionSpring
BearingAssembly
WaveWasher
HexScrew
731-05013
54 732-1043
55 682-0015
56 736-0447
57 710-0216
58 715-0221 DowelPin
59 717-1762 Gear,14T-RH
717-1761 Gear,14T-LH
60 716-0865 SnapRing
61 782-7551A WheelDustCap
62 716-0102 SnapRing
63 736-0474 Washer,1.5"OD
64 750-1166 SleeveSpacer- LH
34 746-1113 ControlCable-37.75"
746-0550 ControlCable- 39"
t Ifequipped
:1:Referto
WheelChart
SleeveSpacer- RH
RollPin
65 750-04178
66 715-04011
WheelChart
PartNo.
734-1987,8 x 1.8
634-0190,8 x 1.8
734-2004A,8x 2.125
734-2042,8x 2.125
Type Tread
Rearw/o bearing Bar
Frontw/o bearing Bar
Rearw/ball bearing Zag
Frontw/o bearing Zag
15
MPORTANT
Fora operWerking
machine;use Factory
Approved Parts:
V-BELTS areSpecially
designed to engage
and disengagesafelyl
A substitute (nOnOEM)
ViBelt canbe dangeri
ousby not disengaging
€omp etelyl
To order replacement
parts, contact 1-800-
800-7310 or visit www.
mtdproducts.com.

MANUFACTURER'S LiMiTED WARRANTY FOR
ThelimitedwarrantysetforthbelowisgivenbyMTDLLCwithrespectto
newmerchandisepurchasedandusedin theUnitedStates,itsposses-
sionsandterritories.
"MTD"warrantsthisproductagainstdefectsin materialandworkmanship
fora periodoftwo(2) yearscommencingonthedateoforiginalpurchase
andwill,atits option,repairor replace,freeofcharge,anypartfoundto
bedefectiveinmaterialsor workmanship.Thislimitedwarrantyshallonly
applyifthis producthasbeenoperatedandmaintainedinaccordance
withtheOperator'sManualfurnishedwiththeproduct,andhasnotbeen
subjectto misuse,abuse,commercialuse,neglect,accident,improper
maintenance,alteration,vandalism,theft,fire,water,ordamagebecause
ofotherperilor naturaldisaster.Damageresultingfromtheinstallationor
useofanypart,accessoryorattachmentnotapprovedbyMTDforuse
withtheproduct(s)coveredbythis manualwillvoidyourwarrantyasto
anyresultingdamage.
Normalwearpartsarewarrantedto befreefromdefectsinmaterialand
workmanshipfora periodofthirty(30)daysfromthedateof purchase.
Normalwearpartsinclude,butare notlimitedto itemssuchas: batteries,
belts,blades,bladeadapters,grassbags,riderdeckwheels,seats,snow
throwerskidshoes,shaveplates,augerspiralrubberandtires.
HOW TO OBTAINSERVICE: Warrantyservice isavailable,WITH
PROOFOF PURCHASE,throughyour localauthorized service
dealer.Tolocate the dealer in yourarea, check yourYellowPages, or
contact MTD LLCat RO. Box361131,Cleveland,Ohio 44136-0019,or
call 1-800-800-7310or 1-330-220-4683or log on to ourWeb site at
www.mtdproducts.com.
Thislimitedwarrantydoesnot providecoverageinthefollowingcases:
a. Theengineor componentpartsthereof.Theseitemsmaycarrya
separatemanufacturer'swarranty.Refertoapplicablemanufacturer's
warrantyfortermsandconditions.
b. Logsplitterpumps,valves,andcylindershavea separateoneyear
warranty.
c. Routinemaintenanceitemssuchaslubricants,filters,blade
sharpening,tune-ups,brakeadjustments,clutchadjustments,deck
adjustments,andnormaldeteriorationoftheexteriorfinishduetouse
orexposure.
d. Servicecompletedbysomeoneotherthananauthorizedservice
dealer.
e. MTDdoesnotextendanywarrantyforproductssoldor exported
outsideofthe UnitedStates,itspossessionsandterritories,except
thosesoldthroughMTD'sauthorizedchannelsofexportdistribution.
f. ReplacementpartsthatarenotgenuineMTDparts.
g. Transportationchargesand servicecalls.
No impliedwarranty,includinganyimpliedwarranty of merchant-
ability of fitness for a particularpurpose,applies after the applicable
periodof expresswritten warranty aboveas to the partsas identi-
fied. Noother expresswarranty, whether written or oral, exceptas
mentionedabove,givenby anypersonor entity,includingadealer
or retailer,with respect to anyproduct,shallbind MTD.Duringthe
periodof the warranty, the exclusive remedyisrepairor replacement
of the productas set forth above.
Theprovisionsas set forth inthis warranty providethe sole and
exclusive remedyarising from the sale. MTDshall not be liable
for incidentalor consequential loss or damageincluding,without
limitation, expensesincurredfor substitute or replacementlawncare
services or for rentalexpensesto temporarily replacea warranted
product.
Somestatesdo notallowtheexclusionor limitationofincidentalor
consequentialdamages,or limitationson howlonganimpliedwarranty
lasts,sotheaboveexclusionsor limitationsmaynotapplytoyou.
Innoeventshallrecoveryofanykindbegreaterthantheamountofthe
purchasepriceoftheproductsold.Alterationof safetyfeatures of the
productshallvoid this warranty. Youassumetheriskandliabilityfor
loss,damage,or injurytoyouandyourpropertyand/ortoothersandtheir
propertyarisingoutofthemisuseor inabilitytousetheproduct.
Thislimitedwarrantyshallnotextendto anyoneotherthantheoriginal
purchaseror tothepersonforwhomitwaspurchasedasa gift.
HOWSTATELAWRELATESTOTHISWARRANTY: Thislimitedwar-
rantygivesyouspecificlegalrights,andyoumayalsohaveotherrights
whichvaryfromstatetostate.
IMPORTANT:OwnermustpresentOriginalProofofPurchasetoobtain
warrantycoverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone]
