MTD 503 User manual

Operator’s Manual
PRINTED IN U.S.A.
FORM NO.
769-01441
(11/2004)
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
22” Rotary Mower
Model 503
For US Customers: MTD LLC, P.O. BOX 361131, CLEVELAND, OHIO 44136-0019
For Canadian Customers: MTD Products Ltd., P. O. BOX 1386, KITCHENER, ONTARIO N2G 4J1

2
TABLE OF CONTENTS
FINDING MODEL NUMBER
This Operator’s Manual is an important part of your new equipment. It will help you assemble, prepare and maintain the unit for
best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the equipment and copy the
information from it in the space provided below. A sample model plate is also given below. You can locate the model
plate by standing at the operating position and looking down at the rear of the deck . This information will be
necessary to use the manufacturer’s web site and/or help from the Customer Support Department or an authorized
service dealer.
ENGINE INFORMATION
The engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, specifications,
warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual packed separately with your unit for
more information.
CALLING CUSTOMER SUPPORT
Please do NOT return the unit to the retailer from which it was purchased, without first contacting Customer Support.
If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance
of this unit, please call a Customer Support Representative.
For US Customers: 1- (330) 220-4MTD (4683) or 1- (800)-800-7310
For Canadian Customers: 1-800-668-1238
Please have your unit’s model number and serial number ready when you call. See previous section to locate this information.
You will be asked to enter the serial number in order to process your call.
HOW TO OBTAIN SERVICE
Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer. To
locate the dealer in your area;
In the U.S.A.: Check your Yellow Pages, or contact MTD LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or
call 1-800-800-7310 or 1-330-220-4683 or log on to our Web site at www.mtdproducts.com.
In Canada: Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800-668-1238 or log on to our Web
site at www.mtdcanada.com.
Content Page
Customer Support 2
Important Safe Operation Practices 3
Slope Gauge 5
Setting Up 6
Operating Your Lawn Mower 8
Adjustments 10
Maintenance 11
Troubleshooting 13

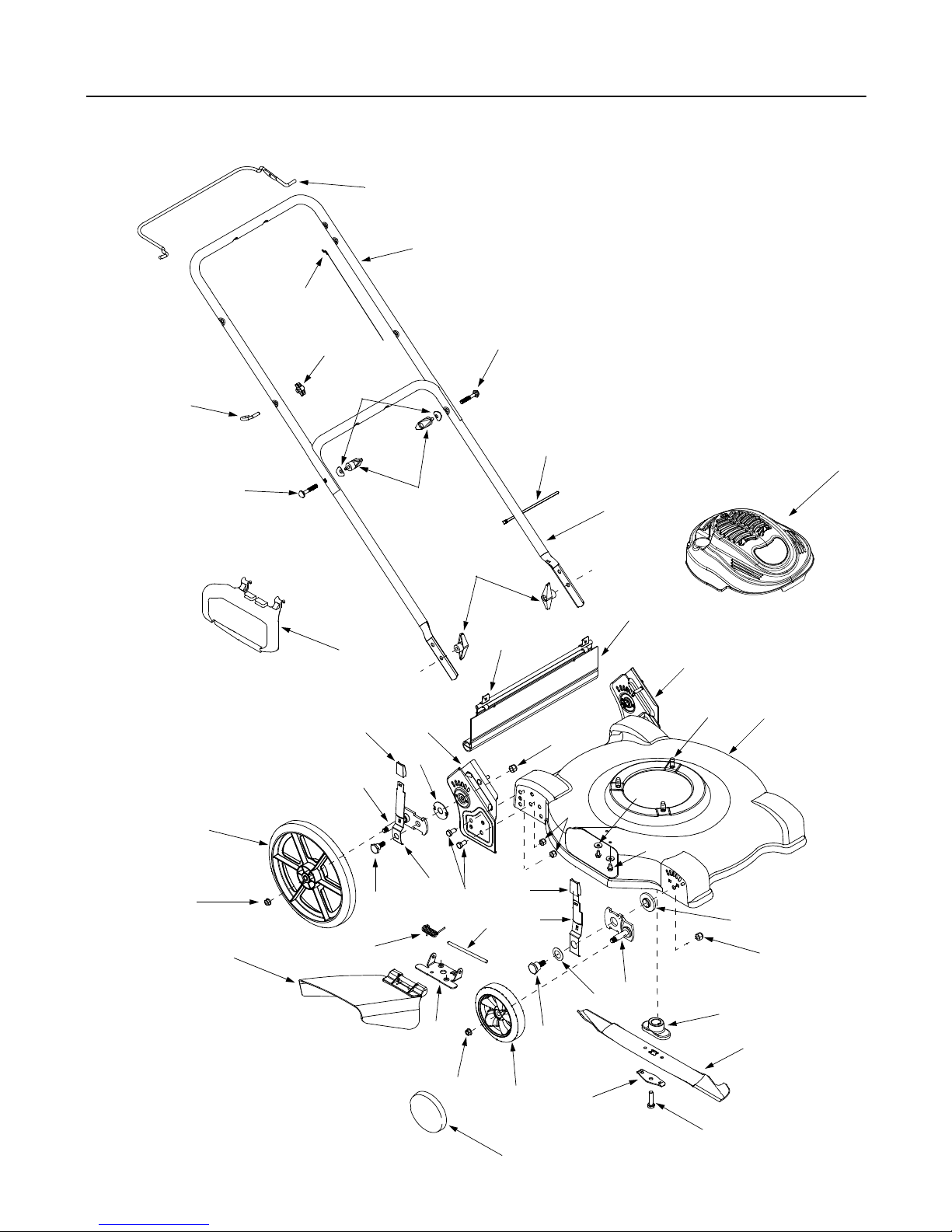

Parts List 14
Warranty 16
Content Page
USA-www.mtdproducts.com 1-800-800-7310
CAN-www.mtdcanada.com 1-800-668-1238
MTD LLC
CLEVELAND, OH 44136
MTD PRODUCTS LIMITED
KITCHENER, ON N2G 4J1
Model Number
Numéro de modèle
XXXXXXXXXXX XXXXXXXXXXX
Serial Number
Numéro de sérier
Copy the model number here:
Copy the serial number here:

3
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
WARNING: This symbol points out important safety instructions which, if not followed, could
endanger the personal safety and/or property of yourself and others. Read and follow all instructions in
this manual before attempting to operate this machine. Failure to comply with these instructions may
result in personal injury. When you see this symbol - heed its warning.
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or
emit chemicals known to State of California to cause cancer and birth defects or other reproductive
harm.
DANGER:This machine was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating hands and feet and throwing objects.
Failure to observe the following safety instructions could result in serious injury or death.
General Operation
1. Read this operator’s manual carefully in its entirety before
attempting to assemble this machine. Read, understand, and
follow all instructions on the machine and in the manual(s)
before operation. Be completely familiar with the controls and
the proper use of this machine before operating it. Keep this
manual in a safe place for future and regular reference and for
ordering replacement parts.
2. This machine is a precision piece of power equipment, not a
plaything. Therefore, exercise extreme caution at all times. Your
unit has been designed to perform one job: to mow grass. Do not
use it for any other purpose.
3. Never allow children under 14 years old to operate this machine.
Children 14 years old and over should read and understand the
instructions in this manual and should be trained and supervised
by a parent. Only responsible individuals who are familiar with
these rules of safe operation should be allowed to use this
machine.
4. Thoroughly inspect the area where the equipment is to be used.
Remove all stones, sticks, wire, bones, toys and other foreign
objects which could be tripped over or picked up and thrown by
the blade. Thrown objects can cause serious personal injury.
Plan your mowing pattern to avoid discharge of material toward
roads, sidewalks, bystanders and the like. Also, avoid
discharging material against a wall or obstruction which may
cause discharged material to ricochet back toward the operator.
5. To help avoid blade contact or a thrown object injury, stay in the
operator zone behind the handles and keep children,
bystanders, helpers and pets at least 75 feet from the mower
while it is in operation. Stop machine if anyone enters the area.
6. Always wear safety glasses or safety goggles during operation
and while performing an adjustment or repair to protect your
eyes. Thrown objects which ricochet can cause serious injury to
the eyes.
7. Wear sturdy, rough-soled work shoes and close-fitting slacks
and shirts. Shirts and pants that cover the arms and legs and
steel-toed shoes are recommended. Never operate this machine
in bare feet, sandals, slippery or light weight (e.g. canvas) shoes.
8. Do not put hands or feet near rotating parts or under the cutting
deck. Contact with the blade can amputate hands and feet.
9. A missing or damaged discharge cover can cause blade contact
or thrown object injuries.
10. Many injuries occur as a result of the mower being pulled over
the foot during a fall caused by slipping or tripping. Do not hold
on to the mower if you are falling; release the handle
immediately.
11. Never pull the mower back toward you while you are walking. If
you must back the mower away from a wall or obstruction first
look down and behind to avoid tripping and then follow these
steps:
a. Step back from the mower to fully extend your arms.
b. Be sure you are well balanced with sure footing.
c. Pull the mower back slowly, no more than half way
toward you.
d. Repeat these steps as needed.
12. Do not operate the mower while under the influence of alcohol
or drugs.
13. Do not engage the self-propelled mechanism on units so
equipped while starting engine.
14. The blade control handle is a safety device. Never attempt to
bypass its operation. Doing so makes the safety device
inoperative and may result in personal injury through contact
with the rotating blade. The blade control handle must operate
easily in both directions and automatically return to the
disengaged position when released.
15. Never operate the mower in wet grass. Always be sure of your
footing. A slip and fall can cause serious personal injury. If you
feel you are losing your footing, release the blade control handle
immediately and the blade will stop rotating within three
seconds.
16. Mow only in daylight or in good artificial light. Walk, never run.
Stop the blade when crossing gravel drives, walks or roads.
17. If the equipment should start to vibrate abnormally, stop the
engine and check immediately for the cause. Vibration is
generally a warning of trouble.
18. Shut the engine off and wait until the blade comes to a complete
stop before removing the grass catcher or unclogging the chute.
The cutting blade continues to rotate for a few seconds after the
engine is shut off. Never place any part of the body in the blade
area until you are sure the blade has stopped rotating.
19. Never operate mower without proper trail shield, discharge
cover, grass catcher, blade control handle or other safety
protective devices in place and working. Never operate mower
with damaged safety devices. Failure to do so, can result in
personal injury.
20. Muffler and engine become hot and can cause a burn. Do not
touch.
21. Only use parts and accessories made for this machine by the
manufacturer. Failure to do so can result in personal injury.
22. If situations occur which are not covered in this manual, use care
and good judgment. Call customer assistance for the name of
your nearest servicing dealer.

4
Slope Operation
Slopes are a major factor related to slip and fall accidents which can
result in severe injury. Operation on slopes requires extra caution. If
you feel uneasy on a slope, do not mow it. For your safety, use the
slope gauge included as part of this manual to measure slopes before
operating this unit on a sloped or hilly area. If the slope is greater than
15 degrees, do not mow it.
Do:
1. Mow across the face of slopes; never up and down. Exercise
extreme caution when changing direction on slopes.
2. Watch for holes, ruts, rocks, hidden objects, or bumps which can
cause you to slip or trip. Tall grass can hide obstacles.
3. Always be sure of your footing. A slip and fall can cause serious
personal injury. If you feel you are losing your balance, release
the blade control handle immediately, and the blade will stop
rotating within 3 seconds.
Do Not:
1. Do not mow near drop-offs, ditches or embankments, you could
lose your footing or balance.
2. Do not mow slopes greater than 15 degrees as shown on the
slope gauge.
3. Do not mow on wet grass. Unstable footing could cause slipping.
Children
Tragic accidents can occur if the operator is not alert to the presence
of children. Children are often attracted to the mower and the mowing
activity. They do not understand the dangers. Never assume that
children will remain where you last saw them.
1. Keep children out of the mowing area and under the watchful
care of a responsible adult other than the operator.
2. Be alert and turn mower off if a child enters the area.
3. Before and while moving backwards, look behind and down for
small children.
4. Use extreme care when approaching blind corners, doorways,
shrubs, trees, or other objects that may obscure your vision of a
child who may run into the mower.
5. Keep children away from hot or running engines. They can suffer
burns from a hot muffler.
6. Never allow children under 14 years old to operate a power
mower. Children 14 years old and over should read and
understand the operation instructions and safety rules in this
manual and should be trained and supervised by a parent.
Service
Safe Handling Of Gasoline:
1. To avoid personal injury or property damage use extreme care in
handling gasoline. Gasoline is extremely flammable and the
vapors are explosive. Serious personal injury can occur when
gasoline is spilled on yourself or your clothes which can ignite.
2. Wash your skin and change clothes immediately.
3. Use only an approved gasoline container.
4. Never fill containers inside a vehicle or on a truck or trailer bed
with a plastic liner. Always place containers on the ground away
from your vehicle before filling.
5. Remove gas-powered equipment from the truck or trailer and
refuel it on the ground. If this is not possible, then refuel such
equipment on a trailer with a portable container, rather than from
a gasoline dispenser nozzle.
6. Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do not
use a nozzle lock-open device.
7. Extinguish all cigarettes, cigars, pipes and other sources of
ignition.
8. Never fuel machine indoors because flammable vapors will
accumulate in the area.
9. Never remove gas cap or add fuel while the engine is hot or
running. Allow engine to cool at least two minutes before
refueling.
10. Never over fill fuel tank. Fill tank to no more than ½ inch below
bottom of filler neck to provide for fuel expansion.
11. Replace gasoline cap and tighten securely.
12. If gasoline is spilled, wipe it off the engine and equipment. Move
unit to another area. Wait 5 minutes before starting the engine.
13. Never store the machine or fuel container near an open flame,
spark or pilot light as on a water heater, space heater, furnace
,clothes dryer or other gas appliances.
14. To reduce fire hazard, keep mower free of grass, leaves, or other
debris build-up. Clean up oil or fuel spillage and remove any fuel
soaked debris.
15. Allow a mower to cool at least 5 minutes before storing.
General Service:
1. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless and
deadly gas.
2. Before cleaning, repairing, or inspecting, make certain the blade
and all moving parts have stopped. Disconnect the spark plug
wire and ground against the engine to prevent unintended
starting.
3. Check the blade and engine mounting bolts at frequent intervals
for proper tightness. Also, visually inspect blade for damage
(e.g., bent, cracked, worn) Replace blade with the original
equipment manufacture’s (O.E.M.) blade only, listed in this
manual. “Use of parts which do not meet the original equipment
specifications may lead to improper performance and
compromise safety!”
4. Mower blades are sharp and can cut. Wrap the blade or wear
gloves, and use extra caution when servicing them.
5. Keep all nuts, bolts, and screws tight to be sure the equipment is
in safe working condition.
6. Never tamper with safety devices. Check their proper operation
regularly.
7. After striking a foreign object, stop the engine, disconnect the
spark plug wire and ground against the engine. Thoroughly
inspect the mower for any damage. Repair the damage before
starting and operating the mower.
8. Never attempt to make a wheel or cutting height adjustment
while the engine is running.
9. Grass catcher components, discharge cover, and trail shield are
subject to wear and damage which could expose moving parts or
allow objects to be thrown. For safety protection, frequently
check components and replace immediately with original
equipment manufacturer’s (O.E.M.) parts only, listed in this
manual. “Use of parts which do not meet the original equipment
specifications may lead to improper performance and
compromise safety!”
10. Do not change the engine governor setting or overspeed the
engine. The governor controls the maximum safe operating
speed of the engine.
11. Maintain or replace safety labels, as necessary.
12. Observe proper disposal laws and regulations. Improper
disposal of fluids and materials can harm the environment.
Your Responsibility
• Restrict the use of this power machine to persons who read,
understand and follow the warnings and instructions in this
manual and on the machine.

5
SECTION 2: SLOPE GAUGE
Use this page as a guide to determine slopes where you may not operate safely. Do not operate your lawn mower
on such slopes.
15°
SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE
A POWER POLE
A CORNER OF A BUILDING
OR A FENCE POST
FOLDONDOTTEDLINE,REPRESENTINGA15°SLOPE
DANGER
Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower could
overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain your footing and you could slip, resulting in serious injury.
Operate RIDING mowers up and down slopes, never across the face of slopes. Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.

6
SECTION 3: SETTING UP
IMPORTANT: This unit is shipped without gasoline
or oil in the engine. Fill up gasoline and oil as
instructed in the accompanying engine manual
before operating your mower.
Spark Plug Wire
1. Disconnect spark plug wire from the spark
plug, and ground it against the engine.
2. If engine is equipped with a rubber boot, attach
rubber boot to a bolt on the engine to ground.
See Figure 1.
Shipping Block
The chute deflector on your mower may be held in
an upright position by a block for shipping
purposes only. This shipping block must be
removed and discarded before the mower is put
into operation. See Figure 2.
1. To remove the shipping block, pull the spring-
loaded chute toward the engine. Remove the
block and carefully lower the chute into
operating position, keeping fingers out of the
way.
Upper & Lower Handles
1. Pull up and back on the upper handle to raise
the handle into the operating position. Make
certain the lower handle is seated securely into
the handle mounting brackets. See Figure 3.
2. Tighten wing nuts A on each side of the
handle. See Figure 4.
NOTE: Your mower is shipped with the handle in
the higher position. If you wish to lower the height
of the handle refer to the Adjustment Section.
3. Tighten wing nuts C and D at the end of the
lower handle to secure the handle to the handle
mounting brackets.
4. Fasten the cable to the left lower handle with
the cable tie. Pull the cable tie tight and trim off
the excess. See Figure 5.
Spark
Plug
Bolt
Spark Plug
Spark Plug
Wire
Wire
Figure 1
Shipping
Figure 2
Block
Figure 3
Lower
Handle
Wing
Nuts C & D
Handle
Bracket
Assembly
Wing
Nuts A
Figure 4

7

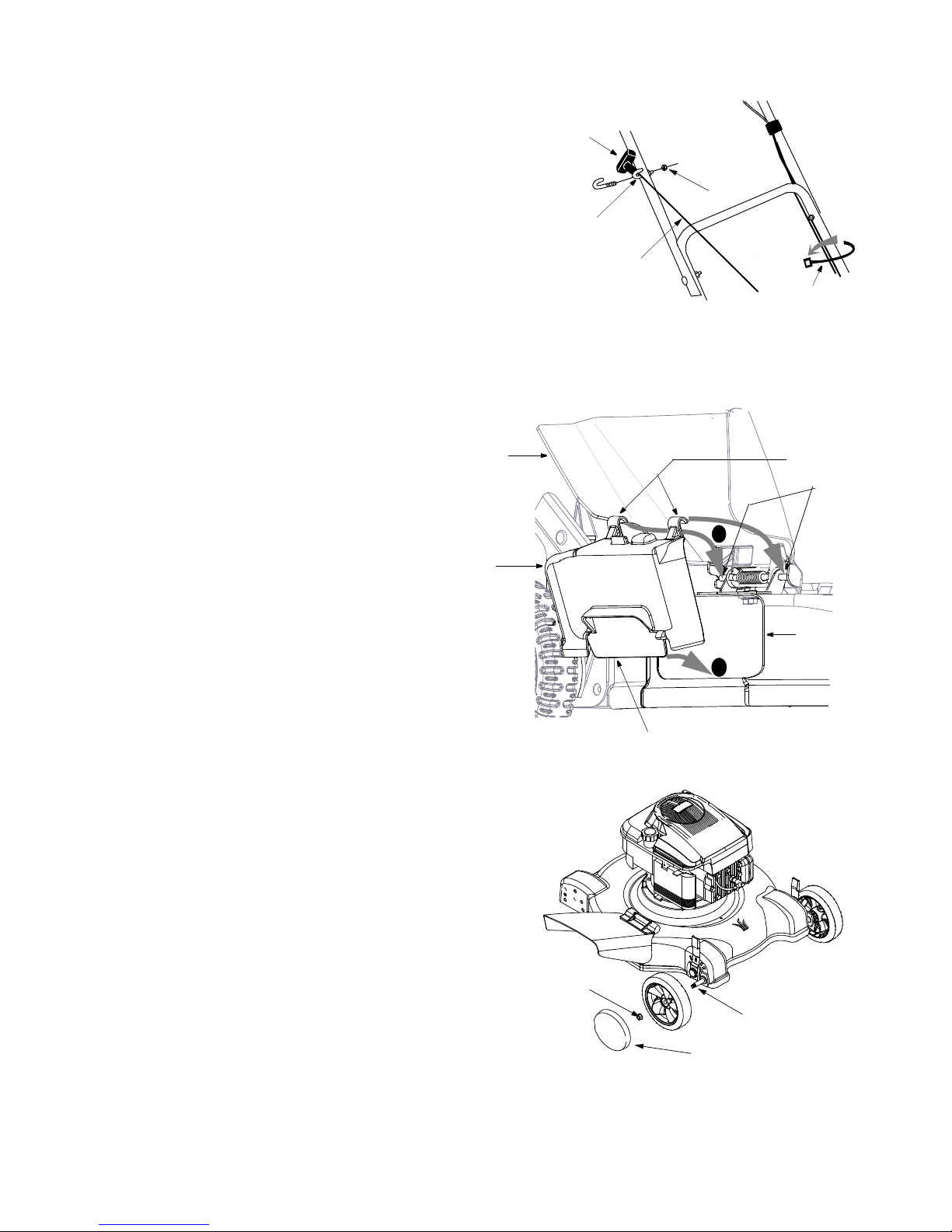

Starter Rope
1. The starter rope is attached to the engine. Additional rope
may be wound around the starter handle. If so, unwind the
rope from the handle.
2. With the spark plug wire disconnected and grounded,
depress the blade control handle and pull the rope out of
the engine.
3. Place the rope guide around the starter handle, so the
opening in the rope guide is toward the front of the mower.
Insert the rope guide into the right side of the handle, and
secure with hex locknut. See Figure 5.
NOTE: If the starter rope becomes disconnected from rope
guide on handle, disconnect and ground the spark plug
wire. Depress the blade control handle and pull the starter
rope out from engine slowly. Slip the starter rope into the rope guide bolt on handle.
Mulching Baffle
If your mower is equipped with a mulching baffle,
install it on the right side of the deck. Follow the
sequence indicated here.
1. Lift up and hold the side-discharge chute
deflector.
2. Insert bottom lip of the mulching baffle inside
the chute opening (marked 1 in Figure 6).
3. Snap hooks of the mulching baffle over the
hinge pin of the chute deflector (marked 2 in
Figure 6). The hooks must snap into place on
the hinge pin, locking the mulching baffle firmly
onto the mower. Release the chute deflector.
NOTE: For proper assembly, install bottom lip
inside chute opening before placing hooks over
the hinge pin.
Installing Front Wheels
• Place the front of the mower deck on raised blocks.
• Remove lock nut from pivot arm assembly, slide wheel
onto pivot arm assembly and secure with lock nut. See
Figure 7.
• Assemble the other side in the same manner.
• If your mower is equipped with hub caps, place hub
caps in position against the inner hub of wheel. Press
firmly around the center portion of the hub cap in a
circular motion. The hub caps are flexible and they will
snap over the wheel hubs.
Figure 5
Cable
Tie
Hex
Lock
Nut
Rope
Guide
Starter
Handle
Starter
Rope
Chute
Deflector
Chute
Lip of Mulching Baffle
Hooks
Mulching
Baffle
(insert inside chute opening)
Opening
Figure 6
1
2
HingePin
Lock Nut
Pivot Arm
Assembly
Hub Cap (If Equipped)
Figure 7

8
IInstalling Rear Wheels
• Place the rear of the mower deck on raised blocks.
• Remove lock nut from pivot arm assembly, slide
wheel, with hollow side in, onto axle and secure with
lock nut. See Figure 8.
• Assemble the other side in the same manner
SECTION 4: OPERATING YOUR LAWN MOWER
Know your lawn mower
Blade Control Handle
The blade control handle is located on the upper handle of
the mower. See Figure 9. The blade control handle must
be depressed in order to operate the unit. Release the
blade control handle to stop the engine and blade.
Cutting Height Adjustment Levers
One adjustment lever is located on each wheel and is used
to adjust the cutting height. All four levers have to be at the
same relative position to ensure uniform cut.
Recoil Starter
The recoil starter is attached to the right upper handle.
Stand behind the unit and pull the recoil starter rope to
start the unit.
Mulching Baffle
The mulching baffle is used to recirculate grass clippings
back to the lawn. Attach it as instructed on page 7 of this
manual.
Before Starting
• Service the engine with gasoline and oil as instructed in the separate engine manual. Read instructions
carefully.
• Attach spark plug wire to spark plug. If unit is equipped with a rubber boot over the end of the spark plug wire,
make certain the metal loop on the end of the spark plug wire (inside the rubber boot) is fastened securely over
the metal tip on the spark plug.
WARNING: This blade control
mechanism is a safety device. Never
attempt to bypass its operation.
WARNING: Use extreme care when handling gasoline. Gasoline is extremely flammable and the vapors
are explosive. Never fuel the machine indoors or while the engine is hot or running. Extinguish cigarettes,
cigars, pipes and other sources of ignition.
Lock
Nut
Figure 8
Blade Control
Handle
Recoil
Starter
Discharge
Chute
Cutting Height
Adjustment
Mulching
Baffle
Lever
Figure 9

9
Starting Engine
• If your unit is equipped with a primer, prime
engine as instructed in the separate engine
manual packed with your unit.
• Standing behind the unit, depress the blade
control handle and hold it against the upper
handle as shown in Figure 10.
• Grasp the recoil starter handle as shown and
pull slowly until resistance is felt, then pull
rapidly to start engine and avoid kickback.
Return it slowly to the rope guide bolt.
NOTE: The blade control handle must be
depressed in order to operate the unit. Release
the blade control handle to stop the engine and
blade.
Stopping Engine
1. Release blade control handle to stop the engine and the blade.
2. Disconnect spark plug wire from spark plug and ground against the engine.
Using Your Lawn Mower
IMPORTANT: Be sure the lawn is clear of stones, sticks, wire, or other objects which could damage the lawn mower
or the engine. Such objects could be accidently thrown by the mower in any direction and cause serious personal
injury to the operator and others.
WARNING: The operation of any lawn mower can result in foreign objects being thrown into the eyes,
which can damage your eyes severely. Always wear safety glasses while operating the mower, or while
performing any adjustments or repairs on it.
WARNING: Be sure no one other than the operator is standing near the lawn mower while starting
engine or operating mower. Never run engine indoors or in enclosed, poorly ventilated areas. Engine
exhaust contains carbon monoxide, an odorless and deadly gas. Keep hands, feet, hair and loose clothing
away from any moving parts on engine and lawn mower.
WARNING: THIS CONTROL MECHANISM IS A SAFETY DEVICE. NEVER ATTEMPT TO BYPASS
ITS OPERATION.
WARNING: If you strike a foreign object, stop the engine. Remove wire from the spark plug, thoroughly
inspect the mower for any damage, and repair the damage before restarting and operating the mower.
Extensive vibration of the mower during operation is an indication of damage. The unit should be promptly
inspected and repaired.
Figure 10
Starter
Handle
Blade Control
Handle

10

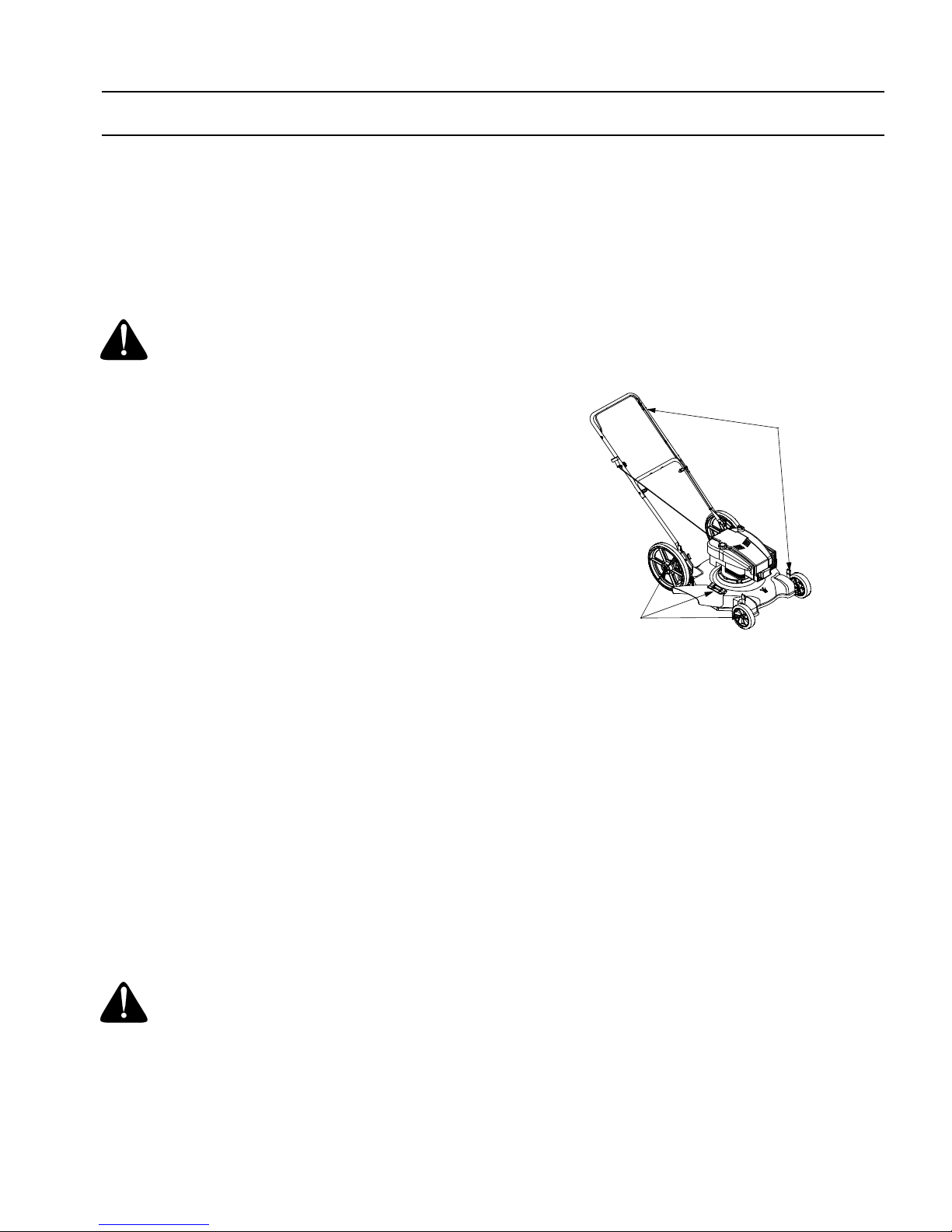

SECTION 5: MAKING ADJUSTMENTS
Cutting Height
Each wheel has a height adjustment lever to
change the cutting height of the mower.
1. To change the height of cut, squeeze adjuster
lever toward the wheel, moving up or down to
selected height.
NOTE: All wheels must be in the same height of
cut.

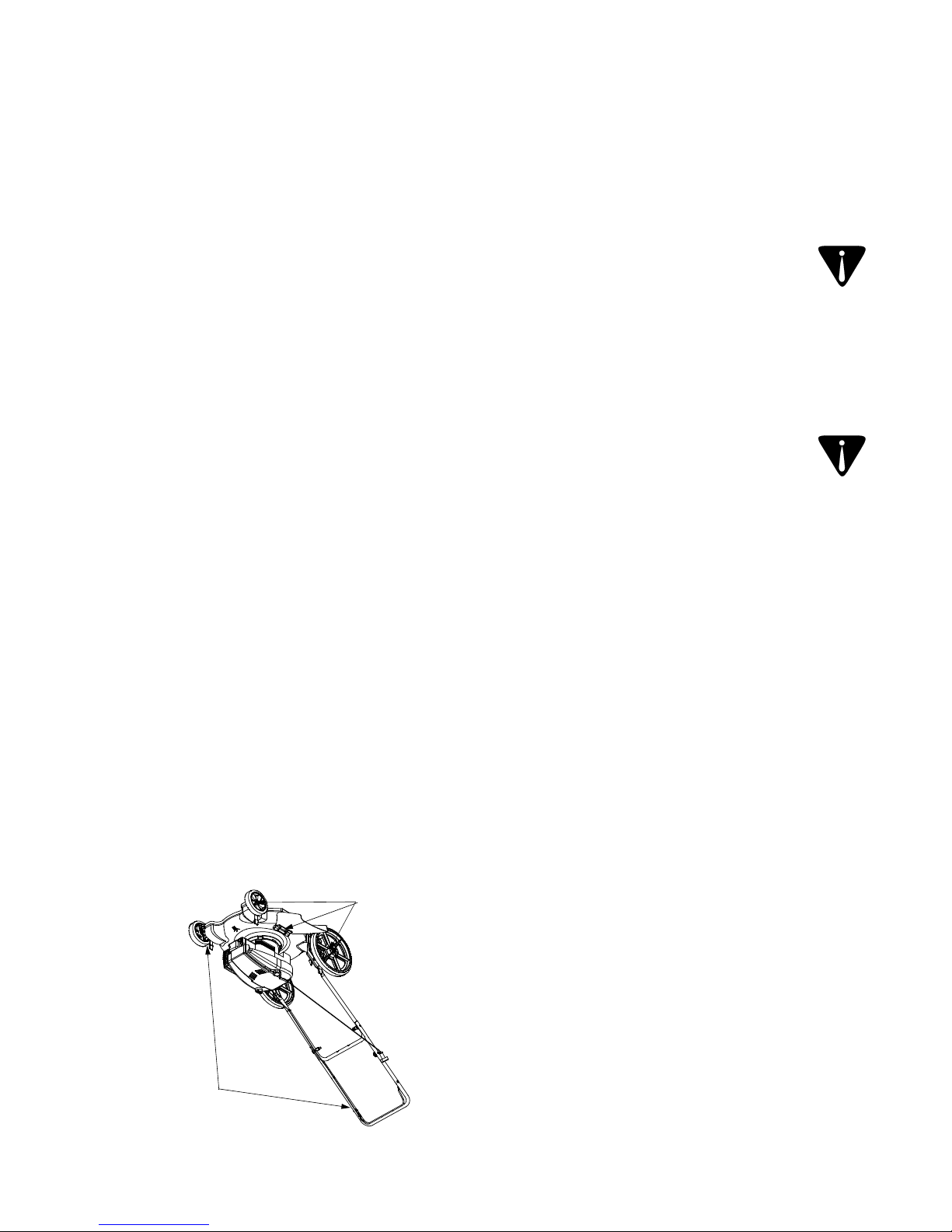

Handle Height
To lower the handle height, proceed as follows:
1. Remove the starter rope from the rope guide.
2. Remove the hardware securing the lower
handle to handle brackets and remove the
lower handle being careful not to bend or kink
the cables.
3. Reassemble placing the top holes in the
handle over the weld pins in the handle
mounting brackets.
4. Secure with hardware previously removed.
5. Reassemble the upper handle to the lower
handle.
6. Attach the starter rope and rope guide as
instructed in the “Set-up” instructions.
7. Remember to attach the spark plug wire after completing the adjustments and before operating your mower.
WARNING: Always stop engine, disconnect spark plug, and ground against engine before performing
adjustments.
Operating Tips
• For best results, do not cut wet grass.
• New grass, thick grass, or wet grass may require a narrower cut.
• For a healthier lawn, never cut off more than one-third of the total length of the grass.
• Your lawn should be cut in the fall as long as there is growth.
• For effective mulching, do not cut wet grass.
• Adjust ground speed according to the condition of the lawn.
• If the grass has been allowed to grow in excess of 4 inches, mulching is not recommended.
Mow using the side discharge to reduce the grass height to 3-1/4 inches or less before
mulching.
Height Adjustment
Lever
Figure 11
Lower
Handle
Wing
Nuts
Handle
Bracket
Assemblies
Figure 12

11
SECTION 6: MAINTAINING YOUR LAWN MOWER
General Recommendations
• Always observe safety rules when performing any maintenance.
• The warranty on this lawn mower does not cover items that have been subjected to operator abuse or
negligence. To receive full value from the warranty, operator must maintain the lawn mower as instructed here.
• Changing of engine-governed speed will void engine warranty.
• All adjustments should be checked at least once each season.
• Periodically check all fasteners and make sure these are tight.
Lubrication
Blade Control Handle
• Lubricate the pivot points on the blade control handle
at least once a season with light oil. The blade control
must operate freely in both directions. See Figure 13.
Wheels
• If your mower is equipped with ball bearing wheels,
lubricate at least once a season with a light oil, all
other types require no lubrication. However, if the
wheels are removed for any reason, lubricate the
surface of the axle bolt and the inner surface of the
wheel with light automotive oil.
Chute Deflector
• Lubricate the torsion spring and pivot point
periodically with light oil to prevent rust. See Figure
13.
Engine
Follow the accompanying engine manual for lubrication schedule and instruction.
Cleaning Mower
• The underside of the mower deck should be cleaned after each use to prevent a buildup of grass clippings,
leaves, dirt or other matter. Follow the steps below for this job.
NOTE: We do not recommend the use of pressure washers or garden hose to clean your unit. These may cause
damage to electric components, spindles, pulleys, bearings, or the engine. The use of water will result in shortened
life and reduce serviceability.
1. Disconnect spark plug wire. Drain gasoline from the lawn mower, or place a piece of plastic under the gas cap.
2. Tip the mower so that it rests on the housing. Keep the side with the air cleaner facing up. Hold the mower firmly.
3. Scrape and clean the underside of the deck with a suitable tool. Do not spray with water.
4. Put the mower back on its wheels on the ground. If you had put plastic under the gas cap earlier, make sure to
remove it now.
WARNING: Always stop engine, disconnect spark plug, and ground against engine before cleaning,
lubricating or doing any kind of maintenance on your machine.
WARNING: Never tip the mower more than 90 degrees in any directions and do not leave the mower
tipped for any length of time. Oil can drain into the upper part of the engine causing a starting problem.
Lubricate
Lubricate
Figure 13

12

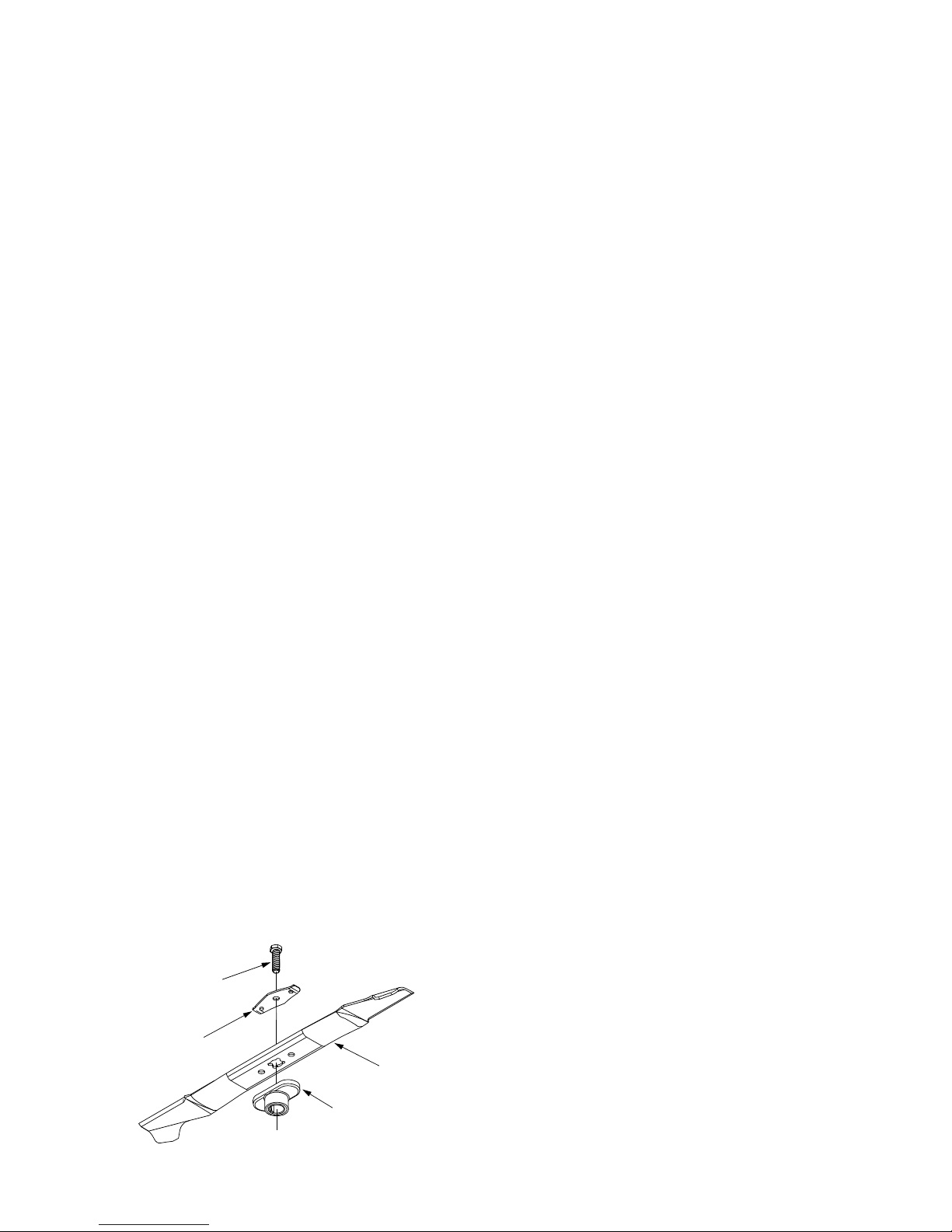

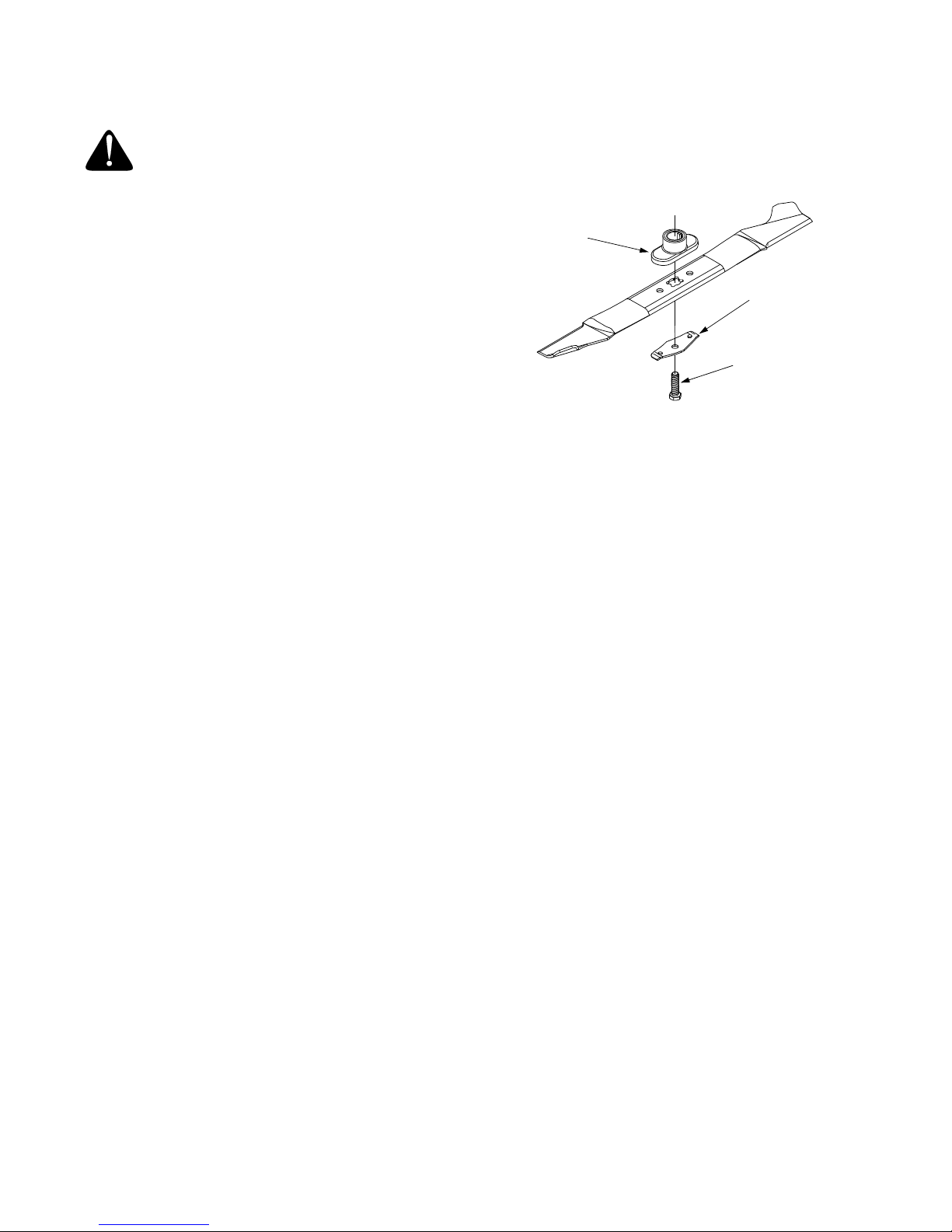

Blade Care and Replacement
Periodically inspect the blade adapter for cracks,
especially if you strike a foreign object. Replace when
necessary. Follow the steps below for blade service:
• Disconnect spark plug wire from spark plug.
• Tip mower as specified in separate engine manual. If it
does not specify turn mower on its side making sure
that the air filter and the carburetor are up.
• Remove the bolt and the blade bell support which hold
the blade and the blade adapter to the engine
crankshaft. See Figure 14.
• Remove blade and adapter from the crankshaft.
• The blade may be resharpened by removing it and
either grinding or filing the cutting edge keeping as
close to the original bevel as possible. Do not attempt
to sharpen the blade while it is still on the mower.
•It is extremely important that each cutting edge receives an equal amount of grinding to prevent an
unbalanced blade.
NOTE: Improper blade balance will result in excessive vibration causing eventual damage to the engine and mower.
Be sure to carefully balance blade after sharpening. Possible damage resulting from blade unbalance condition is
not the responsibility of the manufacturer.
NOTE: Always remove blade from the adapter for testing balance.
• The blade can be tested for balance by balancing it on a round shaft screwdriver. Remove metal from the heavy
side until it balances evenly.
• Before reassembling the blade and the blade adapter to the unit, lubricate the engine crankshaft and the inner
surface of the blade adapter with light oil.
• Install the blade adapter on the crankshaft with the “star” away from the engine. See Figure 14. Place the blade
with the side marked “bottom” (or with part number) facing away from the adapter. Align the blade bell support
over the blade with the tabs in the holes of the blade and insert the hex bolt.
• Tighten the hex bolt to the torque listed below:
Blade Mounting Torque
Center Bolt 450 in. lb. min., 600 in.lb. max.
To insure safe operation of your unit, ALL nuts and bolts must be checked periodically for correct tightness.
NOTE: Cutting grass in sandy soil condition causes abrasive wear to the blade.
Off-Season Storage
The following steps should be taken to prepare your lawn mower for storage.
1. Clean and lubricate mower thoroughly as described in the lubrication instructions.
IMPORTANT: We do not recommend the use of a pressure washer or garden hose to clean your unit.
2. Refer to engine manual for correct engine storage instructions.
3. Coat mower’s cutting blade with chassis grease to prevent rusting.
4. Store mower in a dry, clean area. Do not store next to corrosive materials, such as fertilizer.
NOTE: When storing any type of power equipment in a poorly ventilated or metal storage shed, care should be
taken to rust-proof the equipment. Using a light oil or silicone, coat the equipment, especially cables and all moving
parts of your lawn mower before storage.
WARNING: When removing the cutting blade for sharpening or replacement, protect your hands with a
pair of heavy gloves or use a heavy rag to hold the blade.
Blade
Hex Bolt
Blade Bell
Adapter
Support
Figure 14

13
SECTION 7: TROUBLESHOOTING
NOTE: For repairs beyond the minor adjustments listed above, contact an authorized service dealer.
Problem Cause
Engine fails to start 1. Blade control handle disengaged.
2. Spark plug wire disconnected.
3. Fuel tank empty or stale fuel.
4. Blocked fuel line.
5. Faulty spark plug.
6. Engine flooded
1. Engage blade control handle.
2. Connect wire to spark plug.
3. Fill tank with clean, fresh gasoline.
4. Clean fuel line.
5. Clean, adjust gap, or replace.
6. Wait a few minutes to restart, but do not
prime.
Engine runs erratic 1. Spark plug wire loose.
2. Blocked fuel line or stale fuel.
3. Vent in gas plugged.
4. Water or dirt in fuel system.
5. Dirty air cleaner.
6. Carburetor out of adjustment.
1. Connect and tighten spark plug wire.
2. Clean fuel line; fill tank with clean, fresh
gasoline
3. Clear vent.
4. Drain fuel tank. Refill with fresh fuel.
5. Refer to engine manual.
6. Refer to engine manual.
Engine overheats 1. Engine oil level low.
2. Air flow restricted.
3. Carburetor not adjusted properly.
1. Fill crankcase with proper oil.
2. Remove blower housing and clean.
3. Refer to engine manual.
Occasional skip (hesitates)
at high speed
1. Spark plug gap too close. 1. Adjust gap to .030”.
Idles poorly 1. Spark plug fouled, faulty or gap too
wide.
2. Carburetor improperly adjusted.
3. Dirty air cleaner.
1. Reset gap to .030” or replace spark
plug.
2. Refer to engine manual.
3. Refer to engine manual.
Excessive vibration 1. Cutting blade loose or unbalanced.
2. Bent cutting blade.
1. Tighten blade and adapter. Balance
blade.
2. Replace blade.
Mower will not mulch grass 1. Wet grass.
2. Excessively high grass.
3. Dull blade.
1. Do not mow when grass is wet; wait
until later to cut.
2. Mow once at a high cutting height, then
mow again at desired height or make a
narrower cutting path.
3. Sharpen or replace blade.
Uneven cut 1. Wheels not positioned correctly.
2. Dull blade.
1. Place all four wheels in same height
position.
2. Sharpen or replace blade.

14
SECTION 8: PARTS LIST /LISTE DE PIÈCES
1
2
3
4
5
6
8
9
6
13
14
17
19
20
43
23
24
25
26
29
33
34
35
36
38
39
31
40
42
44
46
18
12
10
15
41
21
27
32
31
22
28
17
17
17
17
11†
49
† If Equipped/Si equipé
7
8

REF PART
NO. NO.
N° DE N° DE
RÉF PIÈCE DESCRIPTION DESCRIPTION
1747-1161A Blade Control Handle Poignée de commande de la lame
2749-1092A Upper Handle Guidon supérieur
3746-0946 Control Cable 48.25" Lg. Câble de la commande 48,25 po de lg.
4710-1205 Rope Guide Bolt Boulon de guidage de cordon
5720-0279 Knob - ERS Guide 1/4-20 Bouton - 1/4-20
6720-0284 Handle Knob Assembly Bouton
7736-0451 Saddle Wash. .320 ID x .937 OD Rondelle selle 0,320 DI x 0,937 DE
8710-1174 Carriage Bolt 5/16-18 x 2.0 Boulon ordinaire 5/16-18 x 2,0
9725-0157 Cable Tie Attache-câble
10 749-04037 Lower Handle Guidon inférieur
11 731-0981A Hub Cap Grey Radial Moyeu de chapeau - gris
12 17098 Hinge Clip Attache
13 731-2537 Trail Shield Abattant de protection arrière
14 682-3062A RH Handle Bracket Assembly Support de montage du guidon CD
15 682-3063A LH Handle Bracket Assembly Support de montage du guidon CG
17 712-0431 Flanged Lock Nut Écrou de blocage
18 710-0654A Hex Wash HD Tap Scr 3/8-16 x .88 Vis autotaraudée 3/8-16 x 0,88
19 687-02048 Deck Assembly 22" (without logo) Plateau de coupe de 22 po (sans logo)
20 736-0270 Cupped Washer .265 ID x .75 OD x .062 Rondelle creuse 0,265 DI x 0,75 DE x 0,062
21 741-0751 Height Adjuster Bearing Roulement
22 687-02094 Pivot Bar Barre de pivot
23 748-0376C Blade Adapter Adaptateur de la lame
24 742-0742A Mulching Blade 22" Lame déchiqueteuse 22 po
25 710-1044 Hex Screw 3/8-24 x 1.5" Lg. (Gr. 8) Vis à tête hex. 3/8-24 x 1,50 po de lg (Qual. 8)
26 736-0524B Blade Bell Support Support de la lame
27 738-1172 Shoulder Screw 3/8-16 Vis à èpaulement 3/8-16
28 736-0741 Cupped Washer .401 ID x .870 OD Rondelle creuse 0,401 DI x 0,870 DE
29 734-1988 Wheel Assembly Complete 7 x 1.8 Ensemble de roue complet 7 x 1,80
31 720-0426 Height Adjuster Knob Bouton
32 732-1026 Spring Lever Levier de ressort
33 747-0710 Hinge Pin Axe de charnière
34 732-1014 Torsion Spring Ressort de torsion
35 17032B Deflector Chute Adapter Adaptateur de déflecteur de la goulotte
36 731-1034B Side Dis. Chute Ass’y Déflecteur lateral complet
38 710-0216 Hex Cap Screw 3/8-16 x .75 Vis à chapeau à six pans de 3/8-16 x 0,75
39 741-0717 Thrust Bearing .688 ID x 1.938 OD Palier de butée 0,688 DI x 1,938 DE
40 687-02080 RH Rear Pivot Arm Assembly Bras de pivot arrière CD
40 687-02079 LH Rear Pivot Arm Assembly Bras de pivot arrière CG
41 732-0984B Rear Spring Lever Levier à ressort arrière
42 738-1127 Shoulder Screw 3/8-16 x .442 Vis à épaulement 3/8-16 x 0,442
43 710-0599 Hex Wash S-Tapp Scr 1/4-20 x .50 Vis autotaraudeuse à rondelle hex. de
1/4-20 x 0,5
44 734-04082 Wheel Assembly 12 x 1.8 Bar Grey Ensemble de roue 12 x 1,80 barre gris
46 631-04045 Mulch Plug Plaque de déchiquetage
49 7511682114 Shroud Capot
11A-500
10.19.04
15

16
MANUFACTURER’S LIMITED WARRANTY FOR:
The limited warranty set forth below is given by MTD LLC with respect to new merchandise purchased and
used in the United States and/or its territories and possessions, and by MTD Products Limited with respect
to new merchandise purchased and used in Canada and/or its territories and possessions (either entity
respectively, “MTD”).
MTD warrants this product (excluding its normal wear parts as described below) against defects in material and workmanship for a period of two
(2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in
materials or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the
Operator’s Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper
maintenance, alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from the installation
or use of any part, accessory or attachment not approved by MTD for use with the product(s) covered by this manual will void your warranty as
to any resulting damage.
Normal wear parts are warranted to be free from defects in material and workmanship for a period of thirty (30) days from the date of purchase.
Normal wear parts include, but are not limited to items such as: batteries, belts, blades, blade adapters, grass bags, rider deck wheels, seats,
snow thrower skid shoes, friction wheels, shave plates, auger spiral rubber and tires.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer. To locate
the dealer in your area;
In the U.S.A.:
Check your Yellow Pages, or contact MTD LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or 1-330-220-4683 or
log on to our Web site at www.mtdproducts.com.
In Canada:
Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800-668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following cases:
a. The engine or component parts thereof. These items may carry a separate manufacturer’s warranty. Refer to applicable
manufacturer’s warranty for terms and conditions.
b. Log splitter pumps, valves, and cylinders have a separate one-year warranty.
c. Routine maintenance items such as lubricants, filters, blade sharpening, tune-ups, brake adjustments, clutch adjustments, deck
adjustments, and normal deterioration of the exterior finish due to use or exposure.
d. Service completed by someone other than an authorized service dealer.
e. MTD does not extend any warranty for products sold or exported outside of the United States and/or Canada, and their respective
possessions and territories, except those sold through MTD’s authorized channels of export distribution.
f. Replacement parts that are not genuine MTD parts.
g. Transportation charges and service calls.
h. If Products are used commercially. (MTD may separately offer Limited Commercial Warranties on certain select products. Ask your
dealer or retailer for details or contact MTD Service for more information.)
No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the applicable
period of express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as
mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product, shall bind MTD. During the
period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. MTD shall not be liable for
incidental or consequential loss or damage including, without limitation, expenses incurred for substitute or replacement lawn care
services or for rental expenses to temporarily replace a warranted product.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of safety features of the
product shall void this warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their
property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights that
vary in different jurisdictions.
IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone]
MTD Products Ltd., P. O. BOX 1386, KITCHENER, ON N2G 4J1; Phone: [phone]

16
GARANTIE DU FABRICANT POUR:
La garantie limitée qui est énoncée ci-dessous est offerte par MTD LLC pour toutes les
marchandises neuves achetées et utilisées aux États-Unis, dans ses possessions et territoires,
et par MTD Products Limited, pour toutes les marchandises achetées et utilisées au Canada et/
ou ses territoires (l’une ou l’autre entité respectivement appelée « MTD »).
« MTD » garantit que ce produit (à l’exception des pièces à usure normale énumérées ci-dessous)est exempt de tout vice de
matière et de fabrication pour une durée de deux (2) ans à compter de la date de l’achat initial et s’engage à réparer ou à
remplacer, gratuitement et à son choix, toute pièce qui s’avère défectueuse en raison d’un vice de matière ou de fabrication.
Cette garantie limitée n’est applicable que si ce produit a été utilisé et entretenu conformément aux instructions de la notice
d’utilisation qui l’accompagne. De plus, le produit ne doit pas avoir fait l’objet d’un emploi incorrect ou abusif, d’une utilisation à
des fins commerciales, d’une négligence, d’un accident, d’un entretien incorrect, d’une modification, d’un acte de vandalisme,
d’un vol, d’un incendie, d’une inondation ou de tout autre dégât causé par tout incident ou désastre naturel. Les dégâts causés
par l’installation ou l’utilisation d’une pièce, d’un accessoire ou d’un équipement annexe, dont l’emploi avec le produit faisant
l’objet de la notice d’utilisation n’est pas homologué par MTD, rendront la garantie nulle et non avenue.
Les pièces ou composants à usure normale sont garantis exempts de tout vice de matière et de fabrication pour une période de
30 jours à compter de la date d’achat. Les pièces et composants à usure normale comprennent, sans s’y limiter, les batteries,
courroies, lames, adaptateurs de lame, sacs à herbe, roues du plateau de coupe, sièges, patins de souffleuses, roues de
frottement, lames de raclage, le caoutchouc de la tarière et pneus.
POUR FAIRE HONORER LA GARANTIE : Présentez UNE PREUVE D’ACHAT à la station technique agréée de votre localité.
Pour localiser une station technique agréée ou un concessionnaire dans votre région :
Aux États-Unis : Consultez les Pages Jaunes ou adressez-vous à MTD LLC, P.O. Box 361131, Cleveland, Ohio 44136-0019 ou
appelez le 1-800-800-7310 ou le 1-330-220-4683. Vous pouvez aussi visiter notre site web au www.mtdproducts.com
Au Canada : Adressez-vous à MTD Products Limited, Kitchener, Ontario, N2G 4J1 ou appelez le 1-800-668-1238 ou visitez
notre site web au www.mtdcanada.com
Cette garantie limitée ne couvre pas:
a. Le moteur ou ses composants. Ces articles peuvent être couverts par une garantie séparée du fabricant. Consultez la
garantie du fabricant quant aux conditions.
b. Les pompes, soupapes et pistons des fendeuses à bois sont couverts par une garantie séparée d’un an.
c. Les articles d’entretien courant tels que les lubrifiants, filtres, aiguisages de lame et révisions, les réglages de frein, de
l’embrayage ou du plateau de coupe et la détérioration normale de la finition du fait de l’utilisation de la machine ou de son
exposition aux intempéries.
d. L’entretien ou les réparations effectués par quiconque autre qu’une station technique agréée.
e. MTD ne garantit pas les produits vendus ou exportés hors des États-Unis et/ou du Canada, de leurs possessions et
territoires respectifs, sauf si ces produits ont été vendus par l’intermédiaire des services d’exportation de MTD.
f. Les pièces de rechange si elles ne sont pas des pièces MTD authentiques.
g. Les frais de transport des machines et de déplacement des techniciens.
h. Les produits utilisés dans un but commercial. (Certains produits peuvent être accompagnés d’une garantie limitée MTD
séparée pour usage commercial. Renseignez-vous auprès du concessionnaire ou détaillant pour plus de détails ou
adressez-vous directement au service après-vente de MTD.)
Aucune garantie tacite, y compris toute garantie tacite de qualité marchande ou d’adaptabilité dans un but particulier,
ne s’applique aux pièces identifiées ci-dessus après la période de vigueur de la garantie écrite expresse. Aucune autre
garantie expresse, qu’elle soit verbale ou écrite, à l’exception des stipulations ci-dessus, offerte par toute personne ou
entité (y compris un concessionnaire/revendeur), pour tout produit, n’engage MTD. Pendant la période de garantie, la
réparation ou le remplacement du produit ci-dessus constitue le recours exclusif à la disposition du client.
Les stipulations énoncées dans cette garantie offrent le seul recours à la suite de la vente. MTD ne peut être tenue
responsable pour toute perte ou tout dommage accessoire ou immatériel comprenant, sans s’y limiter, les frais de
remplacement ou de substitution des services d’entretien des pelouses ou les frais de location pour remplacer
temporairement un article sous garantie.
Certaines juridictions ne permettent pas l’inclusion ou la restriction des dommages accessoires ou immatériels ou une limite à la
durée de la garantie tacite. Par conséquent, les exclusions ci-dessus peuvent ne pas s’appliquer dans votre situation.
Le remboursement ou remplacement quel qu’il soit ne sera en aucun cas supérieur au montant du prix d’achat du produit vendu.
Toute modification des caractéristiques de sécurité rendra la garantie nulle et non avenue. L’utilisateur assume tout risque et
toute responsabilité en cas de perte, de dommage matériel ou de blessure résultant de l’utilisation incorrecte du produit ou de
l’incapacité de l’employer.
Cette garantie limitée n’est offerte qu’à l’acheteur initial ou à la personne à laquelle le produit a été offert en cadeau.
LES LOIS LOCALES ET CETTE GARANTIE : Cette garantie limitée vous accorde des droits juridiques spécifiques et vous
pouvez bénéficier d’autres droits qui varient selon les juridictions.
IMPORTANT : Le propriétaire doit présenter le reçu original pour faire honorer la garantie.
MTD LLC, P.O. Box 361131, Cleveland, Ohio 44136-0019; téléphone: 1-800-800-7310, 1-330-220-4683
MTD Products Ltd., C.P. 1386, Kitchener, Ontario N2G 4J1; téléphone: 1-800-668-1238

15
CHAPITRE 7: GUIDE DE DÉPANNAGE
REMARQUE: Pour toute réparation autre que les ajustements mineurs ci-dessus, adressez-vous à la station
technique agréée.
Problème Cause(s Probable) Solution
Le moteur ne démarre
pas
1. La poignée de commande de la
lame n'est pas embrayée.
2. Le fil de la bougie est débranché.
3. Le réservoir est vide ou l'essence
est éventée.
4. La canalisation de carburant est
bouchée.
5. La bougie est défectueuse.
6. Le moteur est noyé.
1. Embrayez la poignée de commande de la
lame.
2. Branchez le fil de la bougie.
3. Faites le plein avec une essence propre et
fraîche.
4. Nettoyez la canalisation.
5. Nettoyez, réglez l'écartement ou replacez la
bougie.
6. Attendez quelques minutes avant d'essayer
de faire démarrer le moteur sans l'amorcer.
Le moteur tourne
irrégulièrement
1. Le fil de la bougie desserré.
2. La canalisation de carburant est
bouchée ou l'essence est
eventée.
3. L'évent du capuchon du réservoir
est bouché.
4. De l'eau ou une saleté est
présente dans le système.
5. Le filtre à air est sale.
6. Le carburateur est mal réglé.
1. Branchez et serrez le fil de la bougie.
2. Nettoyez la canalisation. Faites le plein avec
une essence propre et fraîche.
3. Débouchez l'évent.
4. Videz le réservoir à carburant. Faites le plein
avec une essence fraîche.
5. Consultez la notice d’utilisation du moteur.
6. Consultez la notice d’utilisation du moteur.
Le moteur surchauffe 1. Le niveau d’huile est trop bas.
2. La circulation d’air est gênée.
3. Le carburateur est mal régle.
1. Faites le plein d’huile du carter.
2. Démontez l’habitacle du ventilateur et
nettoyez-le.
3. Consultez la notice d’utilisation du moteur.
Le moteur hésite parfois
à régime élevé.
1. L’écartement de la bougie est trop
petit.
1. Réglez l'écartement à 0,030 po. Consultez
la notice d’utilisation du moteur.
Le moteur tourne
irrégulièrement
1. La bougie est sale, défectueuse
ou l'écartement est trop grand.
2. Le carburateur est mal réglé.
3. Le filtre à air est sal.
1. Réglez l'écartement à 0,030 po ou
remplacez la bougie.
2. Consultez la notice d’utilisation du moteur.
3. Consultez la notice d’utilisation du moteur.
Vibrations excessives 1. La lame est desserrée ou mal
équilibrée.
2. La lame est déformée.
1. Serrez la lame et l'adaptateur. Équilibrez la
lame.
2. Remplacez la lame.
La tondeuse ne
déchiquette pas l'herbe
1. L'herbe est mouillée.
2. L'herbe est trop haute.
3. La lame est émoussée.
1. Ne tondez pas quand l'herbe est mouillée.
Attendez qu'elle sèche.
2. Coupez l'herbe à un réglage élevé, puis
tondez à nouveau à la hauteur voulue ou sur
une largeur plus étroite.
3. Aiguisez ou remplacez la lam
La coupe est irrégulière 1. Les roues ne sont pas bien
positionnées.
2. La lame est émoussée.
1. Placez les quatre roues à la même hauteur.
2. Aiguisez ou remplacez la lame.

14
• Basculez la tondeuse selon les instructions dans la
notice d’utilisation. S’il n’y a pas d’instructions
spécifiques, basculez la tondeuse avec le filtre à air et
le carburateur sur le haut.
• Enlevez le boulon et le support de la lame qui
maintiennent la lame et l’adaptateur sur le vilebrequin.
Voir la Figure 14.
• Dégagez la lame et l’adaptateur du vilebrequin.
• Pour l’affûter à nouveau, démontez-la puis meulez ou
limez les bords tranchants en maintenant l’angle aussi
près que possible du biseau original. N’essayez pas
d’aiguiser la lame encore installée sur la tondeuse.
•Il est essentiel que chaque tranchant soit affûté
également pour ne pas avoir une lame déséquilibrée.
REMARQUE: Une lame déséquilibrée cause des vibrations qui peuvent endommager le moteur et la tondeuse.
Assurez-vous de bien rééquilibrer la lame après l’avoir aiguisée. Le fabricant de la tondeuse ne peut être tenu
responsable des dégâts causés par le mauvais équilibre de la lame.
REMARQUE: Démontez toujours la lame de son adaptateur pour vérifiez son bon équilibre.
• Vous pouvez vérifier l’équilibre de la lame en la plaçant sur un tournevis à tige ronde. Limez le métal du côté le
plus lourd jusquà ce que la lame soit parfaitement équilibrée.
• Avant de remonter la lame et son adaptateur sur la tondeuse, lubrifiez le vilebrequin et la surface intérieure de
l’adaptateur avec une huile légère.
• Placez l’adaptateur de la lame sur le vilebrequin, «l’étoile» à l’opposé du moteur. Voir la Figure 14. Placez la
lame, le côté sur lequel la mention «Bottom» (ou le numéro de pièce) apparaît, à l’opposé de l’adaptateur.
Alignez le support de la lame sur celle-ci en enfonçant les pattes dans les trous de la lame, puis insérez le
boulon hex.
• Serrez le boulon hex. au couple recommandé ci-dessous:
Couple de montage de la lame
Boulon centrale 450 po-lb min., 600 po-lb max.
Vérifiez périodiquement que TOUS les écrous et boulons de la machine sont bien serrés.
REMARQUE: Le fait de couper l’herbe sur un sol sablonneux provoque l’usure de la lame par abrasion.
Entreposage hors saison
Procédez de la manière suivante pour préparer votre tondeuse pour un entreposage prolongé.
1. Nettoyez et lubrifiez soigneusement la tondeuse selon les instructions de lubrification.
IMPORTANT: L'utilisation d'un nettoyeur sous pression ou d'un boyau d'arrosage pour nettoyer la tondeuse est
déconseillée.
2. Consultez la notice d’utilisation du moteur quant aux instructions d’entreposage du moteur.
3. Enduisez la lame de la tondeuse d’une graisse à châssis pour l’empêcher de rouiller.
4. Entreposez la tondeuse dans un endroit sec et propre. Ne la remisez pas près de produits corrosifs, comme des
engrais.
REMARQUE: Il est très important de bien protéger le matériel contre la rouille s’il doit être entreposé dans un abri
métallique non ventilé. Enduisez toute la machine, en particulier les câbles et toutes les pièces mobiles, avec une
huile légère ou de la silicone.
Adaptateur
Boulon hex.
de la lame
Support
Figure 14
Lame

13
Lubrification
Poignée de commande de la lame
• Lubrifiez les points de pivot de la poignée de commande
de la lame au moins une fois par saison avec une huile
légère. La commande de la lame doit fonctionner
facilement dans les deux sens. Voir la Figure 13.
Roues
• Lubrifiez les roulements à billes des roues au moins une
fois par saison avec de l’huile fluide, tous les autres
genres n'ont pas be soin d'être lubrifiées. Toutefois, si
elles doivent être démontées pour une raison
quelconque, lubrifiez la surface du boulon d’essieu et la
surface intérieure de la roue avec une huile automobile
légère.
Déflecteur de la goulotte
• Le ressort de torsion et le point de pivotement doivent être lubrifiés régulièrement avec une huile légère pour
empêcher la rouille. Voir la Figure 13.
Moteur
Consultez la notice d'utilisation du moteur pour les instructions de lubrification.
Nettoyage de la tondeuse
• Nettoyez le dessous du plateau de coupe après chaque utilisation pour empêcher les brins d’herbe, les feuilles
ou la saleté de s’y accumuler. Procédez comme suit pour le nettoyage.
REMARQUE: L’utilisation d’un nettoyeur pressurisé ou d’un boyau d’arrosage pour nettoyer la tondeuse est
déconseillée. Cela risque en effet d’endommager les composants électriques, les fusées, les poulies, les
roulements ou le moteur. L’emploi d’eau a tendance à raccourcir la vie de la tondeuse et à limiter sa facilité
d’entretien.
1. Débranchez le fil de la bougie. Videz l’essence de la tondeuse ou placez un morceau de plastique sous le
bouchon du réservoir d’essence.
2. Faites basculer la tondeuse pour la faire reposer sur l’habitacle. Maintenez le filtre à air sur le dessus. Tenez
bien la tondeuse.
3. Grattez et nettoyez le dessous du plateau de coupe avec un outil approprié. N’utilisez pas un jet d’eau.
4. Replacez la tondeuse sur ses 4 roues sur le sol. Retirez le morceau de plastique du bouchon du réservoir le cas
échéant.
Entretien et remplacement de la lame
Examinez périodiquement l’adaptateur de lame pour y détecter tout fendillement éventuel, surtout après avoir
heurté un objet. Remplacez-le au besoin. Procédez comme suit pour l’entretien de la lame:
• Débranchez toujours le fil de la bougie.
AVERTISSEMENT: N’inclinez pas la tondeuse à plus de 90º dans un sens ou dans l’autre et ne laissez
pas longtemps la tondeuse dans cette position. L’huile peut en effet pénétrer dans le compartiment
supérieur du moteur et causer un problème lors du démarrage.
AVERTISSEMENT: Portez toujours des gants épais ou utilisez un chiffon épais pour manipuler la lame
en la démontant pour l’aiguiser ou la remplacer.
Figure 13
Lubrifiez
Lubrifiez
