MTD Series 410 User manual

Safety • Assembly • Operation • Maintenance • Troubleshooting • Parts Lists • Warranty
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-
covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,
Ohio 44136-0019.
PRINTED IN U.S.A.
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
IMPORTANT
OPERATOR’S MANUAL
For US Customers: MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
For Canadian Customers: MTD Products Ltd., P. O. Box 1386, KITCHENER, ONTARIO N2G 4J1
21” Rotary Mower — Model Series 410
10/21/2005
772C0795

2
Finding and Recording Model Number
Please do NOT return the unit to the retailer from which it was purchased,
without first contacting Customer Support.
Table of Contents
BEFORE YOU START ASSEMBLING
YOUR NEW EQUIPMENT,
please locate the model plate on the equipment and copy the
the model number and the serial number to the sample model
plate provided to the right. You can locate the model plate by
standing at the operating position and looking down at the rear
of the machine.
This Operator’s Manual is an important part of your new equipment. It will help you assemble,
prepare and maintain the unit for best performance. Please read and understand what it says.
Customer Support
Slope Gauge ....................................................... 3
Safe Operation Practices ................................... 4
Set-Up & Adjustments ........................................ 6
Operation ............................................................. 8
Maintenance & Off-Season Storage ................ 10
Trouble Shooting .............................................. 12
Warranty ............................................................ 13
Illustrated Parts Lists ....................................... 14








 


If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit,
please call a Customer Support Representative.
For US Customers: 1-330-220-4MTD (4683)or 1-800-800-7310
For Canadian Customers: 1-800-668-1238
Please have your unit’s model number and serial number ready when you call. See previous section to locate this information.
You will be asked to enter the serial number in order to process your call.
The engine manufacturer is responsible for all enigne-related issues with regards to performance, power-rating, specifications,
warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual, packed separately with your unit,
for more information.

3
1
Slope
Gauge
WARNING
Do not mow on inclines
with a slope in excess
of 15 degrees (a rise
of approximately
2-1/2 feet every 10
feet). A riding mower
could overturn and
cause serious injury.
If operating a walk-
behind mower on such
a slope, it is extremely
difficult to maintain your
footing and you could
slip, resulting in serious
injury.
Operate RIDING
mowers up and down
slopes, never across
the face of slopes.
Operate
WALK-BEHIND
mowers across the
face of slopes, never
up and down slopes.





Use this page as a guide to determine slopes where you may not operate safely. Do not operate
your lawn mower on such slopes.

4
2
Safe
Operation
Practices
General Operation
1. Read this operator’s manual carefully in its entirety before
attempting to assemble this machine. Read, understand,
and follow all instructions on the machine and in the
manual(s) before operation. Be completely familiar with
the controls and the proper use of this machine before
operating it. Keep this manual in a safe place for future
and regular reference and for ordering replacement parts.
2. This machine is a precision piece of power equipment,
not a plaything. Therefore, exercise extreme caution at all
times. Your unit has been designed to perform one job: to
mow grass. Do not use it for any other purpose.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the instructions in this manual and should
be trained and supervised by a parent. Only responsible
individuals who are familiar with these rules of safe
operation should be allowed to use this machine.
4. Thoroughly inspect the area where the equipment is to
be used. Remove all stones, sticks, wire, bones, toys and
other foreign objects which could be tripped over or picked
up and thrown by the blade. Thrown objects can cause
serious personal injury. Plan your mowing pattern to avoid
discharge of material toward roads, sidewalks, bystanders
and the like. Also, avoid discharging material against a
wall or obstruction which may cause discharged material
to ricochet back toward the operator.
5. To help avoid blade contact or a thrown object injury,
stay in the operator zone behind the handles and keep
children, bystanders, helpers and pets at least 75 feet
from the mower while it is in operation. Stop machine if
anyone enters the area.
6. Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
7. Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Shirts and pants that cover the arms
and legs and steel-toed shoes are recommended. Never
operate this machine in bare feet, sandals, slippery or light
weight (e.g. canvas) shoes.
8. Do not put hands or feet near rotating parts or under the
cutting deck. Contact with the blade can amputate hands
and feet.
9. A missing or damaged discharge cover can cause blade
contact or thrown object injuries.
10. Many injuries occur as a result of the mower being pulled
over the foot during a fall caused by slipping or tripping.
Do not hold on to the mower if you are falling; release the
handle immediately.
11. Never pull the mower back toward you while you are
walking. If you must back the mower away from a wall or
obstruction first look down and behind to avoid tripping
and then follow these steps:
a. Step back from the mower to fully extend your arms.
b. Be sure you are well balanced with sure footing.
c. Pull the mower back slowly, no more than half way
toward you.
d. Repeat these steps as needed.
12. Do not operate the mower while under the influence of
alcohol or drugs.
13. Do not engage the self-propelled mechanism on units so
equipped while starting engine.
14. The blade control handle is a safety device. Never attempt
to bypass its operation. Doing so makes the safety device
inoperative and may result in personal injury through
contact with the rotating blade. The blade control handle
must operate easily in both directions and automatically
return to the disengaged position when released.
15. Never operate the mower in wet grass. Always be sure of
your footing. A slip and fall can cause serious personal
injury. If you feel you are losing your footing, release the
blade control handle immediately and the blade will stop
rotating within three seconds.
16. Mow only in daylight or in good artificial light. Walk, never
run. Stop the blade when crossing gravel drives, walks or
roads.
17. If the equipment should start to vibrate abnormally, stop the
engine and check immediately for the cause. Vibration is
generally a warning of trouble.
18. Shut the engine off and wait until the blade comes to
a complete stop before removing the grass catcher or
unclogging the chute. The cutting blade continues to rotate
for a few seconds after the engine is shut off. Never place
any part of the body in the blade area until you are sure the
blade has stopped rotating.
19. Never operate mower without proper trail shield, discharge
cover, grass catcher, blade control handle or other safety
protective devices in place and working. Never operate
mower with damaged safety devices. Failure to do so, can
result in personal injury.
20. Muffler and engine become hot and can cause a burn. Do
not touch.
21. Only use parts and accessories made for this machine by
the manufacturer. Failure to do so can result in personal
injury.
22. If situations occur which are not covered in this manual, use
care and good judgment. Call customer assistance for the
name of your nearest servicing dealer.
Slope Operation
Slopes are a major factor related to slip and fall accidents which
can result in severe injury. Operation on slopes requires extra
caution. If you feel uneasy on a slope, do not mow it. For your
safety, use the slope gauge included as part of this manual to
measure slopes before operating this unit on a sloped or hilly
area. If the slope is greater than 15 degrees, do not mow it.
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or
emit chemicals known to State of California to cause cancer and birth defects or other reproduc-
tive harm.
WARNING
This symbol points
out important safety
instructions which, if
not followed, could
endanger the personal
safety and/or property
of yourself and others.
Read and follow all
instructions in this
manual before at-
tempting to operate
this machine. Failure
to comply with these
instructions may result
in personal injury. When
you see this symbol.
HEED ITS WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with
any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This
machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety
instructions could result in serious injury or death.

5
Do:
1. Mow across the face of slopes; never up and down.
Exercise extreme caution when changing direction on
slopes.
2. Watch for holes, ruts, rocks, hidden objects, or bumps which
can cause you to slip or trip. Tall grass can hide obstacles.
3. Always be sure of your footing. A slip and fall can cause
serious personal injury. If you feel you are losing your
balance, release the blade control handle immediately, and
the blade will stop rotating within 3 seconds.
Do Not:
1. Do not mow near drop-offs, ditches or embankments, you
could lose your footing or balance.
2. Do not mow slopes greater than 15 degrees as shown on
the slope gauge.
3. Do not mow on wet grass. Unstable footing could cause
slipping.
Children
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the mower
and the mowing activity. They do not understand the dangers.
Never assume that children will remain where you last saw
them.
1. Keep children out of the mowing area and under the watch-
ful care of a responsible adult other than the operator.
2. Be alert and turn mower off if a child enters the area.
3. Before and while moving backwards, look behind and down
for small children.
4. Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may obscure
your vision of a child who may run into the mower.
5. Keep children away from hot or running engines. They can
suffer burns from a hot muffler.
6. Never allow children under 14 years old to operate a power
mower. Children 14 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.
Service
Safe Handling Of Gasoline:
1. To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive. Serious personal injury can
occur when gasoline is spilled on yourself or your clothes
which can ignite.
2. Wash your skin and change clothes immediately.
3. Use only an approved gasoline container.
4. Never fill containers inside a vehicle or on a truck or trailer
bed with a plastic liner. Always place containers on the
ground away from your vehicle before filling.
5. Remove gas-powered equipment from the truck or trailer
and refuel it on the ground. If this is not possible, then refuel
such equipment on a trailer with a portable container, rather
than from a gasoline dispenser nozzle.
6. Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
7. Extinguish all cigarettes, cigars, pipes and other sources of
ignition.
8. Never fuel machine indoors because flammable vapors
will accumulate in the area.
9. Never remove gas cap or add fuel while the engine is
hot or running. Allow engine to cool at least two minutes
before refueling.
10. Never over fill fuel tank. Fill tank to no more than ½ inch
below bottom of filler neck to provide for fuel expansion.
11. Replace gasoline cap and tighten securely.
12. If gasoline is spilled, wipe it off the engine and equipment.
Move unit to another area. Wait 5 minutes before starting
the engine.
13. Never store the machine or fuel container near an open
flame, spark or pilot light as on a water heater, space
heater, furnace, clothes dryer or other gas appliances.
14. To reduce fire hazard, keep mower free of grass, leaves,
or other debris build-up. Clean up oil or fuel spillage and
remove any fuel soaked debris.
15. Allow a mower to cool at least 5 minutes before storing.
General Service:
1. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
2. Before cleaning, repairing, or inspecting, make certain the
blade and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
3. Check the blade and engine mounting bolts at frequent
intervals for proper tightness. Also, visually inspect blade
for damage (e.g., bent, cracked, worn) Replace blade with
the original equipment manufacture’s (O.E.M.) blade only,
listed in this manual. “Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!”
4. Mower blades are sharp and can cut. Wrap the blade or
wear gloves, and use extra caution when servicing them.
5. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.
6. Never tamper with safety devices. Check their proper
operation regularly.
7. After striking a foreign object, stop the engine, discon-
nect the spark plug wire and ground against the engine.
Thoroughly inspect the mower for any damage. Repair the
damage before starting and operating the mower.
8. Never attempt to make a wheel or cutting height adjust-
ment while the engine is running.
9. Grass catcher components, discharge cover, and trail
shield are subject to wear and damage which could
expose moving parts or allow objects to be thrown. For
safety protection, frequently check components and re-
place immediately with original equipment manufacturer’s
(O.E.M.) parts only, listed in this manual. “Use of parts
which do not meet the original equipment specifications
may lead to improper performance and compromise
safety!”
10. Do not change the engine governor setting or overspeed
the engine. The governor controls the maximum safe
operating speed of the engine.
11. Maintain or replace safety labels, as necessary.
12. Observe proper disposal laws and regulations. Improper
disposal of fluids and materials can harm the environment.
2
Safe
Operation
Practices
WARNING
This symbol points
out important safety
instructions which, if
not followed, could
endanger the personal
safety and/or property
of yourself and others.
Read and follow all
instructions in this
manual before at-
tempting to operate
this machine. Failure
to comply with these
instructions may result
in personal injury. When
you see this symbol.
HEED ITS WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.

6

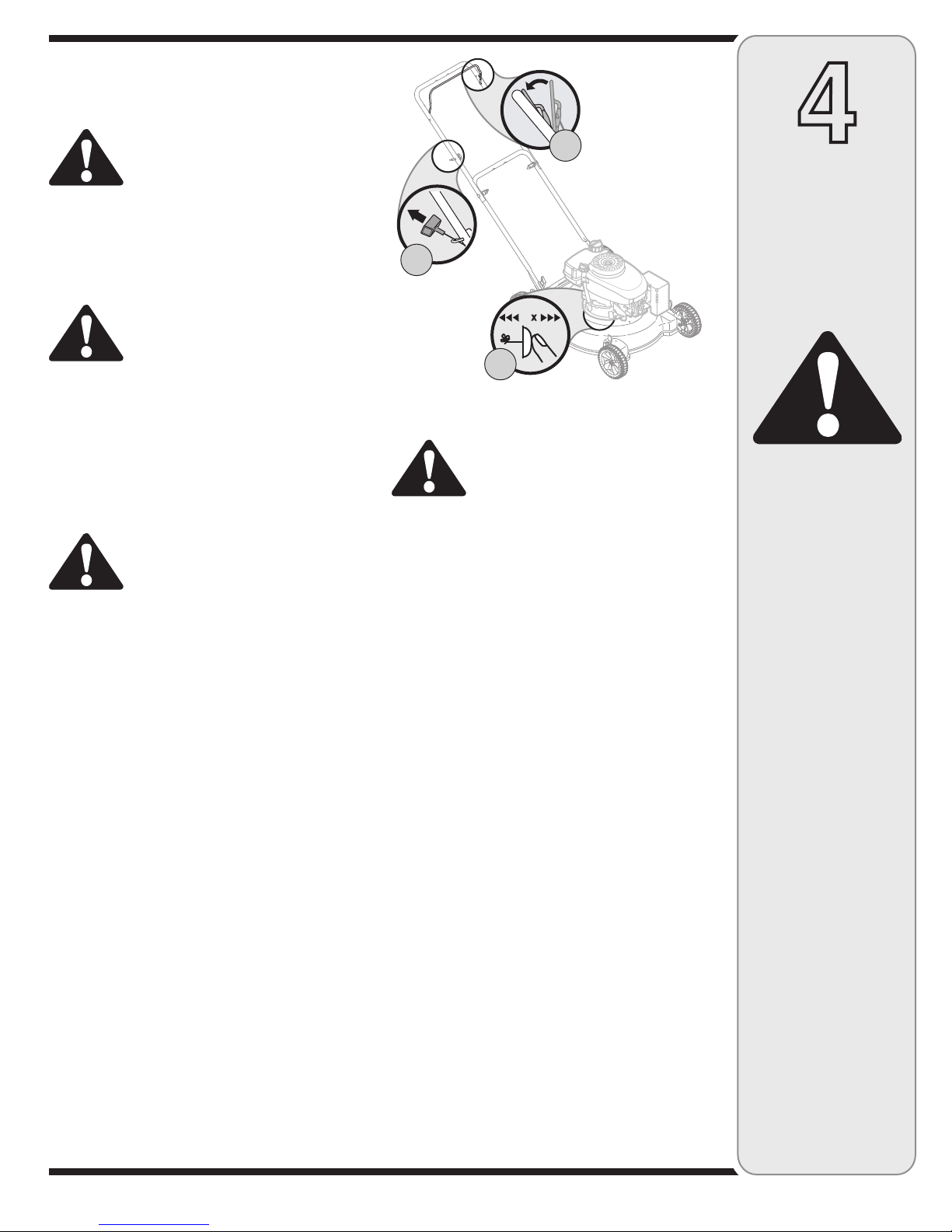

3WARNING: Disconnect and
ground the spark plug wire as
instructed in the separate engine
manual.
1. Remove any packing material which may be between
upper and lower handles.
a. Pull up and back on the upper handle to raise the
handle from position A into the operating position
B. See Figure 2.
b. Tighten hand knobs (star knobs) securing upper
handle to lower handle. Make sure that each
carriage bolt is seated properly in the handle.
NOTE: On some models wing nuts have been replaced
with star knobs. Figures show wing nuts only.
2. Locate hairpin clip in one hole on the weld pin on each
side of lower handle.
a. Remove hairpin clip from this hole. Using a pair of
pliers, insert hairpin clip into the other hole on the
weld pin. Repeat on other side.
b. Place one carriage bolt (found in the hardware
pack included with your unit) in the upper hole of
the right handle mounting bracket from the inside
outward. See Figure 2. Secure with one wing nut
(star knobs). Repeat process on the left side.
3. Rope guide Setup as follows, see Figure 3:
a. Hold the blade control against the upper handle.
Position A.
b. Slowly pull starter rope out of engine. Position B.
c. Slip starter rope into the rope guide. Position C.
d. Tighten rope guide wing nut (star knobs).Position
D.
4. Insert post on cable ties into holes provided on the
lower handle. Pull cable tie tight and trim excess. See
Figure 4.
Figure 3
Figure 2
Figure 1
Figure 4








Your mower is shipped
with the handle in the
higher height position.
NOTE: Each end of
the lower handle must
be placed in the same
relative position.
IMPORTANT
This unit is shipped
WITHOUT GASOLINE
or OIL. After assem-
bly, service engine
with gasoline and
oil as instructed in
the separate engine
manual packed with
your unit.
Setup and
Adjustments

7
Figure 5
NOTE: Make certain
bag is turned right
side out before
assembling (warning
label will be on the
outside).
NOTE: Make certain
cables are routed
to the outside of the
handle so they are
not in the way when
attaching the grass
catcher.
3
Figure 6
Figure 7
Never operate mower
unless the hooks on
the grass catcher are
firmly seated on the
pivot rod, and the
rear discharge door
rests firmly against
top of the grass
catcher.
5. Each wheel has a height adjustment lever to change
the cutting height of the mower. To change the height
of cut, squeeze adjuster lever toward the wheel,
moving up or down to selected height. See Figure 5.
WARNING








6. To assemble the grasscatcher:
a. Place bag over frame (black plastic side is the
bottom of bag.) Insert the hooks on the frame
through the holes in the side plastic channels of
the bag. See Figure 6.
b. Secure bag to frame by working the plastic
channels on bag over frame as shown in Figure 6.
All of the plastic channels except center top of bag
attach from the outside of bag. Center top of bag
attaches from the inside of bag.
7. Attaching Grass Catcher to Mower
a. Lift the rear discharge door on the mower, and
place the grass catcher on the pivot rod. Let go
of discharge door so that it rests on the grass
catcher. See Figure 7.
WARNING: Never operate mower
unless the hooks on the grass
catcher are firmly seated on the
pivot rod, and the rear discharge
door rests firmly against top of
the grass catcher.
8. To remove grass catcher and utilize the mulching
feature:
a. Lift rear discharge door on the mower as shown in
Figure 7. Lift grass catcher up and out, off of the
pivot rod. Release rear discharge door to allow it
to close rear opening of mower.
Setup and
Adjustments

8
4

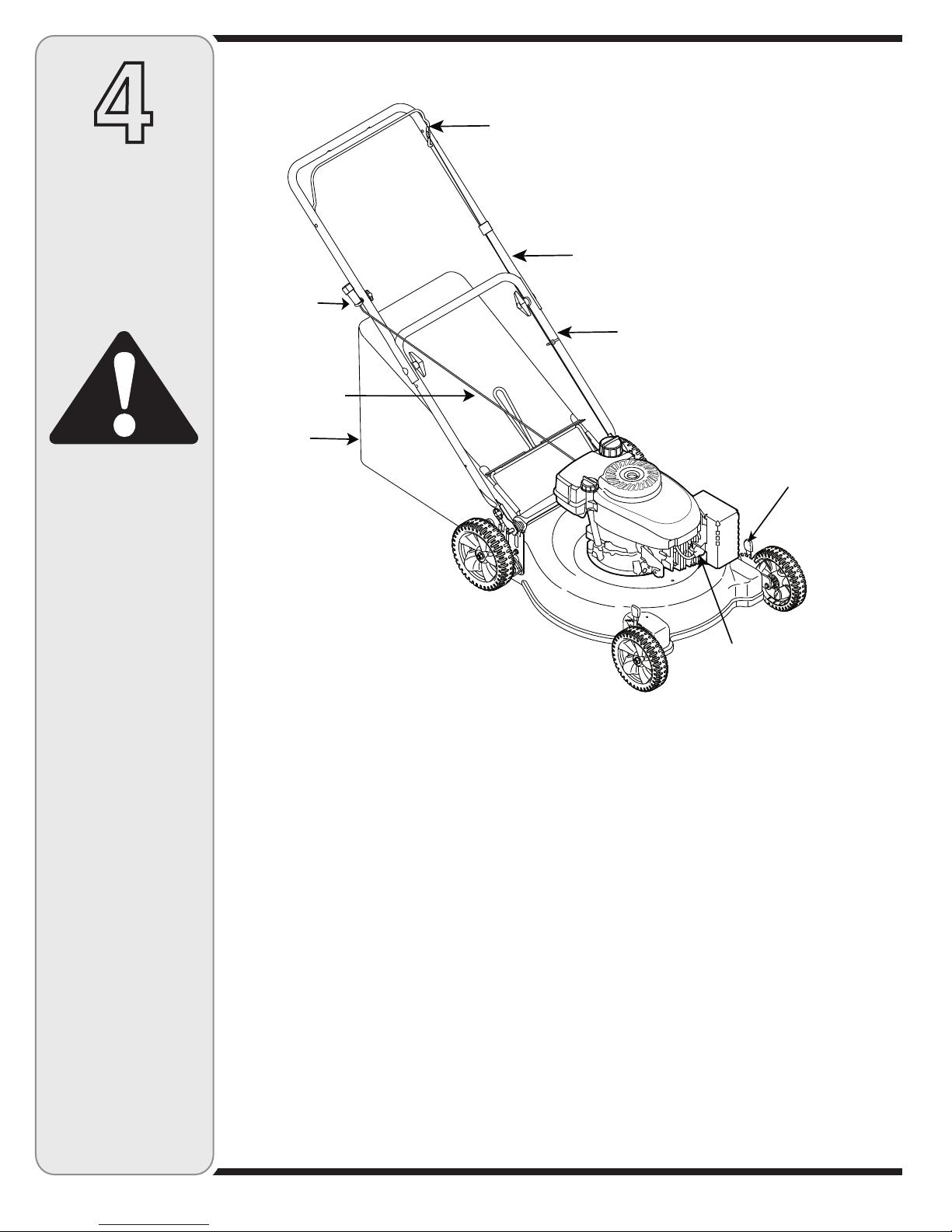

Operating
Your Lawn
Mower
Blade Control Handle
The blade control handle is located on the upper handle
of the mower. See Figure 8. The blade control handle
must be depressed in order to operate the unit. Release
the blade control handle to stop the engine and blade.
Recoil Starter
The recoil starter is attached to the right upper handle.
Stand behind the unit and pull the recoil starter rope to
start the unit.
Cutting Height Adjustment Levers
(If so equipped)
One adjustment lever is located on each wheel and is
used to adjust the cutting height. All four levers have to
be at the same relative position to ensure uniform cut.
Before Starting
1. Service the engine with gasoline and oil as instructed
in the separate engine manual.
2. Attach spark plug wire to spark plug. If unit is
equipped with a rubber boot over the end of the spark
plug wire, make certain the metal loop on the end of
the spark plug wire (inside the rubber boot) is fastened
securely over the metal tip on the spark plug.
To Start Engine
1. If your unit is equipped with a primer, prime engine as
instructed in the separate engine manual packed with
your unit.
2. Standing behind the unit, depress the blade control
handle and hold it against the upper handle as shown
in Figure 9.
3. Grasp the starter handle as shown and pull slowly
until resistance is felt, then pull rapidly to start engine
and avoid kickback. Return it slowly to the rope guide.
WARNING
Figure 8
Know Your Lawn Mower













Read, understand,
and follow all instruc-
tions and warnings
on the machine and
in this manual before
operating.
This blade control
mechanism is a
safety device. Never
attempt to bypass its
operations.
Use extreme care
when handling
gasoline. Gasoline is
extremely flammable
and the vapors are
explosive. Never fuel
the machine indoors
or while the engine
is hot or running.
Extinguish cigarettes,
cigars, pipes and
other sources of
ignition.

9
WARNING: Wait for the blade to
stop completely before doing
any work on the mower or to
remove the grass catcher.
Using Grass Catcher
You can use the grass catcher to collect clippings while
you are operating the mower.
1. Attach grass catcher following instructions on page
7 . Grass clippings will automatically collect in the
bag as you run the mower. Operate the mower till the
grass bag is full.
2. Stop engine completely by releasing the blade
control handle. Make sure that the unit has come to
a complete stop.
3. Lift discharge door and pull grass bag up and away
from the mower to dispose of the grass clippings.
To Stop Engine
1. Release the blade control handle to stop the engine
and blade.
WARNING: The blade continues
to rotate for a few seconds after
the engine is shut off.
2. Disconnect and ground the spark plug wire as
instructed in the separate engine manual to prevent
accidental starting while equipment is unattended.
Using Your Lawn Mower
WARNING: Never operate your
mower without either the rear
door or the entire grass catcher
assembly firmly secured.
Be sure the lawn is clear of stones, sticks, wire, or other
objects which could damage the lawn mower or the
engine. Such objects could be accidently thrown by the
mower in any direction and cause serious personal injury
to the operator and others.
WARNING: If you strike a foreign
object, stop the engine. Remove
wire from the spark plug, thor-
oughly inspect the mower for any
damage, and repair the damage
before restarting and operating
the mower. Extensive vibration
of the mower during operation is
an indication of damage. The unit
should be promptly inspected
and repaired.
Operating Tips
1. For best results and effective mulching, do not cut wet
grass.
2. New grass, thick grass, or wet grass may require a
narrower cut.
3. For a healthier lawn, never cut off more than one-third
of the total length of the grass.
4. Your lawn should be cut in the fall as long as there
is growth.
5. Adjust ground speed according to condition of lawn.
6. If the grass has been allowed to grow in excess of 4
inches, mulching is not recommended. Mow using
the grass catcher to reduce the grass height to 3-1/4
inches or less before mulching.
4
Operating
Your Lawn
Mower
WARNING
The operation of any
lawn mower can result
in foreign objects
being thrown into
the eyes, which can
damage your eyes
severely. Always wear
safety glasses while
operating the mower,
or while performing
any adjustments or
repairs on it.
Be sure no one other
than the operator is
standing near the lawn
mower while starting
engine or operating
mower. Never run
engine indoors or
in enclosed, poorly
ventilated areas. En-
gine exhaust contains
carbon monoxide, an
odorless and deadly
gas. Keep hands, feet,
hair and loose clothing
away from any moving
parts on engine and
lawn mower.
Figure 9
3




10
5
Maintenance
WARNING
Always stop engine,
disconnect spark
plug, and ground
against engine before
cleaning, lubricating
or doing any kind of
maintenance on your
machine.

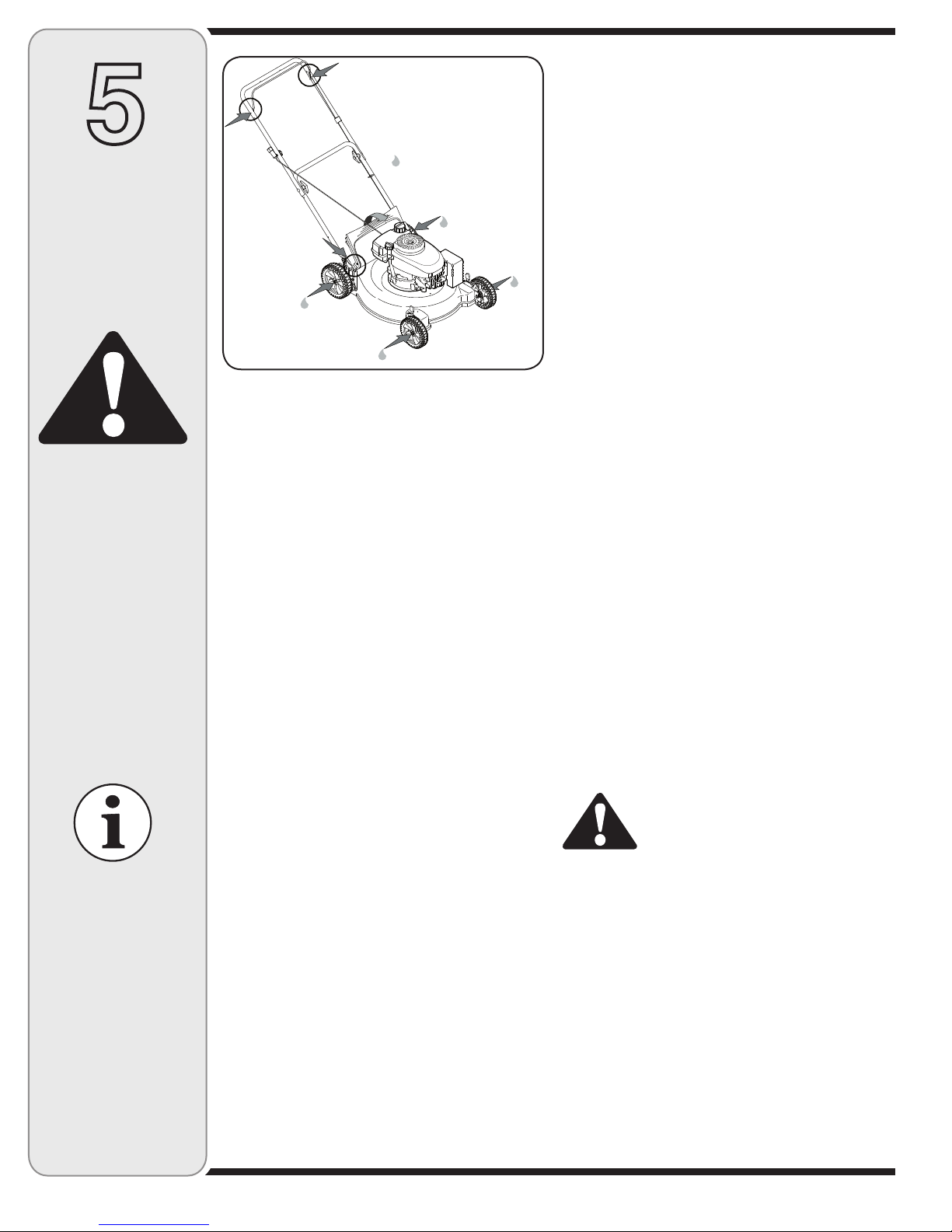

Figure 10
General Recommendations
1. Always observe safety rules when performing
any maintenance.
2. The warranty on this lawn mower does not cover
items that have been subjected to operator abuse
or negligence. To receive full value from warranty,
operator must maintain the lawn mower as
instructed here.
3. Changing of engine-governed speed will void
engine warranty.
4. All adjustments should be checked at least once
each season.
5. Periodically check all fasteners and make sure these
are tight.
Lubrication
1. Lubricate the pivot points on the blade control handle
at least once a season with light oil. The blade
control must operate freely in both directions. See
Figure 10.
2. If your mower is equipped with ball bearing wheels,
lubricate at least once a season with a light oil, all
other types require no lubrication. However, if the
wheels are removed for any reason, lubricate the
surface of the axle bolt and the inner surface of the
wheel with light automotive oil.
3. Lubricate the torsion spring and pivot point on the
rear door periodically with light oil to prevent rust.
See Figure 10.
4. Follow the accompanying engine manual for lubrica-
tion schedule and instruction.



Engine
1. Refer to the separate engine manual for engine
maintenance instructions.
2. Maintain engine oil as instructed in the separate
engine manual packed with your unit. Read and follow
instructions carefully.
3. Under normal conditions service air cleaner as
instructed in the separate engine manual packed with
your unit. Clean every few hours under extremely
dusty conditions. Poor engine performance and
flooding usually indicates that the air cleaner should be
serviced.
4. The spark plug should be cleaned and the gap reset
once a season. Spark plug replacement is recom-
mended at the start of each mowing season; check
engine manual for correct plug type and gap specifica-
tions.
NOTE: This spark ignition system meets all require-
ments of the Canadian Interference-Causing Equipment
Regulations.
5. Clean the engine regularly with a cloth or brush.
Keep the cooling system (blower housing area) clean
to permit proper air circulation which is essential to
engine performance and life. Be certain to remove all
grass, dirt and combustible debris from muffler area.
Deck
The underside of the mower deck should be cleaned after
each use to prevent a buildup of grass clippings, leaves,
dirt or other matter. If this debris is allowed to accumulate,
it will invite rust and corrosion, and may prevent proper
mulching.
The deck may be cleaned by tilting the mower and scrap-
ing clean with a suitable tool (make certain the spark plug
wire is disconnected).
Blade Care
WARNING: When removing the
cutting blade for sharpening or
replacement, protect your hands
with a pair of heavy gloves or use
a heavy rag to hold the blade.
Periodically inspect the blade adapter for cracks, especial-
ly if you strike a foreign object. Replace when necessary.
Follow the steps below for blade service:
1. Disconnect spark plug wire from spark plug.
2. Tip mower as specified in separate engine manual. If
it does not specify turn mower on its side making sure
that the air filter and the carburetor are up.
3. Remove the bolt and the blade bell support which
hold the blade and the blade adapter to the engine
crankshaft. See Figure 11.
We do not recommend
the use of pressure
washers or garden
hose to clean your
unit. These may cause
damage to electrical
components, spindles,
pulleys, bearings, or
the engine. The use
of water will result in
shortened life and
reduce serviceability.

11
5
WARNING
When removing
the cutting blade
for sharpening or
replacement, protect
your hands with a
pair of heavy gloves
or use a heavy rag to
hold the blade.
An unbalanced blade
will cause excessive
vibration when rotat-
ing at high speeds. It
may cause damage
to mower, and could
break causing per-
sonal injury.
Figure 11
Maintenance
4. Remove blade and adapter from the crankshaft.
5. The blade may be resharpened by removing it and
either grinding or filing the cutting edge keeping as
close to the original bevel as possible. Do not attempt
to sharpen the blade while it is still on the mower.
6. It is extremely important that each cutting edge
receives an equal amount of grinding to prevent an
unbalanced blade.
NOTE: Improper blade balance will result in excessive
vibration causing eventual damage to the engine and
mower. Be sure to carefully balance blade after sharpen-
ing. Possible damage resulting from blade unbalance
condition is not the responsibility of the manufacturer.
NOTE: Always remove blade from the adapter for testing
balance.
7. The blade can be tested for balance by balancing it
on a round shaft screwdriver. Remove metal from the
heavy side until it balances evenly.
8. Before reassembling the blade and the blade adapter
to the unit, lubricate the engine crankshaft and the
inner surface of the blade adapter with light oil.
9. Install the blade adapter on the crankshaft with the
“star” away from the engine. See Figure 11. Place
the blade with the side marked “bottom” (or with part
number) facing away from the adapter. Align the
blade bell support over the blade with the tabs in the
holes of the blade and insert the hex bolt.
10. Tighten the hex bolt to the torque listed below:
Blade Mounting Torque
Center Bolt 450 in. lb. min., 600 in.lb. max.
To insure safe operation of your unit, ALL nuts and bolts
must be checked periodically for correct tightness.
Cutting grass in sandy
soil condition causes
abrasive wear to the
blade.
Rear Flap Replacement
1. The rear flap is attached to the back of the mower
deck, and is designed to minimize the possibility that
objects will be thrown from the rear of the mower
toward the operator. If the rear flap becomes dam-
aged, replace as follows.
2. To remove the old rear flap, cut off the flat end of the
wire rod which secures it to the deck using a pair of
side-cutters. Attach the new rear flap using the new
rod provided with the rear flap, bending the ends of
the rod over to secure.
Off-Season Storage
The following steps should be taken to prepare your lawn
mower for storage.
1. Clean and lubricate mower thoroughly as described in
the lubrication instructions.
2. We do not recommend the use of a pressure washer
or garden hose to clean your unit.
3. Refer to engine manual for correct engine
storage instructions.
4. Coat mower’s cutting blade with chassis grease to
prevent rusting.
5. Store mower in a dry, clean area. Do not store next to
corrosive materials, such as fertilizer.
NOTE: When storing any type of power equipment in
a poorly ventilated or metal storage shed, care should
be taken to rust-proof the equipment. Using a light oil or
silicone, coat the equipment, especially cables and all
moving parts of your lawn mower before storage.

12
For repairs beyond
the minor adjust-
ments listed here,
contact an authorized
service dealer.
6
Trouble
Shooting
CauseProblem Remedy
Engine fails to start 1. Blade control handle disengaged.
2. Spark plug wire disconnected.
3. Fuel tank empty or stale fuel.
4. Engine not primed.
5. Faulty spark plug.
6. Blocked fuel line.
7. Engine flooding.
1. Engage blade control handle.
2. Connect wire to spark plug.
3. Fill tank with clean, fresh gasoline.
4. Refer to engine manual.
5. Clean, adjust gap, or replace.
6. Clean fuel line.
7. Wait a few minutes to restart, but do not
prime.
Engine runs erratic 1. Connect and tighten spark
plug wire.
2. Clean fuel line; fill tank with clean, fresh
gasoline.
3. Clear vent.
4. Drain fuel tank and carburetor. Refill with
fresh fuel.
5. Refer to engine manual.
6. Refer to engine manual.
1. Spark plug wire loose.
2. Blocked fuel line or stale fuel.
3. Gas cap vent plugged.
4. Water or dirt in fuel system.
5. Dirty air cleaner.
6. Carburetor out of adjustment.
Engine overheats 1. Fill crankcase with proper oil.
2. Refer to the engine manual packed with
your unit.
3. Remove blower housing and clean.
4. Refer to engine manual.
1. Engine oil level low.
2. Dirty air filter.
3. Air flow restricted.
4. Carburetor not adjusted properly.
Occasional skip
(hesitates) at high speed
1. Adjust gap to .030”. Refer to engine
manual.
2. Refer to engine manual.
1. Spark plug gap too close.
2. Carburetor idle mixture adjustment
improperly set.
Idles poorly 1. Reset gap to .030” or replace spark plug.
Refer to engine manual.
2. Refer to engine manual.
3. Refer to engine manual.
1. Spark plug fouled, faulty or gap too
wide.
2. Carburetor improperly adjusted.
3. Dirty air cleaner.
1. Cutting Blade loose or unbalanced.
2. Bent cutting blade.
1. Tighten blade and adapter. Balance blade
2. Replace blade.
Excessive vibration
1. Wheels not positioned correctly.
2. Dull blade.
Uneven cut 1. Place all four wheels in same height
position.
2. Sharpen or replace blade.
1. Wet grass.
2. Excessive high grass.
3. Dull blade.
1. Do not mow when grass is wet;
wait until later to cut.
2. Mow once at a high cutting height, then
mow again at desired height or make a
narrower cuttng path.
3. Sharpen or replace blade.
Mower will not mulch
grass

13
The limited warranty set forth below is given by MTD LLC with respect to new merchandise purchased and used in the United States and/or its territories
and possessions, and by MTD Products Limited with respect to new merchandise purchased and used in Canada and/or its territories and possessions
(either entity respectively, “MTD”).
MTD warrants this product (excluding its normal wear parts as described below) against defects in material and workmanship for a period of two (2)
years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials
or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator’s Manual
furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism,
theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from the installation or use of any part, accessory or attachment
not approved by MTD for use with the product(s) covered by this manual will void your warranty as to any resulting damage.
Normal wear parts are warranted to be free from defects in material and workmanship for a period of thirty (30) days from the date of purchase. Normal
wear parts include, but are not limited to items such as: batteries, belts, blades, blade adapters, grass bags, rider deck wheels, seats, snow thrower skid
shoes, friction wheels, shave plates, auger spiral rubber and tires.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer. To locate the
dealer in your area;
In the U.S.A.: Check your Yellow Pages, or contact MTD LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or
1-330-220-4683 or log on to our Web site at www.mtdproducts.com.
In Canada: Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800-668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following cases:
a. The engine or component parts thereof. These items may carry a separate manufacturer’s warranty. Refer to applicable manufacturer’s warranty for
terms and conditions.
b. Log splitter pumps, valves, and cylinders have a separate one-year warranty.
c. Routine maintenance items such as lubricants, filters, blade sharpening, tune-ups, brake adjustments, clutch adjustments, deck adjustments, and
normal deterioration of the exterior finish due to use or exposure.
d. Service completed by someone other than an authorized service dealer.
e. MTD does not extend any warranty for products sold or exported outside of the United States and/or Canada, and their respective possessions and
territories, except those sold through MTD’s authorized channels of export distribution.
f. Replacement parts that are not genuine MTD parts.
g. Transportation charges and service calls.
h. If Products are used commercially. (MTD may separately offer Limited Commercial Warranties on certain select products. Ask your dealer or retailer
for details or contact MTD Service for more information.)
No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the applicable period
of express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as mentioned
above, given by any person or entity, including a dealer or retailer, with respect to any product, shall bind MTD. During the period of the
warranty, the exclusive remedy is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. MTD shall not be liable for incidental
or consequential loss or damage including, without limitation, expenses incurred for substitute or replacement lawn care services or for
rental expenses to temporarily replace a warranted product.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts,
so the above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of safety features of the
product shall void this warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their
property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights that vary
in different jurisdictions.
IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone]
MTD Products Ltd., P. O. BOX 1386, KITCHENER, ON N2G 4J1; Phone: [phone]
MANUFACTURER’S LIMITED WARRANTY FOR

14
 
















 







 

 


















 





15
7
7
REF PART
NO. NO.
N° DE N° DE
RÉF PIÈCE DESCRIPTION DESCRIPTION
1 747-1161A Blade Control Handle - Black Poignée de commande de la lame - noir
2 749-1092A Upper Handle - Black Guidon supérieur - noir
3 747-04080 Catcher Lower Frame Sac à herbe - bâti inférieur
4 749-0928A Lower Handle Guidon inférieur
5 720-0279 Knob 1/4-20 Bouton 1/4-20
6 710-1205 Rope Guide Bolt Boulon de guidage de cordon
7 710-1174 Curved Carriage Bolt 5/16-18 x 2.00 Boulon ordinaire courbé 5/16-18 x 2,00
8 664-04007A Generic Grasscatcher Bag Sac à herbe
664-04027 Grasscatcher Bag YM Sac à herbe YM
9 720-0284 Knob 5/16-18 Bouton 5/16-18
10 736-0451 Saddle Washer Rondelle selle
11 726-0240 Cable Tie Attache câble
12 710-0703 Carriage Bolt 1/4-20 x .75 Gr. 1 Boulon ordinaire 1/4-20 x 0,75 Qual. 1
13 731-04134A RB Chute Door Porte de goulotte
14 750-04162 Spacer .390 x .810 x .950 Entretoise 0,390 x 0,810 x 0,950
15 732-04089A LH Torsion Spring Ressort de torsion CG
16 732-04090A RH Torsion Spring Ressort de torsion CD
17 734-1987 Wheel Ass'y 8 x 1.8 Spoke Bar Grey Ensemble de roue 8 x 1,8 Gris
18 734-04150 RR Baffle Déflecteur de déchiquetage arrière droit
20 787-01276 21" Deck Ass’y Plateau de coupe de 21 po
21 710-0286 Mach. Scr. Pan Phil. 1/4-20 x .50 Vis de renforcement à usinée 1/4-20 x 0,50
22 782-5002B Front Baffle 21" Déflecteur de déchiquetage avant 21 po
23 748-04082 Blade Adapter Adaptateur de la lame
24 742-0641 21" Blade (w/star) Lame 21 po (avec étoile)
742-0741 21" Mulching Blade (w/star) Lame de déchiquetage 21 po (avec étoile)
25 710-1257 Hex Bolt 3/8-24 x 2.5" Lg. Gr. 8 Vis à tête hex. 3/8-24 x 2,50 po de lg Qual. 8
26 687-02077A Pivot Bar RH Barre de pivot CD
687-02078A Pivot Bar LH Barre de pivot CG
27 736-0524B Blade Bell Support Support de la lame
28 787-01290 Height Adjuster Plate Plaque de réglage de roue
29 720-0426 Knob Bouton
30 732-0404 Spring Lever Ass’y (w/knob) Levier de ressort (avec bouton)
31 738-0507B Shoulder Screw .50 Dia. Vis à épaulement 0,50 Dia.
32 734-1988 Wheel Ass'y 7 x 1.8 Spoke Bar Grey Ensemble de roue 7 x 1,80 Gris
33 710-04371 Hex. L-Scr. 1/4-15 x 1.5 Vis hex. 1/4-15 x 1,50
34 746-1137 Control Cable 53.0" Lg. Snap-on Câble de la commande 53,0 po de lg.
35 712-04064 Flanged Lock Nut 1/4-20 Gr. F Nylon Écrou de blocage 1/4-20 Qual. F nylon
36 731-04998 Rear Flap Abattant de protection arrière
37 732-0700 Wire Fil
38 712-0397 Wingnut 1/4-20 Écrou à oreilles
39 747-04035 Pivot Rod Tige de pivotement
40 687-02078 Spring Lever SP (w/knob) Ressort de levier (avec bouton)
720-0426 Knob Bouton
41 687-02071 Pivot Bar RH SP Barre de pivot - Droit
687-02070 Pivot Bar LH SP (not shown) Barre de pivot - Gauche (non illustrée)
42 710-1652 Hex HD. TT Tap Scr. 1/4-20 x 5/8 Vis TT à rondelle-frein hex. 1/4 x 5/8
43 712-0431 Flange Locknut 3/8-16 Écrou de blocage 3/8-16
44 714-0104 Int. Cotter Pin 5/16 DIA Goupille fendue 5/16 DIA.
45 710-0654A Hex Wash HD Tap Scr 3/8-16 x .88 Vis autotaraudée 3/8-16 x 0,88
46 687-02099A Height Adj. Ass’y LH (w/knob) Ensemble de réglage de roue CG (avec bouton)
687-02100A Height Adj. Ass’y RH (w/knob) Ensemble de réglage de roue CD (avec bouton)
48 687-02069 LH Rear Height Adj. Ass’y Complete Ensemble de réglage de roue CG (complet)
687-02068 RH Rear Height Adj. Ass’y Complete Ensemble de réglage de roue CD (complet)
49 787-01143A LH Height Adj. Brkt. Ensemble de réglage de roue CG
787-01144A RH Height Adj. Brkt. Ensemble de réglage de roue CD
50 720-04072 Knob - Star 5/16-18 Bouton - étoile 5/16-18
11A-41X
11.16.05
For parts and/or
accessories refer to
customer support on
page 2.
Adressez-vous au
«Service après-vente»
à la page 2 pour ce qui
concerne les pièces
et/ou accessoires.
Parts List
Pièces
détachées

13
La garantie limitée qui est énoncée ci-dessous est offerte par MTD LLC pour toutes les marchandises neuves achetées et utilisées aux États-Unis,
dans ses possessions et territoires, et par MTD Products Limited, pour toutes les marchandises achetées et utilisées au Canada et/ou ses territoires
(l’une ou l’autre entité respectivement appelée « MTD »).
« MTD » garantit que ce produit (à l’exception des pièces à usure normale énumérées ci-dessous)est exempt de tout vice de matière et de fabrica-
tion pour une durée de deux (2) ans à compter de la date de l’achat initial et s’engage à réparer ou à remplacer, gratuitement et à son choix, toute
pièce qui s’avère défectueuse en raison d’un vice de matière ou de fabrication. Cette garantie limitée n’est applicable que si ce produit a été utilisé
et entretenu conformément aux instructions de la notice d’utilisation qui l’accompagne. De plus, le produit ne doit pas avoir fait l’objet d’un emploi
incorrect ou abusif, d’une utilisation à des fins commerciales, d’une négligence, d’un accident, d’un entretien incorrect, d’une modification, d’un
acte de vandalisme, d’un vol, d’un incendie, d’une inondation ou de tout autre dégât causé par tout incident ou désastre naturel. Les dégâts causés
par l’installation ou l’utilisation d’une pièce, d’un accessoire ou d’un équipement annexe, dont l’emploi avec le produit faisant l’objet de la notice
d’utilisation n’est pas homologué par MTD, rendront la garantie nulle et non avenue.
Les pièces ou composants à usure normale sont garantis exempts de tout vice de matière et de fabrication pour une période de 30 jours à compter
de la date d’achat. Les pièces et composants à usure normale comprennent, sans s’y limiter, les batteries, courroies, lames, adaptateurs de lame,
sacs à herbe, roues du plateau de coupe, sièges, patins de souffleuses, roues de frottement, lames de raclage, le caoutchouc de la tarière et pneus.
POUR FAIRE HONORER LA GARANTIE : Présentez UNE PREUVE D’ACHAT à la station technique agréée de votre localité. Pour localiser une
station technique agréée ou un concessionnaire dans votre région :
Aux États-Unis : Consultez les Pages Jaunes ou adressez-vous à MTD LLC, P.O. Box 361131, Cleveland, Ohio 44136-0019 ou appelez le 1-800-
800-7310 ou le 1-330-220-4683. Vous pouvez aussi visiter notre site web au www.mtdproducts.com
Au Canada : Adressez-vous à MTD Products Limited, Kitchener, Ontario, N2G 4J1 ou appelez le 1-800-668-1238 ou visitez notre site web au www.
mtdcanada.com
Cette garantie limitée ne couvre pas:
a. Le moteur ou ses composants. Ces articles peuvent être couverts par une garantie séparée du fabricant. Consultez la garantie du fabricant quant
aux conditions.
b. Les pompes, soupapes et pistons des fendeuses à bois sont couverts par une garantie séparée d’un an.
c. Les articles d’entretien courant tels que les lubrifiants, filtres, aiguisages de lame et révisions, les réglages de frein, de l’embrayage ou du plateau
de coupe et la détérioration normale de la finition du fait de l’utilisation de la machine ou de son exposition aux intempéries.
d. L’entretien ou les réparations effectués par quiconque autre qu’une station technique agréée.
e. MTD ne garantit pas les produits vendus ou exportés hors des États-Unis et/ou du Canada, de leurs possessions et territoires respectifs, sauf si
ces produits ont été vendus par l’intermédiaire des services d’exportation de MTD.
f. Les pièces de rechange si elles ne sont pas des pièces MTD authentiques.
g. Les frais de transport des machines et de déplacement des techniciens.
h. Les produits utilisés dans un but commercial. (Certains produits peuvent être accompagnés d’une garantie limitée MTD séparée pour usage
commercial. Renseignez-vous auprès du concessionnaire ou détaillant pour plus de détails ou adressez-vous directement au service après-vente
de MTD.)
Aucune garantie tacite, y compris toute garantie tacite de qualité marchande ou d’adaptabilité dans un but particulier, ne s’applique
aux pièces identifiées ci-dessus après la période de vigueur de la garantie écrite expresse. Aucune autre garantie expresse, qu’elle soit
verbale ou écrite, à l’exception des stipulations ci-dessus, offerte par toute personne ou entité (y compris un concessionnaire/reven-
deur), pour tout produit, n’engage MTD. Pendant la période de garantie, la réparation ou le remplacement du produit ci-dessus constitue
le recours exclusif à la disposition du client.
Les stipulations énoncées dans cette garantie offrent le seul recours à la suite de la vente. MTD ne peut être tenue responsable pour
toute perte ou tout dommage accessoire ou immatériel comprenant, sans s’y limiter, les frais de remplacement ou de substitution des
services d’entretien des pelouses ou les frais de location pour remplacer temporairement un article sous garantie.
Certaines juridictions ne permettent pas l’inclusion ou la restriction des dommages accessoires ou immatériels ou une limite à la durée de la garantie
tacite. Par conséquent, les exclusions ci-dessus peuvent ne pas s’appliquer dans votre situation.
Le remboursement ou remplacement quel qu’il soit ne sera en aucun cas supérieur au montant du prix d’achat du produit vendu. Toute modification
des caractéristiques de sécurité rendra la garantie nulle et non avenue. L’utilisateur assume tout risque et toute responsabilité en cas de perte,
de dommage matériel ou de blessure résultant de l’utilisation incorrecte du produit ou de l’incapacité de l’employer.
Cette garantie limitée n’est offerte qu’à l’acheteur initial ou à la personne à laquelle le produit a été offert en cadeau.
LES LOIS LOCALES ET CETTE GARANTIE : Cette garantie limitée vous accorde des droits juridiques spécifiques et vous pouvez bénéficier
d’autres droits qui varient selon les juridictions.
IMPORTANT : Le propriétaire doit présenter le reçu original pour faire honorer la garantie.
MTD LLC, P.O. Box 361131, Cleveland, Ohio 44136-0019; téléphone: 1-800-800-7310, 1-330-220-4683
MTD Products Ltd., C.P. 1386, Kitchener, Ontario N2G 4J1; téléphone: 1-800-668-1238
GARANTIE DU FABRICANT

12
Pour toute
réparation autre
que les ajustements
mineurs énuméré
ici, adressez-vous à
la station technique
agréée.
6
Dépannage
CauseProblème Solution
Le moteur ne
démarre pas.
Le moteur tourne
irrégulièrement.
1. Branchez et serrez le fil de la bougie.
2. Nettoyez la canalisation. Faites le plein
avec une essence propre et fraîche.
3. Débouchez l’évent.
4. Videz le réservoir à carburant. Faites
le plein avec une essence fraîche.
5. Consultez la notice d’utilisation du
moteur.
6. Consultez la notice d’utilisation du
moteur.
1. Fil de la bougie desserré.
2. La canalisation de carburant est
bouchée ou l’essence est eventée.
3. L’event du capuchon du réservoir est
bouché.
4. De l’eau ou une saleté est présente dans
le système.
5. Le filtre à air est sale.
6. Le carburateur est mal régle.
1. La poignée de commande de la lame n’est
pas embrayée.
2. Fil de la bougie débranché.
3. Le réservoir est vide ou l’essence est
éventée.
4. Moteur non amorcé.
5. La bougie est défectueuse.
6. Canalisation de carburant bouchée.
7. Le moteur est noyé.
1. Embrayez la poignée de commande de
la lame.
2. Branchez le fil à la bougie.
3. Faites le plein avec une essence propre
et fraîche.
4. Consultez la notice d’utilisation du
moteur.
5. Nettoyez, réglez l’écartement ou
replacez la bougie.
6. Nettoyez la canalisation.
7. Attendez quelques minutes avant
d’essayer de faire démarrer le moteur
Le moteur surchauffe. 1. Faites le plein d’huile du carter.
2. Consultez la notice d’utilisation du
moteur.
3. Démontez l’habitacle du ventilateur et
nettoyez-le.
4. Consultez la notice d’utilisation du
moteur.
1. Niveau d’huile trop bas.
2. Le filtre à air est sale.
3. La circulation d’air est gênée.
4. La carburateur est mal régle.
Le moteur hésite parfois à
régime élevé.
1. Réglez l’écartement à 0,030 po. Con-
sultez la notice d’utilisation du moteur
2. Consultez la notice d’utilisation du
moteur.
1. La bougie est sale, défectueuse ou
l’écartement est trop grand.
2. Le carburateur est mal réglé.
3. Le filtre à air est sale.
1. L’écartement de la bougie est trop petit.
2. Mélange du ralenti du carburateur mal
réglé.
Le moteur tourne
irrégulièrement.
1. Réglez l’écartement à 0,030 po ou
remplacez la bougie. Consultez la
notice d’utilisation du moteur.
2. Consultez la notice d’utilisation du
moteur.
3. Consultez la notice d’utilisation du
moteur.
Vibrations excessives. 1. Serrez la lame et l’adaptateur.
Équilibrez la lame.
2. Remplacez la lame.
1. La lame est desserrée ou mal équilibrée.
2. La lame est déformée.
La coupe est irrégulière 1. Placez les quatre roues à la même
hauteur.
2. Aiguisez ou remplacez la lame.
1. Les roues ne sont pas bien
positionnées.
2. La lame est émoussée.
La tondeuse ne
déchiquette pas l’herbe.
1. Ne tondez pas quand l’herbe est mouil-
lée. Attendez qu’elle sèche.
2. Coupez l’herbe à un réglage élevé, puis
tondez à nouveau à la hauteur voulue ou
sur une largeur plus étroite.
3. Aiguisez ou remplacez la lame.
1. L’herbe est mouillée.
2. L’herbe est trop haute.
3. La lame est émoussée.

11
5
Entretien
Portez toujours
des gants épais ou
utilisez un chiffon
épais pour manipuler
la lame en la démon-
tant pour l’aiguiser ou
la remplacer.
Si la lame est
déséquilibrée,
elle fera vibrer la
tondeuse de façon
excessive, mais elle
pourrait aussi causer
des dommages
à la tondeuse
ou même casser
pendant qu’elle
tourne, et causer de
sérieuses blessures à
l’utilisateur.
Figure 11
3. Enlevez le boulon et le support de la lame qui
maintiennent la lame et l’adaptateur sur le vilebrequin.
Voir la Figure 11.
4. Dégagez la lame et l’adaptateur du vilebrequin.
5. Pour l’affûter à nouveau, démontez-la puis meulez
ou limez les bords tranchants en maintenant l’angle
aussi près que possible du biseau original. N’essayez
pas d’aiguiser la lame encore installée sur la
tondeuse.
6. Il est essentiel que chaque tranchant soit affûté
également pour ne pas avoir une lame déséquilibrée.
REMARQUE: Une lame déséquilibrée cause des vibra-
tions qui peuvent endommager le moteur et la tondeuse.
Assurez-vous de bien rééquilibrer la lame après l’avoir
aiguisée. Le fabricant de la tondeuse ne peut être tenu
responsable des dégâts causés par le mauvais équilibre
de la lame.
REMARQUE: Démontez toujours la lame de son
adaptateur pour vérifiez son bon équilibre.
7. Vous pouvez vérifier l’équilibre de la lame en la
plaçant sur un tournevis à tige ronde. Limez le métal
du côté le plus lourd jusquà ce que la lame soit
parfaitement équilibrée.
8. Avant de remonter la lame et son adaptateur sur
la tondeuse, lubrifiez le vilebrequin et la surface
intérieure de l’adaptateur avec une huile légère.
9. Placez l’adaptateur de la lame sur le vilebrequin,
«l’étoile» à l’opposé du moteur. Voir la Figure
11. Placez la lame, le côté sur lequel la mention
«Bottom» (ou le numéro de pièce) apparaît, à
l’opposé de l’adaptateur. Alignez le support de la lame
sur celle-ci en enfonçant les pattes dans les trous de
la lame, puis insérez le boulon hex.
10. Serrez le boulon hex. au couple recommandé
ci-dessous:
Couple de montage de la lame
Boulon centrale 450 po-lb min., 600 po-lb max.
Vérifiez périodiquement que TOUS les écrous et boulons
de la machine sont bien serrés.
Le fait de couper
l’herbe sur un sol
sablonneux provoque
l’usure de la lame par
abrasion.
Remplacement du déflecteur arrière
1. Il est installé sur l’arrière du plateau de coupe et
a pour but de minimiser les risques de projection
d’objets vers le conducteur. Remplacez le déflecteur
arrière comme suit s’il est endommagé.
2. Tout d’abord, retirez le déflecteur usé en coupant
l’extrémité plate de la tige métallique qui le maintient
sur le plateau de coupe. Servez-vous de cisailles.
Installez le déflecteur arrière neuf avec la nouvelle
tige fournie et pliez les extrémités pour la maintenir en
place.
Remisage hors saison
Procédez de la manière suivante pour préparer votre
tondeuse pour un entreposage prolongé.
1. Nettoyez et lubrifiez soigneusement la tondeuse selon
les instructions de lubrification.
2. L’utilisation d’un nettoyeur sous pression ou d’un
boyau d’arrosage pour nettoyer la tondeuse est
déconseillée.
3. Consultez la notice d’utilisation du moteur quant aux
instructions d’entreposage du moteur.
4. Enduisez la lame de la tondeuse d’une graisse à
châssis pour l’empêcher de rouiller
5. Entreposez la tondeuse dans un endroit sec et propre.
Ne la remisez pas près de produits corrosifs, comme
des engraise.
REMARQUE: Il est très important de bien protéger le
matériel contre la rouille s’il doit être entreposé dans un
abri métallique non ventilé. Enduisez toute la machine,
en particulier les câbles et toutes les pièces mobiles,
avec une huile légère ou de la silicone.
AVERTISSEMENT

10
5
Entretien
Arrêtez toujours le
moteur et débranchez
le fil de la bougie et
mettez-le à la masse
contre le moteur
avant tout nettoyage,
toute lubrification ou
autre entretien sur la
machine.
L’utilisation d’un
nettoyeur pressurisé ou
d’un boyau d’arrosage
pour nettoyer la
tondeuse est décon-
seillée. Cela risque en
effet d’endommager les
composants élec-
triques, les fusées, les
poulies, les roulements
ou le moteur. L’emploi
d’eau a tendance à
raccourcir la vie de la
tondeuse et à limiter sa
facilité d’entretien.
Figure 10
Recommandations d’ordre général
1. Suivez toujours les consignes de sécurité lors de tout
entretien.
2. La garantie de cette tondeuse ne s’applique pas à
toute pièce qui a fait l’objet d’un emploi abusif ou
d’une négligence. Pour bénéficier au maximum de
la garantie, l’utilisateur doit entretenir la tondeuse
conformément aux instructions de cette notice.
3. La garantie sera nulle et non avenue si une
modification est apportée au régulateur du moteur.
4. Vérifiez tous les réglages au moins une fois par
saison.
5. Vérifez régulièrement que toute la boulonnerie est
bien serrée.
Lubrification
1. Lubrifiez les points de pivot de la poignée de
commande de la lame au moins une fois par saison
avec une huile légère. La commande de la lame doit
fonctionner facilement dans les deux sens. Voir la
Figure 10.
2. Lubrifiez les roulements à billes des roues au moins
une fois par saison avec de l’huile fluide, tous les
autres genres n’ont pas be soin d’être lubrifiées.
Toutefois, si elles doivent être démontées pour une
raison quelconque, lubrifiez la surface du boulon
d’essieu et la surface intérieure de la roue avec une
huile automobile légère.
3. Le ressort de torsion et le point de pivotement sur
le clapet arrière doivent être lubrifiés régulièrement
avec une huile légère pour empêcher la rouille. Voir
la Figure 10.
4. Consultez la notice d’utilisation du moteur pour les
instructions de lubrification.



AVERTISSEMENT
Moteur
1. Consultez la notice d’utilisation du moteur pour tout ce
qui concerne l’entretien du moteur.
2. Utilisez l’huile à moteur recommandée dans la notice
d’utilisation du moteur fournie avec la tondeuse. Lisez
attentivement les instructions et suivez-les.
3. Dans des conditions normales nettoyez le filtre à air
recommandée dans la notice d’utilisation du moteur
fournie avec la tondeuse. Nettoyez-le à intervalles plus
rapprochés dans des conditions très poussiéreuses.
Une mauvaise performance du moteur et sa «noyade»
sont des indications que le filtre à air doit être nettoyé.
4. Nettoyez la bougie et ajustez l’écartement une fois
par saison. Il est recommandé de remplacer la
bougie au début de chaque saison. Vérifiez le type de
bougie à utiliser et l’écartement correct dans la notice
d’utilisation du moteur.
REMARQUE: Ce système d’allumage par étincelle de
véhicule respecte toutes les exigences du Règlement sur
le matériel brouilleur du Canada.
5. Nettoyez le moteur régulièrement avec un linge ou
une brosse. Gardez le système de refroidissement (à
proximité du ventilateur) propre pour assurer la bonne
circulation d’air essentielle aux bonnes performances
et à la longévité du moteur. Enlevez tous les brins
d’herbe, la saleté et autres débris combustibles se
trouvant à proximité du silencieux.
Plateau de coupe
Nettoyez le dessous du plateau de coupe après chaque
utilisation pour empêcher les brins d’herbe, les feuilles ou
la saleté de s’y accumuler. Toute accumulation favorise la
rouille et la corrosion et peut empêcher le déchiquetage
efficace.
Inclinez la tondeuse et grattez le dessous du plateau de
coupe avec un outil approprié (après avoir vérifié que
la bougie est débranchée) pour nettoyer le plateau de
coupe.
Entretien et remplacement de la lame
AVERTISSEMENT: Portez toujours
des gants épais ou utilisez un
chiffon épais pour manipuler
la lame en la démontant pour
l’aiguiser ou la remplacer.
Examinez périodiquement l’adaptateur de lame pour y
détecter tout fendillement éventuel, surtout après avoir
heurté un objet. Remplacez-le au besoin. Procédez
comme suit pour l’entretien de la lame:
1. Débranchez toujours le fil de la bougie.
2. Basculez la tondeuse selon les instructions dans
la notice d’utilisation. S’il n’y a pas d’instructions
spécifiques, basculez la tondeuse avec le filtre à air et
le carburateur sur le haut.

9
4
Les objets projetés
par une tondeuse
peuvent atteindre les
yeux et causer des
blessures graves.
Portez toujours
des lunettes de
sécurité en utilisant
la tondeuse, ou en ef-
fectuant tout entretien
ou toute réparation.
Assurez-vous que
seul le conducteur
se trouve à proximité
de la tondeuse au
moment de sa mise
en route ou pendant
son utilisation.
Ne faites jamais
fonctioner la machine
dans un local clos et
mal aéré, car les gaz
d’échappement du
moteur contiennent
du monoxyde de
carbone, un gaz ino-
dore très dangereux.
N’approchez pas les
mains, pieds, cheveux
et vêtements lâches
des pièces en mouve-
ment du moteur et de
la tondeuse.
Figure 9
3



Utilisation
AVERTISSEMENT
AVERTISSEMENT: Arrêtez le
moteur si vous heurtez un objet
quelconque. Débranchez le fil de
la bougie, cherchez soigneuse-
ment tout signe de dégât à la
tondeuse et réparez-la avant de
la remettre en marche et de vous
en servir. Des vibrations impor-
tantes de la tondeuse indiquent
des dégâts. Faites examiner et
réparer la machine rapidement.
Conseil d’utilisation
1. Pour obtenir les meilleurs résultats et déchiqueter
efficacement, ne coupez pas l’herbe mouillée.
2. Une tonte plus étroite peut être nécessaire si l’herbe
est nouvelle, drue ou humide.
3. Votre pelouse sera plus saine si vous ne tondez
jamais plus d’un tiers de la longueur totale des brins
d’herbe.
4. Continuez à tondre la pelouse à l’automne jusqu’à ce
qu’elle cesse de pousser.
5. Ajustez la vitesse de déplacement en fonction des
conditions de travail.
6. Si l’herbe a été permis de pousser en excès de 4
pouces, le déchiquetage est déconseillé. Utilisez
d’abord le sac à herbe pour réduire la hauteur de
l’herbe à 3-1/4 pouces ou moins, avant de déchi-
queter l’herbe.
AVERTISSEMENT : Attendez que
la lame se soit complètement
immobilisée avant de travailler
sur la tondeuse ou de retirer le
sac à herbe.
Utilisation du sac à herbe
Vous pouvez utiliser le sac à herbe pour ramasser l’herbe
coupée en tondant.
1. Installez le sac à herbe en suivant les instructions
à la page 7. Les brins d’herbe seront automatique-
ment dirigés dans le sac pendant que vous tondez.
Travaillez jusqu’à ce que le sac est plein.
2. Arrêtez le moteur en lâchant la barre de commande
de la lame. Assurez-vous que la lame est immobile.
3. Relevez le clapet d’éjection et dégagez le sac pour le
vider.
Arrêt du moteur
1. Lâchez la poignée de commande de la lame pour
arrêter le moteur et la lame.
AVERTISSEMENT: La lame
continue à tourner pendant
quelques secondes après que le
moteur s’est éteint.
2. Débranchez le fil de la bougie et mettez-le à la masse
contre le moteur pour empêcher tout démarrage
accidentel lorsque la machine n’est pas surveillée.
Utilisation de la tondeuse
AVERTISSEMENT: N’utilisez
jamais la tondeuse sans le clapet
d’éjection arrière ou l’ensemble
du sac à herbe fermement fixé en
place.
Vérifiez qu’il n’y a plus de pierres, de morceaux de bois,
de fils métalliques ou autres objets sur la pelouse, qui
risquent d’endommager la tondeuse ou le moteur. Ces
objets pourraient être projetés par la tondeuse dans
une direction ou une autre et blesser grièvement le
conducteur ou toute autre personne présente.
