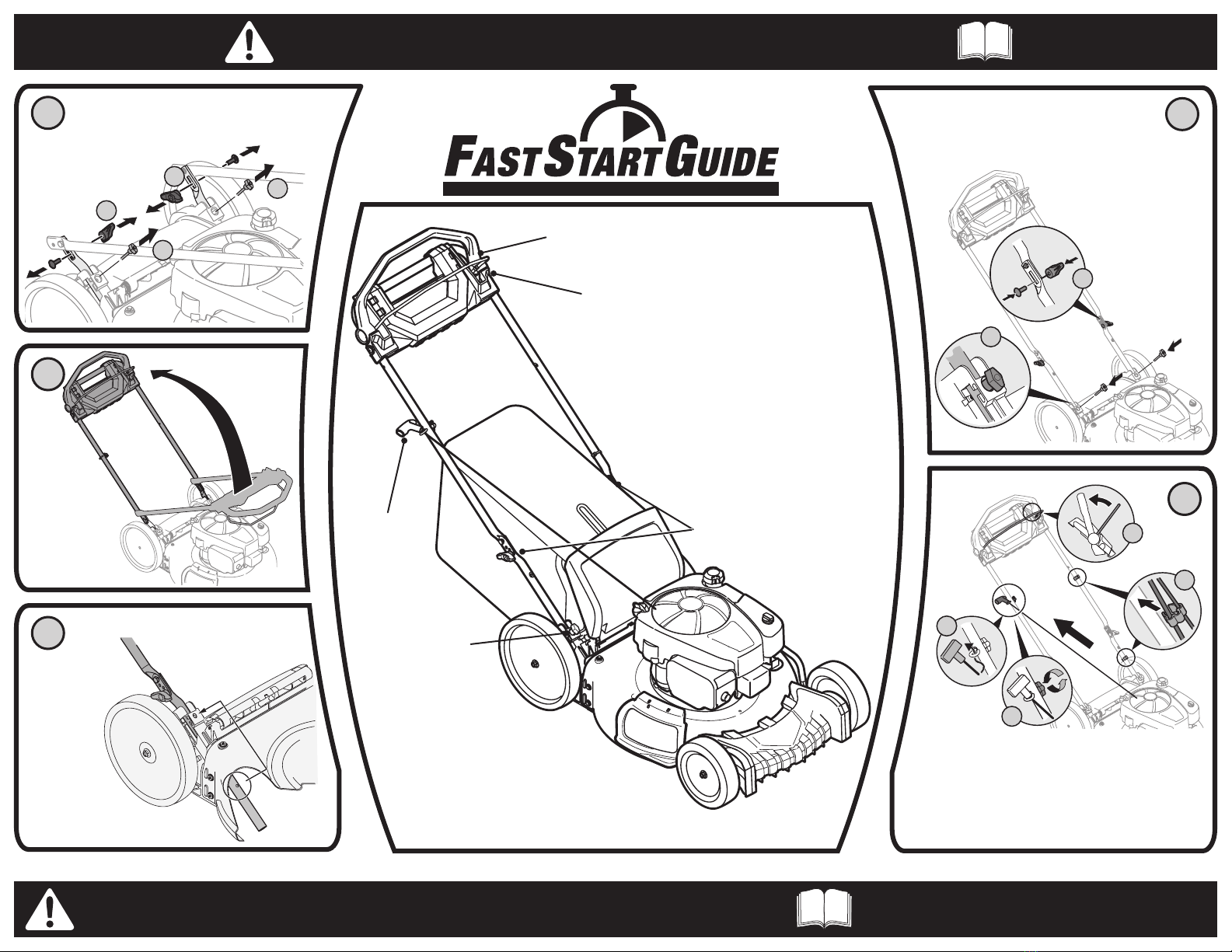

MTD Troy-Bilt TB 360 Guide

A. Hold the blade control handle against
the premium drive control.
B. Slowly pull starter rope handle from engine and
slip starter rope into the rope guide.
C. Tighten rope guide wing knob.
D. Use clips to secure cables to lower handle.
778-13238B© 2015 12ABD3B
Note: Refer to your Operator’s Manual
for instructions on attaching the grass collector.
Note: Refer to your Operator’s Manual
for instructions on attaching the grass collector.
Note: Refer to your Operator’s Manual
for instructions on attaching the grass collector.
Starter
Rope Handle
Blade Control Handle
Premium Drive Control
Wing Nuts
T-Bolt
A. Remove the wing nuts and carriage bolts
securing the upper handle to the lower
handle.
A
B. Remove T-bolts from
the handle brackets. A
B
B
Pivot the upper
handle upward.
Pull upward
on the handle
until the
holes in lower
handle line up
with the holes
in the handle
bracket.
A. Insert the T-bolts removed in Step 1B
through the handle brackets to secure
the handle in place.
B. Secure upper handle
to lower handle with
wing nuts (on outside)
and carriage bolts
removed Step 1A.
A
B
D
A
C
B
14
2
5
3
READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.
PARA INSTRUCCIONES EN ESPAÑOL, REFIÉRASE AL MANUAL DEL OPERADOR.
IMPORTANT: READ OPERATOR'S MANUAL AND ENGINE MANUAL THOROUGHLY
AND FOLLOW THE IMPORTANT SAFE OPERATION PRACTICES BEFORE OPERATING . Need Help? Call 1-888-TO-HELP-U

778-13238B© 2015 12ABD3B
Oil Fill /
Dipstick Gas Fill
Fill fuel tank with clean, fresh gasoline. Do not
fill above the base of fuel tank neck.
Pour the entire contents of the oil bottle (supplied)
into the oil fill. Check the oil level using the
dipstick. (Refer to the Operator’s Manual)
While standing behind the machine, pivot the Blade
Control Handle against the premium drive control.
Grasp the starter rope handle and pull with quick,
full-arm stroke. If the engine does not start after three
pulls, wait a few minutes and repeat.
Make sure the spark plug boot is connected to
the spark plug before attempting to start.
Spark Plug Boot
68
79
