MTD H660G User manual

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-9722
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered,
brush-coveredorgrass-coveredlandunless theengine’s exhaustsystem is equipped with a spark arrester meeting applicable local or state
laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply
on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service
department, P.O. Box 361131 Cleveland, Ohio 44136-9722.
PRINTED IN U.S.A.
Snow Thrower
Model H660G
FORM NO .
769-00814.fm
(6/2003)
Operator’s Manual

2
TABLE OF CONTENTS
Content Page
Important Safe Operation Practices ........................................................................ 3
Assembling Your Snow Thrower............................................................................. 5
Know Your Snow Thrower....................................................................................... 6
Operating Your Snow Thrower................................................................................ 8
Making Adjustments................................................................................................ 11
Maintaining Your Snow Thrower ............................................................................. 13
Service.................................................................................................................... 14
Off-Season Storage................................................................................................. 16
Troubleshooting ...................................................................................................... 17
Parts List ................................................................................................................. 18
FINDING MODEL NUMBER
This Operator’s Manual is an important part of your new snow thrower. It will help you assemble, prepare and
maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the equipment and copy the
information from it in the space provided below. The information on the model plate is very important if you
need help from ourCustomer SupportDepartment or an authorized dealer.
You can locate the model number by standing behind the unit in the operating position and looking down at
the rear frame below the engine. A sample model plate is explained below. For future reference, please copy
the model number and the serial number of the equipment in the space below.
ENGINE INFORMATION
The engine manufacturer is responsible for all engine-related issues with regard to performance, power-rating,
specifications, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual packed
separately with your unit for more information.
CALLING CUSTOMER SUPPORT
Please do NOT return the unit to the retailer from which it was purchased, without first contacting Customer Support.
Should you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, please call the Customer Support Department.
Call 1- (330) 220-4MTD (4683) or 1- [phone] to reach a Customer Support representative.
Please have your unit’s model number and serial number ready when you call. See previous section to
locate this information. You will be asked to enter the serial number in order to process your call.
www.mtdproducts.com
MTD LLC
P. O. BOX 361131
CLEVELAND,OH 44136
330-220-4683
800-800-7310
Copy the model number here:
Copy the serial number here:
(Model Number)
(Serial Number)
For more details about your unit, visit our website at www.mtdproducts.com

3
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
This symbol points out important safety instructions, which if not followed, could endanger the personal
safety and/or property of yourself and others. Read and follow all instructions in this manual before
attempting to operate this machine. Failure to comply with these instructions may result in personal
injury. When you see this symbol—heed its warning.
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to the State of California to cause cancer, birth defects or
other reproductive harm.
DANGER: This machine was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating hands and feet and throwing objects.
Failure to observe the following safety instructions could result in serious injury or death.
TRAINING
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place
for future and regular reference and for ordering
replacement parts.
2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent.
4. Never allow adults to operate this machine without
proper instruction.
5. Thrown objects can cause serious personal injury. Plan
yoursnow-throwing patternto avoiddischarge ofmaterial
toward roads, bystanders and the like.
6. Keep bystanders, helpers, pets and children at least 75
feet from the machine while it is in operation. Stop
machine if anyone enters the area.
7. Exercise caution to avoid slipping or falling, especially
when operating in reverse.
PREPARATION
1. Thoroughly inspect the area where the equipment is to
be used. Remove all doormats, newspapers, sleds,
boards, wires and other foreign objects, which could be
tripped over or thrown by the auger/impeller.
2. Always wear safety glasses or eye shields during
operationandwhile performing anadjustment orrepairto
protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
3. Do not operate without wearing adequate winter outer
garments. Do not wear jewelry, long scarves or other
loose clothing, which could become entangled in moving
parts. Wear footwear which will improve footing on
slippery surfaces.
4. Use a grounded three-wire extension cord and
receptacle for all units with electric start engines.
5. Adjust collector housing height to clear gravel or crushed
rock surfaces.
6. Disengage all clutch levers before starting the engine.
7. Never attempt to make any adjustments while engine is
running, except where specifically recommended in the
operator’s manual.
8. Let engine and machine adjust to outdoor temperature
before starting to clear snow.
9. Toavoid personal injury orproperty damage useextreme
care in handling gasoline. Gasoline is extremely
flammable and the vapors are explosive. Serious
personal injury can occur when gasoline is spilled on
yourselfor yourclothes, which can ignite. Wash your skin
and change clothes immediately.
a. Use only an approved gasoline container.
b. Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
c. Never fuel machine indoors.
d. Never remove gas cap or add fuel while the
engine is hot or running.
e. Allow engine to cool at least two minutes before
refueling.
f. Never over fill fuel tank. Fill tank to no more than
½inch below bottomof filler neck toprovide space
for fuel expansion.
g. Replace gasoline cap and tighten securely.
h. If gasoline is spilled, wipe it off the engine and
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
i. Never store the machine or fuel container inside
where there is an open flame, spark or pilot light
(e.g. furnace, water heater, space heater, clothes
dryer etc.).
j. Allow machine to cool at least 5 minutes before
storing.
OPERATION
1. Do not put hands or feet near rotating parts, in the auger/
impeller housing or discharge chute. Contact with the
rotating parts can amputate hands and feet.
2. The auger/impeller clutch lever is a safety device. Never
bypass its operation. Doing so makes the machine
unsafe and may cause personal injury.
3. The clutch levers must operate easily in both directions
and automatically return to the disengaged position when
released.
4. Never operate with a missing or damaged discharge
chute. Keep all safety devices in place and working.

4
5. Never run an engine indoors or in a poorly ventilated
area. Engine exhaust contains carbon monoxide, an
odorless and deadly gas.
6. Do not operate machine while under the influence of
alcohol or drugs.
7. Mufflerandengine become hot andcan cause a burn.Do
not touch.
8. Exercise extreme caution when operating on or crossing
gravel surfaces. Stay alert for hidden hazards or traffic.
9. Exercise caution when changing direction and while
operating on slopes.
10. Plan your snow-throwing pattern to avoid discharge
towards windows, walls, cars etc. Thus, avoiding
possible property damage or personal injury caused by a
ricochet.
11. Never direct discharge at children, bystanders and pets
or allow anyone in front of the machine.
12. Do not overload machine capacity by attempting to clear
snow at too fast of a rate.
13. Never operate this machine without good visibility or
light. Always be sure of your footing and keep a firm hold
on the handles. Walk, never run.
14. Disengage power to the auger/impeller when
transporting or not in use.
15. Never operate machine at high transport speeds on
slippery surfaces. Look down and behind and use care
when in reverse.
16. If the machine should start to vibrate abnormally, stop the
engine, disconnect the spark plug wire and ground it
against the engine. Inspect thoroughly for damage.
Repair any damage before starting and operating.
17. Disengage all clutch levers and stop engine before you
leave the operating position (behind the handles). Wait
until the auger/impeller comes to a complete stop before
unclogging the discharge chute, making any
adjustments, or inspections.
18. Never put your hand in the discharge or collector
openings. Always use the clean-out tool provided to
unclog the discharge opening. Do not unclog discharge
chute while engine is running. Shut off engine and remain
behind handles until all moving parts have stopped
before unclogging.
19. Use only attachments and accessories approved by the
manufacturer (e.g. wheel weights, tire chains, cabs etc.).
20. If situations occur which are not covered in this manual,
use care and good judgment. Contact your dealer or
telephone [phone] for assistance and the name
of your nearest servicing dealer.
MAINTENANCE AND STORAGE
1. Never tamper with safety devices. Check their proper
operation regularly. Refer to the maintenance and
adjustment sections of this manual.
2. Before cleaning, repairing or inspecting machine
disengage all clutch levers and stop engine. Wait until the
auger/impeller come to a complete stop. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
3. Check bolts and screws for proper tightness at frequent
intervals to keep the machine in safe working condition.
Also, visually inspect machine for any damage.
4. Do not change the engine governor setting or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
5. Snow thrower shave plates and skid shoes are subject to
wear and damage. For your safety protection, frequently
check all components and replace with original
equipment manufacturer’s (OEM) parts only. “Use of
parts which do not meet the original equipment
specifications may lead to improper performance and
compromise safety!”
6. Check clutch controls periodically to verify they engage
and disengage properly and adjust, if necessary. Refer to
the adjustment section in this operator’s manual for
instructions.
7. Maintain or replace safety and instruction labels, as
necessary.
8. Observe proper disposal laws and regulations for gas,
oil, etc. to protect the environment.
9. Prior to storing, run machine a few minutes to clear snow
from machine and prevent freeze up of auger/impeller.
10. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light such as a water
heater, furnace, clothes dryer etc.
11. Always refer to the operator’s manual for proper
instructions on off-season storage.
WARNING — YOUR RESPONSIBILITY:
Restrict the use of this power machine to persons who
read, understand and follow the warnings and
instructions in this manual and on themachine. The
safety labels are shown below for your reference.

5

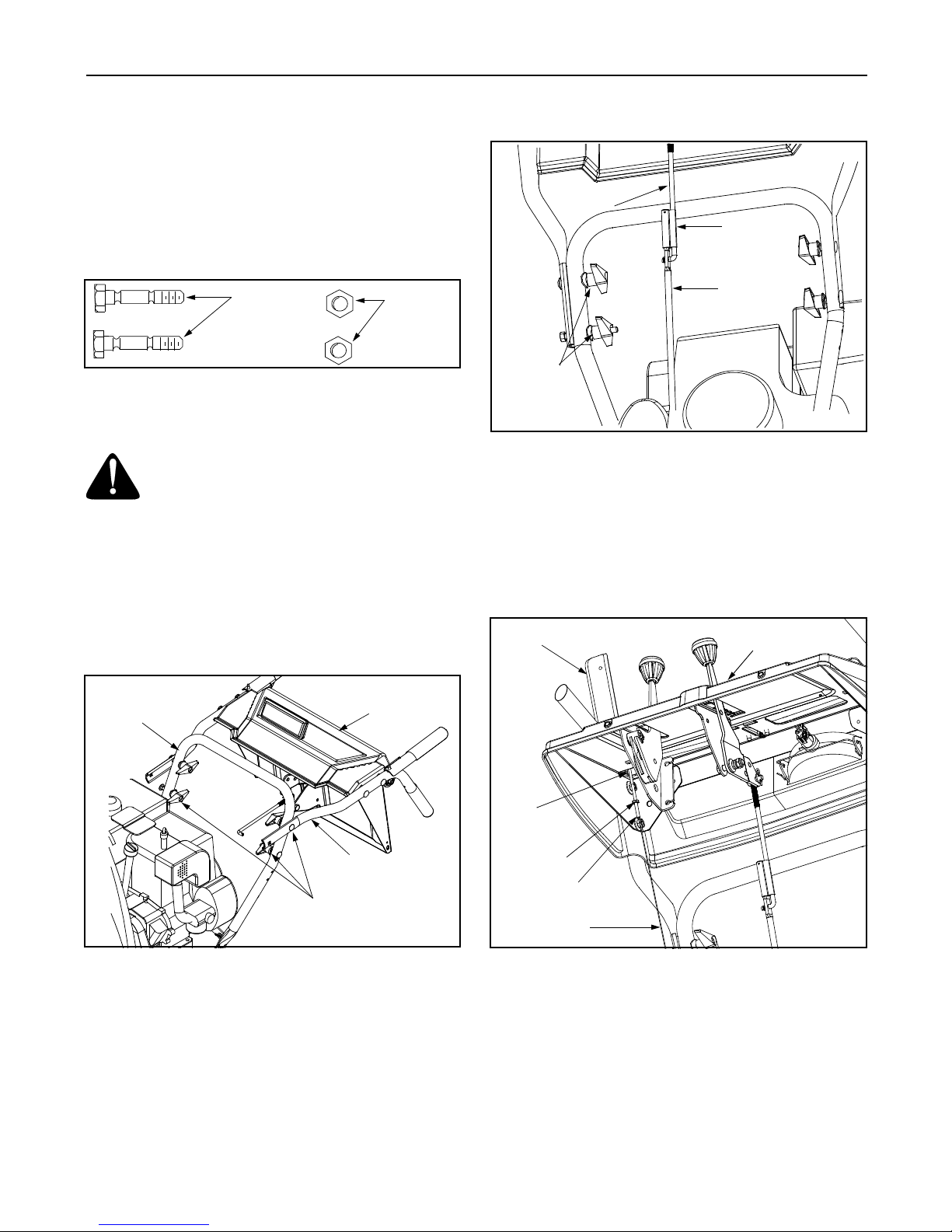

SECTION 2: ASSEMBLING YOUR SNOW THROWER
Loose Parts
The augers are secured to the auger shaft with two
shear bolts and hex lock nuts. If you hit a foreign object
or ice jam, the snow thrower is designed so that the
bolts may shear. Two replacement shear bolts and nuts
areprovidedforyourconvenience.Store in a safe place
until needed. See Figure 1.
Figure 1
Assembly
WARNING: Disconnect spark plug wire
and ground it against the engine to prevent
unintended starting.
NOTE: All references to right or left side of the snow
thrower are determined from behind the unit in the
operating position. The “operator’s position” is defined
as standing directly behind the snow thrower, facing the
handle panel.
• Remove the lower two plastic wing knobs, cupped
washers and carriage bolt (eyebolt on the left side)
from the lower handle. See Figure 2.
Figure 2
• Raise the upper handle assembly until it locks over
the lower handle. See Figure 3.
• Observe the lower rear area of the snow thrower to
be sure both cables are aligned with roller guides.
• Secure the upper handle and lower handle with the
two plastic wing knobs, cupped washers and
carriage bolt (eyebolt on the left side) previously
removed. See Figure 3.
Figure 3
• Slide the connector down over the end of the lower
shift rod. See Figure 3. Tap the connector until it
locks on the lower shift rod.
If the connector is not properly assembled, the shift rod
will pivot and you will not be able to change speeds or
change directions.
• Thread the jam nuts all the way up each of the “Z”
fittings, toward the handle panel. See Figure 4.
Figure 4
• Make certain all cables are in the grooves of the
cable roller guides located in the lower rear of the
unit, one on each side.
• Thread the coupling end of the cable onto the
threaded portion of the “Z” fitting until the rubber
bumper (located on the underside of the control
lever) only lightly contacts the upper handle.
Shear Bolts Hex Lock
Nuts
Handle
Panel
Lower
Handle
Upper Handle
Wing Nuts,
Washers, & Bolts
Upper
Shift Rod Shift Rod
Connector
Wing Nuts
Lower
Shift Rod
“Z”
Jam Nut
Make Sure Cable
Fitting
Is Straight
Cable Coupling End
Control Lever Handle
Panel
