GT/XL 45 HP OWNER’S MANUAL

A Message from Mudd-Ox Inc.
Thank you for choosing the Mudd-Ox as your new amphibious ATV.
We began designing the first Mudd-Ox in 2005, spending years testing and developing the ultimate amphibious vehicle. The first pro-
duction machine rolled off the line in 2008 and was shipped to Australia. Since then, we have expanded our model lineup to include the
Mudd-Ox GT, XL, Fort Mac, and Vengeance to suit all your outdoor needs. Our journey has continued to be full of adventure.
Safety is the number one concern at Mudd-Ox Inc. Please be sure to read and follow the operation manual to ensure the safety of yourself
and others around the Mudd-Ox.
Mudd-Ox is proudly made in the USA. Our headquarters and manufacturing facility are located near the historic town of Shipshewana,
Indiana. We welcome everyone to come visit our facility and take in the local beauty that is rural Indiana.

Table of Contents
Identify Your Mudd-Ox...........................................................................................................................................................1
Specifications............................................................................................................................................................................3
Warranty......................................................................................................................................................................................7
Safety.............................................................................................................................................................................................9
Instrument Panel...................................................................................................................................................................13
Drive the Mudd-Ox................................................................................................................................................................17
Operation....................................................................................................................................................................................19
Accessing the Mudd-Ox ....................................................................................................................................................25
General Maintenance..........................................................................................................................................................34
Track Installation ..................................................................................................................................................................35
Towing .......................................................................................................................................................................................36
Maintenance ...........................................................................................................................................................................37
Transportation........................................................................................................................................................................55
Jack Points...............................................................................................................................................................................57
Storage ......................................................................................................................................................................................58
Parts Manual ..........................................................................................................................................................................60
Dimensions .............................................................................................................................................................................83
Contact Us ...............................................................................................................................................................................68

1
Identify Your Mudd-Ox
PIN Plate
Every Mudd-Ox has its own unique identification plate. It notates the Model and Product Identification Number (PIN). This infor-
mation is vital for identifying each individual Mudd-Ox and obtaining a state-issued title. Do not remove the PIN plate from the
Mudd-Ox.

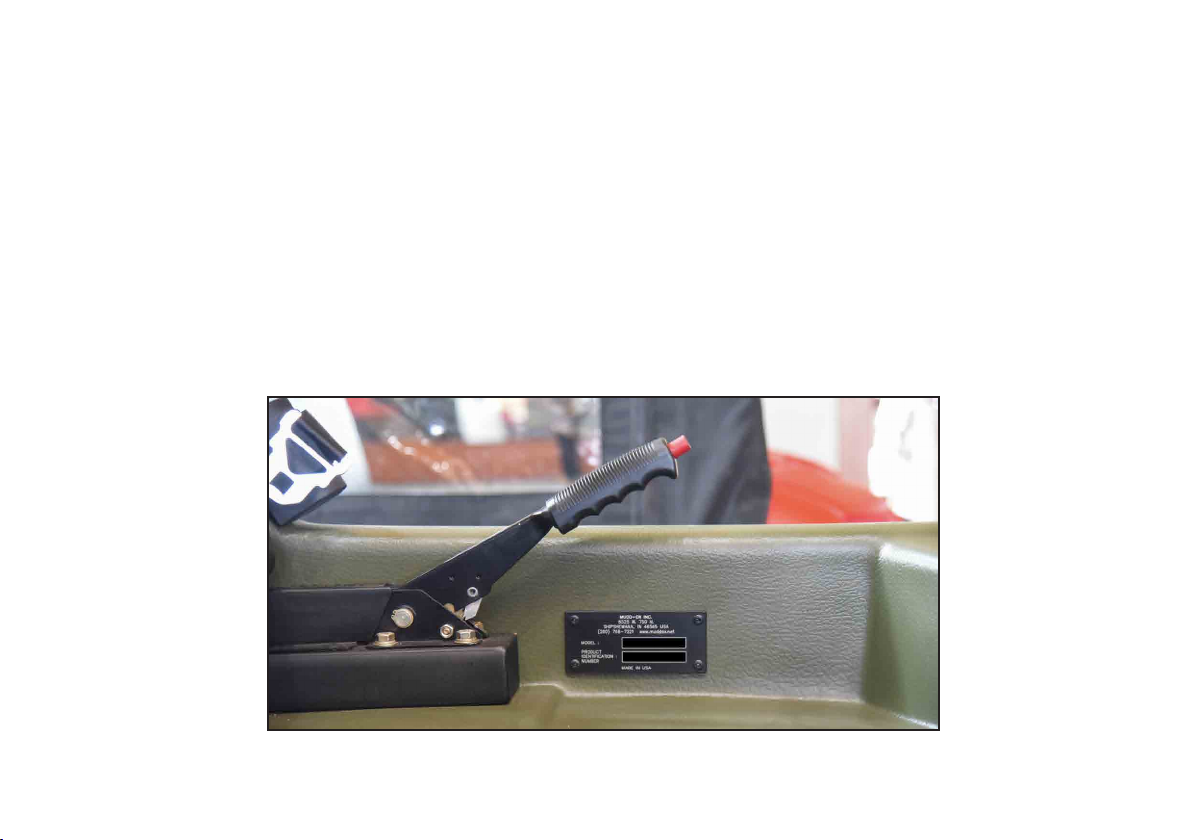

Locating the PIN
On the interior of the Mudd-Ox in front of the parking brake handle locates the PIN plate. It is visible without removing any compo-
nents, however removing the lower seat is recommended for best visibility.

2
Identify Your Mudd-Ox Cont.
Document the Information
Write down the Model and PIN information just as it displays on the PIN plate to document your individual Mudd-Ox.
Model: _______________________________________________________________
PIN: _______________________________________________________________

3
Operating Conditions
Ground Clearance
Ground Pressure
Self-Extraction Winch
Storage
Electrical Output
Bilge Pump
Weight & Dimensions
Shipping Weight
Chassis, Body & Lights Dimensions
Frame Powder coated steel for long life and durability
#60-2 (Twin 60) Roller Chain
1.500" (3.810") Solid Steel
Body
Performance
Speed - Water
Turning Circle
Towing Capacity 20" Chevron Track Set - GT Cargo Liner - Standard
20" Chevron Track Set - XL Dual Wheel Extension Kit
20" Ripsaw Track Set - GT Fender Kit - All models
20" Ripsaw Track Set - XL Front Float Kit [F]
26 x 12 x 12" Vendetta Tires Outboard Motor Kit
26 x 16 x 12" Vendetta Tires Rear Fuel Fill
9.9 HP Outboard Motor Setup Rear Winch Kit - All models
Air Conditioning Unit Dump Bed - All models
Aluminum Cab - GT Safari Rack - GT (Single Roll Bar)
Aluminum Cab - XL Safari Rack - XL (Single Roll Bar)
Amphibious 6x6 Trailer - GT Safari Rack - GT (Twin Roll Bar)
Amphibious 6x6 Trailer - XL
Safari Rack - XL (Twin Roll Bar)
Brush Guard - GT Skid Plate for GT Amphibious Trailer
Brush Guard - XL Skid Plate for XL Amphibious Trailer
Cab Heater Kit Snow Plow Kit - GT
Camouflage Body Color Snow Plow Kit - XL
Canvas Full/Half Cab - GT Boss V-Blade Snow Plow Kit
Canvas Full/Half Cab - XL Twin Roll Bar Package - All models
Catwalk Float Kit Windshield - GT
Cargo Liner Assembly - GT Windshield Wiper Kit - All models
Cargo Liner Assembly - XL Windshield - XL
Ver 0919
Web: www.muddox.net
E-mail: [email protected]
GT
XL
Seating Capacity - Water
2 to 4 [D]
Load Capacity - Water
800 lbs. (362 kg)(distributed
evenly) Less the weight of any
accessories [C]
1,000 lbs. (454 kg)(distributed
evenly) Less the weight of any
accessories [C]
2,500 lbs. (1,134 kg)
Zero turning radius, machine counter-rotates
3 mph (5 km/h) [B]
Load Capacity - Land
4 to 6 [D]
2,000 lbs. (907 kg)(distributed evenly) Less the weight of any accessories [C]
8525 W. 750 N.
Shipshewana, IN 46565
Phone: [phone]
Fax: [phone]
Seating Capacity - Land
Available Colors
GT Only
[F] Provides better flotation and allows for more carrying capacity in the water.
[E] See Owner's Manual for full warranty information.
[D] Depending on weight of person, cargo and accessories onboard
[C] See Owner's manual for accessory listing and weight.
[A] Top speed depends on terrain conditions and drive train options.
Specifications are subject to change without notice.
Warranty
GT
XL
63" Wide
68" Wide
2,090 lbs.
119" Long
2,190 lbs.
123" Long
25° Maximum
Approach and Departure angles
1 year limited warranty on Mudd-Ox, 2 year engine warranty [E]
Warranty [B] Depends on water conditions, only operate in calm water without a current (No large lakes,
open waters, oceans.)
Mudd-Ox 8x8 GT/XL
Ground Clearance
14" at center of vehicle, 8" outer edge
77" High with Roll Bar Up, 60" High with Roll Bar Down (on 26
x 14 x 12" Vendetta Tires)
79" High with Roll Bar Up, 62" High with Roll Bar Down (on 26
x 14 x 12" Vendetta Tires)
12.5" x 23" Insert area over
Engine Cover
12.5" x 28" Insert area over
Engine Cover
Lockable glove box, Built in Cup Holders
Fold down Roll Over Protection System with seat belts for front
two passangers. Rear Roll Over Protection System is available as an option. Mudd-Ox Hydrostatic precision control drive system enables safe control at all times while maneuvering in the most difficult terrains.
Safety
Neutral Light
Parking/Emergency Brake
Low Oil Pressure
Hydraulic Temperature

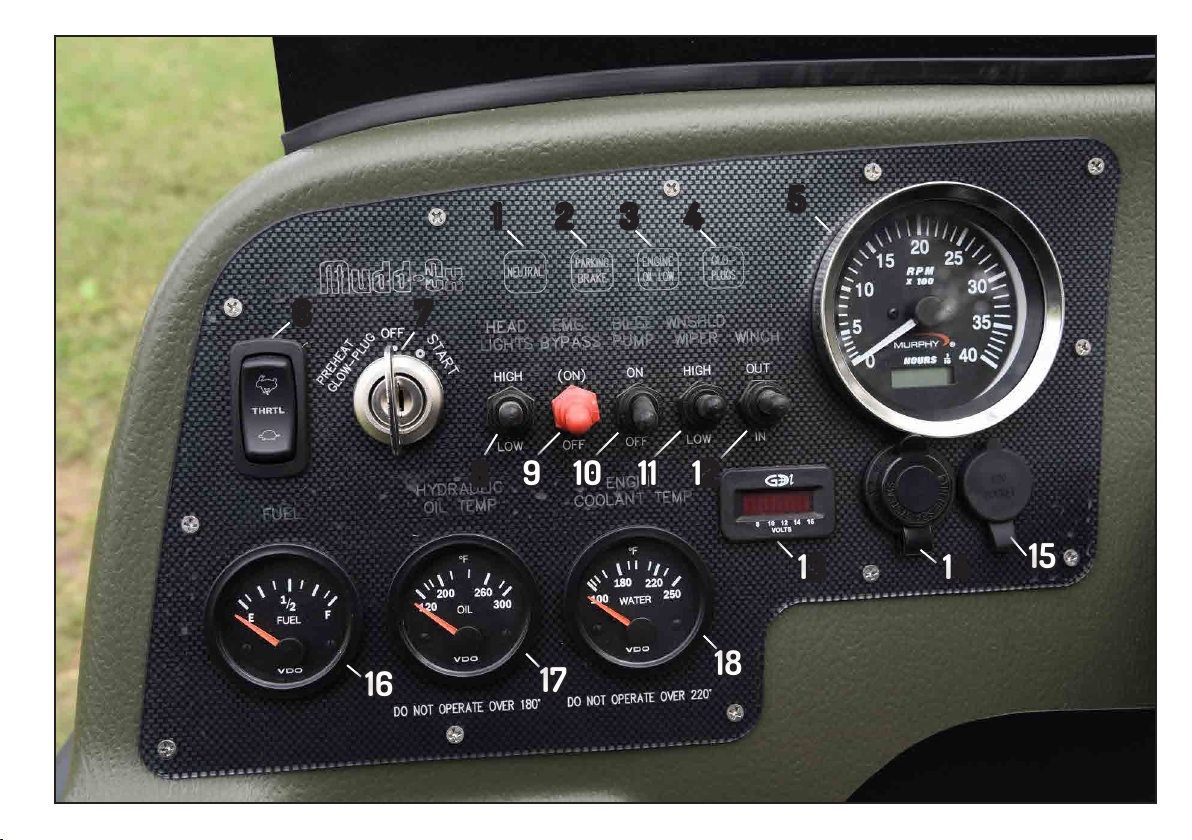

Full Instrumentation Dash Panel
Tachometer
Fuel Gauge
Volt Meter
Coolant Temperature
Hour Meter
Operation & Convenience
GT
Accessories
XL
Fuel Capacity
11.5 US gallons, giving approx. 10
hours of operation.
12 US gallons, giving approx. 10
hours of operation.
All weather, all terrain, -40°F to +110°F (-40°C to +43°C)
Standard
2 psi [D]
Type
Model
Power Output
Controls & Instrumentation
5,000 lb. Capacity
12V Outlet, USB Port
Vacuum formed upper body, lower body and skid plate, made
from High Molecular Weight Polyethylene (HMWPE)
26" x 14" x 12" Mudd-Ox Vendetta on 12" Mudd-Ox Bead Lock Rim
Steering
Displacement
Cooling
20 mph (24 km/h) [A]
Tires
26" x 12" x 12" Mudd-Ox Vendetta - Optional
26" x 16" x 12" Mudd-Ox Vendetta - Optional
Lighting
Halogen Headlights with LED Tail Lights
Speed - Land
Warning Lights
Glow Plugs
Gauges
Instrumentation
Brakes
Hydrostatic and Hydraulic Braking
Parking Brake
Drive System
Axles
Safety
GT
XL
Engine
Transmission
Ergonomic Left and Right Steering Controls
Ratchet Style Mechanical
45 HP at 3,000 rpm
Kubota
Turbo Diesel
Mudd-Ox Hydrostatic
Transmission
Starting
Electrical
Maxx N65 Battery, 110 Amp Alternator
Electric Starter
Liquid-Cooled
1498cc

4
Accessory
Each Set
4'' Wheel Extension 5 lbs. 40 lbs.
5'' Wheel Extension 6 lbs. 48 lbs.
13'' Wheel Extension 12 lbs. 96 lbs.
26x12x12'' Super Grip on 12'' Wheel 54 lbs. 432 lbs.
26x12x12'' Vendetta on 12'' Wheel 37 lbs. 296 lbs.
26x14x12'' Vendetta on 12'' Wheel 40 lbs. 320 lbs.
26x16x12'' Vendetta on 12'' Wheel 45 lbs. 360 lbs.
Aluminum Cab - GT 136 lbs. N/A
Aluminum Cab - XL 155 lbs. N/A
Aluminum Safari Rack - GT 75 lbs. N/A
Aluminum Safari Rack - XL 90 lbs. N/A
Brush Guard - GT 20 lbs. N/A
Brush Guard - XL 20 lbs. N/A
Canvas Top - GT (Full Cab) 29 lbs. N/A
Canvas Top - GT (Half Cab) 11 lbs. N/A
Canvas Top - XL (Full Cab) 30 lbs. N/A
Canvas Top - XL (Half Cab) 12 lbs. N/A
Cargo Liner 22 lbs. N/A
Cargo Liner - GT (in Cargo Frame) 29 lbs. N/A
Cargo Liner - XL (in Cargo Frame) 31 lbs. N/A
Chevron Track - GT (Metal Keepers) 280 lbs. 560 lbs.
Chevron Track - GT (Plastic Keepers) 210 lbs. 420 lbs.
Chevron Track - GT (Plastic Keepers (C-Channel Track Steel)) 249 lbs. 498 lbs.
Chevron Track - XL (Plastic Keepers) 260 lbs. 520 lbs.
Fender Kit 11 lbs. 22 lbs.
Long Bearing Extension - GT 6 lbs. 50 lbs.
Long Bearing Extension - XL 7 lbs. 56 lbs.
Outboard Motor Mount* 20 lbs. N/A
*Plus weight of outboard motor of choice. Not to exceed 10 HP)
Rear Winch Mount (Includes Winch) 34 lbs. N/A
Ripsaw Track - GT (Plastic Keepers) 154 lbs. 308 lbs.
Ripsaw Track - XL (Plastic Keepers) 200 lbs. 400 lbs.
Short Bearing Extension - GT 3 lbs. 24 lbs.
Short Bearing Extension - XL 4 lbs. 56 lbs.
Skid Plate - GT 45 lbs. N/A
Skid Plate - XL 60 lbs. N/A
Snow Plow - GT 165 lbs. N/A
Snow Plow - XL 190 lbs. N/A
Windshield Kit - GT 19 lbs. N/A
Windshield Kit - XL 23 lbs. N/A
Windshield Wiper Kit 3 lbs. N/A
Weight

5
Reservoir Quantity Type
Engine Coolant 2 1/4 gallons 50/50 Glycol Antifreeze/Water
Engine Oil 7.08 quarts 15W-40
Fuel Tank 13 gallons GT
13.5 gallons XL
Hydraulic Oil 3.5-4 gallons oil tank
5 gallons entire system
5 psi without tracks
12 psi with tracks
Reservoir Quantity Type
Engine Coolant* 2 quarts *(30 hp engine only) 50/50 Glycol Antifreeze/Water
Engine Oil 2 quarts 10W-30
Fuel Tank 12 gallons Gasoline
Tire Pressure 5 psi Air
Tracks: 12 psi Air
Transmission Fluid 3 quarts GM Auto-Trak II
Air
AW-46
Diesel Fuel
Tire Pressure
Maintenance Schedule
Axle Bearings: Grease every 25 hours or after each use in water/mud, whichever comes first. Chain Lubrication: Every 10 hours or after each use in water/mud, whichever comes first. Engine: See Kubota V1505-TE3 Service Manual Hydraulic oil: Initial change after 250 hours. Then, every 500-1,000 hours depending on usage and work load Tires: Verify tire pressure before each use.
Fluid Capacities
Listed are the oil capacities for the Mudd-Ox GT/XL. Always ensure the vehicle is correctly prepared and the fluid levels are within tolerance before ech use.
