Mudd-Ox VENGEANCE User manual

MUDD-OX, INC.
WWW.MUDDOX.NET
8525 W 750 N
SHIPSHEWANA, IN 46565
260-768-7221
MADE IN THE USA
VENGEANCE OWNER’S MANUAL

A Message from Mudd-Ox Inc.
Thank you for choosing the Mudd-Ox as your new amphibious ATV.
We began designing the first Mudd-Ox in 2005, spending years testing and developing the ultimate amphibious
vehicle. The first production machine rolled off the line in 2008 and was shipped to Australia. Since then, we have
expanded our model lineup to include the Mudd-Ox GT, XL, Fort Mac, and Vengeance to suit all your outdoor needs.
Our journey has continued to be full of adventure.
Safety is our number one concern. Be sure to read and understand this entire manual to ensure the safety of your-
self and others with the Mudd-Ox.
Mudd-Ox is proudly made in the USA. Our headquarters and manufacturing facility are located near the historic
town of Shipshewana, Indiana. We welcome everyone to come visit our facility and take in the local beauty that is
rural Indiana.

Identify Your Mudd-Ox.................................................................................................................6
Specificiations...................................................................................................................................7
Warranty............................................................................................................................................10
Safety....................................................................................................................................................11
Instrument Panel...........................................................................................................................14
Drive the Mudd-Ox......................................................................................................................22
Land Operation..............................................................................................................................24
Water Operation...........................................................................................................................26
Winch Operation...........................................................................................................................28
Accessing the Mudd-Ox............................................................................................................30
Maintenance Manual..................................................................................................................34
Maintenance Schedule…………………………………….......………………………………………...….…...36
Fastener Torque Specifications.............................................................................................37
Axles....................................................................................................................................................38
Bearings.............................................................................................................................................44
Chains.................................................................................................................................................50
Clutches/Belt.................................................................................................................................58
Electrical............................................................................................................................................61
Fuel......................................................................................................................................................68
Jack Points........................................................................................................................................71
Long Term Storage.......................................................................................................................72
Parking Brake.................................................................................................................................73
Throttle/Choke...............................................................................................................................81
Tires/Wheels..................................................................................................................................86
Tracks.................................................................................................................................................90
Transmission...................................................................................................................................92
Transportation...............................................................................................................................97
Towing................................................................................................................................................99
Repairing a Swamped Mudd-Ox Vengeance................................................................100
Table of Contents

6
Identify Your Mudd-Ox
PIN Plate

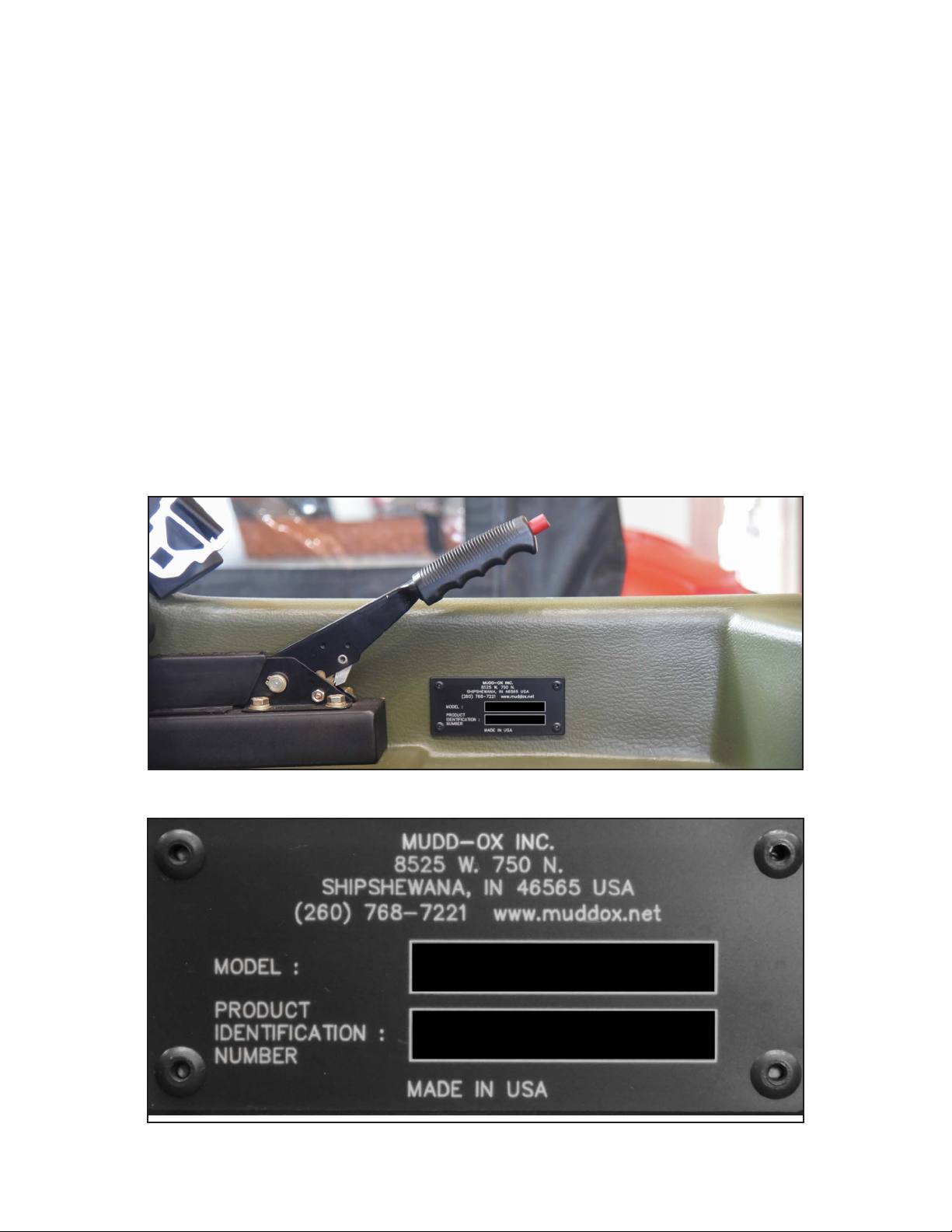

Each Mudd-Ox has its own unique identification plate. It notates the Model and Product Identification Number
(PIN). This information is vital for identifying each individual Mudd-Ox and obtaining a state-issued title. Never
remove the PIN plate from the Mudd-Ox.
Locating the PIN
On the interior of the Mudd-Ox in front of the parking brake handle locates the PIN plate. It is visible without
removing any components, however removing the lower operator seat is recommended for best visibility.
Document Your Information
Write down the Model and PIN information just as it displays on the PIN plate to document your individual Mudd-Ox.
Model: _______________________________________________________________
PIN: _______________________________________________________________

7
Type Gasoline Carbureted Diesel Gasoline EFI Gasoline EFI
Model VEN22 VEN25 VEN26 VEN31
Torque 33.2 lbs. / 45 NM 41.4 lbs. / 56.1 NM 40 lbs. / 54.2 NM 47.1 lbs. / 63.9 NM 58 lbs. / 78.6 NM
Power Ouput 22 HP / 16.4 KW 24.8 HP / 18.5 KW 26.5 HP / 19.8 KW 31 HP / 23.1 KW
Displacement 40.9 CI /670 CC 54.8 CI /898 CC 45 CI / 747 CC 50.3 CI / 824 CC
Cooling Air-Cooled Liquid-Cooled Air-Cooled Liquid-Cooled
Electrical 40 Amp, 60 Opt 40 Amp 25 Amp, 40/60 Opt 25 Amp, 40/60 Opt
Battery
Ground Clearance
Transmission
Brakes
Clutch
Steering
Parking Brake Storage
Instrumentation
Warning Lights Engine Diagnostics (VEN26, VEN31, VEN38)
Low Oil Pressure
Parking/Emergency Brake
Tachometer (VEN25)
Throttle Cable
Frame
Drive System
Axles
Body
Tires
Performance
Speed - Land
Speed - Water
Load Capacity - Land
Load Capacity - Water
Turning Circle
Towing Capacity
Seating Capacity - Land
Seating Capacity - Water
Rear Bench Seat A/C Unit (VEN38 only) Outboard Motor
Amphibious Trailer Rear Accessory Carrier - Main Mount
Alternator Upgrade Rear Seat - Standard
Mudd-Ox, Inc. Auxiliary Switch Panel Rear Seat - Bench
8525 W 750 N Bearing Extension Kit Rescue
Shipshewana, IN 46565 Custom Colors Available Upon Request Bearing Grease Zerk Relocation Safari Rack (Full/Half Lengths)
Phone: [phone] Brush Cage (Full/Half Length) Snow Plow - 85"
Fax: [phone] Brush Guard Snow Plow - Boss V Blade
www.muddox.net Cab - Aluminum Spare Carrier - 5 Gallon Fuel Can w/ Can
[e-mail] Cab - Canvas (Full/Half Combo) Spare Carrier - Tire
Cab - Stereo Kit Tire - 26 x18 x12" Vendetta
Cargo Liner Tire - Dual Wheel Kit
Cargo Platform Tracks - 16" Wide Adair
Chain Auto Oilers Tracks - 20" Wide Chevron
Chain HD Upgrade Tracks - 20" Wide Ripsaw
Dump Bed Tracks - 20" Wide Ripsaw - 6x6 Trailer
Engine Remote Oil Drain Tracks - 21" Wide Beaver Dam
Fender Kit Transport Tie Downs
Float - Catwalk Twin Roll Bar Package
Float - Front Winch - 5000 lbs. Rear Mount
Fuel Fill - Rear Winch - Synthetic Rope Upgrade
Heater w/ Defrost (VEN25, VEN31) Windshield, Optional Wiper
Light Bar 10-50"
Ver 200503
2 to 4 [D]
Optional
Vacuum formed upper body, lower hull and skid plate made from High Molecular Weight Polyethylene
(HMWPE)
3 mph (5 km/h) [B]
1,800 lbs. (816 Kg) (Distributed evenly) Less the weight of any accessories [C]
1,000 lbs. (454 Kg) (Distributed evenly) Less the weight of any accessories [C]
Zero turning Radius
2,000 lbs. (907 Kg) [H]
26" x 14" Mudd-Ox Vendetta on 12" Mudd-Ox Bead Lock Rim
LED Headlights
LED Tail Lights
17-25 mph (27-40 km/h) [A]
Powder coated steel for long life
Standard Chain: Transmission single 60, rear four axles single 60. Front four axles twin 60.
HD Upgrade: Transmission twin 50, all axles twin 60.
1.500" Diameter Axles
4 to 6 [D]
Accessories
[E] See Owner's Manual for full warranty information.
Warranty
Operation & Convenience
14" at center of vehicle
8" outer edge of vehicle
[H] Approximate Towing Capacity, depends on surface type and vehicle load as
well as incline. Max Hitch Tongue Load is 200 lbs. (98 kg)
Self-Extraction Winch
Engine: See manufacturer's manual [E]
1 year or 500 hours limited warranty on Mudd-Ox
Warranty
[G] Only When equipped with 31 HP Kawasaki engine
[F] Provides better flotation and allows for more carrying capacity in the water.
5,000 lb. Winch Standard
[B] Depends on water conditions, only operate in calm water without a current
(No large lakes, open waters, oceans.)
[C] See Owner's manual for accessory listing and weight.
[D] Capacity includes occupants, cargo, and installed accessories.
38 HP / 28.3 KW
61 CI / 999 CC
Air-Cooled
25 Amp, 105 Opt
34 Series
Transmission
Tracks 0.5 psi [D]
Ground Pressure
On Tires: 2 psi [D]
Skid Steer T20 Dual Planetary with Split Shift for counter-rotation capability. Forward/Neutral/Reverse
Transmission/Mechanical
CVT Continuously Variable Clutch maximizes engine power to transmission
Left & Right Steering Sticks
Ratchet Style Mechanical
Analog Dash Panel Left Mount
Mudd-Ox 8x8 Vengeance
Controls & Instrumentation
Operating Conditions
Fuel Capacity
All Weather, all terrain, -40° F to +110° F (-40° C to +43°
C)
Standard Fold Down Roll Over Protection System - Rear
Roll Over Protection System available as an option.
Front Seat Belts.
Safety
Safety
Ground Clearance & Ground Pressure
Engine Specifications
12 US Gallons giving approx. 8-10 hours of operation
10.5 US Gallons with optional Rear Roll Bar
Gasoline EFI
VEN38
Gauges
2,000 lbs.
Standard
Chassis, Body & Lights
Dual Port USB Outlet
Shipping Weight
Bilge Pump
Heated Throttle Cable w/Aluminum Base
Fuel Gauge
Volt Meter
Lights
Lockable Glove Box
Dimensions
12" x 28" Insert area over engine cover for holding light
cargo
Electrical Output
Cup Holders
Water Temperature [G]
Transmission Oil Temperature
Hour Meter
Specifications are subject to change without notice.
[A] Top speed depends on terrain conditions and drive train options.
Single 12 Volt Outlet
123" long by 68" wide by 79" high with roll bar up. 61"
high with roll bar down (on 26 x 14 x 12" Vendetta Tires)
25 degrees maximum
Approach and
Departure Angles
Weight & Dimensions
Specifications

8
Specifications Cont.
Axles 1.500" Diameter Axles
Tires Ground Pressure
Floor Board
Body
Performance
Towing Speed - Land Maximum 30 mph [A]
Towing Speed - Water Maximum 10 mph [B]
Warranty
Safety
Safety
Usage Conditions
Mudd-Ox, Inc.
8525 W 750 N
Shipshewana, IN 46565 Custom Colors Available Upon Request
Phone: [phone]
Fax: [phone]
www.muddox.net Bearing Grease Zerk Relocation Tire - Dual Wheel Kit
[e-mail] Rescue Tracks - 20" Wide Ripsaw
Skid Plate Transport Tie Downs
Safari Rack (Full/Half Length) Twin Roll Bars
Ver 201903
Optional Roll Over Protection System with a roll bar on
each end of the trailer.
1 year [E]
[F] Approximate Towing Capacity, depends on surface type and vehicle load as well
as incline. Max Hitch Tongue Load is 200 lbs. (98 kg)
Tracks: 0.25 psi [D]
Weight & Dimensions
Approach and Departure
Angles
All weather, all terrain, -40°F to +110°F (-40°C to +43°C)
Load Capacity 2,000 lbs. (907 kg)(distributed evenly) Less the weight of
any accessories [C][F]
25° Maximum
26" x 14" x 12" Mudd-Ox Vendetta on 12" Mudd-Ox Beadlock
Rim.
100" long at bottom, 119" long at top x 33" wide at
bottom, 56" wide at top x 16" high. Fenders 12" wide
(included in 56" wide at top measurement).
Vacuum formed lower body and optional skid plate, made
from High Molecular Weight Polyethylene (HMWPE)
168" long w/ hitch, 123" long w/o hitch x 82" wide x 35"
high on 26x14x12" Vendetta Tires
8" outer edge of vehicle
Warranty
Weight
750 lbs
Inner Dimensions
Outer Dimensions
On Tires: 1 psi [D]
Mudd-Ox 6 Wheel Amphibious Trailer
Accessories
[E] See Vehicle Owner's Manuals for full warranty information.
[C] See Owner's manual for accessory listing and weight.
Specifications are subject to change without notice.
[A] Top speed depends on terrain conditions and drive train options.
[D] Depending on weight of cargo and accessories onboard
[B] Depends on water conditions, only operate in calm water without a current (No
large lakes, open waters, oceans.)
Wooden with handles for quick removal
14" at center of vehicle
Ground Clearance & Ground PressureChassis & Body
Powder coated steel for long life and durability
Frame
Ground Clearance

9
Accessory Weight Each Weight Set
A/C Unit 70 lbs. N/A
Alternator Upgrade - VEN22, VEN26, VEN31 12 lbs. N/A
Alternator Upgrade - VEN38 16 lbs. N/A
Amphibious Trailer Skid Plate 60 lbs. N/A
Auxiliary Switch Panel 1 lbs. N/A
Bearing Extension 6x6 7.5 lbs. 45 lbs.
Bearing Extension 8x8 7.5 lbs. 60 lbs.
Bearing Grease Zerk Convenience Relocation 3 lbs. N/A
Brush Cage (Half Body Length) 84 lbs. N/A
Brush Cage (Full Body Length) 154 lbs. N/A
Brush Guard 20 lbs. N/A
Cab- Aluminum 155 lbs. N/A
Cab - Canvas (Full) 30 lbs. N/A
Cab - Canvas (Half) 12 lbs. N/A
Cab - Stereo Kit 30 lbs. N/A
Cargo Liner 22 lbs. N/A
Cargo Liner (In Cargo Frame) 31 lbs. N/A
Cargo Platform 28 lbs. N/A
Chain Automatic Oilers 10 lbs. N/A
Chain HD Upgrade 49 lbs. N/A
Dump Bed 172 lbs. N/A
Engine Remote Oil Drain 1 lbs. N/A
Fender Kit 7.5 lbs. 15 lbs.
Float - Catwalk 200 lbs. N/A
Float - Front 70 lbs. N/A
Heater w/ Defrost 12 lbs. N/A
Light Bar - 10" 4 lbs. N/A
Light Bar - 20" 7 lbs. N/A
Light Bar - 30" 10 lbs. N/A
Light Bar - 40" 13 lbs. N/A
Light Bar - 50" 16 lbs. N/A
Outboard Motor Mount 20 lbs. N/A
*Plus weight of outboard motor of choice. Not to exceed 10 HP) - -
Rear Accessory Carrier - Main Mount 13.5 lbs. N/A
Rear Seat - Standard 21 lbs. N/A
Rear Seat - Bench 26 lbs. N/A
Safari Rack (Full Length/Rub Rail Mount) 140 lbs. N/A
Safari Rack (Full Length/Roll Bar Mount) 115 lbs. N/A
Safari Rack (Half Length/Rub Rail Mount) 70 lbs. N/A
Safari Rack (Half Length/Roll Bar Mount) 58 lbs. N/A
Snow Plow - 85" Mudd-Ox 190 lbs. N/A
Snow Plow - Boss Power V-Blade 475 lbs. N/A
Spare Carrier - Attachment 5 Gallon Fuel Can w/ Can 20 lbs. N/A
Spare Carrier - Attachment Tire w/o Tire 14.5 lbs. N/A
Tire - 26" x 14" x 12" Vendetta 28.5 lbs. 228 lbs.
Tire - 26" x 18" x 12" Vendetta 31 lbs. 248 lbs.
Tire - 12" Beadlock Rim for 14" Vendetta 13.5 lbs. 108 lbs.
Tire - 12" Beadlock Rim for 18" Vendetta 21 lbs. 168 lbs.
Tire Combo - 26" x 14" x 12" Vendetta on 12" Rim 42 lbs. 336 lbs.
Tire Combo - 26" x 18" x 12" Vendetta on 12" Rim 52 lbs. 416 lbs.
Tire - Dual Wheel Extension 6x6 11.5 lbs. 69 lbs.
Tire - Dual Wheel Extension 8x8 11.5 lbs. 92 lbs.
Tracks - 16" Wide Adair 190 lbs. 380 lbs.
Tracks - 20" Wide Chevron 260 lbs. 520 lbs.
Tracks - 20" Wide Chevron Fort Mac 300 lbs. 600 lbs.
Tracks - 20" Wide Ripsaw 175 lbs. 350 lbs.
Tracks - 20" Wide Ripsaw 6x6 Amphibious Trailer 140 lbs. 280 lbs.
Tracks - 21" Wide Beaver Dam 225 lbs. 550 lbs.
Transport Tie Downs - Bearing Box Style 0.8 lbs. 3.2 lbs.
Transport Tie Downs - Bearing Flange Style 1 lbs. 4 lbs.
Twin Roll Bar 74 lbs. N/A
Twin Roll Bar - Amphibious Trailer 74 lbs. 148 lbs.
Winch - 5000 lbs. Rear Mount 34 lbs. N/A
Windshield 23 lbs. N/A
Windshield Wiper Kit 3 lbs. N/A
Specifications Cont.

10
Warranty
Limited Warranty: Mudd-Ox Inc. (“Mudd-Ox”) hereby warrants to the original purchaser that any components of your
new Mudd-Ox vehicle manufactured by Mudd-Ox will be free from defects in material and workmanship for a period of
(1) year from date of purchase or 500 hours, whichever comes first, exempt as otherwise noted. Dealer demo vehicles are
warrantied for (30) days.
Mudd-Ox Warranty Responsibilities: Mudd-Ox, if notified of a defect in material or workmanship during the period of
warranty, will repair or replace, at its option, defective parts covered by this warranty at no charge other than the reason-
able cost for the transportation of components, if applicable. Mudd-Ox will also pay reasonable charges for necessary labor
to perform warranty repairs.
Warranty Claim Procedures: In order to be able to submit claims under this warranty, the original purchaser must main-
tain and operate the vehicle in accordance with instruction provided: in the Owner’s Manual; engine manufacturer’s manu-
al; in any manual related to components of the vehicle; and on labels affixed to the vehicle. To initiate a warranty claim pro-
cedure, the original purchaser must contact the Mudd-Ox Customer Service Department within (10) days of the discovery
of an alleged defect. Mudd-Ox’s Customer Service Department may be contacted using the following methods: by calling +1
260-768-7221, in person or by mail at Mudd-Ox Inc, 8525 W 750 N Shipshewana, IN 46565, or online at www.muddox.net.
The repair or replacement of any part(s) under this Limited Warranty shall not extend the term of the warranty beyond the
original term as set forth above. Products which Mudd-Ox Inc. determines violate such warranty shall be returned to the
BUYER at the BUYER’S expense. Any parts required for warranty that are not in the dealer’s inventory will be shipped to the
servicing dealer via UPS Ground or USPS priority mail at Mudd-Ox Inc. discretion.
General Exclusions: This limited warranty does not cover component failure or damage caused by any of the following:
abnormal strain or stress; neglect; abuse; theft; fire; improper assembly of components which were supplied in the factory
sealed carton after the vehicle left Mudd-Ox; improper maintenance or repair; modifications; damage caused by use of
non-Mudd-Ox accessories; or improper use of the vehicle including but not limited to: racing, jumping, stunt driving, or any
other uses prohibited in the Owner’s Manual. Additionally, this warranty does not cover vehicles which are leased, rented,
or used at a concession track. This warranty does not cover components not manufactured by Mudd-Ox. For warranty
information on components not manufactured by Mudd-Ox, please refer to each component’s respective manufacturer’s
warranty.
Specific Exclusions: This limited warranty does not apply to components which are subject to normal wear and tear. These
items are not limited to: axles; track keepers; wheels; tires; batteries; throttle; shift, steer and brake cables; drive belt; the
torque converter system; chain; seat; lights; fasteners; decals; or body panels and natural cosmetic discoloration of mate-
rial due to ultraviolet light. Shipping method of parts, incorrectly damaged components, downtime, and delivery charges
are not covered by this warranty. This warranty does not apply to the vehicle’s batteries. The batteries carry a separate
warranty provided by Mudd-Ox’s battery supplier. Please refer to the battery supplier’s warranty policy for their warranty
requirements and procedures.
No Implied Warranty of Fitness or Merchantability: There are no warranties that extend beyond the description on
the face hereof. Specifically, Mudd-Ox makes no other warranty of any kind, express or implied. All warranties of fitness
or merchantability for a particular purpose that exceed the obligations and time limitations specified in this warrant are
hereby disclaimed by Mudd-Ox and excluded from this warranty. Additionally, this warranty excludes any incidental or
consequential damages, including but not limited to loss of use. Some states do not allow a manufacturer to exclude or limit
incidental or consequential damages and, therefore, the above exclusion may not apply.
Some states do not allow limitations on how long an implied warranty will last. It is possible that the above limitation may
not apply. This warranty gives the original purchaser specific legal rights. The original purchaser may also have other legal
rights, which vary from state to state.
Warranty of Service: To obtain warranty service, the original purchaser must return the Mudd-Ox vehicle to the local au-
thorized dealer or service center, inform them of the warranty, and provide proof of purchase before any warranty service
can be provided. The authorized dealer or service center will inspect the product to determine what repairs or parts are
needed and whether they are covered under this warranty. To locate an authorized dealer or service center, please call
Mudd-Ox at [phone] or visit Mudd-Ox online at www.muddox.net

11
Safety
Safety Equipment
All occupants must wear a DOT-certified helmet. Standard are seat belts for the front two passengers, optional rear
with Twin Roll Bar and Seat - Bench. Use the seat belts at all times on land and ensure the ROPS (roll over protec-
tion system) system is in the upwards position with all pins and bolts correctly installed. Any time the vehicle is in
water, you must remove your seat belt and helmet, and wear a life preserver.
General Safety
Do not operate on public roads. Do not operate in waters with current or open water such as large lakes and oceans.
Do not refuel the machine with the engine running. Do not operate the Mudd-Ox on angles greater than 25 degrees.
Do not drive faster than conditions or your ability allows. Do not attempt to make sudden sharp turns or go from
forward to reverse abruptly; doing so could upset the machine or at the least jostle the occupants, possibly causing
injury.
Read through this entire manual and complete all necessary inspections, maintenance and parts replacements as
necessary.
• Do not operate this vehicle while intoxicated.
• Wear appropriate clothing: dress for weather conditions.
• Operator must be at least 16 years of age.
• Use common sense at all times while operating.
• Always have a first aid kit and fire extinguisher inside the vehicle.
• All passengers must be seated while the vehicle is in motion.
• Do not overload the vehicle under any circumstances.
• Ensure floor boards are in place while operating vehicle.
• Avoid blacktop when possible.
• Drive vehicle at safe speeds for terrain conditions.
Capacities of the Mudd-Ox
See Specifications for information on Mudd-Ox vehicle and Amphibious Trailer capacities. Under no circumstances
should the maximum capacities be exceeded. Subtract weight of all accessories from total vehicle capacities. Al-
ways evenly distribute weight to prevent imbalances.
Prepare Your Trip
The Mudd-Ox is capable of traveling to remote locations where emergency services are not readily available. These
locations can range from desert to tundra climates. When traveling in the Mudd-Ox, always pack a survival kit suit-
able for all occupants in the vehicle. This includes but is not limited to: food, water, extra clothing, fuel, flashlight,
portable heater, tent, flares, tools, spare parts, and spare tires mounted on rims. Never venture into remote areas
alone, and notify someone of your departure and expected arrival time. Create emergency plans in advance.

12
Safety Cont.
Every operator MUST review and understand the basic operation manual and all warning labels displayed on this
page and on the vehicle before operation. Please keep a copy in the glove box for operators to review as needed.
Never operate the Mudd-Ox with the roll bar down.
✐
✐
*DRAWING NOT TO SCALE.*
030518
18-121168
MUDD OX
LEXAN DECAL SHEET
011018-1
X
X
X
X
X
X
X
12.5” X 9”
20 MIL 8B35 JETVIEW
-----
468 MP
-----
-----
BLACK
PMS WARNING ORANGE CP
DOES NOT PRINT
ORANGE
C:0
M:100
Y:100
K:0 PMS 185 CP
RED
C:0
M:100
Y:100
K:0
PMS 355 CP
GREEN
C:98
M:12
Y:100
K:2
DIE LINE
JA
X.XX = ± 0.050”
X.XXX = ± 0.030”
GUILLOTINE = ± 0.050”
A
11/6/19
Weight capacities increased, now include Fort Mac.
Open cab doors and top for unrestricted exit
GASOLINE ONLY
• Shut o engine when refueling
• Keep open ame away when refueling
• Re-tighten fuel cap securely
• See Operator’s Manual for
recommended fuel and stabilizer
GASOLINE ONLY
• Shut o engine when refueling
• Keep open ame away when refueling
• Re-tighten fuel cap securely
• See Operator’s Manual for
recommended fuel and stabilizer
DIESEL ONLY
• Shut o engine when refueling
• Keep open ame away when refueling
• Re-tighten fuel cap securely
• See Operator’s Manual for
recommended fuel and stabilizer
Mu˜er
Hot
Keep floor pans securely in place.
Moving chains can cause severe personal injury.
Keep °o or pans securely in place.
Moving chains can cause severe personal injury.
VEHICLE LOAD CAPACITY ON LAND:
Vengeance 1,800 lbs (816 kg)
XL, Fort Mac 2,000 lbs (907 kg)
TOWING CAPACITY:
Vengeance 2,000 lbs (907 kg)
XL, Fort Mac 2,500 lbs (1,134 kg)
VEHICLE LOAD CAPACITY IN WATER:
1,000 lbs (454 kg) evenly distributed.
Capacity includes occupants and all installed accessories.
See owner’s manual for accessory weights.
Amphibious Trailer: 2,000 lbs (907 kg) land & water
TIRE PRESSURE:
See Owners Manual
IMPROPER USE OF THIS VEHICLE CAN RESULT IN SERIOUS INJURY OR DEATH
LOCATE AND READ OPERATOR’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS
NEVER OPERATE:
• If you are under age 18
• Without proper training and instruction
• At speeds too fast for your skill level or the conditions
• On public roads – a collision can occur with another vehicle
• Without all guards, shields, °o or pans and hood in place
• Without checking throttle control for proper operation/return
ALWAYS USE APPROVED
HELMET AND EYE
PROTECTION
ALWAYS WEAR AN
APPROVED PERSONAL
FLOTATION DEVICE(PFD)
AND CARRY A PADDLE
NEVER DRIVE
ON PUBLIC ROADS
NEVER USE
WITH DRUGS OR
ALCOHOL
ON LAND, ALWAYS:
• Use proper driving techniques to avoid vehicle overturn on hills, rough terrain
and in turns
• Avoid paved surfaces – pavement may seriously affect handling and control
IN WATER, ALWAYS:
• Remove seat belts and retract passenger T-Bar handle before entering the water
• Use vehicle in calm water only as vehicle may be unstable, fill with water and sink
• Secure drain plugs and keep cab doors and top open for unrestricted exit
• Observe capacity limitations and keep load low and evenly distributed
• Enter and exit water on gradual terrain slope
R
F
N
Do not operate with engine cover
removed. Moving parts can cause
severe personal injury.
20 lbs.
weight limit
Do not block
air intake.
Do not operate with engine cover
removed. Moving parts can cause
severe personal injury.
20 lbs.
weight limit
Do not block
air intake.
WARNING
Muffler
Hot
WARNING
IMPROPER USE OF THIS VEHICLE CAN RESULT IN SERIOUS INJURY OR DEATH
LOCATE AND READ OPERATOR’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS
NEVER OPERATE:
• If you are under age 18
• Without proper training and instruction
• At speeds too fast for your skill level or the conditions
• On public roads – a collision can occur with another vehicle
• Without all guards, shields, floor pans and hood in place
• Without checking throttle control for proper operation/return
ALWAYS USE APPROVED
HELMET AND EYE
PROTECTION
ALWAYS WEAR AN
APPROVED PERSONAL
FLOTATION DEVICE(PFD)
AND CARRY A PADDLE
NEVER DRIVE
ON PUBLIC ROADS
NEVER USE
WITH DRUGS OR
ALCOHOL
ON LAND, ALWAYS:
• Use proper driving techniques to avoid vehicle overturn on hills, rough terrain
and in turns
• Avoid paved surfaces – pavement may seriously affect handling and control
IN WATER, ALWAYS:
• Remove seat belts and retract passenger T-bar handle before entering the water
• Use vehicle in calm water only as vehicle may be unstable, fill with water and sink
• Secure drain plugs and keep cab doors and top open for unrestricted exit
• Observe capacity limitations and keep load low and evenly distributed
• Enter and exit water on gradual terrain slope
VEHICLE LOAD CAPACITY ON LAND:
Vengeance 1,800 lbs (816 kg)
XL, Fort Mac 2,000 lbs (907 kg)
TOWING CAPACITY:
Vengeance 2,000 lbs (907 kg)
XL, Fort Mac 2,500 lbs (1,134 kg)
VEHICLE LOAD CAPACITY IN WATER:
1,000 lbs (454 kg) evenly distributed.
Capacity includes occupants and all installed accessories. See
owner’s manual for accessory weights.
Amphibious Trailer: 2,000 lbs (907 kg) land & water
TIRE PRESSURE:
See Owners Manual
10.69”
3.99”
3.05”
3.83”
2.10” RAD .1”
(X4)
1.39”
DIA .1875”
(X4)
4”
1.75”
.85”
PART X2
MEASUREMENTS
1.12”
WARNING GASOLINE/DIESEL LABEL
(SAME DIMENSIONS)
1.52”
7.45”
1.87”
2.54”
RAD .1”
(X4) RAD .1”
(X4)
RAD .1”
(X4)
RAD .1”
(X4)
RAD .1”
(X4)
DIA .1875”
(X4)
DIA .1875”
(X4)
DIA .1875”
(X4)
DIA .1875”
(X4)
.125”
.237”
RAD .1”
(X4)
11/6/19
Removed one label 1/29/20

13
Safety Cont.
50 40 30 20 10 0-10 -20 -30 -40 -50 -60
Calm 50 40 30 20 10 0-10 -20 -30 -40 -50 -60
548 37 27 16 6-5 -15 -26 -36 -47 -57 -68
10 40 28 16 4-9 -21 -33 -46 -58 -70 -83 -95
15 36 22 9-5 -18 -36 -45 -58 -72 -85 -99 -112
20 32 18 4-10 -25 -39 -53 -67 -82 -96 -110 -124
25 30 16 0-15 -29 -44 -59 -74 -88 -104 -118 -133
30 28 13 -2 -18 -33 -48 -63 -79 -94 -109 -125 -140
35 27 11 -4 -20 -35 -49 -67 -82 -98 -113 -129 -145
40 26 10 -6 -21 -37 -53 -69 -85 -100 -116 -132 -148
*Wind speeds
great than 40
mph have little
additional effect
Wind Speed in
MPH
*Danger from freezing of exposed flesh
Equivalent Temperature (F)
Actual Thermometer Reading (F)
GREAT DANGER
LITTLE
DANGER*
INCREASED
DANGER*
Wind chill is the feeling of colder temperatures than what the thermometer reads. This happens when the wind
blows cold air across exposed skin.
All Mudd-Ox operators and passengers must be aware of the wind chill factor. Always dress properly for the
weather and cover exposed skin. Ensure young children are adequately dressed for cold temperatures. It is best
to bring candles and blankets in case of emergency. For colder applications, we highly recommend installing either
our Cab - Canvas or Cab - Aluminum (Figure-1, 2) with a heater (Figure-3). For warm climates we recommend the
A/C Unit (Figure-4).
Figure-2
Cab - Aluminum
Figure-1
Cab - Canvas
Figure-3
Heater
Figure-4
A/C Unit

14
Instrument Panel VEN22
1111
1414 1515 1616
1212 1313
22
556677 8899
44
11
33
1010

15
Instrument Panel VEN22 Cont.
1. Parking brake light: Illuminates when the parking brake is engaged. This is required for the vehicle to start.
2. Engine low oil pressure warning light: Illuminates when the engine oil pressure is dangerously low. If illuminat-
ed, stop vehicle immediately and diagnose. Repair before operating again.
3. Ignition switch: When the key is installed, it will toggle the engine on and off. To start the engine: turn complete-
ly clockwise, release once started. Turn key to middle position to shut off engine. (If the engine fails to start after
5 seconds, see #4 to use the choke cable).
4. Choke Cable: Changes the air/fuel mixture in the carburetor. If the Mudd-Ox will not start with turning the key
switch, pull out the choke cable and attempt to start again. Push in once the engine has started and can maintain
idle.
5. Head lights switch: Flipping the switch to “on” will activate the headlights and tail lights. Never operate the
Mudd-Ox at night without lights.
6. Winch switch: Controls the direction of the winch motor. The “out” position will unreel the cable away from the
Mudd-Ox, while “in” will reel the cable towards the Mudd-Ox.
7. Heated throttle switch: In colder climates, the throttle cable may become frozen or hard to move. Simply
flipping the switch to “on” will activate the throttle cable heating system. Keep on until throttle works properly,
then flip switch to “off.”
8. Bilge pump switch: When in an emergency, if the Mudd-Ox has water in the lower body, quickly flip on the bilge
pump switch. This will immediately begin to pump water out of the vehicle. Caution: This is a feature to remove
small amounts of water. If the machine is completely filled, you must quickly exit quickly.
9. Auxiliary switch: Additional switch to be used with Mudd-Ox accessories such as a powered dump bed or lights.
If no additional accessories have been installed, the switch will not operate anything.
10.Auxiliary switch: Same as #9.
11. USB ports: Under the weatherproof cover are (2) 12v USB ports. These may be used to power accessories such
as a cell phone.
12. Cigarette lighter port: Under the weatherproof cover is a 12v cigarette lighter port. This may be used to power
accessories such as a cell phone.
13. Voltage meter: This electronic unit displays vehicle voltage. A non-running engine will show approx. 12.7 Volts,
while a running engine should show approx. 13.8 Volts. If engine voltage is severely below 12.7, it may be nec-
essary to charge the battery and immediately diagnosis if the battery or charging system is faulty. If alternator
outputs significantly over 13.8 volts, diagnose charging system immediately to prevent over charging of battery.
14. Fuel gauge: The fuel gauge monitors the amount of fuel left in the vehicle. When traveling to remote locations,
the vehicle should always be filled with additional fuel cans in case of emergency. Leave enough fuel to return
back to your starting location.
15. Transmission oil temp gauge: The oil gauge monitors transmission oil temperature, and must not exceed 190
degrees Fahrenheit. If the temperature exceeds 190 degrees, immediately stop driving. Leave the Mudd-Ox on
to allow the transmission cooling system to operate.
16.Engine oil temp gauge: This monitors the temperature of the engine oil, and must not exceed 300 degrees
Fahrenheit. If the temperature exceeds 300 degrees, immediately shut off and diagnose.

16

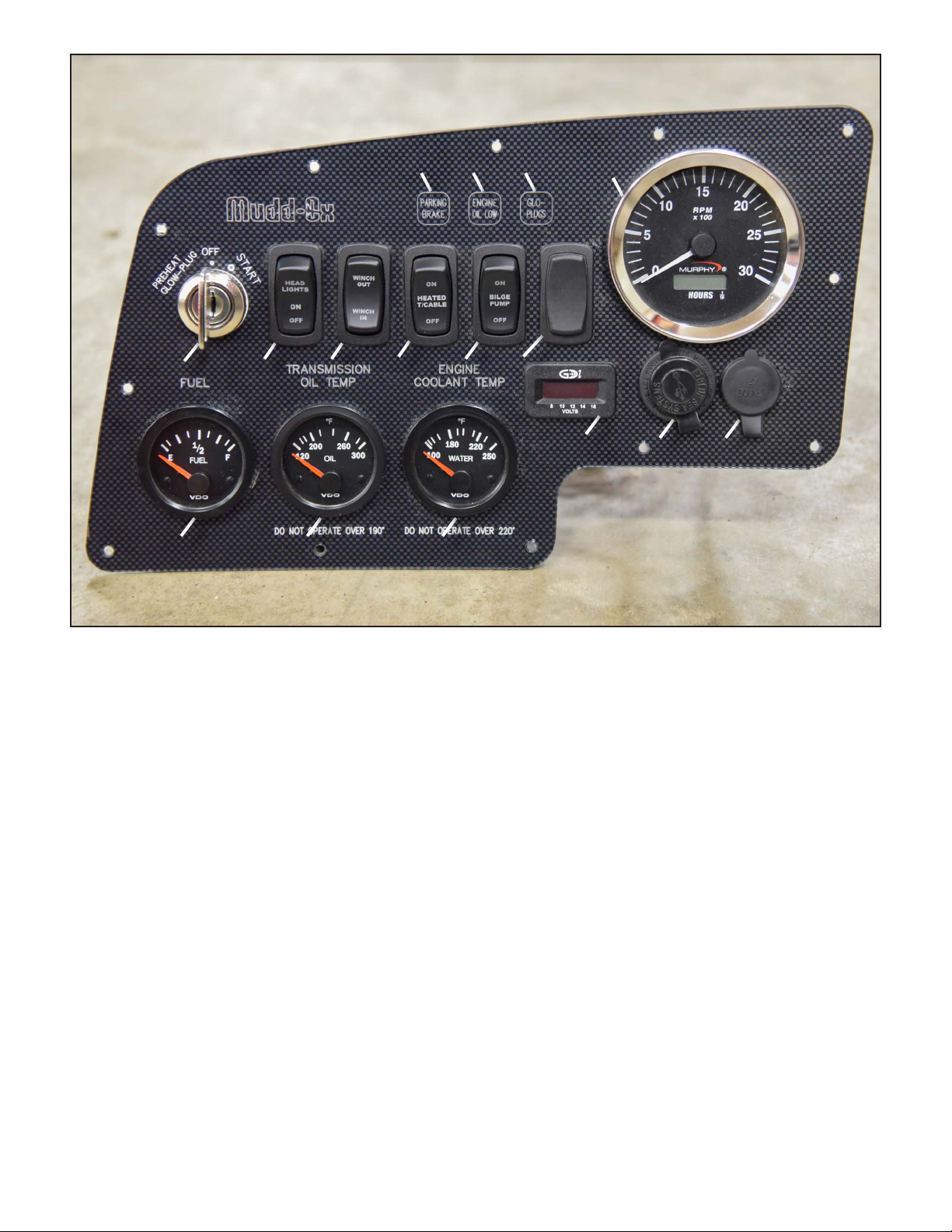

Instrument Panel VEN25
1212 1313
1111
1414 1515 1616
11223344
667788991010
55

17
Instrument Panel VEN25 Cont.
1. Parking brake light: Illuminates when the parking brake is engaged. This is required for the vehicle to start.
2. Engine low oil pressure warning light: Illuminates when the engine oil pressure is dangerously low. If illuminat-
ed, stop vehicle immediately and diagnose. Repair before operating again.
3. Glow plugs warning light: Illuminates when the glow plugs are being preheated. See #5 and engine owner’s
manual for additional information.
4. Digital display: The Murphy display unit shows both the engine RPM’s and hour meter.
5. Ignition switch: When the key is installed, it will toggle the engine on and off. To start the engine: turn key com-
pletely counterclockwise and hold for approx. 10 Seconds; this will preheat the engine glow plugs. Then, turn
completely clockwise to start engine, release once started. Turn key to middle position to shut off engine. (If the
engine fails to start after 10 seconds, most likely in colder climates, reheat the glow plugs for 5 to 30 seconds
and then try again).
6. Head lights switch: Flipping the switch to “on” will activate the headlights and tail lights. Never operate the
Mudd-Ox at night without lights.
7. Winch switch: Controls the direction of the winch motor. The “out” position will unreel the cable away from the
Mudd-Ox, while “in” will reel the cable towards the Mudd-Ox.
8. Heated throttle switch: In colder climates, the throttle cable may become frozen or hard to move. Simply
flipping the switch to “on” will activate the throttle cable heating system. Keep on until throttle works properly,
then flip switch to “off.”
9. Bilge pump switch: When in an emergency, if the Mudd-Ox has water in the lower body, quickly flip on the bilge
pump switch. This will immediately begin to pump water out of the vehicle. Caution: This is a feature to remove
small amounts of water. If the machine is completely filled, you must quickly exit quickly.
10.Auxiliary switch: Additional switch to be used with Mudd-Ox accessories such as a powered dump bed or lights.
If no additional accessories have been installed, the switch will not operate anything.
11. Voltage meter: This electronic unit displays vehicle voltage. A non-running engine will show approx. 12.7 Volts,
while a running engine should show approx. 13.8 Volts. If engine voltage is severely below 12.7, it may be nec-
essary to charge the battery and immediately diagnosis if the battery or charging system is faulty. If alternator
outputs significantly over 13.8 volts, diagnose charging system immediately to prevent over charging of battery.
12. USB ports: Under the weatherproof cover are (2) 12v USB ports. These may be used to power accessories such
as a cell phone.
13. Cigarette lighter port: Under the weatherproof cover is a 12v cigarette lighter port. This may be used to power
accessories such as a cell phone.
14. Fuel gauge: The fuel gauge monitors the amount of fuel left in the vehicle. When traveling to remote locations,
the vehicle should always be filled with additional fuel cans in case of emergency. Leave enough fuel to return
back to your starting location.
15. Transmission oil temp gauge: The oil gauge monitors transmission oil temperature, and must not exceed 190
degrees Fahrenheit. If the temperature exceeds 190 degrees, immediately stop driving. Leave the Mudd-Ox on
to allow the transmission cooling system to operate.
16.Water temp gauge: This monitors the temperature of the engine coolant, and must not exceed 220 degrees
Fahrenheit. If the temperature exceeds 220 degrees, immediately stop driving. Leave the Mudd-Ox on to allow
the engine cooling system to operate. If the temperature does not begin to decrease after approximately 30
seconds, immediately shut off and diagnose.

18

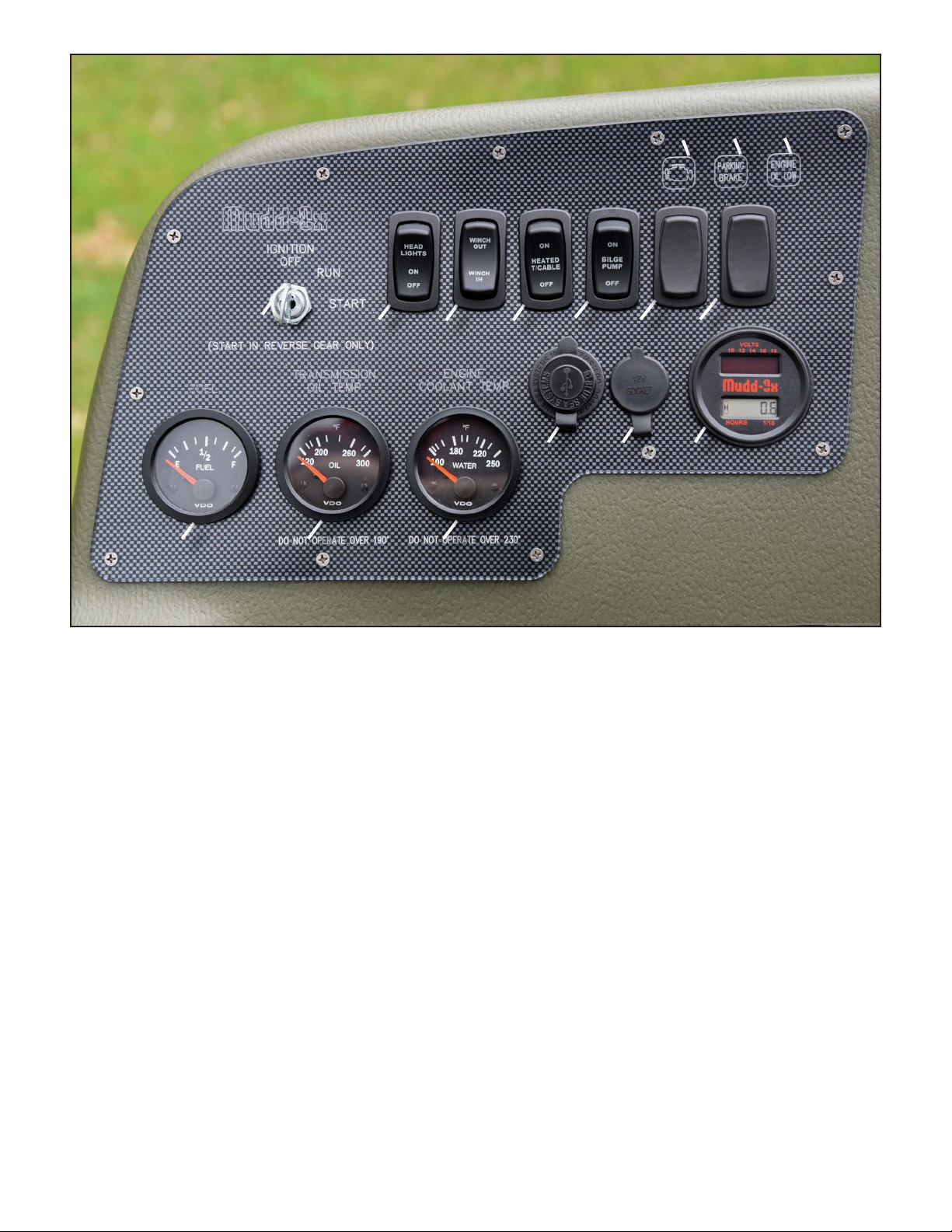

Instrument Panel VEN26, VEN38
1111
1414 1515 1616
1212 1313
33
667788991010 55
22
11
44

19
Instrument Panel VEN26, VEN38 Cont.
1. Check engine light: Illuminates when there is an issue with the engine. See engine owner’s manual for infor-
mation.
2. Parking brake light: Illuminates when the parking brake is engaged. This is required for the vehicle to start.
3. Engine low oil pressure warning light: Illuminates when the engine oil pressure is dangerously low. If illuminat-
ed, stop vehicle immediately and diagnose. Repair before operating again.
4. Ignition switch: When the key is installed, it will toggle the engine on and off. To start the engine: turn complete-
ly clockwise, release once started. Turn key to middle position to shut off engine. (If the engine fails to start after
10 seconds, turn key off for 5 to 30 seconds and then try again).
5. Head lights switch: Flipping the switch to “on” will activate the headlights and tail lights. Never operate the
Mudd-Ox at night without lights.
6. Winch switch: Controls the direction of the winch motor. The “out” position will unreel the cable away from the
Mudd-Ox, while “in” will reel the cable towards the Mudd-Ox.
7. Heated throttle switch: In colder climates, the throttle cable may become frozen or hard to move. Simply
flipping the switch to “on” will activate the throttle cable heating system. Keep on until throttle works properly,
then flip switch to “off.”
8. Bilge pump switch: When in an emergency, if the Mudd-Ox has water in the lower body, quickly flip on the bilge
pump switch. This will immediately begin to pump water out of the vehicle. Caution: This is a feature to remove
small amounts of water. If the machine is completely filled, you must quickly exit quickly.
9. Auxiliary switch: Additional switch to be used with Mudd-Ox accessories such as a powered dump bed or lights.
If no additional accessories have been installed, the switch will not operate anything.
10.Auxiliary switch: Same as #9.
11. USB ports: Under the weatherproof cover are (2) 12v USB ports. These may be used to power accessories such
as a cell phone.
12. Cigarette lighter port: Under the weatherproof cover is a 12v cigarette lighter port. This may be used to power
accessories such as a cell phone.
13. Voltage meter: This electronic unit displays vehicle voltage. A non-running engine will show approx. 12.7 Volts,
while a running engine should show approx. 13.8 Volts. If engine voltage is severely below 12.7, it may be nec-
essary to charge the battery and immediately diagnosis if the battery or charging system is faulty. If alternator
outputs significantly over 13.8 volts, diagnose charging system immediately to prevent over charging of battery.
14. Fuel gauge: The fuel gauge monitors the amount of fuel left in the vehicle. When traveling to remote locations,
the vehicle should always be filled with additional fuel cans in case of emergency. Leave enough fuel to return
back to your starting location.
15. Transmission oil temp gauge: The oil gauge monitors transmission oil temperature, and must not exceed 190
degrees Fahrenheit. If the temperature exceeds 190 degrees, immediately stop driving. Leave the Mudd-Ox on
to allow the transmission cooling system to operate.
16.Engine oil temp gauge: This monitors the temperature of the engine oil, and must not exceed 300 degrees
Fahrenheit. If the temperature exceeds 300 degrees, immediately shut off and diagnose.

20
Instrument Panel VEN31
1111
1414 1515 1616
1212 1313
33
66778899101055
22
11
44
