Mudd-Ox XL User manual

MUDD-OX, INC.
WWW.MUDDOX.NET
8525 W 750 N
SHIPSHEWANA, IN 46565
260-768-7221
MADE IN THE USA
XL OWNER’S MANUAL

A Message from Mudd-Ox Inc.
Thank you for choosing the Mudd-Ox as your new amphibious ATV.
We began designing the first Mudd-Ox in 2005, spending years testing and developing the ultimate amphibious
vehicle. The first production machine rolled off the line in 2008 and was shipped to Australia. Since then, we have
expanded our model lineup to include the Mudd-Ox GT, XL, Fort Mac, and Vengeance to suit all your outdoor needs.
Our journey has continued to be full of adventure.
Safety is our number one concern. Be sure to read and understand this entire manual to ensure the safety of your-
self and others with the Mudd-Ox.
Mudd-Ox is proudly made in the USA. Our headquarters and manufacturing facility are located near the historic
town of Shipshewana, Indiana. We welcome everyone to come visit our facility and take in the local beauty that is
rural Indiana.

Identify Your Mudd-Ox...................................................................................................................6
Specificiations.....................................................................................................................................7
Warranty...............................................................................................................................................10
Safety.......................................................................................................................................................11

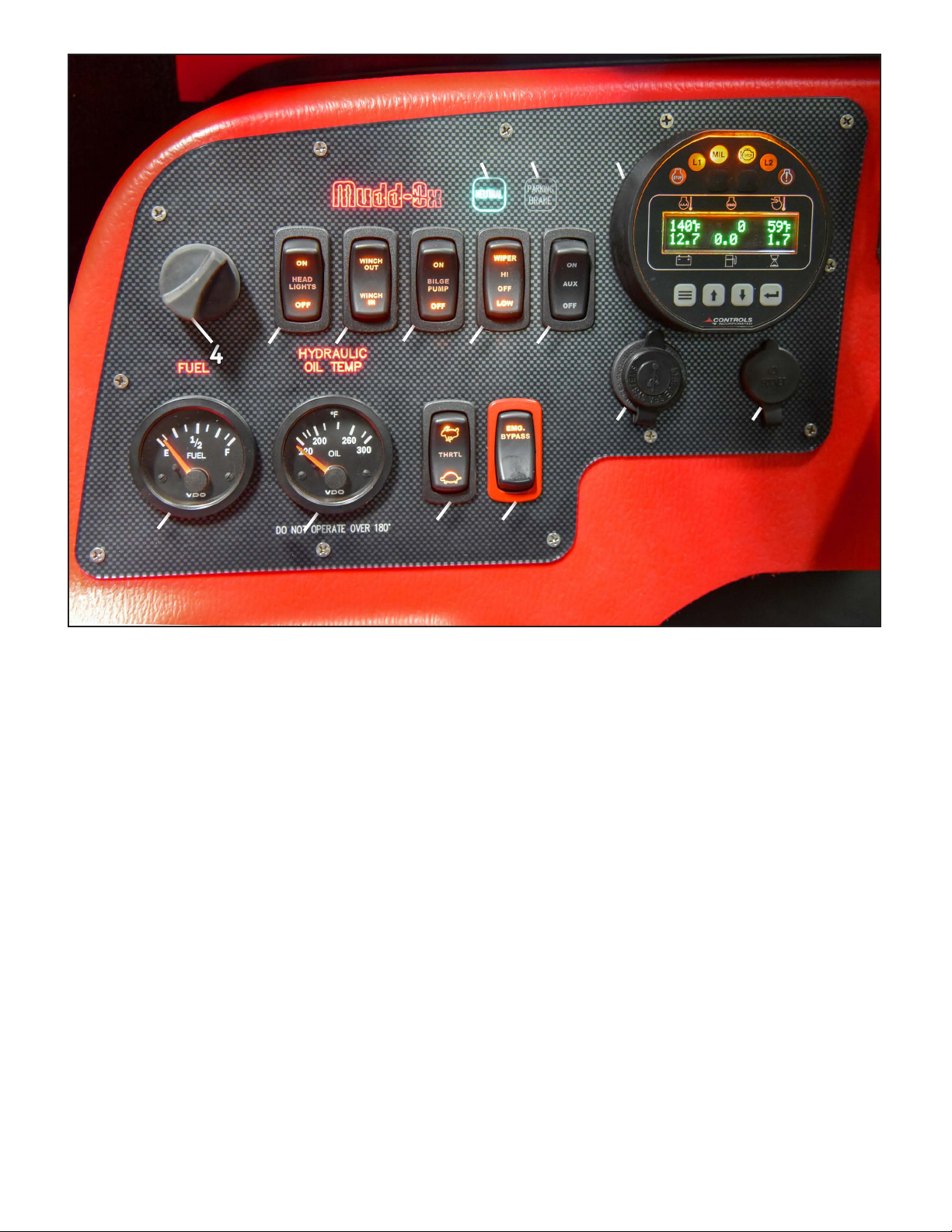

Instrument Panel.............................................................................................................................14
Drive the Mudd-Ox..........................................................................................................................16
Land Operation..................................................................................................................................18
Water Operation..............................................................................................................................20
Winch Operation.............................................................................................................................22
Accessing the Mudd-Ox...............................................................................................................24
Maintenance Manual.....................................................................................................................28
MaintenanceSchedule…………………………………….......……………………………………………….…...30
Fastener Torque Specifications.................................................................................................31
Axles......................................................................................................................................................32
Bearings...............................................................................................................................................38
Chains.....................................................................................................................................................41
Electrical..............................................................................................................................................49
Engine…………………………………………………………..…………………………………………………………………57
Fuel..........................................................................................................................................................61
Hydrostatics.......................................................................................................................................64
Jack Points.........................................................................................................................................68
Long Term Storage........................................................................................................................69
Parking Brake...................................................................................................................................70
Steering Cables................................................................................................................................77
Tires/Wheels....................................................................................................................................80
Tracks....................................................................................................................................................84
Transportation..................................................................................................................................86
Towing..................................................................................................................................................88
Repairing a Swamped Mudd-Ox XL......................................................................................90
Parts Manual.......................................................................................................................................91
Dimensions………………………………………………………………………….................................................102
Contact Us.........................................................................................................................................103
Table of Contents

6
Identify Your Mudd-Ox

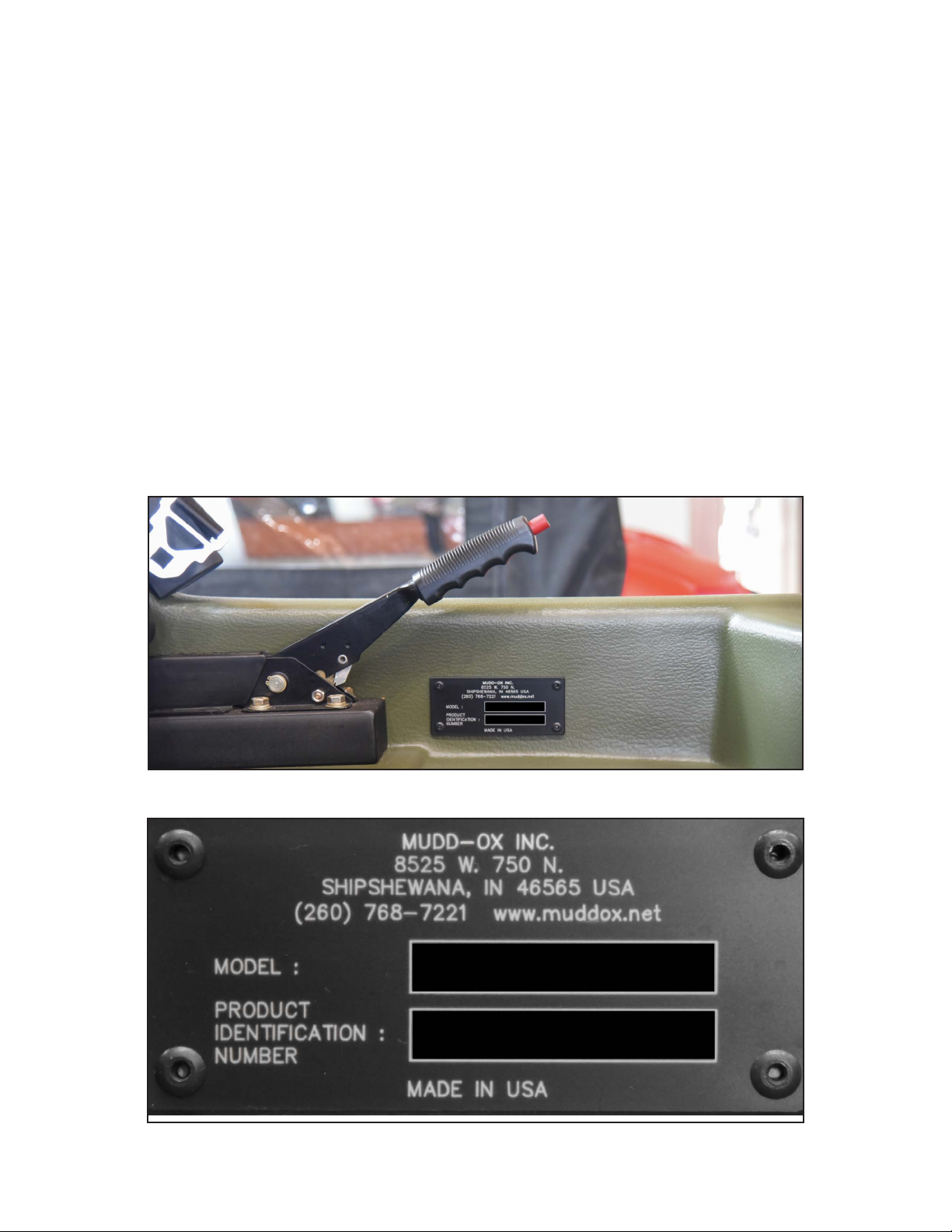

PIN Plate
Each Mudd-Ox has its own unique identification plate. It notates the Model and Product Identification Number
(PIN). This information is vital for identifying each individual Mudd-Ox and obtaining a state-issued title. Never
remove the PIN plate from the Mudd-Ox.
Locating the PIN
On the interior of the Mudd-Ox in front of the parking brake handle locates the PIN plate. It is visible without
removing any components, however removing the lower operator seat is recommended for best visibility.
Document Your Information
Write down the Model and PIN information just as it displays on the PIN plate to document your individual Mudd-Ox.
Model: _______________________________________________________________
PIN: _______________________________________________________________

7
Safety
Operating Conditions
Ground Clearance
Ground Pressure
Self-Extraction Winch
Storage
Electrical Output
Bilge Pump
Warning Lights
Shipping Weight
Dimensions
Frame
Body
Tires
Speed - Water
Turning Circle
Towing Capacity A/C Unit Rear Accessory Carrier - Main Mount
4 to 6 [D] Amphibious Trailer Rear Seat - Standard
2 to 4 [D] Auxiliary Switch Panel Rear Seat - Bench
Optional Auxiliary Hydraulics Rescue
Bearing Grease Zerk Relocation Safari Rack (Full/Half Lengths)
Brush Cage (Full/Half Length) Snow Plow - 85"
Brush Guard Snow Plow - Boss V Blade
Cab - Aluminum Spare Carrier - 5 Gallon Fuel Can
Cab - Canvas (Full/Half Combo) Spare Carrier - Tire
Custom Colors Available Upon Request Cab - Stereo Kit Tire - 26x18 x12" Vendetta
Controls - Steering Wheel Tire - Dual Wheel Kit
Cargo Liner Tracks - 16" Wide Adair
Cargo Platform Tracks - 20" Wide Chevron
Chain - Auto Oilers Tracks - 20" Wide Ripsaw
Dump Bed Tracks - 20" Wide Ripsaw - 6x6 Trailer
Engine Remote Oil Drain Tracks - 21" Wide Beaver Dam
Fender Kit Transport Tie Downs
Float - Catwalk Twin Roll Bar Package
Float - Front Winch - Synthetic Rope
Fuel Fill - Rear Winch - 5000 lbs. Rear Mount
Heater w/ Defrost Windshield
Light Bar 10-50" Windshield Wiper
Outboard Motor
Ver 200503
All weather, all terrain, -40°F to +110°F (-40°C to +43°C)
Fuel Capacity
12 US Gallons giving approx. 8-10 hours of operation
10.5 US Gallons with optional Rear Roll Bar
Mudd-Ox 8x8 XL 57 HP Kubota
14" at center of vehicle
Engine
Transmission
57 HP at 3,400 rpm
Kubota EFI
Gasoline
Type
Model
Transmission
Power Output
Safety
Liquid-Cooled
1537 cc
Ground Clearance
Displacement
Cooling
Brakes
Hydrostatic and Hydraulic Braking
2,190 lbs.
Operation & Convenience
Weight & Dimensions
8" outer edge of vehicle
Lockable glove box, Built in Cup Holders
Tracks: 0.5 psi [D]
5,000 lb. Capacity
Mudd-Ox Hydrostatic
Electrical
65 Series Battery, 105 Amp Alternator
Chassis, Body & Lights
Neutral Light
Seating Capacity - Land
2,500 lbs. (1,134 kg) [G]
Zero turning radius, machine counter-rotates
3 mph (5 km/h) [B]
Controls & Instrumentation
Seating Capacity - Water
Gauges
Instrumentation
Parking Brake
Steering
Load Capacity - Land
Lighting
LED Headlights & LED Tail Lights
2,000 lbs. (907 kg)(distributed evenly) Less the weight of
any accessories [C]
Drive System
Axles
1.500" Solid Steel
#60-2 (Twin 60) Roller Chain
Full Instrumentation Dash Panel
Full Engine Power View & Diagnostics
Fuel Gauge
Volt Meter
Coolant Temperature
Hour Meter
Ergonomic Left and Right Steering Controls
Ratchet Style Mechanical
Phone: [phone]
[E] See Owner's Manual for full warranty information.
[D] Depending on weight of person, cargo and accessories onboard
Accessories
[F] Provides better flotation and allows for more carrying capacity in the water.
[G] Approximate Towing Capacity, depends on surface type and vehicle load as well as
incline. Max Hitch Tongue Load is 200 lbs. (98 kg)
12V Outlet, Dual Port USB Outlet
Approach and Departure
angles
Warranty
[B] Depends on water conditions, only operate in calm water without a current (No large
lakes, open waters, oceans.)
123" Long
68" Wide
79" High with Roll Bar Up, 61" High with Roll Bar Down (on
26 x 14 x 12" Vendetta Tires)
Warranty
Vacuum formed upper body, lower body and skid plate,
made from High Molecular Weight Polyethylene (HMWPE)
26" x 14" x 12" Mudd-Ox Vendetta on 12" Mudd-Ox Bead Lock
Rim
Powder coated steel for long life and durability
Parking/Emergency Brake
Low Oil Pressure
Check Engine
Hydraulic Temperature
Fax: [phone]
Performance
www.muddox.net
[email protected]
Fold down Roll Over Protection System with seat belts for
front two passangers. Rear Roll Over Protection System is
available as an option. Mudd-Ox Hydrostatic precision
control drive system enables safe control at all times while
maneuvering in the most difficult terrains.
On Tires: 2 psi [D]
Rear Bench Seat
1,000 lbs. (454 kg)(distributed evenly) Less the weight of
any accessories [C]
17-25 mph (27-40 km/h) [A]
LED Brake & Reverse Lights w/ Optional Steering Wheel
Speed - Land
Standard
[C] See Owner's manual for accessory listing and weight.
[A] Top speed depends on terrain conditions and drive train options.
Specifications are subject to change without notice.
25° Maximum
12.5" x 28" Insert area over Engine Cover
Mudd-Ox, Inc.
8525 W 750 N
Load Capacity - Water
1 year or 500 hours limited warranty on Mudd-Ox
3 years or 3,000 hours engine wararnty. [E]
Shipshewana, IN 46565
Specifications

8
Specifications Cont.
Axles 1.500" Diameter Axles
Tires Ground Pressure
Floor Board
Body
Performance
Towing Speed - Land Maximum 30 mph [A]
Towing Speed - Water Maximum 10 mph [B]
Warranty
Safety
Safety
Usage Conditions
Mudd-Ox, Inc.
8525 W 750 N
Shipshewana, IN 46565 Custom Colors Available Upon Request
Phone: [phone]
Fax: [phone]
www.muddox.net Bearing Grease Zerk Relocation Tire - Dual Wheel Kit
[e-mail] Rescue Tracks - 20" Wide Ripsaw
Skid Plate Transport Tie Downs
Safari Rack (Full/Half Length) Twin Roll Bars
Ver 201903
Optional Roll Over Protection System with a roll bar on
each end of the trailer.
1 year [E]
[F] Approximate Towing Capacity, depends on surface type and vehicle load as well
as incline. Max Hitch Tongue Load is 200 lbs. (98 kg)
Tracks: 0.25 psi [D]
Weight & Dimensions
Approach and Departure
Angles
All weather, all terrain, -40°F to +110°F (-40°C to +43°C)
Load Capacity 2,000 lbs. (907 kg)(distributed evenly) Less the weight of
any accessories [C][F]
25° Maximum
26" x 14" x 12" Mudd-Ox Vendetta on 12" Mudd-Ox Beadlock
Rim.
100" long at bottom, 119" long at top x 33" wide at
bottom, 56" wide at top x 16" high. Fenders 12" wide
(included in 56" wide at top measurement).
Vacuum formed lower body and optional skid plate, made
from High Molecular Weight Polyethylene (HMWPE)
168" long w/ hitch, 123" long w/o hitch x 82" wide x 35"
high on 26x14x12" Vendetta Tires
8" outer edge of vehicle
Warranty
Weight
750 lbs
Inner Dimensions
Outer Dimensions
On Tires: 1 psi [D]

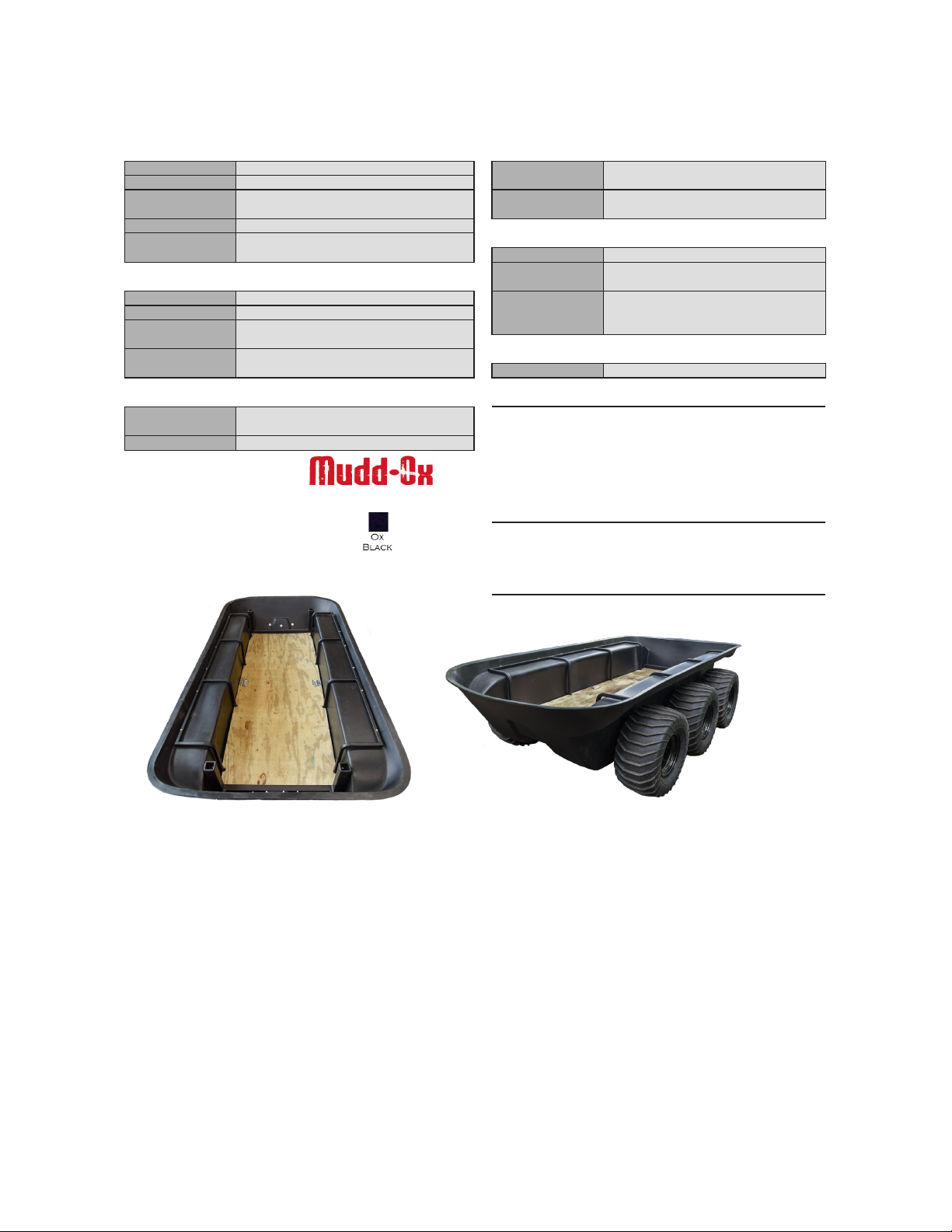

Mudd-Ox 6 Wheel Amphibious Trailer
Accessories
[E] See Vehicle Owner's Manuals for full warranty information.
[C] See Owner's manual for accessory listing and weight.
Specifications are subject to change without notice.
[A] Top speed depends on terrain conditions and drive train options.
[D] Depending on weight of cargo and accessories onboard
[B] Depends on water conditions, only operate in calm water without a current (No
large lakes, open waters, oceans.)
Wooden with handles for quick removal
14" at center of vehicle
Ground Clearance & Ground PressureChassis & Body
Powder coated steel for long life and durability
Frame
Ground Clearance

9
Accessory Weight Each Weight Set
A/C Unit 70 lbs. N/A
Alternator Upgrade - VEN22, VEN26, VEN31 12 lbs. N/A
Alternator Upgrade - VEN38 16 lbs. N/A
Amphibious Trailer Skid Plate 60 lbs. N/A
Auxiliary Switch Panel 1 lbs. N/A
Bearing Extension 6x6 7.5 lbs. 45 lbs.
Bearing Extension 8x8 7.5 lbs. 60 lbs.
Bearing Grease Zerk Convenience Relocation 3 lbs. N/A
Brush Cage (Half Body Length) 84 lbs. N/A
Brush Cage (Full Body Length) 154 lbs. N/A
Brush Guard 20 lbs. N/A
Cab- Aluminum 155 lbs. N/A
Cab - Canvas (Full) 30 lbs. N/A
Cab - Canvas (Half) 12 lbs. N/A
Cab - Stereo Kit 30 lbs. N/A
Cargo Liner 22 lbs. N/A
Cargo Liner (In Cargo Frame) 31 lbs. N/A
Cargo Platform 28 lbs. N/A
Chain Automatic Oilers 10 lbs. N/A
Chain HD Upgrade 49 lbs. N/A
Dump Bed 172 lbs. N/A
Engine Remote Oil Drain 1 lbs. N/A
Fender Kit 7.5 lbs. 15 lbs.
Float - Catwalk 200 lbs. N/A
Float - Front 70 lbs. N/A
Heater w/ Defrost 12 lbs. N/A
Light Bar - 10" 4 lbs. N/A
Light Bar - 20" 7 lbs. N/A
Light Bar - 30" 10 lbs. N/A
Light Bar - 40" 13 lbs. N/A
Light Bar - 50" 16 lbs. N/A
Outboard Motor Mount 20 lbs. N/A
*Plus weight of outboard motor of choice. Not to exceed 10 HP) - -
Rear Accessory Carrier - Main Mount 13.5 lbs. N/A
Rear Seat - Standard 21 lbs. N/A
Rear Seat - Bench 26 lbs. N/A
Safari Rack (Full Length/Rub Rail Mount) 140 lbs. N/A
Safari Rack (Full Length/Roll Bar Mount) 115 lbs. N/A
Safari Rack (Half Length/Rub Rail Mount) 70 lbs. N/A
Safari Rack (Half Length/Roll Bar Mount) 58 lbs. N/A
Snow Plow - 85" Mudd-Ox 190 lbs. N/A
Snow Plow - Boss Power V-Blade 475 lbs. N/A
Spare Carrier - Attachment 5 Gallon Fuel Can w/ Can 20 lbs. N/A
Spare Carrier - Attachment Tire w/o Tire 14.5 lbs. N/A
Tire - 26" x 14" x 12" Vendetta 28.5 lbs. 228 lbs.
Tire - 26" x 18" x 12" Vendetta 31 lbs. 248 lbs.
Tire - 12" Beadlock Rim for 14" Vendetta 13.5 lbs. 108 lbs.
Tire - 12" Beadlock Rim for 18" Vendetta 21 lbs. 168 lbs.
Tire Combo - 26" x 14" x 12" Vendetta on 12" Rim 42 lbs. 336 lbs.
Tire Combo - 26" x 18" x 12" Vendetta on 12" Rim 52 lbs. 416 lbs.
Tire - Dual Wheel Extension 6x6 11.5 lbs. 69 lbs.
Tire - Dual Wheel Extension 8x8 11.5 lbs. 92 lbs.
Tracks - 16" Wide Adair 190 lbs. 380 lbs.
Tracks - 20" Wide Chevron 260 lbs. 520 lbs.
Tracks - 20" Wide Chevron Fort Mac 300 lbs. 600 lbs.
Tracks - 20" Wide Ripsaw 175 lbs. 350 lbs.
Tracks - 20" Wide Ripsaw 6x6 Amphibious Trailer 140 lbs. 280 lbs.
Tracks - 21" Wide Beaver Dam 225 lbs. 550 lbs.
Transport Tie Downs - Bearing Box Style 0.8 lbs. 3.2 lbs.
Transport Tie Downs - Bearing Flange Style 1 lbs. 4 lbs.
Twin Roll Bar 74 lbs. N/A
Twin Roll Bar - Amphibious Trailer 74 lbs. 148 lbs.
Winch - 5000 lbs. Rear Mount 34 lbs. N/A
Windshield 23 lbs. N/A
Windshield Wiper Kit 3 lbs. N/A
Specifications Cont.

10
Warranty
Limited Warranty: Mudd-Ox Inc. (“Mudd-Ox”) hereby warrants to the original purchaser that any components of your
new Mudd-Ox vehicle manufactured by Mudd-Ox will be free from defects in material and workmanship for a period of
(1) year from date of purchase or 500 hours, whichever comes first, exempt as otherwise noted. Dealer demo vehicles are
warrantied for (30) days.
Mudd-Ox Warranty Responsibilities: Mudd-Ox, if notified of a defect in material or workmanship during the period of
warranty, will repair or replace, at its option, defective parts covered by this warranty at no charge other than the reason-
able cost for the transportation of components, if applicable. Mudd-Ox will also pay reasonable charges for necessary labor
to perform warranty repairs.
Warranty Claim Procedures: In order to be able to submit claims under this warranty, the original purchaser must main-
tain and operate the vehicle in accordance with instruction provided: in the Owner’s Manual; engine manufacturer’s manu-
al; in any manual related to components of the vehicle; and on labels affixed to the vehicle. To initiate a warranty claim pro-
cedure, the original purchaser must contact the Mudd-Ox Customer Service Department within (10) days of the discovery
of an alleged defect. Mudd-Ox’s Customer Service Department may be contacted using the following methods: by calling +1
260-768-7221, in person or by mail at Mudd-Ox Inc, 8525 W 750 N Shipshewana, IN 46565, or online at www.muddox.net.
The repair or replacement of any part(s) under this Limited Warranty shall not extend the term of the warranty beyond the
original term as set forth above. Products which Mudd-Ox Inc. determines violate such warranty shall be returned to the
BUYER at the BUYER’S expense. Any parts required for warranty that are not in the dealer’s inventory will be shipped to the
servicing dealer via UPS Ground or USPS priority mail at Mudd-Ox Inc. discretion.
General Exclusions: This limited warranty does not cover component failure or damage caused by any of the following:
abnormal strain or stress; neglect; abuse; theft; fire; improper assembly of components which were supplied in the factory
sealed carton after the vehicle left Mudd-Ox; improper maintenance or repair; modifications; damage caused by use of
non-Mudd-Ox accessories; or improper use of the vehicle including but not limited to: racing, jumping, stunt driving, or any
other uses prohibited in the Owner’s Manual. Additionally, this warranty does not cover vehicles which are leased, rented,
or used at a concession track. This warranty does not cover components not manufactured by Mudd-Ox. For warranty
information on components not manufactured by Mudd-Ox, please refer to each component’s respective manufacturer’s
warranty.
Specific Exclusions: This limited warranty does not apply to components which are subject to normal wear and tear. These
items are not limited to: axles; track keepers; wheels; tires; batteries; throttle; shift, steer and brake cables; drive belt; the
torque converter system; chain; seat; lights; fasteners; decals; or body panels and natural cosmetic discoloration of mate-
rial due to ultraviolet light. Shipping method of parts, incorrectly damaged components, downtime, and delivery charges
are not covered by this warranty. This warranty does not apply to the vehicle’s batteries. The batteries carry a separate
warranty provided by Mudd-Ox’s battery supplier. Please refer to the battery supplier’s warranty policy for their warranty
requirements and procedures.
No Implied Warranty of Fitness or Merchantability: There are no warranties that extend beyond the description on
the face hereof. Specifically, Mudd-Ox makes no other warranty of any kind, express or implied. All warranties of fitness
or merchantability for a particular purpose that exceed the obligations and time limitations specified in this warrant are
hereby disclaimed by Mudd-Ox and excluded from this warranty. Additionally, this warranty excludes any incidental or
consequential damages, including but not limited to loss of use. Some states do not allow a manufacturer to exclude or limit
incidental or consequential damages and, therefore, the above exclusion may not apply.
Some states do not allow limitations on how long an implied warranty will last. It is possible that the above limitation may
not apply. This warranty gives the original purchaser specific legal rights. The original purchaser may also have other legal
rights, which vary from state to state.
Warranty of Service: To obtain warranty service, the original purchaser must return the Mudd-Ox vehicle to the local au-
thorized dealer or service center, inform them of the warranty, and provide proof of purchase before any warranty service
can be provided. The authorized dealer or service center will inspect the product to determine what repairs or parts are
needed and whether they are covered under this warranty. To locate an authorized dealer or service center, please call
Mudd-Ox at [phone] or visit Mudd-Ox online at www.muddox.net

11
Safety
Safety Equipment
All occupants must wear a DOT-certified helmet. Standard are seat belts for the front two passengers, optional rear
with Twin Roll Bar and Seat - Bench. Use the seat belts at all times on land and ensure the ROPS (roll over protec-
tion system) system is in the upwards position with all pins and bolts correctly installed. Any time the vehicle is in
water, you must remove your seat belt and helmet, and wear a life preserver.
General Safety
Do not operate on public roads. Do not operate in waters with current or open water such as large lakes and oceans.
Do not refuel the machine with the engine running. Do not operate the Mudd-Ox on angles greater than 25 degrees.
Do not drive faster than conditions or your ability allows. Do not attempt to make sudden sharp turns or go from
forward to reverse abruptly; doing so could upset the machine or at the least jostle the occupants, possibly causing
injury.
Read through this entire manual and complete all necessary inspections, maintenance and parts replacements as
necessary.
• Do not operate this vehicle while intoxicated.
• Wear appropriate clothing: dress for weather conditions.
• Operator must be at least 16 years of age.
• Use common sense at all times while operating.
• Always have a first aid kit and fire extinguisher inside the vehicle.
• All passengers must be seated while the vehicle is in motion.
• Do not overload the vehicle under any circumstances.
• Ensure floor boards are in place while operating vehicle.
• Avoid blacktop when possible.
• Drive vehicle at safe speeds for terrain conditions.
Capacities of the Mudd-Ox
See Specifications for information on Mudd-Ox vehicle and Amphibious Trailer capacities. Under no circumstances
should the maximum capacities be exceeded. Subtract weight of all accessories from total vehicle capacities. Al-
ways evenly distribute weight to prevent imbalances.
Prepare Your Trip
The Mudd-Ox is capable of traveling to remote locations where emergency services are not readily available. These
locations can range from desert to tundra climates. When traveling in the Mudd-Ox, always pack a survival kit suit-
able for all occupants in the vehicle. This includes but is not limited to: food, water, extra clothing, fuel, flashlight,
portable heater, tent, flares, tools, spare parts, and spare tires mounted on rims. Never venture into remote areas
alone, and notify someone of your departure and expected arrival time. Create emergency plans in advance.

12
Safety Cont.
Every operator MUST review and understand the basic operation manual and all warning labels displayed on this
page and on the vehicle before operation. Please keep a copy in the glove box for operators to review as needed.
Never operate the Mudd-Ox with the roll bar down.
✐
✐
*DRAWING NOT TO SCALE.*
030518
18-121168
MUDD OX
LEXAN DECAL SHEET
011018-1
X
X
X
X
X
X
X
12.5” X 9”
20 MIL 8B35 JETVIEW
-----
468 MP
-----
-----
BLACK
PMS WARNING ORANGE CP
DOES NOT PRINT
ORANGE
C:0
M:100
Y:100
K:0 PMS 185 CP
RED
C:0
M:100
Y:100
K:0
PMS 355 CP
GREEN
C:98
M:12
Y:100
K:2
DIE LINE
JA
X.XX = ± 0.050”
X.XXX = ± 0.030”
GUILLOTINE = ± 0.050”
A
11/6/19
Weight capacities increased, now include Fort Mac.
Open cab doors and top for unrestricted exit
GASOLINE ONLY
• Shut o engine when refueling
• Keep open ame away when refueling
• Re-tighten fuel cap securely
• See Operator’s Manual for
recommended fuel and stabilizer
GASOLINE ONLY
• Shut o engine when refueling
• Keep open ame away when refueling
• Re-tighten fuel cap securely
• See Operator’s Manual for
recommended fuel and stabilizer
DIESEL ONLY
• Shut o engine when refueling
• Keep open ame away when refueling
• Re-tighten fuel cap securely
• See Operator’s Manual for
recommended fuel and stabilizer
Mu˜er
Hot
Keep floor pans securely in place.
Moving chains can cause severe personal injury.
Keep °o or pans securely in place.
Moving chains can cause severe personal injury.
VEHICLE LOAD CAPACITY ON LAND:
Vengeance 1,800 lbs (816 kg)
XL, Fort Mac 2,000 lbs (907 kg)
TOWING CAPACITY:
Vengeance 2,000 lbs (907 kg)
XL, Fort Mac 2,500 lbs (1,134 kg)
VEHICLE LOAD CAPACITY IN WATER:
1,000 lbs (454 kg) evenly distributed.
Capacity includes occupants and all installed accessories.
See owner’s manual for accessory weights.
Amphibious Trailer: 2,000 lbs (907 kg) land & water
TIRE PRESSURE:
See Owners Manual
IMPROPER USE OF THIS VEHICLE CAN RESULT IN SERIOUS INJURY OR DEATH
LOCATE AND READ OPERATOR’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS
NEVER OPERATE:
• If you are under age 18
• Without proper training and instruction
• At speeds too fast for your skill level or the conditions
• On public roads – a collision can occur with another vehicle
• Without all guards, shields, °o or pans and hood in place
• Without checking throttle control for proper operation/return
ALWAYS USE APPROVED
HELMET AND EYE
PROTECTION
ALWAYS WEAR AN
APPROVED PERSONAL
FLOTATION DEVICE(PFD)
AND CARRY A PADDLE
NEVER DRIVE
ON PUBLIC ROADS
NEVER USE
WITH DRUGS OR
ALCOHOL
ON LAND, ALWAYS:
• Use proper driving techniques to avoid vehicle overturn on hills, rough terrain
and in turns
• Avoid paved surfaces – pavement may seriously affect handling and control
IN WATER, ALWAYS:
• Remove seat belts and retract passenger T-Bar handle before entering the water
• Use vehicle in calm water only as vehicle may be unstable, fill with water and sink
• Secure drain plugs and keep cab doors and top open for unrestricted exit
• Observe capacity limitations and keep load low and evenly distributed
• Enter and exit water on gradual terrain slope
R
F
N
Do not operate with engine cover
removed. Moving parts can cause
severe personal injury.
20 lbs.
weight limit
Do not block
air intake.
Do not operate with engine cover
removed. Moving parts can cause
severe personal injury.
20 lbs.
weight limit
Do not block
air intake.
WARNING
Muffler
Hot
WARNING
IMPROPER USE OF THIS VEHICLE CAN RESULT IN SERIOUS INJURY OR DEATH
LOCATE AND READ OPERATOR’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS
NEVER OPERATE:
• If you are under age 18
• Without proper training and instruction
• At speeds too fast for your skill level or the conditions
• On public roads – a collision can occur with another vehicle
• Without all guards, shields, floor pans and hood in place
• Without checking throttle control for proper operation/return
ALWAYS USE APPROVED
HELMET AND EYE
PROTECTION
ALWAYS WEAR AN
APPROVED PERSONAL
FLOTATION DEVICE(PFD)
AND CARRY A PADDLE
NEVER DRIVE
ON PUBLIC ROADS
NEVER USE
WITH DRUGS OR
ALCOHOL
ON LAND, ALWAYS:
• Use proper driving techniques to avoid vehicle overturn on hills, rough terrain
and in turns
• Avoid paved surfaces – pavement may seriously affect handling and control
IN WATER, ALWAYS:
• Remove seat belts and retract passenger T-bar handle before entering the water
• Use vehicle in calm water only as vehicle may be unstable, fill with water and sink
• Secure drain plugs and keep cab doors and top open for unrestricted exit
• Observe capacity limitations and keep load low and evenly distributed
• Enter and exit water on gradual terrain slope
VEHICLE LOAD CAPACITY ON LAND:
Vengeance 1,800 lbs (816 kg)
XL, Fort Mac 2,000 lbs (907 kg)
TOWING CAPACITY:
Vengeance 2,000 lbs (907 kg)
XL, Fort Mac 2,500 lbs (1,134 kg)
VEHICLE LOAD CAPACITY IN WATER:
1,000 lbs (454 kg) evenly distributed.
Capacity includes occupants and all installed accessories. See
owner’s manual for accessory weights.
Amphibious Trailer: 2,000 lbs (907 kg) land & water
TIRE PRESSURE:
See Owners Manual
10.69”
3.99”
3.05”
3.83”
2.10” RAD .1”
(X4)
1.39”
DIA .1875”
(X4)
4”
1.75”
.85”
PART X2
MEASUREMENTS
1.12”
WARNING GASOLINE/DIESEL LABEL
(SAME DIMENSIONS)
1.52”
7.45”
1.87”
2.54”
RAD .1”
(X4) RAD .1”
(X4)
RAD .1”
(X4)
RAD .1”
(X4)
RAD .1”
(X4)
DIA .1875”
(X4)
DIA .1875”
(X4)
DIA .1875”
(X4)
DIA .1875”
(X4)
.125”
.237”
RAD .1”
(X4)
11/6/19
Removed one label 1/29/20

13
Safety Cont.
50 40 30 20 10 0-10 -20 -30 -40 -50 -60
Calm 50 40 30 20 10 0-10 -20 -30 -40 -50 -60
548 37 27 16 6-5 -15 -26 -36 -47 -57 -68
10 40 28 16 4-9 -21 -33 -46 -58 -70 -83 -95
15 36 22 9-5 -18 -36 -45 -58 -72 -85 -99 -112
20 32 18 4-10 -25 -39 -53 -67 -82 -96 -110 -124
25 30 16 0-15 -29 -44 -59 -74 -88 -104 -118 -133
30 28 13 -2 -18 -33 -48 -63 -79 -94 -109 -125 -140
35 27 11 -4 -20 -35 -49 -67 -82 -98 -113 -129 -145
40 26 10 -6 -21 -37 -53 -69 -85 -100 -116 -132 -148
*Wind speeds
great than 40
mph have little
additional effect
Wind Speed in
MPH
*Danger from freezing of exposed flesh
Equivalent Temperature (F)
Actual Thermometer Reading (F)
GREAT DANGER
LITTLE
DANGER*
INCREASED
DANGER*
Wind chill is the feeling of colder temperatures than what the thermometer reads. This happens when the wind
blows cold air across exposed skin.
All Mudd-Ox operators and passengers must be aware of the wind chill factor. Always dress properly for the weather
and cover exposed skin. Ensure young children are adequately dressed for cold temperatures. It is best to bring candles
and blankets in case of emergency. For colder applications, we highly recommend installing either our Cab - Canvas or
Cab - Aluminum (Figure-1, 2) with a heater (Figure-3). For warm climates we recommend the A/C Unit (Figure-4).
Figure-2
Cab - Aluminum
Figure-1
Cab - Canvas
Figure-3
Heater
Figure-4
A/C Unit

14
Instrument Panel XL
1212 1313 1414
1010 1111
1515
22
556677 8844
1133
99

15
Instrument Panel XL Cont.
1.1. Neutral Light:Neutral Light: Illuminates when both control levers are in neutral position. This is required for the vehicle toIlluminates when both control levers are in neutral position. This is required for the vehicle to
start.start.
2.2. Parking Brake LightParking Brake Light: Illuminates when the parking brake is engaged. This is required for the vehicle to start.: Illuminates when the parking brake is engaged. This is required for the vehicle to start.
3.3. Digital Display:Digital Display: This electronic monitoring system shows engine RPM, oil pressure, coolant temperature andThis electronic monitoring system shows engine RPM, oil pressure, coolant temperature and
battery voltage. Located below the screen are buttons used to cycle through various digital displays. Refer tobattery voltage. Located below the screen are buttons used to cycle through various digital displays. Refer to
engine manual for additional information.engine manual for additional information.
4.4. Ignition Switch:Ignition Switch: When the key is installed, it will toggle the engine on and off. To start the engine: Turn key com-When the key is installed, it will toggle the engine on and off. To start the engine: Turn key com-
pletely clockwise, release once started. Turn completely counterclockwise to shut off engine.pletely clockwise, release once started. Turn completely counterclockwise to shut off engine.
5.5. Head Lights Switch:Head Lights Switch: Flipping the switch to “ON” will activate the headlights and tail lights.Flipping the switch to “ON” will activate the headlights and tail lights. NeverNever operate theoperate the
Mudd-Ox at night without lights.Mudd-Ox at night without lights.
6.6. Winch Switch:Winch Switch: Controls the directino of the winch motor. The “OUT” position will unreel the cable away form theControls the directino of the winch motor. The “OUT” position will unreel the cable away form the
Mudd-Ox, while “IN” will reel the cable towards the Mudd-Ox.Mudd-Ox, while “IN” will reel the cable towards the Mudd-Ox.
7.7. Bilge Pump Switch:Bilge Pump Switch: When in an emergency, if the Mudd-Ox has water in the lower body, quickly flip on the bilgeWhen in an emergency, if the Mudd-Ox has water in the lower body, quickly flip on the bilge
pump switch. This will immediately begin to pump water out of the vehicle.pump switch. This will immediately begin to pump water out of the vehicle. Caution:Caution: This is a feature to removeThis is a feature to remove
small amounts of water. If the machine is completely filled, you must quickly exit quickly.small amounts of water. If the machine is completely filled, you must quickly exit quickly.
8.8. Windshield Wiper Switch:Windshield Wiper Switch: Only applicable on Mudd-Ox’s equipped with a windshield wiper. There is both aOnly applicable on Mudd-Ox’s equipped with a windshield wiper. There is both a
High and Low setting. High moves the blade quickly, while Low moves it slower. Select setting based on weatherHigh and Low setting. High moves the blade quickly, while Low moves it slower. Select setting based on weather
conditions and visibility.conditions and visibility.
9.9. Auxiliary Switch:Auxiliary Switch: Additional switch to be used with Mudd-Ox accessories such as a powered dump bed or lights.Additional switch to be used with Mudd-Ox accessories such as a powered dump bed or lights.
If no additional accessories have been installed, the switch will not operate anything.If no additional accessories have been installed, the switch will not operate anything.
10.10.USB Ports:USB Ports: Under the weatherproof cover are (2) 12V USB ports. These may be used to power accessories suchUnder the weatherproof cover are (2) 12V USB ports. These may be used to power accessories such
as a cell phone.as a cell phone.
11.11. Cigarette Lighter Port:Cigarette Lighter Port: Under the weatherproof cover is a 12V cigarette light port. This may be used to powerUnder the weatherproof cover is a 12V cigarette light port. This may be used to power
accessories such as a cell phone.accessories such as a cell phone.
12.12. Fuel Gauge:Fuel Gauge: The fuel gauge monitors the amount of fuel left in the vehicle. When traveling to remote locations,The fuel gauge monitors the amount of fuel left in the vehicle. When traveling to remote locations,
the vehicle should always be filled with additional fuel cans in case of emergency. Leave enough fuel to returnthe vehicle should always be filled with additional fuel cans in case of emergency. Leave enough fuel to return
back to your starting location.back to your starting location.
13.13. Hydraulic Oil Temp Gauge:Hydraulic Oil Temp Gauge: The oil gauge monitors hydraulic oil temperature, and must not exceed 180 degreesThe oil gauge monitors hydraulic oil temperature, and must not exceed 180 degrees
Fahrenheit. If the temperature exceeds 180 degrees, immediately shut off machine and let it cool down.Fahrenheit. If the temperature exceeds 180 degrees, immediately shut off machine and let it cool down.
14.14. Push-Button Throttle:Push-Button Throttle: For easy of driving, Mudd-Ox XL is designed with a push button throttle system. Once theFor easy of driving, Mudd-Ox XL is designed with a push button throttle system. Once the
engine is started, simply press the rabbit symbol for higher RPM, and the turtle for lower RPM.engine is started, simply press the rabbit symbol for higher RPM, and the turtle for lower RPM.
15.15. Emergency Bypass Switch:Emergency Bypass Switch: It is designed to override preliminary startup procedures to quickly start the vehi-It is designed to override preliminary startup procedures to quickly start the vehi-
cle. By holding the switch in the “ON” position, it will bypass the need for control levers to be in neutral, and willcle. By holding the switch in the “ON” position, it will bypass the need for control levers to be in neutral, and will
bypass the parking brake.bypass the parking brake. Note:Note: this is for emergency use only. Using this switch without care could cause thethis is for emergency use only. Using this switch without care could cause the
vehicle start and immediately move depending on operator lever location.vehicle start and immediately move depending on operator lever location.

16
Drive the Mudd-Ox
Move the left nd right control levers forwrd nd bckwrds until you feel the neutrl detent, nd the neutrl
light on the dsh illumintes. Mke sure the prking brke is engged, nd the prking brke light on the dsh is
flshing. Mke sure ll persons re seted nd crgo is secured for movement. Also mke sure ny person outside
the mchine is  sfe distnce wy.
Emergency Bypass
The bright red switch on the instrument panel is for emergency use only. It is designed to override preliminary
startup procedures to quickly start the vehicle. By holding the switch in the “ON” position, it will bypass the need for
control levers to be in neutral, and will bypass the parking brake. Once again please note this is for emergency use
only. Using this switch without care could cause the vehicle start and immediately move depending on operator
stick location.
Engine Startup
Insert key. Turn completely clockwise to start engine, release once started (If the engine fails to start after 5 sec-
onds, turn off the key for 5 to 30 seconds and then try again). Turn counterclockwise to shut off engine.
Engine Throttle
For easy of driving, Mudd-Ox XL is designed with a push button throttle system. Once the engine is started, simply
press the rabbit symbol for higher RPM, and the turtle for lower RPM. Full throttle will give you full power and
torque. Half throttle will give you half power and torque, etc. The more you apply the throttle, the more power and
speed you will be able to achieve. Note: It is not recommended to drive the Mudd-Ox under 2000 RPM.
Control Levers
You will use the two control levers to change direction of the machine. The left lever “A” operates the left side
wheels/track, and the right lever “B” operates the right side wheels/track (Figure-1). Please note that smooth
minor movements on the controls are all that is needed to drive the Mudd-Ox.
AA
Control Levers
Figure-1
BB

17
Drive the Mudd-Ox Cont.
Neutral
When both levers are in neutral position, the Mudd-Ox will not move in either direction. If parked on an incline, it
may begin to slowly creep. Always follow safety precautions as explained throughout this manual.
Forward
Pushing the control levers forward will drive the wheels/track forward. The further the levers are pushed, the
faster the Mudd-Ox will travel.
Reverse
In reverse, each lever will still control its respected side of the Mudd-Ox. Pulling them backwards will drive the
wheels/tires backwards. The further the levers are pushed, the faster the Mudd-Ox will travel.
Turning
As the XL utilizes a hydrostatic system, it can turn 360 degrees. A left turn can be achieved in numerous ways:
• Left side lever in neutral position while pushing forward on the right side lever (wide radius turn).
• Left side lever in reverse position while pushing forward on the right side lever (360 degree turn).
The above works vice versa for completing a right side turn. Practice driving the XL in an open, safe environment
before operation in more demanding areas.
Climbing Steep Hills
When climbing a steep in hill the Mudd-Ox, ease back on the control levers. This system is designed to provide
maximum power and torque to prevent engine bogging or stall. If the engine continues to bog down, slowly pull the
levers closer to neutral position until it gains power. Use precise movements.

18

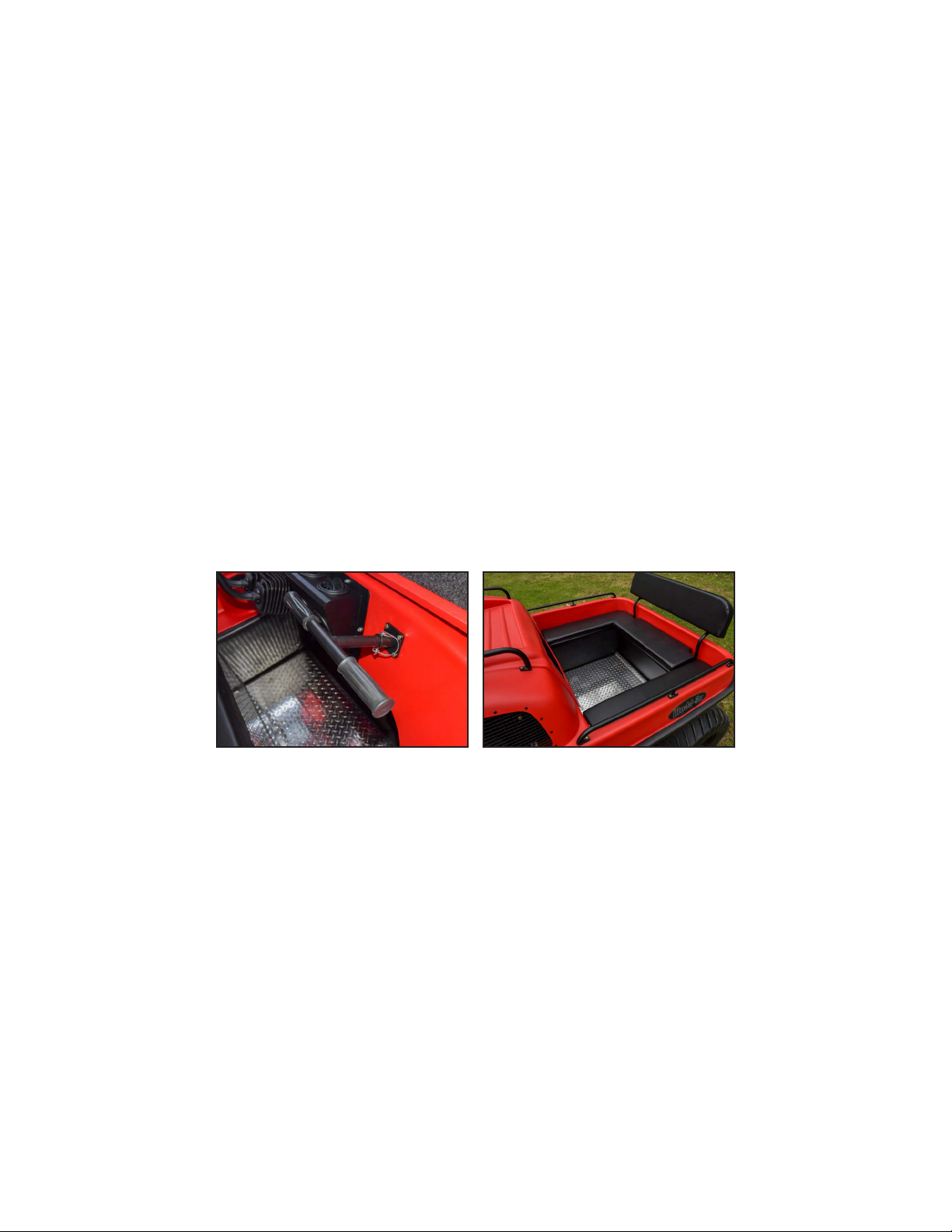

Figure-2
Grab Rails
Figure-1
T-Bar Grab Handle
Land Operation
Vehicle Preparation
Before operating the Mudd-Ox, complete the following vehicle preparation:
•Complete vehicle maintenance as described throughout this manual.
•Ensure all floor boards and engine cover are secured in place to keep foreign objects out of the drivetrain.
•Place roll bar in the “up” position and verify safety bolts and clips are in place.
•Inspect fuel tank, fuel lines and fuel fill for potential leaks or spilled fuel. If there is any spilled fuel, immediately
clean and service vehicle before further use as serious injury may occur. Use the fuel gauge located on the dash
to ensure the fuel tank is full.
•If at any time during operation there is an unusual noise, sound or smell coming from the Mudd-Ox, inspect im-
mediately.
•Ensure the weight capacity is not overloaded, and distribute weight evenly.
•Load enough supplies to last in case of emergency.
Occupant Preparation
• If applicable, the front passenger must properly adjust the grab handle (Figure-1) by removing the pin and sliding
the T-bar in/out. It should be close enough to reach with both hands, but not pressing against the passenger’s
body. Verify the safety pin is secured properly reinstalled.
• Passenger must hold onto the bar at all times. Rear passengers must locate the grab rails and hold onto them at
all times (Figure-2).
• All front occupants must wear seat belts, rear occupants if seat belts equipped, and all wear DOT-rated helmets.

19
Land Operation Cont.
Turning Radius
It is important to always check your surroundings before turning the Mudd-Ox. Look for objects such as trees and
rocks, changes in terrain elevation, and other people. XL is capable of turning 360 degrees within its own radius via
counter-rotating its wheels. Never counter-rotate or sharply turn the Mudd-Ox at high speeds or on harsh terrain.
Steep Grades
Never operate the Mudd-Ox over 25 degree grades or on side slopes. Check your specific engine manual to read
manufacturer’s recommendations on maximum grade. Do not make sudden adjustments or put the Mudd-Ox into
a neutral position, as the vehicle can lose control and roll down the hill where severe injury or death can occur.
When approaching or descending grades, always drive head-on to prevent upsetting the vehicle. Maintain control
of the vehicle. Always drive slow and gentle to prevent loss of traction.
Mud and Snow
Always survey an area before driving the Mudd-Ox into unusual terrain. On soft grounds including but not limited
to mud and snow, remain cautious about bottoming out the vehicle. This occurs when the Mudd-Ox tires or tracks
are no longer touching the ground, and rather the machine is resting on the lower body. Often times it is caused by
driving into deep ruts or too deep of snow. Always look for alternative routes if you encounter these circumstances.
Winter
Mudd-Ox is capable of operating in cold climates. Check the engine manufacturer’s manual for information about
cold weather and if applicable, preheating the engine. We recommend equipping the machine with a top and heat-
er system. Occupants must take necessary precaution as explained under Safety. It is important to never allow
water to fill inside the lower body, as it may freeze and seize the driveline.
Desert
Similar to cold temperatures, desert climates also require additional precaution. See Instrumentation Panel for
information on vehicle temperatures. Never exceed the written temperatures as well as engine manufacturer’s
recommendations. Always bring plenty of water and additional resources for all occupants. It is recommended to
install a Cab - Canvas with the side curtains rolled up to allow for maximum shade and air flow to occupants.

20
Water Operation

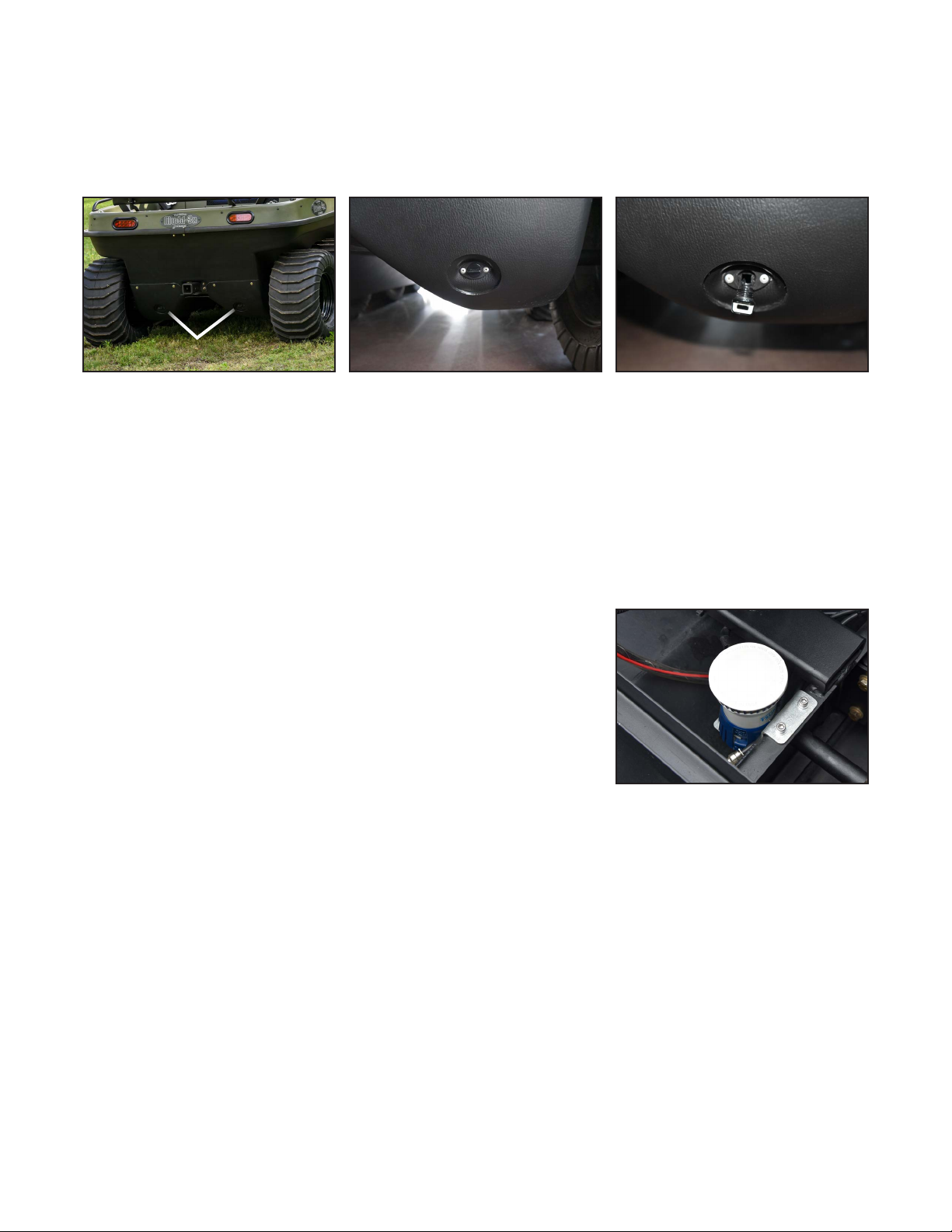

Drain Plugs
Located at the bottom rear of the Mudd-Ox are (2) drain plugs (A in Figure-1). Before driving into water, always
ensure the drain plugs are tight by turning them clockwise (Figure-2). This will prevent water from leaking inside
the machine.
AA
Drain Plug Locations
Figure-1 Figure-3
Loose
Figure-2
Tight
Vehicle Preparation
• Complete the vehicle preparation procedures as described in Land Operation.
• Ensure there are no punctures in the lower body.
• See Bearings for information about inspection and servicing.
• Ensure the bilge pump works and is free of debris (Figure-4).
• Ensure the weight capacity is not overloaded, and weight is distributed evenly.
• Bring a paddle in case of emergency.
• Remove plow if equipped.
• Never venture into water without a safety crew on shore.
• Keep a bucket in the vehicle for draining water.
• Equip the vehicle with a winch.
• Keep electronic devices in a floating storage unit.
• Inform others of your expected return time.
• Bring a satellite cell phone.
• Retract the passenger t-bar.
Occupant Preparation
All occupants must unlatch their safety belts before entering water, remove DOT-certified helmets, and wear flo-
tation devices. If the Mudd-Ox is equipped with Cab - Aluminum, locate the exit areas and side door latches. If the
Mudd-Ox is equipped with Cab - Canvas, unzip the doors and roll them up. Make sure all occupants know the ve-
hicle exit locations in case of emergency. If there is an emergency, all occupants are to leave the vehicle as quickly
as possible and get to safety
Entering Water
Mudd-Ox can only be used in calm water. Drive slow and steady. Only enter water at an angle of 10 degrees or less
to prevent water from flowing into the Mudd-Ox. Stay near the shore. Do not operate in waters with current or
open water such as large lakes and oceans. Only enter water if the Mudd-Ox is equipped with tires or tracks with
swimming capabilities, or if outboard motor is installed. See outboard motor owner’s manual for information. Do
not enter water with plow installed. Vehicle will become unbalanced and dangerous.
Figure-4
